Product Type	3-Way Coaxial Car Loudspeaker
Speaker Type	Coaxial 3-Way (Woofer, Midrange, Tweeter)
Speaker Size	6" x 9" (15 cm x 23 cm)
Impedance	4 Ohms
Peak Power Handling	300 Watts Peak
RMS Power Handling	80 Watts RMS
Frequency Response	40 Hz - 20 kHz
Sensitivity	92 dB (1W/1m)
Tweeter Type	1" (25mm) Balanced Dome Tweeter
Midrange Type	2" (50mm) Cone Midrange
Woofer Cone Material	Injection Molded Polypropylene
Magnet Type	Ferrite Magnet
Mounting Depth	3.5" (89mm)
Mounting Cutout	5.5" x 7.5" (140mm x 190mm)
Grille Included	Yes, with mounting adapters
Terminal Type	Gold-Plated Push Terminals
Recommended Amplifier Power	20-150 Watts RMS per channel
Installation Compatibility	Fits most stock 6x9 openings
Maintenance	Clean with a soft, dry cloth only
Safety Precautions	Keep away from water, moisture, and excessive heat
Replacement Parts & Repairability	Contact PowerBass for service; grille and mounting hardware are replaceable

Frequently Asked Questions - S-693 PowerBass

What are the key specifications of the PowerBass S-693 speaker?

The S-693 is a 6"x9" 3-way coaxial speaker with 4-ohm impedance, 80W RMS and 300W peak power handling. It delivers a frequency response of 40 Hz to 20 kHz with a sensitivity of 92 dB.

Can I use the S-693 in my home theater system?

Yes, but it is optimized for car audio. You can use it in a home system if you have an appropriate enclosure and amplifier, but note that it is designed for automotive environments.

What is the mounting depth and cutout size for installation?

The mounting depth is 3.5 inches (89 mm) and the mounting cutout is 5.5" x 7.5" (140 x 190 mm). Always check for clearance before installation.

How do I connect the speaker wires?

Connect the positive terminal to the amplifier's positive output and the negative to negative. Use at least 16-gauge wire for longer runs. Make sure the polarity is consistent for proper stereo imaging.

The speaker is not producing sound. What should I check?

Check the wiring connections, ensure the amplifier is on, and verify that the speaker is not blown. Also test with another speaker to rule out amplifier issues.

How should I clean the speaker?

Use a soft dry microfiber cloth to gently wipe the cone and surround. Never use water, solvents, or compressed air, as they can damage the material.

Is the S-693 water-resistant?

No, it is not waterproof or water-resistant. Keep it away from rain, spills, and high humidity to prevent damage to the voice coil and cone.

Does this speaker have a built-in crossover?

Yes, the S-693 features an integrated crossover network that separates the frequencies for the tweeter, midrange, and woofer, ensuring smooth sound reproduction.

What type of music does this speaker handle well?

It performs best with rock, pop, hip-hop, and electronic genres due to its powerful bass response and clear highs. It can handle high volumes with minimal distortion when powered correctly.

Can I replace the grille if damaged?

Yes, the grille and mounting hardware are replaceable. Contact PowerBass customer service to order the correct parts.

USER MANUAL S-693 PowerBass

powerbass® AutoSound

S-402	S-652	S-693
S-352	S-65T	S-682
S-275CH	S-522	S-410
	S-462	S-675

AUTOSOUND S SERIES SPEAKERS

Application Guide

Please read through this manual to familiarize yourself with your new speakers. Should your PowerBass Autosound speakers ever require service, you will need to have the original dated receipt.

powerbass® AutoSound

Thank you and Congratulation

Congratulations on your purchase of Powerbass Autosound speakers. You now own a speaker of uncompromising design and engineering from a factory that truly believes in the relentless pursuit of perfection. Incorporating the highest quality parts and state-of-the-art materials, these speakers display the ultimate balance between high fidelity, extreme performance and long-lasting reliability.

At Powerbass USA, Inc. we are confident you will have many years of outstanding enjoyment from your superior SPEAKER investment. For maximum performance we recommend that you have your new PowerBass Autosound speakers installed by an Authorized PowerBass Dealer.

To learn more about PowerBass, please visit us on the World Wide Web at

http://www.powerbassusa.com

Δ Caution Δ

Continuous exposure to sound pressure levels in excess of 100 dB can cause permanent hearing loss. PowerBass Autosound Speakers are capable of producing sound pressure levels well over 170 dB. Please observe all local sound ordinances while listening to your PowerBass Autosound system. PowerBass USA, Inc. accepts no liability for hearing loss, bodily injury, or property damage due to the result of use or misuse of this product.

POWERBASS AUTOSOUND S SPEAKER FEATURES

2-Layer Black Paper, DDC Finish Cone: The choice of cone materials has everything to do with the difference between good and great sound. Paper delivers one of the warmest sounds available along with the DDC (Dynamic Damping Coating) finish to give your music uncompromised fidelity.

Balanced Pure Silk, Soft Dome Tweeter: Silk dome tweeters have been used for many years by audiophile's world wide for the most accurate and smooth high frequency sound reproduction available. The low profile tweeter design makes upgrading factory speakers a simple and non-evasive task. (The S-693 utilizes a mylar Mid and Tweeter and S-275CH is full range)

OEM Drop-in Replacement: Designed to fit most OEM speaker applications for an easy installation upgrade over factory speakers. Fits behind factory grills in many cars.

Double Pressed Treated Rolled Foamed Surround: The high damping, double rolled foam surround on these speakers ensure linear travel throughout the entire frequency range resulting in more bass output and higher efficiency while reducing distortion.

Additional Features: Acoustically transparent speaker grills*professional mounting hardware and speaker wires adds further value to your investment.

SPECIFICATIONS FOR POWERBASS S SERIES SPEAKERS

(Due to Constant Improvements, Specifications and Parameters are subject to change without notice.)

Model Size Nominal		Impedance	Frequency Response	Sensitivity 1W/1M	Magnet Size Mounting Depth		Power RMS/ Peak
S-275CH*	2.75" 4-ohm	150Hz-19kHz	90dB 3 oz. 1.25" 30W/60W
S-352*	3.5"	4-ohm	80Hz-20kHz	85dB	4 oz.	1.5"	30W/90W
S-402	4"	4-ohm	70Hz-20kHz	86dB	6 oz.	1.8"	35W/105W
S-462*	4x6"	4-ohm	70Hz-20kHz	86dB	6 oz.	1.95"	35W/105W
S-522	5.25"	4-ohm	65Hz-20kHz	87dB	8 oz.	2.0"	40W/120W
S-65T	6.5" thin	4-ohm	63Hz-20kHz	87dB	10 oz.	2.15"	45W/135W
S-652	6.5"	4-ohm	60Hz-20kHz	88dB	10 oz.	2.3"	50W/150W
S-675*	6.75"	4-ohm	63Hz-20kHz	87dB	10 oz.	2.15"	50W/150W
S-412	4x10"	4-ohm	58Hz-20kHz	89dB	10 oz.	2.6"	50W/150W
S-682*	6x8"	4-ohm	56Hz-20kHz	88dB	10 oz.	2.35"	60W/180W
S-693*	6x9"	4-ohm	45Hz-20kHz	90dB	20 oz.	3.3"	70W/210W

*Grills Not Included on some Models.

Before beginning your installation, thoroughly read this guide and keep it as a reference. It will give you tips on proper placement, wiring, and installation as well as how to obtain the best sound from the PowerBass speakers you have selected.

INSTALLATION EXPERIENCE

Installation of PowerBass Autosound Speakers requires experience with a variety of mechanical and electrical procedures. This manual only provides general installation and operation instructions. If you have any reservations about your installation skills or lack of the proper tools, please contact your local PowerBass Autosound dealer for assistance.

TIPS TO GET THE MOST OUT OF YOUR POWERBASS SYSTEM

Your PowerBass Autosound speakers have been meticulous engineered and designed to handle high power musical reproduction. Despite their rugged construction, it is possible to damage your speaker if they are improperly used. In general, you will hear distortion as a so-called warning before any damage occurs. If you hear distortion in your system, immediately reduce the musical level to the point where the sound retains its clarity.

1. Be sure you supply the speakers with enough unclipped amplifier power to drive them properly. (More damage can be done to a speaker by under-powering and clipping your amplifier than any other way!)
2. Where possible, a separate amplifier just for your speaker should be used with an electronic crossover to set the frequency range. One amplifier with passive crossovers will work (Tri-Way Setup), but the system will do more with less stress on the amplifier by using two amps.
3. To avoid any possible sound cancellation from the front of the speaker to that of the rear of the speaker, cut a panel of Masonite or MDF to firmly mount the speaker if the vehicle's original cutout is too big.
4. When connecting speaker wires from the amplifier or head unit to that of the speaker itself, pay attention to the polarity of the connection. This will insure optimum sound reproduction and performance.
5. For maximum dynamic performance use weather stripping to insure a tight seal.
6. Do not mount any speakers or external crossovers where they will get wet.
7. Remember the Golden Rule "Measure twice...cut once."

PREPARING FOR INSTALLATION

NOTE: The tools listed below may be required for proper installation.

• An electric drill with drill bits
• Phillips-head and standard screwdrivers
- Wire strippers
• Crimping tool and needle-nose pliers
• Silicone sealant or closed cell weather-stripping
- Metal file
- Hole saw
- Tin Snips

INSTALLATION PRECAUTIONS

NOTE: Proceed only if you are a qualified installer otherwise; let your dealer do it.

• Always wear protective eyewear when using tools.
- Turn off all stereo and other electrical devices before you begin.
- Disconnect the (-) negative lead from your vehicle's battery.
- Keep the speakers in the package until final installation.
- Locate all fuel lines, brake lines, oil lines, and electrical cables when planning your installation.
- Check to see if there is enough clearance behind the mounting surface before installing the speakers.
- When running speaker wires through sheet metal, be sure to use grommets to properly insulate the wires from metal edges.

EXAMPLE OF MOUNTING

Mounting Options

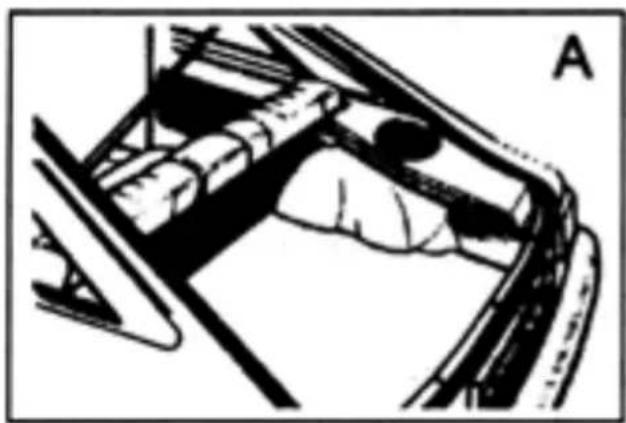

A: Rear Deck Mounting
B: Multiple Mounting

Multi-Speaker Installation Wiring Diagram

ILLUSTRATION OF REAR DECK MOUNT INSTALLATION

• A: Speaker mounting depth and hole cutout diameter.
• B: Cut hole using saber saw/ utility knife.
- C: Connect wiring to speaker terminals. Make sure of polarity (+)positive (-)ground. Using a philips screwdriver secure speakers and attach grille, if applicable.

POWERBASS AUTOSOUND LIMITED WARRANTY POLICY

PowerBass USA, Inc. offers limited warranty on PowerBass products under normal use on the following terms:

PowerBass Autosound Speakers are to be free of defects in material and workmanship for a period of one (1) year.

This warranty applies only to PowerBass products sold to consumers by Authorized PowerBass Dealers in the United States of America. Products purchased by consumers from a PowerBass dealer in another country are covered only by that country's Distributor and not by PowerBass USA.

This warranty covers only the original purchaser of PowerBass product. In order to receive service, the purchaser must provide PowerBass with the receipt stating the consumer name, dealer, product and date of purchase.

Products found to be defective during the warranty period will be repaired or replaced (with a product deemed to be equivalent) at PowerBass's discretion and will not be liable for incidental or consequential damages. PowerBass will not warranty this product under the following situations:

• Speakers received with bent frames or water damage
• Abuse such as holes in the cone, surround or ripped spider
• Voice coil damage due to amplifier clipping or distortion
• Product that has not been installed according to this owners manual

Any implied warranties including warranties of fitness for use and merchantability are limited in duration to the period of the express warranty set forth above. Some states do not allow limitations on the length of an implied warranty, so this limitation may not apply. No person is authorized to assume for PowerBass any other liability in connection with the sale of this product.

Please call [phone] for PowerBass Customer Service. You must obtain an RA# (Return Authorization Number) to return any product to PowerBass. The RA number must be prominently marked on the outside of the shipping carton or the delivery will be refused. Please pack your return carefully; we are not responsible for items damaged in shipping. Return the defective product along with a copy of the original dated retail sales receipt, plus \$12.00 for handling and diagnostic evaluation to:

13936 Mountain Avenue, Chino, CA 91710

Residents of HI, AK and US territories will be charged for return shipping. All inquires regarding service and warranty should be sent to the above address.

Removed or altered serial numbers will void this warranty
