EXL-XX15.2DHE - Subwoofer DS18 - Free user manual and instructions

Type of Product	Subwoofer
Brand	DS18
Model	EXL-XX15.2DHE
Speaker Size	15 inches
Impedance	Dual 2 Ohm
Peak Power Handling	2000 Watts
RMS Power Handling	1000 Watts
Frequency Response	25 Hz - 1 kHz
Sensitivity	91 dB
Voice Coil	4-layer copper voice coil
Magnet Type	High-temperature ferrite magnet
Cone Material	High-rigidity polypropylene cone
Surround Material	Butyl rubber surround
Mounting Depth	7.5 inches

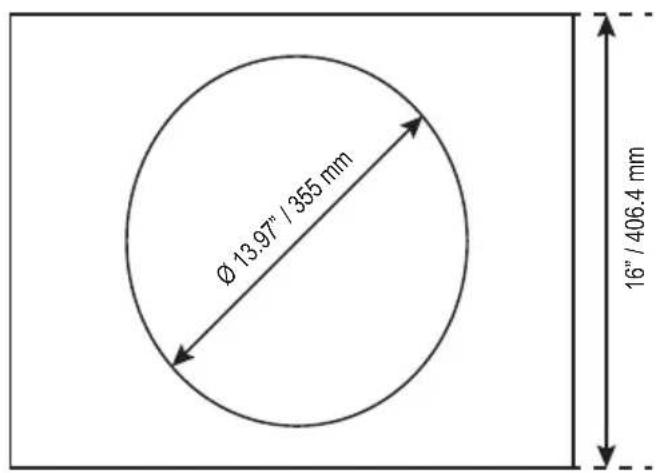

Cutout Diameter	13.75 inches
Recommended Enclosure	Sealed or ported
Terminal Type	Dual spring-loaded push terminals
Cleaning Instructions	Wipe with dry cloth
Safety Warnings	Ensure proper enclosure, avoid overdriving
Spare Parts Availability	Available upon request

Frequently Asked Questions - EXL-XX15.2DHE DS18

What is the impedance configuration of the EXL-XX15.2DHE?

The EXL-XX15.2DHE features a dual 2 Ohm voice coil configuration, allowing flexible wiring for 1 Ohm or 4 Ohm loads.

What size enclosure is recommended for this subwoofer?

For optimal performance, use a sealed enclosure of 2.5 cubic feet or a ported enclosure of 4.0 cubic feet tuned to 35 Hz.

What is the RMS power rating of this subwoofer?

The subwoofer handles 1000 Watts RMS and 2000 Watts peak, requiring a quality amplifier that delivers clean power.

How do I wire dual 2-ohm voice coils?

To wire for a 1 Ohm load, connect the voice coils in parallel. For a 4 Ohm load, connect them in series. Ensure your amplifier is stable at the chosen impedance.

Does the subwoofer require a break-in period?

Yes, a break-in period of 10-15 hours at moderate volume is recommended to allow the suspension to loosen and reach full excursion.

How should I clean and maintain the subwoofer?

Use a dry or slightly damp cloth to wipe the cone and surround. Avoid harsh chemicals and keep the subwoofer away from moisture.

What safety precautions should I take?

Always use an appropriate enclosure, set gain levels to avoid clipping, and ensure the subwoofer is securely mounted.

Can I use this subwoofer in a ported enclosure?

Yes, the EXL-XX15.2DHE works well in ported enclosures for increased bass output, provided the box is built to the recommended specifications.

What kind of amplifier should I use?

Use a monoblock amplifier that delivers at least 1000 Watts RMS at the final impedance (1 or 4 Ohm) for best performance.

Does the subwoofer come with a warranty?

DS18 offers a 1-year warranty against manufacturing defects, covering parts and labor for eligible repairs.

USER MANUAL EXL-XX15.2DHE DS18

OWNER'S MANUAL EXL-XX15.2DHE

15" HIGH EXCURSION SUBWOOFER DUAL 2 OHMS

SUBWOOFER DE ALTA EXCURSION DE 15" CON BOBINA DOBLE DE 2 OHM

EXL-XX15.2DHE

Specifications / Especificaciones:

(WxHxD): 37.40"x 17.72"x 21.56"

Material Thickness / Grueso del material: 0.75" (3/4) / 18mm

Net Internal Volume / Volumen interno neto: 5.00 ft ³

Tuning Frequency / Frecuencia de entonacion: 34 Hz

Port Area / Area del puerto: 77.50 inch ²

Port Inlet / Boca del puerto (WxH): 5.78x16.22"

Port Length / Largo del puerto: 25.37"

Wood Cuts / Cortes de la Madera Qty

Top-Bottom / Arriba-Abajo

(WxH): 37.40"x21.56" 2

Rear / Atras: 37.40"x16.22" 1

Left / Izquierdo: 20.06"x16.22" 1

Right / Derecho: 20.81"x16.22" 1

Port/Puerto: 15.28"x16.22" 1

Port / Puerto: 3.81"x16.22" 1

Recommended Box Dimension / Dimensiones de Caja Recomendadas

Single Subwoofer Sealed Box / Caja Para un Subwoofer Sellada:

Parameters / Parametros

Box External Dimensions / Dimensiones externas de la caja

(WxHxD): 18"x 16"x12.41"

Material Thickness / Grueso del material : 0.75" / 18 mm

Net Internal Volume / Volumen interno neto: 1.38 ft ⁴

Wood Cuts / Cortes de la Madera Qty

Top-Bottom / Arriba-Abajo

(WxH): 18.00"x12.41" 2

Front-Rear / Frente-Atras

(WxH): 18.00"x14.50" 2
