Product Type	Hi-Fi System
Brand	Sony
Model	CFD-454
Dimensions (W x H x D)	Approx. 450 x 250 x 300 mm
Weight	Approx. 4.5 kg (without batteries)
Power Supply	AC 120V/230V switchable, 50/60 Hz; DC 12V (8 x D batteries)
Power Consumption	30 W
Supported Media	CD, Cassette tape (Type I/II), AM/FM radio
CD Player	Plays CD, CD-R, CD-RW; Programmable playback, repeat, random
Cassette Deck	Auto-reverse, recording from CD/radio, noise reduction (Dolby B)
Radio	AM: 530-1710 kHz, FM: 87.5-108 MHz; preset stations (20)
Speaker System	2-way bass reflex speakers (woofer + tweeter)
Output Power	2 x 10 W (total 20 W RMS)
Connections	Headphone jack (3.5mm), AUX input (3.5mm), antenna
Controls	Buttons for CD/cassette/radio controls, volume, tone, balance
Display	LCD screen for track/time/frequency/clock
Clock / Timer	Built-in clock with radio/alarm timer
Remote Control	Included (infrared)
Maintenance & Cleaning	Wipe with soft dry cloth; clean CD lens with lens cleaner; use head cleaner for tape heads
Safety Warnings	Keep away from water/moisture; avoid dropping; disconnect power during lightning storms
Spare Parts & Repairability	Contact Sony support for spare parts; repair performed by authorized service centers

Frequently Asked Questions - CFD-454 SONY

How do I set the clock on the Sony CFD-454?

Press the Clock button. Use the Tuning or +/- buttons to set the hour, then press Clock again to set minutes. Confirm with Enter.

Can I record from CD to cassette?

Yes. Insert a blank cassette, press Record (the play button may need to be pressed simultaneously). The system will record from the selected source (CD or radio). Ensure the source is playing.

How do I clean the CD player lens?

Use a commercially available CD lens cleaner disc. Insert it into the CD tray and follow the cleaner's instructions. Do not use liquids directly.

Why is there no sound from the speakers?

Check the volume level (turn Volume knob). Ensure the Mute function is off. Verify that the correct source (CD, TAPE, RADIO) is selected. If using external devices, check AUX connection.

How do I preset radio stations?

Tune to the desired station. Press Memory button. Use +/- or Tuning to select a preset number (1-20), then press Memory again to store.

What type of batteries does the CFD-454 use?

It uses 8 x D size (R20P) batteries for portable operation. Battery life varies based on usage.

The tape deck is playing too slow/fast. How to fix?

Check if the cassette tape is damaged. If the deck is consistently off-speed, a belt replacement may be needed. Refer to a professional technician.

Can I play MP3 CDs on this system?

The Sony CFD-454 supports standard audio CDs, CD-R, and CD-RW. It does not support MP3 file playback.

How to use the AUX input?

Connect an external device (e.g., smartphone, MP3 player) to the AUX IN jack using a 3.5mm audio cable. Press Function to select AUX mode.

Where can I find a replacement remote control?

Contact Sony Support or check online retailers using the model number CFD-454. The remote model is often RM-Xxxx; confirm compatibility.

USER MANUAL CFD-454 SONY

CD Radio Cassette-Corder

CFD-455/454

Operating Instructions

Before operating the unit, please read this manual thoroughly and retain it for future reference.

Owner's Record

The model and serial numbers are located on the bottom exterior. Record the serial number in the space provided below. Refer to these numbers whenever you call upon your Sony dealer regarding this product.

Model No. CFD-455/454

Serial No.

WARNING

To prevent fire or shock hazard, do not expose the unit to rain or moisture.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

CAUTION

The use of optical instruments with this product will increase eye hazard.

Information

This equipment generates and uses radio frequency energy and if not installed and used properly, that is, in strict accordance with the manufacturer's instructions, may cause interference to radio and television reception. It has been type tested and found to comply with the limits for a Class B computing device in accordance with the specifications in Subpart J of Part 15 of FCC Rules, which are designed to provide reasonable protection against such interference in a residential installation. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient the receiving antenna

Relocate the equipment with respect to the receiver

Move the equipment away from the receiver

Plug the equipment into a different outlet so that equipment and receiver are on different branch circuits.

If necessary, the user should consult the dealer or an experienced radio/television technician for additional suggestions. The user may find the following booklet prepared by the Federal Communications Commission helpful:

"How to Identify and Resolve Radio-TV Interference Problems". This booklet is available from the U.S.

Government Printing Office, Washington, DC 20402, Stock No. 004-000-00345-4.

For the customers in Canada

This apparatus complies with the Class B limits for radio noise emissions set out in Radio Interference Regulations.

Table of Contents

Before use

Features 3
Precautions 3
Parts identification 4
Power sources 6
Attaching and connecting speakers 6

Operation

Receiving radio programs 7

Playing discs 8

To locate the beginning of a desired selection (AMS) 10

To search for a particular point in a selection (SEARCH) 10

Various disc playing modes 11

Playing back tapes 12

Adjusting the sound 13

Recording CD sound 14

Recording radio/microphone sound 16

Listening to a CD through an audio system .....18

To keep your system running well

Maintenance 18

General

Specifications 19

Troubleshooting guide back cover

Features

CFD-455/454 are CD radio cassette-corders equipped with a tuner, CD player and 2-way separate speakers. CFD-455 is supplied with a remote commander as well.

CD player section

• An 8 cm (3-inch) CD can be played without using adaptors.
• Repeat function for playing either the entire disc or a desired selection.
• Repeat shuffle function for playing selections repeatedly in random order.

Cassette deck section

- Synchronized CD recording starting system.

General

• A 5-band graphic equalizer to adjust the tone quality to your preference.
• Easy tuning and volume control with large dials.

Precautions

On safety

• Operate the unit only on 120V AC or 12V DC.
  For AC operation, use the supplied AC power cord; do not use any other type.
  For battery operation, use eight size D (R20) batteries.

- Unplug the unit from the wall outlet when it is not to be used for an extended period of time.

- When the internal batteries are not to be used, remove them to avoid damage caused by battery leakage and corrosion.

- As the laser beam used in the CD player section is harmful to the eyes, do not attempt to disassemble the casing. Refer servicing to qualified personnel only.

- Should any solid object or liquid fall into the unit, unplug the unit, and have it checked by qualified personnel before operating it any further.

On installation

• Do not leave the unit in a location near heat sources, or in a place subject to direct sunlight, excessive dust, or mechanical shock.
• Do not place anything within 10 mm of the side of the cabinet. The ventilation holes must be unobstructed for the proper operation of the unit and to prolong the life of its components.
• If the unit is left in a car parked in the sun, be sure to choose a location in the car where the unit will not be subject to the direct rays of the sun.
• Since a strong magnet is used for the speakers, keep personal credit cards using magnetic coding or spring-wound watches away from the unit to prevent possible damage from the magnet.

On operation

• If the unit is brought directly from a cold to a warm location, or is placed in a very damp room, moisture may condense on the lenses inside the CD player section. Should this occur, the player will not operate properly. In this case, remove the disc and wait about an hour for the moisture to evaporate.
• If the unit has not been used for a long time, set it in the playback mode to warm it up for a few minutes before inserting a cassette.
• The use of cassettes longer than 90 minutes is not recommended except for long continuous recording or playback.

If you have any question or problem concerning your unit, please consult the nearest Sony dealer.

Parts Identification

Refer to the pages indicated in ● for details.

1 Tweeter
2 Woofer
3 PHONES (headphones) jack (stereo minijack)
4 OPR/BATT (operation/battery) indicator
s CD display window
6 AMS/SEARCH buttons
7 PLAY MODE (CD operation mode) selector
REPEAT 1: To repeat one of the selections.
REPEAT ALL: To repeat all of the selections.
REPEAT SHUFFLE: To play the selections repeatedly in a random order.
8 REMAIN selector 8
9 REMOTE SENSOR (CFD-455 only)
10 Disc cover
11 PUSH OPEN/CLOSE button
12 CD operation buttons
▶(play) ▪(pause) ■(stop)
13 BALANCE control

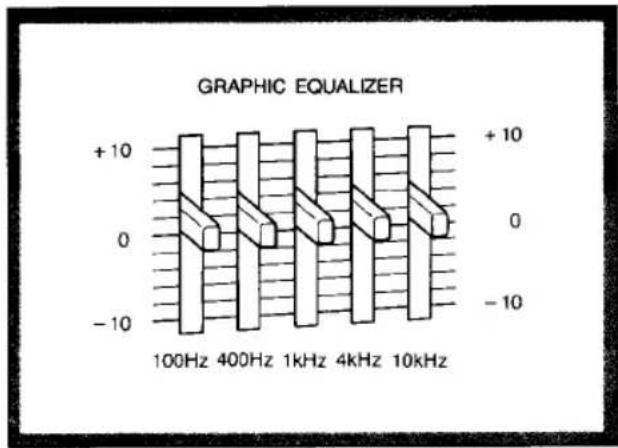

14 GRAPHIC EQUALIZER controls (for listening only)
15 Tape operation buttons
■△(stop/eject) ●(record) ▶( playback) ◀◀◀(rewind)
▶▶(fast forward) Ⅱ(pause)
16 Cassette holder

17 FUNCTION selector
CD: To listen to/record CD sound.
FM: To listen to/record FM radio programs.
AM: To listen to/record AM radio programs.
TAPE (CD RADIO OFF): To listen to tapes. (To turn off the CD player or the radio.)
18 FM ST (FM stereo) indicator 7
19 VOLUME control
20 Tuning control 7
21 Dial scale and pointer
22 PAUSE/PLAY indicators
23 PLAY MODE indicators
REPEAT 1 REPEAT ALL REPEAT SHUFFLE
24 TRACK indicator 8-9
25 MIN (minute) indicator 8\~9
26 SEC (second) indicator 8\~9
27 Telescopic antenna
28 AC IN (AC power input) socket
29 Speaker cord 6
30 EXT MIC (external microphone input) jack (minijack)
31 Battery compartment (bottom)
32 CD OUT (CD output) jacks (phono jacks)
33 SPEAKER terminals
34 ISS (interference suppress switch)

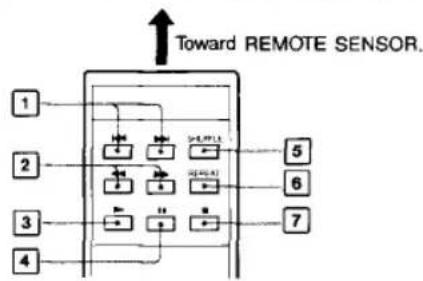

Remote commander (for CFD-455 only)

This remote commander works only for the CD section.

1 |←|→| AMS buttons
2 ◀◀/▶▶ SEARCH buttons
3 ▶ (play) button
4 II (pause) button
5 SHUFFLE (repeat shuffle) button
6 REPEAT (repeat 1/all) button
7 ■ (stop) button

Battery installation

1

2 Two size AA (R6) batteries

with correct polarity.

Notes on the remote commander

• Keep the commander away from extremely hot or humid places.
• To avoid malfunction, do not simultaneously depress two or more buttons.

- When the battery is exhausted, the commander will not operate the CFD-455. In this case, replace the batteries with new ones. In normal operation, battery life is up to half a year.

Power Sources

House Current

Note

The unit cannot be operated on the internal batteries when the AC power cord is connected to the unit.

Batteries

Battery replacement

The OPR/BATT indicator lights up during operation. If the batteries become weak, the indicator will glow faintly. In this case, replace all the batteries with new ones. For information on battery life, see "Specifications" on page19.

For critical recordings or disc playing

Operating the unit using the AC power cord is recommended.

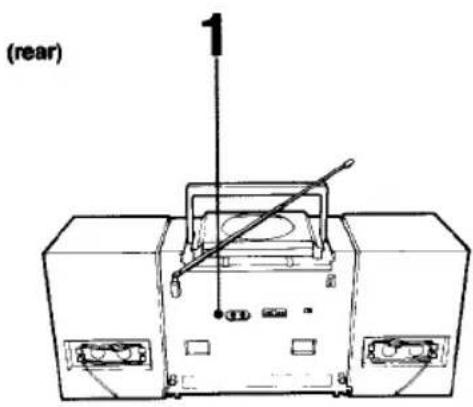

Attaching and Connecting Speakers

Attaching the Speakers

Connecting the Speakers

Notes on connection

• Turn off the power before connecting or disconnecting the speaker cords.
• Connect the speaker cord of the right speaker to the R connectors and left speaker to the L connectors.

Receiving Radio Programs

CFD-455/454 have no power switches.

Set FUNCTION selector to CD or FM/AM, and the CD

player or the radio is turned on. To turn off the power, set

FUNCTION to CD RADIO OFF.

To improve receiving condition
FM

AM

When an FM stereo program is tuned in

FM ST indicator lights up.

If the received FM stereo is too weak

The reception becomes monaural, and the FM ST indicator will go off.

Playing Discs

1

3

How to switch the display

To stop play

To pause	Press ||.
To resume play	Press || again.
To stop play	Press ■.
After use	Set FUNCTION to CD RADIO OFF.
To remove the disc	Push PUSH OPEN/CLOSE.

To Locate the Beginning of a Desired Selection (AMS)

To Search for a Particular Point in a Selection (SEARCH)

Press the ◀◀ or ▶▶ button during play or pause.

Keep pressing |◀◀ or ▶▶| button during play or pause.

To locate a previous selection

Press the ◀◀ button once to locate the beginning of the selection being played.

Press repeatedly to locate a previous selection.

To locate a selection ahead

Press the ▶ button once to locate the next selection.

Press repeatedly to locate a selection ahead.

In pause mode

The player pauses at the beginning of each selection. To start palying, press the Ⅱ button.

To review disc playing, keep pressing the |◀◀ button To advance disc playing, keep pressing the ▶▶| button.

Release the button at the desired point, located by either monitoring the high-speed sound (during play) or observing the time counter.

Notes on compact discs

Handle the disc by its edge, and to keep the disc clean, do not touch the surface.

Do not stick paper or tape or write anything on the labeled surface.

Before playing, clean the disc with the optional CD cleaner. Wipe the disc from the center out.

Do not use solvents such as benzine, thinner, commercially available cleaners or anti-static spray intended for analog discs.

After playing, store the disc in its case.

Do not expose the disc to direct sunlight or heat sources such as hot air ducts, or leave it in a car parked in direct sunlight where there can be a considerable rise in the temperature.

Various Disc Playing Modes

To select repeat mode

Press the PLAY MODE selector. Each time it is pressed, the repeat mode changes in sequence as indicated in the display window: REPEAT 1→REPEAT ALL→REPEAT SHUFFLE→normal play (no indicator).

To Repeat Only One Selection—REPEAT 1 Play

Press the selector while playing the selection you want to repeat.

PLAY MODE

Press once.

REPEAT 1

When the selection being played reaches its end, it is played from the beginning again.*

To Repeat the Entire Disc—REPEAT ALL Play

Press the selector while playing the disc you want to repeat.

PLAY MODE

Press twice.

REPEAT ALL

When the last selection on the disc being played reaches its end, all the selections are played from the beginning of the disc again.*

To Repeat the Shuffle Play—REPEAT SHUFFLE Play

Press the selector while playing the disc you want to repeat in random order.

PLAY MODE

Press three times.

REPEAT

SHUFFLE

After all the selections on the disc have been played in random order, the selections are reshuffled and played continuously in a different order each time.*

Playing Back Tapes

1

2

Use only TYPE I (normal) tapes.

3

4

To stop play

To stop play

To pause	Press ||.
To resume playback	Press || again.
To stop the tape	Press ■▲.
To remove the tape	Press ■▲ again.

To skip over or repeat a certain portion during playback

Press ▶ or ◀ during playback, and release it at the desired point. The unit starts playback again. To search for the desired portion, make use of the high-speed monitoring sound.

The deck shuts off automatically

When playback of the front side ends, the cassette deck shuts off automatically.

Adjusting the Sound

To Equalize the Reproduced Sound

To Adjust the Balance of the Left and Right Channel Output Levels

Frequency coverage of each equalizer control

100 Hz: Boost or cut heavy bass.
400 Hz: Adjust the power, spaciousness and warmth of the sound.
1 kHz: Provide more presence for vocals.
4 kHz: Boost a brighter sound or reduce stridency.
10 kHz: Adjust the brightness of the sound or reduce tape hiss.

Use to adjust stereo imaging, especially when speakers are not symmetrically placed.

Recording CD Sound

1
Insert a disc.
(See page 8\~9.)

3
Insert a cassette.

Use only TYPE I (normal) tapes.

To record REPEAT 1/ALL, REPEAT SHUFFLE Play

1 Set FUNCTION to CD.
2 Press PLAY MODE to select the desired playing mode. (See page 11.)
3 Press ● of the cassette deck.
The disc play begins and recording starts automatically at the same time after a few seconds.

Important

• Advance the leader tape before recording to prevent missing the beginning part of the recording.
• When recording on the front side of the cassette is finished, the cassette deck shuts off automatically. The disc, however, continues to play.

Recording level

— is automatically adjusted
— is not affected by the setting of the VOLUME or GRAPHIC EQUALIZER controls.

To prevent accidental erasure

Break off the tab corresponding to side which has been recorded. Recording will be protected.

Important

Press ● of the cassette deck after confirming that 'total selection number' and 'total playing time' are indicated on the display window of the CD player.

Recording Radio/Microphone Sound

From radio

1
From external microphone

If a whistling noise is heard during recording AM programs Set the ISS switch (on the rear) to the position which reduces the noise best.

2

3

▶ is depressed automatically, and recording starts.

To stop recording

FUNCTION

Listening to a CD through an Audio System

Important

Since the CD system offers a wide dynamic range, the peaks of high level inputs are recorded with high fidelity, and the noise level is very low. Do not turn up the volume while listening to a portion with no audio signals or very low level inputs. If you do, the speakers may be damaged when a peak level portion is played.

Notes on making connections

• Before making connections, be sure to turn off the power.
  • The connecting cords should be fully inserted into the jacks.
• Note that the red plug of the connecting cord is for the R (right)-channel and the white plug for the L (left)-channel.

Maintenance

Cleaning the heads and tape path

We recommend cleaning after every 10 hours of operation. To make the best possible recordings, however, you should clean all surfaces over which the tape travels before making each recording.

Wipe the heads, the pinch roller and the capstan with a cleaning tip slightly moistened with cleaning fluid or alcohol.

After cleaning the heads and tape path, insert a cassette when the areas cleaned are completely dry.

Demagnetizing heads

After 20 to 30 hours of use, enough residual magnetism will have built up on the heads to begin to cause loss of high frequencies and hiss. At this time you should demagnetize the heads and all metal parts in the tape path with a commercially available head demagnetizer. Be sure that the cassette-corder is turned off while you demagnetize.

Cleaning the lens

If you have accidentally touched the lens of the CD player section with dirty fingers or the dust has accumulated on the lens, the unit will not operate properly. In such cases clean the lens with lens cleaning kit (optional).

Cleaning the cabinet

Clean the cabinet, panel and controls with a soft cloth slightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder or solvent such as alcohol or benzine.

Specifications

Audio power specifications

With 3.2-ohm loads, both channels driven from 150–10,000 Hz: rated 4W, per channel minimum RMS power, with no more than 10% total harmonic distortion in AC operation.

Other specifications

CD player section
System	Compact disc digital audio system
Laser diode properties	Material: GaAlAsWavelength: 780nmEmission duration: ContinuousLaser output power: less than 44.6μW*This output is the value measured at a distance of 200 mm from the objective lens surface on the optical pick-up block.
Spindle speed	12 cm CD: Approx. 200 r.p.m. to 500 r.p.m. (CLV)8 cm CD: Approx. 300 to 500 r.p.m (CLV)
Error correction	Sony Super Strategy Cross Interleave Read Solomon Code
Number of channels	2
Frequency response	20-20,000 Hz: ± 1/2 dB
Wow and flutter	Below measurable limit
Radio section
Frequency range	FM: 87.6-108 MHzAM: 530-1,710 kHz
Antennas	FM: Telescopic antennaAM: Built-in ferrite bar antenna

Tape recorder section and general
Recording system	4-track 2-channel stereo
Fast winding time	Approx. 2 min. with Sony cassette C60
Frequency response	With TYPE I (NORMAL) cassette: 80~10,000 Hz
Speakers	Woofer: 12 cm dia., cone typeTweeter: 2 cm dia.
Power output	Model for Canada:4.3W + 4.3W (at 3.2 ohms, 315 Hz, 10% harmonic distortion)
Inputs	External microphone input jack (minijack)Sensitivity 0.78 mVFor low impedance microphone

Batteries	Sony SUM-1 (NS)	Sony Alkaline AM1
FM recording	Approx. 15 hrs	Approx. 35 hrs
Disc playing	Approx. 6 hrs	Approx. 16 hrs
Dimensions	677 x 292 x 194 mm (w/h/d)(26 5/8 x 11 4/8 x 7 5/8 inches)incl. projecting parts and controls
Weight	6.7 kg (14 lb 12 oz)incl. batteries
Supplied accessory	AC power cord (1)Remote commander (for CFD-455) (1)

Optional accessories

Stereo headphones Sony MDR Headphone Series Connecting cord RK-C74 (Two phono plugs ↔ two phono plugs) Head demagnetizer HE-5C Head cleaning kit KK-4, KK-31 CD lens cleaning kit KK-9 CD disc cleaner XP-CD1, XP-CD3 Microphone Sony Dynamic Microphone Series

Troubleshooting Guide

The unit does not operate.	The AC power cord is not connected (for AC operation).Incorrect polarity of batteries (See page 6.)Weak batteries (See page 6.)
No audio	Slide the VOLUME control toward MAX.Check the FUNCTION selector setting.The headphones are plugged in.
No audio from one channel or unbalanced left and right volume	Adjust the BALANCE control (See page 13.)

CD Player Operation
Disc play does not begin.	Insert the disc with the labeled surface facing upward.Dusty or defective disc (See page 10.)Dirty or dusty lens (See page 18.)The disc compartment lid is not closed.Moisture condensation (See page 3.)When the CD operation buttons cannot be activated, turn off the unit and begin again.Improper setting of the FUNCTION selector
Skipping of sound	Dusty or defective disc (See page 10.)Dirty lens (See page 18.)Strong vibrations

Cassette-Corder Operation
Tape does not move.	The cassette is being inserted improperly.The tape is slack.The cassette compartment lid is not closed.
The ● button cannot be activated.	No cassette in the cassette holder.The tab is removed from the cassette. (See page 14.)
Recording or playback cannot be made or there is a decrease in sound level.	Dirty heads (See page 18).Improper setting of the FUNCTION selector
Unsatisfactory erasing	Dirty erase head (See page 18.)
Excessive wow or flutter, or sound drop-out	Contamination of the capstan or pinch roller (See page 18.)Magnetic contamination of the head (See page 18.)Weak batteries (See page 6.)
