USER MANUAL CFD-768 SONY

Operating Instructions

WARNING

To prevent fire or shock hazard, do not expose the unit to rain or moisture.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

CAUTION

The use of optical instruments with this product will increase eye hazard.

For customers in Canada

To prevent electric shock, do not use this polarized AC plug with an extension cord, receptacle or other outlet unless the blades can be fully inserted to prevent blade exposure.

Information

For customers in the United States

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

Owner's Record

The model and serial numbers are located at the rear of the CD radio cassette-corder. Record these numbers in the spaces provided below. Refer to these numbers whenever you call your Sony dealer regarding this product.

Model No. ____ Serial No. ____

Table of Contents

	Welcome! 4About This Manual 4Precautions 5
Chapter 1: Setting Up	Looking at the Controls 6Connecting the Speakers 10Choosing Power Sources 11Setting the Clock 12Selecting the Audio Emphasis 12
Chapter 2: the Radio	Listening to the Radio 14Presetting Radio Stations 15Playing Preset Radio Stations 15
Chapter 3: the CD (Compact Disc) Player	Playing a CD (normal play) 16Playing Specific Tracks 17Playing the Beginning of Each Track (intro scan) 18Playing Tracks in Random Order (shuffle play) 18Playing Tracks in the Desired Order (program play) 19Playing Tracks Repeatedly 20Checking and Changing Track Order 21
Chapter 4: the Tape Player	Playing a Tape 22Recording From the Radio 23Recording From Another Tape (dubbing) 24Recording a CD 25Recording a CD: Specifying Track Order 26Recording a CD: Specifying Tape Length 27
Chapter 5: Additional Features	Falling Asleep to Music 28Waking Up to Music 29(CFD-768 Only) Timer-Recording Radio Programs 30Setting Up a P-A System 31
For Your Information	Maintenance 32Specifications 33Troubleshooting Guide 34Index Back cover

Welcome!

Thank you for purchasing the Sony CFD-758/768 CD Radio Cassette-Corder. The CFD series CD radio cassette-corder is packed with fun features. Here are just a few:

• A Mega Bass sound system that boosts low frequency range audio to provide deep, powerful bass through the two-way bass reflex speakers
  • A preset feature that lets you store and recall up to 24 of your favorite radio stations
• A timer that lets you set the CD player, tape player or radio to turn on or off whenever you want
• A dual tape deck that allows you to record from the radio, CD player or from the other tape deck
  • A Sound Mode feature that adjusts the audio quality for playing
• A display window with back light enables you to see the operation
  • A remote commander that gives you control of the music from your seat

About This Manual

The instructions in this manual are for the CFD-758 and CFD-768. Before you start reading, check your model number. The CFD-768 is the model used for illustration purposes. Any differences in operation are clearly indicated in the text, for example, "CFD-768 only".

Types of differences

Feature\Model	CFD-758	CFD-768
Tape transport direction	One-way	Selectable (deck B only)
Auto-reverse	—	Recording and playback (deck B only)

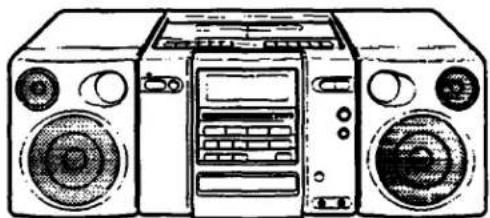

Differences in appearance

CFD-758

On safety

• As the laser beam used in the CD player section is harmful to the eyes, do not attempt to disassemble the casing. Refer servicing to qualified personnel only.
• Should any solid object or liquid fall into the player, unplug the player, and have it checked by qualified personnel before operating it any further.

On power sources

• For AC operation, use the supplied AC power cord; do not use any other type.
• For battery operation, use eight size D (R20) batteries.
• Unplug the player from the wall outlet when it is not to be used for an extended period of time.
• When the operational batteries are not to be used, remove them to avoid damage that can be caused by battery leakage or corrosion.
• The nameplate indicating operating voltage, power consumption, etc. is located at the rear.

On placement

• Do not leave the player in a location near heat sources, or in a place subject to direct sunlight, excessive dust or mechanical shock.
• Do not place anything within 10 mm of the side of the cabinet. The ventilation holes must be unobstructed for the player to operate properly and to prolong the life of its components.
• If the player is left in a car parked in the sun, be sure to choose a location in the car where the player will not be subjected to the direct rays of the sun.
• Since a strong magnet is used for the speakers, keep personal credit cards using magnetic coding or spring-wound watches away from the player to prevent possible damage from the magnet.

On operation

• If the player is brought directly from a cold to a warm location, or is placed in a very damp room, moisture may condense on the lens inside the CD player section.
  Should this occur, the player will not operate properly. In this case, remove the CD and wait about an hour for the moisture to evaporate.
• If the player has not been used for a long time, set it in the playback mode to warm it up for a few minutes before inserting a CD or cassette.

Note on using a cassette with more than 90 minutes of play time

The use of a cassette with more than 90 minutes of play time is not recommended except for long, continuous recording or playback.

If you have any questions or problems concerning your player, please consult your nearest Sony dealer.

CD Player and Clock/Timer

1 POWER switch
2 SLEEP button (28)
3 MULTI-OPERATION DISPLAY (8)
4 VOLUME buttons
5 SOUND MODE button (12)
6 MEGA BASS button (12)
7 TUNING/TIME SET buttons (/2)
8 Remote sensor

9 MIX MIC jack (31)
10 PHONES (headphones) jack (stereo mini-jack)
11 ≧ OPEN/CLOSE button
12 Disc tray
13 Duct Reproduces bass sound.
14 OPR/BATT (operation/battery) indicator

Close-Up of Front Control Panel

1 CLOCK button (12)
2 TIMER button (29, 30)
3 STANDBY button (29, 30)
4 EDIT/PGM CLEAR (program clear) button (27)
5 MODE button (18)
6 ENTER/MEM (memory) button (12, 15, 27)
7 CD operation buttons

▷00 (play/pause)

□ (stop)

KODDAMS*/SEARCH

8 FUNCTION buttons

TAPE: for playing or dubbing a tape

RADIO: for playing or recording a radio program

CD: for playing or recording a CD

* AMS: Automatic Music Sensor

Radio and Tape Player

1 PRESET buttons (15)
2 Tape operation buttons for deck A
3 Cassette compartments
4 Telescopic antenna (14)
5 Tape operation buttons for deck B
6 REV</FWD (reverse/forward) indicators (CFD-768 only)
7 MIX MIC (mixing microphone) jack (mini-jack) (31)
8 TUNING/TIME SET button (14, 27)
9 BAND button (14)

Rear Panel

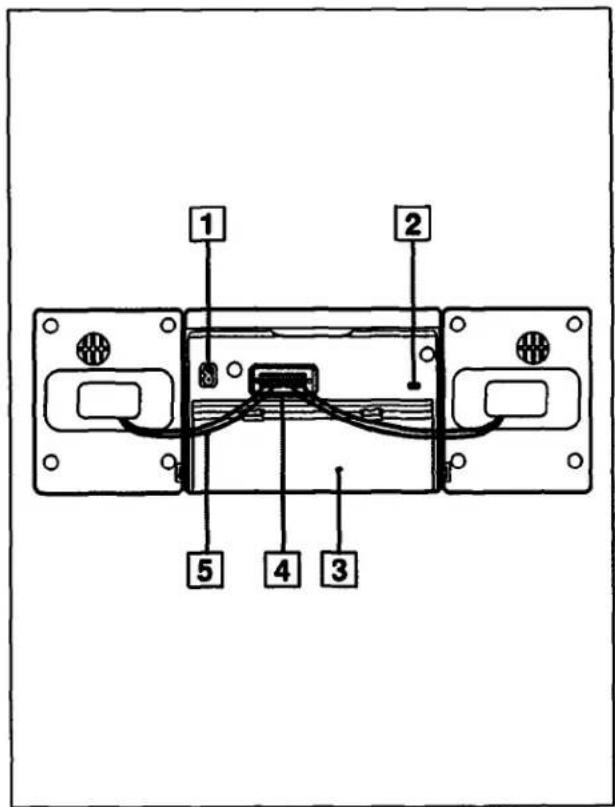

1 AC IN (AC power input) socket Connect to the wall outlet.
2 ISS (interference suppress switch) (23)
3 Battery compartment (11)
4 SPEAKER OUTPUT terminals (10)
5 Speaker wires

Display Window

1 Timer indications
2 REC (record) indication
3 DUB indication
4 CD play mode indications
5 ST (stereo) indication
6 OVER 16 indication
7 Music calendar/preset radiq station numbers
8 VOL (volume) indication
9 Time/frequency indications
10 SOUND MODE indications

Remote Commander

Controls on the remote commander with the same name as those on the deck have the same function. Some controls such as the number buttons are located only on the remote commander.

1 POWER switch
2 Number buttons (17, 19)
3 DISPLAY button
4 BAND button
5 VOL (volume) buttons
6 MEGA BASS button
7 Battery compartment
8 SOUND mode button
9 MODE button

10 FUNCTION buttons

CD: for playing or recording a CD

RADIO: for playing or recording a radio program

TAPE/DUB: for playing or dubbing a tape

11 CD operation buttons

▶ (play)
(open/close)
II (pause)
(AMS)
■ (stop)
◄◄/INTRO SCAN (search/intro scan play)
▶▶/PGM CHECK (search/program check)

Installing batteries

Insert two size AA (R6) batteries (not supplied) into the battery compartment.

To avoid malfunction, keep the commander away from direct sunlight or strong illumination.

Connecting the Speakers

For easy transport, the dual speakers are detachable. Before you begin listening to music, attach the speaker boxes and connect the speaker wires as shown below. Make sure you turn off the power before making any connections.

1 Align the grooves and slide the speaker box down until it snaps into place.

2 Connect the black wires to (−) minus terminals and the red wires to (+) plus terminals. Connect the right speaker wires to the R terminals, and the left speaker wires to the L terminals.

To detach the speakers

Unlock the speaker Ⓔ and slide the speaker box all the way up and away from the player.

The CD cassette-corder has three separate power sources. Use the AC power source whenever you record because recording consumes the most power. Use eight size D (R20) batteries when the CD cassette-corder becomes a portable. At all times keep four size AA (R6) batteries installed to keep the clock powered and programmed settings in memory.

Installing batteries for the clock/timer/memory

Remove the CD from the player to prevent it from falling out. In the smaller compartment insert four size AA(R6) batteries (not supplied) for the clock/timer/memory.

Operating the player on AC power

Insert one end of the supplied AC power cord to the AC IN socket located at the rear of the player ① and the other end to the wall outlet ②.

Operating the player on batteries

To play your CD cassette-corder on batteries, the AC power cord must be disconnected from the player. Unplug the player and insert eight size D (R20) batteries (not supplied) in the larger compartment.

When you operate the player on batteries, the back light in the display window does not light.

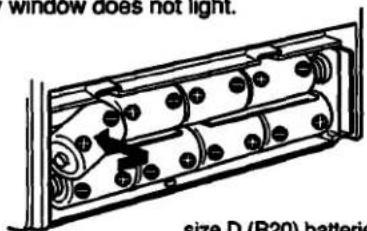

size D (R20) batteries (8)

When to replace the batteries

• Replace the size D (R20) batteries when: the OPR/BATT indicator dims or when the player stops operating.
• Replace the size AA (R6) batteries when: the indications in the display window dim or the clock stops operating.

When the batteries are weak, replace all the batteries with new ones. Connect the player to the AC power source when replacing the size AA (R6) batteries so that the memory data for the CD player and radio will not be erased.

Setting the Clock

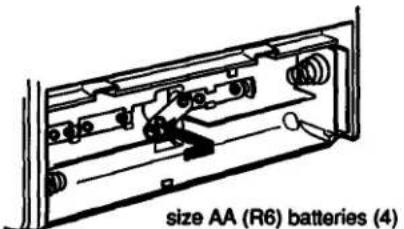

To use the timer, you need to set the clock. Insert four size AA (R6) batteries in the small battery compartment, and connect the CD cassette-corder to a wall outlet or insert eight size D (R 20) batteries (see Choosing Power Sources on page 11).

1 Depress and hold CLOCK until "AM" or "PM" and the hour digit flashes.

2 Set the current hour by pressing TUNING/TIME SET (-/+) until the correct hour is displayed. Then press ENTER/MEM.

The minute digits flash. Set the minutes the same way.

PM

3 Press CLOCK again. The clock starts from 00 seconds. The clock disappears after about 4 seconds.

PM 8:45

To check the time while playing a CD or the radio Press CLOCK. The current time appears for about 4 seconds.

Selecting the Audio Emphasis

When playing CDs, tapes, or radio programs, use the SOUND MODE button or the MEGA BASS button to adjust the audio emphasis of the sound you are listening to.

To choose the sound characteristic Press SOUND MODE on the deck or SOUND on the remote commander to select the audio emphasis you want. Choose one of the following options:

Choose	To get
POP	Light, bright sounds, emphasizing high and middle range audio
ROCK	Powerful, clear sounds, emphasizing low and high range audio
JAZZ	Percussive sounds, emphasizing bass audio
BLUES	Powerful, rich sounds, emphasizing middle range audio and a bass sound a little higher than "JAZZ"
VOCAL	The presence of vocals, stressing middle range audio
no indication	The whole dynamic range for music such as classical music

To reinforce the bass sound Press MEGA BASS. To resume sound, press MEGA BASS again.

Listening to the Radio

Whenever you want to listen to the radio, press the RADIO button. To quickly find and play your favorite radio stations, store them using the station preset function described in the next two sections.

1 Turn on the power and press RADIO until "RADIO" appears in the display window.

RAd 10

2 Press BAND until the band you want appears.

AM 1020

3 Tune in a radio station either automatically or manually.

To tune automatically: Keep pressing TUNING/TIME SET (−/+). Release it when the frequency digits begin to change rapidly in the display. The CD cassette-corder automatically scans the radio frequencies and stops when it finds a clear station.

To tune manually: Press TUNING/TIME SET (−/+) once at a time to tune in a station.

If the radio tunes to an FM stereo broadcast, the "ST" (stereo) indication appears.

4 Press VOLUME to adjust the volume and select the audio emphasis (see Selecting the Audio Emphasis on page 12).

VOL 23

To	Press
Turn off the radio	POWER
Display sound type	MODE once
Reduce FM noise	MODE twice to display “MONO”Though the noise will be reduced, theradio will play in monaural.

To improve broadcast reception

Reorient the antenna (for FM) or the player itself (for AM).

Presetting Radio Stations

You can store radio frequencies in the player's memory to tune in your favorite stations at a touch of a button. You can preset up to 24 radio stations, 12 for each AM and FM band in any order.

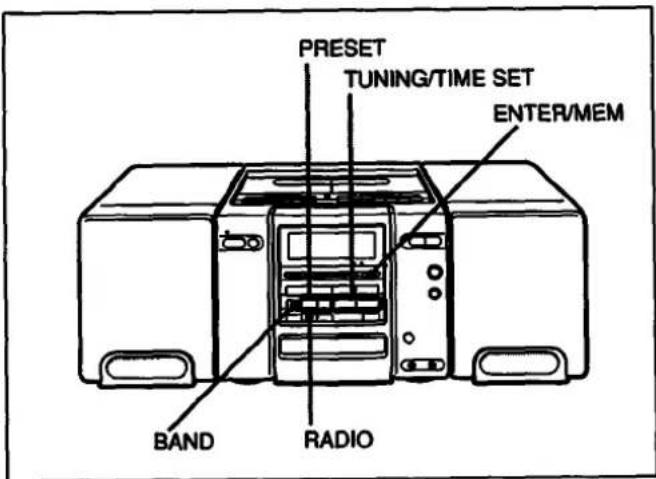

1 Press RADIO until "RADIO" appears in the display window.

Rad 10

2 Press BAND until the band you want appears.
3 Tune in your favorite station by pressing TUNING/TIME SET (-/+).
4 Press and hold ENTER/MEM for about 2 seconds. A preset number flashes in the music calendar.

FM 876

5 Decide on a preset number for the station (1 to 12). Press PRESET (- / + ) to display the number.
6 Press ENTER/MEM. Your favorite station is stored in memory.

FM 876

FM 87.6 has been stored on preset number 3.

Playing Preset Radio Stations

Once you have preset the stations, use the PRESET (-/+) buttons to tune in your favorite stations.

Selecting on the deck

Press BAND to select the band. Then, press PRESET (-/+) to tune in a stored station.

Selecting with the remote commander

Press BAND to select the band. Then, using the number buttons, display the preset number for the station you want to hear. For example, if you want to hear the station set at preset number 9, press 9. For numbers greater than 9 press +10 and another number. For example, to display preset number 10, press +10 and 0.

To erase a preset station

Storing a new station on a previously used preset number will erase the old station and replace it with the new one.

Playing a CD (normal play)

You can operate the CD cassette-corder from the deck or with the supplied remote commander. Also, you can play 12 cm (5 inch) and 8 cm (3 inch) CDs without an adaptor.

1 Turn on the power and press CD until "Cd" appears in the display window.

If there is no disc on the tray "no disc" lights in the display window.

2 Press ≅ OPEN/CLOSE to open the disc tray.

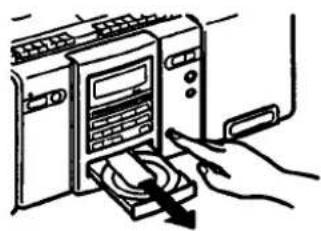

3 Holding the CD by the edge, place the CD on the disc tray with the label side up.

4 Press △ OPEN/CLOSE. The disc track numbers appear in the music calendar. If the disc contains more than 16 tracks, "OVER 16" appears in the display window.

5 Press ▷ play). The CD player plays all the tracks once. The track number and playing time appear in the display window. Tracks disappear from the music calendar as they are played.

Between tracks, the remaining time before the next track is displayed.

6 Adjust the volume and audio emphasis (See Selecting the Audio Emphasis on page 12). (Be careful not to turn up the volume excessively while listening to a portion with very low audio inputs. If you do, the speakers may be damaged when a peak level plays.)

To	Press
	Remote	Deck
Stop play	■	□
Pause	■	▷∞
Resume play after pause	■	▷∞
Remove the CD	First ▲, then ≈	First □, then ≈
Turn off the power	POWER	POWER

You can find the beginning of a track or a point in a track while the player is playing or paused. Find a particular track by specifying the track number.

To find the beginning of a track

To find	Press*
	Remote	Deck
the beginning of the current track	◀◀ once	◀◀ once
the beginning of the previous tracks	◀◀ repeatedly	◀◀ repeatedly
the beginning of the next track	▶▶I once	▶▶I once
the beginning of the succeeding tracks	▶▶I repeatedly	▶▶I repeatedly

* If one of the following indications is displayed, press the □ (stop) button to clear the indication: REP 1, REP ALL, REP SHUF, SHUF, PGM, REP PGM.

To find a point in a track

Remote	Deck
In play mode, press◀◀ or ▶▶. Listen for the point you want to hear.	In play mode, keep pressing ◀◀ or ▶▶. Listen for the point you want to hear.
In pause mode, press◀◀ or ▶▶. Observe the time counter.	In pause mode, keep pressing ◀◀ or ▶▶. Observe the time counter.

To listen to a specific track

Press the number on the remote commander for the track you want to hear. Play starts immediately. To play tracks with numbers equal to or greater than 10, press +10 first, then the number buttons 1 to 0. (See the examples below.)

Example:

To play from the 10th selection

Press

Display

To play from the 33rd selection

Press

Display

Playing the Beginning of Each Track (intro scan)

You can sample the first 10 seconds of each track on a CD. Use the remote commander for this function in normal play, shuffle play and program play modes.

1 Press CD until "Cd" appears in the display window.

2 Press INTRO SCAN while the player is stopped. The first track plays for ten seconds. The player then skips to the next track to be played.

To start playing a track

Press ▶ (play).

To cancel intro scan

Press any button for CD operation.

Playing Tracks in Random Order (shuffle play)

In shuffle play tracks play in mixed order. For example, instead of playing tracks 1, 2, 3 in order, they will play in any order such as 2, 1, 3.

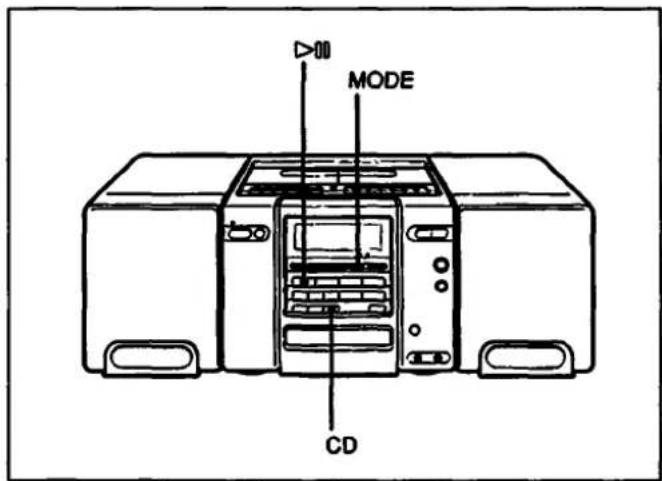

1 Press CD until "Cd" appears in the display window.

2 Press MODE until "SHUF" appears in the display window.

3 Press ▷□□ (play). The tracks play in random order. When a track finishes, its track number disappears from the music calendar.

To	Press
Stop shuffle play
Cancel shuffle play	MODE until no indication appears in the display

Notes

• You cannot display the remaining time on the CD during shuffle play.
• When you display "SHUF" during normal play, shuffle play begins from the selection being played.

Playing Tracks in the Desired Order (program play)

Program the CD cassette-corder to play tracks in any order you choose. Use the remote commander for this.

1 Press CD until "Cd" appears in the display window.

2 Press MODE until "PGM" appears in the display window.

3 Press the number buttons on the remote commander for the tracks you want played in the order you want them played (e.g., 6, 1, 9). Up to 17 tracks can be programmed.

To check the total playing time while programming tracks

While you are programming the tracks, press DISPLAY. The total plying time of the programmed selections will be displayed.

If you make a mistake

Press EDIT/CLEAR on the deck once and re-enter the track number.

4 Press ▶ (play).

The tracks play in the order programmed. The track numbers disappear as the selections are played. When the last track has played, all the programmed track numbers light in the music calendar again.

To	Press
Stop play	■
Cancel program play	MODE until no indicationappears in the display

To change the order of the tracks

To change the order of the tracks, you must erase the current program and create a new one.

To erase the current program

Press ■ (stop) once if the CD is stopped and twice if the CD is playing. The current program will be erased.

Follow the steps in Playing Tracks in the Desired Order to create a new program.

To program the tracks on the deck

Press I<>I AMS/SEARCH to select the track you want to program and then press ENTER/MEM. Repeat this procedure for up to 17 tracks.

You can play tracks repeatedly in normal, shuffle or program play modes. In shuffle play, the tracks play in a different order each time. Repeat only one track or all the tracks.

Repeating a single track

1 Press MODE until "REP 1" appears in the display window.

2 Press the number of the track you would like repeated (or use the ◀◀/▶▶ AMS/SEARCH buttons on the deck).

3 Press ▷00 (play). The track selected plays repeatedly.

Repeating all the tracks

1 Press MODE until "REP ALL" appears in the display window.

2 Press D>00 (play). The player begins playing at the first track. When all the tracks have played once, the player starts playing from the first track again.

Repeating tracks in random order

1 Press MODE until "REP SHUF" appears in the display window.

2 Press ▷00 (play). The player plays all the tracks repeatedly in different orders.

Repeating programmed tracks

1 Press MODE until "REP PGM" appears in the display window.

2 Press the number buttons on the remote commander for the tracks you want played in the order you want them played.

3 Press D>00 (play). The same program plays repeatedly.

To	Press
Stop play
Cancel repeat play	MODE until no indicationappears in the display

Checking and Changing Track Order

Checking the remaining time

Use the remote commander to do this.

To display	Press
Remaining time on the current track	DISPLAY once
Remaining time on the CD and the number of tracks left*	DISPLAY twice
Playing time and number of tracks	DISPLAY in stop mode

* If the disc has more than 16 tracks, "OVER 16" appears in the display window, and the remaining time appears as "—:—".

Checking the order of programmed tracks

Before playing the CD, press PGM CHECK on the remote commander, or ENTER/MEM on the deck. With each press, the selections appear in the programmed order.

Changing the order of programmed tracks

To change the order of the tracks, you must erase the current program and create a new one. Press ■ (stop) once if the CD is stopped and twice if the CD is playing. The current program will be erased.

Checking the total playing time of the programmed tracks

Before playing the CD, press DISPLAY on the remote commander.

The total playing time appears. When a pause has been programmed, the playing time after the pause appears.

Playing a Tape

1 Turn on the power and press TAPE until "TAPE" appears in the display window.

2 Press ■ ▲ STOP/EJECT to open the tape compartment. Insert a recorded tape with the side you want to play facing up. Close the compartment. (If you have a model CFD-758 skip the next step.)

3 (CFD-768 deck B only) Choose single- or dual-side play.

To play	Switch DIR MODE to
One side of the tape	=
Both sides of the tape from side A to B only*

* If play begins from side B, the tape stops at the end of that side.

4 Press PLAY to start playing.

5 Adjust the volume and the audio emphasis (see Selecting the Audio Emphasis on page 12).

VOL 23

To	Press
Stop play	■ ▲ STOP/EJECT
Pause	II PAUSE
Resume play after pause	II PAUSE
Fast forward*	▶▶ FF
Rewind*	◀◀ REW
Remove the cassette	■ ▲ STOP/EJECT
Turn off the power	POWER

* For the side facing up.

(CFD-768 deck B only) To switch play to the opposite side

Press ◀DIR. The ▷ FWD or REV ◀ indicator lights to show transport direction for the tape in deck B.

(CFD-768 deck B only) To find a point in a selection In play mode, press ◀◀ or ▶▶ (CUE/REVIEW). Listen for the point you want to hear.

Whenever you record, we recommend you operate the CD cassette-corder on the AC power cord instead of using batteries because recording consumes a lot of battery power. We recommend you use TYPE I (normal) tape (printed on the tape cassette).

1 Press RADIO until "RADIO" appears in the display window.

RAd 10

2 Tune in the desired radio station.

3 Press ■ ▲ STOP/EJECT and put a blank tape into deck B depending on the model you have:

If you have a CFD-758

Insert the tape with the side you want to record on facing up.

If you have a CFD-768

1 Choose the side of the tape you want to record on.

To record on	Press ←→DIR
Side A (facing up)	to light ▷FWD
Side B (facing down)	to light REV ◀

2 Select dual or single-sided recording.

To record	Switch DIR MODE to
One side of the tape	=
Both sides of the tape from side A to B only*

* If recording begins from side B, the tape stops at the end of that side.

4 Press ● REC on deck B.

PLAY on deck B depresses automatically. "REC" lights up and recording starts.

The recording level is adjusted automatically

Adjusting the volume or the audio emphasis will not affect the recording level.

To stop recording

Press ■ ▲ STOP/EJECT on deck B.

To reduce noise while AM recording

If the radio makes a whistling sound, set the ISS (Interference Suppress Switch) at the rear of the unit to the position which most decreases the noise. Normally it is set to "2".

Having a tape permanently

To prevent a tape from being accidentally recorded over, break off the cassette tab from side A or B as illustrated. If you later want to reuse the tape for recording, cover the broken tab with adhesive tape.

To erase a recording

1 Disconnect the microphone if connected at the MIX MIC jack.

2 Press TAPE until "TAPE" appears in the display window.

3 Press ● REC.

You can record from one tape to another. Use TYPE I (normal) tape for the best results.

1 Insert a recorded tape in deck A with the side to be played facing up. Close the compartment.

2 Press TAPE until "DUB" appears in the display window.

3 Insert a blank tape into deck B depending on the model you have.

If you have a CFD-758

Insert the tape with the side you want to record on facing up.

If you have a CFD-768

1 Choose the side of the tape you want to record on.

To record on	Press ◀DIR
Side A (facing up)	to light ▷ FWD
Side B (facing down)	to light REV ◀

2 Select dual or single-sided recording.

To record	Switch DIR MODE to
One side of the tape	=
Both sides of the tape from side A to B only*

* If recording begins from side B, the tape stops at the end of that side.

4 Press ● REC on deck B.

PLAY on deck B depresses automatically. "REC" and "DUB" appear in the display window and deck B stands by for recording.

5 Select the recording speed. Choose one of two options:

To record at	Press
Normal speed	▶ PLAY on deck A
High speed	HI-SPEED DUBBING on deck A

• If the tape in deck A finishes first, the ▶ PLAY button will pop up and deck B will stop. The ● REC and PLAY buttons on deck B will still be depressed. To release them, press the ■ △ STOP/EJECT button.
• If the tape in deck B finishes first, the ● REC and PLAY buttons on deck B will pop up. Deck A will continue to play.

The recording level is adjusted automatically

Adjusting the volume or the audio emphasis will not affect the recording level. However, these controls will change the sound levels you hear through speakers or headphones.

To	Press
Stop recording	■ ▲ STOP/EJECT on deck A, then B
Stop playing	■ ▲ STOP/EJECT on deck A
Pause during play	II PAUSE on deck A
Pause during record	II PAUSE on the deck B

Recording a CD

You can record from a CD to a tape. Use a TYPE I (normal) tape for the best results.

1 Insert a CD.

2 Press CD until "Cd" appears in the display window.

3 Insert a blank tape into deck B depending on the model you have.

If you have a CFD-758

Insert the tape with the side you want to record on facing up.

If you have a CFD-768

1 Choose the side of the tape you want to record on.

To record on	Press ←→ DIR
Side A (facing up)	to light ▷ FWD
Side B (facing down)	to light REV ◀

2 Select dual or single-sided recording.

To record	Switch DIR MODE to
One side of the tape	=
Both sides of the tape from side A to B only*

* If recording begins from side B, the tape stops at the end of that side.

4 Press ● REC on deck B.

PLAY depresses automatically. The "REC" and "DUB" indications appear and recording starts from the beginning of the CD.

The recording level is adjusted automatically

Adjusting the volume or the audio emphasis will not affect the recording level. However, these controls will change the sound levels you hear through speakers or headphones.

To	Press
Stop recording	■ ▲ STOP/EJECT on deck B
Stop play	□ on the CD player
Pause during play	▷□□ on the CD player
Pause during record	□□ PAUSE on deck B

Recording a CD: Specifying Track Order

You can have the CD cassette-corder create programs based on either track order or tape length. To record based on tape length, see the next section, Recording a CD: Specifying Tape Length.

Choose the order that tracks record on a tape by making programs for sides A and B of the tape. Record on TYPE I (normal) tape.

1 Insert a CD.

2 Insert a blank tape to deck B with the side you want to record facing up. Press ◀DIR to light ▷ FWD (CFD-768 only).

3 Press CD until "Cd" appears in the display window.

4 Press MODE until "PGM" appears in the display window.

5 Press the number buttons on the remote commander for the tracks you want to record in the order you want them to record for one side.

To check the total playing time while programming tracks

While you are programming the tracks, press DISPLAY. The total playing time of the programmed selections will be displayed.

If you make a mistake

Press EDIT/PGM CLEAR on the deck once and re-enter the track number.

6 Determine how you want to record based on the model you have:

If you have a CFD-758

To record on both sides of the tape

1 Press II on the remote commander to enter a pause.
2 Continue programming for the second side (step 5 above).
3 Go to step 7. After the tape finishes recording the first side, turn over the tape manually and press ● REC again.

To record on one side of the tape

- Go to step 7.

If you have a CFD-768

To record on both sides of the tape

1 Press III on the remote commander to enter a pause.
2 Continue programming for the second side (step 5 above).
3 Set the DIR MODE selector to ⊃.
4 Go to step 7.

To record on one side of the tape

1 Set DIR MODE to =.

2 Go to step 7.

7 Press ● REC

"REC" and "DUB" appear in the display window and recording starts.

To cancel record

Press ■ ▲ STOP/EJECT on the tape deck.

Recording a CD: Specifying Tape Length

You can have the CD player make programs that will fit the length of the tape. Use a TYPE I (normal) tape.

1 Insert a CD.
2 Insert a blank tape to deck B with the side you want to record on facing up. Press ◀ DIR to light ▶ FWD and set DIR MODE to → (CFD-768 only). Use a tape longer than the total playing time of the disc.
3 Press CD until "Cd" appears in the display window. If "SHUF" or "PGM" is displayed, press the □ (stop) button until the indication disappears.
4 Press EDIT/PGM CLEAR to select EDIT 1, EDIT 2 or EDIT 3 based on the following options:

Note: When you press EDIT/PGM CLEAR, the track orders for program play (page 19) will be erased.

To have the player	Select
Fit tracks on the tape without changing the original CD order.	EDIT 1E-1 方块
Fit tracks on the tape letting the player change the original CD order for the best fit.	EDIT 2E-2 方块
Record all the tracks on the tape in the original CD order. If the last track on side A has to be cut, the track will start recording again from the beginning on side B.	EDIT 3E-3

If you've selected EDIT 3, skip steps 5 and 6.

5 Enter the total tape length by pressing TUNING/TIME SET (- / + )
6 Press ENTER/MEM. The player automatically creates programs for sides A and B of the tape. The tracks that will play appear in the music calendar.

The indication "14" shows that 12 tracks plus a pause have been programmed. Additional tracks can be porgrammed from the 14th step.

If the CD total playing time exceeds the tape length, the tape length flashes and “—” is displayed. Replace the tape with a longer tape and repeat from step 5.

7 Press ● REC on deck B. "REC" and "DUB" appears in the display window and recording starts.

When recording on side A is finished, the CD player pauses and the tape runs to the end of side A (erasing any previous recordings). Then, either the tape will start recording on side B automatically (CFD-768) or you will have to take the tape out and turn it over (CFD-758).

Note: If you open the disc tray, the track order programmed to record will be erased.

To cancel programmed record

Press ■ ▲ STOP/EJECT on the tape deck.

Falling Asleep to Music

You can set the CD cassette-corder to turn on and/or off at a certain time. This is convenient when you want to wake up or go to sleep to music or (CFD-768 only) record a radio program when you are out. To fall asleep to music use the sleep timer.

1 Press one of the three FUNCTION buttons for the type of music you want to fall asleep to: TAPE, RADIO or CD.

2 Play the desired music source.

To play	Press
a Tape	▶ PLAY
the Radio	BAND, and tune in a station
a CD	▷00

3 Press SLEEP. "SLEEP" appears in the display window. The CD cassette-corder plays for 120 minutes, then shuts off automatically.

* Note that the display back light does not function while the sleep timer is operating.

To cancel the sleep function Press SLEEP again or turn off the power.

Falling asleep and waking up to different music

1 Set the wake up timer by following steps 1 - 9 in Waking Up to Music on the next page.

2 Activate the sleep function by following steps 1 - 3 in Falling Asleep to Music on this page.

You can wake up to music at a preset time. Make sure the current time is correct. If it is not, reset it referring to the section Setting the Clock on page 12. Make sure the Ⓔ (clock) indication is not lit in the display window.

1 Turn on the power and press TIMER. The Ⓗ (clock) and function indications flash.

2 Press one of the three FUNCTION buttons for the type of music you want to listen to: TAPE, RADIO or CD.

3 Prepare the desired music source.

To play	Do this
a Tape	Insert a tape in deck B
the Radio	Tune in a station
a CD*	Place a CD on the disc tray

* You can play a CD in any play mode.

4 Press ENTER/MEM.

5 Set the timer to the hour you want the music to go on by pressing TUNING/TIME SET (-/+), then ENTER/MEM. Set the minutes, then press ENTER/MEM.

6 Set the volume by pressing VOLUME.

7 Press TIMER. All your settings have been stored in the memory of the CD cassette-corder.

8 Press STANDBY. The Ⓐ (clock) indication lights and the power goes off.

9 Press PLAY on deck B if you have inserted a tape. At the preset time, the power will go on and the music will play. Two hours after the turn-on time, the power will go off again.

To check when the player will go on

Press TIMER, then ENTER/MEM.

Each time you press the ENTER/MEM button, each stored setting appears. After you have checked the time, press TIMER again.

To stop play of	Press
the Tape	■ ▲ STOP/EJECT, then POWER
the Radio	POWER
the CD	□, then POWER

To cancel the timer

Press STANDBY to make the Ⓑ (clock) indication disappear from the display window.

To have the player go on the next day at the same time. You need not set the timer again. The preset time and the sound source you chose are stored in memory until you reset them. If the ⊕ (clock) indication is not lit in the display window, press STANDBY to reactivate the timer.

(CFD-768 Only) Timer-Recording Radio Programs

You can set the timer to record the radio at a certain time. Make sure the current time is correct. If it is not, reset it referring to the section Setting the Clock on page 12. Make sure the ⊙ (clock) indication is not lit in the display window.

1 Turn on the power and press RADIO. Tune in the radio station you want to record.
2 Insert a blank tape to deck B with the side you want to record on facing up. Press ◀DIR to light ▷ FWD.
3 Select dual or single-sided recording.

To record on	Set DIR MODE to
Both sides of the tape
One side of the tape	=

4 Press TIMER. The (clock) and function indications flash.

5 Press RADIO, then ENTER/MEM.

6 Set the timer to the hour you want the music to go on by pressing TUNING/TIME SET (-/+), then ENTER/MEM. Set the minutes and press ENTER/MEM.

7 Set the volume you want the radio program to record at by pressing VOLUME.

8 Press TIMER. All your settings have been stored in the memory of the CD cassette-corder.

9 Press STANDBY. The Ⓗ (clock) indication lights and the power goes off.

10 Press ● REC. At the preset time the power will go on automatically and recording will start. The power will go off again two hours later.

To check when recording will start Press TIMER, then ENTER/MEM. Each time you press ENTER/MEM, a stored setting (including the volume) lights up. When you finish checking, press TIMER again. The display which was lit before you pressed TIMER will reappear.

To stop recording Press ■ ▲ STOP/EJECT, then press POWER.

To cancel the timer Press STANDBY to make the Ⓧ (clock) indication disappear.

You can use the CD cassette-corder as a public address system. You can also mix sounds by adding your voice or other audio through the microphone as you record. Use a monaural microphone with mini-plug (not supplied).

1 Plug the microphone into the MIX MIC jack and turn on the microphone and the CD cassette-corder.
2 Press one of the FUNCTION buttons to choose a sound source.

To	Press
Use the CD cassette-corder as a public address system	TAPE
Mix sound	TAPE, RADIO or CD

3 Sing or speak into the microphone and adjust the volume.

To record mixed sounds

Insert a tape (TYPE I) in deck B and press ● REC. The recording level is adjusted automatically.

Notes on the microphone

• If acoustic feedback (howling) occurs, turn down the volume or move the microphone away from the speakers. We do not recommend you use a microphone that has an echo function.
• Microphone sounds cannot be mixed in high-speed dubbing mode.

For Your Information

Maintenance

Cleaning the tape heads and tape path

Contaminated heads cause poor recording or sound drop-out in playback. We recommend cleaning after every 10 hours of operation. To make the best possible recording, however, you should clean all surfaces over which tape travels before each recording.

Wipe the heads, the pinch rollers and the capstans with a cleaning swab slightly moistened with cleaning fluid or alcohol.

After cleaning the heads, rollers and the tape path, insert a tape when the areas cleaned are completely dry.

Demagnetizing the tape heads

After 20 to 30 hours of use, enough residual magnetism will have built up on the tape heads to begin to cause loss of high frequency sound and hiss. At this time, you should demagnetize the heads and all metal parts in the tape path with a commercially available tape head demagnetizer.

Cleaning the cabinet

Clean the cabinet, panel and controls with a soft cloth slightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder or solvent, such as alcohol or benzene.

Notes on Compact Discs

- Before playing, clean the CD with a cleaning cloth. Wipe the CD from the center out.

• Do not use solvents such as benzene, thinner, commercially available cleaners or anti-static spray intended for vinyl LPs.
• Do not expose the CD to direct sunlight or heat sources such as hot air ducts, nor leave it in a car parked in direct sunlight as there can be a considerable rise in temperature inside the car.
  • After playing, store the CD in its case.

If there is a scratch, dirt or fingerprints on the CD, it may cause tracking error.

AUDIO POWER SPECIFICATIONS

POWER OUTPUT AND TOTAL HARMONIC DISTORTION

With 4-ohm loads, both channels driven from 150-10,000 Hz; rated 7 W per channel-minimum RMS power, with no more than 10 % total harmonic distortion in AC operation.

Other Specifications

CD player section
System	Compact disc digital audio system	Power output (excluding US model)	10 W + 10 W (at 4 ohms, 10 % harmonic distortion in DC operation)
Laser diode properties	Material: GaAIAs	Power requirements	For CD radio cassette-corder:
	Wave length: 780 nm		240 V AC, 50 Hz (Australian model)
	Emission duration: Continuous		120 V AC, 60 Hz (Other models)
	Laser output: Less than 44.6 μW		12 V DC, 8 size D (R20) batteries
	(This output is the value measured at a distance of about 200 mm from the objective lens surface on the optical pick-up block.)		For clock/timer/memory:
			6 V DC, 4 size AA (R6) batteries
			For remote commander:
			3 V DC, 2 size AA (R6) batteries
Spindle speed	200 r/min (rpm) to 500 r/min (rpm) (CLV)	Power consumption	43 W (Canadian model)
			40 W (Other models)
Error correction	Sony Refined Super Strategy	Battery life	For CD radio cassette-corder:
	Cross Interleave Reed Solomon		FM recording	Tape playback	CD playback
	Code		approx. 4 h	approx. 2 h	approx. 1 h
Number of channels	2	Sony SUM-1 (NS)	approx. 12 h	approx. 5.5 h	approx. 3 h
Frequency response	20–20,000 Hz ± 2 dB		For clock/timer/memory:
Wow and flutter	Below measurable limit		approx. 1 year
			For remote commander:
			approx. 6 months
Radio section
Frequency range	FM: 87.6–108 MHz	Dimensions	633 x 208 x 246 mm (w/h/d)
	AM: US and Canadian models		(25 x 81⁄4 x 93⁄4 in.) (incl. projecting parts and controls)
	530–1,710 kHz
	Other models	Mass	9.5 kg (20 lb. 15 oz.)
	531–1,602 kHz		(incl. batteries)
Antennas	FM: Telescopic antenna	Supplied accessories	AC power cord (1)
	AM: Built-in ferrite bar antenna		Remote commander (1)
Cassette-corder section
Recording system	4-track 2-channel stereo	Design and specifications subject to change without notice.
Fast winding time	Approx. 120s (sec.) with Sony cassette HF60	Optional accessories
Frequency response	TYPE I (normal) cassette: 50–10,000 Hz	Sony DYNAMIC MICROPHONE series
		Sony MDR headphone series
General
Speaker	Full range:
	8 cm (31⁄4 inches) dia.,
	4 ohms cone type
	Tweeter: 5 cm (2 inches) dia.
Inputs	Mixing microphone input jack, (minijack):
	Sensitivity 2.45 mV
	For low impedance microphone
Outputs	Headphones jack (stereo minijack):
	For 8–32 ohms impedance headphones

Troubleshooting Guide

	Symptom	Remedy
General	The power does not come on.There's no audio.	Connect the AC power cord securely.Insert the batteries with the correct polarity, p. 11.Replace the batteries with new ones if they are weak, p. 11.Make sure the display window is displaying the function you want to operate.Adjust the volume.Unplug the headphones when listening through speakers.
Radio	The audio is weak or poor quality.The picture of the TV is unstable.	Replace all the batteries with new ones if they are weak, p. 11.Move the player away from the TV.If you are using the remote commander while listening to AM radio, noise may be heard. This is unavoidable.If you are listening to an FM program near the TV with an indoor antenna, move the player away from the TV.
CD Player	The CD does not play."No disc" lights in the display window even when a CD is in place.The sound drops out.	Make sure the disc tray is closed.Place the CD with the label surface up.Clean the CD, p. 32.Take out the CD and leave the disc tray open for about an hour to dry moisture condensation.Make sure "Cd" appears in the display window, p. 16.Reduce the volume.Clean the CD, or replace it if the CD is badly damaged.Place the player in a location free from vibration.
Tape Player	The tape does not move when you press an operation button.The REC button does not function.The tape does not play.The tape does not erase completely.The tape does not record (dub).The audio is weak.The audio quality is poor.	Close the cassette compartment securely.Make sure the safety tab on the cassette in deck B is in place, p. 23.Make sure "TAPE" appears in the display window.Clean the erasing heads.Replace all the batteries with new ones if they are weak, p. 11.Make sure the tape is inserted property.Make sure the safety tab of the cassette in deck B is in place, p. 23.Clean the heads, pinch rollers and capstans, p. 32.Demagnetize the heads using a demagnetizer, p. 32.
Timer	The timer does not operate.	Make sure the time on the clock is correct, p. 12.Replace all the batteries with new ones if they are weak, p. 11.Check to see if the AC power had been cut off.Make sure the tape in deck B has not wound to the end.Make sure the (clock) indication is displayed.
Remote Commander	The remote commander does not function.	Replace all the batteries in the remote commander with new ones if they are weak, p. 9.Make sure you are pointing the remote commander at the remote sensor on the deck.Remove any obstacles in the path of the remote commander and the player.Make sure the remote sensor is not exposed to strong light such as direct sunlight or fluorescent lamp light.Move closer to the deck when using the remote commander.

After trying the above remedies, if the player still does not function properly, unplug the AC power cord and remove the batteries for the clock/timer/memory. After all the indications in the display window disappear, insert the batteries for the clock/timer/memory again. The player should then function properly.

Index

Adjusting audio 12

Audio emphasis 12

AMS 17

Batteries

for player 11

for remote commander 9

CD player 16

Clock 12

Connections

speakers 31

Display indications 8

Dubbing 24

Intro scan 18

Mixing 31

Music calendar 8

Normal play 16

Playing

a CD (normal play) 16

a tape 22

preset stations 15

specific tracks 17

tracks in random order (shuffle play) 18

tracks in specific order (program play) 19

tracks repeatedly 20

Power sources 11

Program play 19

Public address system 31

Radio stations

presetting 15

tuning in 14

Recording

a CD 25.26.27

a radio program 23

another tape (dubbing) 24

on a tape: tips 23

with a microphone (mixing) 31

Recording CDs

checking and changing track order 21

specifying tape length 27

specifying track order 26

Recording levels 23, 24, 25

Remote commander 9

Repeating tracks 20

Saving a recording 23

Scanning stored stations 15

Shuffle play 18

Sleep timer 28

Sound mode 12

Speakers 10

Tape player 22

Timer 28.29.30
