Product Type	Car Radio / CD Receiver
Brand	Sony
Model	CDX-U8000
Dimensions (W x H x D)	178 x 50 x 160 mm
Weight	1.2 kg
Power Supply	12V DC, negative ground
Maximum Power Output	50 W x 4
Audio Playback	CD, CD-R/RW, MP3, WMA
Tuner	FM/AM with RDS
Auxiliary Input	Front panel mini-jack
Display	LCD with multi-color illumination
Remote Control	Supplied (RM-X147)
Security	Detachable faceplate
Maintenance	Clean with soft dry cloth; use lens cleaner for CD
Spare Parts & Repairability	Available through Sony authorized service centers
General Information	Supports steering wheel remote control (adapter required)

Frequently Asked Questions - CDX-U8000 SONY

How do I install the CDX-U8000 in my car?

Ensure the car battery is disconnected. Use the supplied mounting sleeve and trim ring. Connect the wiring harness according to the color codes: yellow for constant 12V, red for switched 12V, black for ground, and speaker wires. Slide the unit into the sleeve until it clicks.

Why won't the CD play?

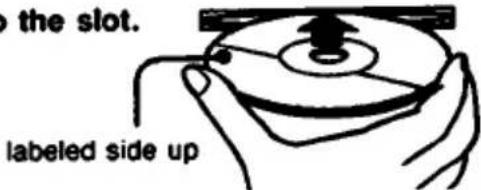

First, check if the CD is inserted correctly with the label facing up. Ensure the disc is not scratched or dirty. If the unit displays 'ERROR' or 'NO DISC', try cleaning the disc with a soft cloth. If the problem persists, reset the unit by pressing the reset button with a pointed object.

How do I set the clock on the CDX-U8000?

Press and hold the DSPL (Display) button until the hour digits flash. Rotate the volume control knob to set the hour, then press the button again. The minute digits will flash. Rotate to set minutes, then press the button to confirm.

How can I adjust the sound settings like bass and treble?

Press the SOUND button repeatedly to cycle through EQ presets or to access manual settings: Bass, Treble, Balance, Fader, and Loudness. Use the volume knob to adjust each setting. Press SOUND again to save.

How do I use the remote control?

Point the remote at the unit's sensor. Use the VOL +/ - for volume, SEEK/AMS for track or station search, MODE to switch sources, and DSPL to change display. The remote requires a CR2025 battery.

What should I do if FM/AM radio reception is poor?

Check the antenna connection. For FM, ensure the antenna is fully extended. If reception is still weak, try manual tuning to fine-tune stations. In some areas, a signal booster may be needed. Also, avoid parking near large metal structures.

Can I connect an external device like a phone or MP3 player?

Yes, the CDX-U8000 has a front Aux input (3.5mm mini-jack). Connect your device with a standard audio cable. Press the MODE button repeatedly until 'AUX' appears on the display. Adjust volume on both the unit and your device.

How do I reset the unit to factory settings?

Use a pointed object like a pen to press the RESET button located behind the detachable faceplate (near the disc slot). This will clear all settings and memory, restoring factory defaults.

How do I clean the CD lens?

Purchase a CD lens cleaning disc from an electronics store. Insert the cleaning disc and play it according to the instructions. Never use liquid cleaners directly on the lens, as they may damage the optical pickup.

Does the CDX-U8000 support MP3 and WMA files?

Yes, it plays MP3 and WMA files burned on CD-R or CD-RW discs. Ensure the files are saved at a bitrate of 32-320 kbps for MP3 and 32-192 kbps for WMA. The unit can read up to 255 folders and 512 files on a disc.

USER MANUAL CDX-U8000 SONY

Operating Instructions

page 2

Before operating the unit, please read this manual thoroughly and retain it for future reference.

Mode d'emploi

page 59

For installation and connections, see the supplied installation/connections manual.

For the Customers in the United States

OWNER'S RECORD

The model and serial numbers are located on the bottom of the unit.

Record the serial number in the space provided below. Refer to them whenever you call upon your Sony dealer regarding this product.

Model No.CDX-U8000

Serial No.

CAUTION

The use of optical instruments with this product will increase eye hazard.

INFORMATION

This equipment generates and uses radio frequency energy and if not installed and used properly, that is, in strict accordance with the manufacturer's instructions, may cause interference to radio and television reception. It has been type tested and found to comply with the limits for a Class B computing device in accordance with the specifications in Subpart J of Part 15 of FCC Rules, which are designed to provide reasonable protection against such interference in a residential installation. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient the receiving antenna

Relocate the equipment with respect to the receiver

Move the equipment away from the receiver Plug the equipment into a different outlet so that equipment and receiver are on different branch circuits.

If necessary, the user should consult the dealer or an experienced radio/television technician for additional suggestions. The user may find the following booklet prepared by the Federal Communications Commission helpful:

"How to Identify and Resolve Radio-TV Interference Problems": This booklet is available from the U.S. Government Printing Office.

Washington, DC 20402, Stock No. 004-000-00345-4.

The shielded interface cable recommended in this manual must be used with this equipment in order to comply with the limits for a computing device pursuant to Subpart J of Part 15 of FCC Rules.

Table of Contents

Features 4

Precautions.... 5

Location and Function of Controls....6

Detaching and Attaching the Front Panel ... 11

Setting the Clock 12

CD Player/Changer Operation

CD Player Operation 13

CD Changer Operation 14

Locating a Desired Disc, Track or Part of a Track 15

Playing in Other Modes 17

CD Custom File Function

Displaying the Title of Each Disc — Disc Memo Function ..... 22

Playing Selected Tracks on a Disc — Bank Function .....26

Editing a Custom File 29

Displaying the Stored CD's Information on TV Monitor 31

Radio Reception

Searching for the Stations Automatically — Automatic Tuning ....32

Tuning in by Adjusting the Frequency — Manual Tuning ....34

Memorizing the Stations Automatically — BTM Function ....35

Memorizing Only the Desired Stations .....37

Receiving Stations Stored in the Memory...38

Radio Custom File Function

Displaying the Name of Each Station — Station Memo Function ..... 39

Editing the Registered Station Names.....41

Displaying Contents of the Preset Memory on TV Monitor 43

Watching TV and Video

Watching TV....44

Memorizing TV Stations Automatically — Auto-Memory ....46

Memorizing Only the Desired TV Stations ..47

Displaying Contents of the Preset Memory on TV Monitor 48

Watching Video 49

Watching TV or Video While Listening to CDs —Simultaneous Play Function .....50

Connecting a WALKMAN

Listening to Audio Equipment Connected to the WALKMAN jack 52

Maintenance 53

Specifications 54

Troubleshooting Guide ....55

General

• Full-logic feather touch system for easy and smooth operation.
- Large-and-wide-sized LCD for displaying the operation modes clearly.
- Switchable two color illumination (amber and green). (page 8)
• Provided with a digital 12-hour clock. (page 12)
- Telephone-mute function for decreasing the volume automatically with a telephone call.
- Detachable-front panel enables you to take the front panel away with you when you leave your car. (page 11)
- Caution alarm will be activated if you turn off the ignition key without removing the front panel from the unit.
- WALKMAN input jack for connecting a WALKMAN* etc. (page 52)
- Optional wireless remote commander (not supplied). (page 9)
• WALKMAN is a trademark of the Sony Corporation.

Tuner section

• SSIR (Sony Super Interference Rejection) PLL (Phase-Locked Loop) synthesizer tuner.
• Provided with a FM diversity reception system for a better radio reception.
- Up to 30 stations can be preset: 20 stations on FM and 10 stations on AM.
• BTM (Best Tuning Memory) function automatically selects and stores the stations with strong signals on the preset number buttons in order of frequency. (page 35)
- Station memo function for displaying the name of each radio station. (page 39)

CD section

• 1 bit DAC (Digital-to-Analog Converter) for a clear sound reproduction.
• A 3-inch (8 cm) CD can be played without an adaptor. (CD player only)
• Quick recovery mechanism to avoid any sound skipping.

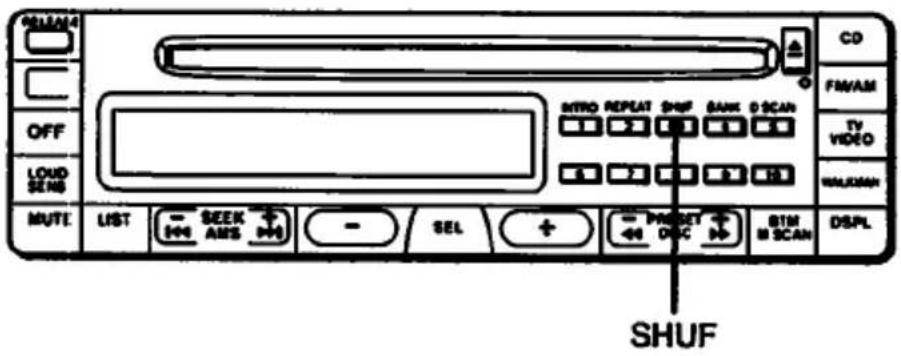

• Shuffle play function for playing tracks in a random order. (page 17)
• AMS (Automatic Music Sensor) function for automatically locating the beginning of a track during CD play. (page 15)
• Intro scan function for playing the first 10 seconds of each track. (page 21)

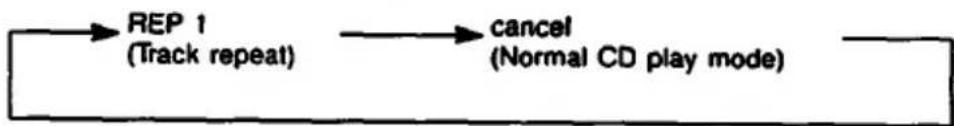

• Repeat play function for listening to a currently playing track repeatedly. (page 19)
• Manual search function for locating a desired point in a track. (page 15)
• Several Sony CD changers (not supplied) can be connected and controlled by the use of the Sony source selector (not supplied) with the unit.
• Direct disc selection** for selecting discs directly with the numerical keys. (page 16)
• Disc memo function** for displaying the title of each disc and setting a PLAY/SKIP mode on each track. (page 22)
• Disc scan function** for playing the first 10 seconds of all the discs. (page 21)

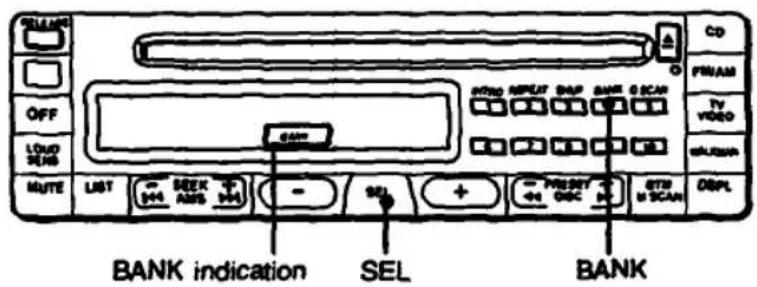

  • Bank function for playing only selected tracks on the disc. (page 26)
  **When the optional CD changer(s) is connected

TV tuner section

(when the optional TV monitor and hide-away TV tuner are connected)

• UNILINK system enables an optional video deck to be controlled by its remote controller through this unit.
• Station memo function for displaying the names of TV stations on the TV screen. (page 48)
• Simultaneous play function for listening to CD or cassette playback with a WALKMAN while watching the TV or video. (page 50)
• List up function enables CD titles and the contents of preset memory to be displayed on the TV monitor. (page 31)

Precautions

• Before operating the unit for the first time or after replacing the car battery, press the reset button on the front panel with a ball-point pen etc., and then start operating the unit.
• If your car was parked in direct sunlight resulting in a considerable rise in temperature inside the car, allow the unit to cool off before operating it.
• If no power is being supplied to the unit, check the connections first. If everything is in order, check the fuse.
• As the laser beam used in this compact disc player is harmful to the eyes, do not attempt to disassemble the cabinet. Refer servicing to qualified personnel only.

Note on moisture condensation

On a rainy day or in a very damp environment, moisture in the atmosphere may condense on the lenses inside the unit. Should this occur, the unit may not operate properly. In such a case, remove the disc inside and wait for about an hour or so until the moisture has evaporated.

If you have any questions or problems concerning your unit that are not covered in this manual, please consult your nearest Sony dealer.

Notes on discs

Handle the disc by its edge, and to keep the disc clean, do not touch the surface.

This way

Do not attach any paper or tape.

Not this way

Do not expose the disc to direct sunlight or heat sources such as hot air-ducts, or leave it in a car parked in direct sunlight where there can be a considerable rise in the temperature.

Cleaning discs

Before playing, clean the disc with an optional cleaning cloth.

Wipe the disc in the direction of the arrows.

Do not use solvents such as benzine, thinner, commercially available cleaners or antistatic spray intended for analog discs.

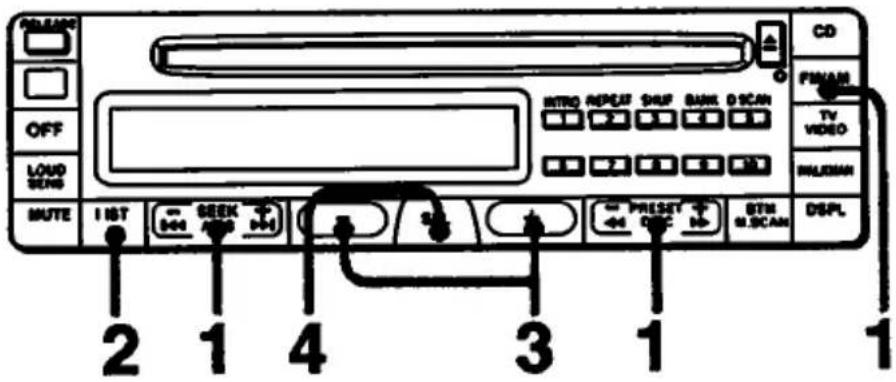

Main Unit

Refer to the pages in ● for details.

1 OFF button

Press to turn off the unit.

2 Receptor for the optional remote commander

[3] RELEASE (front panel release) button

4|Disc insertion slot

5| ≜ (eject) button

[6] CD (disc play/CD changer select*) button

- When the optional CD Changer(s) is connected

7 FM/AM (radio on/band select) button ●

8 TV/VIDEO (television/video select) button

1. LOUD/SENS (loudness/sensitivity) button Press for more than two seconds to reinforce the bass and treble especially when listening at a low volume level. To disengage the button, press it again for more than two seconds.

10 MUTE button

Press to mute the sound momentarily. Press again to restore the previous volume level. This button will also be canceled in the following cases:

—when the ⊙ or OFF button is pressed.

—when the ignition key of your car has been turned off to the OFF position for more than 8 seconds.

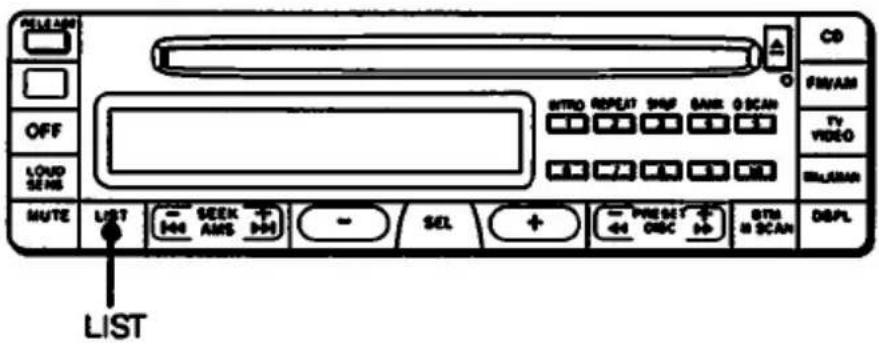

[11] LIST (custom-file list) button ● ● ● ●

|12| BTM/M.SCAN (best tuning memory/memory scan) button ●

13| DSPL (display change/time set) button

14 WALKMAN button ●

Press this button when you listen to audio equipment (WALKMAN etc.) connected to the WALKMAN jack of the main unit.

[15] Display window
|16| SEL (control mode select) button Press to select the desired control mode: BAS (bass), TRE (treble), BAL (balance), FAD (fader) or VOL (volume).

Display window	Control mode
		Press	Press
BAS	Bass control	For less bass	For more bass
TRE	Treble control	For less treble	For more treble
BAL	Balance control	To decrease the right-speakers' volume	To decrease the left-speakers' volume
FAD	Fader control	To decrease the rear-speakers' volume	To decrease the front-speakers' volume
VOL	Volume control	For less volume	For more volume

17 (volume/bass/treble/balance/fader control) buttons

The ⏻ and ⏻ buttons normally function as the volume control. To adjust other modes, press the ⏻ or ⏻ button within three seconds after selecting the desired mode with the SEL button. The control mode automatically goes back to the volume control mode in three seconds.

18 Reset button

Press this button when you use this unit for the first time, when you have changed the car battery, or when the buttons of this unit do not function.

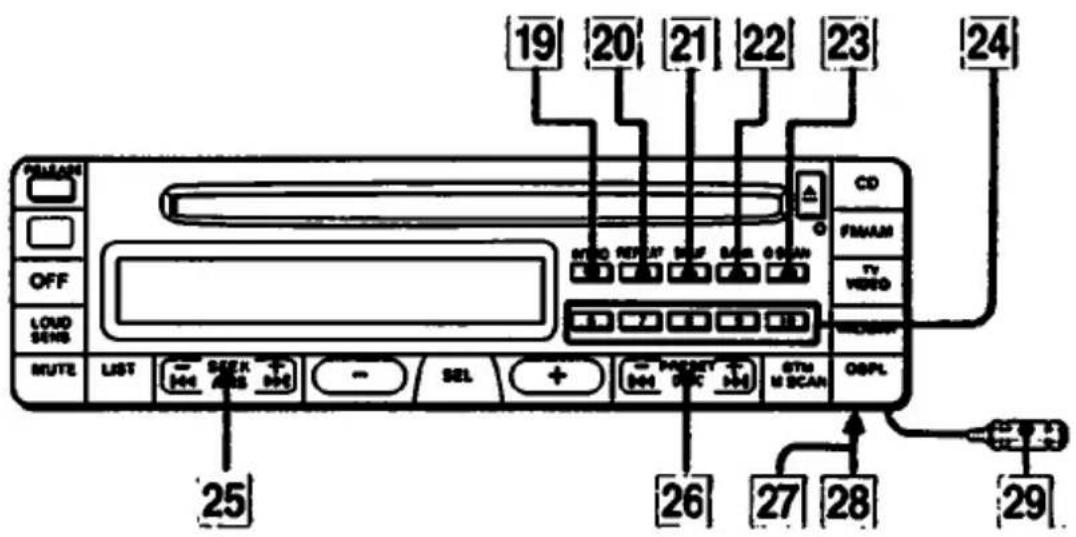

Location and Function of Controls

	During disc play	During radio/TV reception
19	INTRO (track cue play) button ●	Preset number buttons ● ● ●
20	REPEAT (repeat play) button ●
21	SHUF (shuffle play) button ●
22	BANK button ●
23	D. SCAN (disc scan) button ●
24	—
25	AMS (Automatic Music Sensor) button ●	SEEK (automatic tuning) button ●
26	DISC (manual search/disc search) button ● ●	PRESET (preset search/manual tuning) button ● ●

The buttons [19] — [24] function as the direct disc selection buttons as well during disc play by a CD changer. (See page 16.)

27 FM DIVERSITY switch (Located on the bottom of the unit) See "FM DIVERSITY Switch" in the Installation/Connection manual.

28 POWER SELECT switch (Located on the bottom of the unit) See "POWER SELECT Switch" in the Installation/Connection manual.

29 WALKMAN jack

Changing the illumination color

Press the INTRO button while pressing the SEL button.

Muting the beep sound

Press the 📄 button while pressing the SEL button. To obtain the beep sound again, press these buttons oce more.

Optional Remote Commander

Buttons of the same function as those on the main unit*

31 DSPL (display change) button

When the TV tuner unit (not supplied) is connected, this button functions as a switch for changing the displays on the TV screen. If the TV tuner is not connected, the button functions as same as the DSPL button on the main unit.

	During disc play	During radio reception	During TV reception
32	AMS (Automatic Music Sensor) button	SEEK (auto-matic tuning) button

34 OFF button

[35] FM/AM (radio on/band select) button

37 MUTE button

[38] CD (disc play/CD changer select) button

39 WALKMAN button

40 TV/VIDEO (television/video select) button

* Some of these buttons function differently when the unit is in the simultaneous play mode. See page 50 for the details.

Different function buttons

[30] M.ILL (memory illumination) switch To illuminate the buttons on the remote commander, slide down this switch. The illumination goes off automatically after about 15 seconds.

	During disc play	During radio reception	During TV reception
33	DISC (disc search) button	PRESET (preset search) button

You cannot do the manual search and manual tuning with the remote commander.

When the unit is in the simultaneous play mode, the PRESET button functions only as a preset search button.

36 VOL (volume) button This button adjusts only the volume level.

When the POWER SELECT switch is set to OFF, the unit cannot be operated with the remote commander unless one of the CD, FM/AM, TV/VIDEO or WALKMAN buttons of the unit is pressed or a disc is inserted to activate the unit first.

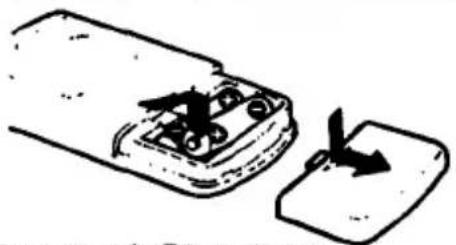

Installing the Batteries

Two size AA (R6) batteries

Battery life

When the batteries become weak, you will not be able to operate the unit with the remote commander. Battery life is approx. six months although it depends on the way of use.

Notes on batteries

To avoid damage from battery leakage and corrosion:

—insert the batteries with the correct polarity.

—do not use an old battery with new one, or different types of batteries together.

—remove the batteries when you do not use the unit for a long time.

-do not charge the battery.

If any battery leakage occurs, replace the batteries with new ones after cleaning the battery compartment.

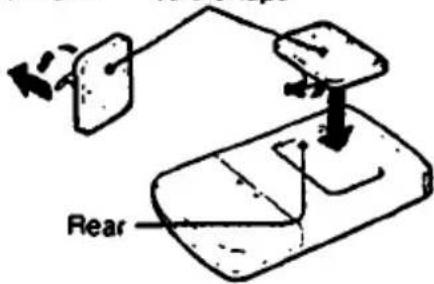

Installing the Optional Remote Commander

to the place you

wish to install

Velcro tape

Install the remote commander with the velcro tape in a desired place

Notes

- Do not install or leave the remote commander in a location near any heat sources, or in a place subject to direct sunlight (especially on the dashboard in summer etc.).

- When you park the car in direct sunlight, detach the remote commander and place it in a location not subject to direct sunlight such as the glove-box.

- Before installing the remote commander, be sure to confirm whether you can remote control the unit from the place you intend to install.

- Before attaching the veicro tape, clean the surface

Detaching and Attaching the Front Panel

The front panel of this unit can be detached in order to prevent the unit from being stolen.

Detaching the Front Panel

Before detaching the front panel, be sure to press the OFF button first. Then press the RELEASE button to open up the front panel and detach the panel by pulling it towards you as illustrated.

Be sure not to drop the panel when detaching it from the unit.

Attaching the Front Panel

Apply the right hand side of the front panel to the unit by attaching the part A of the front panel to the part B of the unit as illustrated and push until it clicks.

Caution alarm

If you turn your ignition key to the OFF position without removing the front panel, the caution alarm will be activated and a beep tone will be heard for a few seconds. (only when the POWER SELECT switch is set to the ON position)

Notes

• Make sure that the front panel is right way up when attaching it to the unit as it cannot be attached upside down.
• Do not press the front panel hard against the unit when attaching it to the unit. It can be easily attached by pressing it lightly against the unit.
• Never leave the detached front panel in your car if it is parked in direct sunlight as there could be a considerable rise in temperature inside the car.
• When you carry the front panel with you, put it in the supplied front panel case.
• Do not press hard or give excessive pressure to the display window of the front panel.

The clock has a 12-hour digital indication.

For example, set it to 10:08.

1 Turn the ignition key to the ON position.

2 Press the DSPL button if the clock indication does not come on.

3 Press the DSPL button for more than two seconds.

While holding down the DSPL button,

Press 📄 SEEK AMS 🐃 to set the hour digits.

(to go back) (to go forward)

Press ☐ PRESET + to set the minute digits.

(lo go back) (to go forward)

4 The clock starts activating when you take your finger off the DSPL button.

1008

Notes

• You cannot set the clock with the optional remote commander.
• If the POWER SELECT switch of the unit is set to the OFF position, the clock cannot be set unless the power is turned on. Set the clock after you turn on the radio or start CD play

1

Insert a disc into the slot.

labeled side up

When a disc is inserted, CD play will automatically start.

If a disc is already inserted, press the CD button.

2

Adjust the volume with the - or + button.

Ejecting the disc

Press the (eject) button.

If you wish to get the clock display during CD play

Press the DSPL button.

Press it again to get back to the previous display.

If a CD changer is connected, see page 14 for details.

Notes

• If a disc is already loaded in the unit, never try to insert another disc.
• Do not insert a disc with its labeled side down as this could damage the disc.
• If you leave the ejected disc in the disc insertion slot after you have pressed the ▲ button, the disc will be automatically retracted into the unit after approximately 15 seconds in order to protect it. This function only applies to the 5-inch (12 cm) discs.
• When you use this unit (CD player) on it's own, the "CD" indication will come on the display window.

Selecting a CD changer or the CD player (the main unit) to operate

While checking the CD changer/player number indications on the display window, press the CD button. Each time you press the button, the indication changes cyclically as follows:

For example, when two CD changers are connected

Notes

• If a disc is not inserted in the CD player (the main unit), you will not be able to select the CD player by pressing this button.
• If more than two CD changers are connected, the number indication for the CD player (the main unit) will always be the last one.

Getting the clock display while listening to a CD

Press the DSPL button. Each time the button is pressed, the display mode will change cyclically as follows:

• It is necessary to put titles onto the discs in advance. See page 22 for details.

If the title of a disc is not registered, “----” will appear on the display window and the unit will enter the elapsed playing time display mode.

You can use this function to quickly locate your desired disc*, track or part of the track.

- When the optional CD changer(s) is connected

Locating the beginning of a track

— AMS function

Press the AMS button during CD play on CD player or the CD changer (if connected).

To listen to the current track again from the beginning

If the button is kept pressed, the beginnings of the previous tracks will be located.

To listen to the next track from the beginning

If the button is kept pressed, the beginnings of the succeeding tracks will be located.

Searching for a Desired Part of Track —Manual Search

Keep the DISC button pressed during CD play by using the CD player or the CD changer (if connected).

To go ahead

To go back

The elapsed playing time of the track will be displayed on the display window during the manual search.

Note

When you keep pressing the AMS button and reach either the beginning or the end of a disc, you will not be able to go any further. However, if "REP 2" is appearing in the display window while the unit is in the repeat play mode and the AMS button is pressed while the last track is being played, the first track on that disc will be played next.

Notes

• You cannot do the manual search with the optional remote commander.
• If you keep pressing the DISC button and the end of the disc has been reached, the "……" indication will appear on the display window.

Searching Your Desired Discs in Turn

—Disc Search (with the optional CD changer(s) connected)

Press the DISC button lightly during CD play by using the CD changer.

To search previous disc numbers

To search the disc numbers ahead

You can search a disc by displaying the titles of the discs registered with the custom file function. See "Displaying the Title of Each Disc" on page 22 for details.

Locating a Disc Directly

—Direct selection

(with the optional CD changer(s) connected)

Press the direct disc selection button of your choice for more than two seconds.

Note

Make sure that you press the DISC button lightly. If you keep it pressed, the unit will enter the manual search mode.

Note

This function will not work when the CD player (the main unit) is used.

Playing in Other Modes

Playing the Discs Randomly

—Shuffle Play Functions

Playing the tracks on the currently selected disc randomly — Disc shuffle play

Press the button to get the "SHUF 1" indication during CD play by either the CD player or the CD changer.

Playing every track on every disc in the currently selected CD changer randomly — CD changer shuffle play (with the optional CD changer(s) connected)

Press the button to get the "SHUF 2" indication during CD play by the CD changer. Every track on every disc in the currently selected CD changer will be played randomly.

Playing every track on every disc in the CD changer and the CD player — All shuffle play (with the optional CD changer(s) connected)

Press the button to get the "SHUF 3" indication during CD play by either the CD player or the CD changer. Every track on the discs in the CD changer and the CD player will be played randomly.

Note

This function will not work when the CD player (the main unit) is used.

The function of the SHUF button changes cyclically as follows:

When the CD changer is not connected

When the CD changer is connected

• The CD changer shuffle play (SHUF 2) functions only when the optional CD changer is played. When the CD player (the main unit) is played, the "SHUF 2" indication will not be displayed. In this case if you press the SHUF button again while the "SHUF 1" indication is being displayed, the indication will change to "SHUF 3".

REPEAT

Playing a Disc Repeatedly

—Repeat Play Functions

Playing the currently selected track repeatedly

— Track repeat

Press the 📋 button to get the "REP 1" indication during CD play by either the CD player or the CD changer.

When the track is over, The CD play will be repeated from the beginning of that track.

Playing the currently selected disc repeatedly

— Disc repeat

(with the optional CD changer(s) connected)

Press the 📋 button to get the "REP 2" indication during CD play by either the CD player or the CD changer.

When the last track on the currently selected disc is over, the CD play will be repeated from the beginning of that disc.

Playing the discs in the CD changer repeatedly

— CD changer repeat

(with the optional CD changer(s) connected)

Press the 📋 button to get the "REP 3" indication during CD play by the CD changer.

When the last disc in the CD changer has been played, the CD play will be repeated from the first disc in the currently selected CD changer.

The function of the REPEAT button changes cyclically as follows:

When the CD changer is not connected

When the CD changer is connected

- The CD changer repeat (REP 3) functions only when the optional CD changer is played. When the CD player (the main unit) is played, the "REP 3" indication will not be displayed. In this case if you press the REPEAT button again while the "REP 2" indication is being displayed, the repeat mode will be cancelled.

Searching for a Desired Track by Listening to the First 10 Seconds of Each Track

—Intro Scan Function

Press the button during CD play by either the CD player or the CD changer.

The first 10 seconds of all the tracks on the currently selected disc will be played in order.

With the optional CD changer(s) connected, after the first disc has been played with the intro scan function, the first 10 seconds of the subsequent disc in the same CD changer will be played.

When the first 10 seconds of the last disc in the first CD changer has been played, the first disc in the next CD changer (if more than one CD changers are connected) or the disc in the CD player (the main unit) with the next number displayed on the display window will be played.

Searching for a Desired Disc by Listening to the First 10 Seconds of Each Disc

—Disc Scan Function (with the optional CD changer(s) connected)

Press the 0 SCAN button during CD play by the CD changer.

The first 10 seconds of all the discs in the CD changers and the CD player will be played in order. When the last disc in the CD changer has been played, the disc in the CD player will be played. If more than one CD changers are connected, the first disc in the next CD changer or the disc in the CD player (the main unit) with the next number displayed on the display window will be played.

Note

If the INTRO button is pressed during a shuffle play, the first 10 seconds of every track will be played randomly.

To cancel the intro scan function

Press the INTRO button again.

To cancel the disc scan function

Press the D.SCAN button again.

You can put a title of your choice to a disc (one title pe disc). The title can be displayed on the display window while the disc is being loaded and played.

Putting Your Personalized Titles onto the Discs

1 Play the disc that you wish to title.

2 Press the LIST button for more than two seconds to enter the name edit mode.

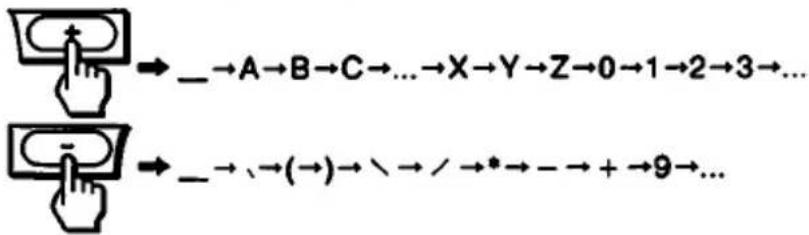

3 Press either the ☐ or ☐ button to select the desired letters and numbers.

Each time you press the ☐ or ☐ button, characters will come on in the following order:

Note

The disc memo function can be used while a disc is being played in the CD player (the main unit) as well

4 Press the SEL button after locating the desired letter or number.

The flashing part will move to the next space on the right. Repeat steps 3 and 4 to enter the entire titles. Up to 8 characters can be used per disc.

5 To register the title, use one of the following methods through ④.

(i) Press the LIST button for more than two seconds.

The unit will go back to the normal CD playing mode.

② Press the LIST button lightly.

The unit enters the PLAY/SKIP mode in which the play and skip modes can be set. (Continue to step 4 in "Setting of the Play and Skip Modes on the Discs" of page 26)

(Press lightly.)

③ Press the DISC button lightly.

You can change the disc and continue to put the titles to the discs.

(Press lightly.)

④ Press the disc button.

You can listen to the disc in the CD player (the main unit) or the next CD changer* and the unit will go back to the normal playing mode.

Notes

• If you press the SEL button when the eighth letter (farthest right letter) is flashing, the flashing part goes back to the first letter (farthest left letter).
• If you wish to put a blank space after a character, select the “_” (under-bar).

Where are the contents of the custom file stored?

The information registered in the custom file will be stored in the memory of the currently selected CD changer*. You can play a custom-filed disc in another CD changer or CD player and use the custom file function as long as they are connected to the currently selected CD changer with the UNILINK system.

You can register the maximum of 110 discs on one CD changer

If you try to register more than 110 discs, the unit will display "FULL" on the display window and will not accept the command for custom-filing. In this case, you will have to erase the memory of the other discs before you enter the new ones. See page 30 for details on erasing the memory.

When two or more CD changers are connected

The information registered in the custom file can be retrieved by other CD changers using the communication signals sent between the CD changers provided that they are connected by UNILINK cables.

* When a CD changer is connected to the CD player (the main unit) and the disc the main unit is to be registered in a custom file, the contents of the custom file w be memorized in the connected CD changer

Displaying the Title

While the CD is playing, press the DSPL button to enter the title display mode.

CD: MA DONNA I

If the title of a disc is not registered, “----” will come on the display window.

While loading the discs

Whatever the display mode is, the indication automatically changes as follows:

Title of the disc (2 seconds) → Disc and track number (2 seconds) → Currently selected display mode

The registered titles of the discs may not come on the display immediately during loading. This occurs because the unit displays the title after identifying the disc by reading the TOC* (Table of Contents) information of the disc. Therefore, while the CD changer is loading the disc for the first time, the registered title of the disc cannot be displayed. Once the disc has been loaded and played, the TOC information would have been read and the title will be displayed even while the disc is being loaded.

Each time you press the DSPL button while the CD is playing

The indication on the display window will change cyclically as follows:

* The TOC information of the disc contains the total length of playing time and the codes to search the beginning and end of each track, and so on.

Playing Selected Tracks on a Disc

—Bank Function

Each track can be set to be either played or skipped while the disc is playing, so that o selected tracks on the disc c be played.

Setting the Play and Skip Modes on the Discs

1 Play the disc to which you wish to set these modes.

2 Press the LIST button for more than two seconds and put the titles onto the discs.

See page 22 for details about putting on a title. If the title has already been registered, go to step 3.

3 Press the LIST button lightly to enter the PLAY/SKIP edit mode.

When the unit enters the PLAY/SKIP edit mode, the indication on the display window will look like the illustration below.

PLAY/SKIP edit mode

4 Press the AMS button to select the track number you wish to skip and press the SEL button.

The indication changes from "PLAY" to "SKIP". If you wish to return to "PLAY", press the SEL button again.

Repeat the operation in this step to enter either the "PLAY" or "SKIP" mode on all the tracks.

The Bank function can be used while a disc is being played also in the CD player (the main unit).

Notes

• When the title is not registered, you cannot enter the PLAY/SKIP edit mode even if you press the LIST button.
• You can only set the "SKIP" mode onto up to 24 tracks. If a disc has more than 24 tracks, you will not be able to set the SKIP mode on the tracks after the 24th track
• You cannot set the SKIP mode onto all of the tracks on a disc.

5 To register the settings, use one of the following methods: 1) through 4).

① Press the LIST button for more than two seconds.

The unit will go back to the normal CD playing mode.

② Press the LIST button lightly.

The unit re-enters the name edit mode. See page 22.

(Press lightly.)

③ Press the DISC button lightly.

You can change the disc and continue to put the titles to the discs.

(Press lightly.)

④ Press the CD button.

You can listen to the CD in the CD player (the main unit) or the next CD changer* and the unit will go back to the normal playing mode.

• Only when two or more CD changers are connected.

Playing Selected Tracks on a Disc

You can listen to only the desired tracks by using this function.

Playing with the Bank Function

To Play the tracks with "PLAY" settings

Press the BANK button during CD play.

The "BANK" indication will come on the display window. The unit will start playing the tracks with "PLAY" settings which have been set by the PLAY/SKIP mode.

To Play the tracks with "SKIP" settings

Press the BANK button while pressing the SEL button.

The "BANK" indication will flash on the display window. The unit starts playing the tracks with "SKIP" settings which have been set by the PLAY/SKIP mode.

To go back to the normal playing mode

Press the BANK button again

To go back to the normal playing mode

Press the BANK button while pressing the SEL button.

When you change the title, the PLAY/SKIP setting of the Bank function will not be erased at the same time.

Changing the Title and the PLAY/SKIP Settings

1 Play the disc you wish to edit.

2 Press the LIST button for more than two seconds to enter the name edit mode.

The title of the currently played disc will appear on the display window.

3 Press the SEL button to make the part you wish to edit flashing. Select the letters and numbers using the ⊙ or ⊙ button.

If you wish to change the titles of other discs, repeat steps 1 through 3 on the discs after changing them with the DISC or CD button.

4 Press the LIST button for more than two seconds.

Now the new title is registered.

Note

CD custom file function can be used while a disc is being played in the CD player (the main unit) as well.

Note

If you wish to change the PLAY/SKIP settings of the Bank function, press the LIST button lightly to enter the PLAY/SKIP mode while the unit is in the name edit mode in step 2. While checking the disc and track numbers on the display window, change the setting by the AMS and SEL buttons. Press the LIST button lightly again and the unit will enter the name edit mode again.

If you erase the title, the PLAY/SKIP mode of the Bank settings will be erased as well.

Erasing a Title

1	Select the CD changer and play any disc.
2	Press the LIST button for more than two seconds to enter the name edit mode. The title of the currently played disc will appear on the display window.
3	Press the preset number button 9 while pressing the SEL button.
4	Press the ─ or ─ button to search for the title you wish to erase. or The titles stored in the CD changer currently selected will appear on the display window in the same order as they were registered*.
5	Press the SEL button after the title you wish to erase is displayed. Repeat steps 4 and 5 on other titles, if necessary.
6	Press the LIST button for more than two seconds. Now the title and the PLAY/SKIP settings are erased. The unit goes back to the normal CD playing mode.

Note

When a disc is being played in the CD player (the main unit), you will not be able to use this function.

The alternative method to erase a title

You can erase a title by selecting eight “__”s (underbars) as described in step 3 of "Changing the Title and the PLAY/SKIP Settings" (Page 29)

* If you have erased some of the titles before, they will not come on in the same order as they were registered.

Displaying the Stored CD's Information on TV Monitor

— When the Optional TV Tuner Unit is Connected to TV Monitor

The titles of discs inside and other information stored in the currently selected CD changer or the main unit will be listed on the TV monitor.

During CD play

(Press lightly.)

Example: When the CD changer 1 is selected.

• If a title is registered on the custom file, that name will be displayed. If not, " ***** " will be displayed in its place.
• A blank space will be displayed if there is a disc number representing an empty slot in the disc magazine.
• “?” will be displayed if the TOC infomation of the disc has not been collated with the custom file.

To turn off the display

Press the LIST button again.

Notes

• It may take some time before all the displays come on the screen.
  • The information cannot be listed when the unit is in the simultaneous play mode. See page 50.

Searching for the Stations Automatically

—Automatic Tuning

If you do not know the frequency of the station you wish to tune in, it is useful to use the Automatic Tuning function.

1 Select the desired band from FM1, FM2 and AM. The band changes in the following order: FM1 → FM2 → AM.

Press the SEEK button.

For lower frequencies

For higher frequencies

The scanning stops when a station is received. Press the button repeatedly until the desired station is received.

3 Adjust the volume with the ⊙ or ⊕ button.

While receiving FM broadcasting

F: 879 .

The "ST" indication will appear when an FM stereo program with sufficient signal strength is tuned in. The program will be received in stereo.

Getting the clock indication while listening to the radio

Press the DSPL button. Each time you press the button, the display mode changes as follows:

* Refer to page 40 for the station name display mode.

SENS

Avoiding the Automatic Tuning from Stopping on Stations Too Frequently

—Local Seek Mode

lightly to get the LCL indication.

The mode changes to the local seek mode where only the stations with relatively strong signals are tuned in. It functions only when the Automatic Tuning is in operation.

If FM Stereo Broadcasting is Difficult to Receive—Monaural Mode

lightly to get the MONO indication.

The sound improves, but it will become monaural.

Each time you press the SENS button, the mode changes as follows:

While receiving FM broadcasting

While receiving AM broadcasting

Note

The SENS button also functions as the LOUD button if it is kept pressed for more than two seconds.

Tuning in by Adjusting the Frequency

—Manual Tuning

Use the Manual Tuning if you know the frequency of the desired station.

1 Select the desired band from FM1, FM2 or AM. The band changes in the following order: FM1 → FM2 → AM.

2 Press the PRESET button for more than 0.5 seconds.

For lower frequencies

For higher frequencies

3 Adjust the volume with the ☐ or ⊕ button.

Note

You cannot use the Manual Tuning with the remote commander (not supplied)

PREVENTING ACCIDENTS!

While you are driving, the use of the Automatic Tuning and the BTM function is recommended in favor of the Manual Tuning.

Memorizing the Stations Automatically

—BTM (Best Tuning Memory) Function

Best receiving stations are automatically searched and memorized on each band (FM1, FM2 and AM). Up to 10 stations on each band can be stored on the preset number buttons 1 to 10 in the order of frequency.

1 Select the desired band from FM1, FM2 or AM. The band changes in the following order: FM1 → FM2 → AM.

2 Keep the BTM button pressed for more than two seconds.

Checking in Order, All the Stations Stored in the Memory—Memory Scan Function

Press lightly.

The tuner will receive in order, all the stations stored in the memory for five seconds each.

To cancel

Press the M. SCAN button lightly once more. The memory scan will be canceled and you will be able to listen to the station currently being received.

The receivable frequencies of FM1 and FM2 are the same

Therefore, 20 stations can be memorized on FM.

Note

There may be cases where even the stations which are stored in the memory cannot be received due to weak signals in the vicinity of your car.

The BTM function — how this function operates

This function starts by searching stations from the lowest frequency of the currently tuned in band. When a station is located, it will be stored in the memory on the preset button whose number is indicated on the display window. If there is no preset number indicated, it will be stored in the memory on the preset number button 1 onward. It continues to store the stations in the memory until all the preset buttons are occupied.

For example, if the FM1 band was selected, it will continue until the preset button 10 on the FM2 band is occupied. When all the memory preset buttons are occupied with the memories before the highest receivable frequency is searched, the unit will start searching for higher frequencies from where it was left off. This is to check if there are any more stations with better receptions than the ones already stored in the memory.

If a station with a better reception is found, the unit will store it in the memory in place of a station with an inferior reception.

Lastly, it rearranges all the stations in the order of frequency from the lowest and stores them in the memory. The whole operations is now completed. The stations with better receptions are stored in the memory on the preset number buttons in the order of frequency.

Notes

- There may be a situation where there are not enough receivable stations due to the lack of stations in the vicinity or weak broadcasting signals. In such cases, the BTM operation may stop without all the buttons being occupied with memories.

- If you start the BTM operation from the FM1 band, it will continue to store stations in the memory on the FM2 band. Care must be taken if you wish to keep the stored stations on the FM2 band

- If you start the BTM operation from the FM2 band, it will stop when all the memories on the FM2 band are occupied. It will not continue to the FM1 band

Memorizing Only the Desired Stations

Up to 10 stations on each band (FM1, FM2 and AM) can be stored on the preset number buttons in order of your choice (a total of 30 stations).

For example, store a station on the preset number button 1.

1 Select a desired band from FM1, FM2 or AM.

The band changes in the following order: FM1 → FM2 → AM.

2 Tune in the station which you wish to store on the preset number button. (page 32 or 34)

3 Keep the preset number button pressed for about two seconds until the "MEM" indication comes on the display window.

The number of the preset number button of which you are pressing now comes on the display window. When the "MEM" indication comes on, the station is stored in the memory and the operation is now completed. The "MEM" indication goes off after a while.

Repeat the same procedure to store other stations.

Only one station per band (FM1, FM2 and AM) can be stored in the memory on each preset number button

If you try to store another station on the same preset number button, the previously stored station will be erased.

Receiving Stations Stored in the Memory

1 Select the desired band from FM1, FM2 or AM. The band changes in the following order: FM1 → FM2 → AM.

2 Press the preset number button lightly on which the desired station is stored.

Receiving in Order the Stations Stored in the Memory—Preset Search Function

(Press lightly.)

The numbers will advance in the following order:

1 → 2 → 3 → ... → 8 → 9 → 1 0 → 1 → ...\( number of the preset number buttons )

(Press lightly.)

The numbers will reverse in the following order:

1 → 1 0 → 9 → ... → 4 → 3 → 2 → 1 → ...

Notes

• There may be cases where even the stations which are stored in the memory can not be received due to weak signals in the vicinity of your car.

- If you keep pressing the preset number button for more than two seconds, the currently received station will be memorized again. To receive the previously memorized station, make sure that the preset number button is pressed lightly.

Note

The PRESET button can also function as manual search button if it is kept pressed for more than 0.5 second.

Therefore, if you wish to use this button as a preset search button, be sure to press it lightly.

Displaying the Name of Each Station

—Station Memo Function

You can store the names of radio stations in the memory of the tuner. The name of station can be displayed on the display window while it is tuned in. You can store the names of TV stations in the same way. The steps described below can be applied to the TV operation as well.

Storing the Station Names to the Memory of the Tuner

1 Tune in a station whose name you wish to register.
2 Press the LIST button for more than two seconds to enter the name edit mode.

Name edit mode

3 Press either the ☐ or ⊕ button to select the desired letters and numbers.

Each time you press the ⏻ or ⏻ button, characters will come on in the following order:

4 Press the SEL button after locating the desired letter or number.

The flashing part will move to the next space on the right. Repeat steps 3 and 4 to enter the entire name. Up to 8 letters can be used per name.

Notes

• If you press the SEL button when the eight letter (farthest right letter) is flashing, the flashing part goes back to the first letter (farthest left letter).
• If you wish to put a blank space after a letter, select the “_” (under-bar).

5 To register the name, use one of the following two methods.

A Press the LIST button for more than two seconds.

The unit will go back to the normal mode.

B Tune in another station by pressing the SEEK or PRESET button and repeat the procedures.

or

You can also change the band and repeat the process.

Displaying the Stations Names (See page 43 about TV reception)

While listening to the radio, press the DSPL button to enter the name display mode.

F#:WPKISS

If the name of the station is not registered, “----” will come on the display window.

Notes

• If you turn off the tuner before you complete this procedure, the name you have just entered will not be registered.
- You can store up to 40 names, but if you try to enter more, the "FULL" indication will come on the display window and you will not be able to register them. You can register more names after erasing some of the existing names.

Each time you press the DSPL button while listening to the radio

The display mode changes cyclically as follows:

The steps described below can be applied to the TV operation as well.

Erasing the Station Names

1	Turn the radio on and tune in any station.
2	Press the LIST button for more than two seconds to enter the name edit mode. The currently received station will come on the display window.
3	Press the preset number button 9 while pressing the SEL button.
4	Press the ─ or ─ button to search for the names you wish to erase. or The station names stored in the memory of the tuner will come on the display window in the same order as they were registered*.
5	Press the SEL button for more than two seconds to erase the displayed name. Repeat the steps 4 and 5 to erase the other station names.
6	Press the LIST button for more than two seconds. The unit will go back to the normal mode.

The alternative method to erase the name

In the step 3 of "Changing the Station Names" (page 42), put the eight under-bars ("_"), then press the LIST button for more than two seconds. The displayed station name will be erased.

• If you have erased some of the title before, they will not come on in the same order as they were registered.

The names you have already put onto the radio stations can be altered or erased. You can also do the same during a TV reception. The procedure described in this page can be applied to the TV reception as well.

Changing the Station Names

1	Tune in the station whose name you wish to change.
2	Press the LIST button for more than two seconds to enter the name edit mode.	The currently received station will come on the display window.
3	Press the SEL button.
4	Select letters by the or Tune in other stations using the SEEK or PRESET button and repeat steps 3 and 4, if necessary.
5	Press the LIST button for more than two seconds.The new station names are registered.

Displaying Contents of the Preset Memory on TV Monitor

—When the Optional TV Tuner Unit is Connected to TV Monitor

The contents of the preset memory stored on the currently received band will be listed on the TV monitor.

During radio reception

(Press lightly.)

Example: When receiving the FM1 band

• If the name of station is registered, that name will be displayed. If the name of station is not registered, the frequency of that station will be displayed.
• The name of station currently tuned in will be displayed in magenta.

To turn off the display

Press the LIST button again.

Notes

• It may take some time before all the displays come on the screen.
• The contents of the preset memory cannot be listed when the unit is in the simultaneous play mode.

1 Press the TV/VIDEO button to select TV.

2 Press either the SEEK or PRESET button to receive a desired TV station.

To automatically search and receive a TV station (Automatic Tuning) → Press the SEEK button.

Higher frequency channels

Lower frequency channels

To receive a station by changing channels one at a time

Higher frequency channels

Lower frequency channels

(Press for more than 0.5 second.)

(Press for more than 0.5 second.)

3 Adjust the volume with the ⊙ or ⊕ button.

The TV/VIDEO button changes its mode cyclically as follows:

To superimpose the channel indication etc. on the TV monitor — Superimpose display (optional remote commander only)

Press the DSPL button on the remote commander. Press again to turn it off.

To get the current time or TV station names displayed on the display window of the main unit (the unit only)

Press the DSPL button on the main unit. The display on the display window will change cyclically as follows:

If the reception of stereo broadcasting is not very good and there is too much interference noise

Press the SENS button lightly to change the mode to monaural.

The "MONO" indication will come on the TV monitor and the noise will be reduced.

Note

You cannot get the displays on the TV monitor by pressing the DSPL button on the main unit.

• It is necessary to register the names of TV stations in advance in order to get them displayed on the TV monitor. (See page 39.)

Note

You cannot change the display on the unit by the DSPL button on the remote commander while watching TV or video.

* It is necessary to register the names of TV stations in advance in order to get them displayed on the TV monitor. (See page 39.)

Note

The SENS button also functions as the LOUD button if it is kept pressed for more than two seconds.

Memorizing TV Stations Automatically

—Auto-Memory

The unit will automatically search the receivable TV stations and store them on the preset number button 1 through 10.

1 Press the TV/VIDEO button to turn on the TV.

2 Press the BTM button for more than two seconds.

The unit will start memorizing the stations from the preset number button 1 onwards. If a preset number has been displayed before the BTM button is pressed, the unit will start memorizing the stations from that number onwards.

Checking In Order All the Memorized TV Stations—Memory Scan

Press the M.SCAN button lightly.

(Press lightly.)

The memorized stations will be received in order for five seconds each.

If you wish to continue to watch a station received during the Memory Scan, press the M.SCAN button lightly when the desired station is received. The Memory Scan function will be canceled and you will be able to continue to watch the received station.

Notes

• If the Auto-Memory tuning of TV is in operation, the BTM (Best Tuning Memory) function will not work as in a radio reception. However all the receivable stations will be stored in memory.
• If there are not enough stations or the broadcasting signals are too weak, the Auto-Memory function may be terminated before all the preset number buttons are occupied

Note

The unit will not receive a station if its broadcasting signal is too weak even if that station is stored in memory

Memorizing Only the Desired TV Stations

Up to 10 stations each can be memorized on TV in the order of your preference.

Example: To memorize a station on the preset button 1.

1 Press the TV/VIDEO button to select TV.

2 Tune in the desired TV station. (See page 44.)

or

3 Keep the preset button pressed for approximately two seconds until the "MEM" indication comes on the display window.

The number of the pressed preset button will come on the display window. When the "MEM" indication comes on, the operation is completed. The indication will go off in a short while.

Receiving TV Stations Stored in the Memory

Press the TV/VIDEO button to turn on the TV and press the preset number button lightly on which the desired TV station is to be stored.

Notes

• There may be cases where even the stations which are stored in the memory cannot be received due to weak signals in the vicinity of your car.
- If you keep pressing the preset number button for more than two seconds, the currently received station will be memorized again. To receive the previously memorized station, make sure that the preset number button is pressed lightly.

Displaying Contents of the Preset Memory on TV Monitor

Displaying the listed contents of preset number buttons on the monitor.

During a TV reception

(Press lightly.)

• If the name of station is registered, that name will be displayed and if it is not registered, the channel number of the station will be displayed. See page 39 for storing the station names.
  • The currently received station will be displayed in magenta.
• The monitor screen will automatically return to the TV display after a few seconds.

Notes

• You cannot get the TV display while the list is displayed
• The contents of the memory cannot be listed when the unit is in the simultaneous play mode

Watching Video

You can watch playback on ther video deck or 8 mm video camera connected to the TV tuner unit.

1 Press the TV/VIDEO button to get the "VIDEO 1" indication displayed.

AU: VIDEO

3 Adjust the volume with the ⊙ or ⊕ button.

Using a remote controller supplied to a video deck This unit can receive signals from the remote controller supplied to a SONY video deck and relay them to the video deck. Therefore you can control the video deck by using the remote controller supplied to the video deck through this unit. See the operating instructions of video deck for details.

While watching TV or video, you can listen to CDs and cassettes with a connected WALKMAN etc. (Simultaneous Play function). When the unit is in the simultaneous play mode, you can still listen to the sound of TV or video through headphones plugged in to the monitor.

1 There are two ways where simultaneous playback can be made.

A During TV reception or video playback:

The sound from TV or video will be turned off and the sound from CD or tape playback with a WALKMAN etc. can be heard instead.

However you can continue to watch the picture on the monitor screen.

B During CD or tape playback with a WALKMAN etc.:

The TV picture will come on the monitor and you can continue to listen to the sound of CD or tape.

2 Select a desired track or TV picture.

To select a desired track

Use the buttons on the unit and not on the remote commander. The buttons will function in the normal way as in CD or tape playback with a WALKMAN etc..

To select a desired TV picture

Use the buttons on the remote commander and the TV/VIDEO button on the unit.

3 Adjust the volume with the ☐ or ☐ button.

Notes

• The simultaneous play function will not work while listening to the radio.
- The contents of the preset memories or CD information cannot be listed when the unit is in the simultaneous play mode

Note

When selecting a desired track, be sure to use the buttons on the unit and not on the remote commander

When the unit is in the simultaneous play mode, CD or tape playback by a WALKMAN etc. cannot be controlled by the remote commander.

To listen to the sound of TV or video while the unit is in the simultaneous play mode

You can listen to the sound of TV or video even when the unit is in the simultaneous play mode through headphones plugged in to the monitor.

Getting Back to the Normal Mode by Canceling Simultaneous Play Mode

	Bottoms on the unit	Buttons on the remote commander
To listen to a WALKMAN	Press for more than two seconds.
To listen to a CD	Press for more than two seconds.
To watch TV or video		Press for more than two seconds.
To listen to the radio

The simultaneous play mode will be canceled and the unit will go back to the TV reception or video playback mode in the following case:

If the ▲ (eject) button on the CD player (the main unit) or a CD changer is pressed when the unit is in the simultaneous play mode with CD.

Maintenance

Fuse Replacement

When replacing the fuse, be sure to use the one with the correct amperage which will be stated on the fuse case. Never use a fuse whose amperage rating exceeds the one supplied to the unit as this could cause a malfunction of the unit.

Cleaning the Connectors

The unit may not function properly if the connectors between the unit and the front panel are contaminated with dirt. In order to prevent this from happening, open up the front panel by pressing the RELEASE button, then detach it and clean the connectors from time to time.

Main unit

Back of the front panel

Clean the connectors with a cotton swab as illustrated. Be sure to clean them with a horizontal motion. Never clean them vertically as this could damage the connecting points.

Specifications

CD player section

System	Compact disc digital audio system
Frequency response	10 Hz - 20,000 Hz ±3 dB
Wow and flutter	Below the measurable limit
Signal-to-noise ratio	100 dB
Distortion	0.008 %
Laser Diode Properties
	Material
	GaAlAs
	Wavelength
	780 nm
	Emission duration
	Continuous
	Laser output power
	Less than 44.6 μW*
	* This output is the value measured at a distance of 200 mm from the objective lens surface on the Optical Pickup Block.

Tuner section

FM
Tuning range	87.9 – 107.9 MHz
Antenna terminal	External antenna connector
Intermediate frequency
	10.7 MHz
Selectivity	75 dB at 400 kHz
Signal-to-noise ratio	65 dB (stereo). 70 dB (mono)
Harmonic distortion at 1 kHz
	0.5% (stereo). 0.3% (mono)
Separation	35 dB at 1 kHz
Frequency response	30 Hz – 15,000 Hz ±3 dB

AM

Tuning range	530 – 1,710 kHz
Antenna terminal	External antenna connector
Intermediate frequency	450 kHz
Sensitivity	35μV
Signal-to-noise ratio	55 dB
Harmonic distortion at	1 kHz
	0.3%

General

Output lead	Power antenna relay control lead
	Power amplifier control lead
Tone controls	Bass ± 10 dB at 100 Hz
	Treble ± 10 dB at 10 kHz
Loudness	+10 dB at 100 Hz
	+6 dB at 10 kHz
Power requirements	12 V DC car battery(negative ground)
Dimensions	Approx. 178 × 50 × 169 mm(7 1 / 8 × 2 × 6 3 / 4 inches)(w/h/d),not incl. projecting parts and controls
Mounting dimensions	Approx. 182 × 53 × 148 mm(7 1 / 4 × 2 1 / 8 × 5 7 / 8 inches)(w/h/d),not incl. projecting parts and controls
Weight	Approx. 1.6 kg (3 lb 8 oz)
Accessories supplied	Mounting hardware (1 set)Power input lead (1)Front panel case (1)
Optional accessory	Remote commander RM-X25

Design and specifications subject to change without notice.

Troubleshooting Guide

The following check will assist in the correction of most problems which you may encounter with your unit.

Before going through the check list below, refer back to the connection and operating procedures.

Radio reception

Trouble	Cause/Solution
Preset tuning is not possible.	Memorize the correct frequency.The broadcast is weak. → Use manual tuning.
Automatic tuning is not possible.	The broadcast is weak. → Use manual tuning.
The ST indicator flashes.	Tune in precisely.The broadcast is weak. → Press the SENS button to enter MONO mode.

Disc play

Trouble	Cause/Solution
Play does not begin.	Dusty or defective disc.The ambient temperature is more than 50°C (120°F).
A disc cannot be loaded or the disc is automatically ejected.	A disc is already loaded.The disc is inserted with the label surface downwards.
The operation buttons do not work.	The built-in microprocessor malfunctions.→Press the reset button.
The sound skips due to vibration.	The unit is installed at an angle of more than 20°.The unit is not installed on the sturdy part of a car.Dusty or defective disc.

General

Trouble	Cause/Solution
No sound	Adjust the volume with theorbutton.Set the fader control to the center position on the 2-speaker system.
Indications do not appear on the display window of the front panel.	Remove the front panel and clean the connectors. See “Cleaning the Connectors of Maintenance” for details.

Error displays

The following indications will flash for about five seconds and an alarm sound will be heard.

Display	Cause	Solution
*NO MAG	The disc magazine is not inserted in the CD changer.	Insert the disc magazine with discs into the CD changer.
*NO DISC	No disc is inserted in the disc magazine.	Take out the magazine and insert the discs.
ERROR	The disc is dirty.	Clean the disc.
	The disc is inserted upside down.	Insert the disc correctly.
RESET	The main unit or the CD changer cannot be operated because of some trouble.	Press the reset button of the main unit.

* when the optional Sony CD changer(s) is connected

If the above mentioned solutions do not help to improve the situation, consult your nearest Sony dealer.

Table des matières

Caractéristiques 60

Précautions....61

[29] Prise de walkman (WALKMAN)

Deux piles format AA (R6)

Avertisseur

REPEAT

Remarque

Appareil principal

FM/AM Compact Disc Player

3-754-324-22 (1)

CDX-U8000

Installation/Connections

Installation/Connexions

Supplied Mounting Hardware

The numbers in the list are keyed to those in the instructions.

Sony Corporation © 1992 Printed in Japan

Installation

Installation

Precautions

• Choose the mounting location carefully so that the unit will not interfere with the normal driving functions of the driver.
• Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight or hot air from the heater, or where it would be subject to dust, dirt or excessive vibration.
• Use only the supplied mounting hardware for a safe and secure installation.
• Be sure to detach the front panel before you start installing the unit.

Mounting angle adjustment

Adjust the mounting angle to less than 20°.

Mounting Example

Installation in the dashboard

Precautions

To Install the WALKMAN Jack

The WALKMAN jack can be installed on the dashboard etc. with supplied double-sided tape.

Notes

• Do not install the WALKMAN jack on the driver side of the dashboard.
• Place the WALKMAN cord where it would not interfere with normal driving function of the car.

Pour installer la prise WALKMAN

Connections

Connexions

Caution

• This unit is designed for negative ground 12 V DC operation only.
• Before making connections, disconnect the ground terminal of the car battery to avoid short circuits.
• Connect the red power input lead only after all other leads are connected. And be sure to connect it to the positive 12 V power terminal which is energized when the ignition key is set to the accessory position.
• Run all ground wires to a common ground point.

Précautions

When the Unit Is Used in a Car with No Accessory Position on the Ignition Key — POWER SELECT switch

The illumination on the front panel is factory-set to be turned on even when the unit is not being played. However, this setting may cause some car battery wear if the unit is used in a car with no accessory position on the ignition key.

To avoid this battery wear when using the unit in such a car, set the POWER SELECT switch located at the bottom of the unit to the OFF position, then press the reset button. The illumination is reset to stay off while the unit is not being played.

Note

The caution alarm for the front panel is not activated when the POWER SELECT switch is set to the OFF position.

When an FM Diversity Antenna is Used — FM DIVERSITY switch

This unit can be connected with diversity antennas. If you use this unit with the diversity antennas, set the FM DIVERSITY switch located at the bottom of the unit to the ON position to activate the diversity system.

When you do not use the FM diversity antennas

If you wish to connect a conventional rod antenna, be sure to connect it to the antenna connector of the unit marked "MAIN", and set the FM DIVERSITY switch to the OFF position. Never connect the antenna to the connector marked "SUB", otherwise if the FM DIVERSITY switch is set to the ON position, the radio signals may not be received properly.

Note

The radio reception will be disturbed by noise if the connection of the antennas was not made properly or the FM DIVERSITY switch was not set correctly.

Notes on the control leads

• The power antenna control lead (blue) supplies
+12 V DC when you turn on the tuner
- A power antenna without relay box cannot be used with this unit.
