Product Type	Car stereo with CD player
Model Number	CDX-C510
Brand	Sony
Disc Playback	CD, CD-R, CD-RW
Tuner Bands	FM (87.5-108 MHz) and AM (531-1602 kHz)
RDS	Yes (Radio Data System)
Maximum Power Output	4 x 40 W (peak)
Continuous Power Output	4 x 20 W RMS
Dimensions (W x H x D)	Approx. 178 x 50 x 160 mm (1 DIN)
Weight	Approx. 1.5 kg
Power Supply	12 V DC (negative ground)
Detachable Faceplate	Yes
Remote Control	Optional (RM-X series)
Audio Input	Front AUX (mini jack)
Pre-amp Output	1 pair (rear/subwoofer)
Equalizer	3-band (bass, mid, treble)
Display	LCD with multi-color illumination
Maintenance	Wipe with soft dry cloth; avoid solvents
Safety	Remove faceplate when leaving vehicle
Spare Parts & Repairability	Contact Sony authorized service centers

Frequently Asked Questions - CDX-C510 SONY

How do I set the clock on my Sony CDX-C510?

Press and hold the clock button until the hour digits flash. Use the volume knob to adjust hours, then press again to set minutes. Rotate to set, and press to confirm.

Can I play MP3 CDs on this unit?

The CDX-C510 supports playback of CD-R and CD-RW discs with MP3 files. Ensure the discs are finalized and the bitrate is between 32-320 kbps.

How do I detach the faceplate?

Press the release button on the lower left side of the faceplate, then pull the faceplate outward. Store it in the provided case to prevent theft.

What is the power output of this stereo?

The maximum power output is 4 x 40 watts peak, with continuous power at 4 x 20 watts RMS.

Does the unit have an AUX input?

Yes, there is a front AUX input (mini jack) for connecting portable devices. Select AUX as the source to use it.

How do I reset the unit?

Press the reset button located behind the faceplate or inside the front panel using a pointed object. This restores factory settings.

Can I add a subwoofer to this system?

Yes, the CDX-C510 has a pre-amp output (rear/subwoofer) that allows you to connect an external amplifier for a subwoofer.

What should I do if the disc won't play?

Check that the disc is clean and free of scratches. Ensure the disc is inserted label-side up. If the unit is cold, allow it to warm up. Also verify the disc is in a supported format (CD, CD-R, CD-RW).

How to improve radio reception?

Ensure the antenna cable is securely connected. If reception is poor, try repositioning the antenna. The unit includes RDS for better station information.

Is the faceplate interchangeable with other Sony models?

No, the faceplate is specific to the CDX-C510. Using a faceplate from another model may damage the unit. Only use genuine Sony parts.

USER MANUAL CDX-C510 SONY

FM/AM Compact Disc Player

Operating Instructions ____ EN.

Owner's Record

The model and serial numbers are located on the bottom of the unit. Record the serial number in the space provided below. Refer to these numbers whenever you call upon your Sony dealer regarding this product.

Model No. CDX-C510 Serial No. ____

For installation and connections, see the supplied installation/connections manual.

CDX-C510

© 1996 by Sony Corporation

Warning

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
— Consult the dealer or an experienced radio/TV technician for help.

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

CAUTION

The use of optical instruments with this product will increase eye hazard.

Welcome!

Thank you for purchasing the Sony Compact Disc Player. This unit lets you enjoy a variety of features by using either a rotary remote or a wireless remote.

In addition to the CD playback and the radio operations, you can expand your system by connecting an optional CD/MD changer and digital preamplifier.

Table of Contents

This Unit Only

Getting Started

Resetting the unit 4

Detaching the front panel 4

Setting the clock 5

CD Player

Listening to a CD 5

Playing a CD in various modes 6

Radio

Memorizing stations automatically — Best Tuning Memory (BTM) ...... 6

Memorizing only the desired stations ..... 6

Receiving the memorized stations .....7

Storing the station names — Station Memo ....7

Locating a station by name — List-up ....8

Other Functions

Adjusting the sound characteristics 8

Muting the sound 8

Changing the sound and display settings ..... 9

Additional Information

Precautions 19

Maintenance 19

Dismounting the unit 20

Attaching the label to the rotary remote ..... 20

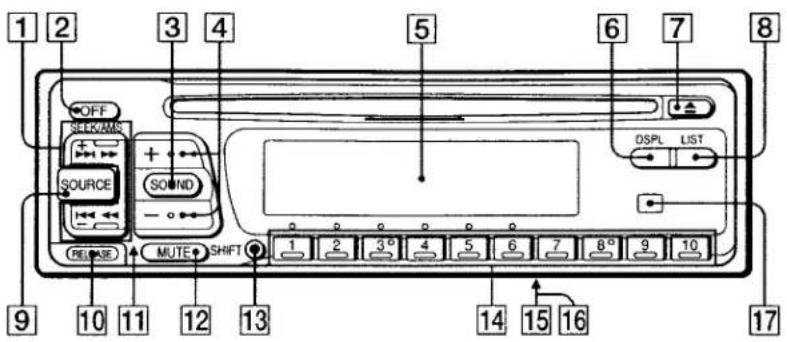

Location of controls 21

Specifications 23

Troubleshooting guide 24

Index 26

With Optional Equipment

CD/MD Changer

Playing a CD or MD 9

Scanning the tracks — Intro Scan .... 10

Playing tracks repeatedly — Repeat Play .... 10

Playing tracks in random order — Shuffle Play .... 10

Labeling a CD — Disc Memo .... 11

Locating a disc by name — List-up .... 12

Selecting the specific tracks for playback — Bank .... 12

DSP

Selecting the surround menu 13

Storing the surround effect onto the CDs — Digital Signal Processor (DSP) Custom File .... 14

Selecting the listening position 14

Adjusting the fader (FAD)....15

Adjusting the volume of the subwoofer(s) .... 15

Adjusting the volume of the bass and treble 16

Listening to each program source in its registered surround menu — Source Sound Memory .... 16

Changing the line output level 16

TV/Video

Watching the TV 17

Watching the video 17

Memorizing TV channels automatically — Best Tuning Memory (BTM) ..... 17

Memorizing only the desired TV channels .... 17

Storing the TV channel names 17

Displaying the information stored on discs .... 18

Watching the TV or video while listening to a CD or MD — Simultaneous Play .... 18

EN

Getting Started

Resetting the unit

Before operating the unit for the first time or after replacing the car battery, you must reset the unit.

Press the reset button with a pointed object, such as a ball-point pen.

Reset button

Note

When you connect the power supply cord to the unit or reset the unit, wait for about 10 seconds before you insert a disc. Do not insert a disc within these 10 seconds, otherwise, the unit will not be reset.

Detaching the front panel

You can detach the front panel of this unit to prevent the unit from being stolen.

1 Press OFF.

2 Press RELEASE to open up the front panel. Then slide the front panel a little to the left, and pull it off towards you.

Notes

• Be sure not to drop the panel when detaching it from the unit.
• If you press RELEASE to detach the panel while the unit is still on, the unit will turn off automatically to prevent the speakers from being damaged.

Attaching the front panel

Align part Ⓐ of the front panel to part Ⓑ of the unit as illustrated, and push until it clicks.

Notes

• Be sure not to attach the front panel upside down.
• Do not press the front panel hard against the unit when attaching it. Press it lightly against the unit.
• When you carry the front panel with you, put it in the supplied front panel case.
• Do not press hard or put excessive pressure on the display windows of the front panel.
• Do not expose the front panel to direct sunlight, heat sources such as hot air ducts, and do not leave it in a humid place. Never leave it on the dashboard of a car parked in direct sunlight where there may be a considerable rise in temperature.

Caution alarm

If you turn the ignition key switch to the OFF position without removing the front panel, the caution alarm will beep for a few seconds (only when the POWER SELECT switch is set to the Ⓐ position).

Setting the clock

The clock has a 12-hour digital indication.

Example: Set the clock to 10:08

1 Press SHIFT, then press ② (SET UP).

① Press ④ ( → ).

The hour digit flashes.

② Set the hour.

to go forward

to go back

③ Press ④ (→).

The minute digits flash.

④ Set the minute.

to go forward

to go back

2 Press SHIFT.

The clock starts.

Note

If the POWER SELECT switch on the bottom of the unit is set to the Ⓑ position, turn the power on first, then set the clock.

Listening to a CD

Simply insert the CD.

Playback starts automatically.

Labeled side up

If a CD is already inserted, press SOURCE repeatedly until "CD" appears.

Elapsed playing time

Note

To play back an 8 cm (3 in.) CD, use the optional Sony compact disc single adapter (CSA-8).

To	Press
Stop playback	▲ or OFF
Eject the CD	▲

Changing the displayed items

Each time you press DSPL, the item changes as follows:

Track number ←→ Clock

Locating a specific track

— Automatic Music Sensor (AMS)

During playback, press either side of SEEK/AMS momentarily.

To locate succeeding tracks

To locate previous tracks

Locating a specific point in a track — Manual Search

During playback, press and hold either side of SEEK/AMS. Release the button when you have found the desired point.

To search forward
To search backward

Note

If "☐☐☐" or "☐☐☐" appears in the display, that means you have reached to the beginning or the end of the disc and you cannot go any further.

Playing a CD in various modes

You can play CDs in various modes:

• INTRO (Intro Scan) lets you play the first 10 seconds of all the tracks.
• REP (Repeat Play) repeats the current track.
• SHUF (Shuffle Play) plays all the tracks in random order.

1 Press SHIFT.

Every time you press SHIFT, only the items you can select light up.

2 Press ③ (PLAY MODE) repeatedly until the desired play mode appears. Each time you press ③ (PLAY MODE), the item changes as follows:

INTRO → REP → SHUF

3 Press ④ (→) to select "ON."

Playback starts.

To go back to the normal playback mode, select "OFF" in step 3 above.

Memorizing stations automatically

— Best Tuning Memory (BTM)

The unit selects the stations with the strongest signals and memorizes them in the order of their frequencies. You can store up to 10 stations on each band (FM1, FM2 and AM).

Caution

When tuning in the station while driving, use Best Tuning Memory to prevent accidents.

1 Press SOURCE repeatedly to select the desired band (FM1, FM2 or AM).

2 Press SHIFT, then press ⑥ (BTM). The unit stores stations in the order of their frequencies on the number buttons.

Notes

• The unit does not store stations with weak signals. If only a few stations are received, some number buttons will remain empty.
• When a number is indicated in the display, the unit starts storing stations from the one currently displayed.

Memorizing only the desired stations

You can store up to 10 stations on each band (20 for FM1 and FM2, 10 for AM) in the order of your choice.

1 Press SOURCE repeatedly to select the desired band.
2 Press either side of SEEK/AMS to tune in the station that you want to store on the number button.
3 Keep the desired number button (① to ⑩) pressed for two seconds until you hear a beep tone.

The number button indication appears in the display.

Note

If you try to store another station on the same preset number button, the previously stored station will be erased.

Note

If you try to store another station on the same preset number button, the previously stored station will be erased.

Receiving the memorized stations

1 Press SOURCE repeatedly to select the desired band.

2 Press the number button (① to ⑩) momentarily where the desired station is stored.

If you cannot tune in a preset station

Press either side of SEEK/AMS momentarily to search for the station (automatic tuning).

Scanning stops when the unit receives a station. Press either side of (SEEK/AMS) repeatedly until the desired station is received.

Note

If the automatic tuning stops too frequently, press SHIFT, then press ③ (PLAY MODE) repeatedly until "LOCAL" (local seek mode) is displayed. Then press ④ (→) to select "ON." Only the stations with relatively strong signals will be tuned in.

Tip

If you know the frequency of the station you want to listen to, press and hold either side of SEEK/AMS for two seconds until the desired frequency appears (manual tuning).

If FM stereo reception is poor — Monaural Mode

1 Press SHIFT, then press ③ (PLAY MODE) repeatedly until "MONO" appears.

2 Press ④ (→) repeatedly until "MONOON" appears. The sound improves, but becomes monaural ("ST" disappears).

To go back to the normal mode, select "MONO-OFF" in step 2 above.

Changing the displayed items

Each time you press DSPL, the items alternate between the frequency and time.

Storing the station names

—Station Memo

You can assign a name to each radio station and store it in memory. The name of the station currently tuned in appears in the display. You can store up to eight characters for a station.

Storing the station names

1 Tune in a station whose name you want to store.

2 Press LIST for two seconds.

3 Enter the characters.

① Press ⊕ to select the desired characters.

(A → B → C → ... Z → 0 → 1 → 2 →; dots 9 → + → - → * → / → → gt; → lt; rightarrow . →_ -)

If you press ☐, the characters appear in the reverse order. If you want to put a blank space between characters, select “_” (underbar).

② Press ④ (→) after locating the desired character.

The flashing cursor moves to the next space.

If you press ① (←), the flashing cursor moves to the left.

③ Repeat steps ① and ② to enter the entire name.

4 To return to the normal radio reception, press LIST for two seconds.

Tip

To erase/correct a name, enter “_” (under-bar) for each character.

continue to next page →

'EN

Displaying the station name

Press DSPL during radio reception.

FM13WRKISS

Each time you press DSPL, the item changes as follows:

* If the station name of a station is not stored, "NO NAME" appears in the display for one second.

Erasing the station name

1 Tune in any station and press LIST for two seconds.
2 Press DSPL for two seconds.
3 Press + or - to select the name that you want to erase.
4 Press ⑤ (ENTER) for two seconds. The name is erased. Repeat steps 3 and 4 if you want to erase other names.
5 Press LIST for two seconds. The unit returns to the normal radio reception mode.

Locating a station by

name — List-up

1 Press LIST momentarily. The name assigned to the station currently playing appears in the display.
LST3WRKISS
2 Press LIST repeatedly until you find the desired station.
3 Press ⑤ (ENTER) to tune in the desired station.

Note

Once the station name or frequency has been displayed for five seconds, the display goes back to its normal mode. To turn off the display, press DSPL.

Other Functions

Adjusting the sound characteristics

You can adjust bass, treble, balance and fader. Each source can store the bass and treble level respectively.

1 Select the item you want to adjust by pressing SOUND repeatedly. VOL (volume) → BAS (bass) → TRE (treble) → BAL (balance) → FAD (fader)
2 Adjust the selected item by pressing ⊕ or ⊖. Adjust within three seconds after selecting. (After three seconds, the buttons work as volume control buttons.)

Muting the sound

Press MUTE.

"MUTE-ON" flashes.

To restore the previous volume level, press MUTE again.

Changing the sound and display settings

You can set:

• BEEP to turn on or off the beeps.
• DIM (Dimmer) to change the brightness of the display.
- D.INFO (dual information) to display the clock and the play mode at the same time (ON) or to display the information alternately (OFF).
- LOUD (Loudness) to enjoy bass and treble even at low volume. Bass and treble will be reinforced.
- RM (Rotary Remote) to change the operative direction of the controls of the optional rotary remote.

—Select "NORM" to use the rotary remote as the factory preset position.

—Select "REV" when you mount the rotary remote on the right of the steering column.

1 Press SHIFT, then press ② (SET UP).
2 Press ② (SET UP) repeatedly until the desired setting mode appears.

Each time you press ② (SET UP), the item changes as follows:

CLOCK → BEEP → DIM → D.INFO ^ + → LOUD ^ +; rightarrow RM

* When you have not tune the station or there is no CD/MD being played, these items will not appear.

3 Press ④ (→) to select the desired setting (for example: ON or OFF).
4 Press SHIFT. When the mode setting is complete, the normal playback mode appears.

With Optional Equipment

CD/MD Changer

You can control up to 10 CD changers and MD changers with this unit.

Playing a CD or MD

Press SOURCE until the desired changer appears.

CD/MD playback starts.

When a CD or MD changer is connected, all the tracks play from the beginning.

Changing the displayed items

Each time you press DSPI. during CD/MD playback, the item changes as follows:

*1 If there is no prerecorded name for a CD or MD, "NO NAME" appears in the display.
*2 If the track name of an MD is not prerecorded, "NO NAME" appears in the display.
*3 If the dual information is on, clock does not appear in the display.

Tip

If the name of the MD is too long, you can scroll it across the display window by pressing SHIFT, then ① (←).

Automatically scrolling a disc name

— Auto Scroll

The Auto Scroll function automatically scrolls the disc or track name of the MD when you press DSPL and the title length exceeds eight characters.

1 Press SHIFT, then press ② (SET UP) repeatedly until "A.SCRL" appears.

2 Press ④ (→) to select "A.SCRL-ON."

To cancel Auto Scroll, select "A.SCRL-OFF" in step 2 above.

EN

Displaying the recording date of the currently selected MD

Press DSPL for two seconds during MD playback.

The recording date of the track is displayed for about three seconds.

Locating a specific track

— Automatic Music Sensor (AMS)

During playback, press either side of SEEK/AMS once for each track you want to skip.

To locate succeeding tracks

To locate previous tracks

Locating a specific point in a track — Manual Search

During playback, press and hold either side of SEEK/AMS. Release the button when you have found the desired part.

To search forward

To search backward

Locating a disc by disc number — Direct Disc Selection

Press the number button that corresponds with the desired disc number.

The desired disc in the currently selected changer begins playback.

Scanning the tracks

— Intro Scan

You can play the first 10 seconds of all the tracks on the currently selected disc.

1 During playback, press SHIFT, then press ③ (PLAY MODE) repeatedly until "INTRO" appears.

2 Press ④ (→) to select "INTRO-ON." Intro Scan starts.

To go back to the normal playback mode, select "INTRO-OFF" in step 2 above.

Playing tracks repeatedly

— Repeat Play

You can select:

• REP 1 to repeat a track.

• REP 2 to repeat a disc.

- REP 3 to repeat all the discs in the current changer.

1 During playback, press SHIFT. Then press ③ (PLAY MODE) repeatedly until "REP" appears.

2 Press ④ (→) repeatedly until the desired setting appears.

Repeat Play starts.

To go back to the normal playback mode, select "REP-OFF" in step 2 above.

Playing tracks in random

order — Shuffle Play

You can select:

- SHUF 1 to play the tracks on the current disc in a random order.

- SHUF 2 to play the tracks in the current changer in a random order.

- SHUF 3 to play all the tracks in a random order.

1 During playback, press SHIFT, then press ③ (PLAY MODE) repeatedly until "SHUF" appears.

2 Press ④ (→) repeatedly until the desired setting appears.

Shuffle Play starts.

To go back to the normal playback mode, select "SHUF-OFF" in step 2 above.

Labeling a CD — Disc Memo

(CD changer with custom file function)

You can label each disc with a personalized name. You can enter up to eight characters for a disc. If you label a CD, you can locate a disc by name and select the specific tracks for playback (page 12).

1 Play the CD and press LIST for two seconds.

2 Enter the characters.

① Press ⊕ to select the desired characters.

If you press , the characters appear in the reverse order.
If you want to put a blank space between characters, select “_” (underbar).

② Press ④ (→) after locating the desired character.

The flashing cursor moves to the next space.

If you press ① (←), the flashing cursor moves to the left.

③ Repeat steps ① and ② to enter the entire name.

3 To return to the normal CD playback mode, press LIST for two seconds.

Tip

To erase/correct a name, enter “_” (under-bar) for each character.

Displaying the disc memo

Press DSPL during CD playback.

Each time you press DSPL during CD playback, the item changes as follows:

Erasing the disc memo

1 Press SOURCE to select the CD changer (for example CD2 or CD3).

2 Press LIST for two seconds.

3 Press DSPL for two seconds.

4 Press ⊕ or ⊖ to select the name that you want to erase.

5 Press ⑤ (ENTER) for two seconds.

The name is erased. Repeat steps 4 and 5 if you want to erase other names.

6 Press LIST for two seconds.

The unit returns to the normal CD playback mode.

EN

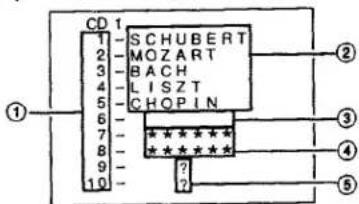

Locating a disc by name

— List-up (CD changer with custom file function or MD changer)

You can use this function for the discs that have been assigned a custom name. For more information on disc names, refer to "Labeling a CD."

1 Press LIST momentarily. The name assigned to the disc currently playing appears in the display.

2 Press LIST repeatedly until you find the desired disc.

3 Press ⑤ (ENTER) to play back the disc.

Notes

• Once a disc name has been displayed for five seconds, the display goes back to its normal playback mode. To turn off the display, press DSPL.
  • The track names are not displayed during MD playback.
• If there are no discs in the magazine, "NO DISC" appears in the display.
• If a disc has not been assigned a custom file, "*******" appears in the display.
• If the disc information has not been read by the unit, "NOT READ" appears in the display. To load the disc, first press the number button, then choose the disc that has not been loaded.
• The information appears only in upper cases. There are also some letters which cannot be displayed (during MD playback).

Selecting the specific tracks for playback

— Bank

(CD changer with custom file function)

If you label the disc, you can set the unit to skip tracks and play only the tracks you want.

1 Start playing the disc and press SHIFT. Then press ③ (PLAY MODE) for two seconds.

Bank edit mode

Note

If you have not labeled the disc, the bank edit mode does not appear.

2 Press either side of SEEK/AMS to select the track number you want to skip and press ⑤ (ENTER).

The indication changes from "PLAY" to "SKIP." If you want to return to "PLAY," press ⑤ (ENTER) again.

3 Repeat step 2 to set the "PLAY" or "SKIP" mode on all the tracks.

4 Press ③ (PLAY MODE) for two seconds. The unit returns to the normal CD playback mode.

Notes

• You can set the "PLAY" and "SKIP" mode on up to 24 tracks.
• You cannot set the "SKIP" mode on all the tracks.

Playing the specific tracks only

You can select:
- BANK-ON to play the tracks with the "PLAY" setting.
- BANK-INV (Inverse) to play the tracks with the "SKIP" setting.
1 During playback, press SHIFT, then press ③ (PLAY MODE) repeatedly until "BANK" appears.
2 Press ④ (→) repeatedly until the desired setting appears.

Playback starts from the track following the current one.

To go back to the normal playing mode, select "BANK-OFF" in step 2 above.

With the optional XDP-U50D connected

The optional XDP-U50D lets you add some effects to the sound field of the currently selected source.

Selecting a surround menu

You can select a desired surround menu to best fit the audio source. The following menus can simulate different sound fields and enhance the sound so that you can feel as if you are in a live concert.

Surround menu

HALL	Concert hall
JAZZ	Jazz club
DISCO	Disco with thick walls
THEATER	Movie theater
PARK	Big open space
LIVE	Live concert
OPERA	Opera house
CHURCH	Church/chapel with a lot of reverberation
STADIUM	Open-air concert in a stadium
CELLAR	Cellar with a lot of reverberation
DEFEAT	Normal sound without any DSP effects

1 Press SOURCE to select a source (radio, CD or MD).
2 Press SOUND repeatedly until "SUR" appears.

SUR - DEFEAT -

3 Press + or - to select the desired surround menu.

The surround menu appears in the order shown above.

After three seconds, the display goes back to the normal playback mode.

Adjusting the effect level

1 Press SOURCE to select a source (radio, CD or MD).
2 Press SOUND for two seconds.

SUR - DEFEAT -

3 Press + or - repeatedly until the desired surround menu appears.

SUR amp; amp; HALL

4 Press ④ (→).

SUR amp; amp; EFFECT D

5 Press + or - to adjust the level. You can adjust the level from 0 to 10. Increase the level to enjoy more enhanced effects.

SUR amp; amp; EFFECT B

6 Press SOUND for two seconds.

EN

Storing the surround effect onto CDs

— Digital Signal Processor (DSP) Custom File (CD changer with custom file function)

Once you have registered the desired surround menu onto the discs, you can enjoy the same surround menu every time you play them. (Only when you have labeled the disc by the Custom File function.)

1 Press LIST for two seconds.

2 Press LIST until the surround menu appears.

DSP custom file mode

EN

3 Press ⊕ or ⊖ to select the desired surround menu.

4 Press LIST for two seconds. When the effect setting is complete, the display goes back to the normal playback mode.

Playing the disc with the stored surround menu

1 Press SHIFT, then press ③ (PLAY MODE) repeatedly until "D.FILE" appears.

2 Press ④ (→) to select the "D.FILE-ON." After five seconds, the display goes back to the normal playback mode.

To cancel to play the disc with stored surround menu, select "D.FILE-OFF" in step 2.

Changing the stored surround effect

Play the disc whose surround mode you want to change, and follow the steps of "Storing the surround effect onto CDs."

Erasing the stored surround effect

Select "DEFEAT" in step 3 of "Storing the surround effect onto CDs."

Selecting the listening position

You can set the time for the sound to reach the listeners from the speakers.

The unit can simulate a natural sound field so that you can feel as if you are in the center of the sound field wherever you sit in the car.

1 Press SOUND momentarily until "LP1" appears.

2 Press ⊕ or ⊖ to select the desired listening position. The listening positions appear in the order shown above.

After three seconds, the display goes back to the normal playback mode.

Adjusting the listening position

1 Press SOUND for two seconds.

2 Press SOUND repeatedly until the desired listening position appears.

3 Press ④ (→).

4 Press ⊕ or ⊖ to adjust the center of the sound field to the left or right. Then set the center of the sound field.

Center moves to the R (right).

Center moves to the L (left).

5 Press ④ (→).

6 Press ⊕ or ⊖ to adjust the center of the sound field to the front or rear.

Center moves to the F (front).

Center moves to the R (rear).

7 Press SOUND for two seconds. When the effect setting is complete, the normal playback mode appears.

Adjusting the fader (FAD)

Normally, with the DSP mode on, the volume of the output sound from the rear speakers is lowered automatically to improve the efficiency of the listening position setting. If you want to raise the rear speaker volume, adjust the fader.

1 Follow steps 1 to 3 of "Selecting a surround menu" (page 13).
2 Press SOUND repeatedly until "FAD" appears.
3 Press ⊕ or ⊖ to adjust the fader.

Increases front speaker volume

Decreases front speaker volume

After three seconds, the display goes back to the normal playback mode.

Adjusting the volume of the subwoofer(s)

1 Press SOURCE to select a source (radio, CD or MD).
2 Press SOUND repeatedly until "SUB" appears.
3 Press + or - to adjust the volume. After three seconds, the display goes back to the normal playback mode.

Adjusting the frequency of the subwoofer(s)

To match the characteristics of the connected subwoofer(s), you can cut the unwanted high and middle frequency signals entering the subwoofer(s). By setting the cut-off frequency (see the diagram below), the subwoofer(s) will output only low frequency signals so that you can get a clearer sound image.

1 Press SOURCE to select a source (radio, CD or MD).
2 Press SOUND for two seconds.
3 Press SOUND repeatedly until "SUB" appears.

4 Press ⊕ or ⊖ to select the desired cut-off frequency.

The cut-off frequency in the display changes.

5 Press SOUND for two seconds.

When the frequency setting is complete, the display goes back to the normal playback mode.

EN

DSP

Adjusting the volume of the bass and treble

You can adjust the volume of the bass and treble to best fit the acoustic characteristics inside your car.

1 Press SOURCE to select a source (radio, CD or MD).
2 Press SOUND repeatedly until "BAS" or "TRE" appears.
3 Press ⊕ or ⊖ to adjust the volume. After three seconds, the display goes back to the normal playback mode.

Adjusting the turn-over frequency

You can adjust the bass and treble turn-over frequencies.

EN

Turn-over frequency

1 Press SOURCE to select a source (radio, CD or MD).
2 Press SOUND for two seconds.

3 Press SOUND repeatedly until "BAS" or "TRE" appears.

Bass adjusting mode

Treble adjusting mode

4 Press ⊕ or ⊖ to select the turn-over frequency.

The turn-over frequencies change as follows:

Bass:

198 Hz → 250 Hz → 314 Hz* → 396 Hz

Treble:

2.0 kHz → 3.1 kHz* → 4.0 kHz → 5.0 kHz

* Factory-set frequency

5 Press SOUND for two seconds.

The display goes back to the normal playback mode.

Listening to each program source in its registered surround menu

— Source Sound Memory

You can listen to the same source always in the same surround menu even after changing the program source or turning the unit on and off again.

Note

"LSM" (Last Sound Memory) appears on the TV display when you have selected a surround menu.

Changing the line output level

1 Press SHIFT, then press ② (SET UP) until "L.OUT" appears.

2 Press ④ (→) to select the desired setting (-10 dB or -16 dB).

With the optional TV tuner and TV monitor connected

Watching the TV

1 Press SOURCE repeatedly until "TV" appears.

2 Press either side of SEEK/AMS to select the desired TV band.

Watching the video

Press SOURCE repeatedly until "VIDEO 1" appears. Play back the video.

Note

"VIDEO 2" appears if the VIDEO 2 terminal of the TV monitor is selected.

Memorizing TV channels automatically

— Best Tuning Memory (BTM)

The unit selects the TV channels with the strongest signals and memorizes them in the order of their frequency.

Caution

When tuning in the station while driving, use Best Tuning Memory to prevent accidents.

1 Press SOURCE repeatedly until "TV" appears.

2 Press SHIFT, then press 6 (BTM). The unit stores TV channels in the order of their frequencies on the number buttons.

Notes

• The unit does not store TV channels with weak signals. If only a few TV channels are received, some number buttons will remain empty.
• When a preset number is indicated in the display, the unit starts storing TV channels from the one currently displayed.

Memorizing only the desired TV channels

You can store up to 10 channels on the number buttons in the order of your choice.

1 Press SOURCE repeatedly until "TV" appears.
2 Press either side of SEEK/AMS to tune in the TV channel that you want to store on the number button.
3 Keep the desired number button (① to ⑩) pressed for two seconds until you hear a beep tone. The number button indication appears in the display.

Note

If you try to store another channel on the same number button, the previously stored channel will be erased.

Storing the TV channel names

Do the steps in "Storing the station names" (page 7).

Displaying the TV or radio station names

Press LIST momentarily during TV or radio reception.

Example: When receiving the FM1 band

① Preset number
② Stored station names
③ Frequencies*
* If the name of a station is not stored, the frequency of that station will be displayed instead.

continue to next page →

EN

Notes

• It may take some time before all indications appear in the display.
  • The TV program does not appear during list display.
• The contents of the preset memory cannot be listed when the unit is in the simultaneous play mode (page 19).

Turning off the display

During radio reception, press LIST again.

During TV reception, the list display on the TV monitor will automatically turn off after a few seconds.

Displaying the information stored on discs

Press LIST momentarily during CD/MD playback.

Example: When CD changer 1 is selected.

① Disc numbers
② Titles stored on the custom file
③ No disc is loaded*
④ No stored titles*2
⑤ TOC information has not been identified yet*3

*1 A blank space is displayed if there is a disc number representing an empty slot in the disc magazine.

*2 If a title is not registered in the custom file, "*****" is displayed.

*3 If the disc information has not been read yet, “?” is displayed.

Notes

• It may take some time until all indications appear in the display.
  • The TV program does not appear during list display.
• The contents of the preset memory cannot be listed when the unit is in the simultaneous play mode.

Turning off the display

Press LIST again.

Watching the TV or video while listening to a CD or MD — Simultaneous Play

The simultaneous play function does not work while you are listening to the radio.

1 Press SOURCE for two seconds.

2 Press ① (←).

3 Press SOURCE repeatedly to select a CD or MD.

4 Press ④ (→).

5 Press SOURCE repeatedly to select a TV or video.

6 Press SOURCE for two seconds. Simultaneous Play starts.

Returning to the normal mode

To cancel the CD or MD, do the steps above and select “--” in step 3.

To cancel the TV or video, do the steps above and select “--” in step 5.

Note

If you press the EJECT button on a CD/MD changer when the unit is in the simultaneous play mode, the simultaneous play is canceled.

Additional Information

Precautions

• If your car was parked in direct sunlight resulting in a considerable rise in temperature inside the car, allow the unit to cool off before operating it.
• If no power is being supplied to the unit, check the connections first. If everything is in order, check the fuse.
• If no sound comes from the speakers of two-speaker systems, set the fader control to the center position.
• If your car is equipped with a power antenna, note that it will extend automatically while the unit is operating.

If you have any questions or problems concerning your unit that are not covered in this manual, please consult your nearest Sony dealer.

Notes on handling CDs

A dirty or defective disc may cause sound dropouts while playing. To enjoy optimum sound, handle the disc as follows. Handle the disc by its edge. To keep the disc clean, do not touch the surface.

Do not stick paper or tape on the labeled surface.

Do not expose the discs to direct sunlight or heat sources such as hot air-ducts, or leave them in a car parked in direct sunlight where there can be a considerable rise in the temperature inside the car.

Before playing, clean the discs with an optional cleaning cloth. Wipe each disc from the center out.

Do not use solvents such as benzine, thinner, commercially available cleaners or antistatic spray intended for analog discs.

Notes on moisture condensation

On a rainy day or in a very damp area, moisture may condense on the lenses inside the CD player. Should this occur, the unit will not operate properly. In this case, remove the disc and wait for about an hour until the moisture evaporates.

When you play 8 cm (3 in.) CDs

Use the optional Sony compact disc single adapter (CSA-8) to protect the CD player from being damaged.

Maintenance

Fuse replacement

When replacing the fuse, be sure to use one that matches the amperage described on the fuse. If the fuse blows, check the power connection and replace the fuse. If the fuse blows again after replacement, there may be an internal malfunction. In such a case, consult your nearest Sony dealer.

Warning

Never use a fuse with an amperage rating exceeding the one supplied with the unit as this could damage the unit.

Cleaning the connectors

The unit may not function properly if the connectors between the unit and the front panel are not clean. To prevent this, open the front panel by pressing (RELEASE) then detach it and clean the connectors with a cotton swab dipped in alcohol. Do not apply too much force. Otherwise, the connectors may be damaged.

Main unit

Back of the front panel

EN

Dismounting the unit

Attaching the label to the rotary remote

You can control this unit with the optional rotary remote (RM-X2S).

Several labels are supplied with the rotary remote. Attach the label that match the functions of this unit and the mounting position of the rotary remote.

After you mount the rotary remote, attach the label in the illustration below.

Location of controls

Refer to the pages for details.

① SEEK/AMS (seek/Automatic Music Sensor/manual search) button 5, 6, 7, 10, 12, 17
② OFF button 4,5
③ SOUND button 8, 13, 14, 15
4 + - (volume/sub output level/bass/treble/balance/fader control) buttons 5, 7, 8, 11, 13, 14, 15, 16
5 Display window
⑥ DSPL (display mode change) button 5, 7, 8, 9, 10, 11, 12
7 ≜ (eject) button 5
8 LIST button
Disc Memo 11
DSP Custom File 14
List-up 8, 12, 17, 18
Station Memo 7,8
⑨ SOURCE (source select) button 5, 6, 7, 11, 13, 15, 16, 17, 18
10 RELEASE (front panel release) button 4, 20

11 Reset button (located on the front side of the unit hidden by the front panel) 4
12 MUTE button 8
13 SHIFT button BTM 6, 17 PLAY MODE 7, 10, 12, 14, 15 SET UP 5, 9, 16
14 During radio/TV reception: Number buttons 6, 7, 17 During CD/MD playback: Direct disc selection button 10
15 POWER SELECT switch (located on the bottom of the unit) See "POWER SELECT Switch" in the Installation/Connections manual.
16 LINE-OUT/IN SELECT switch (located on the bottom of the unit) See "LINE-OUT/IN SELECT Switch" in the Installation/Connections manual.
17 Receptor for the optional wireless remote

EN

Location of controls

Optional wireless remote (RM-X41)

.EN

The buttons of the wireless remote work the same functions as those on this unit.

① OFF button

6 MUTE button

2 DIR button

7 - + buttons

DIR does not work with this unit.

③ SOURCE button

8 DSPL button

4 SEEK/AMS button

9 SOUND button

5 PRESET/DISC button

You cannot do the manual search and manual tuning with the remote.

When the POWER SELECT switch is set to the 8 position, the unit cannot be operated with the wireless remote unless SOURCE on the unit is pressed or a CD is inserted to activate the unit first.

Specifications

AUDIO POWER SPECIFICATIONS

POWER OUTPUT AND TOTAL HARMONIC DISTORTION

15 watts per channel minimum continuous average power into 4 ohms, 4 channels driven from 20 Hz to 20 kHz with no more than 1 % total harmonic distortion.

Other specifications
CD player section

System	Compact disc digital audio system
Signal-to-noise ratio	90 dB
Frequency response	10 - 20,000 Hz
Wow and flutter	Below measurable limit
Laser Diode Properties
Material	GaAlAs
Wavelength	780 nm
Emission Duration	Continuous
Laser output power	Less than 44.6 μW*
* This output is the value measured at a distance of 200 mm from the objective lens surface on the Optical Pick-up Block.

Tuner section

FM

Tuning range	87.5 – 107.9 MHz
Antenna terminal	External antenna connector
Intermediate frequency	10.7 MHz
Usable sensitivity	8 dBf
Selectivity	75 dB at 400 kHz
Signal-to-noise ratio	62 dB (stereo),65 dB (mono)
Harmonic distortion at 1 kHz
	0.9 % (stereo),0.5 % (mono)
Separation	33 dB at 1 kHz
Frequency response	30 – 15,000 Hz
Capture ratio	2 dB

AM

Tuning range	530 - 1,710 kHz
Antenna terminal	External antenna connector
Intermediate frequency	10.71 MHz/450 kHz
Sensitivity	30 μV

Power amplifier section

Outputs	Speaker outputs (sure seal connectors)
Speaker impedance	4 - 8 ohms
Maximum power output	35 W × 4 (at 4 ohms)

General

Output lead	Power antenna relay control leadPower amplifier control lead
Tone controls	Bass ±8 dB at 100 HzTreble ±8 dB at 10 kHz
Power requirements	12 V DC car battery(negative ground)
Dimensions	Approx. 188 × 58 × 177 mm (71/2 × 23/8 × 7 in.) (w/h/d)
Mounting dimensions	Approx. 178 × 50 × 154 mm (71/8 × 2 × 61/8 in.) (w/h/d)
Mass	Approx. 1.5 kg (3 lb.4.9 oz.)
Supplied accessories	Parts for installation and connections (1 set)Front panel case (1)
Optional accessories	Rotary remote RM-X2SWireless remote RM-X41BUS cable (supplied with an RCA pin cord)RC-61 (1 m), RC-62 (2 m)RCA pin cordRC-63 (1 m), RC-64 (2 m),RC-65 (5 m)Cleaning cloth XP-CDICompact disc single adapter CSA-8
Optional equipment	CD changerCDX-71 (10 discs),CDX-72 (10 discs),CDX-81 (10 discs),CDX-91 (10 discs),CDX-T60 (6 discs),CDX-T62 (6 discs)MD changerMDX-40, MDX-60Source selectorXA-U20, etc.Digital preamplifierXDP-U50DTV tunerXT-40V, etc.

Design and specifications are subject to change without notice.

EN

Troubleshooting guide

The following check will help you remedy the problems that you may encounter with your unit. Before going through the checklist below, check the connection and operating procedures.

General

Problem	Cause/Solution
No sound.	Adjust the volume with ⊕.Set the fader control to the center position for two-speaker systems.
The contents of the memory have been erased.	The power cord or battery has been disconnected.The reset button has been pressed.→ Store again into the memory.
Indications do not appear in the display.	Remove the front panel and clean the connectors. See “Cleaning the connectors” (page 20) for details.

CD/MD playback

Problem	Cause/Solution
A disc cannot be loaded.	Another CD is already loaded.The CD is forcibly inserted upside down or in the wrong way (MD).
Play does not begin.	Defective MD or dusty CD.
A disc is automatically ejected.	The ambient temperature exceeds 50°C (122°F).
The operation buttons do not function.	Press the reset button.
The sound skips due to vibration.	The unit is installed at an angle of more than 20°.The unit is not installed in a sturdy part of the car.

Radio reception

Problem	Cause/Solution
Preset tuning is not possible.	Memorize the correct frequency.The broadcast signal is too weak.
Automatic tuning is not possible.	The broadcast signal is too weak. → Use manual tuning.
The “ST” indication flashes.	Tune in the frequency correctly.The broadcast signal is too weak. → Set to the MONO mode (page 7).

DSP functions

Problem	Cause/Solution
No sound, or sound is too low.	The volume of the rear speakers may have been automatically lowered in order to maximize the effect of the listening position adjustment.→Press ⊕ to adjust the balance.The speaker balance can be set separately for the DSP on mode and DSP off mode (page 15).

Error displays (when the optional CD/MD changer is connected)
The following indications will flash for about five seconds, and an alarm sound will be heard.

Display	Cause	Solution
NO MAG	The disc magazine is not inserted in the CD/MD changer.	Insert the disc magazine with discs into the CD/MD changer.
NO DISC	No disc is inserted in the CD/MD changer.	Insert the discs in the CD/MD changer.
ERROR*1	A CD is dirty or inserted upside down. *2	Clean or insert the CD correctly.
	An MD does not play because of some problem. *2	Insert another MD.
BLANK*1	No tracks have been recorded on an MD. *2	Play an MD with recorded tracks on it.
RESET	The CD/MD changer cannot be operated because of some problem.	Press the reset button of the unit.
NO READY	The lid of the MD changer is open or MDs are not inserted properly.	Close the lid or inserted the MDs properly.
HI TEMP	The ambient temperature is more than 50°C (122°F).	Wait until the temperature goes down below 50°C (122°F).

* When an error occurs during playback of an MD or CD, the disc number of the MD or CD does not appear in the display.
*2 The disc number of the disc causing the error appears in the display.

If the above-mentioned solutions do not help improve the situation, consult your nearest Sony dealer.

EN

Index

A

Automatic Music Sensor (AMS) 5, 10

Automatic tuning 7

Auto Scroll 9

B

Balance 8

Bass 8,16

Bank Play 12

Beep tone 9

Best Tuning Memory (BTM) 6, 17

C

Caution alarm 4

CD playback 5,9

Clock 5

D

Digital Signal Processor (DSP) 14

Dimmer 9

Direct disc selection 10

Disc Memo 11

Disc Scan 10

Display 5,7,8,9,11,18

DSP custom file 14

Dual information 9

E

Effect 13,14

F, G, H

Fader 8,15

Front panel 4

Fuse 19

I, J, K

Intro Scan 6,10

L

Line output level 16

List-up 8,12

Listening position 14

Local seek 7

Locating

a disc 11,12

a specific point 6,10

a specific track 5,10

a station 8

Loudness 9

M, N, O

Manual search 6,10

Manual tuning 7

MD playback 10

Memorizing a station 6

Memorizing TV channel 17

Monaural mode 7

Mute 8

P, Q

PLAY MODE

BANK 12

D.FILE 9

INTRO 6,10

LOCAL 7

MONO 7

REP 6,10

SHUF 6,10

R

Radio 6

Repeat Play 6,10

Reset 4

Rotary remote 9,20

S

SET UP

A.SCRL 9

BEEP 9

CLOCK 5

DIM 9

D.INFO 9

LOUD 9

RM 9

Shuffle Play 6,10

Simultaneous Play 18

Source Sound Memory 16

Station Memo 7

Subwoofer 15

Surround 13

T, U

Treble 8,16

TV 17

v

Video 17

Volume 8

W, X, Y, Z

Wireless remote 22
