Conga Y50 - Robot vacuum CECOTEC - Free user manual and instructions

Product Type	Robot Vacuum Cleaner
Brand	Cecotec
Model	Conga Y50
Dimensions (Diameter x Height)	33 cm x 7.6 cm
Weight	3.2 kg
Battery Type	Lithium-ion, 2600 mAh
Charging Time	Approx. 4-5 hours
Runtime	Up to 100 minutes
Suction Power	2200 Pa max
Dustbin Capacity	400 ml
Filter Type	HEPA H13 washable
Noise Level	≤ 55 dB
Mopping Function	Yes, with water tank and cloth
Cleaning Modes	Auto, Spot, Edge, Scheduled
Navigation Sensors	Infrared, bumper, cliff sensors
Connectivity	Wi-Fi, App control (Cecotec App)
Voice Control	Compatible with Alexa and Google Assistant
Auto Return to Base	Yes, when battery low or cleaning complete
Scheduling	Yes, via app
Included Accessories	Charging dock, adapter, side brushes, filter, mopping cloth

Frequently Asked Questions - Conga Y50 CECOTEC

How do I connect the Conga Y50 to the Cecotec App?

Download the Cecotec App from your app store, ensure your robot is in Wi-Fi pairing mode (press and hold the power button for 5 seconds), then follow the in-app instructions. Your home Wi-Fi must be 2.4GHz.

What should I do if the robot vacuum does not return to the charging dock?

Ensure the docking station is placed against a wall with at least 0.5m clearance on each side and 1.5m in front. Also, keep the charging contacts clean on both robot and dock.

How often should I clean the filter and brushes?

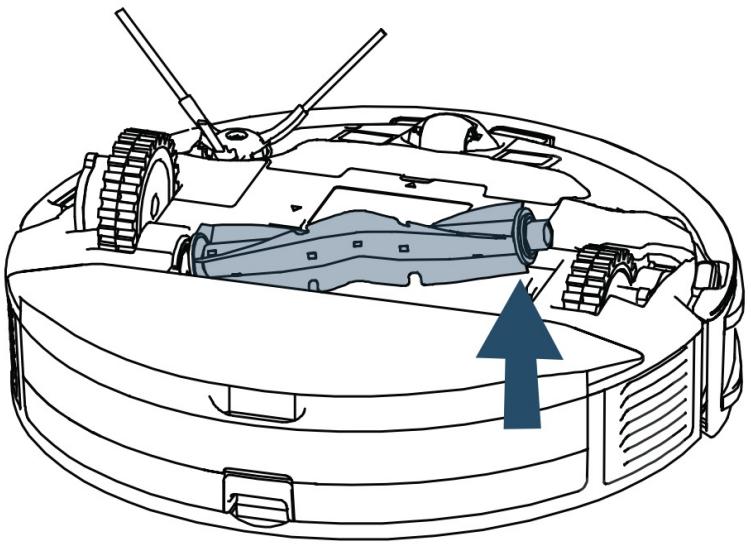

Clean the HEPA filter and side brushes every after 2-3 uses. Replace the filter every 3-6 months and side brushes when worn out. The main brush should be cleaned of hair weekly.

Can the Conga Y50 be used on carpets?

Yes, it automatically detects carpets and increases suction power for deep cleaning. However, avoid very high-pile carpets as the robot may struggle.

How do I activate the mopping function?

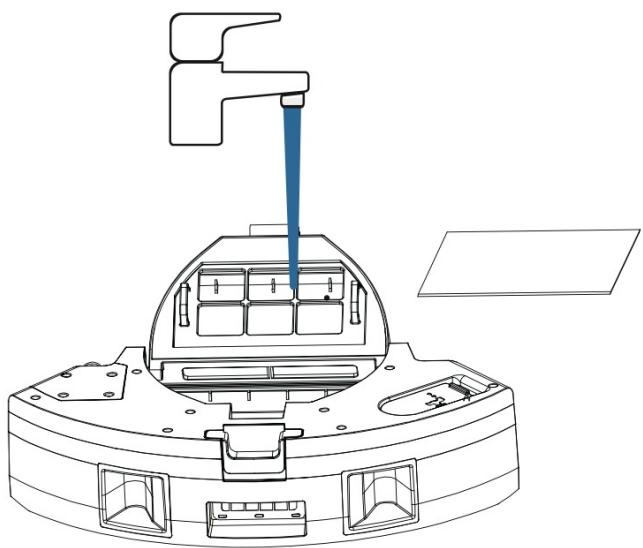

Fill the water tank, attach the mopping cloth, and select the mopping mode in the app or via remote. The robot will damp-mop hard floors. Do not use on carpets.

What does the 'Do Not Disturb' mode do?

This mode prevents the robot from starting scheduled cleaning during a set time period (e.g., night). It can be enabled in the app settings.

How do I reset the Conga Y50 to factory settings?

Press and hold the power button for 10 seconds until a beep sounds. The robot will restart and all settings will be cleared. Then you need to reconnect via app.

Why does the robot vacuum stop and emit a beeping sound?

Common causes: stuck wheels, full dustbin, tangled brushes, or low battery. Check the wheels and sensors, empty the dustbin, and remove any obstructions. The error code (number of beeps) can be found in the manual.

Can I use voice commands with Alexa or Google Assistant?

Yes, enable the Cecotec skill in your voice assistant app, link your account, and you can say commands like 'Alexa, tell Cecotec to start cleaning' or 'Hey Google, ask Cecotec to dock'.

What is the recommended maintenance schedule?

Empty dustbin after each use, clean filters every 2-3 uses, wash mopping cloth after each mopping, replace side brushes every 3-6 months, and wipe sensors monthly. Check for software updates via the app.

USER MANUAL Conga Y50 CECOTEC

Fig./Img./Abb./Afb./Rys.1

Fig./Img./Abb./Afb./Rys. 2

Fig./Img./Abb./Afb./Rys. 3

Fig./Img./Abb./Afb./Rys. 4

Fig./Img./Abb./Afb./Rys. 5

Fig./Img./Abb./Afb./Rys. 6

Fig./Img./Abb./Afb./Rys. 7

Fig./Img./Abb./Afb./ Rys. 8

Fig./Img./Abb./Afb./Rys. 9

Fig./Img./Abb./Afb./Rys. 10

Fig./Img./Abb./Afb./ Rys. 11

Fig./Img./Abb./Afb./Rys. 12

Fig./Img./Abb./Afb./Rys. 13

Fig./Img./Abb./Afb./Rys. 14

Fig./Img./Abb./Afb./Rys. 15

Fig./Img./Abb./Afb./Rys. 16

Fig./Img./Abb./Afb./Rys. 17

Fig./Img./Abb./Afb./Rys. 18

Fig./Img./Abb./Afb./ Rys. 19

Fig./Img./Abb./Afb./Rys. 20

Fig./Img./Abb./Afb./Rys. 21

Fig./Img./Abb./Afb./Rys. 22

Fig./Img./Abb./Afb./Rys. 23

Fig./Img./Abb./Afb./Rys. 24

Fig./Img./Abb./Afb./Rys. 25

Fig./Img./Abb./Afb./Rys. 26

Fig./Img./Abb./Afb./Rys. 27

Fig./Img./Abb./Afb./ Rys. 28

Fig./Img./Abb./Afb./Rys. 29

Fig./Img./Abb./Afb./Rys. 30

Fig./Img./Abb./Afb./ Rys. 31

Fig./Img./Abb./Afb./Rys. 32

Fig./Img./Abb./Afb./Rys. 33

Fig./Img./Abb./Afb./Rys. 34

Fig./Img./Abb./Afb./Rys. 35

Fig./Img./Abb./Afb./ Rys. 36

Fig./Img./Abb./Afb./Rys. 37

Fig./Img./Abb./Afb./Rys. 38

Fig./Img./Abb./Afb./Rys. 39

Fig./Img./Abb./Afb./Rys. 40

1

2

3

4
Fig./Img./Abb./Afb./Rys. 41
