USER MANUAL SC-DC173 SAMSUNG

SC-DC171/DC173(U)/DC175/DC575

AF Auto Focus

CCD Charge Coupled Device

LCD Liquid Crystal Display

Owner's Instruction Book

Before operating the unit, please read this Instruction Book thoroughly, and retain it for future reference.

US PATENT 4415844

Use only approved battery packs.

Otherwise, there is a danger of overheating, fire or explosion.

Samsung is not responsible for problems occurring due to using unapproved batteries.

AD68-01230A

ENGLISH

IMPORTANT SAFETY INSTRUCTIONS

Shock Hazard Marking and Associated Graphical Symbols

Explanation of Safety Related Symbols

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER.SERVICEABLE PARTS INSIDE

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING - To Reduce The Risk Of Fire Or Electric Shock, Do Not Expose This Apparatus To Rain Or Moisture.

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachment/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as powersupply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

(2) 1987. 40th-1995

IMPORTANT SAFETY INSTRUCTIONS

1. Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.

16. VENTILATION:

Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the CAMCORDER and to protect it from overheating. These openings must not be blocked or covered. Never place your CAMCORDER on a bed, sofa, rug, or other similar surface: on or near a radiator or heat register. This CAMCORDER should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.

17. POWER SOURCES:

The CAMCORDER should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supply at your home, consult your appliance dealer or local power company. A CAMCORDER is intended to be operated from battery power, or other sources, refer to the operating instructions.

18. GROUNDING OR POLARIZATION:

This CAMCORDER may be equipped with either a polarized 2-wire AC line plug (a plug having one blade wider than the other) or a 3-wire grounding type plug, a plug having a third (grounding) pin. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug still fails to fit, contact your electrician to replace your outlet. Do not defeat the safety purpose of the polarized plug.

19. POWER-CORD PROTECTION:

Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords or plugs, convenient receptacles, and the point where they exit from the unit.

20. OUTDOOR ANTENNA GROUNDING:

CAMCORDER, be sure the antenna or cable system is grounded to provide some protection against voltage surges and built-up static charges, Section 810 of the National Electrical Code, ANSI/NFPA No. 70-1984, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire and supporting structure, grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding to conductors, location of antenna-discharge unit, connection to grounding electrodes and requirements for the grounding electrode.

See figure below.

ENGLISH

IMPORTANT SAFETY INSTRUCTIONS

21. LIGHTNING:

For added protection of this CAMCORDER during a lightning storm or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the CAMCORDER due to lightning and powerline surges.

22. POWER LINES:

An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

23. OVERLOADING:

Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.

24. OBJECTS AND LIQUIDS:

Never push objects of any kind into this CAMCORDER through openings as they may touch dangerous voltage points or short out a part that could result in a fire or electric shock. Never spill liquids of any kind onto the CAMCORDER. Should spillage occur, unplug unit and have it checked by a technician before use.

25. SERVICING:

Do not attempt to service this CAMCORDER yourself. Opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

26. DAMAGE REQUIRING SERVICE:

Unplug this CAMCORDER from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a. When the power-supply cord or plug is damaged.
b. If any liquid has been spilled onto, or objects have fallen into the CAMCORDER.
c. If the CAMCORDER has been exposed to rain or water.
d. If the CAMCORDER does not operate normally by following the operating instructions, adjust only those controls that are covered by the operating instructions. Improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the CAMCORDER to its normal operation.
e. If the CAMCORDER has been dropped or the cabinet has been damaged.
f. When the CAMCORDER exhibits a distinct change in performance, this indicates a need for service.

27. REPLACEMENT PARTS:

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer and having the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.

28. SAFETY CHECK:

Upon completion of any service or repairs to this CAMCORDER, ask the service technician to perform safety checks to determine that the CAMCORDER is in safe operating order.

IMPORTANT SAFETY INSTRUCTIONS

1. To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain or moisture.
2. If this power supply is used at 240V ac, a suitable plug adapter should be used.
3. This product is covered by one or more of the following U.S. patents:

5,060,220 5,457,669 5,561,649 5,705,762 5,987,417
6,043,912 6,222,983 6,272,096 6,377,524 6,377,531
6,385,587 6,389,570 6,408,408 6,466,532 6,473,736
6.477.501 6.480.829 6.556.520 6.556.521 6.556.522
6,578,163 6,594,208 6,631,110 6,658,588 6,674,697
6.674.957 6.687.455 6.697.307 6.707.985 6.721.243
6,721,493 6,728,474 6,741,535 6,744,713 6,744,972
6,765,853 6,765,853 6,771,890 6,771,891 6,775,465
6,778,755 6,788,629 6,788,630 6,795,637 6,810,201
6,862,256 6,868,054 6,894,963 6,937,552

USER INSTALLER CAUTION:

Your authority to operate this FCC certified equipment could be voided if you make changes or modifications not expressly approved by this party responsible for compliance to part 15 FCC rules.

NOTE:

Hg LAMP(S) INSIDE THIS PRODUCT CONTAIN MERCURY

AND MUST BE RECYCLED OR DISPOSED OF ACCORDING TO LOCAL, STATE OR FEDERAL LAWS. For details see lamprecycle.org, eiae.org, or call 1-800-Samsung (7267864)

CALIFORNIA USA ONLY

This Perchlorate warning applies only to primary CR (Manganese Dioxide) Lithium coin cells in the product sold or distributed ONLY in California USA

"Perchlorate Material - special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate."

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help and for additional suggestions.

The user may find the following booklet prepared by the Federal Communications Commission helpful: "How to Identify and Resolve Radio-TV Interference Problems."

This Booklet is available from the U.S. Government Printing Office, Washington, D.C. 20402, Stock No. 004-000-00345-4.

FCC Warning

The user is cautioned that changes or modifications not expressly approved by the manufacturer could void the user's authority to operate the equipment.

This device complies with Part 15 of FCC Rules.

Operation is subject to the following two conditions;

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.

ENGLISH

Contents

Notes and Safety Instructions ....6

Getting to Know Your DVD Camcorder .....9

Features 9

Learning about available Discs and Their Features 10

How to use the DVD Camcorder easily 12

Accessories Supplied with the DVD Camcorder 13

Front & Left View 14

Left Side View 15

Right & Top View 16

Rear & Bottom View 17

Remote Control (SC-DC175/DC575 only) 18

Preparation 19

Using the Hand Strap & Lens Cover 19

Lithium Battery Installation 20

Using the Lithium Ion Battery Pack 21

Connecting a Power Source 25

About the Operating Modes 26

Using the Joystick 26

Using the Q.MENU 27

OSD (On Screen Display) in Camera Mode/Player Mode ... 28

OSD (On Screen Display) in M.Cam Mode/M.Player Mode (SC-DC173(U)/DC175/DC575 only) 29

Turning the OSD (On Screen Display) On/Off 29

Initial Setting : System Menu Setting ....30

Setting the Clock (Clock Set) 30

Setting the Wireless Remote Control Acceptance (Remote) (SC-DC175/DC575 only) 31

Setting the Beep Sound (Beep Sound) 32

Setting the Shutter Sound (Shutter Sound) (SC-DC173(U)/DC175/DC575 only) 33

Selecting the OSD Language (Language) 34

Viewing the Demonstration (Demonstration) 35

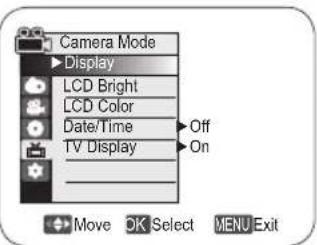

Initial Setting : Display Menu Setting .....36

Adjusting the LCD Screen (LCD Bright/LCD Color) 36

Displaying the Date/Time (Date/Time) 37

Setting the TV Display (TV Display) 38

DVD Camcorder: Before Recording ....39

Using the Viewfinder 39

Using the LCD ENHANCER 39

Various Recording Techniques 40

Inserting and Removing a Disc 41

Selecting the Record Mode (Rec Mode) 43

Contents

DVD Camcorder: Basic Recording ....44

Making your First Recording 44
Recording with Ease for Beginners (EASY.Q Mode) ...... 45
Zooming In and Out 46
Using the Fade In and Out (FADE) 47
Using Back Light Compensation Mode (BLC) 48
Using the Color Nite 49
Using the LIGHT (SC-DC173U/DC175/DC575 only) ..... 50

DVD Camcorder: Advanced Recording .....51

Cutting Off Wind Noise (Wind Cut) 51
Setting the Shutter Speed & Exposure (Shutter/Exposure) .. 52
Auto Focus / Manual Focus 53
Programed Automatic Exposure Modes (Program AE) ..... 54
Setting the White Balance 56
Applying Digital Effects 58
Setting the 16:9 Wide mode (16:9 Wide) 60
Setting the Digital Image Stabilizer (DIS) 61
Zooming In and Out with Digital Zoom (Digital Zoom) ..... 62

DVD Camcorder: Thumbnail index and Playlist .63

What is the Thumbnail Index? 63
What's a Playlist? 63

DVD Camcorder 64

Playing Title Scenes 64
Adjusting the Volume 64
Various Functions while in Player Mode 65
Deleting a Title Scene (Delete) 67
Deleting a Section of a Title Scene (Partial Delete) ...... 68

DVD Camcorder: Playlist 69

Creating a New Playlist (New Playlist) 69
Playing the Playlist 70
Deleting a Playlist (Delete) 71
Adding Scenes to Playlist (Scene-Add) 72
Changing the Order of Scenes within a Playlist (Scene-Move) 73
Deleting Scenes from a Playlist (Scene-Delete) 74
Deleting a Section of a Playlist (Scene-Partial Delete) ..... 75

DVD Camcorder: Disc Manager .....77

Disc Information (Disc Info) 77
Editing the Disc Name (Disc Info-Rename) 78
Formatting a Disc (Disc Format) 79
Finalizing a Disc (Disc Finalize) 80
Playing Back on a PC with DVD drive 81
Playing back a finalized disc on a DVD Player/Recorder .. 81
Unfinalizing a Disc (Disc Unfinalize) 82

ENGLISH

Contents

DVD Camcorder: Connection ....83

Setting the AV In/Out (SC-DC175/DC575 only) 83
Viewing Recordings on a TV 84
Copying a Disc onto a Tape 86
Using the Voice Plus 87
Recording (Copying) a TV Program or Video Tape onto a
Disc (SC-DC175/DC575 only) 88

Digital Still Camera Mode

(SC-DC173(U)/DC175/DC575 only) 89

Using a Memory Card (Usable Memory Card)
(not supplied) 89
Memory Card Functions 89
Inserting a Memory Card 89
Ejecting a Memory Card 89
Structure of Folders and Files on the Memory Card ..... 90
Selecting the Photo Quality (Photo Quality) 91
Setting the Photo Size (Photo Size) (SC-DC575 only) ..... 92
Setting the File Number (File No.) 93
Taking a Photo Image (JPEG) on a Memory Card 94
Viewing Photo Images (JPEG) 95
Protection from accidental Erasure (Protect) 96
Deleting Photo Images and Moving Images (Delete) ..... 97
Formatting the Memory Card (Format) 99
Recording Moving Images (MPEG) on a Memory Card ... 100
Playing the Moving Images (MPEG) on a Memory Card .. 101
Recording Still images onto a Memory Card during
DVD playback 102
Marking Images for Printing (Print Mark) 103

PictBridge™

(SC-DC173(U)/DC175/DC575 only) 105

Printing Your Pictures-Using PictBridge™ 105
Connecting To a Printer (USB Connect) 105
Setting the Number of Prints 106
Setting the Date/Time Imprint Option 106
Printing Images 106
Canceling the Printing 106

USB Interface

(SC-DC173(U)/DC175/DC575 only) 107

Using USB Interface 107
Using the Camcorder as a USB Device (USB Connect) .. 109
Installing DV Media PRO Program 110
Connecting to a PC 112
Disconnecting the USB Cable 112
Using the DVD Camcorder as a PC Camera .....113
Using the USB Streaming Function .....114
Using the DVD Camcorder as a Removable Disk .....114

ENGLISH

Contents

Maintenance 115

Using Your DVD Camcorder Abroad 115

Troubleshooting ....116

Troubleshooting 116

Setting menu items 121

Miscellaneous Information ....123

Disc Type Description 123

Specifications 124

Index 125

Warranty (SEA users only) 126

ENGLISH

Notes and Safety Instructions

Notes regarding the Rotation of the LCD Screen

Please rotate the LCD Screen carefully as illustrated. Over-rotation may cause damage to the inside of the hinge that connects the LCD Screen to the DVD Camcorder.

1. Open the LCD Screen 90 degrees with your finger.
2. Rotate it to the best angle to record or play.

- If you rotate the LCD Screen 180 degrees to the lens side, you can close the LCD Screen with it facing out.

■ This is convenient during playback operations.

Notes

• Refer to page 36 to adjust brightness and color of the LCD Screen.
• Make sure not to contact the magnetic stripe of your credit card near the LCD panel. Your credit card information may be removed.

Notes regarding the LCD Screen, Viewfinder, Lens

1. Direct sunlight can damage the LCD Screen, the inside of the Viewfinder or the Lens. Take pictures of the sun only in low light conditions, such as at dusk.
2. The LCD Screen has been manufactured using high precision technology. However, there may be tiny dots (red, blue or green in color) that appear on the LCD Screen. These dots are normal and do not affect the recorded picture in any way.
3. Do not pick up the DVD Camcorder by holding the Viewfinder, LCD Screen or Battery Pack.
4. Applying excessive force to the Viewfinder may damage it.

Notes and Safety Instructions

Notes regarding Disc Cleaning and Handling

Take care not to touch the recording side (the rainbow colored side) of the disc with your fingers. Discs contaminated by fingerprints or foreign substances may not play properly.
■ Use a soft cloth to clean the disc.
- Clean lightly from the center of a disc to the outside edge. Circling or cleaning too hard may create scratches on the disc and further cause the disc to play abnormally.
- Do not use benzene, thinner, detergent, alcohol or anti-static spray when cleaning the disc. It may cause a malfunction.
- Press the supporting holder in the center of the disc case for easy removal of the disc.
- Handle discs by the edges and the center hole to avoid finger marks on the recording side.
■ Do not bend or apply heat to the disc.
■ Always store discs vertically in their plastic cases when not in use.
■ Store discs away from direct sunlight, heating elements, moisture or dust.

CLASS 1 LASER PRODUCT

KLASSE 1 LASER PRODUKT

LUOKAN 1 LASER LAITE

KLASS 1 LASER APPARAT

PRODUCTO LÁSER CLASE 1

ENGLISH

Notes and Safety Instructions

Notes regarding DVD Camcorder

• Do not leave the DVD Camcorder exposed to high temperatures (above 60 °C or 140 °F).
  For example, in a parked car in the sun or exposed to direct sunlight.
• Do not let the DVD Camcorder get wet. Keep the DVD Camcorder away from rain, sea water, and any other form of moisture.
  The DVD Camcorder may get damaged if it gets wet. Sometimes a malfunction due to exposure to liquids cannot be repaired.
• A sudden rise in atmospheric temperature may cause condensation to form inside the DVD Camcorder.
• When you move the DVD Camcorder from a cold location to a warm location (e.g. from outside to inside during the winter.)
• When you move the DVD Camcorder from a cool location to a hot location (e.g. from inside to outside during the summer.)

Notices regarding Copyright (SC-DC175/DC575 only)

Television programs, video tapes, DVD titles, films, and other program materials may be copyrighted.

Unauthorized copying of copyrighted material may be against the law.

All the trade names and registered trademarks mentioned in this manual or other documentation provided with your Samsung product are trademarks or registered trademarks of their respective holders.

Servicing & Replacement Parts

• Do not attempt to service this DVD Camcorder yourself.
• Opening or removing covers may expose you to dangerous voltage or other hazards.
  ■ Refer all servicing to qualified service personnel.
• When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer that have the same characteristics as the original parts.
  ■ Unauthorized substitutions may result in fire, electric shock or other hazards.

Getting to Know Your DVD Camcorder

Features

• DVD Disc Camcorder DVD-VIDEO recording with 3 1/2 inch (8cm) DVD-RW/+RW/DVD-R/+R DL(Dual Layer) discs.
• High Power Zoom Lens Offers you High Power Zoom Lens with 34x (SC-DC171/DC173(U)/DC175 only) Zoom Lens, 26x Zoom Lens (SC-DC575 only).
• USB Interface for Digital Image Data Transfer (SC-DC173(U)/DC175/DC575 only) You can transfer images to a PC using the USB interface without an add-on card.
• Photo Capture (SC-DC173(U)/DC175/DC575 only) The Photo Capture function lets you capture the scene you want while the disc is in play, and save as a still image on a Memory Card.
  ■ 1200x Digital Zoom Allows you to magnify an image up to 1200 times its original size.
• Color TFT LCD A high-resolution color TFT LCD gives you clean, sharp images as well as the ability to review your recordings immediately. Also 2.7 inch Wide LCD. (SC-DC173(U)/DC175/DC575 only).

• LCD Enhancer Gives you a clear quality image on the LCD Screen; even in bright daylight.

• Mega-pixel CCD (SC-DC575 only) Your DVD Camcorder incorporates a 1.0 mega-pixel CCD. High-resolution photo images can be recorded to a Memory Card.
  ■ Digital Image Stabilizer (DIS) The DIS compensates for any handshake, reducing unstable images particularly at high magnification.

• Various Digital Effects The Digital Effects allow you to give your recordings a special look.
• Digital Still Camera Function (SC-DC173(U)/DC175/DC575 only)
• Using a Memory Card, you can easily record and playback standard photo images.
• You can transfer standard photo images on a Memory Card to your PC using the USB interface.
• Moving Image Recording (SC-DC173(U)/DC175/DC575 only) Moving image recording makes it possible to record video onto a Memory Card.
• MMC/SD Card Slot (SC-DC173(U)/DC175/DC575 only) MMC/SD card slot can use MMC (Multi Media Cards) and SD cards.
• Multi OSD Language You can select the desired OSD language from OSD list.

ENGLISH

Getting to Know Your DVD Camcorder

Learning about available Discs and Their Features

This DVD Camcorder can record or play back by using 3 1/2 inch (8cm) DVD-R/+R DL/-RW/+RW discs (not supplied) only. Please check whether your disc is proper for use.

Which discs can be used in the DVD Camcorder?

DVD-R

DVD+R DL

You can make only one recording on a disc.

You cannot delete or edit the recordings.

After finalizing the disc, you can play it back in most DVD players/recorders/drives.

DVD-RW

You can record and edit repeatedly.

(You can delete recorded image files or format the disc and reuse it again.)

Format the disc in the mode you want according to your needs.

Video mode: Once finalized, the recordings on the disc will play in most DVD players/recorders/drives.

VR (Video Record) mode: You can easily edit the recordings on your DVD Camcorder, but you can play the disc only on a DVD Recorder that supports VR mode.

DVD+RW

You can record on the disc repeatedly.

You can delete and format, but you cannot edit recordings.

You can play back a DVD+RW disc on other DVD players/recorders/drives without finalizing it.

You cannot use the following discs.

- You may not use 5 inch (12cm) CD/DVD discs.

- Unusable 3 1/2inch (8cm) discs.

CD/CD-R/CD-RW/DVD-ROM/DVD+R (Single Layer)/DVD-RAM/DVD-R (Dual Layer)

■ Floppy Disk, MO, MD, iD, LD

Getting to Know Your DVD Camcorder

Which discs recorded on the DVD Camcorder can be played in DVD players/recorders/drives?

Discs must be finalized before they can be played in regular DVD players/recorders/drives.

Finalizing is a process required to make the DVD discs you recorded on the camcorder playable in DVD players/recorders/drives.

DVD-R

DVD+R DL

■ DVD player
■ DVD recorder
■ DVD drive-equipped PC

DVD-RW

In Video mode

■ DVD player
- DVD recorder
■ DVD drive-equipped PC

In VR mode

DVD recorder that supports DVD-RW VR mode.

DVD+RW

■ DVD player
■ DVD recorder
■ DVD drive-equipped PC
- You can play back DVD+RW discs on other DVD players/recorders/drives without finalizing them.

Notes

■ We are not responsible for data loss on a disc.
- You may not be able to play discs recorded from a PC or DVD recorder. When such a case occurs, the message Bad Disc! may be displayed.
■ We do not warranty any damage or loss incurred due to recording and playback failure caused by disc or card malfunction.
- We take no responsibility and offer no compensation for any recording failure, loss of recorded or edited material and/or damage to the recorder arising from the misuse of discs.
- For stable and perpetual recording and playback, use the TDK, MKM, Verbatim disks that have the sign “for VIDEO CAMERA™” If you don’t use them, operations for recording and playback may not work properly or you may not eject the inserted disc from the DVD Camcorder.
- You cannot overwrite, edit, or format the finalized disc. If needed, unfinalize the disc. (DVD-RW only) →page 82
- It is not guaranteed that all DVD players/recorders/drives can play discs finalized in this DVD Camcorder.

For compatibility details, refer to the DVD players/recorders/drives owner's manual.

- For more information about the categories of available discs, see page 123.

ENGLISH

Getting to Know Your DVD Camcorder

How to use the DVD Camcorder easily

You can record any desired image and edit and playback the disc on a DVD Camcorder, most common DVD players, and PCs after finalizing the disc.

Recording

• Selecting the desired disc and disc formatting → page 42
• Recording the desired Images → page 44

Playing Back

- Selecting a scene to play back from the thumbnail index screen →page 64

Editing

- You may edit only in DVD-RW (VR Mode). →page 68

Finalizing

• Discs must be finalized before they can be played on standard DVD players/recorders/drives.
• You may play back DVD+RW discs on other devices without finalizing them.

Getting to Know Your DVD Camcorder

Accessories Supplied with the DVD Camcorder

Make sure that the following basic accessories are supplied with your DVD Camcorder.

Basic Accessories

1. Lithium Ion Battery Pack (SB-LSM80)
2. AC Power Adapter (AA-E9 TYPE)
3. AV Cable
4. Instruction Book/Quick Guide
5. Lithium Batteries for Remote Control (SC-DC175/DC575 only) and Clock. (TYPE: CR2025)
6. Remote Control (SC-DC175/DC575 only)
7. USB Cable (SC-DC173(U)/DC175/DC575 only)
8. Software CD (DV Media PRO) (SC-DC173(U)/DC175/DC575 only)
9. Lens Cover
10. Lens Cover Strap

Optional Accessories

1. 3 1/2 inch (8cm) DVD-RW Disc
2. Carrying Case

Notes

■ The contents can vary depending on the sales region.
■ Parts and accessories are available at your local Samsung dealer.

ENGLISH

Getting to Know Your DVD Camcorder

Front & Left View

Illustrations of model SC-DC173U are used in this owner's instructions. Although the models covered in this manual look different, they all operate in a similar way.

1. ACCESS Indicator →page 41
2. OPEN Switch →page 41
3. Lens
4. LIGHT (SC-DC173U/DC175/DC575 only) → page 50
5. Remote Sensor (SC-DC175/DC575 only)
6. Internal MIC
7. EASY.Q Button →page 45

8. Q.MENU Button → page 27

9. Joystick (Up/Down/Left/Right/OK)/FADE (page 47)/

Getting to Know Your DVD Camcorder

Left Side View

1. Built-In Speaker
2. LCD ENHANCER Button → page 39
3. Zoom (W/T)/VOL ( ▲/▼) Button →page 46/64
4. Record Start/Stop Button →page 44
5. MENU Button

6. DISPLAY Button →page 29

7. C.NITE/LIGHT/S.SHOW Button

(SC-DC173U/DC175/DC575 only) →page 49/50/95

C.NITE/S.SHOW Button (SC-DC173 only) →page 49/95

C.NITE Button (SC-DC171 only) →page 49

1. MULTI DISP./MF/AF Button ↩page 95/53

ENGLISH

Getting to Know Your DVD Camcorder

Right & Top View

1. PHOTO Button (SC-DC173(U)/DC175/DC575 only) →page 94
2. Focus Adjustment Knob → page 39
3. Viewfinder
4. Record Start/Stop Button ↘page 44
5. Power Switch (ON/OFF/ (Camera)/(Player))

6. USB Jack (SC-DC173(U)/DC175/DC575 only)

7. Zoom (W/T) Lever →page 46

8. Mode Switch (DISC/CARD) (SC-DC173(U)/DC175/DC575 only)
9. Disc Cover
10. Hand Strap

Getting to Know Your DVD Camcorder

Rear & Bottom View

1. Charging Indicator
2. Lithium Battery Cover
3. AV Jack
4. DC IN Jack
5. Hand Strap Hook
6. Tripod Receptacle
7. Memory Card Slot (SC-DC173(U)/DC175/DC575 only)
8. BATT. RELEASE Switch

Usable Memory Cards (2GB Max) (SC-DC173(U)/DC175/DC575 only)

ENGLISH

Getting to Know Your DVD Camcorder

Remote Control (SC-DC175/DC575 only)

1. START/STOP
2. DISPLAY →page 29
3. |◀◀/▶▶| (Skip)
4. ■ (Stop)
5. ▶ (Play/Still)
6. MENU

7. Up( ^)/Down( )/Left( )/Right( )/OK

8. PHOTO → page 94

9. W/T (Zoom) ↘ page 46
10. ◀◀ / ▶▶ (Search)
11. |▶ (Slow)
12. Q-MENU

Preparation

Using the Hand Strap & Lens Cover

It is very important to ensure that the Hand Strap has been correctly adjusted before you begin your recording. The Hand Strap enables you to:

• Hold the DVD Camcorder in a stable, comfortable position.
• Press the [Zoom] lever and [Record Start/Stop] button without having to change the position of your hand.

Hand Strap

1. Pull and open the Hand Strap and release the Hand Strap. Insert the Hand Strap into the Hand Strap Hook.
2. Insert your hand into the Hand Strap and adjust its length.
3. Close the Hand Strap.

Lens Cover

1. Hook up the Lens Cover with the Lens Cover Strap as illustrated.
2. Pull and open the Hand Strap and release the Hand Strap.
3. Hook up the Lens Cover Strap to the Hand Strap and adjust it following the steps as described for the Hand Strap.
4. Close the Hand Strap.

Installing the Lens Cover after Operation

Press buttons on both sides of the Lens Cover, then insert it so it covers the DVD Camcorder Lens.

ENGLISH

Preparation

Lithium Battery Installation

Lithium Battery Installation for the Internal Clock

1. Remove the Battery Pack from the rear of the DVD Camcorder.
2. Open the Lithium Battery Cover on the rear of the DVD Camcorder.
3. Position the Lithium Battery in the Lithium Battery Holder, with the positive (+) terminal face up.
   Be careful not to reverse the polarity of the Battery.
4. Close the Lithium Battery Cover.

Installing the Lithium Battery in the Remote Control (SC-DC175/DC575 only)

1. Turn the battery holder counterclockwise (as indicated with [Omark], using your fingernail or a coin to open it. The battery holder opens.
2. Insert the battery while the positive (+) terminal faces down and press it firmly until you hear locking sound.
3. Place the battery holder to match its [◎] mark with the [○] mark on the remote control, and turn the battery holder clockwise to fix it.

Precautions regarding the Lithium Battery

1. The Lithium Battery maintains the clock function and preset contents of the memory; even if the Battery Pack or AC Power adapter is removed.
2. The Lithium Battery for the DVD Camcorder lasts about 6 months under normal operation from time of installation.
3. When the Lithium Battery becomes weak or dead, the date/time indicator will display 12:00 AM JAN.01.2007 when you set the Date/Time to On. When this occurs, replace the Lithium Battery with a new one (type CR2025).
4. There is a danger of explosion if Lithium Battery is incorrectly replaced. Replace only with the same or equivalent type.

Warning: Keep the Lithium Battery out of reach of children. Should a battery be swallowed, consult a doctor immediately.

Preparation

Using the Lithium Ion Battery Pack

Use the SB-LSM80 or SB-LSM160 (not supplied) Battery Pack only.
The Battery Pack may be charged a little at the time of purchase.

Charging the Lithium Ion Battery Pack

1. Turn the [Power] switch to [OFF].
2. Attach the Battery Pack to the DVD Camcorder.
3. Connect the AC Power adapter(AA-E9 TYPE) to a wall socket.
4. Open the DC IN Jack Cover.

5. Connect the DC cable to the DC IN jack on the DVD Camcorder. ■ The charging indicator will start to blink, showing that the Battery is charging.

6. When the Battery is fully charged, disconnect the Battery Pack and the AC Power Adapter from the DVD Camcorder. Even with the Power switched off, the Battery Pack will still discharge.

Blinking time Charging rate
Once per second Less than 50%
Twice per second 50% ~ 75%
Three times per second 75% ~ 90%
Blinking stops and stays on 90% ~ 100%
On for a second and off for a second	Error - Reset the Battery Pack and the DC Cable

ENGLISH

Preparation

Charging, Recording Times based on Battery Type

• If you close the LCD Screen, it switches off and the Viewfinder switches on automatically.
  ■ The continuous recording times given in the table below are approximations.

Actual recording time depends on usage.

• The continuous recording times in the operating instructions are measured using a fully charged Battery Pack at 77 °F (25 °C).
  Even when the power is switched off, the Battery Pack will still discharge if it is left attached to the device.

Battery Type SB-LSM80 SB-LSM160 (not supplied)
Charging time Approx. 1hr 30min Approx. 3hr
	Mode Co	continuous recording time Playback time Mode Continuous recording time Playback time
LCD ON	XP Approx. 1hr 5min Approx. 1hr 10min XP Approx. 2hr 10min Approx. 2hr 15min
Viewfinder
LCD ON	SP Approx. 1hr 10min Approx. 1hr 15min SP Approx. 2hr 20min Approx. 2hr 25min
Viewfinder
LCD ON	LP	Approx. 1hr 15min	Approx. 1hr 20min	LP	Approx. 2hr 30min	Approx. 2hr 35min
Viewfinder

• Measured times shown above are based on model SC-DC173U

The amount of continuous recording time available depends on;

• The type and capacity of the Battery Pack you are using.
• Ambient temperature.
• How often the Zoom function is used.
• Type of use (DVD Camcorder/Camera/With LCD Screen etc.).

It is recommended that you have several batteries available.

Preparation

Battery Level Display

The battery level display indicates the amount of power remaining in the Battery Pack.

a. Fully charged
b. 20\~40% used
c. 40\~80% used
d. 80\~95% used (red)
e. Completely used (Blinking)

(The DVD Camcorder will turn off soon, change the battery as soon as possible.)

The Finalize/Format functions are not available when the battery level is between [an].

■ At battery level 'e'

The battery becomes low in capacity and the < > indicator blinks on the display.

The screen will turn blue when the battery is almost completely discharged.

Battery Pack Management

■ The Battery Pack should be recharged in an environment between 32 °F (0 °C) and 104 °F (40 °C).
■ The Battery Pack should never be charged in a room with a temperature that is below 32 °F (0 °C).
- The life and capacity of the Battery Pack will be reduced if it is used in temperatures below 32 °F (0 °C) or left in temperatures above 104 °F (40 °C) for a long period of time, even when it is fully recharged.
- Do not put the Battery Pack near any heat source (i.e. fire or a heater).
■ Do not disassemble, apply pressure to, or heat the Battery Pack.
- Do not allow the + and – terminals of the Battery Pack to be short-circuited. It may cause leakage, heat generation, induce overheating or fire.

ENGLISH

Preparation

Maintaining the Battery Pack

• Please refer to the Table on page 22 for approximate continuous recording time.
  ■ The recording time is affected by temperature and environmental conditions.
  ■ The recording time shortens dramatically in a cold environment.
  The continuous recording times in the operating instructions are measured using a fully charged Battery Pack at 77 °F (25 °C).
  The remaining battery time may differ from the approximate continuous recording times given in the instructions.
• When replacing the battery pack, only use the same type as is supplied with this DVD Camcorder and is available from your SAMSUNG retailer.
  ■ When the Battery reaches the end of its life, please contact your local dealer.

The batteries have to be dealt with as chemical waste.

■ Make sure that the Battery Pack is fully charged before starting to record.
- A brand new Battery Pack is not charged. Before using the Battery Pack, you need to charge it completely.
■ Fully discharging a Lithium Ion Battery damages the internal cells.
The Battery Pack may be prone to leakage when fully discharged.
■ To preserve battery power, keep your DVD Camcorder turned off when you are not operating it.
- If your DVD Camcorder is in Camera Mode, and it is left in STBY mode without being operated for more than 5 minutes with a disc inserted, it will automatically turn itself off to protect against unnecessary battery discharge.

■ Make sure that the Battery Pack is fitted firmly into place.

Do not drop the Battery Pack. Dropping the Battery Pack may damage it.

Preparation

Connecting a Power Source

There are two types of power source that can be connected to your DVD Camcorder.

• The AC Power adapter: used for indoor recording.
• The Battery Pack: used for outdoor recording.

Using a Household Power Source

Connect to a household power source to use the DVD Camcorder without having to worry about the battery power. You can keep the Battery Pack attached; the battery power will not be consumed.

1. Connect the AC Power adapter (AA-E9 TYPE) to a wall socket.
   The plug and wall socket type may differ according to your resident country.
2. Open the DC IN Jack Cover.
3. Connect the DC cable to the DC IN jack of the DVD Camcorder.
4. Set the DVD Camcorder to each mode by holding down the Green Tab on the [Power] switch and turning the [Power] switch to [ON] or [OFF].

ENGLISH

Preparation

About the Operating Modes

The operating modes are determined by the position of the [Power] and [Mode] (SC-DC173(U)/DC175/DC575 only) switch.
Set the Operation Mode by adjusting the [Power] and [Mode] (SC-DC173(U)/DC175/DC575 only) switches before operating any functions.
✿ Each time you move the [Power] switch downward, it toggles between [Camera] and [Player] mode.

Mode Name<Camera Mode>		<Player Mode><M.Cam Mode><M.Player Mode>
[Power] Switch

- The and the are only available on SC-DC173(U)/DC175/DC575.

- M.Cam Mode : Memory Camera Mode / M.Player Mode : Memory Player Mode

Using the Joystick

The Joystick is used to make a selection and to move the cursor left, right, up and down. Using the Joystick, you can easily make your selection and navigate the menu.

1. Move to a previous menu item / Adjust the selected item (to the left).
2. Move to a sub menu item / Adjust the selected item (to the right).
3. Move to a lower menu item.
4. Move to an upper menu item.
5. Press to select the chosen item (OK).

Preparation

Using the Q.MENU

Q.MENU is used to access DVD Camcorder functions by using the [Q.MENU] button.
Q.MENU provides easier access to frequently used menus without using the [MENU] button.

Functions available using the Q.MENU are as below:

	DISProgram AEWhite BalanceBLCShutterExposure	page 61page 54page 56page 48page 52page 52
	DeletePartial Delete	page 67page 68
	New PlaylistDelete	page 69page 71
	BLCPhoto Size (SC-DC575 only)White BalancePhoto QualityExposure	page 48page 92page 56page 91page 52
	DeleteDelete AllProtectPrint MarkFormat	page 97page 98page 96page 103page 99

For example: Setting the White Balance

1. Press the [Q.MENU] button.
   ■ The quick menu list will appear.
2. Move the [Joystick] up or down to select , then press the [Joystick].
3. Move the [Joystick] up or down to select desired mode (Auto, Indoor, Outdoor, or Custom WB), then press the [Joystick].
4. To exit, press the [Q.MENU] button.

ENGLISH

Preparation

OSD (On Screen Display) in Camera Mode/Player Mode

1. Battery Level →page 23
2. Manual focus →page 53 *
   EASY.Q →page 45 *
3. DIS → page 61
4. Program AE →page 54
5. White Balance Mode → page 56
6. Digital Effects Mode → page 58

16:9 Wide → page 60

1. Shutter Speed →page 52 *

2. Exposure → page 52 ★

3. Date/Time page 37

4. Color Nite pages 49\~50 ★

5. USB (SC-DC173(U)/DC175/DC575 only) →page 109

6. Remote (SC-DC175/DC575 only) →page 31

7. Wind Cut →page 51

8. BLC (Back Light Compensation) → page 48

9. LIGHT (SC-DC173U/DC175/DC575 only) →page 50

10. Title scene number

11. Disc Format →page 79

12. Disc Type

13. Counter

14. Remaining Time

15. Record Mode → page 43
16. Operating Mode
17. Zoom Position →page 46 Digital Zoom Position →page 62
18. LCD Enhancer ↘page 39
19. Volume Control →page 64
20. Message Line →page 117
21. Voice Plus Indicator →page 87
22. AV IN (SC-DC175/DC575 only) →page 83 ★
23. Playback Speed → page 66

Notes

■ Functions not marked with ★ will be retained when the DVD Camcorder is powered on after turning it off.
- OSD (On Screen Display) items shown here are based on model SC-DC173U.

OSD in Camera Mode

OSD in Player Mode

Preparation

OSD (On Screen Display) in M.Cam Mode/M.Player Mode (SC-DC173(U)/DC175/DC575 only)

1. Photo Quality → page 91
2. Photo Size (SC-DC575 only) → page 92
3. Remaining Time (Recordable time of moving images)
4. CARD (Memory Card) Indicator
5. Image Counter (Total number of recordable photo images)
6. Slide Show →page 95
7. Erase Protection Indicator → page 96
8. Print Mark →page 103

9. Folder Number-File Number →page 93 File number of the moving image

10. Image Counter (Current Image/Total number of recorded images)

Turning the OSD (On Screen Display) On/Off

Turning OSD On/Off

Press the [DISPLAY] button on the left side control panel.

■ Each press of the button toggles the OSD function on and off.

Turning the Date/Time On/Off

To turn the Date/Time on or off, access the menu and change the Date/Time mode. →page 37

ENGLISH

Initial Setting : System Menu Setting

Setting the Clock (Clock Set)

Clock setup works in Camera Mode/Player Mode/M.Cam Mode/M.Player Mode. →page 26
The date/time is automatically recorded onto a disc. Before recording, please set the date/time.

1. Set the [Mode] switch to [DISC] or [CARD]. (SC-DC173(U)/DC175/DC575 only)
2. Set the [Power] switch to [camera)] or [(Player)].
3. Press the [MENU] button.

■ The menu list will appear.

1. Move the [Joystick] up or down to select , then press the [Joystick].
2. Move the [Joystick] up or down to select , then press the [Joystick].

■ The month will be highlight first.

1. Move the [Joystick] up or down to set current month, then press the [Joystick].

■ The day will be highlighted.
- To adjust the clock, select the Year, Month, Day, Hour, Min, or AM/PM by pressing the [Joystick], then move the [Joystick] up or down to set respective values.

1. You can set the day, year, hour, minute, and AM/PM following the same procedure after setting the month.
2. Press the [Joystick] after setting minute.
3. A message is displayed.
4. To exit, press the [MENU] button.

Notes

■ After the Lithium Battery loses its charge (after about 6 months), the date/time appears on the screen as 12:00 AM JAN.01.2007.
■ You can set the year up to 2040.
■ If the Lithium Battery is not installed, data inputted will not be backed up.
■ Display illustrations in this manual

OSD illustrations of model SC-DC173U are used in this manual. Some of the OSD items shown in this manual may differ slightly from the actual items on your DVD Camcorder.

4

5

8

Initial Setting : System Menu Setting

Setting the Wireless Remote Control Acceptance (Remote) (SC-DC175/DC575 only)

The Remote function works in Camera Mode/Player Mode/M.Cam Mode/M.Player Mode. page 26
The Remote function allows you to enable or disable the remote control for use with the DVD Camcorder.

1. Set the [Mode] switch to [DISC] or [CARD].
2. Set the [Power] switch to [camera)] or [(Player)].

3. Press the [MENU] button.
   ■ The menu list will appear.

4. Move the [Joystick] up or down to select , then press the [Joystick].

5. Move the [Joystick] up or down to select , then press the [Joystick].

6. Move the [Joystick] up or down to select or , then press the [Joystick].

7. To exit, press the [MENU] button.

Note

If you set the Remote to Off in the menu and try to use it, the remote control icon (W) will blink for 3 seconds on the LCD Screen and then disappear.

4

6

ENGLISH

Initial Setting : System Menu Setting

Setting the Beep Sound (Beep Sound)

The Beep Sound function works in Camera Mode/Player Mode/M.Cam Mode/M.Player Mode. →page 26
You can turn the Beep Sound on or off. When on, each press of a button sounds a beep.

1. Set the [Mode] switch to [DISC] or [CARD]. (SC-DC173(U)/DC175/DC575 only)
2. Set the [Power] switch to [camera)] or [(Player)].
3. Press the [MENU] button.

■ The menu list will appear.

1. Move the [Joystick] up or down to select , then press the [Joystick].
2. Move the [Joystick] up or down to select , then press the [Joystick].
3. Move the [Joystick] up or down to select or , then press the [Joystick].
4. To exit, press the [MENU] button.

4

6

Initial Setting : System Menu Setting

Setting the Shutter Sound (Shutter Sound) (SC-DC173(U)/DC175/DC575 only)

The Shutter Sound function works only in M.Cam Mode. → page 26
You can turn the Shutter Sound on or off. When on, the shutter will sound with each press of the [PHOTO] button.

1. Set the [Mode] switch to [CARD].
2. Set the [Power] switch to [camera].

3. Press the [MENU] button.
   ■ The menu list will appear.

4. Move the [Joystick] up or down to select , then press the [Joystick].

5. Move the [Joystick] up or down to select , then press the [Joystick].

6. Move the [Joystick] up or down to select or , then press the [Joystick].

7. To exit, press the [MENU] button.

4

6

ENGLISH

Initial Setting : System Menu Setting

Selecting the OSD Language (Language)

The Language function works in Camera Mode/Player Mode/M.Cam Mode/M.Player Mode. →page 26
You can select the desired language to display the menu screen and the messages.

1. Set the [Mode] switch to [DISC] or [CARD]. (SC-DC173(U)/DC175/DC575 only)
2. Set the [Power] switch to [camera)] or [(Player)].
3. Press the [MENU] button.

■ The menu list will appear.

1. Move the [Joystick] up or down to select , then press the [Joystick].
2. Move the [Joystick] up or down to select , then press the [Joystick].

- The available language options are listed.

1. Move the [Joystick] up or down to select the desired OSD language, then press the [Joystick].

■ The OSD language is refreshed in the selected language.

1. To exit, press the [MENU] button.

Note

Language options may be changed without prior notice.

4

Initial Setting : System Menu Setting

Viewing the Demonstration (Demonstration)

The Demonstration function may only be used in the Camera Mode with no disc inserted in the unit. → page 26
Before you begin: Make sure that there is no disc inserted in the DVD Camcorder. →page 41
❖ Demonstration automatically shows you the major functions that are included with your DVD Camcorder so that you may use them more easily.
The Demonstration operates repeatedly until it is switched off.

1. Set the [Mode] switch to [DISC]. (SC-DC173(U)/DC175/DC575 only)
2. Set the [Power] switch to [camera]).
3. Press the [MENU] button.
   ■ The menu list will appear.
4. Move the [Joystick] up or down to select , then press the [Joystick].
5. Move the [Joystick] up or down to select , then press the [Joystick].
6. Move the [Joystick] up or down to select , then press the [Joystick].
7. To quit the Demonstration, press the [Joystick].

Note

If you press other buttons (FADE, C.NITE, EASY.Q, MF/AF, etc.) during the Demonstration operation, the Demonstration function will be deactivated and the function of the button pressed will be activated.

4

6

ENGLISH

Initial Setting : Display Menu Setting

Adjusting the LCD Screen (LCD Bright/LCD Color)

Adjusting the LCD Screen works in Camera Mode/Player Mode/M.Cam Mode/M.Player Mode. → page 26
Your DVD Camcorder is equipped with a 2.5 inch (SC-DC171 only) / 2.7 inch wide (SC-DC173(U)/DC175/DC575 only) color Liquid Crystal Display (LCD) Screen, which enables you to view what you are recording or playing back directly.
✿ Depending on the conditions under which you are using the DVD Camcorder (indoors or outdoors for example), you can adjust;

- LCD Bright

- LCD Color

1. Set the [Mode] switch to [DISC] or [CARD]. (SC-DC173(U)/DC175/DC575 only)
2. Set the [Power] switch to [camera)] or [(Player)].
3. Press the [MENU] button.

■ The menu list will appear.

1. Move the [Joystick] up or down to select , then press the [Joystick].
2. Move the [Joystick] up or down to select the item you want to adjust (LCD Bright or LCD Color), then press the [Joystick].
3. Move the [Joystick] left or right to adjust the value of the selected item (LCD Bright or LCD Color), then press the [Joystick].

- You can set values for and between <00> \~ <35>.

1. To exit, press the [MENU] button.

- Adjusting the LCD Screen does not affect the brightness and color of the image to be recorded.

4

6

Initial Setting : Display Menu Setting

Displaying the Date/Time (Date/Time)

The Date/Time function works in Camera Mode/Player Mode/M.Cam Mode/M.Player Mode. → page 26
The date and time are automatically recorded on a special data area of the disc.

1. Set the [Mode] switch to [DISC] or [CARD]. (SC-DC173(U)/DC175/DC575 only)
2. Set the [Power] switch to [camera)] or [(Player)].
3. Press the [MENU] button.

■ The menu list will appear.

1. Move the [Joystick] up or down to select , then press the [Joystick].
2. Move the [Joystick] up or down to select , then press the [Joystick].
3. Move the [Joystick] up or down to select the Date/Time display type, then press the [Joystick].

- Date/Time display type: , , , .

1. To exit, press the [MENU] button.

Notes

The Date/Time will read 12:00 AM JAN.01.2007 in the following conditions.
- During playback of a blank section of a disc.
- If the disc was recorded before setting the Clock function in the DVD Camcorder.
- When the Lithium Battery becomes weak or dead.

Before you use the Date/Time function, you must set the clock. → page 30

4

6

ENGLISH

Initial Setting : Display Menu Setting

Setting the TV Display (TV Display)

The TV Display function works in Camera Mode/Player Mode/M.Cam Mode/M.Player Mode. → page 26
You can select the output path of the OSD (On Screen Display). This allows you to set the OSD for viewing on the viewfinder, LCD screen or an external TV. Use the [DISPLAY] button to turn the OSD on/off on the LCD Screen/Viewfinder/TV.

1. Set the [Mode] switch to [DISC] or [CARD]. (SC-DC173(U)/DC175/DC575 only)
2. Set the [Power] switch to [camera)] or [(Player)].
3. Press the [MENU] button.

■ The menu list will appear.

1. Move the [Joystick] up or down to select , then press the [Joystick].
2. Move the [Joystick] up or down to select , then press the [Joystick].

3. Move the [Joystick] up or down to select or , then press the [Joystick].

4. : The OSD appears in the LCD Screen and Viewfinder only.

5. : The OSD appears in the LCD Screen, Viewfinder and TV. → pages 84\~87

6. To exit, press the [MENU] button.

Note

When the TV Display is set to Off, the menu does not appear on the TV screen also.

4

6

DVD Camcorder: Before Recording

Using the Viewfinder

You can view pictures through the viewfinder to avoid running down the battery, or to see correct images when the picture on the LCD Screen is poor.
In the [Camera] or [Player] mode, the Viewfinder will work when the LCD Screen is closed.

Adjusting the Focus

The focus adjustment knob of the Viewfinder enables individuals with vision problems to see clearer images.

1. Close the LCD Screen.
2. Use the Focus Adjustment Knob of the Viewfinder to focus the picture.

Caution

Do not lift the DVD Camcorder by the viewfinder or LCD screen as it may cause you to drop it.

Note

Viewing the sun or any strong light source through the Viewfinder for a prolonged period may be harmful, or cause temporary impairment.

Using the LCD ENHANCER

The LCD ENHANCER function works in Camera Mode/Player Mode/M.Cam Mode/M.Player Mode. →page 26
- Contrast is enhanced for a clear and bright image. This effect is also implemented outdoors in bright daylight.

1. Set the [Mode] switch to [DISC] or [CARD]. (SC-DC173(U)/DC175/DC575 only)
2. Set the [Power] switch to [camera)] or [(Player)].
3. Press the [LCD ENHANCER] button. ■ LCD ENHANCER icon ( ) is displayed.
4. To exit LCD ENHANCER, press the [LCD ENHANCER] button again.

Note

LCD ENHANCER function does not affect the quality of the image being recorded.

ENGLISH

DVD Camcorder: Before Recording

Various Recording Techniques

In some situations, different recording techniques may be required for more dramatic results.

1. General recording.

2. Downward recording.

Making a recording with a top view of the LCD Screen.

1. Upward recording.

Making a recording viewing the LCD Screen from below.

1. Self recording.

Making a recording viewing the LCD Screen from the front.

1. Recording with the Viewfinder.

In circumstances where it is difficult to use the LCD Screen, the Viewfinder can be used as a convenient alternative.

Note

Please rotate the LCD Screen carefully as excessive rotation may cause damage to the inside of the hinge that connects the LCD Screen to the DVD Camcorder.

DVD Camcorder: Before Recording

Inserting and Removing a Disc

When inserting a disc or closing the disc cover, do not apply excessive force. It may cause a malfunction.
You cannot open the disc cover while loading.
Set the [Mode] switch to [DISC] (SC-DC173(U)/DC175/DC575 only) and the [Power] switch to [Camera] to view menus and messages displayed on the LCD Screen. → page 28

Inserting a Disc

1. Push the [OPEN] switch in the direction of the arrow.
   ■ The disc cover will partially open.
2. Gently open the cover the rest of the way by hand.
3. Push the disc into the disc compartment until a click is heard.

- The recording side of the disc must face the inside of the DVD Camcorder.

- Do not touch the pickup lens.

1. Gently push the section marked [PUSH CLOSE] on the disc cover to close it.

- Once inserted, the disc is recognized and the [ACCESS] indicator blinks. Do not cut off the power supply during this time. Do not shake nor apply impact. It may cause a malfunction.

Notes

■ Move the Hand Strap so it does not interfere with inserting or ejecting the disc.
- The disc cover can be opened when the device is connected to an AC power adapter or the battery pack, even if the power is off.

Caution

This product utilizes a laser. Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. Do not open covers and do not look inside the product if interlock mechanism is damaged.

Warning

Be careful not to damage the interlock mechanism.

ENGLISH

DVD Camcorder: Before Recording

When using a New Disc: Formatting a new Disc

Formatting may be required if a new disc is inserted.

Recognition of the disc will start.

For a DVD-R/+R DL disc: Formatting will automatically begin.

For a DVD-RW disc: You are prompted with the message.

Differences between Video and VR mode	Video (Video Mode) : If the disc has been finalized, you will be able to play the disc on most DVD Players/Recorders/Drives.
	VR (VR Mode) : You can edit the disc on a DVD Camcorder, but playback is only possible on a DVD Recorder that supports VR mode.

■ Refer to page 11 for Finalized disc compatibility.

Move the [Joystick] left or right to select

■ Please refer to page 123 for disc type descriptions and usage.

Upon completion, the message will appear.

If you select , the warning message will appear.

Formatting a new disc is required to record on it. To format later, use the menu. →page 79

For a DVD+RW disc: You are prompted with the message.

Move the [Joystick] left or right to select , then press [Joystick].

Upon completion the message will appear.

If you select , the warning message will appear.

Formatting a new disc is required to record on it. To format later, use the menu. →page 79

Removing a Disc

1. Push the [OPEN] switch in the direction of the arrow.

■ The disc cover will partially open.

1. Gently open the cover the rest of the way by hand.

2. Remove the disc.

■ While pushing down the center portion of the disc spindle, pick up the disc by the edges to remove.

1. Gently push the section marked [PUSH CLOSE] on the disc cover to close it.

Note

The Finalize/Format functions are not available when the battery level is between [an].

42

DVD Camcorder: Before Recording

Selecting the Record Mode (Rec Mode)

The Record Mode function works in both Camera Mode and Player Mode. → page 26
This DVD Camcorder can film in the XP (extra play), the SP (standard play) and the LP (long play) modes. The SP mode is set as the factory default.

1. Set the [Mode] switch to [DISC]. (SC-DC173(U)/DC175/DC575 only)
2. Set the [Power] switch to [camera)] or [(Player)].
3. Press the [MENU] button.
   ■ The menu list will appear.
4. Move the [Joystick] up or down to select , then press the [Joystick].
5. Move the [Joystick] up or down to select , then press the [Joystick].
6. Move the [Joystick] up or down to select the desired record mode (XP, SP or LP), then press the [Joystick].
7. To exit, press the [MENU] button.
   ■ The icon of the selected mode is displayed.

Recording Times based on Disc Type

	DVD-RW/+RW/-R (1.4G) DVD+R DL (2.6G)
XP Approx.	20min Approx. 35min
*SP Approx.	30min Approx. 53min
*LP Approx.	60min Approx.106min

* Recorded files are encoded with Variable Bit Rate (VBR).
- The recording times shown above are approximate and depend on the recording environment (i.e. lighting conditions).
- VBR is an encoding system that automatically adjusts the bit rate according to the recording image.

4

6

7

ENGLISH

DVD Camcorder: Basic Recording

Making your First Recording

1. Connect a power source to the DVD Camcorder→pages 21, 25

■ (A Battery Pack or a AC Power adapter)
- Insert a disc. →page 41

1. Remove the Lens Cover.

2. Open the LCD Screen

- Set the [Mode] switch to [DISC]. (SC-DC173(U)/DC175/DC575 only)

• Set the [Power] switch to [Camera].
  Make sure that is displayed.
  ■ Make sure the image you want to record appears on the LCD Screen or Viewfinder.
  ■ Make sure the Battery Level indicates that there is enough remaining power for your expected recording time.

• To start recording, press the [Record Start/Stop] button.

- is displayed on the LCD Screen.

The record mode, recording time, the disc type, the format mode, and the title scene number are displayed on the LCD Screen.

1. To stop recording, press the [Record Start/Stop] button again.

2. is displayed on the LCD screen after blinking.

3. If you press the [Record Start/Stop] button to record again, a new title scene will be created. The title scene number will not appear in the STBY mode but in the REC mode.

Tip

This DVD Camcorder has two [Record Start/Stop] buttons. One on the rear and the other on the LCD screen's frame.

Use either button for convenient recording.

Notes

■ Playing title scenes. → page 64
■ Up to 253 title scenes can be created on DVD-R/+RW/+R DL/-RW(Video Mode)discs, and up to 999 on DVD-RW(VR Mode).
- Detach the Battery Pack when you have finished recording to prevent unnecessary battery power consumption.
- If the power cable/batteries are disconnected, or recording is disabled during recording, an error message will appear and the system is switched to the data recovery mode.

While data is being recovered, no other function is enabled. After data recovery, the system will be switched to the STBY mode.

DVD Camcorder: Basic Recording

Recording with Ease for Beginners (EASY.Q Mode)

The EASY.Q function works only in Camera Mode. page 26
The EASY.Q function allows a beginner to easily make good recordings.

1. Set the [Mode] switch to [DISC]. (SC-DC173(U)/DC175/DC575 only)

2. Set the [Power] switch to [camera]).

3. By pressing the [EASY.Q] button, all functions on the DVD Camcorder will be set to off and the recording settings will be set to the following basic modes (DIS, AF(Auto Focus), AWB(Auto White Balance), AE(Auto Exposure)) On.

- The word and DIS (💡) appear on the display at the same time.

1. Press the [Record Start/Stop] button to start recording.

- Recording will begin using the basic automatic settings.

1. Press the [EASY.Q] button again in the STBY mode to turn the EASY.Q mode off.

- The EASY.Q function will not turn off while you are recording.

- The DVD Camcorder will return to the settings that were set prior to activating EASY.Q mode.

Notes

- Unavailable buttons during operation

During operation EASY.Q, the following buttons are unavailable because the items are automatically set. The corresponding messages may appear if unavailable operations are attempted.

• [MENU] button
• [C.NITE] button

• [Q.MENU] button
  [MF/AF] button, etc.

• The EASY.Q mode settings are released when the Battery Pack is removed from the DVD Camcorder and must be reset when the Battery Pack is replaced.
  ■ 16:9 Wide is not available in the EASY.Q mode. (SC-DC171 only)
  ■ Digital Effect and Digital Zoom is not available in the EASY.Q mode.

ENGLISH

DVD Camcorder: Basic Recording

Zooming In and Out

The Zoom function works in both Camera Mode and M.Cam Mode. →page 26
- Zooming is a recording technique that lets you change the size of the subject in a scene.
You can zoom using variable zoom speeds.
Use these features for different shots. Please note that over-use of the zoom feature can lead to unprofessional looking results and a reduction of battery usage time.
This DVD Camcorder allows you to record using optical 34x(SC-DC171/DC173(U)/DC175 only) or 26x(SC-DC575 only) power zoom and digital zoom.

1. Move the [Zoom] lever or press the [Zoom] button slightly for a gradual zoom, move it further for a high-speed zoom.

- Your zooming is monitored on the OSD.

1. [T] (Telephoto) side: Subject appears closer.

2. [W] (Wide angle) side: Subject appears farther away.

- You can record a subject that is about 10mm (about 0.5 inch) away from the lens surface in the Wide position.

DVD Camcorder: Basic Recording

Using the Fade In and Out (FADE)

❖ The Fade function works only in Camera Mode. → page 26
You can give your recording a professional look by using special effects such as fade in at the beginning of a sequence or fade out at the end of a sequence.

To Start Recording

1. Set the [Mode] switch to [DISC]. (SC-DC173(U)/DC175/DC575 only)
2. Set the [Power] switch to [camera].
3. Before recording, move the [Joystick] up and hold. ■ The picture and sound gradually disappear (fade out).
4. Press the [Record Start/Stop] button and at the same time release the [Joystick].
5. Recording starts and the picture and sound gradually appear (fade in).

To Stop Recording

1. When you wish to stop recording, move the [Joystick] up and hold.
   ■ The picture and sound gradually disappear (fade out).

2. When the picture has disappeared, move the [Record Start/Stop] button to stop recording.

a. Fade Out (Approx. 4 seconds)

b. Fade In (Approx. 4 seconds)

Move the [Joystick] up and hold.

a. Fade Out Gradual disappearance

Gradual appearance b. Fade In Release the [Joystick]

ENGLISH

DVD Camcorder: Basic Recording

Using Back Light Compensation Mode (BLC)

✿ BLC works in both Camera Mode and M.Cam Mode. →page 26
◆ Back lighting exists when the subject is darker than the background:

• The subject is in front of a window.
• The person to be recorded is wearing white or shiny clothes and is placed against a bright background; the person's face is too dark to distinguish his/her features.
• The subject is outdoors and the background is overcast.
• The light sources are too bright.

• The subject is against a snowy background.

• Set the [Mode] switch to [DISC] or [CARD]. (SC-DC173(U)/DC175/DC575 only)

• Set the [Power] switch to [camera]).
• Press the [MENU] button.

■ The menu list will appear.

1. Move the [Joystick] up or down to select , then press the [Joystick].
2. Move the [Joystick] up or down to select , then press the [Joystick].
3. Move the [Joystick] up or down to select , then press the [Joystick].
4. To exit, press the [MENU] button.

■ BLC icon ( ) is displayed.

Notes

• You can directly access the BLC function by using the [Q.MENU] button. → page 27
  ■ The BLC function will not operate in EASY.Q mode.

6

7

DVD Camcorder: Basic Recording

Using the Color Nite

Color Nite function works only in Camera Mode. →page 26
You can make the subject recorded appear to be in slow motion by controlling the shutter speed, or a brighter image in dark places without a compromise in colors.
✿ Please disable 16:9 Wide mode to use the Color Nite function. (SC-DC173(U)/DC175/DC575 only) →page 60

1. Set the [Mode] switch to [DISC]. (SC-DC173(U)/DC175/DC575 only)

2. Set the [Power] switch to [camera]).

3. Press the [C.NITE] (SC-DC171/DC173 only) or [C.NITE/LIGHT] (SC-DC173U/DC175/DC575 only) button.

4. Each time you press the [C.NITE] (SC-DC171/DC173 only) or [C.NITE/LIGHT] (SC-DC173U/DC175/DC575 only) button, shutter speed is changed to;

▶ , and off. (SC-DC171/DC173 only)

◀ , , and off. (SC-DC173U/DC175/DC575 only)

(SC-DC171/DC173 only)

(SC-DC173U/DC175/DC575 only)

Notes

• When using Color Nite, the image takes on a slow motion like effect.
• When using Color Nite, the focus adjusts slowly and white dots may appear on the screen, this is not a defect.
• Color Nite function is not available with the following functions: 16:9 Wide, Program AE, Shutter, Exposure, Digital Zoom, Mosaic, Mirror, Emboss2 and Pastel2.
  ■ If DIS is set, Color Nite mode will be released.

4

ENGLISH

DVD Camcorder: Basic Recording

Using the LIGHT (SC-DC173U/DC175/DC575 only)

The LIGHT function works only in Camera Mode. → page 26
The LIGHT enables you to record a subject in dark places.
The LIGHT can be used with Color Nite function only.
Please disable 16:9 Wide mode to use this function. → page 60

1. Set the [Mode] switch to [DISC].

2. Set the [Power] switch to [camera]).

3. Press the [C.NITE/LIGHT] button until <Color N. 1/15()appears.

Danger

■ The LIGHT can become extremely hot.
- Do not touch it while in operation or soon after turning it off, otherwise serious injury may result.
- Do not place the DVD Camcorder into the carrying case immediately after using the LIGHT, since it remains extremely hot for some time.
- Do not use near flammable or explosive materials.

Notes

The LIGHT will not turn on or off while you are recording.
■ The range of the LIGHT is limited. (up to 6.6ft (2m))
■ 16:9 Wide mode is not available in the LIGHT mode.

DVD Camcorder: Advanced Recording

Cutting Off Wind Noise (Wind Cut)

The Wind Cut function works only in Camera Mode. →page 26
Use the Wind Cut when recording in windy places such as the beach or near buildings.
The Wind Cut function minimizes wind noise or other noise while recording.
- When the Wind Cut is on, some low pitched tones are eliminated along with the sound of the wind.

1. Set the [Mode] switch to [DISC]. (SC-DC173(U)/DC175/DC575 only)
2. Set the [Power] switch to [camera]).
3. Press the [MENU] button.
4. Move the [Joystick] up or down to select , then press the [Joystick].
5. Move the [Joystick] up or down to select , then press the [Joystick].
6. To activate the Wind Cut function, move the [Joystick] up or down to select , then press the [Joystick].
7. To exit, press the [MENU] button.
8. Wind Cut icon (P is displayed.

Note

Make sure Wind Cut is set to Off when you want the microphone to be as sensitive as possible.

ENGLISH

DVD Camcorder: Advanced Recording

Setting the Shutter Speed & Exposure (Shutter/Exposure)

The Shutter Speed function works only in Camera Mode. → page 26
The Exposure function works in both Camera Mode and M.Cam Mode. →page 26 Setting the Exposure allows you to adjust the amount of light that enters the lens.
1. Set the [Mode] switch to [DISC] or [CARD]. (SC-DC173(U)/DC175/DC575 only)
2. Set the [Power] switch to [Camera].
3. Press the [MENU] button.
■ The menu list will appear.
4. Move the [Joystick] up or down to select , then press the [Joystick].
5. Move the [Joystick] up or down to select or , then press the [Joystick].
6. Move the [Joystick] up or down to select , then press the [Joystick].
7. Move the [Joystick] left or right to select the desired shutter speed or exposure value, then press the [Joystick].
- Shutter speed can be set to <1/60>, <1/100>, <1/250>, <1/500>, <1/1000>, <1/2000>, <1/4000> or <1/10000> of a second.
- Exposure value can be set between <00> and <29>.
8. To exit, press the [MENU] button.
- Selected settings are displayed.

The Shutter Speed refers to the amount of time it takes the shutter to open and close. The faster the speed is set, the less light enters the lens.

Recommended Shutter Speeds When Recording

Outdoor sports such as golf or tennis: 1/2000 or 1/4000
❖ Moving cars or trains or other rapidly moving vehicles such as roller coasters: 1/1000, 1/500 or 1/250
- Indoor sports such as basketball: 1/100

Adjusting the Exposure When Recording

When you set the Exposure to Manual, the amount of light that enters the lens can be adjusted to match the surrounding light conditions.

Notes

• You can directly access the Shutter and Exposure function by using the [Q.MENU] button. → page 27
  If you manually change the Shutter Speed and the Exposure value when Program AE option is selected, manual changes are applied first.
  ■ The image may not seem as smooth when a high Shutter Speed is set.
• The DVD Camcorder returns to the auto shutter and auto exposure settings when you change to the EASY.Q mode.
• When recording with a Shutter Speed of 1/1000 or higher, make sure the sun is not shining into the lens.

3

5

7

DVD Camcorder: Advanced Recording

Auto Focus / Manual Focus

✿ The Auto Focus/Manual Focus function works in both Camera Mode and M.Cam Mode. →page 26
In most situations, it is better to use the automatic focus feature, as it enables you to concentrate on the creative side of your recording.
- Manual focusing may be necessary under certain conditions that make automatic focusing difficult or unreliable.

Auto Focus

If you are inexperienced in the use of DVD Camcorders, we recommend that you use Auto Focus.

Manual Focus

In the following situations, you may obtain better results by adjusting the focus manually.

a. A picture containing several objects, some close to the DVD Camcorder, others further away.
b. A person enveloped in fog or surrounded by snow.
c. Very shiny or glossy surfaces like a car.
d. People or objects moving constantly or quickly like an athlete or a crowd.

1. Set the [Mode] switch to [DISC] or [CARD]. (SC-DC173(U)/DC175/DC575 only)

2. Set the [Power] switch to [Camera].

3. Press the [MF/AF] button.

■ The manual focus icon (M) will blink.

1. Focus with the [Joystick].

- Moving the [Joystick] left will focus on the foreground image while moving the [Joystick] right will focus on the background image.

1. To exit, press the [MF/AF] button.

Note

Manual Focus is not available in the EASY.Q mode.

ENGLISH

DVD Camcorder: Advanced Recording

Programed Automatic Exposure Modes (Program AE)

The Program AE function works only in Camera Mode. → page 26
The Program AE mode allows you to adjust shutter speeds and apertures to suit different recording conditions.
◆ They give you creative control over the depth of field.

- - Auto balance between the subject and the background. - To be used in normal conditions. - The shutter speed automatically varies from 1/60 to 1/250 per second, depending on the scene.

- For recording people or objects moving quickly.

- - For focusing on the background of the subject, when the background is out of focus. - The Portrait mode is most effective when used outdoors. - The shutter speed automatically varies from 1/60 to 1/1000 per second.

- mode

For recording correctly when there is only light on the subject and not the rest of the picture.

- For recording when people or objects are darker than the background because of reflected light from sand or snow.

- For recording fast-moving subjects such as players in golf or tennis games.

DVD Camcorder: Advanced Recording

Setting the Program AE

1. Set the [Mode] switch to [DISC]. (SC-DC173(U)/DC175/DC575 only) 2. Set the [Power] switch to [Camera]. 3. Press the [MENU] button. ■ The menu list will appear. 4. Move the [Joystick] up or down to select , then press the [Joystick]. 5. Move the [Joystick] up or down to select , then press the [Joystick]. ■ The available options are listed. 6. Move the [Joystick] up or down to select desired program AE option, then press the [Joystick]. 7. To exit, press the [MENU] button. ■ The icon of the selected mode is displayed. \- When the mode is selected, no icon is displayed.

Notes

- You can directly access the Program AE function by using the [Q.MENU] button. →page 27 ■ The Program AE function will not operate in EASY.Q mode. - The Program AE cannot be set when the Shutter Speed or the Exposure is set to manual. → page 52 4  6  7

ENGLISH

DVD Camcorder: Advanced Recording

Setting the White Balance

The White Balance function works in both Camera Mode and M.Cam Mode. → page 26 The White Balance is a recording function that preserves the unique image color of the subject in any recording condition. You may select the appropriate White Balance mode to obtain good quality image color. - Auto (A) This mode is generally used to control the White Balance automatically. - Indoor ( )This controls the White Balance according to indoor ambience. - Under halogen or studio/video lighting - Subject is of one dominant color - Close up - Outdoor ( This controls the White Balance according to the outdoor ambience. - In daylight, especially for close up and where the subject is of one dominant color. - Custom WB (C) This controls the White Balance according to the recording environment. 1. Set the [Mode] switch to [DISC] or [CARD]. (SC-DC173(U)/DC175/DC575 only) 2. Set the [Power] switch to [camera]). 3. Press the [MENU] button. ■ The menu list will appear. 4. Move the [Joystick] up or down to select , then press the [Joystick]. 5. Move the [Joystick] up or down to select , then press the [Joystick]. 6. Move the [Joystick] up or down to select the desired mode (Auto, Indoor, Outdoor or Custom WB), then press the [Joystick]. ■ Refer to page 57 for details on setting Custom WB. 7. To exit, press the [MENU] button. - The icon of the selected mode is displayed. - When the mode is selected, no icon is displayed. 4  6  7

DVD Camcorder: Advanced Recording

Setting the Custom White Balance

You can adjust the white balance as you wish based on the recording environment. 1. Set the [Mode] switch to [DISC] or [CARD]. (SC-DC173(U)/DC175/DC575 only) 2. Set the [Power] switch to [camera]). 3. Press the [MENU] button. ■ The menu list will appear. 4. Move the [Joystick] up or down to select , then press the [Joystick]. 5. Move the [Joystick] up or down to select , then press the [Joystick]. 6. Move the [Joystick] up or down to select , then press the [Joystick]. ■ The will blink. 7. Place the subject under the desired lighting, then press the [Joystick]. - The will disappear and the white balance setting will commence. 8. To exit, press the [MENU] button. - Custom WB icon ( Jqs displayed.

Notes

- You can directly access the White Balance function by using the [Q.MENU] button. →page 27 ■ The White Balance function will not operate in EASY.Q mode. ■ Turn the Digital Zoom off (if necessary) to set a more accurate white balance. - Reset the white balance if lighting conditions change. ■ During normal outdoor recording, setting to Auto may provide better results. 6   8

ENGLISH

DVD Camcorder: Advanced Recording

Applying Digital Effects

The Digital Effect function works only in Camera Mode. →page 26 The Digital Effects enable you to give a creative look to your recording. Select the appropriate Digital Effect for the type of picture that you wish to record and the effect you wish to create. There are 10 Digital Effect modes. 1. mode This mode gives the images a coarse effect. 2. mode This mode gives the images a mosaic effect. 3. mode This mode gives the images a reddish-brown pigment. 4. mode This mode reverses the colors, creating a negative image. 5. mode This mode cuts the picture in half, using a mirror effect. 6. mode This mode changes the images to black and white. 7. mode This mode creates a 3D effect (embossing). 8. mode This mode creates a 3D effect (embossing) on the surrounding area of an image. 9. mode This mode applies a pale pastel drawing effect to an image. 10. mode This mode applies a pale pastel drawing effect to the surrounding area of an image.

DVD Camcorder: Advanced Recording

Selecting the Digital Effects

1. Set the [Mode] switch to [DISC]. (SC-DC173(U)/DC175/DC575 only) 2. Set the [Power] switch to [camera]). 3. Press the [MENU] button. ■ The menu list will appear. 4. Move the [Joystick] up or down to select , then press the [Joystick]. 5. Move the [Joystick] up or down to select , then press the [Joystick]. 6. Move the [Joystick] up or down to select the desired Digital Effect option, then press the [Joystick]. ■ The display mode is set to the selected mode. 7. To exit, press the [MENU] button.

Notes

- The Mosaic, Mirror, Emboss2, and Pastel2 modes are not available while DIS or Color Nite is in use. ■ Digital Effect modes are not available while EASY.Q is in use. - Once DIS, EASY.Q, Color Nite is set, Mosaic, Mirror, Emboss2, or Pastel2 mode will be released. - Digital Zoom is not available in the Mosaic, Mirror, Emboss2, or Pastel2 mode. - Mirror mode is not available in the 16:9 Wide mode. (SC-DC173(U)/DC175/DC575 only) ■ 16:9 Wide mode is not available in the Digital Effects mode. (SC-DC171 only) 4  6  7

ENGLISH

DVD Camcorder: Advanced Recording

Setting the 16:9 Wide mode (16:9 Wide)

The 16:9 Wide function works only in Camera Mode. →page 26 Select to record a picture to be played back on a 16:9 Wide TV. 16:9 Wide is the default setting for models SC-DC173(U)/DC175/DC575. 1. Set the [Mode] switch to [DISC]. (SC-DC173(U)/DC175/DC575 only) 2. Set the [Power] switch to [camera]). 3. Press the [MENU] button. ■ The menu list will appear. 4. Move the [Joystick] up or down to select , then press the [Joystick]. 5 Move the [Joystick] up or down to select <16:9 Wide>, then press the [Joystick]. 6. To activate the 16:9 Wide function, move the [Joystick] up or down to select , then press the [Joystick]. \- If you do not want to use the 16:9 Wide function, set the <16:9 Wide> menu to . 7. To exit, press the [MENU] button. \- The display mode is set to the selected mode. 6  7

Notes

- Mirror mode is not available in the 16:9 Wide mode. (SC-DC173(U)/DC175/DC575 only) ■ Digital Zoom and Color Nite is not available in the 16:9 Wide mode. (SC-DC173(U)/DC175/DC575 only) The 16:9 Wide mode is not available while DIS, EASY.Q or Digital Effect is in use. (SC-DC171 only) - If you set Color Nite, DIS, EASY.Q or Digital Effect while 16:9 Wide mode is set, 16:9 Wide mode will be released. (SC-DC171 only)

DVD Camcorder: Advanced Recording

Setting the Digital Image Stabilizer (DIS)

The DIS function works only in Camera Mode. →page 26 DIS (Digital Image Stabilizer) is a function that compensates for any shaking or hand movement while holding the DVD Camcorder (within reasonable limits). It provides more stable pictures when: - Recording with the zoom (Digital Zoom is not available in the DIS mode.) - Recording a small object close-up - Recording and walking at the same time - Recording through the window of a vehicle 1. Set the [Mode] switch to [DISC]. (SC-DC173(U)/DC175/DC575 only) 2. Set the [Power] switch to [camera]). 3. Press the [MENU] button. ■ The menu list will appear. 4. Move the [Joystick] up or down to select , then press the [Joystick]. 5 Move the [Joystick] up or down to select , then press the [Joystick]. 6. To activate the DIS function, move the [Joystick] up or down to select , then press the [Joystick]. \- If you do not want to use the DIS function, set the menu to . 7. To exit, press the [MENU] button. \- DIS icon ( ) is displayed.

Notes

- You can directly access the DIS function by using the [Q.MENU] button. → page 27 - Digital Zoom, Color Nite, Mosaic, Mirror, Emboss2, or Pastel2 is not available in the DIS mode. It is recommended that you deactivate the DIS function when using a tripod. ■ If you use the DIS function, the picture quality may deteriorate. - EASY.Q mode automatically sets the DIS to On. ■ 16:9 Wide mode is not available in the DIS mode. (SC-DC171 only) - DIS function in 16:9 Wide mode may produce lower quality than in normal mode. (SC-DC173(U)/DC175/DC575 only) 4  6  7

ENGLISH

DVD Camcorder: Advanced Recording

Zooming In and Out with Digital Zoom (Digital Zoom)

❖ The Digital Zoom works only in Camera Mode. → page 26 Zooming more than 34x (SC-DC171/DC173(U)/DC175 only) or 26x (SC-DC575 only) is achieved digitally, up to 1200x when combined with optical zoom. The picture quality may deteriorate depending on how much you zoom in on the subject. ✿ Please disable 16:9 Wide mode to use this function. → page 60

Selecting the Digital Zoom

1. Set the [Mode] switch to [DISC]. (SC-DC173(U)/DC175/DC575 only) 2. Set the [Power] switch to [camera]). 3. Press the [MENU] button. ■ The menu list will appear. 4. Move the [Joystick] up or down to select , then press the [Joystick]. 5. Move the [Joystick] up or down to select , then press the [Joystick]. 6. Move the [Joystick] up or down to select desired zoom value (Off, 100x, 200x, 400x or 1200x), then press the [Joystick]. 7. To exit, press the [MENU] button. - When using the [Zoom] lever or [Zoom] button, an digital zoom indicator appears on the screen.

Notes

■ Maximum zooming may result in lower picture quality. - Digital Zoom is not available while DIS, EASY.Q, Color Nite, 16:9 Wide, Mosaic, Mirror, Emboss2, or Pastel2 is in use. - Once Color Nite, EASY.Q, 16:9 Wide, Mosaic, Mirror, Emboss2, or Pastel2 is selected, Digital Zoom mode will be released. (The Digital Zoom mode will be backed up.) ■ Once DIS is selected, Digital Zoom mode will be released. 4  6  7

DVD Camcorder: Thumbnail index and Playlist

What is the Thumbnail Index?

The thumbnail index displays multiple titles scenes that have been recorded. A title scene is created between the points where you start and stop a recording. Once deleted, you cannot recover the title scene again.

What's a Playlist? DVD-RW(VR mode)

You can create a playlist on the same disc by gathering your favorite scenes from the recorded title scenes. You can edit the playlist without changing the original recordings. Even if the playlist is deleted, the original title scenes remain undeleted. ◆ Up to 999 title scenes (chapters) can be registered on a playlist. Example: You have recorded a few scenes on a DVD-RW in VR mode. You want to save the original recording, but you also want to create a digest by putting your favorite scenes together. In this case, you can create a playlist by selecting your favorite scenes, leaving the original recording as it is.  Current playlist/Total playlist A title scene is created between the points where you start and stop a recording. Once deleted, you cannot recover the title scene again. 12.JAN.2007 30.JAN.2007 Title scene 1 Title scene 2 Title scene 3 Title scene 4 Title scene 5 Title scene 6 Title scene 7

ENGLISH

DVD Camcorder

Playing Title Scenes DVD-RW/+RW/-R/+R DI

The recorded title scenes are displayed as a thumbnail index (multiple images) on the LCD Screen. You can find the desired scene quickly using this convenient index. If the TFT LCD screen is closed, you can view the recording through the viewfinder. Use the Playback related buttons on the DVD Camcorder or on the remote control. (SC-DC175/DC575 only)→pages 65\~66 1. Insert the disc you want to view. 2. Open the LCD Screen. 3. Set the [Mode] switch to [DISC]. (SC-DC173(U)/DC175/DC575 only) 4. Set the [Power] switch to [(Player)]. ■ The thumbnail index screen appears. - To change the current thumbnail page, use the [Joystick] to highlight the thumbnail page movement arrows then press the [Joystick] left or right to match the direction of the arrow. - Use the [MENU] button to adjust brightness or color of the LCD Screen. ➕ page 36 5. Use the [Joystick] to select a title scene to be played, then press the [Joystick]. \- To stop playback, move the [Joystick] down. 4  5

Note

During playback, a displayed image may be paused for a while until the next image is shown.

Adjusting the Volume DVD-RW/+RW/-R/+R DL

When you use the LCD Screen for playback, you can hear recorded sound from the built-in speaker. When you hear sound once the disc is in play, use the [VOL ▲,▼] buttons to adjust the volume. - A volume level display will appear on the LCD Screen. ■ Levels may be adjusted from anywhere between 00 to 19. - If you close the LCD Screen while playing, you will not hear sound from the speaker.

DVD Camcorder

Various Functions while in Player Mode DVD-RW/+RW/-R/+R DU

These functions work only in Player Mode. →page 26 Play, Still, Stop, Fast Forward, Rewind, Forward Skip, and Reverse Skip functions are accessible using the remote control. (SC-DC175/DC575 only) Slow playback is accessible only using the remote control. (SC-DC175/DC575 only)

Playback/Still/Stop

- Press the [Joystick] to pause during playback. ■ To resume playback, Press the [Joystick]. - To stop playback, move the [Joystick] down. - You can also use the [▶■]/[■] buttons on the remote control. (SC-DC175/DC575 only)

Skip Playback (Forward/Reverse)

- Move the [Joystick] left/right and hold during playback. - When playing a disc, if you move the [Joystick] right and hold, it moves to the next scene. If you Move the [Joystick] left and hold, it moves to the beginning of the scene. One more press and hold makes it move to the beginning of the previous scene. If you move the [Joystick] left and hold at a portion 3 seconds from the start of scene, it moves to the beginning of the previous scene. - You can also use the [ ◀◀]/[▶▶] buttons on the remote control. (SC-DC175/DC575 only)

ENGLISH

DVD Camcorder

Picture Search (Forward/Reverse)

- Moving the [Joystick] left/right once while a disc is playing back will increase the play speed to approximately X2, and pressing twice plays at approx x16. - When the number 1 appears on the OSD, it means X2 speed. When the number 2 appears on the OSD, it means X16 speed. - To resume normal playback, press the [Joystick]. - You can also use the [ ◀◀]/[ ▶▶ ] buttons on the remote control. (SC-DC175/DC575 only)

Slow Playback (Forward/Reverse) (SC-DC175/DC575 only)

Forward Slow Playback

- Press the [| ▶] button on the remote control during playback. - To resume normal playback, press the [▶II] button.

Notes

- No sound will be heard during picture search or slow playback. - In forward slow or playback, a rapidly moving subject in an image may be distorted.

DVD Camcorder

Deleting a Title Scene (Delete) DVD-RW/+RW

◆ Delete function works only in Player Mode. → page 26 ❖ Individual or all title scenes can be deleted. 1. Set the [Mode] switch to [DISC]. (SC-DC173(U)/DC175/DC575 only) 2. Set the [Power] switch to [(Player)]. The thumbnail index screen appears. 3. Press the [Q.MENU] button. 4. Move the [Joystick] up or down to select , then press the [Joystick]. 5. Move the [Joystick] up or down to select or , then press the [Joystick]. \- Select: Deletes individual title scenes. To delete individual title scenes, use the [Joystick] to select title scenes to delete, then press the [Joystick]. The selected title scenes will be marked < 📋>. \- Select All: Deletes all title scenes. To delete all title scenes, simply press the [Joystick] after is selected. All title scenes will be marked with < ☐>. 6. Move the [Joystick] up to select , then press the [Joystick]. - The message will appear. 7. Move the [Joystick] left or right to select , then press the [Joystick]. ■ All selected title scenes will be deleted. - Related scenes in playlist will be deleted. (DVD-RW(VR mode only))

Note

A deleted title scene can not be recovered.

ENGLISH

DVD Camcorder

Deleting a Section of a Title Scene (Partial Delete) DYD-RW(YR mode)

✿ Partial Delete function works only in Player Mode. → page 26 ❖ A title scene can be partially deleted. The editing function only works on a DVD-RW (VR Mode). You should format the DVD-RW to VR Mode before recording.→page 42 1. Set the [Mode] switch to [DISC]. (SC-DC173(U)/DC175/DC575 only) 2. Set the [Power] switch to [(Player)]. 3. Press the [Q.MENU] button. 4. Move the [Joystick] up or down to select , then press the [Joystick]. 5. Move the [Joystick] to select a title scene you want to delete partially from the thumbnail index screen, then press the [Joystick]. ■ The Partial Delete screen will appear. 6. Use the [Joystick] to search the start point of deletion. \- Whenever you press the [Joystick] right, it toggles between forward at speed 1 and 2. Whenever you press the [Joystick] left, it toggles between backward at speed 1 and 2. (When the number 1 appears on the OSD, it means X2 speed. When the number 2 appears on the OSD, it means X16 speed.) \- When you press the [Joystick] up, the picture will advance one frame. When you press the [Joystick] down, the picture will go back one frame. - Press the [Joystick] up and hold to play back the picture frame-by-frame forward. Press the [Joystick] down and hold to play back the picture frame-by-frame backward. 7. Press the [Joystick] at the start point to pause the screen. 8. Use the [Joystick] to search the end point of deletion 9. Press the [Joystick] at the end point to pause the screen, then press the [Joystick] again. \- The message will appear. 10. Move the [Joystick] left or right to select , then press the [Joystick]. \- The selected part of the title scene will be deleted. - Use the [Joystick] to select , then press the [Joystick] to return to the thumbnail index screen.

Notes

- A deleted part of the title scene can not be recovered. - When you press the [MENU] button during partial delete, it stops deleting and exits. 4  5  8  9

DVD Camcorder: Playlist

Creating a New Playlist (New Playlist) DVD-RW(YR mode)

This function works only in Player Mode. → page 26 The editing function only works on a DVD-RW (VR Mode). You should format the DVD-RW to VR Mode before recording. → page 42 1. Set the [Mode] switch to [DISC]. (SC-DC173(U)/DC175/DC575 only) 2. Set the [Power] switch to [(Player)]. ■ The thumbnail index screen appears. 3. Move the [Joystick] up to highlight the thumbnail index screen icon (→) then move the [Joystick] right to highlight the playlist icon (→). 4. Press the [Q.MENU] button. 5. Move the [Joystick] up or down to select , then press the [Joystick]. The thumbnail index screen appears. 6. Use the [Joystick] to select a scene to create, then press the [Joystick]. ■ The selected scene will be marked with <√>. 7. Move the [Joystick] up to , then press the [Joystick]. - A new playlist will be created.

Notes

■ Up to 99 playlist can be created. ■ Up to 999 title scenes (chapters) can be registered on a playlist. 3  5  7

ENGLISH

DVD Camcorder: Playlist

Playing the Playlist DVD-RW(VR mode)

This function works only in Player Mode. → page 26 The playlist scenes are displayed in the form of a thumbnail index on the LCD Screen. If the LCD Screen is closed, you can view the recording through the viewfinder. Use the playback related buttons on the DVD Camcorder or on the remote control. (SC-DC175/DC575 only) →pages 65\~66 The editing function only works on a DVD-RW (VR Mode). You should format the DVD-RW to VR Mode before recording. → page 42 1. Insert the disc you want to view. 2. Set the [Mode] switch to [DISC]. (SC-DC173(U)/DC175/DC575 only) 3. Set the [Power] switch to [(Player)]. ■ The thumbnail index screen appears. 4. Move the [Joystick] up to highlight the thumbnail index screen icon ( ), then move the [Joystick] right to highlight the playlist icon ( ). \- The playlist scenes will be displayed in the form of a thumbnail index. 5. Use the [Joystick] to select a playlist to be played, then press the [Joystick]. 6. Use the [Joystick] to select a playlist scene to be played, then press the [Joystick]. \- It moves to the menu after playing scenes from the selected one to the last one in the playlist. 7. Press the [VOL ▲,▼] buttons to adjust volume. ■ The sound will be heard through the built-In speaker.

DVD Camcorder: Playlist

Deleting a Playlist (Delete) DVD-RW(VR mode)

◆ Delete function works only in Player Mode. → page 26 You can delete undesired playlists. The editing function only works on a DVD-RW (VR Mode). You should format the DVD-RW to VR Mode before recording.→page 42 1. Set the [Mode] switch to [DISC]. (SC-DC173(U)/DC175/DC575 only) 2. Set the [Power] switch to [(Player)]. ■ The thumbnail index screen appears. 3. Move the [Joystick] up to highlight the thumbnail index screen icon ( ), then move the [Joystick] right to highlight the playlist icon ( ). - The playlist scenes will be displayed in the form of a thumbnail index. 4. Press the [Q.MENU] button. 5. Move the [Joystick] up or down to select , then press the [Joystick]. 6. Move the [Joystick] up or down to select or , then press the [Joystick]. - Select: Deletes an individual playlist. To delete a playlist, use the [Joystick] to select a playlist to delete, then press the [Joystick]. The selected playlist will be marked with < \- Select All: Deletes all playlists. To delete all playlists, simply press the [Joystick] after is selected. All the selected playlists will be marked with < 7. Move the [Joystick] up to select , then press the [Joystick]. - message will appear. 8. Move the [Joystick] left or right to select , then press the [Joystick]. All selected playlists will be deleted.

ENGLISH

DVD Camcorder: Playlist

Adding Scenes to Playlist (Scene-Add) DVD-RW(YR mode)

This function works only in Player Mode. → page 26 You can add more scenes to an existing playlist. The editing function only works on a DVD-RW (VR Mode). You should format the DVD-RW to VR Mode before recording.→page 42 1. Set the [Mode] switch to [DISC]. (SC-DC173(U)/DC175/DC575 only) 2. Set the [Power] switch to [(Player)]. ■ The thumbnail index screen appears. 3. Move the [Joystick] up to highlight the thumbnail index screen icon (♂) then move the [Joystick] right to highlight the playlist icon (☐). - The playlist scenes will be displayed in the form of a thumbnail index. 4. Use the [Joystick] to select the playlist to which you wish to add scenes, then press the [Joystick]. ■ The scenes inside the playlist will appear. 5. Press the [Q.MENU] button. 6. Move the [Joystick] up or down to select , then press the [Joystick]. ■ The title scenes to be added to the playlist will appear. 7. Use the [Joystick] to select the title scenes to be added to the playlist, then press the [Joystick]. ■ The selected scenes will be marked with <√>. 8. Move the [Joystick] up to select , then press the [Joystick]. - The message will appear. 9. Move the [Joystick] left or right to select , then press the [Joystick]. - The message will appear. - The selected scenes will be added to the playlist. The new scene will be added as the last scene.

DVD Camcorder: Playlist

Changing the Order of Scenes within a Playlist (Scene-Move) DVD-RW(VR mode)

This function works only in Player Mode. → page 26 You can change the order of scenes within a playlist. The editing function only works on a DVD-RW (VR Mode). You should format the DVD-RW to VR Mode before recording.→page 42 1. Set the [Mode] switch to [DISC]. (SC-DC173(U)/DC175/DC575 only) 2. Set the [Power] switch to [(Player)]. ■ The thumbnail index screen appears. 3. Move the [Joystick] up to highlight the thumbnail index screen icon ( ), then move the [Joystick] right to highlight the playlist icon ( ). - The playlist scenes will be displayed in the form of a thumbnail index. 4. Use the [Joystick] to select the playlist which contains the scenes whose order you want to change, then press the [Joystick]. ■ The scenes inside the playlist will appear. 5. Press the [Q.MENU] button. 6. Move the [Joystick] up or down to select , then press the [Joystick]. 7. Use the [Joystick] to select the scene to be moved, then press the [Joystick]. - The selected scene will be marked with <√>. Also a bar next to the scene will appear. 8. Use the [Joystick] to move the bar to the position of your choice, then press the [Joystick]. ■ The selected scene will be moved to the new position. 9. Move the [Joystick] up to select , then press the [Joystick]. - The message will appear. 10. Move the [Joystick] left or right to select , then press the [Joystick]. - The message will appear. - You can move the scenes as many times as you wish.

ENGLISH

DVD Camcorder: Playlist

Deleting Scenes from a Playlist (Scene-Delete) DVD-RW(VR mode)

This function works only in Player Mode. → page 26 You can delete scenes from a playlist. The editing function only works on a DVD-RW (VR Mode). You should format the DVD-RW to VR Mode before recording.→page 42 1. Set the [Mode] switch to [DISC]. (SC-DC173(U)/DC175/DC575 only) 2. Set the [Power] switch to [(Player)]. ■ The thumbnail index screen appears. 3. Move the [Joystick] up to highlight the thumbnail index screen icon ( ), then move the [Joystick] right to highlight the playlist icon ( ). - The playlist scenes will be displayed in the form of a thumbnail index. 4. Use the [Joystick] to select the playlist which contains the scenes to be deleted, then press the [Joystick]. ■ The scenes inside the playlist will appear. 5. Press the [Q.MENU] button. 6. Move the [Joystick] up or down to select , then press the [Joystick]. 7. Use the [Joystick] to select the scenes to be deleted, then press the [Joystick]. ■ The selected scenes will be marked with <√>. 8. Move the [Joystick] up to select , then press the [Joystick]. - The message will appear. 9. Move the [Joystick] left or right to select , then press the [Joystick]. - The message will appear. - The selected scenes will be deleted.

DVD Camcorder: Playlist

Deleting a Section of a Playlist (Scene-Partial Delete) DVD-RW(YR mode)

This function works only in Player Mode. → page 26 ❖ A scene inside the playlist can be partially deleted. The editing function only works on a DVD-RW (VR Mode). You should format the DVD-RW to VR Mode before recording. → page 42 1. Set the [Mode] switch to [DISC]. (SC-DC173(U)/DC175/DC575 only) 2. Set the [Power] switch to [(Player)]. ■ The thumbnail index screen appears. 3. Move the [Joystick] up to highlight the thumbnail index screen icon (☑) then move the [Joystick] right to highlight the playlist icon (☑). ■ The playlist scenes will be displayed in the form of a thumbnail index. 4. Use the [Joystick] to select the playlist which contains the scenes to be partially deleted, then press the [Joystick]. ■ The scenes inside the playlist will appear. 5. Press the [Q.MENU] button. 6. Move the [Joystick] up or down to select , then press the [Joystick]. 7. Use the [Joystick] to select the scene to be partially deleted, then press the [Joystick]. The Partial Delete screen will appear.   Continued

ENGLISH

DVD Camcorder: Playlist

8. Use the [Joystick] to search the start point of the scene to be deleted. - Whenever you press the [Joystick] right, it toggles between forward at speed 1 and 2. Whenever you press the [Joystick] left, it toggles between backward at speed 1 and 2. (When the number 1 appears on the OSD, it means X2 speed. When the number 2 appears on the OSD, it means X16 speed.) - When you press the [Joystick] up, the picture will advance one frame. When you press the [Joystick] down, the picture will go back one frame. - Press the [Joystick] up and hold to play back the picture frame-by-frame forward. Press the [Joystick] down and hold to play back the picture frame-by-frame backward. 9. Press the [Joystick] at the start point to pause the screen. 10. Use the [Joystick] to search the end point of scene to be deleted. 11. Press the [Joystick] at the end point to pause the screen, then press the [Joystick] again. \- The message will appear. 12. Move the[Joystick] left or right to select , then press the [Joystick]. - The selected part of the scene will be deleted. - Use the [Joystick] to select , then press the [Joystick] to return to the thumbnail index screen.

Note

When you press the [MENU] button during partial delete, it stops deleting and exits. 10  11

DVD Camcorder: Disc Manager

Disc Information (Disc Info) DVD-RW/+RW/-R/+R DI

This function works in both Camera Mode and Player Mode. → page 26 It shows you disc information such as the disc name, disc type, disc format, etc. 1. Set the [Mode] switch to [DISC]. (SC-DC173(U)/DC175/DC575 only) 2. Set the [Power] switch to [camera)] or [(Player)]. 3. Press the [MENU] button. ■ The menu list will appear. 4. Move the [Joystick] up or down to select , then press the [Joystick]. 5. Move the [Joystick] up or down to select , then press the [Joystick]. - , , , and will be displayed. 6. Press the [MENU] button to return to Disc Manager menu. 4  5

ENGLISH

DVD Camcorder: Disc Manager

Editing the Disc Name (Disc Info-Rename) DVD-RW/+RW/-R/+R DI

This function works in both Camera Mode and Player Mode. → page 26 You can specify a disc name. 1. Set the [Mode] switch to [DISC]. (SC-DC173(U)/DC175/DC575 only) 2. Set the [Power] switch to [camera)] or [(Player)]. 3. Press the [MENU] button. ■ The menu list will appear. 4. Move the [Joystick] up or down to select , then press the [Joystick]. 5. Move the [Joystick] up or down to select , then press the [Joystick]. 6. Move the [Joystick] left or right to select , then press the [Joystick]. Disc Name screen will appear. 7. Use the [Joystick] to move the cursor to , then press the [Joystick] to delete the existing disc name. 8. Use the [Joystick] to select the desired characters and items, then press the [Joystick]. 9. Use the [Joystick] to select , then press the [Joystick]. ■ The Disc Name will be changed. - Press the [MENU] button to return to Disc Manager menu. 5  6  9

DVD Camcorder: Disc Manager

Formatting a Disc (Disc Format) DVD-RW/+RW

This function works only in Camera Mode. → page 26 You can format a recorded disc to be used again. By formatting, all existing data will be deleted. 1. Set the [Mode] switch to [DISC]. (SC-DC173(U)/DC175/DC575 only) 2. Set the [Power] switch to [camera]). 3. Press the [MENU] button. ■ The menu list will appear. 4. Move the [Joystick] up or down to select , then press the [Joystick]. 5. Move the [Joystick] up or down to select , then press the [Joystick]. 6. Move the [Joystick] up or down to select
