Product Type	Built-in Microwave
Brand	Stoves
Model	ST BIMWG6025
Dimensions (H x W x D)	388 mm x 595 mm x 400 mm
Weight	20 kg
Power Supply	230 V ~ 50 Hz
Rated Power Input	1450 W
Microwave Output Power	900 W
Grill Power	1100 W
Combination Power	Microwave + Grill
Capacity	25 L
Turntable Diameter	315 mm
Control Type	Digital Touch & Dial
Display	LED
Functions	Microwave, Grill, Combination, Defrost, Auto Menus
Defrost Function	Time & Weight Defrost
Safety Features	Child Lock, Door Interlock
Interior Material	Stainless Steel
Cleaning	Easy-clean enamel interior
Ventilation	Rear & Side vents
Installation Type	Built-in, requires cabinet
Accessories Included	Glass Turntable, Roller Ring, Grill Rack
Spare Parts Availability	Contact Stoves Service
Repairability Index	7.5 / 10
User Manual	Free download from Stoves website

Frequently Asked Questions - ST BIMWG6025 STOVES

How do I install the Stoves ST BIMWG6025 built-in microwave?

Ensure the cabinet opening is at least 388 mm high, 595 mm wide, and 400 mm deep. Provide adequate ventilation as specified in the manual. Use the supplied mounting brackets and screws. For electrical connection, plug into a grounded outlet (230 V). Always follow the detailed installation instructions in the user manual.

What power levels are available on this microwave?

The microwave offers multiple power levels from 100 W to 900 W. You can also select grill power up to 1100 W and combination modes. Use the dial or touch controls to adjust. Refer to the manual for recommended power settings for different foods.

Can I use metal containers in the microwave?

No, do not use metal containers or aluminum foil in microwave-only mode. However, metal racks provided for grilling are safe during grill or combination modes. Always check the manual for safe cookware guidelines.

How do I clean the interior of my Stoves microwave?

Wipe the interior with a damp cloth and mild detergent after each use. For stubborn stains, use a non-abrasive cleaner. The stainless steel interior is easy to clean. Avoid harsh chemicals. Clean the turntable and roller ring separately.

Is there a child lock feature?

Yes, the ST BIMWG6025 includes a child lock. Activate it by pressing and holding the 'Stop/Clear' button for 3 seconds. The display will show a lock icon. To deactivate, repeat the same step. This prevents accidental operation by children.

How do I defrost food using this microwave?

Select the Defrost function and choose between weight defrost or time defrost. For weight defrost, enter the food weight (up to 2 kg). The microwave will automatically set the time and power. For time defrost, set a manual time and low power (e.g., 200 W). Always defrost thoroughly before cooking.

What should I do if the microwave does not start?

Check that the door is fully closed and the child lock is not active. Ensure the power cord is plugged in and the outlet works. If the display is blank, try resetting by unplugging for 1 minute. If the problem persists, contact Stoves service.

Can I use the grill function without the turntable?

Yes, for grill or combination modes, the turntable can be switched off as the grill heat is static. However, for even browning, it's recommended to use the turntable. Refer to the manual for grill rack placement.

How do I set the clock on my microwave?

Press the 'Clock' button, then use the dial to set hours and minutes. Confirm with 'Start'. The clock will display in 24-hour format. Note: the clock may reset after a power outage.

Where can I find replacement parts or service?

Spare parts such as turntable, roller ring, and grill rack can be ordered from the Stoves official website or authorized dealers. For repairs, contact Stoves customer service at the number in the manual. The repairability index of 7.5 indicates good availability of parts.

USER MANUAL ST BIMWG6025 STOVES

Built-In Microwave User

Manual

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

ADDENDUM

If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

Specifications

Model:	ST BIMWG6025 STA
Rated Voltage:	230-240V~50Hz
Rated Input Power(Microwave):	1400-1450W
Rated Output Power(Microwave):	850-900W
Rated Input Power(Grill):	950-1000W 25L
Oven Capacity:
Turntable Diameter:	∅315mm
External Dimensions(LxWxH):	595x400x460mm
Net Weight:	Approx. 19.0 kg

IMPORTANT SAFETY INSTRUCTIONS WARNING

To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including he following:

1. Warning: Liquids and other foods must not be heated in sealed containers since they are liable to explode.
2. Warning: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

3. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

4. Keep the appliance and its cord out of reach of children less than 8 years.

5. Only use utensils suitable for use in microwave ovens.

6. The oven should be cleaned regularly and any food deposits should be removed.

7. Read and follow the specific:"PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".

8. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.

9. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

10. Do not overcook food.

11. Do not use the oven cavity for storage purposes. Do not store items, such as bread, cookies, etc. inside the oven.

12. Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven.

13. Install or locate this oven only in accordance with the installation instructions provided.

14. Eggs in the shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.

15. This appliance is intended to be used in household and similar applications such as:

-staff kitchen areas in shops, offices and other working environments;

-by clients in hotels, motels and other residential type environments;

-farm houses;

-bed and breakfast type environments.

1. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

2. Do not store or use this appliance outdoors.

3. Do not use this oven near water, in a wet basement or near a swimming pool.

4. The temperature of accessible surfaces may be high when the appliance is operating. The surfaces are liable to get hot during use. Keep cord away from heated surface, and do not cover any vents on the oven.

5. Do not let cord hang over edge of table or counter.

6. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
7. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
8. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.
9. The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
10. Children should be supervised to ensure that they do not play with the appliance.
11. The appliances are not intended to be operated by means of an external timer or separate remote-control system.
12. Accessible parts may become hot during use.
    Young children should be kept away.
13. Steam cleaner is not to be used.
14. During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.
15. Only use the temperature probe recommended for this oven. (for ovens provided with a facility to use a temperature-sensing probe.)

31.WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.
32. The microwave oven must be operated with the decorative door open. (for ovens with a decorative door.)
33. Surface of a storage cabinet can get hot.

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

To Reduce the Risk of Injury to Persons Grounding Installation

DANGER

Electric Shock Hazard Touching some of the internal componentscan cause serious personal injury or death.Do not disassemble this appliance.

WARNING

Electric Shock Hazard Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubtexists as to whether the appliance is properly grounded.

If it is necessary to use an extension cord, use only a 3-wire extension cord.

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
2. If a long cord set or extension cord is used:
   1) The marked electrical rating of the cordset or extension cord should be at least as great as the electrical rating of the appliance.
   2) The extension cord must be a grounding-type 3-wire cord.
   3) The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

CLEANING

Be sure to unplug the appliance from the power supply.

1. Clean the cavity of the oven after using with a slightly damp cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.
4. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
5. Cleaning Tip---For easier cleaning of the cavity walls that the food cooked can touch: Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat on 100% microwave power for 10 minutes. Wipe the oven clean using a soft, dry cloth.

UTENSILS

CAUTION

Personal Injury Hazard It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection asgaint exposure to microwave energy.

See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven." There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.

Materials you can use in microwave oven

Utensils Remarks

Browning dish	Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware	Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars	Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware	Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags	Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels	Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paper	Use as a cover to prevent splattering or a wrap for steaming.
Plastic	Microwave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap	Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers	Microwave-safe only (meat and candy thermometers).
Wax paper	Use as a cover to prevent splattering and retain moisture.

Materials to be avoided in microwave oven

Utensils Remarks

Aluminum tray	May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties	May cause arcing and could cause a fire in the oven.
Paper bags	May cause a fire in the oven.
Plastic foam	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood	Wood will dry out when used in the microwave oven and may split or crack.

SETTING UP YOUR OVEN

Names of Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity.

Your oven comes with the following accessories:

Glass tray 1

Turntable ring assembly 1

Instruction Manual 1

G

Grill Rack( Only be used in grill function and be placed on the glass tray )

A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system

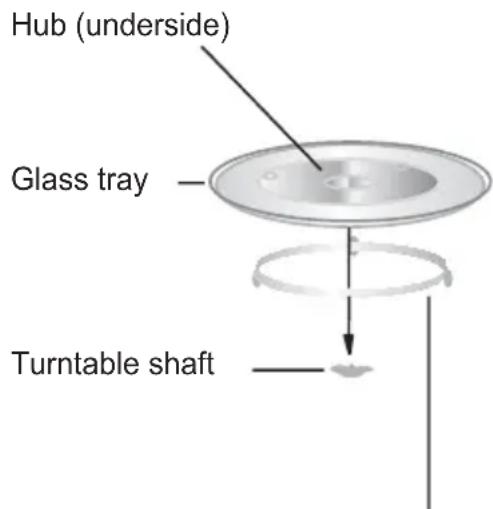

Turntable Installation

Turntable ring assembly

a. Never place the glass tray upside down. The glass tray should never be restricted.
b. Both glass tray and turntable ring assembly must always be used during cooking.
c. All food and containers of food are always placed on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

Installation and connection

1. This appliance is only intended for domestic use.
2. This oven is intended for built-in use only. It is not intended for counter-top use or for use inside a cupboard.
3. Please observe the special installation instructions.
4. The appliance can be installed in a 60cm wide wall-mounted cupboard (at lease 55cm deep and 85cm off the floor).
5. The appliance is fitted with a plug and must only be connected to a properly installed earthed socket.
6. The mains voltage must correspond to the voltage specified on the rating plate.
7. The socket must be installed and connecting cable must only be replaced by a qualified electrician. If the plug is no longer to accessible following installation, an all-pole disconnecting device must be present on the installation side with a contact gap of at lease 3mm.
8. Adapters, multi-way strips and extension leads must not be used. Overloading can result in a risk of fire.

The accessible surface may be hot during operation.

Installation Instructions Please Read the Manual Carefully Before Installation

Pleasenote

Electrical connection

Theovenisfittedwithaplugandmustonly socket. Thesocketmustonlybeinstalled replacedbyaqualifiedelectrician, andin Iftheplugisnolongeraccessiblefollowing bepresentontheinstallationsidewitha Thefittedcabinetmustnothaveaback Minimuminstallationheight:85 cm. Donotcoverventilationslotsandsuctio beconnectedtoaproperlyinstalledearthed andtheconnectingcablemustonlybe accordancewiththeappropriateregulations. installation,anall-poleisolatingswitchmust contactgapofatleast3 mm. wallbehindtheappliance.

holes.

Note:

Donottraporbendthepowercable.

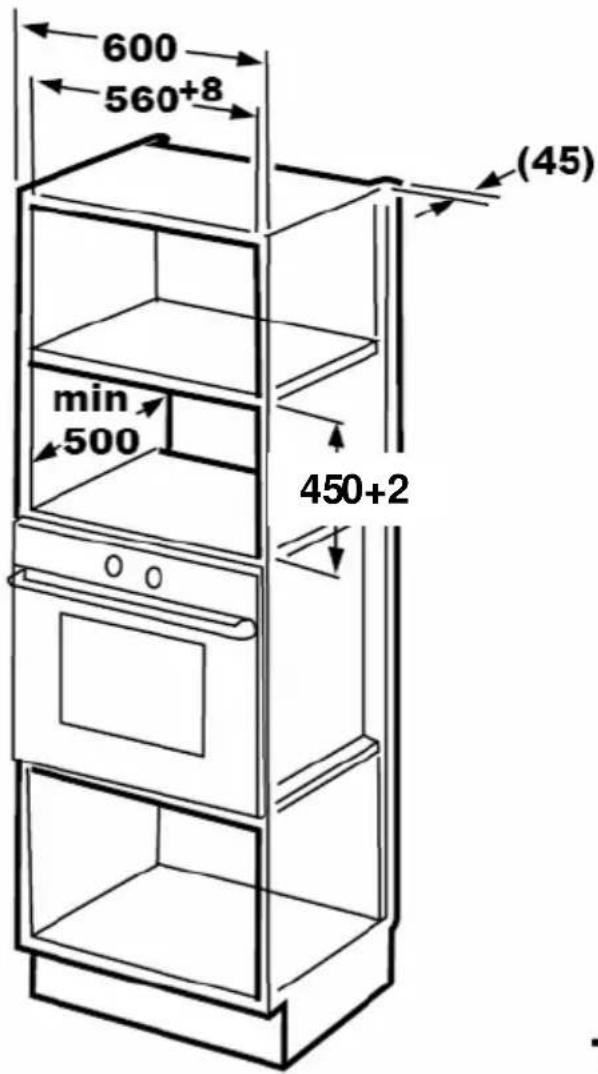

A. Built-in furniture

B. Pre are the cai inet

1. Read the instruction on the BOTTOM CANINET TEMPLATE, put the template on the bottom plane of cabinet.

1. Make the marks on the bottom plane of cabinet according to marks"a" of the template

Screw A

Bracket

1. Remove the bottom cabinet template and fix the bracket with screw A.

.Install the oven

1. Install the oven to the cabinet

2. Make sure the back of the oven is locked by bracket.

3. Do not trap or kink the power cord.

1. Open the door, fix the oven to the cabinet with Screw B, at the installation hole. Then fix the Trim-kit plastic cover to the installation hole.

Operation Instructions

1. Clock Setting

When the microwave oven is electrified, the LED will display "0:00", buzzer will ring once.

1) Press "Clock/Pre-Set", the hour figures will flash.
2) Turn " 🔍 " to adjust the hour figures, the input time should be within 0--23.
3) Press "Clock/ Pre-Set ", the minute figures will flash.
4) Turn " 🔍 " to adjust the minute figures, the input time should be within 0--59.
5) Press "Clock/Rsh-Slock setting. ":" will flash, and the time will light.

Note: 1) If the clock is not set, it would not function when powered.

2) During the process of clock setting, if you press "Stop/Clear", the oven will go back to the previous status automatically.

2. Microwave Cooking

Press " Microwave " the LED will display "P100.Press " Microwave " for times or turn " "to choose the power you want, and "P100", "P80" "P50", "P30" or "P10" will display for each added press. Then press" Start/+30Sec./Confirm " to confirm, and turn " " to set cooking time from 0:05to 95:00. Press " Start/+30Sec./Confirm " again to start cooking.

Example: If you want to use 80% microwave power to cook for 20 minutes, you can operate the oven as the following steps.

1) Press " Microwave " once, the screen display "P100".
2) Press " Microwave " once again or turn" " to choose 80% microwave power.
3) Press " Start/+30Sec./Confirm " to confirm, and the screen displays "P 80".
4) Turn " 🔍 " to adjust the cooking time until the oven displays "20:00".
5) Press " Start/+30Sec./Confirm " to start cooking.

Note: the step quantities for the adjustment time of the coding switch are as follow:

"Microwave" Pad instructions

Order	Display	Microwave Power
1	P100	100%
2	P80	80%
3	P50	50%
4	P30	30%
5	P10	10%

3. Grill or Combi. Cooking

Press " Grill/Combi. " the LED will display"G", and press " Grill/Combi. "for times or turn the " " to choose the power you want, and "G", "C-1" or "C-2" will display for each added press. Then press " Start/+30Sec./Confirm "to confirm, and turn " " to set cooking time from 0:05 to 95:00. Press " Start/+30Sec./Confirm " again to start cooking.

Example: If you want to use 55% microwave power and 45% grill power(C-1) to cook for 10 minutes, you can operate the oven as the following steps.

1) Press " Grill/Combi." once, the screen display "G".
2) Press " Grill/Combi. " once again or turn " 🔍 " to choose combi. 1 mode.
3) Press " Start/+30Sec./Confirm " to confirm, and the screen displays "C-1".
4) Turn " 🔍 " to adjust the cooking time until the oven displays "10:00".
5) Press " Start/+30Sec./Confirm " to start cooking.

"Grill/Combi." Pad instructions

Order	Display	Microwave Power	Grill Power
1	G	0%	100%
2	C-1	55%	45%
3	C-2	36%	64%

Note: If half the grill time passes, the oven sounds twice, and this is normal.

In order to have a better effect of grilling food, you should turn the food over, close the door, and then press "Start/+30Sec./Confirm" to ccontinue cooking.

If no operation the oven will continue cooking.

4. Quick Start

1) In waiting state, Press "Start/+30Sec./Confirm" to start cooking with 100% power, each added press will increase 30 seconds cooking time up to 95 minutes.
2) In microwave, grill, combi. cooking or time defrost state, each press of "Start/+30Sec./Confirm" can increase 30 seconds of cooking time.
3) In waiting state, turn " anti-clockwise to set cooking time with 100% microwave power, then press " Start/+30Sec./Confirm " to start cooking.

5. Defrost By Weight

1) Press " W.T/Time Defrost " once, and the oven will display "dEF1".
2) Turn " 🔍 " to select the weight of food from 100 to 2000 g.
3) Press " Start/+30Sec./Confirm " to start defrosting.

6. Defrost By Time

1) Press " W.T/Time Defrost " twice, and the oven will display "dEF2".
2) Turn " 🔍 " to select the defrost time.
3) Press " Start/+30Sec./Confirm " to start defrosting.

7. Auto Reheat

1) Press " Auto Reheat and the LED will display "200".
2) Press "Auto Reheat" more times or turn " " to choose the weight of food, and "400" or "600" g will be selected.
3) Press " Start/+30Sec./Confirm " to start cooking.

8. Auto Menu

1) Turn " 🔥 " right to choose the menu, and "A-1" to "A-8" will display, which means pizza, potato, meat, vegetable, fish, pasta, soup and porridge.
2) Press " Start/+30Sec./Confirm " to confirm.
3) Turn " " to choose the default weight as the menu chart.
4) Press " Start/+30Sec./Confirm " to start cooking.

Example: If you want to use "Auto Menu" to cook fish for 350g.

1) Turn " clockwise till "A-5" display.
2) Press " Start/+30Sec./Confirm " to confirm.

3) Turn "

" to select the weight of fish till "350" display.

4) Press " Start/+30Sec./Confirm " to start cooking.

The menu chart:

Menu	Weight	Display
A-1	200 g	200 g
Pizza	400 g	400 g
A-2	200 g	200 g
Potato	400 g	400 g
	600 g	600 g
A-3	250 g	250 g
Meat	350 g	350 g
	450 g	450 g
A-4	200 g	200 g
Vegetable	300 g	300 g
	400 g	400 g
A-5	250 g	250 g
Fish	350g	350g
	450 g	450 g
A-6	50g(with 450 cold water)	50g
Pasta	100g(with 800 cold water)	100g
A-7	200ml	200ml
Soup	400ml	400ml
A-8	550g	550g
Porridge	1100g	1100g

9. Program set in Advance

1) Set the clock first. (Consult the instruction of clock setting.)
2) Input the cooking program. Two stages can be set at most.

Defrost should not be set as the cooking program.

Example: If you want to cook with 80% microwave power for 7 minutes, operate it as the following:

a. Press " Microwave " once, the screen display "P100".
b. Press " Microwave " once again or turn " " to choose 80% microwave power.

c. Press " Start/+30Sec./Confirm " to confirm, and the screen displays "P 80".
d. Turn " 🔍 " to adjust the cooking time till the oven displays "7:00".

After the aboved steps, be careful not to press "Start/+30Sec./Confirm" to start cooking.

3) Press "Clock/Pre-Setures will flash.

4) Turn " 🔍 " to adjust the hour figures, the input time should be within 0--23.
5) Press "Clock/Pre-Set", the minute figures will flash.
6) Turn " 🔍 " to adjust the minute figures, the input time should be within 0--59.
7) Press "Start in the setting, confirm the door is closed, buzzer will ring twice when the time arrives, then cooking will start automatically.

10. Multi-section cooking

At most 2 sections can be set for cooking. In multi-section cooking, if one section is defrosting, then defrosting shall be placed in the first section.

Example: If you want to defrost food for 5 minutes and then cook with 80% microwave power for 7 minutes, operate it as the following:

1) Press " W.T/Time Defrost " twice, and the oven will display "dEF2".
2) Turn " 🔍 " to select the defrost time till "5:00" display.
3) Press " Microwave " once, the screen display "P100".
4) Press " Microwave " once again or turn " " to choose 80% microwave power.
5) Press " Start/+30Sec./Confirm " to confirm, and the screen displays "P 80".
6) Turn " 🔥 " to adjust the cooking time till the oven displays "7:00".
7) Press "Start/+30Sec./Confirm" to start cooking, and buzzer will sound once for the first section, defrosting time counts down; buzzer will sound once again entering the second cooking. when cooking finish, buzzer sounds five times.

11. Inquiring Function

(1) In states of microwave, grill and combination cooking, press "Mihrowave current power will be displayed for 3 seconds. After 3 seconds, the oven will turn back to the former state;
(2) In cooking state, press "Clock/Pure set the time and the time will display for 3 seconds.
(3) In preset state, press "Clock/Pre-set" to inquire the preset time, and the preset time will display for 3 seconds.

12. Lock-out Function for Children

Lock: In waiting state, press " Stop/Clear " for 3 seconds, there will be a long beep denoting entering the children-lock state and the locked indicator will display if the time has been set, otherwise, the LED will display " [::] ".

Lock quitting: In locked state, press "Stop/Clear" for 3 seconds, there will be a long "beep" denoting that the lock is released.

Trouble shooting

Normal
Microwave oven interfering TV reception	Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan. It is normal.
Dim oven light	In low power microwave cooking, oven light may become dim. It is normal.
Steam accumulating on door, hot air out of vents	In cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal.
Oven started accidentally with no food in.	It is forbidden to run the unit without any food inside. It is very dangerous.

Trouble	Possible Cause	Remedy
Oven can not be started.	(1) Power cord not plugged in tightly.	Unplug. Then plug again after 10 seconds.
	(2) Fuse blowing or circuit breaker works.	Replace fuse or reset circuit breaker (repaired by professional personnel of our company)
	(3) Trouble with outlet.	Test outlet with other electrical appliances.
Oven does not heat.	(4) Door not closed well.	Close door well.

According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available.

Should you need to get in touch with us (UK and Northern Ireland only), please call the Customer Care Helpline on:

0844 815 3747

For customers outside the UK and Northern Ireland, please contact your local supplier.

Please keep this handbook in a safe place. Please fill in the model number and serial number in the spaces provided below as they will assist us should you need to call

Your 1 ^st Year Guarantee

To fulfil the conditions of your guarantee, this appliance must be correctly installed and operated, in accordance with these instructions, and only be used for normal domestic purposes.

Please note that the guarantee, and Service availability, only apply to the UK and Republic of Ireland.

STOVES
