Norrebro - Wristwatch Uri Minkoff - Free user manual and instructions
Find the device manual for free Norrebro Uri Minkoff in PDF.
| Product Type | Wristwatch |
| Brand | Uri Minkoff |
| Model | Norrebro |
| Case Material | Stainless steel |
| Case Diameter | 40 mm |
| Case Thickness | 10 mm |
| Strap Material | Leather |
| Strap Width | 20 mm |
| Weight | 100 g |
| Movement Type | Quartz |
| Battery Type | SR626SW |
| Water Resistance | 3 ATM (30 meters) |
| Display Type | Analog |
| Crystal Material | Mineral glass |
| Functions | Hours, minutes, seconds, date |
| Power Source | Battery |
| Battery Life | Approximately 2 years |
| Maintenance | Clean with soft cloth; avoid water if not water-resistant; replace battery when needed |
| Safety | Keep away from magnetic fields; avoid extreme temperatures |
| Spare Parts Availability | Battery, strap, crown available from authorized dealers |
| Repair | Should be handled by a professional watchmaker |
| General Information | Fashion watch; designed for everyday wear |
Frequently Asked Questions - Norrebro Uri Minkoff
User questions about Norrebro Uri Minkoff
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Wristwatch in PDF format for free! Find your manual Norrebro - Uri Minkoff and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Norrebro by Uri Minkoff.
USER MANUAL Norrebro Uri Minkoff
Uri Minkoff, co-founder and CEO of Rebecca Minkoff, created his eponymous brand with the vision to build a lifestyle brand for the urban modern man. The collection thoughtfully fuses form and function with a European sensibility. These water-resistant watches feature a sleek design for the man on the move who knows that timing is everything.
CONTENTS
OPERATING INSTRUCTIONS
(1) 3-HAND MODELS WITH DATE DISPLAY .... 3
(2) 3-HAND MODELS WITH SMALL SECONDS .... 4
(3) QUARTZ CHRONOGRAPH 5
SPECIAL FEATURES
(A) MESH BRACELET SLIDING CLASP 6
CARE AND MAINTENANCE 7
WARRANTY 8
OBTAINING SERVICE 9-11
OPERATING INSTRUCTIONS
(1) 3-HAND MODELS WITH DATE DISPLAY
1, 2 - Crown positions
D - Date
Crown Positions:
Position 1 - Normal position.
Crown pushed against case.
Position 2 - To set DATE*:
Rotate crown clockwise.
NOTE: For models with DAY/DATE display(s): Rotate crown clockwise to set DATE, And counterclockwise to set DAY.
Position 3 - To set TIME:
Rotate crown in either direction.
*CAUTION: Never set the date when the hands are between 9:00 PM and 3:00 AM. Doing so could damage the calendar mechanism.
NOTE: The functioning of the watch is not affected during date setting.
When the watch is running, the date will change gradually during the period from 9:00 PM to 3:00 AM.
URI MINKOFF
OPERATING INSTRUCTIONS
(2) 3-HAND MODELS WITH DATE DISPLAY
Figure A
Legend
1, 2 - Crown positions
Crown Positions:
Position 1 - Normal position.
Crown pushed against case.
Position 2 - To set TIME:
Rotate crown in either direction.
OPERATING INSTRUCTIONS

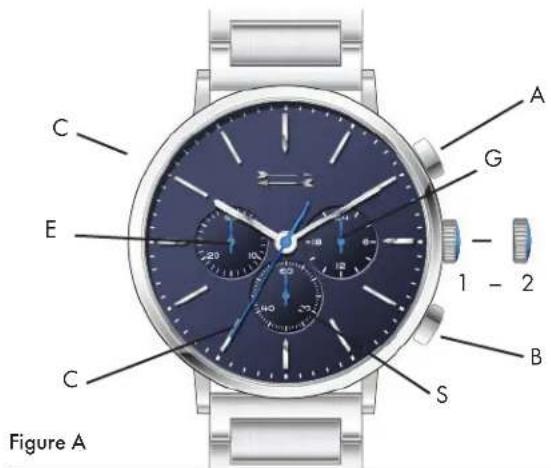

(3) QUARTZ CHRONOGRAPH 1/10 OF A SECOND - TYPE D
Legend
1, 2, 3 - Crown positions
A - Push button - Chronograph (start/stop)
B - Push button - Chronograph (split-time/reset)
C - Chronograph seconds hand
G - Chronograph 24 hand
S - Seconds Hand
These quartz chronograph models feature a tenths-of-a-second counter, minute counter (up to 30), and small seconds subdials; center-mounted chronograph seconds hand; and date window. They can be used to time an event up to 30 minutes and 60 seconds in duration to the nearest 1/10 of a second.
TIME/DATE SETTING
To set the time:
- Pull crown out to position 3; watch stops.
- Turn crown in either direction until hands indicate desired time – check that the date changes at midnight, not at noon.
- Push crown back in to position 1; watch restarts.
CHRONOGRAPH FUNCTIONS
Overview
Use buttons A and B to operate the chronograph. Pressing button A the first time will start the chronograph. While the chronograph is running, once the chronograph seconds counter hand C has completed one turn, minute counter E will jump ahead one minute. The 24-hour hand G does not move when the chronograph is running. Pressing button A a second time will stop the chronograph and move hand G to the relevant 24-hour mark: Pressing button B will reset hands G, E, C to zero. Adjusting the time does not stop the chronograph, but it does block buttons A and B for as long as the crown is pulled out.
IMPORTANT: Crown must be in position 1 and hands must be at zero before chronograph is started. Press button B to reset hands to zero. DO NOT push button A and B while crown is pulled to position 2. If button A or B is accidentally activated while crown is not flush against the case,
one or more of the chronograph hands will become de-synchronized. Should this occur follow the instructions below.
Synchronization of chronograph hands:
After changing the battery, or in the event of an error, the chronograph hands can be realigned to zero if needed. A single push (quick press and release) will advance hands by one increment. To advance hands rapidly, depress and hold push buttons for longer than one second.
Crown position 2:
Adjust minutes-counter hand E using button B.
OPERATING THE CHRONOGRAPH
Simple chronograph functions:
- Press button A to start chronograph.
- Press button A a second time to stop chronograph; read time.
- Press button A to reset the chronograph to zero.
Accumulated time functions:
- Press button A to start chronograph.
- Press button A a second time to stop chronograph.
- Press button A again to resume measurement.
- Press button A a fourth time to stop chronograph again.
NOTE: Each time you stop chronograph, chronograph hands will indicate total accumulated time. - Repeat steps 1 and 2 to add each additional interval of time.
- After you have taken your final accumulated time reading, press button B to reset chronograph hands to zero.
Split-time or intermediate time functions:
You can take intermediate time readings as a race progresses with these models:
- Press button A to start chronograph.
- Press button B to momentarily stop chronograph.
- Read off the intermediate time, for example: 10 minutes, 26 seconds, 3/10 of a second.
- Press button B to resume chronograph function. Hands will catch up with ongoing event.
- To read a second split time, press button B again. Repeat steps 2 through 4 to take any additional split times.
- Press button A to stop chronograph.
- Take a reading of the final time, for example: 27 minutes, 3 seconds, 7/10 seconds.
- Press button B to reset chronograph hands to zero.
URI MINKOFF
SPECIAL FEATURES
(A) MESH BRACELET SLIDING CLASP
The mesh bracelets found on select Uri Minkoff models
feature a hooking jewelry clasp that allows you to size the bracelet by sliding the pin-bar half of the clasp along the bracelet to achieve a customized fit.
Above: Open mesh bracelet side with pin-bar half of sliding clasp locked in position.
To size the bracelet:
- Use tool such as a small fl at-head screwdriver to pop open metal plate on pin-bar half of clasp, releasing the clasp position locking mechanism.
- Slide pin-bar half of clasp along the mesh bracelet in either direction to desired position.
- Close metal plate, locking the pin-bar half of the clasp in new position on the bracelet.
CARE AND MAINTENANCE
Your Uri Minkoff watch timepiece has been developed with meticulous attention to quality, function and detail. Please read the following information and instructions carefully to learn about the features, proper care and operation of your new timepiece.
For additional information on service and repairs, please see the Service and Warranty section.
Shock
All of our watches have shock-resistant movements and are tested to meet international standards for shock resistance.
Magnetism
The exposure of a timepiece to a strong magnetic field will affect its time-keeping, and may cause it to stop. A quartz watch should resume working with its original accuracy when removed from the magnetic field; an automatic or hand-wound mechanical timepiece, however, may require demagnetization before it will operate again.
Water Resistance
All of our watches are tested to meet international standards for water resistance to at least 3 bar (3 ATM / 30 M / 99 feet), so faucet spray or rain won't hurt them as long as the case, crown and crystal remain intact.
CAUTION: Do not operate your watch crown or the push-buttons on a chronograph or multi-function model when the watch is under water, or it will not remain water resistant.
NOTES: We recommend that you do not shower, enter a steam room or bathe while wearing your watch.
Many agents, including steam, soap, mildew, salt water, perfume and chlorine can get into the watch, and if not cleaned immediately, the gaskets and seals can break down over time, allowing dust or moisture to penetrate the case and potentially damage the movement.
We recommend that you do not get your leather strap wet. Exposing leather to water can cause premature wear and deterioration. Carefully wipe your watch using a soft cloth dampened with fresh water after exposure to chlorine or sea water.
Battery Information
Your quartz analog watch or chronograph has a battery specially designed for watches. It will last approximately 18-36 months under normal use.
NOTE: Frequent use of special functions, like the stopwatch timer on chronograph models, may shorten battery life.
End-of-life feature: The seconds hand on many models will start to move haltingly in 4-second increments when the battery is almost exhausted, signaling the need to have it replaced.
Battery replacement: Take or send your watch to an Authorized Service Center to have the battery changed – your old battery will be disposed of/recycled properly. Do not attempt to change the battery yourself.
Collection and treatment of end of life quartz watches*
This product should not be discarded with household waste. To protect the environment and human health, it must be returned to a local authorized collection system for proper recycling.
*Valid in the EU member states and in any countries with corresponding legislation.
WARRANTY
WATCH WARRANTY INFORMATION
Not only is each Uri Minkoff Watch beautiful in design, it is crafted with quality materials and components to offer precise, reliable performance. We proudly stand behind every Uri Minkoff Watch we sell.
Uri Minkoff Watches Limited Warranty
Uri Minkoff Watch (RMW) warrants to the original consumer that, for a period of two (2) years from the date of purchase, his/her watch will be free from defects in materials and workmanship that prevent the watch from functioning properly under normal use.
Our responsibility for defects covered by this warranty is limited to repairing or (at the sole discretion of UMW) replacing the defective watch, free of charge.
This limited warranty does not cover analog batteries, straps, bracelets, crystals, gold- or ionic-plating or PVD finishing, cosmetic issues such as scratches or normal wear and tear, or any damage arising from accidents or misuse, or from any alteration, service or repair performed by any party other than a UMW Authorized Service Center.
This warranty is void if the timepiece was not purchased from an Authorized UMW Dealer, as evidenced by valid proof of purchase – a dated sales or gift receipt showing the name of the retailer and an identifying style number for the Uri Minkoff Watch.
Any other warranty provided by the retailer is entirely their responsibility. No person or company is authorized to change the terms of this warranty. This warranty gives the consumer specific legal rights. He/she may also have other statutory rights which may vary from state to state and country to country. However, to the extent not prohibited by law, this limited warranty is exclusive and in lieu of all other warranties, oral, written, statutory, express or implied (including without limitation the warranties of merchantability and fitness for a particular purpose), all of which are expressly disclaimed.
OBTAINING SERVICE
Under Warranty
Should warranty service be required, pack your watch properly (see below) and send it to one of our Uri Minkoff Watch Service Centers along with (1) your original dated sales or gift receipt showing the name of the retailer and an identifying watch style number, and (2) a print out of the service order generated by using the MGI Repairs Portal (visit www.repairs.mgiservice.com for information) OR a completed copy of the Uri Minkoff Watches Service Request Form from this file.
TTo locate an Authorized Service Center in your region, scroll over the LOCATOR dropdown, then click on AUTHORIZED SERVICE CENTER LOCATOR link from the www.repairs.mgiservice.com homepage.
Out of Warranty
Uri Minkoff Authorized Service Center can also perform repairs not covered by the Uri Minkoff Watch warranty as well as service after the expiration of the warranty period.
Should you require service for your watch, pack your watch properly (see below) and send it to a Uri Minkoff Watches Authorized Service Center along with a print out of the service order generated by using the MGI Repairs Portal. Visit www.repairs.mgiservice.com for information or a completed copy of the Uri Minkoff Watches Service Request Form from this file.
Battery Replacement
The Uri Minkoff Watch Service Center can also change the battery on your Uri Minkoff Watch for the specified fee plus shipping and handling. Please use appropriate form from this file.
Packing Your Watch
Pack your watch securely in padded wrapping material for protection against shock. Be sure to include a completed copy of the Uri Minkoff Watch Service Request Form and your payment.
Insuring Your Watch
We recommend that you use registered mail and insure your watch for its full replacement value.
Additional Instructions
Do not return a defective watch to the store from which it was purchased. Send it with a completed copy of the U.S./Canadian or International Uri Minkoff Watch Service Request Form from this file to a corresponding Uri Minkoff Watch Authorized Service Center. Authorized Service Center locations can be accessed from the link on the www.repairs.mgiservice.com homepage.
Please include specified shipping and handling fee for service in or out of warranty.
OBTAINING SERVICE
URI MINKOFF WATCHES – U.S./CANADIAN SERVICE REQUEST FORM
Name
Address
City
State/Province ____ Country ____
ZIP/Postal Code ____
E-mail ____ Phone (____)
Watch Model
What needs service, replacement or repair:
OBTAINING SERVICE
URI MINKOFF WATCHES – INTERNATIONAL SERVICE REQUEST FORM
Name
Address
City ____
State/Province ____ Country ____
ZIP/Postal Code ____
E-mail ____ Phone (____)
Watch Model
What needs service, replacement or repair:
