LB1-UW06-Fx-US Unidirectional Cabinet Loudspeaker

The LB1-UW06-Fx-US is a 6 W, general-purpose, cost-effective loudspeaker for indoor use. Two brackets, fixed to the rear panel, are provided for quick and easy mounting on a wall or ceiling. The cabinet is available in black or white.

Functions

The robust, solid MDF (medium density fiberboard) enclosure is covered with a durable, easy-to-clean vinyl in a choice of black or white. The ABS front is covered with fine woven cloth in matching color.

Certifications and Approvals

All Bosch loudspeakers are designed to withstand operating at their rated power for 100 continuous hours in accordance with IEC 268-5 Power Handling Capacity (PHC) standards. Bosch has also developed the Simulated Acoustical Feedback Exposure (SAFE) test to demonstrate that they can withstand two times their rated power for short durations. This ensures improved reliability under extreme conditions, leading to higher customer satisfaction, longer operating life, and lessens the chance of failure or performance deterioration.

Safety according to EN 60065

▶ Excellent speech intelligibility and music reproduction
▶ Finished in black or white
▶ MDF construction
Mounting brackets for wall or ceiling mounting
- Complies with international installation and safety regulations

Installation/Configuration Notes

Two rear panel mounting brackets provide easy and quick wall or ceiling mounting. If not desired, they can be removed, and the unit can be wall mounted using the three keyholes in the rear panel.

A convenient, easy-to-use, 4-pole push-in terminal block is mounted on the rear panel for on-site wiring. This terminal block provides for power tapping on the 70-volt matching transformer in the cabinet. It allows selection of nominal full-power, half-power or quarter-power radiation (in 3 dB steps).

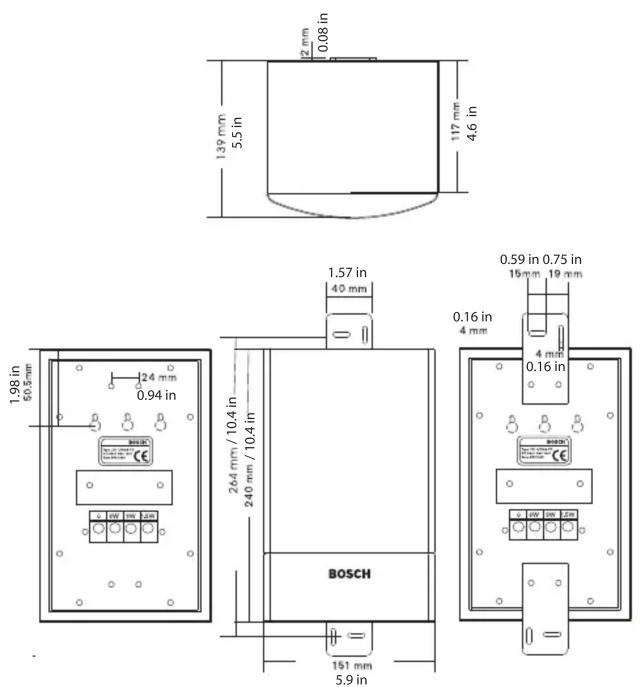

Dimensions in mm / in

Circuit diagram

Frequency response

Polar diagram horizontal (measured with pink noise)

Polar diagram vertical (measured with pink noise)

Technical Specifications
Electrical*

Maximum power 9 W
Rated power 6 / 3 / 1.5 W
Sound pressure level at 6 W / 1 W (1 kHz, 1 m)	99 dB / 91 dB (SPL)
Effective frequency range (-10 dB)	180 Hz to 20 kHz
Opening angle 1 kHz / 4 kHz (-6 dB)
horizontal 165° / 95°
vertical 158° / 73°
Rated input voltage 70 V
Rated impedance 835 ohm
Connector 4-pole push-in terminal block

* Technical performance data according to IEC 60268-5

Mechanical

Dimensions (H x W x D) 240 x 151 x 139 mm(9.4 x 5.9 x 5.5 in)

Weight 1.5 kg (3.3 lb)

Color Black (D) or white (L)

cabinet / cloth (D) Matches RAL 9004 / RAL 9004

cabinet / cloth (L) Matches RAL 9010 / RAL 7044

Environmental

Operating temperature -25 °C to +55 °C (-13 °F to +131 °F)

Storage temperature -40 °C to +70 °C (-40 °F to +158 °F)

Relative humidity <95%

Ordering Information

LB1-UW06-FD-US Unidirectional Cabinet Loudspeaker6 W, black	LB1-UW06-FD-US
LB1-UW06-FL-US Unidirectional Cabinet Loudspeaker6 W, white	LB1-UW06-FL-US
