VioSCAN LED - Light projector Adj - Free user manual and instructions

Product Type	LED Moving Head Scanner
Brand	Adj
Model	VioSCAN LED
Dimensions (LxWxH)	10.5 x 8.3 x 5.2 inches
Weight	5.5 lbs
Power Supply	AC 100-240V, 50/60Hz
Power Consumption	30W
Light Source	7 x 3W RGB LEDs
Beam Angle	10°
Pan Range	540°
Tilt Range	270°
DMX Channels	11 or 13 selectable
Control Modes	DMX, Sound Activated, Master/Slave
Color Mixing	RGB color mixing
Gobo Patterns	7 rotating gobos + open
Strobe Rate	1-20 Hz
Cooling	Fan cooled
Cleaning	Wipe with a soft, damp cloth; do not use solvents
Safety	For indoor use only; keep away from flammable materials; ensure proper ventilation
Spare Parts	Replacement LEDs (3W), fuses (1A), power cord
Repairability	Designed for professional service; contact authorized service center for repairs
Accessories Included	DMX cable, power cord, mounting bracket, user manual

Frequently Asked Questions - VioSCAN LED Adj

How do I connect the VioSCAN LED to a DMX controller?

Use a standard 3-pin DMX cable. Connect the DMX IN to the controller, and set the fixture's DMX address using the onboard menu. Refer to the user manual for addressing instructions.

What do I do if the light does not turn on?

Check the power cable and ensure the fixture is plugged into a working outlet. Verify that the power switch is on. If still off, check the fuse and replace if blown.

How do I reset the fixture to factory settings?

Access the menu via the control panel, navigate to 'Settings', and select 'Factory Reset'. Confirm the reset. All custom settings will be erased.

Can I use this fixture outdoors?

No, the VioSCAN LED is designed for indoor use only. Exposure to moisture or extreme temperatures may damage the unit.

What is the recommended cleaning method?

Use a soft, lint-free cloth slightly dampened with water. Gently wipe the housing and lens. Do not use abrasive cleaners or solvents. Ensure the fixture is unplugged before cleaning.

How do I set sound activation mode?

Press the 'Mode' button until 'SND' appears on the display. The fixture will react to music via its built-in microphone. Adjust sensitivity if needed via the menu.

What is the maximum number of fixtures I can daisy chain?

You can daisy chain up to 32 fixtures in DMX mode using the DMX OUT connection. Ensure proper termination on the last fixture.

How do I replace a blown fuse?

Unplug the fixture. Locate the fuse holder near the power input. Use a flathead screwdriver to open it, replace the fuse with one of the same rating (1A 250V), and close the holder.

Why is the fixture not responding to DMX?

Check that the DMX cable is securely connected and not damaged. Verify the DMX address is set correctly. Ensure the controller is sending data. Try a different cable or port.

Can I replace the LEDs myself?

LED replacement is not recommended for end users. Contact an authorized service center for replacement to avoid damage to the fixture.

USER MANUAL VioSCAN LED Adj

User Instructions

VioSCAN LED

General Information

Unpacking: Thank you for purchasing the VioSCAN LED by American DJ®. Every VioSCAN LED has been thoroughly tested and has been shipped in perfect operating condition. Carefully check the shipping carton for damage that may have occurred during shipping. If the carton appears to be damaged, carefully inspect your fixture for any damage and be sure all equipment necessary to operate the unit has arrived intact. In the event damage has been found or parts are missing, please contact our toll free customer support number for further instructions. Please do not return this unit to your dealer without contacting customer support first.

Introduction: The VioSCAN LED bright, compact, DMX intelligent LED scanner. The unit has 2 DMX channel modes; a 1 channel mode and 5 channel mode. The VioSCAN LED has three operating modes; sound active mode, show mode, & DMX controlled. The fixture can operate as stand alone unit or in a Master/Slave configuration. The VioSCAN LED comes with several built in programs. For best results use fog or special effects smoke to enhance the beams projections.

Customer Support: American DJ® provides a toll free customer support line, to provide help and to answer any question should you encounter problems during your set up or initial operation. You may also visit us on the web at www.americandj.com for any comments or suggestions. Service Hours are Monday through Friday 9:00 a.m. to 5:00 p.m. Pacific Standard Time.

Voice: [phone]

Fax: [phone]

E-mail: [e-mail]

To purchase parts online visit http://parts.americandj.com

Warning! To prevent or reduce the risk of electrical shock or fire, do not expose this unit to rain or moisture.

Warning! This may cause severe eye damage. Avoid looking directly into the light source at all times!

VioSCAN LED

General Instructions

To optimize the performance of this product, please read these operating instructions carefully to familiarize yourself with the basic operations of this unit. These instructions contain important safety information regarding the use and maintenance of this unit. Please keep this manual with the unit, for future reference.

VioSCAN LED

Features

• 2 DMX Channel Modes; 1 Channel Mode & 5 Channel Mode
• Auto Sensing Voltage
• 3 Operating Modes - Sound Active, Show Mode, and DMX Control
- Internal Microphone
• Digital Display for Address and Function Setting
• UC3 Controller (Not Included)

VioSCAN LED

Warranty Registration

The VioSCAN LED carries a 3 year (1095 days) limited warranty (U.S. Only). Please fill out the enclosed warranty card to validate your purchase and warranty. You may also register your product online at www.americandj.com. All returned service items whether under warranty or not, must be freight pre-paid and accompany a return authorization (R.A.) number. If the unit is under warranty you must provide a copy of your proof of purchase invoice. Please contact American DJ® customer support for a R.A. number.

VioSCAN LED

Handling Precautions

Caution! There are no user serviceable parts inside this unit. Do not attempt any repairs yourself, doing so will void your manufactures warranty. In the unlikely event your unit may require service please contact American DJs.

During operation the housing may become extremely hot. Avoid touching the unit with bare hands while in use.

American DJ_® will not accept any liability for any resulting damages caused by the non-observance of this manual or any unauthorized modification to this unit.

VioSCAN LED

Safety Precautions

For Your Own Personal Safety, Please Read and Understand This Manual Completely Before You Attempt To Install Or Operate This Unit!

• To reduce the risk of electrical shock or fire, do not expose this unit rain or moisture
• Do not spill water or other liquids into or on to your unit.
• Be sure that the local power outlet match that of the required voltage for your unit.
• Do not attempt to operate this unit if the power cord has been frayed or broken.

- Do not attempt to remove or break off the ground prong from the electrical cord. This prong is used to reduce the risk of electrical shock and fire in case of an internal short.

- Disconnect from main power before making any type of connection.

- Do not remove the cover under any conditions. There are no user serviceable parts inside.

- Never operate this unit when it's cover is removed.

- Always be sure to mount this unit in an area that will allow proper ventilation. Allow about 6" (15cm) between this device and a wall.

- Do not attempt to operate this unit, if it becomes damaged.

- This unit is intended for indoor use only, use of this product outdoors voids all warranties.

• Always mount this unit in safe and stable matter.

- Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.

- Cleaning -The fixture should be cleaned only as recommended by the manufacturer. See page 17 for cleaning details.

- Heat -This fixture should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat.

- The fixture should be serviced by qualified service personnel when: A. Objects have fallen, or liquid has been spilled into the appliance. B. The appliance has been exposed to rain or water.

C. The appliance does not appear to operate normally or exhibits a marked change in performance.

VioSCAN LED

Set Up

Power Supply: The American DJ® VioSCAN LED contains a electronic ballast, which will auto sense the voltage when it is plugged into the power source. With the electronic ballast you do not need to worry about wall voltage, this unit can be plugged in anywhere.

DMX-512: DMX is short for Digital Multiplex. This is a universal protocol used by most lighting and controller manufactures as a form of communication between intelligent fixtures and controllers. A DMX controller sends DMX data instructions from the controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture via the DATA "IN" and DATA "OUT" XLR terminals located on all DMX fixtures (most controllers only have a DATA "OUT" terminal).

DMX Linking: DMX is a language allowing all makes and models of different manufactures to be linked together and operate from a single controller, as long as all fixtures and the controller are DMX compliant. To ensure proper DMX data transmission, when using several DMX fixtures try to use the shortest cable path possible. The order in which fixtures are connected in a DMX line does not influence the DMX addressing. For example; a fixture assigned a DMX address of 1 may be placed anywhere in a DMX line, at the beginning, at the end, or anywhere in the middle. Therefore, the first fixture controlled by the controller could be the last fixture in the chain. When a fixture is assigned a DMX address of 1, the DMX controller knows to send DATA assigned to address 1 to that unit, no matter where it is located in the DMX chain.

Data Cable (DMX Cable) Requirements (For DMX and Master/Slave

Operation): The VioSCAN LED can be controlled via DMX-512 protocol. The VioSCAN LED has 2 DMX channel modes; a 1 Channel mode and 5 Channel mode. The DMX address is set electronically using the controls on the rear of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input and data output (Figure 1). We recommend Accu-Cable DMX cables. If you are making your own cables, be sure to use standard 110-120 Ohm shielded cable (This cable may be purchased at almost all pro lighting stores). Your cables should be made with a male female XLR connector on either end of the cable. Also remember

Figure 1

American DJ® - www.americandj.com - VioSCAN LED Instruction Manual Page 5

VioSCAN LED

Set Up

that DMX cable must be daisy chained and cannot be split.

Notice: Be sure to follow figures two and three when making your own cables. Do not use the ground lug on the XLR connector. Do not connect the cable's shield conductor to the ground lug or allow the shield conductor to come in contact with the XLR's outer casing. Grounding the shield could cause a short circuit and erratic behavior.

Figure 2

Figure 3

XLR Pin Configuration

Pin 1 = Ground

Pin 2 = Data Compliment (negative)

Pin 3 = Data True (positive)

Special Note: Line Termination. When longer runs of cable are used, you may need to use a terminator on the last unit to avoid erratic behavior. A terminator is a 110-120 ohm 1/4 watt resistor which is connected between pins 2 and 3 of a male XLR connector (DATA + and DATA -). This unit is inserted in the female XLR connector of the last unit in your daisy chain to terminate the line. Using a cable terminator (ADJ part number Z-DMX/T) will decrease the possibilities of erratic behavior.

Termination reduces signal errors and avoids signal transmission problems and interference. It is always advisable to connect a DMX terminal, (Resistance 120 Ohm 1/4 W) between PIN 2 (DMX-) and PIN 3 (DMX+) of the last fixture.

Figure 4

American DJ® - www.americandj.com - VioSCAN LED Instruction Manual Page 6

VioSCAN LED

Set Up VioSCA

5-Pin XLR DMX Connectors. Some manufactures use 5-pin DMX-512 data cables for DATA transmission in place of 3-pin. 5-pin DMX fixtures may be implemented in a 3-pin DMX line. When inserting standard 5-pin data cables in to a 3-pin line a cable adaptor must be used, these adaptors are readily available at most electric stores. The chart below details a proper cable conversion.

3-Pin XLR to 5-Pin XLR Conversion
Conductor 5-Pin XLR Male (In)3-Pin XLR Female (Out)
Ground/Shield	Pin 1	Pin 1
Data Compliment (- signal)	Pin 2	Pin 2
Data True (+ signal)	Pin 3	Pin 3
Not Used		Pin 4 - Do Not Use
Not Used		Pin 5 - Do Not Use

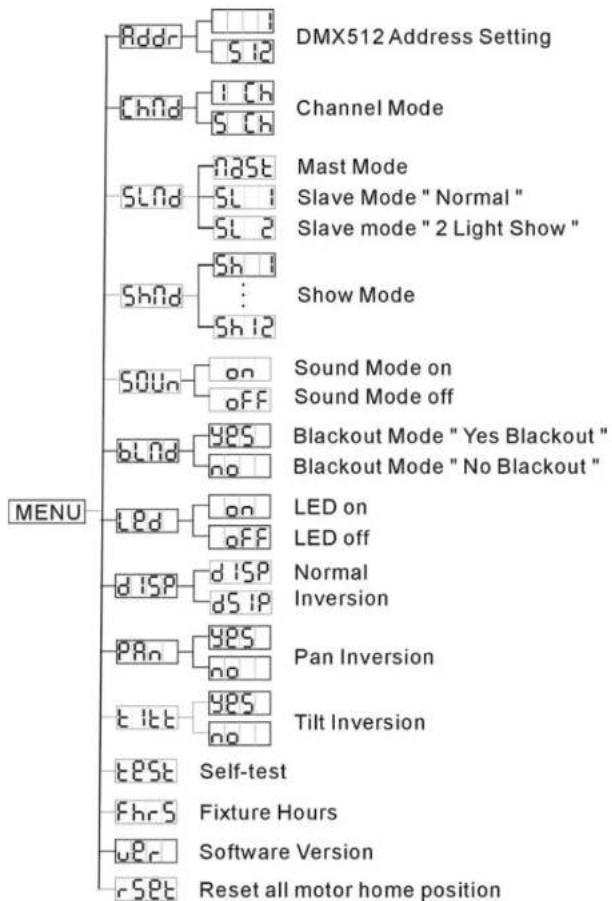

System Menu

VioSCAN LED

System Menu & Operation

Operating Modes: The VioSCAN LED can operate in three different modes. This next section will detail the differences in the operating modes.

• Sound Active mode -
The unit will react to sound.
- Show mode -
Select 1 of 12 preset shows to run.
• DMX control mode -

This function will allow you to control each individual fixtures traits with a standard DMX-512 controller such as the Elation® Show Designer. ^TM

ADDR - DMX Address Setting.

1. Tap the either the MENU, UP, or DOWN buttons until "ADDR" is displayed, press ENTER.
2. A number between 1-512 will be displayed and flashing. Press the UP or DOWN buttons to find your desired address. Press ENTER to set your desired DMX address.

CHNO - This will let select your desired DMX mode.

1. Tap the either the MENU button until "CHNO" is displayed, press ENTER. Either "ICH" or "SCH" will be displayed
2. Tap the UP or DOWN buttons to choose your desired DMX mode and press ENTER to confirm and exit.

SLND - This will let you set unit as a master or slave in a master/slave configuration.

1. Tap the either the MENU button until "SLNO" is displayed, press ENTER. "RSTR", "SL1" or "SL2" will be displayed.
2. Tap the UP or DOWN buttons until your desired setting is displayed, press ENTER to confirm and exit.

VioSCAN LED

System Menu & Operation

SHNO: SH 1 - SH 12 - Show modes 1-12 (Factory programs) Show mode can be run with sound activity or without. For show mode to run without sound activity turn sound activity off.

1. Tap the MENU button until "SHNO" is displayed, press ENTER.
2. "SH X" will now be displayed, "X" representing a number between 1-12. Shows 1-12 are preset shows. Press the UP or DOWN buttons to find your desired show.
3. Press ENTER, and then press and hold the MENU button for at least 3 seconds to confirm.
   Note: Once a show is running you can switch between shows using the UP or DOWN buttons.
4. The optional UC3 Controller (not included) may be used to control different functions including blackout.

SOUN - In this mode you can run in sound active mode.

1. Tap the MENU button until "SOUN" is displayed, press ENTER.
2. Either "ON" or "OFF" will now be displayed. Press the UP or DOWN buttons to select one or the other.
3. When you have made your selection, press the ENTER, and then press and hold the MENU button for at least 3 seconds to confirm.
4. The optional UC3 Controller (not included) may be used to control different functions including blackout.

BLND - Blackout or Stand by mode.

1. Tap the either the MENU button until "BLND" is displayed, press ENTER. Either Yes or No will be displayed.
2. To activate Blackout tap the UP or DOWN buttons until Yes is

VioSCAN LED

System Menu & Operation

displayed, press ENTER to confirm and exit. The fixture will now be in Blackout mode. To deactivate Blackout mode, select No and press Enter.

LED - With this function you can have the LED display turn off after 20 seconds.

1. Tap the MENU button until "LED" is displayed, press ENTER.
2. The display will show either "ON" or "OFF". Press the UP or DOWN buttons to select "ON" to keep the LED display on at all times, or "OFF" to switch to have the LED display switch off after 20 seconds.
3. Press ENTER to confirm.

DISP - This function will reverse the display 180°.

1. Tap the MENU button until "DISP" is displayed, press ENTER.
2. Press ENTER to "flip" the display. Press ENTER to "flip" it again. Press ENTER when you have made your desired setup.

PAN - Pan Inversion

1. Tap the either the MENU button until "PAN" is displayed, press ENTER. Either Yes or No will be displayed.
2. To activate the Pan inversion tap the UP or DOWN buttons until YES is displayed, press ENTER to confirm and exit. To deactivate Pan inversion, select No and press Enter.

TILT - Tilt Inversion

1. Tap the either the MENU button until "TILT" is displayed, press ENTER. Either Yes or No will be displayed.
2. To activate the Tilt inversion tap the UP or DOWN buttons until YES is displayed, press ENTER to confirm and exit. To

American DJ8 - www.americandj.com - VioSCAN LED Instruction Manual Page 11

VioSCAN LED

System Menu & Operation

deactivate Tilt inversion, select No and press Enter.

TEST - This function will run a self test program.

1. Tap the MENU button until "TEST" is displayed, press ENTER.
2. The fixture will now run a self test.

FARS - With this function you can display the running time of the unit.

1. Tap the either the MENU button until "FHRS" is displayed, press ENTER.
2. The display shows the running time of the unit. Press MENU to exit.

VER - With this function you can display the version software of the fixture.

1. Tap the MENU button until "VER" is displayed, press ENTER.
2. The software version will now be displayed. Press MENU to exit

RSET - Use this function to reset the unit.

1. Tap the either the MENU button until "RSET" is displayed, press ENTER.
2. The fixture will now reset.

American DJ® - www.americandj.com - VioSCAN LED Instruction Manual Page 12

VioSCAN LED

Universal DMX Control

Universal DMX Control: This function allows you to use a Elation universal DMX-512 controller to control mirror movement, the colors and gobos, dimming and strobe. A DMX controller allows you to create unique programs tailored to your individual needs.

1. The VioSCAN LED has 2 DMX Channel modes; a 1 Channel mode and 3 Channel mode. See pages 15-16 for a detailed description of the DMX traits.
2. To control your fixture in DMX mode, follow the set-up procedures on pages 5-7 as well as the set-up specifications that are included with your DMX controller.
3. Use the controller's faders to control the various DMX fixture traits.
4. This will allow you to create your own programs.
5. Follow the instructions on page 9 to set the DMX address.
6. For longer cable runs (more than a 100 feet) use a terminator on the last fixture.
7. For help operating in DMX mode consult the manual included with your DMX controller.

VioSCAN LED

Master-Slave Operation

Master-Slave Operation: This function will allow you to link up to 16 units together and operate without a controller. The units will be sound activated. In Master-Slave operation one unit will act as the controlling unit and the others will react to the controlling units programs. Any unit can act as a Master or as a Slave.

1. Using standard XLR microphone cables, daisy chain your units together via the XLR connector on the rear of the units. Remember the Male XLR connector is the input and the Female XLR connector is the output. The first unit in the chain (master) will use the female XLR connector only - The last unit in the chain will use the male XLR connector only. For longer cable runs we suggest a terminator at the last fixture.
2. On the Master unit set your desired operating mode.
3. On the slave units press the MENU button until "SLNO" is displayed, and Press ENTER.
4. Either "SL 1" or "SL 2" will be displayed, select either one of the slave modes and press ENTER. The slave unit will now follow the Master unit. Please see below for an explanation of the 2 Slave modes.

VioSCAN LED

Master-Slave Operation

Note: When running fixtures in Master/Slave configuration "SL 1" will make the fixture do the opposite to the other fixture. Example: Four fixtures linked together. On fixtures 1 and 3 set the fixtures to "SL 1", and set fixtures 2 & 4 to "SL 2". Fixtures 1 & 2 will run the same and fixtures 2 & 4 will run opposite. This makes a great light show.

1. The optional UC3 Controller (not included) may be used to control different functions including blackout.

VioSCAN LED

Power Cord Daisy Chain

With this feature you can connect the fixtures to one another using the IEC input and output sockets. The quantity that can be connected is 8 fixtures maximum. After 8 fixtures you will need to use a new power outlet. They must be the same fixtures. DO NOT mix fixtures.

VioSCAN LED
UC3 Control

Stand by	Blackout the unit
Function	1. Synchronous Strobe2. Sound Strobe in white3. Sound Strobe in color	Select Color1.Red2.Green3.Bln4.White5.R+G6.R+B7.R+W8.G+B9.G+W10.B+W11.R+G+B12.R+G+W13.R+B+W14.G+B+W15.R+G+B+W16.Color change by sound	Select show1-12
Mode	Strobe (LED OFF)	Show (LED ON)	LED blinking

VioSCAN LED 1 Channel DMX Mode - Values & Traits
Channel	Value	Function
1		SHOWS
	0 - 9	NO FUNCTION
	10 - 29	SHOW 1
	30 - 49	SHOW 2
	50 - 69	SHOW 3
	70 - 89	SHOW 4
	90 - 109	SHOW 5
	110 - 129	SHOW 6
	130 - 149	SHOW 7
	150 - 169	SHOW 8
	170 - 189	SHOW 9
	190 - 209	SHOW 10
	210 - 229	SHOW 11
	230 - 249	SHOW 12
	250 - 255	SOUND ACTIVE

VioSCAN LED 5 Channel DMX Mode - Values & Traits
Channel	Value	Function
1	0 - 255	PAN
2	0 - 255	TILT
3		DIMMER/STROBE
	0 - 7	NO FUNCTION
	8 - 199	DIMMER 0% - 100%
	200 - 247	STROBING SLOW - FAST
	248 - 255	OPEN
4		COLORS
	0 - 7	BLACKOUT
	8 - 24	RED
	25 - 41	GREEN
	42 - 57	BLUE
	58 - 74	WHITE
	75 - 91	RED & GREEN
	92 - 107	RED & BLUE
	108 - 124	RED & WHITE
	125 - 141	GREEN & BLUE
	142 - 157	GREEN & WHITE
	158 - 174	BLUE & WHITE
	175 - 191	RED, GREEN, & BLUE
	192 - 207	RED, GREEN, & WHITE
	208 - 224	RED, BLUE, & WHITE
	225 - 240	GREEN, BLUE, & WHITE
	241 - 255	RED, GREEN, BLUE, & WHITE
5		GOBO ROTATION
	0 - 9	STOP
	10 - 120	ROTATION FAST - SLOW
	121 - 134	STOP
	135 - 245	ROTATION SLOW - FAST
	246 - 255	STOP

VioSCAN LED

Fuse Replacement

Locate and remove the unit's power cord. Once the cord has been removed located the fuse holder located inside the power socket. Insert a flat-head screw driver into the power socket and gently pry out the fuse holder. Remove the bad fuse and replace with a new one. The fuse holder has a built-in socket for a spare fuse be sure not to confuse the spare fuse with active fuse.

VioSCAN LED

Cleaning

Fixture Cleaning: Due to fog residue, smoke, and dust cleaning the internal and external optical lenses and mirror should be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates (i.e. smoke, fog residue, dust, dew). In heavy club use we recommend cleaning on a monthly basis. Periodic cleaning will ensure longevity, and crisp output.

1. Use normal glass cleaner and a soft cloth to wipe down the outside casing.
2. Use a brush to wipe down the cooling vents and fan grill.
3. Clean the external optics and mirror with glass cleaner and a soft cloth every 20 days.
4. Clean the internal optics with glass cleaner and a soft cloth every 30-60 days.
5. Always be sure to dry all parts completely before plugging the unit back in.

VioSCAN LED

Trouble Shooting

Trouble Shooting: Listed below are a few common problems that you may encounter, with solutions.

No light output from the unit;

1. Be sure that the provided I.E.C. power cord is connected correctly.
2. Be sure the external fuse has not blown. The fuse is located on the bottom panel of the unit.
3. Be sure the fuse holder is completely and properly seated.

Unit does not respond to sound;

1. Low frequencies (bass) should cause the unit to react to sound. Tapping on the microphone, quiet or high pitched sounds may not activate the unit.

American DJ® - www.americandj.com - VioSCAN LED Instruction Manual Page 17

VioSCAN LED

Warranty

MANUFACTURER'S LIMITED WARRANTY

A. American DJ, Inc. hereby warrants, to the original purchaser, American DJ and American Audio products to be free of manufacturing defects in material and workmanship for a prescribed period from the date of purchase (see specific warranty period on reverse). This warranty shall be valid only if the product is purchased within the United States of America, including possessions and territories. It is the owner's responsibility to establish the date and place of purchase by acceptable evidence, at the time service is sought.

B. For warranty service you must obtain a Return Authorization number (RA#t) before sending back the product. Contact American DJ, Inc. Service Department at 800-322-6337. Send the product only to the American DJ, Inc. factory. All shipping charges must be pre-paid. If the requested repairs or service (including parts replacement) are within the terms of this warranty, American DJ, Inc. will pay return shipping charges only to a designated point within the United States. If the entire instrument is sent, it must be shipped in its original package. No accessories should be shipped with the product. If any accessories are shipped with the product, American DJ, Inc. shall have no liability whatsoever for loss of or damage to any such accessories, nor for the safe return thereof.

C. This warranty is void if the serial number has been altered or removed; if the product is modified in any manner which American DJ, Inc. concludes, after inspection, affects the reliability of the product; if the product has been repaired or serviced by anyone other than the American DJ, Inc. factory unless prior written authorization was issued to purchaser by American DJ, Inc.; if the product is damaged because not properly maintained as set forth in the instruction manual. D. This is not a service contract, and this warranty does not include maintenance, cleaning or periodic check-up. During the period specified above, American DJ, Inc. will replace defective parts at its expense with new or refurbished parts, and will absorb all expenses for warranty service and repair labor by reason of defects in material or workmanship. The sole responsibility of American DJ, Inc. under this warranty shall be limited to the repair of the product, or replacement thereof, including parts, at the sole discretion of American DJ. All products covered by this warranty were manufactured after January 1, 1990, and bear identifying marks to that effect. E. American DJ, Inc. reserves the right to make changes in design and/or improvements upon its products without any obligation to include these changes in any products theretofore manufactured. No warranty, whether expressed or implied, is given or made with respect to any accessory supplied with products described above. Except to the extent prohibited by applicable law, all implied warranties made by American DJ, Inc. in connection with this product, including warranties of merchantability or fitness, are limited in duration to the warranty period set forth above. And no warranties, whether expressed or implied, including warranties of merchantability or fitness, shall apply to this product after said period has expired. The consumer's and/or Dealer's sole remedy shall be such repair or replacement as is expressly provided above; and under no circumstances shall American DJ, Inc. be liable for any loss or damage, direct or consequential, arising out of the use of, or inability to use, this product.

This warranty is the only written warranty applicable to American DJ and American Audio Products and supersedes all prior warranties and written descriptions of warranty terms and conditions heretofore published.

MANUFACTURER'S LIMITED WARRANTY PERIODS:

• All American Audio Products = 1-year (365 clay) Limited Warranty (except V-Plus Series Amplifiers)
• All American Audio V-Plus Series Amplifiers = 3-year (1095 day) Limited Warranty
• American DJ Lighting and American DJ Branded Products = 1-year (365 day) Limited Warranty (Such as: Special Effect Lighting, Intelligent Lighting, UV lighting, Strobes, Fog Machines, Bubble Machines, Mirror Balls, Par Cans, Trussing, Lighting Stands etc. excluding Laser Products, lamps, and Star Tec Series)
  • American DJ Laser Products and Star Tec Products = 90-Day Limited Warranty
• American DJ L.E.D. Products (U.S. Only) = 3-year (1095 day) Limited Warranty (excluding motors which have a 1-year (365 day Limited Warranty))
  American DJ® - www.americandj.com' - VioSCAN LED Instruction Manual Page 18

VioSCAN LED

Specifications

Model: VioSCAN LED

Voltage: 100V \~ 240V 50/60Hz

LEDs: 1 x 10W RGBW Quad LED

Power Draw: 34W

Power Cord Daisy Chain: 8 Fixtures Max.

Dimensions: 16.5"(L) x 6.5"(W) x 6.75"(H) 420 x 161mm x 172mm

Colors: RGB + White

Weight: 10 Lbs. / 4.2 kgs.

Beam Angle: 30 Degrees

Fuse: 7A

Duty Cycle: None

DMX: 2 DMX Channel Modes: 1 Channel

Mode & 5 Channel Mode

Sound Active: Yes

Working Position: Any Safe, Secure Position

Warranty: 3 Year (1095 days) U.S. Only

Auto Sensing Voltage: This fixture contains a electronic ballast, which will auto sense the voltage when it is plugged into the power source.

Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice.

©American DJ Supply

American DJ World Headquarters:

6122 S. Eastern Ave. Los Angeles, CA 90040 USA

Tel: [phone] / Fax: [phone]

Web: www.americandj.com / E-mail: [e-mail]

American DJ Europe

Junostraat 2

6468 EW Kerkrade

Netherlands

[e-mail] / www.americandj.eu

Tel: [phone] / Fax: [phone]
