Product Type	Hot Dog Maker
Brand	Star
Model	Bun Box SS50BB
Dimensions (W x D x H)	Approx. 20 x 15 x 12 inches
Weight	Approx. 25 lbs
Power Supply	120V / 60Hz
Power Consumption	1500 W
Capacity	50 hot dogs / buns
Cooking Method	Roller grilling
Temperature Control	Adjustable thermostat
Material	Stainless steel
Features	Roller grill with bun warmer, drip tray, front access door
Cleaning	Removable drip tray, wipe down with damp cloth
Safety	UL listed, grounded plug, overheat protection
Warranty	1 year limited
Included Accessories	User manual, cleaning brush

Frequently Asked Questions - Bun Box SS50BB STAR

How do I preheat the Bun Box SS50BB?

Plug in the unit and turn the thermostat to the desired temperature. Allow approximately 15 minutes for preheating. The indicator light will cycle to maintain temperature.

Can I use the Bun Box to cook other foods?

The Bun Box is designed specifically for hot dogs and buns. Do not use it for other foods as it may damage the rollers or cause uneven cooking.

How do I clean the drip tray?

Wait for the unit to cool, then remove the drip tray from beneath the rollers. Wash with warm soapy water, rinse, and dry thoroughly before replacing.

What should I do if the hot dogs are not cooking evenly?

Ensure the rollers are rotating freely and the thermostat is set correctly. Rotate hot dogs manually if needed. Clean any debris from rollers.

Is it safe to leave the Bun Box unattended?

No, never leave the unit unattended while operating. Always monitor cooking to prevent overheating or fire hazards.

How many hot dogs can I cook at once?

The SS50BB holds up to 50 hot dogs and buns simultaneously, but for best results, do not overload.

Does the Bun Box have a timer?

No, the unit does not have a built-in timer. You should use an external timer or monitor cooking time manually.

What type of buns are recommended?

Standard hot dog buns work best. Do not use oversized or pre-split buns as they may not fit properly in the warmer.

How do I replace a roller if it stops turning?

Contact Star customer service for replacement parts. The rollers are not user-serviceable; professional repair is recommended.

Can I use an extension cord?

Avoid extension cords. If necessary, use a heavy-duty cord rated for 15 amps and ensure it is properly grounded.

USER MANUAL Bun Box SS50BB STAR

Installation and Operation Instructions

2M-Z2522 Rev. E 4/21/10

9B-SS50BB

RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE

Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability.

Star reserves the right to change specifications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.

Due to periodic changes in designs, methods, procedures, policies and regulations, the specifications contained in this sheet are subject to change without notice. While Star International Holdings Inc., Company exercises good faith efforts to provide information that is accurate, we are not responsible for errors or omissions in information provided or conclusions reached as a result of using the specifications. By using the information provided, the user assumes all risks in connection with such use.

MAINTENANCE AND REPAIRS

Contact your local authorized service agent for service or required maintenance.

Please record the model number, serial number, voltage and purchase date in the area below and have it ready when you call to ensure a faster service.

Model No.

Serial No.

Voltage

Purchase Date

Authorized Service Agent Listing

Reference the listing provided with the unit

or

for an updated listing go to:

Website: www.star-mfg.com

E-mail [e-mail]

Service Help Desk

Business 8:00 am to 4:30 p.m. Central Standard Time

Hours:

Telephone: [phone] Local [phone]

Fax: [phone] Local [phone]

E-mail [e-mail]

[e-mail]

[e-mail]

Website: www.star-mfg.com

Mailing Address: Star International Holdings Inc., Company

10 Sunnen Drive

St. Louis, MO 63143

U.S.A

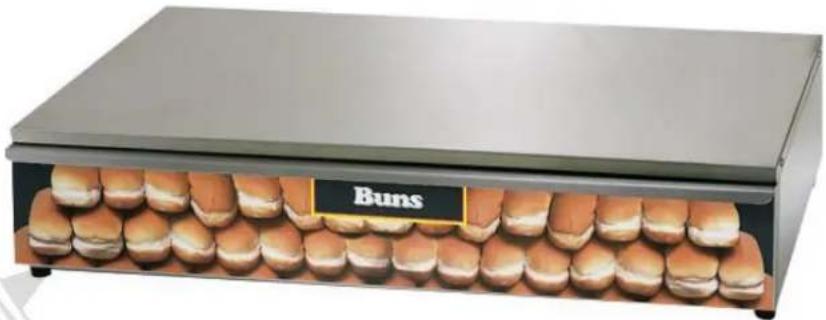

SS30BB

Type: Bun Box

Bun Capacity: 48 Buns

Approximate Weight: installed - 26 Lbs (11.8 kg), shipping - 37 Lbs (16.8 kg)

Dimensions: 23 3/4" - Width, 20 5/8" - Depth, 6 7/8" - Height

(60.3 cm - Width, 525.4 cm - Depth, 17.5 cm - Height)

SS30BB

Type: Bun Box

Bun Capacity: 64 Buns

Approximate Weight: installed - 38 Lbs (17 kg), shipping - 53 Lbs (24 kg)

Dimensions: 23 3/4" - Width, 20 5/8" - Depth, 6 7/8" - Height

(60.3 cm - Width, 525.4 cm - Depth, 17.5 cm - Height)

CAUTION

This equipment is designed and sold for commercial use only by personnel trained and experienced in its operation and is not sold for consumer use in and around the home nor for use directly by the general public in food service locations.

CLEANING

To remove the drawer for cleaning;

First pull the drawer out until it stops.

Second, remove the interior pan.

Third, grasp the drawer assembly with both hands.

Fourth, lift the drawer in an upward direction, while slowly pulling out.

This will disengage the drawer from the drawer stops. To re-install the drawer reverse the procedure.

For retaining the high luster on the stainless steel, use a non-abrasive standard stainless steel cleaner.

MAINTENANCE AND REPAIRS

Contact the factory, a service representative, or a local service company for service or required maintenance.

THOROUGHLY INSPECT YOUR UNIT ON ARRIVAL

This unit has been tested for proper operation before leaving our plant to insure delivery of your unit in perfect condition. However, there are instances in which the unit may be damaged in transit. In the event you discover any type of damage to your product upon receipt, you must immediately contact the transportation company who delivered the item to you and initiate your claim with same. If this procedure is not followed, it may affect the warranty status of the unit.

LIMITED EQUIPMENT WARRANTY

All workmanship and material in Star products have a one (1) year limited warranty on parts & labor in the United States and Canada. Such warranty is limited to the original purchaser only and shall be effective from the date the equipment is placed in service. Star's obligation under this warranty is limited to the repair of defects without charge, by the factory authorized service agency or one of its sub-agencies. Models that are considered portable (see below) should be taken to the closest Star service agency, transportation prepaid.

Star will not assume any responsibility for loss of revenue.
On all shipments outside the United States and Canada, see International Warranty.
* The warranty period for the JetStar six (6) ounce & Super JetStar eight (8) ounce series popcorn machines is two (2) years.
* The warranty period for the Chrome-Max Griddles is five (5) years on the griddle surface. See detailed warranty provided with unit.
* The warranty period for Teflon/Dura-Tec coatings is one year under normal use and reasonable care. This warranty does not apply if damage occurs to Teflon/Dura-Tec coatings from improper cleaning, maintenance, use of metallic utensils, or abrasive cleaners, abrasive pads, product identifiers and point-of-sale attachments, or any other non-food object tha comes in continuous contact with the roller coating. This warranty does not apply to the "non-stick" properties of such materials.
This warranty does not apply to "Special Products" but to regular catalog items only. Star's warranty on "Special Products" is six (6) months on parts and ninety (90) days on labor.
This warranty does not apply to any item that is disassembled or tampered with for any purpose other than repair by a Star Authorized Service Center or the Service Center's sub-agency.
This warranty does not apply if damage occurs from improper installation, misuse, wrong voltage, wrong gas or operated contrary to the Installation and Operating instructions.
This warranty is not valid on Conveyor Ovens unless a "start-up/check-out" has been performed by a Factory Authorized Technician.

PARTS WARRANTY

Parts that are sold to repair out of warranty equipment are warranted for ninety (90) days. The part only is warranted. Labor to replace the part is chargeable to the customer.

SERVICES NOT COVERED BY WARRANTY

1. Travel time and mileage rendered beyond the 50 mile radius limit
2. Mileage and travel time on portable equipment (see below)
3. Labor to replace such items that can be replaced easily during a daily cleaning routine, ie; removable kettles on fryers, knobs, grease drawers on griddles, etc.
4. Installation of equipment
5. Damages due to improper installation
6. Damages from abuse or misus
7. Operated contrary to the Operating and Installation Instructions
8. Cleaning of equipment

9. Seasoning of griddle plate

10. δ ltag e conversons

11. Gas conversions
12. Pilot light adjustment
13. Miscellaneous adjustments
14. Thermostat calibration and by-pass adjustment
15. Resetting of circuit breakers or safety controls or reset buttons
16. Replacement of bulbs
17. Replacement of fuses
18. Repair of damage created during transit, delivery, & installation OR created by acts of God

PORTABLE EQUIPMENT

Star will not honor service bills that include travel time and mileage charges for servicing any products considered "Portable" including items listed below. These products should be taken to the Service Agency for repair:

* The Model 510FD Fryer.
* The Model 526TOA Toaster Oven.
* The Model J4R, 4 oz. Popcorn Machine.
* The Model 518CMA & 526CMA Cheese Melter.
* The Model 12MC & 15MC & 18MCP Hot Food Merchandisers.
* The Model 12NCPW & 15NCPW Nacho Chip/Popcorn Warmer.
* All Hot Dog Equipment except Roller Grills & Drawer Bun Warmers.
* All Nacho Cheese Warmers except Model 11WLA Series Nacho Cheese Warmer.
* All Condiment Dispensers except the Model HPD & SPD Series Dispenser.
* All Specialty Food Warmers except Model 130R, 11RW Series, and 11WSA Series.
* All QCS/RCS Series Toasters except Model QCS3 & RCS3 Series.
* All Fast Steamer Models except Direct Connect Series.

ALL:

* Pop-Up Toasters
* Butter Dispensers
* Pretzel Merchandisers (Model 16PD-A Only)
* Pastry Display Cabinets
* Nacho Chip Merchandisers
* Accessories of any kind
* Sneeze Guards
* Pizza Ovens (Model PO12 Only)
* Heat Lamps
* Pumps-Manual

The foregoing warranty is in lieu of any and all other warranties expressed or implied and constitutes the entire warranty.

FOR ASSISTANCE

Should you need any assistance regarding the Operation or Maintenance of any Star equipment; write, phone, fax or email our Service Department. In all correspondence mention the Model number and the Serial number of your unit, and the voltage or type of gas you are using.

MODELS SS50BB AND SS30BB

STAR MANUFACTURING INTERNATIONAL, INC.

SK1633 REV C

4/21/2010

MODEL SS30BB and SS50BB BUN BOX

Key Number	Part Number	Number Per Unit	Description
1 A4-	BB3002 1 LINER TOP - ASSY 30BBC	SS30BBC
	A4-BB5002	1	TOP LINER ASSY 50BBC	SS50BBC
	A4-BW3009 1 Top		SS30BB
	A4-BW5007 1 Top		SS50BB
2 A4-	Z3338	1 Liner-Body
	A4-Z3339	1	Liner Body	SS50BB
3 A4-	Z2372	1 Body
	A4-Z2397	1	Body	SS50BB
4 A4-	Z2375	1 Bottom
	A4-Z2400	1	Bottom	SS50BB
	A4-Z5828	1	BOTTOM	SS30BBC
	A4-Z5829	1	BOTTOM 50BBC	SS50BBC
5 2D-	Z5898	2 Bun Pan
	2D-Z5899	1	Bun Pan	SS30BB
6 A4-	BW3012 1 Drawer Frame Assy.		SS30BB
	A4-BW5010	1	Drawer Frame Assy.	SS50BB
7 A4-	Z3316	1 Drawer Liner
	A4-Z3322	1	Drawer Liner	SS30BB
8 A4-	BW3001 1 Drawer Front		SS30BB
	A4-BW5001 1 Drawer Front		SS50BB
9	2M-Z2286	1	Graphic-Drawer	SS30BB
	2M-Z2326	1	Graphic-Drawer	SS50BB
10	2R-Z5846	4	FOOT-ROLLER GRILLS	ALL
13	2P-Z0315	4 Roller
14	2C-1810	12	Burr Riveting
15	2C-Z0498	8 Nut 10-24 Nylok
16	2C-Y1451	2 Rivet .125 X .25
17	2C-6349	32	Screw #8 x .375 TH NP
	2C-6349	27	SCREW #8X3/8 B THP STL NP	SS30BBC, SS50BBC
18	2C-Z2642	4 Threaded Insert
19	2P-Z2663	1 Dome Plug
20	A4-BB3001	1	DOOR ASSY 30BBC (CLEAR)	SS30BBC
	A4-BB5001	1	DOOR ASSY 50BBC (CLEAR)	SS50BBC
NI	A4-Z5822	1	DOOR HINGE LEFT	SS30BBC, SS50BBC
NI	A4-Z5823	1	DOOR HINGE RIGHT	SS30BBC, SS50BBC
