Product Type	10G SFP+ Fiber Optic Transceiver Module
Connector Type	Dual LC (DX-LC)
Fiber Type	Multimode (MM)
Data Rate	10 Gbps
Wavelength	850 nm
Maximum Distance	300 m (OM3) / 150 m (OM2)
Optical Power Budget	Typically 2.6 dB
Power Supply	3.3V DC
Power Consumption	<1.0 W
Operating Temperature	0°C to 70°C (32°F to 158°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Dimensions (WxDxH)	13.4 mm x 56.5 mm x 8.5 mm
Weight	Approx. 20 g
Hot-Pluggable	Yes
Digital Diagnostic Monitoring (DDM)	Supported
Compliance	IEEE 802.3ae, SFF-8472, RoHS
Safety	Class 1 Laser Product (IEC 60825-1)
Maintenance	Clean optical connectors with lint-free wipes and isopropyl alcohol.
Reparability	Not user-serviceable; replace module if faulty.
Package Contents	1x 10G-MM-DX-LC transceiver module

Frequently Asked Questions - 10G-MM-DX-LC Luxul

What is the Luxul 10G-MM-DX-LC?

The Luxul 10G-MM-DX-LC is a 10 Gigabit SFP+ fiber optic transceiver module designed for multimode fiber networks with dual LC connectors.

What type of fiber does it support?

It supports multimode fiber (MM) and is optimized for OM3 and OM2 cable types.

What is the maximum transmission distance?

The maximum distance is 300 meters over OM3 and 150 meters over OM2 multimode fiber.

What is the power consumption of this module?

Power consumption is typically less than 1.0 Watt, supplied at 3.3V DC.

Is the module hot-pluggable?

Yes, it is hot-pluggable, allowing installation or removal without powering down the system.

Does it support Digital Diagnostic Monitoring (DDM)?

Yes, it supports DDM (SFF-8472) for real-time monitoring of parameters like temperature, voltage, and optical power.

What are the operating temperature ranges?

Operating temperature is 0°C to 70°C (32°F to 158°F), and storage temperature is -40°C to 85°C (-40°F to 185°F).

How should I clean the optical connectors?

Use lint-free wipes and isopropyl alcohol to gently clean the fiber end faces. Avoid touching them.

Is the module compliant with industry standards?

Yes, it complies with IEEE 802.3ae, SFF-8472, and is RoHS compliant.

What should I do if the module fails?

The module is not user-serviceable. If faulty, replace it with a new unit. Check your warranty or contact support.

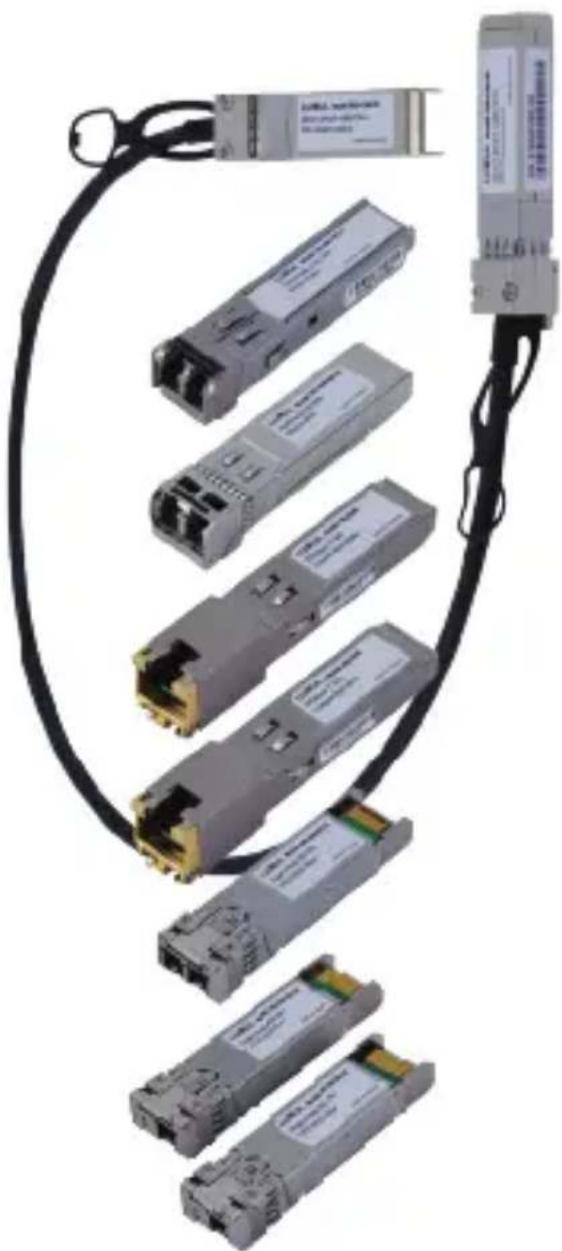

USER MANUAL 10G-MM-DX-LC Luxul

Direct-Attach Cable 0.5m 10G Copper Passive

1G-MM-DX-LC

1G Multimode Fiber Duplex SFP Module 850nm VCSEL

10G-MM-DX-LC

10Gb Multimode Fiber Duplex SFP+ Module 850nm VCSEL

1G-RJ45

1000Base-T RJ-45 SFP Module

10G-RJ45

10GBase-T RJ-45 SFP+ Module

10G-SM-DX-LC

10Gb Single-mode Fiber Duplex SFP+ Module 1310nm DFB Laser

10G-SM-SX-LC

10Gb Single-mode Fiber Simplex SFP+ Module 1310nm/1270nm DFB Laser

Use the SFP Module to:

Extend the distance of connected devices

Provide connectivity between switches

Quick Install Guide

Model Numbers: 1G-MM-DX-LC, 10G-MM-DX-LC, 1G-RJ45, 10G-RJ45, 10G-SM-DX-LC, 10G-SM-SX-LC, 10G-CAB-05-1

© 2018 Luxul. All Rights Reserved.

No part of this publication may be modified or adapted in any way, for any purposes, without permission in writing from Luxul. The material in this manual is subject to change without notice. Luxul reserves the right to make changes to any product to improve reliability, function, or design. No license is granted, either expressly or by implication or otherwise, under any Luxul intellectual property rights. An implied license only exists for equipment, circuits, and subsystems contained in this or any Luxul product.

DOCUMENT CONVENTIONS

The following alerts are used to indicate notable situations:

NOTE: Tips, hints, or special requirements that you should take note of.

CAUTION: Care is required. Disregarding a caution can result in data loss or equipment malfunction.

WARNING!: Indicates a condition or procedure that could result in personal injury or equipment damage.

FCC COMPLIANCE

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference
(2) This device must accept any interference received, including interference that may cause undesired operation

CONTACT LUXUL

Sales

P: 801-822-5450, Option 1

E: [e-mail]

Technical Support

P: 801-822-5450, Option 2

E: [e-mail]

WHAT THIS PRODUCT DOES:

These SFP Modules are designed for use with Luxul Ethernet switches that have a corresponding SFP or SFP+ port. The modules can be used to interconnect Luxul switches or provide an additional port for connectivity to a networked device (computer, etc.). The modules allow for connectivity over various media, bandwidths, and distances: UTP copper or fiber optic cabling, short or long distances, 1 or 10 Gigabit.

WARNING!: Grasp module by the sides to install or remove from SFP ports. Do not use the cable.

WARNING!: Pulling, bending, kinking, or twisting fiber optic cable will cause damage to the cable.

WARNING!: Put on an electrostatic discharge (ESD) wrist strap and attach the clip end to a metal surface (such as an equipment rack) to act as ground during installation.

INSTALLATION

Remove the SFP Module from its protective packaging

Gently insert the SFP Module into the SFP port of the Luxul switch until it clicks into place. The SFP Modules are keyed to prevent incorrect insertion. A tab on the bottom of the SFP Module locks it to the front panel of the switch

Remove the protective covering from the port connectors of the SFP Module and store the covering for future use

The SFP Module is now ready to receive the compatible cable

NOTE: SFP Modules are hot swappable.

NOTE:

When connecting to devices that will require a SFP Module, the same module must be used on both sides of the connection (EX. a 1G-RJ45 SFP Module on one side of the connection requires that a 1G-RJ45 is used on the other side of the connection). The exception is the 10G-SM-SX-LC, which comes as a pair of compatible modules—one for each side of the connection.

SFP MODULES HARDWARE FEATURES

Module	Type	Cable Type	Mode	Interface
10G-CAB-05	Cable	N/A	N/A	N/A
1G-RJ45	UTP/STP	Cat.5e or Cat.6/7 UTP/STP	N/A	RJ-45
10G-RJ45		Cat.6/7 UTP/ST	N/A
1G-MM-DX-LC		Duplex Fiber	Multi	LC
10G-MM-DX-LC	Optical Fiber	Duplex Fiber	Multi
10G-SM-DX-LC		Duplex Fiber	Single
10G-SM-SX-LC		Simplex Fiber	Single
