Product Type	Wall Socket (Female)
Brand	Neutrik
Model	NAC3FX-W-TOP
Series	powerCON TRUE1 TOP
Connector Type	3-pole, locking
Rated Voltage	250 V AC
Rated Current	16 A (20 A UL)
Color	White (RAL 9010)
Housing Material	Polyamide (PA) 6.6, 20% glass fiber
Contact Material	Brass, nickel-plated
Dimensions (HxWxD)	38 x 35 x 57 mm
Weight	31 g
IP Rating	IP20 (mated)
Operating Temperature	-30 °C to +80 °C
Mounting Type	Flush mount, screw fixing
Termination	Screw terminals, up to 2.5 mm²
Safety Standards	EN 60320-1, UL 498, CSA C22.2
Certifications	CE, UL, CSA, RoHS
Flammability Rating	UL 94 V-0
Cleaning	Wipe with dry cloth, no solvents
Maintenance	Periodic check of screw tightness
Spare Parts	Contact Neutrik for replacement modules
Warranty	2 years (manufacturer defects)

Frequently Asked Questions - NAC3FX-W-TOP Neutrik

What is the NAC3FX-W-TOP used for?

The NAC3FX-W-TOP is a flush-mount wall socket for the powerCON TRUE1 TOP series, designed for secure locking AC power connections in professional audio, stage, and industrial applications.

Is the NAC3FX-W-TOP compatible with standard powerCON cables?

Yes, it mates with all powerCON TRUE1 TOP plugs (NAC3FCA, NAC3FCB) and is backward compatible with standard powerCON TRUE1 connectors.

What wire gauge can I use for termination?

The screw terminals accept solid or stranded conductors up to 2.5 mm² (AWG 14). Ensure proper stripping and tightening.

Does the NAC3FX-W-TOP require a specific mounting depth?

The flush-mount design requires a cutout of 28 mm diameter and a minimum back box depth of 35 mm.

What is the IP rating of this socket?

When mated with a powerCON TRUE1 TOP plug, the IP rating is IP20 (protected against solid objects >12.5 mm, no water protection).

Can I use this socket for high-power devices?

Yes, it is rated for 16 A (20 A UL) at 250 V AC, suitable for most professional power distribution.

How do I clean the NAC3FX-W-TOP?

Disconnect power and wipe with a dry, lint-free cloth. Do not use solvents or abrasive cleaners.

Is the NAC3FX-W-TOP UL listed?

Yes, it complies with UL 498 and CSA C22.2 standards, ensuring safety for North American installations.

What torque should I tighten the screws to?

For terminal screws, use 0.6 Nm (5.3 lb-in). For mounting screws, follow the manufacturer's recommendation.

Where can I find the user manual?

The user manual is available for free download on notice-facile.com and the official Neutrik website.

USER MANUAL NAC3FX-W-TOP Neutrik

SETTING STANDARDS

NEUTRIK® – the premium

brand of the Neutrik Group

Neutrik is the worldwide leading supplier of professional connectors and connector systems for the entertainment industry and other complex special applications.

Located in The Principality of Liechtenstein, in the middle of Europe, Neutrik is synonymous with the development, production and distribution of innovative products which have set the standards. No matter whether a rock band or a lighting designer, an industrial application, a broadcast studio or LED Display application – Neutrik offers a superior quality and reliable connector solution for every application.

STATE-OF-THE-ART MANUFACTURING

More than 1000 highly trained employees, modern production facilities and standardized workflows ensure superior quality. Since the start in 1975 Neutrik produced more than 1 billion connectors that have set standards in functionality, technical reliability and durability around the world.

Neutrik's management system and processes are certified according to ISO 9001 and comply to the environmental standards RoHS, REACH and Sony Green Partner.

TRUE OUTDOOR PROTECTION

Neutrik's new range of TRUE OUTDOOR PROTECTION products for demanding outdoor applications continues to set standards. Approved for outdoor use according UL50E. UV resistant and IP65 rated.

TRUE OUTDOOR PROTECTION

TRUE OUTDOOR PROTECTION

etherCON® TOP

powerCON® TRUE1 TOP

XLR TOP

SETTING STANDARDS

TRUE OUTDOOR PROTECTION

TRUE OUTDOOR PROTECTION

The highly innovative entertainment industry is permanently evolving accompanied by increasing demands on interconnection systems. Particularly environmentally sealed connectors are highly requested for heavy-duty and harsh environment applications of entertainment equipment like PA systems, signs and LED screens or lightings.

Neutrik took up the challenge and developed a new line of TRUE OUTDOOR PROTECTION (TOP) products for demanding outdoor applications. This new range includes the popular powerCON TRUE1, etherCON and XLR series. These ruggedized sealed connectors feature not only IP protection but also UV resistance approved according to UL50E.

GLOBAL ENCLOSURE STANDARDS

For safety reasons, connectors have to be protected from outside influences like dust, foreign objects, moisture, water and sunlight. The most common and globally recognized standards for outdoor applications are IEC 60529 with the IPxx ingress protection levels and the UL50E / NEMA 250 enclosure type rating. Although these standards have the same goal to identify an enclosure capacity to withstand environmental influences, they differ in their definition, testing and pass criteria. The UL50E standard requires an UV test for thermoplastic materials which does not form part of the IP test. Neutrik have ensured that the new TOP range of products met both internationally recognized standards.

To ease equipment qualification Neutrik designed and qualified their TOP line to the connector standards IEC 61076-2-103, IEC 60320-1, UL 1977, UL 498. But in addition Neutrik took into account the special requirements for wet locations and outdoor applications and qualified the TOP line also according UL50E.

SETTING STANDARDS

TRUE OUTDOOR PROTECTION

SETTING STANDARDS

etherCON® TOP

ORDERING INFORMATION

NE8MX-TOP	Rugged RJ45 cable connector carrier
NE8FDV-TOP	Rugged D-size chassis connector
NE8FDP-TOP	Rugged D-size feedthrough
NE8FDH-C5E-TOP	Rugged D-size PCB mount
SE8FD-TOP	Outdoor assembly kit

TRUE OUTDOOR PROTECTION

• Heavy-duty sealed RJ45 system for harsh environment
• Rugged cable connector carrier accepting most common RJ45 plugs
  • D-sized receptacles for PCB mount and IDC termination or as feedthrough adapter
  • Outdoor protection acc. IP65 and UL50E
  • Uses high impact UV resistant materials per UL
  • Sealing when disconnected by attached cover
  • Class D or CAT5e acc. ISO/IEC 11801 and TIA/EIA 568B

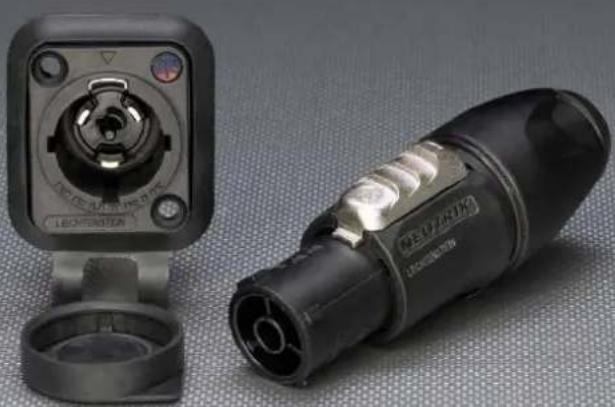

powerCON® TRUE1 TOP

ORDERING INFORMATION

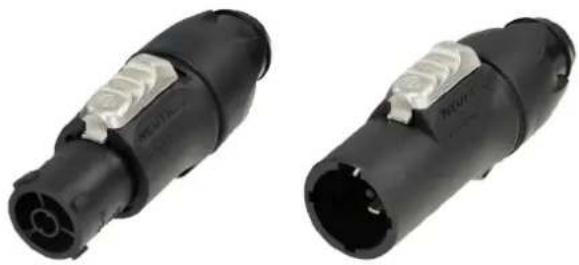

NAC3FX-W-TOP	Locking Power-In cable connector
NAC3MX-W-TOP	Locking Power-Out cable connector
NAC3PX-TOP	Appliance inlet-outlet combination
NAC3MPX-TOP	Appliance inlet connector
NAC3MPX-WOT-TOP	Appliance inlet connector, without insulation divider
NAC3FPX-TOP	Appliance outlet connector
NAC3FPX-ST-TOP	Appliance outlet connector, screw terminals
NAC3FPX-WOT-TOP	Appliance outlet connector, without insulation divider
SCNAC-PX	Rubber sealing cover for NAC3PX-TOP
SCNAC-MPX	Rubber sealing cover for NAC3MPX-TOP
SCNAC-FPX	Rubber sealing cover for NAC3FPX-TOP

• True mains connector with breaking capacity (CBC)
- Designed to be engaged and disengaged in normal use when live or under load
- Lockable 16A (acc. ENEC, VDE) / 20A (acc. UL) connector
- Complete system with inlet and outlet connectors
- Outdoor protection acc. IP65 and UL50E enclosure type 4
• Uses high impact, UV resistant materials per UL
• Certified according IEC 60320-1 and UL 498

TRUE OUTDOOR PROTECTION

SETTING STANDARDS

NC3FX-TOP

NC3MDX-TOP

NC3MX-TOP

NC3FDX-TOP

XLR TOP

ORDERING INFORMATION

NC3FX-TOP	Heavy duty female 3 pole XLR cable connector
NC5FX-TOP	Heavy duty female 5 pole XLR cable connector
NC3MX-TOP	Heavy duty male 3 pole XLR cable connector
NC5MX-TOP	Heavy duty male 5 pole XLR cable connector
NC3FDX-TOP	Heavy duty, female 3-pole XLR chassis connector
NC5FDX-TOP	Heavy duty, female 5-pole XLR chassis connector

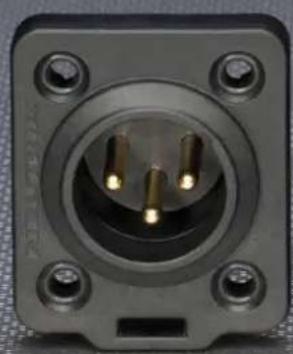

NC3MDX-TOP	Heavy duty, male 3-pole XLR chassis connector
NC5MDX-TOP	Heavy duty, male 5-pole XLR chassis connector
SCFDX-TOP	Sealing cover for NC3FDX-TOP
SCMDX-TOP	Sealing cover for NC3MDX-TOP

CRU US

TRUE OUTDOOR PROTECTION

• Heavy-duty sealed XLR connector range
• 3 and 5 pin chassis and cable connector
• Outdoor protection acc. IP65 and UL50E
- Maintain sealing when in use and when disconnected
• Uses high impact UV resistant materials per UL
• Gold plated contacts
- Optional dust protection cap
