Brand	Scott
Model	Addict RC 15 Komodo
Category	Road bike
Frame material	Carbon fiber (HMX)
Fork	SCOTT Addict RC carbon fork
Groupset	Shimano Ultegra Di2 R8170, 12-speed
Brakes	Shimano Ultegra hydraulic disc
Wheels	Syncros Capital 1.0 40mm carbon
Tires	Schwalbe One Race-Guard 28mm
Weight	Approx. 7.5 kg (16.5 lbs) without pedals
Power supply	Battery (Di2: Shimano BT-DN300, internal)
Main functions	High-performance road cycling, racing, endurance
Maintenance & cleaning	Clean with mild soap, water; avoid pressure washers; lubricate chain regularly
Safety	Always wear helmet; check brakes and tire pressure before ride; obey traffic laws
Spare parts & repairability	Standard bicycle spare parts available; use authorized Scott dealers for frame repairs
General information	Designed for competitive road cycling; aerodynamic and lightweight

Frequently Asked Questions - Addict RC 15 komodo SCOTT

What is the frame material of the Scott Addict RC 15 Komodo?

The frame is constructed from carbon fiber (HMX), offering a lightweight and stiff ride.

What groupset is installed on this bike?

It comes with Shimano Ultegra Di2 R8170, a 12-speed electronic groupset for precise shifting.

What type of brakes does the Addict RC 15 Komodo have?

It features Shimano Ultegra hydraulic disc brakes for reliable stopping power in all conditions.

How much does this bike weigh?

The approximate weight is 7.5 kg (16.5 lbs) without pedals, making it very light for a road bike.

What wheels are standard on this model?

It comes with Syncros Capital 1.0 40mm carbon wheels for aerodynamic performance.

What tire size does it use?

The bike is equipped with Schwalbe One Race-Guard 28mm tires for a balance of speed and comfort.

How should I maintain the Di2 battery?

The Shimano BT-DN300 battery is internal; charge it via the charging port on the rear derailleur. Avoid full discharge.

What is the recommended cleaning method?

Use mild soap and water with a soft cloth. Avoid pressure washers and high-pressure water near bearings and electronics.

Are replacement parts easily available?

Yes, standard bicycle spare parts are widely available. For frame-specific parts, consult an authorized Scott dealer.

What is the intended use of this bike?

The Addict RC 15 Komodo is designed for competitive road cycling and racing, offering high performance and aerodynamic efficiency.

USER MANUAL Addict RC 15 komodo SCOTT

WWW.SCOTT-SPORTS.COM

The Addict RC Disc should be adjusted exactly to the rider for maximum safety and fun while riding.

Please contact your authorized SCOTT dealer for advice in order to avoid technical problems or any harm.

CONTENTS

Geometry/Technical Data Addict RC Disc 04

Headset Options 05

Stem Options. 06

Seatpost Clamp 06

Front Fork Disc 07

Cable Guide Kit .07

RD Hanger 08

Axles. 09

Guarantee on SCOTT Bikes. 10

▼ GEOMETRY/TECHNICAL DATA ADDICT RC DISC

Max/Min Rotor size is:

• Front 160mm only
• Rear 160mm maximum, 140mm minimum

XXS/47

XS/49

S/52

M/54

L/56

XL/58

XIL/57

A

FLAD TUBE ANGLE

100*

70*

720*

730*

733*

733*

B

FAB TUBE LENGTH

520.0m

3.6m

520.0m

4.0m

950.0m

-5.6m

35.0m

3.5m

1550.0m

6.1m

1750.0m

6.6m

100.0m

76.0m

C

TOP TUBE HORIZONTAL

520.0m

20.5m

520.0m

20.9m

540.0m

21.3m

550.0m

21.7m

565.0m

22.2m

585.0m

22.8m

600.0m

28.6m

D

STANDARD FIGHT

720.0m

28.5m

740.0m

26.1m

750.0m

16.7m

775.0m

32.0m

785.0m

31.4m

880.0m

32.2m

638.0m

33.0m

E

BRICRAFT

700.0m

2.8m

700.0m

2.8m

700.0m

2.8m

70.0m

2.8m

70.0m

2.8m

70.0m

2.8m

70.0m

2.8m

F

BE HEIGHT

724.5m

30.8m

744.5m

10.8m

744.5m

10.8m

744.5m

10.8m

744.5m

10.8m

744.5m

10.8m

744.5m

10.8m

G

WHIP! RASS

983.5m

38.9m

904.5m

36.1m

910.0m

30.0m

900.0m

30.1m

1000.0m

33.4m

1000.0m

33.7m

1003.0m

40.3m

H

GREENLY O TRUCT REFRITED

410.0m

16.1m

430.0m

16.6m

450.0m

18.1m

430.0m

18.0m

500.0m

19.7m

500.0m

20.6m

500.0m

21.6m

I

RACE (FRY) TO TOP OF SCATUTURE

470.0m

18.9m

460.0m

19.3m

530.0m

20.6m

540.0m

21.3m

550.0m

22.0m

580.0m

22.8m

600.0m

24.0m

J

SLAW ANGLE

44°

43°

43°

73°

73°

73°

72°

K

CA ANNIEV

430.0m

16.1m

430.0m

16.1m

430.0m

16.1m

430.0m

16.1m

430.0m

16.1m

430.0m

16.1m

430.0m

16.1m

L

REACH

424.0m

17.9m

426.0m

18.2m

424.0m

18.7m

436.0m

18.1m

436.0m

18.4m

502.5m

20.0m

506.5m

22.4m

M

S ACK

363.0m

22.2m

370.0m

22.4m

380.0m

23.1m

405.0m

23.9m

622.5m

24.7m

648.0m

25.3m

659.0m

26.3m

N

S' MILLING

90.0m

3.3m

92.0m

3.5m

100.0m

2.9m

110.0m

4.3m

110.0m

4.3m

100.0m

4.7m

120.0m

4.7m

O

CENI PE SACCELLE (CAPITIF BAR) (MOR)

635.0m

25.0m

650.0m

20.6m

674.0m

20.5m

694.0m

20.3m

710.0m

20.0m

738.0m

20.0m

780.0m

32.0m

P

CENI PE SACCELLE (CAPITIF LIME) (VEET)

520.0m

3.6m

102.0m

4.1m

106.0m

4.2m

106.0m

4.1m

100.0m

4.9m

106.0m

4.2m

120.0m

4.2m

▼ HEADSET OPTIONS

The Addict RC Disc will use the same headset kit for both Creston IC and Creston C SL handlebars:

Part Number: 275466

There will be two Headset Spacer kits, one for the Creston IC SL and one for the Creston IC.

Creston IC 5L Part Number: 277547

Creston IC Part Number: 277042

Stem Top Cap will also be different for each model of handlebar.

Creston IC SL Part Number: 277550

Creston IC Part Number: 277549

BIKE USER MANUAL | ADDICT RC DISC

STEM OPTIONS

The Creston IC Stem will come as a complete kit as below, Creston IC SL will only be the fixation bolts.

Creston IC SL Part Number: 275472

Creston IC Part Number: 275431

The Creston IC Stem will have a cable routing too cap as a separate part.

Part Number: 277042

SEATPOST CLAMP

The seatpost clamp is specific to the Addict RC Disc.

Part Number 277543

FRONT FORK DISC

IMPORTANT

When mounting the front brake calliper, make sure you use the correct length of fixation bolt. Longer bolt for top fork hole, shorter bolt for the lower fork hole.

Cover Part Number: 277027

Max Bolt Torque Front and Rear 5Nm

GABLE GUIDE KIT

The kit will include fork brake hose guide rubbers, seatpost guide rubber (mech/Di2), rear brake hose guide rubbers. The specific mechanical rear derailleur cable connector is also included.

Part Number: 277025

In addition, available an anti-rattle foam tubing in 90cm only, part number: 277026

IMPORTANT

For internal cable routing for mechanical shifting and electrical shifting please contact your authorized SCOTT Dealer, if carried out Incorrectly injury could occur.

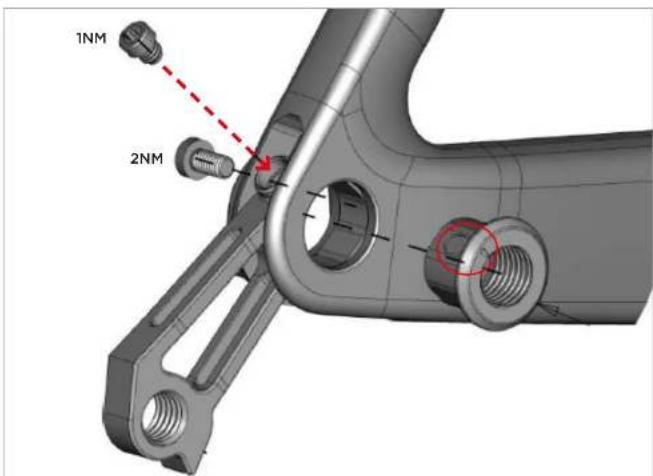

HANGER

The Addict RC Disc will have to drops available. This will include the dropout, threaded axle cap, and fixation bolts.

Direct Mount Part Number: 277545

Standard Mount Part number: 277544

When amounting make sure the white arrow is aligned with the dropout rear bolt as below.

ADDICT RC DISC | BIKE USER MANUAL

AXLES

Front and Rear Axles are available in two types, standard and tapered.

Front Standard: 27703

Rear Standard: 277030

Front Tapered: 277028

Rear tapered: 27/029

BIKE USER MANUAL | ADDICT RC DISC

ENGLISH OILIOH

GUARANTEE ON SCOTT BIKES

WARNING!

SCOTT Sports SA is not responsible or liable for any injury caused by any missing compliance with these instructions, particularly but not limited to misuse, incorrect maintenance, incorrect set-up and handling, neglect or abuse. Failure to follow these instructions can result in component failure, serious personal injury. Component failure can lead to loss of control of the bicycle and result in serious personal injury.

What is Covered?

This warranty covers defects in materials and workmanship at the time of transfer of risks in frames, swingarms and forks (provided it is a fork of SCOTT) on SCOTT branded bikes sold completely assembled by SCOTT or an authorized SCOTT dealer ("Product").

How long does coverage last?

This voluntary manufacturer's warranty is limited to five years for frames and swingarms, respectively two years for forks, from the date of purchase of the Product and is limited to the first purchaser of the Product and subject to the prior registration of your SCOTT bike on www.scott-sports.com within 10 days as of the date of purchase. Transfer of the Product from the first purchaser to another person terminates this limited warranty. The Limited warranty of five years for the frames and swingarms shall only be granted in case once a year a maintenance service has been effected according to maintenance requirements as set forth in the manual. The effected annual maintenance service shall be confirmed by stamp and signature. In case such an annual maintenance service has not been effected the warranty of five years for the frame shall be reduced to three years. Costs for maintenance and service have to be borne by the owner of the Product.

On Gambler, Voltage FR and Volt-X the warranty period is limited to two years.

Repaired or replaced Products are covered for the remainder of the original warranty period and subject to the conditions outlined in the original warranty, to the extent permitted by law.

Hereby SCOTT grants a worldwide voluntarily manufacturer's warranty. To the extent permitted by law and unless a shorter duration is stipulated by law, any warranties implied by law are limited in duration to maximum five, respectively two years, from the date of purchase of the Product and are limited to the first purchaser of the Product.

What will SCOTT do in the event of a guarantee case?

SCOTT will replace the defective product with a product of a quality or nature and similar level, will repair or refund the purchase price (after presentation of the proof of purchase of the product), at its sole discretion. Non-defective components are replaced at your expense. In such a case, we will contact you before replacing the non-defective part for your agreement.

What does this limited warranty not cover?

This limited warranty does not cover defects which did not exist before the transfer of risks. This limited warranty does not cover Products used in rental operations. This limited warranty does not cover purchases of not completely assembled bikes. This limited warranty does not cover any defect caused by "wear and tear" (a complete list of all parts of "wear and tear" can be found in the general manual that came with your bike), accident, neglect, improper handling, colour fade due to exposure to sunlight, abuse, misuse, an act of God, improper assembly, non-compliance with recommended maintenance and care procedures.

improper or incorrectly performed maintenance or repairs performed by someone other than an authorized SCOTT dealer, use of parts or devices not consistent with the Product, and alteration of the Product.

All Products come with a manual; please carefully follow the instructions located there or affixed elsewhere to the Product. To the extent permitted by law, consequential and incidental damages are not recoverable under this limited warranty.

How do you make a claim under this limited warranty?

To make a claim under this limited warranty, you must notify SCOTT of the claimed defect within the warranty period and timely return the Product to SCOTT at your expense for inspection. Please contact your authorized SCOTT dealer, call SCOTT's customer service or the national SCOTT distributor (dealer locator: www.scott-sports.com). All returned Products must be accompanied by proof of purchase (receipt) from an authorized SCOTT dealer or this limited warranty will not apply. In case of replacement or refund, returned Product becomes the property of SCOTT.

A protocol for the handing over of the Product (which you will find at the end of the manual) will remain in copy at the SCOTT dealer after acceptance and signature of the consumer. It is obligatory to show this protocol of handing over together with the defective part in case of a warranty claim given that it provides evidence of purchase or this limited warranty will not apply.

How do state laws affect your rights under this limited warranty?

This limited warranty gives you specific legal rights, and you may also have other rights, which vary from state to state.

Recommendation

We strongly recommend that you use only authorized SCOTT dealers for yearly maintenance services and for repairs, as improper or incorrectly performed maintenance or repairs voids this limited warranty. Costs for maintenance service have to be borne by the consumer.

BIKE USER MANUAL | ADDICT RC DISC

© SCOTT Sports SA 2019. All rights reserved. v1.1/18102019

The information contained in this manual is in various languages but only the English version will be relevant in case of conflict.
