OP46BC - Fan Omega Altise - Free user manual and instructions

Product type	Pedestal fan
Brand	Omega Altise
Model	OP46BC
Height	Approx. 46 inches (117 cm)
Base diameter	Approx. 12 inches (30 cm)
Weight	Approx. 5.5 kg
Power supply	220-240 V, 50 Hz
Power cord length	Approx. 1.5 m
Speed settings	3 speeds (low, medium, high)
Oscillation	Yes, wide-angle oscillation
Tilt adjustment	Yes, manual tilt
Fan blade diameter	Approx. 18 inches (46 cm)
Material	ABS plastic and metal
Safety features	Overheat protection, stable base, safety guard
Assembly required	Yes, easy snap-fit assembly
Control type	Manual rotary knobs
Cleaning instructions	Wipe with damp cloth; do not immerse
Spare parts availability	Contact manufacturer or authorized dealers
Warranty	1 year limited warranty
Intended use	Indoor household use

Frequently Asked Questions - OP46BC Omega Altise

How do I assemble the Omega Altise OP46BC fan?

Assembly is simple: attach the base to the pole, then the motor housing and fan blades. Refer to the manual for step-by-step instructions. Always tighten all screws securely.

Can I use the fan outdoors?

No, the OP46BC is designed for indoor household use only. Exposure to moisture or dust may damage the fan and pose safety risks.

How do I clean the fan?

Unplug the fan before cleaning. Use a soft damp cloth to wipe the blades, guard, and base. Do not use abrasive cleaners or immerse in water.

Why is my fan making a noise?

Check if all screws are tight and the fan is on a level surface. Loose parts or uneven placement can cause noise. Inspect blades for dirt or damage.

Does the fan have a remote control?

No, the OP46BC model uses manual rotary knobs on the motor housing for speed and oscillation control.

How do I adjust the fan height?

The fan has a telescopic pole. Loosen the collar, adjust to desired height, and tighten securely. Ensure the base is stable.

What should I do if the fan stops working?

First, check the power cord and outlet. If plugged in and no power, the thermal overload protection may have tripped. Unplug and let it cool for 15 minutes before restarting.

Can I replace the fan blade?

Replacement blades are available through authorized service centers. Always use genuine Omega Altise parts to ensure safety and performance.

Is the fan safe to use around children?

Yes, the fan features a safety guard to prevent finger contact. However, always supervise children near operating appliances.

How much does the fan weigh?

The Omega Altise OP46BC weighs approximately 5.5 kg (12 lbs), making it sturdy but portable.

USER MANUAL OP46BC Omega Altise

OPERATION, MAINTENANCE AND SAFETY INSTRUCTIONS

FOR OMEGA ALTISE PEDESTAL FAN

MODEL:

OP46BC

omega altise

TABLE OF CONTENTS

IMPORTANT SAFETY INSTRUCTIONS....1

PRODUCT OVERVIEW 2

ASSEMBLY....2

OPERATING INSTRUCTIONS....3

MAINTENANCE ....3

IMPORTANT SAFETY INSTRUCTIONS

IMPORTANT

Read the safety precautions of this booklet carefully before attempting to assemble, install, operate or maintain the product described. Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or property damage. If you are unsure about anything regarding your fan or these instructions, please contact Omega Altise on 1300 795 572 in Australia or [phone] in New Zealand before operating your appliance.

1. Read all instructions carefully before using the tower fan.
2. Use this tower fan only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electrical shock, or injury to persons. Do not modify this appliance. Do not try to repair this appliance – there are no user serviceable parts within.
3. Remove the packaging and ensure that the appliance is undamaged (keep packing box for later storage). In case of doubt do not use the appliance and contact Omega Altise Service. Do not let children play with any parts of the packaging.
4. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. Extreme caution is necessary when the tower fan is used by or near children or individuals with decreased mental and physical capacity and whenever the tower fan is left operating unattended.
5. Before you use the appliance, check if the voltage marked on the rating label corresponds to the mains in your home. The appliance must be connected to a grounded power supply.
6. Do not use this appliance with a programmer, timer or any other device that switches the appliance on automatically, since a fire risk exists if the appliance is covered or positioned incorrectly.
7. Do not pull the power cord to disconnect with the power source. Always grasp the plug to pull it out.
8. Do not run power cords under rugs, curtains or other combustible materials. Do not place power cords in areas where they can be a tripping hazard. Do not operate directly below a power outlet.
9. Do not insert any objects into the appliance as it may cause an electric shock or fire or damage to the appliance. Do not block or tamper with the appliance in any manner while it is in operation. To prevent a possible fire, do not cover the appliance in any manner. Do not place on soft surfaces, like a bed, where openings may become blocked.
10. Do not leave the appliance unattended. Always unplug the appliance when not in use. Take care that it is not obstructed when oscillating.

WARNING:

The Function Switch should not be used as the sole means of disconnecting power. Always unplug the power cord before servicing or moving the appliance.

1. Keep materials such as hair, net curtains, tablecloths & clothes away from the openings of the tower fan, as material may be sucked into the appliance causing injury or damage to property or the appliance.
2. The appliance has hot and arcing or sparking parts inside. It must NOT be used in potentially dangerous locations such as flammable, explosive, chemical-laden, corrosive, salty or wet atmospheres. This appliance is intended for general indoor domestic use ONLY.
3. This appliance is not intended for use in wet or damp locations. Never locate it where it may fall into a bathtub or other water container.
4. Do not use the tower fan outdoors. Do not use close to windows or in direct sunlight.
5. Always place the appliance on flat, stable surfaces before use. Always place the appliance vertically on its base.
6. NOTE: Over time, the grills at the front and rear of the appliance will build up dust & dirt. This should be cleaned regularly to maintain optimum efficiency. Follow the cleaning procedure within this instruction.

WARNING:

To avoid danger of electric shock, unplug from outlet when not in use and before cleaning. If the supply cord is damaged, it must be replaced by the manufacturer, its Service Agent or similarly qualified persons in order to avoid a hazard. In order to avoid overheating, do not cover the appliance. Do not use the appliance in the immediate surrounding of a bath, shower or swimming pool.

omega altise

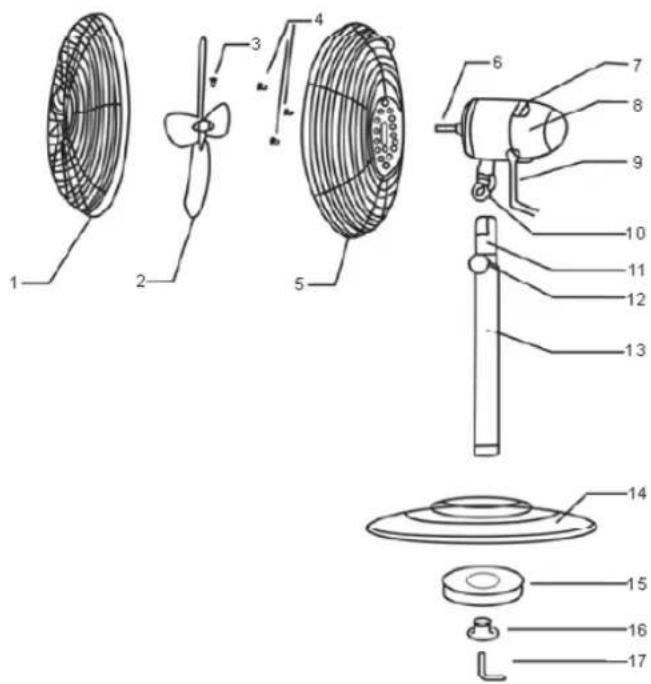

PRODUCT OVERVIEW

Model:	OP46BC
Rated Voltage:	220 – 240V ~50Hz
Rated Power Input:	60W

1. Front guard
2. Fan blade
3. Fan blade screw
4. Cover fixing screws
5. Rear guard

6. Motor shaft

7. Speed control

8. Fan motor
9. Mains lead
10. Knob
11. Inner tube

12. Height adjustment screw

13. Outer tube

14. Base
15. Weight
16. Fastener
17. Locking screw

ASSEMBLY

1. Assemble the base.
2. Insert the outer tube into the base, slide on the weight and secure using the locking screw. Place the assembly upright.
3. Secure the fan motor to the inner tube using the screws provided.
4. Attach the rear guard to the fan motor, securing it in place with the cover fixing screws.
5. Place the locking nut and fan blade on the motor shaft, securing it in place using the fan blade screw.
6. Hold the front guard against the rear guard and secure it in place with the cover fixing screws.

OPERATING INSTRUCTIONS

Connect the power plug to a suitable outlet.

Select the desired speed using the Speed control:

0 - Device Off
1 - Low speed
2 - Medium speed
3 - High speed

The incline of the fan head can be adjusted by tilting it backwards or forwards. The fan head can then be locked into position, which is indicated by an audible click.

To adjust the height, loosen the height adjustment screw, slide the upper section to the required height and re-tighten the adjustment screw.

Oscillation

The fan head is capable of oscillating in a 75° arc.

To have the fan head oscillate, pull the pin located at the back of the fan head up.

To stop oscillation, simply push the pin down.

MAINTENANCE

IMPORTANT: Before cleaning turn the fan off and unplug from the power supply.

• To clean the fan, use a soft cloth to wipe off any dust. If the fan is very dirty use a damp cloth and wipe dry.
• Do not use any cleaning detergents, sprays or other chemicals, as they will damage the fan.
• Store the fan in the original packing in a ventilated dry area.
• The motor bearings are permanently sealed and do not require additional lubrication.

It is important that you retain these instructions, proof of purchase as well as other important documents about this product for future reference. Due to continual product development, Omega Altise reserves the right to alter specifications or appearances without notice.

Dispose of packaging responsibly – recycle where facilities are available.
