BT001 - Receiver Elektrobock - Free user manual and instructions

Product Type	Receiver
Brand	Elektrobock
Model	BT001
Category	Receiver
Dimensions (approx)	82 x 52 x 22 mm
Weight	45 g
Power Supply	12V DC (100mA)
Operating Frequency	433.92 MHz
Modulation	ASK
Range (outdoor)	50 m
Relay Output	1 channel, 10A/250VAC
Protection Rating	IP54
Operating Temperature	-20°C to +60°C
Housing Material	ABS plastic
Color	White
Mounting Type	Wall mount
LED Indicator	Red/Green for status
Learn Button	Yes (for pairing)
Memory Capacity	Up to 100 remote codes
Compatibility	All Elektrobock transmitters
Certifications	CE, RoHS
Included Accessories	Receiver unit, manual, screws

Frequently Asked Questions - BT001 Elektrobock

How do I pair a remote with the BT001 receiver?

To pair a remote, press the learn button on the receiver for 2 seconds until the LED blinks. Then press any button on the remote within 10 seconds. The LED will stay on to confirm pairing.

What is the wireless range of the BT001?

The typical outdoor range is up to 50 meters in open space. Indoor range may be reduced by walls and interference.

How do I reset the receiver to factory settings?

Press and hold the learn button for 10 seconds until the LED turns off. All paired remotes will be erased.

Can I use the BT001 with non-Elektrobock transmitters?

The BT001 operates at 433.92 MHz and is compatible only with Elektrobock transmitters or third-party transmitters that use the same frequency and rolling code protocol. Compatibility is not guaranteed.

What power supply does the BT001 require?

The receiver needs a 12V DC power supply with a minimum current of 100mA. Use a regulated power adapter only.

What is the maximum load on the relay output?

The relay is rated for 10A at 250VAC resistive load. Do not exceed this rating to avoid damage.

How do I mount the BT001 receiver?

Use the provided screws to mount the receiver on a flat wall surface or inside an enclosure. Ensure proper ventilation and avoid exposure to moisture.

Is the BT001 weatherproof?

The receiver has an IP54 rating, meaning it is protected against dust and splash water. However, it is not fully waterproof; avoid direct rain exposure.

How many remote controls can be stored?

The BT001 can store up to 100 remote codes. If memory is full, delete an old code before pairing a new one.

What frequency does the BT001 use?

It operates at 433.92 MHz in the ISM band, which is common for remote control applications.

USER MANUAL BT001 Elektrobock

Control of electric heating systems. The connected electric appliance is switched according to the required temperature. Two-way radio communication at 433.92 MHz. Suitable transmitters (thermostats) for control are BPT010 or BPT710.

BPT001 is used for switching the heating device in connection with the BPT010 or BPT710 thermostat. Its great advantage is direct installation into the wiring box.

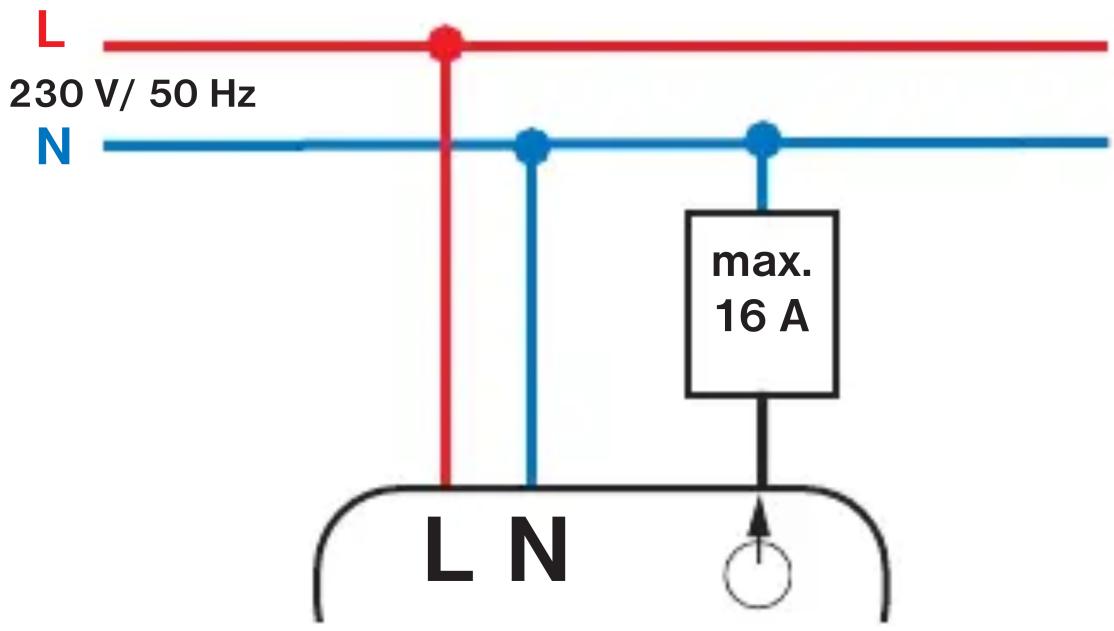

Wiring diagram:

FUNCTION BUTTON (R):

SHORT PRESS (for about 1.5 s)

- for coding.

LONG PRESS (for about 5 s)

- RESET deleting the code from the memory (the green and red LEDs flash simultaneously).

The device can only be installed by a person with adequate qualification!

The installation must be executed in a voltage-free state!

ACTIVATION PROCEDURE

1. Switch off the main circuit breaker.
2. Connect the receiver according to the diagram.
3. Switch on the main circuit breaker; the green diode is flashing on the receiver; the receiver is ready for further setting.
4. Shortly press the FUNCTION BUTTON for about 1.5 s (the green and red diode are flashing alternately).
5. Activate the receiver on the thermostat (transmitter) according to the manual for the given transmitter (BPT010 or BPT710).
6. If the code has been learned correctly, the green and red diodes flash simultaneously.

INDICATION DIODES

LED 1	LED 2	FUNCTION
		empty memory, code not learned
		code learned
		FLASHING ALTERNATELY = code learning modeFLASHING SIMULTANEOUSLY = code has been learnedSIMULTANEOUS LONG FLASH= code has been ERASED
		relay switched
		ERROR (if no signal is received from the transmitter within approx. 6 hours, it switches to the 2-min-ON / 8-min-OFF mode). LED 2 is only flashing if the relay is on, i.e. for 2 minutes.

BPT001 is suitable for switching heating panels, direct heaters, radiant panels, heating mats, etc. It switches the connected device according to the information received from the transmitting unit (BPT010 or BPT710 thermostat). To be installed in interior rooms. Do not locate near power lines!

TECHNICAL PARAMETERS

Power supply	230 V/ 50 Hz
Communication type	two-way
Frequency 433.92 MHz
Sensitivity < - 92 dBm
Range 150 m	(in free area), 20 m (in built-up area)
Output relé, max.16A/ 250 VAC
Protection class IP20 or higher acc. to installation
Protection rate II
Working temp. 0 to 40°C
Dimensions (LxWxD)	49.5 mm x 45.5 mm x 26 mm

WARRANTY CERTIFICATE(a 2-year warranty is granted for the product)
Product number:	Date of sale:
	Shop stamp:
Checked by:

In case of guarantee or post-guarantee service, send the receiver (including a copy of the confirmed proof of purchase) to the manufacturer's address.

DECLARATION OF CONFORMITY

We, ELEKTROBOCK CZ s.r.o., herewith declare that our product BPT001 conforms to the basic requirements and other corresponding provisions of the directive 1999/5/ES.

Issued: 01.04.2012

on www.elbock.cz

ELEKTROBOCK CZ s.r.o.

Blanenská 1763

Kuřim 664 34
