Product Type	Freestanding Dual Fuel Cooker
Brand	Stoves
Model	Richmond Deluxe 110DF
Width	110 cm (43.3 inches)
Height	90 cm (35.4 inches) adjustable to 93 cm
Depth	60 cm (23.6 inches)
Weight	Approximately 85 kg
Energy Source	Gas (hobs) + Electric (oven)
Total Power Consumption	12.5 kW (gas burners) + 3.5 kW (electric oven)
Number of Gas Burners	6
Oven Type	Electric fan-assisted multifunction
Oven Capacity	91 liters (gross) / 72 liters (net)
Grill	Integrated electric grill
Energy Efficiency Class (Oven)	A
Safety Features	Flame failure device, cool-touch door, child lock
Cleaning	Catalytic oven liners, removable door glass
Installation	Requires professional installation; gas and electrical connection
Accessories Included	Wok ring, enamel baking tray, grill pan, telescopic runners
Warranty	2 years parts and labor

Frequently Asked Questions - Richmond Deluxe 110DF STOVES

How do I replace the oven light bulb in my Richmond Deluxe 110DF?

Ensure the cooker is isolated from the power supply. Remove the glass cover by turning anticlockwise. Replace with a standard 40W oven bulb (E14 base). Do not touch the glass bulb with bare hands.

Why won't the gas hob ignite?

Check that the gas supply is turned on and the burners are clean. If the spark igniter is not working, ensure the mains power is connected. For manual ignition, use a match. If problems persist, contact a qualified engineer.

How can I clean the oven door glass?

Open the door fully. Release the top hinge locks by pushing them down. Gently lift the inner glass panel. Clean with a mild detergent and soft cloth. Do not use abrasive cleaners. Reassemble by reversing the process.

The oven is not heating evenly. What should I do?

Ensure the oven fan is operating. Do not overload the oven. Use the center shelf position. If the problem continues, it may indicate a faulty thermostat or fan motor, requiring professional service.

What are the recommended power levels for the gas burners?

The large burners (triple ring) have a max output of 4.0 kW, medium burners 2.5 kW, small burners 1.0 kW. Refer to the manual for specific markings. Use the correct pan size for efficiency.

How do I set the oven timer?

Press the `Prog` button until the clock icon flashes. Use +/- to set the current time. For timed cooking, press `Prog` repeatedly to set duration and stop time. Press `OK` to confirm.

Why is the oven door hard to open?

The door may be sealed due to cooling. Wait for the oven to cool slightly. If the hinge is stiff, apply a little silicone spray to the hinge points. Avoid forcing the door.

Can I use aluminum foil in the oven?

Avoid placing foil on the oven floor as it can damage the enamel and block heat circulation. Use foil only on baking trays, not covering the entire grid. Do not put foil in contact with the heating elements.

How often should the catalytic liners be replaced?

Catalytic liners self-clean during hot oven use. They typically last for several years. If they become stained or stop working, replace them with genuine Stoves parts. Consult the manual for part numbers.

What do I do if the cooker smells of gas?

Immediately turn off the gas supply at the main valve. Do not operate any electrical switches. Open windows and doors. Evacuate the area. Call the gas emergency number or a Gas Safe registered engineer from outside.

USER MANUAL Richmond Deluxe 110DF STOVES

STOVES DUAL FUEL 100/110CM (ALL MODELS)

Table Of Contents

INTRODUCTION .... 1

SAFETY & WARNING INFORMATION .... 3

GETTING TO KNOW YOUR PRODUCT 9

OVENS & GRILLS 13

USING THE HOB 14

USING THE GRIDDLE 17

USING THE GRILL 19

USING THE TOP OVEN 21

USING THE MAIN OVEN 23

USING OTHER ACCESSORIES 29

CLOCK/PROGRAMMER 31

CLEANING YOUR APPLIANCE 34

APPLIANCE MAINTENANCE 35

FAQ's 37

TECHNICAL DATA 39

ENERGY DATA TABLE 41

INTRODUCTION

This user guide book is designed to help you through each step of owning your new product.

Please read it carefully before you start using your appliance, as we have endeavored to answer as many questions as possible and provide you with as much support as we can.

General information, spares and service information is available from our website.

If you should find something missing from your product or have any questions that are not covered in this user guide, please contact us (see contact information inside the front cover).

For a more detailed explanation of how to use this product, please refer to www.stoves.co.uk for the full user manual.

COUNTRIES OF DESTINATION:

GB- Great Britain	√
IE - Ireland	√
DE - Germany
FR - France
PL - Poland
NL - Netherlands
SE - Sweden
NZ - New Zealand
AU - Australia

CONTACT INFORMATION:

Customer Care Helpline:

0344 815 3740

Alternatively, use the contact form on our website

www.stoves.co.uk

Details about warranty registration and spares & service information are also available on our website.

Calls are charged at the basic rate, please check with your telephone service provider for exact charges.

Your new appliance comes with our FREE 3 year guarantee (UK only), protecting you against electrical and mechanical breakdown.

To register your new appliance for its warranty (UK only) please visit our website www.stoves.co.uk. For full terms & conditions of the manufacturer's guarantee, please refer to the website above.

In addition, you may wish to purchase an extended warranty. Details of how to do this are also on our website www.stoves.co.uk.

Our policy is one of constant development and improvement, therefore we cannot guarantee the strict accuracy of all of our illustrations and specifications. Changes may have been made subsequent to publishing.

Glen Dimplex Home Appliances, Stoney Lane, Prescot, Merseyside, L35 2XW

EUROPEAN DIRECTIVES

As a producer and a supplier of cooking appliances we are committed to the protection of the environment and are in the compliance with the WEEE directive.

All our electric products are labelled accordingly with the crossed out wheeled bin symbol. This indicates, for disposal purposes at end of life, that these products must be taken to a recognized collection points, such as local authority sites/local recycling centres.

This appliance Complies with European Community Directives (CE) for household and similar electrical appliances and Gas appliances where applicable.

This appliance conforms to European Directive regarding Eco design requirements for energy-related products. Our policy is one of constant development and improvement, therefore we cannot guarantee the strict accuracy of all of our illustrations and specifications - changes may have been made subsequent to publishing.

DISPOSAL OF PACKAGING MATERIAL

The packaging materials used with this appliance can be recycled. Please dispose of the packaging materials in the appropriate container at your local waste disposal facilities.

SAFETY & WARNING INFORMATION

WARNING

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazard involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

WARNING

The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.

WARNING

The oven must be switched off before removing the guard and that, after cleaning, the guard must be replaced in accordance with the instructions.

WARNING

A steam cleaner is not to be used on this appliance.

WARNING

If a lid is fitted to your appliance any spillage should be removed from the lid before opening and the hob surface should be allowed to cool before closing the lid.

WARNING

Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.

WARNING

Unattended cooking on a hob with fat or oil can be dangerous and may result in fire.

WARNING

Danger of fire: NEVER try to extinguish a fire with water, but switch off the appliance and then cover the flame, e.g., with a lid or a fire blanket.

WARNING

Use only hob guards designed by the manufacturer of this cooking appliance or indicated by the manufacturer of this appliance in the instructions for use as suitable, or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents.

WARNING

Never place food or dishes on the base of the main oven; the element is here and it will cause overheating.

WARNING

Do not place articles on or against the appliance.

WARNING

The appliance must never be disconnected from the mains supply during use, as this will seriously affect the safety and performance, particularly in relation to surface temperatures becoming hot and gas-operated parts not working effectively. The cooling fan (if fitted) is designed to run on after the control knob has been switched off.

WARNING

Do not store or use flammable liquids or items in the vicinity of this appliance.

WARNING

Do not modify this appliance.

WARNING

Do not operate the appliance without the glass panels correctly fitted.

WARNING

This appliance must be earthed.

WARNING

GAS WARNING! - If you smell gas:

Do not try to light any appliance,

Do not touch any electrical switch.

Contact your local gas supplier immediately.

WARNING

This appliance shall be installed in accordance with the regulations in force and only used in a well ventilated space. Read the instructions before installing or using this appliance.

WARNING

Never use cooking vessels on the hob that overlap its edges.

WARNING

Prior to installation, ensure that the local distribution conditions (nature of the gas and gas pressure) and adjustment of the appliance are compatible.

WARNING

The adjustment conditions for this appliance are stated on the label (or data plate)

WARNING

This appliance is not connected to a combustion products evacuation device. It shall be installed and connected in accordance with current installation regulations. Particular attention shall be given to the relevant requirements regarding ventilation.

CAUTION INFORMATION

CAUTION

Make sure that you have removed all packaging and wrapping. Some of the items inside this appliance may have additional wrapping. It is advised that you turn the ovens and/or grill on for a short while. This will burn off any residues left from manufacturing. There may be a smell which accompanies this process- but this is nothing to worry about and is harmless. It is recommended that you wash the oven shelves, baking tray, grill pan and grill pan trivet before their first use in hot soapy water. This will remove the protective oil coating.

CAUTION

This appliance is for cooking purposes only. It must not be used for other purposes, for example room heating.

CAUTION

The use of gas cooking appliances results in the production of heat, moisture and products of combustion in the room in which it is installed. Ensure that the kitchen is well ventilated especially when the appliance is in use.

CAUTION

Prolonged intensive use of the appliance may require additional ventilation, for example the increasing of mechanical ventilation where present, additional ventilation to safely remove the products of combustion to outside (external) air whilst also providing room air changes with additional ventilation.

CAUTION

Connection should be made with a suitable flexible cable with a minimum temperature of 70°C. Ensure that you route all mains cables well clear of any adjacent heat source.

CAUTION

Accessible parts may be hot when the grill and/or the oven are in use. Young children shall be kept away.

CAUTION

We recommend that the appliance is connected by a competent person who is a member of a 'Competent Person Scheme' who will comply with the required regulations.

CAUTION

The space of air circulation, located underneath and at the back of the hob, improves its reliability by ensuring that it will cool down efficiently.

CAUTION

Our policy is one of constant development and improvement, therefore we cannot guarantee the strict accuracy of all our illustrations and specifications. Changes may have been made subsequent to publishing.

CAUTION

Consult a professional before installing additional ventilation.

GAS HOB: DO's & DON'Ts

DO

• Always ensure that pan bases are dry and flat before using them on the hob. • Always position pans over the centre of the heat zone, and turn the handles to a safe position so they cannot be knocked or grabbed. • Always use pans which are no smaller than 100mm (4"), or larger than 250mm (10"). Use a 230 mm (9") pan above the wok burner, if two or more other hotplate burners are in use at the same time.

• Always match the size of pan to the heat zone - do not use large pans on small zones or vice versa. • Always make sure that the burner caps, rings and pan supports are correctly placed. This will prevent pans becoming unstable while in use and ensure an uninterrupted gas flow.

DO NOT:

• Never use double pans, rim-based pans, old or misshapen pans, or any pan that is not stable on a flat surface.

• Never leave cooking fat, or oil, unattended.

- Never use commercial simmering aids, or heat diffusers, as they create excessive heat and can damage the surface of the hob.

- Plastic cooking utensils can melt if they come into contact with a warm hob. Never leave them close to, or on top of the hob.

- Never leave any heat zone alight without a pan covering it. This causes a fire hazard.

- Never leave an empty pan on a heating zone.

- Never leave anything lying on the hob.

- Never heat a sealed tin of food, as it might explode.

- Never use the hob surface for storage.

NOTE

Automatic cooking will normally produce condensation when cooling down and the food is still inside.

FIRE SAFETY ADVICE

- If you do have a fire in the kitchen, don't take any risks- get everyone out of your home and call the Fire Brigade.

- If a pan catches fire:

• Do not move it- it is likely to be extremely hot.
• Turn off the heat if it's safe to do so- but never lean over the pan to reach the controls. • If you have a fire blanket, put it out over the pan. If you have put the fire out, leave the pan to cool completely.

- Deep-fat frying presents more dangers in your kitchen.

• Never fill a chip pan (or other deep fat fryer) more than one-third full of oil.
• Do not use a fire extinguisher on a pan of oil - the force of the extinguisher can spread the fire and create a fireball.

- If you have an electrical fire in the kitchen:

• Pull the plug out, or switch off the power at the fuse box - this may be enough to stop the fire immediately.
• Smother the fire with a fire blanket, or use a dry powder or carbon dioxide extinguisher.
• Remember: never use water on an electrical or cooking oil fire.

OTHER SAFETY ADVICE

• DO

• Always take care removing food from the oven as the area around the cavity may be hot. • Always use oven gloves when handling any utensils that have been in the oven as they will be hot. • Always make sure that the oven shelves are resting in the correct position between two runners. • Always use the Minute Minder (if fitted) if you are leaving the oven unattended - this reduces the risk of food burning.

• DO NOT

• Never place items on the door while it is open.
• Never wrap foil around the oven shelves or allow foil to block the flue.
• Never drape tea towels near the oven while it is on; this will cause a fire hazard.
• Never pull heavy items, such as turkeys or large joints of meat, out from the oven shelf, as they may overbalance and fall.
• Never use this appliance to heat anything other than food items and do not use it for heating the room.

GETTING TO KNOW YOUR PRODUCT

IMPORTANT

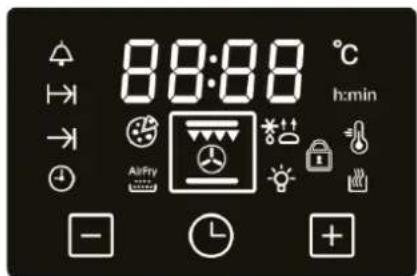

If the clock/programmer is locked, it must be unlocked before the appliance can be used.

To lock/unlock the clock/programmer, press and hold the '+' key for 5 seconds.

Your appliance layout may differ depending on the model.

CONTROL PANEL

1 Cook Zones
2 Fanned Oven
3 Multifunction Oven
4 Clock/Programmer
5 Temperature Control
6 Top Oven/Grill
7 Grill
8 Slow Cook Oven

HOB

HOB FUNCTIONS
1	Small Right handfront
2	Medium Right handrearLeft handrearCentre rear
3	Large Left handfrontCentrefront
4	Wok Middle

CAVITY OVERVIEW

CAVITY OVERVIEW

1 Fascia

2 Top Oven/ Grill

3 Fanned Oven

4 Multifunction Oven

5 Slow Cook

MAIN OVEN FUNCTION DIAL

MAIN OVEN TEMPERATURE CONTROL DIAL

Fanned Oven
Conventional Oven
Pizza Setting
Air Fryer
Defrost/Dough proving
Intensive Bake
Top Heat
Base Heat with Fan
Fanned Grill
Dual Grill
Auto Light

FANNED OVEN FUNCTIONS:

Slow Cook	FAN
Keep Warm	FAN
Bread Proving	FAN

OTHER FUNCTION LIST:

KeepWarm70°	MAIN
SlowCook100°	MAIN

TOP OVEN FUNCTIONS

High Grill	TOP
Low Grill	TOP
Medium Grill	TOP

OVENS & GRILLS

OVENS

When using the top oven or main oven, the white thermostat indicator light will come on until the selected temperature is reached.

When the top oven/grill or grill is switched on, the cooling fans come on to keep the fascia and control knobs cool during cooking/grilling. The cooling fans may operate when the main ovens are in use depending on the temperature setting. The fans may continue to operate for a period after the oven/grill has been switched off. During use the fan may cycle on and off, this is normal.

IMPORTANT

Never put items directly on top of the base of the oven, or cover the oven base with foil, as this may cause the element to overheat. Always position items on the shelf.

NOTE

The main oven will not operate if the programmer is set to Auto, see Clock/Programmer section for more information.

NOTE

The cooling fan may run for around 1 hour after use. This is normal to ensure the exterior parts of the cooker fully cool down and because the oven cavity is very well-insulated to prevent heat escaping during the cooking process. Please do not switch the cooker off at the wall before the cooling fan has stopped completely.

USING THE HOB

IGNITION PROCEDURES

Correct procedure for ignition of all gas burners on this appliance:

PRIOR TO IGNITION:

- Hotplate burner(s), position correctly sized, flat bottomed pan(s) directly onto the pan support above the selected burner(s).

WOK BURNER (IF FITTED)

- Position a flat bottomed wok or a correctly sized, flat bottomed pan directly onto the pan support above the wok burner. - Position the provided wok stand directly onto the pan support above the wok burner, then position a round bottomed wok directly onto the stand.

AUTOMATIC IGNITION (If Applicable)

• Push in and turn the selected gas burner control knob to the full flame symbol. Keep the control knob depressed. Sparking to the selected burner will commence automatically. Sparking will cease automatically once the flame is established. Continue to hold the control knob in for up to 15 seconds then release.
• If the burner fails to ignite within this time, release the control knob and wait 1 minute before attempting to re-ignite.
• In the event of a power failure, or the ignition not working, then a lighted match or taper can be used to ignite the burner.
• Use pans which are large enough to avoid overflows onto the hob surface.
• Wipe any spillage as soon as possible.
• Clean the hob top as regularly as possible, this will prevent any build up of grease which may be a fire hazard.

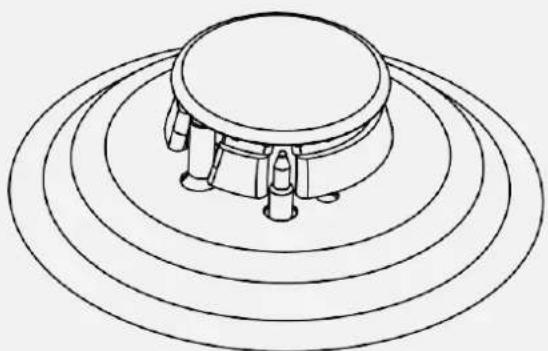

FITTING BURNER CAPS AND HEADS

When fitting the burner head, make sure that the notch lines up with the hole in the base.

NOTE

The burner heads can be taken apart for cleaning. Please make sure they are absolutely dry before replacing them.

Check that the burner head is level and the cap is fitted centrally on the burner head.

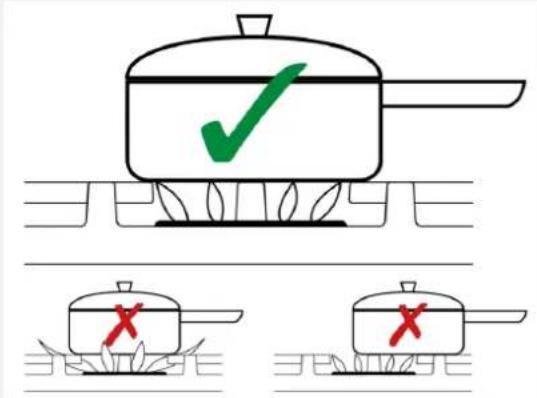

PAN SIZES REQUIRED

Always make sure that your pans are placed centrally and do not allow the flame to extend over the base of the pan. Do not place pans directly onto the burners.

WARNING

Do not allow cooking vessels to overlap cooking zones.

Hob Cook Zones Minimum PanSizes (mm)		Maximum PanSizes (mm)
Rapid & Wok 100 250
All other cook zones

PAN PLACEMENT

Always make sure that your pans are placed centrally and do not allow the flame to extend over the base of the pan. Do not place pans directly onto the burners.

USING THE GRIDDLE

THE GRIDDLE

Only use the griddle which has been approved for use on this appliance.

Do not use any other griddle, as this may be hazardous.

Please read these instructions thoroughly before using the griddle for the first time.

BEFORE USING THE GRIDDLE FOR THE FIRST TIME

1. Wash the griddle thoroughly in hot soapy water.
2. Apply a small coat of unsalted vegetable oil, on a dry cloth or power towel onto the griddle surface.
3. Heat the griddle on full power for 3 minutes. The griddle plate is now ready for use.

NOTE

The griddle is made of quality cast iron and has a non-stick cooking surface. Regular oiling will prolong its life and prevent rusting. If the griddle shows sign of rust, wash and re-oil.

USING THE GRIDDLE

IMPORTANT

The griddle should only be positioned front-to-back over the burners.

IMPORTANT

The griddle must not be used over the wok.

1. Place the griddle carefully on the pan support over the burners, using the locating feet on the underside of the griddle. Take care to avoid damage to the surface of the pan supports.
2. Before cooking, preheat the griddle for 3 minutes on full rate, which is indicated on the control knobs by a large flame symbol.
3. After preheating, turn the control knobs to the small flame symbol. The griddle is now ready for cooking.

WARNING

Do not use metal implements, as they may damage the non-stick surface.

WARNING

Always allow the griddle to cool completely before moving or cleaning.

WARNING

Always ensure the griddle is firmly located on the 2 burner pan supports.

USING THE GRILL

WARNING

Never cover the grill pan or grill trivet with aluminium foil, or allow fat to build up in the grill pan, as this creates a fire hazard.

TIP

For best grilling results use shelf position 2 and a 6 minute pre-heat.

THE COOLING FAN

During use the fan may cycle on and off, this is normal.

When the grill is switched on, the cooking fan comes on to keep the fascia and control knobs cool during grilling. The fan may continue to operate for a period after the grill has been switched off.

NOTE

The cooling fan may run for around 1 hour after use. This is normal to ensure the exterior parts of the cooker fully cool down and because the oven cavity is very well-insulated to prevent heat escaping during the cooking process. Please do not switch the cooker off at the wall before the cooling fan has stopped completely.

USING THE GRILL

CAUTION

Accessible parts may be hot when the grill is used - young children should be kept away.

IMPORTANT

The grill door must be fully open when the grill is used.

WARNING

The door must be open when the grill is used for conventional grilling.

For grilling small quantities of food, the centre (economy) grill can be used with the grill trivet inverted. For large quantities of food, the full grill can be used.

1. Open the grill door. Turn the control knob to the required setting. For best cooking results, we recommend that you preheat the dual grill for 3 minutes and the single grill for 5 minutes.
2. Push the grill pan towards the back of the shelf to position it under the grill.
3. To switch off, return the control knob to the off position.

GRILL PAN AND TRIVET

USING THE TOP OVEN

WARNING

When you are cooking, keep children away from the vicinity of the oven.

CAUTION

The top element gets extremely hot when in use, so take extra care to avoid touching it.

NOTE

The top oven is a conventional oven and is not controlled by the programmer.

TO TURN ON THE TOP OVEN

1. Turn the temperature control knob until the required temperature is selected. The white thermostat indicator will come on until the selected temperature is reached, and then go off. It will turn on and off periodically as the thermostat operates to maintain the selected temperature.
2. To switch off, return the top oven control knob to the off position.

Important: Never put items directly on the base of the oven, or cover the oven base with foil, as this may cause the element to overheat. Always position items on the shelf.

COOLING FAN

During use the fan may cycle on and off, this is normal.

When the top oven is switched on, the cooking fan comes on to keep the fascia and control knobs cool during grilling. The fan may continue to operate for a period after the top oven has been switched off.

PREHEATING

Preheat the oven until the indicator light switches off for the first time, this will take up to 15 minutes depending on the temperature selected.

The oven must be preheated when cooking frozen or chilled foods, and we recommend preheating for yeast mixtures, batters, soufflés, and whisked sponges.

Put the oven shelves in the position required before preheating the oven.

Position baking trays and roasting tins on the middle of the shelves, and leave one clear shelf position between shelves, to allow for circulation of heat.

WHEN USING THE TOP OVEN

As part of the cooking process, hot air is expelled through a vent at the top of the oven. When opening the oven door, care should be taken to avoid any possible contact with potentially hot air, since this may cause discomfort to people with sensitive skin. We recommend that you hold the underneath of the oven door handle.

USING THE MAIN OVEN

WARNING

Accessible parts may be hot when the oven is used. Young children should be kept away.

SETTING A HEATING OPERATION

To start a heating operation, a heating function and a heating temperature must be selected.

Setting a heating function

- Rotate the function control to select the desired heating function.

To modify or cancel the heating function:

• Rotate the function control to select another heating function.
• Rotate the function control to 0 to cancel the heating function.

Setting a heating temperature:

- Rotate the temperature control to select the desired heating temperature. The selected temperature shows in the display.

To modify or cancel the heating temperature:

• Rotate the temperature control to select another heating temperature.
• Rotate the temperature control to 0 to cancel the heating temperature.

PREHEATING

The oven starts preheating when a heating function and heating temperature have been set.

The temperature symbol blinks to indicate preheating.

The temperature symbol permanently lights up and an acoustic signal sounds to indicate the oven has reached the set temperature.

Fast preheat function

The fast preheat function automatically activates after a heating operation has been selected that supports the fast preheat function.

The fast preheat reduces the time the oven needs to reach the selected heating temperature.

The display shows the fast preheat symbol.

The fast preheat function automatically deactivates after the selected heating temperature is reached.

COOKING WITH A FANNED OVEN

CAUTION

As this is a high efficiency oven, you may notice the emission of steam from the oven when the door is opened. Please take care when opening the door.

If you are used to cooking with a conventional oven you will find a number of differences to cooking with a fan oven which will require a different approach.

TIP

Foods are cooked at a lower temperature than a conventional oven, so conventional recipe temperatures may have to be reduced. Please refer to the conversion chart below.

TIP

Preheating is generally not necessary as a fan oven warms up quickly.

TIP

There is no flavour transference in a fan oven, which means you can cook strong smelling foods such as fish at the same time as mild foods, e.g. milk puddings.

TIP

When batch baking foods that will rise during cooking, e.g. bread, always ensure that enough space has been left between the shelves to allow for the rise.

There are no zones of heat in a fan oven as the convection fan at the back of the oven ensures an even temperature throughout the oven. This makes it ideal for batch baking, e.g. when planning a party, as all the items will be cooked within the same length of time.

NOTE

When 2 or more shelves are being used, it may be necessary to increase the cooking time slightly.

NOTE

Because the 2 oven shelves are wider than in many ovens, it is possible to cook 2 items per shelf.

NOTE

When roasting meats, you will notice that fat splashing is reduced, which is due in part to the lower oven temperatures, and will help keep cleaning of the oven to a minimum.

NOTE

There is no need to interchange dishes onto different shelves part way through cooking, as with a conventional oven.

DEFROSTING AND COOLING IN THE MAIN OVEN

To defrost frozen foods, turn the oven control to the defrost position, place the food in the centre of the oven and close the door.

To cool foods after cooking prior to refrigerating or freezing, turn the main oven control to the defrost position and open the door.

DEFROSTING TIMES

NOTE

Small or thin pieces of frozen fish or meat, e.g., fish fillets, prawns, or mince, will take approximately 1-2 hours.

NOTE

Placing food in a single layer will reduce the thawing time.

NOTE

A medium-sized casserole or stew will take approximately 3-4 hours.

NOTE

A 1½kg/3lb oven-ready chicken will take approximately 5 hours; remove the giblets as soon as possible.

CAUTION

BE SAFE:

Do not defrost stuffed poultry using this method.

Do not defrost larger joints of meat and poultry over 2kg/4lb using this method.

USING THE AIRFRY FUNCTION

Simply choose the AirFry setting on the main oven, then place your chips, vegetables, or chicken on the specially designed air fryer tray.

The tray allows more air to circulate, speeding up cooking time and reducing the need for extra oils, making cooking healthier.

AirFry is great for cooking chips, meat, and to prepare meals that you would normally grill.

There are a few things which don't AirFry well, including cakes, pastries, and breads, as they can become dry or tough. Foods in a wet batter also cannot be cooked by AirFrying.

1. Select the AirFry function on the main oven and set the temperature to 220°C.
2. Position the metal Airfry tray on the 3rd (centre) shelf position from the bottom. Food should be evenly spaced on the airfry tray in a single layer to allow for even cooking.
3. Place a baking tray on the shelf position below the AirFry tray to catch any crumbs or drips.

WARNING

For recipes with 30 minutes or longer cooking time, a 5-10 minute pre-heat time is recommended.

Frozen or dense foods may require additional cook time.

NOTE

If you're using a non-air fryer recipe, make sure you shorten the cooking time as food will cook faster than a conventional oven.

IMPORTANT

Air Frying in a large oven cavity allows for more food to be airfried at one time, so longer cooking times are to be expected. Please adjust cooking times accordingly.

NOTE

It may be necessary to lightly spray the airfry tray with oil to avoid food sticking to it.

IMPORTANT

Greasy foods may cause smoke during the air fry cycle. To maintain a clean oven, it is recommended to use a baking tray below to catch debris.

MAIN OVEN FUNCTIONS: RECOMMENDED USES
Fanned Oven		The even temperature in the oven makes this function suitable for batch baking or batch cooking foods.
Conventional Oven		This function is ideal for traditional roasting. The meat is placed in the middle of the oven, roast potatoes towards the top.
Pizza Setting		This function is ideal for cooking pizza. The fanned oven operates with the addition of the base element to make the pizza base crispy.
Air Fryer		The rapidly distributed air makes it suitable for oil-free frying.
Defrost/Dough proving		Defrost foods with the oven door closed, or cool dishes prior to refrigeration leave the oven door open. Using with the door closed also makes it suitable for proving bread prior to baking.
Intensive Bake		Suitable for food with ahigh moisture content, such as quiche, bread and cheesecake. It also eliminates the need for baking pastry blind.
Top Heat		This function is ideal for browning off the top of food following conventional or fancooking, as it is not as fierce as the grill.
Base Heat with Fan		Use to cook open pies (such as mince pies) the base element ensure that the base is cooked while the fan allows the air to circulate around the filling- without being too intensive.
Fanned Grill		The fan allows the heat to circulate around the food, ideal for thinner foods such as bacon, fish and gammon steaks.
Dual Grill		This function cooks food from the top, as the whole grill is working you can cook larger quantities of food.
Auto Light		Turns on only the oven light, the light remains on when the oven is operating.

OVEN FURNITURE

• Extra shelves may be ordered from your local supplier.

Baking trays and roasting tins:

For best cooked results and even browning, the recommended size baking trays and roasting tins that should be used are as follows:

• Baking tray 350 mm x 250 mm. This size of baking tray will hold up to 12 small cakes.
• Roasting tin 370 mm x 320 mm.

Position baking trays and roasting tins on the middle of the shelves, and leave one clear shelf-position between shelves, to allow for circulation of heat.

USING OTHER ACCESSORIES

WOK CRADLE

IMPORTANT

Please ensure the wok cradle sits securely on the 4 pan support fingers.

NOTE

It is important that the wok size fits the cradle. If the wok is too small, the cradle will not support it properly.

CAUTION

The cradle will get very hot in use- allow plenty of time for it to cool before you pick it up.

STEAM & INFUSE ACCESSORIES

The Steam & Infuse vertical cooking system is designed to deliver an evenly cooked, healthier, flavourful result every time. Simply fill the flavour pot with stock/ herbs or any other ingredients and place your poultry/ meat over the top.

Supporting poultry or other meat vertically exposes all sides to the oven's heat, promoting a more even cook and allowing the fat to drip out, while flavour is infused from the inside.

Also included are a set of skewers which are ideal for making kebabs and can be suspended over the specially designed rack.

NOTE

If the Steam & Infuse is not supplied as standard with your appliance, it can be purchased through our Customer Care team.

IMPORTANT

The skewers are not to be used in tall 90cm ovens and should always be orientated across the oven so not to come into contact with the oven fan blades.

CLOCK/PROGRAMMER

IMPORTANT

If the clock/programmer is locked, it must be unlocked before the appliance can be used.

To lock/unlock the clock/programmer press and hold the '+' key for 5 seconds.

Please be aware that only the main oven is controlled by the programmer.

NOTE

Your clock/programmer may not have all of these functions.

	Alarm
	Cooking time
	End of Cooking time
[GCOT]	Time Key
	Pizza Function
[15H1][30C6]	AirFry Function
	Light
	Oven Function
	Defrost/ Dough Proving
	Temperature Unit (Celsius)
	Units of time (hours: minutes)
	Rapid Pre-Heat
	Auto Cooking
88:88	Time Display
	Child Lock

• Left button: minus/decrease
• Middle button: menu to select a function • Right button: plus/increase
• When a function is selected and the time or volume is set, the chosen function will automatically start seven seconds after setting.

MANUAL MODE

If the programmer is not in semi-automatic or full-automatic mode you can use oven functions manually. The manual icon is also on the display.

SETTING THE VOLUME

- Press the menu button until "LX" (X=1,2 or 3) flashes on the display. Use the plus or minus buttons to select a volume level.

SETTING THE TIME

NOTE

The time can only be set when the main oven control knob is in the 0 position or on the light setting.

Double touch the clock icon, then use the plus and minus buttons to adjust.

The clock uses a 24-hour system, that is, 00:00-23:59 (h: min)

The time setting will be automatically saved after 5 seconds of no buttons being touched,

NOTE

The oven functions will not work until the clock time is set.

SETTING TIMERS

NOTE

Timers and alarms can only be set when the main oven control knob is switched to a function mode.

MINUTE MINDER

- Touch the clock icon once and use the plus or minus buttons to set a timer.

• When the alarm time is reached the alarm icon will flash and the alarm will sound. Touch any key to silence the alarm. The alarm will stop automatically after 5 minutes.
• If you want to adjust the timer you have set, you can go to the alarm settings again and press the plus or minus keys to adjust it.
• If you want to cancel the alarm, you can go to the alarm settings again and set the timer to 00:00 (h:min)

SETTING THE COOKING DURATION

- Touch the clock icon twice to activate the cooking time setting

• Adjust the time display using the plus/ minus icons to set the required time for cooking.
• If you want to adjust the cooking time that you have set, you can go to the cooking time setting again and press the plus and minus keys to adjust
• To cancel the cooking time, you can go to the cooking time settings again and set the cooking time to 00:00 (h:min).

SETTING THE COOKING END TIME

- Touch the clock icon three times to set a specific end cooking time.

- Adjust the time display using the plus/minus icons to show the desired end time for cooking.

- When the end cooking time is reached, the oven will automatically turn off, the end cooking time icon will go off, and the alarm will sound automatically, stopping after 5 minutes. To stop the alarm, press any key.

- If you don't set an end time for cooking, the oven will only run automatically for 5 hours.

For all the above settings, wait for 5 seconds to automatically save the settings.

When one setting is adjusted and switched to another, the original settings are saved. For example, if the alarm is set and you touch the time button to switch to the clock setting, the alarm setting will still be saved.

CLEANING YOUR APPLIANCE

Cleaning: Do's
	Use warm,soapy water
	Wipe the appliance with a damp clothClean the cloth regularly
	Dry with a soft dry cloth

Cleaning: Don'ts
	Don't use undiluted bleaches or Chloride products
	Don't use Wire Wool, Abrasive cleaners, Nylon pads or Steam Cleaners
	Do not wash the cast iron griddle or pan supports in the dishwasher

NOTE

Always switch off your appliance and allow it to cool down before you clean any part of it.

NOTE

Please take extra care when cleaning over the symbols on the control panel, as this can lead to them fading.

NOTE

Tips: Some foods can mark or damage the metal or paint work, e.g., vinegar, fruit juices, and salt. Always clean food spillages as soon as possible.

CAUTION

It is important to clean your appliance regularly as a build up of fat can affect its performance or damage it and may invalidate your guarantee.

CAUTION

In addition to the above, do not use metal scrapers to clean the oven door glass.

APPLIANCE MAINTENANCE

CHANGING THE LIGHTBULB

1. Remove the oven shelves.
2. Unscrew the lens cover by turning anticlockwise.
3. Remove the bulb and replace.
4. Replace the lens cover and put the oven shelves back.

WARNING

Switch off the power before you change the light bulb.

NOTE

Not all appliances have the same number and type of bulbs. Before you replace your bulb, check to see what type you have. Please remember that bulbs are not covered by your warranty.

REMOVING SHELF RUNNERS

Remove holding screws as per diagrams

STANDARD SHELVES

1. Before removing the shelves completely, make sure that the shelf is unclipped from the retaining tabs. Slightly raise the shelf and insert it in the chosen shelf position.
2. Ensure the shelf is fully pushed back towards the back of the oven, until the shelf stopper is reached.

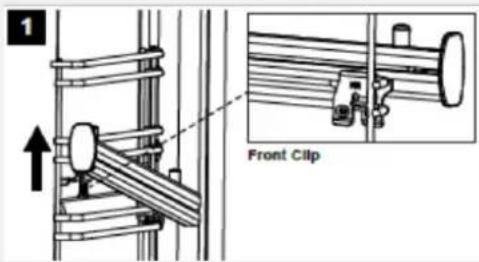

REMOVING TELESCOPIC SHELVES (IF FITTED)

1. Push the front of the runner upwards firmly, ensuring the front clip is released from the shelf guide.

1. Pull the runner away from the shelf guide.

1. Pull the back clip away from in between the shelf guide.

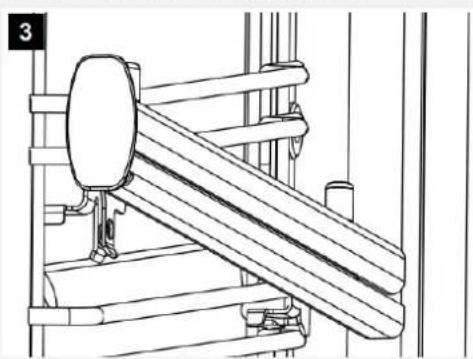

REFITTING TELESCOPIC RUNNERS (IF FITTED)

1. Secure the back clip in between the shelf guide. Ensure the runner is fully placed back towards the back of the shelf.

1. Locate the front clip onto the shelf guide and firmly push the front runner down until the front clip is secured in place.

1. The telescopic runner should now be fitted correctly and secure to the shelf guide.

FAQ's

Here are some frequently asked questions about your new appliance:

Q: Can I remove the inner glass on the doors for cleaning?

A: The inner glass panels are removable for cleaning, however this does involve removing the door from the cooker and the screws from the retaining strip along the top of the door first. For routine cleaning we recommend leaving the glass panels in situ.

When cleaning, I found a small hole in the top of the main oven cavity, is this meant to be there?

A: This is normal. This is a vent which allows excess steam and pressure to vent out of the rear of the appliance during cooking.

Q: What parts of the appliance can be washed in the dishwasher?

A: Any enamel parts such as the grill pan can be cleaned in a dishwasher, as can oven shelves and shelf guides.

Cast iron items, burner skirts, caps and control knobs must NOT be cleaned in the dishwasher. Instead they should be cleaned with hot soapy water and a nylon brush once they are cool enough.

Q: There's been a power failure and the product won't work-what should I do?

A: Switch off the electricity supply.

When the power returns switch the electricity supply back on and re-set the programmer/ clock to the correct time of day.

Why is there some warm air coming out of the sides of the doors?

A: This is normal. Excess heat, steam and pressure from the oven cavities is released via a new flue system into the cooling fan chamber. The doors have some side vents which allows a small amount of this heat to be expelled at the door sides to ensure that the door surfaces keep cool. The majority of the excess heat, steam and pressure rises upwards into the cooling fan chamber.

Why does the cooling fan not come on immediately when I turn the grill or oven on?

A: The cooling fan is controlled by a thermal switch and so will only come on once a certain temperature is reached. This is normal. It is also normal for the cooling fan to cycle on and off during use, and for it to stay on a while after cooking.

Q: The cooling fan seems to run for a long time after I have finished cooking, is this normal?

A: This is normal, the ovens are very well insulated to keep more heat in during cooking for better cooking results with less wasted energy. After cooking, the cooling fan helps the appliance cool down to a low temperature of around 35°C, this helps to keep the exterior parts of the cooker cooler for additional safety. The cooling fan may run for around 1 hour after cooking has finished, and this is normal. Don't worry, the cooling fan does not use much electricity (approx. one-third of a unit of electricity per hour). Please do not switch the cooker off at the wall before the cooling fan has stopped completely Q: How do I attach the grill pan handle to the grill pan? A: Please ensure that the grill pan is the right way around, with the sloping lip at the front. Attach the grill pan handle making sure the prongs are at the top and the wider support piece sits underneath the grill pan. Q: Why can I not remove the shelves completely for cleaning? A: The shelves have 'anti-tip notches' which prevent the shelves being accidentally pulled out completely while cooking, to help prevent accidents. To remove the shelves fully for cleaning, pull the shelf out, then lift upwards at the front. Q: Why is the main oven not working?

A: Please ensure that the time of day has been set on the timer, and that the word 'Man' (manual mode) is displayed underneath the time of day.

Some models have more than one function in the main oven. On these appliances, you must select a temperature with the temperature control knob and a function with the function selector knob for the main oven to work.

Q: The timer touch controls are not responding, why is this? A: The child-lock may have been activated; this is indicated by a padlock symbol in the top-right hand corner of the screen. Press and hold the plus key for a good 5 to 10 seconds - the padlock symbol will flash initially and then go out completely. The child-lock is then de-activated and the timer can be used as normal. Q: How do I re-set the timer volume? A: Please press the middle menu key on the programmer/timer until 'L1', 'L2' or 'L3' appears on the display. Use the plus and/or minus keys to adjust the volume level, with 'L3' being the loudest level.

TECHNICAL DATA

The cookers come in two gas types: Natural gas and Universal LPG.

If the cooker is required to use LPG, a conversion kit can be obtained by contacting the Customer Care Centre.

Before installation, check that the cooker is suitable for the gas supply.

To do this, check the gas type on the carton sticker or on the data plate behind the bottom of the oven door.

The following shows the supply and operating pressures for various gas supplies.

Operate pressure at appliance test point:

• 20mbar (Natural gas); • 30mbar (LPG)

Burner Injector Sizes

Injector Specification

UK (GB/IE) II2H3+ (20,28-30/37) G30-28-30/G31-37

Burner Injector Sizes

Aux Injector Semi-Rapid		Injector x 2
NG 1.0kW LPG	1.0kW NG 2.0kW	LPG 2.0kW
0.72 0.5 1.05 0.7

Burner Injector Sizes

WARNINGThis cooker must be earthed.
Data badge Lower	part of the front frame
Appliance class Class 1 - freestanding cooker
Electrical supply	230 - 400V ~3N ~ 50 Hz
Load @ 230V 7765W
Max. heat input ∑Qn 17.00 kW
Type of gas This cooker can be used with Natural Gas and LPG.Please see data badge for your specified gas type. Can be converted from natural gas to LPG. Never attempt to convert an appliance unless the data badge states you can.
Gas category Natural gas I2H Natural gas II2H3+
Gas pressure settings	G20 Natural gas @ 20 mbar G30 Butane @ 28-30 mbar G31 Propane @ 37 mbar
Burner Aeration Fixed
Grill Electric
Hob Burners have	burner heads and caps which are removable for cleaning. Concealed electrodes to each burner.

ENERGY DATA TABLE

Regulation (EU) 65/2014:

Product Name: Stoves Richmond 110/100cm Dual Fuel (All Models)
Brand: Stoves
Size: 100cm or 110cm
Number of cavities	3

Energy Efficiency

Hob
Fuel Type Dual Fuel
Number of cook zones	7 Gas hobs
	Symbol Value
Energy Efficiency per cook zone		Cook zone EEI (%)
	EE gas burner	Wok 56.47%
		Rapid 1/ Large 55.82%
		Rapid 2/ Large 54.69%
		Semi Rapid 1/ Medium 57.87%
		Semi Rapid 2/ Medium 59.17%
		Semi Rapid 3/ Medium 59.33%
		Auxiliary/ Small -
	EE gas hob All burners 57.23%

Energy Efficiency

Cavity Cavity 1 Cavity 2 Cavity 3 (if			applicable)
Energy efficiency index	91,3 92,4	91,4
Energy efficiency class	A A A
Energy Consumption per cycle (conventional mode)	0,63 kWh 0,83 kWh 0,01 kWh
Energy Consumption per cycle (fan-forced convection mode)	0,01 kWh 0,74 kWh 0,74 kWh
Heat Source Electric Electric Electric
Volume	33 Litres	60 Litres	61 Litres
Energy consumption measured in accordance with BS EN 60350-1

This page is intentionally left blank.

This page is intentionally left blank.

This page is intentionally left blank.

Glen Dimplex Home Appliances, Stoney Lane, Prescot, Merseyside, L35 2XW

0344 815 3740

www.stoves.co.uk

GDHA Part Number: 094112900
