USER MANUAL XTalk XPro Synco

Xtalk XPro

Full Duplex Wireless Intercom Headset System

User Manual

Thank you for choosing SYNCO product. Please read this manual carefully before use and follow all instructions mentioned herein.

Contents

Product Introduction P 01

Button Function P 01

Operations P 02

  1. Power On/Off P 02
  2. Master/Level 1/Level 2 Settings P 03
  3. Pairing/Unpairing P 04
  4. Group Management P 07
  5. Volume Settings P 10
  6. Noise Cancellation P 10
  7. Mute/Unmute P 10
  8. Dominant Mode P 10
  9. Boost Mode P 11
  10. Real-Time Monitoring P 11
  11. Powering P 11
  12. Indicator Light Status P 12
  13. Firmware Update/Voice Pack Installation P 12

Specifications P 13

Packing List P 14

Care Guide P 16

Warranty P 16

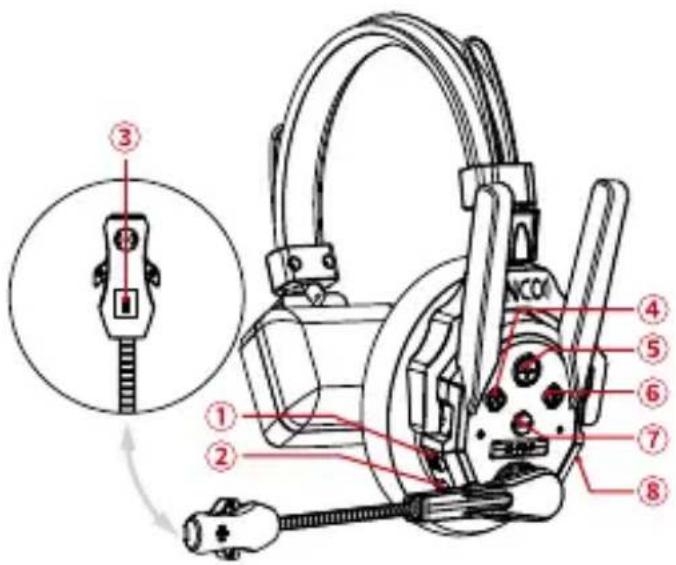

Product Introduction

① 3.5mm Mic In Port
② Power On/Off Toggle
③ Indicator Light
④ Button A
⑤ Volume + & Headset Settings Verification button
⑥ Button B
⑦ Volume —
⑧ Type-C Port

Technical diagram of a mechanical device with numbered parts and an inset view showing a connector detail.

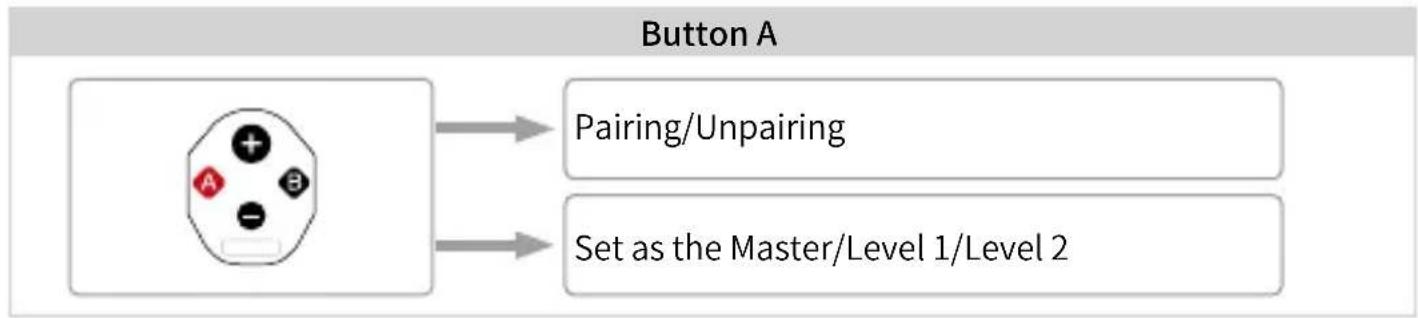

Button Function

Volume —

Operations

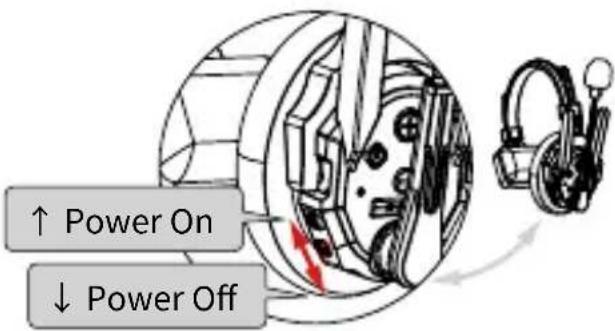

1. Power On/ Off

Power On: Push the power toggle switch upwards to turn it on.

Power Off: Push the power toggle switch downwards to turn it off.

*Products are pre-paired from the factory (except X1) and ready to use.

↑ Power On ↓ Power Off

*To ensure a successful auto-reconnect, please turn on the headsets in the sequence of Master → Level 1 → Level 2.

Synco XTalk XPro - Power On/ Off - 2

2. Master/Level 1/Level 2 Settings

All headsets can be set as: Master/Level 1/Level 2

Set as Master:

Long press the button A, release after the 2nd "Beep" sound and hear "Master Mode".

Beep, Beep Release Master Mode

Set as Level 1:

Long press the button A, release after the 3rd "Beep" sound and hear "Level 1 Pairing".

Beep, Beep, Beep Release Level 1 Pairing

Set as Level 2:

Long press the button A, release after the 4th "Beep" sound and hear "Level 2 Pairing".

Beep, Beep, Beep, Beep Release Level 2 Pairing

3. Pairing/Unpairing

You can pair the headsets via SYNCO EasyGo software.

Download link: https://www.syncoaudio.com/pages/synco-xtalk-easygo

User guide: https://youtu.be/PmjeSV-5xzI

Or pair them by manual.

Manual Pairing

* The Xtalk Pro headset can be paired with all versions of Xtalk headset.

* It supports group connections with up to13 people.

3.1 If Pair 5 headsets

1) Set a Master and 1\~4 Level 1.

Master Mode Level 1 Pairing

2) Long press the button A on all headsets in 1 min, release after the 1st “Beep” sound, and hear "Connecting and Pairing".

Master Connecting and Pairing Level 1 Connecting and Pairing


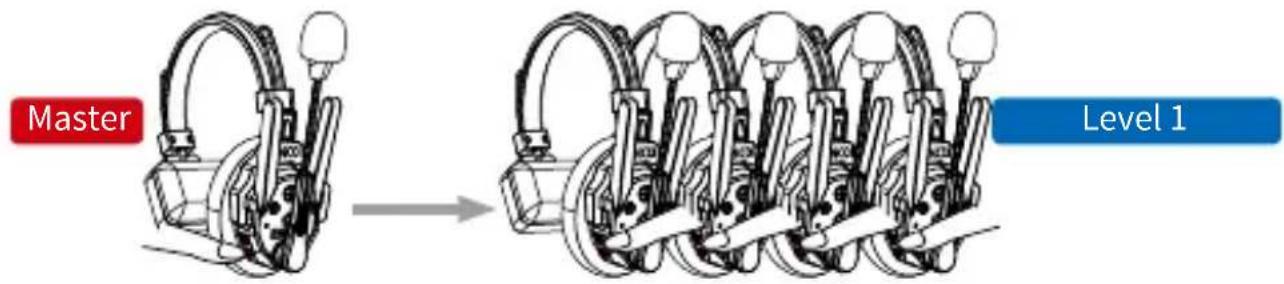

3) Restart all headsets to use.

Master Level 1

3.2 If Pair 6\~13 headsets

1) Set a Master, 4 Level 1 and 1\~8 Level 2.

Master Mode Level 1 Pairing Level 2 Pairing

2) Long press the button A on Master and 4 Level 1 in 1 min, release after the 1st “Beep” sound, and hear "Connecting and Pairing".

Master Connecting and Pairing Connecting and Pairing

3) After finishing pairing then restart the Master and 4 Level 1, long press the button A on Level 1 and level 2 in 1 min, release after the 1st “Beep” sound, and hear "Connecting and Pairing".

Level 1 Level Connecting and Pairing Connecting and Pairing

* A Master can connect up to 4 Level 1, and a Level 1 can connect up to 2 Level 2.
* The Level 2 must be paired with the Level 1 before it can connect to the Master. They cannot directly pair for communication.

4) Restart all headsets to use.(Turn them on in the sequence of Master → Level 1 → Level 2.)

* If disconnected, please return to the pairing range with the upper-level headset for automatic reconnection.

3.3 Unpairing

Long press the button A, release after the 1st "Beep" sound, and hear "Unpairing".

Unpairing

4. Group Management

You can divide an Xtalk system into independent groups or merge multiple groups into one single group.

4.1 Divide Into Groups

1) Set the required number of Master based on the planned group count (see 2. Master Settings).
2) Set the Level 1/Level 2 for each group (see 2. Level 1/Level 2 Settings).
3) Pair and restart each group one by one (see 3. Pairing/Unpairing).

EG. Divide XPro5 into 2 groups: 2-Person Group & 3-Person Group

1) Set 2 Masters and 4 Level 1.
2) Pairing (* Please pair and restart each group before pairing the next.).

2-Person Group:

Long press the button A on a Master and a Level 1, release after the 1st "Beep" sound and hear "Pairing Succeed" then restart the headsets. (Power On Sequence: Master → Level 1)

3-Person Group:

Long press the button A on a Master and 2 Level 1, release after the 1st "Beep" sound and hear "Pairing Succeed" then restart the headsets. (Power On Sequence: Master → Level 1)

EG. Divide XPro9 into 2 groups: 2-Person Group & 7-Person Group

1) Set 2 Masters, 5 Level 1, and 2 Level 2.
2) Pairing (* Please pair and restart each group before pairing the next.).

2-Person Group:

Long press the button A on a Master and a Level 1, release after the 1st "Beep" sound and hear "Connecting and Pairing", then restart the headsets. (Power On Sequence: Master → Level 1)

7-Person Group:

1) Pair the Master and Level 1: Long press button A on Master and Level 1, release after the first "Beep" sound and hear "Connecting and Pairing", then restart the headsets.
2) After finishing pairing then restarting the Master with Level 1, pair Level 1 with Level 2: Long press the button A on Level 1 and Level 2, release after the first "Beep" sound, and hear "Connecting and Pairing", then restart all headsets. (Power On Sequence: Master → Level 1 → Level 2)

4.2 Combine Into One Group

1) Only keep one Master, and set the other headsets as Level 1 and Level 2 if needed. (See 2. Master/Level 1/Level 2 Settings).
2) Pair all headsets and restart (see 3. Pairing/Unpairing).

EG. Combine 2 groups(A 2-Person Group and A 5 Person Group) into 1 group

1) Keep 1 Master, set 4 Level 1 and 2 Level 2 (See 2. Master/Remote/Level 1/Level 2 Settings).
2) Pair headsets in sequence: Pair Master with Level 1, then pair Level 1 with Level 2 (See 3. Pairing/Unpairing).
3) Restart all headsets after successfully connecting (Power on sequence: Master → Level 1 → Level 2).

5. Volume Settings

Short press the volume up/down button to increase/decrease the volume.

6. Noise Cancellation

Short press the B button to turn on/off the noise cancellation feature.

7. Mute/Unmute

Rotate the boom arm up/down (see the picture below) to mute/unmute.

Mute Unmute Unmute

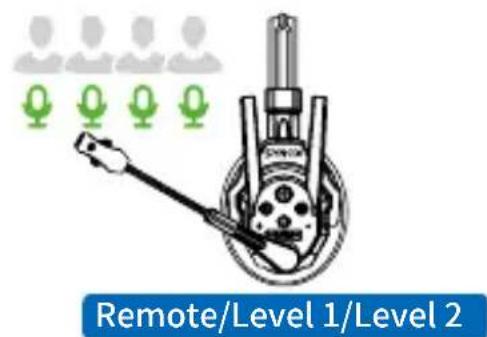

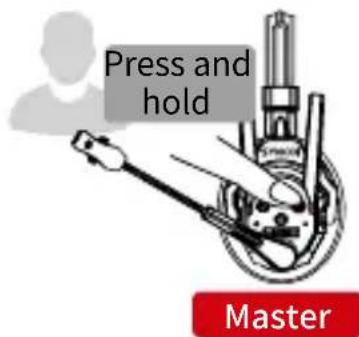

8. Dominant Mode

Press and hold the button B of Master to enter the dominant mode for muting other headsets. Other headsets are still available for listening and only the Master is available for speaking. Release the button B to exit dominant mode.

Press and hold Master

Remote/Level 1/Level 2

Release Master

Remote/Level 1/Level 2

9. Boost Mode

When poor signal, switch the Boost Mode to amplify the signal, improving communication clarity and stability, and reducing interruptions and disconnections.

Long press the volume-, release after the 1st "Beep" sound to switch the mode and hear "Mode 1/Mode 2/Mode 3".

*The operation is only available by Master.

* Mode 1 by default.

*After changing the Mode, if Level 1/Level 2 is restarted, please pair it with the upper-level headset again to rejoin the communication group.

Beep Release Boost Mode 1 Boost Mode 2 Boost Mode 2

10. Real-Time Monitoring

Connect the device(Camera, Camcorder, etc.) with the Xtalk headset via 3.5mm TRS port for monitoring the audio from the device.

*This port is only for monitoring and is not the outputting port.

11. Powering

Via Replaceable Battery Power

Push down the toggle of the battery case then pull the case door outward to place/remove the battery.

Diagram showing a medical device with attached tubing and a magnified view of the cable being inserted (no text or labels present)

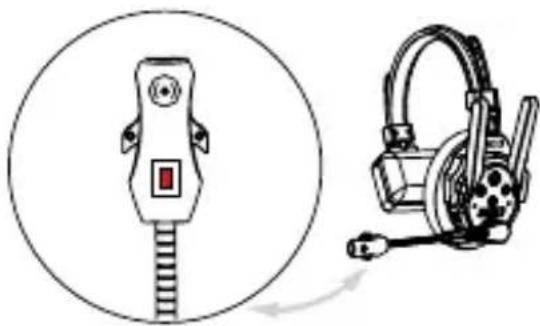

12. Indicator Light Status

Green Light SteadyConnection Successful
Green Light Flashing SlowNot Connected
Green/Yellow Lights AlternatingNoise Cancellation Off
Red Light Flashing SlowLow Battery
Red Light SteadyCharging

Technical illustration of a mechanical device with a circular outline and a separate view showing its internal components (no text or symbols)

13. Firmware Update/Voice Pack Installation

Please scan the QR code or download the SYNCO EasyGo, firmware package, and voice package from the link, and check the SYNCO EasyGo operation guide, etc.

https://www.syncoaudio.com/pages/synco-xtalk-easygo

QR code image containing encoded data, no visible human-readable text

If the update fails due to disconnection, please remove the cable and then reconnect to continue.

Please use a USB C cable that supports data transfer to connect it to the computer.

If the headset fails to connect, please try reversing the Type-C connector on the headset end.

Specifications

Wireless TechnologyDigital 2.4GHz
Transmission ModeFull-Duplex
Operating Range500m (LOS)
Frequency Band2.4GHz
Approximate RF Sensitivity<-90dBm
Radio Output Frequency20dBm
PowerUSB-C 5V
Battery Capacity1050mAh Li-ion Battery
Working Time24H
Charging TimeAbout 2.5H
Frequency Response150Hz~7KHz
Signal-To-Noise Ratio 65dB
Distortion<1 %
Microphone TypeCondenser Microphone
Max Input Sound Pressure Level>115dBSPL
Output Sound Pressure LevelTypical 98+3dBSPL(at 94dBSPL 1KHz)
WeightAbout 194g (Battery Included)
Temperature Range0~+45°C(Working Status)-20~+60°C(Storage Condition)

Packing List

XPro1
Illustration of a medical or laboratory device with tubing and connectors (no text or symbols)

Headset x1

Synco XTalk XPro - Packing List - 2
Charging Cable x1

Synco XTalk XPro - Packing List - 3
Carrying Bag x1

Synco XTalk XPro - Packing List - 4
Rechargeable Battery x1

Synco XTalk XPro - Packing List - 5
One-Ear Foam Cushion x1

Synco XTalk XPro - Packing List - 6
Mic Windshield x1

Synco XTalk XPro - Packing List - 7
Warranty Card x1

XPro2
Illustration of medical or laboratory equipment including a syringe, tubing, and connector (no text or symbols)

Headset x2

Synco XTalk XPro - Packing List - 9
Charging Cable x1

Synco XTalk XPro - Packing List - 10
Carrying Bag x2

Simple line drawing of a two-part rectangular structure with internal divisions and small protrusions (no text or symbols)

Charging Station x1

Synco XTalk XPro - Packing List - 12
One-Ear Foam Cushion x2

Synco XTalk XPro - Packing List - 13
Mic Windshield x2

Synco XTalk XPro - Packing List - 14
Rechargeable Battery x2

Synco XTalk XPro - Packing List - 15
Warranty Card x1

XPro5
Illustration of a medical or laboratory device with a curved cable and two tubes (no text or symbols visible)

SYNCO

Simple line drawing of a two-segment display panel with no text or symbols

Headset x5 6-Slot StorgingCase x1 Carrying
Station x1

Simple line drawing of a coiled tube connected to a rectangular device (no text or symbols)

Charging Adapter x1

Synco XTalk XPro - Packing List - 20
Bag x5

Synco XTalk XPro - Packing List - 21
Rechargeable Battery x5

Synco XTalk XPro - Packing List - 22
One-Ear Foam Cushion x5

Synco XTalk XPro - Packing List - 23
Mic Windshield x5

Synco XTalk XPro - Packing List - 24
Data Transfer Cable x1

Synco XTalk XPro - Packing List - 25
Warranty Card x1

XPro9
Illustration of a medical or laboratory device with tubing and connectors (no text or symbols)

Simple line drawing of a white briefcase with a handle and 'SYNGON' label on the front face (no other text or symbols)

Headset x9 Storage Case x1 Carrying

Pure electrical circuit lines without any symbols

6-Slot Charging Station x2

Pure electrical circuit lines without any symbols

Charging Adapter x2

Synco XTalk XPro - Packing List - 30
Bag x9

Synco XTalk XPro - Packing List - 31
Rechargeable Battery x9

Synco XTalk XPro - Packing List - 32
One-Ear Foam Cushion x9

Synco XTalk XPro - Packing List - 33
Mic Windshield x9

Synco XTalk XPro - Packing List - 34
Data Transfer Cable x1

Synco XTalk XPro - Packing List - 35
Warranty Card x1

Synco XTalk XPro - Packing List - 36
Warranty Card x1

Caring For Your SYNCO Product

  • Please keep the product in a dry, clean, dust-free environment.
  • Keep corrosive chemicals, liquids, and heat sources away from the product to prevent mechanical damage.
  • Use only a soft and dry cloth for cleaning the product.
  • Malfunction may be caused by dropping, the impact of external force.
  • Do not attempt to disassemble the product. Doing so voids the warranty.
  • Please have the product checked or repaired by authorized technicians if any malfunctions happen.
  • Failure to follow all the instructions may result in mechanical damage.
  • Warranty does not apply to human errors.

WARRANTY

Warranty Period

Thank you for purchasing SYNCO products.

  1. Customers are entitled to free replacement or repair service in case of quality defect(s) found in the product under normal use within 30 days upon receipt of the product.

  2. Original SYNCO products are entitled to 12-month limited warranty service. The warranty period begins on the date of purchase of brand new, unused products by the first end-user. Within the warranty period, if product defect or failure is attributable to material defection or technological problem, the defective product or defective part will be repaired or replaced without charge (service and materials fee).

Warranty Exclusions and Limitations

  1. Faults resulted from inappropriate use of a product without following its operation specification
  2. Artificial damage, e.g. crash, squeeze, scratch, or soaking
  3. Modifications to a product by its user or a third party without prior written consent of SYNCO, e.g. replacement of element or circuit, label alteration
  4. The code on product is inconsistent with that of warranty certificate, or the code on the product or warranty certificate is altered or torn off
  5. All consumable accessory attached to a product, like cable, wind muff, battery
  6. Faults as a result of force majeure, such as fire, flood, lightning, etc.

Warranty Claim Procedure

  1. If failure or any problem occurs to your product after purchase, please contact a local agent for assistance, or you can always contact SYNCO's customer service through email at support@syncoaudio.com.
  2. Please retain your sales receipt and warranty certificate as proof of purchase. If any of these documents is missing, only sales return or chargeable service will be provided.
  3. If the SYNCO product is out of the warranty coverage, the service and the parts cost will be charged.

Guangzhou Zhiying Technology Co., Ltd

Room 2401, 24 / F, South Tower, Lisheng Plaza, No. 68 Huadi Avenue, Liwan District, Guangzhou, China, 510000
support@syncoaudio.com
www.syncoaudio.com
https://www.facebook.com/syncomicrophones

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : Synco

Model : XTalk XPro

Category : Headset with mic
