Product Type	Freestanding Dishwasher
Brand	Sharp
Model	QW-HD44FD-DE
Dimensions (H x W x D)	85 x 60 x 60 cm
Weight	50 kg
Power Supply	220-240 V, 50 Hz, 10 A
Energy Class	A+
Capacity	14 Place Settings
Noise Level	44 dB
Number of Programs	6
Control Type	Electronic Push Button
Display	LED Display
Water Consumption per Cycle	10 L
Energy Consumption per Cycle	1.05 kWh
Delayed Start	Yes (1-24 hours)
Half Load Option	Yes
Safety Features	Child Lock, Flood Protection, Overflow Protection
Interior Light	Yes
Cutlery Basket	Yes, Removable
Rinse Aid Indicator	Yes
Salt Indicator	Yes
Self-Cleaning Filter	Yes
Spare Parts Availability	At least 7 years after purchase
Repair Index	7.5 / 10

Frequently Asked Questions - QW-HD44FD-DE SHARP

How do I properly load the dishwasher for best cleaning results?

Place larger items like pots and pans on the bottom rack, and delicate items like glasses on the top rack. Ensure that dishes are not blocking the spray arms. Use the cutlery basket for utensils, placing sharp items with handles up. Avoid overloading to allow water circulation.

What type of detergent and rinse aid should I use?

Use a dishwasher detergent (powder, gel, or tablets) and a rinse aid to improve drying and prevent spots. For hard water areas, also use dishwasher salt to regenerate the water softener. Do not use regular dish soap.

How do I start a wash cycle?

Make sure the dishwasher is properly connected and loaded. Add detergent and close the door. Select a program using the control panel and press the Start button. If a delayed start is set, the dishwasher will begin at the selected time.

What should I do if the dishes are not drying completely?

Ensure that rinse aid is filled and the setting is appropriate. Use a high-temperature rinse or an extra drying option if available. Also, avoid overloading and open the door slightly after the cycle ends to let steam escape.

How often should I clean the filter?

Clean the fine filter and coarse filter after every few cycles or at least once a month. Remove food debris by rinsing them under running water. A dirty filter can affect cleaning performance and cause odors.

What does error code E1 mean?

Error code E1 typically indicates a water inlet problem. Check that the water tap is fully open and the inlet hose is not kinked or blocked. If the problem persists, contact customer service.

How do I reset the dishwasher?

To reset the dishwasher, press and hold the Start/Reset button for about 3 seconds until the display shows '0' or the program cancels. If the model has a dedicated reset function, refer to the manual.

Why is there standing water in the bottom of the dishwasher?

Standing water may indicate a clogged drain filter or a blocked drain hose. Clean the filter and check the hose for kinks. If the issue continues, the drain pump might be faulty and require service.

Can I install the dishwasher under a countertop?

Yes, the Sharp QW-HD44FD-DE is a freestanding model that can also be built under a countertop. Ensure there is enough space for ventilation (a gap of at least 5 mm around the top and sides). Remove the worktop if installing under a counter.

How do I obtain spare parts or service?

Spare parts are available for at least 7 years after purchase. Contact Sharp customer service or authorized service centers. You can also order parts online from the Sharp website or authorized retailers.

USER MANUAL QW-HD44FD-DE SHARP

Thank you for choosing this product.

This User Manual contains important information on safety and instructions intended to assist you in the operation and maintenance of your appliance.

Please take the time to read this User Manual before using your appliance and keep this book for future reference.

Icon Type Meaning
	WARNING Serious injury or death risk
	RISK OF ELECTRIC SHOCK Dangerous voltage risk
	FIRE	Warning; Risk of fire / flammable materials.
	CAUTION Injury or property damage risk
	IMPORTANT / NOTE Operating the system correctly

CONTENTS

1. SAFETY INSTRUCTIONS .... 1

1.1. General Safety Warnings ...... 1

1.2. Installation Warnings .... 2

1.3. During Use....3

2. INSTALLATION....6

2.1. Machine Positioning ......6

2.2. Water Connection....6

2.3. Water Inlet Hose 6

2.4. Electrical Connection ...... 7

2.5. Fitting the Machine Undercounter ...... 7

3. TECHNICAL SPECIFICATIONS....8

3.1. General Appearance....8

3.2. Technical Specifications ....8

4. BEFORE USING THE APPLIANCE 9

4.1. Preparing your Dishwasher for first use 9

4.2. Salt usage....9

4.3. Fill the salt 9

4.4. Test Strip 10

4.5. Water Hardness Table 10

4.6. Water Softener System 10

4.7. Setting 10

4.8. Detergent Usage 10

4.9. Filling the Detergent 11

4.10. Using Combined Detergents 11

4.11. Rinse-aid Usage 11

4.12. Filling the Rinse-aid and Setting 11

5. LOADING YOUR DISHWASHER....13

5.1. Recommendations.... 13

5.2. Alternative Basket Loads....16

6. PROGRAMME TABLE....17

7. THE CONTROL PANEL....19

7.1. Changing a Programme 20

7.2. Cancelling a Programme....20

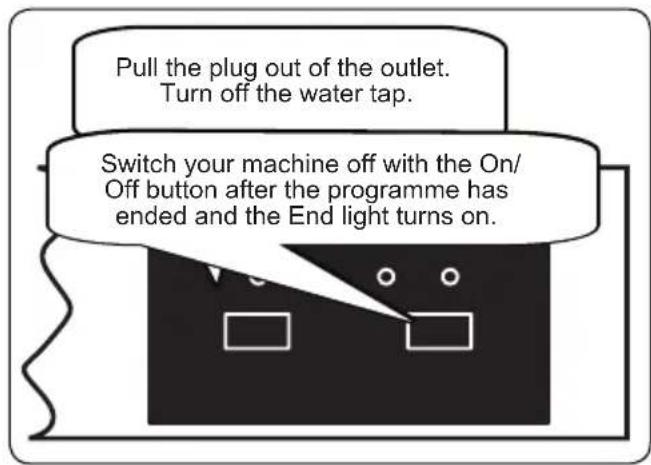

7.3. Switching the Machine Off....20

8. CLEANING AND MAINTENANCE 22 8.1. Filters 22 8.2. Spray Arms 22 8.3. Drain Pump 22 9. TROUBLESHOOTING 24

1. SAFETY INSTRUCTIONS

1. General Safety Warnings

- Read these instructions carefully before using your appliance and keep this manual for future reference.

Please check the packaging of your machine before installation and the outer surface of the machine once the packaging has been removed. Do not operate the machine if it appears damaged or if the packaging has been opened.

- Packaging materials protect your machine from any damage that might occur during transportation. The packaging materials are environmentally friendly as they are recyclable. Use of recycled material reduces raw material consumption and decreases waste production.

This appliance can be used by children aged from 8 years and above, and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand hazards involved. Children should not be allowed to play with the appliance.

⚠️ Remove packaging and keep it out of reach of children.

⚠️ Keep children away from detergents and rinse aids.

There may be some residue left in the machine after washing. Keep children away from the machine when it is open.

2. Installation Warnings

• Choose a suitable and safe place to install your machine.
• Only original spare parts should be used with the machine.

⚠️! Unplug the machine before installation.

⚠️ Your machine must only be installed by an authorised service agent. Installation by anyone other than an authorised agent may cause your warranty to be void.

⚠️ Check that the indoor electrical fuse system is connected in line with safety regulations.

All electrical connections must match the values on the plate.

⚠️! Ensure the machine does not stand on the electrical supply cable.

⚠️ Never use an extension cord or a multiple socket connection.

⚠️ The plug should be accessible after the machine is installed.

• After installation, run your machine unloaded for the first time.

The machine must not be plugged in during positioning.

Always use the coated plug supplied with your machine.

If the electrical cable is damaged, it should only be replaced by a qualified electrician.

Connect the hose directly to the water inlet tap. The pressure supplied by the tap should be a minimum of 0.03 MPa and a maximum of 1 MPa. If the

pressure exceeds 1 MPa, a pressure relief valve must be fitted between the connection.

3. During Usage

• This machine is for domestic use only; do not use
• it for other purposes. Commercial use will void the guarantee.

Do not stand, sit or place loads on the open door of the dishwasher. ⚠️ Only use detergents and rinse aids produced specifically for dishwashers. Our company is not responsible for any damage that may occur due to misuse. ⚠️ Do not drink water from the machine. Due to the danger of explosion, do not place any chemical dissolving agents into the machine's washing section. - Check the heat-resistance of plastic items before washing them in the machine. ⚠️ Only put items in the machine which are suitable for dishwashing, and take care not to overfill the baskets. ⚠️ Do not open the door while the machine is in operation, hot water may spill out. Safety devices ensure the machine stops if the door is opened. ⚠️ The machine door should not be left open. It may cause accidents. ⚠️ Place knives and other sharp objects in the cutlery basket in a blade-down position. ⚠️! For models with the automatic door-opening system, when the EnergySave option is active, the door will open at the end of a program. To prevent damage to your dishwasher, do not attempt to close

the door for one minute after it has opened. For effective drying, keep the door open for 30 minutes after a programme has ended. Do not stand in front of the door after the auto-open signal sounds.

In the case of a malfunction, repair should only be performed by an authorised service company, otherwise the warranty will be void.

Before repair work, the machine should be disconnected from the mains. Do not pull the cable to unplug the machine. Switch off the water tap.

Operation at a low voltage will cause a decline in performance levels.

For safety, disconnect the plug once a program has finished.

To avoid an electric shock, do not unplug the machine with wet hands.

Pull the plug to disconnect the machine from the mains, never pull on the cord.

RECYCLING

• Some machine components and packaging consist of recyclable materials.
• Plastics are marked with the international abbreviations: (>PE<, >PP<, etc.)
• The cardboard parts consist of recycled paper. They can be put into waste paper containers for recycling.
• Material unsuitable for domestic waste must be disposed of at recycling centres.
• Contact a relevant recycling centre to obtain information about disposal of different materials.

PACKAGING AND THE ENVIRONMENT

- Packaging materials protect your machine from damage that may occur during transportation. The packaging materials are environmentally friendly as they are recyclable. The use of recycled material reduces raw material consumption and therefore decreases waste production.

CE Declaration of Conformity

We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced.

Disposal of your old machine

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead, it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product,

please contact your local city office, your household waste disposal service or the shop where the product was purchased.

2. INSTALLATION

2.1. Machine positioning

When positioning the machine, place it in an area where dishes can be easily loaded and unloaded. Do not put the machine in an area where the ambient temperature falls below 0°C.

Read all warnings located on the packaging before removing the packaging and positioning the machine.

Place the machine close to a water tap and drain. Take into consideration that the connections will not be altered once the machine is in position.

Do not hold the machine by its door or panel.

Leave an adequate distance around the machine to allow ease of movement when cleaning.

Ensure the water inlet and outlet hoses are not squeezed or trapped and that the machine does not stand on the electrical cable while positioning.

Adjust the feet so the machine is level and balanced. The machine should be placed on flat ground otherwise it will be unstable and the door of the machine will not close properly.

2.2. Water connection

We recommend fitting a filter to your water inlet supply in order to prevent damage to your machine due to contamination (sand, rust, etc.) from indoor plumbing. This will also help prevent yellowing and deposit formation after washing.

Note printing on the water inlet hose! If models are marked with 25°, the water temperature may be max. 25°C (cold water).

For all other models:

Cold water preferred; hot water max. temperature 60°C.

2.3. Water inlet hose

WARNING: Use the new water inlet supplied with your machine, do not use the old machine's hose.

WARNING: Run water through the hose before connecting.

WARNING: Connect the hose only to the water inlet tap. The pressure provided by the tap should be a minimum of 0.3 MPa and a maximum of 1 MPa. If the pressure exceeds 1 MPa, a pressure reducing valve must be fitted between the connection.

WARNING: After the connections are made, turn the tap on fully and check for water leaks. Always turn off the inlet tap after a wash program has ended.

An Aquastop water spout is available with some models. Do not damage it or allow it to become kinked or twisted.

2.4. Electrical connection

WARNING: Your machine is set to operate at 220-240 V. If the mains voltage supply to your machine is 110 V, connect a transformer of 110/220 V and 3000 W between the electrical connection.

Connect the product to a grounded outlet protected by a fuse complying with the values in the "Technical Specifications" table.

The earthed plug of the machine must be connected to an earthed outlet supplied by suitable voltage and current.

In the absence of earthing installation, an authorised electrician should carry out an earthing installation. In the case of use without earthing installed, we will not be responsible for any loss of use that may occur.

The plug on this appliance may incorporate a 13A fuse depending on the target country. (For Example UK, Saudi Arabia)

2.5. Fitting the machine undercounter

If you wish to fit your machine undercounter, there must be sufficient space to do so and the wiring-plumbing must be suitable to do so (1). If the space under the countertop is suitable for fitting your machine, remove the worktop as shown in the illustration (2).

WARNING: The countertop, of which the machine will be placed under, must be stable in order to prevent imbalance.

The top panel of the dishwasher must be removed to fit the machine under the countertop.

To remove the top panel, remove the screws that hold it on, located at the rear of the machine. Then, push the panel 1 cm from the front towards the rear and lift it. Adjust the machine feet according to the slope of the floor (3).

Fit your machine by pushing it under the counter taking care not to crush or bend the hoses (4).

WARNING: After removing the top panel of your dishwasher, the machine should be placed in a space of the dimensions shown in the figure below.

	A	B
	All Products	B1	B2
Product's Height (±2 mm) 820 mm 830 mm 835 mm

A: If there is no felt on the top of the product; you should take into account this product's height.

B1: If there is felt on the top of the product with 2nd basket; you should take into account this product's height.

B2: If there is felt on the top of the product with 3rd basket; you should take into account this product's height.

3. TECHNICAL SPECIFICATIONS

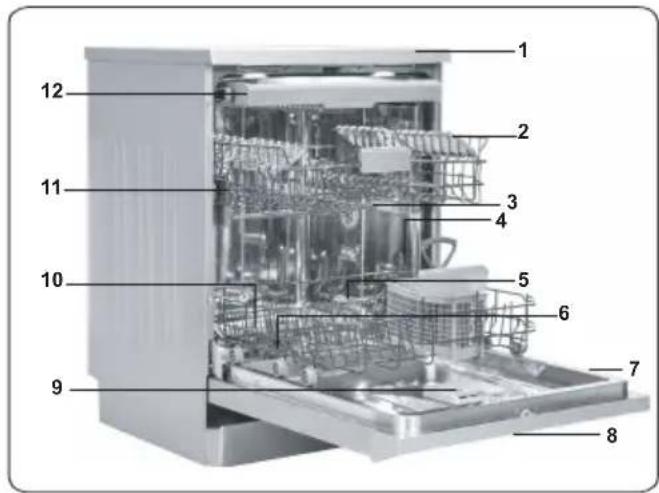

3.1. General appearance

1. Worktop
2. Upper basket with racks
3. Upper spray arm
4. Lower basket
5. Lower spray arm
6. Filters
7. Rating plate
8. Control panel
9. Detergent and rinse-aid dispenser
10. Salt dispenser
11. Upper basket track latch
12. Upper Cutlery Basket
13. Turbo Drying Unit: This system provides better drying performance for your dishes.

3.2. Technical specifications

Capacity	15 place settings
Dimensions (mm)
Height	850(mm)
Width	598(mm)
Depth	598(mm)
Net weight	49,900 kg
Operating voltage / frequency	220-240V 50 Hz,
Total current (A)	10(A)
Total power (W)	1900(W)
Water supply pressure	Maximum: 1 (Mpa) Minimum: 0.03 (Mpa)

4. BEFORE USING THE APPLIANCE

4.1. Preparing your dishwasher for first use

• Make sure the electricity and supply water specifications match the values indicated in the installation instructions for the machine.
• Remove all packaging material inside the machine.
• Set the water softener level.
• Fill the rinse aid compartment.

4.2 Salt usage (IF AVAILABLE)

For a good washing function, the dishwasher needs soft, i.e. less calcareous water. Otherwise, white lime residues will remain on the dishes and the interior equipment. This will negatively affect your machine's washing, drying and shining performance. When water flows through the softener system, the ions forming the hardness are removed from the water and the water reaches the softness required to obtain the best washing result. Depending on the level of hardness of the inflowing water, these ions that harden the water accumulate rapidly inside the softener system. Therefore, the softener system has to be refreshed so that it operates with the same performance also during the next wash. For this purpose, dishwasher salt is used.

The machine can only be used with special dishwasher salt to soften the water. Do not use any small grained or powdered type of salts which can easily dissolve. Using any other type of salt can damage your machine.

4.3 Fill the salt (IF AVAILABLE)

To add softener salt, open the salt compartment cap by turning it counterclockwise. (1) (2) At first use, fill the compartment with 1 kg of salt and water (3) until it is almost overflowing. If available, using a funnel (4) will make filling easier. Replace the cap and close it. After every 20-30 cycles, add salt to your machine until it fills up (approx. 1 kg).

Only add water to the salt compartment on first use.

Use softener salt specifically produced for use in dishwashers.

When you start your dishwasher, the salt compartment is filled with water, therefore put the softener salt in prior to starting your machine.

If the softener salt has overflowed and you do not start the machine immediately, run a short washing program to protect your machine against corrosion.

4.4. Test Strip

Run water through the tap (1min.)	Keep the strip in the water (1sec)	Shake the strip.	Wait (1min.)	Set the hardness level of your machine.

NOTE: The level is set to 3 as default. If the water is well water or has a hardness level above 90 dF, we recommend that you use filter and refinement devices.

4.5. Water Hardness Table

Level	German dH	French dF	British dE	Indicator
1 0-5	0-9 0-6 L1 is seen	on the display.
2 6-11	10-20 7-14 L2 is	seen on the d	splay.
3 12-17	21-30 15-21		L3 is seen	on the display.
4 18-22	31-40 22-28		L4 is seen	on the display.
5 23-31	41-55 29-39		L5 is seen	on the display.
6 32-50	56-90 40-63		L6 is seen	on the display.

4.6. Water Softener System

The dishwasher is equipped with a water softener which reduces the hardness in the mains water supply. To find out the hardness level of your tap water, contact your water company or use a test strip (if available).

4.7. Setting

In order to change the salt level, follow the below steps:

• Press the program button when the machine is off.
• Turn on the machine by pressing the On/Off button and continue to press the program button for at least 3 seconds.

- If "Hardness set" is recognized, "SL" is shown for 2 seconds.

- Release program button. The last setting level is viewed.

- Press program button to set the desired level. At any pressure of program button hardness level is incremented. Hardness level 1 returns after hardness level 6.

- The last selected water hardness level is stored in the memory by turning the machine off with On/Off button.

4.8. Detergent usage

Only use detergents specifically designed for domestic dishwashers. Keep your detergents in cool, dry places out of reach of children.

Add the proper detergent for the selected program to ensure the best performance. The amount of detergent needed depends on the cycle, load size, and soil level of dishes.

Do not fill detergent into the detergent compartment more than required; otherwise you can see whitish streaks or bluish layers on glass and dishes and may cause glass corrosion. Continued use of too much detergent may cause machine damage.

Using little detergent can result in poor cleaning and you can see whitish streaks in hard water.

See the detergent manufacturer's instructions for further information.

4.9. Filling the detergent

Push the latch to open the dispenser and pour in the detergent.

Close the lid and press it until it locks in place. The dispenser should be refilled just before the start of each programme. If the dishes are heavily soiled, place additional detergent in the pre-wash detergent chamber.

4.10. Using combined detergents

These products should be used according to the manufacturer's instructions.

Never put combined detergents into the interior section or the cutlery basket.

Combined detergents contain not only the detergent but also rinse-aid, salt replacement substances and additional components depending on the combination.

We recommend you do not use combined detergents in short programmes.

Please use powder detergents in such programmes.

If you encounter problems when using combined detergents, please contact the detergent manufacturer.

When you stop using combined detergents, make sure that water hardness and rinse aid settings are set to the correct level.

4.11. Rinse-aid usage

The rinse aid helps to dry the dishes without streaks and stains. Rinse-aid is required for stain-free utensils and clear glasses. The rinse aid is automatically released during the hot rinse phase. If rinse aid dosage setting is set too low, whitish stains remain on dishes and dishes do not dry and wash clean.

If rinse aid dosage setting is set too high,

you can see bluish layers on glass and dishes.

4.12. Filling the rinse-aid and setting

To fill the rinse aid compartment, open the rinse-aid compartment cap. Fill the compartment with rinse aid to the MAX level and then close the cap. Be careful not to overfill the rinse aid compartment and wipe up any spills.

In order to change the rinse aid level, follow the below steps before turning on the machine:

- Push the programme button and hold it down.

- Turn on the machine.

- Hold down the programme button until "rA" disappears from the display. Rinse aid setting follows water hardness setting.

- The machine will display the last setting.

- Set the level by pushing the programme button.

- Switch off the machine to save the setting.

- The factory setting is "4".

If the dishes are not drying properly or are spotted, increase the level. If blue stains form on your dishes, decrease level.

Level Brightener Dose Indicator
1 Rinse	-aid not dispensed	r1 is shown on the display.
2 1 dose	is dispensed	r2 is shown on the display.
3 2 doses	are dispensed	r3 is shown on the display.
4 3 doses	are dispensed	r4 is shown on the display.
5 4 doses	are dispensed	r5 is shown on the display.

5. LOADING YOUR DISHWASHER

For best results, follow these loading guidelines.

Loading the household dishwasher up to the capacity indicated by the manufacturer will contribute to energy and water savings.

Manual pre-rinsing of tableware items leads to increased water and energy consumption and is not recommended. You can place cups, glasses, stemware, small plates, bowls, etc. in upper basket. Do not lean long glasses against one another or they cannot remain steady and may receive damage.

When placing long stem glasses and goblets, lean them against the basket edge or rack and not against other items.

Place all containers such as cups, glasses and pots into the dishwasher with the opening facing downwards otherwise water can collect on items.

If there is cutlery basket in machine, you are recommended to use the cutlery grid in order to obtain the best result. Place all large (pots, pans, lids, plates, bowls etc.) and very dirty items in the lower rack.

Dishes and cutlery should not be placed above each other.

WARNING: Take care not to obstruct rotation of spray arms.

WARNING: Make sure after loading the dishes do not prevent opening the detergent dispenser.

5.1 Recommendations

Remove any coarse residue on dishes before placing the dishes in the machine. Start the machine with a full load.

Do not overload the drawers or place dishes in the wrong basket.

WARNING: To avoid any possible injury, place long-handled and sharp-edged knives with their sharp points facing down or horizontally on the baskets.

Upper Basket

The upper basket includes a mechanism that enables the height of the basket to be adjusted up (1) or down (2) without having to remove the basket. Hold the basket on both sides and pull it up or push it down, ensuring both sides of the upper basket are in the same position.

SOFT TOUCH

Top basket

Height Adjustable Rack

These racks are designed to increase the capacity of the top basket. You can place your glasses and cups on the racks. You can adjust the height of these racks. Thanks to this feature, you can place different sizes of glasses under these racks. Thanks to height adjustment plastics mounted on the basket, you can use your racks in 2 different heights. In addition, you can place long forks, knives, and spoons on these racks laterally, so that they do not block the revolution of the propeller. The soft touch feature on the racks serves to place fine stemmed glasses.

The wineglass is placed in the area shown in the picture.

Foldable racks

Foldable racks on the upper basket are designed to let you place big items easier, such as pots, pans, etc. If requested, each part can be folded separately, or all of them can be folded and larger spaces can be obtained. You can use foldable racks by raising them upwards, or by folding them down.

Four Folding Racks

The folding racks are designed so that large items, such as pots and pans, can be easily placed in the dishwasher. Each section can be folded separately. The racks can be folded down or raised up, as shown in the images below.

Upper Cutlery Basket

The upper cutlery basket is designed for the placement of large and small cutlery and utensils.

WARNING: Knives and other sharp objects must be placed horizontally in the cutlery basket.

5.2. Alternative basket loads Lower basket

Upper basket

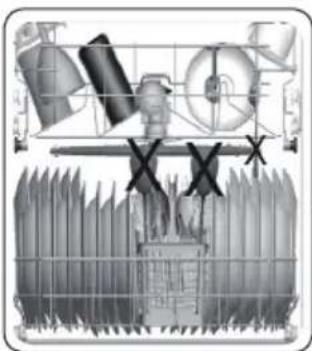

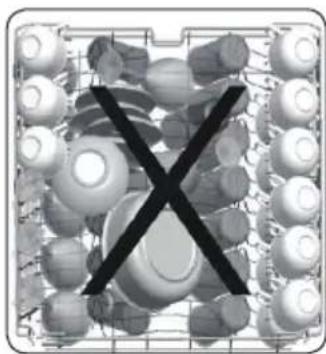

Incorrect Loads

Incorrect loading can cause poor washing and drying performance. Please follow the manufacturer's recommendations for a good performance result.

Unsuitable items for dishwashing

• Cigarette ashes, candle leftovers, polish, paint, chemical substances, iron-alloy materials. - Forks, spoons and knives with wooden, bone, ivory or nacre-coated handles; glued items, items soiled with abrasive, acidic or base chemicals. • Temperature-sensitive plastics, copper or tin-coated containers. • Aluminium and silver objects. - Some delicate glasses, ornamental printed porcelains; some crystal items, adhered cutlery, lead crystal glasses, cutting boards, synthetic fibred items. - Absorbent items such as sponges or kitchen rugs.

IMPORTANT: In future, purchase washer-proof kitchenware.

Important Note for Test Laboratories

For detailed information required for tests according to EN normatives and a softcopy of the manual, please send the model name and serial number to the following address: [e-mail]

	P1 P2 P3 P4 P5 P6 P7 P8 P9
Program Name:	QuickWash 14'	Quick 30' 40' Eco	50° Express 50' 65°	Dual Pro Wash 60°		Hygiene 70°	Auto Intensive 60°-70°	Steam Wash
Type of Soil:	Suitable for Inise dishes that you plan to wash later	Fastest program for Inighty soled used dishes and suitable for 4 place settings.	Suitable for normally soled dishes and water reduced energy quick wash.	Suitable for normally soled daily dishes with faster program.	Suitable for broadly solled daily dishes with rack and heavily solled orckery on lower rack.	Suitable for both lighty solled for heavily solled dishes requiring hygienic washing	Auto program heavily solled dishes.	Suitable for heavily solled effective effective cleaning by steam.
Level of Soil: Light Light Lighly Medium Medium Heavy Heav Heavy
"Amount of Different: A: 25 cm3 B: 15 cm3"	-	B	A	A	A	A	A	A
Program Duration (h:min):	00:15	00:14	00:30	04:14	00:50	01:53	02:07	01:49 - 02:59
Electricity consumption (kWh / cycle):	0.020	0.340	0.650	0.861	1.000	1.600	1.700	1.250 - 1.900
Water consumption (ft / cycle):	4.2	6.6	10.9	9.0	9.5	15.4	16.0	11.8 - 24.0

• The program duration may change according to the amount of dishes, the water temperature, the ambient temperature and selected additional functions.
• Values given for programmes other than the eco programme are indicative only
• Eco programme is suitable to clean normally soiled tableware, that for this use, it is the most efficient programme in terms of its combined energy and water consumption, and that it is used to assess compliance with the EU ecodesign legislation.
• Washing tableware in a household dishwasher usually consumes less energy and water in the use phase than hand dishwashing when the household dishwasher is used according to the manufacturer's instructions.
• Only use powder detergent for short programs.
• Short programs do not include drying.
• To assist drying, we recommend slightly opening the door after a cycle is complete.
• You can access the product database where the model information is stored by reading the QR code on the energy label.

NOTE: According to regulations 1016/2010 and 1059/2010, Eco program energy assumption values may differ. This table is in line with regulations 2019/2022 and 7/2022.

7. THE CONTROL PANEL

Press the On/Off button (4) to switch on the machine. The On/Off lamp remains lit when the machine is on.

Select a suitable programme by pressing the programme button (5).

Press the Start/Pause button (6) to start the program. The Wash lamp will turn on and the Remaining Time Indicator (7) will show the programme duration. It also indicates the remaining time during the programme flow. If you open the door of your machine when the programme is running, the duration of the programme pauses and the programme number and programme duration are shown alternately.

Programme flow can be monitored via Wash, Rinse, Dry and End lamps on the Remaining Time Indicator (7). The machine remains silent for about 40-50 minutes when the drying lamp is on.

NOTE: When you have less than half load, you can select the Half Load option.

There are three options: both baskets, upper basket, or lower basket. Press the half load button until the indicator which corresponds to your selection lights up.

NOTE: Press the Half load button for 3

seconds to activate the Tablet option when using combined detergent that contains salt, rinse aid and extra functions.

NOTE: You may select the Energy Save option, which activates the door opening system at the end of the program. The auto door opening system provides the required drying performance at low rinsing temperatures and reduces energy consumption.

Save option which activates the door opening system at the end of the program. The auto door opening system provides the required drying performance at low rinsing temperatures and reduces energy consumption.

NOTE: If you want your dishes to be cleaned more quickly, select the Extra Fast button by pressing the Extra button until the ramp turns on. This option washes the dishes with more pressure, so the cycle is completed more quickly, but water and energy use is increased.

NOTE: An Extra Silent option is activated by pressing the Extra button until it is on. The dishes are washed with reduced pressure, which provides a more gentle and quieter wash.

NOTE: If you have selected an extra feature for the current washing program, the feature will remain active on the next washing program. If you want to cancel the feature on the newly selected washing program, press the Extra (1), Delay (2), or Load (3) button until the related lamps turn off, or turn the machine off with the Off button (4). If you would like to use the extra feature with the newly selected program, select the desired function.

NOTE: Child lock is activated/deactivated by pressing both "Extra" (1) and "Load" (3) buttons for about 3 seconds. When activated, all LEDs blink and "CL" is shown on the Remaining Time Indicator once. When deactivated, all LEDs blink twice.

NOTE: You can delay the start time of the program for 1-2...19 hours by pressing the delay button (2) before the program starts. If you want to change the delay, first press the Start/Pause button and then the delay button to select a new delay. To select a new delay time, press the Start/Pause button. To cancel the delay, you need to switch to 0 hours using the delay button.

NOTE: If you switch the machine to the off position after selecting the delay and the programme has started, the set time is cancelled.

NOTE: When more rinse-aid is required, the rinse-aid lack warning indicator (9) turns on and you need to fill the rinse-aid chamber.

NOTE: When more rinse-aid is required, the rinse-aid lack warning indicator (9) turns on and you need to refill the rinse-aid chamber.

If you would like to select a different program when a program is running.

If you would like to select a different program when a program is running.

If you would like to cancel a running program.

7.3. Switching the Machine Off

7.3. Switching the Machine Off

NOTE: Do not open the door before the program ends.

NOTE: At the end of the washing program, you can leave the door of your machine ajar to hasten the drying.

NOTE: If the door of machine is opened or power is cut off during washing, the program will continue when the door is closed or the power is restored.

8. CLEANING AND MAINTENANCE

Cleaning your dishwasher is important to maintain the machine's service life. Make sure that the water softening setting (If available) is done correctly and correct amount of detergent is used to prevent limescale accumulation. Refill the salt compartment when the salt sensor light comes on.

Oil and limescale may build up in your Dishwasher over time. If this occurs:

- Fill the detergent compartment but do not load any dishes. Select a programme which runs at high temperature and run the Dishwasher empty. If this does not clean your Dishwasher sufficiently, use a cleaning agent designed for use with dishwashers.

• To extend the life of your dishwasher, clean the appliance regularly on each month

- Wipe the door seals regularly with a damp cloth to remove any accumulated residue or foreign objects.

8.1. Filters

Clean the filters and spray arms at least once a week. If any food waste remains or foreign objects on the coarse and fine filters, remove them and clean them thoroughly with water.

a) Micro Filter

b) Coarse Filter

c) Metal Filter

To remove and clean the filter combination, turn it counter clockwise and remove it by lifting it upwards (1). Pull the coarse filter out of the micro filter (2). Then pull and remove the metal filter (3). Rinse the filter with lots of water until it is free of residue. Reassemble the filters. Replace the filter insert, and rotate it clockwise (4).

• Never use your dishwasher without a filter.
• Incorrect fitting of the filter will reduce the washing effectiveness.
• Clean filters are necessary for proper running of the machine.

8.2. Spray arms

Make sure that the spray holes are not clogged and that no food waste or foreign object is stuck to the spray arms. If there is any clogging, remove the spray arms and clean them under water. To remove the upper spray arm undo the nut holding it in position by turning it clockwise and pulling it downwards. Make sure that the nut is properly tightened when refitting the upper spray arm.

8.3 Drain Pump

Large food residues or foreign objects which were not captured by the filters may block the waste water pump. The rinsing water will then be above the filter.

Warning Risk of cuts!

When cleaning the waste water pump, ensure that you do not injure yourself on pieces of broken glass or pointed implements.

In this case:

1. First always disconnect the appliance from the power supply.
2. Take out baskets.
3. Remove the filters.
4. Scoop out water, use a sponge if required.
5. Check the area and remove any foreign objects.
6. Install filters.
7. Re-insert baskets.

9. TROUBLESHOOTING

TROUBLE CODE	POSSIBLE FAULT WHAT TO DO
F5 Insufficient water		Make sure the water inlet tap is open and water is flowing.
		Separate the inlet hose from the tap and clean the filter of the hose.
		Contact for service if the error continues.
F3 Continuous water input Close the tap and contact for service.
F2 Inability to discharge water		Water discharge hose and filters may be clogged.
		Cancel the program.
		If the error continues, contact for service.
F8 Faulty heater Contact for service.
F1 Overflow		Unplug the machine and close the tap.
		Contact for service.
F7 Overheating failure Contact for service.
F6 Faulty temperature sensor Contact for service.
FE Faulty electronic card		Contact for service.

The installation and repairing procedures should always be carried out by the Authorised Service Agent in order to avoid possible risks. The manufacturer shall not be held liable for damages that may arise from procedures carried out by unauthorised persons. Repairs may be carried out by technicians only. If a component has to be replaced, ensure that only original spare parts are used.

Improper repairs or use of non-original spare parts may cause considerable damage and put the user at considerable risk.

Contact information for your customer service can be found on the back of this document.

Function-relevant genuine spare parts according to the corresponding Ecodesign order can be obtained from Customer Service for a period of at least 10 years from the date on which your appliance was placed on the market within the European Economic Area.

FAULT POSSIBLE CAUSE TROUBLESHOOTING
Whitish stains remains on dishes.	Not enough detergent used.	Use the correct amount of detergent, as instructed in the programme table.
	Rinse aid dosage and/or water softener setting set too low.	Increase rinse aid and/or water softener level.
	High water hardness level. Increase water softerner level and add salt.
	Salt compartment cap not closed properly.	Check that the salt compartment cap is closed properly.
Dishes do not dry.	Drying option is not selected. Select a programme with a drying option.
	Rinse aid dosage set too low. Increase rinse aid dosage setting.
Rust stains form on the dishes.	Stainless-steel quality of the dishes is insufficient.	Use only dishwasher-proof sets.
	High level of salt in wash water.	Adjust the water hardness level using water hardness table.
	Salt compartment cap not closed properly.	Check that the salt compartment cap is closed properly.
	Too much salt spilled in the Dishwasher while filling it with salt.	Use funnel while filling salt to the compartment to avoid spillage.
	A poor mains grounding. Consult a qualified electrician immediately.
Detergent remains in the detergent compartment.	Detergent was added when the detergent compartment was wet.	Make sure detergent compartment is dry before use.

AUTOMATIC FAULT WARNINGS AND WHAT TO DO

TROUBLE CODE	POSSIBLE FAULT WHAT TO DO
F5 Insufficient water		Make sure the water inlet tap is open and water is flowing.
		Separate the inlet hose from the tap and clean the filter of the hose.
		Contact for service if the error continues.
F3 Continuous water input Close the tap and contact for service.
F2 Inability to discharge water		Water discharge hose and filters may be clogged.
		Cancel the program.
		If the error continues, contact for service.
F8 Faulty heater Contact for service.
F1 Overflow		Unplug the machine and close the tap.
		Contact for service.
F7 Overheating failure Contact for service.
F6 Faulty temperature sensor Contact for service.
FE Faulty electronic card Contact for service.

The installation and repairing procedures should always be carried out by the Authorised Service Agent in order to avoid possible risks. The manufacturer shall not be held liable for damages that may arise from procedures carried out by unauthorised persons. Repairs may be carried out by technicians only. If a component has to be replaced, ensure that only original spare parts are used.

Improper repairs or use of non-original spare parts may cause considerable damage and put the user at considerable risk.

Contact information for your customer service can be found on the back of this document.

Function-relevant genuine spare parts according to the corresponding Ecodesign order can be obtained from Customer Service for a period of at least 10 years from the date on which your appliance was placed on the market within the European Economic Area.

10. PRACTICAL INFORMATION

1. When the machine isn't in operation:
2. Disconnect the plug and close the tap.
3. Leave the door slightly open to prevent odour formation.
4. Select the dry option to remove water droplets.
5. Place dishes in the machine properly to achieve the best energy consumption, washing and drying performance. Please see the programme and consumption table for more information.
6. Rinse dirty dishes before placing them in the dishwasher.
7. Only use the Prewash programme when necessary.
8. Do not place the machine near a refrigerator because it will reach high temperatures.
9. If the machine is located in an area that is at risk of freezing, close the tap, disconnect the inlet hose from the tap and drain the water inside the hose and the machine completely.

Service & Support

Visit Our Website

sharphomeappliances.com
