USER MANUAL 5580N BRAUN

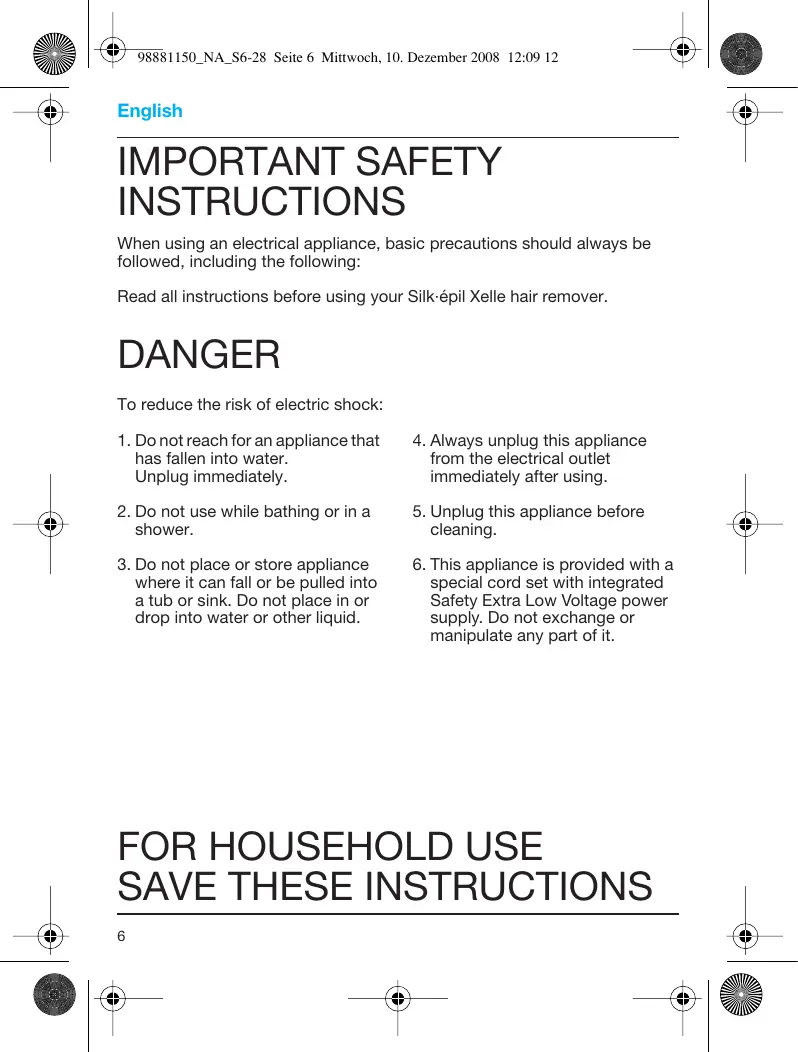

IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precautions should always be followed, including the following: Read all instructions before using your Silk·épil Xelle hair remover. DANGER To reduce the risk of electric shock:

1. Do not reach for an appliance that

has fallen into water. Unplug immediately.

4. Always unplug this appliance

from the electrical outlet immediately after using.

2. Do not use while bathing or in a

5. Unplug this appliance before

3. Do not place or store appliance

where it can fall or be pulled into a tub or sink. Do not place in or drop into water or other liquid.

6. This appliance is provided with a

special cord set with integrated Safety Extra Low Voltage power supply. Do not exchange or manipulate any part of it.

FOR HOUSEHOLD USE

SAVE THESE INSTRUCTIONS

WARNING To reduce the risk of burns, fire, electric shock, or injury to persons:

1. An appliance should never be left

unattended when plugged-in.

5. Keep the cord away from heated

2. Close supervision is necessary

when this appliance is used by, on, or near children or invalids.

6. Never drop or insert any object

3. Use this appliance only for its

intended use as described in the manual. Do not use attachments not recommended by the manufacturer.

4. Never operate this appliance if it

has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. Return the appliance to a service center for examination and repair.

7. Do not use outdoors or operate

where aerosol (spray) products are being used or where oxygen is being administered.

8. Always attach plug to appliance

first, then to outlet. To disconnect, turn switch to «off», then remove plug from outlet.

9. Use only the special cord set

provided with your Silk·épil Xelle.

In the following we would like to familiarise you with the appliance and provide some useful information about epilation. Please read the use instructions carefully and thoroughly before using the appliance. Braun Silk·épil Xelle Easy Start has been designed to make the removal of unwanted hair as efficient, gentle and easy as possible. Its proven epilation system removes hair at the root, leaving your skin smooth for weeks. As the hair that regrows is fine and soft, there will be no more stubble. The epilation head 2a features 40 tweezers that are uniquely arranged to remove more hair in a single stroke, for unprecedented efficiency. The SoftLift™ tips integrated in the epilation head make sure that even short hairs (0.5 mm) and flat lying hairs are removed thoroughly at the root. It comes with two different clips: 1a The massaging rollers clip makes the epilation ultra gentle. Its pulsating movement stimulates and relaxes the skin to offset the pulling sensation. 1b The EfficiencyPro clip provides a thorough epilation that is now even faster. It ensures maximum skin contact at the optimum usage position thus enabling more effective hair removal. The SmartLight incorporated in the switch reproduces an almost daylight condition, thus revealing even the finest hairs and giving you more control for improved epilation efficiency. If you have not used an epilator before, or if you have not epilated for a longer period of time, it may take a short while for your skin to adapt to epilation. The discomfort experienced at first is considerably reduced with repeated use as the number

of hair to be removed decreases over time and as the skin adjusts to the process. The Braun Silk·épil Xelle Easy Start has been specially designed to make your start in epilation easy as it gently helps your skin in the adjustment phase.

• The starter epilation head b has been developed especially for the first few epilations, when skin is not yet used to the process and also for sensitive skin. Compared to the standard epilation head it has fewer tweezers that are further apart, pulling out less hair simultaneously. This makes the process much gentler and helps your skin adjust to epilation, but will take a bit longer than with the standard epilation head. The cooling application provides additional help to reduce possible skin irritation after epilation and will also leave the skin feeling cool and fresh. Important
• This appliance must never be used near water (e.g. a filled wash basin, bathtub or shower).
• Keep the appliance out of the reach of children.
• When switched on, the appliance must never come in contact with the hair on your head, eyelashes, ribbons, etc. to prevent any danger of injury as well as to prevent blockage or damage to the appliance. General information on epilation All methods of hair removal at the root can lead to in-growing hair and irritation (e.g. itching, discomfort or reddening of the skin), depending on the condition of the skin and hair. This is a normal reaction and should quickly disappear, but may be stronger when you are removing hair at the root for the first few times or if you have sensitive skin. If, after 36 hours, the skin still shows irritation, we recommend that you contact your physician. In general, the skin reaction and the sensation of pain tend to diminish considerably with the repeated use of Silk·épil. In some cases inflammation of the skin could occur when bacteria penetrate the skin (e.g. when sliding the appliance over the skin). Thorough cleaning of the epilation head before each use will minimise the risk of infection. If you have any doubts about using this appliance, please consult your physician. In the following cases, this appliance should only be used after prior consultation with a physician: – eczema, wounds, inflamed skin reactions such as folliculitis (purulent hair follicles) and varicose veins – around moles – reduced immunity of the skin, e.g. diabetes mellitus, during pregnancy, Raynaud’s disease – haemophilia or immune deficiency. Some useful tips Epilation is easier and more comfortable when the hair is at the optimal length of 2–5 mm (0.08–0.2 in.). If hairs are longer, we recommend to pre-cut to this length. When epilating for the first time, it is advisable to epilate in the evening, so that any possible reddening can disappear over-night. To relax the skin we recommend applying a moisture cream after epilation. Fine hair which re-grows might not grow up to the skin surface. The regular use of massage sponges (e.g. after showering) or exfoliation peelings helps to prevent in-growing hair as the gentle scrubbing action removes the upper skin layer and fine hair can get through to the skin surface. A Description (see page 4) Massaging rollers clip EfficiencyPro clip 2a Epilation head 2b Starter epilation head 3 Release buttons 4 Switch with incorporated SmartLight 5 Socket for cord connector 6 Cord connector 7 Special cord set Cooling application: 8a Gel pack 8b Cooling glove

B Before starting off Preparing your skin Your skin must be dry and free from grease or cream. Optional skin cooling: For the first few epilations or if you have sensitive skin you can use the cooling application, recommended by dermatologists to help reduce possible skin irritation.

• Ensure that the gel pack has been in the deep freezer (***) for at least 2 hours (for convenience you can store the gel pack in the freezer).
• Insert the gel pack underneath the glove’s transparent foil. Use only with glove.
• Put transparent (cool) side of the glove on your leg.
• Start cooling for approx. 1/2 minute, longer if needed.
• Epilate the cooled skin area immediately as demonstrated in section «C».
• Repeat cooling and epilating until complete.
• While epilating, please ensure your skin is dry. Important: Do not apply cooling glove to same area for more than 2 minutes.

Keep gel pack out of sunlight and not use if damaged. Dispose of gel pack in household waste. Do not use if you are hypersensitive, allergic to the cold, or if your skin suffers from sensory disturbances, or if you suffer from cardiac diseases or arterial circulatory disorders. Preparing the epilator

• Before starting off, thoroughly clean the epilation head you want to use ( 2a or 2b ).
• To remove the epilation head, press the release buttons 3 on the left and right and pull it off.
• Click the desired head into place: – Choose the starter epilation head 2b if you are epilating for the first time or if you have very sensitive skin. – Once your skin is used to epilation, you may switch to the standard epilation head B which allows a more efficient and faster epilation thanks to its greater number of tweezers.
• Plug the cord connector 6 into the socket 5 and plug the special cord set 7 into an electrical outlet. C How to epilate 1 Make sure one of the clips 1a or 1b is attached to the epilation head. To turn on the epilator, slide switch 4 to the «optimal» setting. For reduced speed, choose the «soft» setting. The SmartLight illuminates as long as the epilator is switched on. 2 Rub your skin to lift short hairs. For optimum performance hold the appliance at a right angle (90°) against your skin. Guide it in a slow, continuous movement without pressure against the hair growth, in the direction of the switch. As hair can grow in different directions, it may also be helpful to guide the

appliance in different directions to achieve optimum results. Both rollers of the massaging rollers clip 1a should always be kept in contact with the skin, allowing the pulsating movements to stimulate and relax the skin for a gentler epilation. If you epilate often and are looking for a faster way to efficiently remove hair, attach the EfficiencyPro clip 1b . It ensures maximum skin contact at the optimum usage position. 3 Leg epilation Epilate your legs from the lower leg in an upward direction. When epilating behind the knee, keep the leg stretched out straight. 4 Underarm and bikini line epilation Use tests monitored by dermatologists have revealed that you can also epilate the underarm and the bikini line. Please be aware that these areas are particularly sensitive to pain. With repeated usage the pain sensation will diminish. Before epilating, thoroughly clean the respective area to remove residue (like deodorant). Then carefully dab dry with a towel. When epilating the underarm, keep your arm raised up and guide the appliance in different directions. Cleaning the epilation heads 5 After epilating, unplug the epilator and clean the epilation head. First remove the clip used ( 1a or 1b ) and clean it with the brush. 6 To clean the tweezer element, dip the cleaning brush in alcohol. Clean the tweezers with the brush from the rear side of the epilator head while turning the barrel manually. Remove the epilation head by pressing the release buttons 3 on the left and right and pull it off. 7 Give the top of the housing a quick clean with the brush. Place the epilation head and your preferred clip ( 1a or 1b ) back on the housing. Subject to change without notice.

FOR USA ONLY

Braun Silk·épil Xelle Easy Start 5180 1 year limited warranty Braun warrants this product to be free of defects in material and workmanship for a period of one year from the date of original purchase. If the shaver exhibits such a defect, Braun will, at its option, either repair or replace it for the consumer without charge. Please call 1-800-Braun 11 (800-272-8611) to be referred to the authorized Braun Service Center closest to you. This warranty does not cover damage resulting from accident, misuse, abuse, dirt, water, tampering, unreasonable use, servicing performed or attempted by unauthorized service agencies or failure to provide reasonable and necessary maintenance. ALL IMPLIED WARRANTIES INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE ARE LIMITED IN DURATION TO 1 YEAR FROM DATE OF ORIGINAL PURCHASE. IN NO EVENT WILL BRAUN INC. BE RESPONSIBLE FOR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other legal rights which vary from state to state.

FOR CANADA ONLY

Braun Silk·épil Xelle Easy Start 5180 Guarantee for all Braun Hair Removers In the event a Braun Silk·épil fails to function within 1 year from date of purchase, because of defects in material or workmanship, and the consumer returns the unit to an authorized service center, Braun Canada, will, at its option, either repair or replace the unit without additional charge to the consumer. This guarantee does not cover any product, which has been damaged by dropping, tampering, wrong current, servicing performed or attempted by unauthorized service agencies, misuse or abuse. Exclusion of Warranties: The foregoing warranty is the sole warranty offered by Braun Canada hereby disclaims any implied warranty or merchantability or fitness for any particular purpose. In no event will Braun Canada be responsible for consequential damages resulting from the use of this product.
