USER MANUAL 5585 BRAUN

5-396-372/00/IX-06/M D/GB/F/E/P/I/NL/DK/N/S/FIN/GR Printed in Germany

020 - 21 33 21

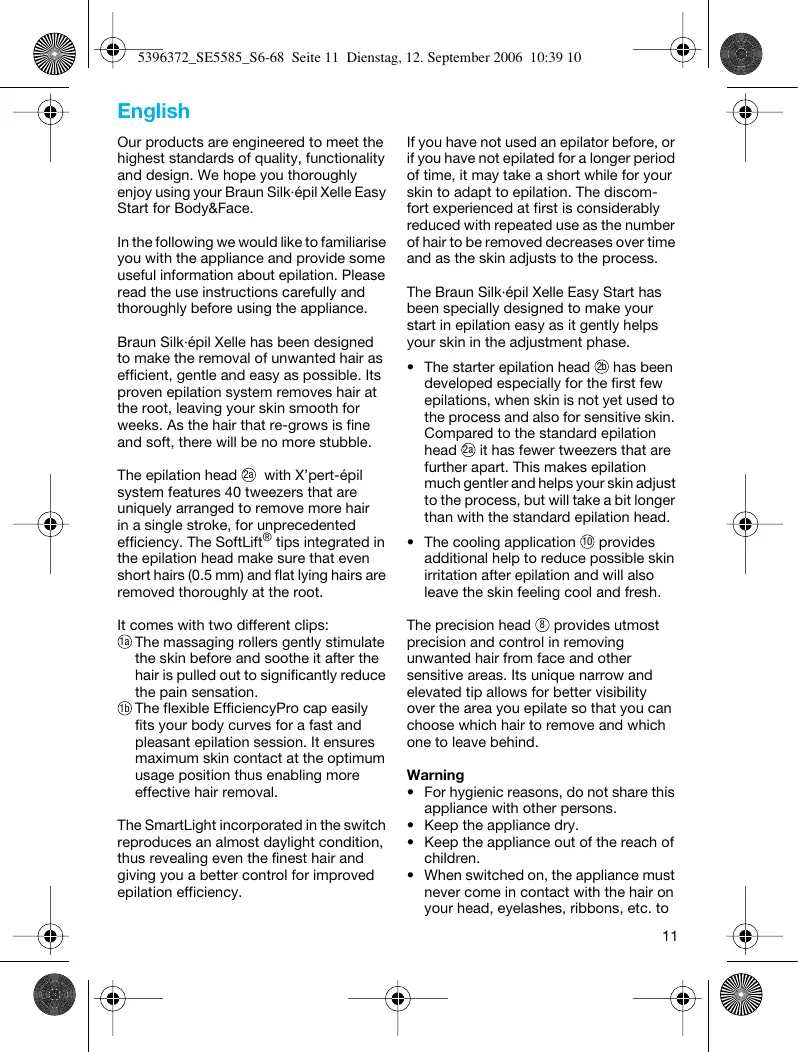

852-25249377 (Audio Supplies Company Ltd.) English Our products are engineered to meet the highest standards of quality, functionality and design. We hope you thoroughly enjoy using your Braun Silk·épil Xelle Easy Start for Body&Face. In the following we would like to familiarise you with the appliance and provide some useful information about epilation. Please read the use instructions carefully and thoroughly before using the appliance. Braun Silk·épil Xelle has been designed to make the removal of unwanted hair as efficient, gentle and easy as possible. Its proven epilation system removes hair at the root, leaving your skin smooth for weeks. As the hair that re-grows is fine and soft, there will be no more stubble. The epilation head 2a with X’pert-épil system features 40 tweezers that are uniquely arranged to remove more hair in a single stroke, for unprecedented efficiency. The SoftLift® tips integrated in the epilation head make sure that even short hairs (0.5 mm) and flat lying hairs are removed thoroughly at the root. It comes with two different clips: 1a The massaging rollers gently stimulate the skin before and soothe it after the hair is pulled out to significantly reduce the pain sensation. 1b The flexible EfficiencyPro cap easily fits your body curves for a fast and pleasant epilation session. It ensures maximum skin contact at the optimum usage position thus enabling more effective hair removal. The SmartLight incorporated in the switch reproduces an almost daylight condition, thus revealing even the finest hair and giving you a better control for improved epilation efficiency. If you have not used an epilator before, or if you have not epilated for a longer period of time, it may take a short while for your skin to adapt to epilation. The discomfort experienced at first is considerably reduced with repeated use as the number of hair to be removed decreases over time and as the skin adjusts to the process. The Braun Silk·épil Xelle Easy Start has been specially designed to make your start in epilation easy as it gently helps your skin in the adjustment phase.

• The starter epilation head 2b has been developed especially for the first few epilations, when skin is not yet used to the process and also for sensitive skin. Compared to the standard epilation head 2a it has fewer tweezers that are further apart. This makes epilation much gentler and helps your skin adjust to the process, but will take a bit longer than with the standard epilation head.
• The cooling application 10 provides additional help to reduce possible skin irritation after epilation and will also leave the skin feeling cool and fresh. The precision head 8 provides utmost precision and control in removing unwanted hair from face and other sensitive areas. Its unique narrow and elevated tip allows for better visibility over the area you epilate so that you can choose which hair to remove and which one to leave behind. Warning
• For hygienic reasons, do not share this appliance with other persons.
• Keep the appliance dry.
• Keep the appliance out of the reach of children.
• When switched on, the appliance must never come in contact with the hair on your head, eyelashes, ribbons, etc. to

prevent any danger of injury as well as to prevent blockage or damage to the appliance.

• Before use, check whether your voltage corresponds to the voltage printed on the transformer. Always use the 12 V transformer plug supplied with the product. General information on epilation Silk·épil is designed to epilate hair on legs, but use tests monitored by dermatologists have revealed that you can also epilate the underarm, the bikini line and the face. All methods of hair removal at the root can lead to ingrowing hair and irritation (e.g. itching, discomfort and reddening of the skin) depending on the condition of the skin and hair. This is a normal reaction and should quickly disappear, but may be stronger when you are removing hair at the root for the first few times or if you have sensitive skin. Using the cooling application will help to prevent irritation. If, after 36 hours, the skin still shows irritation, we recommend that you contact your physician. In general, the skin reaction and the sensation of pain tend to diminish considerably with the repeated use of Silk·épil. In some cases inflammation of the skin could occur when bacteria penetrate the skin (e.g. when sliding the appliance over the skin). Thorough cleaning of the epilation head before each use will minimise the risk of infection. should only be used after prior consultation with a physician: – eczema, wounds, inflamed skin reactions such as folliculitis (purulent hair follicles) and varicose veins – around moles – reduced immunity of the skin, e.g. diabetes mellitus, during pregnancy, Raynaud’s disease – haemophilia or immune deficiency. Some useful tips Epilation is easier and more comfortable when the hair is at the optimum length of 2–5 mm (0.08–0.2 in.) If hairs are longer, we recommend that you either shave first and epilate the shorter re-growing hairs after 1 or 2 weeks. When epilating for the first time, it is advisable to epilate in the evening, so that any possible reddening can disappear overnight. To relax the skin we recommend applying a moisture cream after epilation. Fine hair which re-grows might not grow up to the skin surface. The regular use of massage sponges (e.g. after showering) or exfoliation peelings helps to prevent in-growing hair as the gentle scrubbing action removes the upper skin layer and fine hair can get through to the skin surface. It is a fact that hair re-growth will be reduced by 50 % if you remove hairs from the root regularly at least every 4 weeks using your Silk·épil. Description (see page 4)

If you have any doubts about using this appliance, please consult your physician. In the following cases, this appliance

Massaging rollers EfficiencyPro cap Epilation head with X’pert-épil system Starter epilation head Release buttons Switch with incorporated SmartLight Socket for cord connector Cord connector 12 V transformer plug Precision head Facial cleansing wipes Cooling application (Gel pack (a), cooling glove (b)) Before starting Preparing your skin Your skin must be dry and free from grease or cream. Optional skin cooling: For the first few epilations or if you have sensitive skin, you can use the cooling application, recommended by dermatologists to help reduce possible skin irritation.

• Ensure that the gel pack has been in the deep freezer (***) for at least 2 hours (for convenience you can store the gel packs in the freezer).
• Insert the gel pack underneath the glove's transparent foil. Use only with glove.
• Put transparent (cool) side of the glove on your leg.
• Start cooling for approx. 1/2 minute, longer if needed.
• Epilate the cooled skin area immediately as described in section «How to epilate».
• Repeat cooling and epilating until completion.
• While epilating, please ensure your skin is dry. Important: Apply cooling glove to the same area for no longer than 2 minutes. Keep away from sunlight. Do not use gel pack when damaged. Dispose of in household waste. Do not use if you are hypersensitive, allergic to the cold, or if your skin suffers from sensory disturb- ances, when suffering from cardiac diseases or arterial circulatory disorders. Preparing the appliance
• Before starting, thoroughly clean the epilation head you want to use ( 2a or 2b ).
• To remove the epilation head, press the release buttons 3 on the left and right and pull it off.
• Click the desired head into place: – Choose the starter epilation head 2b if you are epilating for the first time or if you have very sensitive skin. – Once your skin is used to epilation, you may switch to the standard epilation head 2a which allows a more efficient and faster epilation thanks to its greater number of tweezers. Plug the cord connector 6 into the socket 5 and plug the transformer plug 7 into an electrical outlet. How to epilate 1 Make sure one of the clips 1a or 1b is attached to the epilation head. To turn on the appliance, slide switch 4 to the «optimal» setting. For reduced speed, choose the «soft» setting. The SmartLight illuminates as long as the appliance is switched on. 2 Rub your skin to lift short hairs. For optimum performance hold the appliance at a right angle (90°) against your skin. Guide it in a slow, continuous movement without pressure against the hair growth, in the direction of the switch. As hair can grow in different directions, it may also be helpful to guide the appliance in different directions to achieve optimum results. The massaging rollers 1a should always be kept in contact with the skin, allowing the pulsating movements to stimulate and relax the skin for a gentler

epilation. If you are used to epilation and look for a faster way to efficiently remove hair, attach the EfficiencyPro clip 1b . It allows maximum skin contact and ensures an optimum usage position. 3 Leg epilation Epilate your legs from the lower leg in an upward direction. When epilating behind the knee, keep the leg stretched out straight. 4 Underarm and bikini line epilation Please be aware that especially at the beginning these areas are particularly sensitive. With repeated usage the pain sensation will diminish. For more comfort, ensure that the hair is at the optimum length of 2–5mm. Before epilating, thoroughly clean the respective area to remove residue (like deodorant). Then carefully dab dry with a towel. When epilating the underarm, keep your arm raised up so that the skin is stretched and guide the appliance in different directions. As skin may be more sensitive directly after epilation, avoid using irritating substances such as deodorants with alcohol. 5 Facial epilation With the precision head 8 attached, your Silk·épil is perfectly suited for conveniently removing any unwanted hair from the face or other sensitive areas. Prior to epilation, we recommend cleaning the skin with alcohol to promote good hygiene. Please use the included cleansing wipes 9 to wipe over the area you want to epilate.

When epilating the face, stretch the skin with one hand, hold the epilator in a 90° angle with your other hand and guide it slowly in the direction of the switch.

Warning: Facial cleansing wipes are

for single external use only. Do not use in or near the eyes. Keep out of reach of children. If inflammation develops, discontinue use. Flammable, keep away from fire or flame. Ingredients: Isopropyl alcohol, aqua. Cleaning the epilation heads 6 After epilating, unplug the appliance and clean the epilation head used: If you have used one of the attachments 1a or 1b first remove it and clean it with the brush. 7 To clean the tweezer element, use the cleaning brush dipped into alcohol. Clean the tweezers with the brush from the rear side of the epilation head while turning the barrel manually. After cleaning, place your preferred attachment back on the epilation head. Subject to change without notice. This product conforms to the European Directives EMC 89/336/EEC and Low Voltage 73/23/EEC. Please do not dispose of the product in the household waste at the end of its useful life. Disposal can take place at a Braun Service Centre or at appropriate collection points provided in your country. Description (cf. page 4)

English Guarantee We grant 2 years guarantee on the product commencing on the date of purchase. Within the guarantee period we will eliminate, free of charge, any defects in the appliance resulting from faults in materials or workmanship, either by repairing or replacing the complete appliance as we may choose. This guarantee extends to every country where this appliance is supplied by Braun or its appointed distributor. This guarantee does not cover: damage due to improper use, normal wear or use as well as defects that have a negligible effect on the value or operation of the appliance. The guarantee becomes void if repairs are undertaken by unauthorised persons and if original Braun parts are not used. To obtain service within the guarantee period, hand in or send the complete appliance with your sales receipt to an authorised Braun Customer Service Centre. For UK only: This guarantee in no way affects your rights under statutory law.
