Product Type	Car
Brand	Peugeot
Model	308 (2024)
Body Style	5-door Hatchback
Dimensions (L x W x H)	4367 mm x 1852 mm x 1440 mm
Wheelbase	2675 mm
Curb Weight	Approx. 1350 kg (depending on version)
Fuel Type	Petrol, Diesel, or Plug-in Hybrid
Engine Displacement	1.2 L PureTech (petrol) / 1.5 L BlueHDi (diesel) / 1.6 L hybrid
Maximum Power	Up to 110 kW (150 hp) for petrol
Transmission	6-speed manual or 8-speed automatic
Drive Type	Front-wheel drive
Seating Capacity	5
Fuel Tank Capacity	45 L (petrol) / 50 L (diesel)
Tire Size	205/55 R16 (standard)
Safety Features	ABS, ESP, multiple airbags, Lane Keep Assist, Automatic Emergency Braking
Infotainment System	10-inch touchscreen, Apple CarPlay, Android Auto, Bluetooth
Maintenance Interval	Every 12 months or 20,000 km
Warranty	3 years or 100,000 km
Spare Parts Availability	Through authorized Peugeot dealers
Cleaning and Care	Use a soft cloth and mild cleaner for interior; avoid high-pressure water near sensors

Frequently Asked Questions - 308 (2024) PEUGEOT

How do I connect my smartphone via Apple CarPlay?

To connect via Apple CarPlay, use an original Apple Lightning-to-USB cable. Plug it into the USB port labeled with a phone icon. Your phone will automatically be recognized. If not, go to the Settings menu on the touchscreen and select Apple CarPlay. Follow the prompts on both the car and your phone.

How do I check the engine oil level?

Park the car on a level surface and let the engine cool down. Locate the dipstick (yellow handle), pull it out, wipe it clean, reinsert fully, and pull it out again. The oil level should be between the MIN and MAX marks. If low, add the recommended oil type specified in the manual.

What is the recommended tire pressure?

Recommended tire pressure for the Peugeot 308 (2024) is typically 2.3 bar (33 psi) for front tires and 2.1 bar (30 psi) for rear tires. Check the sticker on the driver's door pillar for exact values. Adjust pressure when tires are cold.

How to reset the service light?

To reset the service indicator: turn the ignition off, press and hold the trip odometer reset button, then turn the ignition on. Continue holding the button for about 10 seconds until the service message blinks and then disappears. Release the button.

How do I use the cruise control?

Activate cruise control by pressing the CRUISE button on the steering wheel. Accelerate to the desired speed, then press SET/- to store it. Use +/RES to increase speed and -/SET to decrease. Press CANCEL or brake to disengage.

What type of fuel should I use?

For petrol engines, use unleaded petrol with a minimum octane rating of 95 RON. For diesel engines, use diesel fuel conforming to EN 590. For plug-in hybrid, you can also charge the battery using a standard household outlet or public charging station.

How do I replace the cabin air filter?

The cabin air filter is located behind the glove box. Open the glove box, press the sides to release the stoppers, and lower the glove box fully. Remove the filter cover, take out the old filter, and insert the new one with the airflow direction arrow pointing downward. Reassemble.

How to pair a Bluetooth device?

On the touchscreen, go to Settings > Bluetooth and enable Discovery. On your phone, search for PEUGEOT 308 and select it. Confirm the PIN shown on both screens. Once paired, you can stream music and make calls.

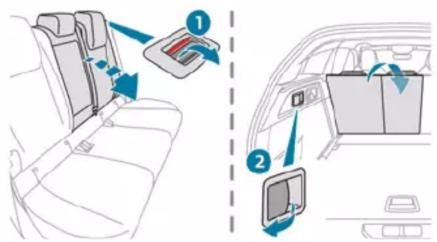

How do I fold the rear seats?

To fold the rear seats, pull the release strap located on the top of the seatbacks (or the lever in the trunk). Fold the seatback forward until it locks flat. To return, push the seatback upright until it clicks. Ensure seatbelts are not twisted.

What is the towing capacity?

The towing capacity for the Peugeot 308 (2024) depends on the engine and drivetrain. Typically, for petrol models, it's up to 1300 kg (braked) and 690 kg (unbraked). Check your vehicle's specific rating on the registration document or manual.

USER MANUAL 308 (2024) PEUGEOT

Also available in the Scan MyPeugeot App application.

TOUCH SCREEN (depending on availability)

In the Help touch screen application, select the User Manual tab.

Several types of searches are available to access the information sought.

For safety reasons, this application is not accessible while driving above 3 mph (5 km/h).

ONLINE

View or download the handbook at the following address:

http://public.servicebox.peugeot.com/APddb/

Scan this QR Code for direct access.

Select:

– the language,
– the vehicle and body style,
– the issue period of the handbook corresponding to the date of 1^st registration of the vehicle.

This symbol indicates the latest information available.

Welcome

Thank you for choosing a Peugeot 308 or a Peugeot e-308.

This document contains the key information and recommendations you will need to be able to explore your vehicle in complete safety. We strongly recommend familiarising yourself with it, as well as the Maintenance and Warranty Guide.

Your vehicle will be fitted with only some of the equipment described in this document, depending on its trim level, version and the specification for the country in which it was sold.

The descriptions and illustrations are for guidance only.

Automobiles PEUGEOT reserves the right to modify the technical specifications, equipment and accessories without having to update this document.

If ownership of your vehicle is transferred, please ensure this Handbook is passed on to the new owner.

For any work on your vehicle, contact a member of the Manufacturer's dealer network, hereinafter referred to as a 'dealer', or a qualified workshop.

Key

Safety warning

Additional information

Environmental protection feature

Left-hand drive vehicle

Right-hand drive vehicle

Location of equipment/button indicated using a black area

Contents

Overview ■

Eco-driving ■

Driver information 11

Digital instrument panels 11

Warning and indicator lamps 12

Indicators 19

Manual test 25

Total distance recorder 25

Trip computer 25

10-inch touch screen 26

i-Toggles 29

Remotely operable additional functions

(Rechargeable hybrid or Electric) 29

Front seats

Steering wheel adjustment

Heated steering wheel

Mirrors

Rear bench seat

Heating and Ventilation

1 Das Dualzone automaticsair conditioning

Front demisting/defrosting

Rear screen demisting/defrosting

Heated windscreen

Temperature pre-conditioning (Rechargeable

hybrid or Electric)

Front fittings

Courtesy lamps

Interior ambient lighting

Rear fittings

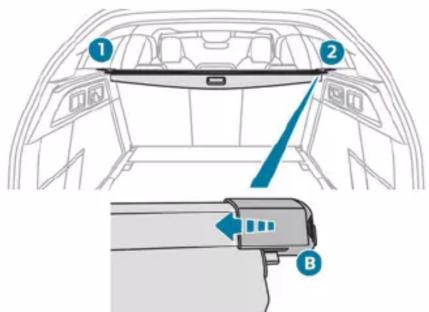

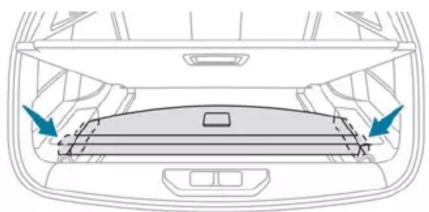

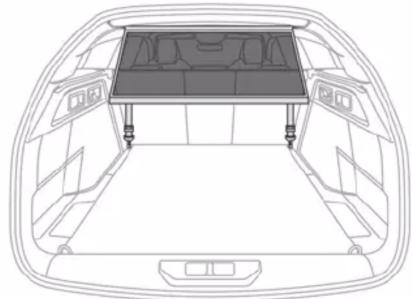

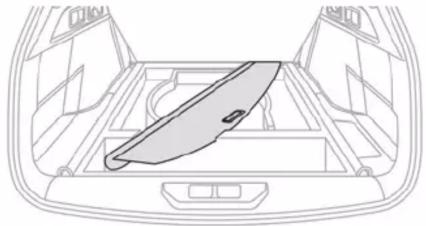

Boot fittings

47

51 General safety recommendations 80

51 Hazard warning lamps 80

51 Horn 81

53 Pedestrian horn (Hybrid, Rechargeable

55 hybrid or Electric) 81

56 Emergency or assistance 81

59 Event Data Recording system 83

59 Electronic stability control (ESC) 84

59 Seat belts 86

Airbags 88

59 Child seats 90

60 Deactivating the front passenger airbag 92

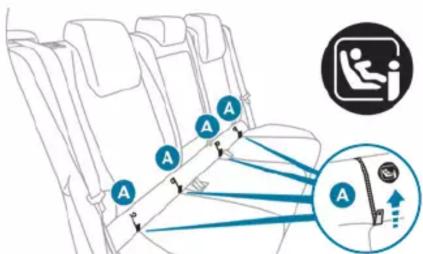

64 ISOFIX child seats 93

64 i-Size child seats 94

64 Installing child seats 95

65 Child lock 97

Lighting and visibility

2 Acc Exterior lighting control stalk

Direction indicators

Headlamp beam height adjustment

Automatic illumination of headlamps

Guide-me-home and welcome lighting

Automatic lighting systems - General

recommendations

Automatic headlamp dipping 72

Peugeot Matrix LED Technology 2.0

Wiper control stalk

Intermittent wipers

Automatic wipers

Changing a wiper blade

4

69 Driving recommendations 98

70 Starting/switching off the engine 100

70 Starting rechargeable hybrid vehicles 100

71 Starting/Switching off electric vehicles 101

71 Electric parking brake 102

Manual gearbox 105

72 Automatic gearbox (EAT8/e-EAT8) 105

Electric dual-clutch automatic gearbox

73 (e-DCS6/7) 108

75 Drive selector (Electric) 112

77 Driving modes 113

77 Hill start assist 114

78 Gear shift indicator 115

Stop & Start (Petrol or Diesel) 115

e-Auto mode (Hybrid) 117

Tyre under-inflation detection 118

Driving and manoeuvring aids - General recommendations 119
Steering wheel with hands-on detection 121
Shortcuts for driving aids 121
Road signs recognition 122
Speed limiter 126
Cruise control - Specific recommendations 128
Cruise control 128
Drive Assist Plus 130
Drive Assist 2.0 130
Adaptive cruise control 131
Lane positioning assist 135
Semi-automatic lane changing 138
Active Safety Brake with Collision Risk Alert and Intelligent emergency braking assistance 142
Distraction detection 146
Lane keeping assist 148
Long-distance blind spot monitoring	150
Parking sensors	151
Visiopark 1	153
Visiopark 3	155
Rear cross traffic alert	157

Practical information 7

Compatibility of fuels	160
Refuelling	160
Misfuel prevention (Diesel)	161
Electrified vehicles - General recommendations	162
Hybrid system	163
Rechargeable hybrid or electric vehicles - Specific recommendations	164
Rechargeable hybrid system	167
Charging the traction battery (Rechargeable hybrid)	170

Charging system (Electric)	173
Charging the traction battery (Electric)	177
Towing device	180
Towing device with quickly detachable towball	181
Roof bars	184
Very cold climate screens	185
Snow chains	186
Energy economy mode	187
Bonnet	188
Engine compartment	189
Checking levels	189
Checks	191
AdBlue® (BlueHDi)	193
Free-wheeling	195
Advice on care and maintenance	196

	In the event of a breakdown
Warning triangle	199
Running out of fuel (Diesel)	199
Tool kit	199
Temporary puncture repair kit	201
Spare wheel	204
Changing a bulb	207
Fuses	209
12 V battery/Accessory batteries	209
Towing the vehicle	217

	Technical data 9
Engine technical data and towed loads	220
Petrol engines	221
Diesel engines	222
Hybrid engines	223
Rechargeable hybrid engines	224

Electric engines	226
Dimensions	227
Identification markings	228

PEUGEOT i-Connect Advanced - 10 PEUGEOT i-Connect

First steps	229
Customisation	232
Steering mounted controls	233
Applications	234
Voice commands	234
Navigation	236
Connectivity	236
Mirror Screen	238
Media	240
Phone	242
Settings	243
Help	243

Vehicle data recording and privacy 11

Alphabetical index ■

Appendix ■

Presentation

These illustrations and descriptions are provided for information. The presence and location of some elements vary depending on the version or trim level.

Instruments and controls

1. Emergency call/Assistance call

Sunroof

Alarm

Courtesy lamp/Front reading lamps

1. Warning lamp display for seat belts and front passenger airbag

Interior mirror

1. Instrument panel

2. Side control bar/Coin holder

3. Fusebox

4. Bonnet release

5. Door mirrors

Electric windows

Central locking

1. Front armrest

USB sockets

1. Front passenger airbag

2. Glove box

Centre console

1. 10-inch touch screen

2. Centre control bars

3. Storage compartment or Wireless smartphone charger

4. Starting/Switching off the engine with START/STOP

5. Storage

USB socket

12 V socket

Cup holder

1. Gearbox or Drive selector

2. Driving mode selector

3. Electric parking brake

4. Storage compartment/Smartphone storage

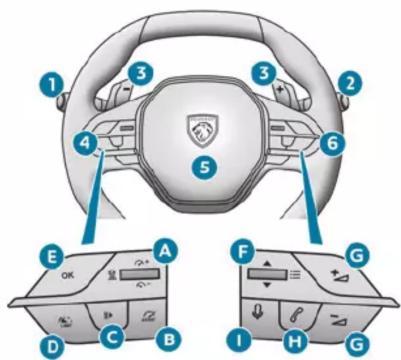

Steering-mounted controls

1. Exterior lighting controls/Direction indicators/Instrument panel display page/Service indicator
2. Wiper controls/Screenwash/Trip computer
3. Automatic gearbox control paddles
4. Speed limiter/Cruise control/Adaptive cruise control/Drive Assist Plus or Drive Assist 2.0 controls
   A. Increase/Decrease the speed setting Display and adjustment of the distance setting to the vehicle in front (Adaptive cruise control)
   B. Select/Deselect the Cruise control Select/Deselect the Adaptive cruise control/ Drive Assist Plus
   C. Start/Pause the Speed limiter or Cruise control with the speed setting saved Confirmation of vehicle restart after automatic stop (Adaptive cruise control with Stop&Go function)
   D. Select/Deselect the Speed limiter
   E. Activation of the Speed limiter or Cruise control with the speed setting saved Use the speed suggested by the Road signs recognition function
5. Horn/Driver front airbag
6. Audio system setting controls
   F. Press: Display favourite radio stations/media Up/Down: previous/next radio/media/ smartphone selection Press: validation of a selection
   G. Increase/Decrease the volume

H. Pick up/Hang up Access to the Phone application's call log
I. Short press: system voice commands Long press: smartphone voice commands

Side control bar

1. LED technology headlamps beam height adjustment
2. Motorised tailgate
3. Heated windscreen
4. Heated steering wheel
5. Opening the fuel filler flap
6. Temperature pre-conditioning operation indicator lamp

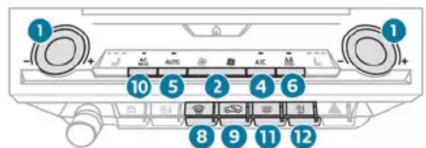

Centre control bars

1. Automatic air conditioning system controls/ HOME button

or

i-Toggles/HOME button

1. Audio system controls
2. Shortcuts for driving aids
3. Access to the Climate application
4. Windscreen and front windows demisting
5. Recirculation of interior air
6. Rear screen de-icing
7. Switching automatic air conditioning off
8. Hazard warning lamps

Hybrid system

1. Petrol engine
2. Electric motor
3. 6-speed or 7-speed electric dual-clutch automatic gearbox (e-DCS6/7)
4. 48 V traction battery
5. 12 V accessory battery
6. DC/DC converter
7. Belt starter

The 48 V hybrid technology requires no connection to charge the traction battery.

The Hybrid system does not operate continuously, but is activated according to the state of the vehicle, the state of charge of the traction battery, the thermal comfort of the passenger compartment (switching on the heating or air conditioning), the driving conditions (acceleration, deceleration, braking, engine start-up) and the road conditions (uphill, downhill):

- The vehicle always starts with the petrol engine to ensure the efficiency of the catalytic converter and the availability of the brake assist.

- In normal driving, the petrol engine and electric motor work together or separately to optimise fuel consumption and electrical energy or to charge the traction battery.

– During the acceleration phases, the electric motor provides an additional boost to reach the torque needed as fast as possible and to improve the acceleration at low speed.

– During the deceleration phases, the electric motor charges the traction battery, using the inertia of the vehicle.

- The driving in all-electric is possible for parking manoeuvring, for 20 mph (30 km/h) speed zones in city, on urban and country roads with smooth driving and on motorways in slight deceleration or downhill.

The electric motor is integrated into the automatic gearbox.

The DC/DC converter provides the link between the 12 V accessory power supply and the 48 V traction power supply.

The belt starter restarts the petrol engine after driving in all-electric.

Rechargeable hybrid system

1. Petrol engine
2. Electric motor
3. Traction battery
4. 12 V accessories batteries
5. 7-speed or 8-speed electric automatic gearbox (e-DCS7 or e-EAT8)
6. Charging flap
7. Fuel filler flap
8. Driving mode selector
9. Domestic charging cable

The rechargeable hybrid technology combines two sources of energy: that of the petrol engine and that of the electric motor, which drive the front wheels (traction).

The engine and the motor can operate alternately or simultaneously, according to the driving mode selected and the driving conditions.

The electric power alone provides the mobility of the vehicle in Electric mode, and in Hybrid mode in case of moderate demand. It assists the petrol engine during starting and acceleration phases.

The electric power is supplied by a rechargeable traction battery.

Electric drive system

1. Charging connectors
2. Traction battery
3. Accessory battery
4. Heat pump
5. On-board charger
6. Electric motor
7. Charging cable

The charging connectors 1 enable 3 types of charging:

• Domestic charging in mode 2 using a domestic socket and associated charging cable 7.
• Accelerated charging in mode 3 using an accelerated charging unit (Wallbox).
• Superfast charging in mode 4 using a fast public charger.

The 400 V traction battery 2 uses Lithium-Ion technology. It stores and supplies the energy required for the operation of the electric motor, air conditioning and heating. Its charge level is represented by an indicator and a reserve power warning lamp on the instrument panel.

The 12 V accessory battery 3 powers the vehicle's conventional electrical system. It is recharged automatically by the traction battery via the on-board charger.

The heat pump 4 provides passenger compartment heating and regulates traction battery and on-board charger cooling.

The on-board charger 5 manages the domestic charging (mode 2) and accelerated charging (mode 3) of the traction battery as well as the recharging of the 12 V accessory battery.

The electric motor 6 provides propulsion in accordance with the selected driving mode and driving conditions. It recovers energy during vehicle braking and deceleration phases.

Labels

"Ease of use and comfort - Rear bench seat - Rear head restraints" section:

"Ease of use and comfort - Front fittings - Wireless smartphone charger" section:

"Lighting and visibility - Exterior lighting control stalk" and "In the event of a breakdown - Changing a bulb" sections:

"Safety - General safety recommendations - Installing electrical accessories" section:

"Safety - Child seats - Deactivating the front passenger airbag" section:

"Safety - ISOFIX mountings" section:

"Driving - Electric parking brake" section:

Overview

"Driving - Stop & Start" section:

"Practical information - Compatibility of fuels" section:

"Practical information - Rechargeable hybrid or electric vehicles - Specific recommendations" section:

"Practical information - Rechargeable hybrid system" section:

"Practical information - Charging the traction battery (Rechargeable hybrid)" section:

"Practical information - Charging system (Electric)" section:

"Practical information - Charging the traction battery (Electric)" section:

"Practical information - Bonnet" section:

"Practical information - Checking levels - Engine coolant (Electric)" section:

"In the event of a breakdown - Temporary puncture repair kit" section:

"In the event of a breakdown - Spare wheel" section:

"In the event of a breakdown - 12 V battery/Accessory batteries" section:

- For petrol, Diesel or hybrid versions

- For rechargeable hybrid versions

Eco-driving

Eco-driving refers to a range of everyday practices that allow the motorist to optimise the vehicle's energy consumption (fuel and/or electricity) and CO₂ emissions.

Optimise your use of the gearbox

With a manual gearbox, move off gently and change up promptly. While accelerating, change up early.

With an automatic gearbox, favour automatic mode. Do not depress the accelerator pedal heavily or suddenly.

The gear shift indicator prompts you to engage the most suitable gear. Whenever this indication is displayed on the instrument panel, follow it straight away.

With an automatic gearbox, this indicator appears only in manual mode.

Drive smoothly

Maintain a safe distance between vehicles, use engine braking rather than the brake pedal and press the accelerator gradually. These practices help to save on energy consumption, reduce CO₂ emissions and decrease general traffic noise.

With a hybrid engine, engine braking is more efficient. Anticipate slowing down as much as you can and, if possible, favour deceleration with engine braking in order to charge the traction battery, to increase all-electric driving and to reduce fuel consumption.

With an EAT8 gearbox, with the gear selector in mode D, and except in Sport mode, favour "free-wheeling" by gradually lifting your foot fully off the accelerator pedal in order to save fuel. When the traffic is flowing smoothly, select the cruise control.

Control the use of electrical equipment

Before moving off, if the passenger compartment is too warm, ventilate it by opening the windows and air vents before using the air conditioning. At speeds above 31 mph (50 km/h), close the windows and leave the air vents open.

Consider using equipment that can help keep the temperature in the passenger compartment down.

Unless automatically regulated, switch off the air conditioning as soon as the desired temperature has been reached.

Switch off the demisting and defrosting functions, if they are not managed automatically. Switch off the heated seat and heated steering wheel as soon as possible.

Adapt your use of the headlamps and/or foglamps to the level of visibility, in accordance with current legislation in the country in which you are driving.

Avoid running the engine before moving off, particularly in winter (other than in severe wintry conditions: temperature below -23°C). The vehicle will warm up much faster while driving.

As a passenger, avoid connecting your multimedia devices (e.g. film, music, video game) to help reduce the consumption of energy. Disconnect all portable devices before leaving the vehicle.

Limit the causes of excess consumption

Spread loads throughout the vehicle. Place the heaviest items in the boot as close as possible to the rear seats.

Limit the loads carried in the vehicle and minimise wind resistance (e.g. roof bars, roof rack, bicycle carrier, trailer). Preferably, use a roof box.

Remove roof bars and roof racks after use. At the end of winter, remove snow tyres and refit summer tyres.

Comply with the servicing instructions

Check tyre pressures regularly, with the tyres cold, referring to the label in the door aperture on the driver's side.

Carry out this check in particular:

– before a long journey.

– at each change of season.

– after a long period out of use.

Do not forget the spare wheel and, where applicable, the tyres on your trailer or caravan.

Have your vehicle serviced regularly (e.g. engine oil, oil filter, air filter, passenger compartment filter, etc.). Observe the schedule of operations in the manufacturer's service schedule.

With a BlueHDi Diesel engine, if the SCR system has a fault, your vehicle will emit pollution. Visit

Eco-driving

a PEUGEOT dealer or a qualified workshop as soon as possible to restore your vehicle's nitrogen oxide emissions to legal levels.

When filling the fuel tank, do not continue after the third cut-out of the nozzle, to avoid overflow. You will only see the fuel consumption of your new vehicle settle down to a consistent average after the first 1,900 miles (3,000 kilometres).

Optimising the driving range of electrified vehicles

The vehicle's consumption of electrical energy greatly depends on the route profile, speed and driving style, as well as the use of the heating/air conditioning.

Favour the ECO and CHARGE zones of the power indicator by driving smoothly and at a steady speed.

Hybrid vehicles

Maximise the vehicle's inertia by releasing the accelerator pedal so that the vehicle slows down by itself (e.g. when driving downhill or approaching a traffic light).

When the accelerator pedal is released, provided that the slider on the power indicator in the instrument panel is still moving in the CHARGE zone, energy recovery is optimal.

Energy recovery makes it possible to make efficient use of the "passive" phases of driving (deceleration).

The recovered energy is used to recharge the traction battery and is then used for all-electric driving or further acceleration.

When the traction battery is almost full, the energy recovery is gradually reduced.

Rechargeable hybrid vehicles

Connect the vehicle as soon as possible.

Anticipate slowing down as much as possible and, if possible, favour decelerations with the regenerative braking function activated (power indicator in the CHARGE zone).

With the vehicle connected, carry out temperature pre-conditioning before setting off.

To optimise consumption during a journey:

▶ Program a destination into the vehicle's GPS navigation system.
▶ Select the Hybrid driving mode.
▶ Make sure that the battery charge level is close to maximum.
▶ Do not use the e-Save function while driving.
▶ Use the heating/air conditioning system wisely.

Electric vehicles

Program a destination into the vehicle's GPS navigation system to optimise consumption during a journey.

Anticipate the need to slow down, and brake smoothly, whenever possible using engine braking with the regenerative braking function, which will move the power indicator into the

"CHARGE" zone.

Use the air conditioning rather than the heating to demist the passenger compartment.

Driver information

Instrument panel

The instrument panel displays all the information the driver needs about the status of the vehicle's various systems.

This information appears in the form of warning and indicator lamps and messages.

The instrument panel is in the form of a fully digital screen.

Digital instrument panels

Digital instrument panels are of the head-up or 3D head-up type.

They can be personalised using a system of pages and widgets.

Depending on the page displayed, certain information is not displayed or is presented differently.

Petrol / Diesel

Hybrid

Rechargeable hybrid

Electric

1. Coolant temperature indicator ( ^irc C) (Petrol, Diesel or Hybrid) Total distance recorder (miles or km) (Petrol, Diesel or Electric)

Battery charge level and remaining range (miles or km) indicator (Rechargeable hybrid) Remaining range (miles or km) indicator (Electric)

1. Gear shift indicator (arrow and recommended gear) (Petrol, Diesel, Hybrid or Rechargeable hybrid)

Selector position and gear on automatic gearbox (Petrol, Diesel, Hybrid or Rechargeable hybrid)

Position on drive selector (Electric) Speedometer (mph or km/h)

1. Display of speed limit signs Driving aid in reduced display (if the function is activated)

2. Rev counter (rpm) (Petrol or Diesel) Driving mode selected (other than Normal mode)

Power indicator (Hybrid, Rechargeable hybrid or Electric)

READY indicator lamp (Rechargeable hybrid or Electric)

1. Fuel gauge and remaining range (miles or km) (Petrol, Diesel, Hybrid or Rechargeable hybrid)

Battery charge level indicator (Electric)

The information listed in the personalisation page is as follows:

– Energy flows (Hybrid, Rechargeable hybrid or Electric).
- Current media.
- Driving aids (e.g. Extended Traffic Sign Recognition).
– Navigation (depending on equipment).
- Engine temperatures (Petrol, Diesel or Hybrid).
– Rev counter (Petrol or Diesel).

Information displayed on the instrument panel

The information displayed on the instrument panel (e.g. warning lamps, indicators) may have a fixed or variable location depending on the page or the driving aid activated.

For the functions that have indicator lamps for both operation and deactivation, there is only one dedicated location.

Display language and units

These depend on the touch screen settings.

When travelling abroad, the speed must be shown in the official units of the country you are driving in (mph, miles or km/h, km).

Choice of the displayed page

By default, pages are memorised in the instrument panel.

▶ Press the button located at the end of the lighting control stalk to scroll through the different pages.

The new page is applied immediately.

When a message is displayed in a temporary window, pressing this button will cause this window to disappear immediately.

Settings for displayed pages

The available settings operations are: addition, deletion and layout of pages and widgets.

It is possible to memorise up to 5 pages.

Each page may contain 1 or 2 widgets:

- With 1 widget, large display in central position.

- With 2 widgets, reduced display in side position.

The colour for each driving mode may be personalised. A default setting is suggested.

The setting also matches the interior ambient lighting (depending on availability).

The settings are changed via the Settings > Customization touch screen ation.

For more information on Personalisation - Instrument Panel, refer to the corresponding section for the Audio equipment and telematics systems.

Warning and indicator lamps

Displayed as symbols, the warning and indicator lamps inform the driver of the occurrence of a malfunction (warning lamps) or of the operating status of a system (operation or deactivation indicator lamps). Certain lamps light up in two ways (fixed or flashing) and/or in several colours.

Associated warnings

The illumination of a lamp may be accompanied by an audible signal and/or a message displayed in a screen.

Relating the type of alert to the operating status of the vehicle allows you to determine whether the situation is normal or whether a fault has occurred: refer to the description of each lamp for further information.

When the ignition is switched on

Certain red or orange warning lamps come on for a few seconds when the ignition is switched on. These warning lamps should go off as soon as the engine is started.

For more information on a system or a function, refer to the corresponding section.

Persistent warning lamp

If a red or orange warning lamp comes on, there may be fault which needs further investigation.

If a lamp remains lit

The references (1), (2) and (3) in the warning and indicator lamp description indicate whether you should contact a qualified professional in addition to the immediate recommended actions.

(1): You must stop the vehicle.

Stop as soon as it is safe to do so and switch off the ignition.
(2): Contact a PEUGEOT dealer or a qualified workshop.
(3): Go to a PEUGEOT dealer or a qualified workshop.

List of warning and indicator lamps

Red warning/indicator lamps

STOP

Fixed, associated with another warning lamp, accompanied by the display of a ge and an audible signal.

A serious fault with the engine, braking system, power steering or automatic gearbox or a major electrical fault has been detected.

Carry out (1) and then (2).

Traction battery overheating (Hybrid, Rechargeable hybrid or Electric)

Fixed, combined with the STOP warning lamp, accompanied by the

display of a message and an audible signal. The traction battery's temperature is too high. Carry out (1).

Evacuate the vehicle as quickly as possible and move to a safe distance.

Carry out (2).

Traction battery malfunction (Hybrid, Rechargeable hybrid or Electric)

Fixed, combined with the Service warning lamp, accompanied by the

display of a message.

The traction battery has a fault. Carry out (2).

Maximum coolant temperature

Fixed.

The temperature of the cooling system is too high.

Carry out (1), then wait until the engine has cooled down before topping up the level, if necessary. If the problem persists, carry out (2).

Engine oil pressure (Petrol, Diesel, Hybrid or Rechargeable hybrid)

Fixed.

There is a fault with the engine lubrication system.

Carry out (1) and then (2).

System malfunction (Hybrid, Rechargeable hybrid or Electric)

Fixed.

A fault has been detected in the system c motor or traction battery).

Carry out (1) and then (2).

Cable connected (Rechargeable hybrid or Electric)

Fixed when the ignition is switched on. The charging cable is connected to the e's connector.

Fixed when the ignition is switched on, accompanied by a message.

It is not possible to start the vehicle while the charging cable is connected to the vehicle's connector.

Disconnect the charging cable and close the flap.

12 V battery charge

Fixed.

The battery charging circuit is faulty

(e.g. dirty terminals, loose or severed alternator belt).

Carry out (1).

If the electric parking brake stops working, immobilise the vehicle:

▶ With the manual gearbox, engage a gear.
▶ With the automatic gearbox or drive selector, fit the chock against one of the wheels.
Clean and tighten the terminals. If the warning lamp does not go off when the engine is started, carry out (2).

Braking

Fixed.

The brake fluid level in the braking circuit has dropped significantly.

Carry out (1), then top up with fluid that complies with the manufacturer's recommendations. If the problem persists, carry out (2).

Fixed

The electronic brake force

distribution (EBFD) system is faulty.

Carry out (1) and then (2).

Electric parking brake

Fixed.

The electric parking brake is applied. Flashing.

Application/release is faulty.

Carry out (1): park on flat ground (on a level surface).

With a manual gearbox, engage a gear.

With an automatic gearbox or drive selector, select mode P.

Switch off the ignition and carry out (2).

Power steering

Fixed, accompanied by an audible signal.

The power steering has a fault.

Carry out (1) and then (2).

Door(s) open

Fixed, associated with a message identifying the access.

An audible signal supplements the alert if the speed is higher than 6 mph (10 km/h).

A door or the boot is not properly closed.

Seat belts not fastened/unfastened

Fixed or flashing, accompanied by an increasing audible signal.

A seat belt has not been fastened or has been unfastened.

Orange warning/indicator lamps

Service

Temporarily on, accompanied by the display of a message.

One or more minor faults, for which there is/are no specific warning lamp(s), have been detected. Identify the cause of the fault using the message displayed on the instrument panel.

You may be able to deal with some faults yourself, such as changing the battery in the remote control.

For other faults, such as with the tyre under-inflation detection system, carry out (3).

Fixed, accompanied by the display of a message.

One or more major faults, for which there is/are no specific warning lamp(s), have been detected. Identify the cause of the fault using the message displayed on the instrument panel, then carry out (3).

Fixed, accompanied by the message "Parking brake fault".

Automatic release of the electric parking brake is unavailable.

Carry out (2).

Service warning lamp fixed and service spanner flashing then

fixed.

The servicing interval has been exceeded. The vehicle must be serviced as soon as possible.

Only with BlueHDi Diesel engines.

Braking

Fixed.

A minor fault with the braking system has detected.

Drive carefully.

Carry out (3).

Malfunction (with electric parking brake)

Fixed, accompanied by the message "Parking brake fault".

The vehicle cannot be immobilised with the engine running.

If manual application and release commands are not working, the electric parking brake control is faulty.

The automatic functions must be used at all times and are automatically reactivated in the event of a fault with the control.

Carry out (2).

Fixed, accompanied by the message "Parking brake

fault".

The electric parking brake is faulty: manual and automatic functions may not be working.

When stationary, to immobilise the vehicle:

▶ Pull the electric parking brake control and hold it for approximately 7 to 15 seconds, until the indicator lamp lights up on the instrument panel.

If this procedure does not work, secure the vehicle:

▶ Park on a level surface.
▶ With a manual gearbox, engage a gear.
▶ With an automatic gearbox or drive selector, select mode P, then place the supplied chock against one of the wheels.
Then carry out (2).

Automatic functions deactivated (electric parking brake)

Fixed.

The "automatic application" (on switching off the engine) and "automatic release" (on acceleration) functions are deactivated. If automatic application/release is no longer possible:

▶ Start the engine.
▶ Use the control to apply the electric parking brake.
▶ Take your foot fully off the brake pedal.
▶ Hold the control pressed in the release direction for between 10 and 15 seconds.
▶ Release the control.
▶ Depress and hold the brake pedal.
▶ Pull the control in the application direction for 2 seconds.
▶ Release the control and the brake pedal.

Anti-lock braking system (ABS)

Fixed

The anti-lock braking system has a fault.

The vehicle retains conventional braking.

Drive carefully at moderate speed, then carry out (3).

Power steering

Fixed.

A minor fault in the power steering has detected.

Drive carefully at moderate speed, then carry out (3).

Dynamic stability control (DSC)/Anti-slip regulation (ASR)

Fixed.

The system is deactivated.

The DSC/ASR system is reactivated automatically when the vehicle is restarted, and at speeds above approximately 31 mph (50 km/h).

At speeds below 31 mph (50 km/h), it can be reactivated manually.

Flashing.

DSC/ASR system regulation is activated event of a loss of grip or trajectory.

Fixed.

The DSC/ASR system has a fault.

Carry out (3).

Emergency brake malfunction (with electric parking brake)

Fixed, accompanied by the message "Parking brake fault".

Emergency braking does not deliver optimal performance.

If automatic release is not available, use manual release or carry out (3).

Hill start assist

Fixed, accompanied by the message "Anti roll-back system

fault".

The system has a fault.

Carry out (3).

Post Collision Safety Brake

Fixed, associated with the Service warning lamp,

accompanied by the display of a message and an audible signal.

The system has a fault.

Carry out (3) quickly.

Engine self-diagnostic system (Petrol, Diesel, Hybrid or Rechargeable hybrid)

Flashing.

The engine management system has a

fault.

There is a risk that the catalytic converter will be destroyed.

You must carry out (2).

Fixed.

The emissions control system has a fault.

The warning lamp should go off when the engine is started.

Carry out (3) without delay.

AdBlue® (BlueHDi)

On for around 30 seconds when starting the vehicle, accompanied by a message ing the driving range.

The driving range is between 1,500 and 500 miles (2,400 and 800 km).

Top up the AdBlue ^® .

Fixed, on switching on the ignition, accompanied by an audible signal and a ge indicating the driving range.

The driving range is between 500 and 62 miles (800 and 100 km).

Promptly top up the AdBlue ^® , or carry out (3).

Flashing, accompanied by an audible signal and a message indicating the

driving range.

The driving range is less than 62 miles (100 km). You must top up the AdBlue® to avoid engine starting being prevented, or carry out (3).

Flashing, accompanied by an audible signal and a message indicating that

starting is prevented.

The AdBlue ^® tank is empty: the legally required engine immobiliser system prevents the engine from starting.

To restart the engine, top up the AdBlue ^® or carry out (2).

It is essential to add at least 10 litres of AdBlue® to the tank.

SCR emissions control system (BlueHDi)

Fixed when the ignition is switched on, accompanied by an audible

signal and a message.

A malfunction of the SCR emissions control system has been detected.

This alert disappears once the exhaust emissions return to normal levels.

Flashing AdBlue ^® warning lamp on switching on the ignition, with the

Engine self-diagnostics warning lamp on fixed, accompanied by an audible signal and a message indicating the driving range.

Depending on the message displayed, it is possible to drive for up to 685 miles (1,100 km) before the engine immobiliser is triggered.

Carry out (3) without delay, to avoid starting being prevented.

Flashing AdBlue ^® warning lamp on switching on the ignition, with the

Engine self-diagnostics warning lamp on fixed, accompanied by an audible signal and a message indicating that starting is prevented. The engine immobiliser prevents the engine from restarting (the permitted driving limit has been exceeded after confirmation of a malfunction of the emissions control system).

To start the engine, carry out (2).

Engine pre-heating (Diesel)

Temporarily on

(up to approximately 30 seconds in the weather conditions).

When switching on the ignition, if the weather conditions and the engine temperature make it necessary.

Wait until the warning lamp goes off before starting.

When the warning lamp goes off, starting will occur immediately if you press and hold:

– the clutch pedal with a manual gearbox.

- the brake pedal with an automatic gearbox. If the engine does not start, make the engine starting request again, while keeping your foot on the pedal.

Under-inflation

Fixed.

The pressure in one or more tyres is too

low.

Check the pressure of the tyres as soon as possible.

Reinitialise the detection system after adjusting the pressure.

Under-inflation warning lamp flashing then fixed and Service

warning lamp fixed.

The tyre pressure monitoring system is faulty. Under-inflation detection is no longer monitored.

Check the tyre pressures as soon as possible and carry out (3).

Parking sensors

Flashing.

The system detects an obstacle.

Fixed, accompanied by the display of a message and an audible signal.

The system has a fault.

Carry out (3)

Fixed, accompanied by the display of the message "Parking Assistance Sensor

blind: Clean sensor, see User Manual".

The sensor is masked.

Stop as soon as it is safe to do so and switch off the ignition.

Clean the front and/or rear sensors.

Airbags

Fixed, associated with the Service warning lamp and accompanied by

the display of a message.

One of the airbags or seat belt pyrotechnic pretensioners is faulty.

Carry out (3).

Front passenger airbag (ON)

Fixed.

The front passenger airbag is activated.

The control is set to the "ON" position.

In this case, do not install a "rearward facing" child seat on the front passenger seat - risk of serious injury!

Front passenger airbag (OFF)

Fixed.

The front passenger airbag is deactivated.

The control is set to the "OFF" position.

A "rearward facing" child seat can be installed, unless there is a fault with the airbags (Airbags warning lamp on).

Low fuel level (Petrol, Diesel, Hybrid or Rechargeable hybrid)

Fixed, accompanied by an audible signal and a message.

When it first comes on, there remains approximately 6 litres of fuel in the tank (reserve).

Until the fuel level is topped up, this alert will be repeated every time the ignition is switched on, with increasing frequency as the fuel level decreases and approaches zero.

Refuel without delay to avoid running out of fuel.

Never drive until completely empty, as this could damage the emissions control and injection systems.

Low traction battery level (Electric)

Fixed, accompanied by an audible signal. The state of charge of the traction battery

is low.

View the remaining range.

Put the vehicle on charge as soon as possible.

Tortoise mode with limited driving range (Electric)

Fixed.

The state of charge of the traction battery is critical.

The engine power gradually decreases.

You must put the vehicle on charge.

If the warning lamp remains lit, carry out (2).

Collision Risk Alert/Active Safety Brake

Flashing.

The system activates and brakes the

vehicle momentarily to reduce the speed of collision with the vehicle in front.

For more information, refer to the Driving section.

Fixed, accompanied by the display of a message.

The system has been deactivated via the touch screen.

Fixed, accompanied by a message and an audible signal.

The system has a fault.

Carry out (3).

Fixed, accompanied by the display of the message "Driving Assistance Sensor

blind: Clean sensor, see User Manual". The sensor is masked.

Stop as soon as it is safe to do so and switch off the ignition.

Clean the front camera.

Fixed.

The system has a fault.

If these warning lamps come on after the engine is switched off and then restarted, carry out (3).

Fixed.

The system is deactivated

temporarily because the driver and/or front passenger (depending on version) has been detected as present but the corresponding seat belt has not been fastened.

Road signs recognition

Fixed, accompanied by the display of a message and an audible signal.

The system has a fault.

Carry out (3).

Fixed, accompanied by the display of the message "Driving Assistance Sensor

blind: Clean sensor, see User Manual".

The sensor is masked.

Stop as soon as it is safe to do so and switch off the ignition.

Clean the front camera.

Lane keeping assist

Flashing.

You are about to cross a broken

lane marking without operating the direction indicators.

The system is activated, then corrects the trajectory if it detects a risk of unintentionally crossing a line or hard shoulder (depending on version).

For more information, refer to the Driving section.

Fixed.

The system has been automatically

deactivated or placed on standby.

Fixed, accompanied by the display of the message "Driving Assistance Sensor

blind: Clean sensor, see User Manual".

The sensor is masked.

Stop as soon as it is safe to do so and switch off the ignition.

Clean the front camera.

Fixed, accompanied by the display of a message and an audible

signal.

The system has a fault.

Carry out (3).

Driver Attention Warning by Camera (Distraction detection)

Fixed.

The system is deactivated.

Fixed, accompanied by the display of a message and an audible signal.

The system has a fault.

Carry out (3).

Fixed, accompanied by the display of the message "Driving Assistance Sensor

blind: Clean sensor, see User Manual".

The sensor is masked.

Stop as soon as it is safe to do so and switch off the ignition.

Clean the front camera.

Stop & Start (Petrol or Diesel)

Fixed, accompanied by the display of a message.

op & Start system has been deactivated

ally.

engine will not switch off at the next traffic

[Non-Text]

vate the system via the touch screen.

Fixed.

The Stop & Start system has been

deactivated automatically.

The engine will not switch off at the next traffic stop, if the exterior temperature is:

- below 0°C.

- above +35°C.

For more information, refer to the Driving section.

Flashing then fixed, accompanied by a message.

The system has a fault.

Carry out (3).

e-Auto mode (Hybrid)

Fixed, accompanied by the display of a message.

The e-Auto mode has been deactivated manually.

The petrol engine will not switch off at the next release of the accelerator pedal or at the next traffic stop.

Reactivate the mode via the touch screen.

Rear foglamps

Fixed.

The lamps are on.

Peugeot Matrix LED Technology 2.0

Fixed, accompanied by an audible signal and a message.

A malfunction of the Peugeot Matrix LED

Technology 2.0 headlamps or of the camera has been detected.

Carry out (2).

Automatic headlamp dipping

Fixed, accompanied by an audible signal and a message.

A function or camera malfunction is detected. Carry out (2).

Green warning/indicator lamps

Stop & Start (Petrol or Diesel)

Fixed.

When the vehicle stops, the Stop & Start

system puts the engine into STOP mode.

Flashing temporarily.

STOP mode is momentarily unavailable

or START mode is automatically triggered.

For more information, refer to the Driving section.

Vehicle ready to drive (Rechargeable hybrid or Electric)

Fixed, accompanied by an audible signal when it comes on.

The vehicle is ready to drive.

For electric vehicles, the thermal comfort systems are also available.

The indicator lamp goes out upon reaching a speed of approximately 3 mph (5 km/h) and lights up again when the vehicle stops moving. The lamp will go out when you switch off the engine and exit the vehicle.

Seat unoccupied/Seat belt not fastened

Fixed.

(grey)

With the ignition on, one of the front or rear passenger seats is considered to be unoccupied.

Seat occupied/Seat belt fastened

Fixed

With the ignition on, the driver or a anger has fastened their seat belt.

Direction indicators

Flashing with audible signal.

The direction indicators are on.

ne running lamps/Sidelamps

Fixed

With adequate ambient light, the daytime running lamps are on.

With inadequate ambient light, the sidelamps are on.

Dipped beam headlamps

Fixed.

The lamps are on.

Peugeot Matrix LED Technology 2.0

Fixed.

(grey)

The function is activated, but not available.

All the operating conditions have not been met.

AUTO Fixed.

ED The function is active.

All of the conditions are met: the system is operating.

For more information, refer to the Lighting and visibility section.

Automatic headlamp dipping

Fixed.

The function has been activated

via the touch screen.

The lighting control stalk ring is in the "AUTO" position.

For more information, refer to the Lighting and visibility section.

Blue warning/indicator lamps

Main beam headlamps

Fixed.

The lamps are on.

Black/white warning lamps

Foot on the brake

Fixed.

Insufficient or no pressure on the brake

pedal.

With the engine running, before releasing the parking brake, to move out of mode P on an automatic gearbox or a drive selector.

e-SAVE function (Rechargeable hybrid)

Fixed, accompanied by the reserved electric range.

The function is activated.

Indicators

Service indicator

The servicing information is expressed in terms of distance (miles or kilometres) and time (months or days).

The alert is given at whichever of these two terms is reached first.

The servicing information is displayed in the instrument panel. Depending on the version of the vehicle:

- The distance recorder display line indicates the distance remaining before the next service is due, or the distance travelled since it was due preceded by the "-" sign.

- An alert message indicates the distance remaining, as well as the period before the next service is due or how long it is overdue.

The value indicated is calculated according to the distance covered and time elapsed since the last service.

The alert may also be triggered close to a due date.

Service spanner

On temporarily when the ignition is switched on.

Between 620 and 1,860 miles (1,000 and 3,000 km) remain before the next service is due.

Fixed, when the ignition is switched on. The next service is due in less than 620 1,000 km).

Have your vehicle serviced very soon.

Service spanner flashing

Flashing then fixed, when the ignition is switched on.

(With BlueHDi Diesel engines, associated with the Service warning lamp.)

The servicing interval has been exceeded. Have your vehicle serviced as soon as possible.

Resetting the service indicator

The service indicator must be reset after each service.

If you have serviced your vehicle yourself:

▶ Switch the ignition off.

▶ Press and hold the button located on the end of the lighting control stalk.
▶ Switch on the ignition without starting the engine; a temporary display window appears and a countdown begins.
▶ When the display indicates =0, a confirmation message appears; release the lighting control stalk button and the spanner symbol disappears.
If you disconnect the battery following this operation, lock the vehicle and wait at least 5 minutes for the reset to be registered.

Reminder of the servicing information

Servicing information is accessible using the Settings > Vehicle application on the screen.

▶ Then select Safety > Diagnostics.

Engine oil level indicator

(Depending on version)

On versions fitted with an electric gauge, the engine oil level status is displayed on the instrument panel for a few seconds when the ignition is switched on, after the servicing information, in the form of messages.

The level read will only be correct if the vehicle is on level ground and the engine been off for more than 30 minutes.

Low oil level

This is indicated by the message "Oil

level incorrect" on the instrument panel, accompanied by the lighting of the Service warning lamp and an audible signal.

If a low oil level is confirmed by a check using the dipstick, the level must be topped up to avoid damage to the engine.

For more information on Checking levels, refer to the corresponding section.

Oil gauge malfunction

This is indicated by the message "Oil level measurement invalid" on the instrument panel. Consult a PEUGEOT dealer or a qualified workshop.

In the event of a malfunction of the electric gauge, the oil level is no longer monitored.
If the system is faulty, you must check the engine oil level using the manual dipstick located in the engine compartment.
For more information on Checking levels, refer to the corresponding section.

Coolant temperature indicator

With the engine running:

– In zone A, the temperature is correct.
- In zone B, the temperature is too high. The associated warning lamp and the STOP warning lamp light up in red on the instrument panel, accompanied by the display of a message and an audible signal.

You must stop the vehicle as soon as it is safe to do so.

Wait a few minutes before switching off the engine.

After switching off the ignition, carefully open the bonnet and check the coolant level.

For more information on Checking levels, refer to the corresponding section.

AdBlue® range indicators (BlueHDi)

The Diesel BlueHDi engines are equipped with a system that associates the SCR (Selective Catalytic Reduction) emissions control system and the Diesel particle filter (DPF) for the treatment of exhaust gases. They cannot function without AdBlue® fluid. When the level of AdBlue® falls below the reserve level (between 1,500 and 0 miles (2,400 and 0 km)), a warning lamp lights up when the ignition is switched on and an estimate of the distance that can be travelled before engine starting is prevented is displayed in the instrument panel.

The engine starting prevention system required by regulations is activated automatically once the AdBlue ^® tank is empty. It is then no longer possible to start the engine until the minimum level of AdBlue ^® has been topped up.

Manual display of driving range

While the driving range is greater than 1,500 miles (2,400 km), it is not displayed automatically.

Driving range information is accessible using the Settings > Vehicle application

on the touch screen.

▶ Then select Safety > Diagnostics.

Actions required related to a lack of AdBlue®

The following warning lamps light up when the quantity of AdBlue ^® is below the reserve level: driving range of 1,500 miles (2,400 km).

Together with the warning lamps, messages regularly remind you of the need to top up to avoid engine starting being prevented. Refer to the Warning and indicator lamps section for details of the messages displayed.

For more information on AdBlue® (BlueHDi) and in particular on topping up, refer to the corresponding section.

Warning/indicator lamps on	Action Remaining range
	Top up. Between 1,500 miles and 500 miles (2,400 km and 800 km)
	Top up as soon as possible. Between 500 miles and 62 miles (800 km and 100 km)
	A top-up is vital, there is a risk that the engine will be prevented from starting. Between 62 miles and 0 miles (100 km and 0 km)
	To be able to restart the engine, add at least 10 litres of AdBlue® to the tank. 0 miles (km)

Taking into account of top-up Top-up detection may not be nstantaneous after addition. It may take a few

minutes of driving before the top-up detection is effective.

Malfunction of the SCR emissions control system

Malfunction detection

If a malfunction is detected, these warning lamps come on, accompanied by an audible signal and the display of an "Emissions control fault" message.

The alert is triggered while driving when the fault is detected for the first time, and thereafter when switching on the ignition for subsequent journeys, for as long as the cause of the fault persists.

If the fault is temporary, the alert disappears during the next journey, after self-diagnostic checks of the SCR emissions control system.

Malfunction confirmed during the permitted driving phase (between 685 miles and 0 miles (1,100 km and 0 km))

If the fault indication is still displayed permanently after 31 miles (50 km) of driving, the fault in the SCR system is confirmed. The AdBlue warning lamp flashes and a message is displayed ("Emissions

control fault: starting prevented in X miles (kms)"), indicating the driving range in miles or kilometres.

While driving, the message is displayed every 30 seconds. The alert is repeated when switching on the ignition.

You can continue driving for up to 685 miles (1,100 km) before the engine starting prevention system is triggered.

Have it checked by a PEUGEOT dealer or a qualified workshop.

Starting prevented

Every time the ignition is switched on, the message "Emissions control fault: Starting prevented" is displayed.

To restart the engine

- Contact a PEUGEOT dealer or a qualified workshop.

Power indicator (Hybrid, Rechargeable hybrid or Electric)

The power indicator shows in real time the power demanded from the vehicle.

There are 3 zones:

For hybrid versions

POWER High power demand, using the combined capabilities of the petrol engine and the electric motor.

The slider is located in this zone during more dynamic driving phases when high levels of performance are being demanded.

ECO Optimal use of energy (internal combustion or electric).

The slider is located in this zone when driving under electric power and when optimal use is being made of the petrol engine, both accessible by adopting a suitable driving style.

CHARGE Energy recovery for recharging the traction battery.

The slider is located in this zone during deceleration: taking your foot off the accelerator pedal or braking.

When the ignition is switched on and before the engine is started, the power indicator only displays "OFF".

For rechargeable hybrid versions

POWER High power demand, using the combined capabilities of the petrol engine and the electric motor. The slider is located in this zone during more dynamic driving phases when high levels of performance are being demanded.

ECO Optimal use of energy (internal combustion or electric).

The slider is located in this zone when driving under electric power and when optimal use is being made of the petrol engine, both accessible by adopting a suitable driving style. A symbol indicates the threshold at which the petrol engine will restart. The driver can therefore moderate their acceleration to remain in electric driving mode.

CHARGE Energy recovery for partly recharging the traction battery.

The slider is located in this zone during deceleration: taking your foot off the accelerator pedal or braking.

For electric versions

CHARGE Traction battery charging during deceleration and braking.

ECO Moderate energy consumption and optimised driving range.

POWER Energy consumption by the drive train during acceleration.

NEUTRAL

When the ignition is switched on, the vehicle's electric drive train neither consumes nor generates energy; after sweeping over the indicator, the cursor returns to its "neutral" position: between ECO and CHARGE.

With the ignition off, opening the driver's door activates the indicator, which moves to the "neutral" position: between ECO and

CHARGE.

Charge level indicator (Rechargeable hybrid or Electric)

For rechargeable hybrid versions

The charge level of the traction battery and the remaining range in electric driving mode are permanently displayed when the vehicle is switched on.

The range displayed depends on the use of the vehicle (type of driving and speed), the outside temperature and the activated comfort equipment.

For electric versions

The traction battery's actual charge level and the remaining range are displayed continuously when the vehicle is started.

With the ignition off, opening the driver's door activates the indicator.

Associated warning lamps

Two successive alert levels indicate that the energy available has dropped to a low level:

1st level: Reserve

The state of charge of the traction battery is low.

▶ View the remaining range on the instrument panel.

▶ Put the vehicle on charge as soon as possible.

2nd level: Critical

The state of charge of the traction battery is critical.

▶ You must put the vehicle on charge.

! The remaining range is no longer calculated. The drive train power gradually decreases.

The heating and air conditioning are switched off (even if the thermal comfort consumption indicator is not at the "ECO" level).

Thermal comfort consumption indicator (Electric)

The gauge shows the consumption of the traction battery's electrical energy by the thermal comfort devices in the passenger compartment.

The devices in question are the heating and air conditioning systems.

This equipment can be used:

- If the vehicle is not plugged in, when the READY lamp is lit.

- If the vehicle is plugged in, when the ignition is switched on ("Lounge" mode).

Selecting ECO mode limits the performance of some of this equipment. The thermal comfort consumption indicator then moves into the

"ECO" zone.

To quickly heat or cool the passenger compartment, feel free to temporarily select the maximum heating or cooling setting.

When the heating is on maximum, the gauge on the thermal comfort consumption indicator is in the MAX zone. When the air conditioning is on maximum, it stays in the ECO zone.

Excessive use of thermal comfort equipment, particularly at low speed, can significantly decrease the vehicle's range.

Remember to optimise equipment settings upon achieving the desired level of comfort, and adjust them if necessary whenever you start the vehicle.

After an extended period without using the heating, you may notice a slight odour during the first few minutes of use.

Manual test

This function allows you to check certain indicators and display the alerts log.

The test is launched in the Settings> Vehicle touch screen application.

▶ Then select Safety > Diagnostics.

The following information is displayed on the instrument panel:

• Tyre pressures.
  – Engine oil level (depending on engine).
• Next service due.
• Driving range associated with the AdBlue® and the SCR system (BlueHDi Diesel).
• Current alerts.

This information is also displayed automatically every time the ignition is switched on.

Total distance recorder

The total distance recorder measures the total distance travelled by the vehicle since its initial registration.

With the ignition on, the total distance is displayed at all times. It remains displayed for 30 seconds after switching off the ignition. It is displayed when the driver's door is opened, and when the vehicle is locked or unlocked.

When travelling abroad, you may have to change the distance units (miles or km):

the displayed speed must be in the local country's official unit (mph or km/h). The unit is changed via the screen's configuration application, with the vehicle stationary.

i Rechargeable hybrid or electric vehicles

The total distance recorder is only accessible from the trip computer.

For more information on the Trip computer, refer to the corresponding section.

Lighting dimmer

Used to manually adjust the brightness of the instruments and controls to suit the exterior light level.

It is configured in the Settings > Brightness touch screen application.

▶ In the "Cockpit" category, press or move the slider to the desired setting.

Trip computer

Displays information related to the current trip (e.g. range, average consumption, average speed, distance travelled).

Data displayed on the instrument panel

Displaying the different tabs

▶ Pressing the button located on the end of the wiper control stalk displays the following tabs in turn:

– Current information:

• Current consumption (Petrol, Diesel or Hybrid).
• Time counter for Stop & Start (Petrol or Diesel).
• Percentage of the current journey travelled in all-electric driving mode (Hybrid or Rechargeable hybrid).
• Total distance recorder (Rechargeable hybrid or Electric).

- Trips "1" then "2":

• Average speed.
  • Average consumption.
• Distance travelled.

End of trip page

(Depending on version)

When the ignition is switched off, the instrument panel automatically displays an additional page of the trip computer that recapitulates information about the last trip.

The end of trip page contains the following information:

• Range.
• Trip time.
  – Distance travelled.
• Percentage of the current journey travelled in all-electric driving mode (Hybrid or Rechargeable hybrid).
  – Average consumption.

Trip reset

▶ When the desired trip is displayed, press the button on the end of the wiper I stalk for more than 2 seconds.

Trips "1" and "2" are independent and are used in the same way.

Definitions

Range

(miles or km)

(Traction battery charge level percentage) (Electric)

/ Distance that can still be travelled with the fuel remaining in the tank

(based on the average fuel consumption over the last few miles (kilometres) travelled).

Actual traction battery charge level and remaining range (Electric).

This value may vary following a change in driving style or terrain, leading to a significant change in current fuel consumption.

For petrol or Diesel versions

When the range falls below 19 miles (30 km), dashes are displayed.

After filling with at least 5 litres of fuel, the range is recalculated and is displayed if it exceeds 62 miles (100 km).

Dashes appearing permanently in place of numbers while driving indicates a malfunction. Consult a PEUGEOT dealer or a qualified workshop.

For electric versions

Two successive alert levels indicate that the energy available has dropped to a low level. For more information on the Indicators, and in particular the Charge level indicator, refer to the corresponding section.

Current consumption

(mpg or l/100 km or km/l)

(miles/kWh or kWh/100 km or km/kWh) (Electric)

lated during the last few seconds.

This function is only displayed at speeds above 19 mph (30 km/h).

Average consumption

(mpg or l/100 km or km/l)

(miles/kWh or kWh/100 km or km/kWh) (Electric)

lated since the last trip computer reset.

Average speed

(mph or km/h)

Calculated since the last trip computer reset.

Distance travelled

(miles or km)

Calculated since the last trip computer reset.

Stop & Start time counter

(minutes/seconds or hours/minutes)

If your vehicle is fitted with the Stop & Start function, a time counter calculates the time spent in STOP mode during a journey.

The time counter is reset each time the ignition is switched on.

10-inch touch screen

This system gives access to the following elements:

– Time and exterior temperature.
- Heating/air conditioning system controls and reminders of settings.
- Settings for driving aid functions, comfort and safety functions, audio equipment and digital instrument panel.
- Settings of functions specific to rechargeable hybrid vehicles.

• Settings of functions specific to electric vehicles.
  – Display of visual manoeuvring aid functions.
• Interactive handbook.

– Video tutorials (e.g. screen management, driving aids, voice recognition).
– Audio equipment and telephone controls with display of associated information.
- Connected services and display of associated information.
– Navigation system controls and display of associated information (depending on equipment).
– Voice recognition (depending on equipment).

! For safety reasons, always stop the vehicle before performing operations that require sustained attention.

Some functions are not accessible while driving.

Recommendations

These recommendations are valid for the touch screen and for the i-Toggles (depending on equipment).

The touch screen and the i-Toggles screen are capacitive touch screens.

Do not use pointed objects on the touch screen. Do not touch the touch screen with wet hands.

▶ Use a soft, clean cloth to clean the touch screen.

Main controls

Access to one of the home pages Return to the first home page

Direct access to the Climate application

Direct access to the Shortcuts for driving aids

▶ Swipe down from the upper edge of the touch screen to access a list of quick settings (e.g.
Brightness, Diagnostics).
▶ Depending on the pages displayed on the screen, with or without the context menu, scroll the text by swiping with your finger, as with a smartphone.

Show/Hide context menu

Return to the previous page

▶ To change the status of a function, press the description for the corresponding line (change confirmed by the slider moving to the right/left: function activated/deactivated).

Access additional information on the function

Access to function parameters

Adding/Removing shortcuts

Short press, ignition off: system on/off. Short press, ignition on: mute/restore

sound.

Long press, ignition on: start standby mode (mute sound, screens and clock display off). Rotation: volume adjustment.

Applications

Press this button to access the applications wall.

From any page, press the touch screen with three fingers to display the applications wall.

To obtain information about the other applications not listed here, refer to the sections describing the audio and telematic systems.

ADAS

Activation/Deactivation and configuration driving aid functions.

Climate

Settings for temperature, air flow, etc.

For more information on Dual-zone automatic air conditioning, refer to the corresponding section.

Activation/Deactivation of the heated steering wheel.

For more information on the Heated steering wheel, refer to the corresponding section.

Seats

Activation/Deactivation and configuration of the seat comfort functions (heating and massages).

For more information on the Heated seats or on the Multi-point massages, refer to the corresponding section.

Settings

Main settings for the audio system, touch

screen and digital instrument panel.

Activation/Deactivation and configuration of the exterior lighting, vehicle access and safety functions.

Energy

For rechargeable hybrid versions

Access to the rechargeable hybrid system features (energy flow, consumption statistics, deferred charging, e-SAVE function).

For electric versions

Access to the charging system features (energy flow, consumption statistics, deferred charging).

Energy application (Rechargeable hybrid or Electric)

Energy Flow

For rechargeable hybrid versions

The page shows the operation of the rechargeable hybrid system in real time.

1. Active driving mode
2. Petrol engine
3. Electric motor
4. Estimated traction battery charge level

The energy flows have a specific colour for each type of driving:

– Blue: 100% electrical energy.
– White: energy from the petrol engine.
– Green: energy recovery.

For electric versions

The page shows the operation of the electric drive train in real time.

1. Active driving mode
2. Electric motor
3. Estimated traction battery charge level
4. Energy flows

The energy flows have a specific colour for each type of driving:

A. Blue: energy consumption
B. Green: energy recovery

Statistics

For rechargeable hybrid versions

This page shows electrical energy and fuel consumption statistics.

1. Average electrical consumption for the current trip (kWh/100 km) and historical values:

- Blue graph: energy consumed directly from the traction battery.

- Green graph: energy regenerated during deceleration and braking phases used to recharge the traction battery.

1. Average fuel consumption for the current trip (l/100 km) and historical values (orange graph).

For electric versions

This page shows electrical energy consumption statistics.

• Blue graph: energy consumed directly from the traction battery.
  – Green graph: energy regenerated during deceleration and braking phases used to recharge the traction battery.

The average result for the current trip is stated in kWh/100 km.

It is possible to view data for the last 30, 60 or 180 minutes by clicking on the corresponding value on the left of the graph.

Charging

This page allows you to programme deferred charging.

For more information on Charging the traction battery, refer to the corresponding section.

e-SAVE (Rechargeable hybrid)

The e-SAVE function makes it possible to reserve all or part of the electrical energy of the traction battery to be used later during a journey (e.g. passing through an urban area or an area reserved for electric vehicles).

▶ Activate the function by pressing Set e-SAVE, then select the electric range to be reserved (6 miles (10 km), 12 miles (20 km) or the full range Maximum).

Activation of the function is confirmed by the lighting of this indicator lamp on the

instrument panel and the indication of the energy reserve in miles or kms.

▶ To use the energy reserve, choose the Electric driving mode in the mode selector.

If the requested range exceeds the available range (not recommended), the internal combustion engine starts to recharge the traction battery up to the requested threshold. This leads to excessive fuel consumption.

i-Toggles

This system is an additional touch screen associated with the PEUGEOT i-Connect Advanced. It is designed to provide a personalised display of shortcuts to applications or presets.

By default, it directs you to the main applications:

Media, Climate, Navigation, Phone, Mirror Screen, etc.

The shortcuts can be replaced by: radio preset, temperature preset, pre-selected destination, pre-selected contact, pre-selected smartphone, etc.

For more information on Personalisation - i-Toggles, refer to the corresponding section for the Audio equipment and telematics systems.

! If the vehicle is exposed to sunlight for an extended period, the touch screen can become very hot.

Wait a few minutes before using the system.

Remotely operable additional functions (Rechargeable hybrid or Electric)

(Depending on country of sale)

The following functions are available from the MYPEUGEOT APP application, which is accessible from a smartphone:

- Managing the traction battery charging (deferred charging).

- Managing the temperature pre-conditioning. - Viewing the state of charge and range of the vehicle.

Installation procedure

▶ Download the MYPEUGEOT APP application from the appropriate online store for your smartphone.
▶ Create an account.
▶ Enter the vehicle identification number (available on the vehicle registration certificate). For more information on Identification markings, refer to the corresponding section.

Network coverage

In order to be able to use the various remotely operable features, ensure that your vehicle is located in an area covered by the mobile network.

A lack of network coverage may prevent communication with the vehicle (for example, if it is in an underground car park). In such cases, the application will display a message indicating that the connection with the vehicle could not be established.

Access

Electronic key with remote control function and built-in key

Remote control function

Line drawing of a car interior panel with no text or symbols

The remote control can be used to perform the following remote functions (depending on version):

• Unlocking/Locking/Deadlocking the vehicle.
• Unlocking/Locking the boot.
• Folding/Unfolding the door mirrors.
• Activating/Deactivating the alarm.
• Locating the vehicle.
• Closing the windows.
• Closing the sunroof.

- Activating the vehicle's electronic immobiliser.

Back-up procedures allow the vehicle to be locked/unlocked in the event of a failure of the remote control, the central locking, the battery, etc. For more information on the Back-up procedures, refer to the corresponding section.

Built-in key

Using the remote control built-in key, you can perform the following operations (depending on version):

• Activation/Deactivation of the manual child lock.
• Activation/Deactivation of the front passenger airbag.
• Back-up Unlocking/Locking of the doors.

▶ To eject the key or put it back in place, pull and hold the button.

Once the built-in key is ejected, always keep it with you to be able to carry out the corresponding back-up procedures.

Unlocking the vehicle

Selective unlocking (driver's door, boot) is configured in the Settings > Vehicle

touch screen application.

Complete unlocking

▶ If the selective unlocking is deactivated, press the unlocking button.

Selective unlocking

Driver's door

▶ Press the unlocking button.

The driver's door and the fuel filler flap are unlocked (Petrol, Diesel or Hybrid).

The driver's door is unlocked (Rechargeable hybrid).

The driver's door and the charging flap are unlocked (Electric).

▶ Press it again to unlock the other doors and the boot.

The charging nozzle can be unplugged on the second press.

Complete or selective unlocking, and alarm deactivation (depending on version), is confirmed by the flashing of the direction indicators and the lighting of the daytime running lamps.

Depending on version, the door mirrors unfold.

Selective unlocking and opening of the tailgate

By default, selective unlocking of the tailgate is deactivated and its motorised operation is activated.

▶ With a motorised tailgate: press and hold this button to unlock the boot and

trigger the motorised opening of the tailgate.

▶ With a non-motorised tailgate: press and hold this button to unlock the boot and partially open the tailgate.

When selective unlocking of the tailgate is activated, the doors and the fuel filler flap remain locked.

If selective unlocking of the tailgate is deactivated, pressing the button unlocks the whole vehicle.

If motorised operation of the tailgate is deactivated, pressing the button partially opens the tailgate.

To lock the vehicle, it is necessary to close the tailgate again.

Locking the vehicle

Depending on version, the activation/deactivation of the lock audible signal is

configured in the Settings > Vehicle touch screen application.

Normal locking

▶ Press the locking button.

The locking, and the activation of the alarm depending on version, is confirmed by the lighting of the direction indicators.

Depending on version, the door mirrors fold.

An access (door or boot) that is not properly closed prevents locking of the vehicle. However, if the vehicle is fitted with an alarm, it will be activated after 45 seconds. If the vehicle is unlocked but the doors or boots are not subsequently opened, the vehicle will automatically lock itself again after about 30 seconds. If the vehicle is fitted with an alarm, it will be reactivated automatically.

Deadlocking

Deadlocking renders the interior door controls inoperative. It also deactivates the central locking buttons.

The horn remains operational.

Never leave anyone inside the vehicle when it is deadlocked.

▶ Press the locking button.
▶ Press the locking button again within 3 seconds to deadlock the vehicle (confirmed by the temporary lighting of the direction indicators). For the vehicles equipped with the Proximity Keyless Entry and Start system, a double audible signal indicates that the vehicle is not deadlocked.

Closing the windows and sunroof

An audible signal sounds in the passenger compartment before the start of movement to warn any occupants.

▶ To completely close the windows and, depending on version, the sunroof, press the locking button for more than 2 seconds.
▶ Press again to stop closing.

! Ensure that no person or object could prevent the correct closing of the windows and sunroof.

If, on versions with alarm, you want to leave the windows and/or sunroof partially open, you must first deactivate the interior volumetric alarm protection.

For more information on the Alarm, refer to the corresponding section.

Locating the vehicle

This function helps you to spot your vehicle from a distance, with the vehicle locked:

• The direction indicators flash for approximately 10 seconds.
• The door mirror spotlamps come on.

– The courtesy lamps come on.

▶ Make a long press on this button.

Advice

Remote control

The remote control is a sensitive, high-frequency device; avoid handling it in your pocket, due to the risk of unintentionally unlocking the vehicle.

Avoid pressing the remote control buttons while out of range of the vehicle, due to the risk of rendering the remote control inoperative. It would then be necessary to reset it.

Anti-theft protection

- Do not modify the electronic vehicle immobiliser, as this might result in malfunctions.

Locking the vehicle

- Driving with the doors locked could make it more difficult for the emergency services to enter the passenger compartment in an emergency.

As a safety precaution, take the electronic key with you when leaving the vehicle, even for a short time.

Purchasing a second-hand vehicle

Have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the only ones able to start the vehicle.

Proximity Keyless Entry and Start

This is a Keyless Entry and Start system. It enables automatic vehicle locking/unlocking simply by detecting the electronic key. As long as the driver has the electronic key on their person, the vehicle unlocks as they approach and locks when they walk away. Key recognition zones:

Top-down view of a car with three labeled points A, B, C (no text or symbols on the car itself)

Zone A: welcome lighting on approaching the vehicle (between 2 and 5 metres from the vehicle).

Zone B: automatic locking on moving away from the vehicle (about 2 metres from the vehicle).

Zone C: automatic unlocking on approaching the vehicle (between 1 and 2 metres from the vehicle).

Automatic functions are configured in the

Settings > Vehicle touch screen

application.

Unlocking the vehicle

Selective unlocking (driver's door, boot) is configured in the Settings > Vehicle

touch screen application.

Complete unlocking

The vehicle (doors and boot) unlocks:

▶ Either automatically as the driver approaches in zone C, if the automatic functions are activated.
▶ Or by gently pressing the driver's door handle or the button on the boot.

Unlocking, and alarm deactivation (depending on version), is confirmed by the flashing of the direction indicators and lighting of the daytime running lamps.

Depending on version, the door mirrors unfold.

If the electronic key remains around the vehicle (zones A, B or C) for more than

15 minutes without action, the automatic functions are deactivated. To unlock or lock

the vehicle, use the remote control or press the driver's door handle.

If using the door handle does not lock/unlock the vehicle, bring the electronic key closer and repeat the desired action.

Selective unlocking

Driver's door

It operates:

Either automatically when approaching the driver's door, if the automatic functions are activated.

▶ Or by gently pressing the driver's door handle.

The driver's door and the fuel filler flap are unlocked (Petrol, Diesel or Hybrid).

The driver's door is unlocked (Rechargeable hybrid).

The driver's door and the charging flap are unlocked (Electric).

▶ Once inside the vehicle, to unlock all accesses, press the central unlocking button or pull the opening control on any door.

Selective unlocking of the tailgate

The tailgate unlocks automatically as you approach the rear of the vehicle.

▶ Press the tailgate control to open the boot.

The doors remain locked.

Locking the vehicle

Depending on version, the activation/deactivation of the lock audible signal is configured in the Settings > Vehicle touch screen application.

Normal locking

With the doors and boot closed, the vehicle locks:

▶ Either automatically, upon leaving zone B, if the automatic functions are activated.

▶ Or by gently pressing the driver's door handle.

Locking is confirmed by the lighting of the direction indicators, and by a double audible signal when the vehicle is locked upon walking away.

It is not possible to lock the vehicle if the electronic key is left inside the vehicle.

Deadlocking

! Deadlocking renders the interior door controls inoperative. It also deactivates the central locking buttons. The horn remains operational.

Never leave anyone inside the vehicle when it is deadlocked.

▶ Gently press the driver's door handle to lock the vehicle.
▶ Press it again within 3 seconds to deadlock the vehicle (confirmed by the temporary lighting of the direction indicators).

A double audible signal indicates that the vehicle is not deadlocked.

Advice

If one of the doors or the boot is still open or if the electronic key for the Keyless Entry and Start system has been left inside the vehicle, central locking will not take place.
If the vehicle is unlocked but the doors or tailgate are not subsequently opened, the vehicle will automatically lock itself again after about 30 seconds. If fitted to the vehicle, the alarm is automatically reactivated (if previously activated).

Access

Automatic folding/unfolding of the door mirrors is configured in the touch screen. For more information on Mirrors, refer to the corresponding section.
As a safety measure, never leave the vehicle, even for a short time, without taking the Keyless Entry and Start system's electronic key with you. Be aware of the risk of theft of the vehicle if the key is present in one of the defined areas while the vehicle is unlocked.
In order to preserve the battery in the electronic key and the vehicle's battery: - The unlocking on approach function (zone C) automatically switches to hibernation mode after several days (approximately one week) without being used. To unlock the vehicle, use the remote control or press on the driver's door handle. The next time the vehicle is started, the automatic unlocking and locking functions will be reactivated. - If the welcome lighting is triggered several times in succession without the vehicle subsequently being started, it will be deactivated. - All "hands-free" functions switch to hibernation mode after 21 days without being used. To restore these functions, unlock the vehicle using the remote control and start the engine.

Electrical interference The electronic key may not work if it is close to an electronic device (e.g. mobile telephone (switched on or on standby), laptop computer, strong magnetic fields). If this occurs, move the electronic key away from the electronic device.

Central locking

Manual

▶ Press these buttons to lock/unlock the vehicle (doors and boot) from inside the passenger compartment. The indicator lamp comes on to confirm the central locking of the vehicle.
Central locking does not take place if any of the doors are open.

When locking/deadlocking from the outside

When the vehicle is locked or deadlocked from the outside, the indicator lamp in the locking button flashes and the buttons are inactive.

▶ After normal locking, pull one of the interior door controls to unlock the vehicle.
▶ After deadlocking, you must use the remote control, the "Keyless Entry and Start" system or the built-in key to unlock the vehicle.

Automatic (anti-intrusion security)

The doors and boot lock automatically while driving (speed above 6 mph (10 km/h)).

To deactivate/reactivate this function (activated by default):

▶ Press the locking button until a confirmation message appears.

i Transporting long or voluminous objects

Press the central locking control to drive with the boot open and the doors locked. Otherwise, every time the speed of the vehicle exceeds 6 mph (10 km/h), the sound of the locks rebounding will be heard and an alert will be displayed.

Back-up procedures

Lost keys, remote control, electronic key

Go to a PEUGEOT dealer with the vehicle's registration certificate, your personal identification documents and if possible, the label bearing the key code.

The PEUGEOT dealer will be able to retrieve the key code and the transponder code, enabling a new key to be ordered.

Complete unlocking/locking of the vehicle with the key

Use this procedure in the following situations:

– Remote control battery discharged.
– Remote control malfunction.
– Vehicle battery discharged.
– Vehicle in an area subject to strong electromagnetic interference.

In the first case, change the remote control battery.

In the second case, reinitialise the remote control.

Refer to the corresponding sections.

▶ Insert the key into the door lock.

▶ Turn the key towards the front or the rear to unlock or lock the vehicle.

If the vehicle is fitted with an alarm, it will not be activated when locking with the key.

If the alarm is activated, the siren sounds when the door is opened; switch on the ignition to stop it.

Central locking not functioning

Use these procedures in the following cases:

– Central locking malfunction.
– Battery disconnected or discharged.

In the event of a malfunction of the central locking system, the battery must be disconnected to ensure that the vehicle is locked fully.

▶ Insert the key into the lock and turn it towards the front or rear of the vehicle to lock or unlock the door.

Other doors

Unlocking

▶ Pull the interior door opening control.

Locking

Diagram showing a car seatbelt mechanism with blue arrows indicating motion (no text or symbols)

▶ Open the doors.
▶ For the rear doors, check that the child lock is not on.
Refer to the corresponding section.
▶ Gently insert the key into the latch located in the door lock, then turn the latch an eighth of a turn towards the outside of the door.
▶ Close the doors and check from the outside that the vehicle is locked.

Changing the battery

A message is displayed on the instrument panel when the battery needs changing.

Battery type: CR2032/3 volts.

Illustration of a car doorbell with a lever and handle, showing a blue arrow indicating motion (no text or symbols)

▶ Unclip the cover by inserting a small screwdriver in the slot and lift the cover.
▶ Remove the flat battery from its housing.
▶ Put the new battery in place, respecting the polarity. Start by inserting it into the contacts located in the corner, then clip the cover onto the unit.
▶ Reinitialise the remote control. For more information on Reinitialising the remote control, refer to the corresponding section.

Do not throw remote control batteries away, as they contain metals that are harmful to the environment. Take them to an approved disposal point.

This equipment contains a button type battery.

Do not swallow the battery. Risk of chemical burns!

Swallowing the battery can cause serious internal burning in only 2 hours and can be fatal.

If batteries have been swallowed or inserted into a part of the body, seek immediate medical advice.

Keep new and used batteries out of the reach of children.

If the battery compartment does not close properly, stop using the product and keep it out of the reach of children.

! Risk of explosion if the battery is replaced with an incorrect type!

Replace the battery with the same type.

Risk of explosion or leaking of inflammable liquid or gas!

Do not use in/store in/place in an environment where the temperature is extremely high or where the pressure is extremely low due to very high altitude.

Do not try to burn, crush or cut a used battery.

Reinitialising the remote control

Following replacement of the battery or in the event of a fault, it may be necessary to reinitialise the remote control.

▶ Insert the mechanical key (incorporated into the remote control) into the lock to open the vehicle.
▶ Place the electronic key against the back-up reader on the steering column and hold it there until the ignition is switched on.
▶ With a manual gearbox, place the gear lever in neutral then fully depress the clutch pedal.
▶ With an automatic gearbox or drive selector, while in mode P, depress the brake pedal.
▶ Switch on the ignition by pressing the START/STOP button.

If the fault persists after reinitialisation, contact a PEUGEOT dealer or a qualified workshop without delay.

Doors

Opening

From outside

▶ After unlocking the vehicle or with the "Keyless Entry and Start" system electronic key in the recognition zone, pull the door handle.

From inside

▶ Pull the interior opening control of a door; this unlocks the vehicle completely.

i With selective unlocking activated: - Opening the driver's door unlocks the driver's door only (if the vehicle has not already been completely unlocked).

- Opening one of the passenger doors unlocks the rest of the vehicle.

Boot

Opening the tailgate

▶ With the vehicle unlocked or with the electronic key in the recognition zone, press the central tailgate control.
▶ Raise the tailgate.

When selective unlocking is activated, the electronic key must be close to the rear of the vehicle.

! The tailgate is not designed to hold a bicycle carrier.

Closing the tailgate

▶ Lower the tailgate using the interior grips.
▶ Release the grips and press down on the outside of the tailgate to close it.

In the event of a malfunction or if you experience difficulty opening or closing the tailgate, have it checked by a PEUGEOT dealer or a qualified workshop without delay, to avoid the issue deteriorating and prevent any risk of the tailgate dropping, potentially causing serious injury.

Back-up release

To manually unlock the boot in the event of a battery or central locking failure.

Unlocking

▶ Fold the rear seats to gain access to the lock from inside the boot.

Access

Diagram of a medical device with a tool and labeled point A, showing no text or symbols beyond the label.

2

▶ Insert a small screwdriver into hole A of the lock to unlock the boot.
▶ Move the latch to the left.

Locking after closing

If the fault persists after closing again, the boot will remain locked.

Motorised tailgate (SW)

(Depending on version)

The motorised tailgate must only be operated with the vehicle stationary.

Check that there is enough space to allow for the movement of the motorised tailgate.

Access

Hand holding a small object with a red X mark, no text or symbols present

Never insert a finger in the locking system of the motorised tailgate - risk of serious injury!
To avoid the risk of injury through pinching or trapping, before and during operation of the motorised tailgate:

– ensure that there is no-one close to the rear of the vehicle.

– monitor the activity of the rear passengers, particularly any children.

Bicycle carrier/Towing device

The motorised tailgate is not designed to support a bicycle carrier.

When installing a bicycle carrier on the towing device with connection of the cable to the trailer socket, the motorised operation of the tailgate will be automatically deactivated.

If using a towing device or bicycle carrier not recommended by PEUGEOT, it is

essential to deactivate the motorised operation of the tailgate.

Motorised operation

The motorised operation of the tailgate is configured in the Settings > Vehicle touch screen application.

There are several ways of operating the tailgate:

A. Using the Keyless Entry and Start system's electronic key
B. Using the exterior tailgate control
C. Using the interior tailgate control
D. Using the control on the dashboard

If motorised operation is not activated, the request to open with this function release the tailgate (partially-open position).

Opening

▶ A long press on the central button A of the electronic key.

or

▶ A short press on the exterior tailgate control B (with the electronic key on your person, if the vehicle or the tailgate is locked).
or
▶ Two consecutive presses on the control D of the dashboard.

The tailgate opens, either completely by default, or to the position memorised beforehand.

If motorised operation is not activated, these actions release the tailgate (partially-open position).

When the vehicle is locked, the request to open the boot with one of the controls A or B unlocks the vehicle, or only the boot if selective unlocking is activated, prior to the opening of the boot.

Closing

▶ A long press on the central button A of the electronic key.
or
▶ A short press on the exterior tailgate control B.
or
▶ A short press on the interior tailgate control C. or

▶ Two consecutive presses on the control D of the dashboard.

It is possible to interrupt the operation of the tailgate at any point. Pressing one of these controls again interrupts the movement that is underway. Following the interruption of a movement, pressing one of these controls again reverses the movement. If the tailgate is left open for an extended period of time, the tailgate may need to be closed manually to reset power tailgate functionality.

Hands-free function (Hands-Free Tailgate Access)

With the electronic key on your person, this function allows the motorised tailgate to be opened, closed or stopped via a "kicking" movement under the rear bumper.

The "Handsfree Trunk Opening" function is configured in the Settings > Vehicle touch screen application.

! Ensure that you are steady on your feet before performing the "kicking" movement.

Take care not to touch the exhaust system which may be hot - risk of burns!

i Rechargeable hybrid vehicles The function is not available when the vehicle is connected.

▶ Position yourself behind the vehicle by the number plate and perform a "kicking" movement in the "OK" detection zone.

The "kicking" movement must be given forwards, smoothly, not too fast and with a vertical movement from low to high. Raise the foot sufficiently and remove it immediately. Acknowledgement of the "kicking" movement is confirmed by the lighting of the direction indicators.

"Sideward kicking" movements do not work. If the "kicking" movement has not been detected, wait at least 2 seconds before repeating the movement. Do not perform repetitive "kicking" movements.

If the motorised tailgate has not started to open or close, check that:

– the function is activated.

– the electronic key is on your person, outside the vehicle in the rear recognition area.

- the "kicking" movement was performed in the detection zone, close enough to the bumper.

– the foot was removed from the bumper quickly enough.

When the vehicle is locked, the request to open the tailgate with this function unlocks the vehicle, or only the tailgate if selective unlocking is activated, prior to the opening of the tailgate.

Closing the tailgate with the "Hands-Free Tailgate Access" function enables you to lock the vehicle.

Recommendations on the hands-free function (Hands-Free Tailgate Access)

If it does not work, check that the electronic key is not exposed to a source of electromagnetic interference (e.g. smartphone).

The function may be deactivated or affected if there is rain or snow.

Access

The function may not work correctly with a prosthetic leg.

In some circumstances, the tailgate may open or close by itself, particularly when:

– hitching up or removing a trailer.
– operating a towing device.
– fitting or removing a bicycle carrier.
- loading or unloading bicycles on/from a bicycle carrier.
– depositing or lifting something behind the vehicle.
– an animal approaches the rear bumper.
- washing the vehicle.
- maintenance is performed on the vehicle.
- accessing the spare wheel.

To avoid such operating problems, keep the electronic key away from the recognition zone or deactivate the hands-free function.

Towing device

The installation of a towing device may disturb the detection system.

▶ Perform the "kicking" movement on the right side of the towing device.

Memorising an opening position

To limit the opening angle of the motorised tailgate:
▶ move the tailgate to the desired position manually or by pressing the button.

▶ press button C or the exterior control B for more than 3 seconds (memorisation is confirmed by a brief audible signal).

A new memorisation operation cancels the previous one.

i Memorising is not available until the height of opening is more than or equal to 1 metre between the low position and the high position of the tailgate.

Manual operation

The tailgate can be manoeuvred by hand, even with motorised operation activated.

The tailgate must be stationary.

▶ Move the tailgate as slowly and smoothly as possible.

When opening and closing the motorised tailgate manually, there is no assistance from gas struts. Resistance to opening and closing is therefore entirely normal.

In case of the motor overheating Repeatedly opening and closing the motorised tailgate can cause overheating of its electric motor, after which opening and closing will not be possible.

Allow at least 10 minutes for the electric motor to cool down before operating the tailgate again.

If you are unable to wait, operate it manually.

Manual closing of the motorised tailgate in case of failure

This operation is only necessary in the case of failure or deinitialisation/loss of the tailgate motor.

If the failure originates from the battery, it is recommended to recharge it or change it with the tailgate closed.

In this situation, a significant force may be needed to close the tailgate.

▶ Close it gently without slamming, as slowly as possible, by pushing at the centre of the tailgate.

Do not lower the tailgate by pushing at one of its sides - risk of damage!

Precautions in use

In wintry conditions

To avoid any operating problems, remove the snow or wait until the ice melts before requesting motorised opening of the tailgate.

When washing

When washing the vehicle in an automatic car wash, do not forget to lock and move away from the vehicle to prevent any risk of unwanted opening.

Alarm

(Depending on version)

System which protects and provides a deterrent against theft and break-ins.

Exterior perimeter monitoring

The system checks for opening of the vehicle. The alarm is triggered if anyone tries to open a door, the boot or the bonnet, for example.

Interior volumetric monitoring

The system checks for any variation in volume in the passenger compartment.

The alarm is triggered if anyone breaks a window, enters the passenger compartment or moves inside the vehicle.

Anti-tilt monitoring

The system checks for any change in the attitude of the vehicle.

The alarm goes off if the vehicle is lifted or moved.

When the vehicle is parked, the alarm will not be triggered if the vehicle is knocked.

i Rechargeable hybrid or electric vehicles

Depending on version, interior volumetric and anti-tilt monitoring may be reduced or even suspended during temperature preconditioning sequences.

Self-protection function

The system checks whether any of its components are out of service.

The alarm is triggered if the battery, the central control or the siren wiring is put out of service or damaged.

Work on the alarm system Consult a PEUGEOT dealer or a qualified workshop.

Locking the vehicle with full alarm system

Activation

▶ Switch off the ignition and exit the vehicle.
▶ Lock or deadlock the vehicle using the remote control or by pressing on the driver's door handle.

The monitoring system is also activated when the driver moves away from the vehicle.

When the monitoring system is active, the red indicator lamp in the button flashes once per second and the direction indicators come on for about 2 seconds.

The exterior perimeter monitoring is activated after 5 seconds and the interior volumetric monitoring after 45 seconds.

Door, boot or bonnet

If an opening is not properly closed, the vehicle is not locked, but the exterior perimeter monitoring will be activated after 45 seconds, at the same time as the interior volumetric monitoring.

Sunroof

If the sunroof remains open, the vehicle is locked with exterior perimeter monitoring activated but without interior volumetric or anti-tilt monitoring.

Deactivation

▶ Press one of the remote control unlocking buttons:

Short press.

Long press.

or

- Unlock the vehicle by pressing the driver's door handle.

Access

The monitoring system is also deactivated when the driver approaches the vehicle. The monitoring system is deactivated: the indicator lamp in the button goes off and the direction indicators flash for about 2 seconds.

After unlocking using the remote control

If the vehicle automatically locks itself again (as happens if a door or the boot is not opened within 30 seconds of unlocking), the monitoring system is automatically activated.

Locking the vehicle with exterior perimeter monitoring only

Deactivate the interior volumetric and anti-tilt monitoring to avoid the unwanted triggering of the alarm, in certain cases such as:

– Presence of an occupant or a pet.
- Slightly open window.
- Washing the vehicle.
- Changing a wheel.
- Towing the vehicle.
- Transport on a ship or ferry.

Deactivating the interior volumetric and anti-tilt monitoring

▶ Switch off the ignition and within 10 seconds press the alarm button until its red indicator lamp is on fixed.
▶ Get out of the vehicle.

▶ Immediately lock the vehicle using the remote control or the Keyless Entry and Start system. Only the exterior perimeter monitoring is activated; the button's red indicator lamp flashes once every second.

To take effect, this deactivation must be carried out after each time the ignition is switched off.

Reactivating the interior volumetric and anti-tilt monitoring

▶ Deactivate the exterior perimeter monitoring by unlocking the vehicle using the remote control or the Keyless Entry and Start system. The indicator lamp in the button goes off.
▶ Reactivate all monitoring by locking the vehicle using the remote control or the Keyless Entry and Start system.

The red indicator lamp in the button once again flashes every second.

Triggering of the alarm

This is indicated by sounding of the siren and flashing of the direction indicators for 30 seconds.

Depending on the country of sale, certain monitoring functions remain active until the alarm has been triggered eleven times consecutively. When the vehicle is unlocked using the remote control or the Keyless Entry and Start system, rapid flashing of the red indicator lamp in the

button informs you that the alarm was triggered during your absence. When the ignition is switched on, this flashing stops.

Failure of the remote control

To deactivate the monitoring functions:

▶ Unlock the vehicle using the key in the front left-hand door lock.

▶ Open the door; the alarm is triggered.
▶ Switch on the ignition; this stops the alarm. The indicator lamp in the button goes off.

Locking the vehicle without activating the alarm

▶ Lock the vehicle using the key (built-in the remote control) in the front left-hand door lock.

Automatic activation

(Depending on version)

The system is activated automatically 2 minutes after the last door or the boot is closed.
▶ To avoid triggering the alarm on entering the vehicle, first press the unlocking button on the remote control or unlock the vehicle using the "Keyless Entry and Start" system.

Malfunction

When the ignition is switched on, the fixed lighting of the red indicator lamp in the button indicates a system malfunction.

Have it checked by a PEUGEOT dealer or a qualified workshop.

Electric windows

1. Left-hand front
2. Right-hand front
3. Left-hand rear
4. Right-hand rear
5. Deactivation of electric window controls located by rear seats

Manual operation

▶ To open/close the window, press/pull the switch without passing the point of resistance; the window stops as soon as the switch is released.

Automatic operation

▶ To open/close the window, press/pull the switch past its resistance point: the window opens/closes completely when the switch is released.

Operating the switch again stops the movement of the window.

The electric window controls remain operational for approximately 45 seconds after switching off the ignition.

After that time, the controls are disabled. To reactivate them, switch the ignition on again.

Anti-pinch

If the window meets an obstacle while rising, it stops and immediately partially lowers again.

Overtaking of the anti-pinch

After triggering the anti-pinch, check that there are no obstacles blocking the movement of the window.

Try to close the window again.

If the window closing is interrupted by the anti-pinch 3 times in a row (max. 10 seconds between each action), the anti-pinch function becomes inoperable.

Without this protection, the window can only be closed manually - risk of injury!

Deactivating the rear controls for the rear electric windows

For your children's safety, ignition on or engine on, press control 5 to deactivate

the controls for the rear electric windows, irrespective of their positions.

The red indicator lamp in the button comes on.

The rear electric windows can still be controlled using the driver's controls.

Reinitialising the electric windows

After reconnecting the battery, or in the event of abnormal window movement, the anti-pinch function must be reinitialised.

i Automatic window closing is no longer available, only manual closing is possible.

Remote window closing with the electronic key is also no longer available in this case.

The anti-pinch function is inoperable during the following sequence of operations.

For each window:

▶ Pull the control until the window is fully closed.
▶ Release the control, then pull it again for at least one second.

! If an electric window meets an obstacle during operation, the movement of the window must be reversed. To do this, press the relevant control.

When the driver operates the passengers' electric window controls, it is important to ensure that nothing can prevent the window from closing properly.

It is important to ensure that passengers use the electric windows correctly.

Access

Pay particular attention to children when operating the windows.

Be aware of passengers and/or other persons present when closing windows remotely using the electronic key.

Do not put your head or arms through the open windows when the vehicle is moving - risk of serious injury!

Sunroof

The sunroof consists of a movable glass panel that slides over the roof and a blind that can be opened independently. Opening the sunroof automatically opens the blind.

▶ To operate the panoramic sunroof, use the button in the roof console.

Diagram showing two identical ceiling-mounted appliances with a central control panel and a separate icon (no text or symbols)

The sunroof can be operated when the ignition is turned on (if the battery is charged enough), with the engine running, in STOP mode of Stop & Start, and up to 45 seconds after turning off the ignition.

Precautions

Do not put your head or arms through the sunroof while the vehicle is moving - risk of serious injury!

Do not operate the sunroof if transverse roof bars are fitted - risk of serious damage!

Do not place heavy loads on the movable glass panel of the sunroof.

If the sunroof is wet, following a rain shower or washing the vehicle, wait until it is completely dry before operating it.

Do not operate the sunroof if it is covered by snow or ice - risk of damage!

Use only plastic scrapers to remove snow or ice from the sunroof.

! Regularly check the condition of the sunroof seals (e.g. presence of dust, dead leaves).

If using a car wash, check first that the roof is correctly closed and keep the high-pressure jet at least 30 centimetres from the seals.

! Never leave the vehicle with the sunroof open.

Operation

When opening the sunroof fully, the movable glass moves to a partially open position, then slides over the roof. Any intermediate position is possible.

Before operating the sunroof control button, ensure that no object or person might prevent the movement.

Pay particular attention to children when operating the sunroof.

If something is trapped when operating the sunroof, reverse the movement of the sunroof by pressing the control button in question.

The driver must ensure that passengers use the sunroof correctly.

Any manual intervention on the position of the sunroof may disturb the anti-pinch device. Perform a reinitialisation.

Anti-pinch system

If the sunroof encounters an obstacle when closing, the movement is automatically reversed.

Opening/Closing the sunroof

▶ To open the sunroof, use the part of the button located towards the rear.
▶ To close the sunroof, use the part of the button located towards the front.

Operating the button

▶ Pressing the button beyond its point of resistance opens or closes the sunroof fully.

▶ Pressing the button again stops the movement in progress.
▶ By keeping the button pressed (without going beyond the point of resistance), the movement of the glass stops when this button is released.
▶ When the sunroof is closed: pressing once without passing the point of resistance moves it to the partially open position.

The sunroof and windows can be closed by holding down the remote control locking button.

Press again to stop the manoeuvre.

▶ With the ignition on, press and hold the front part of the button to close the sunroof.

The sunroof closes step by step. When fully closed, it performs a slight opening/closing movement.

▶ Release the button 1 second after the end of the movement.

Opening/Closing the blind

▶ To open the blind, pull its handle backwards until the desired position is reached.
▶ To close the blind, push its handle forwards until the desired position is reached.

Reinitialisation

Reinitialisation is required after reconnecting the battery, or if the sunroof malfunctions or moves in a jerky manner.
▶ Check that nothing is affecting the movement of the sunroof and that the seals are clean.

Automatic sunroof closing is no longer available, only manual closing is possible.

Remote sunroof closing with the electronic key is also no longer available in this case.

Ease of use and comfort

Driving position

Correct seating position

Adopting a good driving position contributes to improving driver comfort and protection. It also optimises interior and exterior visibility as well as access to controls.

Certain seat adjustments described in this section depend on the trim level and the country in which the vehicle is sold.

Driver's side

Sit fully back in the seat with your pelvis, back and shoulders in contact with the seat backrest. Adjust the seat cushion height so that your eyes are level with the centre of the windscreen. The head should be at a minimum distance of 10 cm from the roof.

Adjust the longitudinal position of the seat so that you can fully depress the pedals with legs slightly flexed.

The distance between the knees and the dashboard should be at least 10 cm, for easy access to the dashboard controls.

Adjust the backrest angle to as vertical a position as possible; never tilt it more than 25^irc .

Adjust the head restraint so that its upper edge is level with the top of the head.

Adjust the length of the seat cushion to support your thighs.

Adjust the lumbar support so that it conforms to the shape of the spine.

Adjust the steering wheel reach so that it is at least 25 cm from the sternum and you can hold it with your arms slightly bent.

Adjust the steering wheel height so that it does not obstruct the information displayed on the instrument panel.

As a safety precaution, adjust the seats only when the vehicle is stationary.

Electrically-adjustable seats Switch the ignition on to enable the adjustments to be made.

Passenger's side

Sit fully back in the seat with the pelvis, back and shoulders in contact with the seat backrest.

Adjust the longitudinal position of the seat so that you are at a distance of at least 25 cm from the dashboard.

Adjust the head restraint so that its upper edge is level with the top of the head.

Before moving off

Adjust the interior and exterior door mirrors to reduce blind spots.

Fasten the seat belt: place the diagonal belt in the middle of the shoulder and adjust the lap belt so that it is tightened across the pelvis.

Ensure that all passengers have fastened their seat belts correctly.

Electric door mirrors Switch the ignition on to enable the adjustments to be made.

When driving

Maintain a good driving position and hold the steering wheel with both hands at the 'quarter to three' position, so that you can easily and quickly reach the controls behind and near the steering wheel.

Never adjust the seats or steering wheel when driving.

Always keep your feet on the floor.

Front seats

Before moving the seat backwards, ensure that there is no person or object

that might prevent the full travel of the seat. There is a risk of trapping or pinching passengers if present in the rear seats or of jamming the seat if large objects are placed on the floor behind the seat.

Front head restraints

Adjusting the height

Upwards:

▶ Pull the head restraint up to the desired position; you can feel the head restraint clicking into position.

Downwards:

▶ Depending on equipment, press lug A or button B and then, while still pressing, lower the head restraint.

The head restraint is correctly adjusted when its upper edge is level with the top of the head.

Removing a head restraint

▶ Pull the head restraint fully up.
▶ Press lug A to release the head restraint and raise it fully.
▶ Stow the head restraint securely.

Refitting a head restraint

▶ Insert the head restraint rods into the guides in the corresponding seat backrest.
▶ Push the head restraint fully down.
▶ Press the lug A to release the head restraint and push it down.
▶ Adjust the height of the head restraint.

! Never drive with the head restraints removed; they should be in place and adjusted for the occupant of the seat.

Manual adjustments

Longitudinal

Diagram showing a person seated in a car seatbelt with directional arrows indicating movement (no text or symbols)

▶ Raise the control bar and slide the seat forwards or backwards.
▶ Release the control bar to lock the seat in position on one of the notches.

Height

Diagram showing a person seated in a chair and another car seat with directional arrows indicating movement (no text or symbols)

▶ Pull the control upwards to raise or push it downwards to lower, until you obtain the position required.

Backrest angle

Diagram showing a person sitting on a ramp next to a car interior, with blue arrows indicating motion or movement (no text or symbols)

▶ Turn the knob to obtain the desired angle.

Lumbar

Illustration showing a person sitting on a cushion next to a car seat, with blue arrows indicating movement or change (no text or symbols)

▶ Turn the knob to obtain the desired level of lumbar support.

Seat cushion length

Diagram showing a person seated in a chair with directional arrows indicating movement, next to a car interior view (no text or symbols)

▶ Pull the handle forwards to release the cushion, then move the front part of the cushion forwards or backwards.

Electric adjustments

Longitudinal

Diagram showing a person seated in a chair with directional arrows indicating movement, alongside a close-up of the seat (no text or symbols)

▶ Push the control forwards or backwards to slide the seat.

Cushion height and angle

Diagram showing two human figures in seat positions and a close-up of the seat with blue directional arrows indicating movement (no text or symbols)

▶ Tilt the rear of the control upwards or downwards to obtain the required height.
▶ Tilt the front of the control upwards or downwards to obtain the required angle.

Backrest angle

Illustration showing a person sitting on a slope next to a car seat with arrows indicating motion (no text or symbols)

▶ Tilt the control forwards or rearwards.

Lumbar

Diagram showing a person sitting on the floor next to a car seat, with an arrow indicating movement direction (no text or symbols present)

The control allows independent adjustment of the depth and vertical position of the lumbar support.

▶ Press and hold the front or rear of the control to increase or reduce the lumbar support.

▶ Press and hold the top or bottom of the control to raise or lower the lumbar support area.

Seat cushion angle

This electric adjustment control is present on "AGR" certified manually-adjustable seats.

Diagram showing a person seated on the floor of a car seatbelt with directional arrows indicating movement (no text or symbols present)

▶ Press and hold the front or rear of the button to raise or lower the front part of the seat cushion.

Memorising driving positions

Associated with the electrically-adjusted driver's seat, this function allows two driving positions to be memorised, to make these adjustments easier if there are frequent driver changes. It records the electric adjustments made to the seat and door mirrors.

Using buttons 1/2/M

▶ Enter the vehicle and switch the ignition on.
▶ Adjust the seat and the door mirrors.
▶ Press button M, then press button 1 or 2

within 4 seconds.

An audible signal confirms the memorisation. Memorising a new position cancels the previous position.

Recalling a stored position

While the seat is moving, take care that no person or object hinders the automatic movement of the seat.

With the ignition on or engine running

▶ Press button 1 or 2 to recall the corresponding position.

An audible signal sounds when adjustment is complete.

You can interrupt the current movement by pressing button M, 1 or 2 or by using one of the seat adjustment controls.

A stored position cannot be recalled while driving.

The recalling of stored positions is deactivated 45 seconds after switching off the ignition.

Heated seats

Without i-Toggles

On/Off

Diagram showing car dashboard and vehicle seat icons with a central fan symbol (no text or labels)

▶ Press the button corresponding to the seat.
▶ Each press changes the heating level; the corresponding number of indicator lamps come on.
▶ To switch off the heating, press the button until all of the indicator lamps are off.

The system status is memorised when the ignition is switched off.

With i-Toggles

Activation/Deactivation

In the Seats touch screen application, select the Seats tab.

▶ Select the driver or passenger seat. The corresponding page is displayed with the last memorised settings.

If the settings are suitable, press to activate/deactivate the function in the

Seats application.

If no action is taken, the display returns to its initial state.

The function status is not memorised when the ignition is switched off.

Changing settings

▶ In the Seats page, select the seat concerned.

▶ Select an intensity from the three preset levels: "1" (Low), "2" (Normal) or "3" (High). The settings are memorised when the ignition is switched off.

Do not use the function when the seat is not occupied.

Reduce the heating intensity as soon as possible.

When the seat and passenger compartment have reached a satisfactory temperature, switch the function off; reducing electrical

consumption in turn decreases energy consumption.

! Prolonged use of heated seats is not recommended for people with sensitive skin.

There is a risk of burns for people whose perception of heat is impaired (e.g. illness, taking medication).

To keep the heated pad intact and to prevent a short circuit:

- Do not place heavy or sharp objects on the seat.

• Do not kneel or stand on the seat.
• Do not spill liquids onto the seat.
• Never use the heating function if the seat is damp.

Multipoint massage

System with a choice of type of massage and adjustment of its intensity.

This system operates with the engine running, as well as in STOP mode of the Stop & Start.

Activation/Deactivation

In the Seats touch screen application, select the Massage tab.

▶ Select the driver or passenger seat. The corresponding page is displayed with the last memorised settings.

If the settings are suitable, press to activate/deactivate the function in the

Seats application.

If no action is taken, the display returns to its initial state.

The function status is not memorised when the ignition is switched off.

Changing settings

▶ In the Massage page, select the seat concerned.

▶ Select a massage intensity from the three preset levels: "1" (Low), "2" (Normal) or "3" (High).

▶ Select another type of massage from those offered.

The modifications are taken into account immediately and memorised when the ignition is switched off.

Once activated, the system starts a one hour massage cycle, made up of sequences of 6 minutes of massage followed by 3 minutes at rest.

The system stops automatically at the end of the cycle.

Steering wheel adjustment

Diagram showing a hand holding a car with a blue arrow indicating rotational motion (no text or symbols)

▶ When stationary, pull the control to release the steering wheel.
▶ Adjust the height and reach to suit your driving position.
▶ Push the control to lock the steering wheel.

! For safety reasons, these adjustments must only be carried out with the vehicle stationary.

PEUGEOT i-Cockpit®

The instrument panel information is visible above the steering wheel, for greater safety and driving comfort.

Adjust the steering wheel height so that it does not obstruct the instrument panel.

Heated steering wheel

In cold weather, this function heats the circular part of the steering wheel.

It can be activated when the outside temperature is below 20^irc C.

Without i-Toggles

Diagram showing car dashboard and air conditioner icons (no text or labels)

▶ With the engine running, press this button to activate/deactivate the function (confirmed by the indicator lamp coming on/going out).

The system is automatically deactivated every time the engine is switched off.

With i-Toggles

In the Climate touch screen application, select the Seats and Steering Wheel

Press to activate/deactivate the function.

The function is memorised each time the engine is switched off.

Mirrors

Door mirrors

Demisting/Defrosting

The demisting/defrosting of the door mirrors works with the demisting/ting of the rear screen.

For more information on Rear screen demisting/defrosting, refer to the corresponding section.

As a safety measure, the mirrors should be adjusted to reduce the "blind spots".

The objects that you see in the mirrors are in fact closer than they appear. Take this into account in order to correctly judge the distance of vehicles approaching from behind.

Adjustment

▶ Move control A to the right or to the left to select the corresponding mirror.
▶ Move control B in any of the four directions to adjust.
▶ Return control A to its central position.

Manual folding

The mirrors can be folded manually (parking obstruction, narrow garage, etc.).
▶ Turn the mirror towards the vehicle.

Electric folding

Depending on equipment, the door mirrors can be folded electrically.

▶ From the inside, with the ignition on, place control A in the central position.
▶ Pull control A backwards.

▶ Lock the vehicle from the outside.

If the mirrors are folded using control A, they will not unfold when the vehicle is unlocked.

Electric unfolding

▶ From outside: unlock the vehicle.
▶ From inside: with the ignition on, place control A in the central position and then pull it rearwards.

The automatic folding/unfolding of the door mirrors is configured in the Settings > Vehicle touch screen application. Before using an automatic car wash, fold the mirrors.

Automatic tilting in reverse gear

Depending on version, this function allows you to automatically tilt the mirrors downwards to assist with parking manoeuvres in reverse gear.

With the engine running, on engaging reverse gear, the mirror glasses tilt downwards.

They each return to their original positions: – A few seconds after coming out of reverse gear.

• Once the vehicle speed exceeds 6 mph (10 km/h).
• When the engine is switched off.
  It can be activated/deactivated in the Settings > Vehicle touch screen
  application.

Electrochrome interior rear view mirror

Simple line drawing of two stacked rectangular shapes with no text or symbols

The electrochrome system uses a sensor that detects the level of exterior brightness and that coming from the rear of the vehicle, in order to automatically and gradually switch between day and night usage.

To ensure optimum visibility while manoeuvring, the mirror automatically brightens when reverse gear is engaged. The system is inoperative if the load in the boot exceeds the height of the load space

cover or if the load space cover has items placed on it.

Rear bench seat

Rear head restraints

Diagram showing two views of a mechanical component with a blue arrow indicating rotation (no text or symbols present)

They have two positions:

– A high position, for when the seat is in use:

▶ Pull the head restraint fully up.

- A low position, for stowing, when the seat is not in use:

▶ Press the lug A to release the head restraint and push it down.

The rear head restraints can be removed.

Removing a head restraint

▶ Release the backrest using control 1.
▶ Tilt the backrest slightly forwards.
▶ Pull the head restraint fully up.
▶ Press the lug A to release the head restraint and remove it completely.

Refitting a head restraint

▶ Insert the head restraint rods into the guides in the corresponding backrest.
▶ Push the head restraint fully down.
▶ Press the lug A to release the head restraint and push it down.

Never drive with passengers seated at the rear when the head restraints are removed; the head restraints should be in place and in the high position.

The head restraint for the centre seat and those for the outer seats are not interchangeable.

Folding the backrests

Each section of the backrest has one or two release controls:

• A grip 1 on the outer edge of the backrest.
• A lever 2 on the boot side trim (SW).

! The backrests should only be manoeuvred when the vehicle is stationary.

First steps:

▶ Lower the head restraints, or remove them when carrying heavy loads.
▶ Lift up the rear armrest.
▶ If necessary, move the front seats forward.
▶ Check that no person or object might interfere with the folding of the backrests (e.g. clothing, luggage).
▶ Check that the outer seat belts are lying flat on the backrests.

The folding of the backrest is accompanied by a slight lowering of the corresponding cushion.

To obtain a flat surface, it is necessary to place the adjustable boot floor in the high position.

When the backrest is released, the red indicator in the release grip is visible.

From the passenger compartment

▶ Press backrest release handle 1.

Line drawing of a car seatbelt with a numbered component (no text or symbols)

▶ Guide the backrest 3 down to the horizontal position.

From the boot (SW)

▶ Pull the backrest release lever 2 towards you. The backrest 3 folds fully onto the cushion.

On the left-hand side, the lever is also used for folding down the central section of the backrest.

Central backrest (SW)

The central section of the backrest may be folded down independently of the side sections.

Diagram of a car seatbelt with directional arrows indicating movement, no text or symbols present

▶ Check in advance that the rear armrest is not folded down and that the central head restraint is not raised.

▶ From inside the passenger compartment or from the boot, pull on the strap to release.
▶ Fold the backrest onto the seat cushion.
▶ When repositioning, lift up the backrest fully until it locks.

Repositioning the backrests

! First check that the outer seat belts are lying vertically flat alongside the backrest latching rings.

▶ Straighten the backrest 3 and push it firmly to latch it into place.

▶ Check that the red indicator is no longer visible in the release grip 1.
▶ Ensure that the outer seat belts were not trapped during the operation.

Please note: an incorrectly latched backrest compromises the safety of passengers in the event of sudden braking or an accident.

The contents of the boot may be thrown forwards - risk of serious injury!

Heating and Ventilation

Air intake

The air circulating in the passenger compartment is filtered and originates either from the exterior, via the grille located at the base of the windscreen, or from the inside in air recirculation mode.

Controls

Depending on version, certain controls are accessible in the Climate touch

screen application and/via the control panel on the centre console.

Air distribution

1. Windscreen demisting/de-icing vents

2. Front side window demisting/de-icing vents

3. Adjustable and closable side air vents

4. Adjustable and closable central air vents

5. Air outlets to the front footwells
6. Air outlets to the rear footwells
7. Adjustable and closable air vents

Advice

Using the ventilation and air conditioning system

▶ To ensure that air is distributed evenly, keep the external air intake grilles at the base of the windscreen, the nozzles, the vents, the air outlets and the air extractor in the boot free from obstructions.
▶ Do not cover the sunshine sensor located on the dashboard; this sensor is used to regulate the automatic air conditioning system.

▶ Operate the air conditioning system for at least 5 to 10 minutes once or twice a month to keep it in good working order.
▶ If the system does not produce cold air, switch it off and contact a PEUGEOT dealer or a qualified workshop.

When towing a large load on a steep gradient in high temperatures, switching off the air conditioning increases the available engine power, enhancing the towing capacity.

Avoid driving for too long with the ventilation off or with prolonged operation

of interior air recirculation. Risk of misting and deterioration of the air quality!

If the interior temperature is very high after the vehicle has stood for a long in the sunshine, air the passenger apartment for a few moments.

Put the air flow control at a setting high enough to quickly change the air in the passenger compartment.

Condensation created by the air conditioning results in a discharge of air underneath the vehicle. This is perfectly normal.

Servicing the ventilation and air conditioning system

▶ Ensure that the passenger compartment filter is in good condition and have the filter elements replaced regularly.
We recommend using a composite passenger compartment filter. Its specific active additive helps protect against polluting gases and bad smells.
To ensure correct operation of the air conditioning system, have it checked according to the recommendations in the Manufacturer's service schedule.

Stop & Start / e-Auto mode

The heating and air conditioning systems only operate when the engine is running. Temporarily deactivate the corresponding system to maintain a comfortable temperature in the passenger compartment. For more information, refer to the corresponding section.

Rechargeable hybrid vehicles

Intensive use of the air conditioning reduces the vehicle range in Electric mode.

Electric vehicles

Selecting the ECO driving mode reduces electrical energy consumption, but restricts the performance of the heating and air conditioning systems, although it does not deactivate them.

Ventilation with the ignition on

When the ignition is switched on, the ventilation system and the air flow 2 and air distribution 3 settings in the passenger compartment are activated, for a period which depends on the battery charge. This function does not include the air conditioning system.

Dual-zone automatic air conditioning

This system automatically controls the activation of the air conditioning system, regulating the temperature, air flow and air distribution inside the passenger compartment.

This system works with the engine running, but access to the ventilation and its controls remains possible with the ignition on.

Press the Climate application button to display the system controls page.

Without i-Toggles

With i-Toggles

1. Temperature adjustment
2. Air flow adjustment
3. Air distribution adjustment
4. Air conditioning on/off
5. Automatic air conditioning on/off and setting (AUTO SOFT/AUTO NORMAL/AUTO FAST)
6. Driver/front passenger temperature synchronisation
7. AQS function only or Clean Cabin (depending on version).
8. Front demisting/de-icing
9. Interior air recirculation
10. Maximum A/C (depending on version)
11. Rear screen demisting/de-icing
12. Switching the system off

Temperature adjustment

The driver and front passenger can each choose their own temperature setting.

The value indicated corresponds to a level of comfort and not to a precise temperature.

Depending on version:

▶ Turn one of the knobs 1 towards + or - to increase or decrease the value.

▶ Press one of the buttons 1 (+ or -) or drag vertically to increase or decrease the value. It is possible to go beyond the minimum and maximum values by selecting respectively Low or High.

It is recommended that you avoid a difference of more than 3^irc C in the settings for left and right.

Temperature synchronisation

The driver side temperature setting is applied to the passenger side.

▶ Press button 6-SYNC to activate/deactivate the function.

The function is automatically deactivated if the passenger uses their temperature adjustment buttons.

Automatic air conditioning

This automatic mode ensures optimum management of the passenger compartment temperature, air flow and air distribution, based on the selected comfort level.

▶ Press button 5-AUTO to activate/deactivate the automatic mode of the air conditioning system.

The indicator lamp in the button lights up when the air conditioning system is operating automatically.

The intensity of the automatic air conditioning is modulated by choosing one of the following settings:

– AUTO SOFT: provides soft and quiet operation by limiting air flow.
– AUTO NORMAL: offers the best compromise between a comfortable temperature and quiet operation (default setting).
– AUTO FAST: provides dynamic and efficient air distribution.
To change the AUTO mode, press button 5-AUTO successively.
To ensure passenger comfort in the rear seats, favour settings AUTO NORMAL and AUTO FAST.

In cold weather with the engine cold, the air flow is increased gradually until the comfort setting has been reached, in order to limit the delivery of cold air into the passenger compartment. On entering the vehicle, if the interior temperature is much colder or warmer than the comfort setting requested, there is no need to alter the value displayed to more quickly reach the required level of comfort. The system automatically corrects the temperature difference as quickly as possible.

Automatic air conditioning manual settings

It is possible to manually adjust one or more of these functions, while the system retains automatic control of the other functions: - air flow.

– air distribution.

The indicator lamp in the "AUTO" button goes out if a setting is changed.

▶ Press button 5-AUTO again to reactivate automatic air conditioning.

Adjusting the air flow

Depending on version:

▶ Press one of the buttons 2 (fan) to decrease or increase the air flow.
▶ Press one of the buttons 2 (fan) or drag horizontally to increase or decrease air flow. It is also possible to directly press one of the values.

Switching off the air conditioning system

When the air flow is reduced to a minimum, ventilation stops.

"OFF" is displayed alongside the fan.

Adjusting the air distribution

▶ Press the buttons 3 to adjust the air flow distribution inside the passenger compartment.

Windscreen and side windows

Central and side air vents

Footwells

A symbol is activated to display the presence of blown air in the direction indicated.

It is possible to activate all three buttons simultaneously, for uniform distribution throughout the passenger compartment.

Clean Cabin function

It includes the AQS (Air Quality System) and Clean Air functions.

▶ To activate/deactivate the function, press button 7.

AQS function

Using an exterior pollution sensor, this function automatically activates the recirculation of interior air when a certain level of pollutants in the exterior air is detected.

When the air quality returns to a satisfactory level, recirculation of interior air is automatically deactivated.

This function is not designed to detect unpleasant odours.

Recirculation is automatically activated when the windscreen wash is used or when reverse gear is engaged.

The function is inactive if the outside temperature is below 5^irc C to prevent the risk of misting on the windscreen and side windows.

Clean Air function

Using an interior pollution sensor, this function detects fine particles (e.g. cigarette smoke, mould, bacteria).

The management of the recirculation of interior air makes it possible to return to a purified passenger compartment in just a few minutes,

thanks to the passage of air through the high-performance passenger compartment filter. If the air quality appears to be reduced, contact a PEUGEOT dealer or a qualified workshop to change the high-performance passenger compartment filter.

Air conditioning on/off

The air conditioning system is designed to operate effectively in all seasons, with the windows closed:

- It lowers the temperature in summer.

- It increase the effectiveness of the demisting, in winter, above 3^ircC .

▶ Press button 4-A/C to switch the air conditioning on/off.

When the system is switched on, the indicator lamp in the button comes on or "A/C" changes colour (depending on version).

Air conditioning does not operate when the air flow is deactivated.

To obtain cool air more quickly, enable interior air recirculation for a brief period. Then return to the intake of exterior air.

Switching off the air conditioning may result in some discomfort (humidity or misting).

Maximum air conditioning

This function automatically adjusts the temperature setting to the lowest possible, the air distribution towards the central and side air vents, the air flow to maximum and, if necessary, activates interior air recirculation.

A/C ▶ Press this button to activate/deactivate the function (confirmed by the illumination/extinction of the indicator lamp). Once the function is deactivated, the system returns to the previous settings.

Switching off the air conditioning system

▶ Press button 12-OFF.

Its indicator lamp lights up and all the other indicator lamps of the air conditioning system go off.

This action deactivates all of the functions of the air conditioning system.

The temperature is no longer regulated. A slight flow of air can still be felt, due to the forward movement of the vehicle.

Interior air recirculation

The intake of exterior air prevents the formation of mist on the windscreen and side windows.

Recirculating the interior air isolates the passenger compartment from outside odours and fumes and allows the desired passenger compartment temperature to be achieved more rapidly.

▶ Press this button to activate/deactivate the function (confirmed by the illumination/extinction of the indicator lamp).

This function is activated automatically when the front screenwash is used or reverse gear is engaged.

Front demisting/defrosting

This mode allows the windscreen and side windows to be demisted or defrosted as quickly as possible.

▶ Press this button to activate/deactivate the mode (confirmed by the illumination/extinction of the indicator lamp).

The mode automatically manages the air conditioning, air flow, air intake and distributes ventilation optimally to the windscreen and side windows.

The air flow can be changed manually without deactivating this mode.

With Stop & Start, when demisting has been activated, STOP mode is not available.

In wintry conditions, before moving off, it is essential to remove any snow or ice from the windscreen around the camera. Otherwise, the operation of the equipment using the camera may be affected.

Rear screen demisting/defrosting

This demisting/de-icing only works with the engine running.

Depending on version, it also demists/de-ices the door mirrors.

▶ Press this button to activate/deactivate the function (confirmed by the indicator lamp coming on/switching off).

The function can be activated whatever the outside temperature may be.

The period of operation depends on the outside temperature.

Demisting/defrosting therefore switches off automatically to prevent an excessive consumption of electrical current.

Heated windscreen

Diagram of a car's roof with a patterned lid (no text or symbols)

In cold weather, this function heats the entire windscreen and complements the Automatic Visibility programme to speed up the evacuation of elements that interfere with visibility (e.g. dew,

mist, frost, snow), located on either side of the windscreen.

It can be used both before setting off and while driving.

Switching on/off

▶ With the engine running, press this button to activate/deactivate the function (confirmed by an indicator lamp).

The period of operation depends on the outside temperature.

The function switches off automatically to prevent excessive power consumption.

Temperature pre-conditioning (Rechargeable hybrid or Electric)

This function allows you to programme the temperature in the passenger compartment to reach a pre-defined, non-modifiable temperature

(approx. 21°C) before you enter the vehicle, on the days and at the times of your choice. This function is available when the vehicle is connected or not connected.

Programming

In the Climate touch screen application, select the Preconditioning tab.

▶ Press + to add a programme.
▶ Select the time of entry into the vehicle and the desired days. Press OK.

▶ Press ON to activate this programming. The pre-conditioning sequence begins approximately 45 minutes before the programmed time when the vehicle is connected (20 minutes when it is not connected) and is maintained for 10 minutes after.

For rechargeable hybrid vehicles, this indicator lamp comes on fixed when a temperature preconditioning cycle is programmed. It flashes when temperature pre-conditioning is in progress.

You can set multiple programmes. Each one is saved in the system.

To optimise the driving range, we recommend starting a programme while the vehicle is connected.

The programming can also be carried out from a smartphone via the MYPEUGEOT application.

For more information on Remotely operable additional functions, refer to the corresponding section.

The fan noise that occurs during temperature pre-conditioning is perfectly mal.

Vehicles equipped with an alarm system

Depending on version, interior volumetric and anti-tilt monitoring may be reduced or even suspended during temperature preconditioning sequences.

Operating conditions

- The function is only activated when the ignition is switched off and the vehicle locked.

- When the vehicle is not connected, the function is only activated if the battery charge level is greater than 20% (Rechargeable hybrid) or 30% (Electric).

- When the vehicle is not connected and a recurring programme is active (e.g. from Monday to Friday), if two temperature pre-conditioning

sequences are run without the vehicle being used, the programme will be deactivated.

Front fittings

1. Sun visor
2. Coin holder (depending on version)
3. Illuminated glove box
4. Door pockets
5. Storage compartment or Wireless smartphone charger
6. Front USB socket/12 V socket
7. Cup holder

8. Storage compartment or Smartphone storage

9. Front armrest with storage (depending on version)

Front USB socket (depending on version)

1. Rear USB sockets (depending on version)

Sun visor

▶ With the ignition on, raise the concealing flap; depending on the version, the mirror is illuminated automatically.

This sun visor is also equipped with a ticket holder.

Glove box

▶ To open the glove box, lift the handle. With the ignition on, the glove box is lit when open.

Depending on version, it contains an adjustable ventilation nozzle, distributing the same conditioned air as the vents in the passenger compartment.

! Never drive with the glove box open when a passenger is at the front. It may cause injury during sharp deceleration!

12 V accessory socket

▶ Plug in a 12 V accessory (with a maximum rated power of 120 W) using a suitable adapter.

! Observe the maximum power rating to avoid damaging the accessory.

The connection of an electrical device not approved by PEUGEOT, such as a USB charger, may adversely affect the operation of vehicle electrical systems, causing faults such as poor radio reception or interference with displays in the screens.

USB sockets

These symbols determine the type of use of a USB socket:

Power supply and recharging.

Likewise, plus exchange of multimedia data with the audio system. Likewise, plus use of smartphone applications with the touch screen.

USB sockets allow the connection of a portable device.

The USB socket located at the front of the centre console also

allows a smartphone to be connected by Android Auto ^® or CarPlay ^® , enabling certain smartphone applications to be used on the touch screen.

For best results, use a cable made or approved by the device manufacturer.

These applications can be managed using the steering-mounted controls or the audio system controls.

When the USB socket is used, the portable device charges automatically. While charging, a message is displayed if the power drawn by the portable device exceeds the current supplied by the vehicle.

For more information about how to use this equipment, refer to the sections describing the audio and telematics systems.

Ease of use and comfort

Wireless smartphone charger

This system allows wireless charging of a portable device such as a smartphone, using the magnetic induction principle, in accordance with the Qi 1.1 standard.

The portable device to be charged must be compatible with the Qi standard, either by design or by using a compatible holder or shell.

A mat can also be used provided that it is approved by the Manufacturer.

The charging area is identified by the Qi symbol. The charger works with the engine running and with the Stop & Start system in STOP mode.

Charging is managed by the smartphone. With the Keyless Entry and Start system, the charger's operation may be briefly disrupted when a door is opened or the ignition is switched off.

Charging

▶ With the charging area clear, place a device in its centre.

When the portable device is detected, the charger's indicator lamp lights up green. It remains lit for the whole time that the battery is being charged.

The system is not designed to charge multiple devices simultaneously.

Do not leave metal objects (e.g. coins, keys, vehicle remote control) in the charging area while a device is being charged

- Risk of overheating or interrupting the charging!

When using applications for a long time in combination with wireless charging, some smartphones may switch to thermal safety and cause some functions to stop.

Checking operation

The state of the indicator lamp allows the operation of the charger to be monitored.

State of the indicator lamp	Meaning
Off Engine switched off.	No compatible devices detected.Charging complete.
Fixed green Compatible portable device detected.Charging.
Flashing orange Foreign object detected in the charging zone.Portable device not well centred in the charging zone.
Fixed orange Malfunction of the portable device's battery meter.Device battery temperature too high.Charger malfunction.

If the indicator lamp is fixed orange:

– remove the device, then place it back in the centre of the charging zone.

or

– remove the device and try again in a quarter of an hour.

If the problem persists, have the system checked by a PEUGEOT dealer or a qualified workshop.

Front armrest

It includes a storage space and is illuminated when the cover is opened (depending on version).

Opening

Diagram of a mechanical component inserted into a car interior, showing a blue arrow indicating direction (no text or symbols present)

▶ Press the lever beneath the cover. The cover opens in two parts.

Closing

▶ Fold back the two parts of the cover.

FOCAL® Hi-Fi system

The vehicle is equipped with a high-fidelity audio system from the French brand FOCAL®. 10 speakers incorporating exclusive FOCAL® technologies offer the pleasure of special musical experience inside the vehicle:

• 12 channel full active amplification - 690 Watts Class D booster technology: significant audio power available at all times despite low power consumption.
  – Polyglass central speaker: sound immersion and spatialisation.
  – Polyglass woofers/mid-range speakers with TMD suspension: balance, dynamics and precision of sound.
  – Aluminium TNF inverted dome tweeter: optimal sound dispersion, detailed treble.
• Subwoofer with high excursion Power Flower™ triple coil: deep and controlled reproduction of low frequencies.

Two customisable listening modes are available:

• "All passengers": an optimised service for each occupant of the vehicle, both front and rear.
• "Optimised for the front": an immersive and augmented experience, shared between the driver and the front passenger.

Mats

Fitting

Diagram showing a mechanical component with two blue arrows indicating direction, no text or symbols present

When fitting it on the driver's side, only use the mountings present on the carpet (a "click" indicates proper locking).

The other mats are simply laid over the carpet.

Removing/refitting

▶ To remove it on the driver's side, move the seat backwards and unclip the fasteners.
▶ To refit it, position the mat and secure it by pressing down.
▶ Check that the mat is secured correctly.

To avoid any risk of jamming the pedals: - Only use mats which are suited to the fixings already present in the vehicle; these fixings must be used.

- Never fit one mat on top of another. The use of mats not approved by PEUGEOT may interfere with access to the pedals and

Ease of use and comfort

hinder the operation of the cruise control/speed limiter.

The approved mats have two fasteners located underneath the seat.

Courtesy lamps

Diagram of a car interior showing two rectangular seats with directional arrows, no text or symbols present

Reading lamps

▶ With the ignition on, operate the corresponding switch.

Do not place anything against the courtesy lamps.

Interior ambient lighting

The interior ambient lighting casts soft, coloured lighting in the passenger compartment, when low lighting conditions are detected.

By default, the colour of the interior ambient lighting is linked to that of the screens, depending on the driving mode selected.

Activation/deactivation and adjustment of the brightness are set via the Settings >

Brightness touch screen application.

The colour is selected via the Settings > Customization touch screen application.

Rear fittings

USB sockets

Each USB socket is used only to power or recharge a portable device.

Rear armrest

Line drawing of a car seatbelt with a blue arrow indicating direction (no text or symbols)

The armrest incorporates two cup holders.

The cup holders have a removable reducer to be used depending on the diameter of the cans and cups.

The pen holder can also hold a smartphone.

Ski flap (Hatchback)

Device for storing and transporting long objects.

Opening

▶ With the rear armrest lowered, open the flap by pulling its handle downwards.

On the SW version, the ski flap is replaced by the folding of the central backrest.

For more information on the Rear bench seat, in particular the central backrest, refer to the corresponding section.

Line drawing of a car backseat with a laptop and a blue arrow indicating direction (no text or symbols)

▶ Load the objects from inside the boot.

Shark fin antenna

Diagram showing a grid-patterned square object pointing to a car, with no text or symbols present.

A ventilation grille is present at the rear of the roof for cooling the shark fin antenna.
Any ventilation noise produced, with the ignition on or the engine running, is completely normal.

Boot fittings
Hatchback

1. Load space cover shelf
2. Boot lamp
3. Storage net
4. Stowing rings
5. Rigid boot floor or hinged boot carpet (Rechargeable hybrid or Electric)
6. Storage well under the carpet

SW

1. Load space cover roller
2. Rear seat folding controls
3. Bag hook
4. 12 V socket Boot lamp
5. Storage nets

3

1. Load space cover roller

2. Rear seat folding controls

3. Bag hook

4. 12 V socket Boot lamp

Ease of use and comfort

1. Stowing rings
2. Rigid boot floor, 2-position boot floor or hinged boot carpet (Rechargeable hybrid or Electric)
3. Storage well under the carpet

The stowing rings are designed to secure luggage using different types of retaining nets or suitable straps.

For more information, contact a PEUGEOT dealer or a qualified workshop.

Load space cover (SW)

In the event of sudden deceleration, objects placed on the load space cover can turn into projectiles.

Reeling in

Top-down view of a car rearview showing the dashboard and seat area with a small component labeled 'A' (no text or symbols beyond label)

▶ Pull the handle towards you and downwards; the load space cover will automatically roll up. The moving part A can be folded against the backrests of the rear seats.

Removal

Diagram of a car interior showing dashboard, rearview, and side panel with directional arrows (no text or symbols)

▶ Compress the control B and lift the load space cover on the right then on the left to remove it.

Storage

A recess located underneath the boot floor can be used to store the load space cover:

– diagonally with the rigid boot floor.
- crosswise with the 2-position boot floor.

Line drawing of a car backrest with a visible door panel and roof structure (no text or symbols)

Top-down view of a car backrest with a visible rear grille and side door (no text or symbols)

▶ With the 2-position boot floor, first remove the 2 covers on each side of the housing.

Installation

▶ Position the left-hand end of the load space cover roller in its location 1 behind the rear left seat.
▶ Compress the roller control B and put the roller in place in its location 2 on the right.
▶ Release the control to secure the load space cover.
▶ Unroll it until it clips on the boot pillars.

High load retaining net (SW)

Hooked onto the special upper and lower fixings, this removable net allows the use of the entire loading volume up to the roof:

– behind the front seats (row 1) when the rear seats are folded,
– behind the rear seats (row 2) when the load space cover is removed.

It protects the occupants in case of sudden braking.

Behind the front seats

Line drawing of a car interior showing the rearview and side-mounted dashboard (no text or symbols)

▶ Fold down the rear bench seat
▶ Insert the ends of the bar, one after the other, into the fixing points in the roof.
Attach the net's straps to the lower anchoring points, located on the fixings of the rear bench seat backrest.
▶ Pull on the straps to stretch the net.

Behind the rear bench seat

Top-down line drawing of a car backseat with no text or symbols

▶ Remove the load space cover roller.
▶ Insert the ends of the bar, one after the other, into the fixing points in the roof.
▶ Attach the straps of the net to the lower rings, located on each side trim of the boot.
▶ Pull on the straps to stretch the net.

2-position boot floor (SW)

(Depending on version)

This 2-position floor allows the boot volume to be optimised using the lateral stops located on the sides:

- High position (100 kg max.): to obtain a flat floor up to the front seats, when the rear seats are folded down.

- Low position (150 kg max.): maximum boot volume.

On certain versions, the adjustable boot floor cannot be fitted in the low position.

To change the height:

▶ Lift and pull the floor towards you using its central handle, then use the lateral stops to move it.
▶ Push the floor all the way forwards to place it in the desired position.

Diagram of a car rear view showing top-down structural layout with no text or symbols

To keep it in the inclined position:

▶ From the high position, lift the floor towards the load space cover.
▶ Engage it in the inclined position in the lateral stops to secure it in this position.

12 V accessory socket

▶ To connect a 12 V accessory (maximum power: 120 W), lift the cover and plug in a suitable adaptor.
▶ Switch on the ignition.

The connection of an electrical device not approved by PEUGEOT, such as a USB charger, may adversely affect the operation of vehicle electrical systems, causing faults such as poor radio reception or interference with displays in the screens.

Boot lamp

It comes on automatically when the boot is opened and goes off automatically when the boot is closed.

The lighting time varies according to the circumstances:

- When the ignition is off, approximately 10 minutes.

• In energy saving mode, approximately 30 seconds.
  – With the engine running, unlimited.

Storage well

▶ Lift the rigid boot floor as far as possible or lift the hinged boot carpet (depending on version) to access the storage well.
▶ With the 2-position boot floor (SW), lift the boot floor as far as possible or lift the cover at the back of the boot to access one or other of the storage wells.

The cover at the back of the boot is also accessible from the second row seats if the backrests of the rear bench seat are folded down.

Depending on version, it includes:

– A hazard warning triangle.
- A temporary puncture repair kit with the tool kit.
– A spare wheel with the tool kit.
– The traction battery charging cables

(Rechargeable hybrid or Electric).

The load space cover can also be stored here (SW).

Exterior lighting control stalk

Main lighting

AUTO

Automatic illumination of lamps/daytime running lamps

Sidelamps only

300

Dipped or main beam headlamps

Headlamp dipping

▶ Pull the lighting control stalk to switch between dipped and main beam headlamps.

In "AUTO" and sidelamps mode, pull the lighting control stalk to switch the main beam headlamps on directly ("headlamp flash").

Display

Illumination of the corresponding indicator lamp on the instrument panel confirms that the selected lighting is on.

A fault with a lamp is signalled by the permanent illumination of this warning accompanied by the display of a message in audible signal.

Rear foglamps

They only work if the dipped or main beam headlamps are on.

▶ Rotate the ring forwards/backwards to turn them on/off.

When the lighting is switched off automatically ("AUTO" position) the foglamps and the dipped beam headlamps remain on.

Switching on the foglamps is prohibited in clear weather or in rain, both day and night. In these situations, the power of their beams may dazzle other drivers. They must

only be used in fog or falling snow (rules may vary depending on country).

Do not forget to switch off the foglamps when they are no longer necessary.

Switching off of the lighting when the ignition is switched off

When the ignition is switched off, all of the lamps turn off immediately, except for the dipped beam headlamps if automatic guide-me-home lighting is activated.

Switching on the lamps after switching off the ignition

To reactivate the lighting control, rotate the ring to the "AUTO" position, then to the desired position.

If the driver's door is opened, a temporary audible signal warns the driver that the lamps are on.

They will go off automatically after a period of time that depends on the level of charge in the battery (entering energy economy mode).

In some weather conditions (e.g. low temperature or humidity), misting on the normal surface of the glass of the headlamps rear lamps is normal, and will disappear for the lamps have been on for a few minutes.

! Never look too closely at the light beam of LED technology lamps - risk of serious eye injury!

Travelling abroad

Vehicles equipped with manual headlamp beam height adjustment:

If planning to use your vehicle in a country that drives on the other side of the road, the dipped beam headlamps must be adjusted to avoid dazzling oncoming drivers. Consult a PEUGEOT dealer or a qualified workshop.

Daytime running lamps/ Sidelamps

These LED lamps at the front of the vehicle light up automatically when the engine starts. They perform the following functions:

– Daytime running lamps (lighting control stalk at position "AUTO" with adequate ambient light).
– Sidelamps (lighting control stalk at position
"AUTO" with low ambient light or "Sidelamps only" or "Dipped/main beam headlamps").

In daytime running lamps mode, the light-emitting diodes are brighter.

Direction indicators

▶ Left or right: lower or raise the lighting control stalk, beyond the point of resistance.

If you keep the direction indicators on for more than 20 seconds, the volume of the audible signal will increase if the speed is above 50 mph (80 km/h).

Three flashes

▶ Press briefly upwards or downwards, without going beyond the point of resistance; the direction indicators will flash 3 times.

The brightness of the daytime running lamps is reduced when the direction indicators are on.

Parking lamps

(Depending on version)

Vehicle side marking by lighting the sidelamps on the traffic side only.

▶ Within one minute after switching off the ignition, operate the lighting control stalk upwards or downwards, depending on the side of the traffic (e.g. when parking on the right, push the lighting control stalk down to light up on the left).

This is confirmed by an audible signal and the lighting of the corresponding direction indicator lamp on the instrument panel.

▶ To switch off the parking lamps, return the lighting control stalk to the central position.

Headlamp beam height adjustment

Manual headlamp adjustment

Diagram showing car dashboard and air vent system with directional control panel (no text or symbols)

To avoid dazzling other road users, the height of the headlamp beams must be adjusted according to the load in the vehicle.

0 (Initial setting)

Driver only or driver + front passenger

1 5 people
2 5 people + load in the boot
3 Driver only + load in the boot
4 5 6 Not used

Automatic Peugeot Matrix LED Technology 2.0 headlamp adjustment

This system automatically adjusts the height of the headlamp beams according to different parameters (e.g. vehicle load).

In the event of a malfunction, this warning lamp lights up on the instrument panel, accompanied by the display of a message and an audible signal.

The system places the headlamp beams in the lowest position.

Have it checked by a PEUGEOT dealer or a qualified workshop.

Do not touch the Peugeot Matrix LED Technology 2.0 headlamps - risk of electrocution!

Automatic illumination of lamps

With the lighting control stalk in the "AUTO" position and if a low level of exterior brightness

is detected by the rain/sunshine sensor, the sidelamps and dipped beam headlamps are switched on automatically, without any action on the part of the driver. They may also come on if rain is detected, at the same time as automatic operation of the windscreen wipers.

As soon as the brightness returns to a sufficient level or after the windscreen wipers are switched off, the lamps are switched off automatically.

Malfunction

In the event of a malfunction of the rain/ sunshine sensor, the vehicle's lamps come on and this warning lamp is displayed on the instrument panel, accompanied by an audible signal and/or the display of a message. Have it checked by a PEUGEOT dealer or a qualified workshop.

Do not cover the rain/sunshine sensor located at the top centre of the windscreen behind the interior rear view mirror; the associated functions would no longer be controlled.

In fog or snow, the rain/sunshine sensor may detect sufficient light. For this reason, the lighting will not come on automatically.

The inner surface of the windscreen may become misted up and affect the proper operation of the rain/sunshine sensor. In humid and cold weather, demist the windscreen regularly.

Guide-me-home and welcome lighting

Guide-me-home lighting

Automatic

With the ring of the lighting control stalk in the "AUTO" position and when the light is poor, the dipped beam headlamps come on automatically when the ignition is switched off.

You can activate/deactivate and adjust the duration of the guide-me-home lighting in the Settings > Vehicle touch screen application.

Manual

Lighting and visibility

▶ With the ignition off, pull the lighting control stalk toward you ("headlamp flash") to activate/deactivate the function.

Manual guide-me-home lighting goes off automatically after a period of time.

Welcome lighting

When the vehicle is unlocked in low light conditions and the "Automatic illumination of headlamps" function is activated, this system automatically switches on:

- On the outside, sidelamps, dipped beam headlamps and door mirror spotlamps.

- Inside, courtesy lamps and footwell lighting.

Door mirror spotlamps

These spotlamps facilitate access to the vehicle by lighting the ground near the front doors.

The spotlamps come on automatically:

– when the vehicle is unlocked.

- when a door is opened.

- when a request to locate the vehicle is received from the remote control.

They also come on with the welcome lighting and guide-me-home lighting functions.

They go off automatically after 30 seconds.

Automatic lighting systems - General recommendations

The automatic lighting systems use a detection camera, located at the top of the windscreen.

Operating limits

The system may be disrupted or not work correctly:

• When visibility conditions are poor (e.g. snowfall, heavy rain).
• If the windscreen is dirty, misted-up or masked (e.g. sticker) in front of the camera.
• If the vehicle is facing highly reflective signs or safety barrier reflectors.

The system is not able to detect:

– Road users that do not have their own lighting, such as pedestrians.
- Vehicles with hidden lighting (e.g. travelling behind a safety barrier on the motorway).
- Vehicles at the top or bottom of a steep slope, on winding roads, on crossroads.

Maintenance

- Clean the windscreen regularly, particularly the area in front of the camera. The internal surface of the windscreen can also become misted around the camera. In humid and cold weather, demist the windscreen regularly.

Do not allow snow to accumulate on the bonnet or roof of the vehicle as this could obstruct the camera.

Automatic headlamp dipping

! For more information, refer to the General recommendations for automatic lighting systems.

With the ring of the lighting control stalk in the "AUTO" position and the function activated on the touch screen, this system automatically switches between dipped and main beam headlamps, according to lighting and traffic conditions, using a camera located at the top of the windscreen.

Six-panel sequence showing a car on a curved road with thermal or heat signatures, no visible text or symbols

This system is a driving aid. The driver remains responsible for the vehicle's lighting, its correct use in the prevailing light, visibility and traffic conditions, and for compliance with driving and vehicle regulations.

The system becomes operational when the vehicle exceeds 16 mph (25 km/h). When the speed falls below 9 mph (15 km/h), the function is no longer operational.

Activation/Deactivation

It is configured in the Settings > Vehicle touch screen application.

The state of the system is stored when the ignition is switched off.

When the system detects thick fog, it temporarily deactivates the function.

Operation

If the ambient light level is very low and traffic conditions permit:

- The main beam headlamps come on automatically. These indicator lamps light up on the instrument panel. If the ambient light level is sufficient and/or the traffic conditions do not allow the main beam headlamps to be lit:

AUTO ≡D ≡D – The dipped beam headlamps remain lit. These indicator lamps light up on the instrument panel.

The function is deactivated if the foglamps are switched on or if the system detects poor visibility conditions (e.g. fog, heavy rain, snowfall).

When the foglamps are switched off or when the visibility conditions become favourable again, the function is automatically reactivated.

AUTO This indicator lamp goes out when the function is deactivated.

Pause

If the situation requires a change of headlamp beam, the driver can take over at any time.

▶ Switch the headlamps manually between dipped and main beam to pause the function. If the "AUTO" and "Dipped beam" indicator lamps were on, the system changes to main beam.

If the "AUTO" and "Main beam" indicator lamps were on, the system changes to dipped beam.

▶ To reactivate the function, once again switch the headlamps manually between dipped and main beam.

Malfunction

AUTO If a malfunction occurs with the system or the camera, this warning lamp lights up on the instrument panel, accompanied by an audible signal and a message.

Have it checked by a PEUGEOT dealer or a qualified workshop.

Peugeot Matrix LED Technology 2.0

! For more information, refer to the General recommendations for automatic lighting systems.

Available only on versions equipped with Full LED headlamps with Matrix Beam function. This system automatically adapts the main beam according to the driving conditions, so that optimum illumination is maintained for the driver, without causing a nuisance to other road users.

Lighting and visibility

The driver remains responsible for the vehicle's lighting, its correct use in the prevailing light, visibility and traffic conditions, and for compliance with driving and vehicle regulations.

The system is active from 25 mph (40 km/h) and deactivates below 12 mph (20 km/h).

Activation/Deactivation

- Place the ring of the lighting control stalk in the "AUTO" position.

This indicator lamp comes on in the instrument panel.

It is configured in the Settings > Vehicle touch screen application.

The state of the system is stored when the ignition is switched off.

When deactivated, the lighting system changes to "Automatic illumination of lamps" mode.

It is recommended that you deactivate the function in foggy or snowy conditions or in case of heavy mist.

The function temporarily is deactivated when the system detects thick fog or when the foglamps are switched on manually. This is signalled by the indicator lamp going off on the instrument panel.

Operation

Using a camera, the system detects the driving conditions (brightness, lights from oncoming or followed vehicles, road turns) and adapts the beams of the main headlamps accordingly.

The modules that make up the main beams switch on and off gradually, segment by segment, depending on the driving conditions detected.

Nominal main beam lighting is restored as soon as the vehicle is no longer detected by the system.

AUTO If the system is selected but the display on the instrument panel and the alerts are not available, the indicator lamp comes on in grey.

Followed vehicle

Diagram showing two cars with light rays converging through a tunnel (no text or symbols)

When approaching a vehicle from behind, only those lamp segments directed at the followed vehicle go off, thereby creating a "tunnel" so as not to dazzle its driver.

Oncoming vehicle

Diagram showing two cars approaching a yellow light beam on a gray road (no text or symbols)

When an oncoming vehicle approaches, only those lamp segments directed at this vehicle go off, thereby creating a "tunnel" during the duration of the approach.

Entering an illuminated area

At the entrance to an illuminated area (e.g. a town), the lamp segments are gradually switched off from the outside to the inside of the vehicle to switch to the dipped beams.

Exiting an illuminated area

The lamp segments gradually light up from the inside to the outside of the vehicle to restore the main beams.

Pause

If the situation requires a change of headlamp beam, the driver can take over at any time.

▶ Switch the dipped/main beam headlamps manually to pause the function.

The lighting system changes to "Automatic illumination of lamps" mode.

▶ To reactivate the function, manually switch the dipped/main beam headlamps again.

Malfunction

In the first case, this warning lamp is displayed on the instrument panel,

accompanied by a message if the sensor is masked.

This is a normal behavior, which does not request the support of a qualified workshop. Stop the vehicle and verify if the front camera is covered by dirt, mud, sand, snow, ice or anything preventing the sensing.

The system is operational again after the detection field has been cleaned.

In the second case, this warning lamp is displayed on the instrument panel,

accompanied by an audible signal and a message if a malfunction occurs with the adaptive headlamp lighting or the camera.

Have it checked by a PEUGEOT dealer or a qualified workshop.

Do not cover the rain/sunshine sensor located at the top centre of the

windscreen behind the interior rear view mirror; the associated functions would no longer be controlled.

Wiper control stalk

Before operating the wipers in wintry conditions, clear any snow, ice or frost from the windscreen and around the wiper arms and blades.

Do not operate the wipers on a dry windscreen. In extremely hot or cold weather, check that the wiper blades are not stuck to the windscreen before operating the wipers.

After using an automatic car wash, you may temporarily notice abnormal noises and poorer wiping performance. You do not need to replace the wiper blades.

With intermittent wipers

With AUTO wiping

Windscreen wipers

▶ To select the wiping speed: raise or lower the stalk to the desired position.

2	Fast wiping (heavy rain)
1	Normal wiping (moderate rain)
Int	Intermittent wipers

or

After the ignition has been switched off, the wipers may move slightly at the foot of the windscreen.

Lighting and visibility

In position 1 or 2, the wiping frequency is automatically reduced when the speed of the vehicle drops below 3mph (5km / h) . When the speed is above 6mph (10km / h) again, the wiping frequency returns to the original frequency (fast or normal).

Single wipe

If the wiper control stalk is:

▶ In the INT or AUTO position, pull the stalk briefly towards you then release it.

▶ In the 0 position, press briefly on the stalk then release it.

Pressing and holding triggers continuous wiping at the normal wiping speed.

Windscreen wash

▶ Pull the wiper control stalk towards you and hold.

A final wiping cycle is performed when screenwashing ends.

The windscreen wash jets are incorporated into the tip of each wiper arm.

An additional jet is installed below the midpoint of the arm on the driver's side. Screenwash fluid is sprayed along the length of the wiper blade. This improves visibility and reduces screenwash fluid consumption.

With automatic air conditioning, any action on the screenwash control results in temporary closure of the air intake to protect the passenger compartment from any odour.

To avoid damaging the wiper blades, do not operate the screenwash if the screenwash reservoir is empty. Only operate the screenwash if there is no risk of the fluid freezing on the windscreen and hindering visibility. During the winter period, use "very cold climate" rated products Never top up with water.

Rear wiper

▶ Turn the ring to align the desired symbol with the marking.

Off Intermittent wiping Screenwash-wipe

If the ignition has been switched off with the rear wiper active, operate the ring to

reactivate wiping when the ignition is switched on again (unless the ignition was off for less than 1 minute).

The first rotation of the ring to the screenwash position triggers a single wipe. If the ring is then left in the intermittent wiping position, the rear wiper adopts a wiping speed dependent on that of the windscreen wipers and the speed of the vehicle.

Reverse

When reverse gear is engaged, the rear wiper will come into operation automatically if the front windscreen wipers are operating.

It is configured in the Settings > Vehicle touch screen application.

In the event of accumulation of snow or hard frost or if a bicycle carrier is fitted to a towing system, deactivate the automatic rear wiper via the Settings > Vehicle touch screen application.

Rear screenwash

▶ Turn the ring as far as it will go and hold it in position.

The screenwash and the wiper operate for as long as the ring remains turned.

A final wiping cycle is performed when screen washing ends.

An additional jet is fitted above the number plate to clean the reversing camera (depending on version).

With reverse gear engaged, the washing of the reversing camera is triggered by

clicking on this button in the right side menu of the touch screen.

Front intermittent wiping

In Intermittent mode, the driver can adjust the wiping frequency by turning the ring to one of the 5 available positions.

The first (upper) position corresponds to the longest time interval between 2 wipes for light rain.

The last (lower) position corresponds to the shortest time interval between 2 wipes for heavy rain.

A rotation of the ring from a higher position to a lower position triggers a confirmation wiping.

After the ignition has been switched off for more than 1 minute with the wiper control stalk in the INT, 1 or 2 position, when the ignition is switched on again: – the system works as soon as the vehicle exceeds 6 mph (10 km/h), if the outside temperature is below +3°C.

- the system works immediately, if the outside temperature is above +3^irc C .

Automatic windscreen wipers

In AUTO mode, the front wipers work automatically and adapt to the intensity of precipitation depending on the sensitivity of the sensor selected.

The rainfall detection function uses a rain/ sunshine sensor located at the top centre of the windscreen, behind the rear view mirror.

In certain weather conditions (e.g. fog, frost, snow, projections on salty roads), the driver may have to return to manual wiping.

Switching on/off

To switch on:

▶ Put the wiper control stalk in the AUTO position.
▶ Turn the ring to adjust the sensitivity of the sensor.

A wiping cycle, accompanied by the display of a message, confirms that the request has been taken into account.

▶ To switch off, put the wiper control stalk in another position or in the 0 position.

Adjusting the sensitivity

The first position (upper) corresponds to the lowest sensitivity of the sensor.

The last position (lower) corresponds to the highest sensitivity of the sensor.

The higher the sensitivity, the faster the system reacts and increases the wiping frequency.

A rotation of the ring from a higher position to a lower position triggers a confirmation wiping.

After the ignition has been switched off for more than 1 minute with the wiper control stalk in the AUTO position, when the ignition is switched on again:

- the system works, depending on the volume of rain detected, as soon as the vehicle exceeds 6 mph (10 km/h), if the outside temperature is below +3°C.

- the system works immediately, depending on the volume of rain detected, if the outside temperature is above +3^ircC .

Do not cover the rain/sunshine sensor.

- When using an automatic car wash, switch off the automatic wipers and the ignition.

Lighting and visibility

In winter, wait until the windscreen is completely clear of ice before activating the automatic wipers.

Malfunction

If a fault occurs with the automatic wipers, the wipers operate in intermittent mode. Have it checked by a PEUGEOT dealer or a qualified workshop.

Special position of the windscreen wipers

This maintenance position is used while cleaning or replacing the wiper blades. It can also be useful, in wintry weather (ice, snow), to release the wiper blades from the windscreen.

To maintain the effectiveness of the flat wiper blades, it is advisable to:

• handle them with care.
• clean them regularly using soapy water.
• avoid using them to hold cardboard on the windscreen.
  – replace them at the first signs of wear.

Before removing a windscreen wiper blade

Operating the wiper control stalk immediately after switching off the ignition will place the wiper blades in a vertical position.

▶ Proceed with the desired operation or the replacement of the wiper blades.

After refitting a windscreen wiper blade

▶ To return the wiper blades to their initial position after the operation, switch on the ignition and operate the wiper control stalk.

Changing a wiper blade

Removing/Refitting at the front

Diagram showing two vertical bars with arrows indicating direction, overlaid on a curved line and dotted segments (no text or symbols)

• Carry out these wiper blade replacement operations from the driver's side.
  ▶ Starting with the wiper blade farthest from you, hold each arm by the rigid section and raise it as far as possible.

Take care not to hold the arms at the jet locations.

Do not touch the wiper blades - risk of irreparable deformation.

Do not release them while moving them. Risk of damaging the windscreen!

▶ Clean the windscreen using screenwash fluid.

Do not apply "Rain X" type water-repellent products.

▶ Unclip the worn wiper blade closest to you and remove it.
▶ Install the new wiper blade and clip it to the arm.
▶ Repeat the procedure for the other wiper blade.
▶ Starting with the wiper blade closest to you, once again hold each arm by the rigid section, then guide it carefully onto the windscreen.

Take care not to use an incorrect position during fitting - risk of damage!

Removing/refitting at the rear

▶ Hold the arm by the rigid section and raise it as far as possible.
▶ Clean the rear screen using screenwash fluid.
▶ Identify the position of the arm on which the wiper blade is attached.
▶ Unclip the worn wiper blade by pulling it towards the rear screen and remove it.
▶ Install the new wiper blade in the same position of the arm and clip it into position.
▶ Once again hold the arm by the rigid section, then guide it carefully onto the rear screen.

Safety

General safety recommendations

Do not remove the labels attached in different places on your vehicle. They include safety warnings as well as identification information for the vehicle.
Depending on country regulations, certain safety equipment may be mandatory: high visibility safety vests, warning triangles, breathalysers, spare bulbs, spare fuses, fire extinguisher, first aid kit, mud flaps at the rear of the vehicle, etc.
Installing electrical accessories The fitting of electrical equipment or accessories not approved by PEUGEOT may cause excessive current consumption and faults and failures with the electrical system of your vehicle. Contact a PEUGEOT dealer
The fitting of electrical equipment or accessories not approved by PEUGEOT may cause excessive current consumption and faults and failures with the electrical system of your vehicle. Contact a PEUGEOT dealer

Installing electrical accessories

for information on the range of approved accessories.

As a safety measure, access to the diagnostic socket, used for the vehicle's electronic systems, is reserved strictly for PEUGEOT dealers or qualified workshops, equipped with the special tools required (risk of malfunctions of the vehicle's electronic systems that could cause breakdowns or serious accidents). The Manufacturer cannot be held responsible if this advice is not followed.

Any modification or adaptation not intended or authorised by PEUGEOT or carried out without meeting the technical requirements defined by the Manufacturer will result in the suspension of the commercial warranty.

! Installation of accessory radio communication transmitters

Before installing a radio communication transmitter with an external aerial, you must

without fail contact a PEUGEOT dealer for the specification of transmitters which can be fitted (frequency, maximum power, aerial position, specific installation requirements), in line with the UN ECE Regulation 10.

i Declarations of conformity for radio equipment

The relevant certificates are available on the brand website: http://public.servicebox.peugeot.com/APddb/

Hazard warning lamps

▶ Pressing this button causes all the direction indicators to flash.

They can work with the ignition switched off.

Automatic operation of hazard warning lamps

When braking in an emergency, depending on the rate of deceleration, the hazard warning lamps come on automatically. They switch off automatically when you next accelerate.

They can be switched off by pressing the button.

Horn

Top-down view of a car steering wheel with blue directional arrows indicating clockwise motion (no text or symbols)

▶ Press the central part of the steering wheel.

Pedestrian horn (Hybrid, Rechargeable hybrid or Electric)

This system alerts pedestrians that the vehicle is approaching (Electric), when driving in all-electric (Hybrid) or in Electric driving mode (Rechargeable hybrid).

The pedestrian horn operates once the vehicle is moving and at speeds of up to 19 mph (30 km/h), in forward or reverse gear.

This function cannot be deactivated.

Emergency or assistance call

1. eCall (SOS)
2. ASSISTANCE

eCall (SOS)

Your vehicle may be fitted with the eCall (SOS) system either as standard or as an option. The eCall (SOS) system provides direct contact to the emergency services and is fully built into the vehicle. This contact is made either automatically via the sensors built into the vehicle, or by pressing button 1.

According to the country of sale, the eCall (SOS) system corresponds to the systems PE112, ERAGLONASS, 999, etc.

The eCall (SOS) system is activated by default.

▶ To make an emergency call manually, press button 1 for more than 2 seconds.

The lit indicator lamp and a voice message confirm that the call has been made to the emergency services*.

The eCall (SOS) system immediately locates your vehicle and puts you in contact with the appropriate emergency services**.

▶ Pressing again immediately cancels the request.

The indicator lamp flashes while the vehicle data is being sent, and then remains lit when communication is established.

In the event that a serious accident is detected by the sensors built into the vehicle, such as the airbag control unit, an emergency call is made automatically.

The eCall (SOS) system is a public service of general interest and is free-of-charge.

Operation of the system

- Upon switching on the ignition, the indicator lamp lights up for a few seconds and then goes out: the system is operating correctly.

Safety

- The indicator lamp flashes red: emergency battery is flat. This will be recharged after a few minutes' driving.

- The indicator lamp is fixed red: system malfunction. The emergency and assistance call services may not work.

- If the indicator lamp does not light up when the ignition is turned on, this is also a system malfunction.

If the problem persists, contact a qualified workshop as soon as possible.

The malfunction of the system does not prevent the vehicle from driving.

When an onboard system update is being performed, the eCall (SOS) action is not available.

Data processing

All processing of personal data by the eCall (SOS) function complies with the framework for protection of personal information established by Regulation 2016/679 (General Data Protection Regulation - GDPR) or by UK GDPR (Data Protection, Privacy and Electronic Communications) Regulations 2019 and Directive 2002/58/EC of the European Parliament and the Council, and in particular, seeks to protect the vital interests of the data

subject, in accordance with Article 6 (1) d) GDPR.

The processing of personal data is strictly limited to the purpose of handling the eCall (SOS) function used with the "112" single European emergency call number.

The eCall (SOS) function is only able to collect and process the following data relating to the vehicle: vehicle identification number, vehicle type (passenger vehicle or light commercial vehicle), fuel type or power source, three most recent locations and direction of travel, number of passengers and a timestamped log file of the automatic activation of the system and its timestamp.

The recipients of the processed data are the emergency call handling centres designated by the relevant national authorities in the territory in which they are located, enabling priority routing and handling of calls to the "112" emergency number.

Data storage

Data contained in the system's memory is not accessible from outside the system until a call is made. The system is not traceable and is not continuously monitored in its normal operating mode.

The data in the system's internal memory is automatically and continuously erased. Only the vehicle's three most recent locations,

necessary for the normal functioning of the system, are stored.

When an emergency call is triggered, the data log is stored for no more than 13 hours.

Access to data

You have the right of access to data and as appropriate to request the rectification, erasure or restriction of processing of any personal data not processed in accordance with the provisions of GDPR. Third parties to which data has been disclosed shall be notified of any rectification, erasure or restriction carried out in compliance with the corresponding GDPR, unless it proves impossible or involves a disproportionate effort.

You also have the right to lodge a complaint with the respective data protection supervisory authority.

If you want to claim your above-mentioned rights please contact us per email at: [e-mail].

For more information regarding our contact details please take a look at our Privacy & Cookies Policy on the brand's website.

ASSISTANCE

▶ If the vehicle breaks down, press button 2 for more than 2 seconds to request assistance (confirmed by a voice message*).
▶ Pressing again immediately cancels the request.

Privacy mode allows you to manage the level of sharing (data and/or location) between your vehicle and PEUGEOT. It can be configured in the Settings touch screen application.

If you purchased your vehicle outside the PEUGEOT dealer network, you are invited to have a dealer check the configuration of these services and, if desired, modify it as required. In a multilingual country, services can be configured to use the official national language of your choice.
For technical reasons and in particular to improve the quality of telematics services provided to customers, the Manufacturer reserves the right to carry out updates to the vehicle's on-board telematics system at any time.

! During an update to the vehicle's on-board telematics system, the ASSISTANCE system will be unavailable.
If you benefit from the Peugeot Connect Packs offer with the SOS and Assistance Pack included, there are additional services available to you in your personal space, via the website for your country. For information about the SOS and Assistance Pack, please refer to the general conditions for these services.

Event Data Recording system

(Depending on country of sale)

This vehicle is fitted with an accident data recording system, also called Event Data Recorder (EDR).

This system gathers and records certain vehicle data over a short period (a few seconds) before, during and after an event such as an accident or collision.

In order to gain a better understanding of the circumstances surrounding the event, this system records how the vehicle's various

systems are operating at the time of the event, including:

– Any deployment of a restraint system (e.g. airbag, seat belt).
- The status of the seat belts of all the occupants (fastened/unfastened).
- The contact or intensity of pressure exerted on the pedal(s) engaged by the driver.
– The speed of the vehicle.
- The status of some driving and manoeuvring aids systems.

The following are not recorded by the system:

– Data on normal driving conditions, in other words data not directly related to the event.
– Personal data on the driver and any other occupants.
- The geographical location of the vehicle at the time of the event.

The reading of data recorded by the system requires the following:

- Access to the interior of the vehicle or to the system.

And

- Special equipment that can be purchased from the manufacturer BOSCH (www.BoschCDRTool.com).

Aside from the vehicle Manufacturer, other parties such as law enforcement agencies may access this data in order to analyse the event.

Safety

Electronic stability control (ESC)

The electronic stability control programme includes the following systems:

• Anti-lock braking system (ABS) and Electronic brake force distribution (EBFD).
  – Emergency braking assistance (EBA).
  – Post Collision Safety Brake (PCSB).
  – Anti-slip regulation (ASR).
  – Dynamic stability control (DSC).
  – Trailer stability assist (TSA).

Anti-lock braking system (ABS)/Electronic brake force distribution (EBFD)

These systems enhance the vehicle's stability and handling during braking, and enable greater control while cornering, particularly on poor or slippery road surfaces.

ABS prevents wheel locking in the event of emergency braking.

Electronic brake force distribution (EBFD) manages overall braking pressure on each individual wheel.

▶ When braking in an emergency, depress the pedal very firmly and maintain this pressure.

Normal operation of the ABS may make itself felt by slight vibrations of the brake pedal.

(ABS) The fixed illumination of this warning lamp signals that there is a fault with the ABS.

The vehicle retains conventional braking. Drive carefully at a moderate speed.

Have it checked by a PEUGEOT dealer or a qualified workshop.

This warning lamp, when lit together with the STOP and ABS warning lamps, accompanied by a message and an audible signal, indicates an EBFD malfunction.

You must stop the vehicle.

Stop as soon as it is safe to do so and switch off the ignition.

Contact a PEUGEOT dealer or a qualified workshop.

When changing wheels (tyres and rims), ensure that these are approved for your vehicle.

After an impact Have it checked by a PEUGEOT dealer or a qualified workshop.

Emergency braking assistance (EBA)

This system reduces the emergency stopping distance, by optimising the braking pressure. It is triggered in relation to the speed at which the brake pedal is depressed. The effect of this is a reduction in the resistance of the pedal and an increase in braking efficiency.

Post Collision Safety Brake (PCSB)

If an accident is detected, the vehicle initiates automatic post collision braking. The goal of this system is to reduce the risk of further collisions if the driver does not react.

The system is not operational if the capability of the vehicle to trigger and execute the automatic post collision braking is not available, as it can occur in destructive accidents or in other specific accident scenarios.

It is possible to override the automatic braking by pressing the brake pedal or accelerator pedal.

Operating conditions

The system operates, if the following conditions are met:

– Airbags or pyrotechnic seat belt pretensioners have been deployed by the collision.
- Braking systems and electric functions remain continuously operational during and after collision.

– Driver has not depressed the brake or accelerator pedal.

Malfunction

In the event of a malfunction, one of these

warning lamps will come on fixed on the instrument panel, accompanied by the Service warning lamp, the display of a message and an audible signal.

Have it checked by a PEUGEOT dealer or a qualified workshop.

Anti-slip regulation (ASR)/Dynamic stability control (DSC)

Anti-slip regulation (or traction control) optimises traction by using engine braking and by applying the brakes on the driving wheels to avoid one or more wheels spinning. It also enhances the vehicle's directional stability.

If there is a difference between the vehicle's trajectory and the path desired by the driver, the dynamic stability control system automatically uses engine braking and the brakes on one or more wheels to return the vehicle to the desired path, within the limits of the laws of physics. These systems are activated automatically every time the vehicle is started.

These systems are activated in the event of a problem with grip or trajectory

(confirmed by this warning lamp flashing on the instrument panel).

Deactivation/Reactivation

In exceptional conditions (e.g. moving a vehicle that is bogged down in mud, stuck in snow, on loose soil), it may prove useful to deactivate the DSC/ASR systems, so that the wheels can move freely and regain grip.

Reactivate the system as soon as the level of grip permits.

The ASR system is deactivated/reactivated in the ADAS touch screenation.

Deactivation/reactivation of the ASR system is indicated by this indicator lamp instrument panel coming on/going out and play of a message.

The ASR system is automatically reactivated every time the ignition is switched off or at speeds over 31 mph (50 km/h) Reactivation is manual below 31 mph (50 km/h).

Malfunction

In the event of a malfunction, this warning lamp lights up on the instrument panel, panied by the display of a message and lible signal.

Have it checked by a PEUGEOT dealer or a qualified workshop.

ASR/DSC

These systems enhance safety during normal driving, but should not encourage the driver to take extra risks or drive at high speed.

It is in conditions of reduced grip (rain, snow, ice) that the risk of loss of grip increases. It is therefore important for your safety to keep these systems activated in all conditions, and particularly in difficult conditions.

Correct operation of these systems depends on compliance with the manufacturer's recommendations relating to the wheels

(tyres and rims), braking and electronic components, as well as the assembly and repair procedures provided by PEUGEOT dealers.

In order to ensure that these systems remain effective in wintry conditions, the use of snow or all-season tyres is recommended. All four wheels must be fitted with tyres approved for your vehicle.

All tyre specifications are listed on the tyre/paint label. For more information on Identification markings, refer to the corresponding section.

Trailer stability assist (TSA)

When towing, this system reduces the risk of the vehicle or trailer snaking.

Operation

The system is activated automatically when the ignition is switched on.

The electronic stability control system (ESC) must not have any faults.

The vehicle speed must be between 37 and 99 mph (60 and 160 km/h).

If the system detects that the trailer is snaking, it applies the brakes to stabilise

the trailer and reduces engine power, if necessary, to slow the vehicle (indicated by the flashing of this warning lamp on the instrument panel and the brake lamps coming on).

Safety

For more information on weights and towed loads, refer to the Engine technical data and towed loads section or your vehicle's registration certificate.

To ensure safe driving with a Towing device, refer to the corresponding section.

Malfunction

If a fault occurs, this warning lamp lights up on the instrument panel, accompanied

by a message and an audible signal.

To continue towing a trailer, reduce speed and drive carefully!

Have it checked by a PEUGEOT dealer or a qualified workshop.

! The trailer stability control system provides an extra safety feature under normal driving conditions, when following the recommendations for use of trailers and current legislation in force in your country. It must not encourage the driver to take extra risks, such as using a trailer in unsuitable conditions of operation (e.g. excessive load, exceeded nose weight, worn or under-inflated tyres, faulty braking system) or driving at excessive speed.

In certain cases, the system may not detect trailer snaking, particularly with a light trailer. When driving on slippery or poor surfaces, the system may not be able to prevent sudden trailer snaking.

Seat belts

Inertia reel

The seat belts are equipped with an inertia reel which allows the strap length to adjust automatically to the shape of the user. The seat belt returns to its storage automatically when it is not used.

The inertia reels are fitted with a device which automatically locks the strap in the event of a collision, emergency braking or if the vehicle rolls over. It can be released by pulling the strap firmly and then releasing it so that it reels in slightly.

Pyrotechnic pretensioning

This system improves safety in the event of a frontal or side impact.

Depending on the severity of the impact, the pyrotechnic pretensioning system instantly tightens the seat belts against the body of the occupants.

The pyrotechnic pretensioning seat belts are enabled when the ignition is on.

Progressive force limiting system

This system reduces the pressure of the seat belt on the chest of the occupant, taking their stature into account, thus improving their protection.

In the event of an impact

■ Depending on the nature and seriousness of the impacts, the pyrotechnic device may trigger before and independently of airbag deployment. Deployment of the pretensioners is accompanied by a slight

discharge of harmless smoke and a noise, due to the activation of the pyrotechnic cartridge incorporated in the system. In all cases, the airbag warning lamp comes on.

Following an impact, have the seat belt system checked, and if necessary replaced, by a PEUGEOT dealer or a qualified workshop.

Front seat belts

The front seat belts are fitted with a pyrotechnic pretensioning system and a progressive force limiting system.

Rear seat belts

Line drawing of a car seatbelt with straps attached to the side panel (no text or symbols)

Each of the rear seats has a three-point seat belt with inertia reel.

The outer seats are fitted with a pyrotechnic pretensioning and force limiting system.

Fastening

▶ Pull the strap, then insert the tongue into the buckle.
▶ Check that the seat belt is fastened correctly by pulling on the strap.

Unfastening

▶ Press the red button on the buckle.
▶ Guide the seat belt as it is reeled in.

Seat belt not fastened/unfastened alerts

1. Front left seat belt warning lamp
2. Front right seat belt warning lamp
3. Rear left seat belt warning lamp
4. Rear centre seat belt warning lamp
5. Rear right seat belt warning lamp

Not fastened/unfastened warning lamp

It comes on in red on both the instrument panel and on the seat belts warning lamps display as soon as the system detects that a seat belt is not fastened or has been unfastened.

Front seat belt not fastened alert When the ignition is switched on, if the driver or front passenger has not fastened their seat belt, the corresponding warning lamp (1 or 2) comes on in red. At a speed greater than 12 mph (20 km/h), the warning lamp flashes red, accompanied by an audible signal for around 2 minutes. After this time has elapsed, the warning lamp remains on fixed in red until the seat belt is fastened.
Rear seat belt not fastened alert When the ignition is switched on, if one of the rear passengers has not fastened their seat belt, the corresponding warning lamp (3, 4 or 5) comes on in red for 1 minute.
Seat belt unfastened alert After the ignition is switched on, if the driver or a passenger unfastens their seat belt, the corresponding warning lamp (1, 2, 3, 4 or 5) comes on in red. At a speed greater than 12 mph (20 km/h), the warning lamp flashes, accompanied by an audible signal for around 2 minutes. After this time has elapsed, the warning lamp remains on until the seat belt has been fastened again.
With the ignition on, if the driver or a passenger fastens their seat belt, the corresponding warning lamp (1, 2, 3, 4 or 5) comes on in green on the display.
With the ignition on, if one of the front or rear passenger seats is detected as being unoccupied, the corresponding warning lamp (2, 3, 4 or 5) comes on in grey on the display.

When there are no longer any not fastened/unfastened alerts, the green or grey warning lamps remain on for around 30 seconds, then go off.

Advice

The driver must ensure that passengers use the seat belts correctly and that they are all fastened before setting off.

Wherever seated in the vehicle, you must always fasten the seat belt, even for short journeys.

Do not invert the seat belt buckles, as they will not fulfil their role properly.

To ensure the proper functioning of the belt buckles, make sure that there are no foreign bodies present (e.g. a coin) before fastening. Before and after use, ensure that the seat belt is reeled in correctly.

After folding or moving a seat or rear bench seat, ensure that the seat belt is positioned and reeled in correctly.

Installation

The lower part of the strap must be positioned as low as possible over the pelvis.

The upper part must be positioned in the hollow of the shoulder.

At the front, adjusting the position of the seat belt may require the seat height to be adjusted.

In order to be effective, a seat belt must:

Safety

– be tightened as close to the body as possible.
– be pulled in front of you with a smooth movement, checking that it is not twisted.
– only be used to secure one person.
– not show signs of tearing or fraying.
– not be changed or modified, in order to avoid affecting its performance.

Recommendations for children

- Use a suitable child seat if the passenger is less than 12 years old or shorter than 1.5 metres.

Never use the same seat belt to secure more than one child.

Never carry a child on your lap.

For more information on Child seats, refer to the corresponding section.

Maintenance

In accordance with current safety regulations, for all work on your vehicle's seat belts, contact a qualified workshop with the skills and equipment needed, which a PEUGEOT dealer is able to provide.

Have the seat belts checked regularly by a PEUGEOT dealer or a qualified workshop, particularly if the straps show signs of damage.

Clean the seat belt straps with soapy water or a textile cleaning product, sold by PEUGEOT dealers.

Airbags

General information

This system is designed to improve the safety of the occupants of the front seats and the rear outer seats in the event of a violent collision. The airbags supplement the action of the seat belts equipped with a force limiting system.

Electronic detectors record and analyse the front and side impacts sustained in the impact detection zones:

- In the event of violent impact, the airbags deploy instantly and help better protect the occupants of the vehicle; immediately after the impact, the airbags deflate rapidly in order not to hinder the visibility or the possible exit of the occupants.

- In the event of a slight impact, a rear impact and under certain rollover conditions, the airbags may not deploy; only the seat belt helps to protect you in these situations.

The seriousness of the impact depends on the nature of the obstacle and the speed of the vehicle at the moment of collision.

! The airbags do not operate when the ignition is switched off.

This equipment will only deploy once. If a second impact occurs (during the same or a subsequent accident), the airbag will not be deployed again.

Impact detection zones

Top-down diagram of a car with sound waves and labeled points A and B (no text or symbols beyond labels)

A. Front impact zone

B. Side impact zone

When one or more airbags are deployed, the detonation of the pyrotechnic charge incorporated in the system makes a noise and releases a small quantity of smoke.

This smoke is not harmful, but sensitive individuals may experience irritation.

The detonation noise associated with the deployment of one or more airbags may result in a slight loss of hearing for a short time.

Front airbags

Diagram showing four identical scenarios of a device with circular components and directional arrows, no text or symbols present.

This system protects the driver and front passenger in the event of a serious front impact, limiting the risk of head and chest injury.

The driver's airbag is fitted in the centre of the steering wheel; the front passenger airbag is fitted in the dashboard above the glove box.

Deployment

They are deployed, except for the front passenger airbag if it is deactivated*, in the event of a violent front impact applied to all or part of front impact zone A.

The front airbag inflates between the chest and head of the front occupant of the vehicle and the steering wheel, on the driver's side, and the dashboard, on the passenger's side, to cushion their forward movement.

Lateral airbags

This system protects the driver and front passenger in the event of a serious side impact, limiting the risk of injury to the chest, between the hip and the shoulder.

Each lateral airbag is fitted in the seat backrest frame, on the door side.

Deployment

The lateral airbags are deployed on one side in the event of a serious side impact applied to all or part of the side impact zone B.

The lateral airbag inflates between the chest of the vehicle's occupant and the corresponding door panel.

Curtain airbags

This system helps provide greater protection for the driver and passengers (with the exception of the rear centre passenger) in the event of a serious side impact, in order to limit the risk of injury to the side of the head.

Each curtain airbag is built into the pillars and the upper passenger compartment area.

Deployment

It deploys simultaneously with the corresponding lateral airbag in the event of a serious side impact applied to all or part of the side impact zone B.

The curtain airbag inflates between the front and rear occupants of the vehicle and the corresponding windows.

Malfunction

In the event of a malfunction, these warning lamps light up on the instrument panel. Contact a PEUGEOT dealer or a qualified workshop to have the system checked.

The airbags may not be deployed in the event of a serious impact.

Safety

In the event of a minor impact or bump at the side of the vehicle or if the vehicle rolls over, the airbags may not be deployed. In the event of a rear or front collision, none of the lateral airbags are deployed.

Advice

! For the airbags to be fully effective, observe the safety recommendations below.

Adopt a normal and upright sitting position. Fasten your seat belt and position it correctly. Do not place anything between the occupants and the airbags (e.g. child, animal, object), do not fix or attach anything near or in the path of the airbags, as this could cause injuries when they are deployed.

Never modify the original definition of the vehicle, particularly in the area directly around the airbags.

Even if all of the precautions mentioned are observed, a risk of injury or of minor burns to the head, chest or arms cannot be ruled out when an airbag is deployed. The bag inflates almost instantly (within a few milliseconds) then deflates within the same time, discharging the hot gas via openings provided for this purpose.

After an accident or if the vehicle has been stolen, have the airbag systems checked. All work must be carried out only by a PEUGEOT dealer or a qualified workshop

Front airbags

Do not drive holding the steering wheel by its spokes or resting your hands on the centre part of the wheel.

Passengers must not place their feet on the dashboard.

Do not smoke as deployment of the airbags can cause burns or the risk of injury from a cigarette or pipe.

Never remove or pierce the steering wheel or hit it violently.

Do not fix or attach anything to the steering wheel or dashboard, as this could cause injuries when the airbags are deployed.

Lateral airbags

- Use only approved seat covers compatible with the deployment of these airbags. For information on the range of seat covers suitable for your vehicle, contact a PEUGEOT dealer.

Do not fix or attach anything to the seat backrests (e.g. clothing) as this could cause injuries to the chest or arm when the airbag is deployed.

Do not sit with the upper part of the body any nearer to the door than necessary.

The vehicle's front door panels include side impact sensors.

A damaged door or any unauthorised or incorrectly executed work (modification or repair) on the front doors or their interior trim could compromise the operation of these

sensors - risk of malfunction of the lateral airbags! All work must be carried out only by a PEUGEOT dealer or a qualified workshop

Curtain airbags

- Do not fix or attach anything to the roof, as this could cause head injuries when the curtain airbag is deployed. Do not remove the grab handles installed on the roof.

Child seats

The regulations on carrying children are specific to each country. Refer to the legislation in force in your country.

For maximum safety, please observe the following recommendations:

- In accordance with European regulations, all children under the age of 12 or less than 1.5 metres tall must travel in approved child seats suited to their size or weight, on seats fitted with a seat belt or ISOFIX mountings.

- Statistically, the safest seats in your vehicle for carrying children are the rear seats.

- Children ageing less than 15 months must travel in the "rearward facing" position, whether in the front or rear of the vehicle.

It is recommended that children travel on the rear seats of the vehicle:

• "rearward facing" up to the age of 3.
• "forward facing" over the age of 3.

! Make sure that the seat belt is correctly positioned and tightened.

For child seats with a support leg, ensure that the support leg is in firm and steady contact with the floor.
An incorrectly installed child seat in a vehicle compromises the child's safety in the event of an accident.

Ensure that there is no seat belt or seat belt buckle under the child seat, as this could destabilise it.

Remember to fasten the seat belts or the child seat harness keeping the slack relative to the child's body to a minimum, even for short journeys.

When installing a child seat using the seat belt, ensure that the seat belt is tightened correctly on the child seat and that it secures the child seat firmly on the vehicle seat. If the passenger seat is adjustable, move it forwards if necessary.

Remove the head restraint before installing a child seat with a backrest on a passenger seat.

Ensure that the head restraint is stored or attached securely to prevent it from being

thrown around the vehicle in the event of sharp braking. Refit the head restraint once the child seat has been removed.

Installing a booster seat

The chest part of the seat belt must be positioned on the child's shoulder without touching the neck.

Ensure that the lap part of the seat belt passes correctly over the child's thighs. Use a booster seat with a backrest, equipped with a belt guide at shoulder level.

Additional protections

To prevent accidental opening of the doors and rear windows, use the "Child lock". Take care not to open the rear windows by more than one third.

To protect young children from the sun's rays, fit side blinds on the rear windows.

As a safety measure, do not leave:

– A child alone and unsupervised inside a vehicle.
- A child or an animal in a vehicle which is exposed to the sun, with the windows closed.
- The keys within reach of children inside the vehicle.

Child seat at the rear

Forward-facing or rearward-facing

Four identical pictograms showing a person in red inside a seatbelt, with no text or symbols present.

▶ Move the vehicle's front seat forward and straighten the backrest so that the legs of the child in the forward-facing or rearward-facing child seat itself do not touch the vehicle's front seat.
▶ Check that the backrest of the forward-facing child seat is as close as possible to the backrest of the vehicle's rear seat, and ideally in contact with it.

Centre rear seat

A child seat with a support leg must never be installed on the centre rear passenger seat.

Safety

Child seat at the front

▶ Adjust the front passenger seat to the highest and fully back longitudinal position, with the backrest straightened.

"Forward facing"

You must leave the front passenger airbag active.

"Rearward facing"

! The front passenger airbag must be deactivated before installing a rearward facing child seat. Otherwise, the child risks being seriously injured or killed if the airbag is deployed.

Warning label - Front passenger airbag

Diagram showing two car interior compartments with directional arrows indicating movement or flow (no text or symbols)

You must comply with the following instruction, as reminded by the warning label on both sides of the passenger sun visor:

NEVER use a rearward facing child restraint on a seat protected by an ACTIVE AIRBAG in front of it, DEATH or SERIOUS INJURY to the CHILD can occur.

Deactivating the front passenger airbag

Passenger airbag OFF

To ensure the safety of the child, the front passenger airbag MUST be deactivated when a "rearward facing" child seat is installed on the front passenger seat. Otherwise, the child risks being seriously injured or killed in the event of deployment of the airbag.

! Vehicles not equipped with a deactivation/reactivation control

Installing a "rearward facing" child seat on the front passenger seat is strictly prohibited - risk of death or serious injury in the event of airbag deployment!

Deactivating/Reactivating the front passenger airbag

For vehicles on which it is fitted, the switch is located on the side of the dashboard.

With the ignition off:

▶ To deactivate the airbag, turn the key in the switch to the "OFF" position.
▶ To reactivate it, turn the key to the "ON" position.

When the ignition is switched on:

This warning lamp comes on and remains lit to signal deactivation.

This warning lamp comes on for about 1 minute to signal activation.

"ISOFIX" mountings

The seats shown below are fitted with ISOFIX compliant mountings:

Top-down diagram of a car showing four cars with directional arrows indicating flow or movement (no text or symbols)

The mountings comprise three rings for each seat, indicated by a marking:
- Two rings A, located between the vehicle seat backrest and cushion.

These rings are located behind zips.

The 2 latches on ISOFIX child seats are secured to them.

- One ring B, located behind the seat, called the TOP TETHER, for attaching seats fitted with an upper strap.

This system prevents the child seat from tipping forwards in the event of a front impact.

This ISOFIX mounting system provides fast, reliable and safe fitting of the child seat in the vehicle.

To secure the child seat to the TOP TETHER:

▶ Remove and stow the head restraint before installing the child seat on this seat (refit it once the child seat has been removed).
▶ Pass the strap of the child seat behind the seat backrest, centring it between the openings for the head restraint rods.
▶ Secure the upper strap hook to ring B.
▶ Tighten the upper strap.

When fitting an ISOFIX child seat to the left-hand rear seat of the bench seat, before fitting the seat, first move the centre rear seat belt towards the middle of the vehicle, so as to avoid the seat interfering with the operation of the seat belt.

Safety

An incorrectly installed child seat in a vehicle compromises the child's safety in the event of an accident.

Strictly observe the fitting instructions provided in the user guide supplied with the child seat.

For information about the options for fitting ISOFIX child seats in your vehicle, refer to the summary table.

i-Size child seats

i-Size child seats have two latches that are anchored to the two rings A.

These i-Size child seats also have:

- either an upper strap that is attached to ring B.

- or a support leg that rests on the vehicle floor, compatible with the approved i-Size seat position.

Their role is to prevent the child seat from tipping forward in the event of a collision.

For more information on the ISOFIX mountings, refer to the corresponding section.

Recommended child seats

"RÖMER Baby-Safe 3 i-Size"

Size: 40 - 83 cm

From birth to 15 months

(up to 13 kg)

With or without its ISOFIX base.

Suitable for "rearward facing" installation only.

"RÖMER TriFix 2 i-Size"

Size: 76 - 105 cm

From 15 months to 4 years

(from 9 to 22 kg)

Installed with ISOFIX and Top Tether mountings.

Suitable for "forward facing" installation only.

"RÖMER KidFix i-Size"

Size: 100 - 150 cm

From 3.5 to 12 years

(from 15 to 36 kg)

Can be installed with or without ISOFIX mountings.

The child is restrained by the seat belt.

"GRACO Booster"

Size: over 135 cm

(from 22 to 36 kg)

The child is restrained by the seat belt.

Please follow the child restraint manufacturers' instructions for installing the appropriate child restraint in the vehicle.

For the semi-universal or vehicle-specific child restraint (ISOFIX or belt-type child

restraint), refer to the list of vehicles provided in the child restraint user manual.

i Ensure that the installation location of the child restraint system inside the vehicle is correct.

Refer to the summary table for the installation of child seats.

Installing universal, ISOFIX and i-Size child seats

In compliance with European regulations, this table indicates the options for installing child seats secured using the seat belt and universally approved (a) as well as the largest ISOFIX and i-Size child seats for the seat positions fitted with ISOFIX anchorage points in the vehicle.

	Seat number
	Front seats(d)			Rear seats(d)
	1 3 4 5 6
	3 1 4 5 6
Front passenger airbag Deactivated "OFF"		(b)	Activated "ON" (c)
Position compatible with a universal (a) child seat	no yes (f)	(i) yes (f) (j) yes yes (e)	yes
Position compatible with an i-Size child seat	no no yes	no yes
Position equipped with a Top Tether hook	no no yes	no yes
"Carrycot" type child seat no no no	no no
