FGC 625 XS NP - Range hood FRANKE - Free user manual and instructions

Product type	Kitchen hood
Brand	Franke
Model	FGC 625 XS NP
Energy class	A+
Width	60 cm
Depth	50 cm
Minimum height	65 cm
Net weight	12 kg
Voltage	220-240 V
Frequency	50 Hz
Motor power	200 W
Maximum noise level	65 dB(A)
Maximum airflow	650 m³/h
Filtration type	Metal grease filter + charcoal filter (optional)
Number of speeds	3 + boost
Controls	Mechanical sliders
Lighting	2 x LED 3 W
Material	Stainless steel, tempered glass
Installation type	Wall-mounted, external extraction or recirculation
Duct diameter	150 mm
Safety	Automatic safety shutdown
Maintenance	Clean the grease filter every month, replace the charcoal every 6 months
Spare parts available	Filters, bulbs, motor
Repairability index	8.2 / 10
Warranty	2 years

Frequently Asked Questions - FGC 625 XS NP FRANKE

How to install the Franke FGC 625 XS NP hood?

Installation must be carried out by a qualified professional. Ensure the hood is securely fixed to the wall at a height of 65 to 75 cm above the cooking surface. Respect safety distances and use a 150 mm diameter exhaust duct if opting for external extraction.

How to clean the grease filters?

Metal grease filters can be cleaned in the dishwasher or by hand with warm soapy water. Let them dry completely before putting them back. Clean them every month to maintain performance.

The hood makes noise, is this normal?

A noise level up to 65 dB(A) at maximum speed is normal. If the noise is excessive, check that the filters are clean and the exhaust duct is not obstructed. Improper installation can also cause vibrations.

When to replace the charcoal filter?

The charcoal filter must be replaced every 6 months, or more often if you cook a lot. It is not washable. Use only compatible Franke filters (see manual).

Can I use the hood in recirculation mode?

Yes, the Franke FGC 625 XS NP hood can operate in recirculation mode. You need to install a recirculation kit with a charcoal filter (not supplied) and an air deflector. Follow the installation instructions in the manual.

Is the remote control provided?

No, this hood is equipped with mechanical slider controls. There is no remote control. Speeds and lighting are adjusted manually on the device.

What are the exact dimensions?

The hood measures 60 cm width, 50 cm depth, and a height of 65 cm in low position (may vary depending on installation). Check the available space before purchase.

Can I install it above an induction hob?

Yes, this hood is compatible with all cooktops, including induction. Maintain a minimum distance of 65 cm between the hood and the hob for electric/induction hobs (75 cm for gas).

What to do if the hood does not turn on?

First check the power supply (fuse, circuit breaker). If the lighting does not work, the LED bulbs may be defective (contact customer service). If the motor does not start, the capacitor or motor may be faulty.

Where to find spare parts?

Spare parts (filters, bulbs, motor) are available from Franke after-sales service or specialized websites. Use the exact model reference FGC 625 XS NP to order.

USER MANUAL FGC 625 XS NP FRANKE

For your safety and correct operation of the appliance, read this manual carefully before installation and use. Always keep these instructions with the appliance even if you move or sell it. Users must fully know the operation and safety features of the appliance.

The wire connection has to be done by a specialized technician.

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• If the instructions for installation of the gas hob specify a greater distance, this must be respected.
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• Means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.
• For Class I appliances, check that the domestic power supply

guarantees adequate earthing. - Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible. - Regulations concerning the discharge of air have to be fulfilled. - Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.). - If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0.04 mbar to prevent fumes being drawn back into the room by the cooker hood. - The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels. - If the supply cord is damaged, it must be replaced by the manufacturer or its service agent. - Connect the plug to a socket complying with current regulations, located in an

accessible place.

- With regards to the technical and safety measures to be adopted for fume discharging, it is important to closely follow the regulations provided by the local authorities.

WARNING: Before installing the Hood, remove the protective films.

- Use only screws and small parts supplied with the hood.

WARNING: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

- Do not look directly at the light through optical devices (binoculars, magnifying glasses...).

- Do not flambé under the range hood; risk of fire.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Children should be supervised to ensure that they do not play with the appliance. - The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.

Accessible parts may become hot when used with cooking appliances.

- Clean and/or replace the Filters after the specified time period (Fire hazard). See paragraph Care and Cleaning.

- There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).

- The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human

health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

2. USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than those for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.

3. CARE AND CLEANING

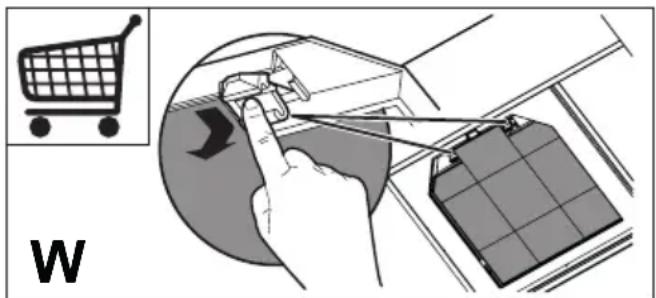

- The activated charcoal filter is not washable and cannot be regenerated. It must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage (W).

- The grease filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage. They can be washed in a dishwasher (Z).

- Clean the hood using a damp cloth and a neutral liquid detergent.

4. CONTROLS

Button	Functions Led
T1 Speed	Turns the Motor on at Speed one.	On
	Turns the Motor off. -
T2 Speed	Turns the Motor on at Speed two.	On
T3 Speed	When pressed briefly, turns the Motor on at Speed three.	Fixed
	Pressed for 2 Seconds. Activates Speed four with a timer set to 6 minutes, after which it returns to the speed that was set previously. Suitable to deal with maximum levels of cooking fumes.	Flashing
L Light	Turns the Lighting System on and off.	-

Warning: Button T1 turns the motor off, after first passing to speed one.

5. LIGHTING

- For replacement, contact technical support ("To purchase, contact technical support").
