| Product Type | Freestanding Front-Loading Washing Machine |
| Capacity | 8 kg |
| Maximum Spin Speed | 1400 rpm |
| Dimensions (H x W x D) | 85 cm x 60 cm x 65 cm |
| Weight | 85 kg |
| Power Supply | 230 V / 50 Hz / 10 A |
| Energy Efficiency Class | A |
| Water Consumption per Cycle | 48 L |
| Annual Energy Consumption | 200 kWh |
| Noise Level (Wash/Spin) | 48 dB / 73 dB |
| Drum Type | Honeycomb Drum |
| Dosing System | TwinDos with CapDosing |
| Connectivity | Miele App (WiFi) |
| Number of Programs | 12 |
| Program List | Cottons, Easy Care, Delicates, Dark Denim, Shirts, Woollens, Silk, QuickPowerWash, etc. |
| Safety Features | Child Lock, Leak Prevention, Foam Detection, Unbalanced Load Control |
| Water Connection | Cold water only (optional hot water connection) |
| Door Hinge | Left side (reversible) |
| Maximum Load | 8 kg |
Frequently Asked Questions - WED 125 WCS 8kg MIELE
User questions about WED 125 WCS 8kg MIELE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Washing machine in PDF format for free! Find your manual WED 125 WCS 8kg - MIELE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. WED 125 WCS 8kg by MIELE.
USER MANUAL WED 125 WCS 8kg MIELE
Operating instructions for washing machines
To avoid the risk of accidents or damage to the machine, it is essential to read these instructions before it is installed and used for the first time.
Warning and Safety instructions 5
Operating the washing machine 12
Control panel.... 12
How the control field works.... 13
Caring for the environment 14
Before using for the first time 15
Washing environmentally and economically 17
- Prepare the laundry.... 18
- Load the washing machine.... 19
- Select a programme.... 20
- Add detergent 22

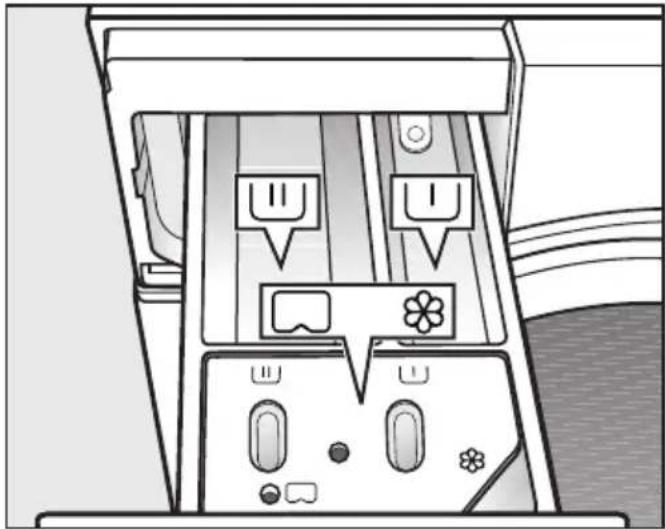

Detergent dispenser drawer.... 22
CapDosing.... 24
- Start the programme.... 26
Adding laundry during a programme sequence (AddLoad) 26
- End of programme 27
Spinning.... 28
Delay start 29
Programme chart 30
Extra options.... 34
Short.... 34
Water +.... 34
Pre-wash 34
Pre-ironing.... 34
The following extras can be selected in addition to the programmes.... 35
Programme sequence.... 36
Changing the programme sequence 38
Changing a programme (safety lock) 38
Cancelling a programme 38
Garment care label symbols.... 39
Detergent 40
The correct detergent.... 40
Water softeners 40
Dispensing aids 40
Fabric conditioner and liquid starch.... 40
Recommended Miele detergents 42
Recommended detergents in accordance with Directive (EU) Nr. 1015/2010.... 43
Cleaning and care 44
Cleaning the external casing and the control panel 44
Cleaning the detergent dispenser drawer 44
Hygiene info (Cleaning the drum) 46
Cleaning the water inlet filter.... 46
Problem solving guide 47
The programme does not start.... 47
The programme is cancelled and a fault indicator light lights up in the control panel.... 48
During the programme, a symbol appears in the time display 49
At the end of the programme, an indicator light lights up in the control panel ... 49
General problems with the washing machine 50
An unsatisfactory wash result 52
The door will not open....53
Opening the door in the event of a blocked drain outlet and/or power cut ..... 54
Service.... 56
Contact in the event of a fault 56
Optional accessories.... 56
EPREL database 56
Warranty 56
Installation.... 57
Front view 57
Rear view.... 58
Installation surface 59
Transporting the washing machine to its installation site.... 59
Removing the transit bars 60
Fitting the transit bars 62
Levelling the machine....63
Screwing out and adjusting the feet.... 63
Installing under a continuous worktop 64
Washer-dryer stack 64
Contents
The water protection system.... 65
Connection to the water supply 65
Water drainage 67
Electrical connection 68
Technical data 69
Consumption data 70
Programmable functions 71
Choosing and selecting a programmable function 71
Editing and saving a programmable function 72
Exit programming level 72
P13 Sensor tone 72
P14 Lock code 73
P22 Control panel switch-off status 73
P24 Memory 74
P26 Longer pre-wash Cottons 74
P28 Gentle action 74
P29 Reduce temperature.... 74
P30 Water plus.... 75
P31 Water plus level 75
P32 Maximum rinse level 75
P33 Suds cooling 76
P34 Anti-crease 76
P49 Low water pressure.... 76
P62 Backlight brightness dimmed 76
Detergents and care products 77
Detergent 77
Specialist detergents 78
Fabric care 79
Additives 79
Machine care....79
This washing machine complies with all current local and national safety requirements. However, inappropriate use can lead to personal injury and damage to property.
Read the operating instructions carefully before using the washing machine. They contain important information on safety, installation, use and maintenance. This prevents both personal injury and damage to the washing machine.
In accordance with standard IEC 60335-1, Miele expressly and strongly advises that you read and follow the instructions in the chapter on installing the washing machine as well as the safety instructions and warnings.
Miele cannot be held liable for damage caused by non-compliance with these instructions.
Keep these operating instructions in a safe place and pass them on to any future owner.
Correct application
This washing machine is intended for use in domestic households and similar working and residential environments. The washing machine is not intended for outdoor use. It must be used only as a domestic appliance to wash items which are specified by the manufacturer as being washable on the wash care label. Miele cannot be held liable for damage resulting from incorrect or improper use or operation. The washing machine can only be used by people with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, if they are supervised whilst using it or have been shown how to use it safely and recognise and understand the consequences of incorrect operation.
Safety with children
Children under 8 years of age must be kept away from the washing machine unless they are constantly supervised. Children 8 years and older may only use the washing machine unsupervised if they have been shown how to use it safely and recognise and understand the consequences of incorrect operation. Children must not be allowed to clean or maintain the washing machine unsupervised. Please supervise children in the vicinity of the washing machine and do not let them play with it.
Technical safety
Please observe the instructions in "Installation" and "Technical data". Before setting up the washing machine, check it for any externally visible damage. Do not install or use a damaged machine. Before connecting the washing machine, ensure that the connection data on the data plate (fuse rating, voltage and frequency) match the mains electricity supply. If in any doubt, consult a qualified electrician.
Temporary or permanent operation on an autonomous power supply system or a power supply system that is not synchronised with the mains power supply (e.g. island networks, back-up systems) is possible. A prerequisite for operation is that the power supply system complies with the specifications of EN 50160 or an equivalent standard.
The function and operation of the protective measures provided in the domestic electrical installation and in this Miele product must also be maintained in isolated operation or in operation that is not synchronised with the mains power supply, or these measures must be replaced by equivalent measures in the installation. As described, for example, in the current version of BS OHSAS 18001–2 ISO 45001.
The electrical safety of this washing machine can only be guaranteed when correctly earthed.
It is essential that this standard safety requirement is met. If in any doubt, please have the wiring system of the building tested by a qualified electrician.
Miele cannot be held liable for the consequences of an inadequate earthing system (e.g. electric shock).
Do not connect the washing machine to the mains electricity supply by a multi-socket adapter, extension lead or similar. These do not guarantee the required safety of the machine (fire hazard due to the risk of overheating).
Faulty components must only be replaced by genuine Miele original spare parts. Only when these parts are fitted can Miele guarantee the safety standards of the machine.
The electrical socket must be easily accessible after installation so that the machine can be disconnected from the electricity supply if necessary.
Unauthorised repairs could result in unforeseen dangers for the user, for which the manufacturer cannot accept liability. Repairs should only be undertaken by a Miele authorised service technician, otherwise any subsequent damage will not be covered by the warranty.
While the washing machine is under warranty, repairs should only be undertaken by a Miele authorised service technician. Otherwise the warranty will be invalidated.
If the electrical connection cable is faulty it must only be replaced by a Miele authorised service technician to protect the user from danger.
The machine must be isolated from the electricity supply when cleaning and maintaining the machine and in the event of a fault.
The machine must only be connected to the on-site water supply using a new hose kit. Old hose kits must not be re-used. Check the condition of the hoses regularly so that you can replace them in good time and avoid the risk of any water damage.
The water flow pressure must be at least 100 kPa and should not exceed 1000 kPa.
In areas which may be subject to infestation by cockroaches or other vermin, pay particular attention to keeping the machine and its surroundings in a clean condition at all times. Any damage which may be caused by cockroaches or other vermin will not be covered by the warranty.
The machine must not be used in a non-stationary location (e.g. on a ship).
Do not make any alterations to the machine, unless authorised to do so by Miele.
Correct use
Do not install the washing machine in a room where there is a risk of frost. Frozen hoses may burst or split. The reliability of the electronic control unit may be impaired at temperatures below freezing point. Before using the machine for the first time, check that the transit bars at the rear of the machine have been removed (see “Installation - Removing the transit bars”). During spinning, a transit bar which is still in place may result in damage to both the machine and adjacent furniture or appliances. Turn off the stopcock if the machine is to be left for any length of time (e.g. holiday), especially if there is no floor drain (gully) in the immediate vicinity. Flooding danger.
If hooking the drain hose into a wash basin, check that the water can drain off quickly enough to prevent the sink from overflowing. Make sure the drain hose is secure, so that the force of the water flowing out of the hose does not dislodge it.
Take care to ensure that foreign objects (e.g. nails, pins, coins, paper clips) do not find their way into the machine with the laundry. These may damage components of the machine (e.g. suds container, drum), which in turn can result in damage to the laundry. Take care when opening the drum door after using the steam function. Danger of burning due to escaping steam and the high temperature of the surface of the drum as well as the porthole glass. Stand back away from the machine and wait until the steam has dissipated. The maximum load for this washing machine is 8.0 kg (dry weight). See the “Programme chart” for the maximum recommended loads for individual programmes.
If the correct amount of detergent is dispensed, the machine should not need to be descaled. If, however, you do wish to descale it, only use a proprietary natural citric acid based descaling agent. Miele recommends using Miele descaling agent which is available to order online at www.miele.co.uk or from Miele. Strictly observe the instructions on the packaging.
Textiles which have been pre-treated in solvent based cleaning agents must be thoroughly rinsed in clean water before being washed in the machine.
Do not use solvent based cleaning agents, e.g. those containing benzine, in this machine, as this may result in damage to component parts and create toxic fumes. Such agents also pose a fire and explosion hazard.
Do not use solvent based cleaning agents, e.g. those containing benzine, to clean the surfaces of the machine. They can cause damage to plastic surfaces.
Only use dyes specified by the manufacturer as being suitable for use in a domestic washing machine. Always observe the manufacturer's instructions carefully.
Colour run and dye removers contain sulphur compounds which can cause damage such as corrosion. Do not use these products in this machine.
If detergent comes into contact with the eyes, rinse them thoroughly with lukewarm water immediately. If swallowed, seek medical assistance immediately and retain the packaging or label for reference. Those with skin problems or sensitive skin should avoid their skin coming into contact with detergent.
Accessories and spare parts
▶ Only use original Miele accessories. If other parts are used, warranty, performance and product liability claims will be invalidated. A Miele tumble dryer can be stacked on top of a Miele washing machine using the appropriate stacking kit (available as an optional accessory). Please make sure you order the correct one for the Miele washing machine and Miele tumble dryer. If installing the machine on a Miele plinth, (available as an optional accessory, depending on country), please make sure you order the correct one for this washing machine. ▶ Miele will guarantee to supply functional spare parts for a minimum of 10 years and up to 15 years following the discontinuation of your washing machine.
Miele cannot be held liable for damage caused by non-compliance with these Warning and Safety instructions.
Control panel
① Control field
The control field consists of a time display and various sensor controls. The individual sensor controls are explained in the following sections.
② Sensor controls – temperature for selecting the temperature. ③ Sensor controls – spin speeds for selecting the spin speed. ④ Sensors for extra options
You can supplement wash programmes with extra options. If a wash programme has been selected, the sensor controls for the possible Extras light up dimly.
⑤ Indicator lights
lights up if there are faults affecting the water inlet and drainage lights up if excess detergent was used + lights up as a reminder about hygiene information The Add laundry function cannot be selected.
⑥ Sensor controls – CapDosing
CapDosing of fabric care products (e.g. fabric conditioner, proofing agent) CapDosing of additives (e.g. detergent enhancer) CapDosing of detergent (for the main wash only)
⑦ Time display
After the programme has started, the programme duration will appear in the display in hours and minutes. When Delay start is being used, the programme duration will appear after the Delay start time has elapsed.
⑧ Sensor controls < ♦ >
The Delay start time selected will appear in the time display.
After the programme has started, the Delay start time will begin to count down.
Once the Delay start time has elapsed, the programme begins and the estimated programme duration appears on the time display.
After touching the sensor control, a later start time for the programme (Delay start) can be selected. Once selected, lights up brightly.
The duration of the Delay start period is increased by touching the > sensor control.
< The duration of the Delay start period is reduced by touching the < sensor control.
⑨ Start/Add laundry sensor control
Ⓐ The programme can be started as soon as the sensor control is flashing on and off. Touching the Start/Add laundry sensor control starts the selected programme. The sensor control lights up constantly.
⑧ Once the programme has been started, the Start/Add laundry sensor control allows you to add laundry.
⑩ Optical interface
This is used by the Service department as a transmission point.
⑪ Programme selector
for selecting programmes and for switching off the appliance. The washing machine is switched on when you select a programme, and switched off by turning the programme selector to the ⏻ position.
How the control field works
The ②, ③, ④, ⑥, ⑧ and ⑨ sensor controls react to fingertip contact. If a sensor control is illuminated, it can be selected.
If a sensor is brightly lit, this means: currently selected
If a sensor is dimly lit, this means: it can be selected
Disposal of the packing material
The packaging is designed to protect the appliance from damage during transportation. The packaging materials used are selected from materials which are environmentally friendly for disposal and should be recycled.
Recycling the packaging reduces the use of raw materials in the manufacturing process and also reduces the amount of waste in landfill sites.
Disposing of your old appliance
Electrical and electronic appliances often contain valuable materials. They also contain specific materials, compounds and components, which were essential for their correct function and safety. These could be hazardous to human health and to the environment if disposed of with your domestic waste or if handled incorrectly. Please do not, therefore, dispose of your old appliance with your household waste.
Please dispose of it at your local community waste collection / recycling centre for electrical and electronic appliances, or contact your dealer or Miele for advice. You are also responsible for deleting any personal data that may be stored on the appliance being disposed of. Please ensure that your old appliance poses no risk to children while being stored prior to disposal.
⚠️ Damage resulting from incorrect installation and connection. Installing and connecting the washing machine incorrectly will cause serious property damage. See “Installation”.
Removing the protective foil and stickers
■ Remove:
- Any protective film from the door
- Any stickers from the front and the lid
Please do not remove any labels (e.g. the data plate) which are visible when you open the door.
■ Shut the door with a gentle swing.
This washing machine has undergone a complete functional test at the factory and there will be some residual water in the drum from this process.
Remove the drain hose elbow from the drum
An elbow piece for the drain hose is stored in the drum.
■ Reach under the door grip and pull the door open. ■ Remove the elbow piece.
Running the first programme
For optimum water and energy consumption and excellent wash results, it is important to calibrate the washing machine.
To do this, the Cottons programme must be run without laundry and without detergent.
■ Open the stopcock.
The washing machine is now switched on and in the control field, the temperature 40 °C lights up.
The programme will start.
After 10 minutes, the indicators dim, except for the Start/Add laundry sensor control.
Opening the door at the end of the programme
The door remains locked during the anti-crease phase. The control field lights up for the first 10 minutes. The control field then goes out and the Start/Add laundry sensor control flashes.
■ Turn the programme selector to the ⏻ position.
-0- appears on the timer display and the 🔊 indicator light goes out.
The door unlocks.
Tip: After the anti-crease phase, the washing machine will have switched off and the door unlocked automatically. The control field will be completely dark.
■ Reach under the door grip and pull the door open.
Tip: Leave the door slightly open to allow the drum to dry.
Initial commissioning is now complete.
Energy and water consumption
- To get the most out of your machine, load the maximum dry load size for the wash programme you are using. This will keep the energy and water consumption to a minimum in relation to the size of the load.
- Programmes that are more efficient with regard to energy and water consumption generally have a longer running time. By extending the programme running time, the wash temperature that is actually reached can be reduced while still providing the same wash results.
For example, the
ECO 40-60 programme has a longer running time than the Cottons 40 °C or 60 °C programme. The
ECO 40-60 programme is more efficient in terms of energy and water consumption but has a longer running time.
- Use the Express 20 programme for small, lightly soiled loads.
- Modern detergents make it possible to wash at lower temperatures (e.g. 20 °C). Using lower temperature settings will save energy.
Hygiene in the washing machine
Washing at low temperatures and/or using liquid detergents can cause bacteria and odours to build up in the washing machine. Miele therefore recommends cleaning the washing machine once every month.
When the ✝ indicator light appears in the control field, the washing machine must be cleaned.
Information about subsequent tumble drying
The spin speed selected affects the residual moisture in the laundry and the sound emissions of the washing machine.
The higher the spin speed, the lower the residual moisture in the laundry. However, the sound emissions of the washing machine will increase.
Select the highest possible spin speed for the wash programme to save energy in the subsequent tumble dryer cycle.
Detergent
- Do not exceed the amounts of detergent recommended by the manufacturer on the packaging.
- Adjust the dosage to the degree of soiling of the laundry.
- Reduce the amount of detergent with smaller loads (approx. 1/3 less than the amount recommended can be used when washing a half load).
1. Prepare the laundry
Empty all pockets.
⚠️ Damage due to foreign objects. Nails, coins, paper clips, and so on can cause damage to garments and components in the machine. Check the laundry before washing and remove any foreign objects.
Sort the laundry
Sort the laundry by colour and by care label. Most garments have a textile care label in the collar or side seam.
Tip: Dark textiles often contain excess dye and should be washed separately several times before being included in a mixed load. Always wash whites and coloureds separately.
Pre-treating stains
■ Badly soiled areas and stains should be cleaned as soon as possible, preferably whilst still fresh. Spillages should be carefully dabbed off using a soft, colourfast cloth. Do not rub.
Tip: Stains (e.g. blood, egg, coffee, tea) can be pre-treated using some handy tricks which can be found in the Miele guide to laundry care.
⚠️ Damage due to solvent-based cleaning agents Cleaning agents containing benzine, stain remover, etc., can damage plastic parts.
When pre-treating textiles, make sure that any plastic parts (e.g. buttons) do not come into contact with cleaning agent.
⚠️ Risk of explosion due to solvent-based cleaning agents. When using solvent-based cleaning agents, an explosive mixture may develop. Never use solvent-based cleaning agents in the washing machine.
General tips
- Curtains: Remove lead weights first or place in a laundry bag.
- Underwiring and collar stiffeners: Any loose wiring in bras, shirt collar stiffeners, etc. should be removed or sewn in.
- Close any zips, attach velcro fasteners, fasten hooks and eyes etc. before washing.
- Fasten duvet covers, pillow cases etc. to prevent small items from being rolled up inside them.
Do not wash any items in this washing machine which are specified by the manufacturer as not washable on the care label ( Symbol).
2. Load the washing machine
Open the door
Reach under the door grip and pull the door open.
Check the drum for pets or foreign objects before loading it with laundry.
The most efficient use of energy and water is achieved when a full load is washed. However, do not overload as this reduces cleaning efficiency and causes creases.
Unfold the laundry and load loosely into the drum.
Mixing both large and small items gives better wash results and also helps distribute the load evenly during spinning.
Tip: Please note the maximum load for different wash programmes.
Close the door
Make sure that no items are caught between the door and the seal.
Shut the door with a gentle swing.
3. Select a programme
Programme selection
The washing machine is switched on by turning the programme selector to a wash programme.
Turn the programme selector to the required programme.
The likely wash time is shown in the time display and the pre-set temperature and spin speed light up in the control panel.
Selecting a temperature and spin speed
The wash programme's preset temperature and spin speed light up brightly. The choice of available temperatures and spin speeds for the wash programme light up dimmed.
The temperatures reached inside the washing machine might not be the same as the temperatures selected. Perfect wash results are achieved through a combination of energy use and wash duration.
■ Touch the sensor for the desired temperature. It will then light up brightly. ■ Touch the sensor for the desired spin speed. It will then light up brightly.
3. Select a programme
Selecting Extras
The selection of extras available for the wash programme lights up dimly.
Short
Water +
Pre-wash
Pre-ironing
■ Touch the sensor for the extra you want. It then lights up brightly.
Tip: You can select multiple extras for a wash programme.
Please refer to "Extras" for more information.
4. Add detergent
Detergent dispenser drawer
Any detergent suitable for automatic front loading washing machines can be used. Please observe the instructions for use and dosage on the detergent packaging.
Adding detergent
Pull out the detergent drawer and add detergent to the compartments.
Detergent for the pre-wash
Detergent for the main wash
Fabric softener, liquid starch, or capsules
capsules
Adding fabric conditioner
Add fabric conditioner or liquid starch to the ✅ compartment. Do not exceed the maximum level mark.
It will be automatically dispensed in the final rinse. At the end of the programme a small amount of water remains in the ✿ compartment.
If starching frequently, thoroughly clean the dispenser compartment, especially the siphon tube, regularly.
Tips on dosing
Adjust the detergent dosage to the level of soiling of the laundry and the size of the load. Reduce the amount of detergent with smaller loads (e.g. reduce the amount of detergent by 1/3 when washing a half load).
Too little detergent:
- Results in laundry not being cleaned properly and may cause it to become grey and hard to the touch over time.
- Can lead to a build-up of mould in the washing machine.
- Results in grease not being completely removed from the laundry.
- Can lead to limescale deposits on the heater elements.
Too much detergent
- Causes poor wash, rinse, and spin results.
- Causes higher water consumption as an extra rinse cycle is automatically activated.
- Is a greater burden on the environment.
Using liquid detergent with a pre-wash
Liquid detergent cannot be used for the main wash if the pre-wash has been selected.
Use powder detergent for the main wash.
Using detergent tablets or pods
Always put detergent tablets or pods directly in the drum with the laundry. They cannot be added via the detergent dispenser drawer.
4. Add detergent
CapDosing
Three different types of capsule are available:
✿ = Fabric care (e.g. fabric conditioner, proofing agent) △ = Additives (e.g. detergent enhancer) ♂ = Detergent (for the main wash only)
Each capsule contains the correct amount for one wash cycle.
Caps are available to order from Miele or from the Miele online shop (see the end of this booklet for contact details).
⚠️ Capsules pose a health risk.
The ingredients of capsules can be hazardous to health if they are swallowed or come into contact with skin.
Keep capsules out of the reach of children.
Activating CapDosing
■ Touch the sensor for the capsule you want to use.
Sensor control Capsule
for for for

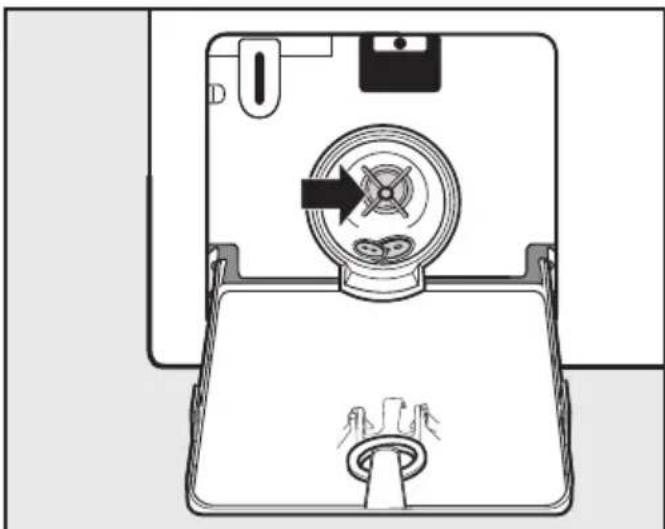

Inserting a capsule
■ Open the detergent dispenser drawer.
■ Open the lid of the ✅/□ compartment.
■ Press the capsule in firmly.
■ Close the lid and press it firmly shut. ■ Close the detergent dispenser drawer.
The capsule is opened by the act of inserting it in the detergent dispenser drawer. The contents can run out of the capsule if you then remove it from the drawer before it is used. Dispose of opened capsules.
The wash programme will dispense the contents of the capsule at the correct time.
Water intake to the ✿ compartment is solely via the capsule.
Do not add any additional fabric conditioner to the ✿ compartment.
■ Remove the empty capsule at the end of the programme.
For technical reasons a small amount of water will remain in the capsule.
Switching off/changing Cap-Dosing
■ In order to switch off CapDosing, touch the brightly lit sensor. ■ In order to change CapDosing, touch one of the other capsule sensors.
Starting a programme
■ Touch the flashing Start/Add laundry sensor control.
The door locks and the programme starts.
If a Delay start time has been selected, this counts down on the time display. At the end of the Delay start time or immediately after the programme has started, the programme duration appears on the time display.
Energy savings
After 10 minutes, the indicators dim. The sensor control Start/Add laundry flashes.
To reactivate the indicators:
Touch the Start/Add laundry sensor control (this does not have any effect on a programme that is running).
Adding laundry during a programme sequence (AddLoad)
Laundry can be added or removed at any time, provided that the 🔊 symbol is not illuminated on the control field.
Touch the Start/Add laundry sensor control.
Rotating bars [ ]... [ ]... [ ] are shown on the time display.
If the word Add appears on the time display, the door can be opened.
Open the door and add or remove laundry.
Close the door.
Touch the Start/Add laundry sensor control.
The programme will continue.
Laundry cannot usually be added or removed if:
- The suds temperature is above 55 °C
- The water inside the drum is above a certain level
Opening the door and removing the laundry
The door remains locked during the anti-crease phase. The control field lights up for the first 10 minutes. The control field then goes out and the Start/Add laundry sensor control flashes.
Turn the programme selector to the ⏻ position.
-0- appears on the timer display and the 🔒 indicator light goes out.
The door unlocks.
Tip: After the anti-crease phase, the door will have unlocked automatically.
Reach under the door grip and pull the door open.
Remove the laundry.
Items left in the drum could discolour other items in the next wash or become discoloured themselves. Remove all items from the drum.
Check the door seal for any foreign objects.
Tip: Leave the door slightly open to allow the drum to dry.
If applicable, remove the used capsule from the detergent drawer.
Tip: Leave the detergent drawer slightly open to allow it to dry.
Final spin speed in wash programmes
When a programme is selected, the sensor control for the optimum spin speed for that programme will be brightly lit up in the control field.
A faster spin speed can be selected for certain wash programmes.
The highest selectable spin speed is indicated in the table.
| Programme rpm | |
| Cottons 1400 | |
| Cottons 1400 | |
| Minimum iron 1200 | |
| Delicates 900 | |
| Woollens 1200 | |
| Shirts 900 | |
| Express 20 1200 | |
| Dark garments/Denim 1200 | |
| ECO 40-60 1400 | |
| Proofing 1200 | |
| Drain/Spin 1400 | |
| Separate rinse/Starch 1200 |
Rinse and interim spin
There is a spin after the main wash and between the rinses. A reduction in the final spin speed will also reduce the interim spin speed. If a spin speed of less than 700 rpm is selected for the Cottons programme, an additional rinse is introduced.
Selecting Rinse hold (final spin)
■ Touch the ☐ sensor control (Rinse hold).
The laundry is not spun after the final rinse and remains in the rinse water. This helps to prevent creasing if the laundry is not going to be removed from the drum immediately after the end of the programme.
Ending a programme with a spin cycle
The sensor control for the optimum spin speed lights up on the control field. You can change the spin speed.
■ Touch the Start/Add laundry sensor control.
Ending a programme without a spin cycle
■ Reduce the spin speed to 0.
■ Touch the Start/Add laundry sensor control.
To omit rinse and interim spin and the final spin
■ Touch the Ⓧ sensor.
After the last rinse, the water will be pumped away and the anti-crease phase will switch in.
In some programmes an additional rinse is introduced with this setting.
With Delay start you can choose when you want the programme to start. You can delay the start of the programme by 30 minutes up to a maximum of 24 hours, allowing you to make use of night-time economy electricity rates, for example.
Selecting Delay start
Delay start is not possible in the Drain/Spin and Proofing programmes.
■ Select the programme required. ■ Touch the ◇ sensor control.
The ◇ sensor control lights up brightly.
■ Touch the < or > sensor control repeatedly until the required Delay start time appears on the time display.
- In the case of settings below 10 hours, the Delay start time changes in increments of 30 minutes
- In the case of settings above 10 hours, the Delay start time changes in increments of 1 hour
Starting Delay start
■ Touch the flashing Start/Add laundry sensor control.
The Delay start process starts and counts down on the time display.
Changing or cancelling a started Delay start
If the selected Delay start function has started, it is no longer possible to change the time.
■ Turn the programme selector to the ⏻ position.
■ Turn the programme selector to any programme.
Rotating bars [ ]... [ ]... [ ] or -0- are shown on the time display.
The door lock is released.
Select a programme and a new Delay start time.
Programme chart
| Cottons 60 °C/40 °C Max. load 8.0 kg | |
| Items Normally soiled cotton garments | |
| Tip - These | settings are the most efficient in terms of energy and water consumption for washing cottons.- With 60 °C, the wash temperature reached is below 60 °C. The wash performance is the same as with the Cottons 60 °C programme. |
| Note for test institutes:The test programme conforms to EN 60456 and the energy label to Directive 1061/2010. | |
| Cottons 90 °C to cold Max. load 8.0 kg | |
| Items Cotton, linen or mixed fibre fabric, e.g. table linen, underwear, T-shirts, etc. | |
| Tip Where particularly high levels of hygiene are required, please select a temperature of 60 °C or higher. | |
| Minimum iron Cold to 60 °C Max. load 3.5 kg | |
| Items Synthetic and mixed fibre textiles as well as easy care cotton | |
| Tip Reduce the spin speed for fabric that creases easily. | |
| Delicates Cold to 40 °C Max. load 2.0 kg | |
| Items Delicate garments made from synthetic fibre, mixed fibre and vis-cosePerformance outerwear (e.g. jackets and trousers) made from membrane fabric such as Gore-Tex®, SYMPATEX®, WINDSTOPPER®, etc.Curtains specified as machine-washable by the manufacturer. | |
| Tip - On outdoor clothing, fasten zips or close Velcro fasteners and do not use fabric conditioner.- If required, these items can also be re-proofed using the Proof-ing programme. Proofing after each wash cycle is not recommended.- Dust in curtains usually means that a programme with Pre-wash is advisable.- Deselect the spin speed for items which crease easily. | |
| Woollens Cold to 40 °C Max. load 2.0 kg | |
| Items Wool or wool blend fabric | |
| Tip Reduce the spin speed for fabric that creases easily. | |
| Shirts Cold to 60 °C Max. load 1.0 kg/2.0 kg | |
| Items Shirts and blouses made of cotton and mixed fibre | |
| Tip - Pre-treat collars and cuffs depending on the level of soiling.- Wash silk shirts and blouses in the Delicates programme.- If the preset Pre-ironing extra is switched off, the maximum load capacity is increased to 2.0 kg. | |
Programme chart
| Express 20 Cold to 40 °C Max. load 3.5 kg | |
| Items Cotton garments that have hardly been worn or are only very lightly soiled | |
| Tip The Short extra option is activated automatically. | |
| Dark garments/Denim Cold to 60 °C Max. load 3.0 kg | |
| Items Black and dark items made of cotton, mixed fibre or denim | |
| Tip - Wash inside out.- Denim often contains excess dye and may run during the first few washes. Therefore, wash light and coloured items separately. | |
| ECO 40-60 Max. load 8.0 kg | |
| Items For normally soiled cotton garments | |
| Tip A laundry load consisting of mixed cottons that are intended for washing at 40 °C or 60 °C can be washed in the same wash cycle.This programme is the most efficient in terms of energy and water consumption for washing cottons. | |
| Note for test institutes:Test programme for compliance with EU legislation regarding ecodesign No. 2019/2023 and energy labelling in accordance with Regulation No. 2019/2014. | |
| Proofing 40 °C Max. load 2.5 kg | |
| Items Treating microfibre fabric, ski wear or table linen made from mainly synthetic fibres to provide a finish which is resistant to water and dirt | |
| Tip - The items must be freshly laundered and spun or dried before proofing.- For best results, the items should be heat-treated afterwards. This can be achieved by drying them in the tumble dryer or ironing them. | |
| Drain/Spin – | |
| Tip - Drain only: Set spin speed to ⚙.- Make sure you select the appropriate spin speed. | |
| Separate rinse/Starch Max. load 8.0 kg | |
| Items - Rinsing hand-washed items- Table cloths, serviettes and workwear requiring starching | |
| Tip - Reduce the spin speed for fabric that creases easily.- Laundry that is to be starched should be washed but not treated with fabric conditioner.- Items will be rinsed very effectively with 2 rinses by activating the Water + extra. |
You can use the extra options buttons to augment the wash programmes.
Extras are selected and deselected using the relevant sensors on the control panel.
Touch the sensor for the extra you want.
The relevant sensor will light up brightly.
Not all the extra options are suitable for use with every programme.
An extra that is not permitted for the wash programme is not lit dimly and cannot be activated by touch.
Short
For textiles with light soiling with no visible staining.
The wash duration is reduced.
Water +
The water level in the main wash and the rinses will be increased. A second rinse cycle is carried out in the Separate rinse/Starch programme.
You can select other functions for the Water + sensor control. These are described under “Programmable functions”.
Pre-wash
For laundry with large amounts of dirt, e.g. dust and sand.
Pre-ironing
In order to reduce creasing, the laundry undergoes a smoothing process at the end of the programme. Reducing the maximum load by 50 % will achieve a better result. Small loads achieve a better result.
The garments must be suitable for drying in a tumble dryer and suitable for ironing.
The following extras can be selected in addition to the programmes
| Short | Water + | Pre-wash | Pre-ironing | |
| Cottons ◇ ● ● ● ● | ||||
| Cottons ● ● ● ● | ||||
| Minimum iron ● ● ● ● | ||||
| Delicates ● ● ● ● | ||||
| Woollens 📋 ---- | ||||
| Shirts ● ● ● √ | ||||
| Express 20 √ -- ● | ||||
| Dark garments/Denim ● ● ● | ● | |||
| ECO 40-60 ---- | ||||
| Proofing ---- | ||||
| Separate rinse/Starch | -- ● -- |
● = can be selected
√ = activated automatically
- = cannot be selected
Programme sequence
| Main wash Rinses Spinning | |||||
| Water level | Wash rhythm | Water level | Rinses | ||
| Cottons [IMAGE] | 2-52,3 | √ | |||
| Cottons [IMAGE] | 2-51,2,3 | √ | |||
| Minimum iron [IMAGE] | 2-42,3 | √ | |||
| Delicates [IMAGE] | 2-42,3 | √ | |||
| Woollens [IMAGE] [IMAGE] [IMAGE] 2 √ | |||||
| Shirts [IMAGE] [IMAGE] | 3-43 | √ | |||
| Express 20 [IMAGE] [IMAGE] 1 √ | |||||
| Dark garments/Denim [IMAGE] [IMAGE] | 3-52,3 | √ | |||
| ECO 40-60 [IMAGE] [IMAGE] | 2-32 | √ | |||
| Proofing – [IMAGE] 1 √ | |||||
| Drain/Spin | – | – | – | – | √ |
| Separate rinse/Starch | [IMAGE] [IMAGE] | 0-15 | √ | ||
Please see the next page for a description of the symbols.
L = low water level, M = medium water level, H = high water level
Ⓐ = intensive rhythm
⑧ = normal rhythm
© = sensitive rhythm
⑧ = handwash rhythm
√ = carried out
- = not carried out
This washing machine has fully electronic controls with automatic load control. The washing machine takes in the right amount of water required for the programme depending on the amount of laundry and its absorbency rate.
The programme sequences outlined in the chart are based on the basic programme with a full load.
Special features in the programme sequence
Anti-crease:
At the end of the programme, the drum continues to turn at intervals for up to 30 minutes to help prevent creasing. Exception: there is no anti-crease phase in the Woollens programme. The washing machine can be opened at any time.
1) If a temperature of 60 °C or higher is selected, two rinses are carried out. If a temperature of less than 60 °C is selected, three rinses are carried out. 2) An additional rinse is carried out if: - there is too much foam in the drum - a spin speed lower than 700 rpm has been selected. 3) An additional rinse is carried out if: - the Water + extra option has been selected and the options 02 or 03 have been activated in Programmable functions. 5) An additional rinse is carried out if: the Water + extra option has been selected.
Changing a programme (safety lock)
A programme, temperature, spin speed or selected options cannot be changed once the machine has been successfully started. This prevents the machine being operated unintentionally, e.g. by children.
If the washing machine is switched off during active programme operation, the standby function does not switch the washing machine off completely after 15 minutes. Safety functions continue to be active because there may still be water inside the drum.
Cancelling a programme
You can cancel a programme at any time after it has started.
■ Turn the programme selector to the ⏻ position. ■ Turn the programme selector to any position.
Rotating bars [ ]... [ ]... [ ] or -0- are shown on the time display.
The water is pumped away and the door lock is then released.
Selecting a new programme
■ Turn the programme selector to the required programme. - Check that there is still detergent in the detergent drawer. Add more detergent if there is none left. ■ Touch the Start/Add laundry sensor control.
Garment care label symbols
| Washing | |
| The figure quoted in the bucket is the maximum temperature at which the garment can be washed. | |
| Normal agitation | |
| Reduced agitation | |
| Much reduced agitation | |
| Hand wash | |
| Do not wash | |
Programme selection examples
| Programme Garment care label symbols | |
| Cottons 95 70 | 60 50 40 30 |
| Minimum iron 95 60 50 40 30 | |
| Delicates 40 30 | |
| Woollens 📋 | |
| Express 20 40 30 | |
| Drying | |
| ◎ Normal temperature | |
| ◎ Low temperature | |
| ☒ Do not tumble dry |
| Ironing | |
| Approx. 200 °C | |
| Approx. 150 °C | |
| Approx. 110 °CIroning with steam can cause irreversible damage. | |
| Ironing/rotary ironing prohibited | |
| Professional cleaning | |
| F | Dry clean only. The letters indicate the type of cleaning agent required. |
| P | |
| W | Wet cleaning |
| ⊗ | Dry cleaning prohibited |
| Bleaching | |
| △ Any oxidation bleach can be used | |
| △ Use oxygen bleach only | |
| ☆ Do not bleach |
The correct detergent
All detergents produced for automatic washing machines are suitable. Follow the manufacturer's instructions and dosage recommendations on the packaging.
For users in Asia:
please use a low foaming detergent suitable for use in front-loading machines
The right amount to dispense will depend on the following:
- the soiling level of the load
- the quantity of the laundry
- the water hardness level.
Check with your local water supplier if you do not know the hardness level in your area.
Water softeners
A water softener can be used to cut down on the use of detergents in areas with water hardness levels II and III. Dispense according to the amount specified on the packaging. First add detergent and then the water softener.
You can then use the recommended amount of detergent for water hardness level I.
Water hardness levels
| Hardness scale | Hardness level in mmol/l | German scale °d |
| I (soft) 0 – 1 | .5 0 – 8.4 | |
| II (medium) 1.5 – 2.5 8.4 – 14 | ||
| III (hard) above | 2.5 above 14 |
Dispensing aids
Use dispensing aids, (e.g. balls) if these are supplied with the detergent, particularly when using liquid detergent.
Refill packs of detergent
When purchasing detergent buy refill packs wherever possible. This helps reduce the amount of waste packaging.
Fabric conditioner and liquid starch
Fabric conditioner
makes garments soft to handle and helps prevent static cling when tumble drying.
Starch
stiffens and gives body to items of laundry, e.g. shirts, tablecloths and bed linen.
Using fabric conditioner or starch separately
Prepare the starch in accordance with the manufacturer's instructions on the packaging.
Tip: When adding fabric conditioner, activate the Water + extra.
■ Add fabric conditioner to the ✿ compartment or insert the appropriate capsule. ■ Add liquid starch to the ✅ compartment and powder or viscous starch to the ⊥ compartment. ■ Select the Separate rinse/Starch programme. ■ Change the spin speed if necessary. ■ Activate the Cap 📋 sensor control if using a capsule. ■ Touch the Start/Add laundry sensor control.
Colour run and dye removers/dyes
⚠️ Damage due to colour run/dye removers.
Colour run and dye removers can cause corrosion in the washing machine.
Do not use colour run or dye removers in this washing machine.
Dyes suitable for use in domestic washing machines can be used. However, please note that the salt used in the dyeing process can cause corrosion to stainless steel components in the machine if you use dye frequently. Always follow the dye manufacturer's instructions carefully.
Recommended Miele detergents
Miele detergents have been specially designed for day-to-day use in Miele washing machines. See “Detergents and care products” for more information about these detergents.
| Miele detergents Miele capsules | |||||
| UltraWhite | UltraColor | ||||
| Cottons ☐ √ √ - | √ √ | ||||
| Cottons √ √ -√ √ | |||||
| Minimum iron -√ -√ | √ | ||||
| Delicates -√ √ √ - | |||||
| Woollens 📊 | - | - | √ | - | - |
| Shirts | √ √ | -√ √ | |||
| Express 20 | - | √ | - | √ | - |
| Dark garments/Denim | -√ √ √ - | ||||
| ECO 40-60 | √ √ | -√ √ | |||
| Proofing | - | - | - | √ | - |
| Separate rinse/Starch | -/- | -/- | -/- | √/- | -/- |
√ Recommendation - No recommendation
Specialist detergents (e.g. WoolCare) Fabric care (e.g. fabric conditioner) Additive (e.g. booster)
Recommended detergents in accordance with Directive (EU) Nr. 1015/2010
The recommendations apply to the temperature ranges given in the Programme chart.
| Universal Coloureds Delicates and woollens detergent | Specialist | |||
| Cottons √ √ | -- | |||
| Cottons √ √ -- | ||||
| Minimum iron - √ -- | ||||
| Delicates -- √ - | ||||
| Woollens 📊 -- √ √ | ||||
| Shirts √ √ -- | ||||
| Express 20 | - | 1 | - | - |
| Dark garments/Denim | - | 1 | -√ | |
| ECO 40-60 | √ √ | -- | ||
Recommendation 1 - No recommendation 2 Liquid detergent Powder detergent
Cleaning the external casing and the control panel
Risk of electric shock!
Mains voltage is present when the washing machine is switched off. Disconnect the machine from the electricity supply before cleaning or maintenance.
Risk of damage due to ingress of water
The pressure of a water jet can cause water to get into the washing machine, resulting in damage to components.
Do not spray the washing machine with a water jet.
■ Clean the casing and control panel with a mild cleaning agent or soap and water and dry both with a soft cloth. ■ The drum can be cleaned using a suitable stainless steel cleaning agent following the manufacturer's instructions on the packaging.
Damage caused by cleaning agents.
Solvent based cleaning agents, abrasive cleaners, glass cleaners or multi-purpose cleaning agents can cause damage to plastic surfaces and other parts.
Do not use any of these cleaning agents.
Cleaning the detergent dispenser drawer
Washing at low temperatures and the use of liquid detergent can lead to a build-up of mould and bacteria in the detergent dispenser drawer.
■ For hygiene reasons, clean the entire drawer at regular intervals.
Removing the dispenser drawer
Pull out the detergent dispenser drawer until a resistance is felt. Press down the release button and at the same time pull the drawer right out of the machine. Clean the detergent drawer with warm water.
Cleaning the siphon and the ✧/☐ compartment channel
Liquid starch results in clogging. If clogged, the siphon in the ✅/☐ compartment will not work and the compartment can overflow. Clean the siphon particularly thoroughly after using liquid starch a few times.
- Remove the siphon from ⚙ compartment and clean under warm running water. Clean the siphon tube in the same way.
- Replace the siphon.
Clean the fabric conditioner channel using a brush and warm water.
Cleaning the detergent dispenser drawer compartment
Use a bottle brush to remove detergent residues and limescale from the jets inside the detergent dispenser drawer compartment. Replace the detergent dispenser drawer.
Tip: Leave the detergent dispenser drawer slightly open to allow it to dry.
Hygiene info (Cleaning the drum)
Washing at low temperatures and/or using liquid detergent can cause bacteria and unpleasant odours to build up in the washing machine. Use the Cottons 90 °C programme to clean the washing machine. Clean the drum when the indicator light + comes on at the latest.
Cleaning the water inlet filter
The washing machine has 2 filters to protect the inlet valve. Check these filters every 6 months or so. Perform this check more often if there are frequent interruptions to the external water supply.
Cleaning the filter in the inlet hose
First turn off the stopcock. Unscrew the inlet hose from the stopcock.
Remove the rubber seal 1 from the recess. Using pointed pliers, take hold of the plastic filter slat 2 and remove the plastic filter.
Clean the filter. Reassemble in reverse order.
Cleaning the filter in the inlet valve
Using pliers, carefully loosen the ribbed plastic nut on the inlet valve and unscrew it.
Use pointed pliers to withdraw the plastic filter by the slat. Clean the filter. Reassemble in reverse order.
The two filters must be put back in place after cleaning.
Screw the screw connection securely back onto the stopcock. Open the stopcock.
Make sure there is no water leaking from the threaded union. Tighten the threaded union.
Many malfunctions and faults that can occur in daily operation can be easily remedied. Time and money will be saved because a service call will not be needed.
The following guide may help you to find the reason for a malfunction or a fault, and to correct it.
The programme does not start
| Problem Cause and remedy | |
| The control panel re-mains dark. | There is no power to the machine.■ Check whether the mains plug is plugged in and switched on.■ Check whether the fuse or circuit breaker has tripped. |
| The washing machine has switched off automatically to save energy.■ Switch the washing machine on again by turning the programme selector. | |
| F and 34 alternately ap-pear in the time display. | The door is not closed properly. The door lock could not engage.■ Close the door again.■ Start the programme again.If the fault message appears again, contact the Service Department. |
The programme is cancelled and a fault indicator light lights up in the control panel
| Problem Cause and remedy | |
| The fault indicator light lights up, F and II appear alternately in the time display and the buzzer sounds. | The water outlet is blocked or restricted.The drain hose has been fixed too high.Clean the drain filter and the drain pump.The maximum delivery head is 1 m. |
| The fault indicator light lights up, F and I0 appear alternately in the time display and the buzzer sounds. | The water inlet is blocked or restricted.Check whether the stopcock is opened properly.Check whether the inlet hose is kinked.Check whether the water pressure is too low. |
| The filter in the water inlet is blocked.Clean the filter. | |
| The fault indicator light lights up, F and I38 appear alternately in the time display and the buzzer sounds. | The water protection system has reacted.Close the stopcock.Call the Service Department. |
| F and XXX appear alternately on the time display and the buzzer sounds. | There is a fault.Disconnect the washing machine from the electricity supply. Switch off at the wall and withdraw the plug from the socket, or disconnect the fuse.Wait at least 2 minutes before reconnecting the washing machine to the electricity supply.Switch the washing machine on again.Restart the programme.If the fault message appears again, contact the Miele Customer Service Department. |
During the programme, a symbol appears in the time display
| Message Cause and remedy | |
| -0-lights up The programme | me selector was moved to a different position after the programme had started.■ Turn the programme selector back to the original position. |
At the end of the programme, an indicator light lights up in the control panel.
| Problem Cause and remedy | |
| The indicator light lights up. | Excessive foam has built up during washing.■ Use less detergent next time, and follow the manufacturer's recommended dosage amounts on the packaging. |
| The indicator light lights up. | When washing, a wash programme using a temperature above 60 °C has not been run for a long time.■ Run the Cottons 90 °C programme using Miele machine cleaner or a universal powder detergent.This will clean the washing machine and prevent a build-up of bacteria and odours. |
| F and 37 appear alternately on the time display. | The Pre-ironing extra which runs at the end of the programme could not be carried out properly.■ Check whether the washing machine is aligned correctly (see “Installation – Levelling the machine”).■ Check whether the maximum drainage head height of 1 m has been exceeded. |
| If the fault message appears again, contact the Miele Customer Service Department. The washing machine can still be used, but without the Pre-ironing extra. |
General problems with the washing machine
| Problem Cause and remedy | |
| The washing machine smells. | The indicator light was ignored. A wash pro-gramme using a temperature above 60 °C has not been run for a long time.■ In order to prevent bacteria and unpleasant odours building up in the washing machine, run the Cottons 90 °C programme using Miele machine cleaner or a universal powder detergent. |
| The door and the detergent dispenser drawer were left shut after washing.■ Leave the door and the detergent dispenser drawer slightly open to allow them to dry. | |
| The machine shakes during the spin cycle. | The machine feet are not level.■ Level the machine and adjust the feet correctly. |
| The laundry has not been spun properly and is still wet. | The machine detected an imbalance during the final spin cycle and reduced the spin speed automatically.■ Include both large and small items in the load as this will give better distribution during spinning. |
| Strange pump noises can be heard. | This is not a fault.These slurping noises occur at the end of the pump sequence as a normal part of operation. |
| Large amounts of deter-gent residue remain in the detergent dispenser drawer. | The water pressure is too low.■ Clean the water inlet filter.■ It may be useful to select the Water + extra option. |
| Powder detergent used in conjunction with water softeners tends to become sticky.■ In future, add washing powder into the dispenser drawer first, and then add the water softener. | |
General problems with the washing machine
| Problem Cause and remedy | |
| Fabric conditioner is not completely dispensed or too much water remains in the ✅ compartment. | The siphon tube is not correctly positioned or is clogged.■ Clean the siphon, see “Cleaning and care - Cleaning the detergent dispenser drawer”. |
| At the end of the programme there is still liquid in the capsule. | The small pipe in the detergent dispenser drawer onto which the capsule is placed is blocked.■ Clean the small pipe. |
| This is not a fault.For technical reasons a small amount of water will remain in the capsule. | |
| There is water next to the capsule in the fabric conditioner compartment | The ☐ sensor control was not activated.■ Make sure that you remember to activate the ☐ sensor control the next time you insert a capsule. |
| An empty capsule was not removed at the end of the last wash programme.■ Remove and dispose of the empty capsule at the end of each programme. | |
| There is a blockage in the small pipe in the detergent drawer onto which the capsule is placed.■ Clean the small pipe. |
An unsatisfactory wash result
| Problem Cause and remedy | |
| Liquid detergent does not give the required result. | Liquid detergents usually contain no bleaching agents. They do not remove fruit, coffee and tea stains.■ Use a general purpose powder detergent containing a bleaching agent.■ Use the appropriate capsule or add stain removers to the ⏚ compartment.■ Never put stain removers and liquid detergent together in the dispenser drawer. |
| Grey, greasy particles cling to washed laundry. | Insufficient amounts of detergent were used to break down the particles of grease in heavily soiled laundry.■ Use more detergent.■ Before washing the next load run a Cottons 60°C programme with powder detergent but without a load. |
| White residues which look like powder detergent are seen on dark textiles after washing. | The detergent contained compounds (zeolites) to aid water softening which are not soluble in water. These have ended up on the laundry.■ Try and brush off the residues with a soft brush once the laundry is dry.■ Wash dark textiles using a detergent which contains no zeolites. Liquid detergents usually contain no zeolites.■ Use the Dark garments/Denim programme for dark coloured laundry. |
The door will not open
| Problem Cause and remedy | |
| The door cannot be pulled open during a programme. | The drum is locked during a programme.■ Follow the description in “5. Starting a programme – Adding or removing laundry”. |
| After the programme is cancelled, flashing bars [...]...[.]...[.]... appear in the time display. | For safety reasons the drum door cannot be opened if the suds temperature is higher than 55 °C.■ Wait until the temperature in the drum has decreased and the bars have stopped flashing in the display. |
| F and 35 alternately appear in the time display. | The door lock has jammed.■ Call the Service Department. |
Problem solving guide
Opening the door in the event of a blocked drain outlet and/or power cut
Switch off the washing machine.
Open the drain pump access panel.
Blocked drain outlet
If the drain outlet is blocked, there may be a large quantity of water left behind in the washing machine.
Risk of scalding due to hot suds.
Escaping suds will be hot if laundry has been washed at high temperatures!
Carefully allow all suds to drain off.
Draining the washing machine
Remove the drain filter, though not completely.
Place a suitable container under the access panel, e.g., a universal oven tray.
Slowly unscrew the drain filter to let the water out.
Tighten the drain filter back up again if you need to interrupt the flow of water.
Once the flow of water ceases:
Remove the drain filter completely.
Clean the drain filter thoroughly. Remove any foreign objects (e.g., buttons, coins, etc.) and clean the interior. Turn the impellers by hand to check that they rotate freely. Replace the drain filter correctly and tighten it securely. Close the drain pump access panel.
Risk of water damage.
Make sure the drain filter is securely tightened. Otherwise, there is a risk of water leakage during use.
Replace the drain filter correctly and tighten it securely.
Open the door.
Danger of injury due to rotating drum.
Reaching into a moving drum is extremely dangerous.
Always make sure that the drum is stationary before reaching in to remove laundry.
Use a screwdriver to unlock the door. Pull open the door.
Contact in the event of a fault
In the event of any faults which you cannot remedy yourself, please contact your Miele dealer or the Miele Customer Service Department.
You can book a Miele Customer Service Department call-out online at www.miele.com/service.
Contact information for the Miele Customer Service Department can be found at the end of this document.
Please quote the model identifier and serial number of your appliance (Fabr./SN/Nr.) when contacting the Miele Customer Service Department. This information can be found on the data plate.
Please note that telephone calls may be monitored and recorded for training purposes and that a call-out charge will be applied to service visits where the problem could have been resolved as described in this booklet.
The data plate is found above the porthole glass when the door is opened.
Optional accessories
Optional spare parts and accessories for this washing machine are available from your Miele Dealer, the Miele Spare Parts Department or via the internet at www.miele.co.uk.
Please note that telephone calls may be monitored and recorded for training purposes.
EPREL database
From 1 March 2021, information on energy labelling and ecodesign requirements will be available in the European Product Database (EPREL). You can find the product database at the following link https://eprel.ec.europa.eu/. You will be asked to enter the model identifier.
The model identifier can be found on the data plate.
Warranty
For information on the appliance warranty specific to your country please contact Miele. See back cover for address.
In the UK, your appliance warranty is valid for 2 years from the date of purchase. However, you must activate your cover by calling 0330 160 6640 or registering online at www.miele.co.uk.
Front view
① Water inlet hose (pressure tested to 7000 kPa) ② Mains connection cable ③ Flexible drain hose (with detachable swivel elbow) ④ Control panel
⑤ Detergent dispenser drawer ⑥ Door ⑦ Access to drain filters, drain pumps and emergency release ⑧ Four height-adjustable feet
Rear view
① Drain hose ② Transport clips for inlet and drain hoses and mains connection cable ③ Mains connection cable ④ Protruding lid for holding when moving the machine
⑤ Water inlet hose (pressure tested to 7000 kPa) ⑥ Safety caps for transit bars ⑦ Transport clips for inlet and drain hoses and for storing transit bars when not in use
Installation surface
A concrete floor is the most suitable installation surface. It is far less prone to vibration during the spin cycle than wooden floorboards or a carpeted surface.
Please note:
■ The machine must be level and securely positioned. ■ To avoid vibrations during spinning, the machine should not be installed on soft floor coverings.
If installing on a wooden joist floor:
■ Install the machine on a plywood base (at least 59 x 52 x 3 cm). The base should span several joists and be bolted to the joists and not only to the floorboards. Check for the presence of pipes and cables first.
Tip: If possible, install the machine in a corner. This is usually the most stable part of the floor.
⚠️ Injury can occur if the washing machine has not been adequately secured.
During installation, the washing machine must be secured on a plinth to be made available on site (concrete or brick), in order to ensure it cannot fall or slip.
Secure the washing machine using a clamp/fastening bracket (MTS floor mounting kit – available from your Miele dealer or Miele spare parts department).
Transporting the washing machine to its installation site
Danger of injury due to unsecure
Make sure the fixings at the back of the lid are secure. Otherwise there is a danger of the lid being pulled off when carrying the machine.
Before carrying the machine check that the lid is secure where it protrudes at the back of the machine.
- Carry the washing machine by the front feet and by the lid where it protrudes at the back of the appliance.
Removing the transit bars
Removing the left-hand transit bar
■ Push the cover out and turn the left-hand transit bar 90° using the spanner supplied.
■ Withdraw the transit bar.
Removing the right-hand transit bar
■ Push the cover out and turn the left-hand transit bar 90° using the spanner supplied.
■ Withdraw the transit bar.
Covering holes
Risk of injury from sharp edges. There is a risk of injury from reaching into holes that are not covered. Cover the holes for the transit bars after they have been removed.
Push the covers in firmly until they engage in position.
Securing the transit bars
Secure the transit bars to the back of the washing machine. Make sure that the top catch is located above the holder.
Risk of damage from incorrect transport.
The washing machine may become damaged if moved without the transit bars in place.
Keep the transit bars in a safe place. Fit them again if the machine is to be moved (e.g. when moving house).
Fitting the transit bars
Opening the covers
Press against the retainer with a sharp object (a narrow screwdriver, for example).
The cover opens.
Fitting the transit bars
To fit the bars, follow the instructions for removing them in reverse order.
Tip: The bars will slide in more easily if you lift the drum slightly.
Levelling the machine
The washing machine must stand perfectly level on all four feet to ensure safe and proper operation.
Incorrect installation may increase electricity and water consumption and may cause the machine to move about.
Screwing out and adjusting the feet
The four adjustable screw feet are used for levelling the washing machine. The machine is supplied with all four feet screwed in.
Using the spanner supplied, turn counter nut 2 in a clockwise direction. Then turn counter nut 2 together with foot 1 to unscrew.
Use a level to check that the washing machine is standing level.
Hold foot 1 securely with a pipe wrench. Turn counter nut 2 again using the spanner supplied until it sits firmly up against the housing.
Risk of damage due to incorrectly aligned washing machine.
There is a danger of the washing machine moving about if the feet are not secured.
Turn all four counter nuts for the feet until they sit firmly up against the housing. Please also check this for the feet which did not need adjustment.
Installing under a continuous work-top
Risk of electric shock due to exposed cables
There is a risk of coming into contact with live parts while the lid is removed.
Building under kits* must only be installed/dismantled by a suitably qualified fitter in accordance with the instructions supplied.
- A special building under kit* is required. The cover plate supplied with the building under kit is used to replace the machine lid. It is necessary to fit the cover plate for electrical safety reasons.
- Connections for electricity, water and drainage should be installed in such a way that they remain accessible when the machine is in its final position.
Fitting instructions are supplied with the building-under kit.
Washer-dryer stack
The washing machine can be combined with a Miele tumble dryer in a washer-dryer stack. The appropriate “WTV” stacking kit* to match your dryer is required.
All parts marked* are available from your Dealer or Miele.
Please note:
a = at least 2 cm b = WTV without drawer: 172 cm WTV with drawer: 181 cm c = 64 cm
The water protection system
The Miele water protection system protects all parts of the washing machine from water damage.
The system consists of three main components:
- the inlet hose
- the electronic unit and drainage and overflow protection
- the drain hose
Inlet hose
- Protection against bursting
The inlet hose is tested to withstand pressure of at least 7,000 kPa.
Electronic unit and washing machine housing
- Sump Any leaking water is collected in a sump in the base of the machine. A float switches off the water inlet valves, preventing any more water from flowing into the machine and water in the suds container is pumped away.
- Overflow protection This prevents the washing machine taking in too much water. If the water level exceeds a certain level, the drain pump switches in and pumps the excess water away.
Drain hose
The drain hose is protected by a ventilation system which prevents the washing machine from being emptied completely.
Connection to the water supply
⚠️ Health risk and risk of damage due to contaminated incoming water. The quality of the incoming water must correspond to the drinking water specification of the country in which the washing machine is being operated.
Always connect the washing machine to the mains water supply.
The washing machine should be connected to the mains water supply in accordance with current local and national safety regulations. The German authorities do not require it to have a non-return valve as the washing machine has been designed to comply with DIN regulations.
The water connection pressure needs to be between 100 kPa and 1000 kPa. If the water connection pressure exceeds 1000 kPa, a pressure reducing valve must be installed.
A stopcock with a 3/4 inch threaded union is required for the connection. If this is not available, only a qualified installer may connect the washing machine to the mains water supply.
The connection point is subject to mains water pressure. Turn on the stopcock slowly and check for leaks. Correct the position of the washer and the threaded union if necessary.
The washing machine is not suitable for connection to a hot water supply. The washing machine must not be connected to a hot water supply.
Maintenance
Only use a genuine Miele hose that has been pressure tested to withstand at least 7,000 kPa should you ever need a replacement.
⚠️ Damage caused by dirty water.
A filter is located in the open end of the inlet hose and another in the intake point to protect the inlet valve in the washing machine.
These filters must not be removed.
Hose extension
Longer hoses 2.5 or 4.0 m in length are available from your Miele Dealer or Miele as optional extras.
Water drainage
The suds are drained through a drain pump with a 1 m delivery head. For the water to drain freely, the hose must be free of kinks.
If required, the hose can be extended to a length of up to 5 m. Accessories are available from Miele or from your Miele dealer.
For a delivery head of more than 1 m (up to a max. of 1.8 m) a replacement drain pump will need to be fitted.
Please contact Miele for advice.
For a delivery head of 1.8 m the hose can be extended to a length of up to 2.5 m. Accessories are available from Miele or from your Miele dealer.
Drainage options:
- Directed into a sink or basin:
Please note:
- Hook the hose over the edge and secure it.
- If the water is pumped into a washbasin, make sure that it can drain away freely. Otherwise there is a risk of water overflowing or of some of the drained water being sucked back into the machine.
- Connected securely to a plastic drain pipe with a rubber nipple (there is no need to use a siphon).
- Connected securely to a floor drain (gully).
- Connected securely to a washbasin with plastic nipple.
Please note:
① Adapter ② Spigot nut ③ Hose clip ④ End of the hose
■ Fit adapter ① to the sink drain outlet using nut ②. ■ Attach the end of hose ④ to adapter ①. ■ Use a screwdriver to tighten hose clip ③ up close to the nut.
Electrical connection
The washing machine is supplied with an electrical connection cable with moulded plug ready for connection to a switched socket.
The socket must be easily accessible after the washing machine has been installed. If that is not possible, ensure that a suitable means of disconnection is provided on the installation side for each pole.
⚠️ Risk of fire from overheating. Connecting the washing machine to a multi-socket plug adapter or to an extension lead can overload the cable. Do not use an extension lead or multi-socket plug adapter.
The electrical system must comply with local and national safety regulations (BS 7671 in the UK). We recommend the use of a suitable RCD.
If the connection cable is damaged, it must only be replaced with a specific connection cable of the same type (available from the Miele Customer Service Department). For safety reasons, such replacement may only be carried out by a qualified technician or the Miele Customer Service Department.
The data plate indicates the nominal power consumption and the appropriate fuse rating. Compare the specifications on the data plate with those of the electricity supply and make sure that they match.
If in any doubt, consult a qualified electrician.
Temporary or permanent operation on an autonomous power supply system or a power supply system that is not synchronised with the mains power supply (e.g. island networks, back-up systems) is possible. A prerequisite for operation is that the power supply system complies with the specifications of EN 50160 or an equivalent standard. The function and operation of the protective measures provided in the domestic electrical installation and in this Miele product must also be maintained in isolated operation or in operation that is not synchronised with the mains power supply, or these measures must be replaced by equivalent measures in the installation. As described, for example, in the current version of BS OH-SAS 18001–2 ISO 45001.
| Height 850 mm | |
| Width 596 mm | |
| Depth 636 mm | |
| Depth with door open 1054 mm | |
| Height for building under 820 (+8/-2) mm | |
| Width for building under 600 mm | |
| Depth for building under 600 mm | |
| Weight Approx. 90 kg | |
| Capacity 8.0 kg dry laundry | |
| Supply voltage See data plate | |
| Rated load See data plate | |
| Fuse rating See data plate | |
| Consumption data See “Consumption data” | |
| Minimum water flow pressure 100 kPa (1 bar) | |
| Maximum water flow pressure | 1000 kPa (10 bar) |
| Water inlet hose length | 1.60 m |
| Drain hose length | 1.50 m |
| Connection cable length | 2.00 m |
| Maximum delivery head | 1.00 m |
| Maximum drainage length | 5.00 m |
| LEDs | Class 1 |
| Test certifications awarded | See data plate |
| Power rating in off mode | 0.30 W |
| Programme Load Energy Water | kg kWh | Litres h:min °C | % rpm | Running time | Temperature1 | Residual moisture Speed | ||
| ECO 40-60* 8.0 0.77 60 3:39 42 51 | 1400 | |||||||
| 4.0 0.40 | 52 2:39 31 51 | 1400 | ||||||
| 2.0 0.20 | 28 2:39 25 54 | 1400 | ||||||
| Cottons | 60 | 8.0 1.35 | 49 2:29 52 53 | 1400 | ||||
| 20 | 8.0 0.35 | 69 2:39 20 53 | 1400 | |||||
| Minimum iron | 30 | 3.5 0.45 | 52 1:59 30 30 | 1200 | ||||
| Express 202 | 40 | 3.5 0.34 | 30 0:20 26 60 | 1200 | ||||
| Woollens 📊 | 30 | 2.0 | 0.23 | 35 | 0:39 | - | - | 1200 |
* Test programme for compliance with EU legislation regarding ecodesign 2019/2023 and energy labelling in accordance with Regulation No. 2019/2014
1 Maximum laundry temperature reached in main wash.
2 Short extra option activated
Information for customers
Consumption data can vary from the nominal values given depending on water pressure, water hardness, water inlet temperature, room temperature, type and volume of load, fluctuations in the mains voltage and any extra options selected.
The programmable functions are used to alter the machine's electronics to suit changing requirements. Programmable functions can be altered at any time.
The programming is carried out in eight steps (1, 2, 3 ... 8) using the sensor controls.
Accessing the programming level
Pre-requisites:
- The washing machine is switched on (the programme selector is pointing to a wash programme).
- The washing machine door is open.
① Touch the Start/Add laundry sensor and keep your finger on it while carrying out steps ②-③.
② Close the washing machine door.
Wait until the Start/Add laundry sensor lights up constantly ...
③ ... and then take your finger off the Start/Add laundry sensor.
After approximately four seconds, P13 will light up in the time display.
Choosing and selecting a programmable function
The number of the programmable function will appear in the time display as P and a number: e.g., P13.
④ Touch the > or < sensor control to scroll to the next or previous programmable function:
| Programmable functions | |
| P13 Keypad tone | |
| P14 PIN code | |
| P22 Control field switch-off behaviour | |
| P24 Memory | |
| P26 Additional long pre-wash – Cottons | |
| P28 Gentle action | |
| P29 Reduced temperature | |
| P30 Water plus | |
| P31 Water plus level | |
| P32 Maximum rinse level | |
| P33 Suds cooling | |
| P34 Anti-crease | |
| P49 Low water pressure | |
| P62 Display brightness dimmed |
⑤ Confirm the selected programmable function by touching the Start/Add laundry sensor control.
Editing and saving a programmable function
You can either switch a programmable function on/off or select different options.
⑥ Touch the > or < sensor control to switch the programmable function on/off or to select an option:
| Programmable function | |||||||
| Available options | |||||||
| -00 | -01 | -02 | -03 | -04 | -05 | -07 | |
| P13 ● | √ | ● | |||||
| P14 √ | ● | ||||||
| P22 ● | √ | ||||||
| P24 √ | ● | ||||||
| P26 √ | ● | ● | ● | ||||
| P28 √ | ● | ||||||
| P29 √ | ● | ||||||
| P30 √ | ● | ● | |||||
| P31 √ | ● | ● | ● | ||||
| P32 √ | ● | ||||||
| P33 √ | ● | ||||||
| P34 ● | √ | ||||||
| P49 √ | ● | ||||||
| P62 ● | ● | √ | ● | ● | |||
- = Can be selected √ = Factory default setting
⑦ Confirm the chosen selection with the Start/Add laundry sensor control.
The number of the programmable function, e.g. P/B, will then light up again.
Exit programming level
8 Turn the programme selector to ⏻.
The option you have selected is now stored in memory. You can change it again at any time.
PI3 Sensor tone
Each touch of a sensor control is confirmed with an audible tone.
Selection
-00 = Sensor tone is switched off
-01 = Sensor tone is set to normal volume (factory default setting)
-02 = Sensor tone is set to loud volume
PI4 Lock code
The lock code prevents the washing machine being used without your knowledge.
When the code has been activated, you have to enter a code after switching the washing machine on. Otherwise the washing machine cannot be operated.
Options
-00 = Lock code switched off (factory default setting)
-01 = Lock code is switched on
Using the washing machine with a lock code
The code is 125 and cannot be altered.
■ Switch on the washing machine.
____ appears in the time display and the > and < sensors light up.
■ Touch the > sensor.
__ / appears in the time display.
■ Confirm the number with the Start/Add laundry sensor.
The first number was saved and you can now enter the second number using the > and < sensors.
■ Also enter the second and third numbers and confirm the numbers with the Start/Add laundry sensor.
The lock is released and a wash programme can now be selected and started.
P22 Control panel switch-off status
To save energy the time display and sensors will go out after 10 minutes, and only the Start/Add laundry sensor will flash slowly.
Options
- 0 0 = Off
The time display and sensors will remain lit up while the washing machine is switched on.
-01 = On (factory default setting)
The time display and sensors will switch off after 10 minutes if the programme is started.
However, the time display and sensors will remain lit up for 10 minutes after a delay start time has elapsed, after the end of the programme, or at the end of the anti-crease phase.
P24 Memory
The washing machine will save the last settings (temperature, spin speed, and some of the extras) selected for a programme after the programme has started.
When this programme is chosen again, these saved settings will appear in the display.
Options
-00 = Memory is switched off (factory default setting)
-01 = Memory is switched on
P26 Longer pre-wash Cottons
If you require a longer pre-wash, you can extend the pre-wash time.
Options
-00 = No increase in the pre-wash time (factory default setting)
-01 = +6 minutes increase in the pre-wash time
-02 = +9 minutes increase in the pre-wash time
-03 = +12 minutes increase in the pre-wash time
P28 Gentle action
Activating gentle action reduces the drum action and is suitable for washing lightly soiled items more gently.
Gentle action can be activated for the Cottons and Minimum iron programmes.
Options
-00 = Gentle action is switched off (factory default setting)
-01 = Gentle action rhythm is switched on
P29 Reduce temperature
The boiling point for water is lower at high altitudes. In order to avoid water boiling, Miele recommend activating the reduce temperature setting at altitudes of more than 2000 m above sea level. The maximum temperature is reduced to 80 °C even when a higher temperature is selected.
Options
-00 = The reduce temperature setting is switched off (factory default setting)
-01 = The reduce temperature setting is turned on
P30 Water plus
You can determine the amount of water used if the Water + extra is selected.
Selection
-01 = More water is used in the wash and rinse stages (factory default setting) -02 = An extra rinse is carried out -03 = The water level in the wash and rinse stages is increased and an extra rinse is carried out
P31 Water plus level
There are three different water levels which can be selected by activating the Water + extra.
Options
-01 = No higher water level (factory default setting) -02 = Water level increase by 1 level when washing and rinsing -03 = Water level increase by 2 levels when washing and rinsing -04 = Water level increase by 3 levels when washing and rinsing
P32 Maximum rinse level
The water level in the rinse cycle can be permanently set to the highest value.
This function is useful for allergy sufferers as it achieves an excellent rinse result. Water consumption will increase.
Options
-00 = Maximum rinse level is switched off (factory default setting) -01 = Maximum rinse level is switched on
P33 Suds cooling
When this is activated, additional water flows into the drum at the end of the main wash to cool the suds down. Hot suds can damage plastic drainage pipes.
Suds cooling takes place when a temperature of 70 °C or higher is selected for the Cottons programme.
Suds cooling should be activated:
- to prevent the danger of scalding if the drain hose is hooked over the edge of a sink or basin.
- where drainage pipes do not comply with DIN 1986.
Options
-00 = Suds cooling is switched off (factory default setting)
-01 = Suds cooling is switched on
P34 Anti-crease
The anti-crease function helps prevent creasing if laundry is not going to be removed immediately after the end of the programme.
The drum continues to turn at intervals for up to 30 minutes at the end of the programme. The door can be opened at any time.
Options
-00 = The anti-crease function is switched off -01 = The anti-crease function is switched on (factory default setting)
P49 Low water pressure
If the water pressure is below 100 kPa (1 bar), the washing machine cancels the programme and the ➕ fault message appears.
If the water pressure cannot be increased, activating this function will prevent the programme from being cancelled.
Options
-00 = Low water pressure is switched off (factory default setting)
-01 = Low water pressure is switched on
P62 Backlight brightness dimmed
The brightness of the dimmed sensors in the control panel can be set to one of seven different levels.
The brightness changes as soon as you select a different setting.
Options
-01 = Darkest level -07 = Lightest level -03 = (Factory default setting)
Detergent, fabric care, additives and machine care products are available for this washing machine. All the products have been designed for Miele washing machines.
These and many other useful products can be ordered via the internet at www.miele.co.uk or from Miele (see end of this booklet for contact details).
Detergent
UltraWhite (powder detergent)
- Best results at 20/30/40/60/95 °C
- Radiant white laundry thanks to powerful formula with active oxygen
- Excellent stain removal even at low temperatures
UltraColor (liquid detergent)
- Best wash results at 20/30/40/60 °C
- With colour-protection formula for brilliant colours
- Excellent stain removal even at low temperatures
WoolCare delicates detergent (liquid detergent)
- For wool, silks and delicates
- Special care complex based on wheat protein and with colour-protection formula
- Best wash results at 20/30/40/60 °C
Specialist detergents
These specialist detergents are available as convenient single-use capsules.
Caps Sport
- For synthetic fabrics
- Neutralises odours thanks to built-in odour absorber
- Prevents static charge in clothes
- Retains the shape and breathability of synthetic fabrics
Caps DownCare
- For down-filled items
- Retains the elasticity and breathability of down
- Lanolin for effective cleaning and gentle care
- Down does not stick together and retains its loft
Caps WoolCare
- Woollens and delicates detergent
- Special wheat-protein-based agents
- Fibre-protection technology to help prevent items shrinking and felting
- Colour-protection formula for gentle cleaning
Caps UltraDark
- Special-purpose detergent for dark and black laundry
- Colour-protection formula for gentle cleaning
- Anti-pilling effect protects your garments from discolouration
- Retains colour intensity and brightness
Caps CottonRepair
- Special-purpose detergent for cotton fabrics
- Visibly renews fabric with just one wash
- Special Miele formula with No-vozymes technology
- Removes pilling and renews colour intensity and brightness
- Depending on fabric do not use more than 1–2 times per year
Caps SilkCare
- Silks and delicates detergent
- Special care product made with silk protein
- Preserves the smooth surface of silk textiles
- Gentle cleaning to protect silk fibres
Fabric care
These fabric care products are available as convenient single-use capsules.
Fabric conditioner cap
- Fabric conditioner for freshly scented laundry
- Pure and thorough cleanliness with a fresh scent
- For soft, bouncy laundry
- Prevents static charge in clothes
Cap ImpraProtect
- Proofing agent for sportswear and waterproof clothing
- Effective proofing to protect against water and wind, and to give a dirt-repellent finish
- Retains the breathability of fabrics
Additives
Additives are available as convenient single-use capsules.
Cap Booster
- Highly effective stain remover
- Enzyme technology to help remove stubborn stains
- Suitable for whites and colours
- For best wash results even at low temperatures
Machine care
Descaling agent
- Removes heavy limescale deposits
- Mild and gentle with natural citric acid
- Gentle on heater elements, drum and other components
IntenseClean
- For hygienic cleanliness in washing machines
- Removes grease, bacteria and associated unpleasant odours
- Effective thorough cleaning
Water softener tablets
- Reduces the amount of detergent needed for hard water
- Less detergent residue in fabrics
- Less chemicals in waste water due to reduced amount of detergent
United Kingdom
Miele Co. Ltd., Fairacres, Marcham Road, Abingdon, Oxon, OX14 1TW
Tel: 0330 160 6600, Internet: www.miele.co.uk/service, E-mail: info@miele.co.uk
Australia
Miele Australia Pty. Ltd.
ACN 005 635 398
ABN 96 005 635 398
Level 4, 141 Camberwell Road
Hawthorn East, VIC 3123
Tel: 1300 464 353
Internet: www.miele.com.au
China Mainland
Miele Electrical Appliances Co., Ltd.
1-3 Floor, No. 82 Shi Men Yi Road
Jing' an District
200040 Shanghai, PRC
Tel: +86 21 6157 3500
Fax: +86 21 6157 3511
E-mail: info@miele.cn,
Kowloon Bay, Hong Kong
Tel: (852) 2610 1025
Fax: (852) 3579 1404
Email:
customerservices@miele.com.hk
Website: www.miele.hk
India
Miele India Pvt. Ltd.
1st Floor, Copia Corporate Suites,
Commercial Plot 9,
Mathura Road, Jasola,
New Delhi - 110025
E-mail: customercare@miele.in
Website: www.miele.in
Ireland
Miele Ireland Ltd.
2024 Bianconi Avenue
Citywest Business Campus
Dublin 24
Tel: (01) 461 07 10
Fax: (01) 461 07 97
E-Mail: info@miele.ie
Internet: www.miele.ie
Malaysia
Miele Sdn Bhd
Suite 12-2, Level 12
Menara Sapura Kencana
Petroleum
Solaris Dutamas No. 1
Jalan Dutamas 1
50480 Kuala Lumpur, Malaysia
Phone: +603-6209-0288
Fax: +603-6205-3768
New Zealand
Miele New Zealand Limited
IRD 98 463 631
8 College Hill
Freemans Bay, Auckland 1011
New Zealand
Tel: 0800 464 353
Internet: www.miele.co.nz
Singapore
Miele Pte. Ltd.
29 Media Circle
11-04 ALICE@Mediapolis
Singapore 138565
Tel: +65 6735 1191
Fax: +65 6735 1161
E-Mail: info@miele.com.sg
Internet: www.miele.sg
South Africa
Miele (Pty) Ltd.
63 Peter Place
Bryanston 2194
P.O. Box 69434
Bryanston 2021
Tel: (011) 875 9000
Fax: (011) 875 9035
E-mail: info@miele.co.za
Internet: www.miele.co.za
Thailand
Miele Appliances Ltd.
BHIRAJ TOWER at EmQuartier
43rd Floor Unit 4301-4303
689 Sukhumvit Road
North Klongton Sub-District
Vadhana District
Bangkok 10110, Thailand
United Arab Emirates
Miele Appliances Ltd.
Showroom 1
Eiffel 1 Building
Sheikh Zayed Road, Umm Al She
P.O. Box 114782 - Dubai
Tel. +971 4 3044 999
Fax. +971 4 3418 852
800-MIELE (64353)
- OPERATING INSTRUCTIONS FOR WASHING MACHINES
- WARNING AND SAFETY INSTRUCTIONS
- OPERATING THE WASHING MACHINE
- CARING FOR THE ENVIRONMENT
- BEFORE USING FOR THE FIRST TIME
- WASHING ENVIRONMENTALLY AND ECONOMICALLY
- PROGRAMME CHART
- EXTRA OPTIONS
- PROGRAMME SEQUENCE
- CHANGING THE PROGRAMME SEQUENCE
- GARMENT CARE LABEL SYMBOLS
- DETERGENT
- CLEANING AND CARE
- PROBLEM SOLVING GUIDE
- SERVICE
- INSTALLATION
- CONTENTS
- CORRECT APPLICATION
- SAFETY WITH CHILDREN
- TECHNICAL SAFETY
- CORRECT USE
- ACCESSORIES AND SPARE PARTS
- CONTROL PANEL
- ① CONTROL FIELD
- ⑤ INDICATOR LIGHTS
- ⑥ SENSOR CONTROLS – CAPDOSING
- ⑦ TIME DISPLAY
- ⑧ SENSOR CONTROLS < ♦
- ⑨ START/ADD LAUNDRY SENSOR CONTROL
- ⑩ OPTICAL INTERFACE
- ⑪ PROGRAMME SELECTOR
- HOW THE CONTROL FIELD WORKS
- DISPOSAL OF THE PACKING MATERIAL
- DISPOSING OF YOUR OLD APPLIANCE
- REMOVING THE PROTECTIVE FOIL AND STICKERS
- REMOVE THE DRAIN HOSE ELBOW FROM THE DRUM
- RUNNING THE FIRST PROGRAMME
- OPENING THE DOOR AT THE END OF THE PROGRAMME
- ENERGY AND WATER CONSUMPTION
- HYGIENE IN THE WASHING MACHINE
- INFORMATION ABOUT SUBSEQUENT TUMBLE DRYING
- PREPARE THE LAUNDRY
- SORT THE LAUNDRY
- PRE-TREATING STAINS
- GENERAL TIPS
- LOAD THE WASHING MACHINE
- SELECT A PROGRAMME
- PROGRAMME SELECTION
- SELECTING A TEMPERATURE AND SPIN SPEED
- SELECTING EXTRAS
- ADD DETERGENT
- DETERGENT DISPENSER DRAWER
- TIPS ON DOSING
- TOO LITTLE DETERGENT
- TOO MUCH DETERGENT
- USING LIQUID DETERGENT WITH A PRE-WASH
- USING DETERGENT TABLETS OR PODS
- CAPDOSING
- ACTIVATING CAPDOSING
- SENSOR CONTROL CAPSULE
- INSERTING A CAPSULE
- SWITCHING OFF/CHANGING CAP-DOSING
- STARTING A PROGRAMME
- ENERGY SAVINGS
- ADDING LAUNDRY DURING A PROGRAMME SEQUENCE (ADDLOAD)
- OPENING THE DOOR AND REMOVING THE LAUNDRY
- FINAL SPIN SPEED IN WASH PROGRAMMES
- RINSE AND INTERIM SPIN
- SELECTING RINSE HOLD (FINAL SPIN)
- ENDING A PROGRAMME WITH A SPIN CYCLE
- ENDING A PROGRAMME WITHOUT A SPIN CYCLE
- TO OMIT RINSE AND INTERIM SPIN AND THE FINAL SPIN
- SELECTING DELAY START
- STARTING DELAY START
- CHANGING OR CANCELLING A STARTED DELAY START
- SHORT
- WATER
- PRE-WASH
- PRE-IRONING
- SPECIAL FEATURES IN THE PROGRAMME SEQUENCE
- ANTI-CREASE
- CHANGING A PROGRAMME (SAFETY LOCK)
- CANCELLING A PROGRAMME
- SELECTING A NEW PROGRAMME
- THE CORRECT DETERGENT
- THE RIGHT AMOUNT TO DISPENSE WILL DEPEND ON THE FOLLOWING
- WATER SOFTENERS
- DISPENSING AIDS
- REFILL PACKS OF DETERGENT
- FABRIC CONDITIONER AND LIQUID STARCH
- USING FABRIC CONDITIONER OR STARCH SEPARATELY
- COLOUR RUN AND DYE REMOVERS/DYES
- RECOMMENDED MIELE DETERGENTS
- RECOMMENDED DETERGENTS IN ACCORDANCE WITH DIRECTIVE (EU) NR
- CLEANING THE EXTERNAL CASING AND THE CONTROL PANEL
- CLEANING THE DETERGENT DISPENSER DRAWER
- REMOVING THE DISPENSER DRAWER
- CLEANING THE SIPHON AND THE ✧/☐ COMPARTMENT CHANNEL
- CLEANING THE DETERGENT DISPENSER DRAWER COMPARTMENT
- HYGIENE INFO (CLEANING THE DRUM)
- CLEANING THE WATER INLET FILTER
- CLEANING THE FILTER IN THE INLET HOSE
- CLEANING THE FILTER IN THE INLET VALVE
- OPENING THE DOOR IN THE EVENT OF A BLOCKED DRAIN OUTLET AND/OR POWER CUT
- BLOCKED DRAIN OUTLET
- DRAINING THE WASHING MACHINE
- OPEN THE DOOR
- CONTACT IN THE EVENT OF A FAULT
- OPTIONAL ACCESSORIES
- EPREL DATABASE
- WARRANTY
- INSTALLATION SURFACE
- PLEASE NOTE
- TRANSPORTING THE WASHING MACHINE TO ITS INSTALLATION SITE
- REMOVING THE TRANSIT BARS
- REMOVING THE LEFT-HAND TRANSIT BAR
- REMOVING THE RIGHT-HAND TRANSIT BAR
- COVERING HOLES
- SECURING THE TRANSIT BARS
- FITTING THE TRANSIT BARS
- OPENING THE COVERS
- LEVELLING THE MACHINE
- SCREWING OUT AND ADJUSTING THE FEET
- INSTALLING UNDER A CONTINUOUS WORK-TOP
- WASHER-DRYER STACK
- THE WATER PROTECTION SYSTEM
- INLET HOSE
- ELECTRONIC UNIT AND WASHING MACHINE HOUSING
- DRAIN HOSE
- CONNECTION TO THE WATER SUPPLY
- MAINTENANCE
- HOSE EXTENSION
- WATER DRAINAGE
- DRAINAGE OPTIONS
- ELECTRICAL CONNECTION
- ACCESSING THE PROGRAMMING LEVEL
- PRE-REQUISITES
- CHOOSING AND SELECTING A PROGRAMMABLE FUNCTION
- EDITING AND SAVING A PROGRAMMABLE FUNCTION
- EXIT PROGRAMMING LEVEL
- PI3 SENSOR TONE
- SELECTION
- PI4 LOCK CODE
- OPTIONS
- USING THE WASHING MACHINE WITH A LOCK CODE
- P22 CONTROL PANEL SWITCH-OFF STATUS
- P24 MEMORY
- P26 LONGER PRE-WASH COTTONS
- P28 GENTLE ACTION
- P29 REDUCE TEMPERATURE
- P30 WATER PLUS
- P31 WATER PLUS LEVEL
- P32 MAXIMUM RINSE LEVEL
- P33 SUDS COOLING
- P34 ANTI-CREASE
- P49 LOW WATER PRESSURE
- P62 BACKLIGHT BRIGHTNESS DIMMED
- ULTRAWHITE (POWDER DETERGENT)
- ULTRACOLOR (LIQUID DETERGENT)
- WOOLCARE DELICATES DETERGENT (LIQUID DETERGENT)
- SPECIALIST DETERGENTS
- CAPS SPORT
- CAPS DOWNCARE
- CAPS WOOLCARE
- CAPS ULTRADARK
- CAPS COTTONREPAIR
- CAPS SILKCARE
- FABRIC CARE
- FABRIC CONDITIONER CAP
- CAP IMPRAPROTECT
- ADDITIVES
- CAP BOOSTER
- MACHINE CARE
- DESCALING AGENT
- INTENSECLEAN
- WATER SOFTENER TABLETS
- UNITED KINGDOM
- AUSTRALIA
- CHINA MAINLAND
- INDIA
- IRELAND
- MALAYSIA
- NEW ZEALAND
- SINGAPORE
- ALICE@MEDIAPOLIS
- SOUTH AFRICA
- THAILAND
- UNITED ARAB EMIRATES
Brand : MIELE
Model : WED 125 WCS 8kg
Category : Washing machine
