BVM-F170 - Monitor SONY - Free user manual and instructions

Product Type	Professional CRT Monitor
Brand	Sony
Model	BVM-F170
Display Size	17 inches (43 cm) diagonal
Display Technology	Trinitron CRT
Resolution	1920 x 1080 (HD) / 1920 x 1200 (WUXGA) maximum
Brightness	100 cd/m² (typical)
Contrast Ratio	1000:1 (typical)
Video Inputs	BNC (Composite, S-Video, Component), DVI-D, HD-SDI
Dimensions (W x H x D)	Approx. 16.9 x 16.9 x 18.9 inches (430 x 430 x 480 mm)
Weight	Approx. 36.4 kg (80.2 lbs)
Power Consumption	Approx. 150 W (max)
Power Supply	AC 100-240 V, 50/60 Hz
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Key Features	Color temperature adjustment, Chroma up, Scan modes, Under-scan
Cleaning Instructions	Wipe with a soft, dry cloth. Do not use abrasive cleaners.
Safety	Do not block vents; avoid magnetic fields; use grounded outlet.
Spare Parts & Repairability	Contact Sony service center; some parts available up to 5 years.

Frequently Asked Questions - BVM-F170 SONY

What is the native resolution of the Sony BVM-F170?

The native resolution is 1920 x 1080 (HD) but it can also support up to 1920 x 1200 (WUXGA).

How do I clean the screen of the BVM-F170?

Use a soft, lint-free cloth slightly dampened with water. Do not apply any liquid directly to the screen. Avoid harsh chemicals.

What video inputs are available on this monitor?

It has BNC connectors for composite, S-Video, component, and also DVI-D and HD-SDI inputs.

Can I use this monitor for color grading?

Yes, the BVM-F170 is a professional broadcast monitor with precise color calibration capabilities, making it suitable for color grading.

What is the weight of the Sony BVM-F170?

It weighs approximately 36.4 kg (80.2 lbs).

How do I calibrate the monitor?

Use the internal menus to adjust color temperature, brightness, and contrast. For professional calibration, use a colorimeter with compatible software.

Is the BVM-F170 compatible with 4K signals?

No, it is an HD monitor and does not support 4K resolution natively.

What power cord does this monitor require?

It uses a standard IEC C13 power cord with voltage range 100-240V AC.

How do I enable underscan mode?

Press the 'Underscan' button on the front panel or navigate to the Scan menu and select Underscan.

Where can I find spare parts for the BVM-F170?

Contact Sony's professional service centers. Some parts may be available for up to 5 years after production.

USER MANUAL BVM-F170 SONY

1st Edition (Revised 1)

Before operating the unit, please read this manual thoroughly and retain it for future reference.

Important Safety Instructions

• Read these instructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near water.
• Clean only with dry cloth.

Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

Only use attachments/accessories specified by the manufacturer.

Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

• Unplug this apparatus during lightning storms or when unused for long periods of time.
• Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.

THIS APPARATUS MUST BE EARTHED.

WARNING

When installing the unit, incorporate a readily accessible disconnect device in the fixed wiring, or connect the power plug to an easily accessible socket-outlet near the unit. If a fault should occur during operation of the unit, operate the disconnect device to switch the power supply off, or disconnect the power plug.

CAUTION

The apparatus shall not be exposed to dripping or splashing. No objects filled with liquids, such as vases, shall be placed on the apparatus.

CAUTION

The unit is not disconnected from the AC power source (mains) as long as it is connected to the wall outlet, even if the unit itself has been turned off.

This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

For the customers in the U.S.A.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

All interface cables used to connect peripherals must be shielded in order to comply with the limits for a digital device pursuant to Subpart B of Part 15 of FCC Rules.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

WARNING: THIS WARNING IS APPLICABLE FOR USA ONLY.

If used in USA, use the UL LISTED power cord specified below.

DO NOT USE ANY OTHER POWER CORD.

Plug Cap Parallel blade with ground pin (NEMA 5-15P Configuration)

Cord Type SVT or SJT, three 16 or 18 AWG wires Length Minimum 1.5 m (4 ft .11in.), Less than 2.5 m (8 ft .3 in.)

Rating Minimum 10A, 125V

Using this unit at a voltage other than 120V may require the use of a different line cord or attachment plug, or both. To reduce the risk of fire or electric shock, refer servicing to qualified service personnel.

WARNING: THIS WARNING IS APPLICABLE FOR OTHER COUNTRIES.

1. Use the approved Power Cord (3-core mains lead) / Appliance Connector / Plug with earthing-contacts that conforms to the safety regulations of each country if applicable.
2. Use the Power Cord (3-core mains lead) / Appliance Connector / Plug conforming to the proper ratings (Voltage, Ampere).

If you have questions on the use of the above Power Cord / Appliance Connector / Plug, please consult a qualified service personnel.

For the customers in Canada

This Class A digital apparatus complies with Canadian ICES-003.

For the customers in Europe

This product with the CE marking complies with the EMC Directive issued by the Commission of the European Community.

Compliance with this directive implies conformity to the following European standards:

• EN55103-1 : Electromagnetic Interference (Emission) • EN55103-2 : Electromagnetic Susceptibility (Immunity) This product is intended for use in the following Electromagnetic Environment: E4 (controlled EMC environment, ex. TV studio).

The manufacturer of this product is Sony Corporation, 1-7-1 Konan, Minato-ku, Tokyo, 108-0075 Japan.

The Authorized Representative for EMC and product safety is Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany. For any service or guarantee matters please refer to the addresses given in separate service or guarantee documents.

This apparatus shall not be used in the residential area.

Attention - when the product is installed in a rack:

1. Prevention against overloading of branch circuit When this product is installed in a rack and is supplied power from an outlet on the rack, please make sure that the rack does not overload the supply circuit.
2. Providing protective earth

When this product is installed in a rack and is supplied power from an outlet on the rack, please confirm that the outlet is provided with a suitable protective earth connection.

1. Internal air ambient temperature of the rack

When this product is installed in a rack, please make sure that the internal air ambient temperature of the rack is within the specified limit of this product.

1. Prevention against achieving hazardous condition due to uneven mechanical loading

When this product is installed in a rack, please make sure that the rack does not achieve hazardous condition due to uneven mechanical loading.

1. Install the equipment while taking the operating temperature of the equipment into consideration

For the operating temperature of the equipment, refer to the specifications of the Operation Manual.

1. When performing the installation, keep the following space away from walls in order to obtain proper exhaust and radiation of heat.

Lower, Upper: 4.4 cm (1 3/4 inches) or more Right, Left: 1.0 cm (13/32 inches) or more

For the customers in Europe, Australia and New Zealand

WARNING

This is a Class A product. In a domestic environment, this product may cause radio interference in which case the user may be required to take adequate measures.

For customers in Norway

This equipment can be connected to an IT power distribution system.

On Installation....8

Handling the Screen 8

On Burn-in 8

On a Long Period of Use....9

Handling and Maintenance of the Screen .....9

On Dew Condensation 9

On Repacking....9

Disposal of the Unit 9

On Fan Error 9

Functions Supported in Software Version 1.1 .... 10

Features.... 11

Options 13

Input/Output Connectors and Input Adaptors.... 15

Location and Function of Parts.... 16

Front Panel 16

Rear Panel 18

Chapter 2 Preparations

Environments of the Installation Location.... 20

Installing an Input Adaptor.... 20

Mounting the Unit in a Rack 22

Connections.... 22

Connecting the Controller (BKM-16R) ......23

Connecting the Multiple Units with the LAN....23

Turning on the Power.... 24

Connecting to Power 24

Turning on the Monitor....25

Settings 25

Selecting the Area 25

Setting for the LAN to Connect the Multiple Units....27

Selecting the Monitor (Designation of the Monitor or Group ID Number) .....27

Assigning the Input Signal to the Channel.....28

Setting the Display Mode of the Picture .....28

Adjusting 29

Chroma/Phase Adjustment....29

Color Temperature (White Balance) Adjustment....30

Brightness/Contrast Adjustment ....30

Chapter 3 Menu

Basic Menu Operations ......32

Menu Operation Buttons....32

Displaying the Menu ....33

Setting or Adjusting in the Menu Operation .....33

Entering the Channel Number......35

Aborting Menu Operation....35

Menu Structure....36

Adjustment Menu 42

Overview 42

Menu Function and Operation ....42

Channel Configuration Menu ....47

Overview 47

Menu Function and Operation ....47

Auxiliary Setting Menu ....53

Overview 53

Menu Function and Operation ....53

Function Setting Menu ....54

Overview 54

Menu Function and Operation ....54

System Configuration Menu 63

Overview 63

Menu Function and Operation ....63

File Management Menu....69

Overview 69

Menu Function and Operation ....69

System Status Menu 71

Overview 71

Menu Function and Operation ....71

Controller Menu....73

Overview 73

Menu Function and Operation ....73

Key Protect Menu....78

Overview 78

Menu Function and Operation ....78

Chapter 4 Operations

Selecting Display Mode ....79

Setting the Display of Native Scan Mode.....80

Selecting the Native Scan/Scan Mode .....81

Displaying Two Signals on One Screen (Picture&Picture)......82

Magnifying the Picture (Pixel Zoom)......83

Capturing the Picture of the HD Signal (HD Frame Capture) 84

Displaying the Area Marker or Aspect Marker ....85

Displaying the Audio Level Meter ....86

Displaying the Time Code 87

Switching the Display of the 3D Video Signal ....87

Copying the Setting or Adjustment Value to Another Monitor 89

Displaying the Monitor Status Page....90

Assigning a Function to a Function Button 92

Upgrading the Monitor and Controller......92

Saving the Upgrade Data in a “Memory Stick PRO”....92

Upgrading the Monitor 93

Upgrading the Controller 93

Appendixes

Specifications....95

Input Signals and Adjustable/Setting Items....98

Available Signal Systems....100

Available Signal Formats ......101

Aperture Modification Frequency......107

Picture Display Size....108

Picture Frame Display ....110

Scan Mode Image....112

Troubleshooting....114

Dimensions....116

Inserting/Ejecting the "Memory Stick" .....118

Notes on "Memory Stick"......118

Menu Index 120

Overview

1

Chapter

Precautions

On Safety

• Operate the unit only with a power source as specified in the “Specifications” section.
• A nameplate indicating operating voltage, power consumption, etc., is located on the rear panel.
• Should any solid object or liquid fall into the cabinet, unplug the unit and have it checked by qualified personnel before operating it any further.
• Do not drop or place heavy objects on the power cord. If the power cord is damaged, turn off the power immediately. It is dangerous to use the unit with a damaged power cord.
• Unplug the unit from the wall outlet if it is not to be used for several days or more.
• Disconnect the power cord from the AC outlet by grasping the plug, not by pulling the cord.
• The socket-outlet shall be installed near the equipment and shall be easily accessible.

On Installation

• Allow adequate air circulation to prevent internal heat build-up. Do not place the unit on surfaces (rugs, blankets, etc.) or near materials (curtains, draperies) that may block the ventilation holes.
• Do not install the unit in a location near heat sources such as radiators or air ducts, or in a place subject to direct sunlight, excessive dust, mechanical vibration or shock.

Handling the Screen

• The panel fitted to this unit is manufactured with high precision technology, giving a functioning pixel ratio of at least 99.99%. Thus a very small proportion of pixels may be “stuck”, either always off (black), always on (red, green, or blue), or flashing. In addition, over a long period of use, because of the physical characteristics of the panel, such “stuck” pixels may appear spontaneously. These problems are not a malfunction.
• Do not leave the screen facing the sun as it can damage the screen. Take care when you place the unit by a window.
• Do not push or scratch the monitor's screen. Do not place a heavy object on the monitor's screen. This may cause the screen to lose uniformity.
• The screen and the cabinet become warm during operation. This is not a malfunction.

On Burn-in

Due to the characteristics of the material used in the OLED panel for its high-precision images, permanent burn-in may occur if still images are displayed in the same position on the screen continuously, or repeatedly over extended periods.

Images that may cause burn-in

• Masked images with aspect ratios other than 16:9 • Color bars or images that remain static for a long time
• Character or message displays that indicate settings or the operating state
• On-screen displays such as center markers or area markers

To reduce the risk of burn-in

• Turn off the character and marker displays. Press the MENU button to turn off the character displays. To turn off the character or marker displays of the connected equipment, operate the connected equipment accordingly. For details, refer to the operation manual of the connected equipment.
• Turn off the power when not in use. Turn off the power if the viewfinder is not to be used for a prolonged period of time.

Screen saver

This product has a built-in screen saver function to reduce burn-in. When an almost still image is displayed for more than 10 minutes, the screen saver starts automatically and the brightness of the screen decreases.

On a Long Period of Use

Due to an OLED's panel structure and characteristics of materials in its design, displaying static images for extended periods, or using the unit repeatedly in high temperature/high humidity environments may cause image smearing, burn-in, areas of which brightness is permanently changed, lines, or a decrease in overall brightness.

In particular, continued display of an image smaller than the monitor screen, such as in a different aspect ratio, may shorten the life of the unit.

Avoid displaying a still image for an extended period, or using the unit repeatedly in a high temperature/high humidity environment such as an airtight room, or around the outlet of an air conditioner.

To prevent any of the above issues, we recommend reducing brightness slightly, and turning off the power whenever the unit is not in use.

Handling and Maintenance of the Screen

The surface of the screen is specially coated to reduce image reflection. Make sure to observe the following points as improper maintenance procedures may impair the screen's performance. In addition, the screen is vulnerable to damage. Do not scratch or knock against it using a hard object.

• Be sure to disconnect the AC power cord from the AC outlet before performing maintenance.
• The surface of the screen is specially coated. Do not attach adhesive objects, such as stickers, on it.
• The surface of the screen is specially coated. Do not touch the screen directly.
• Wipe the screen surface gently with the supplied cleaning cloth or a soft dry cloth to remove dirt.
• Stubborn stains may be removed with the supplied cleaning cloth, or a soft cloth slightly dampened with a mild detergent solution.
• The screen may become scratched if the cleaning cloth is dusty.
• Never use strong solvents such as alcohol, benzene, thinner, acidic or alkaline detergent, detergent with abrasives, or chemical wipes as these may damage the screen.
• Use a blower to remove dust from the screen surface.

On Dew Condensation

If the viewfinder is moved suddenly from a cold place to a warm place, or used in a room with high humidity, water droplets may form on the interior of the product. This phenomenon is known as dew condensation.

This product does not come with a feature that warns users of dew condensation. If water droplets are found on the casing, turn off the power, and wait until the condensation disappears before using.

On Repacking

Do not throw away the carton and packing materials. They make an ideal container in which to transport the unit.

Disposal of the Unit

Do not dispose of the unit with general waste.

Do not include the monitor with household waste.

When you dispose of the monitor, you must obey the law in the relative area or country.

On Fan Error

The fan for cooling the unit is built in. When the fan stops and the OPERATE lamp flashes in red, the OVER RANGE lamp flashes in amber, and the ECO lamp lights in magenta on the front panel for fan error indication, turn off the power and contact an authorized Sony dealer.

If you have any questions about this unit, please contact your Sony service representative.

Functions Supported in Software Version 1.1

The following new functions are supported for Version 1.1 of the BVM-F170.

Menu Supported function Reference page
• Auto(in the Color Temp Adj menu of the Adjustment menu)	Automatic color temperature adjustment can be performed using the built-in color sensor.	45
• Copy From(in the Picture Adj menu of the Adjustment menu)(in the Color Temp Adj menu of the Adjustment menu)(in the Channel Configuration menu)(in the Marker Setting menu of the Function Setting menu)(in the File Management menu)	Data in this monitor, in another monitor or in a “Memory Stick” can be copied.	43, 45, 52, 56, 69
• Display Port(in the Format menu of the Channel Configuration menu)(in the RGB Range menu of the Channel Configuration menu)	The settings for the DisplayPort signal are available. 48, 51
• HDMI/DisplayPort Auto(in the Matrix menu of the Channel Configuration menu)(in the RGB Range menu of the Channel Configuration menu)	Matrix switching (Matrix) and quantization range setting (RGB Range) for the HDMI or DisplayPort signal are available.	50, 51
• HDMI/DP Status(in the System Status menu)	The information of the HDMI and DisplayPort signals can be displayed.	72
• Over Range(in the On Screen Set menu of the System Configuration menu)	The zebra pattern can be displayed on the portion of image that exceeds the allowable range of the internal signal processing circuit.	66
• Save To(in the File Management menu)	Stores the system data to a “Memory Stick”. 69
• Delete 1)(in the File Management menu)	Deletes a file in the “Memory Stick”. 70

1) Use the controller with software version 1.6 or higher to use this function.

Features

The BVM-F170 is a 16.5-inch professional video monitor. It is suitable for television stations or video production houses where precise image reproduction is required.

The BVM-F170 features an OLED panel and "TRIMASTER", a new technology developed for three elements that are in demand for professional use: "accurate color reproduction", "precision imaging", and "quality picture consistency". TRIMASTER reduces the viewing differences that occur due to the individuality of each panel. Additionally, the BVM-F170 achieves the high picture quality and high reliability required for a master monitor through its color management system, which includes a wide color gamut device, high-resolution and precise gradation display, highly accurate signal processing, and panel correction function.

1) TRIMASTER is a trademark of Sony Corporation.

Advantages of OLED panel technology

The OLED panel uses an organic material that emits light when an electric current is applied. Being self-emitting, the strength of luminescence can be controlled by the amount of electric current. This brings about the following three features:

Quick motion picture response:

The luminescent state of the OLED panel can be changed instantaneously by changing the current flow in the organic material. This enables a quick motion picture response and produces images with minimal blurring and ghosting. Furthermore, performance for shooting on location is not influenced by changes in environmental temperature.

High contrast and wide dynamic range:

The OLED panel does not emit light when a black signal is applied to the monitor, enabling a pure black screen to be displayed. Furthermore, thanks to a wide dynamic range, the panel impressively displays the brilliance and clarity of various sparkling images, such as stars twinkling in a night sky, night illuminations winking, or glass glittering.

Rich color reproduction:

An OLED panel's self-luminescence also allows for great color reproduction across the entire spectrum in practically any shade or brightness.

Sony's Super Top Emission OLED panel

The 16.5-inch full HD (1920 × 1080) OLED panel features Sony's Super Top Emission structure. Unlike the conventional bottom emission structure of TFT, Sony's OLED panel can reproduce a crisper image due to high brightness. Furthermore, a unique microcavity structure makes RGB primary colors purer and deeper by utilizing light resonance effects that magnify optimum light wavelengths and diminish undesired light wavelengths.

The panel's 10-bit driver enables smooth gradation of color shading.

2) "Super Top Emission" is a trademark that represents the OLED technology of Sony Corporation.

12-bit precision display engine for professional use

The panel is equipped with a unique signal process engine developed for professional use monitors. This engine incorporates 12-bit output accuracy at each process, and provides a high-quality I/P conversion algorithm, scaling processing, panel driving and a highly accurate color management system.

Multi color space

The Sony's unique OLED panel with a wide color gamut and color management system which uses the unique 3D LUT (Look Up Table) reproduces the color space that complies with the broadcast standard ITU-R BT.709, EBU and SMPTE-C accurately. A wider color space ³⁾ allows digital cinema reproductions.

3) The RGB chromaticity of SMPTE RP 431-2 is not covered in full.

High-quality I/P conversion processing

A high-quality picture near the original one, in which jagged lines and conversion errors are decreased by detecting the feature of the picture inside the subdivided block and processing properly, is reproduced.

The signal delay is decreased by judging the animation or still picture from the past video signal.

Interlace display mode

The interlace signal is displayed as the interlace picture by inserting the black line without I/P conversion processing. A picture faithful to the original signal and with the same feel as a CRT is gained.

For setting the display, see “Selecting Display Mode” on page 79.

Available to a multi signal format

The monitor supports various input signals such as 720 × 576/50i to 1920 × 1080/50P , 60P and variable computer signals up to 1920 × 1080 . The 3G/HD/SD-SDI inputs, HDMI ⁴⁾ and DisplayPort ⁵⁾ (HDCP correspondence) inputs, and four option ports are equipped for the standard interface. If you install optional input adaptors, the monitor expands inputs of 3G-SDI, HD-SDI or SD-SDI, and supports Dual-link HD-SDI, RGB, YPbPr, Y/C, and composite signal inputs.

4) HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing, LLC.

5) DisplayPort, DisplayPort logo and VESA are trademarks or registered trademarks of Video Electronics Standards Association.

HD frame capture function

The frame of the 3G/HD-SDI input signal is captured and saved as a picture file in the “Memory Stick”. This is used to confirm the color tone and picture angle of the current scene and recorded scene by using the multi display (Picture&Picture) function.

For the operation, see “Capturing the Picture of the HD Signal (HD Frame Capture)” on page 84.

As the frame of the input signal is captured, the data and marker set by the monitor is not reflected.

Multi display function

Two kinds of input signals are output on the monitor. Side by side mode is useful for adjusting the color or comparing two pictures.

For the operation, see “Displaying Two Signals on One Screen (Picture & Picture)” on page 82.

Pixel zoom function

As part of the picture is magnified up to 8 times without scaling processing, this is convenient for confirming a minute part of the signal.

For the operation, see “Magnifying the Picture (Pixel Zoom)” on page 83.

Safe area marker and aspect marker functions

The monitor is equipped with two area markers and center marker as the safe area marker and aspect marker for confirming the picture angle.

For the operation, see “Displaying the Area Marker or Aspect Marker” on page 85.

Scan selection/Native scan display function

You can select from under scan (-3%), normal scan (0%) and over scan (mask of the 5% over scan portion in the normal scan) for the picture display.

The monitor is equipped with a native scan display function which maps the pixel of the signal to the panel in one-to-one mode. You can select the mode from ×1, ×2 or Aspect Correction to display a signal in native mode. An SD signal of non-square pixels (the number of H pixels of the signal system is 720 or 1440) or a 640 × 480 SD signal of HDMI/DisplayPort video is displayed correctly by scaling processing of doubling for the V direction and correct aspect ratio for the H direction, and the picture is also optimized and displayed by modifying the aperture coefficient value, filter coefficient value, etc. in Aspect Correction mode.

For the operation, see “Selecting the Native Scan/Scan Mode” on page 81.

Aspect selectable function

A squeezed and recorded signal is displayed with the correct angle. You can select from 4:3 and 16:9 aspect modes.

Remote control function (Ethernet control)

The controller controls up to 32 monitors by the Ethernet (10BASE-T/100BASE-TX) connection. Up to four controllers are connected to one monitor in single mode. You can control individual monitors or monitor groups simply by entering the monitor ID number or group ID number. You can also execute the same operation on all connected monitors, or put all connected monitors into the same setup and adjustment state.

Time code display function

The time code superimposed on the SDI signal is displayed.

Closed caption display function

EIA/CEA-608 or EIA/CEA-708 standard closed caption signals superimposed on the SDI signals are displayed by installing the optional input adaptor (BKM-244CC).

Audio level meter display function

The audio level of the embedded audio signals superimposed on the SDI signal is displayed by installing the optional input adaptor (BKM-250TG).

3D signal analyzing function

The monitor supports the following display modes of the 3D signal analyzing function if you install the optional input adaptor (BKM-250TG). For this function, two-dimensional (2D) view is used. The signals are not displayed in stereoscopic view.

The available display modes differ depending on the serial number of the BKM-250TG.

For the operation, see “Switching the Display of the 3D Video Signal” on page 87.

Difference display (with serial number 7300001 or higher):

The difference between the luminance signal of the left (L) 3D video signal and that of the right (R) signal is displayed. This display is useful for checking parallax amount.

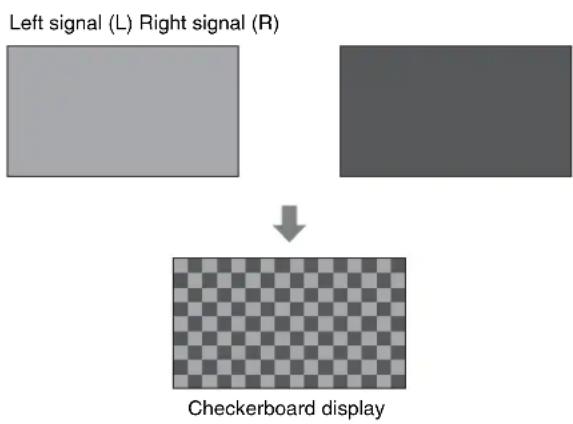

Checkerboard display (with serial number 7100001 or higher):

The left (L) and right (R) 3D video signals are displayed in a checkerboard pattern on the screen. This display is useful for comparing the luminance or color settings of neighboring L and R images.

L/R switching display (with serial number 7100001 or higher):

The dual-stream left (L) and right (R) 3D video signals are alternately displayed on the screen. This display is useful for comparing the color or brightness of the L and R signals, as a black frame is not inserted when the two signals are switched.

Horopter check display (with serial number 7100001 or higher):

Either left (L) or right (R) 3D video signals, or both L and R signals are displayed in monochrome mode. This display is useful for checking a subtle depth of a subject located in the boundary plane of the screen, that is, whether it is near or far from the screen surface.

Horizontal flip display (with serial number 7100001 or higher):

The input 3D video signals whose left (L) or right (R) signal has been inverted horizontally by a half-mirror type 3D rig are displayed as non-inverted images.

Note

The horizontal flip display function of this monitor inverts the input signals to display them. Since the internal sync is applied to any signal delayed by the inversion, there is a time lag between input and the displayed image.

Screen saver

When a nearly still image is displayed continuously for 10 minutes or more, the screen saver starts automatically to reduce the brightness of the screen to prevent burn-in.

Variable picture adjustment functions

Auto chroma, phase and matrix adjustment functions are equipped.

Other features

• The color temperature is selectable from D65, D93 and User.
• Built-in test pattern for 100% white signal, 20% gray signal, 0% black signal, PLUGE (Picture Line Up Generation Equipment) signal, color-bar signal, 5 step gray scale signal and ramp signal.
• Chroma Up function that increases the chroma setting by 12 dB.
• Blue only function and RGB cut off function to monitor signal noise.
• A parallel remote of the contact point control connector is equipped.

Options

For external control

BKM-16R Monitor Control Unit

The BKM-16R is a controller of the BVM-F170 and you can control multiple monitors from one controller.

In this manual, the BKM-16R is referred to as the controller.

For installation

BKM-39H Controller Attachment Stand

Used to join a BKM-16R and the BVM-F170.

SMF-700 Monitor Interface Cable

Used to connect the BVM-F170 to the BKM-16R.

Input adaptors

The input connector panel is composed by installing the optional input adaptor into the input option port on the rear panel of the monitor. Up to four adaptors can be installed to the monitor.

The input signal type for each connector of the adaptor is set with the Channel Configuration menu, in accordance with the configuration of the connector panel.

Note

When installing the adaptor, be sure to perform the necessary input signal setup with the Channel Configuration menu. If the setup is not performed, the adaptors may not function correctly.

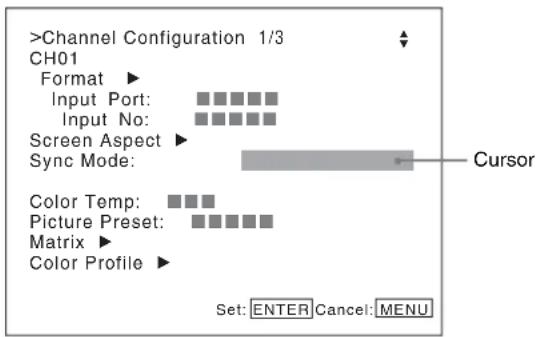

For information about the Channel Configuration menu, see page 47.

For details of each input adaptor, refer to the operating instructions of each model.

BKM-220D SDI 4:2:2 Input Adaptor

Includes a decoder for serial digital signals (525/625 component). Input/output connectors for two serial digital channels and output connector for one monitor channel are equipped.

BKM-227W NTSC/PAL Input Adaptor

Includes a decoder for NTSC/PAL/PAL-M/SECAM signals. Input/output connectors for each one composite signal channel and Y/C signal channel are equipped.

BKM-229X Analog Component Input Adaptor

Includes a decoder for analog component signals and analog RGB signals. Input connector for one channel is equipped.

BKM-243HS HD/D1-SDI Input Adaptor

Includes a decoder for serial digital component signals. Input/output connectors for two serial digital channels and output connector for one monitor channel are equipped.

BKM-244CC HD/SD-SDI Closed Caption Adaptor

Includes a decoder for serial digital component signals. EIA/CEA-608 or EIA/CEA-708 standard closed caption signals superimposed on the SDI signals are decoded and displayed. Input/output connectors for two serial digital channels and output connector for one monitor channel are equipped.

BKM-250TG 3G/HD/SD-SDI Input Adaptor

Includes a decoder for serial digital component signals. Time code and audio level of the embedded audio signals superimposed on the SDI signals are displayed. 3D signal analyzing function is also supported. Input/output connectors for two serial digital channels and output connector for two monitor channels are equipped.

Notes

• The signal from the MONITOR OUT connector of the BKM-220D, BKM-243HS, BKM-244C and BKM-250TG does not satisfy the ON-LINE signal specifications.
• An input adaptor with a specified serial number may be required for your intended use. For the serial numbers of the input adaptors available for this unit, see “Installing an Input Adaptor” (page 20).

Input/Output Connectors and Input Adaptors

This monitor is equipped with two 3G/HD/SD-SDI input connectors, an HDMI input connector, and a DisplayPort input connector for the standard interface.

In this manual, these connectors are referred to as the standard input.

By adding the optional input expansion adaptors, the input/output connector panel can be assembled in a wide variety of configurations.

The signals that each connector supports are given in the following table. The type of signal to be applied to each input/output connector is set with the Channel Configuration menu (page 47).

List of input/output connectors and input adaptors

Input signal Standard		input	Input adaptor
			BKM-220D B	KM-227W BK	M-229X BKM-	243HS/244CC	BKM-250TG
Serial digital input	Single-link SD-SDI Component 525/625	○	○		○	○
	Single-link HD-SDI ○				○
	Dual-link HD-SDI ○ (2) ○
	Single-link 3G-SDI ○					○
Analog input Composite	NTSC ○
	Composite PAL ○
	Composite PAL-M			○
	Composite SECAM			○
	Y/C NTSC			○
	Y/C PAL			○
	Y/C PAL-M			○
	Y/C SECAM			○
	YPbPr 525i/625i				○
	RGB 525i/625i				○
	YPbPr/RGB 1080/24PsF				○
	YPbPr/RGB 1080/24P				○
	YPbPr/RGB 1080/50i (25PsF)				○
	YPbPr/RGB 1080/25P				○
	YPbPr/RGB 1080/60i (30PsF)				○
	YPbPr/RGB 1080/30P				○
	YPbPr/RGB 720/50P				○
	YPbPr/RGB 720/60P				○
HDMI	Video	○
	Computer	○
DisplayPort	Video	○
	Computer	○
Number of digital inputs		2	2	-	-	2	2
Number of analog inputs		-	-	1	1	-	-
Number of HDMI inputs		1	-	-	-	-	-
Number of DisplayPort input		1	-	-	-	-	-

○: Signal can be reproduced. O(2): Two adaptors are used.

For details, see "Available Signal Formats" on page 101.

Location and Function of Parts

Front Panel

① Tally lamp

With factory settings, the tally lamp lights when pins No. 8 and No. 9 of the PARALLEL REMOTE connector on the rear panel are shorted. By changing the setting in the Parallel Remote menu (page 64) of the System Configuration menu, different pins on the PARALLEL REMOTE connector can be used to control the tally lamp.

② OPERATE lamp

When the MAIN POWER switch (on the rear panel) is turned on, internal data initialization starts and the OPERATE lamp flashes in red for a while. When the signal is output, the lamp flashes in green to indicate that data initialization continues. When initialization is finished and the monitor enters its operation mode, the lamp lights in green.

The OPERATE lamp is lit in red when the monitor is in standby mode. The monitor will be in standby mode under the following conditions:

- Standby Mode is set to On in the Power menu (page 65) of the System Configuration menu and the MAIN POWER switch (on the rear panel) is turned on. (The OPERATE lamp will flash for initialization after the switch is turned on, then will light.)

- The monitor is changed from operation mode to standby mode by external control.

Lights in green when the monitor is put into operation mode from standby mode by pressing the MONITOR I/① switch of the controller.

Notes

• When the OPERATE lamp is flashing in red, the monitor cannot be put into operation mode. Wait until the lamp is steadily lit.
• When the OPERATE lamp is flashing in green, the monitor is not in full operation mode and images cannot be displayed correctly. Wait until the lamp is steadily lit in green.

The OPERATE lamp may indicate an error or warning. For details, see “Error/warning display by the lamp” (page 17).

③ OVER RANGE lamp

Lights in amber when ABL (Automatic Brightness Limiter) starts. Also lights in amber when the signal level has exceeded the dynamic range of the signal processing circuit.

Decrease the contrast or brightness when the OVER RANGE lamp is lit.

The OVER RANGE lamp may indicate an error or warning. For details, see “Error/warning display by the lamp” (page 17).

④ ECO lamp

Starts flashing rapidly in green approximately one minute before the screen saver is activated. Flashing in green slows when the screen saver starts.

The ECO lamp may indicate an error or warning. For details, see “Error/warning display by the lamp” (page 17).

Error/warning display by the lamp

The OVER RANGE lamp, OPERATE lamp and/or ECO lamp on the front panel may show an error or warning while the monitor is being operated.

If the error or warning is shown, please contact your Sony representative.

Error display

ECO lamp	OVER RANGE lamp	OPERATE lamp	Symptoms
Lights in yellow	Lights in amber	Flashes in red	The power in the panel part is unusual.
Lights in yellow	Flashes in amber	Flashes in red	The temperature in the panel part is unusual.
Flashes in yellow	Lights in amber	Flashes in red	The ambient temperature sensor is unusual.
Lights in magenta	Flashes in amber	Flashes in red	Fan error.
Flashes in magenta	Lights in amber	Flashes in red	Device error.

Warning display

ECO lamp	OVER RANGE lamp	OPERATE lamp	Symptoms
-	Flashes in amber	-	The luminance is reduced to protect the panel from an increase of temperature in the panel part.
-	Lights in amber	-	Over range

-: Status except for error display.

Rear Panel

① MAIN POWER switch

When turned on, the monitor enters operation mode. By setting in the Power menu (page 65) of the System Configuration menu, the monitor can also be set to enter standby mode when the MAIN POWER switch is turned on.

② DC IN 24 V - 28 V (DC power input) connector (XLR 3-pin, male)

Connect the 24 V to 28 V DC power supply.

Pin number Function
1	- ( G
2 + (24 V to 28 V DC)
3	NC

③ AC IN connector (3-pin)

Connects the monitor to an AC power source, via the supplied AC power cord.

④ DC 5V OUT connector (female)

Supplies the DC power to the controller.

Connect to the DC 5V/12V IN connector of the controller with the SMF-700 or the cable supplied with the BKM-39H.

CAUTION

DC 5V OUT connector (female) is non LPS (Limited Power Source) circuit.

⑤ LAN (10/100) connector (10BASE-T/100BASE-TX)

Connect to the LAN (10/100) connector of the controller by using the SMF-700 or the cable supplied with the BKM-39H. Or connect to the network or the LAN (10/100) connector of the controller by using a 10BASE-T/100BASE-TX LAN cable (shielded-type, optional).

CAUTION

• For safety, do not connect the connector for peripheral device wiring that might have excessive voltage to this port. Follow the instructions for this port.
• When you connect the LAN cable of the unit to a peripheral device, use a shielded-type cable to prevent malfunction due to radiation noise.
• The connection speed may be affected by the network system.

ATTENTION

LAN: To connect to the network.

PEER TO PEER: To connect to the LAN (10/100) connector of the controller in a 1-to-1 connection.

⑦ PARALLEL REMOTE connector (D-sub 9-pin, female)

Forms a parallel switch and controls the monitor externally. The pin assignment and factory setting function assigned to each pin are given below.

Pin number Function
1 Sets input signal	channel 1 (numeric keypad function).
2 Sets input signal	channel 2 (numeric keypad function).
3 Selects sync signal	SYNC button function).
4 Selects whether monochrome image is displayed or the monitor switches the display mode automatically between color image and monochrome image depending on the input signal (MONO button function).
5 Marker (set in the Marker Setting menu) On/Off (MARKER button function).
6, 7 Not connected
8 Tally lamp On/Off
9	G r

All pin function assignments can be changed with the Parallel Remote menu (page 64) of the System Configuration menu.

To switch each function between On and Off or between enable and disable, change pin connections in the following way.

On or enabled: Short each pin and pin 9 together.

Off or disabled: Leave each pin open.

8 STANDARD PORT

SDI INPUT 1 connector

Inputs serial digital signals (standard SDI input 1).

SDI INPUT 2 connector

Inputs serial digital signals (standard SDI input 2).

MONITOR OUT connector

This is the MONITOR OUT connector for SDI INPUT 1 or SDI INPUT 2 connector.

Note

The signal from this MONITOR OUT connector does not satisfy the ON-LINE signal specifications.

⑨ HDMI IN connector

Inputs the HDMI signal.

HDMI (High-Definition Multimedia Interface) is an interface that supports both video and audio on a single digital connection, allowing you to display high quality digital picture. The HDMI specification supports HDCP (High-bandwidth Digital Content Protection), a copy protection technology that incorporates coding technology for digital video signals.

Notes

• The HDMI audio signal is not available for this monitor.
• Use HDMI compliant cable (optional), Category 2 (High Speed HDMI Cable), with HDMI logo.

⑩ DisplayPort input connector

Inputs the DisplayPort signal.

DisplayPort is an interface developed by VESA that supports transfer of both video and audio digital signals on a single cable.

It also supports HDCP, a copy protection technology that incorporates coding technology for digital video signals.

Note

This monitor does not support DisplayPort audio signals.

⑪ Input option ports

Used to install the optional input adaptors.

For installing the input adaptor, see page 20.

For the input signals, see “Input/Output Connectors and Input Adaptors” on page 15.

Preparations

Chapter

2

Environments of the Installation Location

Illumination environments

The apparent color reproduction on the monitor is greatly affected by ambient light or glare.

Viewing angle

The ideal viewing angle is within 5 degrees (up/down/left/right) off the center of the monitor screen when the operator views the entire monitor screen. Keep the viewing angle within 15 degrees off the center of the monitor screen.

Installing an Input Adaptor

Each input adaptor can be installed in any input option port on the rear panel.

Caution

When you install the following input adaptors to this equipment, use those with the serial numbers given below.

• BKM-220D with serial number 2100001 or higher. This equipment may not meet the requirements of the electromagnetic interference standard if designated input adaptors are not installed.
• BKM-229X with serial number 2200001 or higher. This equipment may not work correctly or you may not be satisfied with its performance if designated input adaptors are not installed.
• BKM-243HS with serial number 2108355 or higher. This equipment may not meet the requirements of the electromagnetic interference standard or work correctly, or you may not be satisfied with the performance if designated input adaptors are not installed.
• BKM-250TG with serial number 7300001 or higher. To enable all five display modes of the 3D signal analyzing function, use the input adaptor with serial number 7300001 or higher.

Caution

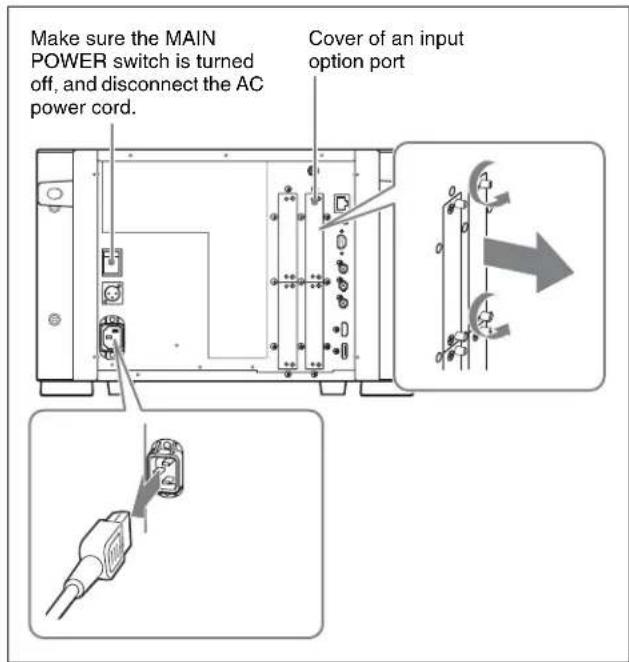

To reduce the risk of electric shock, turn off the MAIN POWER switch of the monitor and disconnect the AC power cord before installing or removing adaptors.

1. Loosen two screws and remove the cover of an input option port on the rear panel of the monitor.

2. Insert the adaptor facing the board as shown below.

3. Push the adaptor in until it is firmly fit into the connector inside the monitor, then tighten the two screws to secure the adaptor.

For connecting Dual-link HD-SDI signals

Two BKM-243HS or BKM-244CC input adaptors or one BKM-250TG input adaptor is required. When the BKM-

When the BKM-243HS or BKM-244CC adaptors are used, install the input adaptors in OPTION 1 and 2 option ports, or OPTION 3 and 4 option ports. The BKM-243HS or BKM-244CC cannot be used with the BKM-250TG for Dual-link operation.

To connect the cable

When the BKM-243HS or BKM-244CC adaptors are used, install the Link A signal to OPTION 1 or 3, and the Link B signal to OPTION 2 or 4.

Connect the cable to the same input number (both INPUT 1 or both INPUT 2) of the input adaptors installed in OPTION 1 and 2 option ports, or OPTION 3 and 4 option ports.

When the BKM-250TG is used, install the Link A signal to INPUT 1, and the Link B signal to INPUT 2.

For 3D signal analyzing function

Use a 3D-compatible BKM-250TG (with serial number 7300001 or higher) and input the left 3D signal to INPUT 1 and the right signal to INPUT 2.

Mounting the Unit in a Rack

To mount the unit in an EIA standard 19-inch rack, use the supplied rack mount brackets and screws.

1 Remove the four feet from the bottom of the unit.

2 Attach the rack mount brackets to each side of the unit with the rack mount attachment screws.

3 Screw the rack mount brackets to the rack to mount the unit.

Use the commercially available screws that match the size of the rack's holes.

Connections

Note on connecting the cable to the DC 5V OUT connector

Be sure to plug the male connector of the cable into the DC 5V OUT connector of the monitor. Insert the connector so as to fit the shape of the DC 5V OUT connector.

Connecting the Controller (BKM-16R)

1 Turn off the MAIN POWER switch of the monitor before connecting the units. 2 Set the NETWORK switches of the monitor and the controller to PEER TO PEER. 3 Connect the LAN (10/100) connector of the monitor and the LAN (10/100) connector of the controller by using the SMF-700 or the cable supplied with the BKM-39H, or a 10BASE-T/100BASE-TX straight LAN cable (shielded-type, optional).

Note

When an optional LAN cable is connected, use a shielded-type cable to prevent a malfunction due to noises.

4 Connect the DC 5V OUT connector of the monitor and the DC 5V/12V IN connector of the controller by using the SMF-700 or the cable supplied with the BKM-39H. Or connect the output cable of the AC adaptor supplied with the controller to the DC 5V/12V IN connector of the controller.

Connecting the Multiple Units with the LAN

The controller controls up to 32 monitors. Up to four controllers are connected to one monitor in single mode.

Note

The controller cannot control monitors in another subnetwork.

1 Turn off the MAIN POWER switch of the monitor before connecting the units. 2 Connect to the network by using a 10BASE-T/100BASE-TX cable (shielded-type, optional).

Notes

• When an optional LAN cable is connected, use a shielded-type cable to prevent a malfunction due to noises.
• We recommend to use an optional switching hub with auto selection function (AUTO MDI/MDI-X) of a straight/cross cable.

3 Connect the output cable on the AC adaptor supplied with controller to the DC 5V/12V IN connector of the controller.

Note

When the multiple units are connected, set for the LAN before setting the NETWORK switch to LAN (page 27).

4 Set the NETWORK switches of each monitor and the controller to LAN.

Turning on the Power

Connecting to Power

You can operate the monitor with AC or DC power supply.

To connect the AC power cord

1 Plug the AC power cord into the AC IN connector on the rear panel. Then, attach the AC plug holder (supplied) to the AC power cord.

2 Slide the AC plug holder over the cord until it locks.

To disconnect the AC power cord

Pull out the AC plug holder while pressing the lock levers.

To connect the DC power supply

Connect the DC power supply to the DC IN 24 V - 28 V connector.

When the AC power cord and DC power supply are connected, the AC power supply is given preference to over the DC power supply. To use the DC power supply, disconnect the AC power cord.

Turning on the Monitor

Press the MAIN POWER switch on the rear panel to turn on the power.

When you turn on the monitor for the first time after purchasing it, the Select Area screen is displayed. Select the area where you intend to use this monitor.

For selecting the area, see page 25.

The warm-up time is more than 30 minutes, approximately.

When the monitor is in standby mode

As the OPERATE lamp lights in red in standby mode, press the MONITOR I/ switch of the controller.

The OPERATE lamp lights in green and the monitor enters operation mode.

Settings

Selecting the Area

When you turn on the monitor for the first time after purchasing it, select the area where you intend to use this monitor from among the options.

When the area is selected, the menu item settings suitable for the selected area are applied.

Default value for each area

		Color Temp	Setup Level	Component Level	Color Profile
1North America D65 7.5% Betacam					ITU-R BT.709
2Latin America	Argentina D65 0%			SMPTE/ EBU-N10	ITU-R BT.709
PAL&PAL-N Area	Paraguay D65 0%			SMPTE/ EBU-N10	ITU-R BT.709
	Uruguay D65 0%			SMPTE/ EBU-N10	ITU-R BT.709
NTSC&PAL-M Area	Other Area D65 7.5% Betacam				ITU-R BT.709
3Africa Australasia Europe Middle-East		D65 0%		SMPTE/ EBU-N10	ITU-R BT.709
4Asia Except Japan	NTSC Area D65 7.5% Betacam				ITU-R BT.709
	PAL Area	D65 0%		SMPTE/ EBU-N10	ITU-R BT.709
5Japan		D93 0%		SMPTE/ EBU-N10	ITU-R BT.709

1 Turn on the monitor with the MAIN POWER switch. The Select Area screen appears.

2 Press the UP or DOWN button of the controller to select the area where you intend to use the monitor and press the ENTER (Ent) button.

If you select either Latin America or Asia Except Japan, one of the following screens appears.

If ② Latin America is selected:

Select PAL & PAL-N or NTSC & PAL-M and press the ENTER (Ent) button.

If ④ Asia Except Japan is selected:

Customers who will use this monitor in the shaded areas shown in the map below should select NTSC Area.

Other customers should select PAL Area. Then press the ENTER (Ent) button.

3 Confirm the settings.

Cancel: Select to cancel the setting and return to the Select Area screen.

Confirm: Select to save the setting and end selecting the area.

See "Default value for each area" on page 25 on the setting value.

After saving and reflecting the setting, you can change the setting with the menu.

• Color Temp (color temperature) (page 49) - Setup Level (NTSC Setup Level: page 51, Betacam Setup Level: page 51) - Component Level (page 51) • Color Profile (page 50)

Setting for the LAN to Connect the Multiple Units

You can control the multiple monitors using the controller connected via each LAN (10/100) connector. You can also control a specific monitor or monitor group.

Set an IP address to the monitors and the controller and a monitor ID number and group ID number to each monitor.

1 Set the NETWORK switches of each monitor and the controller to PEER TO PEER.

2 Set a different IP address to each monitor and the controller.

Monitor: Set the IP address in the Network Setting menu (page 63) of the System Configuration menu.

Controller: Set the IP address in the Network Setting menu (page 73) of the Controller menu.

3 Set Monitor ID and Group ID in the Network menu (page 63) of the System Configuration menu.

Set a different monitor ID number to each monitor and, if necessary, group ID number.

You can use the numbers 1 to 99 as a monitor ID number or group ID number.

4 Set the NETWORK switches of the monitor and the controller to LAN.

Selecting the Monitor (Designation of the Monitor or Group ID Number)

When multiple monitors are connected via network connections, you can remotely connect to the monitors from the controller by designating the set monitor ID number or group ID number.

1 Press the corresponding button to select the connection mode.

SINGLE button: Selects single connection mode. The designated monitor is connected remotely. The monitor ID number is displayed on all connected monitors when the button is held pressed.

GROUP button: Selects group connection mode.

The monitor of the designated group is connected remotely.

The group ID number is displayed on all connected monitors when the button is held pressed.

ALL button: Selects all connection mode.

All monitors are connected remotely.

The lamp corresponding to the pressed button flashes and lights after recognizing the monitor.

2 Select the monitor ID number for the single connection mode or group ID number for the group connection mode by pressing the UP/DOWN or numeric button.

Up to 99 is entered as the monitor ID or group ID number.

3 Press the ENTER or Ent button to confirm the setting.

The monitor ID number, group ID number or ALL is displayed in the display window.

Notes

• When the monitor with no assigned monitor ID number or group ID number is selected, the setting is not changed and the previous connection status is maintained.
• When there are monitors with the same ID number, the monitor with the lower IP address is selected.
• Even if a different monitor ID number is set to the monitors, when the same IP address is set to another monitor, the monitor cannot be connected to the network.

Assigning the Input Signal to the Channel

When you assign the input signal to the channel, you can select the channel and change the input signal by pressing the numeric button. The input signal is assigned to one of channels 1 to 30.

1 Select the channel (CH1 to CH30) to be assigned by pressing the numeric button of the controller.

To assign to a channel number from 1 to 9, press the appropriate one-digit channel number on the numeric keypad.

To assign to a channel number from 10 to 30, press the 0 button, then press the appropriate two-digit channel number.

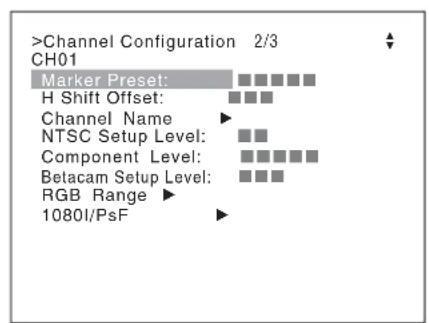

2 Set the input signal for the selected channel in Channel Configuration menu (page 47).

The required setting is different due to the input signal or picture quality to be displayed.

Setting the Display Mode of the Picture

Set the display mode condition of the input signal to display on the screen. The setting items are following.

• Setting Matrix (transmission matrix)
• Selecting the color profile (color space and gamma) 1 Set Matrix in the Matrix menu (page 50) of the Channel Configuration menu. 2 Select the color profile (color space and gamma) in the Color Profile menu (page 50) of the Channel Configuration menu.

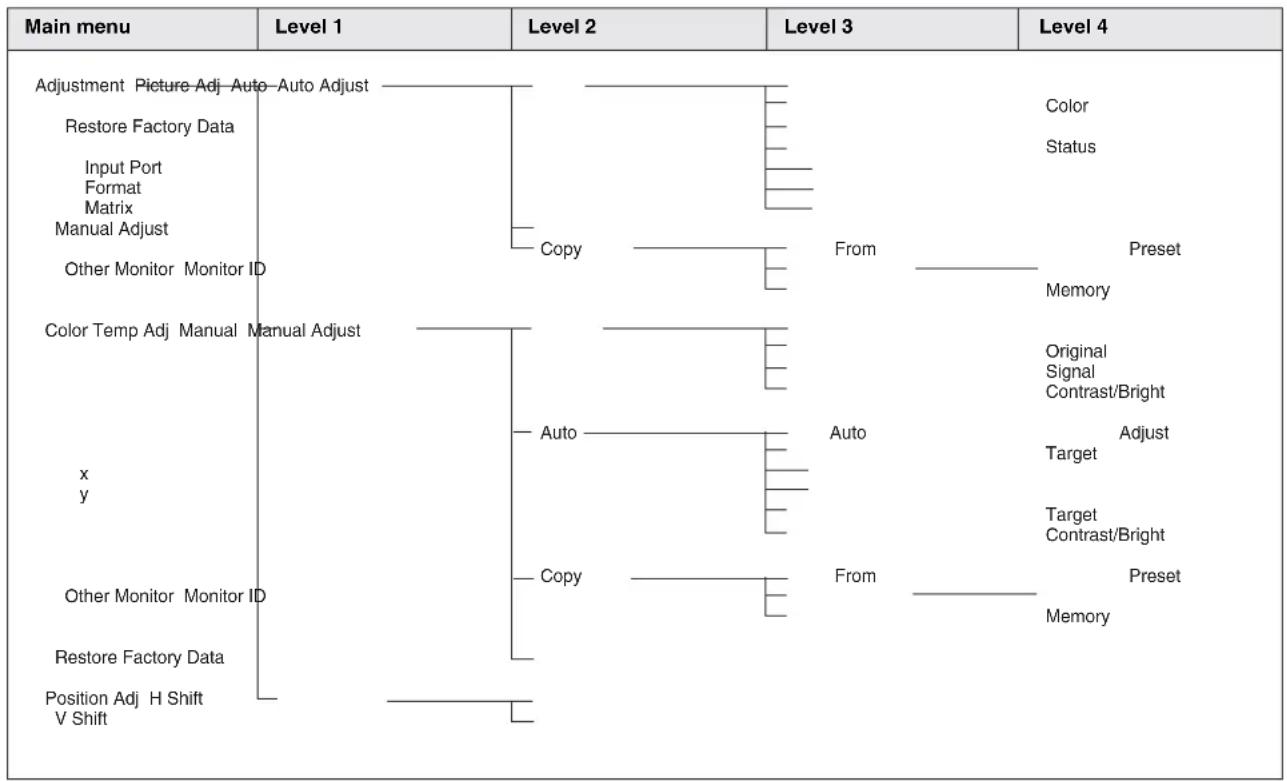

Adjusting

Before adjusting

The monitor must be warmed up sufficiently.

To perform stable color reproduction, turn on the power of the monitor, display the white signal and leave it in this state for more than 30 minutes.

About monitor adjustment

The monitor is used as a measuring instrument and is required to faithfully reproduce the input signal. To measure the signal accurately, the monitor must be calibrated correctly using a reference signal.

To calibrate, adjust the following items in sequence.

1 Chroma/phase adjustment

You can save the adjustment value in Preset1 to Preset5. The data of Preset1 to Preset5 is set to the channel in the Picture Preset menu (page 49) of the Channel Configuration menu.

Adjust the picture automatically with the auto chroma/phase/matrix function for every signal format and signal system to display the composite signal or Y/C signal from the BKM-227W, or analog component signal or analog RGB signal from the BKM-229X. If the picture is not adjusted, the picture may not be displayed correctly.

2 Color Temperature (white balance) adjustment

You can adjust the data set to the channel in the Color Temp menu (page 49) of the Channel Configuration menu.

You can adjust D93, D65 or User1 to User5.

3 Brightness/Contrast adjustment

You can save the adjustment value in Preset1 to Preset5. The data of Preset1 to Preset5 is set to the channel in the Picture Preset menu (page 49) of the Channel Configuration menu.

Chroma/Phase Adjustment

Automatic adjustment (with auto chroma/phase/matrix function) is required for each signal format, signal system and matrix to display the composite or Y/C signal from the BKM-227W, or the analog component or analog RGB signal from the BKM-229X.

As you can automatically adjust the chroma, phase, matrix and also 100% (white) and 0% (black) levels of the monitor to the same as those of the reference signal by performing the automatic adjustment, the automatic adjustment is also effective for the RGB signal.

Perform the manual adjustment of chroma and phase to adjust them further after automatic adjustment or to adjust the digital signal from the standard input, BKM-220D, BKM-243HS, BKM-244CC or BKM-250TG.

Automatic adjustment (recommended)

1 Input the reference color-bar signal to the monitor. 2 Select Auto in the Picture Adj menu of the Adjustment menu and perform the automatic adjustment of the chroma, phase and matrix in Auto Adjust (page 42).

Manual adjustment

The following is the example of the method to perform the manual adjustment of the chroma and phase.

1 Input the multi format color-bar signal or SMPTE color-bar signal to the monitor. 2 Set the BLUE ONLY button to on.

Red and green signals are cut, and only the blue signal is displayed as a monochrome picture.

The following is an example of the adjustment when the multi format color-bar signal is used.

3 Select the Manual Adjust menu (page 43) in the Picture Adj menu of the Adjustment menu. 4 Adjust the levels with the CHROMA or PHASE knob of the controller while tracking so that the brightness of bars “a” (75% White, Cyan, Magenta and Blue parts) and “b” (75% White part) (in the following illustration) are the same.

For the composite and Y/C signals

Adjust the levels with the CHROMA and PHASE knob.

For the component signal

Adjust the levels with the CHROMA knob.

a (75% White)

a (Cyan)

a (Magenta)

a (Blue)

b (75% White)

5 Press the ENTER or Ent button.

The adjusted data is confirmed.

6 Set the BLUE ONLY button to off.

Note

You can access manual adjustment without opening the Adjustment menu. To access it, press the MANUAL button located below the CHROMA or PHASE knob of the controller. If manual adjustment is accessed by this method, the adjusted value is common to all channels and valid only when the lamp of the MANUAL button is lit. To turn off the lamp of the MANUAL button, press the button again.

Color Temperature (White Balance) Adjustment

This monitor is equipped with manual and automatic color temperature adjustments.

The automatic color temperature adjustments can be performed using the built-in color sensor or a specified color temperature probe.

Special software is required for the automatic adjustment using the specified probe. For details, contact your Sony representative.

Automatic adjustment (using the built-in color sensor)

1 Select the Auto Adjust menu (page 45) in the Color Temp Adj menu of the Adjustment menu.

Manual adjustment

1 Select the Manual menu (page 44) in the Color Temp Adj menu of the Adjustment menu then select the Manual Adjust menu. 2 Adjust the color in gain side with the PHASE, CHROMA, BRIGHT or CONTRAST knob. 3 Press the UP or DOWN button and adjust the color in bias side with the PHASE, CHROMA, BRIGHT or CONTRAST knob. 4 Press the UP or DOWN button. 5 Repeat steps 2 to 4 until the desired color is obtained, because the gain and bias adjustments may affect each other. 6 Press the ENTER or Ent button.

The adjusted data are confirmed.

Brightness/Contrast Adjustment

As an image on a color video monitor is seen differently according to the ambient light (environmental brightness), adjust the brightness (black level) according to the ambient light and the black level of the image to be reproduced and adjust the contrast (white level) according to the ambient light.

Adjust the brightness/contrast with an external reference signal of a multi format color-bar signal or SMPTE color-bar signal.

1 Input the multi format color-bar signal or SMPTE color-bar signal to the monitor. The following are explained as the example when the multi format color-bar signal is used for adjustment. 2 Select the Manual Adjust menu (page 43) in the Picture Adj menu of the Adjustment menu. 3 Adjust the -2%, 0% and +2% ranges or the 0%, +2% and +4% ranges of the PLUGE signal section of the color-bar with the BRIGHT knob.

HD signal

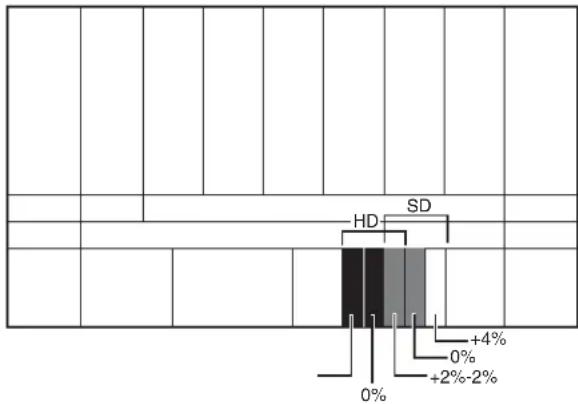

Adjust so that the -2% and 0% ranges are seen as equal and the +2% and 0% ranges are more distinctive.

SD signal

Adjust so that the 0% and +2% ranges are seen as equal and the +2% and +4% ranges are more distinctive.

4 Adjust so that the luminance of the 100% white signal of the color-bar is set to the desired value with the CONTRAST knob.

We recommend adjusting the luminance to 100 [cd/m²] when Preset1 to Preset5 is selected in the Picture Preset menu of the Channel Configuration menu.

5 As the brightness and contrast adjustments affect each other, repeat the adjustments of step 3 and 4. 6 Press the ENTER or Ent button.

Note

You can access manual adjustment without opening the Adjustment menu. To access it, press the MANUAL button located below the BRIGHT or CONTRAST knob of the controller. If manual adjustment is accessed by this method, the adjusted value is common to all channels and valid only when the lamp of the MANUAL button is lit. To turn off the lamp of the MANUAL button, press the button again.

Basic Menu Operations

Menu Operation Buttons

The menu is operated using the menu operation buttons on the controller (BKM-16R, optional).

The functions of the menu operation buttons are described below.

Button	Function
1 UP button	Moves the cursor upward. In setting mode, increases the setting or adjustment value.
1 DOWN button	Moves the cursor downward. In setting mode, decreases the setting or adjustment value.
2 MENU button	Displays the menu. Goes back to the menu of the upper level. (On the main menu, goes back to the normal picture.)
3 ENTER button	Changes the item. In setting mode, confirms the adjustment or setting value.

Button	Function
4 PHASE knob	By turning this knob clockwise, the cursor moves upward. In setting mode, increases the setting or adjustment value (has the same function as UP button). By turning this knob counterclockwise, the cursor moves downward. In setting mode, decreases the setting or adjustment value (has the same function as DOWN button).
5 Numeric buttons	Enters the numerical values.
6 Ent button	Changes the item. In setting mode, confirms the adjustment or setting value.
7 Del button	Deletes the values and characters entered.

Displaying the Menu

Press the MENU button.

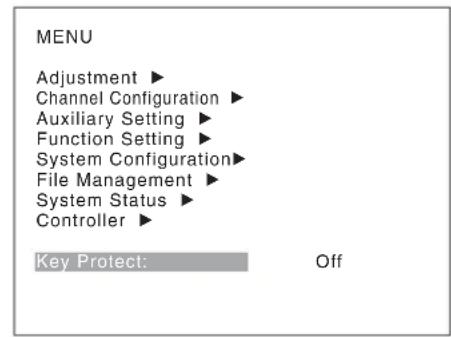

The main menu is displayed on the screen.

When you select one item on the main menu, the level 1 menu of the selected item appears.

For the items on the menu, see "Menu Structure" on page 36.

Notes

• The menu disappears automatically if not operated for about one minute.
• Menu items displayed in gray cannot be selected.
• This menu is not displayed when Pixel Zoom is set to on.

Setting or Adjusting in the Menu Operation

1 Press the MENU button.

The main menu is displayed.

2 Using the UP or DOWN button or PHASE knob, select the desired item. (Example: select the Channel Configuration menu by pressing the DOWN button.)

3 Press the ENTER or Ent button.

The level 1 of the selected menu is displayed. The current settings are displayed in place of the ■ marks on the illustrations of the menu screen.

4 Repeat steps 2 and 3 until the desired menu is displayed.

For more information about setting and adjustments, see below.

Display example

Choosing the setting value

The method for selecting the value is different due to the menu item.

• Selecting in setting mode
• Selecting from the setting list

When selecting in setting mode

1 Using the UP or DOWN button or PHASE knob, select the desired item and press the ENTER or Ent button.

The cursor moves to the setting value and the monitor enters in setting mode.

Display example

2 Using the UP or DOWN button or PHASE knob, select the setting value. 3 Press the ENTER or Ent button.

The setting is confirmed and the cursor returns to the item.

When selecting from the setting list

1 Using the UP or DOWN button or PHASE knob, select the desired item in the setting list.

Display example

2 Press the ENTER or Ent button.

The setting is confirmed and the display returns to the menu of the upper level.

Entering numerical values

1 Using the UP or DOWN button or PHASE knob, select the desired item and press the ENTER or Ent button.

The cursor moves to the setting value and the monitor enters in setting mode.

Display example

2 Select the value in one of the following three ways:

• Enter the value directly using the numeric buttons and press the ENTER or Ent button. (Only for items whose setting range is greater than 0.)
• Select the value using the UP or DOWN button.
• Select the value using the PHASE knob.

3 Press the ENTER or Ent button.

The setting is confirmed and the cursor returns to the item.

Entering characters

1 Using the UP or DOWN button or PHASE knob, select New Name or the existing name. The “---” means that one or more characters can be entered in sequence after the existing name. 2 Press the ENTER or Ent button. 3 Using the UP or DOWN button or PHASE knob, select the characters that you wish to enter.

Display example

When you press the UP button or turn the PHASE knob clockwise, the characters and symbols appear in the sequence shown below.

Capital letters (A → B → ...... → Y → Z) → Lower-case letters (a → b → ...... → y → z) → Numbers (0 → 1 → ...... → 8 → 9) → Marks → Capital letters...

When you press the DOWN button or turn the PHASE knob counterclockwise, the characters and symbols appear in the reverse sequence described above.

The usable symbols are limited depending on the menu.

“(space)” is not used as a first character of a sentence.

4 Press the ENTER or Ent button.

The selected character is entered.

Display example

5 Repeat steps 3 and 4 until all the characters are entered, then press the ENTER or Ent button.

The selected characters are confirmed and the display returns to the menu of the upper level.

To correct the entered character

Press the Del button. The character on the left side of the cursor is deleted.

Entering the Channel Number

When selecting a one-digit number, press the button of the channel number.

When selecting a two-digit number, first press the 0 button, then press a two-digit channel number.

Channel numbers 91 to 97 assignment

The signal systems to which the internal signal is displayed are assigned to channel numbers 91 to 97. The internal signal of the last signal system is displayed.

091: PLUGE signal

092: 20% gray signal

093: 100% white signal

094: Five-step gray scale signal

095: Ramp signal

096: color-bar signal

097: 0% black signal

To cancel the internal signal, select one from the channel numbers 1 to 30.

Note

You cannot select channel numbers 91 to 97 in the following cases:

• When the computer signal of HDMI/DisplayPort is input
• When Side by Side is set to On
• When Pixel Zoom is set to on

Aborting Menu Operation

Press the MENU button. The menu of the upper level is displayed.

When the MENU button is pressed in setting mode or during adjustment, the menu returns to the previous setting. The menu disappears automatically if not operated for about one minute.

Menu Structure

For details of each menu, see the page in parentheses.

Adjustment menu (page 42) Chapter 3 Menu

Bar

1

Stick

Value

Hc

Color

Luminance

Hc

1

Stick

Channel Configuration menu (page 47)

Auxiliary Setting menu (page 53)

Main menu	Level 1	Level 2	Level 3	Level 4
Auxiliary Setting NTSC Comb Filter	Native Scan Mode Aperture Filter Peak White Control	Value Switch

Function Setting menu (page 54) Chapter 3 Menu

Main menu	Level 1	Level 2	Level 3	Level 4
Function Setting Marker Setting Aspect Marker Aspect Marker
				Aspect Aspect Line Thickness Color Bright Blanking	Mode
Area Marker 1 Area Marker 1				Aspect Aspect Area Width Height Mode Thickness Color Bright	Mode Size
Area Marker 2 Area Marker 2				Aspect Aspect Area Width Height Mode Thickness Color Bright	Mode Size
Center Marker Center Marker				Aspect Aspect Area Width Height Mode Thickness Color Bright	Mode Size
		H		Position Position From	Preset
Other Monitor Monitor ID		Copy			Memory
P&P Setting Side by Side Line Display					Line
Pixel Zoom Setting Line Color Line Bright
3D Setting	Horopter Check	Left			Right
	Capture	Load
	Internal	Rename Signal	Delete
Function Switch	Scan Mode
		Native	Scan
		16:9
		H	Delay
		V	Delay
		External	Sync
		Comb
		Aperture
		Mono
		Blue	Only
		R	Off
		G	Off
		B	Off
		Chroma	Up
		Interlace
		Marker
		Aspect	Marker
Area Marker 1
Area Marker 2
		Center	Marker-Line
		Aspect
		Aspect
		Aspect
Side by Side
Audio Level Meter
ALM Hold Reset

System Configuration menu (page 63)

Main menu	Level 1	Level 2	Level 3	Level 4
System Configuration - Network Monitor ID
Network Setting IP Address		Group		ID
				SubnetDefaultAddress
Protocol Setting SDCP/SDAP Community
SDCP Port No				SDAP
SDAP Port No
SDAP Broadcast Period
Acceptable IP Address
Reset Protocol Setting
Parallel Remote Parallel Remote
1 Pin - 8 Pin
Power Standby Mode
Power On Status		Default		CH
On Screen Set Input Information Format
CH No				Position
CH Name				Position
Scan Mode				Position
Closed Caption Closed Caption
					TypeServiceServiceOSD
Audio Level Meter	Audio CH			PositionTransparencyPeak
		Time	Code	VITC/LTCPositionLevel
		Over	Range
Password	Change Password	Apply		PasswordAdjustmentChannelAuxiliaryFunctionSystemItem
			Individual
Controller	On Screen Set			FileKey
	Scan Mode Skip
Scan Mode Skip	Date/Time
	Screen	Saver
Monitor Upgrade	Software Upgrade	Kernel	Upgrade
	FPGA UpgradeMaintenance

File Management menu (page 69)

Main menu Level 1 Level 2 Level 3 Level 4
File Management Save To Memory Stick Copy From Other Monitor Monitor ID Delete Memory Stick Data Maintenance Back Up-System Data Restore System Data

System Status menu (page 71)

Main menu Level 1 Level 2 Level 3 Level 4
System Status -CH Status	Port Status Option1-Option4	Model Name Serial	No
SDI Payload ID Status	Payload ID	Video Sampling Bit Picture Scanning Link Current Format I/PsF/P	Standard Structure Depth Rate Method Number Status
HDMI/DP Status	Pixel Encoding	Color Matrix RGB	Depth Range
Model Name Serial No	Software Version Operation Time
Panel On Time Network Switch Controller Status	Model Name	Serial Software Version Network	No Switch

Controller menu (page 73) / Key Protect menu (page 78)

Adjustment Menu

Overview

Adjusts the picture, color temperature, etc.

When Adjustment is selected, the following menu is displayed.

Adjustment

Picture Adj

Color Temp Adj

Position Adj ▶

Note

This menu is not selectable in the following cases:

- When Side by Side is set to On

Menu Function and Operation

Menu Function and operation ([	]: factory setting)
Picture Adj	Adjusts the chroma, phase, matrix and signal level automatically and contrast, brightness, chroma and phase to set the preset value to picture adjustment preset data.When the item is selected, the picture adjustment preset data to be set is displayed.To change the picture adjustment preset data to be adjusted, you can select from Preset1, Preset2, Preset3, Preset4 and Preset5 in the Picture Preset menu of the Channel Configuration menu (page 47).
Auto Sets the automatic adjustment	of chroma, phase, matrix and signal level.When the item is selected, the selected preset data is displayed.You can select this item when the composite or Y/C signal from the BKM-227W, or the analog component or analog RGB signal from the BKM-229X is displayed.NoteThis menu is not selectable when the internal signal or captured frame is displayed.
Auto Adjust Starts automatic adjustment. (It may take some time until the automatic adjustment is completed.)An external color-bar signal for the reference is necessary for automatic adjustment (page 43).The chroma data is reset to the default setting [1000].The phase data is reset to the default setting [000].NoteWhen the analog component signal or analog RGB signal is input, adjust the picture position in the Position Adj menu (page 46) to perform the automatic adjustment in the Auto Adjust menu. When the picture position does not fit, the adjustment will not be performed correctly and this may cause a malfunction.To cancel adjustmentPress the MENU button.

Menu			Function and operation ([ ]: factory setting)
Picture Adj		Color Bar Sets the color-bar signal to input.[Full Field 8]: 100% full-field 8-color bars (white, yellow, cyan, green, magenta, red, blue and black)SMPTE: SMPTE standard color barsEIA: EIA standard color bars (effective for 480/60i and 575/50i signals only)Multi Format: Color bars standardized by SMPTE RP219/ARIB STD-B28
		Restore Factory Data Resets the automatic adjustment data of chroma, phase, matrix and signal level to the default setting.You cannot select this when the setting is the default value.The following message appears.Restore factory data?OK: To reset the data, press the ENTER (Ent) button.Cancel: To cancel, press the MENU button.
		Status Displays the status of the automatic adjustment data of the chroma, phase, matrix and signal level to be adjusted.Not Adjusted: Displays when the data is not adjusted.Adjusted: Displays when the data is adjusted.
		Input Port Displays the input option port number of the automatic adjustment data to be adjusted.
		Format Displays the signal format and signal system of the automatic adjustment data to be adjusted.
		Matrix Displays the matrix of the automatic adjustment data to be adjusted.
	Manual Adjust Adjusts values by turning the PHASE, CHROMA, BRIGHT, and/or CONTRAST knobs. After adjustment, press the ENTER (Ent) button to confirm the adjusted values.Phase: -150 to +150 [000]Chroma: 0000 to 2000 [1000]Bright: -500 to +500 [000]Contrast: 0000 to 2500 [1000]To display no characters on the screen while adjusting manuallySet the CHAR OFF button to on. The characters disappear. To display characters, set the CHAR OFF button to off.To reset the setting to the defaultPress the corresponding MANUAL button. The adjusted value is reset to the default.To cancel adjustmentPress the MENU button. The adjustment data is cleared.To confirm adjustmentPress the ENTER (Ent) button.
	Copy From Copies picture adjustment preset data.NotesAutomatic adjustment data is not copied.Use the controller with software version 1.6 or higher to use the Copy From function.
	Preset Value Copies other data in this monitor.When the item is selected, you can select from Preset1, Preset2, Preset3, Preset4 or Preset5.
	Other Monitor Copies data from another monitor.
	Monitor ID	Enter the ID number of the source monitor.When the NETWORK switch is set to PEER TO PEER, this is not selectable.When the ID number is entered, you can select from Preset1, Preset2, Preset3, Preset4 or Preset5.
	Memory Stick Copies data in the “Memory Stick”.When the item is selected, the file names in the source “Memory Stick” are displayed.When the file is selected, you can select from Preset1, Preset2, Preset3, Preset4 or Preset5.

Menu Function and operation ([ ]: factory setting)
Color Temp Adj Adjusts the color temperature.
	When the item is selected, the color temperature data to be adjusted is displayed.When D93 or D65 data is changed, they are displayed as D93* or D65*.To change the color temperature data to be adjusted, select D93, D65, User1, User2, User3,User4 or User5 in the Color Temp menu of the Channel Configuration menu.
Manual Adjusts the color temperature	When the item is selected, the color temperature data to be set is displayed.When D93 or D65 data is changed, they are displayed as D93* or D65*.When Contrast/Bright Hold is set to Off, the color temperature data are displayed. Thecontrast data is displayed as the picture preset data Preset1 to Preset5 set in the PicturePreset menu of the Channel Configuration menu. To change the type of the picture presetdata, select from Preset1 to Preset5 in the Picture Preset menu (page 49) of the ChannelConfiguration menu.
Manual Adjust Adjusts the color temperature using the PHASE, CHROMA, PHASE and/or CONTRAST knobs.When the item is selected, the color temperature adjustment display appears, and the Red,Green and/or Blue color temperature data to be adjusted are displayed to allow gain or biasadjustment. Select gain or bias adjustment, using the UP/DOWN buttons.The adjustable items and relevant knobs are as follows:To adjust Red (red): BRIGHT knobTo adjust Green (green): CHROMA knobTo adjust Blue (blue): PHASE knobTo adjust brightness (Red, Green and Blue together): CONTRAST knobTo hide the characters on the monitor during manual adjustmentSet the CHAR OFF button of the controller to on. As the characters on the display arehidden, it becomes easy to adjust the picture. To display the characters, set the CHAR OFFbutton to off.To reset Red, Green and Blue to the value before adjustmentDuring Red, Green and Blue adjustment, you can press the corresponding MANUAL buttonto reset to the value before adjustment.Pressing the MANUAL button of CONTRAST resets all Red, Green and Blue to the valuesbefore adjustment.NoteYou cannot reset the setting after you press the ENTER (Ent) button, even if you press theMANUAL button.To cancel adjustmentPress the MENU button. The adjustment data is cleared and the setting returns to theprevious value.To confirm adjustmentPress the ENTER (Ent) button.
Original Value Sets the initial value.
	You can select from D93, D65, User1, User2, User3, User4 or User5.When D93 or D65 data is changed, they are displayed as D93* or D65*.
Signal Sets the white signal to be used for adjustment.[Internal]: Select when an internal signal is used. The signal is automatically switchedin synchronization with the gain and bias adjustments.External: Select when an external input signal is used. Supply a signal to be used whenadjusting gain and bias.
Contrast/Bright Hold Sets the contrast and brightness to the adjusted value or the center value.Off: Sets contrast and brightness to the center values during and after color temperatureadjustment.[On]: Retains the adjusted contrast and brightness values during and after colortemperature adjustment.
Color Temp Adj	Auto Adjusts the color temperature automatically using the built-in color sensor.When this item is selected, the color temperature data to be adjusted is displayed.When D93 or D65 data is changed, they are displayed as D93* or D65*.When Contrast/Bright Hold is set to Off, the color temperature data are displayed. The contrast data is displayed as the picture preset data Preset1 to Preset5 set in the Picture Preset menu of the Channel Configuration menu. To change the type of the picture preset data, select from Preset1 to Preset5 in the Picture Preset menu (page 49) of the Channel Configuration menu.
	Auto Adjust Starts adjustment.When Auto Adjust is selected, not only the target color temperature but also other color temperature data are adjusted.Before automatic adjustment, select the value to use for the adjustment in following sequence.When you use the previously adjusted values for adjustment, selectAuto Adjustin step 3 to start adjustment without performing step 1 and step 2.1Select the color temperature to be used in Target Color Temp.When Any is selected, enter the values of the CIE color system x and y coordinates.2Select Target Luminance and enter the value of the luminance (cd/m2) when the 100% white signal is input.3Select Auto Adjust.The cursor appears and flashes at the bottom left of the screen.(It may take some time until the automatic adjustment is completed.)To cancel/stop the adjustmentPress the MENU button.
	Target Color Temp Sets the adjustment value to be used from D93, D65 or Any.
	x Enters the CIE color system coordinate.Set to 0.265 to 0.350.
	y Enters the CIE color system coordinate.Set to 0.270 to 0.360.
	Target Luminance Enters the luminance (cd/m2) when the 100% white signal is input with the contrast and brightness set to the center.You can enter the value between 40 and 150. [100]NoteThe calibrated luminance does not guarantee an absolute value and may be different from the luminance detected by the probe.
	Contrast/Bright Hold Sets the contrast and brightness to the adjusted value or the center value.The contrast value is fixed to 1000, and the brightness value is fixed to 000 during the automatic adjustment.Off:The contrast and brightness values are retained at the center value even after color temperature adjustment.[On]: The contrast and brightness values are returned to the previous values before color temperature adjustment.
	Copy From Copies the other color temperature.NoteUse the controller with software version 1.6 or higher to use the Copy From function.
	Preset Value Copies other data in this monitor.When the item is selected, you can select from D93, D65, User1, User2, User3, User4 or User5.D93: Copies the color temperature of D93.D65: Copies the color temperature of D65.User1 to 5: Copies the color temperature of User1 to 5.When D93 or D65 data is changed, they are displayed as D93* or D65*.

Menu Function and operation ([]): factory setting)
Color Temp Adj		Other Monitor Copies data from another monitor.
		Monitor ID Enter the ID number of the source monitor.When the NETWORK switch is set to PEER TO PEER, this is not selectable.When the ID number is entered, you can select from D93, D65, User1, User2, User3, User4 or User5.D93: Copies the color temperature of D93.D65: Copies the color temperature of D65.User1 to 5: Copies the color temperature of User1 to 5.When D93 or D65 data is changed, they are displayed as D93* or D65*.
		Memory Stick Copies data in the “Memory Stick”.When the item is selected, the file names in the source “Memory Stick” are displayed.When the file is selected, you can select from D93, D65, User1, User2, User3, User4 or User5.D93: Copies the color temperature of D93.D65: Copies the color temperature of D65.User1 to 5: Copies the color temperature of User1 to 5.When D93 or D65 data is changed, they are displayed as D93* or D65*.
	Restore Factory Data Resets the color temperature to the default setting.You cannot select this when the setting is the default value.The following message appears to confirm the data reset operation.Restore factory data?OK: To reset the data, press the ENTER (Ent) button.Cancel: To cancel, press the MENU button.

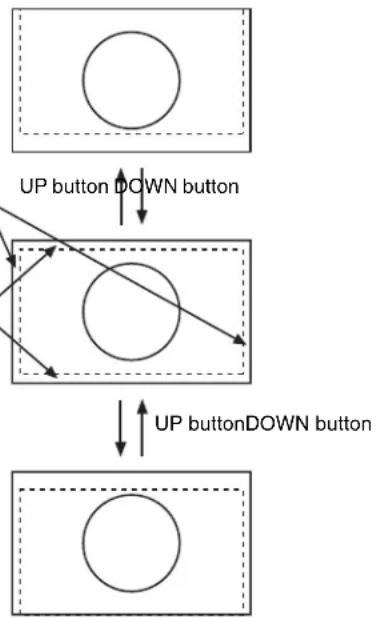

Position Adj Adjusts the position of the picture when the analog signal is input.When the item is selected, the signal system to be set is displayed.You can select the item when the composite or Y/C signal from the BKM-227W, or the analog component or analog component RGB signal from the BKM-229X is displayed.To hide the characters on the monitor during adjustmentSet the CHAR OFF button of the controller to on. As the characters on the display are hidden, it becomes easy to adjust the picture. To display the characters, set the CHAR OFF button to off.NoteThis menu is not selectable when the internal signal or captured frame is displayed.
			H Shift Adjusts the horizontal position of the picture.As the setting increases, the picture moves to the right, and as the setting decreases, the picture moves to the left. [000]Set in the H Shift Offset menu (page 51) of the Channel Configuration menu when the difference of the horizontal position is necessary to adjust for different input signals of the same signal system, etc.
			V Shift Adjusts the vertical position of the picture.As the setting increases, the picture moves up, and as the setting decreases, the picture moves down. [000]

Channel Configuration Menu

Overview

This menu is used for pertaining data to the input signals.

When Channel Configuration is selected, the following menus are displayed.

The current channel is displayed. Perform the input setting for the selected channel.

Before setting

Set the input signal for each channel. A channel number (1 to 30) is entered with the numeric buttons (page 35).

Note

This menu is not selectable in the following cases:

- When Side by Side is set to On

Menu Function and Operation

Menu	Function and operation ([ ]: factory setting)
Format	Sets the input signal type.NoteThe default setting is 3G/HD/SD-SDI Auto.
3G/HD/SD-SDI	Sets the serial digital signal format (Single-link 3G-SDI, HD-SDI or SD-SDI).3G/HD/SD-SDI Auto: Changes the format automatically according to the Sampling Structure, Bit Depth, Picture and transport scanning method information for Payload ID of SMPTE-352M standard superimposed on the input signals.NoteYou can confirm the Payload ID information and the signal format status of the current monitor in “SDI Payload ID Status” (page 72) of the System Status menu or using the Status button on the controller.For details on the display using the Status button, see “Displaying the Monitor Status Page” (page 90).3G-SDI: Sets the signal format.4:2:2 YCbCr 10bit4:4:4 YCbCr 10bit4:4:4 RGB 10bit4:4:4 YCbCr 12bit4:4:4 RGB 12bitHD/SD-SDI Auto: Changes the format automatically according to the format of the input signal.SD-SDI

Menu Function and operation ([ ]): factory setting)
Format	Dual Link HD-SDI Sets the Dual-link HD-SDI signal format when two BKM-243HS or BKM-244CC are installed in the OPTION 1 and 2 or OPTION 3 and 4 option ports or BKM-250TG is installed.4:2:2 YCbCr 10bit4:4:4 YCbCr 10bit4:4:4 RGB 10bit4:4:4 YCbCr 12bit4:4:4 RGB 12bit
	Composite Sets the composite signal format when BKM-227W is installed.Auto: Changes automatically according to the format of the input signal.It will take a few seconds to detect the format of an input signal. It is recommended that a particular format be selected if it is determined.NTSCPALPAL-MSECAM
	YC Sets the Y/C signal format when BKM-227W is installed.Auto: Changes automatically according to the format of the input signal.It will take a few seconds to detect the format of an input signal. It is recommended that a particular format be selected if it is determined.NTSCPALPAL-MSECAM
	Component Sets the analog component signal format or analog RGB signal format when BKM-229X is installed.You can select from YPbPr or RGB.
	HDMI Sets the HDMI signal format.In this manual, the 800 × 600 , 1024 × 768 , 1280 × 960 , 1280 × 1024 and 1400 × 1050 signals are referred to as the HDMI computer signals.For the signal format to be displayed, see page 106.
	DisplayPort Sets the DisplayPort signal format.In this manual, the 800 × 600 , 1024 × 768 , 1280 × 960 , 1280 × 1024 and 1400 × 1050 signals are referred to as the DisplayPort computer signals.For the signal format to be displayed, see page 106.]: factory setting)
Menu Function and operation ([]
Input PortEnters the input port number.	You can select from [Standard], Option1 to Option4, Option1&2 or Option3&4.StandardWhen using the standard SDI input of the monitorWhen Format is set to 3G/HD/SD-SDI Auto or 4:2:2 YCbCr 10bit, 4:4:4 YCbCr 10bit, 4:4:4 RGB 10bit, 4:4:4 YCbCr 12bit or 4:4:4 RGB 12bit of 3G-SDIWhen Format is set to HD/SD-SDI AutoWhen Format is set to SD-SDIOption1 to Option4When the signal is input from the input adaptor installed to the option portWhen the BKM-250TG is installed and Format is set to 3G/HD/SD-SDI Auto or 4:2:2 YCbCr 10bit, 4:4:4 YCbCr 10bit, 4:4:4 RGB 10bit, 4:4:4 YCbCr 12bit or 4:4:4 RGB 12bit of 3G-SDIWhen the BKM-243HS, BKM-244CC or BKM-250TG is installed and Format is set to HD/SD-SDI AutoWhen the BKM-220D, BKM-243HS, BKM-244CC or BKM-250TG is installed and Format is set to SD-SDIWhen the BKM-227W is installed and Format is set to Composite Auto, Composite NTSC, Composite PAL, Composite PAL-M, Composite SECAM, YC Auto, YC NTSC, YCPAL, YC PAL-M or YC SE CAMWhen the BKM-229X is installed and Format is set to Component YPbPr or Component RGBOption1&2, Option3&4When two BKM-243HS or BKM-244CC are installed in the OPTION 1 and 2 or OPTION 3 and 4 option ports and Format is set to 4:2:2 YCbCr 10bit, 4:4:4 YCbCr 10bit, 4:4:4 RGB 10bit, 4:4:4 YCbCr 12bit or 4:4:4 RGB 12bit of Dual Link HD-SDINoteWhen the setting of Format and the installed adaptor do not match, the setting value may not be changed. Set the Format correctly according to the installed adaptor.
Input No	Enters the input connector number if there are two inputs with the same type of input connectors.You can select from [Input 1] or Input 2 in the following cases:When the standard SDI input is selected (when Input Port is set to Standard)When the BKM-250TG is installed and Format is set to 3G/HD/SD-SDI Auto or 4:2:2 YCbCr 10bit, 4:4:4 YCbCr 10bit, 4:4:4 RGB 10bit, 4:4:4 YCbCr 12bit or 4:4:4 RGB 12bit of 3G-SDIWhen the BKM-243HS, BKM-244CC or BKM-250TG is installed and Format is set to HD/SD-SDI AutoWhen the BKM-220D, BKM-243HS, BKM-244CC or BKM-250TG is installed and Format is set to SD-SDIWhen two BKM-243HS or BKM-244CC are installed in the OPTION 1 and 2 or OPTION 3 and 4 option slots and Format is set to 4:2:2 YCbCr 10bit, 4:4:4 YCbCr 10bit, 4:4:4 RGB 10bit, 4:4:4 YCbCr 12bit or 4:4:4 RGB 12bit of Dual Link HD-SDINoteWhen the setting of Format or Input Port and the installed adaptor do not match, the setting value may not be changed. Set Format or Input Port correctly according to the installed adaptor.
Screen AspectSelects the aspect ratio.
SD Sets the aspect ratio of the SD signal.HDMI Auto Sets the manual or automatic setting for the aspect ratio of the HDMI signal.Off: Select to set the aspect ratio manually with the controller, etc.[On]: Select to set the aspect ratio automatically according to the input signal. The aspect ratio is not set with the controller, etc.	Sets the sync signal when the analog component signal or analog RGB signal is input. You can select when Format is set to Component YPbPr or Component RGB.[Internal]: Select when an internal sync signal is used.External: Select when an external sync signal is used.
Sync Mode	You can select from D93, D65, User1 to User5.When D93 or D65 data is changed, they are displayed as D93* or D65*.
Picture PresetSets the picture adjustment preset.Select from Preset1 to Preset5.

Menu Function and operation ([]): factory setting)
Matrix Sets Matrix data (transmission matrix) depending on the input signal format.Three transmission matrix data are preset.Matrix dataITU-R BT.709: Select when the signal of the ITU-R BT.709 standards format is input.ITU-R BT.601: Select when the signal of the ITU-R BT.601 standards format is input.SMPTE 240M: Select when the signal of the SMPTE 240M standards format is input.The Matrix data can be selected for the HD or SD input signal, respectively.For the type of the input signal, see “Available Signal Formats” (page 101).
HD Sets Matrix of the HD signal.	You can select from [ITU-R BT.709], ITU-R BT.601 or SMPTE 240M.
SD Sets Matrix of the SD signal.	You can select from ITU-R BT.709, [ITU-R BT.601], SMPTE 240M.
HDMI/DisplayPort Auto Sets the manual or automatic setting for the transmission matrix of the HDMI or DisplayPort signal.Off: Select to use Matrix set in the HD or SD menu.[On]: Select to set Matrix automatically according to the input signal.
Color Profile	As the BVM-F170 is equipped with a wider color space OLED panel, the signal can be displayed with the color space and gamma selected in the Color Profile menu.
Color Profile Sets the color profile (color space and gamma) to be used.There are four Color Profile data items in which the color space and gamma have been preset and user channel data item in which Color Space (color space) and Gamma (gamma) can be selected for each individual channel.Preset data: BVM SMPTE-C, BVM EBU, ITU-R BT.709, F170 NativeSelectable data: User CHXX (the currently selected channel number is displayed)
Menu		Function and operation ([ ]: factory setting)
Color Profile	Gamma Select the gamma when User CHXX is selected in the Color Profile menu.CRT BVM: Gamma curve of the BVM-D or BVM-A series2.2: Gamma curve 2.22.4: Monitor gamma provided by “Reference Electro-Optical Transfer Function (EOTF) for flat displays used in HDTV studio production” of ITU-R standardNotesThe factory preset black luminance of the CRT BVM setting in the Gamma menu is the same as the factory preset value for a BVM-D or BVM-A series monitor.Adjust the brightness (black level) according to the ambient light and the black level of the image to be reproduced. Adjust the contrast (white level) according to the ambient light.
Marker Preset Sets the marker preset data.You can select from Marker1 to Marker5. [Marker1]For setting the marker, see the Marker Setting menu (page 54) of the Function Setting menu.
H Shift Offset Sets the horizontal picture	position when the analog signal is input.You can select when Format is set to Composite Auto, Composite NTSC, Composite PAL, Composite PAL-M, Composite SECAM, YC Auto, YC NTSC, YC PAL, YC PAL-M, YC SECAM, Component YPbPr or Component RGB.Set to -100 to +1001). [000]1) When the setting value is out of range, the display of the setting value is changed but the horizontal position of the picture is not changed.To hide the characters on the monitor during adjustmentSet the CHAR OFF button of the controller to on. As the characters on the display are hidden, it becomes easy to adjust the picture. To display the characters, set the CHAR OFF button to off.
Channel Name Sets a channel name.	When the item is selected, you can select a preset name, or enter a new one.PROG: Program signalEDIT: Signal from an editorCAM: Camera signalVTR: Signal from a VTRPREV: Preview monitorNew Name: Enter a new name. (Up to 20 characters can be entered.)
NTSC Setup Level Sets the NTSC setup level.You can select when Format is set to Composite Auto, Composite NTSC, YC Auto or YC NTSC.You can select from 0% or 7.5%.
Component Level Sets the component level of the analog component 480/60i signal.You can select when Format is set to Component YPbPr.You can select from SMPTE/EBU-N10 or Betacam.
Betacam Setup Level	Sets the Betacam setup level when Component Level is set to Betacam.You can select from 0% or 7.5%.
RGB Range	Sets the quantization range of the 4:4:4 RGB SDI, HDMI or DisplayPort input signal.
	HD Sets the quantization range when a 4:4:4 RGB SDI signal is input and the signal system is 1920 × 1080 or 1280 × 720.Full: 0 (black level) to 1023 (10bit)/4095 (12bit) (white level)[Limit]: 64(10bit)/256 (12bit) (black level) to 940 (10bit)/3760 (12bit) (white level)
	HDMI Sets the display mode for the HDMI signal.Full: 0 (black) to 255 (8bit)/1023 (10bit)/4095 (12bit) (white level)[Limit]: 16 (8bit)/64 (10bit)/256 (12bit) (black level) to 235 (8bit)/940 (10bit)/3760 (12bit) (white level)
	DisplayPort	Sets the display mode for the DisplayPort signal.[Full]: 0 (black level) to 63 (6bit)/255 (8bit)/1023 (10bit)/4095 (12bit) (white level)Limit: 4 (6bit)/16 (8bit)/64 (10bit)/256 (12bit) (black level) to 58 (6bit)/235(8bit)/940 (10bit)/3760 (12bit) (white level)
	HDMI/DisplayPort Auto	Sets the manual or automatic setting for the quantization range of the HDMI or DisplayPort signal.Off: Select to use the quantization range set in the HDMI or DisplayPort menu.[On]: Select to set the quantization range automatically according to the input signal.

Menu Function and operation ([ ]): factory setting)

1080I/PsF When the 1080i/PsF signal is input, select the display mode.You can select when Format is set to 3G/HD/SD-SDI Auto, HD/SD-SDI Auto, 4:2:2 YCbCr 10bit, 4:4:4 YCbCr 10bit, 4:4:4 RGB 10bit, 4:4:4 YCbCr 12bit, 4:4:4 RGB 12bit, Component YPbPr or Component RGB.When 1080I is selected, the I/P conversion signal is displayed. When 1080PsF is selected, the progressive conversion (PsF to P) signal is displayed.When the 1080PsF signal is input and 1080I is selected, the display delay is shortened. The signal converted from PsF to P is not displayed and the I/P conversion signal is displayed.When Format is set to 3G/HD/SD-SDI Auto and Payload ID data are superimposed on the SDI signal, 1080i/PsF processing is performed based on the Payload ID data, regardless of the setting value.

24PsF Sets the display mode for the 1080/24PsF signal.You can select from 1080I or [1080PsF].

25PsF/50I Sets the display mode for the 1080/25PsF, 50i signal.You can select from [1080I] or 1080PsF.

30PsF/60I Sets the display mode for the 1080/30PsF, 60i signal.You can select from [1080I] or 1080PsF.

Copy From Copies signal setting data from other channel.NoteUse the controller with software version 1.6 or higher to use the Copy From function.

Other CH Copies other data in this monitor.When the item is selected, you can designate the channel to be copied.

Other Monitor Copies data from other monitor.

Monitor ID Enters the ID number of the source monitor.When the NETWORK switch is set to PEER TO PEER, this is not selectable.When the item is selected, you can designate the source monitor.When the ID number is entered, you can designate the channel to be copied.

Memory Stick Copies data in the “M memory Stick”.When the item is selected, the file names in the source “Memory Stick” are displayed.When the file is selected, you can enter the channel number in the selected file.

Auxiliary Setting Menu

Overview

This menu is used for setting the monitor condition such as the aperture modification and decode mode.

When Auxiliary Setting is selected, the following menu is displayed.

Auxiliary Setting

Native Scan Mode:

Aperture Value:

NTSC Comb Filter:

Filter Switch:

Peak White Control:

Menu Function and Operation

Menu Function and operation ([	]: factory setting)
Native Scan Mode Sets the native scan	mode.[Aspect Correction]: Displaying an SD signal of non-square pixels (the number of H pixels of the signal system is 720 or 1440) or a 640 × 480 SD signal of HDMI/DisplayPort video by scaling processing of doubling for the V direction and correct aspect ratio for the H direction and also optimizing and displaying a picture by modifying the aperture coefficient value, filter coefficient value, etc. × 1 : Input signal display without conversion × 2 : Input signal display doubledFor selecting Aspect Correction, × 1 or × 2 , see “Picture Display Size” on page 108.NotesWhen an HD signal or the computer signal of HDMI/DisplayPort is input, the signal is displayed in × 1 mode, even if the mode is set to Aspect Correction or × 2 .When an SD signal from the BKM-229X is input and the number of the H pixels of the signal system is 1440, the signal is displayed in × 2 mode, even if the mode is set to × 1 .When you select Aspect Correction and set Native Scan to On for SD signal input, Aperture is set to On (factory setting).
Aperture Value Sets the aperture modification value.	Sets to 000 to 200.[090] (when the signal is displayed in Aspect Correction mode of the native display), [100](when the signal is displayed in mode other than Aspect Correction of the native display)
NTSC Comb Filter Sets the type of NTSC	Comb filter.When the BKM-227W is installed, you can select the item.You can select from [3Lines] or 3D.3Lines: Y/C separation using line correlation (3 lines)3D: Adaptive Y/C separation using frame correlation for judged still images, while using line correction (2 lines) for judged motion pictures
Filter Switch	Sets whether or not to turn on the Y/C separation filter ([Off] or On) when the picture is set to monochrome mode.When the BKM-227W is installed, you can select the item.
Peak White Control	When the brightness or contrast is increased, using the brightness or contrast adjustment, the picture may be clipped, because of the dynamic range of the circuit. Sets whether or not to control the signal gain automatically according to the setting value of the brightness or contrast, to prevent such clipping (Off or [On]).

Function Setting Menu

Overview

This menu is used to set the functions related to the picture display.

When Function Setting is selected, the following menu is displayed.

Menu Function and Operation

Menu Function and operation ([	]: factory setting)
Marker Setting	Sets whether or not to display the marker when the MARKER button is pressed, and the display mode.When the item is selected, the marker preset data to be set is displayed.To change the marker preset data to be adjusted, you can select from Marker1, Marker2, Marker3, Marker4 and Marker5 in the Marker Preset menu (page 51) of the Channel Configuration menu.To hide the characters on the monitor during settingSet the CHAR OFF button of the controller to on. As the characters on the display are hidden, it becomes easy to adjust the picture. To display the characters, set the CHAR OFF button to off.
Aspect Marker Sets the aspect marker display.
Aspect Marker	Sets whether or not to display the aspect marker when the MARKER button is pressed ([Off] or On).
Aspect Mode Sets the aspect ratio of the aspect marker. You can select from [16:9], 4:3 or Variable.
Aspect Sets the aspect ratio of the aspect marker when Variable is selected in Aspect Mode. Set to 1.00:1 to 3.00:1. [1.78]:1
Line	Sets whether or not to display the line of the aspect marker (Off or [On]).
Thickness Sets the thickness of the aspect marker. Set to 1 to 5 (dots). [2]
Color Sets the color of the aspect marker. You can select from [White] (white), Red (red), Green (green), Blue (blue), Yellow (yellow), Cyan (cyan) or Magenta (magenta).
Menu Function and operation ([ ]: factory setting)
Marker Setting		Bright Sets the luminance of the aspect marker.You can select fromHigh (bright) or [Low] (dark).
		Blanking Sets the blanking outside the area of the aspect marker.[Off]: Blanking is released.Black: BlankingHalf: Half blanking
	Area Marker 1 Sets the area marker 1.
			Area Marker 1Sets whether or not to display the area marker 1 when the MARKER button is pressed (Off or [On])1).1) Area Marker 2: ([Off], On)
			Aspect Mode Sets the aspect ratio of the area marker 1.You can select from [16:9], 4:3 or Variable.NoteWhen Variable (dot) is selected in Area Size, the size of the area marker 1 is set in pixel unit of the input signal and the Aspect Mode setting becomes invalid.
			Aspect Sets the aspect ratio of the area marker 1 when Variable is selected in Aspect Mode.Set to 1.00:1 to 3.00:1. [1.78]:1
			Area Size Sets the size of the area marker 1.You can select from [80%], 88%, 90%, 93%, Variable (%) or Variable (dot).
			Width Sets the width of the area marker 1 when Area Size is set to Variable (%) or Variable (dot).When Variable (%) is selectedSet to 050 to 100 (%). [080]When Variable (dot) is selectedSet to 0360 to 1920 (dot). [0512]
			Height Sets the height of the area marker 1 when Area Size is set to Variable (%) or Variable (dot).When Variable (%) is selectedSet to 050 to 100 (%). [080]When Variable (dot) is selectedSet to 0240 to 1080 (dot). [0384]
			Mode Sets the shape of the area marker 1.You can select from [Shape A], Shape B or Shape C.Shape A Shape B Shape C[IMAGE] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] NoteThe size of the area is as follows depending on the Aspect Mode and 16:9 On/Off setting.Example: Area Size 80%, Aspect Mode 16:9 or 4:3With 16:9[IMAGE] Aspect Mode 16:9 [IMAGE] Aspect Mode 4:3

Menu			Function and operation ([ ]: factory setting)
Marker Setting			With 4:3 Aspect Mode 16:9 Aspect Mode 4:3
		Thickness Sets the thickness of the area marker 1. Set to 1 to 5 (dots). [2]
		Color Sets the color of the area marker 1. You can select from [White] (white), Red (red), Green (green), Blue (blue), Yellow (yellow), Cyan (cyan) or Magenta (magenta).
		Bright Sets the luminance of the area marker 1. You can select from High (bright) or [Low] (dark).
	Area Marker 2 Sets the area marker		2. The set items are the same as for Area Marker 1 (page 55).
	Center Marker Sets the center marker
			Center Marker	Sets whether or not to display the center marker ([Off] or On).
			Mode Sets the display mode of the center marker. You can select from [Short] (short) or Long (long).
			Color Sets the color of the center marker. You can select from [White] (white), Red (red), Green (green), Blue (blue), Yellow (yellow), Cyan (cyan) or Magenta (magenta).
			Bright Sets the luminance of the center marker. You can select from High (bright) or [Low] (dark).
	H Position Sets the horizontal position of the marker. Set to -65 (leftward) to +65 (rightward). [00]
	V Position Sets the vertical position of the marker. Set to -35 (downward) to +35 (upward). [00]
	Copy From Copies the other marker preset data. Note Use the controller with software version 1.6 or higher to use the Copy From function.
P&P Setting		Line Color Sets the boundary line color of two pictures.You can select from [White] (white), Red (red), Green (green), Blue (blue), Yellow (yellow), Cyan (cyan), Magenta (magenta) or Black (black).
		Line Bright Sets the luminance of the boundary line.You can select from High (bright) or [Low] (dark).
Pixel Zoom Setting Sets the pixel zoom.
	Line Color Sets the boundary line color.You can select from [White] (white), Red (red), Green (green), Blue (blue), Yellow (yellow), Cyan (cyan) or Magenta (magenta) or Black (black).
3D Setting Sets the mode of Horopter Check of the 3D signal analyzing function.This item can be selected when the BKM-250TG is installed, and is available for dual-stream HD-SDI signal input.
	Horopter Check Changes the display mode of the left and right 3D video signals.
		Left Selects the display mode of the left signal.[Normal]: Normal pictureBlack: Displays a black signal (the video signal is not displayed).Mono: Displays the video signal in monochrome mode.Red: Displays only the red component of the video signal.Blue: Displays only the blue component of the video signal.
		Right Selects the display mode of the right signal.[Normal]: Normal pictureBlack: Displays a black signal (the video signal is not displayed).Mono: Displays the video signal in monochrome mode.Red: Displays only the red component of the video signal.Blue: Displays only the blue component of the video signal.
Capture			Captures the still picture for the standard of the color evaluation (HD Frame Capture).NoteUse the controller with software version 1.6 or higher to use the HD Frame Capture function.

Menu Function and operation ([ ]: factory setting)
Function Switch		Sets the function to be assigned to the function button of the controller in the menu.
Scan Mode Sets the scan mode of the picture.[Normal Scan]: Normal scanUnder Scan: 3% under scanOver Scan: Mask of 5% over scan portion in the normal scanNoteThe scan mode is not selectable in the following cases:When Native Scan is set to OnWhen the input signal has no sync signalWhen the internal signal is displayedWhen Side by Side is set to On
Native Scan		Sets whether or not to display the native scan ([Off] or On).NoteThe native scan is not selectable in the following cases:When the input signal has no sync signalWhen Side by Side is set to OnWhen Pixel Zoom is set to onWhen the HDMI/DisplayPort computer signal is input (The native scan is displayed regardless of the setting.)When the signal system is the SD signal of 720 × 576 or 1440 × 576 , Native Scan Mode is set to Aspect Correction × 2 and the internal signal is displayed (Native Scan is set to Off and the normal scan is displayed regardless of the setting.)
16:9		Sets whether or not to display the aspect in 16:9 (Off or [On]).NotesThe aspect ratio is not selectable in the following cases:- When Native Scan Mode is set to × 1 or × 2 and Native Scan is set to On- When the input signal has no sync signalThe aspect ratio may be fixed to 16:9 due to the signal format.For details, see “Available Signal Formats” on page 101.
H Delay		Sets whether or not to display in H delay ([Off] or On).When the 720/24, 25, 30P signal is input, the display position is changed with the PHASE knob.NotesThe picture is not displayed in H delay in the following cases:- When the input signal has no sync signal- When the internal signal is displayed- When Format of the Channel Configuration menu is set to HDMI or DisplayPort- When Side by Side is set to On- When the captured frame is displayedThe 3D signal analyzing function may not be performed correctly when H Delay is On.
V Delay		Sets whether or not to display in V delay ([Off] or On).NoteThe picture is not displayed in V delay in the following cases:When the input signal has no sync signalWhen the internal signal is displayedWhen Format of the Channel Configuration menu is set to HDMI or DisplayPort- When Side by Side is set to On- When the captured frame is displayed
External Sync		Sets whether or not to select external sync mode ([Off] or On) when the analog component signal or analog RGB signal format is input.When On is selected, the signal to be displayed is synchronized with the sync signal input to the SYNC connector (External Sync).When Off is selected, the signal to be displayed is synchronized with the sync signal included in the signals being monitored (Internal Sync).NotesWhen Component is set to YPbPr or RGB in Format of the Channel Configuration menu, you can set the external sync.The external sync is not set in the following cases:- When the internal signal is displayed- When the captured frame is displayed
Menu		Function and operation ([ ]: factory setting)
Function Switch	Comb	Sets whether or not to use the comb filter (Off or [On]).When Off is selected, the trap · band-pass filter (Trap/BPF) is selected.You can select the type of comb filter in NTSC Comb Filter menu (page 53) of the Auxiliary Setting menu.NotesWhen Composite is set to Auto, NTSC, PAL or PAL-M in Format of the Channel Configuration menu, you can set the comb filter.The comb filter is not set in the following cases:- When the internal signal is displayed- When the captured frame is displayed
	Aperture	Sets whether or not to function the aperture modification (Off or On).[Off] (when the signal is displayed in Aspect Correction mode of the native display), [On](when the signal is displayed in mode other than Aspect Correction of the native display)NoteWhen the HDMI/DisplayPort computer signal is input, the aperture modification does not function.
	Mono	Sets whether or not to display in monochrome mode ([Off] or On).
	Blue Only Sets whether or not to display only the blue signal as a monochrome picture after cutting the red and green signals ([Off] or On).
	R Off	Sets whether or not to cut the red signal ([Off] or On).
	G Off	Sets whether or not to cut the green signal ([Off] or On).
	B Off	Sets whether or not to cut the blue signal ([Off] or On).
	Chroma Up	Sets whether or not to increase the chroma value by 12 dB ([Off] or On).NoteThe chroma value is not increased in the following cases:When the signal to be displayed is RGBWhen the composite signal is automatically displayed in monochrome depending on the color discrimination of the input adaptorWhen the internal signal is displayed
	Interlace	Sets whether or not to display in interlace mode ([Off] or On).NotesSet Native Scan to On for the interlace display.The picture is not displayed in interlace mode in the following cases:- When Side by Side is set to On- When Pixel Zoom is set to onFor details of this menu, see “Selecting Display Mode” on page 79.
	Marker	Sets whether or not to display all markers ([Off] or On).NotesThe marker is not displayed in the following cases:- When the input signal has no sync signal- When the internal signal is displayed- When the HDMI/DisplayPort computer signal is input- When H Delay/V Delay is set to On- When Side by Side is set to On- When Pixel Zoom is set to onThe marker may be displayed in an incorrect position when External Sync is On.
	Aspect Marker	Sets whether or not to display the aspect marker ([Off] or On).NotesThe aspect marker is not displayed in the following cases:- When the input signal has no sync signal- When the internal signal is displayed- When the HDMI/DisplayPort computer signal is input- When H Delay/V Delay is set to On- When Side by Side is set to On- When Pixel Zoom is set to onThe aspect marker may be displayed in an incorrect position when External Sync is On.

Menu Function and operation ([ ]): factory setting)
Function Switch	Area Marker 1Sets whether or not to display the area marker 1 ([Off] or On).NotesThe area marker 1 is not displayed in the following cases:- When the input signal has no sync signal- When the internal signal is displayed- When the HDMI/DisplayPort computer signal is input- When H Delay/V Delay is set to On- When Side by Side is set to On- When Pixel Zoom is set to onThe area marker 1 may be displayed in an incorrect position when External Sync is On.
	Area Marker 2Sets whether or not to display the area marker 2 ([Off] or On).NotesThe area marker 2 is not displayed in the following cases:- When the input signal has no sync signal- When the internal signal is displayed- When the HDMI/DisplayPort computer signal is input- When H Delay/V Delay is set to On- When Side by Side is set to On- When Pixel Zoom is set to onThe area marker 2 may be displayed in an incorrect position when External Sync is On.
	Center MarkerSets whether or not to display the center marker ([Off] or On).NotesThe center marker is not displayed in the following cases:- When the input signal has no sync signal- When the internal signal is displayed- When the HDMI/DisplayPort computer signal is input- When H Delay/V Delay is set to On- When Side by Side is set to On- When Pixel Zoom is set to onThe center marker may be displayed in an incorrect position when External Sync is On.
	Aspect Marker-LineSets whether or not to display the line of the aspect marker ([Off] or On).NotesThe line of the aspect marker is not displayed in the following cases:- When the input signal has no sync signal- When the internal signal is displayed- When the HDMI/DisplayPort computer signal is input- When H Delay/V Delay is set to On- When Side by Side is set to On- When Pixel Zoom is set to onThe line of the aspect marker may be displayed in an incorrect position when External Sync is On.
	Aspect Blanking-Half Sets whether or not to set the Aspect Blanking (the blanking outside the area of the aspect marker) to half blanking ([Off] or On).NotesThe Aspect Blanking is not set to half blanking in the following cases:- When the input signal has no sync signal- When the internal signal is displayed- When the HDMI/DisplayPort computer signal is input- When H Delay/V Delay is set to On- When Side by Side is set to On- When Pixel Zoom is set to onThe Aspect Blanking may be displayed in an incorrect position when External Sync is On.
Function Switch	Aspect Blanking-Black Sets whether or not to set the blanking level of the Aspect Blanking (the blanking outside the area of the aspect marker) to 0% black level ([Off] or On).NotesThe Aspect Blanking is not set to 0% black level in the following cases:When the input signal has no sync signalWhen the internal signal is displayedWhen the HDMI/DisplayPort computer signal is inputWhen H Delay/V Delay is set to OnWhen Side by Side is set to OnWhen Pixel Zoom is set to onThe Aspect Blanking may be displayed in an incorrect position when External Sync is On.
	Side by SideSets whether or not to display in the side by side display ([Off] or On).NoteThe side by side display is not set in the following cases:When the internal signal is displayedWhen Pixel Zoom is set to on
	Audio Level MeterSets whether or not to display the audio level meter ([Off] or On).NoteWhen the option port number in which the BKM-250TG is installed is not selected in Input Port of the Channel Configuration menu, the audio level meter cannot be displayed.
	ALM Hold Reset When the item is selected, the peak hold of the audio level meter is canceled.NoteThe ALM Hold Reset is not selected in the following cases:When the option slot number in which the BKM-250TG is installed is not selected in Input Port of the Channel Configuration menuWhen Audio Level Meter is set to OffWhen Peak Hold is set to Off or Auto in the Audio Level Meter menu of the On Screen Set menu of the System Configuration menu
	Time CodeSets whether or not to display the time code ([Off] or On).
	Difference Sets whether or not to display the difference between the luminance of the left 3D video signal and that of the right signal ([Off] or On).This item is available for dual-stream HD-SDI signals.NotesThe Difference display cannot be set in the following cases:When the option port number in which the BKM-250TG is installed is not selected in Input Port of the Channel Configuration menuWhen dual-link display is usedWhen the internal signal is displayedWhen a captured frame is displayedWhen Side by Side is set to OnThe Difference display may not be performed correctly when H Delay is set to On.If saving is performed in HD Frame Capture, this function is deactivated and the normal display is restored.
	Checkerboard Sets whether or not to display the left and right 3D video signals in a checkerboard pattern ([Off] or On).This item is available for dual-stream HD-SDI signals.NotesThe Checkerboard display cannot be set in the following cases:When the option port number in which the BKM-250TG is installed is not selected in Input Port of the Channel Configuration menuWhen dual-link display is usedWhen the internal signal is displayedWhen a captured frame is displayedWhen Side by Side is set to OnThe Checkerboard display may not be performed correctly when H Delay is set to On.If saving is performed in HD Frame Capture, this function is deactivated and the normal display is restored.

Menu Function and operation ([ ]): factory setting)
Function Switch	L/R Switch Sets whether or not to display either the left and right 3D video signals on the screen by switching them alternately ([Off] or On).This item is available for dual-stream HD-SDI signals.NotesThe L/R Switch display cannot be set in the following cases:When the option port number in which the BKM-250TG is installed is not selected in Input Port of the Channel Configuration menuWhen dual-link display is usedWhen the internal signal is displayedWhen a captured frame is displayedWhen Side by Side is set to OnThe L/R Switch display may not be performed correctly when H Delay is set to On.If saving is performed in HD Frame Capture, this function is deactivated and the normal display is restored.
	Horopter CheckSets whether or not to display the left and right 3D video signals in various modes ([Off] or On).This item is available for dual-stream HD-SDI signals.NotesThe Horopter Check display cannot be set in the following cases:When the option port number in which the BKM-250TG is installed is not selected in Input Port of the Channel Configuration menuWhen dual-link display is usedWhen the internal signal is displayedWhen a captured frame is displayedWhen Side by Side is set to OnThe Horopter Check display may not be performed correctly when H Delay is set to On.If saving is performed in HD Frame Capture, this function is deactivated and the normal display is restored.
	Flip HSets whether or not to invert the 3D video signals horizontally to be displayed ([Off] or On).This item is available for dual-stream HD-SDI signals.NotesThe Flip H display cannot be set in the following cases:When the option port number in which the BKM-250TG is installed is not selected in Input Port of the Channel Configuration menuWhen dual-link display is usedWhen the internal signal is displayedWhen a captured frame is displayedWhen Side by Side is set to OnThe Flip H display may not be performed correctly when H Delay is set to On.

System Configuration Menu

Overview

This menu is used to set the system such as the network, parallel remote control function, etc.

When System Configuration is selected, the following menu is displayed.

Menu Function and Operation

Menu Function and operation ([ ]): factory setting)
Network Sets the remote control function of the network.
Monitor ID Enter a monitor ID number.Set to 01 to 99. [01]
Group ID Enter a group ID number.Set to 01 to 99. [01]
Network Setting Sets the IP address, subnet mask and default gateway.For the setting value, consult the network administrator.
IP Address Sets the IP address. [192.168.000.001]NoteWhen the NETWORK switch is set to PEER TO PEER, the IP address is set to “192.168.0.1” regardless of the display.When the NETWORK switch is set to LAN, the IP address is set to the displayed one.
Subnet Mask Sets the subnet mask. [255.255.255.000]NoteWhen the NETWORK switch is set to PEER TO PEER, the subnet mask is set to “255.255.255.000” regardless of the display.When the NETWORK switch is set to LAN, the subnet mask is set to the displayed one.
Default Gateway	Sets whether or not to set the default gateway ([Off] or On).
Address	Sets the address of the default gateway. [---.---.---.(no setting)]
Cancel Cancels the changed or confirmed setting.
Confirm Saves the changed or confirmed setting.
Protocol Setting Sets the required items for communications such as the port number.For the setting value, consult the network administrator.
SDCP/SDAP Community Sets	the SDCP/SDAP community name.When the item is selected, you can enter the community name (four characters).SONY:SONY is entered as a community name.New Name:Enter a new name.

Menu Function and operation ([ ]): factory setting)
Network		SDCP Port No Sets the SDCP port number.Set to 53434 to 53534. [53484]
		SDAP Port No Sets the SDAP port number.Set to 53812 to 53912. [53862]
		SDAP Broadcast Sets whether or not to issue the SDAP (Disable or [Enable]).
		SDAP Broadcast Period Sets the period (seconds) to issue the SDAP.Set to 05 to 30. [15]
		Acceptable IP Address Sets the IP address to connect.When the item is selected, you can set IP1 to IP4.Cancel: Cancels the changed or confirmed setting.Confirm: Saves the changed or confirmed setting.
		Reset Protocol Setting Resets the protocol setting.When the item is selected, the following message appears.Are you sure?OK: To reset data, press the ENTER (Ent) button.Cancel: To cancel, press the MENU button.
Parallel Remote Sets the parallel remote function.
	Parallel Remote	Selects whether or not to use the parallel remote functions. ([Off] or On)
	1 Pin to 8 Pin Assigns the function to each pin of the PARALLEL REMOTE connector when Parallel Remote is set to On.The default assignment of functions is as follows:1 Pin: [CH01]2 Pin: [CH02]3 Pin: [External Sync]4 Pin: [Mono]5 Pin: [Marker]6 Pin: [unused]7 Pin: [unused]8 Pin: [Tally]You can change the assignment to the following functions for pins 1 to 8.The functions shown with item name only are the same as those assigned to the function buttons on the controller.For details on these functions, see “Function Key” (page 74) of the Controller menu.Parallel Remote (1/5)CH01 to 30: Selects a channel number. Enter the desired channel number with the numeric buttons.----: UnusedUnder Scan,1) Over Scan,1) Native Scan, 16:9, H Delay, V Delay, External Sync,Comb1) The scan mode is set to Normal Scan when Under Scan or Over Scan is off.Parallel Remote (2/5)Aperture, Mono, Blue Only, R Off, G Off, B Off, Chroma Up, InterlaceTally: The function to turn on the tally lampPower Off: The monitor power functionParallel Remote (3/5)Marker, Aspect Marker, Area Marker 1, Area Marker 2, Center Marker, Aspect Marker-Line, Aspect Blanking-Half, Aspect Blanking-BlackParallel Remote (4/5)Side by Side, Audio Level Meter, ALM Hold Reset, Time CodeParallel Remote (5/5)Difference, Checkerboard, L/R Switch, Horopter Check, Flip HFor the pin assignment, see “PARALLEL REMOTE connector” in Location and Function of Parts on page 19.
Menu		Function and operation ([ ]: factory setting)
Power		Sets the status of the monitor when the main power is turned on or the power is turned on by remote operation.
		Standby Mode Sets the status when the MAIN POWER switch is turned on.[Off]: Operation modeOn: Standby mode
		Power On Status Sets the input channel when the power is turned on.[Last]: Sets to the channel that was selected at the time the power was last turned off.CH: Sets to the channel number specified in Default CH.
		Default CH Selects the channel (01 to 30) when the Power On Status is set to CH. [01]
On Screen Set Sets the items for the screen display.
	Input Information Sets the display of the input information.
	Format Sets the display mode of the signal system.[Auto]: Disappears after being displayed for a while.Off: Not displayed.NoteThe picture rate display is 23.98, 29.97 or 59.94 (example 1080/59.94P) when the signal is input from the standard SDI input or the BKM-250TG, Format is set to 3G/HD/SD-SDI Auto (page 47) in the Channel Configuration menu, and the Picture Rate information for the Payload ID is 23.98, 29.97 or 59.94, even if the monitor determines the picture rate as 24 Hz, 30 Hz or 60 Hz.For details on Payload ID, see “SDI Payload ID Status” (page 72) of the System Status menu or “Displaying the Monitor Status Page” (page 90).
	Position Sets the display position for the signal system.You can select from Top Left (top left), Top Center (top center), Top Right (top right), [Bottom Left] (bottom left), Bottom Center (bottom center) or Bottom Right (bottom right).
	CH No Sets the display mode of the channel number.[Auto]: Disappears after being displayed for a while.Off: Not displayed.
	Position Sets the display position for the channel number.You can select from Top Left (top left), Top Center (top center), [Top Right] (top right), Bottom Left (bottom left), Bottom Center (bottom center) or Bottom Right (bottom right).
	CH Name Sets the display mode of the channel name.[Auto]: Disappears after being displayed for a while.Off: Not displayed.
	Position Sets the display position for the channel name.You can select from [Top Left] (top left), Top Center (top center), Top Right (top right), Bottom Left (bottom left), Bottom Center (bottom center) or Bottom Right (bottom right).
	Scan Mode Sets the display mode of the scan mode.[Auto]: Disappears after being displayed for a while.Off: Not displayed.
	Position Sets the display position for the scan mode.You can select from Top Left (top left), Top Center (top center), Top Right (top right), Bottom Left (bottom left), Bottom Center (bottom center) or [Bottom Right] (bottom right).
	Closed Caption Sets the items for the closed caption display.When the BKM-244CC is installed, you can select the item.The setting is effective for the input signal of the BKM-244CC.
	Closed Caption Sets whether or not to display closed caption signal ([Off] or On).
	Type Sets the closed caption type.[Auto1]: Select to set to 608(VBI) when the SD-SDI signal is input or 708 when the HD-SDI signal is input.Auto2: Select to set to 608(VBI) when the SD-SDI signal is input or 608(708) when the HD-SDI signal is input.708: Select to display the closed caption signal of the EIA/CEA-708 standards.608 (708): Select to display the closed caption signal of the EIA/CEA-608 standards transmitted by EIA/CEA-708 standards.608 (VBI): Select to display the closed caption signal of the EIA/CEA-608 standards transmitted by using the line 21.

Menu			Function and operation ([ ]: factory setting)
On Screen Set		Service 708 Sets Service when	Type is set to 708.You can select fromService1 to Service6. [Service1]
		Service 608 Sets Service when	Type is set to 608 (VBI) or 608 (708).You can select fromCC1 to CC4 or Text1 to Text4. [CC1]
		OSD Level Sets the luminance	of the letter.You can select fromHigh (bright), or [Low] (dark).
	Audio Level Meter Sets the audio level meter.When the BKM-250TG is installed, you can select the item.The setting is effective for the input signal of the BKM-250TG.NoteAs the audio level meter is superimposed on the video signal, the audio level meter may be cut partially because of the scan mode setting of the monitor.
	Audio CH Sets the audio channel.You can select from [CH1-CH8] or CH9-CH16.
	Position Sets the display position of the audio level meter.You can select from [Bottom] (bottom) or Top (top).
	Transparency Sets the transparency of the background of the audio level meter.You can select fromBlack (black) or [Half] (translucence).
	Peak Hold Sets the peak hold mode of the audio level meter.[Off]: The peak hold does not function.Auto: The peak hold is automatically released after about 1 second.Manual Reset: The peak hold is released manually.To release the peak hold, select ALM Hold Reset (page 61) in the Function Switch menu of the Function Setting menu or set ALM Hold Reset to on by pressing the ALM Hold Reset button1) of the controller.1)ALM Hold Reset is assigned to the controller in the Function Key menu (page 74) of the Controller menu.
	Time Code Sets the time code.		The setting is effective when the SDI signal is input.NoteAs the time code is superimposed on the video signal, the time code may be cut partially because of the scan mode setting of the monitor.
	Over Range When a portion of the signal exceeds the dynamic range of the internal signal processing circuit, it is determined as Over Range. This menu sets whether or not to display a zebra pattern on the detected Over Range portion ([Off], On).When Over Range is detected, adjust the contrast or brightness to a lower level.NoteWhen Over Range occurs, the OVER RANGE lamp on the front of the unit lights in amber regardless of the setting of this menu (page 16).
Password			Sets the password for the menu.Enter a four-digit number for the password. [9999]
Password	Apply Password		Sets whether or not to apply the password to each menu (Yes or [No]).
		Adjustment Yes: Apply the password. [No]: Not apply the password.
		Channel Configuration Yes: Apply the password. [No]: Not apply the password.
		Auxiliary Setting Yes: Apply the password. [No]: Not apply the password.
		Function Setting Yes: Apply the password. [No]: Not apply the password.
		System Configuration Yes: Apply the password. [No]: Not apply the password.
		Individual Item Sets whether or not to apply the password to the System Configuration menu.
		Network Yes: Apply the password. [No]: Not apply the password.
		Parallel Remote Yes: Apply the password. [No]: Not apply the password.
		Power Yes: Apply the password. [No]: Not apply the password.
		On Screen Set Yes: Apply the password. [No]: Not apply the password.
		Date/Time Yes: Apply the password. [No]: Not apply the password.
		Scan Mode Skip	Yes: Apply the password. [No]: Not apply the password.
		Screen Saver	Yes: Apply the password. [No]: Not apply the password.
		File Management	Yes: Apply the password. [No]: Not apply the password.
		Controller	Yes: Apply the password. [No]: Not apply the password.
		Key Protect	Yes: Apply the password. [No]: Not apply the password.
Date/Time			When the item is selected, you can set or change the date and time.
	Year		Sets the year.
	Month		Sets the month.
	Day		Sets the day.
	Hour		Sets the hour (in 24-hour display).
	Minute		Sets the minute.
	Cancel		Cancels the setting.
	Confirm		Executes the setting. Second is set to 0.
Scan Mode Skip			Sets the scan mode to be skipped when the SCAN button is pressed in the single mode connection. [None]: No scan is skipped. Under Scan: The under scan is skipped. Over Scan: The over scan is skipped.
Screen Saver			Sets the screen saver function. [On]: When a still image is displayed on the screen for 10 minutes or more, the brightness of the screen is automatically reduced to prevent burn-in of the screen. The brightness returns to normal if you input a moving image or operate the controller. Approximately one minute before the screen saver is activated, the ECO lamp starts flashing rapidly in green. Then the flashing slows when the screen saver is activated. Off: Disables the screen saver function.

Menu Function and operation ([]): factory setting)
Monitor Upgrade Upgrades the monitor	When the item is selected, the screen for inputting the password is displayed.After the 4-digit password is entered, the current versions of Software Version, Kernel Version, FPGA1 Version, FPGA2 Version, and FPGA Core Version are displayed.For the password, see Password (page 66) of the System Configuration menu.For details on upgrading the monitor, see “Upgrading the Monitor and Controller” on page 92.
Software Upgrade Upgrades the software for the monitor.
Kernel Upgrade Upgrades the kernel of the monitor.
FPGA Upgrade Upgrades the FPGA data of the monitor.
Maintenance The menu for the Sony service representative is displayed.

File Management Menu

Overview

The system data is saved, copied and deleted.

When File Management is selected, the following menu is displayed.

Note

Use the controller with software version 1.6 or higher to use the File Management function.

Menu Function and Operation

Menu Function and operation ([]	]: factory setting)
Save To Saves the data in the “Memory Stick”.NoteUse the “Memory Stick” after formatting.
Memory Stick Saves the data in the “Memory Stick”.When the item is selected, you can select the file to save data, or create a new file name.New Name: Enter a new name of the new file (1 to 20 characters).Existed file name: Select the file to save data.The following message appears.Overwrite this file?OK: To overwrite the data, press the ENTER (Ent) button.Cancel: To cancel, press the MENU button.NoteWhen a new name is entered, the “.” must not be used as the first character.
Copy From Copies the data.
Other Monitor Selects the data of other monitor.
Monitor ID Enter the ID number of the source monitor.When the NETWORK switch is set to PEER TO PEER, this is not selectable.When the ID number is entered, you can select the data to be copied.All: Copies all data.Picture Preset: Copies the picture preset data.Color Temp: Copies the color temperature data.CH Memory: Copies the channel memory data.Marker: Copies the preset data of the marker.System: Copies the system data.

Menu Function and operation ([ ]: factory setting)
Copy From	Memory Stick Selects the data in the source “Memory Stick”.When the item is selected, the file names in the “Memory Stick” are displayed.When the item is selected, you can select the data to be copied.All: Copies all data.Picture Preset: Copies the picture preset data.Color Temp: Copies the color temperature data.CH Memory: Copies the channel memory data.Merge: Copies the preset data of the marker.System: Copies the system data.
Delete Deletes the file in the “Memory Stick”.
	Memory Stick Deletes the file in the “Memory Stick”.When the item is selected, the file names in the “Memory Stick” are displayed.When the file is selected, the following message appears.Delete this file?OK: To delete the data, press the ENTER (Ent) button.Cancel: To cancel, press the MENU button.
Data Maintenance Does maintenance the system data.
	Back Up System Data Writes the data to the “Memory Stick” as the backup data.The “In progress ■” is displayed and “■” flashes during data writing. (It may take some time to write the data.)
	Restore System Data Reads the data from the “Memory Stick”.When the item is selected, the following message appears.All data will be restoredand monitor will restartAre you sure?OK: To continue, press the ENTER (Ent) button.Reads the data from the “Memory Stick” and automatically restarts the monitor.Cancel: To cancel, press the MENU button.Returns to the Data Maintenance menu.

System Status Menu

Overview

This menu is used to view general data about the monitor status, current channel, etc.

When System Status is selected, the following menus are displayed.

Menu Function and Operation

Menu Function and operation ([	]: factory setting)
CH Status Displays the information on the used channels.The information of the internal signal assigned to the channel number is displayed on the channels 91 to 97.CH: Channel numberPor: Port numberInp: Input connector numberFormat: Input signal formatName: Channel nameFor details on the assigned signal, see “Channel numbers 91 to 97 assignment” on page 35.
Port StatusOption1 to Option4	Displays the type of input adaptor installed in Option1 to Option4.SD-SDI: When BKM-220D is installedComposite: When BKM-227W is installedComponent: When BKM-229X is installedHD/SD-SDI: When BKM-243HS or BKM-244CC is installed3G/HD/SD-SDI: When BKM-250TG is installedEmpty: When the adaptor is not installedUnknown: When non-supported adaptor is installedWhen the item is selected, the model name and serial number of the installed input adaptor are displayed.Model Name: Model nameSerial No: Serial number

Menu	Function and operation ([ ]: factory setting)
SDI Payload ID Status	Displays the information of the Payload ID data superimposed on the SDI signal and current signal status of the monitor.When the option port number in which the BKM-250TG is installed is selected in Input Port of the Channel Configuration menu, the following is displayed.OptionX/InputX:Input port and input connector of the displayed informationStandard or Option1 to 4 is displayed as an input port, and Input1 or Input2 is displayed as an input connector Pavload ID:XX XX XX XX (4-byte data for Payload ID of the SMPTE-352M standard)Displays the 4-byte data in hexadecimal in sequence of Byte 1, Byte 2, Byte 3 and Byte 4.When the Payload ID information is not set, only Current Status is displayed and “---” is displayed for other items. When the following information is not decoded, Unknown is displayed.Video Standard:Decode display of Byte 1_Bit 6-0 (SD-SDI/HD-SDI/3G-SDI/Dual Link HD-SDI, etc.)Sampling Structure:Decode display of Byte 3_Bit 3-0 (4:2:2 Y/Cb/Cr / 4:4:4 Y/Cb/Cr / 4:4:4 G/B/R, etc.)Bit Depth:Decode display of Byte 4_Bit 1-0 (8bit/10bit/12bit)Picture Rate:Decode display of Byte 2_Bit 3-0 (23.98/24/25/29.97/30/50/59.94/60)Scanning Method:Decode display of Byte 2_Bit 7/decode display of Byte 2_Bit 6 (Interlace/Progressive, Progressive/Progressive, etc.)Link Number:Decode display of Byte 4_Bit 7-6 (Single/Link_1 / Link_2 / Link_3 / Link_4)Current Status:Current status of the monitorFormat:Displayed as “Video Standard + Sampling Structure + Bit Depth”Video Standard:3G/DL/HD/SDSampling Structure:422 YCbCr/444 YCbCr/ 444 RGBBit Depth:10/12I/PsF/P:Interlace/PsF/ProgressiveYou can confirm the same information using the Status button on the controller. For details, see “Displaying the Monitor Status Page” (page 90).
HDMI/DP Status Displays the signal information of the HDMI or DisplayPort signal.Pixel Encoding:RGB 4:4:4/YCbCr 4:4:4/YCbCr 4:2:2Color Depth:8bit/10bit/12bit (HDMI signal), or 6bit/8bit/10bit/12bit (DisplayPort signal)Matrix:ITU-R BT.601/ITU-R BT.709RGB Range:Limit/FullNotesWhen HDMI/DisplayPort Auto is set to On in the Matrix menu of the Channel Configuration menu, the Matrix status is displayed.When HDMI/DisplayPort Auto is set to On in the RGB Range menu of the Channel Configuration menu, the RGB Range status is displayed.You can confirm the same information using the Status button on the controller. For details, see “Displaying the Monitor Status Page” (page 90).
Model Name Displays the model name of the monitor.
Serial No Displays the serial number of the monitor.
Software Version Displays software version of the monitor.
Operation Time Displays operation time (hours, in total) of the monitor.
Panel On Time Displays brighten time (hours, in total) of the panel.
Network Switch Displays the NETWORK switch setting.
Controller Status Displays information on the controller.
Model Name Displays the model name.
Serial No Displays the serial number.
Software Version Displays software version.
Network Switch	Displays the NETWORK switch setting.

Controller Menu

Overview

This menu is for network settings and assigning functions to the controller's function buttons.

When Controller is selected, the following menu is displayed.

Menu Function and Operation

Menu Function and operation ([]): factory setting)
Network Sets the remote control function of the network.For the setting value, consult the network administrator.
Network Setting Sets the IP address, subnet mask and default gateway.
IP Address Sets the IP address. [192.168.000.100]NoteWhen the NETWORK switch is set to PEER TO PEER, the IP address is set to “192.168.0.100” regardless of the display.When the NETWORK switch is set to LAN, the IP address is set to the displayed one.
Subnet Mask Sets the subnet mask. [255.255.255.000]NoteWhen the NETWORK switch is set to PEER TO PEER, the subnet mask is set to “255:255:255:000” regardless of the display.When the NETWORK switch is set to LAN, the subnet mask is set to the displayed one.
Default Gateway	Sets whether or not to set the default gateway ([Off] or On).
Address	Sets the address of the default gateway. [---.---.---.(no setting)]
Cancel Cancels the changed or confirmed setting.
Confirm Saves the changed or confirmed setting.
SNMP Setting Sets SNMP.	For the setting value, consult the network administrator.
Contact Sets the information of the administrator.When the item is selected, you can enter a new name.New Name: Enter a new name (up to 20 characters).
Name	Sets the information for the administration (device ID).When the item is selected, you can enter a new name.New Name: Enter a new name (up to 20 characters).

Menu			Function and operation ([ ]: factory setting)
Network		Location Sets the location information. When the item is selected, you can enter a new name.New Name: Enter a new name (up to 20 characters).
		Trap Sets the address to send the information.
		Mode	Sets the settings to send information manually or automatically ([Manual] or Auto). This item cannot be selected when the monitor is controlled with BKM-15R or BVM-A14F5.
		Trap Address Setting	Sets the IP address to send the information. [000.000.000.000]When Mode is set to Manual or the monitor is controlled with BKM-15R or BVM-A14F5, you can select this item.When the item is selected, you can set the IP address of Trap1 to Trap4.When the monitor is controlled with BKM-15R or BVM-A14F5, you can set only the IP address of Trap1 and Trap2.Cancel: Cancels the changed or confirmed setting.Confirm: Saves the changed or confirmed setting.
		Trap Address Status Displays the IP address to send the information.When Mode is set to Auto, you can select this item.This item cannot be selected when the monitor is controlled with BKM-15R or BVM-A14F5.When the item is selected, the IP address of Trap1 to Trap4 is displayed.
		Reset Mode/Address Resets the settings to send information manually or automatically and the IP address to the factory setting.This item cannot be selected when the monitor is controlled with BKM-15R or BVM-A14F5.When the item is selected, the following message appears.Are you sure?OK: To reset the data, press the ENTER (Ent) button.Cancel: To cancel, press the MENU button.
		Authentication	Sets whether or not to issue the authentication ([Disable] or Enable).This item cannot be selected when the monitor is controlled with BKM-15R or BVM-A14F5.
		Community Sets the community name.This item cannot be selected when the monitor is controlled with BKM-15R or BVM-A14F5.When the item is selected, you can enter the community name (up to 20 characters).public: Initially, public is entered automatically. Enter any character after it.New Name: Enter a community name.
	Protocol Setting Sets the required items for communications such as the port number.This item cannot be selected when the monitor is controlled with BKM-15R or BVM-A14F5.For the setting value, consult the network administrator.
	SDCP/SDAP Community Sets the SDCP/SDAP community name.When the item is selected, you can enter the community name (four characters).SONY: SONY is entered as a community name.New Name: Enter a new name.
	SDCP Port No Sets the SDCP port number.Set to 53434 to 53534. [53484]
	SDAP Port No	Sets the SDAP port number.Set to 53812 to 53912. [53862]
	SDAP Broadcast	Sets whether or not to issue the SDAP (Disable or [Enable]).
	SDAP Broadcast Period	Sets the period (seconds) to issue the SDAP.Set to 05 to 30. [30]
	Reset Protocol Setting	Resets the protocol setting.When the item is selected, the following message appears.Are you sure?OK: To reset data, press the ENTER (Ent) button.Cancel: To cancel, press the MENU button.
Function Key			Assigns the function to the function buttons of the controller.This item cannot be selected when the monitor is controlled with BKM-15R or BVM-A14F5.

Menu Function and operation ([]): factory setting)

Function Key

F1 to F16 The following functions are assigned.Scan Mode: Changes the scan mode of the picture.Native Scan: Displays the picture in native scan mode.16:9: Changes the aspect ratio to 16:9, and when set to Off, the aspect ratio changes to 4:3.The aspect ratio of some signals is fixed to 16:9 depending on the signal format. For details, see “Available Signal Systems” on page 100.H Delay: The picture moves horizontally and a horizontal sync signal appears.Brightness of the picture increases automatically, and it makes it easy to check the sync part.When V DELAY button is set to on in H delay mode, a pulse cross picture is displayed.V Delay: The picture moves vertically and a vertical sync signal appears approximately in the center of the screen.Brightness of the picture increases automatically, and it makes it easy to check the sync part.When H DELAY button is set to on in V delay mode, a pulse cross picture is displayed.External Sync: Sets whether or not to set to the external sync mode when the analog component signal or analog RGB signal is input. When the button is set to on, the signal to be displayed is synchronized with the sync signal input to the EXT SYNC connector (External Sync). When set to off, the signal to be displayed is synchronized with the sync signal included in the signals being monitored (Internal Sync).NoteWhen the button is set to off (Internal Sync), a sync signal is added on the Y signal to monitor the analog component signal and on the G signal to monitor the analog RGB signal.Comb: The comb filter is turned on.When the button is set to off, the trap-band-pass filter is selected.When the displayed signal is NTSC, PAL or PAL-M, this functions.You can select the kind of the comb filter in the NTSC Comb Filter menu (page 53) of the Auxiliary Setting menu.Char Off: The characters on the monitor screen hide during manual adjustment.Color Temp: You can access directly the Manual Adjust menu of the Color Temp Adj menu.Status: Various status information regarding the monitor are displayed on a single page.For details on the display, see “Displaying the Monitor Status Page” (page 90).NoteUse the controller with software version 1.6 or higher to assign Status to a function button of the controller.Aperture: When the function is set to on, the frequency response can be modified. The degree of modification is set in the Aperture Value menu (page 53) of the Auxiliary Setting menu.For information about the aperture modification frequency for each signal system, see “Aperture Modification Frequency” on page 107.Mono: When the button is set to on, a monochrome picture is displayed. When the button is set to off, the monitor switches automatically between color and monochrome mode, depending on the color discrimination of the input adaptor.Blue Only: Red and green signals are cut, and only the blue signal is displayed as a monochrome picture. It makes it easy to adjust chroma and phase, and to check VTR noise.R Off: R (red) signals are cut respectively.G Off: G (green) signals are cut respectively.B Off: B (blue) signals are cut respectively.Chroma Up: The chroma setting increases by 12 dB.Interlace: Displays in the interlace mode.Pixel Zoom: The part of the picture is magnified up to 8 timesCapture Load: Displays the menu to load the captured picture from the “Memory Stick”.Marker: All markers are displayed on the screen.Aspect Marker: An aspect marker is displayed on the screen.

Menu Function and operation ([ ]): factory setting)
Function Key
	Area Marker1: An area marker 1 is displayed on the screen.Area Marker2: An area marker 2 is displayed on the screen.Center Marker: The center marker is displayed on the screen.Aspect Marker-Line: The line of the aspect marker is displayed on the screen.Aspect Blanking-Half: Aspect Blanking is set to half blanking.Aspect Blanking-Black: The blanking level of Aspect Blanking is set to 0% black level.NoteUse the controller with software version 1.6 or higher to assign Center Marker, Aspect Marker-Line, Aspect Blanking-Half or Aspect Blanking-Black to a function button of the controller.Side by Side: The screen is displayed in the side by side display mode.Wipe: The screen is displayed in the wipe display mode.Butterfly: The screen is displayed in the butterfly display mode.Blending: The screen is displayed in the blending display mode.Error Notify Clear: Clears the notification detected in the gamut error detection. (OSD Notification)NoteWipe, Butterfly, Blending, and Error Notify Clear can be assigned to the controller.However, the display mode using these functions cannot be supported on BVM-F series monitors.Audio Level Meter: The audio level meter is displayed.ALM Hold Reset: The peak hold of the audio level meter is canceled.Time Code: The time code is displayed.NoteUse the controller with software version 1.4 or higher to assign Audio Level Meter, ALM Hold Reset or Time Code to a function button of the controller.Difference: The difference between the luminance of the left 3D video signal and that of the right signal is displayed.NoteUse the controller with software version 1.6 or higher to assign Difference to a function button of the controller.Checkerboard: The left and right 3D video signals are displayed in a checkerboard pattern.L/R Switch: The left and right 3D video signals are displayed alternately by switching.NoteUse the controller with software version 1.5 or higher to assign Checkerboard or L/R Switch to a function button of the controller.Horopter Check: The left and right 3D video signals are displayed in the mode selected in Horopter Check (page 57) in the 3D Setting menu of the Function Setting menu.Flip H: The 3D video signals are inverted horizontally and displayed.NoteUse the controller with software version 1.6 or higher to assign Horopter Check or Flip H to a function button of the controller.Black Frame Insertion: The signal is displayed in black frame insertion mode (only for BVM-L and PVM-L series).Black Detail Mode: The signal is displayed in black detail mode (only for BVM-L and PVM-L series).NoteUse the controller with software version 1.3 or higher to assign Black Detail Mode to a function button of the controller.Degauss: The CRT is degaussed (only for BVM-A series).
Monitor ID Display Sets display mode of the display window.[On]: Always displayed.Auto: Displayed during operating by the remote connection and disappears automatically after operation.Off: Not displayed.
Controller Upgrade Upgrades the controller.
	When the item is selected, the screen for inputting the password is displayed.After the 4-digit password is entered, the current versions of Software Version and Kernel Version are displayed.For the password, see Password (page 66) of the System Configuration menu.For details on upgrading the controller, see “Upgrading the Monitor and Controller” on page 92.
Software Upgrade Upgrades the software for the controller.
Kernel Upgrade Upgrades the kernel of the controller.

Key Protect Menu

Overview

This menu is used to lock the data so that the settings cannot be changed by an unauthorized user.

Menu Function and Operation

Menu Function and operation ([	]: factory setting)
Key Protect Sets the key protection.	On: The button on the controller (except the menu operation buttons and monitor selection buttons) and the parallel remote do not function and other settings are not changeable.[Off]: Release the lock.

Selecting Display Mode

This monitor applies high contrast to the picture and reproduces accurate color by displaying the interlace signal in progressive mode via I/P conversion, or the PsF/progressive signal in progressive mode without I/P conversion.

You can select the interlace display mode according to the input signal or the object to evaluate the picture.

Interlace display mode: The picture is displayed in interlace mode without I/P conversion processing. The picture is monitored close to the original quality of the input signal.

Notes

• When a 1080/24 ¹⁾ P (PsF) or 1080/25P (PsF) input signal is displayed in progressive mode, the frame rate for display is 72 ¹⁾ Hz or 75 Hz to obtain flickerless display.
• When the input signal is 1080/24 ¹⁾ PsF or 1080/25PsF and 1080I is set in the 1080I/PsF menu of the Channel Configuration menu, the frame rate for display is 48 ¹⁾ Hz or 50 Hz.
• The luminance is reduced due to the principle of operation in the interlace display mode. However, on this monitor, the normal luminance is set by increasing the gain value. For this reason, in the interlace display mode, the range of contrast adjustment is different from the normal level, and the luminance may be reduced according to the contrast setting.
• The picture is not displayed in interlace mode in the following cases:
• When Side by Side is set to On
• When Pixel Zoom is set to On

1 For selecting the interlace display mode, set Native Scan (page 58) to On in the Function Setting menu or by pressing the NATIVE SCAN button of the controller.

2 Set Interlace to On in the Function Switch menu (page 58) of the Function Setting menu, or by pressing the Interlace button 2) on the controller.

For the input signal to display in frame mode and interlace mode, see "Picture Frame Display" on page 110.

1) Also compatible with a frame rate of 1/1.001. 2) Interlace is assigned to a function button of the controller in the Function Key menu (page 74) of the Controller menu.

Setting the Display of Native Scan Mode

About the native scan mode

You can set the picture display type for the native scan mode according to the input signal.

You can select ×1 or ×2, which differ in picture display size, to map the pixels of the signal to the panel in one-to-one mode, or Aspect Correction. An SD signal of non-square pixels (the number of H pixels of the signal system is 720 or 1440) or a 640 × 480 SD signal of

HDMI/DisplayPort video is displayed correctly by scaling processing of doubling for the V direction and correct aspect ratio for the H direction, and the picture is also optimized and displayed by modifying the aperture coefficient value, filter coefficient value, etc. in Aspect Correction mode.

For details, see "Picture Display Size" on page 108.

Set the native scan mode in the Native Scan Mode menu (page 53) of the Auxiliary Setting menu.

Note

The native scan is not selectable in the following cases:

• When the input signal has no sync signal
• When Side by Side is set to On
• When Pixel Zoom is set to on
• When the HDMI/DisplayPort computer signal is input (The native scan is displayed regardless of the setting.)
• When the signal system is the SD signal of 720 × 576 or 1440 × 576, Native Scan Mode is set to Aspect Correction or ×2 and the internal signal displayed (Native Scan is set to Off and the normal scan is displayed regardless of the setting.)

Display of the input signal system 576/50i or 576/50P

When the input signal system is the SD signal of 720 × 576 or 1440 × 576 and Native Scan Mode is set to ×2 or Aspect Correction, you can display no display area of the upper and lower sides over the V size (1080) by sliding the picture with the UP/DOWN button of the controller.

And when the input signal is same as above and Native Scan Mode is set to Aspect Correction and the aspect ratio is 16:9, you can display no display area of the left and right sides over the H size (1920) by sliding the picture with the PHASE knob of the controller. You can restore the display position to the center by pressing the MANUAL button of PHASE of the controller.

Displayed the whole picture of the H direction by sliding the picture with the PHASE knob of the controller.

Displayed the whole picture of the V direction by sliding the picture with the UP/DOWN button of the controller.

Note

The set position is held even when the system is changed to another input signal system.

Selecting the Native Scan/Scan Mode

You can select scan mode from a native scan, under scan (-3%), normal scan (0%) and over scan (mask of 5% over scan portion in the normal scan picture).

You can set scan mode with the NATIVE SCAN button or SCAN button of the controller, or in the Function Switch menu of the Function Setting menu.

Setting with the NATIVE SCAN button or SCAN button of the controller

To set to the native scan mode

Set the NATIVE SCAN button to on. (The LED on the button lights.)

To select the scan mode

1 Set the NATIVE SCAN button to off. (The LED on the button is turned off.) 2 Press the SCAN button to select the scan mode.

Scan mode is changed to normal, under and over scan mode by each press of the button.

Setting in the menu

Set Scan Mode or Native Scan in the Function Switch menu (page 58) of the Function Setting menu.

To set to the native scan mode

Set Native Scan to On.

To select the scan mode

1 Set Native Scan to Off. 2 Select Scan Mode, then select scan mode from the following.

Normal Scan: Normal mode

Under Scan: Under mode

Over Scan: Over mode

Note

The scan mode is not selectable in the following cases:

• When Native Scan is set to On
• When the internal signal is displayed
• When Side by Side is set to On

Displaying Two Signals on One Screen (Picture&Picture)

Two input signals are output on the monitor. Side by Side mode is useful for adjusting the color or comparing two pictures.

You can input the file loaded in the Capture menu (page 57) of the Function Setting menu.

Side by Side (side by side)

Two pictures are displayed side by side. Signal A Signal B

Notes

• The input signals from INPUT 1 and INPUT 2 of one standard SDI input or one input adaptor are not displayed in the multi display.
• You cannot select the same channel number as channels for signal A and signal B. And set a different channel number of the different standard input or input adaptor for signal A and signal B.
• When signal A and signal B are not the same signal format and signal system, the pictures may not be displayed correctly.
• The input of signal A is not changed in the multi display.
• The internal signal is not displayed in the multi display.
• The captured picture data is not used to display as signal A and signal B at the same time.
• The signals are not displayed in the multi display mode when Pixel Zoom is set to on.
• The color space and gamma setting for signal A is applied in the multi display.
• The multi display with an HDMI input signal and a DisplayPort input signal is not possible.

Procedure

1 Select the channel number and set the input signal to display as signal A. 2 Select the Side by Side mode with the function button ¹⁾ of the controller or in the Function Switch menu (page 58) of the Function Setting menu and set it to On.

1) Each function of Picture&Picture is assigned to each function button of the controller in the Function Key menu (page 74) of the Controller menu.

3 Select the channel number and set the input signal to display as signal B.

The channel for signal B is set to CH01 at the factory setting.

To display the captured picture data file

You can use a captured picture other than the picture selected by designating the channel number as signal A and signal B.

Instead of setting the channel number in step1 or step3, press the Capture Load button ²⁾ or select Load in the Capture menu (page 57) of the Function Setting menu.

2) Capture Load is assigned to the controller in the Function Key menu (page 74) of the Controller menu.

To end the multi display

Set Side by Side to Off in Function Switch menu (page 58) of the Function Setting menu, or set the function button of the controller to off.

Magnifying the Picture (Pixel Zoom)

As part of the picture is magnified up to 8 times (up to 4 times when the display magnification of the native scan is ×2) without scaling processing, this is convenient for confirming a minute of the signal. This functions in native scan mode.

Note

The Pixel Zoom is not set to on in the following cases:

• When the menu is displayed
• When Side by Side is set to On
• When the internal signal is displayed
• When the input signal has no sync signal

1 Set Native Scan to On by pressing the NATIVE SCAN button of the controller or in the Function Switch menu (page 58) of the Function Setting menu.

2 Display the picture and set Pixel Zoom to on by pressing the Pixel Zoom button ¹⁾ of the controller.

The cursor is displayed.

Note

When Native Scan Mode is set to Aspect Correction and Pixel Zoom is set to on for SD signal input, Native Scan Mode is set to ×2.

To cancel the cursor display and return to the previous screen

Press the MENU button of the controller.

1) Pixel Zoom is assigned to a function button of the controller in the Function Key menu (page 74) of the Controller menu.

3 Select the cursor size with the UP or DOWN button of the controller.

You can select the cursor size from 1 to 8 (from 1 to 4 when the display magnification of the native scan is ×2 (page 53)).

The larger the number, the smaller the cursor.

4 Adjust the position of the cursor.

To move the leftward or rightward: Turn the PHASE knob.

To move the upward or downward: Turn the CHROMA knob.

5 Press the ENTER (Ent) button.

Part inside the cursor is magnified.

You can move the position of the magnified picture with the PHASE knob or CHROMA knob. You can change the magnification ratio with the UP or DOWN button.

You can also change the boundary line color.

For details on changing the boundary line color, see "Pixel Zoom Setting" (page 57) of the Function Setting menu.

Press the MENU button of the controller to return to the cursor display.

To end the pixel zoom operation

When the cursor is displayed or the picture is magnified, press the Pixel Zoom button on the controller.

Capturing the Picture of the HD Signal (HD Frame Capture)

The frame picture of the 3G/HD-SDI input signal is captured and saved as a picture file in the “Memory Stick”.

This is used to confirm the color tone and picture angle of the current scene and recorded scene, or as the reference picture to adjust the monitor.

To save the captured frame, we recommend using

“Memory Stick PRO (High-Speed)” or “Memory Stick PRO Duo (High-Speed)”.

Notes

• Use the controller with software version 1.6 or higher to use the HD Frame Capture function.
• The file is saved in TIFF. The file size is a maximum of 13 MB.
• The picture file is captured or loaded without deterioration.
• The saved file may not be opened due to the PC application used.
• The HD Frame Capture function is effective only for the 3G/HD-SDI signal.
• The interlace input signal is captured in each frame (first field (F = 0) and second field (F = 1)).
• The frame is not captured in the following cases:

- When Side by Side is set to On

- When Pixel Zoom is set to on

- When the internal signal is displayed

- When the input signal has no sync signal

- When the captured frame is displayed

- The HD Frame Capture function is not available on BKM-15R and BVM-A14F5.

To capture

1 Insert the "Memory Stick" into the Memory Stick insertion slot of the controller.

For details on the "Memory Stick", see

"Inserting/Ejecting the "Memory Stick"" on page 118.

2 Display the picture and press the CAPTURE button of the controller at the point on the picture to be captured.

The captured still picture appears on the display.

To hide characters on the monitor, set the CHAR OFF button to on. As the characters are hidden, it becomes easy to confirm the still picture. To display the characters, set the CHAR OFF button to off.

3 Press the ENTER (Ent) button.

The display of the captured still picture is cleared and saving in the "Memory Stick" of the captured frame starts.

The “In progress ■” is displayed and “■” flashes during data saving. (It may take some time to write the data.)

The file of the captured frame is automatically named and the file name is displayed on the screen during file saving.

Note

The monitor is not operated until the saving is completed.

To load the captured frame

Press the Capture Load button ¹⁾ of the controller or select Load in the Capture menu (page 57) of the Function Setting menu, and then the file name.

To cancel the captured frame display, select any one of channel numbers 1 to 30.

Displaying the Area Marker or Aspect Marker

The monitor is equipped with two area markers and center marker as the safe area marker and aspect marker for confirming the picture angle.

1 Input the signal. 2 Select the channel. 3 Set the marker preset data (Marker1 to Marker5) to display in the Marker Preset menu (page 51) of the Channel Configuration menu. 4 Set the marker to display in the Marker Setting menu (page 54) of the Function Setting menu for the preset data set in step 3. 5 Select the marker mode (Marker, Aspect Marker, Area Marker 1, Area Marker 2, Center Marker, Aspect Marker-Line, Aspect Blanking-Half or Aspect Blanking-Black) with the function button ¹⁾ of the controller or in the Function Switch menu (page 58) of the Function Setting menu and set it to On.

1) Each function of the marker is assigned to the function button of the controller in the Function Key menu (page 74) of the Controller menu.

When the MARKER button is set to on

All the markers that are set to On in the Marker Setting menu of the Function Setting menu are displayed. The MARKER button lights.

To display the aspect marker

Set the button of the marker mode that you wish to display (Aspect Marker, Aspect Marker-Line, Aspect Blanking-Half or Aspect Blanking-Black) to on. The MARKER, Aspect Marker and the pressed button light.

To display the area marker 1, area marker 2, or center marker

Set the button of the marker you wish to display (Area Marker 1, Area Marker 2, or Center Marker) to on.

The MARKER and the pressed button light up.

To cancel the marker display

Set the MARKER button to off.

Note

Use the controller with software version 1.6 or higher to assign Center Marker, Aspect Marker-Line, Aspect

Blanking-Half, or Aspect Blanking-Black to a function button of the controller.

Displaying the Audio Level Meter

The audio level of the embedded audio signals superimposed on the SDI signals is displayed by installing the optional input adaptor (BKM-250TG).

Note

As the audio level meter is superimposed on the video signal, the audio level meter may be partially invisible because of the scan mode setting of the monitor.

1 Input the SDI signal. 2 Select the channel. 3 Set the audio level meter in the Audio Level Meter menu (page 66) of the On Screen Set menu of the System Configuration menu.

To set the audio channel

Set in the Audio CH menu.

CH1-CH8: Selects when channel 1 to 8 is selected.

CH9-CH16: Selects when channel 9 to 16 is selected.

To set the display position

Set in the Position menu.

Bottom: Displays at the bottom of the window.

Top: Displays at the top of the window.

To set the transparency of the background

Set in the Transparency menu.

Black: Sets the background in black.

Half: Sets the background in translucence.

To set the peak hold

Set in the Peak Hold menu.

Off: The peak hold does not function.

Auto: The peak hold is automatically canceled after about 1 second.

Manual Reset: The peak hold is canceled manually. To cancel the peak hold, select ALM Hold Reset (page 61) in the Function Switch menu of the Function Setting menu or set ALM Hold Reset to on by pressing the ALM Hold Reset button ¹⁾ of the controller.

4 Set Audio Level Meter (page 61) to On in the Function Switch menu of the Function Setting menu or by pressing the Audio Level Meter button 1) of the controller.

The audio level meter is displayed.

Audio level Audio level

1) Audio Level Meter and ALM Hold Reset are assigned to the function buttons of the controller in the Function Key menu (page 74) of the Controller menu.

To cancel the display of the audio level meter

Set Audio Level Meter (page 61) to Off in the Function Switch menu of the Function Setting menu or by pressing the Audio Level Meter button of the controller.

Note

Use the controller with software version 1.4 or higher to assign Audio Level Meter or ALM Hold Reset function to a function button of the controller.

Displaying the Time Code

The time code superimposed on the SDI signals is displayed.

Note

As the time code is superimposed on the video signal, the time code may be invisible partially because of the scan mode setting of the monitor.

1 Input the SDI signal. 2 Select the channel. 3 Set the time code in the Time Code menu (page 66) of the On Screen Set menu of the System Configuration menu.

To set the type of the time code

Set in the VITC/LTC menu.

VITC: Sets to VITC.

LTC: Sets to LTC.

To set the display position for the time code, set in the Position menu.

Top Left: To display it at top left on the screen.

Top Center: To display at top center on the screen.

Top Right: To display at top right on the screen.

Bottom Left: To display at bottom left on the screen.

Bottom Center: To display at bottom center on the screen.

Bottom Right: To display at bottom right on the screen.

To set the luminance of the time code, set in the Level menu.

High: To make the time code display bright.

Low: To make the time code display dark.

4 Set Time Code (page 61) to On in the Function Switch menu of the Function Setting menu or by pressing the Time Code button ¹⁾ of the controller.

4 Set Time Code (page 61) to On in the Function Switch menu of the Function Setting menu or by pressing the Time Code button 1) of the controller.

The time code is displayed.

1) Time Code is assigned to a function button of the controller in the Function Key menu (page 74) of the Controller menu.

To cancel the time code display

Set Time Code (page 61) to Off in the Function Switch menu of the Function Setting menu or by pressing the Time Code button of the controller.

Note

Use the controller with software version 1.4 or higher to assign Time Code function to a function button of the controller.

Switching the Display of the 3D Video Signal

When the optional BKM-250TG input adaptor is installed, the left (L) and right (R) 3D video signals in dual-stream HD-SDI format can be compared on the screen (3D signal analyzing function).

For this function, two-dimensional (2D) view is used. The signals are not displayed in stereoscopic view.

The following five display modes are available:

For details on the installation of the input adaptor (BKM-250TG), see "Installing an Input Adaptor" on page 20.

Difference display

The difference between the luminance signal of the left (L) signal and that of the right (R) signal is displayed.

A gray portion indicates that the luminance level of the two signals is the same. When the luminance level of the two signals is not the same, a monochrome image is displayed according to the difference in the luminance. This function is useful for checking the amount of parallax.

Checkerboard display

The left (L) and right (R) signals are displayed in a checkerboard pattern on the same screen for comparing the brightness or colors of the L and R signals.

L/R Switch display

The left (L) and right (R) signals are switched alternately on the screen for comparing the brightness or colors of the L and R signals.

Horopter Check display

The display mode for the left (L) and right (R) 3D video signals can be switched for easy checking of the two signals. Set Horopter Check (page 57) in the 3D Setting menu of the Function Setting menu to one of the display

modes listed below. Set Right for the right signal, and Left for the left signal.

Normal: Normal picture

Black: Displays a black signal only (the video signal is not displayed).

Mono: Displays the video signal in monochrome mode.

Red: Displays only the red component of the video signal.

Blue: Displays only the blue component of the video signal.

Flip H display

The input 3D video signals whose left (L) or right (R) signal has been inverted horizontally by a half-mirror type 3D rig are displayed as non-inverted images.

Procedure

1 Input 3D video signals.

2 Set the desired display mode of the 3D signal analyzing function (Difference, Checkerboard, L/R Switch, Horopter Check or Flip H) to On by pressing the function button ¹⁾ of the controller or in the Function Switch menu (page 58) of the Function Setting menu.

If the desired display mode of the 3D signal analyzing function has been assigned to a pin of the PARALLEL REMOTE connector, set Parallel Remote (page 64) in the System Configuration menu to On.

1) Difference, Checkerboard, L/R Switch, Horopter Check or Flip H is assigned to a function button of the controller in the Function Key menu (page 74) of the Controller menu.

To stop execution of the 3D signal analyzing function

Set Difference, Checkerboard, L/R Switch, Horopter Check or Flip H to Off in the Function Switch menu (page 58) of the Function Setting menu. Or set the corresponding function button of the controller to off.

The Difference, Checkerboard, L/R Switch or Horopter Check display is returned to the normal display and the currently selected left or right signal is displayed.

The Flip H display is returned to the normal display without inversion.

Notes

- To use the 3D signal analyzing function, use an optional BKM-250TG input adaptor.

The available display modes of the 3D signal analyzing function differ depending on the serial number of the BKM-250TG as follows:

With serial number 7100001 or higher:

- Checkerboard

- L/R Switch

- Horopter Check

- Flip H

With serial number 7300001 or higher:

– Difference

– Four other display modes

- To assign Checkerboard or L/R Switch to a function button of the controller, use the controller with software version 1.5 or higher. To assign Difference, Horopter Check or Flip H to a function button of the controller, use the controller with software version 1.6 or higher

- If you change the channel when the 3D signal analyzing function is On, it is switched to Off.

- If you display the Picture&Picture image when the 3D signal analyzing function is On, it is switched to Off.

- If the input signal system is changed when the 3D signal analyzing function is On, the 3D video image may not be displayed correctly.

- The 3D signal analyzing function cannot be set to On in the following cases:

- When the option port number in which the BKM-250TG is installed is not selected in Input Port of the Channel Configuration menu

- When dual-link display is used

- When the internal signal is displayed

- When a captured frame is displayed - When Side by Side is set to On

- The display of the 3D signal analyzing function may not be performed correctly when H Delay is set to On.

- If saving is performed in HD Frame Capture when a 3D signal analyzing function other than Flip H is in use, the function is deactivated and the normal display is restored.

Copying the Setting or Adjustment Value to Another Monitor

You can save the setting or adjustment value in the "Memory Stick" and copy it to another monitor.

1 Insert the "Memory Stick" into the Memory Stick insertion slot of the controller.

For details on the “Memory Stick”, see “Inserting/Ejecting the “Memory Stick”” on page 118.

2 Select Memory Stick in the Save To menu (page 69) of the File Management menu, and then select New Name or the existing file name.

When you select New Name, the display to create a new name appears.

Display example

Enter a new name (1 to 20 characters).

When the existing file name is selected, the display to confirm a file name appears.

Display example

3 Press the ENTER (Ent) button.

The data is saved in the "Memory Stick".

Notes

• Use the controller with software version 1.6 or higher for data saving, copying and deleting using the “Memory Stick”.
• Data saving, copying and deleting using the “Memory Stick” is not available on BKM-15R or BVM-A14F5.
• Data copying from the BVM-A, PVM-L or BVM-L series monitor is not available.

Displaying the Monitor Status Page

When Status has been assigned to a function button of the controller, the setting status, display mode, and input signal information of the currently displayed video signal are displayed on the monitor status pages.

For how to assign a function to a function button, see "Assigning a Function to a Function Button" (page 92).

Note

To assign Status to a function button of the controller, use the controller with software version 1.6 or higher.

1 Press the Status button on the controller to set it to On. Page 1/3 of STATUS display is displayed. 2 Select the STATUS page you wish to view using the UP/DOWN button on the controller. You can select the page from among 1/3, 2/3, and 3/3.

For the contents of each page, see below.

To cancel the display of the STATUS page

Press the Status button on the controller again.

Page 1/3

Information on the setting status of the input signal and the display mode is displayed.

STATUS (Input / Display Mode) 1/3

CH: 01 "PROG1"

Detected Signal: 1080/601

Format: 4:4:4 RGB 10bit

Input Port: Option1/Input1

RGB Range: Limited

1080I/PsF: 1080I

Scan Mode: Native Aspect Correct

Aspect Mode: 16:9

Interlace Display: ON

CH: Displays the currently selected channel number and channel name.

Detected Signal: Displays the signal system whose format is detected.

Format: Displays Format set in the Channel

Configuration menu.

Input Port: Displays Input Port and Input No. set in the

Channel Configuration menu.

RGB Range: Displays RGB Range set in the Channel Configuration menu.

1080I/PsF: Displays 1080I/PsF set in the Channel Configuration menu.

Scan Mode: Displays the selected scan mode.

Aspect Mode: Displays the selected aspect ratio.

Interlace Display: Displays On/Off of the interlace display.

Information on the picture adjustments is displayed.

STATUS (Picture Configuration)

Color Profile:

BVM EBU

Color Space:

EBU

Gamma:

CRT BVM

Color Temp:

User1

Picture Preset:

Preset1

Chroma:

1000

Bright:

000

Contrast:

1000

Matrix:

ITU-R BT.709

Color Profile: Displays the Color Profile set in the Channel Configuration menu.

Color Space: Displays the Color Space set in the Color Profile.

Gamma: Displays the Gamma set in the Color Profile.

Color Temp: Displays the Color Temp set in the Channel Configuration menu.

Picture Preset: Displays the Picture Preset set in the Channel Configuration menu.

Chroma: Displays the Chroma value of the selected Picture Preset.

Bright: Displays the Bright value of the selected Picture Preset.

Contrast: Displays the Contrast value of the selected Picture Preset.

Matrix: Displays Matrix set in the Channel Configuration menu.

Page 3/3

When the SDI signal is input

The same information as that of SDI Payload ID Status in the System Status menu is displayed.

STATUS (SDI Payload ID) 3/3

Option1/Input1

Payload ID B1 B2 B3 B4

Video Standard: HD-SDI

Sampling Structure: 4:2:2 Y/Cb/Cr

Bit Depth: 10bit

Picture Rate: 59.94

Scanning Method: Interlace/Interlace

Link Number: Single/Link_1

Current Status

Format: HD 422 YCbCr 10

I/PsF/P: Interlace

OptionX/InputX: Input port and input connector of the displayed information

Standard or Option1 to 4 is displayed as an input port, and Input1 or Input2 is displayed as an input connector.

Payload ID: Displays the 4-byte data for Payload ID of the SMPTE-352M standard in hexadecimal in sequence of Byte 1, Byte 2, Byte 3 and Byte 4.

When the Payload ID information is not set, only Current Status is displayed, and "---" is displayed for other items. When the following information is not decoded, Unknown is displayed.

Video Standard: Decode display of Byte 1_Bit 6-0

Sampling Structure: Decode display of Byte 3_Bit 3-0

Bit Depth: Decode display of Byte 4_Bit 1-0

Picture Rate: Decode display of Byte 2_Bit 3-0

Scanning Method: Decode display of Byte 2_Bit 7 /

Byte 2_Bit 6

Link Number: Decode display of Byte 4_Bit 7-6

Current Status: Displays the current status of the monitor.

Format: Displayed as "Video Standard + Sampling

Structure + Bit Depth".

Video Standard: 3G / DL / HD / SD

Sampling Structure: 422 YCbCr / 444 YCbCr / 444

RGB

Bit Depth: 10 / 12

I/PsF/P: Interlace / PsF / Progressive

When the HDMI/DisplayPort signal is input

The same information as that of HDMI/DP Status in the System Status menu is displayed.

HDMI signal

STATUS (HDMI)

3/3

Pixel Encoding: YCbCr 4:4:4

Color Depth: 12bit

Matrix: ITU-R BT.601

RGB Range: ---

DisplayPort signal

1) It is displayed when HDMI/DisplayPort Auto is set to On in the Matrix menu of the Channel Configuration menu.

2) It is displayed when HDMI/DisplayPort Auto is set to On in the RGB Range menu of the Channel Configuration menu.

Assigning a Function to a Function Button

You can assign a function other than the factory preset on the function button of the controller.

1 Select the Function Key menu in the Controller menu. 2 Select F1 to F16 button, and then the function assigned on each button.

Assignable functions

Scan Mode, Native Scan, 16:9, H Delay, V Delay, External Sync, Comb, Char Off, Color Temp, Status, Aperture, Mono, Blue Only, R Off, G Off, B Off, Chroma Up, Interlace, Pixel Zoom, Capture Load, Marker, Aspect Marker, Area Marker 1, Area Marker 2, Center Marker, Aspect Marker-Line, Aspect Blanking-Half, Aspect Blanking-Black, Side by Side, Wipe, Butterfly, Blending, Error Notify Clear, Audio Level Meter, ALM Hold Reset, Time Code, Difference, Checkerboard, L/R Switch, Horopter Check, Flip H, Black Frame Insertion, Black Detail Mode, Degauss

For details on the assigned function, see "Function Key" (page 74) in the Controller menu.

Upgrading the Monitor and Controller

You can upgrade the monitor and the controller with the data saved in a "Memory Stick".

You can upgrade the following data:

Monitor: Software program

Kernel

FPGA data

Controller: Software program

Kernel

Notes

• Use the controller with software version 1.6 or higher to upgrade the monitor.
• Upgrading of the software for the controller is available for version 1.11 or later of the software for the controller, and upgrading of the controller kernel is available for version 1.2 or later.
• Use a “Memory Stick PRO” for upgrading. If a “Memory Stick” other than “Memory Stick PRO” is used, the upgrading may not be executed correctly.
• To initialize the “Memory Stick PRO”, use a machine and application corresponding to “Memory Stick PRO”. If Windows Explorer is used for initialization, the upgrading may not be executed correctly.
• When the unit is upgraded, use the AC power supply for the monitor.

To get the upgrade data

Contact your Sony representative.

Saving the Upgrade Data in a "Memory Stick PRO"

Save the upgrade data (MSSONY folder) in a “Memory Stick PRO”.

Save the whole MSSONY folder directly in the root directory of the Memory Stick drive.

To confirm saving the data correctly

Double-click on the file including checksum.bat in the file name.

• MSSONY/MONITOR/BVM_F/UPDATES/SOFT/BVM_F170/checksum_soft.bat
• MSSONY/MONITOR/BVM_F/UPDATES/KERNEL/BVM_F170/checksum_kernel.bat
• MSSONY/MONITOR/BVM_F/UPDATES/FPGA/BVM_F170/checksum_fpga.bat
• MSSONY/MONITOR/BVM_L/UPDATES/SOFT/BKM_16R/checksum_soft.bat

MSSONY/MONITOR/BVM_L/UPDATES/KERNEL/BKM_16R/checksum_kernel.bat

Display example

Confirming the upgrade data of the kernel of the monitor

Double-click the following file:

MSSONY/MONITOR/BVM_F/UPDATES/KERNEL/B

VM_F170/checksum_kernel.bat

When the data are saved correctly

When the data are not saved correctly

Upgrading the Monitor

1 Insert the "Memory Stick PRO" into the Memory Stick insertion slot of the controller. 2 Select the Monitor Upgrade menu in the System Configuration menu (page 68). 3 Enter the 4-digit password.

The Monitor Upgrade screen is displayed, and the current version is indicated.

For the password, see Password (page 66) of the System Configuration menu.

4 Select the item to upgrade from among Software Upgrade, Kernel Upgrade, and FPGA Upgrade.

After about 10 seconds, the old and new software versions or kernel version, and the message to confirm that you wish to execute the upgrade are displayed. When FPGA Upgrade is selected, the new versions of FPGA1, FPGA2, FPGA CORE, starting from the left, and a confirmation message are displayed.

Display example

Monitor software will be upgraded and monitor will restart.

Are you sure?

5 Confirm the data version and press the ENTER (Ent) button.

Upgrading starts.

The “In progress ■” is displayed and “■” flashes during upgrading. The “■” indication may stop flashing during upgrading, but the data are being upgraded correctly.

Upgrading takes about 8 minutes for the software program, about 2 minutes for the kernel and about 3 minutes for FPGA data.

Notes

• Do not remove the “Memory Stick PRO” from the Memory Stick insertion slot during upgrading or disconnect the LAN cable between the monitor and controller.
• Do not turn off the power of the monitor and controller during upgrading.

After completion of upgrading, the display on the screen disappears, and the system is restarted. After restarting, the previous screen is displayed.

6 Select the Monitor Upgrade menu in the System Configuration menu and confirm that the version of the selected item has been upgraded.

When the upgrade sequence does not move forward correctly, a message such as “Procedure failure” is displayed in red. If this error message is displayed, contact your Sony representative.

Upgrading the Controller

1. Insert the "Memory Stick PRO" into the Memory Stick insertion slot of the controller.

2. Select the Controller Upgrade menu in the Controller menu (page 77). 3. Enter the 4-digit password.

The Controller Upgrade screen is displayed, and the current version is indicated.

For the password, see Password (page 66) of the System Configuration menu.

4. Select the item to upgrade from Software Upgrade or Kernel Upgrade.

After about 10 seconds, the old and new software versions or kernel version, and the message to confirm that you wish to execute the upgrade are displayed.

Display example

Controller software will be upgraded and controller will restart.

Are you sure?

5. Confirm the data version and press the ENTER (Ent) button.

Upgrading starts.

When a version earlier than 1.2 of the software for the controller is upgraded

When upgrading starts, the dot (indicator) lights as moving from left to right in the display window of the controller. The dot may stop during upgrading, but the data are being upgraded correctly.

When version 1.2 or later of the software for the controller is upgraded

When the upgrading starts, the indicator lights as turning clockwise in the display window of the controller. The indicator may stop during upgrading, but the data are being upgraded correctly.

Upgrading takes about 2 minutes for the software program and about 2 minutes for the kernel.

After upgrading, all indicators light for about 1 second.

Notes

• Do not remove the “Memory Stick PRO” from the Memory Stick insertion slot during upgrading or disconnect the LAN cable between the monitor and controller.
• Do not turn off the power of the monitor and controller during upgrading.

After completion of upgrading, the system is restarted. The network between the monitor and controller is reconnected, and you can operate the controller.

When the upgrade sequence does not move forward correctly, the error message “Err” is displayed in the display window. If this error message is displayed, contact your Sony representative.

6 Exit the Controller Upgrade menu, select the Controller Upgrade menu again, and confirm that the version of the selected item has been upgraded.

Appendixes

Specifications

Picture performance

Panel OLED panel

Picture size (diagonal)

419.7 mm (16 1/2 inches)

Effective picture size (H × V)

365.8 × 205.7 mm

(14 1/2 × 8 1/8 inches)

Resolution (H × V)

1920 × 1080 pixels (Full HD)

Aspect 16:9

Pixel efficiency 99.99%

Panel drive RGB 10-bit

Panel frame rate 48 Hz, 50 Hz, 60 Hz, 72 Hz, 75 Hz 1)

See "Picture Frame Display" (page 110).

1) 48 Hz, 60 Hz and 72 Hz are also compatible with a frame rate of 1/1.001.

Viewing angle (Panel specification)

89°/89°/89°/89° (typical)

(up/down/left/right, contrast > 10:1)

Normal scan 0% scan

Native scan: Maps the pixels of the signal to the panel in a one-to-one mode, or displays an SD signal of non-square pixels (where the number of H pixels of the signal system is 720 or 1440) or a 640 × 480 SD signal from HDMI/DisplayPort video by scaling processing that doubles the V direction and corrects the aspect ratio for the H direction. It also optimizes and displays the picture by modifying the aperture coefficient value, filter coefficient value, etc.

Under scan 3% under scan

Over scan: Mask of 5% over scan portion in the normal scan

Color temperature

D65, D93 (Other color temperatures can be set)

Standard luminance

100 cd/m² (Preset1 to Preset5)

(100% white signal input)

Color space (color gamut)

ITU-R BT.709, EBU, SMPTE-C, F170 Native ²⁾

2) The BVM-F170 individual chromaticity points. The widest color space setting of the signal reproduced by the BVM-F170

	x	y
R 0.681	0.319
G	0.189	0.724
B	0.141	0.051

(Typical)

Warm-up time: Approx. 30 minutes

Input

SDI BNC (×2)

Input impedance: 75 ohms unbalanced

Signal format

See "Available Signal Systems"

(page 100) and "Available Signal

Formats" (page 101).

Sampling frequency

3G-SDI:

Y/Cb/Cr (4:2:2)

148.5MHz/74.25MHz/74.25MHz

Y/Cb/Cr (4:4:4)

148.5MHz/148.5MHz/148.5MHz

G/B/R (4:4:4)

148.5MHz/148.5MHz/148.5MHz

HD-SDI:

Y/Cb/Cr (4:2:2)

74.25MHz/37.125MHz/37.125MHz

SD-SDI:

Y/Cb/Cr (4:2:2)

13.5MHz/6.75MHz/6.75MHz

Quantization

3G-SDI: 10 bit/sample, 12 bit/sample

HD-SDI: 10 bit/sample

SD-SDI: 10 bit/sample

HDMI HDMI (×1)

HDCP correspondence, Deep Color correspondence

Signal format

See “HDMI/DisplayPort” (page 106) of “Available Signal Formats”.

DisplayPort DisplayPort connector (×1)

HDCP correspondence, 18/24/30bpp (bits per pixel) correspondence

Signal format

See “HDMI/DisplayPort” (page 106) of “Available Signal Formats”.

Option port: Four (4) ports

Signal format

See “Available Signal Systems” (page 100) and “Available Signal Formats” (page 101).

Parallel remote: D-sub 9-pin (female) (×1)

Serial remote (LAN)

Ethernet (10BASE-T/100BASE-TX), RJ-45 (×1)

Output

SDI BNC (×1) (monitor output)

Output signal amplitude: 800 mVp-p±10%

Output impedance: 75 ohms unbalanced

Transmission distance

3G-SDI: 70 m max. ³⁾

The signal from the monitor output connector does not satisfy the ON-LINE signal specifications.

3) When using the 5C-FB coaxial cable made by Fujikura Ltd. or equivalent

4) When using the 5C-2V coaxial cable made by Fujikura Ltd. or equivalent

DC 5V OUT Circle 4-pin (female) (×1)

General

Power requirements

100 V to 240 V AC,

1.2 A to 0.7 A, 50/60 Hz

24 V to 28 V DC,

4.5A to 3.9A

Power consumption

Approx. 110 W (AC power supply)/ approx. 100 W (DC power supply) (maximum)

Approx. 60 W (AC power supply)/ approx. 60 W (DC power supply) (average power consumption in the default status)

Inrush current (1) Maximum possible inrush current at initial switch-on (Voltage changes caused by manual switching): 55 A peak, 15 A r.m.s. (240V AC)

(2) Inrush current after a mains interruption of five seconds (Voltage changes caused at zero-crossing): 36 A peak, 7 A r.m.s. (240V AC)

Operating temperature

0°C to 35°C (32°F to 95°F)

Recommended: 20 °C to 30 °C (68 °F to 86 °F)

Operating humidity

0% to 90% (no condensation)

Storage/transport temperature

-20°C to +60°C (-4°F to +140°F)

Storage/transport humidity

0% to 90%

Operating/storage/transport pressure

700 hPa to 1060 hPa

Mass: Approx. 8.6 kg (18 lb 15 oz)

Supplied accessories

AC power cord (1)

AC plug holder (1)

Rack mount bracket (Left, right, each 1)

Rack mount attachment screws (4)

Operation Manual (Japanese, English, each 1)

CD-ROM (1)

Using the CD-ROM Manual (1)

Optional accessories

BKM-16R Monitor Control Unit

BKM-39H Controller Attachment Stand

SMF-700 Monitor Interface Cable

BKM-220D SDI 4:2:2 Input Adaptor (with serial number 2100001 or higher)

BKM-227W NTSC/PAL Input Adaptor

BKM-229X Analog Component Input Adaptor (with serial number 2200001 or higher)

BKM-243HS HD/D1-SDI Input Adaptor (with serial number 2108355 or higher)

BKM-244CC HD/SD-SDI Closed Caption Adaptor

BKM-250TG 3G/HD/SD-SDI Input Adaptor (with serial number 7300001 or higher)

Note

An input adaptor with a specified serial number may be required for your intended use.

For the serial numbers of the input adaptors available for this unit, see "Installing an Input Adaptor" (page 20).

Design and specifications are subject to change without notice.

Notes

• Always make a test recording, and verify that it was recorded successfully. SONY WILL NOT BE LIABLE FOR DAMAGES OF ANY KIND INCLUDING, BUT NOT LIMITED TO, COMPENSATION OR REIMBURSEMENT ON ACCOUNT OF FAILURE OF THIS UNIT OR ITS RECORDING MEDIA, EXTERNAL STORAGE SYSTEMS OR ANY OTHER MEDIA OR STORAGE SYSTEMS TO RECORD CONTENT OF ANY TYPE. - Always verify that the unit is operating properly before use. SONY WILL NOT BE LIABLE FOR DAMAGES OF ANY KIND INCLUDING, BUT NOT LIMITED TO, COMPENSATION OR REIMBURSEMENT ON ACCOUNT OF THE LOSS OF PRESENT OR PROSPECTIVE PROFITS DUE TO FAILURE OF THIS UNIT, EITHER DURING THE WARRANTY PERIOD OR AFTER EXPIRATION OF THE WARRANTY, OR FOR ANY OTHER REASON WHATSOEVER.

Input Signals and Adjustable/Setting Items

Item	Input signal
	Analog SDI HDMI/									DisplayPort
	Composite	Y/C	Component (YPbPr)		RGB D1 3G/HD
			SD HD	SD HD Y	CbCr	YCb	Cr RGB
CONTRAST O	O	O	O	O	O	O	O	O		O
BRIGHT O	O	O	O	O	O	O	O	O
CHROMA O	O	O	O		x	x	O	O	x	5)
PHASE	O(NTSC)	O(NTSC)	x	x	x	x	x	x	x
Picture Auto Adjust	O	O	O	O	O	O	x	x	x	x
Component Level	x	x	O(480i)	x	x	x	x	x	x
NTSC Setup Level	O(NTSC)	O(NTSC)	x	x	x	x	x	x	x
Betacam Setup Level	x	x	O(480i)	x	x	x	x	x	x
Position Adj	O	O	O	O	O	O	x	x	x	x
Scan Mode	O	O	O	O	O	O	O	O	O	6)
Native Scan (x1, x2) 1)	O	O	O	O	O	O	O	O	O
Native Scan (Aspect Correction)	O	O	O	x	O	x	O	x	x	4)7)
16:9	O	O	O	O	O	O	O	2)	O	3)7)8)
H Delay	O	O	O	O	O	O	O	O	O	x
V Delay	O	O	O	O	O	O	O	O	O	x
External Sync	x	x	O	O	O	O	x	x	x	x
Comb	O	x	x	x	x	x	x	x	x	x
Char Off O	O	O	O	O	O	O	O		O
Color Temp	O	O	O	O	O	O	O	O	O	O
Status	O	O	O	O	O	O	O	O	O
Aperture 9)	O	O	O	O	O	O	O	O	O
Mono	O	O	O	O	O	O	O	O	O
Blue Only	O	O	O	O	O	O	O	O	O
R Off	O	O	O	O	O	O	O	O	O
G Off	O	O	O	O	O	O	O	O	O
B Off	O	O	O	O	O	O	O	O	O
Chroma Up	O	O	O	O	x	x	O	O	x	5)
Interlace	See “Picture Frame Display” on page 110.
Pixel Zoom	O	O	O	O	O	O	O	O	O
Capture	x	x	x	x	x	x	x	O	O	x
Capture Load	O	O	O	O	O	O	O	O	O
Marker	O	O	O	O	O	O	O	O	O	7)
Aspect Marker O	O	O	O	O	O	O	O	O		7)
Area Marker 1 O	O	O	O	O	O	O	O	O		7)
Area Marker 2 O	O	O	O	O	O	O	O	O		7)
Center Marker O	O	O	O	O	O	O	O	O		7)
Aspect Marker-Line O	O	O	O	O	O	O	O	O		7)
Aspect Blanking-Half	O	O	O	O	O	O	O	O	O	7)
Aspect Blanking-Black	O	O	O	O	O	O	O	O	O	7)
Side by Side O	O	O	O	O	O	O	O	O		O
Audio Level Meter 10)	×	×	×	×	×	×	O	O	O	×
ALM Hold Reset 10)	×	×	×	×	×	×	O	O	O	×
T i m	e	C	o	d	e		×	×	×	× ×
Difference 12)	×	×	×	×	×	×	×	13)	×	×
Checkerboard 11)	×	×	×	×	×	×	×	13)	×	×
L/R Switch 11)	×	×	×	×	×	×	×	13)	×	×
Horopter Check 11)	×	×	×	×	×	×	×	13)	×	×
Flip H 11)	×	×	×	×	×	×	×	13)	×	×

○: Adjustable/can be set X: Not adjustable/cannot be set

1) Fixed to ×1 when the HD signal or the computer signal of HDMI/DisplayPort is input and ×2 when the SD signal is input from BKM-229X.

2) Fixed to 16:9 with 720P input signal.

3) Excludes 640 × 480/60*P. Fixed to 16:9 with 1280 × 720/50P, 60*P. (* Also compatible with 1/1.001.)

4) In effect with SD format

5) Functions when the YCbCr signal is input.

6) Fixed to Native Scan (×1) when the computer signal of HDMI/DisplayPort is input.

7) Does not function when the computer signal of HDMI/DisplayPort is input.

8) Functions when the HDMI Auto menu (page 49) of the Screen Aspect menu is set to Off.

9) For the operable input signal, see "Aperture Modification Frequency" (page 107).

10) Sets when the SDI signal is input from BKM-250TG.

11) Enabled when the SDI signal is input from a BKM-250TG with serial number 7100001 or higher.

12) Enabled when the SDI signal is input from a BKM-250TG with serial number 7300001 or higher.

13) Compatible with the dual-stream HD-SDI signal.

Available Signal Systems

Standard SDI input/Input adaptor

Signal system	Total lines per frame	Active lines per frame	Frame rate (Hz)	Scanning format	Aspect ratio	Standard	Display on the monitor
720×576/50i 625 576	25 2:1 Interlace 16:9/4:3					Rec.ITU-RBT.601	575/50I
1440 × 576/50i1)	625 576 25 2:1 Interlace 16:9/4:3 575/50I
720×487/59.94i 525	487 30/1.001 2:1 Interlace 16:9/4:3					Rec.ITU-RBT.601	480/60I 480/59.94I2)
1440 × 487/59.94i1)	525 487 30/1.001 2:1 Interlace 16:9/4:3 480/60I
1920×1080/24PsF	1125	1080	24	Progressive	16:9	SMPTE-RP211	1080/24PsF
1920×1080/23.98PsF	1125	1080	24/1.001	Progressive	16:9	SMPTE-RP211	1080/24PsF 1080/23.98PsF2)
1920×1080/25PsF	1125	1080	25	Progressive	16:9	SMPTE-RP211	1080/25PsF
1920×1080/30PsF	1125	1080	30	Progressive	16:9	SMPTE-RP211	1080/30PsF
1920×1080/29.97PsF	1125	1080	30/1.001	Progressive	16:9	SMPTE-RP211	1080/30PsF 1080/29.97PsF2)
1920×1080/24P	1125	1080	24	Progressive	16:9	SMPTE-274M	1080/24P
1920×1080/23.98P	1125	1080	24/1.001	Progressive	16:9	SMPTE-274M	1080/24P 1080/23.98P2)
1920×1080/25P	1125	1080	25	Progressive	16:9	SMPTE-274M	1080/25P
1920×1080/30P	1125	1080	30	Progressive	16:9	SMPTE-274M	1080/30P
1920×1080/29.97P	1125	1080	30/1.001	Progressive	16:9	SMPTE-274M	1080/30P 1080/29.97P2)
1920×1080/50i	1125	1080	25	2:1 Interlace	16:9	SMPTE-274M	1080/50I
1920×1080/60i	1125	1080	30	2:1 Interlace	16:9	SMPTE-274M	1080/60I
1920×1080/59.94i	1125	1080	30/1.001	2:1 Interlace	16:9	SMPTE-274M	1080/60I 1080/59.94I2)
1920×1080/50P	1125	1080	50	Progressive	16:9	SMPTE-274M	1080/50P
1920×1080/60P	1125	1080	60	Progressive	16:9	SMPTE-274M	1080/60P
1920×1080/59.94P	1125	1080	60/1.001	Progressive	16:9	SMPTE-274M	1080/60P 1080/59.94P2)
1280×720/24P	750	720	24	Progressive	16:9	SMPTE-296M	720/24P
1280×720/23.98P	750	720	24/1.001	Progressive	16:9	SMPTE-296M	720/24P 720/23.98P2)
1280×720/25P	750	720	25	Progressive	16:9	SMPTE-296M	720/25P
1280×720/30P	750	720	30	Progressive	16:9	SMPTE-296M	720/30P
1280×720/29.97P	750	720	30/1.001	Progressive	16:9	SMPTE-296M	720/30P 720/29.97P2)
1280×720/50P	750	720	50	Progressive	16:9	SMPTE-296M	720/50P
1280×720/60P	750	720	60	Progressive	16:9	SMPTE-296M	720/60P
1280×720/59.94P	750	720	60/1.001	Progressive	16:9	SMPTE-296M	720/60P 720/59.94P2)

1) The analog component signal or analog RGB signal from BKM-229X is processed in 720 dots × 2 (1440 dots). 2) Displayed when a signal is input from the standard SDI input or the BKM-250TG, Format is set to 3G/HD/SD-SDI Auto (page 47) in the Channel Configuration menu, and the Picture Rate information for the Payload ID superimposed on the input signal is 23.98, 29.97, or 59.94. - For details on the available signal system for the HDMI/DisplayPort input signal, see “HDMI/DisplayPort” (page 106) of “Available Signal Formats”.

Available Signal Formats

Standard SDI input/Input adaptor

Signal format			Matrix data setting area	Sygnal system	Standard SDI input	BKM-220D	BKM-227W	BKM-229X	BKM-243HS/244CC	BKM-250TG	Standard
Analog Composite
NTSC	Setup level	0	SD×	487/59.94i × ×	○ ×	×		×	S	M	P T
		7.5
PAL 576/50i × × ○ × ×				×							Rec.ITU-R BT.470
PAL-M 487/59.94i × × ○ ×				×
SECAM 576/50i × × ○ ×				×
Analog Y/C
NTSC	Setup level	0	SD×	487/59.94i × ×	○ ×	×		×
		7.5
PAL 576/50i × × ○ × ×				×
PAL-M 487/59.94i × × ○ ×				×
SECAM 576/50i × × ○ ×				×
Analog Component
			HD	1080/601) i	×	×	×	○	×	×	SMPTE-274M
				1080/50i	×	×	×	○	×	×
				1080/241) PsF	×	×	×	○	×	×	SMPTE-RP211
				1080/25PsF	×	×	×	○	×	×
				1080/301) PsF	×	×	×	○	×	×
				1080/241) P	×	×	×	○	×	×	SMPTE-274M
				1080/25P	×	×	×	○	×	×
				1080/301) P	×	×	×	○	×	×
				720/601) P	×	×	×	○	×	×	SMPTE-296M
				720/50P	×	×	×	○	×	×
			SD	576/50i	×	×	×	○	×	×	EBU N10
Component level	SMPTE/EBU N10		SD	487/59.94i	×	×	×	○	×	×
	Betacam	0
		7.5

Signal format

Matrix data setting area

Sygnal system

Standard SDI input

BKM-220D

BKM-227W

BKM-229X

BKM-243HS/244CC

BKM-250TG

Standard

Analog RGB

	-	1080/601)i	×	×	×	○	×	×	SMPTE-274M
		1080/50i × x ×	○ ×	×
		1080/241)PsF	×	×	×	○	×	×	SMPTE-RP211
		1080/25PsF ×	× × ○ ×	×
		1080/301)PsF	×	×	×	○	×	×
		1080/241)P	×	×	×	○	×	×	SMPTE-274M10
		1080/301)P	×	×	×	○	×	×
		720/601)P	×	×	×	○	×	×	SMPTE-296M
		720/50P × x ×	○ ×	×
		487/59.94i × x	× ○ ×	×
		576/50i × x ×	○ × × EBU	N10

SD-SDI

Single-link	4:2:2 YCbCr		SD	720 × 487/59.94i	○	○	×	×	○	○	SMPTE-259M
Single-link	4:2:2	YCbCr		720 × 576/50i	○	○	×	×	○	○

HD-SDI

Single-link

4:2:2

YCbCr

10bit

HD

1920 × 1080/241) PsF

○

×

×

×

○

○

SMPTE-292M

Dual-link

4:4:4

YCbCr

10bit

HD

×

×

×

×

○(2)

○

SMPTE-372M

RGB 2)

10bit

—

YCbCr

12bit

HD

RGB 2)

12bit

—

Single-link

4:2:2

YCbCr

10bit

HD

1920 × 1080/25PsF

○

×

×

×

○

○

SMPTE-292M

Dual-link

4:4:4

YCbCr

10bit

HD

×

×

×

×

○(2)

○

SMPTE-372M

RGB 2)

10bit

—

YCbCr

12bit

HD

RGB 2)

12bit

—

Single-link

4:2:2

YCbCr

10bit

HD

1920 × 1080/301) PsF

○

×

×

×

○

○

SMPTE-292M

Dual-link

4:4:4

YCbCr

10bit

HD

×

×

×

×

○(2)

○

SMPTE-372M

RGB 2)

10bit

—

YCbCr

12bit

HD

RGB 2)

12bit

—

Signal format

Matrix data setting area

Sygnal system

Standard SDI input

BKM-220D

BKM-227W

BKM-229X

BKM-243HS/244CC

BKM-250TG

Standard

Single-link

4:2:2

YCbCr

10bit

HD

1920 × 1080/241)P

○×

×

×

○

○

SMPTE-292M

Dual-link

4:4:4

YCbCr

10bit

HD

×

×

×

×

○

(2) ○ SMPTE-372M

RGB2)

10bit

—

YCbCr

12bit

HD

RGB2)

12bit

—

Single-link

4:2:2

YCbCr

10bit

HD

1920 × 1080/25P

○×

×

×

○

○

SMPTE-292M

Dual-link

4:4:4

YCbCr

10bit

HD

×

×

×

×

○

(2) ○ SMPTE-372M

RGB2)

10bit

—

YCbCr

12bit

HD

RGB2)

12bit

—

Single-link

4:2:2

YCbCr

10bit

HD

1920 × 1080/301)P

○×

×

×

○

○

SMPTE-292M

Dual-link

4:4:4

YCbCr

10bit

HD

×

×

×

×

○

(2) ○ SMPTE-372M

RGB2)

10bit

—

Signal format

Matrix data setting area

Sygnal system

Standard SDI input

BKM-220D

BKM-227W

BKM-229X

BKM-243HS/244CC

BKM-250TG

Standard

3G-SDI

Single-link

4:4:4

YCbCr

10bit

HD

1920 × 1080/241) PsF

▲×

×

×

×

SMPTE-425-AB

4:4:4

RGB 2)

10bit

—

4:4:4

YCbCr

12bit

HD

4:4:4

RGB 2)

12bit

—

Single-link

4:4:4

YCbCr

10bit

HD

1920 × 1080/25PsF

▲×

×

×

×

SMPTE-425-AB

4:4:4

RGB 2)

10bit

—

4:4:4

YCbCr

12bit

HD

4:4:4

RGB 2)

21bit

—

Single-link

4:4:4

YCbCr

10bit

HD

1920 × 1080/301) PsF

▲×

×

×

×

SMPTE-425-AB

4:4:4

RGB 2)

10bit

—

4:4:4

YCbCr

12bit

HD

4:4:4

RGB 2)

12bit

—

Single-link

4:4:4

YCbCr

10bit

HD

1920 × 1080/241) P

▲×

×

×

×

SMPTE-425-AB

4:4:4

RGB 2)

10bit

—

4:4:4

YCbCr

12bit

HD

4:4:4

RGB 2)

31bit

—

Single-link

4:4:4

YCbCr

10bit

HD

1920 × 1080/25P

▲×

×

×

×

SMPTE-425-AB

4:4:4

RGB 2)

10bit

—

4:4:4

YCbCr

12bit

HD

4:4:4

RGB 2) )

12bit

—

Single-link

4:4:4

YCbCr

10bit

HD

1920 × 1080/301) P

▲×

×

×

×

SMPTE-425-AB

4:4:4

RGB 2)

10bit

—

4:4:4

YCbCr

12bit

HD

4:4:4

RGB ^ 2)

12bit

—

Single-link

4:4:4

YCbCr

10bit

HD

1920 × 1080/50i

▲×

×

×

×

SMPTE-425-AB

4:4:4

RGB 2)

10bit

—

4:4:4

YCbCr

12bit

HD

4:4:4

RGB 2) 2)

12bit

—

Single-link

4:4:4

YCbCr

10bit

HD

1920 × 1080/601) i

▲×

×

×

×

SMPTE-425-AB

4:4:4

RGB 2)

10bit

—

4:4:4

YCbCr

12bit

HD

4:4:4

RGB 2) (2)

12bit

—

Single-link

4:2:2

YCbCr

10bit

HD

1920 × 1080/50P

○×

×

×

×

SMPTE-425-AB

Single-link

4:2:2

YCbCr

10bit

HD

1920 × 1080/601) P

○×

×

×

×

SMPTE-425-AB

Single-link

4:4:4

YCbCr

10bit

HD

1280 × 720/241) P

▲×

×

×

×

SMPTE-425-AB

4:4:4

RGB 2)

10bit

—

Single-link

4:4:4

YCbCr

10bit

HD

1280 × 720/25P

▲×

×

×

×

SMPTE-425-AB

4:4:4

RGB 2)

10bit

—

Single-link

4:4:4

YCbCr

10bit

HD

1280 × 720/301) P

▲×

×

×

×

SMPTE-425-AB

4:4:4

RGB 2)

10bit

—

Single-link

4:4:4

YCbCr

10bit

HD

1280 × 720/50P

▲×

×

×

×

SMPTE-425-AB

4:4:4

RGB 2)

10bit

—

Single-link

4:4:4

YCbCr

10bit

HD

1280 × 720/601) P

▲×

×

×

×

SMPTE-425-AB

4:4:4

RGB 2)

10bit

—

○: Signal can be reproduced. ×: Signal cannot be reproduced. ▲: Untested ○ (2): Two adaptors are used.

1) Also compatible with 1/1.001.

2) The quantization level of the 4:4:4 RGB input signal is set in the RGB Range menu (page 51).

HDMI/DisplayPort

Signal format	Matrix data setting area	Signal system	Interface sampling frequency [MHz]	Aspect ratio	Standard
RGB 4:4:4 6/8/10/12bit 2) 5) 6) YCbCr 4:4:4 6/8/10/12bit 2) 5) 6) YCbCr 4:2:2 12bit	SD	640 × 480/601)P	2 1) .	4:3 2 0	07CEA-861
		720 × 480/601)P	2 1) .	4:3/16:9 2
	HD	1280 × 720/601)P	7 41) .	16:9 5 0
		1920 × 1080/601)i	7 41) .	16:9 5 0
	SD	720( 1440) 3) × 480/601)i7)	27.0271)	4:3/16:9
		720 × 576/50P27.000	4:3/16:9
	HD	1280 × 720/50P74.25	0 16:9
		1920 × 1080/50i	74.250	16:9
	SD	720( 1440) 3) × 576/50i7)	27.000	4:3/16:9
	HD	1920 × 1080/601)P	148.5001)	16:9
		1920 × 1080/50P	148.500	16:9
		1920 × 1080/241)P	74.2501)	16:9
		1920 × 1080/25P	74.250 16:9
		1920 × 1080/301)P	74.2501)	16:9
	—	800 × 600/60P4)	40.000	4:3	VESA
		1024 × 768/60P4)	65.000	4:3
		1280 × 960/60P4)	108.000	4:3
		1280 × 1024/60P4)	108.000	5:4
		1400 × 1050/60P4)	121.750	4:3

1) Also compatible with 1/1.001.

2) RGB/YCbCr format and 6/8/10/12bit are selected automatically according to the input signal.

3) Pixel Repetition = 2 (transmit the same pixel twice)

4) In this manual, the 800 × 600, 1024 × 768, 1280 × 960, 1280 × 1024 and 1400 × 1050 signals are referred to as the HDMI/DisplayPort computer signals.

5) The HDMI signal does not support the RGB/YCbCr 4:4:4 6bit signal.

6) The DisplayPort signal does not support the RGB/YCbCr 4:4:4 12bit signal.

7) The DisplayPort signal does not support this signal system.

- The quantization level of the HDMI/DisplayPort input signal is set in the RGB Range menu (page 51).

- The aspect ratio of the HDMI input signal is manually set when the HDMI Auto menu (page 49) of the Screen Aspect menu is set to Off.

Aperture Modification Frequency

Signal system	Serial digital input Analog input HDMI/DisplayPort input
	SD-SDI 3G	HD-SDI	Composite (Y/C)	Component (YPbPr) RGB	Component (YCbCr) RGB
Standard SDI input/Input adaptor
576/50i 5 MHz	5 MHz	5 MHz
487/59.94i 5 MHz	5 MHz	5 MHz
1080/241) PsF		25 MHz	25 MHz
1080/241) P		25 MHz	25 MHz
1080/50i (25PsF) 25	MHz	25 MHz
1080/25P 25 MHz	25 MHz
1080/601) i ( 301) PsF)		25 MHz	25 MHz
1080/301) P		25 MHz	25 MHz
720/241) P		25 MHz
720/25P 25 MHz
720/301) P		25 MHz
720/50P 25 MHz	25 MHz
720/601) P		25 MHz	25 MHz
1080/50P 50 MHz
1080/601) P		50 MHz
HDMI/DisplayPort
640×480/601) P					10 MHz
720×480/601) P					10 MHz
1280×720/601) P					25 MHz
1920×1080/601) i					25 MHz
720(1440)2) × 480/601) i3)					5 MHz
720×576/50P 10 MHz
1280×720/50P 25 MHz
1920×1080/50i 25 MHz
720(1440)2) × 576/50i3)					5 MHz
1920×1080/601) P					50 MHz
1920×1080/50P					50 MHz
1920×1080/241) P					25 MHz
1920×1080/25P					25 MHz
1920×1080/301) P					25 MHz

1) Also compatible with 1/1.001 2) Pixel Repetition = 2 (transmit the same pixel twice) 3) The DisplayPort signal does not support this signal system.

Blank column: The signal cannot be input or the aperture modification does not operate for that signal even if it is input.

Picture Display Size

Standard SDI input/Input adaptor

Signal system	Aspect ratio	Native Scan x1	Native Scan x2	Native Scan Aspect Correction	Normal Scan	Under Scan	Over Scan Side	by Side
		(H) × (V)	(H) × (V)	(H) × (V)	(H) × (V)	(H) × (V)	(H) × (V)	(H) × (V)
720 × 576/50i	4:3	720 × 576	1440 × 1152	1575 × 1152	1477 × 1080	1432 × 1048	1407 × 1029	960 × 702
	16:9			2100 × 1152	1920 × 1053	1862 × 1022	1829 × 1003	960 × 527
1440 × 576/50i2)	4:3	100 × 1152	1440 × 1152	1575 × 1152	1477 × 1080	1432 × 1048	1407 × 1029	960 × 702
	16:9		1920 × 1053	1862 × 1022	1829 × 1003	960 × 527
720 × 487/59.94i	4:3	720 × 487	1440 × 974	1302 × 974	1443 × 1080	1400 × 1048	1374 × 1029	960 × 718
	16:9		1920 × 1077	1862 × 1045	1829 × 1026	960 × 539
1440 × 487/59.94i2)	4:3	36 × 974	1440 × 974	1302 × 974	1443 × 1080	1400 × 1048	1374 × 1029	960 × 718
	16:9		1920 × 1077	1862 × 1045	1829 ×1026	960 × 539
1920 × 1080/241)PsF	16:9	1920 × 1080			1920 × 1080	1862 × 1048	1829 × 1029	960 × 540
1920 × 1080/25PsF	16:9	1920 × 1080			1920 × 1080	1862 × 1048	1829 × 1029	960 × 540
1920 × 1080/301)PsF	16:9	1920 × 1080			1920 × 1080	1862 × 1048	1829 × 1029	960 × 540
1920 × 1080/241)P	16:9	1920 × 1080			1920 × 1080	1862 × 1048	1829 × 1029	960 × 540
1920 × 1080/25P	16:9	1920 × 1080			1920 × 1080	1862 × 1048	1829 × 1029	960 × 540
1920 × 1080/301)P	16:9	1920 × 1080			1920 × 1080	1862 × 1048	1829 × 1029	960 × 540
1920 × 1080/50i	16:9	1920 × 1080			1920 × 1080	1862 × 1048	1829 × 1029	960 × 540
1920 × 1080/601)i	16:9	1920 × 1080			1920 × 1080	1862 × 1048	1829 × 1029	960 × 540
1920 × 1080/50P	16:9	1920 × 1080			1920 × 1080	1862 × 1048	1829 × 1029	960 × 540
1920 × 1080/601)P	16:9	1920 × 1080			1920 × 1080	1862 × 1048	1829 × 1029	960 × 540
1280 × 720/241)P	16:9	1280 × 720			1920 × 1080	1862 × 1048	1829 × 1029	960 × 540
1280 × 720/25P	16:9	1280 × 720			1920 × 1080	1862 × 1048	1829 × 1029	960 × 540
1280 × 720/301)P	16:9	1280 × 720			1920 × 1080	1862 × 1048	1829 × 1029	960 × 540
1280 × 720/50P	16:9	1280 × 720			1920 × 1080	1862 × 1048	1829 × 1029	960 × 540
1280 × 720/601)P	16:9	1280 × 720			1920 × 1080	1862 × 1048	1829 × 1029	960 × 540

1) Also compatible with 1/1.001

2) The analog component signal or analog RGB signal from BKM-229X is processed in 720 dots × 2 (1440 dots).

• Over Scan: The area size where 5% over scan portion in the normal scan is masked.

- Native Scan Aspect Correction: The area over the H size (1920) is not displayed.

HDMI/DisplayPort

Signal system	Aspect ratio	Native Scan ×1	Native Scan ×2	Native Scan Aspect Correction	Normal Scan	Under Scan	Over Scan Side	by Side
		(H) × (V)	(H) × (V)	(H) × (V)	(H) × (V)	(H) × (V)	(H) × (V)	(H) × (V)
640 × 480/60 1) P	4:3 64	0 × 480 128	0 × 960 128	0 × 960 1440	× 1080 1397	× 1048 1371 ×	1029 960 × 720
720 × 480/60 1) P	4:3	720 × 480	1440 × 960	1280 × 960	1440 × 1080	1397 × 1048 137	1 × 1029 960	× 720
	16:9			1707 × 960	1920 × 1080	1862 × 1048	1829 × 1029	960 × 540
1280 × 720/60 1) P	16:9	1280 × 720			1920 × 1080	1862 × 1048	1829 × 1029 960	× 540
1920 × 1080/60 1) i	16:9	1920 × 1080			1920 × 1080	1862 × 1048	1829 × 1029 960	× 540
720(1440) 2) × 480/60 1) 3)	4:3	720 × 480	1440 × 960	1280 × 960	1440 × 1080	1397 × 1048 137	1 × 1029 960	× 720
	16:9			1707 × 960	1 920 × 1080	1862 × 1048	1829 × 1029 960	× 540
720 × 576/50P	4:3	720 × 576	1440 × 1152	1536 × 1152	1440 × 1080	1397 × 1048 137	1 × 1029 960	× 720
	16:9			2048 × 1152	1920 × 1080	1862 × 1048	1829 × 1029 960	× 540
1280 × 720/50P	16:9	1280 × 720			1920 × 1080	1862 × 1048	1829 × 1029 960	× 540
1920 × 1080/50i	16:9	1920 × 1080			1920 × 1080	1862 × 1048	1829 × 1029 960	× 540
720(1440) 2) × 576/50i 3)	4:3	720 × 576	1440 × 1152	1536 × 1152	1440 × 1080	1397 × 1048 137	1 × 1029 960	× 720
	16:9			2048 × 115	1920 × 1080	1862 × 1048	1829 × 1029 960	× 540
1920 × 1080/60 1) P	16:9	1920 × 1080			1920 × 1080	1862 × 1048	1829 × 1029 960	× 540
1920 × 1080/50P	16:9	1920 × 1080			1920 × 1080	1862 × 1048	1829 × 1029 960	× 540
1920 × 1080/24 1) P	16:9	1920 × 1080			1920 × 1080	1862 × 1048	1829 × 1029 960	× 540
1920 × 1080/25P	16:9	1920 × 1080			1920 × 1080	1862 × 1048	1829 × 1029 960	× 540
1920 × 1080/30 1) P	16:9	1920 × 1080			1920 × 1080	1862 × 1048	1829 × 1029 960	× 540
800 × 600/60P(SVGA)	4:3 80	0 × 600					960 × 720
1024 × 768/60P(XGA)	4:3	1024 × 768						960 × 720
1280 × 960/60P(SXGA)	4:3	1280 × 960						960 × 720
1280 × 1024/60P(SXGA)	5:4	1280 × 1024						960 × 768
1400 × 1050/60P(SXGA+)	4:3	1400 × 1050						960 × 720

1) Also compatible with 1/1.001 2) Pixel Repetition = 2 (transmit the same pixel twice) 3) The DisplayPort signal does not support this signal system. • Over Scan: The area size where 5% over scan portion in the normal scan is masked. - Native Scan Aspect Correction: The area over the H size (1920) is not displayed. - The aspect ratio is manually set when the HDMI Auto menu (page 49) of the Screen Aspect menu is set to Off.

Picture Frame Display

Standard SDI input/Input adaptor

Signal system	Progressive Interlace
	Display frame rate [Hz]	Display frame rate [Hz]
720 × 576/50i 50 50
1440 × 576/50i2)	50 50
720 × 487/59.94i 59.94 59.94
1440 × 487/59.94i2)	59.94 59.94
1920 × 1080/241) PsF 72	1)	481) 3)
1920 × 1080/25PsF 75		503)
1920 × 1080/301) PsF 60	1)	601) 3)
1920 × 1080/241) P	721)	×
1920 × 1080/25P 75 ×
1920 × 1080/301) P	601)	×
1920 × 1080/50i 50		504)
1920 × 1080/601)i	601)	601) 4)
1920 × 1080/50P 50 ×
1920 × 1080/601) P	601)	×
1280 × 720/241) P	50	×
1280 × 720/25P 50 ×
1280 × 720/301) P	50	×
1280 × 720/50P 50 ×
1280 × 720/601) P	601)	×

1) Also compatible with 1/1.001.

2) The analog component signal or analog RGB signal from BKM-229X is processed in 720 dots × 2 (1440 dots).

3) When 1080I is selected in the 1080I/PsF menu of the Channel Configuration menu, the input signal is regarded as an interlace signal, and it can be displayed in interlace mode if the interlace display mode is selected.

4) Functions when 1080I is selected in the 1080I/PsF menu of the Channel Configuration menu.

HDMI/DisplayPort

Signal system	Progressive Interlace
	Display frame rate [Hz]	Display frame rate [Hz]
640 × 480/601) P	601)	×
720 × 480/601) P	601)	×
1280 × 720/601) P	601)	×
1920 × 1080/601) i	601)	601)
720 (1440)2) × 480/601) i3)	601)	601)
720 × 576/50P 50 ×
1280 × 720/50P 50 ×
1920 × 1080/50i 50 50
720 (1440)2) × 576/50i3)	50 50
1920 × 1080/601) P	601)	×
1920 × 1080/50P 50 ×
1920 × 1080/241) P	721)	×
1920 × 1080/25P 75 ×
1920 × 1080/301) P	601)	×
800 × 600/60P (SVGA) 60 ×
1024 × 768/60P (XGA)	60	×
1280 × 960/60P (SXGA)	60	×
1280 × 1024/60P (SXGA)	60	×
1400 × 1050/60P (SXGA+)	60	×

1) Also compatible with 1/1.001. 2) Pixel Repetition = 2 (transmit the same pixel twice) 3) The DisplayPort signal does not support this signal system.

Scan Mode Image

Example: Scan images of available signal systems when a signal is input from the standard SDI input or optional input adaptor installed

• For details of the picture display size, see “Picture Display Size” (page 108).
• For setting of the Native Scan Mode menu, see Native Scan Mode (page 53) of the Auxiliary Setting menu.
• For setting of Aspect, see the Screen Aspect menu (page 49) of the Channel Configuration menu.

Panel size

Scan mode Input signal system and scan mode image
Native Scan
Native Scan Mode: ×1	1920 × 1080
	1280 × 720
	720 × 576
	720 × 487

Scan mode Input signal system and scan mode image
Native Scan Mode: ×2	720 × 4871440 × 487
	720 × 5761440 × 576
	Displayed by sliding the picture with the UP/DOWN button of the controller.
Native Scan Mode: Aspect Correction Aspect: 4:3	720 × 4871440 × 487
	720 × 5761440 × 576
Native Scan Mode: Aspect Correction Aspect: 16:9	720 × 4871440 × 487
	720 × 5761440 × 576
	Displayed the whole picture of the V direction by sliding the picture with the UP/ DOWN button of the controller.	Displayed the whole picture of the H direction by sliding the picture with the PHASE knob of the controller.
Normal Scan
Aspect: 16:9	1920 × 10801280 × 720720 × 576720 × 4871440 × 5761440 × 487
Aspect: 4:3	720 × 576720 × 4871440 × 5761440 × 487
Under Scan
Aspect: 16:9	1920 × 10801280 × 720720 × 576720 × 4871440 × 5761440 × 487
Aspect: 4:3	720 × 576720 × 4871440 × 5761440 × 487
Over Scan
Aspect: 16:9	1920 × 10801280 × 720720 × 576720 × 4871440 × 5761440 × 487	5% mask portion
Aspect: 4:3	720 × 576720 × 4871440 × 5761440 × 487	5% mask portion

Troubleshooting

This section may help you isolate the cause of a problem and as a result, eliminate the need to contact your Sony service representative.

Symptom Assumed causes Remedy
The picture that you wish to display is not displayed.	The setting of the Channel Configuration menu does not correspond to the input signal.	See the System Status menu (page 71) to confirm the setting.When the setting is different from the input signal, set in the Channel Configuration menu (page 47).
The color is not displayed correctly.	The color temperature is not set correctly.	Set the color temperature in the Color Temp menu (page 49) of the Channel Configuration menu.
	The setting of the color profile or the matrix is not correct.	Set in the Color Profile menu (page 50) or Matrix menu (page 50) of the Channel Configuration menu.
The signals are not displayed in the multi display.	The input signals of INPUT 1 and INPUT 2 of one standard SDI input or one input adaptor are selected.	Install one or more adaptor and use the signals from the standard SDI input and the input adaptor for signal A and signal B. Install two or more adaptors and use the different input adaptor for signal A and signal B.
	The reference signal is not input (No Sync status).	Input the reference signal.
	The internal signal is selected as signal A.The internal signal is selected as signal B.	The internal signal is not displayed in the multi display.
	The HDMI input signal is selected as signal A, and the DisplayPort signal is selected as signal B.	The multi display with an HDMI signal and a DisplayPort signal is not possible.
The signal input from BKM-227W or BKM-229X is not displayed correctly.	The auto chroma/phase/matrix adjustment has not been performed.	Carry out the auto chroma/phase/matrix adjustment to display the signal input from BKM-227W or BKM-229X.
The pixel zoom does not function.	The native scan mode is not selected.	Set to the native scan mode (page 81).
The marker is not displayed. The display is set in the multi display or the pixel zoom display.		Set Side by Side to Off in the Function Switch menu (page 58) of the Function Setting menu. Set the Pixel Zoom button to off.
		The computer signal of HDMI/DisplayPort signal is displayed.
		The internal signal is displayed. The marker is not displayed when the internal signal is input.
		The signal is displayed in H delay mode or V delay mode.
The signal is not displayed in interlace mode.	The interlace signal is not input. Input the interlace signal.
	The signal is set to 1080PsF in 1080I/PsF (page 52) of the Channel Configuration menu.	Set to 1080I.
	The native scan mode is not selected.	Set to the native scan mode (page 81).
The setting is different from the setting in the menu.	The setting has been changed with the function button of the controller after setting in the menu.	The last setting becomes effective.
The function button of the controller does not function.	The setting has been changed in the menu after setting with the function button.	The last setting becomes effective.

Symptom Assumed causes Remedy
The function of the function button of the controller is different from that of the panel display.	Another function has been assigned to the button.	See the Function Key menu (page 74) of the Controller menu to confirm the function assigned to the function button.
The zebra pattern does not go off.	An Over Range error is detected.The zebra pattern is set to be displayed in the Over Range portion, and the detected Over Range information is retained.	Set Over Range to Off in the On Screen Set menu of the System Configuration menu (page 66).NoteIf the OVER RANGE lamp lights, adjust the contrast or brightness to a lower level (page 16).
The picture is not displayed on the monitor when you have connected two or more computers via the DisplayPort connector through a switch box or other device and switch the input signal from one computer to another.	You have switched from a computer that is in power save mode to another.	Do not switch from a computer in power save mode to another.If the picture is not displayed after switching, turn the monitor off then back on again or switch back to the computer in power save mode and bring in out of power save mode.

Dimensions

Unit: mm (inches)

Front

Side

Rear

When the controller is attached with the BKM-39H

Front

Side

Top

Inserting/Ejecting the "Memory Stick"

The BKM-16R Monitor Control Unit has a slot that can take both standard size and Duo size. All products with a slot such as this are equipped with a system which automatically measures the size of an inserted medium.

For this reason, both the standard-size "Memory Stick"/"Memory Stick PRO" and smaller "Memory Stick Duo"/"Memory Stick PRO Duo" can be used with this product without a Memory Stick Duo adaptor.

When an M2 adaptor is attached, you can use a "Memory Stick Micro" ("M2")¹.

Proceed as illustrated to insert and eject an optional "Memory Stick".

See each menu for information about operations on "Memory Stick" data.

1) "M2" is an abbreviation for "Memory Stick Micro".

Note

Do not eject the "Memory Stick" while data is being saved or loaded.

To insert the "Memory Stick"

Notes

• "Memory Stick Duo"/"Memory Stick PRO Duo" can be used without a Memory Stick Duo adaptor.
• When you use a "Memory Stick Micro", do so after attaching the M2 adaptor (optional).
• When the “Memory Stick Micro” is inserted without the M2 adaptor, the “Memory Stick Micro” may not be removed from the unit.
• Be sure to insert the “Memory Stick” in the correct direction. Forcing the “Memory Stick” in the wrong way may damage it.
• Insert only the “Memory Stick” into the Memory Stick insertion slot. Attempting to insert other objects into the Memory Stick insertion slot may damage the product.

To eject the "Memory Stick"

①Confirm that the access lamp does not flash.

②Press the "Memory Stick", and it is ejected.

Notes on "Memory Stick"

Available types of "Memory Stick"

• "Memory Stick", "Memory Stick PRO", "Memory Stick Duo", "Memory Stick PRO Duo" and "Memory Stick Micro" are used for the BKM-16R.
• The data displayed on this unit is not protected by the MagicGate copyright protection technology because the BKM-16R is not compliant with the “MagicGate” standard.
• Prepare “Memory Stick PRO (High-Speed)” or “Memory Stick PRO Duo (High-Speed)” for using the HD frame capture function (page 84).
• Although an operation check of this product has been performed with a "Memory Stick" of up to 8 GB, please note that operation is not guaranteed for every type of "Memory Stick".

Note on data read/write speed

Data read/write speed may vary depending on the combination of the “Memory Stick” and “Memory Stick” compliant product you use.

What is MagicGate?

MagicGate is copyright protection technology developed by Sony Corporation.

Before using a "Memory Stick"/"Memory Stick PRO"

Rear Front

Before using a "Memory Stick Duo"/"Memory Stick PRO Duo"

Rear Front

Before using a "Memory Stick Micro"

Attach the M2 adaptor to the “Memory Stick Micro” to insert into the slot of the controller.

Notes

• You cannot record or erase data when the write-protect tab on the “Memory Stick” is set to LOCK.
• Image data may be damaged in the following cases:
• If you remove the “Memory Stick,” or turn the power off when the access lamp is lit or flashing
• If you use a “Memory Stick” near static electricity or a magnetic field

- When writing in the memory area, do not put strong pressure on the pen.

- We recommend backing up important data.

- Do not attach anything other than the supplied label to the “Memory Stick” labeling position.

- Attach the label so that it does not stick out beyond the labeling position.

- Carry and store the “Memory Stick” in its case.

- Do not touch the connector of the “Memory Stick” with anything, including your finger or metallic objects.

- Do not strike, bend, or drop the "Memory Stick."

- Do not disassemble or modify the “Memory Stick.”

- Do not allow the “Memory Stick” to get wet.

- Do not use or store the “Memory Stick” in a location that is:

• Extremely hot, such as in a car parked in the sun
• Under direct sunlight – Very humid or subject to corrosive substances

- Do not insert multiple “Memory Stick” cards at the same time. This may cause damage to the product.

- When you use “Memory Stick Duo”/“Memory Stick PRO Duo” with this product, be sure to insert it in the right direction. Inserting it in the wrong direction may cause damages to the product.

- “Memory Stick Duo”/“Memory Stick PRO Duo”/“Memory Stick Micro” and M2 duo size adaptor should be kept away from small children to prevent them from accidentally swallowing it.

• If the “Memory Stick Micro” attached to the M2 adaptor is attached to the Memory Stick Duo adaptor and inserted in the slot, the “Memory Stick Micro” may not function.
• Up to 1000 files can be memorized in one “Memory Stick”. When more than 1000 files are created, the warning “Too many files” is displayed. Delete an unused file using Delete (page 57) in the Capture menu of the Function Setting menu, or the Delete menu (page 70) of the File Management menu, or using the machine and application corresponding to the “Memory Stick”.
• Up to 20 characters can be used for the file name. When more than 20 characters are used for the file name, the file is not displayed.
• Use the machine and application corresponding to the “Memory Stick” for initialization of the “Memory Stick”. When Windows Explorer is used for initialization, a format error is caused and the “Memory Stick” is not usable for the monitor.
• When the data in the folder for the application software is copied or edited with the function of Windows, the data may not be reproduced.

"Memory Stick", "Memory Stick PRO", "Memory Stick Duo", "Memory Stick PRO Duo", "Memory Stick Micro", "M2" and are trademarks or registered trademarks of Sony Corporation.

Windows is a registered trademark of Microsoft Corporation in the United States and/or other countries.

It is against the copyright law to use any audio or picture you recorded without prior consent of the copyright holder. Accordingly, “Memory Stick” with content protected image or data can be only used within the law.

Menu Index

The menu index shows the principal menu items provided with this monitor in alphabetical sequence. For your reference, each menu item is followed by the page of this

manual on which the item is explained and the main menu that the item belongs to.

Menu Item Page Main menu
Number 1 Pin to 8 Pin 64 System Configuration menu
1080I/PsF 52 Channel Configuration menu
16:9 58 Function Setting menu
3D Setting 57 Function Setting menu
A Adjustment 42 Adjustment menu
ALM Hold Reset 61 Function Setting menu
Aperture 59 Function Setting menu
Aperture Value 53 Auxiliary Setting menu
Apply Password	67 System Configuration menu
Area Marker 1	55 Function Setting menu
	60 Function Setting menu
Area Marker 2	56 Function Setting menu
	60 Function Setting menu
Aspect Blanking-Black	61 Function Setting menu
Aspect Blanking-Half	60 Function Setting menu
Aspect Marker	54 Function Setting menu
	59 Function Setting menu
Aspect Marker-Line	60 Function Setting menu
Audio CH	66 System Configuration menu
Audio Level Meter	61 Function Setting menu
	66 System Configuration menu
Auto	42 Adjustment menu
	45 Adjustment menu
Auto Adjust	42 Adjustment menu
	45 Adjustment menu
Auxiliary Setting	53 Auxiliary Setting menu
B B Off	59 Function Setting menu
Back Up System Data	70 File Management menu
Betacam Setup Level	51 Channel Configuration menu
Black Detail Mode	76 Controller menu
Black Frame Insertion	76 Controller menu
Blue Only	59 Function Setting menu
C Capture	57 Function Setting menu
Center Marker	56 Function Setting menu
	60 Function Setting menu
CH Name	65 System Configuration menu
CH No	65 System Configuration menu
CH Status 71 System Status menu

	Menu Item	Page	Main menu
	Change Password 66 System Configuration menu
	Channel Configuration 47 Channel Configuration menu
	Channel Name 51 Channel Configuration menu
	Checkerboard 61 Function Setting menu
	Chroma Up 59 Function Setting menu
	Closed Caption 65 System Configuration menu
	Color Bar 43 Adjustment menu
	Color Profile 50 Channel Configuration menu
	Color Space 50 Channel Configuration menu
	Color Temp 49 Channel Configuration menu
	Color Temp Adj 44 Adjustment menu
	Comb 59 Function Setting menu
	Component Level 51 Channel Configuration menu
	Contrast/Bright Hold 44 Adjustment menu
		45 Adjustment menu
	Controller	73 Controller menu
	Controller Status	72 System Status menu
	Controller Upgrade	77 Controller menu
	Copy From	43 Adjustment menu
		45 Adjustment menu
		52 Channel Configuration menu
		56 Function Setting menu
		69 File Management menu
D	Data Maintenance 70 File Management menu
	Date/Time	67 System Configuration menu
	Default CH	65 System Configuration menu
	Delete	57 Function Setting menu
		70 File Management menu
	Difference	61 Function Setting menu
	DisplayPort	48 Channel Configuration menu
		51 Channel Configuration menu
E	External Sync	58	Function Setting menu
F	F1 to F16 75 Controller menu
	File Management	69 File Management menu
	Filter Switch	53 Auxiliary Setting menu
	Flip H	62 Function Setting menu
	Format	47 Channel Configuration menu
		65 System Configuration menu
	FPGA Upgrade	68 System Configuration menu
	Function Key	74 Controller menu
	Function Setting	54 Function Setting menu
	Function Switch	58 Function Setting menu
G	G Off	59 Function Setting menu
	Gamma	51 Channel Configuration menu
	Group ID	63 System Configuration menu

	Menu Item	Page	Main menu
H H Delay 58 Function Setting menu
	H Position 56 Function Setting menu
	H Shift 46 Adjustment menu
	H Shift Offset 51 Channel Configuration menu
	HDMI Auto 49 Channel Configuration menu
	HDMI/DisplayPort Auto 50 Channel Configuration menu
		51 Channel Configuration menu
	HDMI/DP Status 72 System Status menu
	Horopter Check 57 Function Setting menu
		62 Function Setting menu
I Input Information 65 System Configuration menu
	Input No 49 Channel Configuration menu
	Input Port	49 Channel Configuration menu
	Interlace	59 Function Setting menu
	Internal Signal	57 Function Setting menu
K	Kernel Upgrade 68 System Configuration menu
		77 Controller menu
	Key Protect	78 Key Protect menu
L	Load	57 Function Setting menu
	L/R Switch	62 Function Setting menu
M	Maintenance	68 System Configuration menu
	Manual	44 Adjustment menu
	Manual Adjust	43 Adjustment menu
		44 Adjustment menu
	Marker	59 Function Setting menu
	Marker Setting	54 Function Setting menu
	Marker Preset	51 Channel Configuration menu
	Matrix	50 Channel Configuration menu
	Model Name	72 System Status menu
	Monitor ID	63 System Configuration menu
	Monitor ID Display	76 Controller menu
	Monitor Upgrade	68 System Configuration menu
	Mono	59 Function Setting menu
N Native Scan		58 Function Setting menu
	Native Scan Mode	53 Auxiliary Setting menu
	Network	63 System Configuration menu
		73 Controller menu
	Network Setting	63 System Configuration menu
		73 Controller menu
	Network Switch	72 System Status menu
	NTSC Comb Filter	53 Auxiliary Setting menu
	NTSC Setup Level	51 Channel Configuration menu
O	On Screen Set	65 System Configuration menu
	Operation Time	72 System Status menu
	Original Value	44 Adjustment menu
	OSD Level 66 System Configuration menu
	Over Range 66 System Configuration menu
P P&P Setting 56 Function Setting menu
	Panel On Time 72 System Status menu
	Parallel Remote 64 System Configuration menu
	Password 66 System Configuration menu
	Peak Hold 66 System Configuration menu
	Peak White Control 53 Auxiliary Setting menu
	Picture Adj 42 Adjustment menu
	Picture Preset 49 Channel Configuration menu
	Pixel Zoom Setting 57 Function Setting menu
	Port Status Option 1 to Option 4 71 System Status menu
	Position Adj	46 Adjustment menu
	Power	65 System Configuration menu
	Power On Status	65 System Configuration menu
	Preset Value	43 Adjustment menu
		45 Adjustment menu
	Protocol Setting 63 System Configuration menu
		74 Controller menu
R	R Off	59 Function Setting menu
	Restore System Data	70 File Management menu
	Rename	57 Function Setting menu
	Restore Factory Data	43 Adjustment menu
		46 Adjustment menu
	RGB Range	51 Channel Configuration menu
S Save To		69 File Management menu
	Scan Mode	58 Function Setting menu
		65 System Configuration menu
	Scan Mode Skip	67 System Configuration menu
	Screen Aspect	49 Channel Configuration menu
	Screen Saver	67 System Configuration menu
	SDI Payload ID Status	72 System Status menu
	Serial No	72 System Status menu
	Service 608	66 System Configuration menu
	Service 708	66 System Configuration menu
	Side by Side	56 Function Setting menu
		61 Function Setting menu
	Signal	44 Adjustment menu
	SNMP Setting 73	Controller menu
	Software Upgrade	68 System Configuration menu
		77 Controller menu
	Software Version	72 System Status menu
	Standby Mode	65	System Configuration menu
	Status	43 Adjustment menu
	Sync Mode	49 Channel Configuration menu

Menu Item Page	Main menu
System Configuration 63 System Configuration menu
System Status 71 System Status menu
T Target Color Temp 45 Adjustment menu
Target Luminance 45 Adjustment menu
Time Code 61 Function Setting menu
66 System Configuration menu
Transparency 66 System Configuration menu
Type 65 System Configuration menu
V V Delay 58 Function Setting menu
V Position 56 Function Setting menu
V Shift 46 Adjustment menu
VITC/LTC	66 System Configuration menu
X x	45 Adjustment menu
Y y	45 Adjustment menu

The material contained in this manual consists of information that is the property of Sony Corporation and is intended solely for use by the purchasers of the equipment described in this manual.

Sony Corporation expressly prohibits the duplication of any portion of this manual or the use thereof for any purpose other than the operation or maintenance of the equipment described in this manual without the express written permission of Sony Corporation.
