USER MANUAL FC381MNE SMEG

Fridge - Freezer Instruction Booklet

General warnings Safety warnings Installing and operating your fridge. Before Using your Fridge…...….. Information on No-Frost technology THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS ne À

THE VARIOUS FUNCTION AND POSSIBILITIES ….. 11

Display and control panel. Operating your fridge. Super freeze mode Super cool mode. Economy mode Holliday mode. Drink cool mode... Screen saver mode Cooler temperature settings Freezer temperature settings Light cancelling mode Function of Child lock Warnings about Temperature Adjustments Accessoires . Ice box. Freezer box. Odor Filter Fresh dial. Roller storage box CLEANING AND MAINTENANCE. Defrosting nn Replacing The Light LED oo © 1 oO WW

ARRANGING FOOD IN THE APPLIANCE

Refrigerator compartment.. Freezer compartment SHIPMENT AND REPOSITIONING. Repositioning the door.

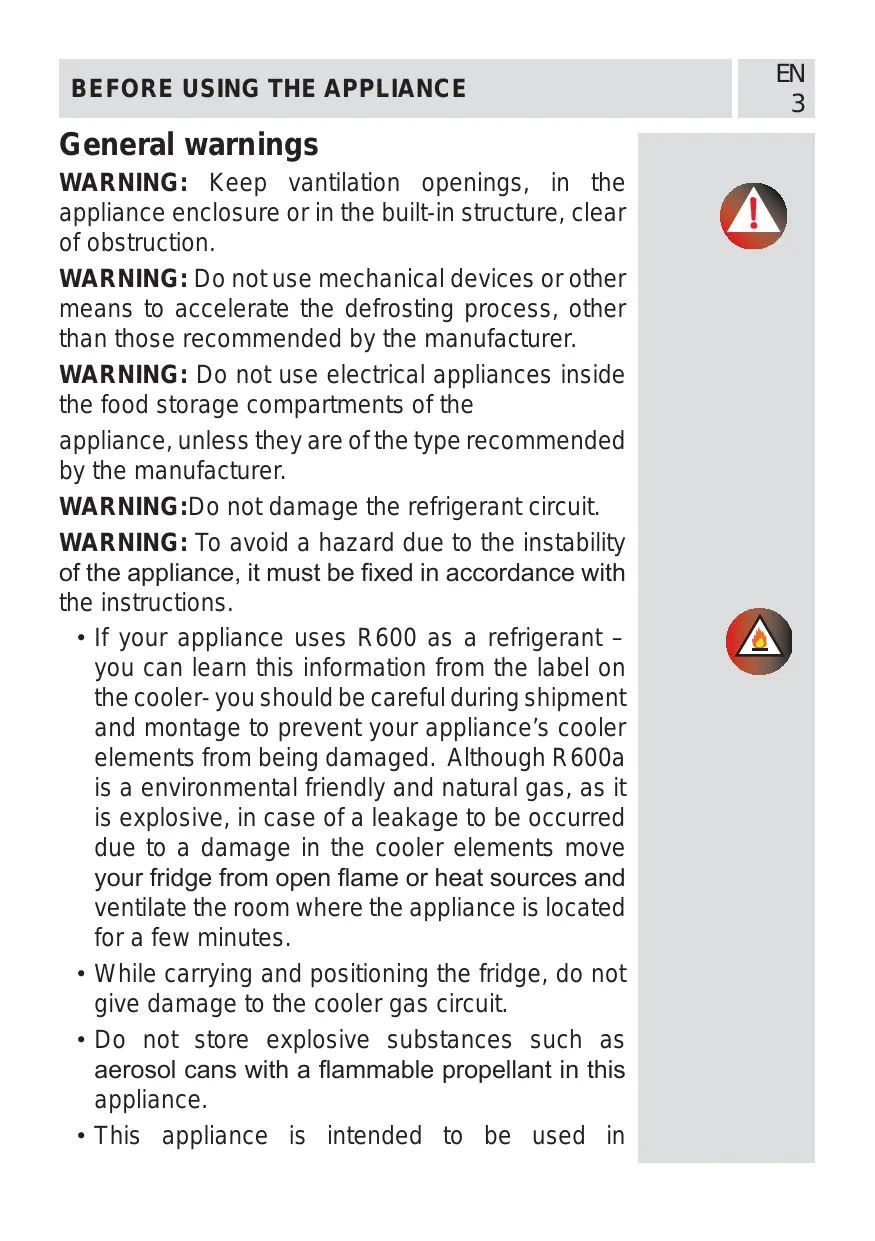

WARNING: Keep vantilation openings, in the

appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do notuse mechanical devices or other

means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not use electrical appliances inside

the food storage compartments of the appliance, unless they are ofthe type recommended by the manufacturer.

WARNING:Do not damage the refrigerant circuit.

WARNING: To avoid a hazard due to the instability

of the appliance, it must be fixed in accordance with the instructions. - If your appliance uses R600 as a refrigerant - you can learn this information from the label on the cooler- you should be careful during shipment and montage to prevent your appliance’s cooler elements from being damaged. Although R600a is a environmental friendly and natural gas, as it is explosive, in case of a leakage to be occurred due to a damage in the cooler elements move your fridge from open flame or heat sources and ventilate the room where the appliance is located for a few minutes. While carrying and positioning the fridge, do not give damage to the cooler gas circuit. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. -This appliance is intended to be used in w D

household and similar applications such as; - staff kitchen areas in shops, offices and other working environments farm houses and by clients in hotels, motels and other residential type environments bed and breakfast type environments; catering and similar non-retail applications If the socket does not match the refrigerator plug, it must be replaced by the manufacturer, its service agent or similar qualified persons in order to avoid a hazard. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. A specially grounded plug has been connected to the power cable of your refrigerator. This plug should be used with a specially grounded socket of 16 amperes. lfthere is no such socket in your house, please have it installed by an authorized electrician. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision orinstruction concerning use of the appliance in a safe way and understandt the hazard involved. Children shall not play with the appliance. Cleaning and user maintenance, shall not be made by children without supervision. Ifthe supply cord is demaged, it must be replaced by the manufacturer, its service agent or similar qualified persons in order to avoid a hazard.

Old and out-of-order fridges + If your old fridge has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident. + Old fridges and freezers contain isolation material and refrigerant with CFC. Therefore, take care not to harm environment when you are discarding your old fridge. Please ask your municipal authority about the disposal of the WEEE for the reuse, recycle and recovery purposes. Notes: + Please read the instruction manual carefully before installing and using your appliance. We are notresponsible ofthe damage occurred due to misuse. Follow all instructions on your appliance and instruction manual and keep this manual in a safe place to resolve the problems that may occur in the future. This appliance is produced to be used athouses anditcan only be used in house and for the specified purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled and our company will not be responsible for the losses to be occurred. This appliance is produced to be used in houses anditis only suitable for cooling / storing foods. Itis not suitable for commercial or common use and/or for storing substances except for food. Our company is not responsible for the losses to be occurred in the contrary case. u 2

Safety warnings Do not use multiple receptacles or extension cord. Do not plug in damaged, torn or old plugs. Do not pull, bend or damage the cord. This appliance is designed for use by adults, do not allow children to play with the appliance or letthem to hang over the door. Do not plug-in or out the plug from the receptacle with wet hands to prevent electrocution! Do not place glass bottles or beverage cans in the freezer department. Bottles or cans may explode. Do not place explosive or flammable material in your fridge for your safety. Place drinks with higher alcohol amount vertically and by closing their necks tightly in the fridge department. When taking ice made in the freezer department, do not touch it, ice may cause ice burns and/or cuts. Do not touch frozen goods with wet hands! Do not eatice- cream and ice cubes immediately after you take them out of the freezer department! Do notre-freeze the frozen goods after being melted. This may cause health issues like food poisoning. Do not cover the body or top of fridge with lace. This affects the performance of your fridge. Fix the accessories in the fridge during transportation to prevent damage to accessories.

Installing and operating your fridge Before starting to use your fridge, you should pay attention to the following points: + Operating voltage for your fridge is 220-240 V at 50Hz. Mains cord of your fridge has a grounded plug. This plug should be used with a grounded receptacle that has à 16 ampere fuse minimum. If you don't have a receptacle confirming with this, please have it done by a qualified electrician. We do not take the responsibility of the damages that occur due to ungrounded usage. Place your fridge in a place that it would not be exposed to direct sunlight. Your appliance should be at least 50 cm away from stoves, Gas ovens and heater cores, and should be at least 5 cm away from electrical ovens. Your fridge should never be used outdoors or left under the rain. When your fridge is placed next to a deep freezer, there should be at least 2 cm between them to prevent humidity on the outer surface. Do notplace anything on your fridge, and install your fridge in a suitable place so that at least 15 cmis available on the upper side. The adjustable frontlegs should stabilized in an appropriate height to allow your fridge operate in a stable and proper way. You can adjust the legs by turning them clockwise (or in the opposite direction). This should be done before placing food in the fridge. Before using your fridge, wipe all parts with warm water added with a tea spoonful of sodium bicarbonate, and then rinse with clean water and dry. Place all parts after cleaning. Install the distance adjustment plastic (the part with black HE vanes at the rear) by turning it 90° as shown in the figure 1 to prevent the condenser from touching the wall. gt

Before Using your Fridge + Whenitis operated for the first time or after transportation, keep your fridge in the upright position for 3 hours and plug it on to allow efficient operation. Otherwise, you may damage the compressor. + Your fridge may have a smell when it is operated for the first time; the smell will fade away when your fridge starts to cool. Information on No-Frost technology No-frost refrigerators differ from other static refrigerators in their operating principle. In normal fridges, the humidity entering the fridge due to door openings and the humidity inherent in the food causes freezing in the freezer department. To defrost the frost and ice in the freezer compartment, you are periodically required to turn off the fridge, place the food that needs to be kept frozen in à separately cooled container, and remove the ice gathered in the freezer department. The situation is completely different in no-frost fridges. Dry and cold air is blown into the fridge and freezer compartments homogeneously and evenly from several points via a blower fan. Cold air dispersed homogeneously and evenly between the shelves cools all of your food equally and uniformly, thus preventing humidity and freezing. Therefore your no-frost fridge allows you ease of use, in addition to its huge capacity and stylish appearance.

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS

This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model.

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS A) Refrigerator compartment B) Freezer compartment

1) Refrigerator light

2) Fridge glass shelves

THE VARIOUS FUNCTION AND POSSIBILITIES

Display and control panel Use of control panel

1. It enables the setting value of freezer to be modified and super freeze

mode to be activated if desired. Freezer may be set to -16, -18, -20, -22, -24 °C, SF.

2. It enables the setting value of cooler to be modified and super cool

mode to be activated if desired. Cooler maybe set to 8, 6, 5,4, 2 °C, SC.

3. Itenables the modes (economy, holiday.) to be activated if desired.

Operating your fridge Super freeze mode How would it be used? - Press freezer set button until SF letters will be seen on the screen. Buzzer will sound beep beep. Mode will be set. + Freezer temperature segment will show "SF". During this mode: - Temperature of cooler and super cool mode may be adjusted. In this case super freeze mode continues. + Economy and Holiday mode can not be selected. + Super freeze mode can be cancelled by the same operation of selecting. Super cool mode How would it be used? - Press cooler set button until SC letters will be seen on the screen. Buzzer will sound beep beep. Mode will be set. + Cooler temperature segment will show "SC". During this mode: - Temperature of freezer and super freeze mode may be adjusted. In this case super cool mode continues. + Economy and Holiday mode can not be selected. + Super cool mode can be cancelled by the same operation of selecting. Economy mode How would it be used? + Push "mode button" till a circle appears around economy symbol. + Ifno pressed any button for 1 sec. Mode will be set. Circle will blink 3 times. When mode is set, buzzer will sound beep beep. - Freezer and refrigerator temperature segments will show "E". - Circle of economy symbol and E will light till mode finishes.

During this mode: Freezer may be adjusted. When economy mode will be cancelled, the selected setting values will proceed. Cooler may be adjusted. When economy mode will be cancelled, the selected setting values will proceed. Super cool and super freeze modes can be selected. Economy mode is automatically cancelled and the selected mode is activated. Holiday mode can be selected after cancelling the economy mode. Then the selected mode is activated. To cancel, you will just need to press on mode button. Holliday mode How would it be used? Push "mode button" til a circle appears around plane symbol. If no pressed any button for 1 sec. Mode will be set. Circle will blink 3 times. When mode is set, buzzer will sound beep beep. Freezer temperature segment will show "H". Circle of plane symbol and H will light till mode finishes. During this mode: Freezer may be adjusted. When holiday mode will be cancelled , the selected setting values will proceed. Cooler may be adjusted. When holiday mode will be cancelled, the selected setting values will proceed. Super cool and super freeze modes can be selected. Holiday mode is automatically cancelled and the selected mode is activated. Economy mode can be selected after cancelling the holiday mode. Then the selected mode is activated. To cancel, you will just need to press on mode button. b 2

Drink cool mode When would it be used? This mode is used to cool the drinks within adjustable time. How would it be used? + Press freezer button for 3 seconds. + dc letters will be seen on freezer screen and the 05 blinks on cooler screen. + Press cooler button to adjust the time (05 - 10 - 15 - 20 -

+ When you selectthe time the numbers will blink 3 times on screen and sound beep beep. + If no button is pressed within 2 seconds the time will be set. - The countdown starts from the adjusted time minute by minute.

• The resttime blinks on the screen. - To cancelthis mode press freezer set button for 3 seconds. Screen saver mode How to use? - This mode will be activated when you press on mode button for 5 seconds. If pressed on no button in 5 seconds when he mode is active, lights of the control panel will go off. If you press any button when lights of control panel are off, the current settings will appear on the screen, and then you can maket he adjustment as you want. If you neither cancel screen saver mode nor press on any button in 5 seconds, the control panel will go off again. To cancel screen saver mode press on mode button for 5 seconds again. When screen saver mode is active you can also activate child lock.

+ Ifyou do notpress any button for 5 seconds after activating child lock, the lights of the control panel will go off. Then, you can view the previous settings and that child lock symbol is active when you pres any button, and you can cancel child lock as is described in the instruction of that mode. Cooler temperature settings + Initial temperature value for Cooler Setting Indicator is +4 °C. Press cooler button once. When you first push this button, the last value appears on the setting indicator of the cooler. Whenever you press on this button, lower temperature will be set. (48°C, +6°C, +5°C, 44°C, +2°C, supercool) When you push the cooler set button until supercool symbol appears on the Cooler Setting Indicator, and if you do not push any button in 1 seconds Super Cool will flash. If you continue to press, it will restart from +8°C. The temperature value selected before Holiday Mode, Super Freeze Mode, Super Cool Mode or Economy Mode is activated will remain the same when the mode is over or cancelled. The appliance continues to operate with this temperature value. Freezer temperature settings + Initial temperature value for Freezer Setting Indicator is -18°C. Press freezer set button once. When you first push this button, the last set value will blink on screen. Whenever you press on this button, lower temperature will be set (-16°C, -18°C, -20°C,-22°C, -24°C superfreeze). When you push the freezer set button until superfreeze symbol appears on the Freezer Setting Indicator, and if you do not push any button in 1 seconds Super Freeze will flash. If you continue to press, it will restart from -16°C.

- The temperature value selected before Holiday Mode, Super Freeze Mode, Super Cool Mode or Economy Mode is activated will remain the same when the mode is over or cancelled. The appliance continues to operate with this temperature value. Light cancelling mode When would it be used? - If you want to cancel lights of cooler, you can select this mode. - While pushing on freezer, cooler, mode buttons, open and close one of the doors for 3 times. The mode will be selected in this way. From now on, the lights will not come on when the function is not cancelled by the same way. - If you want to cancel this mode, repeat the same process or the mode will automatically cancel itself after 24 hours. Function of Child lock When would it be used? To prevent children from playing with the buttons and changing the settings you have made, child lock is available in the appliance. Activating Child Lock Press on Freezer and Cooler buttons simultaneously for 5 seconds. Deactivating Child Lock Press on Freezer and Cooler buttons simultaneously for 5 seconds. Note: Child lock will also be deactivated if electricity is interrupted or the fridge is unplugged.

Warnings about Temperature Adjustments Your temperature adjustments will not be deleted when an energy breakdown occurs. Itis not recommended that you operate your fridge in environments colder than 10°C in terms of its efficiency. Temperature adjustments should be made according to the frequency of door openings and the quantity of food kept inside the fridge. Do not pass to another adjustment before completing an adjustment. Your fridge should be operated up to 24 hours according to the ambient temperature without interruption after being plugged in to be completely cooled. Do not open doors of your fridge frequently and do not place much food inside it in this period. À 5 minute delaying function is applied to prevent damage to the compressor of your fridge, when you take the plug off and then plug it on again to operate it or when an energy breakdown occurs. Your fridge will start to operate normally after 5 minutes. Your fridge is designed to operate in the ambienttemperature intervals stated in the standards, according to the climate class stated in the information label. We do not recommend operating your fridge out of stated temperatures value limits in terms of cooling effectiveness. Climate Class | Ambient Temperature °C T Between 16 and 43 (°C) ST Between 16 and 38 (°C) N Between 16 and 32 (°C) SN Between 10 and 32 (°C) Note: If the temperature of the environment is higher than 38°C, the freezer partition temperature cannot be adjusted to -22°C and -24°C. It can only be adjusted to the values of-16°C, -18°C, -20°C.

& 2 Accessoires Ice box + To remove ice box; pull the upper freezer box out as far as possible and then pull the ice box out. + Fill 3/4 full of water and place the ice box in freezer. Note: While placing the ice box in the freezer, place in a horizontal position. Otherwise the water in the ice box can be Spill. Freezer box The freezer box allows foods are maintained more regularly. KA Removing The freezer box; + Pullthe box out as far as possible = + Pullthe front of box up and out. ! Make the inverse of the same operation for the resetting the sliding compartment. Note: Always Keep the handle of box while removing the box. Odor Filter The filter in this area, blocks the bad smell in the cooler compartment. Fresh dial In case of the crisper is totally full, the fresh dial is located in front of crisper, should be opened. By means of this the air in the crisper and humidity rate will be controlled and endurance life will be increased. If you see any condensation on glass shelf, you must open this klape which is on behind of shelf.

Roller storage box You can adjust and use this department as 3 different functional department. Clack Note: Your fridge is delivered to you with the shown clack in open position. Declared energy consumption and volume are according to the chiller option of the product. LTo use for 0 °C Department: If you want to use this compartment as 0 °C box, you must take the sliding part (cover, which is indicated in picture) from closed position to open position. 2.To use for Crisper Department: If you want to use this compartment as crisper, you must take the sliding part (cover, which is indicated in picture) from open position to closed position. + While this departmentis used as 0 °C Department, keeping food in the Chiller compartmentinstead ofthe freezer or refrigerator compartment allows food retain freshness and flavour longer, while preserving its fresh appearance. When chiller tray becomes dirty, remove it and wash it with water. (Water freezes at 0°C, but foods containing salt or sugar freeze at temperature lower than that) Normally people use the chiller compartment for raw fish, lightly pickled, rice, etc. + Pullthe chiller shelf out toward you. the cover will open automatically. Do not put foods you want to freeze or ice trays in order to make ice.

Picture-1 Picture-2 Picture-3 Removing The chiller shelf; + Open the cover fully. (Picture-1) + Pullthe chiller shelf out toward you. (Picture-2) + Pullthe wheels of chiller shelf up from rail to remove. (Picture-3) Visual and text descriptions on the accessories section may vary according to the model of your appliance.

CLEANING AND MAINTENANCE

+ Make sure to unplug the fridge before starting to clean it. + Do not wash your fridge by pouring water. + You can wipe the inner and outer sides with a soft cloth or a sponge using warm and soapy water. + Remove the parts individually and clean with soapy water. Do not wash in washing machine. + Never use flammable, explosive or corrosive material like thinner, gas, acid for cleaning. + You should clean the condenser with broom at least once a year in order to provide energy saving and increase the productivity. Make sure that your fridge is unplugged while cleaning. Defrosting Your refrigerator makes fully automatic defrosting. The water formed as a result of defrosting passes through the water collection spout, flows into the vaporization container behind your refrigerator and evaporates by itself in there.

Replacing The Light LED You should contact the nearest Authorized Service. Light LED

ARRANGING FOOD IN THE APPLIANCE

Refrigerator compartment - To reduce humidity and consequent increase of frost never place liquids in unsealed containers in the refrigerator. Frost tends to concentrate in the coldest parts of the evaporator and in time will require more frequent defrosting. Never place warm food in the refrigerator. Warm food should be allowed to cool at room temperature and should be arranged to ensure adequate air circulation in the refrigerator compartment. Nothing should touch on the back wall as it will cause frost and the packages can stick on the back wall. Do not open the refrigerator door too frequentiy. Arrange the meat and cleaned fish(wrapped in packages or sheets of plastic) which you will use in 1-2 days,in the bottom section of the refrigerator compartment(that is above the crisper) as this is the coldest section and will ensure the best storing conditions. + You can putthe fruits and vegetables into crisper without packing.

Some recommendations have been specified below for the placement and storage of your food in the cooling compartment. PET Where to place in the fridge Food Storing time department Vegetables and fruits 1 week In the Crisper (without being wrapped) Covered with plastic folio and Meat and fish 2to 3 days bags or in a meat box (on the glass shelf) Fresh cheese 3 to 4 days In the special door shelf Butter and Margarine 1 week In the special door shelf Until the Bottled product, Milk expiry date : and Yoghurt recommended In the special door shelf by the producer Eggs 1 month In the egg shelf Cooked food All shelves NOTE: Potatoes, onions and garlic should notbe stored in the refrigerator.

ARRANGING FOOD IN THE APPLIANCE

Freezer compartment - The use of freezer is, storing of deep-frozen or frozen foods for long periods of time and making ice cubes. To freeze fresh food, ensure that as much of the surface as possible of food to be frozen is in contact with the cooling surface. Do not put fresh food with frozen on side by side as it can thaw the frozen food. While freezing fresh foods(i.e meat,fish and mincemeat), divide them in parts you will use in one time. Once the unit has been defrosted replace the foods into freezer and remember to consume them in as short period of time. Never place warm food in the freezer compartment. As it will disturb the frozen foods. For storing the frozen foods:the instructions shown on frozen food packages should always be followed carefully and if no information is provided food should not be stored for more than 3 months from the purchased date. When buying frozen foods ensure that these have been frozen at suitable temperatures and that the packing is intact. Frozen foods should be transported in appopriate containers to maintain the quality of the food and should be returned to the freezing surfaces of the unit in the shortest possible time. If a package of frozen food shows the sign of humidity and abnormal swelling it is probable that it has been previously stored at an unsuitable temperature and that the contents have deteriorated. The strorage life of froozen foods depends on the room temperature, thermostat setting, how often the door is opened, the type of food and the length of time required to transport the product from the shop to your home. Always follow the instruductions printed on the package and never exceed the maximum storage life indicated. Not that; if you want to open again immediately after closing the freezer door, it will not be opened easily. Its quite normal! After reaching equilibrium condition, the door will be opened easily. Important note: - Frozen foods, when thawed, should be cooked just like fresh foods. If they are not cooked after being thawed they must NEVER be re- frozen.

ARRANGING FOOD IN THE APPLIANCE

- The taste of some spices found in cooked dishes (anise, basilica, watercress, vinegar, assorted spices, ginger, garlic, onion, mustard, thyme, marjoram, black pepper, etc.) changes and they assume a strong taste when they are stored for a long period. Therefore, the frozen food should be added little amount of spices or the desired spice should be added after the food has been thawed. The storage period of food is dependent on the oil used. The suitable oils are margarine, calf fat, olive oil and butter and the unsuitable oils are peanut oil and pig fat. - The food in liquid form should be frozen in plastic cups and the other food should be frozen in plastic folios or bags. Some recommendations have been specified on pages 26, 27 and 28 for the placement and storage of your food in the deep freeze compartment. ù 2

ARRANGING FOOD IN THE APPLIANCE

Thawing Storage : ‘ d at room Fish and Meat Preparation Duration Phemperature (months) -hours- Beef Steak Packed for freezing in 6-10 1-2 convenient portions Packed for freezing in Lamb Meat convenient portions 58 12 Packed for freezing in Calf Rosst convenient portions 6-19 12 Calf Cubes In small pieces 6-10 1-2 Sheep Cubes In pieces 4-8 2-3 In convenient portions, Minced meat packaged without being 1-3 2-3 spiced Offal (piece) In pieces 1-3 1-2 Sausage/Salami Must be packed even if it Until thawed is film-coated : Packed for freezing in Chicken and turkey convenient portions 7-8 10-12 Packed for freezing in Goose / Duck convenient portions 48 10 n Portions of 2.5 kg and Deer - Rabbit - Boar with no bones 9-12 10-12 Freshwater fish (Trout, ses : d Unitil itis well Carp, Northern Pike, It should be washed 2 thawed Cat, Fish) and dried after it is well Lean fish (Sea Bass, cleaned inside and 48 Untilitis well Turbot, Sole) scaled, the tail and head thawed i ï hould be cut off Fatty fish (Bonito, parts s . Mackerel, Blue Fish, | here necessary. 2-4 vrais arel Anchovy) Cleansed and put into Unitilitis well Crustaceans bags 4-6 thawed A In its package, inside an Unitilitis well Caviar aluminum or plastic cup 23 thawed Snail In salty water, inside an 3 Unitilitis well aluminum or plastic cup thawed

ARRANGING FOOD IN THE APPLIANCE

Thawing Storage ; Vegetables and : ‘ period at room Fruits Preparation Duration temperature (months) -hours- Remove the leaves, divide n the core into parts and keep it Itmay be used Eoulinomer waiting in water containing a 10-12 in frozen form little amount of lemon Green Beans, Wash them and cut into small 10-13 Itmay be used French Beans pieces. in frozen form Itmay be used Peas Shell and wash them 12 in frozen form Mushrooms and Wash them and cut into small 6-9 Itmay be used Asparagus pieces in frozen form Cabbage In a cleaned fashion 6-8 2 Cutitinto pieces of 2cm after Separate plates Eggplant washing it 10-12 from each other Clean it and pack it with its cob Itmay be used Com or in grains n in frozen form : : Itmay be used Carrot Clean them and cut into slices 12 in frozen form Remove the stem, divide it into Itmay be used Pepper two and separate the seeds 8-10 in frozen form Spinach Washed 6-9 2 Apple and Pear Slice it by peeling its rind 8-10 {In freezer) 5 ñ Divide it into half and remove Apricot and Peach the seeds 4-6 (In freezer) 4 Strawberry and Raspberry Wash and clean them 8-12 2 Cooked fruits Inside a cup with addition of 12 4 10% of sugar Plums, Cherries, Wash them and remove the à 8-12 5-7 Sour Cherries stems

ARRANGING FOOD IN THE APPLIANCE

; Storage Dairy products and Preparation Duration Storage Conditions (months) Packaged In its own package 2-3 Homogenised Milk only (Homogenised) Milk They may be left in their original packages for Cheese (except : _ short time storage. They white cheese) In the form ofslices 6-8 should also be wrapped in plastic folio for long term storage Butter, Margarine In its own package 6 P 30 grofitEquals to Egg White 10-12 one egg yolk. Itis mixed very well, a 2 = Egg mixture pinch of salt or sugar 10 50 grofitEqualsto |© s (White-Yolk) is added to preventit one egg yolk. ë Ê from getting too thick 2 Itis mixed very well, a © pinch of salt or sugar _ 20 grofitEqualsto | Egg Yolk is added to preventit 8-10 one egg yolk. from getting too thick (*) It should not be frozen with its shells. The white and yolk of the egg should be frozen separately or as having been well mixed. Storage Thawing period at |Thawing duration in the Duration room temperature oven (minutes) (months) (hours) Bread 4-6 2-3 4-5 (220-225 °C) Biscuits 3-6 1,5 5-8 (190-200 °C) Pie 1-3 3 5-10 (200-225 °C) Tart 1-1,5 4 5-8 (190-200 °C) Filo Pastry 1,5 5-8 (190-200 °C) Pizza -4 15-20 (200 °C)

SHIPMENT AND REPOSITIONING

+ Original package and foam may be kept for re- transportation (optionally). + You should fasten your fridge with thick package, bands or strong cords and follow the instructions for transportation on the package for re-transportation. + Remove movable parts (shelves, accessories, vegetable bins etc.) or fix them into the fridge against shocks using bands during re-positioning and transportation. Carry your fridge in the upright position. Repositioning the door + Itis not possible to change the opening direction of your fridge door, if the door handles on your fridge are installed from the front surface of the door. + Itis possible to change the opening direction of the door on models without any handles. - Ifthe door opening direction of your fridge may be changed, you should contact the nearestAuthorised Service to have the opening direction changed.

BEFORE CALLING YOUR AFTER SALES SERVICE

Your fridge warns you if the temperatures for cooler and freezer are in improper levels or when a problem occurs in the appliance. Warning codes are displayed in the Freezer and Cooler Indicators. ERROR TYPE ERROR TYPE WHY WHAT TO DO There is/are some n SR "Failure part(s) Out of order cher a as Warning" or there is a failure in Sacble cooling process p u

1. Do not freeze the foods

that are thaw and use in short time period. . . 2. Setthe freezer This caution will be | temperature to colder LF | Notcoid enough | tengtemotpower |"LES or setthe g g P super freeze , until the failure compartment gets to normal temperature.

3. Do not put fresh food

until this failure is off.

1. Setthe refrigerator

temperature to colder Ideal temperature for | values or set the super "Refrigerator | Ref. Compartmentis | C00ling mode until the LC comp. 44°C. If you see this | Compartment gets to Not Cold enough" | warning your foods | normal temperature. have risk of spoiling. | 2. Do not open the door much until this failure is off. You will see this failure " Itis the combination | when first starting the LF and LC not cold enough ofLF and LC Error | appliance. It will be off 9 type after the compartments gets normal temperature

1. Check if the “Super

The foods starts to | cooling mode” is on Hc Refrigerator freeze because of 2. Decrease comp. too Cold the too much cold k : temperature the refrigerator temperature values

When the power This not a failure. This supply gets lower | prevents any damages than 170 V the on the compressor. This appliance gets to warning will off after the steady position. voltage gets required level "Low voltage LOPO Warning" If your fridge is not operating; - Is there a power failure? - Is the plug connected to the socket correctiy? - Is the fuse of the socket to which the plug is connected or the main fuse blown? - Is there any failure atthe socket? To check this, plug your refrigerator to a socket this is surely operating. If your fridge is not cooling enough; Is the temperature adjustment right? Is the door of your fridge opened frequently and left open for a long while? Is the door of fridge closed properly? Did you put a dish or food on your fridge so that it contacts the rear wall of your fridge so as to prevent the air circulation? Is your fridge filled excessively? Is there adequate distance between your fridge and the rear and side walls? Is the ambient temperature within the range of values specified in the operating manual? If the food in your refrigerator compartment is over cooled - Is the temperature adjustment right? - Are there many food recently put inside the freezer compartment? If so, your fridge may over cool the food inside the refrigerator compartment as it will operate longer to cool these food. If your fridge is operating too loudly; To maintain the set cooling level, compressor may be activated from time to time. Noises from your fridge at this time are normal and due to its function. When the required cooling level is reached, noises will be decreased automatically. If the noises persist; - Is your appliance stable? Are the legs adjusted?

æ BEFORE CALLING YOUR AFTER SALES SERVICE + Is there anything behind your fridge? - Are the shelves or dishes on the shelves vibrating? Re-place the shelves and/or dishes if this is the case. - Are the items placed on your fridge vibrating? Normal Noises; Cracking (Ice cracking) Noise: + During automatic defrosting. + When the appliance is cooled or warmed (due to expansion of appliance material). Short cracking: Heard when the thermostat switches the compressor on/off. Compressor noise (Normal motor noise): This noise means thatthe compressor operates normally Compressor may cause more noise for a shorttime when itis activated. Bubbling noise and splash: This noise is caused by the flow of the refrigerant in the tubes of the system. Water flow noise: Normal flow noise of water flowing to the evaporation container during defrosting. This noise can be heard during defrosting. Air Blowing Noise (Normal fan noise): This noise can be heard in No- Frost fridge during normal operation of the system due to the circulation of air. If humidity builds up inside the fridge; - Are all food packed properly? Are the containers dried before placing them in the fridge? - Are the fridge doors opened frequently? Humidity of the room gets in the fridge when the doors are opened. Humidity build up will be faster when you open the doors more frequently, especially if the humidity of the roomis high. + Building up of water drops on the rear wall after automatic defrosting is normal. (in Static Models) If the doors are not opened and closed properly; + Do the food packages prevent closing of the door? - Are the door compartments, shelves and drawers placed properly? + Are door gaskets broken or torn? + Is your fridge on a level surface?

If the edges of fridge cabinet that the door joint contact are warm; Especially in summer (hot weather), the surfaces that the joint contact may get warmer during the operation of the compressor, this is normal. IMPORTANT NOTES: + Compressor protection function will be activated after sudden power breakdowns or after unplugging the appliance, because the gas in the cooling system is not stabilized yet. Your fridge will start after 5 minutes, there is nothing to worry about. If you will not use your fridge for a long time (e.g. in summer holidays) unplug it. Clean your fridge according to Part 4 and leave the door open to prevent humidity and smell. If the problem persists after you have followed all the instructions above, please consult to the nearest authorized service. The appliance you bought is designed for home type use and can be used only at home and for the stated purposes. Itis not suitable for commercial or common use. If the consumer use the appliance in à way that does not comply with these features, we emphasize that the producer and the dealer shall not be responsible for any repair and failure within the guarantee period. The lifetime of your appliance stated and declared by the Department ofthe Industry is 10 years (the period for retaining parts required for the proper functioning of the appliance). Conformity Information - Tropical Class is defined for the environment temperatures between 16°C and 43°C in accordance with the TS EN ISO 62552 Standards. - The appliance is designed in compliance with the , IEC60335-1 / IEC60335-2-24, 2004/108/EC standards.

1- Install the appliance in a coll, well vantilated room , but not in direct

sunlight and not near heat source (radiator, cooker.. etc). Otherwise use an insulating plate.

2- Allow ward food and drinks to cool down outside the appliance.

3- When thawing frozen food, place it in the refrigerator compartment.

The low temperature of the frozen food will help to cool the refrigerator compartment when itis thawing. So it causes energy saving. If the frozen food is put out, it causes wastage of energy.

4- When placing, drinks and slops they must be covered. Otherwise

humidity increases at the appliance. Therefore the working time gets longer. Also covering drinks and slops helps to save smell and taste.

5- When placing food and drinks, open the appliance door as briefly as

6- Keep close the covers of any different temrepature compartment in

the appliance (crisper, chiller …etc ).

7- Door gasket must be clean and pliable. Replace gaskets if worn.
