ER-1206 - Megaphone TOA - Free user manual and instructions

Product Type	Megaphone
Brand	TOA
Model	ER-1206
Dimensions (approx.)	30 cm (L) x 15 cm (bell diameter)
Weight (approx.)	0.8 kg (without batteries)
Power Source	6 x AA batteries (9V total)
Battery Life (approx.)	20 hours (continuous use)
Maximum Output Power	10 W
Range (approx.)	400 meters
Functions	Voice amplification, siren, volume control
Material	ABS plastic
Color	White/Blue
Care & Cleaning	Wipe with soft dry cloth; avoid liquids
Safety Warnings	Do not point at ears; avoid moisture
Spare Parts Availability	Not available
Repairability	Not user-serviceable; contact TOA support
General Information	Portable megaphone for outdoor announcements

Frequently Asked Questions - ER-1206 TOA

How do I turn on the TOA ER-1206 megaphone?

Press and hold the power/trigger button located on the handle to activate voice amplification.

What type of batteries does the ER-1206 use?

It requires 6 x AA batteries (1.5V each). Use alkaline batteries for best performance.

How do I switch to siren mode?

Press the siren button (usually marked with a siren icon) to toggle between voice and siren modes.

What is the maximum range of the megaphone?

The effective range is approximately 400 meters in open areas with minimal background noise.

How can I adjust the volume?

Use the volume control wheel on the handle to increase or decrease the output level.

Is the megaphone waterproof?

No, it is not waterproof. Avoid exposure to rain or moisture. Store in a dry place.

How do I clean the megaphone?

Wipe the exterior with a soft, dry cloth. Do not use water or cleaning solvents.

Can I use rechargeable batteries?

Yes, you can use NiMH rechargeable AA batteries, but note that operating time may be shorter.

What does the LED indicator mean?

A steady green LED indicates power is on; blinking green means low battery.

How do I store the megaphone when not in use?

Remove the batteries to prevent leakage, and store in a cool, dry place.

USER MANUAL ER-1206 TOA

Water protection: IPX5

ER-1206

ER-1206S

ER-1206W

Thank you for purchasing TOA's Splash-Proof Megaphones.

Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

1. SAFETY PRECAUTIONS

• Before installation or use, be sure to carefully read all the instructions in this section for correct and safe operation.
• Be sure to follow all the precautionary instructions in this section, which contain important warnings and/or cautions regarding safety.
  • After reading, keep this manual handy for future reference.

CAUTION

Indicates a potentially hazardous situation which, if mishandled, could result in moderate or minor personal injury, and/or property damage.

- Cautions on Use

Be sure to observe the following instructions. Failing to observe may cause hearing impairment.

• Reduce the volume to its lowest setting before use.
• Never use the megaphone in close proximity to a person's ear.
• Point the megaphone toward the ground when conducting operational tests.

- Make sure to observe the following handling precautions so that a fire or personal injury does not result from leakage or explosion of the battery.

• Do not short, disassemble, heat nor put the battery into a fire.
• Avoid using both new and old batteries together.
• Never charge batteries of the type which are not rechargeable.
• Do not solder a battery directly.
• Be sure to use the specified type of batteries.

- Note correct polarity (positive and negative orientation) when inserting a battery in the unit.

- Avoid locations exposed to the direct sunlight, high temperature and high humidity when storing batteries.

Traceability Information for Europe (EMC directive 2004/108/EC)

Manufacturer:TOA Corporation7-2-1, Minatojima Nakamachi, Chuo-ku, Kobe, Hyogo, Japan

Authorized representative:TOA Electronics Europe GmbHSuederstrasse 282, 20537 Hamburg, Germany

2. GENERAL DESCRIPTION

The ER-1203 is a 3 W splash-proof megaphone and the ER-1206 series is a 6 W megaphone.

Both feature IPX5 water-jet-resistant designs.

The ER-1206S offers a siren switch, and the ER-1206W is equipped with a whistle switch.

The use of the supplied battery spacer permits the ER-1206 series to be operated on four AA batteries instead of six batteries normally required.

Handle and mouthpiece with anti-bacteria treatment improve hygiene and safety during use.

3. HANDLING PRECAUTIONS

• The ER-1203/1206/1206S/1206W megaphones are waterproof to IPX5 standard that permits the use of megaphones in an environment where rain or water may be splashed. Never use them in water or in heavy rain, nor souse water over them as doing so may cause unit failure.

• Immediately contact your TOA dealer if the following irregularities should occur. To avoid unit failure, make no further attempt to use the unit in these conditions.

• Smoke coming from the unit or a strange smell detected.

• Water or other foreign objects get inside the unit.

• No sound heard (after checking to be sure that the batteries are loaded in correct orientation, and satisfactorily charged).

• Avoid storing the unit in humid or dusty locations, in locations exposed to direct sunlight, near heaters, or exposed to sooty smoke, as these conditions may result in unit failure.

• When batteries are left installed in the megaphone for extended periods of time, be sure to check them periodically for charge and leakage.
• Do not use the unit for extended periods of time with a distorted sound output. This could cause the inner parts to become hot and possibly result in unit failure.
• Noise may be produced when a mobile phone is used near the unit. However, this is not a failure. Use the mobile phone as far as possible from the unit.
• Use a tightly wrung-out damp cloth to clean the unit. If the unit becomes extremely dirty, use a cloth moistened in a neutral detergent and tightly wrung-out. Never use volatile liquids such as benzene, thinner, or alcohol to clean the unit, as these may deform or discolor its case.

4. NOMENCLATURE AND FUNCTIONS

1. Speaker (outer horn)

2. Talk switch

Press to talk (power turns ON). Release to turn the power OFF.

3. Battery Cover

The battery compartment is built inside. Use care when opening and closing the battery cover.

4. Mouthpiece

Speak into the mouthpiece at a distance of about 1 cm. Anti-bacteria treated, the mouthpiece helps make such close contact during use hygienic and safe.

5. Signal tone switch (ER-1206S/W only)

[ER-1206S]

A siren tone sounds when this switch is pressed, and stops when pressed again.

[ER-1206W]

A whistle tone sounds while this switch is pressed, and stops when released.

Note: Output volume is fixed, and cannot be adjusted with the volume control.

6. Volume control

Rotate right to increase output volume.

7. Handle

The handle with anti-bacteria treatment improve hygiene and safety during use.

8. Strap

Use this strap to carry the unit. (Length: approx. 60 cm)

9. Battery case

Houses AA batteries of 4 pieces for the ER-1203 or 6 pieces (4 pieces when the battery spacer is used) for the ER-1206 series.

Note: The battery spacer is installed in the handle (7) by the factory.

5. REPLACING THE BATTERIES

Note

If the megaphone is at all wet, be sure to dry it thoroughly before opening the battery cover to replace the batteries.

Step 1. Open the battery cover to remove the battery case from the handle.

To release the battery cover lock, press the lock tab in the direction indicated by the arrow.

Step 2. Open the battery case cover, then insert AA batteries.

To open the cover, unlock the battery case's lock knob.

Four batteries are required for the ER-1203, and six batteries for the ER-1206 series.

Battery orientation is not the same for all batteries.

Insert the batteries as shown below noting correct polarity (positive and negative orientation).

Step 3. After confirming the correct battery polarity, close the battery case cover.

Ensure that the cover is securely locked in place with the lock knob.

Step 4. Replace the battery case in the handle and close the battery cover.

Take care about the correct orientation of the battery case. To close the battery cover, push the battery cover and slide the lock tab in the direction of the arrow.

5.1. Using the battery spacer (ER-1206 series only)

The ER-1206 series can operate on four AA batteries instead of 6 batteries with the additional use of the supplied battery spacer.

Insert the battery spacer into the battery chamber inside the case as shown below, then insert the four batteries into the remaining two chambers according to the battery polarity diagram attached to the case.

Note: Battery life when operated on 4 batteries is shorter than when operated on 6 batteries. The volume when operated on 4 batteries is also lower than when operated on 6 batteries. Therefore, adjust the volume to an appropriate output with the volume control.

CAUTION

When changing 4-battery operation to 6-battery operation, use all new batteries.

Using both new and old batteries together may cause leakage or explosion of the battery, resulting in a fire or personal injury.

6. HOW TO USE

CAUTION

• Before pressing the talk switch, fully turn down the volume.
• Point the megaphone toward the ground when conducting operational tests.

Step 1. Using the volume control, adjust the volume to an appropriate level that does not generate feedback when holding down the talk switch.

Howling is more likely to occur when using the megaphone indoors and other spaces with significant echo. Particularly when the batteries are new, it may be impossible to adjust the volume to maximum without causing howling. In such cases, set the volume to about mid-level.

Step 2. Speak into the mouthpiece at a distance of about 1 cm.

Notes

• Speaking too far from the mouthpiece or in too soft voice may result in insufficient volume.
• Moisture droplets collecting in the hole on the mouthpiece may cause noticeably insufficient volume. Wipe the droplets away with a cloth or other material and allow the area to dry sufficiently before resuming use.

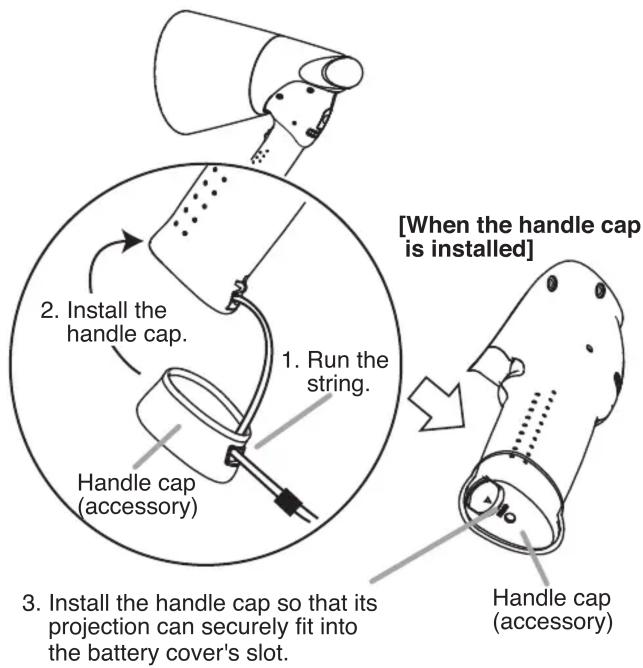

7. USING THE HANDLE CAP

There is no problem in general use. But if high impact is applied to the battery cover, it may open, causing the battery case to drop.

When moving around hard with the megaphone in hand, be sure to install the supplied handle cap as shown below.

8. SPECIFICATIONS

Model No. ER-1203 ER-1206 ER-1206S ER-1206W
Output Rated 3 W, Max. 4 W Rated 6 W, Max. 10 W (with use of AA (R6P) battery x 6)
Power Source		AA (R6P) battery x 4 (6 V DC)	AA (R6P) battery x 6 (9 V DC) or AA (R6P) battery x 4*1(6 V DC)
Signal		——	——	Siren Whistle
Battery Life*2(approx.) Voice: 8 hours		Voice: 8 hours [With use of AA (R6P) battery x 6]
		Voice: 8 hours, Signal: 20 minutes
		[With use of AA (R6P) battery x 4]
		Voice: 5 hours Voice: 5 hours, Signal:10 minutes
Audible Range*3(approx.)		Voice: 125 m	Voice: 250 m	Voice: 250 m, Signal: 315 m
Magnetic Circuit		Neodymium magnet, inner magnet type
Diaphragm		Polyimide film (voice coil, bobbin)
Anti-bacteria Treatment		Mouth and handle
Water protection		IPX5
Operating Temperature		-10 to +40°C
Finish	Horn	ASA resin,clear dark gray	ASA resin,clear dark gray	ASA resin,clear red
	Others	ASA resin, dark gray	ASA resin, dark gray	ASA resin, red
Dimensions		137 (w) x 257.8 (h) x 210 (d) mm	154 (w) x 266 (h) x 250 (d) mm
Weight (without batteries)		610 g 660 g	680 g

*1 With use of the supplied battery spacer

*2 Battery life estimates assume 30 minutes of continuous use per day.

*3 Audible range estimates assume use on a relatively quiet street using new batteries and will vary depending on remaining battery capacity, surrounding noise, wind direction, obstacles and other environmental conditions.

Notes

• No accessory batteries are supplied.
• The design and specifications are subject to change without notice for improvement.

- Accessories

Battery spacer

(ER-1206 series only) ...... 1

Handle cap 1

- Optional products

Wall mounting bracket: SP-1100
