Product Type	Stationary exercise bike (upright)
Brand	Domyos
Model	Bike Concept
Dimensions (L x W x H)	Approx. 100 x 50 x 130 cm
Product Weight	Approx. 30 kg
Max User Weight	120 kg
Power Supply	Battery-powered (2x AA) or self-powered (magnetic generator)
Resistance System	Magnetic, manual adjustment
Resistance Levels	8 levels
Display	LCD screen showing time, speed, distance, calories, pulse
Heart Rate Monitoring	Hand pulse sensors on handlebars
Pedals	Adjustable straps
Seat Adjustment	Vertical and horizontal
Transport Wheels	Yes, for easy movement
Leveling Feet	Yes, adjustable
Maintenance	Regular cleaning, check bolts, lubricate moving parts if needed
Safety	Stable frame, emergency brake (if applicable), keep children away
Spare Parts Availability	Contact Domyos customer service or authorized dealers
Repairability	User-replaceable parts: pedals, seat, handlebar grips, LCD battery
Included Accessories	User manual, assembly tools, possibly a water bottle holder
Certification	CE, EN 957 (Class HC for home use)

Frequently Asked Questions - Bike Concept DOMYOS

How do I assemble the Domyos Bike Concept exercise bike?

Follow the included assembly manual. Attach the stabilizers, seat post, handlebars, pedals, and console. Use the provided tools. Tighten all bolts securely.

How do I adjust the resistance on the Bike Concept?

Turn the resistance knob located on the frame near the display. Turn clockwise to increase resistance, counterclockwise to decrease. There are 8 levels.

What does the display show?

The LCD display shows time, speed, distance, calories burned, and heart rate (via hand pulse sensors). Press the mode button to cycle through metrics.

How do I use the heart rate monitor?

Place both hands on the pulse sensors on the handlebars. The display will show your heart rate after a few seconds. Hold the sensors lightly for accurate reading.

Can I move the bike after assembly?

Yes, tilt the bike slightly forward to engage the transport wheels at the front stabilizer, then roll it to the desired location.

How do I clean and maintain the bike?

Wipe down the frame and seat with a damp cloth after use. Do not use abrasive cleaners. Check bolts periodically and tighten if needed. Lubricate the pedal spindles with silicone spray if they squeak.

What should I do if the display doesn't turn on?

Check if the battery compartment (usually at the back of the console) has fresh AA batteries. Ensure the battery contacts are clean. If still no power, contact customer service.

How do I adjust the seat?

Loosen the adjustment knob under the seat. Slide the seat forward/backward for horizontal adjustment, or pull the pin for vertical adjustment. Tighten the knob before riding.

Is the bike suitable for tall users?

Yes, the seat can adjust vertically and horizontally to accommodate users from approximately 150 cm to 195 cm. Ensure the handlebars are also adjusted to a comfortable height.

Where can I find replacement parts for the Bike Concept?

Contact Domyos customer service via the Decathlon website or visit your nearest Decathlon store. Common spare parts include pedals, seat, and console battery covers.

USER MANUAL Bike Concept DOMYOS

Notice à conserver

Keep these instructions

DOMYOS

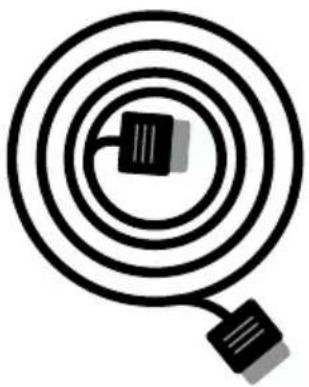

Câbles de connexion - Connector cables Cables de conexión - Anschlusskabel Cavi di connessione - Verbindungssnoeren Cabos de ligação - Cartridge z grą Játékkazetta - Соединительные кабели Cartuș de joc - Spojovacie kable Připojovací kabely - 连接电线

Cartouche de jeu - Game cartridge Cartucho de juego - Spielmodul Cartuccia di gioco - Spelcartridge Cartucho de jogo - Cartridge z grą - Játékkazetta - Игровой картридж Cartus de joc - Herný cartridge - Hrací kazeta 椭圆形游戏器材

BRANCHEMENTS • CONNECTIONS • CONEXIONES • ANSCHLÜSSE •

COLLEGAMENTI • AFTAKKINGEN • LIGAÇÕES • PODŁĄCZENIA •

CSATLAKOZÁSOK • ПОДСОЕДИНЕНИЯ • BRANŞAMENTE •

On elliptical bikes, the hand controllers must be fixed to the stationary handlebars.

installation de la caRtouchHe • caRtRidGe installation • instalación del caRtucHo • einsetZen des sPielModuls • installaZione della caRtuccia • de cassette invoeRen • instalaÇÃO do caRtucHo • ZAKŁADANIE CARTRIDGE'A • A KAZETTA BETÉTELE • УСТАНОВКА КАРТРИДЖА • INSTALAREA CARTUŞULUI • INSTALOVANIE CARTRIDGE • INSTALACE KAZETY • 插头的安装

PRESENTATION DES MODES DE JEU - INTRODUCTION TO GAME MODES - PRESENTACIÓN DE LOS MODOS DE JUEGO - VORSTELLUNG DER SPIELMODI - PRESENTAZIONE DELLE - MODALITÀ DI GIOCO - WEERGAVE VAN DE SPELMODUSSEN - APRESENTAÇÃO DOS - MODOS DE JOGO - PREZENTACJA TRYBÓW GRY - A JÁTÉKMÓDOK BEMUTATÁSA - ПРЕЗЕНТАЦИЯ РЕЖИМОВ ИГРЫ - PREZENTAREA MODURILOR JOCULUI - PREDSTAVENIE REŽIMU HRY - PREZENTACE ZPŮSOBŮ HRY - 游戏模式介绍

Mode classique - Classic Mode - Modo Clásico - Klassischer Modus - Modalità Classica - Modus Klassiek - Modo Clássico - Tryb klasyczny - Klasszikus mód - Классический Режим - Modul Clasic - Režim klasický - Klasický režim -古典模式

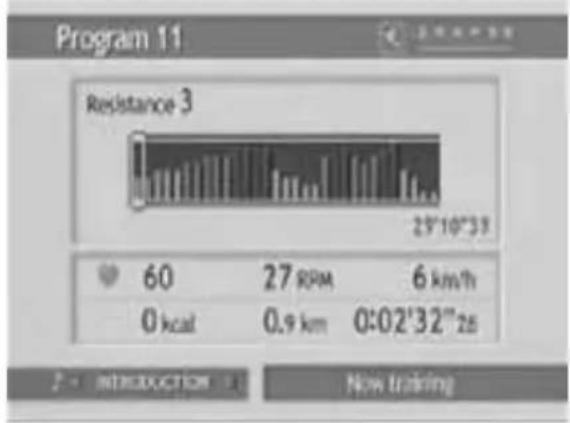

12 programmes / 8 niveaux d'effort / Durée d'exercices de 15 min. à 120 min 12 programmes/8 levels of exercise/ Training duration from 15 to 120 minutes. 12 programas / 8 niveles de esfuerzo / Duración de ejercicios de 15 min. a 120 min 12 Programme / 8 Leistungsniveaus / Übungsdauer von 15 bis 120 Min. 12 programmi / 8 livelli di sforzo / Durata degli esercizi da 15 min. a 120 min. 12 programma's / 8 inspanningsniveaus / Duur oefening van 15 tot 120 minuten 12 programas / 8 níveis de esforço / Duração dos exercícios de 15 min. a 120 min 12 programów / 8 poziomów trudności / Czas ćwiczeń od 15 min. do 120 min. 12 program / 8 nehézségi szint / a gyakorlatok időtartama 15 -és 120 perc között. 12 программ / 8 уровней интенсивности / Продолжительность тренировки от 15 мин. до 120 мин. 12 programe / 8 nivele de efort / Durata exercitiilor de la 15 la 120 minute 12 okruhov / 8 úrovní náročnosti / Doba cvičenia od 15 min. do 120 min. 12 programů / 8 úrovní / Délka cvičení od 15 do 120 minut 12种程序/8种运动水平/运动时间为15分钟至120分钟

Mode entraînement - Training Mode - Modo Entrenamiento - Trainingsmodus - Modalità Allenamento - Trainingsmodus - Modo Treino - Tryb treningowy - Edzés mód - Режим Тренировки - Modul Antrenament - Tréningový režim - Režim trénink - 锻炼模式

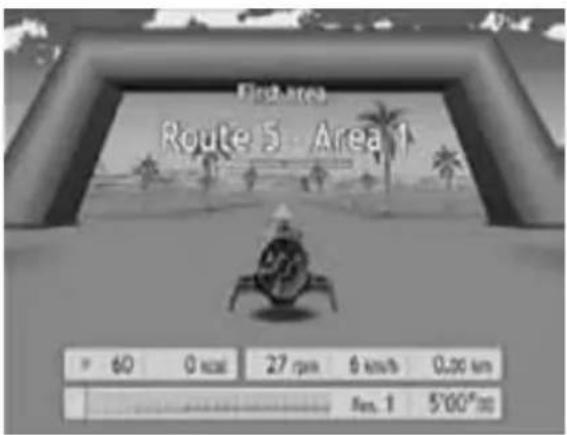

12 circuits with stops (Town, country, forest, etc.)

Circuit competition / Multi-player mode.

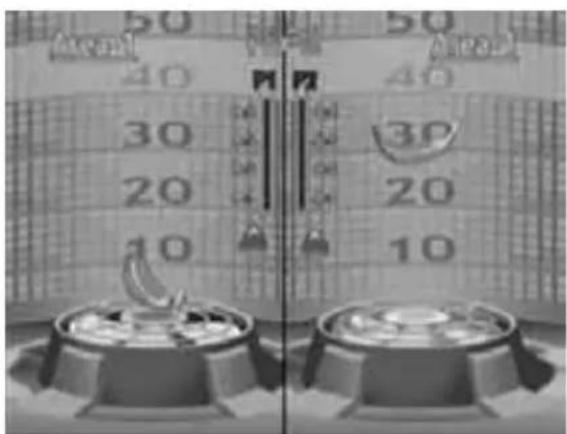

Mini Games Mode

Sporting Challenges / 1 to 8 player tournaments

Performance Monitor Mode

Daily/monthly performance monitor (Calories expended/Speed/Distance/Time/Average)

You have chosen a piece of fitness equipment by DOMYOS.

We thank you for your confidence in us. You can also find us at www.DOMYOS.com

TECHNICAL SPECIFICATIONS

Conditions for use:

• Temperature: between 5°C (41°F) and 40°C (104°F)

Left joypad

• Dimensions: 54 X 52 X 22 mm (without ring clip)
• Weight: 113 g

Right joypad

• Dimensions: 54 X 52 X 22 mm (without ring clip)
• Weight: 97 g

Game cartridge

• Dimensions: 106 X 12 X 90 mm (without ring clip)
• Weight: 67 g

Connectivity

Cable: 5 m (9.8 ft)

HEALTH WARNING

1. Before beginning any exercise program, consult your doctor. This is especially important for people aged over 35 or who have previously had health problems, and those who have not done any sport for a number of years. Read all instructions before use.

2. Warning about epilepsy

Some individuals are susceptible to epileptic seizures, including in some cases loss of consciousness, especially when exposed to certain types of strong light stimuli such as:

rapidly changing images, or repeated simple geometric figures, flashing lights or explosions.

These individuals may be at risk of seizures when they play certain video games that contain these stimuli, even if they have no history of such seizures or have never suffered from epilepsy.

If you or a member of your family have ever experienced symptoms linked to epilepsy (seizures involving loss of consciousness) when exposed to light stimuli, consult your doctor before using this product.

If you or your child experience any of the following symptoms: dizziness, altered vision, eye or muscle contractions, disorientation,

involuntary movements, convulsions, or momentary loss of consciousness, you must stop playing immediately and consult a doctor.

WARNING: If you experience dizziness, nausea, chest pain, or any other abnormal symptom, stop exercising immediately and consult a doctor before resuming training.

SAFETY WARNING

To reduce the risk of serious injury and damage to the equipment, or risk of electric shock, read the following important precautions for use before using the product.

This symbol warns of electrical danger (electric shock).

1. Only use this product in the manner described in this manual. Keep this manual for the entire life of the product.
2. The owner is responsible for ensuring that all users of this product are properly informed as to how to use this product safely.
3. DOMYOS cannot be held liable for claims of injury or damage sustained by any person or property originating from the misuse of this product by the purchaser or by any other person.
4. Use the product indoors on a flat surface, in an uncluttered place free from moisture and dust. Ensure that you have enough space to access and move around the device safely. Do not store or use this product outdoors.
5. Do not attempt to repair this product yourself. Do not open up or disassemble your product.
6. If the product does not function properly, stop using it and take the product back to your Decathlon shop.
7. Do not store your product in a humid place (by a swimming pool, in a bathroom etc.). Do not touch the product with wet hands.
8. Use the product with the adaptor provided.
9. Do not use the adaptor if the cables are damaged.
10. Leave a minimal space around the device to allow for sufficient ventilation.
11. Do not obstruct ventilation by blocking the ventilation slots with objects such as newspapers, tablecloths, curtains etc.
12. Do not place sources of naked flame, such as lit candles, on the device.
13. This device must not be used in tropical climates or in places of extreme heat.
14. The device must not be exposed to drips or splashes of water. No objects containing liquid, such as vases, must be placed on the device.
15. For proper functioning, never cover the infrared receptor.
16. Make sure the power supply cord to the transformer is easily accessible.

Electrical products must not be thrown away with household waste.

They are subject to specific selective sorting.

Dispose of batteries and, at the end of its life, your product at an authorised collection point for recycling.

Recycling your electronic waste will protect the environment and your health.

ENGLISH

TROUBLESHOOTING

Problem Check to be carried	out
The console does not come on	Check that the adaptor is properly inserted in the power supply input (marked "power in")Check that the power button (marked "power") is properly pushed in.Take out the cartridge and reinsert into the console.(carry this out with the console and television switched off).Press the "RESET" button.
No image or sound on the TV (the indicator light on the console is on).	Check that the television supports the correct format for the console (PAL).Adjust the television controls (colour, contrast etc.).Check the video connection to the television (refer to the television guide).Check that the game cartridge is properly inserted in the console.Check that the video cable is properly inserted in the "A/V out" socket on the console.Check the connection of the video cable to the SCART adaptor (for relevant countries).Check the colours match on the audiovisual cables (yellow, white, red).
Poor image qualityPoor sound quality	Check that the television supports the correct format for the console (PAL) (refer to television guide).Check that the audiovisual cables are properly connected to the corresponding devices.Take out the cartridge and reinsert into the console.(carry this out with the console and television switched off).Press the "RESET" button.
The cartridge does not go back into the console.	Check that the cartridge is inserted the right way (refer to the guide for inserting the cartridge).
The hand controllers are not working	Check that the connector cable is correctly inserted into the bike console.Check that the connector cable is correctly inserted into the DIS console.

WARRANTY

DECATHLON guarantees this product, when used under normal conditions, against defects in material and workmanship for a period of 2 years from the date of purchase, that date being taken to be the date on the till receipt.

DECATHLON'S obligation with regard to this guarantee is limited to the replacement or repair of the product, at the discretion of DECATHLON.

All products for which the warranty is applicable must be received by DECATHLON at one of its approved facilities, delivery prepaid, accompanied by adequate proof of purchase.

This warranty does not apply to cases of:

• Damage caused during transport - Improper or abnormal use - Poor assembly - Poor maintenance • Repairs carried out by technicians not accredited by DECATHLON - Use for commercial purposes

This warranty does not exclude any legal guarantees applicable according to country and/or province.

DECATHLON - 4 BOULEVARD DE MONS - BP299 - 59665 VILLENEUVE D'ASCQ - FRANCE

© 2007 DECATHLON - © 2007 SSD COMPANY LIMITED
