Product Type	V-Mount Battery Plate
Brand	Genaray
Model	BA-VMOUNT
Compatibility	V-Mount batteries (e.g., Anton Bauer, IDX)
Material	Aluminum alloy with plastic components
Dimensions (approx.)	4.0 x 2.5 x 1.0 inches (101 x 63 x 25 mm)
Weight (approx.)	0.5 lbs (225 g)
Input Voltage	14.4V – 16.8V DC
Output Voltage(s)	14.4V (battery direct), 12V regulated, 5V USB (if equipped)
Output Connectors	D-Tap (2-pin), USB-A (5V/2A)
Protection Features	Overload, short circuit, reverse polarity
Mounting Type	V-mount plate with 1/4-20 and 3/8-16 threaded holes
LED Indicator	Power indicator (red/green)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Certifications	CE, RoHS
Included Accessories	Mounting screws (1/4-20, 3/8-16), user manual
Maintenance	Wipe with a dry, soft cloth; do not use solvents
Safety Precautions	Use in dry environment only; avoid water and high humidity
Repair and Spare Parts	Contact Genaray authorized service center. No user-serviceable parts inside.

Frequently Asked Questions - BA-VMOUNT Genaray

How do I attach the BA-VMOUNT to my camera rig?

Use the included 1/4-20 or 3/8-16 screws to mount the plate onto a compatible rig or tripod head. Ensure the screws are tightened securely.

Which batteries are compatible with the BA-VMOUNT?

The BA-VMOUNT is designed for standard V-mount batteries from brands like Anton Bauer, IDX, and others. Batteries must output 14.4V to 16.8V.

Can I charge a battery while the plate is connected?

No, the BA-VMOUNT is a power distribution plate only. It does not charge batteries. Use a dedicated battery charger.

What devices can I power with the output ports?

The D-Tap port provides 14.4V and can power cameras, monitors, lights, and other equipment. The USB port (if included) delivers 5V/2A for smartphones, tablets, etc.

Is the BA-VMOUNT protected against electrical faults?

Yes, it includes overload, short circuit, and reverse polarity protection to safeguard your equipment.

How do I clean and maintain the plate?

Disconnect all power and wipe the surface with a dry, soft cloth. Do not use liquid cleaners or abrasives. Keep connectors dust-free.

What should I do if the LED indicator doesn't light up?

Check the battery connection and ensure the battery is charged. If the LED still fails, inspect for damage and contact Genaray support.

Can I use the plate in rainy or wet conditions?

No, the BA-VMOUNT is not waterproof. Use it only in dry environments to avoid short circuits or corrosion.

Are screws included for mounting?

Yes, the package comes with both 1/4-20 and 3/8-16 screws to fit standard mounting holes.

Where can I find the user manual for the BA-VMOUNT?

The manual is available for download on notice-facile.com. You can also request a translated version by email.

USER MANUAL BA-VMOUNT Genaray

Dual V-mount Adapter

USER MANUAL

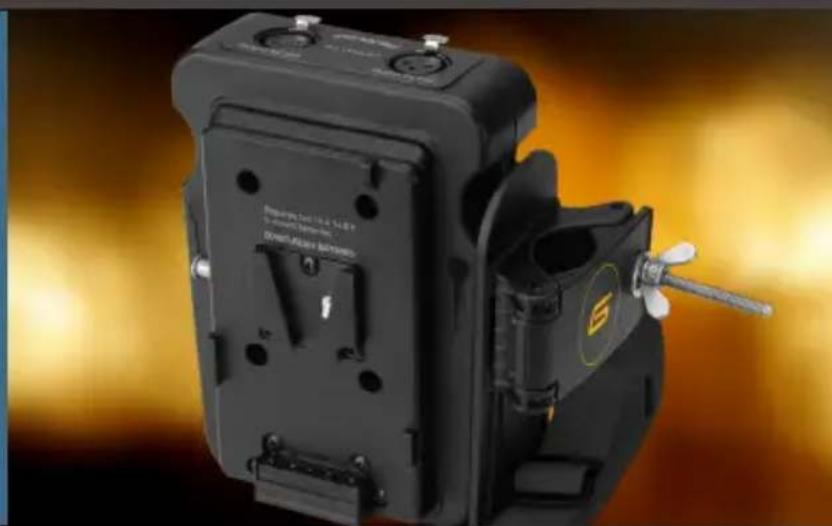

Close-up of a black mechanical device with labeled ports and a yellow circular emblem, against a warm-toned golden background (no readable text or symbols)

genaray®

Dual V-mount Adapter INTRODUCTION

THANK YOU FOR CHOOSING GENARAY

Genaray's BA-VMOUNT is a dedicated dual V-mount battery adapter for select Genaray lights. It accepts two 14.4-14.8-volt batteries and is equipped with 24-volt and 60-volt outputs. Three- and five-pin XLR cables are included for connection to your Genaray fixture. The light-stand clamp allows you to conveniently secure the adapter to a light stand to keep it out of the way and avoid cable clutter.

PRECAUTIONS

• Please read and follow these instructions, and keep this manual in a safe place.
• Keep this unit away from water and any flammable gases or liquids.
• Use only the correct, recommended voltage.

• Do not attempt to disassemble or repair the equipment—doing so will void the warranty, and Genaray will not be responsible for any damage.

• Handle the unit with care.

• Clean the unit with only a soft, dry cloth.
• Keep this unit away from children.
• Use only parts provided by the manufacturer.
  • Make sure the item is intact and that there are no missing parts.
• All images are for illustrative purposes only.

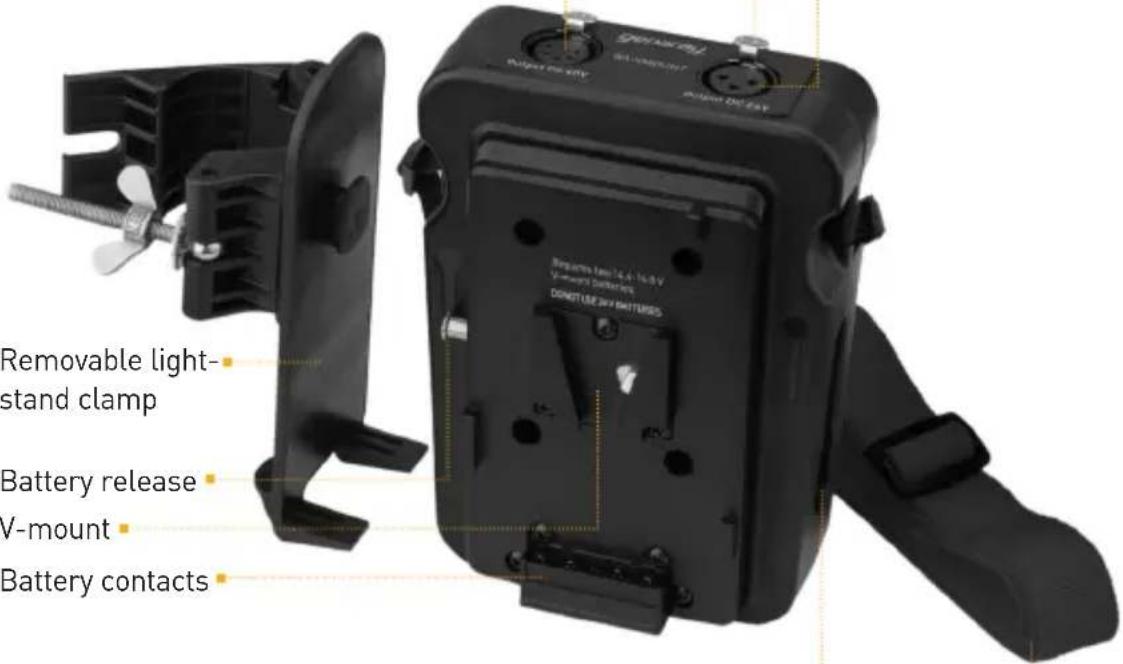

PRODUCT OVERVIEW

3-pin XLR power output

XLR release tab
5-pin XLR power output

Removable light- stand clamp

Battery release

V-mount

Battery contacts

Clamp mounting slot

Shoulder strap

OPERATING THE BA-VMOUNT

Important

The BA-VMOUNT will operate only with two 14.4-14.8-volt V-mount batteries installed. Do not attempt to power your Genaray light using a single V-mount battery.

Slide each battery into the V-mount until it locks into place.

To remove a battery, press the battery release and slide it out of the mount.

To attach the BA-VMOUNT to a light stand, loosen the wing nut, and open the clamp. Close the clamp around the light stand, and tighten the wing nut until secure.

POWERING A LIGHT

Important Ⓐ️ ⚡️

Do not attempt to power two lights from the 24 V and 60 V outputs simultaneously.

• Use the 3-pin XLR cable to connect the 24 V output to your light.
• Use the 5-pin XLR cable to connect the 60 V output to your light.

To unplug the XLR cable, press the cable release tab and remove the connector.

Close-up of a mechanical device with yellow arrows indicating a joint or adjustment mechanism (no text or symbols visible)

PRODUCT SPECIFICATIONS COMPATIBILITY

Battery Mount: V-mount (×2)

Input Voltage: DC 14.4-14.8 V (×2)

Output Voltage: DC 24 V DC 60 V

Connector: 3-pin XLR (24 V) 5-pin XLR (60 V)

Dimensions (H × W × D): 6.6 × 4.8 × 3.4 in. (16.8 × 12.2 × 8.6 cm)

Weight: 1.5 lb. (680 g)

Please refer to: genaray.com/goto/overview/BA-VMOUNT for compatible Genaray lights.

ONE-YEAR LIMITED WARRANTY

This Genaray product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. Genaray's responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at Genaray's discretion, of any product that fails during normal use of this product in its intended manner and in its intended environment. Inoperability of the product or part(s) shall be determined by Genaray. If the product has been discontinued, Genaray reserves the right to replace it with a model of equivalent quality and function.

This warranty does not cover damage or defect caused by misuse, neglect, accident, alteration, abuse, improper installation or maintenance. EXCEPT AS PROVIDED HEREIN, GENARAY MAKES NEITHER ANY EXPRESS WARRANTIES NOR ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. This warranty provides you with specific legal rights, and you may also have additional rights that vary from state to state.

To obtain warranty coverage, contact the Genaray Customer Service Department to obtain a return merchandise authorization (“RMA”) number, and return the defective product to Genaray along with the RMA number and proof of purchase. Shipment of the defective product is at the purchaser’s own risk and expense.

For more information, or to arrange service, visit www.genaray.com or contact us at [e-mail].

© 2019 Genaray. All Rights Reserved
