Product Type	GPS Navigation Device
Brand	Rand McNally
Model	TND 740
Display Size	7-inch Touchscreen
Dimensions	5.7 x 3.4 x 0.7 inches
Weight	7.0 oz
Power Source	Rechargeable Lithium-Ion Battery; 12V Car Adapter
Battery Life	Up to 3 hours
Memory	Internal (8GB); microSD Slot for Expansion
Map Coverage	Preloaded North America Maps
Navigation Features	Voice-Guided Directions, Lane Guidance, Traffic Updates, Points of Interest
Connectivity	Wi-Fi, USB
Audio	Built-in Speaker
Mounting	Suction Cup Windshield Mount Included
Maintenance	Clean with a Soft, Dry Cloth; Avoid Harsh Chemicals
Safety	Use Mounted on Windshield; Do Not Place in Direct Sunlight
Spare Parts & Repairability	Contact Rand McNally Support; Non-User Serviceable
General Information	Includes Lifetime Map Updates

Frequently Asked Questions - TND 740 Rand McNally

How do I update the maps on my Rand McNally TND 740?

Connect the device to Wi-Fi and go to Settings > Map Updates. You can also update via USB by downloading the Rand McNally Dock software on your computer.

Why won't my TND 740 turn on?

Ensure the battery is charged (press the power button for 10 seconds). If using the car adapter, check that the cigarette lighter socket works. Try a hard reset by holding the power button for 20 seconds.

How do I set a home address?

From the main menu, select My Places > Home, then enter your address. Alternatively, you can save your current location as home.

Can I use the TND 740 without a car charger?

Yes, the device has a rechargeable battery. However, battery life is limited (up to 3 hours) and is intended primarily for temporary use when not connected to power.

How do I adjust the volume?

While navigating, tap the speaker icon on the screen to adjust volume. You can also go to Settings > Audio to adjust voice volume, tone, and mute.

What should I do if the touchscreen is unresponsive?

Clean the screen with a soft, dry cloth. If still unresponsive, restart the device by holding the power button for 10 seconds. Avoid using screen protectors not designed for touchscreens.

How do I avoid toll roads on my route?

When planning a route, select Route Options and check 'Avoid Tolls'. You can also set this as a default in Settings > Navigation.

Is the TND 740 compatible with backup cameras?

No, the TND 740 does not support backup camera input. It is designed solely for GPS navigation.

Can I search for points of interest (POIs) along a route?

Yes, while navigating, tap Search and select a category like 'Gas Stations' or 'Restaurants'. The device will show POIs along your current route.

How do I perform a factory reset?

Go to Settings > System > Factory Reset. Confirm the reset. This will erase all personal data and restore default settings.

USER MANUAL TND 740 Rand McNally

TND™ 740

USER MANUAL

FCC Compliance Statement

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and may cause harmful interference to radio communications if not installed and used in accordance with the instructions. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet that is on a different circuit from the GPS unit.
• Consult the dealer or an experienced radio/TV technician for help.

When using the device, ensure that the antenna of the device is at least 20 cm away from all persons.

IC Compliance Statement

This device complies with Part 15 of the FCC Rules and Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:

1. This device may not cause interference, and
2. This device must accept any interference, including interference that may cause undesired operation of the device.

This Class B digital apparatus complies with Canadian ICES-003.

IC Caution

Intentional or unintentional changes or modifications to the equipment not expressly approved by Rand McNally could void the user's authority to operate the equipment.

The Global Positioning System (GPS) is a constellation of satellites that a GPS receiver uses to calculate geographical positions. To determine a position, data from at least three satellites is required. To determine elevation, the data from four or more satellites is required. Accuracy of the positioning varies from 10 feet to several hundred feet, depending on vehicle placement and the surrounding environment.

Geographical terrain (such as mountains), man-made structures (such as highway overpasses, bridges, and tall buildings), as well as weather can interfere with the GPS signal. For best GPS reception, position the device and mount with a clear line of sight to the sky. Some vehicles may have a limited view of the sky due to metal sun shields or a metallized windshield coating.

Map data includes the geographical coordinates for address locations and points of interest (POIs). With GPS reception, your device calculates a route to your selected location.

Customer Support

Call toll-free:

800-333-0136

Service hours:

Monday through Friday, 7 a.m. to 6 p.m. CT (Except official holidays)

E-mail:

[e-mail]

Table of Contents

1. Your Device 1

Safety Information ....1

What's Included 2

Charge the Battery 2

Install the Mount....2

Your TND 3

2. Settings 4

Main Menu 4

Guide to Truck Tools and Device Preferences ....5

Truck Info 6

General Preferences 7

Route Preferences 8

Map Preferences 9

Warnings 10

3. Destinations 11

Tips 12

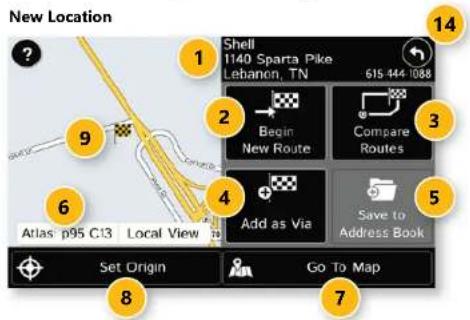

New Location 13

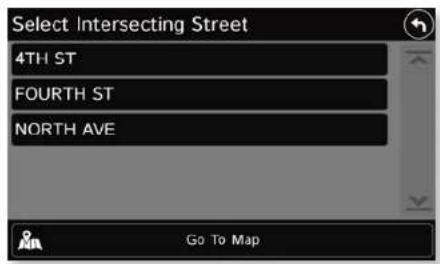

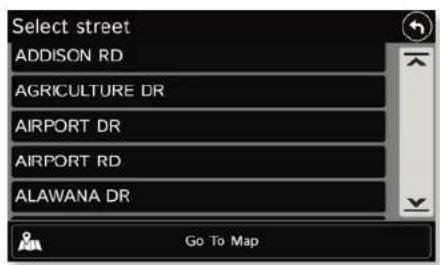

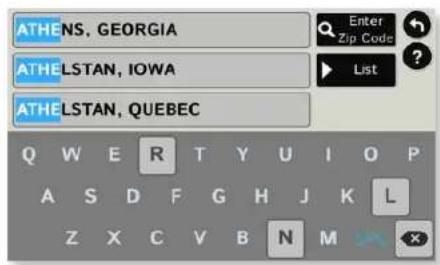

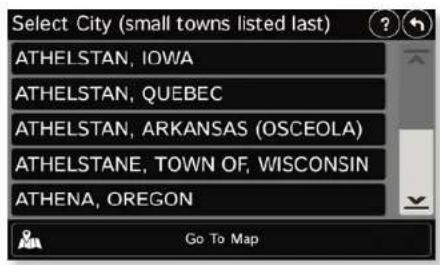

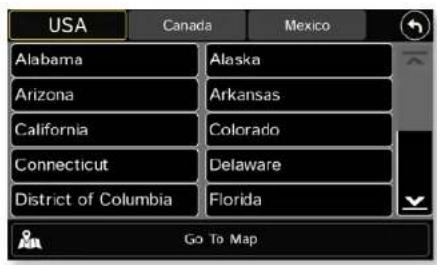

Route to Address/City/Intersection 14-16

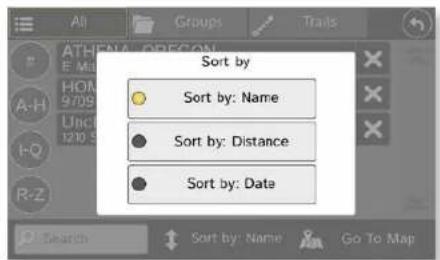

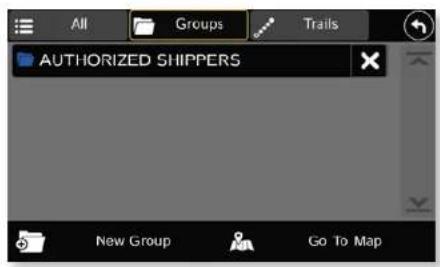

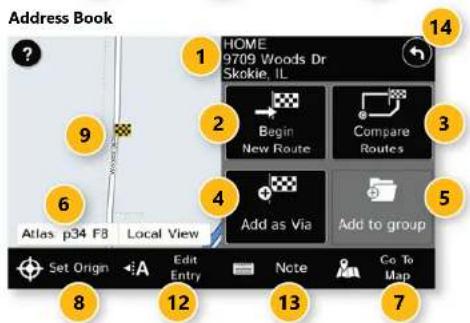

Address Book 17-18

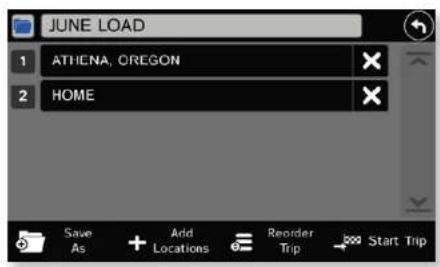

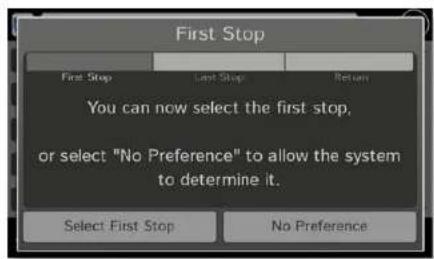

Multi-Stop Trips 19-21

Tap on Map 22

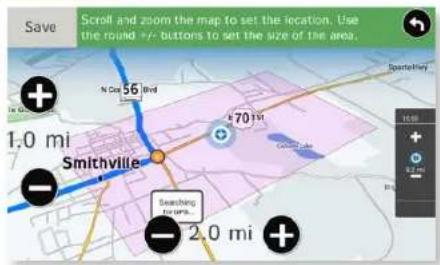

AvoidList 23

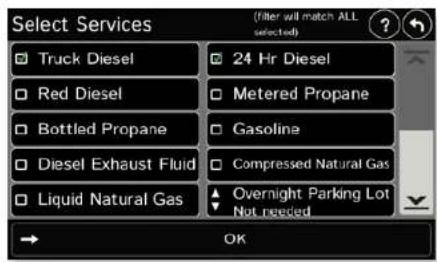

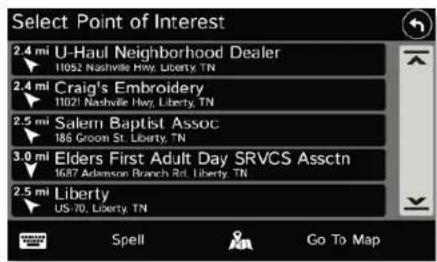

Points of Interest (POIs) 24-27

Local Search....28

Confirmation Windows....29

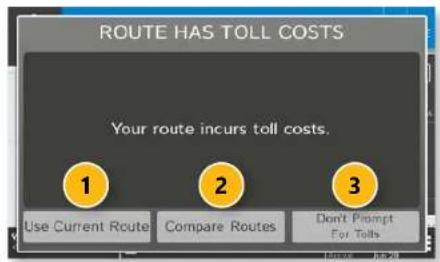

Toll Costs, Route Compare....30

4. Maps & Routing....31

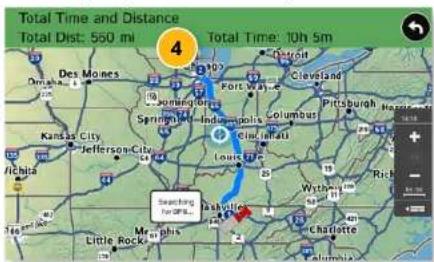

Route Map Window 31

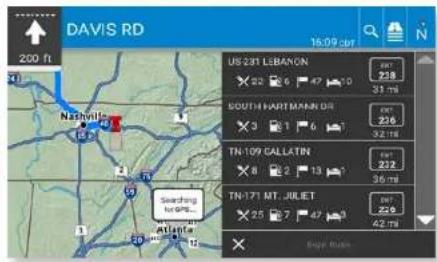

Exits Quick View 32

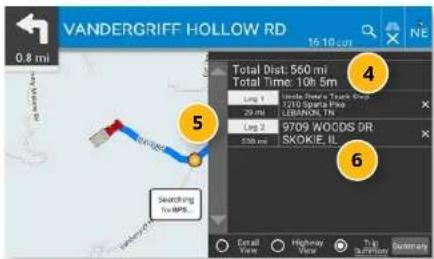

Directions Slide-Out List 33

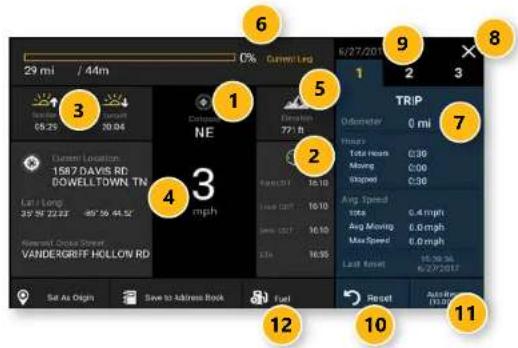

Virtual Dashboard 34-35

Junction View, Turn View 36

Location and Route Options 37

5. Tools & Features 38

Wi-Fi 38

Weather 39

Fuel Prices 40

Traffic 41-42

Truck Tools 43

Status 44

Mileage 45

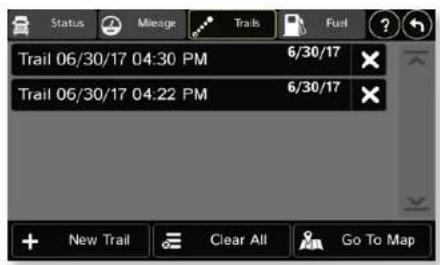

Trails 46

Fuel Logs 47

Quick Planner 48

Road Atlas Information 49

Calendar, Notes, Unit Converter, Calculator ....50

5.DriverConnect 51

6. Connect With Rand....52

Tell Rand 52

More Information 53

? Look for this icon for help tips on many screens.

Note: Some screens may appear slightly different, depending on device model and software version.

Caution: Important Safety Information

Navigation

• Use this navigation device at your own risk.
• Use this navigation device only when it is safe to do so.
• Look at the display only when it is safe to do so.
• Traffic regulations always have priority over any instructions from the navigation system.
• Follow navigation system instructions only when local regulations and road traffic allow you do so.
• Make sure that the mount is securely mounted and properly adjusted before each trip.
• Note: If you do not understand the spoken instructions or are unsure of what to do next, refer to the navigation map on your navigation device.

Installation

• Make sure that the mount does not impair the driver's visibility.
• Do not attach the mount within the airbag deployment zone.
• When installing the mount, make sure that it does not pose a risk in the event of an accident.
• Do not run cables directly next to safety-relevant devices and power supplies.
  • After installation, check all safety-relevant equipment.
• Connect the wall charger to a 120V or 240V outlet only.
• Connect the vehicle charger to a 12V outlet only.

Device

• Do not use sharp-edged objects on the device touch screen.
• The device is not waterproof and is not protected against water damage.
• Protect the device from extreme temperatures. Operating temperature for the device is between 32 degrees F and 120 degrees F.
• Do not open the navigation device casing.

• Do not attempt to replace the battery. Contact Rand McNally Customer Support with questions about the battery.
  • Always follow local regulations when disposing of this device.

• Note: Make sure that there are no kinks in the cable and that it will not be damaged by any sharp objects.

• Note: Use only a moist cloth to clean the navigation device.
  • Note: Do not pull the cable to unplug the unit.

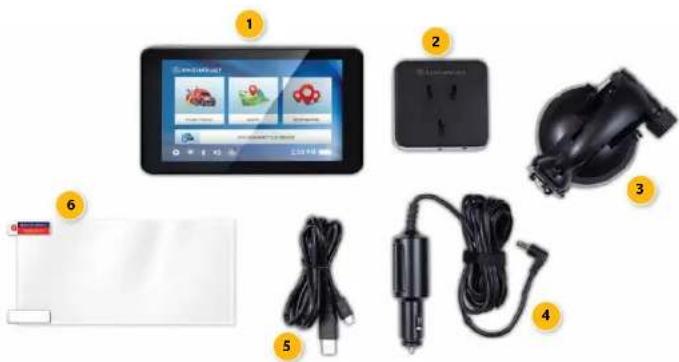

What's Included

1 And McNally TND
2 magnetic mount
3 Windshield mount with suction cup
4 éhicle charger
5 \$B cable
6 Ati-glare screen protector

Charge the Battery

It is recommended that the device is always connected to a power source during use.

Note: The vehicle may need to be on for the device to charge.

Install the Mount

Note: Follow all local regulations governing the placement of the mount.

1. Select an area with a line of sight to the sky and GPS satellites.
2. Clean and dry the mounting area.
3. Remove the suction cup protective film.
4. Adjust the angle of the mount using the thumbscrews.
5. Pull the suction cup lever up to release suction.
6. Plug the power cord into the device and the vehicle's 12-volt power source.
7. Optional: To use your vehicle's speakers, connect an AUX cable from the Magnetic mount AUX out to your vehicle's AUX in port.
8. Slide the device onto the mount.
9. Place and hold the mount suction cup against the mounting surface.
10. Press the suction cup lever down until it snaps into place.
11. Adjust the device so that it can be easily seen and does not block the driver's line of sight.

TND ^TM 740

TND™ 740 Smart Mount

2. Settings

Main Menu

1 Truck Tools

Select to enter truck information, set warnings, and access other tools.

2 Go To Map

Tap to view location on the map.

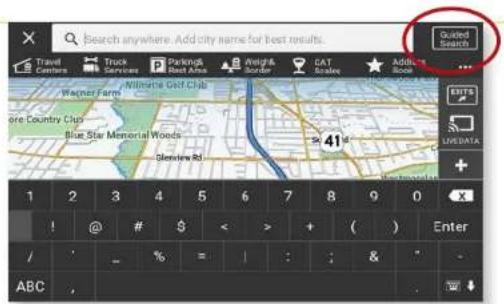

3 Guided Search

Tap to select an address or point of interest (POI).

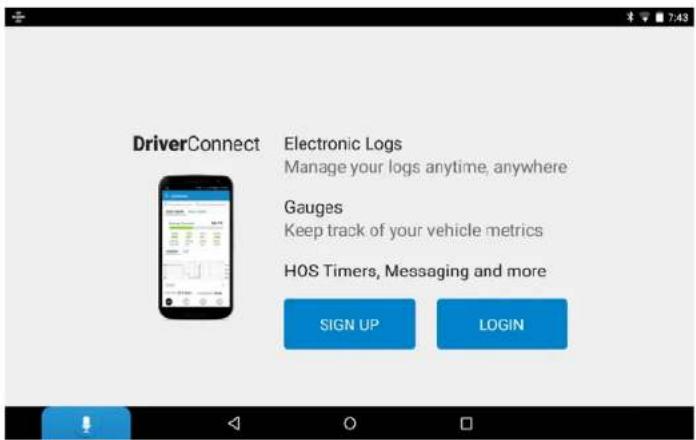

4 DriverConnect

Tap to launch the DriverConnect app and log hours of service (HOS), Driver-Vehicle Inspection Reports (DVIRs), and other compliance features.

Note: You must connect the TND to Rand McNally electronic logging device (ELD), such as the ELD-50 or DC-200, in order to use this software.

5 Battery Power and Time Indicators

6 System Updates

Tap to check for software or system updates.

7 Volume

Tap to increase or decrease spoken instructions volume, and mute or unmute spoken instructions.

Note: You can also tap this icon when it appears on the map screen to mute/unmute.

8 Bluetooth

Tap to set up a Bluetooth connection.

9 Wi-Fi

Tap to select a Wi-Fi network or hotspot.

10 Settings

Tap to set device, route, or map preferences.

2. Settings

1. Tap ▲ and ▼ to view the options.
2. Tap the option to be set.
3. Enter the new information.
4. Tap X to close and save changes.

Truck Tools Page

Truck Info

Hazmat Type....6

Weight (Empty) 6

Weight (Loaded) 6

Height 6

Width 6

Trailers 6

Number of Axles 6

General Preferences

System Settings....7

Skin Type 7

Vehicle Type 7

Yard Time Zone....7

Day/Night Mode....7

My Custom POIs 7

Mileage Log....7

Screen Click 7

Tutorial 7

Voice Name 7

Language 7

Units 7

Load Prompt/Notification 7

Toll Prompt/Notification 8

Clock Setting 8

Contact & About 8

Device Preferences

Page

Route

Use Traffic 8

Recalculation 8

Freeways 8

Ferries 8

Tunnels 8

Turn Announcements 8

Junction View Distance 8

ETA Adjustment 8

Route 8

Tollways 8

U-Turns 8

Cross Country Borders 8

Dirt Roads 8

Manage Avoid List 8

Fast Recalc 8

Map

Map Style 9

Map Auto Zoom 9

Lane Guidance 9

POI Icons 9

Truck POI Icons 9

Address Book Icons 9

Truck Icon 9

Bus Icon 9

Car/Light Truck Icon 9

Map View Mode 9

Route Color 9

Device Preferences

Page

Warnings

Warning/Alert Prompts 10

Auto Dismiss Warnings 10

Curve Warnings 10

Hill Warnings....10

Engine Brake Warnings 10

Narrow Road Warnings....10

State/Province Border Alert 10

State/Province

Border/Timezone Change 10

Toll Booth Alert 10

Construction Area 10

Speed Limit Warning....10

Speed Limit Change Warning 10

Weigh Station....10

Truck Info Options

Hazmat Type

None

Explosives

Gases

Flammable Liquids Flammable Solids

Oxidizers

Poison

Radioactive

Corrosives

Other

PIH

Weight (Empty) Use the + and - buttons or enter a numeric value by tapping the calculator.

Weight (Loaded) Use the + and - buttons or enter a numeric value by tapping the calculator.

See Load Option in

Preferences > General (page 8)

or on the Main Menu (page 4).

Height Use the + and - buttons or enter a numeric value by tapping the calculator.

Truck Info Options

Width Use the + and - buttons or enter a numeric value by tapping the calculator.

Trailers

Straight

48'

53'

Double

Triple

Number of Axles Use the + and - buttons.

Preferences

• Tap ▲ and ▼ to view the options.
• Tap the option to be set.
  • Enter the new information.
  • Tap X to close and save changes.

General Preferences Options

System Settings	System Settings
GPS Repair
System Update

Skin Type

Modern Classic

Defaults to Modern. Use Classic skin type for the look and feel of older TND models.

Vehicle Type	Truck
Car/Light Truck	Bus

Yard Time Zone	Hawaii
	Alaska

Pacific Time

Arizona

Mountain Time

Central Time

Indiana (East)

Atlantic (Canada

Newfoundland

Day / Night Mode

Automatic

Always Day

Always Night

General Preferences Options

My Custom POIs Manage Custom POIs Select a Category to Edit Hide All Icons on Map Go to Map

Mileage Log Truck/Bus Only

Car Only

Truck & Car

Don't Log Mileage

Screen Click Click Off Click On

Tutorial View Tutorial and Tips

Voice Name	Allison
	Samantha
	Susan
	Tom

Language English (Basic) English (Advanced)

Español

Français

For the screen and spoken instructions.

Units	U.S. Standard	Metric
	Auto Select

Load Prompt/ Prompt Notification Always Loaded

Preferences - continued

General Preferences Options

Toll Prompt/Notification	EnabledDisabled
Clock Setting24-Hour Clock	12-Hour Clock
Contact & About	Tap to show version information andcopyrights.

Route Preferences Options

Note: The default settings for your device were optimized for the vehicle route. Use the options below to fine-tune these settings.
Use Traffic	OnOff
RecalculationAuto Recalculate	Manual Recalculate
FreewaysAvoid FreewaysAvoid Small RoadsPrefer Freeways	Allow All (Default)
FerriesAvoid Ferries	Allow Ferries
TunnelsAvoid Tunnels	Allow Tunnels
Manage Avoid List	RoadsStates/ProvincesAreasRoutes

Route Preferences Options

Turn Announcements Set three distances at which you want to be warned about an upcoming turn. The first announcement will be the farthest from the turn and the third the closest.

Junction View Distance Tap - r + to set the distance

ETA Adjustment Increase ETA more Increase ETA some ETA OK Decrease ETA some Decrease ETA more

Route Fastest Route Shortest Route

Tollways Allow Tollways Avoid Tollways

U-Turns Allow U-Turns Avoid U-Turns

Cross Country Borders Avoid Crossing Borders Allow Crossing Borders Dirt Roads Avoid Dirt Roads

Manage Avoid List Roads States/Provinces Areas Routes

Fast Recalc Off On

Preferences - continued

Map Preferences Options

.Map Style	Light
	Dark
High Contrast

Map Auto Zoom Off

On, Auto Scale

On, Street Scale

On, City Scale

On, State Scale

Set to auto scale to keep the current vehicle position and the next turn in the map view at all times. Set to street/city/state scale to specify the maximum scale of the zoom.

Note: When in 3D Map mode with Auto Zoom on, the map will change to North Up at certain zoom levels. Also, the visual turn screen will not appear in 3D mode with Auto Zoom on because a close up view of the turn is not needed.

Lane Guidance Off

On

POI Icons Off

On

Select icons to display on map.

Select restaurants, banks, gas stations, etc. to display on the map. Tap any category to fill in the square and display those icons.

Map Preferences Options

Truck POI Icons Off

On

Select icons to display on map.

Address Book Icons Off
On

Truck Icon	2D
	3D

Bus Icon	2D
	3D

Car/Light Truck Icon	2D
	3D

Scroll left or right to select the vehicle icon and color to display on the map.

Map View Mode	Heading Up
North Up
3D View

Route Colorset the route color.

Move the slider to the left or right to

Preferences - continued

Warning Preferences Options

Warning/Alert Prompts None

Audio & Visual

Visual

Audio

Auto Dismiss Warnings Never

After 2 Seconds

After 10 Seconds

After 30 Seconds

Curve Warnings Set warning distance to curves areas by using the + and - buttons.

Hill Warnings Set warning distance to upcoming hills areas by using the + and - buttons.

Engine Brake Warnings Set warning distance to begin braking areas by using the + and - buttons.

Narrow Road Warnings Set warning distance to narrow roads areas by using the + and - buttons.

State/Province Set warning distance to state/province

Border Alert

borders by using the + and - buttons.

State or Province Border/ Off

Timezone Change On

Warning Preferences Options

Warning Display Size

Small Bar

Full Screen

Toll Booth Alert

Set warning distance to toll booths by using the + and - buttons.

Construction Area

Set warning distance to construction buttons.

areas by using the + and - buttons.

Speed Limit

Set warning distance to speed limit - buttons.

changes by using the + and - buttons. Set the amount over the posted limit at which the warning appears.

Set a user-defined maximum speed to be warned whenever the vehicle exceeds that speed, regardless of limits.

Speed Limit Change

Set warning distance to a change in the speed limit by using the + and - buttons.

Weigh Station

Set warning distance to weigh stations s.

by using the + and - buttons.

Note: To turn warnings off completely, tap "-" until OFF displays.

3. Destinations

Destinations

To access this window, tap Guided Search on the map.

1 Back

Tap to return to the map.

2 NewLocation

Tap to route to a new location by address, city center, intersection, or latitude/longitude.

3 History

Tap to route to a recently entered location.

4 Address Book

Tap to view a list of saved locations.

5 Multi-Stop Trips

Tap to view a list of saved multi-stop trips or to create a new one.

6 Points of Interest/POIs

Tap to search for a point of interest (POI) such as a gas station, restaurant, etc.

7ocal Search

Tap to search for local businesses, restaurants, and more by name or keyword. (Note: Wi-Fi connection required.)

3. Destinations

Tap to view a longer list of names g the typed characters.

Add a space.

Delete last character and move

Back one space.

ther symbol.

Helpful Tips on Entering Addresses

Auto-Complete Feature:

Enter the first few characters in a name and a short list displays a couple of names that start with the typed characters.

On the keyboard, the only keys available are for the next valid characters in a search name.

Continue entering characters until the searched-for name displays in the list. Tap on the name to select it.

Cities:

Some cities with common names such as "Athens" have several types of names associated with a city.

If a name does not display, continue typing characters until the name you are looking for displays in the list.

Streets:

If the next letter in the street name can not be selected on the keyboard, tap Expand Search to search a greater area.

The Expand Search button can also help locate addresses that may actually be in a different town, spelled slightly differently, or in a neighboring town.

Note: If you're entering a State or County Route, it's typically best to first either enter the State or County initials (for example, State Road 535 would be entered as "SR") but you may also need to try other options, such as "State Road" or "CA" for California, for example.

3. Destinations

New Location

1 Address

Tap to route to an address by entering the city, street, and number, or by entering the zip code and street.

2 City Center

Tap to route to a city center.

3 Intersection

Tap to route to two intersecting roads in a city.

4 Back

Tap to return to the previous window.

5 Enter Lat/Long

Tap to route to a location by latitude and longitude.

6 Go To Map

Tap to return to the map.

3. Destinations > Addresses

Search for an Address

1. Tap Guided Search > New Location > Address.
2. Type the first few characters in the city name. As you type, a short list of matching city names displays.
3. Tap on a city to select it.

- If the city is not displayed on the short name list, continue typing characters in the city name or tap List to display a long list of city names. Use the up and down arrows to view all cities/states. Tap on a city to select it.

Note: If a city name appears twice within a state, you may need to check both for your specific address.

1. Or tap Enter Zip Code. Type the zip code.
2. Type the first few characters in the street name, or if the next characters of the street name cannot be selected on the keyboard, tap Expand Search and search a wider area.
3. Tap on the street name from the displayed list.
4. Tap the house number or tap List to show a list of address ranges and select a range.

Note: To enter the House Number before the street, tap this button in step 5. This preference will be saved for subsequent address entry.

1. Tap on the street number range from the list. The Confirmation Window displays.
2. Tap Begin New Route to navigate to the location.

3. Destinations > Addresses

Route to a City Center

1. Tap Guided Search > New Location > City Center
2. Type the first few characters in the city name.
3. Tap on the city/state name. The Confirmation Window displays.
4. Tap Begin New Route to navigate to the location.

Route to an Intersection

1. Tap Guided Search > New Location > Intersection.
2. Type the first few characters in the city name.
3. Tap on the city name.
4. Type the first few characters in the primary street name, or if the next characters of the street name cannot be selected on the keyboard, tap Expand Search and search a wider area.
5. Tap on the street name in the list.
6. Type the first few characters in the intersecting street name.
7. Tap on the intersecting street name. The Confirmation Window displays.
8. Tap Begin New Route to navigate to the location.

3. Destinations > Addresses

Route to a Latitude/Longitude

1. Tap Guided Search > New Location > Enter Lat/Long
2. Tap in the Latitude field.
3. Enter the latitude of the location and tap Enter.
4. Tap in the Longitude field.
5. Enter the longitude of the location and tap Enter.
6. Tap Go. The Confirmation Window displays.
7. Tap Begin New Route to navigate to the location.

Note: There are two ways to enter latitude/longitude: by decimal degrees or by degrees, minutes, and seconds.

Address Book

Add Locations to the Address Book from the Confirmation Window

1. Tap Save to Address Book.
2. Tap Yes to accept the default name or tap No to display a keyboard.
3. Type the name of the location and tap Enter to save the location in the Address Book. The Confirmation Window re-displays.

Entries

• Tap Guided Search > Address Book. Entries are alphabetically sorted by Name.
  • To sort by Distance or Date, tap Sort By.
• Use the up and down arrows to scroll through the list or use the alphabet buttons on the left.
• Tap the Search field to search the Address Book by keyword.
• The notepad icon indicates a note has been added for this location.

Route to an Address Book Location

1. Tap Guided Search > Address Book.

• Tap on the All Addresses tab or
- Tap on the Groups tab.

1. Tap on an address to select it. The Confirmation Window displays.

2. Tap Begin New Route to navigate to the location.

3. Destinations > Address Book

Create a Group

1. Tap Guided Search > Address Book.
2. Tap on the Groups tab.
3. TapNew Group.
4. Type the group name.
5. To select a different color folder, tap
6. Tap on a color, then tap Close.
7. When finished, tap Enter.

Tap on the ✗ next to a group to delete the group.

Addresses will still be saved in the Address Book.

Note: You can also choose to display address book icons on the map.

Add an Address to a Group

1. Tap Guided Search > Address Book.
2. Tap the Groups tab.
3. Tap on the group you want to add an address to.
4. Tap New Location.
5. Tap Enter New Address, History, Address Book, or POI
6. If you selected:

• History, Saved, or POI, the selected location is added to the group.
- Enter a New Address, tap Yes to accept the default name or tap No to display a keyboard and enter a new name.

Remove an Address From a Group

1. Tap Guided Search > Address Book.
2. Tap on the Group tab.
3. Tap on the Group you want to remove the address from.
4. Tap on the ✗ next to the address to be removed.
5. TapYes

3. Destinations > Multi-Stop Trips

Create a Multi-Stop Trip

1. Tap Guided Search > Multi-Stop Trips.
2. TapNew Trip.
3. Type the trip name.
4. To select a different color folder, tap
5. Tap on a color, then tap Close.
6. When finished, tap Enter.

Note: A multi-stop trip can include up to 50 stops.

Add a Stop

Note: You can add locations in the order you want to route to them or reorder stops later

From the Main Menu:

1. Tap Guided Search > Multi-Stop Trips.
2. Tap on the route.
3. TapAdd Locations.
4. To add an address, tap Enter New Address, History, Address Book, or POI.

5. A Confirmation Window asks if you want to add another stop. Tap:

6. Yes to add another stop

7. No if the route is complete.

8. Tap Back to save changes.

Remove a Stop

1. Tap Guided Search > Multi-Stop Trips.
2. Tap on the route.
3. Tap on the X next to the stop to be removed.
4. TapYes

3. Destinations > Multi-Stop Trips

Reorder Routes

Optimize Automatically

After all locations have been added to a multi-stop trip, you can run the optimizer wizard to organize your trip.

1. Tap Guided Search > Multi-Stop Trips.
2. Tap on the route you want to optimize.
3. Tap Reorder Trip
4. Tap Automatic/Optimize.
5. Tap Select First Stop and select the first stop, or No Preference.
6. Tap Select Last Stop and select the last stop, or No Preference.
7. Tap Yes to return to your current location to complete the route or No to complete the route at the last stop.
8. Tap Start Trip to begin the route.

Note: There is a limit of ten stops that can be optimized automatically.

Reorder a Route Manually

1. Tap Guided Search > Multi-Stop Trips.
2. Tap on the route you want to optimize.
3. Tap Reorder Trip.
4. Tap Manual.
5. Tap on the stop to be moved and tap the arrows to move stops up or down.
6. When finished, tap OK.
7. Tap Start Trip to begin the route.

3. Destinations > Multi-Stop Trips

Select and Run a Saved Route

1. Tap Guided Search > Multi-Stop Trips.
2. Tap on the route to select it.
3. Tap Start Trip. The Confirmation Window displays.
4. Tap Begin New Route to navigate to the location.
5. TheTND ^™ calculates the route to your first stop. When you have reached the stop, a message displays.

6. Tap:

7. Next Stop - To calculate a route to the next stop in the route.

8. Skip Next Stop - To skip the next stop and calculate a route to the stop after the next one.
   • End Current Trip - To end the route at the current stop.

Note: To view your entire trip, select Summary Map View from the Route Display Options.

Delete a Route

1. Tap Guided Search > Multi-Stop Trips. The Multi-Stop Trips window displays.
2. Tap on the X next to the route to be deleted.
3. A confirmation message displays.

4. Tap:

5. Yes to delete the route.

6. No to keep the route.

3. Destinations > Tap Map

Tap on the Map

When you tap on the map screen, the crosshairs display.

1 Route to Here

Tap Begin New Route to navigate to the location.

2 Set Origin

Set the location as the starting point of the route.

3 Save to Address Book

Add the location to your address book.

4 Add as Via

Add a via—an interim stop between the origin and the destination.

5 Avoid

Tap to avoid the route, road, or area, or to detour.

Avoid Options

Avoid Route

Avoid Area

Avoid List

From the map, set specific locations to avoid. Tap on the map and select Permanent Avoid. Choose Avoid Route, Avoid Road, or Avoid Area. Or, if the location is along an active route, choose Detour.

Avoid Route

Choose whether to avoid an upcoming distance on an active route, in the left column, or a specific road section, in the right column. Or, select Avoid Entire Route. The route is recalculated and the avoided sections are added to the Avoid List, under Routes.

Avoid Road

Add the selected road segment to the Avoid List, under Roads.

(Note: Reposition the map after zooming in or out to be sure to select the right location.) Road segments that have been permanently avoided are shown in pink on the map when zoomed in. Tap on a segment and tap Remove Avoid to remove the segment from the Avoid List.

Detour

Detour around a road segment on an active route. The route is recalculated, but the road segment is only avoided temporarily and does not appear on the Avoid List. To cancel the detour, tap the icon in the lower left-hand corner of the map screen and select Detour.

Avoid Area

Set an area on the map to avoid. Increase/decrease the size of the area using the + and -buttons. Tap Save to add the area to the Avoid List, under Areas. Enter a name for the area. If an active route has been entered, the route does not recalculate. Avoided areas are shown on the map in pink.

To remove items from the Avoid List, tap Manage Avoid List in Preferences > Route. Tap the ✗ to remove. Tap Roads in the Avoid List to view avoided roads on the map. You may need to re-enter your destination to recalculate an active route.

3. Destinations > POIs

Points of Interest (POIs)

1 My Truck
Tap to search for a point of interest near the current vehicle location.
2 City
Tap to search for a point of interest in a city.
3 MyRoute
Tap to search for a point of interest along the vehicle route.
4 Destination
Tap to search for a point of interest near the route destination.
5 Back
Tap to return to the previous window.
6 Custom POI
Tap to select a custom POI location.
7 Quick Stops
Tap to find a truck-friendly POI near the current truck location.
8 Go to Map
Tap to return to the map.

3. Destinations > POIs

Points of Interest (POIs)

1 Travel Center

Tap to search for a travel center with truck amenities. (See page 28 to filter by amenities.)

2 Truck Services

Tap to search for a truck services POI. (See page 28 to filter by amenities.)

3 Parking & Rest Areas

Tap to search for truck parking or a rest stop.

4 Weigh Station/Border Crossings

Tap to search for a truck weigh station and international border crossings.

5 CAT Scales

Tap to search for a CAT scale location.

6 Dealers

Tap to search for a truck dealership.

7 Other Categories

Tap to select a consumer (non-truck) related point of interest.

8 Back

Return to previous window.

Other Categories

1. Tap Guided Search > Points of Interest.
2. Select a search type (My Truck/My Car, City, My Route, End of Day, or Destination).
3. TapOther Categories.
4. Tap on a category. (For example, tap Hospital/Emergency.)
5. If necessary, tap on a subcategory type. (For example, tap Pharmacy.)
6. Tap on a location from the list or
7. Tap All.
8. Tap on the Spell button to display the keyboard.
9. Type the first characters in the POI name.
10. Tap on the POI name in the displayed list.

Select and Filter Travel Center Amenities and Truck Services

Truck-related Travel Center points of interest can include over 70 different types of amenities. To select only the travel centers with the amenities that you are interested in, filter your search results.

1. Tap Guided Search > Points of Interest
2. Select a search type (My Truck/My Car, City, My Route, End of Day, or Destination).

3. Tap Travel Center or Truck Service.

4. TapSelect Services

5. Click on the check box of each amenity to be included in the search.

6. TapOK. The Travel Center window displays POI locations with your selected amenities.

7. Tap on a location from the list.

8. A check next to Filter indicates the search terms have been applied. Tap Filter to return to general search results.

Rate a Truck Point of Interest

You can rate truck POIs from the Confirmation Window.

For each POI, the top row indicates the community rating from fellow drivers for the point of interest. The bottom row indicates your individual rating.

1. Tap on the POI Ratings button.
2. Use - and + rate the facility.
3. Tap Create Comment and type a personal comment on the facility.
4. Tap Enter to save the comment.
5. TapBack to save changes.

3. Destinations > Local Search

Note: This feature requires a Wi-Fi connection.

Use Local Search to search the Internet for a restaurant, business, or any type of location by name, keyword, or category. Tap Guided Search > Local Search.

Choose whether to search:

1 areyour truck
2 inspecific city
3 areyour destination

Select a category, or tap Keywords to search using a specific name (e.g., "Subway") or a keyword ("sandwich").

4 Tap Nearby Food to show a list of area restaurants based on your current location.
5 Tap My Local History to show a list of previous searches.

3. Destinations > Confirmation Windows

Screens differ according to destination type:

Confirmation Windows

1 DestinationAddress

The selected location address.

2 Begin New Route

fato route to destination.

3 Compare Routes

Tap to choose between two routes

4 dN as Via

Add this location as an interim stop between the origin and destination. This automatically makes the current route a multi-stop trip.

5 Save to Address Book

Add the location to the Address Book or add to Address Book group. (See page 18).

6 Atlas

Cross-reference to printed Rand McNally Motor Carriers' Road Atlas. (Page numbers apply to the most recent Atlas.)

7 oGto Map

Tap to view this location on a map.

8 Set Origin

Tap to set the location as the starting point of a route.

9 ap Preview

plays a preview of the destination location on the map.

10 emails

Tap to view phone number and amenities at this location.

11 CR Rating

Tap to rate or add a comment to this location.

12 BdEntry

Name or edit this entry in the Address Book.

13 d'le

da a note about this location in the Address Book.

14 B

Tap to return to previous window.

3. Destinations > Toll Costs, Route Compare

Toll Costs

From the destination confirmation screen, tap Begin New Route. If the calculated route includes tolls, a message appears.

1 UCurrent Route

Show estimated toll costs and continue along the calculated route.

2 ofmpare Routes

Compare the calculated toll route to an alternate route without tolls. (See below.)

3 don't Prompt for Tolls

Use the current route and disable this prompt for subsequent route calculations.

Note: You can re-enable this prompt in Preferences > General.

Route Compare

1. From the destination confirmation window, tap Compare Routes to calculate and display two routes and choose between them.
2. Choose to ignore tolls and calculate two routes based solely on route preferences, or to calculate a primary route (which may include tolls) and an alternate route without tolls.
3. The top of the screen displays the total distance and time for each route, as well as any estimated toll costs. Zoom in to get a closer look at each route on the map.
4. Tap either button at the top of the screen to select that route. If the route includes tolls, estimated toll cost will display.

Route Map Window

1 NextManeuver

Tap to repeat spoken next maneuver instructions.

2 RoadName

Name of street you will turn onto next.

3 DirectionsSlide-OutList

Tap to select a route display option.

4 CompassDirection

Tap to change the map display. An icon in the upper right corner displays the selected option: North up (N), heading up (arrow), or 3D (3). Also displays Wi-Fi status.

5 Exits Quick View

Slide out to show upcoming exit information.

6 LiveData

Tap to view Traffic, Weather, and Fuel Price Information.

Note: This feature requires a Wi-Fi connection.

7 Zoom In/Zoom Out

8 Map View Tab

Tap to simplify the map screen. Icons are minimized to show simply the zoom, next maneuver, and miles/time.

9 HomeScreen

10 Miles/Time

Displays remaining distance. Tap to select from: yard arrival time, arrival time, remaining time, yard time, and elevation.

11 CurrentMileMarker

Tap to open a "Tell Rand" message.

12 Current Information

View current information by city, street, or upcoming intersection. Also displays advanced lane guidance and weather overlay key, when enabled.

Tap to change. (Note: For some destinations, the "Am I close?" feature counts down addresses as the vehicle approaches.)

City, county, and state Current street name

Next intersecting street name Advanced lane guidance

13 Current Speed

Tap to display the Virtual Dashboard. Turns red for speed warnings.

14 VirtualDashboard

15 LocationandRouteOptions

Tap to see current location information, change route settings, detour, cancel a route, and manage avoided roads.

16 SpeedLimit

Orange for truck limit; white for general limit. Tap to open a "Tell Rand" message about speed limits.

4. Maps & Routing

Exits Quick View

Slide out to show Points of Interest and amenities at upcoming exits. The list displays the distance to the next exit, exit name and number, and a count of available amenities.

1. Tap on an exit to display locations by category.
2. Tap on any item in the list to route to that location.

Highway View

Trip Summary (for multi-stop trips)

Summary Map View (entire trip)

Directions Slide-Out List

Route Display Options

1. When first opened, the slide-out list displays in Detail View showing each maneuver.
2. Use and to view the instructions.
3. To change the display option, tap the radio button on the bottom of the screen. See Highway View, Trip Summary (for multi-stop trips), and Summary Map View at left.

1 Next Maneuver

Displays the remaining distance until the next maneuver.

2 Distance

Displays the distance for each road segment.

3 Street/RoadName

Displays the street name you will be on after performing the next maneuver. Tap on any item in the list to view it on the map and to detour around it if necessary. (Note: For multi-stop trips, highways in each leg are listed, color-coded by segment.)

4 Total Distance and Time

Total distance and time for the entire trip.

5 Leg

Number of the leg and distance.

6 Leg Destination

Leg destination.

Virtual Dashboard

To show the Virtual Dashboard, tap the Current Speed.

1 Current direction of travel.
2 Displays current times at the yard, current location and destination, as well as estimated time of arrival.
3 Sunrise and sunset times based on vehicle location (latitude/longitude) and day.
4 Current speed (above) and posted speed limit (below).

Note: Turns red when speed limit warning exceeded. (See page 10 to set speed limit alert.)

5 Elevation at current location.

6 Percentage of current trip completed, distance to next maneuver, and the number of miles and time spent on the trip to this point.

7 Match with truck's odometer to automatically update new fuel logs.

8 Return to the Route Map Window.

9 Gather trip information for up to three trips. Includes odometer settings, hours, and speeds.

10 Reset trip information for the selected trip (Tab 1, Tab 2 or Tab 3).

11 Select to automatically reset the information in each tab after the vehicle has remained stationary for the specified number of hours.

12 View fuel logs and add fuel purchase information.

4. Maps & Routing

Manually Reset Trip Information

1. Tap on the tab you want to reset.
2. To set the odometer for the selected tab back to zero, tapReset All.
3. Information is captured as you travel the route.

Automatically Reset Trip Information

To reset trip information after the vehicle has remained stationary after a specific number of hours:

1. Tap on the tab you want to reset.
2. Tap Auto Reset.
3. Tap + to increase the number of hours.
4. Tap ⚡ to decrease the number of hours.
5. To save changes, tap Change.
6. The Tab displays the auto reset number of hours.

4. Maps & Routing

Junction View

When on a route, Junction View displays when you have an upcoming maneuver. Set distance in Preferences > Route. Once past the maneuver, Junction View closes and the previous window displays.

1 Signs to follow for the next maneuver.
2 Number and direction of lanes for the next maneuver.
3 Distance to the upcoming maneuver. Distance decreases as you approach the ramp.
4 Lane assist arrow.
5 Return to previous window.

Turn View

Displays for upcoming turns. Set distance in Preferences > Route.

4. Maps & Routing

Location and Route Options

1 Nearest cross street
2 Current road you're on, current town you're in
3 Latitude and longitude at current location
4 Return to previous window
5 Detour
6 Detour the entire route and add it to the avoid list.

Around Part of the Route

1. On the left side of the Window, tap the number of miles on the route to be avoided.
2. The route is recalculated.

Around a Specific Roadway

1. On the right side of the Window, tap and to view a list of roads in the current route.
2. Tap on one or more roadways to be avoided. A check mark ☑ appears in front of each selected road.
3. Tap Detour to recalculate the route.

Note: Tap Cancel Detour to remove detours.

7 Skip to next stop (for multi-stop trips).
8 Cancel current route.
9 Save current location to the Address Book.
10 Access list of avoided roads.
11 Access Route Preferences.
12 Access list of temporary avoids/detours.

Wi-Fi

For information on setting up a Wi-Fi hotspot through your cellular phone or laptop computer, please visit www.randmcnally.com/wifihelp for basic instructions, or contact your wireless carrier.

Note: Wi-Fi connectivity requires a supporting feature and data plan from your wireless service provider. As the user, you are responsible for all data charges. Please contact your wireless service provider to make sure you do not exceed the limits of your data plan.

Once you have established a Wi-Fi hotspot:

1. Tap Wi-Fi icon 📷 on the home screen. (Also accessible from the Preferences menu.)
2. The device searches for available hotspots.
3. Tap the hotspot you want to connect to.
4. Enter the network password. (Note: Many passwords are case sensitive.)
5. A confirmation message displays when a connection is established.

Weather

Notes:

• This feature requires a Wi-Fi connection.
- The refresh speed of the weather display is dependent on the connection speed. Weather information is updated every few minutes while Wi-Fi connection is active.
- Weather display depends on active weather patterns and map zoom level.

To view current weather information and the three-day forecast for your location, tap the Live Data icon on the map screen and tap the Weather tab.

1 View details for current weather alerts.
2 View weather information at your destination.

Note: You can view weather information at any other location by tapping the map and then the Wi-Fi icon and the Weather icon.

3 Select type of weather overlay to display on the map.
4 Select from a variety of weather types:

• No weather (turn off)
• Traffic impact
• Temperature
• Feels like
  • Current precipitation intensity and type
  • Probability of precipitation
  • Forecasted precipitation intensity, type, and clouds
  • Forecasted precipitation intensity and type
• Dew point
• Relative humidity
• Wind speed

5 Slide to adjust the transparency of the overlay on the map.

Note: Use the slider to readjust for visibility when switching between day and night modes.

5. Tools & Features

Fuel Prices

Note: This feature requires a Wi-Fi connection.

To show fuel prices, tap the Live Data icon on the map screen and tap the Fuel Prices tab.

1 Displays stations and prices, with distance as the crow flies.
2 €dk to show the icons and prices on the map screen.
3 Bid by distance or price.
4 pally filters for type of fuel and specific brand.
5 Eck to show fuel prices along the route.

Tap any traffic icon for incident details.

Traffic

NOTE: This feature requires a Wi-Fi connection.

To view current traffic information along your route and near your location:

1. Tap Live Data > Settings on the map screen. Tap the Traffic radio button to display the traffic overlay on the map.
2. Tap the Traffic tab.
3. The Traffic tab displays traffic events along your route.
4. Use the Flow and Incidents checkboxes to view or hide each type of traffic events
5. Tap the X to return to the map.
6. Traffic pattern display on the map as colored lines. Traffic Incidents display as icons.

Traffic indicators:

Green: Light or no traffic

Yellow: Moderate to heavy traffic

Red: Slow traffic

Traffic Icons

Accident Accident Incident Closure

Exit blocked Entrance blocked Traffic Carpool Road work

Obstruction

Dangerous Road condition Temperature

Chance of precipitation

Wind

Activities

Security

Delay

Cancel

Travel time

Size/weight limit Visibility

Heavy traffic

Moderate traffic

Light traffic

Truck Tools

Note: Some features are not available in Truck Mode. Tap Truck Tools on the Home screen to access the Truck Tools apps:

Truck Info

Enter truck information (weight, length, etc.).

Status, Trails, Mileage, and Fuel

View driving, on-duty, and maintenance timers; state logs; trails; and fuel purchase information. (See pages 44-47.)

Motor Carrier's Road Atlas

Displays the Road Atlas app.

Rand Motor Carrier's Road Info

View Rand McNally Truck Emergency contact information and truck regulations.

Quick Planner

Between any two cities or towns, quickly calculate the distance, driving time, and cost.

Calendar

Calculator

Unit Converter

Quickly convert distance, weight, and temperature.

Notes

Add, edit, and manage notes.

TellRand

Compose a message to send to Rand McNally.

GPS Repair

Diagnose and fix errors in GPS and map data.

5. Tools & Features

Status

Note: Odometers count up and record the current mileage. Maintenance counters count down. When a maintenance timer counts down to 2,000 miles, a reminder displays each time the TND starts.

1. Tap Truck Tools.
2. Tap Status, Trails, Mileage, and Fuel.
3. Tap the Status tab.

Tap a field to make adjustments to mileage. The mileage continue to count down from the changed value.

1. Tap -- to decrease the setting.
2. Tap + to increase the setting.
3. Tap the calculator to display a keyboard. Enter a number and tap Enter.
4. Tap Change.

On the right, use the Reset To field to set the most common reset value, normally zero. At the beginning of each day or run, tap Reset to set the value back to zero for odometers and 15,000 or 35,000 for maintenance odometers.

1. Tap -- to decrease the setting.
2. Tap + to increase the setting.
3. Tap the calculator to display a keyboard. Enter a number and tap Enter.
4. TapReset.

Mileage

1. TapTruck Tools.
2. Tap Status, Trails, Mileage, and Fuel.
3. Tap the Mileage tab to view list of logs for the current year, ordered by quarter.
4. To view quarterly mileage logs for previous years, tap Year. Tap on a quarter to view log entries.
5. Tap on a quarter to view details. Tap View by Date/View by State and Empty/Loaded for more information.

To delete a log, tap on the ✗ next to the log entry to be deleted. Tap Yes to delete the log.

Note: Load Option and Driver Status control how logs are recorded.

Trails

Use Trails to record a "bread-crumb" path of GPS coordinates where your truck has traveled.

1. Tap Truck Tools.
2. Tap Status, Trails, Mileage, and Fuel.
3. Tap the Trails tab.

4. To record a trail, tap New Trail.

5. To end the trail, tap the pause icon on the map screen.

6. The trail is recorded in the Trails tab.

7. Tap on a trail to view details.

8. Tap Show on Map to display the trail on the map screen.

9. Tap Edit Name to change the name of the trail.

10. Tap Set Color to change the color of the trail.

Note: The Trails feature is also accessible from the Address Book.

Fuel Logs

1. Tap Truck Tools.
2. Tap Status, Trails, Mileage, and Fuel.
3. Tap the Fuel tab to view a list of fuel logs by quarter.
4. Tap +Fuel to record the date, location and cost of fuel purchase.
5. Tap on any field to edit.
6. Check Taxable to include the purchase in the fuel log.
7. Tap Save (Note: Fuel economy is calculated automatically.)
8. Once fuel purchases have been entered, tap on a quarter to view the details.
9. You can View by State or View by Month.
10. Tap the state or month to view fuel purchases.
11. Tap View All to see all fuel purchases.

Quick Planner

Use this tool to quickly estimate the mileage and time between any two cities or towns.

1. TapTruck Tools.
2. Tap Quick Planner.

The revenue or cost per mile used in the last computation displays.

1. Tap From City 1 and select the city.
2. Tap To City 2 and select the city.
3. The distance displays.
4. Tap Cost per Mile and enter the per mile rate or tap Total and enter the total amount.
5. Tap the new dollar amount and tap Enter.
6. The dollar amounts readjust automatically.

7. Tap Average Speed (MPH) enter a speed:

8. Tap - or + to decrease or increase the speed.

9. Tap the calculator to enter a speed.

10. Tap Change.

11. The driving time displays.

5. Tools & Features

Road Atlas Information

To reference the Rand McNally Motor Carriers' Road Atlas:

1. TapTruck Tools.
2. Tap Motor Carrier's Road Atlas.
3. Select the appropriate country tab.
4. Select the appropriate state/province to view emergency and other key phone numbers.

Calendar

1. TapTruck Tools.
2. Tap Calendar.
3. Use the arrows to view other months and years.
4. Tap Today to return to the current date.

Notes

1. TapTruck Tools.
2. Tap Notes.
3. Tap New Note.
4. Tap a note in the list to view and edit.

Unit Converter

1. TapTruck Tools.
2. Tap Converter.
3. Tap on the first field and select the unit type.
4. Tap on the second field and enter the value to be converted.
5. TapEnter.

Calculator

1. TapTruck Tools.
2. Tap Calculator.

DriverConnect

The DriverConnect app provides a fully-compliant electronic logbook solution. DriverConnect lets you track and log Hours of Services, Driver-Vehicle Inspection Reports, Fuel purchases, and more. Reports can be generated for roadside inspections.

The DriverConnect app connects to a Rand McNally Electronic Logging Device (ELD) over a Bluetooth connection. The app automatically syncs driving data from the ELD with the Rand McNally DriverConnect web services via a Wi-Fi or cellular transmission.

Visit http://www.randmcnally.com/category/e-logs for up-to-date information on compatible ELDs.

Sign Up or Log In

To use DriverConnect, you must log in with an existing account, or create a new account. If you are part of a fleet, your Fleet Manager will provide login information for you.

You can use your login information to access the DriverConnect portal, where you can view reports and stored information.

Visit https://www.driverconnect.randmcnally.com to access the DriverConnect portal.

Tell Rand

While you're en route with your TND™, you can enter messages for Rand McNally regarding construction, truck restrictions, addresses, your device, and more. The next time you connect to the Rand McNally Dock, you can reopen, edit, and send the message.

1. Tap Truck Tools.
2. Tap Tell Rand. On the left side, tap Current Location. Enter Different Location or Find Location on Map.

Note: You can open a Tell Rand speed limit message by tapping the speed limit or mile marker on the map screen. Or open a Tell Rand with the power button by setting the Quick Power Press to Tell Rand.

1. If you selected Enter Different Location, enter it as an address. If you selected Find Location on Map, tap on the map to set the crosshairs at that location, then tap Back.
2. On the right side, tap the type of message you want to send.
3. Type your message.
4. Tap Enter to send the message.
5. To discard the message and return to the previous window, lap Back.

For more information

• Rand McNally Website www.randmcnally.com/trucking
• Support www.randmcnally.com/support
• GPS accessories store.randmcnally.com
• Facebook www.facebook.com/randtrucking

Trademarks

Rand McNally, the Rand McNally logo, the globe logo, and IntelliRoute are registered trademarks and TND and Rand McNally Dock are trademarks of RM Acquisition LLC, d/b/a Rand McNally.

The Trucker's Friend and National Truck Stop Directory are registered trademarks of TR Information Publishers.

TruckDown is a registered trademark of TruckDown Info International, Inc.

Wi-Fi is a registered trademark of the Wi-Fi Alliance.

InfoGation is a registered trademark of InfoGation Corporation.

Local search information provided by CityGrid Media.

Weather data provided by myweather.com.

Fuel prices provided by OPIS.

Traffic information provided by INRIX, Inc.

© 2017 Rand McNally. © 2017 HERE. All rights reserved.

Rand McNally follows a continuous improvement process and reserves the right to provide enhancements that may not be reflected in the pictures and specifications in this manual.

The information contained herein may be changed at any time without prior notification. Neither this manual nor any parts thereof may be reproduced for any purpose whatsoever without the express written consent of Rand McNally, Inc., nor may it be transmitted in any form either electronically or mechanically, including photocopying, and recording. All technical specifications, drawings, etc. are subject to copyright law.
