Product Type	Coffee Grinder (Doserless)
Brand	Rancilio
Model	Rocky SD
Burr Type	Flat Steel Burrs
Burr Size	50 mm
Grind Adjustment	Stepless (Infinite)
Grinding Method	On-Demand (Doserless)
Bean Hopper Capacity	300 g (approx.)
Grounds Container Capacity	Not applicable (doserless)
Power Supply	230V / 50Hz or 120V / 60Hz (depending on region)
Power Consumption	140 W
Dimensions (W x D x H)	200 x 120 x 350 mm
Weight	10 kg (approx.)
Housing Material	Aluminum (die-cast)
Hopper Material	Plastic (removable)
Noise Level	< 70 dB (typical)
Safety Features	Overload protection, thermal cutoff
Cleaning	Remove upper burr for brush cleaning; use grinder cleaning tablets periodically
Maintenance	Regular burr alignment check; replace burrs after ~500 kg of coffee
Spare Parts Available	Burrs, hopper, portafilter fork, springs, screws
Repairability	Modular design; user-serviceable with basic tools
Warranty	1 year (depending on region)
Certifications	CE, ETL, UL (varies)
Intended Use	Home and light commercial espresso grinding

Frequently Asked Questions - Rocky SD RANCILIO

How do I adjust the grind size on the Rancilio Rocky SD?

The Rocky SD features a stepless adjustment mechanism. Turn the hopper to the desired setting while the grinder is running. The finer the grind, the tighter the hopper position. Start with a medium setting and adjust for espresso, filter, or French press.

Is the Rancilio Rocky SD suitable for espresso?

Yes, the Rocky SD is designed for espresso. Its 50mm flat burrs and stepless adjustment allow precise grinding for espresso, producing a consistent particle size. It can also handle other brew methods.

How do I clean the burrs?

Unplug the grinder and remove the hopper. Remove the upper burr by turning it counterclockwise. Use a brush to clean the burrs and grinding chamber. Avoid water on the burrs; use grinder cleaning tablets if needed. Reassemble carefully.

Can I use the Rocky SD for pour-over or French press?

Yes, the stepless adjustment allows you to set a coarser grind for pour-over, French press, or other methods. However, because the grinder is designed for espresso, it may produce some fines at very coarse settings.

What is the burr size and type?

The Rocky SD uses 50mm flat steel burrs. These burrs are durable and provide uniform grinding for consistent extraction.

Does the Rocky SD have a doser?

No, the 'SD' stands for 'Doserless'. It grinds directly into a portafilter or container. This reduces retention and waste compared to doser models.

How much coffee does the hopper hold?

The bean hopper holds approximately 300 grams of whole coffee beans.

What are the power requirements?

The grinder is available in 230V/50Hz or 120V/60Hz versions. Check the label on your unit. Power consumption is about 140 watts.

How do I replace the burrs?

Disconnect the grinder. Remove the hopper and upper burr. Use a screwdriver to remove the screws holding the lower burr (requires removing the adjustment collar). Install new burrs and re-calibrate alignment. Refer to the service manual for detailed steps.

Why is my grinder making a loud noise?

Possible causes: beans stuck in the burrs, burr misalignment, or foreign objects. Turn off and unplug. Check for obstructions and clean. If noise persists, inspect burrs for damage or wear. Re-align if necessary.

USER MANUAL Rocky SD RANCILIO

Enjoy your perfect coffee everyday

Close-up of a black and white mechanical device with a metallic rod inserted, against a plain purple background (no text or symbols visible)

"I believe that if you want to become your own barista, you are free to try and experiment as much as you want. I mean, if you love coffee, you will also love learning how to make it. But to do that, you need the proper equipment. And that's what Rancilio promises we'll get: a professional-grade espresso machine perfect for home use and passionate coffee lovers."

GIORGIO RANCILIO

Enjoy your perfect coffee everyday

If you love Italian expresso, you and your friends are also going to love Silvia. We imagine home espresso machines and their accessories as if they are trusted companions that make you feel as if you are in a coffee shop. However, there's a catch, you are not sitting at the table, you are instead the one who fills the portafilter with freshly

grinded coffee. And it's you that places the cup under the spouts and allows the coffee to puor into the cup, while the aroma fills the room. And it's still you that become a barista at home.

HOME LINE

Modern kitchen setup with a white microwave oven, wooden counter, and potted plant on a shelf (no visible text or symbols)

An icon is born

Professional style. The pleasure of a perfect professional espresso is at your fingertips any time of the day. Influenced by modern design, Silvia is perfect for any decor and offers absolutely professional levels of performance and reliability. Thanks to Silvia, you no longer have to choose between style and functionality or design and performance. Experience the pleasure of a perfect professional espresso.

SILVIA INOX

KEY FEATURES

Silvia Inox

Brewing technology

Invite the Rancilio brewing technology into your home: ergonomic portafilter, insulated boiler, stainless steel steam wand and steam knob, cup tray and brass brewing unit.

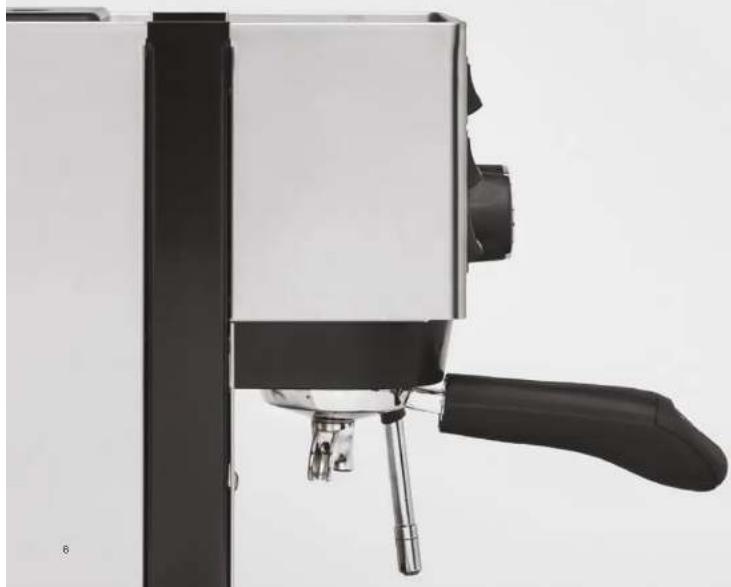

Power to design

Enjoy the modern look and high quality of the design: ergonomic to use and easy to clean.

Close-up of a modern espresso machine with black handle and lever (no visible text or symbols)

That's milk

Professional feeling for cappuccino, macchiato and more, with luscious foam and creamy steamed milk.

Close-up of a black and white mechanical device with a circular button featuring a flame icon (no text or symbols visible)

SILVIA INOX

HIGHLIGHTS

1 Rancilio technology in just 23 cm
2 Stainless-steel body
3 User-friendly switch button icon set
4 8 gr. and 16 gr. filter baskets
5In-built2-litrewaterreservoir,easy to remove for cleaning

6 Stainless steel drip tray and cup tray, easy to remove for cleaning
7 Energy-saving insulated boiler
8 Professional tamper: black wood with stainless steel flat base 58 mm
9 Recommended for home and office

Exterior view of a modern espresso machine (no visible text or symbols)

Exterior view of a modern office building (no signage)

* The auto-off function is only available for the EUROPE market according to Regulations 1275/2008/EC and 801/2013/EU.

Interior view of a kitchen with a Rancetio coffee machine and shelves filled with various food items (no visible text or symbols)

SILVIA BLACK

Silvia dressed in black

The gravitas of its lines, the sleek elegance of its geometrical shape, a cutting-edge yet timeless style: these are the key features of the exclusive Silvia Black, available in the refined black variant.

Rancilio Silvia Black is an elegant machine in black painted stainless steel. An icon of contemporary style and a gem in the Rancilio Group Home Line, Rancilio Silvia celebrates its 20th anniversary with this special edition – like a movie star of the past stepping out in a beautiful evening gown, while maintaining all the aesthetic and functional features that have made it a great classic for all coffee enthusiasts.

KEY FEATURES

Silvia Black

Brewing technology

Invite the Rancilio brewing technology into your home: ergonomic portafilter, insulated boiler, stainless steel steam wand and steam knob, cup tray and brass brewing unit.

Power to design

Enjoy the modern look and high quality of the design: ergonomic to use and easy to clean.

Close-up of a black mechanical device with a handle and lever mechanism (no visible text or symbols)

That's milk

Professional feeling for cappuccino, macchiato and more, with luscious foam and creamy steamed milk.

Close-up of a black industrial valve with a circular logo and handle (no visible text or symbols)

SILVIA BLACK

HIGHLIGHTS

1 Rancilio technology in just 23 cm
2 Black painted stainless-steel body
3 User-friendly switch button icon set
4 8 gr. and 16 gr. filter baskets
5In-built2-litrewaterreservoir,easy to remove for cleaning

6 Stainless steel drip tray and cup tray, easy to remove for cleaning
7 Energy-saving insulated boiler
8 Professional tamper: black wood with stainless steel flat base 58 mm
9 Recommended for home and office

Exterior view of a modern espresso machine (no visible text or symbols)

* The auto-off function is only available for the EUROPE market according to Regulations 1275/2008/EC and 801/2013/EU.

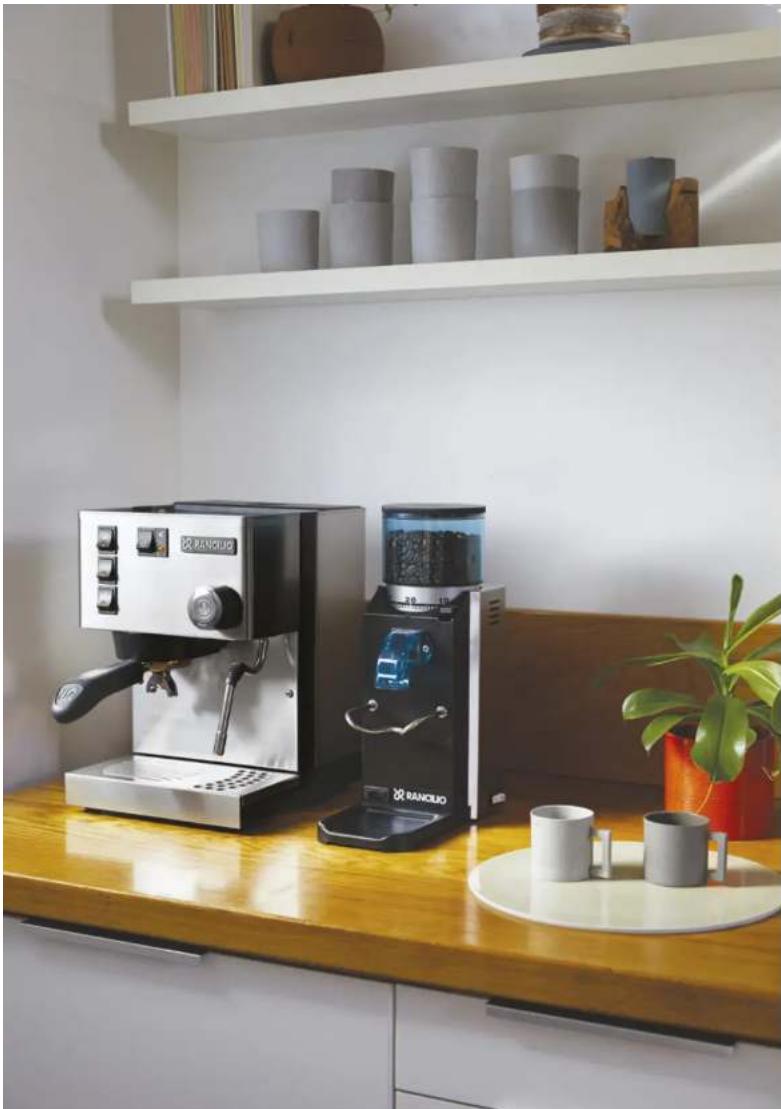

Interior scene of a modern kitchen with a RANCIUO espresso machine and glass griddle on a wooden counter, surrounded by shelves of coffee cups and a potted plant (no visible text or symbols)

Rocky: the perfect partner

The perfect package of looks, durability and precision – to achieve exactly the grind size you want, whether it's a fine grind for great espresso or a coarser one for drip coffee.

ROCKY

KEY FEATURES

Rocky

Rancilio coffee maker with glass lid and metal handle, no visible text or symbols on the device itself

Next level grinding

Take grinding to the next level with the grinder designed to complement your Silvia espresso machine.

The micrometric regulation guarantees constant precision in the setting of the desired grinding for any type of recipe, from espresso to filter coffee.

1 g/s

AVERAGE OUTPUT (E8PRE880)

0.3 kg / 0.6 lb

BEAN HOPPER CAPACITY

Collection tray

Rocky comes especially equipped with an easy to remove and clean collection tray, professional luxuries brought to your door.

HIGHLIGHTS

1 Steel body
2 2 versions: with or without manual doser lever (SD)
3 Up to 50 grind settings with adjustment control
4 50-mm flat steel grinding burrs
5 Average output: 1 g/s

6 Coffee bean hopper capacity: 0.3 kg / 0.7 lb
7 Ground coffee container capacity (version with manual doser lever): 0.2 kg / 0.4 lb
8 Dose (manual doser lever): 7g / 0.2 oz
9 Removable ground tray

Black and white product bottle with a black cap and blue handle, no visible text or symbols on the body.

Exterior view of a modern kitchen grater with black casing and side panel (no visible text or symbols)

1514

Modern espresso machine with Rancilio branding on a table, surrounded by decorative plants and a framed artwork (no visible text or symbols)

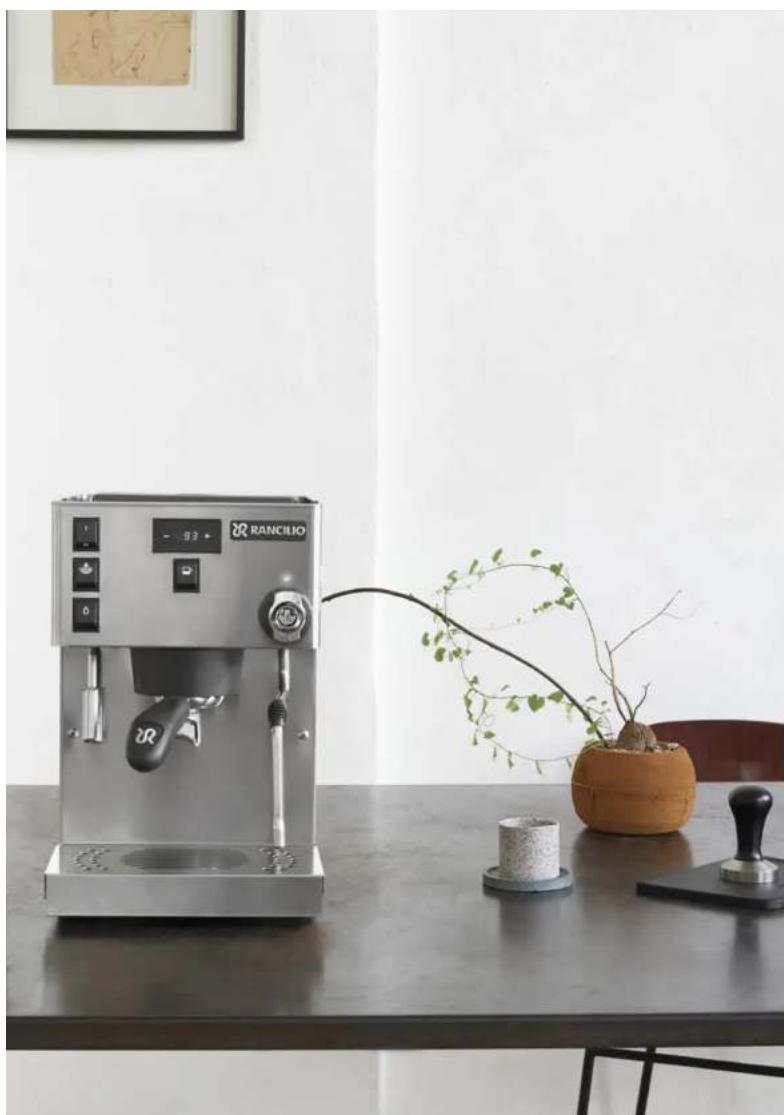

Brew like a Pro

Silvia Pro is the 1-group espresso machine that provides precision and control over every shot, with limited footprint thanks to its compact design. Silvia Pro is a blend of the professional performance of Rancilio espresso machines and the remarkable capabilities of Silvia – with the addition of two PID, a digital display, two independent boilers and a wider range of coffee solutions, designed to provide the best coffee experience and to meet the needs of expert baristas.

SILVIAPRO

KEY FEATURES

Silvia Pro

Equipment

High-quality professional equipment and heavy-duty components: ergonomic portafilter, insulated boilers, multi-directional stainless steel steam wand and steam knob, cup tray and brass brewing unit.

PID

Electronic control over water temperature in coffee boiler and steam boiler, via internal PID offering extremely precise temperature stability.

Temperature regulation

The temperature of water for coffee and steam can be adjusted easily via the display buttons ⊖⊕.

Close-up of a white and black mechanical device with a black handle, mounted on a stand (no visible text or symbols)

Separate boilers

Silvia PRO is equipped with two separate boilers, both equipped with PID: one boiler is dedicated to heating the water for coffee, and the other is a steam boiler for hot water and steam.

Close-up of a mechanical switch with a black and white knob, attached to a metallic rod (no text or symbols visible)

SILVIA PRO

HIGHLIGHTS

1 Rancilio technology in just 25 cm 2 Stainless steel body
3 Digital display with shot timer, temperature indicator, water alert
4 Programmable wake-up mode
5 8 gr. and 16 gr. filter baskets
6 Built-in 2-litre water reservoir, easy to remove for cleaning
7 Safety water management and professional delivery

8 Pods&Caps adaptor kit (optional) 9 Energy-saving insulated boilers
10 Stainless steel drip tray, easy to remove for cleaning
11 Adjustable in height cup tray, easy to remove for cleaning
12 Professional tamper: black wood with stainless steel flat base 58 mm
13 Recommended for home, office and coffee corner

Exterior view of a BANCAO espresso machine (no visible text or symbols)

Silvia & Rocky

Specs: Silvia Inox and Black

SILVIA INOX

W × D × H

235 x 290 x 340 mm

9.2 x 11.4 x 13.4 in

WEETHT

14 kg / 30.9 lb

TOTAL POWER

950W (@120V)

1150W (@230V)

VOLTAGE

120V or 220-240V

FREQUENCY

50-60 Hz

BOILER CAPACITY

0.3 l / 10.5 oz UK / 10.1 oz US

WATER RESERVOIR

21/70.4 oz UK/67.6 oz US

NOISE LEVEL DURING USE

< 70 db

PODS&CAPS

Optional

SILVIA BLACK

W × D × H

235 x 290 x 340 mm

9.2 × 11.4 × 13.4 in

WEIGHT

14 kg / 30.9 lb

TOTAL POWER

950W (@120V)

1150W (@230V)

VOLTAGE

120V or 220-240V

FREQUENCY

50-60 Hz

BOILER CAPACITY

0.3 l / 10.5 oz UK / 10.1 oz US

WATER RESERVOIR

2 l / 70.4 oz UK / 67.6 oz US

NOISE LEVEL DURING USE

< 70 db

POD8&CAPS

Optional

Specs: Rocky and Rocky SD

ROCKY

W × D × H

120 x 250 x 350 mm

4.7 x 9.8 x 13.8 in

WEIGHT

6,5 Kg

TOTAL POWER

140 W

VOLTAGE

110 V /230 V

FREQUENCY

50-60 Hz

AVERAGE OUTPUT (ESPRESSO)

1 g/s

BEAN HOPPER CAPACITY

0.3 kg / 0.6 lb

GROUND COFFEE CONTAINER CAPACITY

0.2 kg / 0.4 lb

DOSE

7 g / 0.2 oz

BURRS

Steel Flat 50 mm / 1.9 in

STAR

Manual with dosage lever

ROCKY SD

W × D × H

120 x 250 x 350 mm

4.7 × 9.8 × 13.8 in

WEIGHT

7 Ka

1. 陈学武女士，张晓明先生

TOTAL POWER 140 W

140 W

VOLTAGE

110 V /230 V

FREQUENCY

50-60 Hz

AVERAGE OUTPUT (ESPRESSO)

1 g/s

BEAN HOPPER CAPACITY

0.3 kg / 0.6 lb

GROUND COFFEE CONTAINER CAPACITY

-

DOSE

BURAS

Steel Flat 50 mm / 1.9 in

START

On/off switch

Colors Colors

INOX BLACK

BLACK AND INOX

BLACK AND INOX

TECHNICAL SPECIFICATIONS

Silvia Pro

Specs: Silvia Pro

SILVIA PRO

H × D × H

250×420×390mm

9.8 x 16.5 x 15.3 in

WEIGHT

20 kg / 44.1 lb

TOTAL POWER

1000W (@120V)

1300W (@920V)

1000W (©200V)

VOLTAGE

120V or 220-240V

EREQUENCY

50-60 Hz

Simple line drawing of a room layout with furniture and fixtures (no text or symbols)

Exterior view of a Rancilio coffee machine with control knobs and buttons (no readable text or symbols)
