USER MANUAL MS110 ECS

LIGHT PC LIGHT UP YOUR JOBISO-9001 ISO-14001 CE (RE)

LIGHU:

Preface

Copyright

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author.

Version 1.0

Disclaimer

The information in this document is subject to change without notice. The manufacturer makes no representations or warranties with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. The manufacturer reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of the manufacturer to notify any person of such revision or changes.

Trademark Recognition

Windows® VISTA/7 are registered trademarks of Microsoft Corp.

Other product names used in this manual are the properties of their respective owners and are acknowledged.

Federal Communications Commission (FCC)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and the receiver
• Connect the equipment onto an outlet on a circuit different from that to which the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help

Shielded interconnect cables and a shielded AC power cable must be employed with this equipment to ensure compliance with the pertinent RF emission limits governing this device. Changes or modifications not expressly approved by the system's manufacturer could void the user's authority to operate the equipment.

Declaration of Conformity

This device complies with part 15 of the FCC rules. Operation is subject to the following conditions:

• This device may not cause harmful interference, and
- This device must accept any interference received, including interference that may cause undesired operation

Canadian Department of Communications

This class B digital apparatus meets all requirements of the Canadian Interference-causing Equipment Regulations.

Your system is designed and tested to meet the latest standards of safety for information technology equipment. However, to ensure your safety, it is important that you read the following safety instructions.

Setting up your system

• Read and follow all instructions in the documentation before you operate your system.
• Do not use this product near water or a heated source such as a radiator.
• Set up the system on a stable surface.
• Openings on the chassis are for ventilation. Do not block or cover these openings. Make sure you leave plenty of space around the system for ventilation. Never insert objects of any kind into the ventilation openings.
• Use this product in environments with ambient temperatures between 0^ and 40^ .
• If you use an extension cord, make sure that the total ampere rating of the devices plugged into the extension cord does not exceed its ampere rating.

Care during use

• Do not walk on the power cord or allow anything to rest on it.
• Do not spill water or any other liquids on your system.
• When the system is turned OFF, a small amount of electrical current still flows. Always unplug all power, modem, and network cables from the power outlets before cleaning the system.

• If you encounter the following technical problems with the product, unplug the power cord and contact a qualified service technician or your retailer.

• The power cord or plug is damaged.

• Liquid has been spilled into the system.
• The system does not function properly even if you follow the operating instructions.
• The system was dropped or the cabinet is damaged.
  • The system performance changes

The warranty does not apply to products that have been disassembled by users

Safety cautions and warnings

Optical Drive Safety Information

Optical drive sold with this system contains a CLASS 1 LASER PRODUCT.

CAUTION:

Invisible laser radiation when open. Do not stare into beam or view directly with optical instructions.

WARNING:

Making adjustments or performing procedures other than those specified in the user's manual may result in hazardous laser exposuer. Do not attempt to disassemble the optical drive. For your safety, have the optical drive serviced only by an authorized service provider.

Product disposal notice

IMPORTANT:

This symbol if the crossed out wheeled bin indicates that the product (electrical and electronic equipment) should not be placed in municipal waste. Check local regulations for disposal of electronic products.

Nordic Lithium Cautions (for lithium-ion batteries)

CAUTION:

Danger of explosoin if battery is incorrectly replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions.

Product disposal notice

1. Do not place this product underneath heavy loads or in an unstable position.
2. Do not use or expose this product around magnetic fields as magnetic interference may affect the performance of the product.
3. Do not expose this product to high levels of direct sunlight, high-humidity or wet conditions.
4. Do not block the air vents to this product or impede the airflow in any way.

TABLE OF CONTENTSABLE OF CONTENTS

Preface i

Chapter 11

Introducing the PC 1

Introduction....1

Specification....2

Front and Rear I/O....3

Packing Contents......5

Chapter 2 7

Installing the PC 7

System Quick Installing....7

Chapter 3 9

Using BIOS 9

About the Setup Utility....9

The Standard Configuration....9

Entering the Setup Utility....9

Using BIOS....10

Standard CMOS Setup....11

Advanced Setup....12

Advanced Chipset Setup....14

Integrated Peripherals....15

Power Management Setup....16

PC Health Status....17

Frequency/Voltage Control....18

Load Default Settings....18

Supervisor Password....18

User Password....19

Save & Exit Setup....19

Exit Without Saving....19

Chapter 4 21 21

Using the Software 21

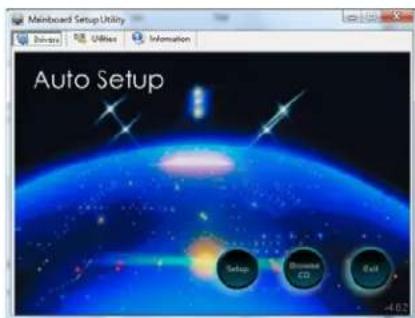

About the Software DVD-ROM/CD-ROM....21

Auto-installing under Windows 7....21

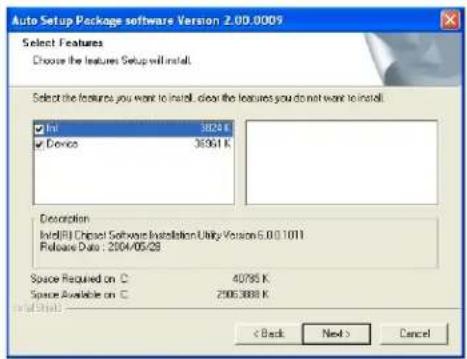

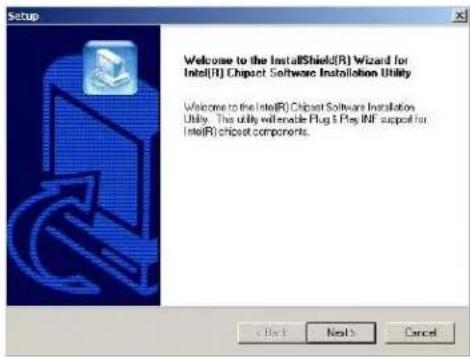

Running Setup....22

Manual Installation....24

Utility Software Reference....24

Chapter 5 20

Trouble Shooting 25

Start up problems during assembly....25

Start up problems after prolong use....26

Maintenance and care tips....26

Basic Troubleshooting Flowchart....27

Introducing

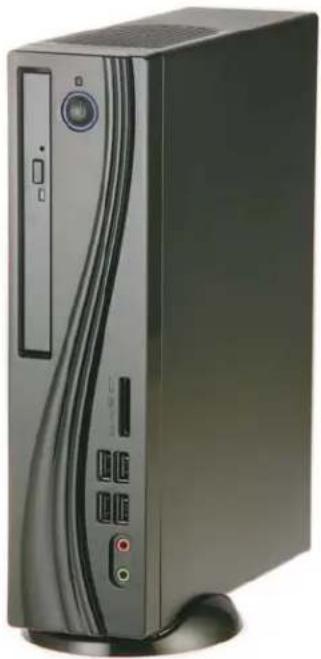

Thank you for choosing 3.8L MS110 of great performance and with stylish and flexible design.

Support Intel/Pineview, DC 12.5W Processor and a dimension of 270mm (H)* 205mm (D)* 70mm (W), 3.8L SFF provides the features of low power consumption (working with a 120Watt power adaptor), low noise (<26db) and space saving. The chipset is Intel® Tigerpoint, supporting up to 4 GB of system memory with DDR3 memory SO-DIMM, 3.5" SATA II HDD, Slim DVD Super-multi Tray type/Trayload Slim type ODD, and Build in Intel® HD Graphics.

Front view of a desktop computer tower with visible ports and control buttons (no text or symbols)

Specification

Chipset	Intel®NM10 Chipset
CPU Support	Intel Pineview Dual Core 0525 (with)
Memory	Support SO-DIMM DDR3*2, up to 4GB 800MHz Signle Channel SDRAM
Graphics	Intel®HD Graphics from CPU
Storage	Supported 1 x 3.5" SATA II HDD
ODD	Support Slim DVD Super-multi Tray type x1
Front Panel	4 x USB2.01 x Headphone output1 x Microphone input1 x Multi-card reader slot
Rear Panel	4 x USB1 x D-Sub1 x 10/100 LAN RJ45(Giga Lan Optional)1 x TV Tuner(Optional)1 x Antenna(Optional)6 Channel Audio, 3 Jacks
Power	65W power adaptor
OS Support	Hardware Compatible with Windows 7
Dimensions (mm)	(W)70mm x (D)205mm x (H)270mm

WARNING:

Please realize that there is a certain risk involved with overclocking. Including adjusting the setting in the BIOS, or using the third-party overclocking tools. Overclocking may affect your system stability, or even case damage to the components and devices of your system. It should be done at your own risk and expense. We are not responsible for possible damage casesd by overclocking.

Front and Rear I/O

1. Power Button

Press the power button to turn the system on and off.

2.4 IN 1 Card Reader

Supports SD Card/ MMC Card/ MS Card. You can easily read phone or other files on the memory card. Your digital cameras, DVs, MP3 players or other digital devices are highly compatible.

1. USB Connectors

The USB connectors is for attaching USB devices, such as mouse, keyboard, printer, scanner and other USB-compatible device.

1. Mic In Jack

Connecting Microphone.

1. Headphone Jack

Connecting Headphone.

1. D-SUB Connector Connecting VGA Monitor.
2. Six channel HD Audio Microphone Jack/ Headphone Jack/ Line In Jack.
3. USB Connectors Connecting USB Devices (USB2.0 Ports)
4. DC Jack It is used for power adapter
5. Antenna It is used for an optional antenna
6. LAN Connecting the Network.
7. TV Tuner (optional) TV in jack.

Packing Contents

Driver DVD

Manual

Stand

Power

NOTE:

Please contact us immediately if any of the items is damaged or missing.

*

★★○□

◆◆◆◆◆◆

■■■■■■■

System Quick Installation

1. Connecting VGA Monitor. (D-SUB Connector)

Front view of a modern flat-screen monitor with a black bezel and stand (no visible text or symbols)

Close-up of a computer motherboard showing ports, connectors, and a highlighted SGA (no text or symbols visible)

1. The USB connectors is for attaching USB devices, such as mouse, keyboard, printer, scanner and other USB-compatible device.

Close-up of a computer motherboard with multiple ports and connectors (no visible text or symbols)

1. Connecting the Network. (LAN Connector)

Close-up of a computer motherboard with visible ports and connectors (no readable text or symbols)

★■▲▼⊗00★■米▼**☆

x

1. Connecting the Microphone. (Microphone Jack)

1. Connecting Speakers or Headphones. (Headphone Jack)

Product photo of audio equipment including two speakers and a pair of headphones (no visible text or labels)

Close-up of a computer motherboard showing ports and connectors (no readable text or symbols)

1. Connecting External Audio Device. (Line In Jack)

Close-up of a computer motherboard with multiple electronic components (no visible text or symbols)

1. Connecting Power. (DC jack)

Electric power adapter with black cable and cord, no visible text or symbols

Back panel of a computer interface showing ports, connectors, and a highlighted circular component (no readable text or symbols)

A700*7**☆

About the Setup Utility

The computer uses the latest “American Megatrends Inc.” BIOS with support for Windows Plug and Play. The CMOS chip on the motherboard contains the ROM setup instructions for configuring the motherboard BIOS.

The BIOS (Basic Input and Output System) Setup Utility displays the system's configuration status and provides you with options to set system parameters. The parameters are stored in battery-backed-up CMOS RAM that saves this information when the power is turned off. When the system is turned back on, the system is configured with the values you stored in CMOS.

The BIOS Setup Utility enables you to configure:

• Hard drives, diskette drives and peripherals
  • Video display type and display options
• Password protection from unauthorized use
  • Power Management features

The settings made in the Setup Utility affect how the computer performs. Before using the Setup Utility, ensure that you understand the Setup Utility options.

This chapter provides explanations for Setup Utility options.

The Standard Configuration

A standard configuration has already been set in the Setup Utility. However, we recommend that you read this chapter in case you need to make any changes in the future.

This Setup Utility should be used:

• when changing the system configuration
• when a configuration error is detected and you are prompted to make changes to the Setup Utility
• when trying to resolve IRQ conflicts
• when making changes to the Power Management configuration
• when changing the password or making other changes to the Security Setup

Entering the Setup Utility

When you power on the system, BIOS enters the Power-On Self Test (POST) routines. POST is a series of built-in diagnostics performed by the BIOS. After the POST routines are completed, the following message appears:

Press DEL to enter SETUP

Press the delete key to access the BIOS Setup Utility.

CMOS Setup Utility - Copyright (C) 1985-2010, American Megatrends, Inc.

►Standard CMOS Setup►Advanced Setup►Advanced Chipset Setup►Integrated Peripherals►Power Management Setup►PC Health Status	►Frequency/Voltage ControlLoad Default Setting►Supervisor PasswordUser PasswordSave & Exit SetupExit Without Saving
↑|→←:Move F10: Save/Exit Enter : SelectF1:General Help F9: Optimized Defaults ESC:Exit Without Saving
Configure Time and Date. Display System Information...v02.69 (C)Copyright 1985-2010, American Megatrends, Inc.

Using BIOS

When you start the Setup Utility, the main menu appears. The main menu of the Setup Utility displays a list of the options that are available. A highlight indicates which option is currently selected. Use the cursor arrow keys to move the highlight to other options. When an option is highlighted, execute the option by pressing .

Some options lead to pop-up dialog boxes that prompt you to verify that you wish to execute that option. Other options lead to dialog boxes that prompt you for information.

Some options (marked with a triangle ▶) lead to submenus that enable you to change the values for the option. Use the cursor arrow keys to scroll through the items in the submenu.

In this manual, default values are enclosed in parenthesis. Submenu items are denoted by a triangle ▶.

The default BIOS setting for this motherboard apply for most conditions with optimum performance. We do not suggest users change the default values in the BIOS setup and take no responsibility to any damage caused by changing the BIOS settings.

BIOS Navigation Keys

The BIOS navigation keys are listed below:

KEY FUNCTION
ESC	Exits the current menu
↑↓→←	Scrolls through the items on a menu
+/- Modifies the selected field's values
Enter	Select
F9 Loads an optimized setting for better performance
F10 Saves the current configuration and exits setup
F1 Displays a screen that describes all key functions

For the purpose of better product maintenance, we reserve the right to change the BIOS items presented in the manual. The BIOS setup screens shown in this chapter are for reference only. Please visit our website for updated manual.

Standard CMOS Setup

This option displays basic information about your system.

CMOS Setup Utility - Copyright (C) 1985-2010. American Megatrends, Inc. Standard CMOS Setup

Date(www mm:dd:yy) [Fri 07/30/2009]Time(hh:mm:ss) [00:21:40]▶ SATA1 [ATAPI CDROM]▶ SATA2 [Hard Disk]	Help Item
	Use [ENTER], [TAB]or [SHIFT-TAB] toselect a field.Use [+] or [-] toconfigure system Date.

↑↓→←:Move

+/-: Value

Enter: Select

F10: Save and Exit

F1:General Help

F9: Optimized Defaults

ESC:Exit Without Saving

Date & Time

The Date and Time items show the current date and time on the computer. If you are running a Windows OS, these items are automatically updated whenever you make changes to the Windows Date and Time Properties utility.

▶SATA1\~2

This motherboard supports two SATA channels and each channel allows one SATA device to be installed.

CMOS Setup Utility - Copyright (C) 1985-2010, American Megatrends, Inc. SATA Port1

SATA Port1Device: ATAPI CDROMVendor: Optiarc DVD RW AD-7643SLBA Mode: SupportedPIO Mode: 4Async DMA: MultiWord DMA-2Ultra DMA: Ultra DMA-5Type AutoPIO Mode AutoDMA Mode Auto	Help Item
	Select the type of the device connected to the system.

↑↓→←:Move

+/-: Value

Enter:Select

F10: Save and Exit

F1: General Help

F9: Optimized Defaults

ESC:Exit Without Saving

Type (Auto)

Use this item to configure the type of the IDE device that you specify. If the feature is enabled, it will enhance hard disk performance by reading or writing more data during each transfer.

PIO Mode (Auto)

Use this item to set the PIO mode to enhance hard disk performance by optimizing the hard disk timing.

DMA Mode (Auto)

DMA capability allows users to improve the transfer-speed and data-integrity for compatible IDE devices.

Press to return to the Standard CMOS Setup page.

Advanced Setup

This page sets up more advanced information about your system. Handle this page with caution. Any changes can affect the operation of your computer.

CMOS Setup Utility - Copyright (C) 1985-2010, American Megatrends, Inc. Advanced Setup

TM Staus TM1 Limit CPUID MaxVal Disabled Intel XD Bit Enabled Intel (R) HT Technology Enabled Quick Power on Self Test Enabled Boot Up Numlock Status On APIC Mode Enabled 1st Boot Device Hard Drive 2nd Boot Device CD/DVD 3rd Boot Device Removable Device ►Hard Disk Driver Priority Press Enter ►CD&DVD Drives Press Enter Boot Other Device Yes	Help Item
	Disabled for Windows

↑↓→←:Move F10: Save a Mall Exit Enter : Select F1: General Help F9: Optimized Defaults

ESC: Exit Without Saving

TM Status (TM1)

This item shows TM function status if CPU can support TM function.

Use this item to enable or disable the Max CPU ID value limit. When supports Intel AtomTM 330 Duo-Core CPUs, enables this to prevent the system from "rebooting" when trying to install Windows NT4.0.

Intel (R) HT Technology (Enabled)

This item enables or disables Intel HT technology support.

Quick Power on Self Test (Enabled)

Enable this item to shorten the power on testing (POST) and have your system start up faster. You might like to enable this item after you are confident that your system hardware is operating smoothly.

Boot Up Numlock Status (On)

This item defines if the keyboard Num Lock key is active when your system is started.

APIC Mode (Enabled)

This item allows you to enable or disable the APIC (Advanced Programmable Interrupt Controller) mode. APIC provides symmetric multi-processing (SMP) for systems, allowing support for up to 60 processors.

1st/2nd/3rd Boot Device (Hard Drive/CD/DVD/Removable Dev./LAN)

Use this item to determine the device order the computer used to look for an operating system to load at start-up time. The devices showed here will be different depending on the exact devices installed on your motherboard.

▶Hard Disk Drive Priority (Press Enter)

Scroll to this item and press to view the following screen:

CMOS Setup Utility - Copyright (C) 1985-2010, American Megatrends, Inc. Hard Disk Driver Priority

Hard Disk Driver1st Drive SATA: MAXTOR STM316	Help Item
	Specifies the boot sequence from the available devices.

↑↓→←:MoveF10: Save:ahdExit Enter:Select

F1: General Help F9: Optimized Defaults

ESC: Exit Without Saving

Press to return to the Advanced BIOS Features page.

▶Optical Disk Driver Priority (Press Enter)

Scroll to this item and press to view the following screen:

CMOS Setup Utility - Copyright (C) 1985-2010, American Megatrends, Inc. Optical Disk Driver Priority

Optical Disk Driver1st Drive CD&DVD: Slimtype DV	Help Item
	Specifies the boot sequence from the available devices.

↑↓→←:MoveF10:Save:andExit Enter:Select

F1: General Help F9: Optimized Defaults

ESC:Exit Without Saving

Press to return to the Advanced BIOS Features page.

Boot Other Device (Yes)

When enabled, the system searches all other possible locations for an operating system if it fails to find one in the devices specified under the First, Second and Third boot devices.

Press to return to the main menu setting page.

Advanced Chipset Setup

This page sets up more advanced information about your system. Handle this page with caution. Any changes can affect the operation of your computer.

CMOS Setup Utility - Copyright (C) 1985-2010, American Megatrends, Inc. Advanced Chipset Setup

DVMT Mode Select DVMT Mode DVMT/FIXED Memory 256MB	Help Item
	Options Fixed Mode DVMT Mode

1↓→←:MoveF10: Save:andExit Enter:Select F1:General Help F9:Optimized Defaults ESC:Exit Without Saving

DVMT Mode Select (DVMT Mode)

DVMT is Dynamic Video Memory Technology. This item helps you select video mode.

DVMT/Fixed Memory (256MB)

When set to Fixed Mode, the graphics driver will reserve a fixed portion of the system memory as graphics memory. When set to DVMT Mode, the graphics chip will dynamically allocate system memory as graphics memory, according to system and graphics requirements.

Press to return to the main menu setting page.

Integrated Peripherals

This page sets up some parameters for peripheral devices connected to the system.

CMOS Setup Utility - Copyright (C) 1985-2010, American Megatrends, Inc. Integrated Peripherals

SATA Configuration IDE Onboard Audio Function Enabled Onboard LAN Function Enabled Onboard LAN Boot ROM Disabled USB Functions Enabled Legacy USB Support Enabled	Help Item
	OptionsIDEAHCI

↑↓—:Move F10: Save: a n d Exit Enter : Select F1: General Help F9: Optimized Defaults
ESC:Exit Without Saving

SATA Configuration (IDE)

Use this item to show the Serial ATA Configuration.

Onboard AUDIO Function (Enabled)

Use this item to enable or disable the onboard audio device.

Onboard LAN Function (Enabled)

Use this item to enable or disable the onboard LAN function.

Onboard LAN Boot ROM (Disabled)

Use this item to enable or disable the booting from the onboard LAN or a network add-in card with a remote boot ROM installed.

USB Functions (Enabled)

Use this item to enable or disable the USB function.

Legacy USB Support (Enabled)

Use this item to enable or disable support for legacy USB devices.

Press to return to the main menu setting page.

Power Management Setup

This page sets up some parameters for system power management operation.

CMOS Setup Utility - Copyright (C) 1985-2010, American Megatrends, Inc.

Power Management Setup

ACPI Suspend Type S3 PWRON After PWR-Fail Power Off EUP Support Enabled Resume By PCI-E/Lan PME Disabled Resume By USB (S3) Disabled Resume On RTC Alarm Disabled	Help Item
	Select the ACPI state used for Sys- tem Suspend.

↑↓→←:MoveF10: Save:AnalExit Enter:Select

F1: General Help F9: Optimized Defaults ESC: Exit Without Saving

ACPI Suspend Type (S3)

Use this item to define how your system suspends. In the default, S3, the suspend type is suspend to RAM, i.e., the system shuts down with the exception of a refresh current to the system memory.

PWRON After PWR-Fail (Power Off)

This item enables your computer to automatically restart or return to its operating status.

EUP Support (Enabled)

This item enables your computer to support energy star.

Resume By PCI/PCI-E/Lan PME (Disabled)

These items specify whether the system will be awakened from power saving modes when activity or input signal of the specified hardware peripheral or component is detected.

Resume by USB (S3) (Disabled)

This item allows you to enable/disable the USB device wakeup function from S3/S4 mode.

Resume on RTC Alarm (Disabled)

The system can be turned off with a software command. If you enable this item, the system can automatically resume at a fixed time based on the system RTC (realtime clock). Use the items below this one to set the date and time of the wake-up alarm. You must use an ATX power supply in order to use this feature.

Press to return to the main menu setting page.

PC Health Status

On motherboards support hardware monitoring, this item lets you monitor the parameters for critical voltages, temperatures and fan speeds.

CMOS Setup Utility - Copyright (C) 1985-2010, American Megatrends, Inc. PC Health Status

Smart Fan Function Enabled Shutdown Temperature Disabled Warning Temperture Disabled CPU Temperature (PECI Mode) : 38°C/100°F System Temperature : 42°C/107°F CPU Fan Speed : 1022 RPM CPU Core : 1.164 V VDIMM : 1.512 V	Help Item
	Options Disabled Enabled

↑↓→←:MoveF10: Save'abMdlExit Enter: Select

F1: General Help F9: Optimized Defaults ESC: Exit Without Saving

Shutdown Temperature (Disabled)

Enable you to set the maximum temperature the system can reach before powering down

Warning Temperature (Disabled)

Enable you to set the warning temperature the system can reach.

System Component Characteristics

These items display the monitoring of the overall inboard hardware health events, such as CPU & system temperature, CPU fan speed, CPU Core, VDIMM...etc.

• CPU Temperature
• System Temperature
• CPU Fan Speed
• CPU Core
• VDIMM

Frequency/Voltage Control

This page enables you to set the clock speed and system bus for your system. The clock speed and system bus are determined by the kind of processor you have installed in your system.

CMOS Setup Utility - Copyright (C) 1985-2010, American Megatrends, Inc. Frequency/Voltage Control

Manufacturer : Intel Ratio Actual Value : 9 Spread Spectrum Enabled	Help Item
	Options Disabled Enabled
↑↓→←:Move F10: Save a Mall Exit Enter : Select F1:General Help F9: Optimized Defaults ESC:Exit Without Saving

Manufacutrer: Intel

This item shows the information of manufacturer.

RatioActual Value: 9

This item shows the information of ratio actual value.

CPU Spread Spectrum (Disabled)

If you enable spread spectrum, it can significantly reduce the EMI (Electro-Magnetic Interference) generated by the system.

Press to return to the main menu setting page.

Load Default Settings

This option opens a dialog box that lets you install stability-oriented defaults for all appropriate items in the Setup Utility. Select and then press to install the defaults. Select and then press to not install the defaults.

Supervisor Password

CMOS Setup Utility - Copyright (C) 1985-2010, American Megatrends, Inc. Supervisor Password

↑↓→←:MoveF10: Save:ahdlExit Enter:Select

F1: General Help F9: Optimized Defaults

ESC: Exit Without Saving

※▲■米+☆☆米

Supervisor Password (Not Installed)

This item indicates whether a supervisor password has been set. If the password has been installed, Installed displays. If not, Not Installed displays.

Change Supervisor Password (Press Enter)

You can select this option and press to access the sub menu. You can use the sub menu to change the supervisor password.

Press to return to the main menu setting page.

User Password

This page helps you install or change a password.

CMOS Setup Utility - Copyright (C) 1985-2009, American Megatrends, Inc. User Password

User Password : Not Installed	Help Item
	Install or Change the password.

↑↓→← :Move Enter:Select +/-:Value F10:Save ESC:Exit F1:General Help F9:Optimized Defaults

User Password (Not Installed)

This item indicates whether a user password has been set. If the password has been installed, Installed displays. If not, Not Installed displays.

Save & Exit Setup

Highlight this item and press to save the changes that you have made in the Setup Utility and exit the Setup Utility. When the Save and Exit dialog box appears, select [OK] to save and exit, or select [Cancel] to return to the main menu.

Exit Without Saving

Highlight this item and press to discard any changes that you have made in the Setup Utility and exit the Setup Utility. When the Exit Without Saving dialog box appears, select [OK] to discard changes and exit, or select [Cancel] to return to the main menu.

If you have made settings that you do not want to save, use the "Exit Without Saving" item and select [OK] to discard any changes you have made.

中

***O□

Chapter 4 Using the Software

About the Software DVD-ROM/CD-ROM

The support software DVD-ROM/CD-ROM that is included in the motherboard package contains all the drivers and utility programs needed to properly run the bundled products. Below you can find a brief description of each software program, and the location for your motherboard version. More information on some programs is available in a README file, located in the same directory as the software. Before installing any software, always inspect the folder for files named README.TXT or something similar. These files may contain important information that is not included in this manual.

1. Never try to install all software from folder that is not specified for use with your motherboard.

2. The notice of Intel HD audio installation (optional): The Intel High Definition audio functionality unexpectedly quits working in Windows Server 2003 Service Pack 1 or Windows XP Professional x64 Edition. Users need to download and install the update packages from the Microsoft Download Center "before" installing HD audio driver bundled in the Driver disk. Please log on to http://support.microsoft.com/default.aspx?scid=kb;enus:901105#appliesto for more information.

Auto-installing under Windows 7

The Auto-install DVD-ROM/CD-ROM makes it easy for you to install the drivers and software for your motherboard.

If the Auto-install DVD-ROM/CD-ROM does not work on your system, you can still install drivers through the file manager for your OS (for example, Windows Explorer). Refer to the Utility Folder Installation Notes later in this chapter.

The support software DVD-ROM/CD-ROM disk loads automatically under Windows 7. When you insert the DVD-ROM/CD-ROM disk in the DVD-ROM/CD-ROM drive, the autorun feature will automatically bring up the install screen. The screen has three buttons on it, Setup, Browse CD and Exit.

If the opening screen does not appear; double-click the file "setup.exe" in the root directory.

Using the Software

Drivers Tab

Setup	Click the Setup button to run the software installation program.Select from the menu which software you want to install.
Browse CD	The Browse CD button is the standard Windows command that allows you to open Windows Explorer and show the contents of the support disk.Before installing the software from Windows Explorer, look for a file named README.TXT or something similar. This file may contain important information to help you install the software correctly.Some software is installed in separate folders for different operating systems, such as Windows 7. Always go to the correct folder for the kind of OS you are using.In install the software, execute a file named SETUP.EXE by double-clicking the file and then following the instructions on the screen.
Exit	The Exit button closes the Auto Setup window.

Utilities Tab

Lists the software utilities that are available on the disk.

Information Tab

Displays the path for all software and drivers available on the disk.

Running Setup

Follow these instructions to install device drivers and software for the motherboard:

1. Click Setup. The installation program begins:

The following screens are examples only. The screens and driver lists will be different according to the motherboard you are installing.

The motherboard identification is located in the upper left-hand corner.

Using the Software

1. Click Next. The following screen appears:

1. Check the box next to the items you want to install. The default options are recommended.
2. Click Next run the Installation Wizard. An item installation screen appears:

1. Follow the instructions on the screen to install the items.

Drivers and software are automatically installed in sequence. Follow the onscreen instructions, confirm commands and allow the computer to restart a few times to complete the installation.

Windows 7 will appear below UAC (User Account Control) message after the system restart. You must select "Allow" to install the next driver. Continue this process to complete the drivers installation.

Manual Installation

Insert the disk in the DVD-ROM/CD-ROM drive and locate the PATH.DOC file in the root directory. This file contains the information needed to locate the drivers for your motherboard.

Look for the chipset and motherboard model; then browse to the directory and path to begin installing the drivers. Most drivers have a setup program (SETUP.EXE) that automatically detects your operating system before installation. Other drivers have the setup program located in the operating system subfolder.

If the driver you want to install does not have a setup program, browse to the operating system subfolder and locate the readme text file (README.TXT or README.DOC) for information on installing the driver or software for your operating system.

Utility Software Reference

All the utility software available from this page is Windows compliant. They are provided only for the convenience of the customer. The following software is furnished under license and may only be used or copied in accordance with the terms of the license.

These software(s) are subject to change at anytime without prior notice. Please refer to the support disk for available software.

Using the Software

Chapter 5

Trouble Shooting

Start up problems during assembly

After assembling the PC for the first time you may experience some start up problems. Before calling for technical support or returning for warranty, this chapter may help to address some of the common questions using some basic troubleshooting tips.

a) System does not power up and the fans are not running.

1. Disassemble the PC to remove the VGA adaptor card, DDR memory, LAN, USB and other peripherals including keyboard and mouse. Leave only the motherboard, CPU with CPU cooler and power supply connected. Turn on again to see if the CPU and power supply fans are running.
2. Make sure to remove any unused screws or other metal objects such as screwdrivers from the inside PC case. This is to prevent damage from short circuit.
3. Check the CPU FAN connector is connected to the motherboard.
4. For Intel platforms check the pins on the CPU socket for damage or bent. A bent pin may cause failure to boot and sometimes permanent damage from short circuit.
5. Check the 12V power connector is connected to the motherboard.
6. Check that the 12V power & ATX connectors are fully inserted into the motherboard connectors. Make sure the latches of the cable and connector are locked into place.

b) Power is on, fans are running but there is no display

1. Make sure the monitor is turned on and the monitor cable is properly connected to the PC.
2. Check the VGA adapter card (if applicable) is inserted properly.
3. Listen for beep sounds. If you are using internal PC speaker make sure it is connected.

a. continuous 3 short beeps : memory not detected

b. 1 long beep and 8 short beeps : VGA not detected

c) The PC suddenly shuts down while booting up.

1. The CPU may experience overheating so it will shutdown to protect itself. Ensure the CPU fan is working properly.
2. From the BIOS setting, try to disable the Smartfan function to let the fan run at default speed. Doing a Load Optimised Default will also disable the Smartfan.

Start up problems after prolong use

After a prolong period of use your PC may experience start up problems again. This may be caused by breakdown of devices connected to the motherboard such as HDD, CPU fan, etc. The following tips may help to revive the PC or identify the cause of failure.
1. Clear the CMOS values using the CLR_CMOS jumper. Refer to CLR_CMOS jumper in Chapter 2 for Checking Jumper Settings in this user manual. When completed, follow up with a Load Optimised Default in the BIOS setup.
2. Check the system fan for dust. Long term accumulation of dust will reduce its effectiveness to cool the processor. Clean the cooler or replace a new one if necessary.
3. Remove the hard drive, optical drive or DDR memory to determine which of these component may be at fault.

Maintenance and care tips

Your computer, like any electrical appliance, requires proper care and maintenance. Here are some basic PC care tips to help prolong the life of the motherboard and keep it running as best as it can.

1. Keep your computer in a well ventilated area. Leave some space between the PC and the wall for sufficient airflow.
2. Keep your computer in a cool dry place. Avoid dusty areas, direct sunlight and areas of high moisture content.
3. Routinely clean the CPU cooler fan to remove dust and hair.
4. In places of hot and humid weather you should turn on your computer once every other week to circulate the air and prevent damage from humidity.
5. Add more memory to your computer if possible. This not only speeds up the system but also reduces the loading of your hard drive to prolong its life span.
6. If possible, ensure the power cord has an earth ground pin directly from the wall outlet. This will reduce voltage fluctuation that may damage sensitive devices.

Basic Troubleshooting Flowchart

Memo
