Product Type	WiFi USB Adapter
Brand	TP-Link
Model	TL-WN422G
Wireless Standards	IEEE 802.11g, 802.11b
Frequency Band	2.4 GHz
Maximum Data Rate	54 Mbps
Interface	USB 2.0
Antenna Type	External detachable antenna with RP-SMA connector
Antenna Gain	2 dBi
Security	64/128-bit WEP, WPA/WPA2 (TKIP/AES)
Dimensions (L x W x H)	Approx. 90 x 30 x 15 mm
Weight	Approx. 30 g
Power Supply	USB bus power (5V/500mA)
Operating Temperature	0°C to 40°C
Operating Humidity	10% to 90% non-condensing
Compatible Operating Systems	Windows 98SE/Me/2000/XP, Linux
Maintenance	Keep dry; wipe with a soft, dry cloth
Safety Precautions	Avoid water, high temperatures, and physical shock
Spare Parts / Repairability	Not available; device is not user-serviceable

Frequently Asked Questions - TL-WN422G TP-LINK

How do I install the TL-WN422G adapter?

Insert the CD or download drivers from TP-Link's website. Plug the adapter into a USB port, then install the driver. For Windows, the wizard will guide you.

Is the TL-WN422G compatible with Windows 10?

Officially it supports up to Windows XP. However, it may work with later versions using generic drivers, but functionality is not guaranteed.

What is the maximum range of this antenna?

Indoor range is typically up to 100 meters, outdoor up to 300 meters (line of sight). Actual range depends on obstacles and interference.

Does it support WPA2 encryption?

Yes, it supports WPA2 with AES encryption, as well as WPA and WEP.

Can I upgrade the antenna?

Yes, the antenna is detachable with an RP-SMA connector. You can replace it with a higher-gain antenna for better range.

Why is the LED not lighting up?

Ensure the adapter is fully inserted into a working USB port. If the LED remains off, try a different port or restart your computer.

How do I connect to a wireless network?

After installing drivers, use the built-in wireless utility (Windows) or the TP-Link utility to scan for networks and enter the password.

What is the data transfer speed?

The maximum speed is 54 Mbps under ideal conditions. Actual speed may be lower due to distance and interference.

Is this adapter compatible with Linux?

Yes, it works with Linux using the rtl8187 driver. Some distributions include it automatically.

Can I use this adapter with a Mac?

Officially it is not supported. It may be recognized but drivers are not provided for macOS. Third-party drivers may work, but success is not guaranteed.

USER MANUAL TL-WN422G TP-LINK

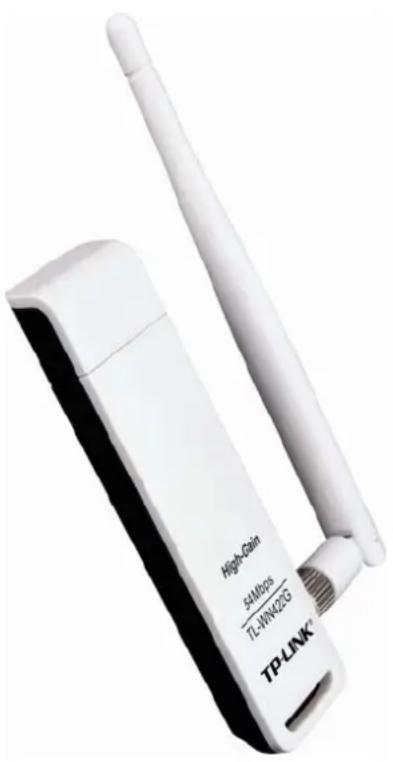

High-Gain Wireless USB Adapter

COPYRIGHT & TRADEMARKS

Specifications are subject to change without notice. TP-LINK® is a registered trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD. Copyright © 2010 TP-LINK TECHNOLOGIES CO., LTD. All rights reserved.

http://www.tp-link.com

FCC STATEMENT

FC

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) This device may not cause harmful interference. 2) This device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user's authority to operate the equipment.

FCC RF Radiation Exposure Statement:

This device has been tested for compliance with FCC RF Exposure (SAR) limits in the typical laptop computer configuration and this device can be used in desktop or laptop computers. This device cannot be used with handheld PDAs (personal digital assistants). This device and its antenna must not be co-located or operated in conjunction with any other antenna or transmitter. SAR measurements are based on a 5mm spacing from the body and that compliance is achieved at that distance.

CE Mark Warning

CE1588①

This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.

National Restrictions

2400.0-2483.5 MHz

Country	Restriction	Reason/remark
Bulgaria	General authorization required for outdoor use and public service
France	Outdoor use limited to 10 mW e.i.r.p. within the band 2454-2483.5 MHz	Military Radiolocation use. Refarming of the 2.4 GHz band has been ongoing in recent years to allow current relaxed regulation. Full implementation planned 2012
Italy	If used outside of own premises, general authorization is required
Luxembourg	None	General authorization required for network and service supply(not for spectrum)
Norway	Implemented	This subsection does not apply for the geographical area within a radius of 20 km from the centre of Ny-Ålesund
Russian Federation	Only for indoor applications

Note: Please don't use the product outdoors in France.

DECLARATION OF CONFORMITY

For the following equipment:

Product Description: High-Gain Wireless USB Adapter

Model No.: TL-WN422G

Trademark: TP-LINK

We declare under our own responsibility that the above products satisfy all the technical regulations applicable to the product within the scope of Council Directives:

Directives 1999/5/EC

The above product is in conformity with the following standards or other normative documents:

ETSI EN 300 328 V1.7.1: 2006

ETSI EN 301 489-1 V1.8.1:2008 & ETSI EN 301 489-17 V1.3.2:2008

EN60950-1:2006

EN62311:2008

Recommendation 1999/519/EC

Person is responsible for marking this declaration:

Yang Hongliang

Product Manager of International Business

CONTENTS

Package Contents .... 1

Conventions: 1

Chapter 1. Introduction ...... 2

1.1 Overview of the product....2 1.2 Feature 2 1.3 LED Status 2 1.4 System Requirements 3 1.5 Network Configuration 3

Chapter 2. Installation Guide .... 5

2.1 Before You Begin 5 2.2 Hardware Installation 5 2.3 Software Installation 5 2.3.1 For Windows XP 5 2.3.2 For Windows Vista 10 2.3.3 For Windows 7 13

Chapter 3. Configuration....17

3.1 For Windows XP 17 3.1.1 Current Status 17 3.1.2 Profile Management 19 3.1.3 Diagnostics 27 3.1.4 Check Driver Information....27 3.1.5 Check Receive and Transmit Statistical Information 28

3.2 For Windows Vista....28

3.3 For Windows 7 31

Chapter 4. Example for Application ...... 33

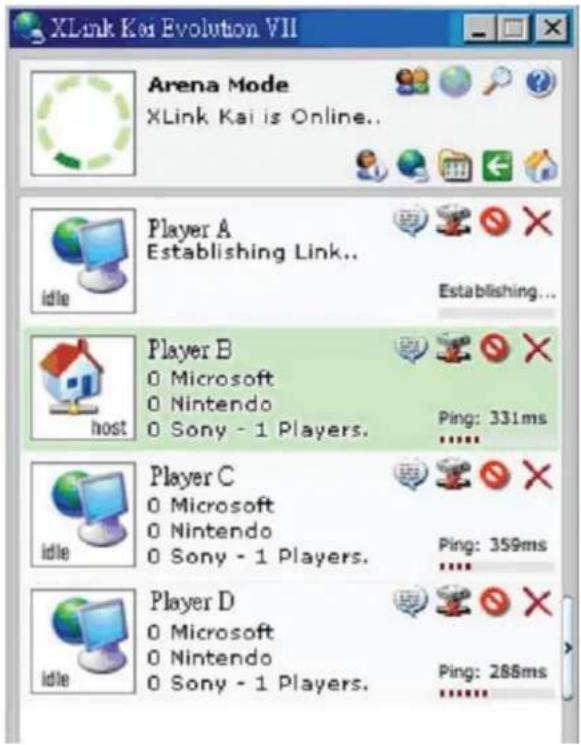

4.1 Configuration of PSP XLink Online game....33

Appendix A: Specifications....37

Appendix B: Glossary....38

Package Contents

The following items should be found in your package:

One TL-WN422G High-Gain Wireless USB Adapter One USB extension cable One TL-WN422G High-Gain Wireless USB Adapter Resource CD, including:

• Drivers and Utility
• User Guide • Other Helpful Information

Note:

Make sure that the package contains the above items. If any of the listed items are damaged or missing, please contact your distributor.

Conventions:

The 'Adapter' mentioned in this user guide stands for TL-WN422G High-Gain Wireless USB Adapter without any explanations.

Chapter 1. Introduction

Thank you for choosing TL-WN422G High-Gain Wireless USB Adapter.

1.1 Overview of the product

The adapter is a USB 2.0 pen-size wireless adapter supporting IEEE 802.11b/g 2.4GHz radio operation. It provides high-speed wireless connection with data rate up to 54Mbps, and wireless roaming allows the user to move among different AP without losing the current connection. The adapter provides excellent security features, including TKIP, AES, WPA, and up to 256 bit WEP encryption security, which makes the network almost impenetrable.

Featuring high performance of fast transmission rates, simple installation and adaptability, as well as strong security, the TL-WN422G High-Gain Wireless USB Adapter is the perfect solution for personal and small business use.

1.2 Feature

Complies with IEEE 802.11b and IEEE 802.11g Standards Provides 64/128/256 bit WEP Encryption Supports WPA, WPA2, IEEE 802.1X, TKIP, AES Supports 54/48/36/24/18/12/9/6Mbps or 11/5.5/2/1Mbps wireless LAN data transfer rates USB 2.0 interface and compatible with USB 1.1 ▶ High Speed Data Rate Up to 54Mbps Supports Windows 98, ME, 2000, XP, 2003, Vista and Windows 7 ➢ Simulates AP Mode, And Supports PSP connection

1.3 LED Status

The TL-WN422G High-Gain Wireless USB Adapter has a LED indicator.

LED Indicator:

Status Working	Status
Off	The driver has not been installed.
Flashing Slowly	The driver has been installed but there is no data being transmitted or received.
Flashing Quickly	There is data being transmitted or received.

1.4 System Requirements

The following are the minimum system requirements in order to use the TL-WN422G High-Gain Wireless USB Adapter.

PC/AT compatible computer with a USB interface. Windows 7/Vista/XP/2003/2000/98/ME operating system.

(Windows 98/ME don't support USB 2.0, the performance could be influenced)

1.5 Network Configuration

The following part will depict the possible wireless LAN PC card network configurations, which helps you to get a better understanding of how the wireless LAN products work together in a wireless network.

The wireless LAN products can be configured as:

Ad-hoc (peer-to-peer) Mode

This is the simplest network configuration with several computers equipped with the PC Cards that form a wireless network whenever they are within range of one another. In ad-hoc mode, each client is peer-to-peer, would only have access to the resources of the other client and does not require an access point. This is the easiest and least expensive way for the SOHO to set up a wireless network.

The image below depicts a network in ad-hoc mode.

Figure 1-1 Ad-hoc mode.

Infrastructure Mode

The infrastructure mode requires the use of an access point (AP). In this mode, all wireless communication between two computers has to be via the AP. It doesn't matter if the AP is stand-alone or wired to an Ethernet network. If used in stand-alone, the AP can extend the

range of independent wireless LANs by acting as a repeater, which effectively doubles the distance between wireless stations.

The image below depicts a network in infrastructure mode.

Figure 1-2 Infrastructure mode.

Chapter 2. Installation Guide

2.1 Before You Begin

The operating distance range of your wireless connection can vary significantly depending on the physical position of the wireless devices. Factors that can weaken signals by getting in the way of your network's radio waves are metal appliances or obstructions, and walls. Typical ranges vary based on the types of materials and background RF (radio frequency) noise in your home or office.

For best performance of your wireless network, you are suggested to:

1. Place your computer with this wireless card near the operating wireless router.
2. Avoid redundant obstacles and interference between the wireless devices.
3. Keep your product far from electrical devices or appliances that generate RF noise, such as microwave ovens, 2.4 GHz cordless phone.

2.2 Hardware Installation

There are two ways to install the Adapter:

1. Plug the Adapter directly to the USB port on your computer.
2. Connect the Adapter and your computer with the extension USB cable attached in package.

Note:

Once the Adapter is firmly in place, the Found New Hardware Wizard screen will pop up.

2.3 Software Installation

When Found New Hardware Wizard is prompted, click Cancel, and insert the Resource CD into your CD-ROM drive. The autorun.exe will automatically run. Follow the steps below to install the TL-WN422G High-Gain Wireless USB Adapter drivers:

2.3.1 For Windows XP

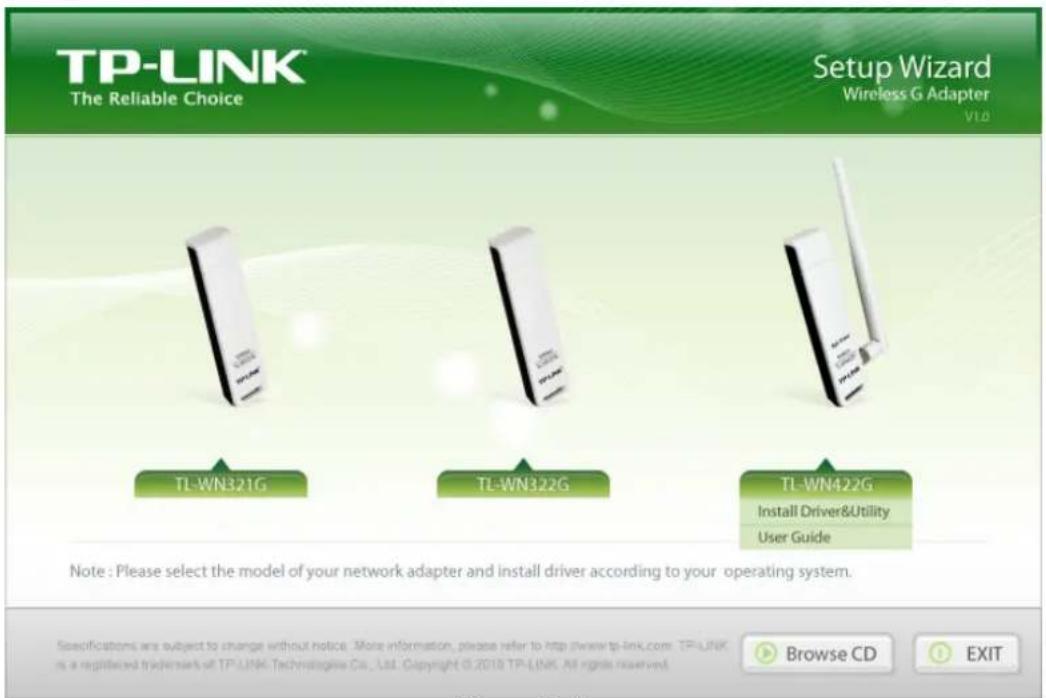

1. Insert the Resource CD into your CD-ROM drive, and the screen as shown below will display. To continue, select TL-WN422G. There will be a menu including Install Driver & Utility and User Guide.

Figure 2-1

1. Click Install Driver & Utility to load the following screen.

Figure 2-2

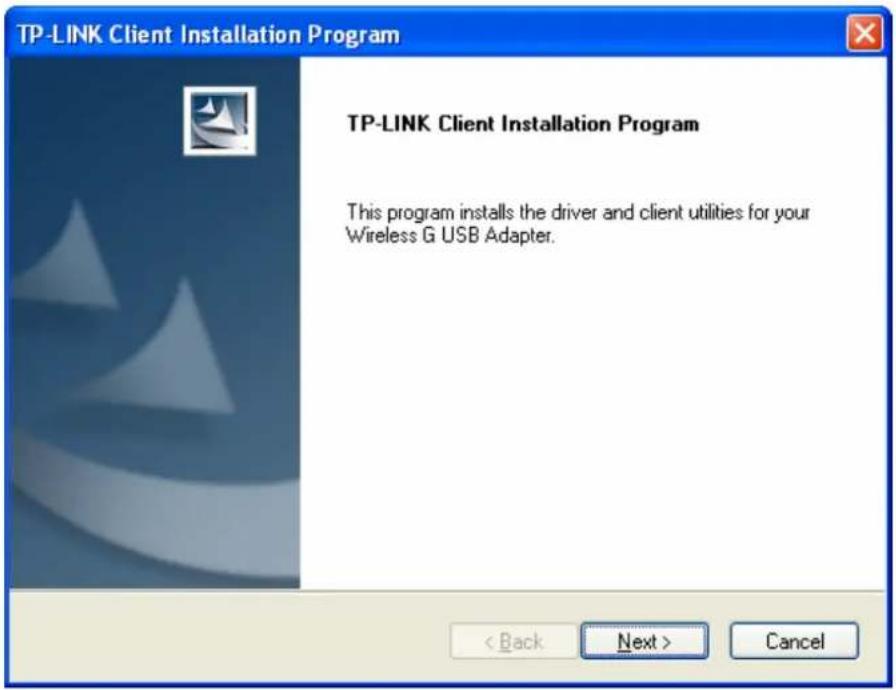

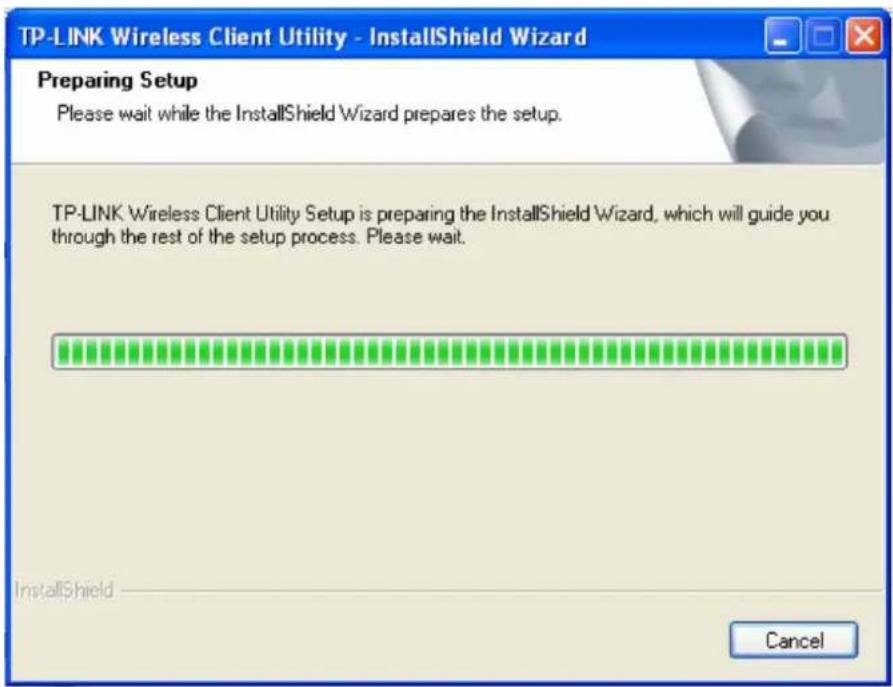

1. Soon, Figure 2-3 will display after a moment. Click Next to continue.

Figure 2-3

1. After that, you should choose a Setup type. It is recommended that you select Install Client Utilities and Driver. Select Install Driver Only to install driver only. Click Next to continue.

Figure 2-4

1. Click Browse to change the destination location for the software, then click Next in the screen below (shown in Figure 2-5).

Figure 2-5

1. After that, select the program folder, you should create a new folder name or select one from the Existing Folders list. It is recommended that you keep the default setting. Click Next to continue the installation.

Figure 2-6

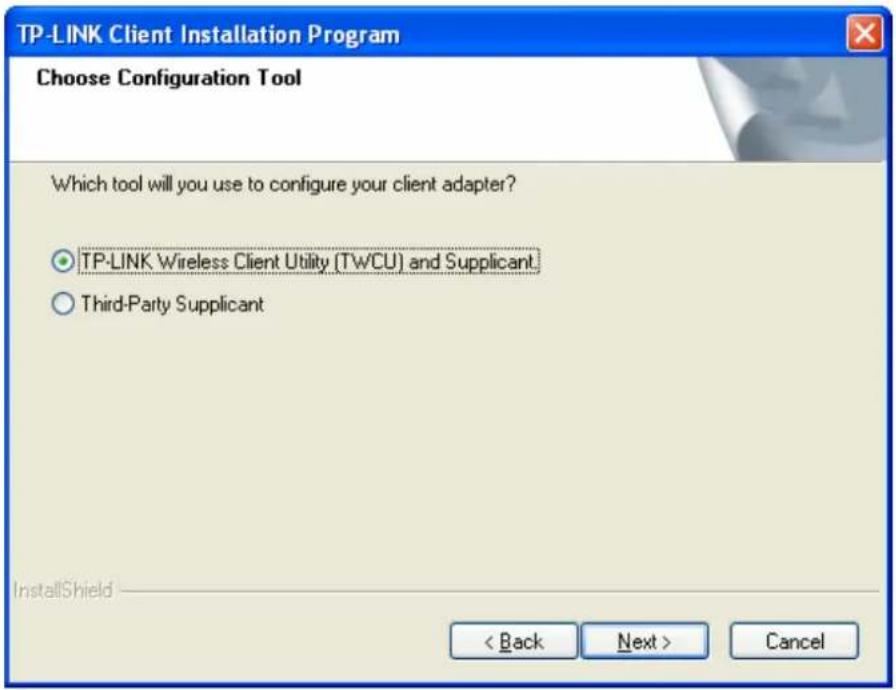

1. Choose configuration tool, if you are not sure, please leave it default. Then click Next to continue.

Figure 2-7

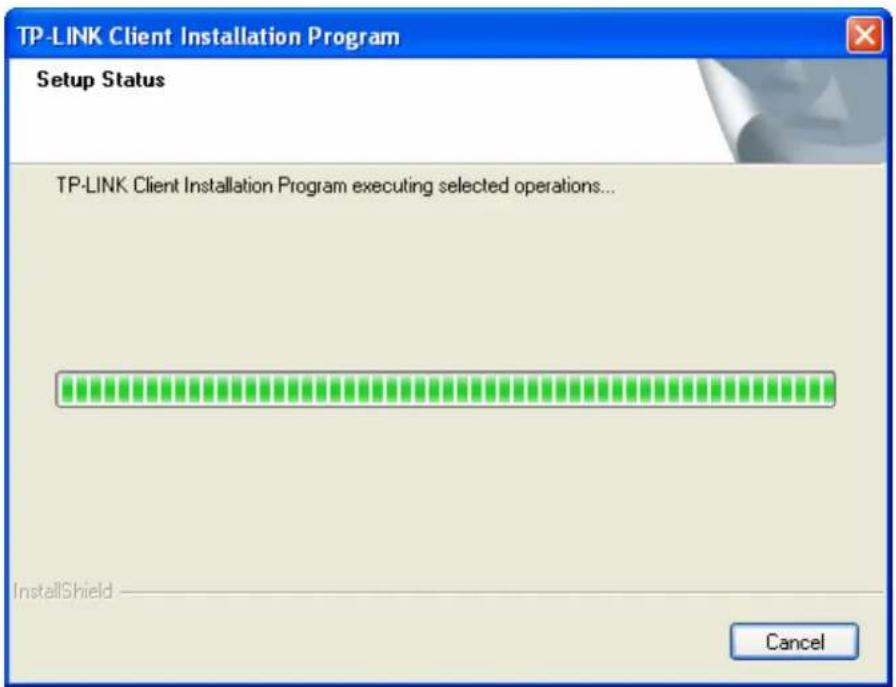

1. Wait a while for the setup as shown in Figure 2-8.

Figure 2-8

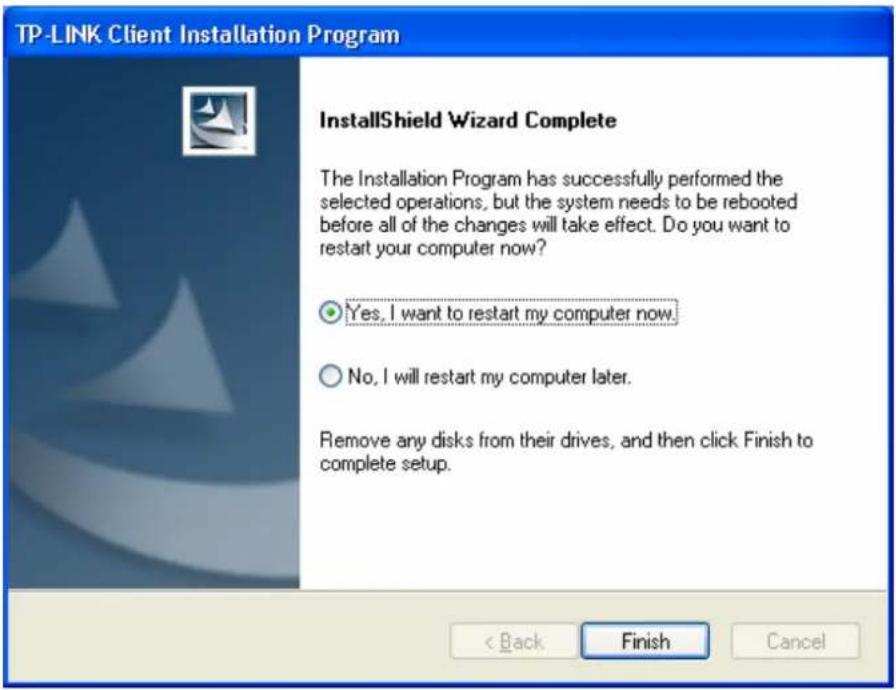

1. After all the steps above, you will see the screen below, click Finish to reboot the system.

Figure 2-9

2.3.2 For Windows Vista

1. Insert the Resource CD into your CD-ROM drive, and the screen as shown below will display. To continue, select TL-WN422G. There will be a menu including Install Driver & Utility and User Guide.

Figure 2-10

1. Click Install Driver & Utility in the Figure 2-1 to load the following screen.

Figure 2-11

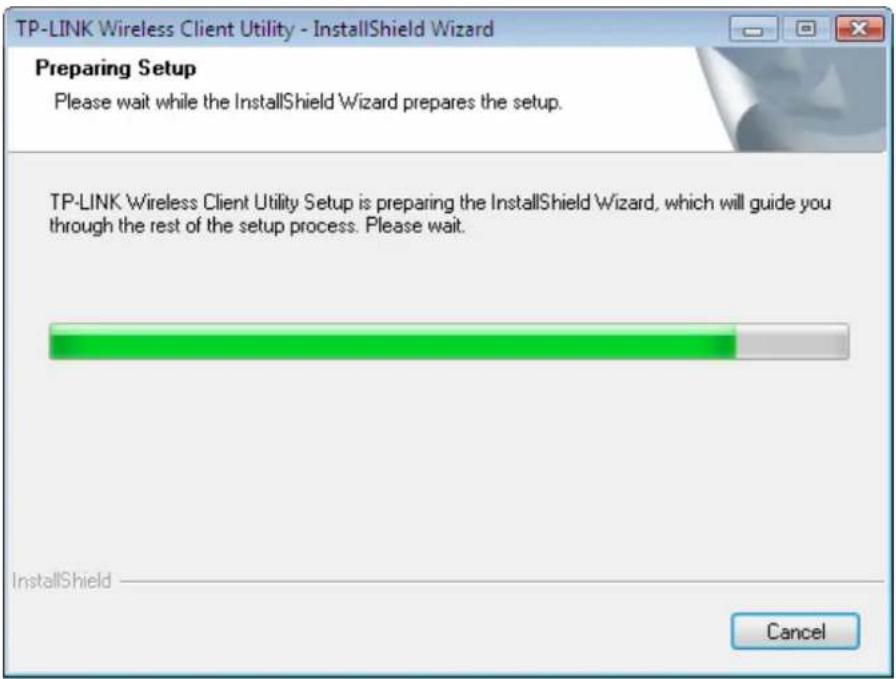

1. Soon, Figure 2-12 will display. Click Next to continue.

Figure 2-12

1. After a while, Figure 2-13 will appear and click Yes to continue.

Figure 2-13

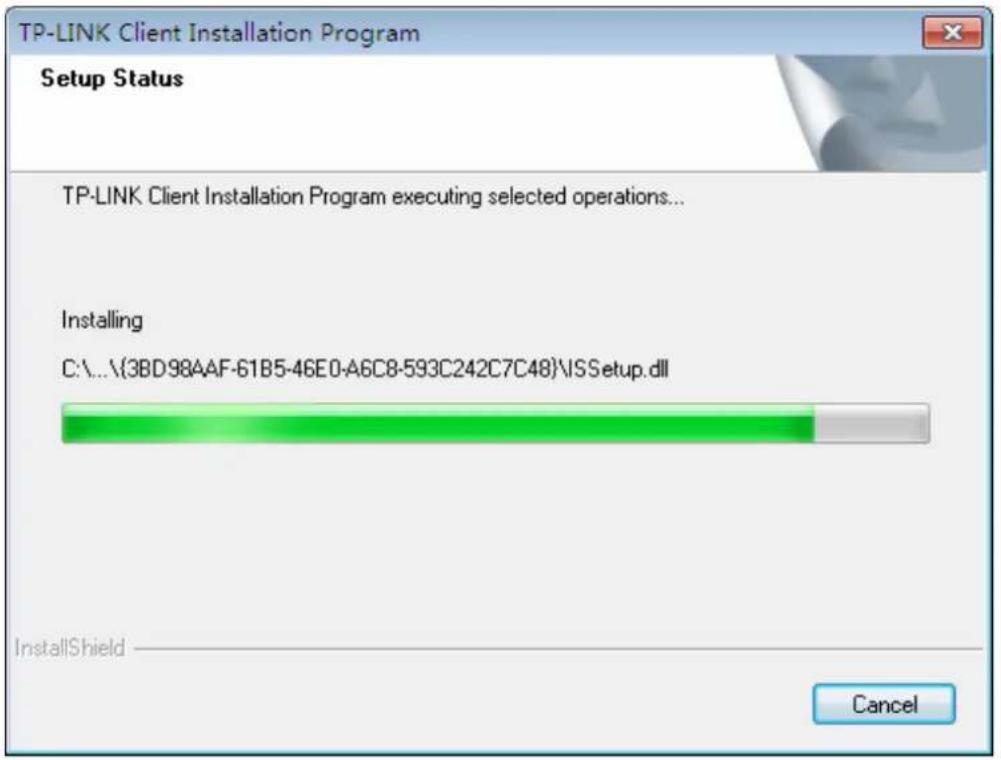

1. Then the following figure will display. Please wait or click Cancel to exit the Wizard.

Figure 2-14

1. After all the steps above, you will see the screen below, click Finish to exit the Wizard.

Figure 2-15

2.3.3 For Windows 7

1. Insert the Resource CD into your CD-ROM drive, and the screen as shown below will display. To continue, select TL-WN422G. There will be a menu including Install Driver & Utility and User Guide.

Figure 2-16

1. Click Install Driver & Utility to load the following screen.

Figure 2-17

1. Click Next in the screen below (shown in Figure 2-18) to continue, you can click Cancel to end the installation.

Figure 2-18

1. Click Yes in the following figure to continue.

Figure 2-19

1. After that, the files will be copied as the next screen shown.

Figure 2-20

1. Click the Finish button to complete.

Figure 2-21

Chapter 3. Configuration

3.1 For Windows XP

TP-LINK TL-WN422G can be configured by TP-LINK Wireless Client Utility (TWCU) in Windows XP & Windows 2000. This chapter describes how to configure your Adapter for wireless connectivity on your Wireless Local Area Network (WLAN) and use the data security encryption features.

The configuration of the adapter in Windows XP is similar with that of Windows 2000. This User Guide takes Windows XP for example.

After Installing the Adapter, the Adapter's tray icon will appear in your system tray. It appears at the bottom of the screen, and shows the signal strength using color and the received signal strength indication (RSSI).

If the icon is gray, there is no connection.

If the icon is red, there is poor signal strength and the RSSI is less than 5dB.

If the icon is yellow, there is poor signal strength and the RSSI is between 5dB and 10dB.

If the icon is green, there is good signal strength and the RSSI is between 10dB and 20dB.

If the icon is green, there is excellent signal strength and the RSSI is more than 20dB.

Double-click the icon and the TWCU will run. You can also run the utility by clicking the Start→All Programs→TP-LINK→TP-LINK Wireless Client Utility. The TWCU provides some integrated and easy tools to:

▶ Display current status information

- Edit and add configuration profiles

▶ Display current diagnostics information

The section below introduces these above capabilities.

3.1.1 Current Status

The Current Status tab contains general information about the program and its operations. The Current Status tab does not require any configuration.

Figure 3-1

The following table describes the items found on the Current Status screen.

Profile Name - This shows the name of the currently selected configuration profile. The configuration of the profile name will be described on the General tab of Profile Management. Link Status - This shows whether the station is associated with the wireless network. Wireless Mode - This displays the wireless mode. Network Type - The type of network and the station currently connected are shown here. The options include:

• Infrastructure (access point) - Ad Hoc

Note:

You can configure the network type and wireless mode on the Advanced tab of Profile Management.

IP Address - This displays the computer's IP address. Current Channel - This shows the currently connected channel. Data Encryption - This displays the encryption type the driver is using. You can configure it on the Security tab of Profile Management. Server Based Authentication - This shows whether server-based authentication is used. ➢ Signal Strength - This shows the strength of the signal.

Click Advanced on the screen above to see advanced information about the program and its operations.

3.1.2 Profile Management

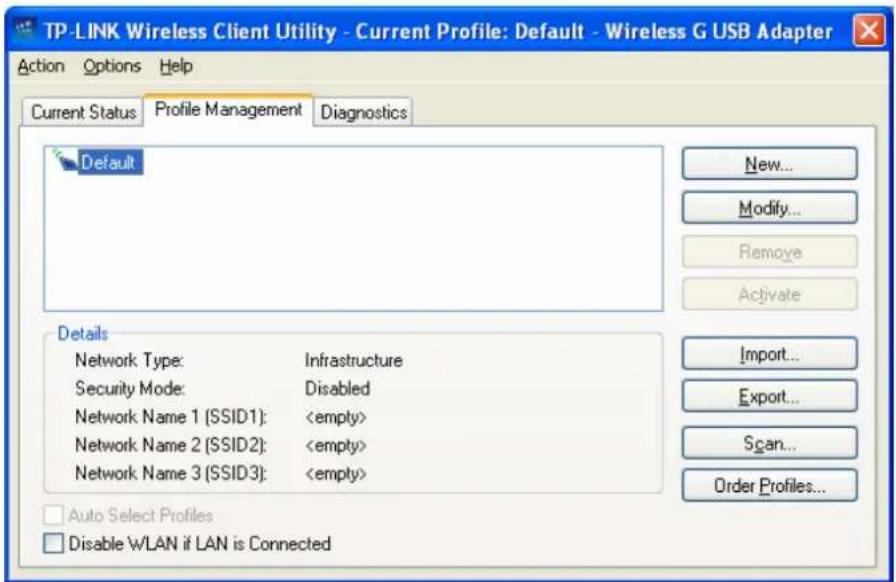

Click the Profile Management tab of the TWCU and the next screen will appear (shown in Figure 3-2). The Profile Management screen provides tools to:

▶ Add a new profile Modify a profile Remove a profile Activate a Profile Import a Profile Export a Profile ▶ Scan Available Networks Order profiles

Figure 3-2

3.1.2.1. Add or Modify a Configuration Profile

To add a new configuration profile, click New on the Profile Management tab. To modify a configuration profile, select the configuration profile from the Profile list and click Modify. Then you will see the Management dialog box (shown in Figure 3-3).

1. Edit the General tab

Profile Name - Please enter the Profile name which identifies the configuration profile. This name must be unique. Note that the profile names are not case-sensitive. Client Name - Please enter the Profile name which identifies the client machine.

Network Names (SSIDs) - Please enter the IEEE 802.11 wireless network name. This field has a maximum limit of 32 characters.

Figure 3-3

2. Edit the Security tab

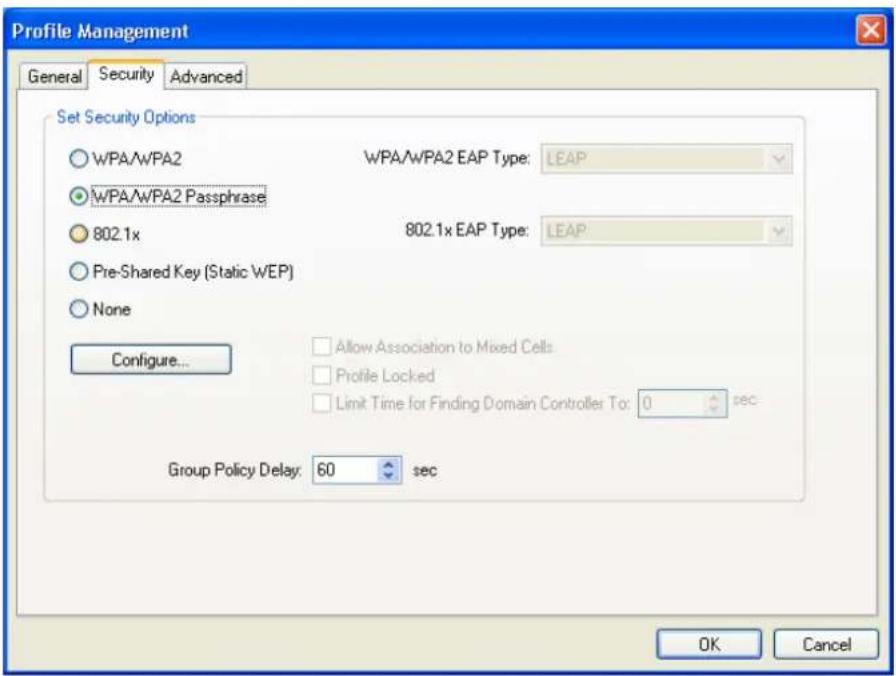

Select the Security tab in the screen above, and then you can edit the fields to configure the profile. To define the security mode, select the radio button of the desired security mode as follows.

Figure 3-4

WPA/WPA2: Wi-Fi Protected Access. WPA/WPA2 Passphrase: Wi-Fi Protected Access Passphrase. 802.1x: Enables 802.1x security. Pre-Shared Key (Static WEP): Enables the use of shared keys that are defined on both the access point and the station. To define shared encryption keys, choose the Shared Key radio button and click Configure to fill in the Define Shared Keys. None: No security (not recommended).

For Example:

Suppose your router's SSID is TP-LINK and it adopts WPA/WPA2 Passphrase encryption with the key "123456ABCDEF". Take the following steps to set the security.

Step 1 Select the radio button before WPA/WPA2 Passphrase and click Configure... button in Figure 3-4 above. Then the following figure will appear.

Figure 3-5

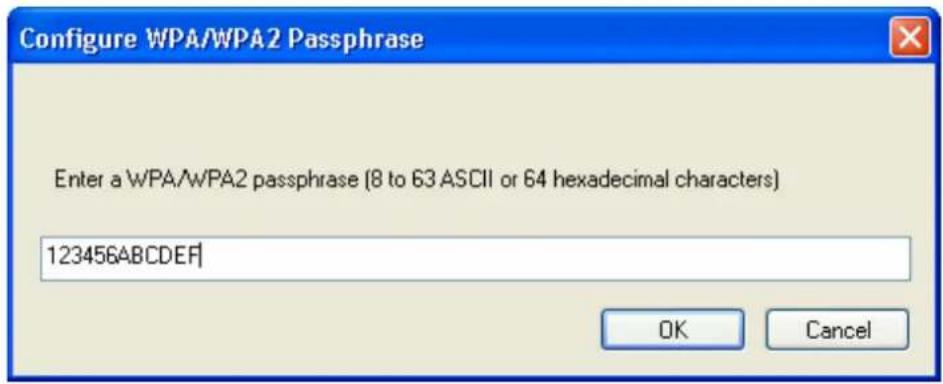

Step 2 Enter the WPA passphrase 123456ABCDEF in the blank field.

Step 3 Click OK to complete the wireless security settings.

Note:

Select different Security Options, the configurations are different; you can select the appropriate security option and configure the exact key as your need.

3. Edit the Advanced tab

This screen below allows you to make advanced configuration for the profile.

Figure 3-6

Power Save Mode - Please select the power save mode in the drop-down list.

• Maximum - Selects maximum mode to let the access point buffer incoming messages for the Adapter. The Adapter will detect the access point if any messages are waiting periodically.
• Normal - Normal mode uses maximum when retrieving a large number of packets, then switches back to power save mode after retrieving the packets.
• Off - Turns power saving off, thus powering up the Wireless USB Adapter continuously for a short message response time.

Network Type: There are basically two modes of networking:

• Infrastructure - All wireless clients will connect to an access point or wireless router. - Ad-Hoc - Directly connecting to another computer, for peer-to-peer communication, using wireless network adapters on each computer, such as two or more TL-WN422G wireless adapters.

Note:

1) An Infrastructure network contains an Access Point or wireless router. All the wireless devices or clients will connect to the wireless router or access point. 2) An Ad-Hoc network contains only clients, such as laptops with wireless desktop adapters. All the adapters must be in Ad-Hoc mode to communicate. Wireless Mode: Specifies 2.4 GHz 54 Mbps or 2.4 GHz 11 Mbps operation in an access point network. The Wireless adapter must match the wireless mode of the access point

with which it associates.

Wireless Mode when Starting an Ad Hoc Network: Specifies 2.4 GHz 54/11 Mbps to start an Ad Hoc network if no matching network name is found after scanning all available modes. This mode also allows the selection of the channel that the Wireless Adapter uses. The channels available depend on the regulatory domain. If the adapter finds no other ad hoc adapters, the channel that the adapter starts the ad hoc network with will be selected automatically. The Adapter must match the wireless mode and channel of the clients it associates.

802.11 Authentication Mode: Select which mode the Adapter uses to authenticate to an access point:

• Auto - Automatic causes the adapter to attempt authentication using shared, but switches it to open authentication if shared fails.
• Open - Open System enables an adapter to attempt authentication regardless of its WEP settings. It will only associate with the access point if the WEP keys on both the adapter and the access point match.
• Shared - Shared-key only allows the adapter to associate with access points that have the same WEP key.

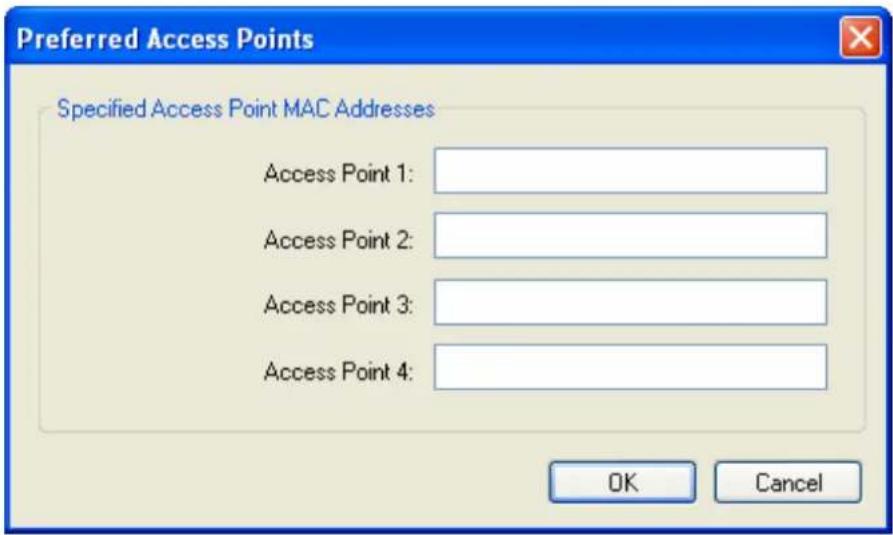

For infrastructure (access point) networks, click Preferred APs... to specify four access points at most to the client adapter that attempts to be associated to the access points. The four access points have different priorities; the frontal has the higher priority.

Figure 3-7

3.1.2.2. Remove a profile

1. Go to the Profile Management tab (shown in Figure 3-2).
2. Select the profile name in the Profiles List.

3. Click Remove.

Note:

The profile being used can't be removed.

3.1.2.3. Switch another Profile

1. Go to the Profile Management screen (shown in Figure 3-2).
2. Select the profile name required in the Profiles List.
3. Click Activate.

3.1.2.4. Export a Profile

1. From the Profile Management screen (shown in Figure 3-2), highlight the profile to export.
2. Click Export..., the Export Profile window will then appear below.
3. Browse the directory to export the profile to.
4. Click Save. The profile should then be exported to the specified location.

Figure 3-8

3.1.2.5. Import a Profile

1. From the Profile Management screen (shown in Figure 3-2), click Import.... Then the Import Profile will appear below.
2. Browse to the directory where the profile is located.
3. Highlight the profile name.
4. Click Open, the imported profile will then appear in the Profiles List.

Figure 3-9

3.1.2.6. Scan Available Networks

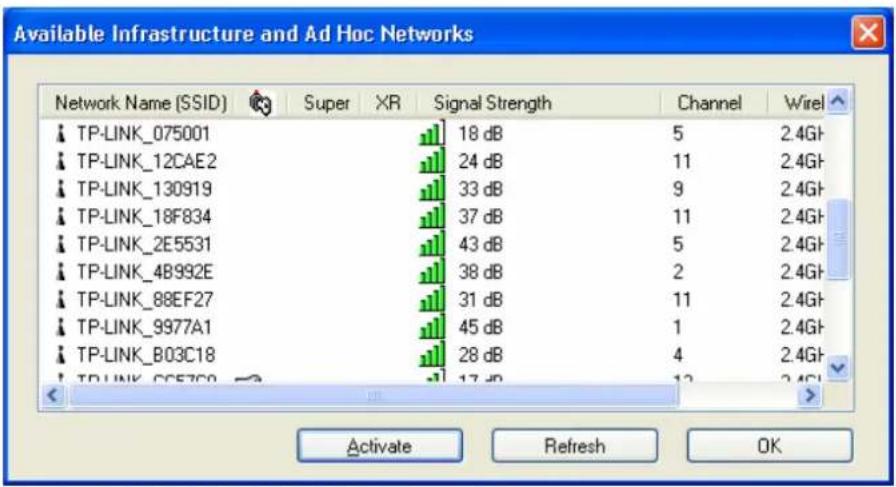

1. Click Scan on the Profile Management screen (shown in Figure 3-2), the Available Infrastructure and Ad Hoc Networks window will appear below.
2. Click Refresh to refresh the list at any time.
3. Highlight a network name and click Activate to connect to an available network. If no configuration profile exists for that network, the Profile Management window will open the General tab screen. Fill in the Profile name and click OK to create the configuration profile for that network.

Figure 3-10

3.1.2.7. Auto Profile Selection Management

The auto selection feature allows the adapter to automatically select a profile from the list of profiles and use it to connect to the network. To add a new profile into the Auto Selected Profiles list, please follow these steps.

1. On the Profile Management screen (shown in Figure 3-2), click Order Profiles....
2. The Auto Profiles Selection management window will appear (shown in Figure 3-11) with a list of all created profiles in the Available Profiles.

Figure 3-11

1. Highlight the profiles to add to auto profile selection, and click Add. The profile will appear in the Auto Selected Profiles box.
2. Highlight a profile in the Auto Selected Profiles box.
3. Click Move Up or Move Down as appropriate.

Note:

The first profile in the Auto Selected Profiles box has highest priority, while the last profile has the lowest priority.

1. Click OK.
2. Check the Auto Select Profiles checkbox on the Profile Management tab (shown in Figure 3-2).

Note:

When auto profile selection is enabled by checking Auto Select Profiles on the Profile Management tab, the client adapter will scan for an available network. The profile with the highest priority and the same SSID as one of the found networks will be used to connect to the network. If the connection fails, the client adapter will try the next highest priority profile that matches the SSID until an available network is found.

3.1.3 Diagnostics

The Diagnostics tab of the TP-LINK Wireless Client Utility (TWCU) provides buttons used to retrieve receiving and transmitting statistics. The Diagnostics tab does not require any configuration.

The Diagnostics tab lists the following receiving and transmitting diagnostics for frames received or transmitted by the wireless network adapter:

▶ Multicast frames transmitted and received ▶ Broadcast frames transmitted and received ▶ Unicast frames transmitted and received ▶ Total bytes transmitted and received

Figure 3-12

3.1.4 Check Driver Information

Click the Adapter Information button in the screen above, you will see the adapter information, including general information about the wireless network adapter and the Network Driver Interface Specification (NDIS) driver. Access the adapter information from the Diagnostics tab.

Card Name - The name of the wireless network adapter. MAC Address - The MAC address of the wireless network adapter. Driver - The driver name and path of the wireless network adapter driver. Driver Version - The version of the wireless network adapter driver. Driver Date - The creation date of the wireless network adapter driver. Client Name - The name of the client computer.

3.1.5 Check Receive and Transmit Statistical Information

The Advanced Statistics show receiving and transmitting statistical information about the following receiving and transmitting diagnostics for frames received by or transmitted to the wireless network adapter.

Figure 3-13

3.2 For Windows Vista

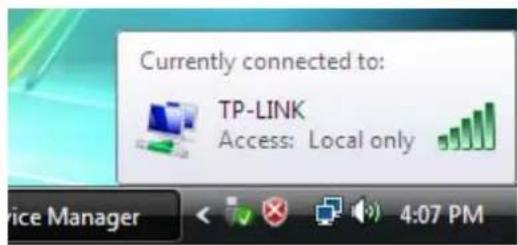

After the Adapter's driver has been installed, Windows Vista will display a wireless Network Connection message like this one.

Figure 3-14

Icon means the connection has been established. Icon means there is no connection.

To establish a connection, please follow the steps below.

1. Right-click the in your system tray, then click Connect to a network.

Figure 3-15

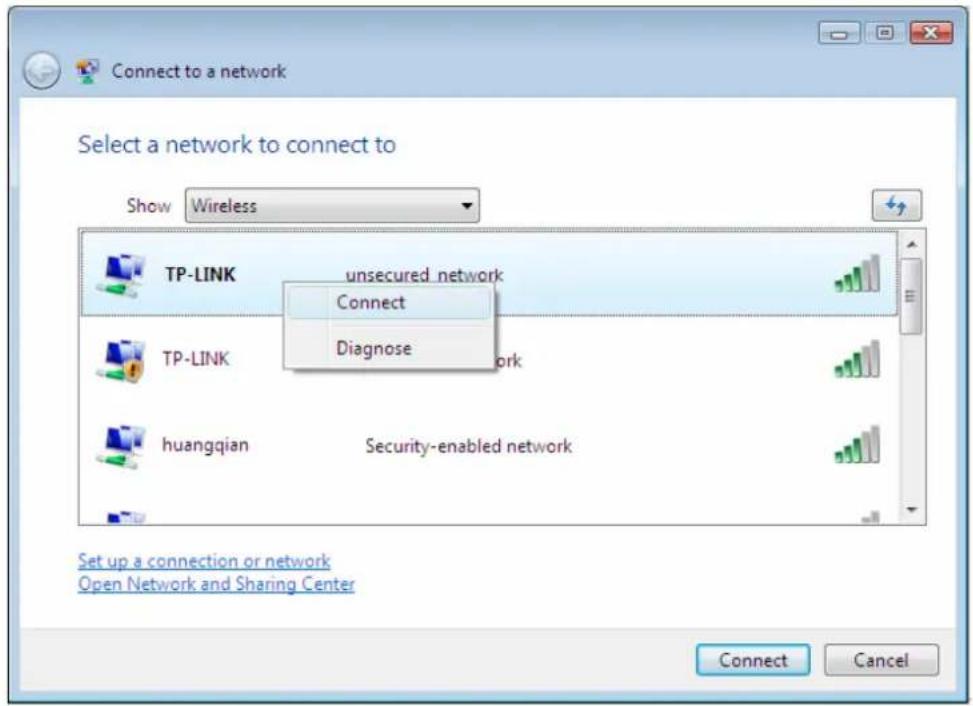

1. The following screen will show you available wireless networks. Highlight the one you want to join, and then click Connect.

Figure 3-16

1. To continue, click Connect Anyway. Click the Cancel button to end the connection.

Figure 3-17

1. If the connection is successful established, the following screen will appear. Click Close to finish the connection.

Figure 3-18

3.3 For Windows 7

TP-LINK Wireless Client Utility (TWCU) is not available for Windows 7. So after the Adapter's driver has been installed, we have to use Windows WLAN Autoconfig to establish a connection. Please follow the steps below.

1. Click the icon at the bottom of your screen in your system tray and then you will see the available wireless network list. Select the SSID of your Access Point and click Connect.

Figure 3-19

1. If your wireless network is secured, you will be required to enter the security key as shown in Figure 3-20. Enter the passphrase, for example 1234567890, and then click OK.

Figure 3-20

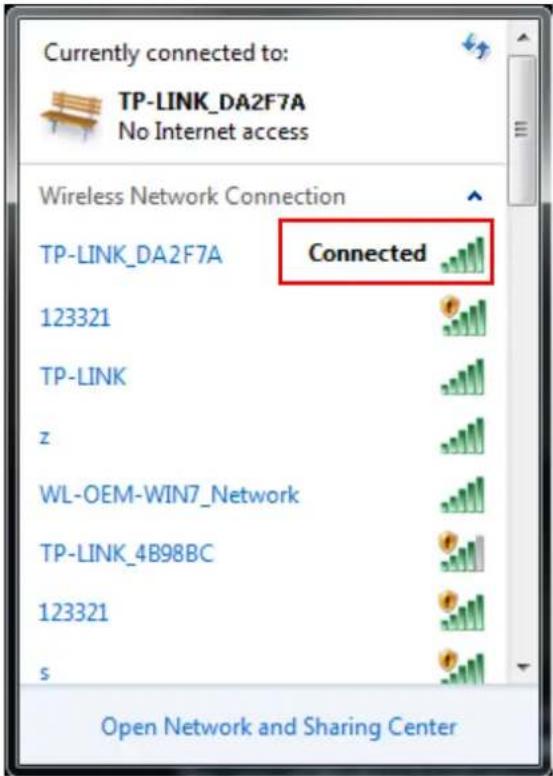

1. If the key entered is correct, you will successfully connect to the network as shown in Figure 3-21.

Figure 3-21

Chapter 4. Example for Application

4.1 Configuration of PSP XLink Online game

Please ensure the software and hardware environments are well established before configuring. For hardware, at least a PC, a TL-WN422G High-Gain Wireless USB Adapter, and a PSP device are needed. For software, the TL-WN422G Adapter driver should be properly installed.

Please operate as follows:

1. Connect to the website of X-LINK http://www.teamxlink.co.uk to register, and download the latest software of X-LINK Kai.

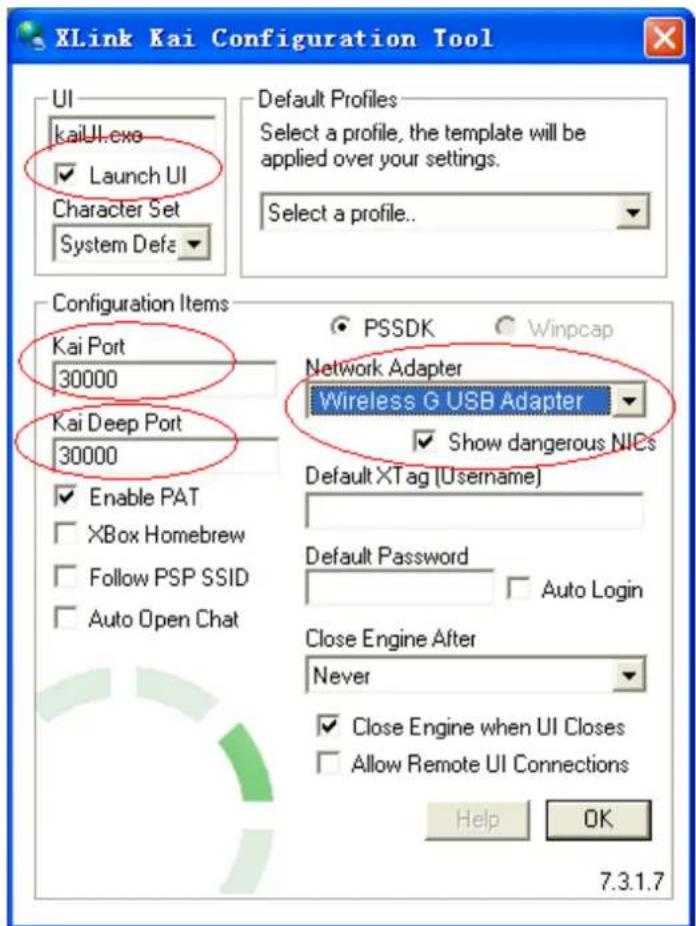

2. Install the X-LINK Kai software, click Start > All Programs > XLink Kai > Configure Kai, then set as Figure 4-1.

Figure 4-1

1. After completing the settings, please click Start > All Programs > XLink Kai > Start Kai to connect to XLink Kai.
2. Open the wireless mode of the PSP device, then start an internet game.
3. Click Start > Control Panel > Network.

Figure 4-2

1. Right-click the Wireless Network Connection icon, and select Properties. In the following prompt page, highlight Internet Protocol (TCP/IP) and click Properties.

Figure 4-3

1. In the prompt page shown below, select Use the Following IP Address, and set the IP and Subnet mask. After completing the setting, click OK.

Figure 4-4

1. Launch TL-WN422G Wireless Utility, and click Scan in the page of "Profile Management", then highlight the Network Name (SSID) beginning with "PSP" in the following "Available Infrastructure and Ad Hoc Networks" page, and click Activate.

Figure 4-5

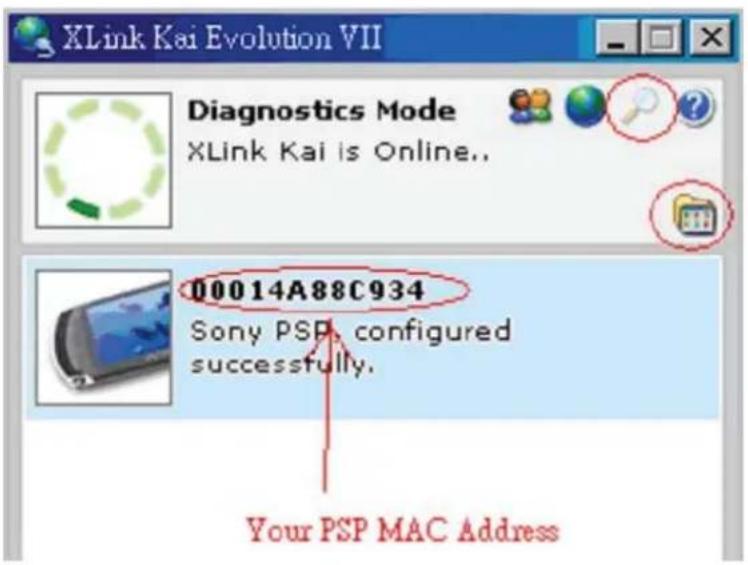

1. Check whether your PSP device is detected in the Diagnostics mode of Kai as Figure 4-6

shown: Click the icon

first and then click the folder

Figure 4-6

1. Click the icon ● on the right top corner to enter the Arena Mode, highlight the arena of your wanted game, and then join or start a new game.

Figure 4-7

Appendix A: Specifications

Normal
Interface USB 2.0 Interface
Standards	IEEE802.11g, IEEE802.11b
Operating System Windows 2000, Windows XP, Windows Vista, Windows 7
Radio Data Rate	11b: 1/2/5.5/11Mbps11g: 6/9/12/18/24/36/48/54Mbps
Modulation	11b:CCK,QPSK,BPSK11g:OFDM
Media Access Protocol CSMA/CA with ACK
Data Security WPA/WPA2; 64/128/152-bit WEP; TKIP/AES
Frequency 2.4 ~ 2.4835GHz
Spread Spectrum Direct	Sequence Spread Spectrum (DSSS)
Safety & Emissions FCC, CE

Environmental and Physical
Operating Temp.	0°C~40°C (32°F~104°F)
Storage Temp.	-20°C–70°C (-4°F~158°F)
Humidity 10% - 95% RH,	Non-condensing

Appendix B: Glossary

802.11b - The 802.11b standard specifies wireless networking at 11 Mbps using direct-sequence spread-spectrum (DSSS) technology, operating in the unlicensed radio spectrum at 2.4GHz, and WEP encryption for security. 802.11b networks are also referred to as Wi-Fi networks. 802.11g - specification for wireless networking at 54 Mbps using direct-sequence spread-spectrum (DSSS) technology, using OFDM modulation and operating in the unlicensed radio spectrum at 2.4GHz, with backward compatibility with IEEE 802.11b devices, and WEP encryption for security. Ad-hoc Network - An ad-hoc network is a group of computers, each with a Wireless Adapter, connected as an independent 802.11 wireless LAN. Ad-hoc wireless computers operate on a peer-to-peer basis, communicating directly with each other without the use of an access point. Ad-hoc mode is also referred to as an Independent Basic Service Set (IBSS) or as peer-to-peer mode, and is useful at a departmental scale or SOHO operation. DSSS - (Direct-Sequence Spread Spectrum) - DSSS generates a redundant bit pattern for all data transmitted. This bit pattern is called a chip (or chipping code). Even if one or more bits in the chip are damaged during transmission, statistical techniques embedded in the receiver can recover the original data without the need for retransmission. To an unintended receiver, DSSS appears as low power wideband noise and is rejected (ignored) by most narrowband receivers. However, to an intended receiver (i.e. another wireless LAN endpoint), the DSSS signal is recognized as the only valid signal, and interference is inherently rejected (ignored). FHSS - (Frequency Hopping Spread Spectrum) - FHSS continuously changes (hops) the carrier frequency of a conventional carrier several times per second according to a pseudo-random set of channels. Because a fixed frequency is not used, and only the transmitter and receiver know the hop patterns, interception of FHSS is extremely difficult. Infrastructure Network - An infrastructure network is a group of computers or other devices, each with a Wireless Adapter, connected as an 802.11 wireless LAN. In infrastructure mode, the wireless devices communicate with each other and to a wired network by first going through an access point. An infrastructure wireless network connected to a wired network is referred to as a Basic Service Set (BSS). A set of two or more BSS in a single network is referred to as an Extended Service Set (ESS). Infrastructure mode is useful at a corporate scale, or when it is necessary to connect the wired and wireless networks.

Spread Spectrum - Spread Spectrum technology is a wideband radio frequency technique developed by the military for use in reliable, secure, mission-critical communications systems. It is designed to trade off bandwidth efficiency for reliability, integrity, and security. In other words, more bandwidth is consumed than in the case of narrowband transmission, but the trade off produces a signal that is, in effect, louder and thus easier to detect, provided that the receiver knows the parameters of the spread-spectrum signal being broadcast. If a receiver is not tuned to the right frequency, a spread-spectrum signal looks like background noise. There are two main alternatives, Direct Sequence Spread Spectrum (DSSS) and Frequency

Hopping Spread Spectrum (FHSS).

SSID - A Service Set Identification is a thirty-two character (maximum) alphanumeric key identifying a wireless local area network. For the wireless devices in a network to communicate with each other, all devices must be configured with the same SSID. This is typically the configuration parameter for a wireless PC card. It corresponds to the ESSID in the wireless Access Point and to the wireless network name. See also Wireless Network Name and ESSID. WEP - (Wired Equivalent Privacy) - A data privacy mechanism based on a 64-bit or 128-bit or 152-bit shared key algorithm, as described in the IEEE 802.11 standard. To gain access to a WEP network, you must know the key. The key is a string of characters that you create. When using WEP, you must determine the level of encryption. The type of encryption determines the key length. 128-bit encryption requires a longer key than 64-bit encryption. Keys are defined by entering in a string in HEX (hexadecimal - using characters 0-9, A-F) or ASCII (American Standard Code for Information Interchange – alphanumeric characters) format. ASCII format is provided so you can enter a string that is easier to remember. The ASCII string is converted to HEX for use over the network. Four keys can be defined so that you can change keys easily. Wi-Fi - A trade name for the 802.11b wireless networking standard, given by the Wireless Ethernet Compatibility Alliance (WECA, see http://www.wi-fi.net), an industry standards group promoting interoperability among 802.11b devices. WLAN - (Wireless Local Area Network) - A group of computers and associated devices communicate with each other wirelessly, which network serving users are limited in a local area. WPA - (Wi-Fi Protected Access) - A wireless security protocol use TKIP (Temporal Key Integrity Protocol) encryption, which can be used in conjunction with a RADIUS server.
