Product Type	Freestanding Wine Cellar
Brand	CDA
Model	FWC153BL
Bottle Capacity	153 bottles (standard 750ml)
Temperature Range	5°C to 20°C
Climate Zones	Single zone
Dimensions (H x W x D)	120 cm x 60 cm x 60 cm
Weight	70 kg
Power Supply	220-240V, 50/60Hz
Power Consumption	120 kWh/year
Noise Level	42 dB
Refrigerant	R600a (environmentally friendly)
Door Type	Solid door with stainless steel trim
Interior Lighting	LED soft lighting
Shelves	8 chrome wire shelves, slide-out
Control Type	Digital touch control panel
Built-in Lock	Yes, key lock
Leveling Feet	Yes, adjustable
Reversible Door	Yes
Installation Type	Freestanding or undercounter (requires ventilation)
Defrost	Automatic defrost
Spare Parts Availability	Shelves, handle, fan, thermostat available via CDA service
Cleaning Instructions	Clean with warm water and mild detergent; avoid abrasive cleaners
Warranty	2 years parts and labor

Frequently Asked Questions - FWC153BL CDA

What is the ideal temperature for storing red wine in this cellar?

For red wines, the recommended temperature is between 12°C and 18°C. The FWC153BL can be set within 5°C to 20°C, so adjust accordingly.

How many bottles can the FWC153BL hold?

It holds up to 153 standard 750ml bottles when all shelves are used.

Does the wine cellar require ventilation?

Yes, it is a freestanding unit that requires adequate airflow around the back and sides. Do not build it into a cabinet without ventilation.

How do I change the temperature setting?

Use the digital touch panel on the front. Press the + or - buttons to set the desired temperature. The display will show the current and set temperature.

Why is the wine cellar making noise?

Normal operation sounds include the compressor and fan. If noise is excessive, check that the unit is level and not touching walls or cabinets. Also, the refrigerant circulating may cause gurgling sounds.

Can I reverse the door opening direction?

Yes, the door is reversible. Instructions are in the manual. You need to move the hinges to the opposite side.

How to clean the wine cellar?

Unplug the unit, remove bottles, and wipe interior with a soft cloth dampened with warm water and mild detergent. Dry thoroughly. Avoid abrasive cleaners.

What should I do if the wine cellar is not cooling?

Check the power supply, ensure the thermostat is set correctly, and verify that the door is fully closed. Also, clean the condenser coils if dusty. If still not cooling, contact CDA service.

Is there a lock for the wine cellar?

Yes, it comes with a key lock to secure the door. The key is included in the accessories.

How long is the warranty period?

CDA offers a 2-year warranty covering parts and labor. Extended warranty options may be available.

USER MANUAL FWC153BL CDA

FWC153 FWC304 FWC604 FWC624

Wine coolers

Installation, use and maintenance

Important

The CDA Group Ltd cannot be held responsible for injuries or losses caused by incorrect use or installation of this product. Please note that The CDA Group reserve the right to invalidate the guarantee supplied with this product following incorrect installation or misuse of the appliance or use in a commercial environment.

This appliance is not designed to be used by people (including children) with reduced physical, sensorial or mental capacity, or who lack experience or knowledge about it, unless they have had supervision or instructions on how to use the appliance by someone who is responsible for their safety. This refrigeration appliance is intended for use as a built-in appliance.

Under no circumstances should any external covers be removed for servicing or maintenance except by suitably qualified personnel.

Do not use the appliance if the plug, the mains cord or the appliance itself is damaged. If the mains cord is damaged, you must have it replaced by the manufacturer, or an authorised service centre or similarly qualified persons in order to avoid a hazard.

Children should be supervised to ensure that they do not play with the appliance. Keep the mains cord out of the reach of children. Do not let the mains cord hang over the edge of the table or worktop on which the appliance stands.

Appliance information:

Please enter the details on the appliance rating plate below for reference, to assist CDA Customer Care in the event of a fault with your appliance and to register your appliance for guarantee purposes.

Appliance Model

Serial Number

Declarations of Conformity:

This appliance has been manufactured to comply with all EU & UK statutory requirements and complies with all applicable legislation and the following European Directives:

• The Low Voltage Directive 2014/35/EU
• Electromagnetic Company Directive
• ErP Directive 2009/125/EC
• Directive RoHS 2011/65/EC

The product has been marked with the UK and CE symbols.

IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2012/19/EU.

Please render the appliance unusable before disposal. This includes removing the plug and breaking the door fixings to prevent children being trapped inside the appliance during play, or any other risk of injury.

At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service.

Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources. As a reminder of the need to dispose of household appliances separately, the product is marked with a crossed-out wheeled dustbin.

• This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic equipment (WEEE).
• Repairs carried out by unqualified persons may seriously endanger the appliance user.
• Pursuant to Commission Regulation (EU) 2019/2019, The minimum availability period for spare parts necessary to repair the appliance is 7 or 10 years depending on the type and purpose of the spare part.
• The list of spare parts and the ordering procedure are available on the websites of the manufacturer, importer or an authorised representative.
• The minimum warranty period for the appliance offered by the manufacturer, importer or authorized representative is given in the warranty card.
• The warranty shall be void if you make any independent adaptations or alterations, tamper with seals or other appliance safety devices or its parts or interfere with the appliance contrary to operating instructions.

For more information about the product, please refer to the EU EPREL Product Database at https://eprel.ec.europea.eu. Alternatively you can use your mobile device to scan the QR code on the energy label or enter the product model listed on the energy label in the EPREL search engine.

Before first use

You must allow the appliance to settle for at least twenty four hours prior to switching the power on.

It is recommended that you remove all internal and external packaging and clean the interior of the appliance prior to first use. We recommend that you use a solution of bicarbonate of soda and warm water and then thoroughly dry the interior.

The appliance may have an odour to it at first use. This will disappear as the appliance cools.

Please note:

• The appliance will work continuously until it gets to the correct temperature. Continuous noise from the compressor and refrigeration system is normal.
• If the appliance is switched off, you should allow five minutes before switching it on again to prevent the risk of unnecessary damage to the compressor.
• The LED display may not show the selected temperature whilst the appliance first gets to the correct temperature. This is normal, and the display will be corrected automatically once the appliance has run for a few hours.

Note: If the appliance does not have a freezer compartment (

it is not suitable for freezing foodstuffs.

Use

• Only store wine in sealed containers.
• Do not overload the cabinet.
• Only open the door when necessary.
• Do not cover the shelves with aluminium foil or anything else that will prevent air from circulating around the cabinet.
• To prevent damage to the door seal, ensure the door is fully open before removing the shelves.
• This is a self-defrosting appliance. The compressor will not run during the thirty minute defrost cycle.
• Do not pull the shelves beyond the anti-stop position (approximately one third out) when fully loaded.
• This appliance is intended to be used exclusively for the storage of wine.
• In the event of a power failure, leave the door closed as much as possible to maintain the internal working temperature. Should the power failure continue for a prolonged period, you should take steps to protect the contents of the wine cooler against a rise in temperature. The wine cooler will remember the selected temperature settings and revert to these settings once the power is restored.

This appliance is suitable for use in an extended temperature climate (ST) and has a normal operating ambient temperature of 16-38°C. Use of the appliance below 10°C may cause performance issues that are not indicative of a fault. Normal operation will resume once the appliance is within the specified range.

Use and controls

FWC153

Key:

1 - Power button
2 - Light button
3 - "+" button
4 - "-" button

fig. 1

FWC304

Key:

1 - Power button
2 - Light button
3 - "+" button
4 - "-" button

fig. 2

To switch the power on/off

• Press and hold the power button for one second to switch the wine cooler on.
• Press and hold the power button for five seconds to switch the wine cooler off.

To change the temperature

• Press the "+" or "-" buttons until the required temperature is shown on the display.

• The preset temperature is 12^ C / 54^ F .

• To view the set temperature, touch the "+" or "-" button at any time and the set temperature will flash in the LED display for five seconds.

• The display shows the current internal temperature when the wine cooler is on.

Optimal temperature selection

Whilst wine is best stored at temperatures between 13 and 15°C, your wine can also be stored at drinking temperature. For red wine this is between 15 and 17°C, and for white wine between 12 and 13°C.

To use the internal light

- Press and hold the light button for 5 seconds to switch the light on or off. The internal light indicator will light up or go out to confirm the selection.

- The internal light indicator is the dot at the bottom right of the display.

Use and controls

FWC604 & FWC624

fig. 3

Key:

1 - Power button
2 - Left/Upper zone "+" button
3 - Left/Upper zone "-" button
4 - Right/Lower zone "+" button
5 - Right/Lower zone "-" button
6 - Light button

To switch the power on/off

• Press and hold the power button for one second to switch the wine cooler on.
• Press and hold the power button for five seconds to switch the wine cooler off.

To change the temperature

• Press the "+" or "-" buttons for the appropriate zone until the required temperature is shown on the display.
• The preset temperature is 8^ C / 46^ F for left/upper zone and 12^ C / 54^ F for right/lower zone.
• To view the set temperature, touch the appropriate "+" or "-" button at any time and the set temperature will flash in the LED display for five seconds.
• The display shows the current internal temperatures when the wine cooler is on.

Optimal temperature selection

Whilst wine is best stored at temperatures between 13^ C and 15^ C, your wine can also be stored at drinking temperature, for red wine this is between 15^ C and 17^ C, and for white wine between 12^ C and 13^ C.

To use the internal light

• Press and hold the light button for 5 seconds to switch the light on or off. The internal light indicator will light up or go out to confirm the selection.
• The internal light indicator is the dot at the bottom right of the display.

Please note:

The temperature in the lower zone must be set either the same as or higher than the temperature in the upper zone.

Use

Settings mode

Certain settings on the wine cooler can only be selected in settings mode.

- °F/°C Selection

1. Lightly touch and hold the UP key for 5 seconds.
2. Use the UP and DOWN keys to select the temperature display setting in Fahrenheit or Celsius degree.
3. Touch the POWER key to confirm your selection.
4. Touch and hold the UP key for 5 seconds to leave settings mode. Otherwise the appliance exits settings mode automatically after approximately one minute.

- Display Brightness

1. Lightly touch and hold the UP key for 5 seconds and then touch the POWER key once.
2. Use the UP and DOWN keys to select the brightness of the display. The factory default setting is d1.

d1: dimmest setting
d2: medium setting
d3: brightest setting

1. Touch the POWER key to confirm your selection.

2. Touch and hold the UP key for 5 seconds to leave settings mode. Otherwise the appliance exits settings mode automatically after approximately one minute.

• Interior Lighting Brightness

1. Lightly touch and hold the UP key for 5 seconds and then touch the POWER key twice.

2. Use the UP and DOWN keys to select the brightness of the interior lighting. The factory default setting is L3.

L1: dimmest setting

L2: medium setting

L3: brightest setting

1. Touch the POWER key to confirm your selection.

2. Touch and hold the UP key for 5 seconds to leave settings mode.

Otherwise the appliance exits settings mode automatically after approximately one minute.

- Fan Mode

1. Lightly touch and hold the UP key for 5 seconds and then touch the POWER key three times.

2. Use the UP and DOWN keys to select the fan mode. The factory default setting is F0.

F0: Silent mode – Energy saving mode

F1: Dynamic cooling mode - half time

F2: Dynamic cooling mode - full time

1. Touch the POWER key to confirm your selection.

2. Touch and hold the UP key for 5 seconds to leave settings mode. Otherwise the appliance exits settings mode automatically after approximately one minute.

- Audible Tones

1. Lightly touch and hold the UP key for 5 seconds and then touch the POWER key four times.

2. Use the UP and DOWN keys to select the audible tones. The factory default setting is S1.

S0: sensor tone ON, alarm tone OFF

S1: sensor tone ON, alarm tone ON

S2: sensor tone OFF, alarm tone OFF

S3: sensor tone OFF, alarm tone ON

1. Touch the POWER key to confirm your selection.

2. Touch and hold the UP key for 5 seconds to leave settings mode.

Otherwise the appliance exits settings mode automatically after approximately one minute.

Temperature display

The temperature display will show the current internal temperature.

The display flashes:

• When a different temperature is being set
• If the internal temperature is +/- 5^ away from the set temperature.
  This serves as a warning to prevent damage to the contents of the appliance should the temperature be too high.

Dynamic Cooling and Silent modes

The appliance has two different running modes. In Silent mode once the required temperature is reached, the appliance will run without the fan.

The wine cooler is factory set to Silent mode. In Dynamic cooling mode the fan cycles on and off to circulate the air even after the required temperature is reached. This ensures consistent humidity and temperature distribution in the wine cooler, creating perfect conditions for long term storage.

Using the Dynamic cooling mode increases the level of noise in operation.

Internal Humidity

The wine coolers are equipped with a humidity system to maintain optimal humidity within the wine cooler.

Line drawing of a rectangular box placed on a flat surface with diagonal lines, labeled Fig. 4 (no text or symbols on the diagram itself)

Fill the humidity reservoir approximately 3/4 full with water.

Place the reservoir on the runners on the top shelf as shown in fig. 4.

Ensure it is located correctly to prevent water spillage.

Check the water level regularly and refill if required.

Sabbath mode

Sabbath mode is available for the observance of certain religious holidays. This will switch off the displays, interior light and audible alarms. The cooling process will continue.

To switch the Sabbath mode on, touch and hold the power and light keys simultaneously for five seconds. The displayys and interior lights will go out to confirm the Sabbath mode is on. Sabbath mode will switch off automatically after 48 hours, but to switch the Sabbath mode off at any time, touch and hold the power and light keys simultaneously for five seconds.

Door alarm

The wine cooler is equipped with an alarm that will sound if the door is left open for more than 60 seconds. To switch off the alarm, press any button. If the temperature has risen beyond the set temperature, the display will flash until the zone has returned to the required temperature.

Interior light

The wine cooler has two options for the interior lights. To change from one option to the other, press and hold the light button for 5 seconds.

• Display mode - This mode will leave the interior light on constantly, allowing you to see the contents of the wine cooler at a glance at any time. The light indicator will light up in display mode.
• Energy saving mode - This mode only switches on the interior light when the door is opened.

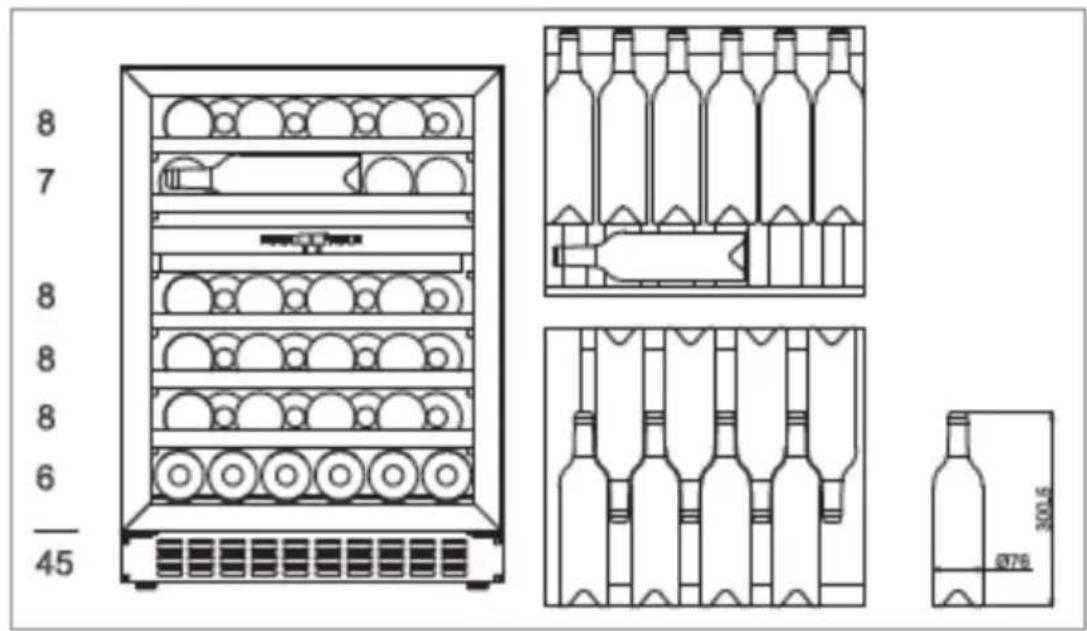

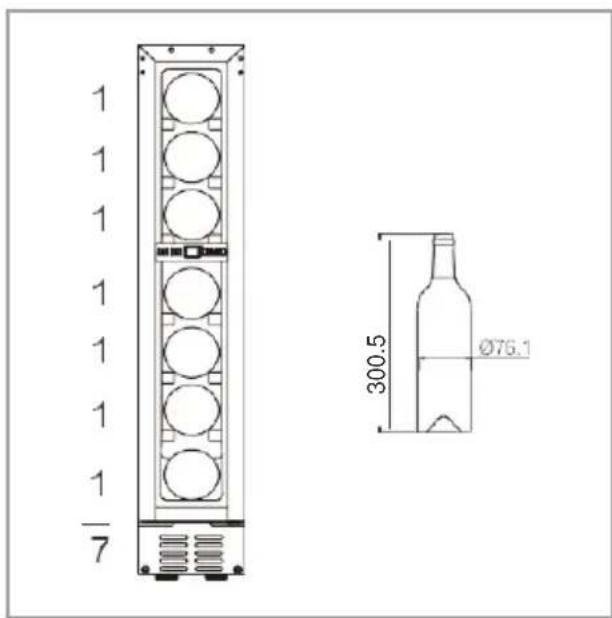

Bottle storage

To achieve the most effective preservation of your wine for the longest time possible and avoiding any waste, position the products as shown in the diagrams in this section. In addition, this figure illustrates the layout of drawers, baskets and shelves, which allows the most efficient use of energy.

Optimal temperature and storage conditions will extend product shelf life and optimize electricity consumption. Optimal storage temperature should be stated on the food product packaging

FWC153 FWC304

FWC604

FWC624

Climate Range

The information about the climate range of the appliance is provided on the rating plate. It indicates at which ambient temperature (that is room temperature in which the appliance is working) is optimal for the operation of the appliance.

Climate class	Allowable ambient temperature
SN Extended Temperate	This refrigeration appliance is intended for use at an ambient temperature ranging between 10°C and 32°C
N Temperate	This refrigeration appliance is intended for use at an ambient temperature ranging between 16°C and 32°C
ST Sub Tropical	This refrigeration appliance is intended for use at an ambient temperature ranging between 16°C and 38°C
T Tropical	This refrigeration appliance is intended for use at an ambient temperature ranging between 16°C and 43°C

Care and cleaning

IMPORTANT:

Always disconnect the appliance from the mains electrical supply before any cleaning or maintenance.

Technical line drawing of two rectangular slatted components with mounting holes, labeled Fig. 5 (no text or symbols on the diagram itself)

Removing the shelves

(Applicable to FWC304, FWC604 and FWC624)

• To remove a shelf from the wine cooler, first remove all bottles from the shelf, then pull the shelf forwards until the groove on either side of the shelf is level with the plastic peg on either side of the cabinet (as shown in fig 5). Then lift the shelf up and pull forwards.
  • To replace the shelves, follow the steps above in reverse order.

Cleaning

• Do not use abrasive products or detergents . After washing, rinse and dry thoroughly.
• The exterior of the appliance and the door seal should be cleaned using mild soapy water and dried thoroughly.
• The interior cabinet should be cleaned using a solution of bicarbonate of soda and lukewarm water.

• Clean the shelves separately by hand using soap and water. Do not put them in the dishwasher.

• Ensure that the cloth is only moist when cleaning the control panel and electrical parts, and that all water is thoroughly dried off before reconnecting the power.
  • Once cleaning is complete, reconnect the mains electrical supply.

• If the appliance is not to be used for prolonged periods of time, unplug and clean the appliance thoroughly. The door should be left slightly ajar to prevent the formation of odours or condensation.

Temperature alarm

If the temperature rises or falls outside the set temperature range, an alarm will sound and the display will flash.

This may be because:

• The wine cooler has not yet reached the set temperature (when first switched on).
  • There has been a power failure.
  • The wine cooler has been overloaded.
  • The door is not closed properly.

Troubleshooting

If you have any problems with your appliance, you should check the troubleshooting guide prior to calling CDA Customer Care to prevent unnecessary service calls and potential cost.

If the appliance is not working, check

• There is power to the appliance
- The house fuses or circuit breakers are intact and the fuse in the plug has not blown.
- The plug socket is functioning correctly. To check this, plug another electrical appliance in to see if the socket is working.
- The ambient temperature is between 16^ to 38^ .

The appliance is working, but not very well, check

• The appliance is not overloaded.
- The thermostat is set to an appropriate temperature.
• The door is closing properly.
• The door gasket is sealing properly
• There is enough ventilation at the side and rear walls.
• The ambient temperature is between 16^ C to 38^ C.

The appliance is noisy, check

• The appliance is level and stable.
- The cooling gas will make some noise, even when the compressor is not running.
- During operation, it is normal for the fan to run, even when the

compressor is not running.

The light does not work, check

• There is power to the appliance.
- The house fuses or circuit breakers are intact and the fuse in the plug has not blown.
• The light button is not set to off.

Please note:

The LED lighting cannot be replaced without a service call. If the light fails, contact CDA Customer Care.

The door will not close properly, check

• The appliance is level and stable.
• If the door has been removed, it may not have been correctly refitted.
  • The door seal is dirty.
• The shelves are not positioned correctly.

The display shows "E1" or "E2"

- The temperature sensor has failed. Please contact CDA Customer Care.

Installing the wine cooler

This appliance is intended to be installed in a space between two units.

The minimum space required is:

FWC153 - 150mm W x 555mm D x 825mm H

FWC304 - 300mm W x 580mm D x 825mm H

FWC604 - 600mm W x 580mm D x 825mm H

FWC624 - 600mm W x 580mm D x 825mm H

Please note: When the product is installed, there should be a small ventilation gap between the top of the unit and the underside of the worktop (6 mm or 14 )

These products should not be installed:

1. In direct sunlight.
2. Adjacent to a heat source (oven or radiator).
3. Below a hob unit.

Where a continuous plinth is to be used, it is necessary to cut a section out so that the ventilation slots at the front of the appliance are not obstructed in any way as per figure 6.

Pure technical line drawing of a mechanical part with no text or symbols

This appliance is designed to fit under worktops between 820 – 890mm in height, using the adjustable plinth plate to ensure that the feet are concealed from view.

IMPORTANT: Failure to follow the instructions regarding installation and ventilation may invalidate the warranty supplied with your appliance.

To install the handle

IMPORTANT: Do not overtighten the screws, and do not use power tools to install the handle.

1. Carefully locate the handle over the fixing pins.
2. Using the supplied allen key, tighten the securing grub screw to fix the handle.

IMPORTANT: Take care when installing the handle not to damage the door. Any damage caused may not be covered by the warranty supplied with your appliance.

Reversing the Door

You will need the help of another person, during this process, to lean the wine cooler back and support it.

1. Remove the rear ventilation trim (3) by removing screws (1) from both sides and sliding the trim out from below. Then remove the front ventilation trim (2) by removing screws (4) from each side as shown in fig. 7. These screws (4) are located above and behind the front ventilation trim (2) and their location is indicated by the dotted line in fig. 7.

2. Remove the remaining plinth trim supports (Fig. 10) by removing the screws marked S1 through the holes marked H1 and the screws marked S2 through the gaps marked as H2.

Line drawing of a mechanical component with a bracket and mounting bracket (no text or symbols)

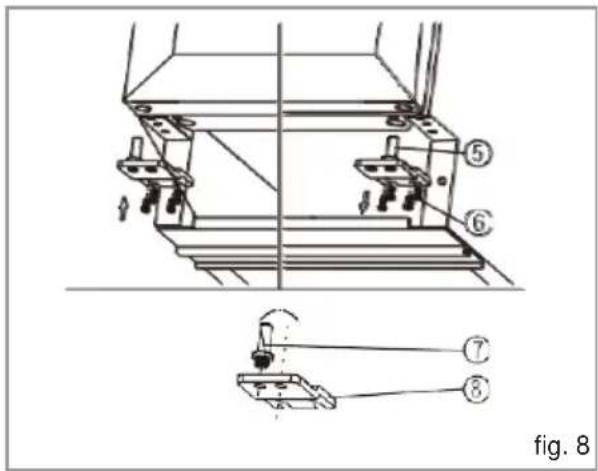

1. Remove the lower hinge (5) by removing the four screws (6) as shown in fig. 8. Support the door as you do this to prevent damage.

1. Gently lower the door away from the top hinge and place on a padded surface to avoid the risk of damage as shown in fig. 9.

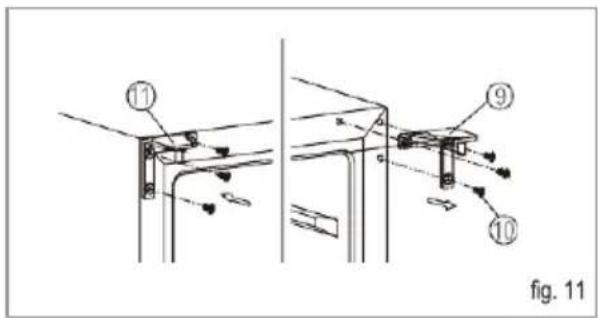

1. Remove the upper hinge (9) as shown in fig. 11.
2. Unscrew and transfer pin (7) from the lower hinge plate to the opposite side as shown in fig. 8.
3. Pop out the cover caps on the opposite side and use them to cover the screw holes on the original side.
4. Fit the alternative upper hinge on the opposite side.
5. Rotate the door 180^ and relocate it on the top hinge.
6. Refit the modified lower hinge into the door and secure it to the appliance body using the screws removed in step 1.
7. Refit all ventilation trims.

IMPORTANT:

Allow the wine cooler to settle for 24 hours before switching it on.

Keep the spare hinge plate(s) to be able to reverse the door back again.

Door reversal diagram index

1 - Ventilation trim adjustment screws 7 - Main hinge pin
2 - Front ventilation trim 8 - Hinge bracket
3 - Rear ventilation trim 9 - Upper hinge
4 - Front ventilation trim securing screw 10 - Upper hinge fixing screw
5 - Lower hinge 11 - Replacement top hinge
6 - Lower hinge fixing screw

Adjusting the plinth

The pre-fitted plinth for this appliance comes with an adjustable lower section that is initially seated behind the upper section. The process for adjusting the plinth trim is simple and is achieved by following the image and steps below.

1. Remove the screws (1) from both the top left and top right hand sides.
2. Loosen or remove the screws (2) from the bottom left and bottom right hand sides. Failure to sufficiently loosen the bottom screws may cause damage to the lower trim when adjusting it.
3. Carefully guide the lower trim down until the desired height is achieved.
4. Reinsert screws (1) and tighten them. Then, tighten or reinsert screws (2).

Electrical Information

Warning! This appliance must be earthed.

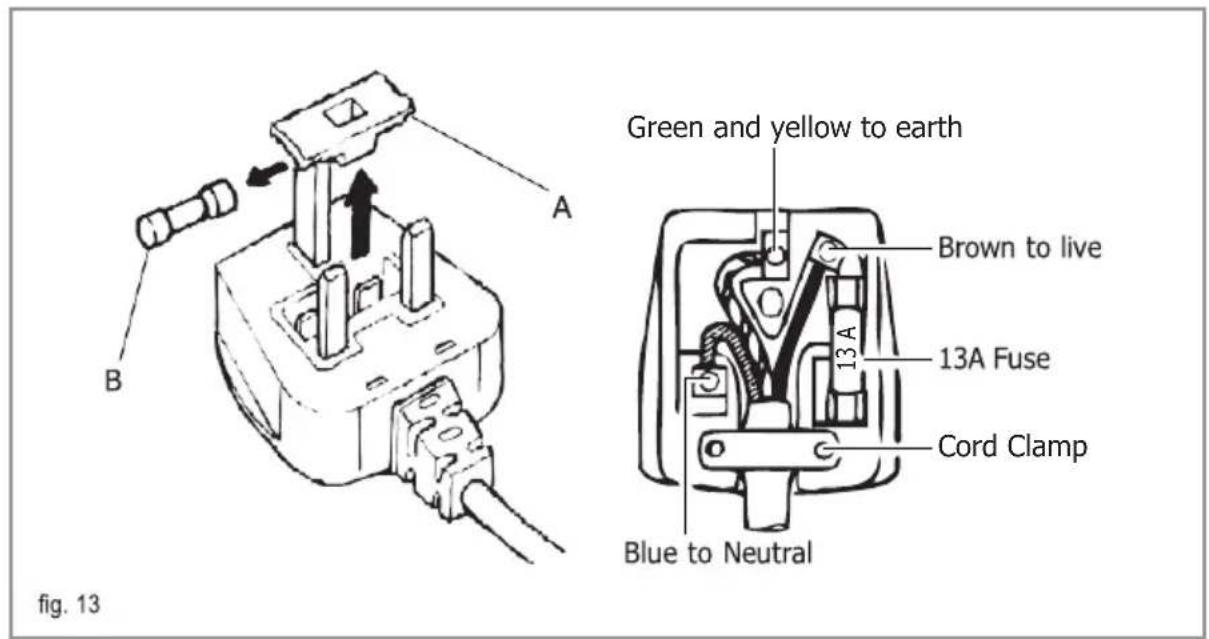

The mains lead of this appliance has been fitted with a BS 1363A 13 amp fused plug. To change a fuse in this type of plug, follow the steps below:

1. Remove the fuse cover and fuse.
2. Fit replacement 13A fuse, ASTA approved to BS 1362 type, into the fuse cover.
3. Replace fuse cover.

Important: Do not use the appliance without the fuse cover in position.

How to connect an alternative plug

If the fitted plug is not suitable for your socket outlet, then it should be cut off and disposed of safely to avoid possible shock hazard. A suitable alternative plug of at least 13 Amp rating to BS 1363 should be used.

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:-

• The wire which is coloured GREEN and YELLOW must be connected to the terminal which is marked with the letter (E) or by the Earth symbol or coloured GREEN and YELLOW.
• The wire which is coloured BLUE must be connected to the terminal which is marked with the letter (N) or coloured BLACK.
• The wire which is coloured BROWN must be connected to the terminal which is marked with the letter (L) or coloured RED.

If in doubt regarding the electrical connection of this appliance, consult a qualified electrician. Do not shorten the supply cable, the appliance may require removing for servicing.

N.B. Ensure that the plug socket is situated in an easily accessible place.

The CDA Group

Harby Road

Langar

Nottinghamshire

NG13 9HY

Sales Department

Phone: [phone]

Email: [e-mail]

CDA Customer Care

Phone: [phone]

Email: [e-mail]
