V6540X3GB - Washing machine NEFF - Free user manual and instructions
Find the device manual for free V6540X3GB NEFF in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | Freestanding Front-Loading Washing Machine |
| Brand | Neff |
| Model | V6540X3GB |
| Capacity | 8 kg |
| Spin Speed | 1400 rpm |
| Energy Efficiency Class | A+++ |
| Dimensions (H x W x D) | 85 cm x 60 cm x 67 cm |
| Net Weight | 75 kg |
| Power Supply | 220-240 V ~ 50 Hz |
| Rated Power | 2300 W |
| Water Consumption per Cycle | 45 L |
| Noise Level (Wash/Spin) | 48 dB / 74 dB |
| Programs | Cotton, Synthetics, Delicates, Wool, Quick Wash, Rinse & Spin, Drum Clean |
| Special Functions | Delay Start, Time Save, Stain Removal, Extra Rinse, Child Lock |
| Drum Material | Stainless Steel |
| Door Hinge | Left |
| Warranty | 2 years parts and labor |
| Energy Consumption per Year | 160 kWh |
| Water Consumption per Year | 9000 L |
Frequently Asked Questions - V6540X3GB NEFF
How do I install the washing machine?

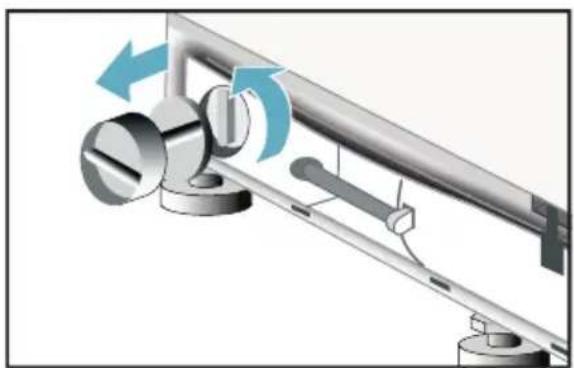

Ensure the machine is on a level, solid surface. Remove the transport bolts at the back using a wrench. Connect the inlet hose to a water tap with a 3/4 inch thread, and the drain hose to a standpipe or sink. Plug into a grounded outlet. Refer to the installation manual for detailed steps.
What detergent should I use?
Use a low-suds, high-efficiency (HE) detergent suitable for front-loading washers. For colored clothes, use color detergent; for whites, use bleach-based detergent. Always follow the dosage instructions on the detergent package.
How do I clean the drum?
Run the Drum Clean program monthly with an empty machine. Add 50 ml of drum cleaner or a cup of white vinegar into the detergent drawer. This removes residue and prevents odors.
What does the Child Lock do?
The Child Lock prevents children from accidentally starting or changing the program. Activate it by pressing and holding the Child Lock button (usually marked with a padlock icon) for 3 seconds. Deactivate similarly.

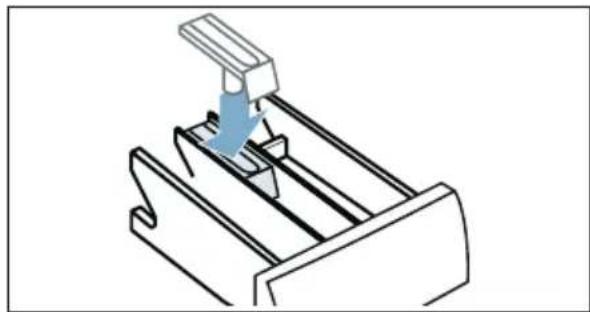

How do I clean the detergent drawer?
Pull out the drawer fully, press the release catch to remove it, and rinse under warm water. Use a brush to clean the compartments. Wipe dry and reinsert. Do this every 3 months.
Why is my machine not spinning?
Check if the load is unbalanced (redistribute clothes). Ensure the drain hose is not kinked and the pump filter is clean. If the problem persists, the door may be wrongly locked or the motor might be faulty.
How do I change the door seal?
Disconnect power and water. Remove the front panel screws, unhook the old seal from the metal band and door ring. Install the new seal by hooking it onto the metal band and door ring, then secure. Reassemble the panel. If unsure, contact a professional.
What is the maximum spin speed?
The maximum spin speed is 1400 rpm. You can adjust it using the spin speed selector. Higher speeds reduce moisture but may cause more creasing.
How do I use the Delay Start function?
Select your program, then press the Delay Start button repeatedly to set the delay in hours (e.g., 3h means the cycle ends in 3 hours). The machine will start automatically so it finishes at the desired time.
What should I do if the machine displays an error code?
Common codes: E10 (water inlet issue - check tap and hose), E20 (drain issue - clean pump filter), E30 (door lock fault). Refer to the manual for full list. If unresolved, contact Neff service.
User questions about V6540X3GB NEFF
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your Washing machine in PDF format for free! Find your manual V6540X3GB - NEFF and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. V6540X3GB by NEFF.
USER MANUAL V6540X3GB NEFF
Manual assistant
Powered by Anthropic
Waiting for your message
Product information
Brand : NEFF
Model : V6540X3GB
Category : Washing machine
