Product Type	Monitor
Brand	ViewZ
Model	VZ-PVM-I2W3N
Screen Size	21.5 inches
Resolution	1920 x 1080 (Full HD)
Brightness	250 cd/m²
Contrast Ratio	1000:1
Response Time	5 ms
Viewing Angle	178° / 178°
Input Ports	HDMI, DisplayPort, VGA, Audio Out
Power Consumption	30 W (typical), <0.5 W (standby)
Dimensions (with stand)	20.5 x 14.8 x 7.2 inches
Weight (with stand)	8.6 lbs
VESA Mount Compatible	Yes, 100 x 100 mm
Built-in Speakers	2 x 2W
Adjustable Stand	Tilt: -5° to +20°
Color Support	16.7 million colors
Operating Temperature	0°C to 40°C
Repair / Spare Parts	Contact ViewZ support for service options
Cleaning Instructions	Use a soft, dry cloth; avoid harsh chemicals
Safety	CE, FCC, RoHS compliant

Frequently Asked Questions - VZ-PVM-I2W3N ViewZ

How do I clean the screen of my ViewZ VZ-PVM-I2W3N monitor?

Use a soft, dry microfiber cloth to gently wipe the screen. For stubborn smudges, dampen the cloth with distilled water (not directly on screen) and wipe. Avoid paper towels or harsh chemicals like alcohol or ammonia.

What is the recommended resolution for this monitor?

The native resolution is 1920 x 1080 (Full HD). For best image quality, set your computer to this resolution.

Can I wall mount the VZ-PVM-I2W3N?

Yes, it supports VESA 100 x 100 mm mounting. Use a compatible wall mount bracket and follow the instructions in the manual.

What input ports does the monitor have?

It includes HDMI, DisplayPort, and VGA inputs, plus an audio output port for external speakers.

How do I adjust the brightness and contrast?

Use the OSD (On-Screen Display) menu by pressing the buttons on the bottom bezel. Navigate to the Picture settings to adjust brightness, contrast, and other parameters.

Why is the monitor not turning on?

First, check the power cable connection and ensure the power outlet is working. Press the power button. If still off, try a different cable or contact support.

Does the monitor have built-in speakers?

Yes, it has two 2-watt speakers. Audio will output through them if connected via HDMI or DisplayPort.

What is the warranty period?

ViewZ typically offers a 1-year limited warranty for parts and labor. Check your purchase confirmation or contact support for details.

How do I enable FreeSync or adaptive sync?

This model does not support FreeSync. It is a standard professional monitor with a 60 Hz refresh rate.

Where can I download the user manual?

The user manual is available for free download on notice-facile.com or the ViewZ website. Use the download link on the manual page.

USER MANUAL VZ-PVM-I2W3N ViewZ

ViewZ®

www.viewzusa.com

This device complies with NDAA (National Defense Authorization Act).

Please read this manual thoroughly before use, and keep it handy for future reference.

CONTENTS

Safety Instruction 3

1. Mark Indication & Substance 4
2. Warning 4
3. Caution 5
4. Operational Temperature & Humidity 5
5. Dot Defect (dead pixel) of TFT 5
6. FCC RF INTERFERENCE STATEMENT 6
7. WIRING (DC 24V) 7

Installation 8

1. Package 8
2. Interface 9
3. Remote Control Function 12

Function 13

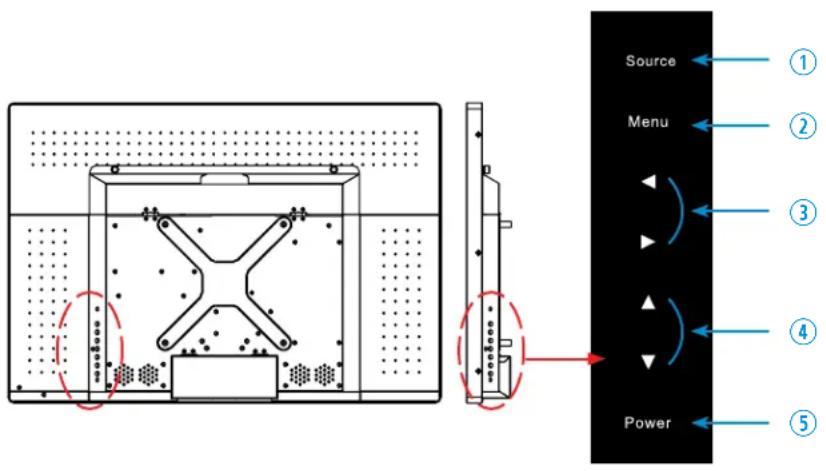

1. Monitor Button Function 14
2. OSD Control and Function 15

Mounting Guide 25

Specification 26

Trouble Shooting 30

RMA 31

Warranty 32

SAFETY INSTRUCTION

Important Safety Instruction

1. Read all warnings.
2. Follow all instructions to ensure longevity of monitor.
3. Do not place the monitor near water.
4. Clean only with dry cloth.
5. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
6. Do not install near any heat sources such as radiators, heat registers, stoves, or other heat generating devices.
7. Do not override the safety purpose of the polarized or grounding-type plug.
8. A polarized plug has two blades with one wider than the other.
9. A grounding type plug has two blades and a third grounding prong.
10. The wide blade and the third prong are provided for your safety.
11. If the provided plug does not fit into your outlet, consult with electrician for replacement of the outlet.
12. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles and the point where it connects to the monitor.
13. Only use attachment/accessories specified by the manufacturer.
14. Use only with the cart, stand, tripod, bracket or table specified by the manufacturer or sold with the monitor. When a cart is used, use caution when moving the cart & monitor in combination to avoid injuries.
15. Unplug the monitor during lightning storms or when unused for long periods of time.
16. Refer all servicing to qualified service personnel. Servicing is required when the monitor has been damaged in any way.

The monitor shall not be exposed to dripping or splashing and objects containing liquids, such as vases shall not be placed near the monitor.

The monitor should have ample distance (e.g. 10cm) from the wall for sufficient ventilation.

SAFETY INSTRUCTION

Important Safety Instruction

Mark Indication and Substance

CAUTION : TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

This symbol is intended to alert the user to the presence of uninsulated & dangerous voltage within the monitor's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the monitor.

Warning

• Do not use damaged or loose cables and plug.
• Do not pull the plug out by the wire nor touch the plug with wet hands.
• Use only a properly grounded plug and receptacle.
• Do not connect too many extension cords or plugs to one outlet.
• Do not excessively bend the plug and wire.
• Do not disconnect the power cord while it's still plugged into the monitor.
• Do not place any heavy objects on the power cord. Damage to the cord may cause shock or fire.
• Never open the monitor. There are no user-serviceable parts inside and opening will void warranty.
• Removing covers may expose you to dangerous shock hazards or other risks.
• Keep any heating devices away from the power cable and monitor.
• Do not place the monitor near water.
• Do not insert objects of any kind into the monitor's open slots, as they may touch dangerous voltage points.
• Please follow the laws and regulations of your municipality to dispose the monitor properly.
• Do not use the monitor in high temperature, humid, dusty or oily areas.
• Do not install the monitor where it will be exposed to continual vibration.
• Keep the plastic packaging out of children's reach.
  • If any damage is detected upon first opening the box, contact agency from which you bought the monitor directly.
• If your monitor does not operate normally – in particular, if there is any unusual sound or smell coming from the monitor – unplug it immediately and contact an authorized dealer or the service center.

SAFETY INSTRUCTION

Important Safety Instruction

Caution

• If the connector between the plug and the pin is dusty or dirty, clean it properly using a dry cloth.
- Make sure to unplug the power cord before cleaning the monitor.
• Make sure to leave a gap between monitor and wall.
- Do not drop the monitor when moving it.
- Place your monitor in a location with low humidity and minimum dust.
• Install the monitor base on a showcase or shelf so that the end of the base does not protrude from the showcase or shelf.
- Do not place the monitor on an unstable or small surface area.
- Do not install inside a vehicle.
- Disconnect the plug from the outlet during storms or lightning or if it has not been used for a long time.
- Do not try to move the monitor by pulling on the power cord.
- Do not cover the vents on the monitor.
- When moving the monitor, turn off and unplug the power cord. Make sure that all cables, including HDMI cable and cables connected to other devices, are disconnected before moving it.
- Place the monitor out of children's reach, as they could damage it by hanging onto it.

Available Temperature & Humidity

• Operating Temperature: 32° F \~ 104° F / 0° C \~ 40° C
• Operating Humidity : 20 \~ 70% RH

Dot Defect (dead pixel) of TFT

ViewZ monitors are manufactured using high-end semiconductor technology with precision ratings of 99.9% and above. However, it may be the case that certain RGB and white pixels seem darker (or entirely unlit i.e. black).

Modern production methods cannot guarantee an absolute fault-free monitor. To this effect, no LED manufacturer can guarantee a defect free panel. A few isolated pixel or sub-pixel faults are considered tolerable and different policies exist that govern the amount of these tolerable values.

While most pixel faults occur in isolated regions, a cluster of dead pixels or sub-pixels can sometimes form for which a separate ruling applies. A cluster is defined as an area of 5x5 pixels. ViewZ's policy on pixel failure: either as an isolated fault or in the form of a cluster is outlined on the website: www.viewzusa.com

FCC RF INTERFERENCE STATEMENT

Note

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio, TV technician for help.
• Only shielded interface cable should be used.

Finally, any changes or modifications to the equipment by the user not expressly approved by the grantee or manufacturer could void the users authority to operate such equipment.

▶ DOC COMPLIANCE NOTICE

This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus set out in the radio interference regulation of Canadian Department of communications.

Statement

• VGA and XGA are the registered trademark of IBM.
• VESA is the trademark of Video Electronics Standard Association.
- HDMI, HDMI logo and High-Definition Multimedia Interface (high definition multimedia digital interface) are the trademark or registered trademark of HDMI Licensing LLC.

HIGH-DEFINITION MULTIMEDIA INTERFACE

If some company or product trademark is not particularly stated, the use of trademark has been fully recognized. Do not alter, decompile, disassemble, decode or conduct reverse engineering to the software installed in the product, or it can be deemed as breach of the law.

WIRING

WIRING (DC 24V input only)

1. On the back of the monitor, loosen the thumb screws and lower the access panel.
2. Attach the leads from the power supply (supplied) to the left and right connectors.

WARNING: Do not connect a ground to the center post. Please be careful of voltage polarity.

1. When finished, secure the access panel.

Table A shows the recommended maximum wiring distances (transformer to load), and are calculated with a 10-percent voltage drop.

VZ-DC24-320 (Power Transformer) Test ResultInput : Power So

23" IP-PVM-N - 3 MONITORS - VZ-PVM-I2B3N & I2W3N

Cable Type - 18AWG (Current : 12~19 A)	1 Set of IP-PVM-N			2 Set of IP-PVM-N			3 Set of IP-PVM-N
ft / meter	DC 24V	DC 27V	Max. V	DC 24V	DC 27V	Max. V	DC 24V	DC 27V	Max. V
100 ft / 30.48 m	tested	tested	tested	tested	tested	tested	tested	tested	tested
150 ft / 45.72 m	tested	tested	tested	tested	tested	tested	tested	tested	tested
200 ft / 60.96 m	tested	tested	tested	tested	tested	tested	tested	tested	tested
250 ft / 76.20 m	tested tested tested		tested		tested	tested		tested	tested
300 ft / 91.44 m	tested tested tested tested tested
350 ft / 106.68 m	tested tested tested tested

27" IP-PVM-N - 3 MONITORS - VZ-PVM-I3B3N & I3W3N

Cable Type - 18AWG (Current : 12~19 A)	1 Set of IP-PVM-N			2 Set of IP-PVM-N			3 Set of IP-PVM-N
ft / meter	DC 24V	DC 27V	Max. V	DC 24V	DC 27V	Max. V	DC 24V	DC 27V	Max. V
100 ft / 30.48 m	tested	tested	tested	tested	tested	tested	tested	tested	tested
150 ft / 45.72 m	tested	tested	tested	tested	tested	tested	tested	tested	tested
200 ft / 60.96 m	tested	tested	tested	tested	tested	tested	tested	tested	tested
250 ft / 76.20 m		tested	tested		tested	tested		tested	tested
300 ft / 91.44 m				Not Recommended
350 ft / 106.68 m

32" IP-PVM-N - 3 MONITORS - VZ-PVM-I4B3N & I4W3N

Cable Type - 18AWG (Current : 12~19 A)	1 Set of IP-PVM-N			2 Set of IP-PVM-N			3 Set of IP-PVM-N
ft / meter	DC 24V	DC 27V	Max. V	DC 24V	DC 27V	Max. V	DC 24V	DC 27V	Max. V
100 ft / 30.48 m	tested	tested	tested	tested	tested	tested	tested	tested	tested
150 ft / 45.72 m	tested	tested	tested	tested	tested	tested	tested	tested	tested
200 ft / 60.96 m		tested	tested		tested	tested		tested	tested
250 ft / 76.20 m				Not Recommended
300 ft / 91.44 m
350 ft / 106.68 m

INSTALLATION

Installation Tools

The following tools may be required depending on your installation.

Assembly Components - provided

Your ViewZ monitor is shipped with all proper installation hardware and components. If there are parts missing and/or damaged, please stop the installation and contact ViewZ USA at (888)-998-4399.

Public View Monitor (Qty 1)

For 23, 27 & 32" IP PVM

DC 24V Connector(Pig Tale) (Qty 1)

For 43" IP PVM

DC24V Connector (Qty 1)

Quick Reference Guide (Qty 1) Remote Controller (Qty 1)

For 23, 27 & 32" IP PVM

DC 24V Power Adapter (Qty 1)

For 43" IP PVM

Power Cable (Qty 1)

Mounting Option

Your ViewZ monitor is compatible with ViewZ monitor mounts. For more information, please contact ViewZ USA at (888)-998-4399.

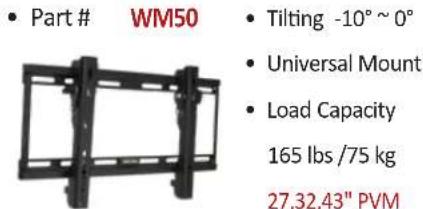

Wall Mount

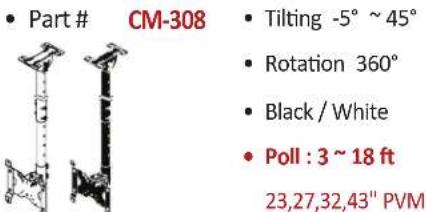

Ceiling Mount

CONNECT EXTERNAL EQUIPMENTS

23", 27" & 32" IP PVM Interface Input Ports

The following image is the description of interface input ports

1. HDMI IN
2. AV (BNC) IN
3. VGA (15 Pin D-Sub) IN
4. AUDIO OUT / IN
5. CAMERA CVBS OUT

6. CAMERA IP(Ethernet) OUT / PoE

7. (Optional) Media Player HDMI OUT

8. (Optional) Media Player USB
9. (Optional) Media Player SD IN
10. DC 12V OUT
11. DC 24V IN

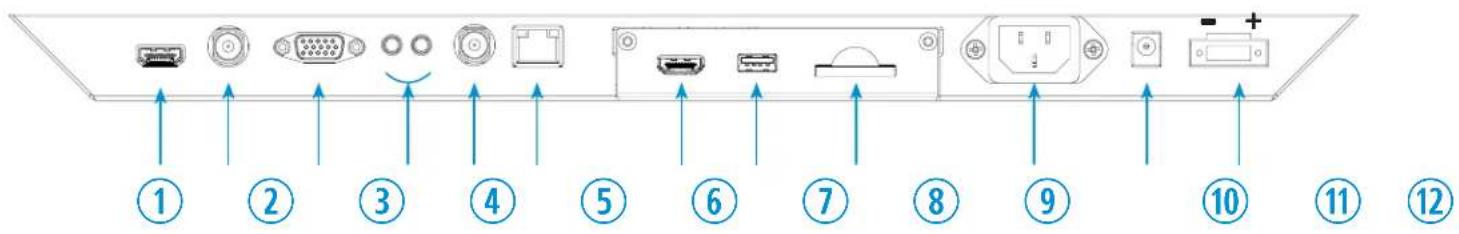

43" IP PVM Interface Input Ports

1. HDMI IN
2. AV (BNC) IN
3. VGA (15 Pin D-Sub) IN
4. AUDIO IN / OUT
5. CAMERA CVBS OUT

6. CAMERA IP(Ethernet) OUT

7. (Optional) Media Player HDMI OUT

8. (Optional) Media Player USB
9. (Optional) Media Player SD Card
10. AC 110V IN
11. DC 12V OUT
12. DC 24V IN

Warning

When you plugin into the green terminal connector (DC24V), please be careful about the + & - sign.

If you do not follow the + & - sign, it causes a serious damage to the monitor.

CONNECT EXTERNAL EQUIPMENTS

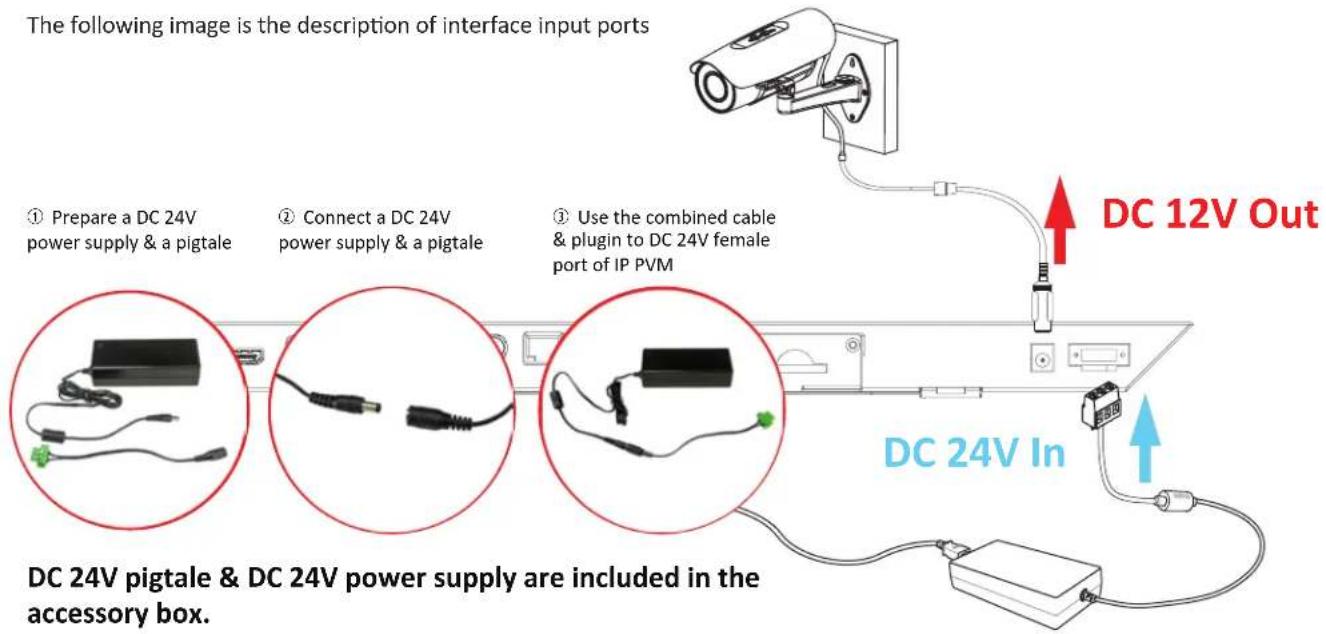

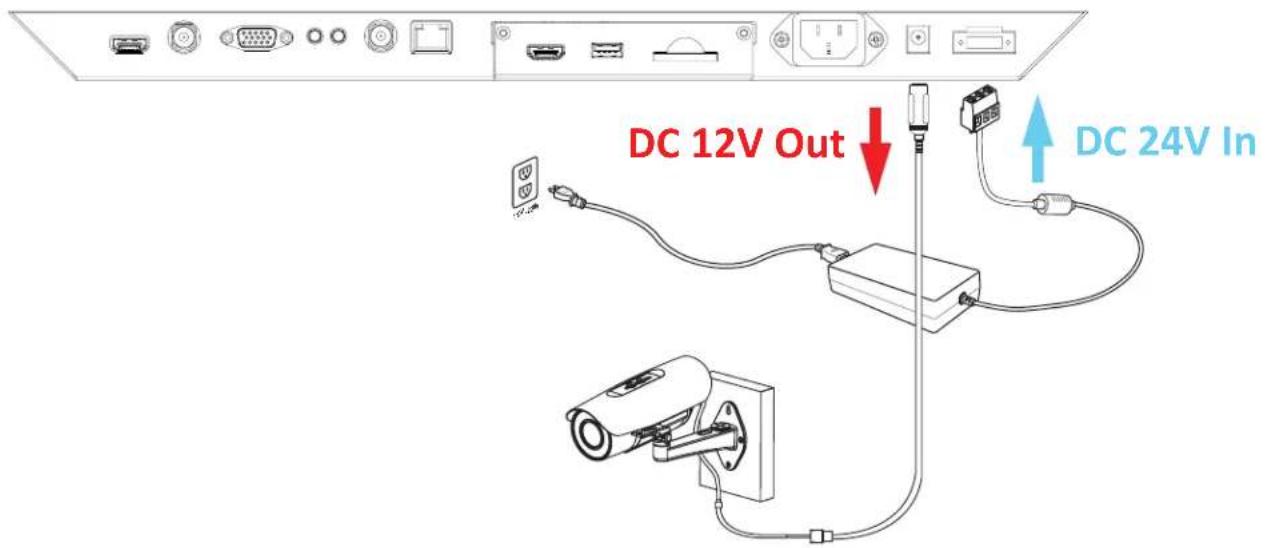

Precaution on DC 12V-Out / DC 24V-In Installation of 23", 27" & 32" IP PVM

The following image is the description of interface input ports

Precaution on DC 12V-Out / DC 24V-In Installation of 43" IP PVM

Connection Safety!

ViewZ 23", 27", 32" & 43" do not have DC 12V-IN. Do not plug in the IP PVM's DC 12V female connector.

CONNECT EXTERNAL EQUIPMENTS

TF Card (for recording) Installation of 23", 27", 32" & 43" IP PVM

The following image is the description of TF card installation

① Place the IP PVM on the flat area and unscrew 2 bolts
② Open the bottom part and see the side of camera module. User will see the empty TF (Micro SD) card slot.
③ Insert a TF (Micor SD) card to the slot and lock the bottom part.

Note

Please refer the page 88 of IPPVM web user manual to see how to process the recording

REMOTE FUNCTION

Remote Controller

Remote Controller

1. Power
2. Source - Select Input Source
3. Mute - Turn off the sound
4. Menu - Enter / Exit OSD
5. Exit - Exit OSD with saving current value
6. Left & Right ◀(VOL)▶, Up & Down ▲▼
7. Enter - Select current setting value on Input source
8. PIP, SWAP, P.POS, P.Size, S.Sat, ARC, APC, ACC - Not working

Media Controller

1. Menu - Enter / Exit Media Player Menu
2. Exit - Exit Media Player Menu
3. Left & Right ◀(VOL)▶, Up & Down ▲▼
4. Enter - Confirm the selection
5. Stop & Play - Freeze the media play
6. Stop - Stop the media play

Display image, sound and custom settings can be adjusted in OSD (On Screen Display) menu by remote controller. To adjust monitor setting value :

1. Press the 'MENU' button to enter the OSD menu
2. Press the 'INPUT' button to select input source
3. Press the ▲ / ▼ buttons to select the desired sub-menu. The selected submenu will be highlighted
4. Press the 'ENTER' button to enter the sub-menu for adjusting items
5. Change the value you wish to adjust by using the ◀ / ▶ buttons
6. Press the 'MENU' button to confirm / exit for saving adjustment value on sub-menu
7. Without entering OSD MENU, press ◀ / ▶ buttons to adjust the audio volume
8. Press the 'MUTE' button to on / off audio - audio only works with VGA / AV input

CONTROL AND FUNCTION

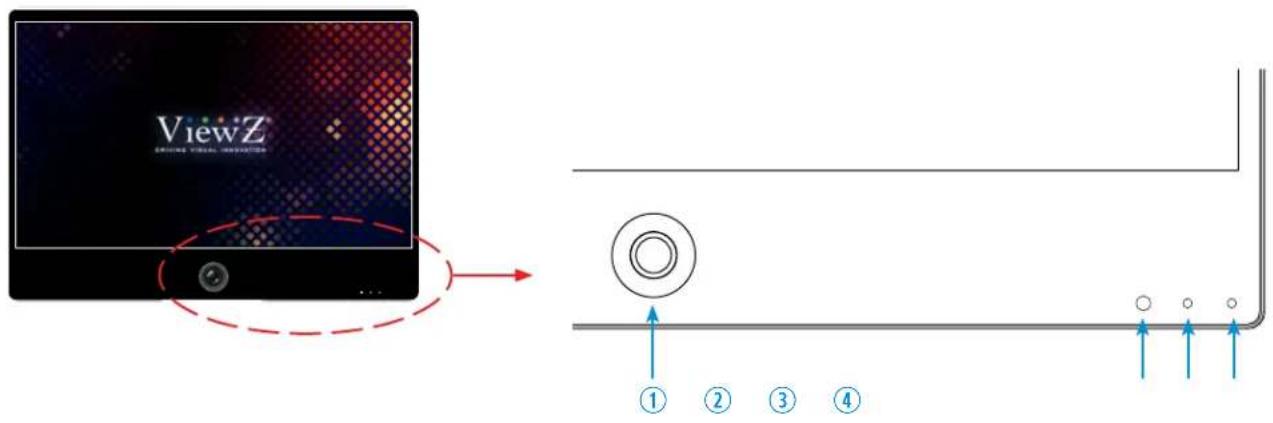

On Monitor, Front Area

1. Built-in Camera / Motion Detection The monitor will display the built-in camera's video Built-in camera has the motion detection function

2. IR Sensor Sensor for the remote controller

3. LED Indicator Green color: monitor on Red color : monitor off

4. Recording Indicator LED User can choose a blinking LED color - red, blue, purple and no color.

CONTROL AND FUNCTION

On Monitor, Button Control

1. Source

To select an input source

1. Menu

To enter or exit the OSD / Select a menu on OSD

1. Left & Right ◀ (VOL) ▶

To change the value on the selected menu

1. Up & Down ▲ ▼

To switch a menu on OSD

1. Power

To turn the monitor power on / off

Monitor Button Function

All picture, sound settings and setup can be adjusted in OSD (On Screen Display) menu.

To adjust the OSD screen:

1. Press the MENU button to enter the OSD MENU
2. Press the ◀ / ▶ buttons to select the desired main-MENU. The selected main-MENU is highlighted
3. Press the ▲ / ▼ buttons to select the desired sub-MENU. The selected sub-MENU is highlighted
4. Change the value you wish to adjust by using the ◀ / ▶ buttons
5. Press the MENU button to confirm the adjustment on sub-MENU
6. Press the MENU button to exit the sub-MENU and go back to the main-MENU
7. Press the MENU button to exit the OSD MENU

CONTROL AND FUNCTION

Select Input Source

Press 'SOURCE' button on monitor or 'INPUT' button on remote controller.

Press ▲ / ▼ button to change input source and then press ◀ / ▶ button to select input source on monitor. Press ▲ / ▼ button to change input source and then press ◀ / ▶ button or Enter to select input source on remote controller.

Volume

Press ◀ / ▶ buttons to adjust volume on monitor

Press ◀ / ▶ buttons to adjust volume on remote controller

Detect Source Signal Message

If you connect any input source, monitor will display current input source resolution and frequency.

CONTROL AND FUNCTION

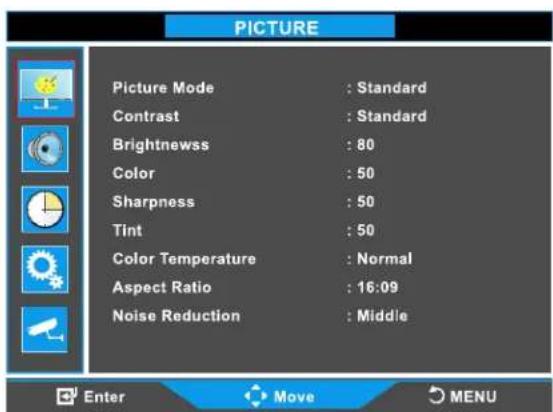

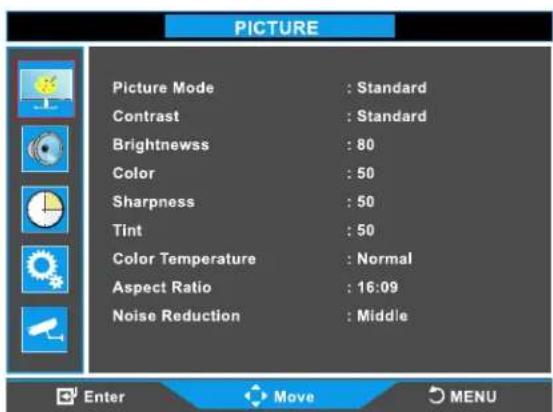

▲/▼ MOVE ◀/▶ SELECT(ADJUST) MENU RETURN

FUNCTION		VALUE
PICTURE MODE	Adjust the image color setting	See table below
CONTRAST	Adjust the contrast	0 ~ 100
BRIGHTNESS	Adjust the brightness	0 ~ 100
COLOR	Adjust the color	0 ~ 100
SHARPNESS	Adjust the sharpness	0 ~ 100
TINT 1)	Adjust the tint	0 ~ 100
COLOR TEMPERATURE	Adjust the color setting	See table on page 17
ASPECT RATIO	Adjust the video format	See table on page 17
NOISE REDUCTION	Adjust the noise level	OFF / LOW / MIDDLE / HIGH

1) Only available in Composite (video) input

PICTURE MODE
DYNAMIC	Provides enhanced contrast and sharpness
STANDARD	Provides standard contrast and sharpness
MILD	Reduces contrast and sharpness
USER	Applies user selected values - brightness, contrast, color and hue

CONTROL AND FUNCTION


▲/▼ MOVE ◀/▶ SELECT(ADJUST) MENU RETURN

COLOR TEMPERATURE
WARM	Give the white color a reddish tint
NORMAL	Give the white color a neutral tint
COOL	Give the white color a blue-ish tint

ASPECT RATIO
16 : 91)2)3)	Sets the image size to 16 : 9
JUST SCAN	Adjusts the image size based on input resolution
4 : 31)2)3)	Sets the image size to 4 : 3
14 : 9	Sets the image size to 14 : 9
ZOOM 13)	Zooms the image size as factory preset zoom level
1) VGA-input support
2) AV-input support
3) HDMI-input support

CONTROL AND FUNCTION

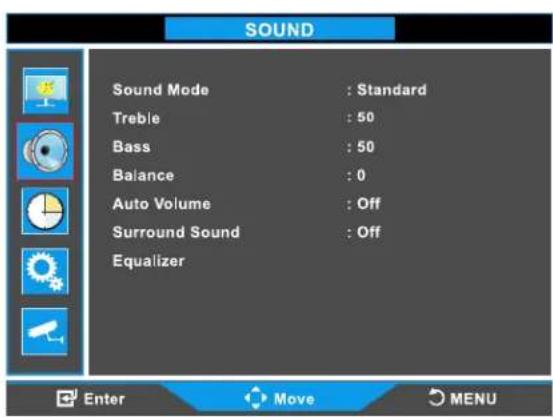

Sound

▲/▼ MOVE ◀/▶ SELECT(ADJUST) MENU RETURN

FUNCTION VALUE

SOUND MODE	Selects one of the presets	STANDARD / MUSIC / MOVIE / SPORTS / USER
TREBLE1)	Adjusts the bass level	0 ~ 100
BASS1)	Adjusts the bass level	0 ~ 100
BALANCE Adjusts the balance 0 ~ 100
AUTO VOLUME	Adjusts the volume	0 ~ 100
SURROUND MODE	Adjusts preset sound mode	ON / OFF
EQUALIZER1)	Set the equalizer

1) Only available in USER MODE

CONTROL AND FUNCTION

TIME

▲/▼ MOVE ◀/▶ SELECT(ADJUST) MENU RETURN

FUNCTION VALUE
CLOCK	Set the time	Year / Month / Date / Hour / Minute
OFF TIME 1)	Set the turn-off time	Hour / Minute
ON TIME 1)	Set the turn-on time	Hour / Minute / Source / Volume

1) Set the schedule as Once, Everyday, Monday through Friday, Monday through Saturday, Saturday through Sunday, Sunday (only)

CONTROL AND FUNCTION

Option

▲/▼ MOVE ◀/▶ SELECT(ADJUST) MENU RETURN

FUNCTION VALUE
OSD LANGUAGE	Sets the language of the OSD menu	English, Spanish, French Russian, Japanese, Portuguese
KEY LOCK 1)	Enable / disable the monitor button	On / Off
SOFTWARE UPDATE	Update the system software via USB drive
RESET DEFAULT	Resets the monitor settings to the factory default

1) To unlock this mode, press 'MENU' button & hold for 5 seconds - on the monitor. Refer to page 14's monitor buttons.

CONTROL AND FUNCTION

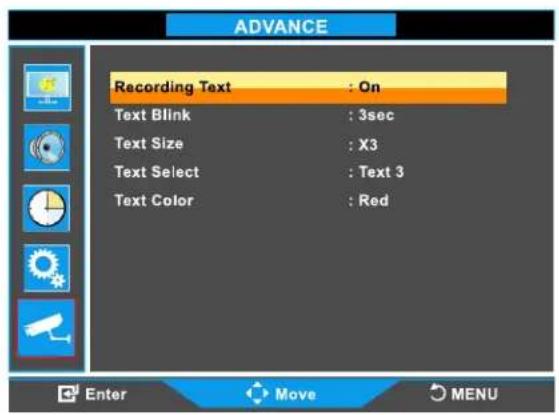

Advance - Adjust Recording Indicator Color / Recording Text

▲/▼ MOVE ◀/▶ SELECT(ADJUST) MENU RETURN

RECORDING TEXT Option Window

	FUNCTION	VALUE
RECORDING INDICATOR	Sets the color of recording indicator LED	OFF / WHITE / RED / GREEN / BLUE / YELLOW
RECORDING TEXT	See table below
MOTION DETECTION	See table on page 22
MASK DETECTION	See table on page 23
AUTO SWITCHING	See table on page 24

FUNCTION		VALUE
RECORDING TEXT	Enables the recording text	OFF / ON
TEXT BLINK	Sets the blinking text interval time	OFF / ON / 1~3 sec
TEXT SIZE	Adjusts the size of text	x 1 / x 2 / x 3
TEXT SELECT 1)	Selects the preset text	TEXT 1 -	ANTI-THEFT DEVICE RECORDING
		TEXT 2 -	ANTI-THEFT DEVICE RECORDING IN PROGRESS
		TEXT 3 -	ANTI-THEFT DEVICE SURVEILLANCE IN PROGRESS
		TEXT 4 -	ANTI-THEFT DEVICE VIDEO RECORDING IN PROGRESS
TEXT COLOR	Adjusts the color of text	RED / GREEN / BLUE / BLACK / WHITE

1) PRESET TEXT - TEXT 1 : Recording / TEXT 2 : Recording in Progress / TEXT 3 : Surveillance in Progress / TEXT 4 : Video Recording in Progress

1) English & Spanish OSD languages are using PRESET TEXT IMAGE.

1) French, Russian, Japanese & Portuguese OSD languages are using the FONT for Text 1 \~ 3 and using the PRESET TEXT IMAGE for Text 4.

CONTROL AND FUNCTION

Advance - Adjust Motion Detection

▲/▼ MOVE ◀/▶ SELECT(ADJUST) MENU RETURN

FUNCTION VALUE
DETECTION ENABLE	Enables the MOTION DETECTION function	OFF / ON
DETECTION INPUT	Selects the input source for Motion Detection	CAMERA / AV / MEDIA / VGA / HDMI
DETECTION TIME	Adjusts the time to display the swapped image / video which is triggered by motion detection. If user selects '10', the monitor will keep showing the swapped image/videos for 10 seconds whether or not motion detected. If there is no motion detection for 10 seconds, monitor will display original image/videos.	3 ~ 100 sec

CONTROL AND FUNCTION

Advance - Adjust Mask Detection

▲/▼ MOVE ◀/▶ SELECT(ADJUST) MENU RETURN

FUNCTION VALUE
MESSAGE	Enables the MASK DETECTION function and when user enable this function, the monitor will show the 'WEAR MASK' image during detecting an unmasked person.	OFF / ON
VOICE	Enables the MASK DETECTION function and when user enable this function, the monitor will make a sound of 'please wear a mask' during detecting an unmasked person.	OFF / ON

CONTROL AND FUNCTION

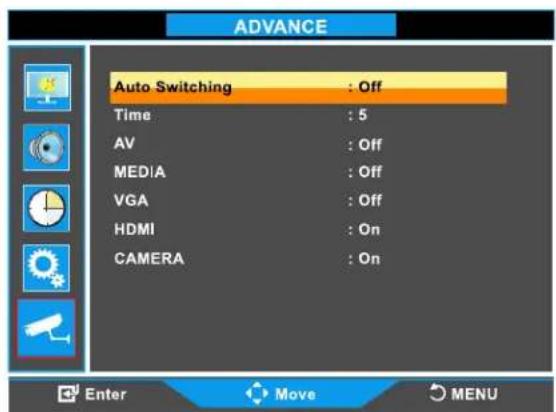

Advance - Adjust Auto Switching

FUNCTION VALUE
AUTO SWITCHING	Enables the AUTO SWITCHING function	OFF / ON
TIME	Adjusts the time which the monitor displays one input source before switching to the other * Only selected two input sources can be displayed	3 ~ 100 sec
AV	Sets the AV input source as the switching display source	OFF / ON
MEDIA	Sets the MEDIA input source as the switching display source	OFF / ON
VGA	Sets the VGA input source as the switching display source	OFF / ON
HDMI	Sets the HDMI input source as the switching display source	OFF / ON
CAMERA	Sets the CAMERA input source as the switching display source	OFF / ON

CONTROL AND FUNCTION

Record Camera

- Connect Micro SD card

1. Open the bottom camera door
2. Connect Micro SD card to Micro SD Card slot located at the side of PVM camera
3. To use recording function, please refer the page 88, 89, 89 & 91 of 'VZ-IPPVM-Web-UserManual'

- Caution - To use recording function, user should remove every files and format the Micro SD card

CONTROL AND FUNCTION

Record Camera

About the detailed feature of recording, please refer the page 88, 89, 90 & 91 of 'VZ-IPPVM-Web-UserManual'

MOUNTING GUIDE

Wall Mounting (Optional)

VZ-PVM monitors are suitable for VESA wall mount (not included).

M4 x L10 screws for VZ-PVM-I2B3N / I2W3N (23" - 100x100)

VZ-PVM-I3B3N / I3W3N (27" - 100x100)

M6 x L8 screws for VZ-PVM-I2B3N / I2W3N (23" - 200x200)

VZ-PVM-13B3N / 13W3N (27" - 200x200)

VZ-PVM-I4B3N / I4W3N (32" - 200x200)

M6 x L15 screws for VZ-PVM-I5B3N / I5W3N (43" - 200x200)

1. VZ-PVM-I2B3N/I2W3N, VZ-PVM-I3B3N/I3W3N : VESA WALL MOUNT 100mm x 100mm, 200mm x 200mm
2. VZ-PVM-I4B3N/I4W3N, VZ-PVM-I5B3N/I5W3N : VESA WALL MOUNT 200mm x 200mm

! Attention!

VZ-PVM-I2B3N/I2W3N (100x100), VZ-PVM-I3B3N/I3W3N (100x100) : You must use 4 * M4 x L10 screws to assemble this monitor and the wall mount bracket.

VZ-PVM-I2B3N/I2W3N (200x200), VZ-PVM-I3B3N/I3W3N (200x200), VZ-PVM-I4B3N/I4W3N : You must use 4 *

M6 x L8 screws to assemble this monitor and the wall mount bracket.

VZ-PVM-I5B3N/I5W3N (200x200): You must use 4 * M6 x L15 screws to assemble this monitor and the wall mount bracket.

WARNING!

If user uses screws longer than

M4 x L10 mm for 100 x 100 - VZ-PVM-I2B3N/I2W3N, VZ-PVM-I3B3N/I3W3N

M6 x L8 mm for 200 x 200 - VZ-PVM-I2B3N/I2W3N, VZ-PVM-I3B3N/I3W3N, VZ-PVM-I4B3N/I4W3N

M6 x L15 mm for 200 x 200 - VZ-PVM-I5B3N/I5W3N

it may cause damage to the unit. Please use bolt of correct size and length as instructed.

Mounting Safety!

At least two people are recommended to safely install the mount.

SPECIFICATION

Model No. VZ-PVM-I2B3N / I2W3N VZ-PVM-I3B3N / I3W3N VZ-PVM-I4B3N / I4W3N
Size & Type 23.6"			27"	32"
LCD	Panel Type	23.6" LED Backlit Monitor	27" LED Backlit Monitor	32" LED Backlit Monitor
	Pixel Pitch	0.2715 (H) x 0.2715 (V) mm	0.31125 (H) x 0.31125 (V) mm	0.36375 (H) x 0.36375 (V) mm
	Brightness	250 cd/m2	300 cd/m2	250 cd/m2
	Contrast Ratio	3000 : 1(Typ.)	3000 : 1(Typ.)	1200 : 1(Typ.)
	Viewing Angle	R/L : 89°/ 89° U/D : 89°/ 89°
	Display Color	16.7 Million Colors
	Response Time	< 10.0 ms	< 12.0 ms	< 8 ms
	Resolution	1920 (H) x 1080 (V)
	Active Display Area	521.28(H) x 293.22(V) mm	597.9 (H) x 336.3 (V) mm	698.4 (H) x 392.85 (V) mm
	Aspect Ratio		16 : 9
Case Type		Metal
Color Temperature		Warm / Normal / Cool
Speaker		2 x 5W
Operating Temperature		32°F ~ 104°F / 0°C ~ 40°C
Operating Humidity		20 ~ 70% RH
Weight		Net : 22.04 lb / 10.0 kgGross : 29.76 lb / 13.5 kg	Net : 28.66 lb / 13.0 kgGross : 33.06 lb / 15.0 kg	Net : 33.06 lb / 15.0 kgGross : 39.68 lb / 18.0 kg
INTERFACE		COMPOSITE VIDEO IN x 1, HDMI (High Definition Multimedia Interface) IN x 1, VGA (RGB-PC) IN x 1,CAMERA OUT ( RJ-45 x 1 (PoE), CVBS x 1), Micro SD IN x 1, Audio IN / OUT x 1 / 1
Safety & EMC Certification		CE / FCC / ROHS
Electrical Ratings	PoE IN	PoE ++ (Type 3) 48V DC		PoE ++ (Type 4) 48V DC
	DC 24V IN	24V DC (AC110V-240V (with DC adaptor))
		24V === 2.7A	24V === 3.0A	24V === 3.0A
Power Consumption		≤ 50 W	≤ 50 W	≤ 65 W
Accessories		DC 24V Power Adapter, DC 24V Connector (Pig Tale), Power Cable,Quick Reference Guide, SW/Manual CD, Remote controller

SPECIFICATION

Model No. VZ-PVM-I5B3N / I5W3N

Size & Type 43"
LCD	Panel Type		43" LED Backlit Monitor
	Pixel Pitch		0.4902 (H) x 0.4902 (V) mm
	Brightness		350 cd/m2
	Contrast Ratio		1200 : 1(Typ.)
	Viewing Angle		R/L : 89°/ 89° U/D : 89°/ 89°
	Display Color		16.7 Million Colors
	Response Time		< 8.0 ms
	Resolution		1920 (H) x 1080 (V)
	Active Display Area		944.0 (H) x 532.0 (V) mm
	Aspect Ratio		16 : 9
Case Type			Metal
Color Temperature			Warm / Normal / Cool
Speaker			2 x 5W
Operating Temperature			32°F ~ 104°F / 0°C ~ 40°C
Operating Humidity			20 ~ 70% RH
Weight			Net : 50.7 lb / 23.0 kgGross : 61.7 lb / 28.0 kg
INTERFACE			COMPOSITE VIDEO IN x 1, HDMI (High Definition Multimedia Interface) IN x 1, VGA (RGB-PC) IN x 1,CAMERA OUT ( RJ-45 x 1, CVBS x 1), Micro SD IN x 1, Audio IN / OUT x 1 / 1
Safety & EMC Certification			CE / FCC / ROHS
Electrical Ratings	AC IN		AC 110-240V, 50/60Hz
	DC 24V IN		24V--- 5.0 A
Power Consumption			≤ 85 W
Accessories			HDMI cable, DC 24V Connector, Quick Reference Guide, Power Cable,SW/Manual CD, Remote controller

SPECIFICATION

Camera Specification

Parameters Description
Production Information	Product Name	2MP IP module
Main Chipset	Encode Chipset	NT98520
	Sensor	SONY IMX307
Camera	Resolution	1920 (W) x 1080(H)
	Video System	NTSC / PAL
	Digital Zoom	Support
	Minimum illumination	Color: 0.01 Lux@ (F1.2, AGC ON) / B&W: 0.0 Lux@ (IR LED ON)
	Day & Night Mode	Support - Auto (ICR)
	Electronic Shutter Speed	Auto/Manual, 1/5 ~ 1/20,000s
	S/N Ratio	55dB
	Wide Dynamic Range (WDR)	True WDR
Lens	Lens Type	Vari-Focal
	Focal Length of the Lens	2.7 ~ 12 mm
	Auto Iris	Support
External interface	Network Interface	RJ45 10 /100 Base-T
	CVBS Output	Support
	Reset Button	Support
	Edge Storage	Built-in Micro SD slot, up to 256G
Video	Video Encode	H.264 (Main profile), H.265, MJPEG
	Multi-Stream	Main stream , 2nd stream, 3rd stream
	Video Resolution and Frame Rate	NTSC 60Hz:30fps / PAL 50Hz:25fpsMain stream: 1920*1080 @ 25/30fps | 1280*720 @ 25/30fps 2nd stream: D1, VGA, 640×360, CIF, QVGA @ 25/30fps 3rd stream: VGA, CIF, QVGA @ 25/30fps
	Video Bit Rate Control	1Mbps-8Mpbs,support CBR/VBR
	Video Bit Rate	Main stream: 100kbps ~ 12Mbps 2nd stream: 10kbps ~ 6Mbps 3rd stream: 10kbps ~ 3Mbps
	Image Enhancement	Support HLC / BLC / Defog / WDR
	White Balance	Auto
	Gain Control	Auto / Manual
	Noise Reduction	2D/3D DNR
	Aisle Mode	Support
	Smart IR	Support
	Mirror	Support
	Region of Interest	Off/On (8 Zone, Rectangle)
	Motion Detection	Support
	Privacy Masking	Support

SPECIFICATION

Camera Specification

Parameters Description
Smart Function	Mask Detection	Support
	Intelligent Detection	Perimeter, Single Virtual Fence, Loiter, Converse, Double Virtual Fences, Signal Bad
Network	Integration Protocol	ONVIF 2.6 (supported), SDK, CGI
	Network Protocol	IPv4/IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ARP, SNMP, TLS/SSL
	Streaming Mode	Unicast
	Concurrent Access (# of Users)	10 users ( Maximum 3ch 1080P )
	User Rights	Two roles: administrator and common users. The administrator can assign common users different rights.
WEB application	Language	English default
	Browser	Windows IE 11 / Edge / Firefox / Chrome
Recording Capacity		TF Card (EXT4 format, MAX256G)
	2MP - H.265 w/256G	30fps(11days) / 15fps(15days)
	2MP - H.264 w/256G	30fps(5days) / 15fps / 7days

Media Player Specification

Description
External Storage	Support SD/SDHC CARD (Max 128GB), USB 2.0 HOST
VIDEO Format	RM,RMVB(RV30/RV40), VOB(MPEG-2), HDMOV, AVI(DviX, Xvid, MJPEG;MPEG-4 SP/ASP, H.264), DVIX, MPG (MPEG-1, MPEG-2), M4V, PMP, AVC, FLV, MP4 (MPEG-4 SP/ASP, H.264/H.263; Motion JPEG; H.265(720P)), DAT(MPEG-1), MPEG, MOV/MKV(MPEG-4 SP/ASP, H.264/H.263), TS (MPEG-2, H.264, Avs, Avs+), M2TS, WMV, H.264, H.263, WMV9, VC-1, MPEG1/2/4
Output	VIDEO - HDMI(1080p) / AUDIO - L/R, HDMI
VIDEO Resolution	1080P @60Hz
AUDIO Format	MPEG1/2/4, MP3, WMA, OGG, AAC, FLAC, APE, AC-3, DTS, ATRA, WAV, PCM
IMAGE Format	JPEG, JPG, PNG, BMP
VIDEO Play Control	AUTO, REPEAT, ZOOM, RESUME, TIME

TROUBLESHOOTING GUIDE

• Check the following before calling for service.
• If the same problems continue after checking, contact the reseller you purchased the monitor from.

At start	We recommend that you test with different input sources when you have trouble with the current input source. If symptom persists, follow the instructions below. After following the instructions below, please contact us at 1-888-99-VIEWZ.
No image or Noise on the screen	- Make sure the power cable is correctly plugged into the outlet- Make sure the power cable is correctly plugged into the monitor- Make sure the cable is correctly connected between monitor & source- Check brightness and see if brightness is set to '∅' - Check video source
Incorrect display or Half display	- Check your video source- Reset video source : connection, cable replacement, setting & more
Flickering and shadow image	- Check your input source setting for resolution and phase (Hz)
The audio function is not working	- Check the volume and make sure MUTE is not on- Check HDMI / Audio port cable connection
LED is flickering or no image	- Check the interface cable connection and make sure it's plugged in correctly- Check the input source

TERMS OF WARRANTY / RMA

• The warranty period for this monitor is 3 years. The warranty will be voided for the scenarios listed below.
• You can also download the manual and information at VIEWZ web site: VIEWZUSA.COM

Cases of Non-Warranty Coverage	When power feed to the monitor exceeds capacity and causes damage
	Accident, Abuse, Misuse, Neglect, Fire, Water/liquids, Lightning or any act of nature
	Damaged by dropping, throwing and hitting the monitor
	Failure caused by users attempt to modify the product
	Failure by limited life of parts such as LED Lamps and any other consumables
	Damaged by using third party power cable, unstable power input and electric shock

* Above information can be changed without notification - please check our website or contact ViewZ representative for latest RMA service policy.
* When shipping the monitor for RMA, make sure to pack safely to ensure the monitor is not damaged during shipping.

NOTE

NOTE

WARRANTY

ViewZ USA LIMITED 3 YEAR WARRANTY

What and Who is Covered by this Limited Warranty and for How Long

ViewZ USA warrants this product to be free from defects in material and workmanship for 3 years to the original owner of this product. The limited warranty is valid only for the original purchaser of the product.

What ViewZ USA Will Do

At the sole discretion of ViewZ USA, ViewZ USA will repair or replace any product or product part that is defective. If ViewZ USA chooses to replace a defective product or part, a replacement product or part will be shipped to you at no charge, but you must pay any labor costs.

What is Not Covered; Limitations

ViewZ USA disclaims any liability for damage to mounts, adapters, displays, projectors, other property, or personal injury resulting, in whole or in part, from improper installation, modification, use or misuse of its products.

ViewZ USA disclaims all other warranties, express or implied, including warranties of merchantability and fitness for a particular purpose. ViewZ USA is not responsible for incidental or consequential damages, including but not limited to, inability to use its products or labor costs for removing and replacing defective products or parts. Some states do not allow the exclusion or limitation of incidental or consequential damage, so the above limitation or exclusion many not apply to you.

What Customers Must Do for Limited Warranty Service

If you discover a problem that you think may be covered by the warranty you MUST REPORT it in writing to the address below within thirty (30) days. Proof of purchase (an original sales receipt) from the original consumer purchaser must accompany all warranty claims. Warranty claims must also include a description of the problem, the purchaser's name, address, and telephone number. General inquiries can be addressed to ViewZ USA Customer Service at 1-888-998-4399. Warranty claims will not be accepted over the phone or by fax.

ViewZ USA

Attn: Warranty Claim

1030 N ARMANDO ST.,

ANAHEIM, CA 92806

How State Law Applies

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Disclaimer

ViewZ USA intends to make this manual accurate and complete. However, ViewZ USA makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this monitor. The information contained in this document is subject to change without notice or obligation of any kind. ViewZ USA makes no representation of warranty, expressed or implied, regarding the information contained herein. ViewZ USA assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document.

Contact Us

	NORTH AMERICA1030 N ARMANDO ST.,ANAHEIM, CA 92806USA and CanadaPhone: 1-888-998-4399Fax: [phone]Other Locations
© ViewZ USA	Phone: [phone]Fax: [phone]
