Product Type	GPS Navigator
Brand	Rand McNally
Model	OverDryve 7 Pro II
Display Size	7 inches
Display Resolution	1024 x 600 pixels
Dimensions (W x H x D)	Approx. 7.5 x 4.5 x 0.7 inches
Weight	Approx. 12 oz
Power Source	12V DC vehicle adapter
Battery Type	Rechargeable lithium-ion
Battery Life	Up to 2 hours
Internal Memory	16 GB
Navigation Features	Turn-by-turn directions, lane guidance, speed alerts
Map Updates	Free lifetime updates via Wi-Fi
Connectivity	Wi-Fi, Bluetooth
Voice Control	Built-in microphone and speaker
Additional Features	Truck-specific routing, driver logs, dash cam support
Operating System	Proprietary Rand McNally OS
Care and Cleaning	Wipe with dry cloth; avoid liquids
Safety	Mount securely; do not obstruct driver view
Spare Parts and Repairability	Contact Rand McNally support for replacement parts
General Information	Includes mount, power cable, user manual

Frequently Asked Questions - OverDryve 7 Pro II Rand McNally

How do I update the maps on my OverDryve 7 Pro II?

Connect to a Wi-Fi network, go to Settings > Map Updates, and follow on-screen instructions. Ensure the device is plugged in during updates.

Can I use the device while it is charging?

Yes, the OverDryve 7 Pro II can be used while plugged into a vehicle power adapter. The battery charges simultaneously.

How do I perform a factory reset?

Go to Settings > System > Reset to Factory Defaults. This will erase all user data and restore the device to original settings.

Is the device compatible with Bluetooth headsets?

Yes, you can pair a Bluetooth headset via Settings > Bluetooth > Pair New Device for hands-free audio.

How do I mount the GPS in my vehicle?

Attach the suction cup mount to a clean, dry windshield. Press firmly and lock the lever. Then slide the device onto the mount until it clicks.

What type of microSD card does it support?

It supports microSD cards up to 32 GB (FAT32 format) for additional map storage or media.

How can I extend battery life?

Reduce screen brightness, disable Bluetooth when not needed, and close unused apps. Battery life is typically up to 2 hours.

The touchscreen is not responding properly. What should I do?

Clean the screen with a soft dry cloth. If issue persists, perform a soft reset by holding the power button for 10 seconds.

Can I use this GPS for personal driving as well as trucking?

Yes, it supports both personal and truck routing. Switch between modes in Navigation Settings based on vehicle type.

How do I contact customer support?

Visit randmcnally.com/support or call 1-877-463-2764 for assistance with your OverDryve 7 Pro II.

USER MANUAL OverDryve 7 Pro II Rand McNally

OverDryve™ Pro II

USER MANUAL

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

FCC Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.

FCC Radiation Exposure Statement

This device complies with FCC SAR exposure limits set forth for an uncontrolled environment.

SAR compliance for using the equipment in close proximity to the human body has been evaluated at 0mm.

This equipment must not be co-located or operating in conjunction with any other antenna or transmitter.

End-users and installers must be provided with antenna installation instructions and consider removing the no-collocation statement.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

Caution!

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Canada Statement

This device complies with Industry Canada's licence-exempt RSSs. Operation is subject to the following two conditions:

(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause undesired operation of the device.

This equipment should be installed and operated with a minimum distance of 0mm between the radiator and your body.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

The device for operation in the band 5150–5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems.

The Global Positioning System (GPS) is a constellation of satellites that a GPS receiver uses to calculate geographical positions. To determine a position, data from at least three satellites is required. To determine elevation, the data from four or more satellites is required. Accuracy of the positioning varies from 10 feet to several hundred feet, depending on vehicle placement and the surrounding environment.

Geographical terrain (such as mountains), man-made structures (such as highway overpasses, bridges, and tall buildings), as well as weather can interfere with the GPS signal. For best GPS reception, position the device and mount with a clear line of sight to the sky. Some vehicles may have a limited view of the sky due to metal sun shields or a metallized windshield coating.

Map data includes the geographical coordinates for address locations and points of interest (POIs). With GPS reception, your device calculates a route to your selected location.

Customer Support

Call toll-free: 877-446-4863

E-mail: [e-mail]

Questions about using OverDryve™ Pro II?

Our team is ready to help.

Table of Contents

1. Your OverDryve™ Pro II....1

Caution: Important Safety Information ....1

Box Contents 2

Install the Mount....2

Using the Android Home Screen....4

2. Getting Started .... 5

Setup 5

Connect to the Internet....6

Register Your Device....7

Connect to Bluetooth....8

Connect to Your Truck Stereo 9

Device Settings.... 11

3. Messaging 16

4. Phone....18

5. Rand Navigation 2.0 .... 19

Home Screen....19

Preferences 20

Destination Search....25

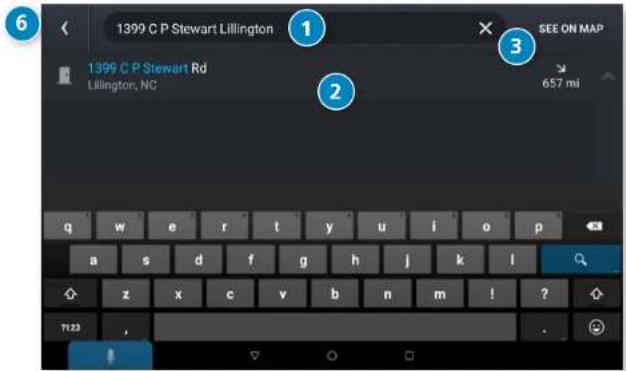

Single-line Search 26

Guided Search 27

Using Guided Search 28

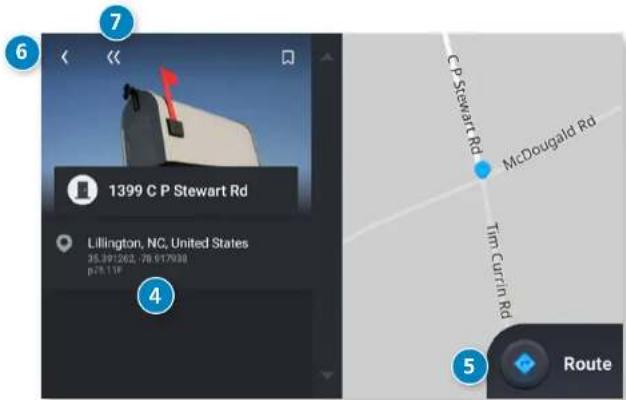

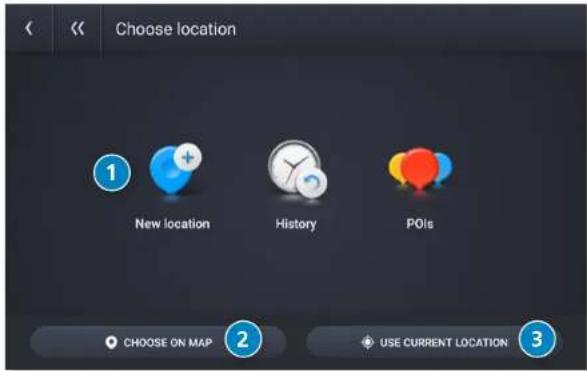

New Location 29

My Trips....30

Multi-Stop Trips 31

Trails 32

History 33

Address Book 34

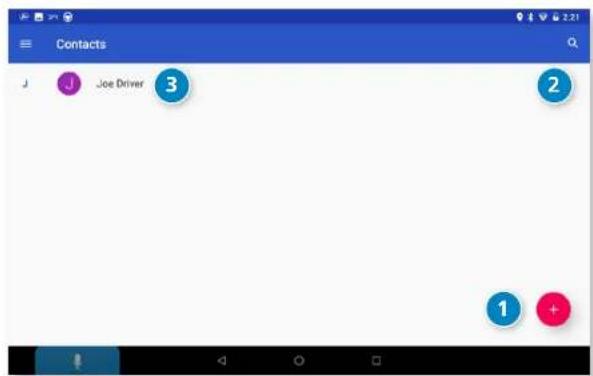

Address Book: Contacts....35

Address Book: Groups 36

POIs 37

Filter POIs 38

POIs 39

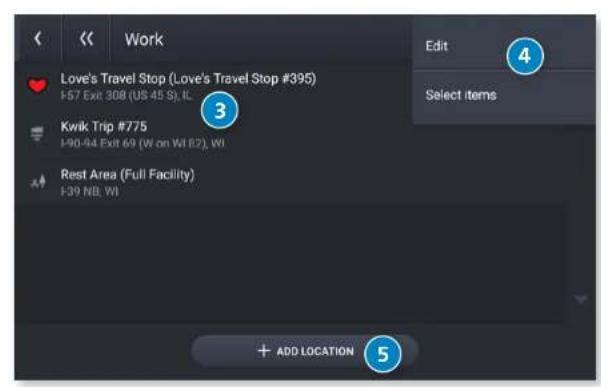

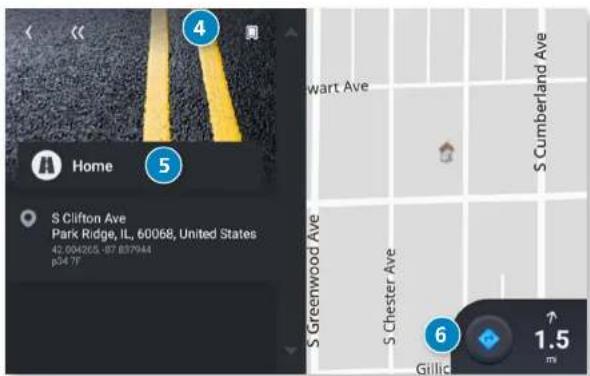

Home/Work 40

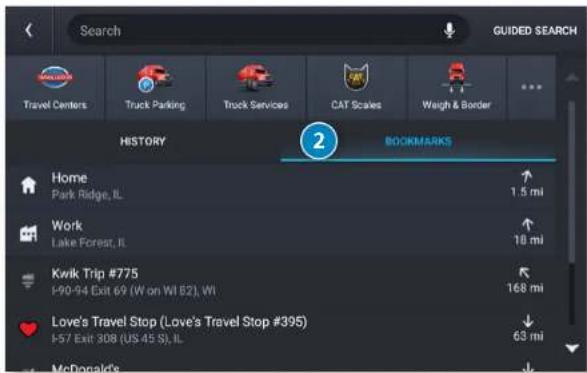

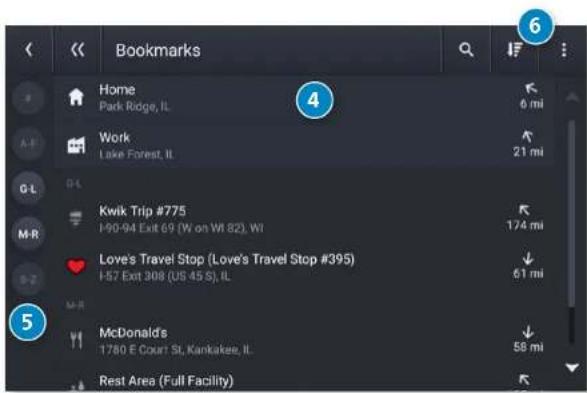

History & Bookmarks....41

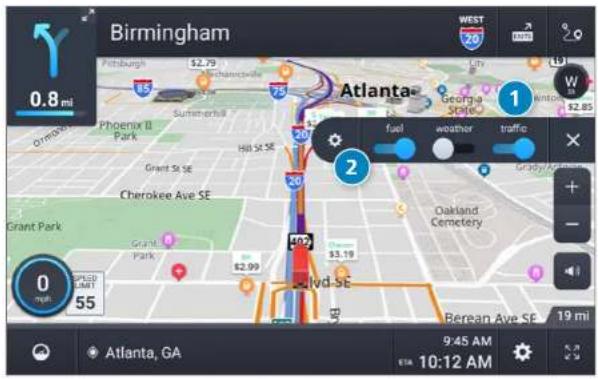

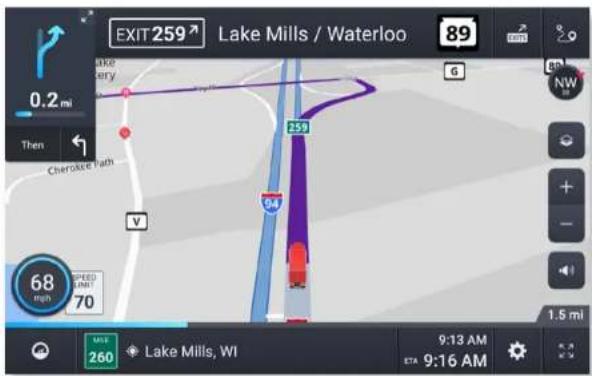

Route Map Window....42

Exits 43

Route Options 44

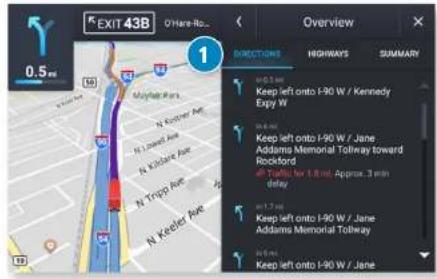

Route Overview 45

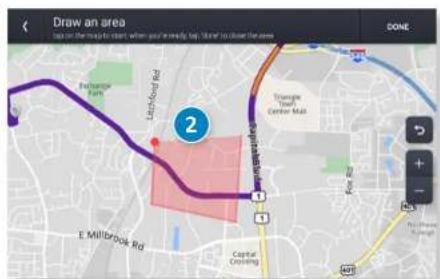

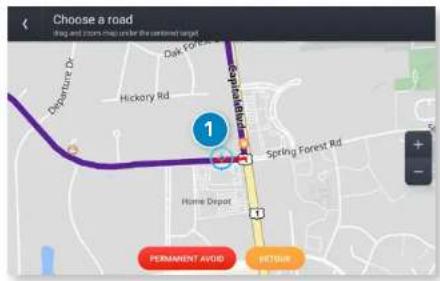

Detour/Avoid 46

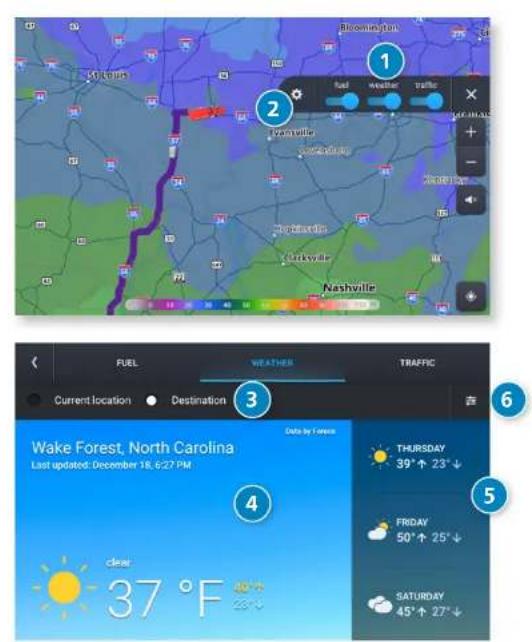

Weather....48

Traffic 49

Fuel 51

Virtual Dashboard....52

Fuel Logs 53

Junction View 54

Turn View 54

Truck Tools 55

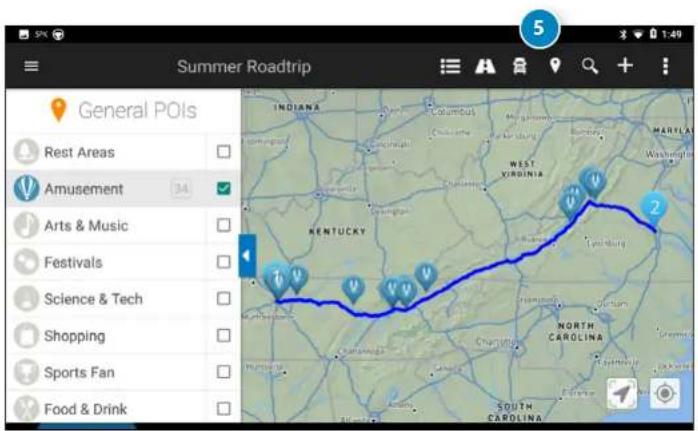

6. TripMaker ^® 56

7. DriverConnect 57

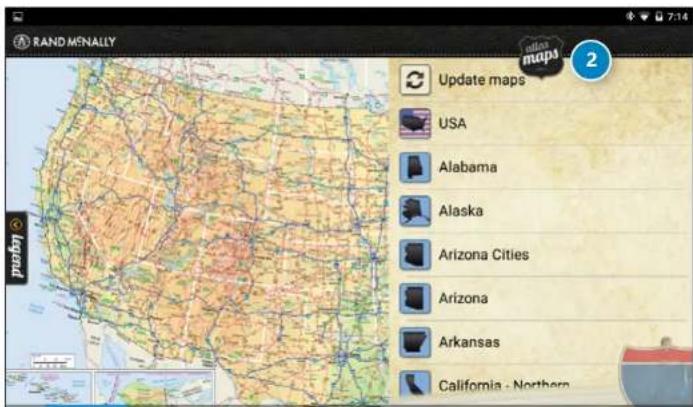

8. Road Atlas....58

9. Cameras....59

Dash Cam 60

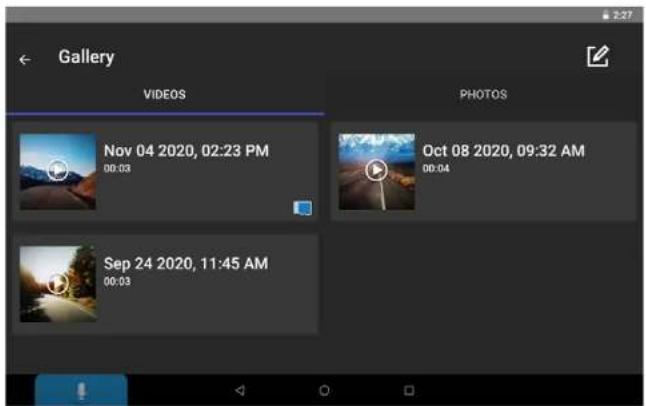

Video Files....61

Table of Contents

1. Entertainment 62

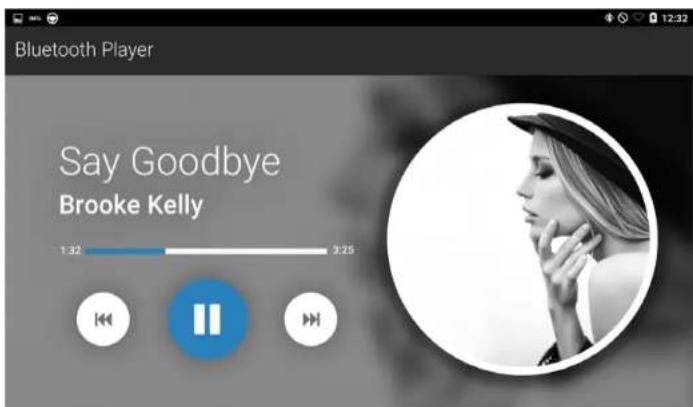

Bluetooth Player 62

Phone Playback 62

FM Transmitter....63

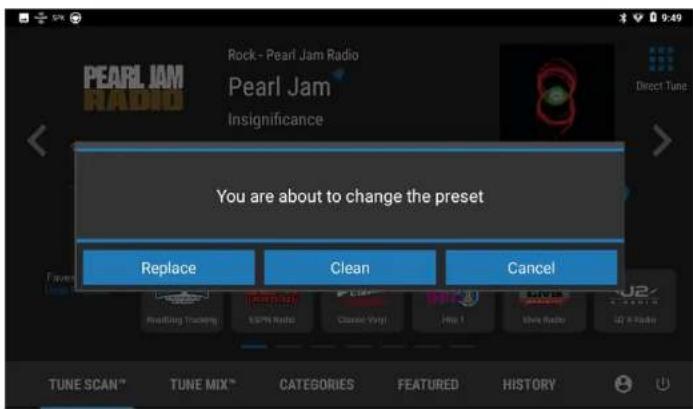

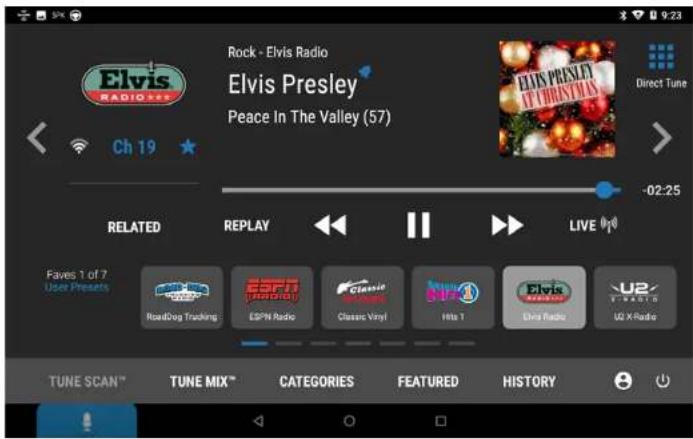

SiriusXM Radio 64

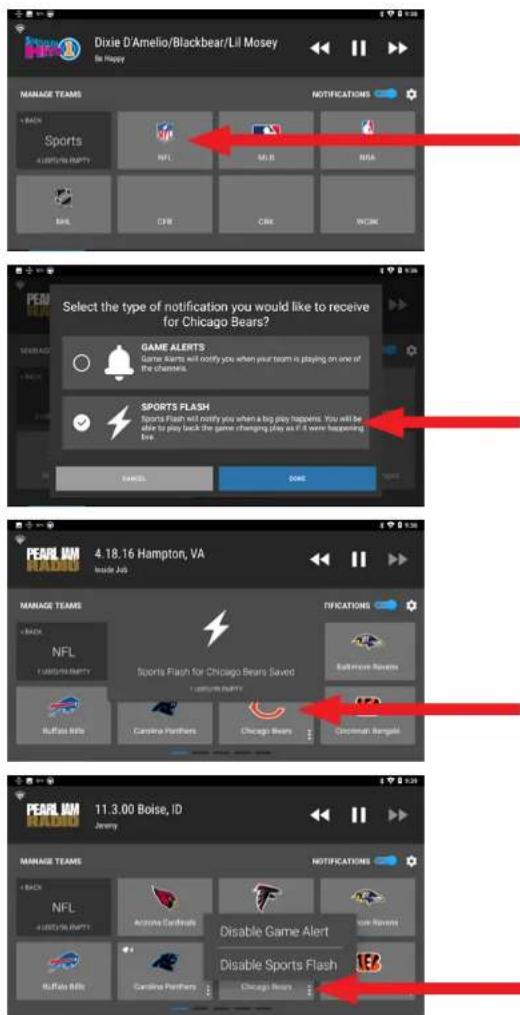

SiriusXM Functions....65

1. Troubleshooting....71

Restarting the Device 71

1. More Information .... 72

Caution: Important Safety Information

Navigation

• Use this device at your own risk.
• Attend to this device only when it is safe to do so.
• Traffic laws and regulations always have priority over any instructions from the navigation system.

NOTE: If you do not understand the spoken instructions or are unsure of what to do, refer to the navigation map on your device.

Installation

• Make sure that the mount is securely mounted and properly adjusted before each trip.
• Make sure that the mount does not impair the driver's visibility.
• Do not attach the mount within the airbag deployment zone.
• Install the mount in a manner that minimizes risk in the event of an accident.
• After installation, check all safety-related equipment to ensure that it operates without interference from the device, its cables, or any other accessories.
• Connect the wall charger to a 120V or 240V outlet only.
• Connect the vehicle charger to a 12V outlet only.

Device

• Do not use sharp-edged objects on the device touch screen.
• The device is not waterproof and is not protected against water damage.
• Protect the device from extreme temperatures. Operating temperature for the device is between 32 degrees F and 120 degrees F.
• Do not open the device casing.
• Do not attempt to replace the battery. Contact Rand McNally Customer Support with questions about the battery.
  • Always follow local regulations when disposing of this device.

NOTE: Make sure that there are no kinks in the cable and that it will not be damaged by any sharp objects.

NOTE: Use only a moist cloth to clean the device.

NOTE: Do not pull the cable to unplug the unit.

Box Contents

1 OverDryve™ Pro II tablet
2 Smart mount
3 Bracket with suction cup
4 FM transmitter antenna
5 Anti-glare screen protector
6 SiriusXM antenna
7 Dash mount disc
8 AUX cable
9 Vehicle charger
10 USB wall charger

OverDryve™ Pro II User Manual

Install the Mount

Note: Follow all local regulations governing the placement of the mount.

1. Select an area with a line of sight to the sky and GPS satellites.
2. Clean and dry the mounting area.
3. Remove the suction cup protective film.
4. Attach the two pieces of the mount together and lock into place.
5. Adjust the angle of the mount.
6. Pull the suction cup lever up to release suction.
7. Plug the power cord into the mount and the vehicle's 12-volt power source.
8. Optional: To use your vehicle's speakers, connect an AUX cable from the Smart Mount AUX out to your vehicle's AUX in port.
9. Optional: To use the SiriusXM satellite radio features, see the instructions in Section 10 (Entertainment).
10. Place and hold the mount suction cup against the mounting surface.
11. Press the suction cup lever down until it snaps into place.
12. Snap the tablet onto the mount.
13. Adjust the tablet so that it can be easily seen and does not block the driver's line of sight.

OverDryve™ Pro II

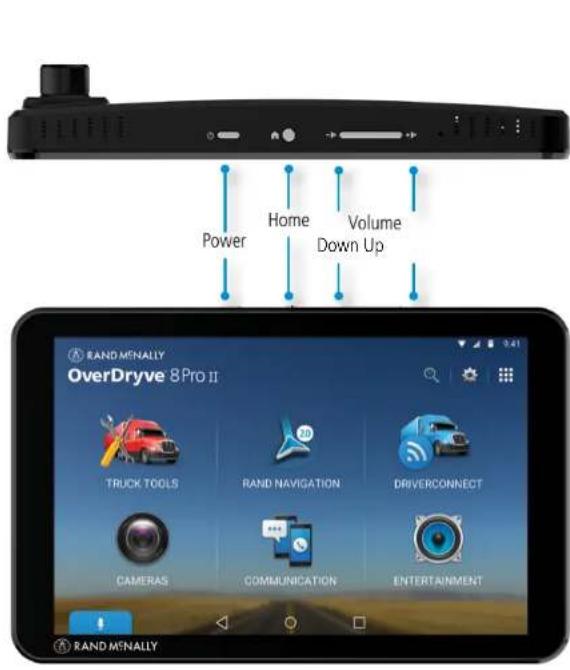

Using the Android Home Screen

After you turn on your device, the home screen will display.

At the top of the home screen is the status bar. It displays important information like your Wi-Fi connection, remaining battery life, time, etc. The status bar will display at the top of almost every screen.

Swipe down at the top of the status bar and your Notifications panel will display. The tablet notifies you when something needs your attention, such as an e-mail, text message, or device update.

Tap or swipe down in the Notifications panel and a Quick Settings panel will display. The Quick Settings panel contains often used features such as Wi-Fi connection, Bluetooth, and location services (GPS). It also displays an Android Settings icon in the top right corner. Tap the Android Settings icon to access a full menu of device settings.

1 Location enabled indicator
2 Bluetooth indicator
3 Wi-Fi indicator
4 Battery power indicator
5 Current time
6 Guided search
7 Settings
8 View installed apps
9 Swipe right to view additional home screens
10 View open apps
11 Home
12 Back
13 Voice Assistant

Setup

Connect to the Internet

Enable the Wi-Fi hotspot on your smartphone or other in-vehicle device and then connect OverDryve™ Pro II or connect to your home Wi-Fi to complete setup.

Register your device

Register with Rand McNally for updates and support.

Connect to Bluetooth

Enable Bluetooth on your smartphone and pair OverDryve™ Pro II to enable hands-free calling and texting, music streaming, and voice assistance.

Connect to your truck stereo system

You can listen to audio through any of the following four methods:

1. Plug an AUX cable into the Smart Mount and the AUX port in your truck.
   Note: Do not plug the AUX cable into the audio out port on OverDryve™ Pro II.
2. Use the Smart Mount speaker.
3. Use the FM Transmitter. To use the FM transmitter, attach the antenna to the Smart Mount. On OverDryve™ Pro II, tap Entertainment >FM Transmitter and follow the instructions.
4. Add an AUX input to your existing truck.

Note: If your device has not been able to detect your location, you may be asked to set your time zone.

Connect to the Internet

First activate the Wi-Fi hotspot on your phone or in your truck. From the OverDryve™ Pro II setup screen, tap Get Started to begin the setup process. Tap Find my hotspot.

Select a Wi-Fi network and connect.

A message will display that states you are connected. Tap Next.

2. Getting Started

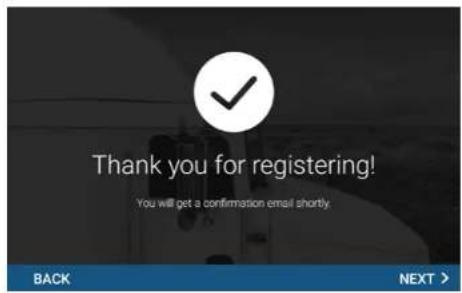

Register Your Device

Register your device to receive important device updates and support.

Tap Next to proceed to the next step.

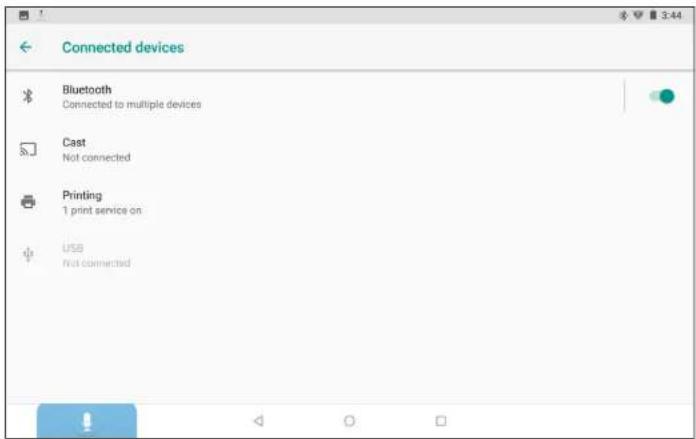

Connect to Bluetooth

Connect to your phone via Bluetooth to allow OverDryve™ Pro II to call and text hands-free and to stream music from your phone to your truck's stereo system.

First enable Bluetooth on your phone.

From OverDryve™ Pro II:

1. Tap Connect.
2. Tap Pair New Device and choose smart phone. A Bluetooth pairing request will display on your OverDryve™ Pro II.
3. Tap Pair. If successful, the screen will display a connected message. If the OverDryve™ Pro II failed to connect, verify that your phone is in range and Bluetooth is enabled.

Help for Connecting to Bluetooth

If you are having issues connecting OverDryve™ Pro II to your smartphone via Bluetooth, these steps can help:

1. Make sure that your OverDryve™ Pro II and smartphone are in close proximity to each other, preferably within five feet.
2. Check that both devices do not have a low battery. Some devices will disable Bluetooth to conserve power when the battery gets low.
3. Power the devices off and then back on.
4. Turn off any devices that may be interfering with the Bluetooth connection. For example, if you usually pair your OverDryve™ Pro II with a different phone, turn off that phone.

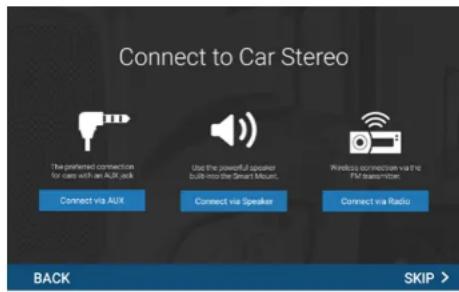

Connect to Your Truck Stereo

To listen to audio through your truck stereo, the tablet must be in truck mode. To put the tablet in truck mode, place it on the Smart Mount and plug the mount into a power source using the vehicle charger.

The optimal way to connect to your truck stereo is with the provided AUX cord. You can also connect wirelessly via OverDryve™ Pro II's FM transmitter.

To connect with the AUX cable:

1. Tap Connect via AUX.

2. Plug the right-angle end of the AUX cable into the OverDryve™ Pro II Smart Mount.

Note: Do not plug the AUX cable into the audio out port on OverDryve™ Pro II.

1. Plug the other end into your truck's AUX jack.

2. Set your truck's audio source to AUX.

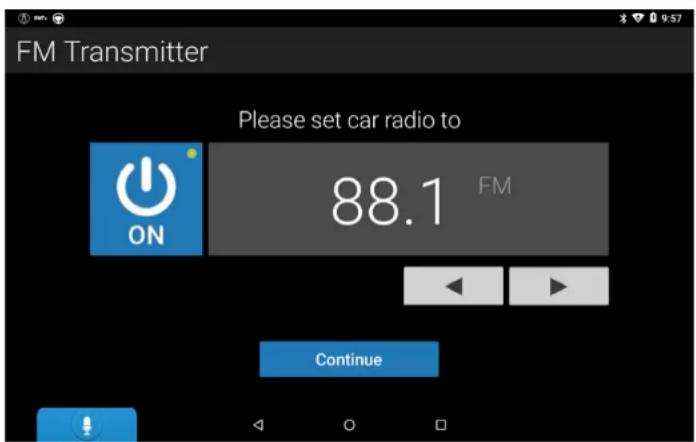

To use the FM transmitter:

1. Attach the FM antenna to the Smart Mount.
2. Unplug the AUX cable if it is plugged in.
3. Tap the settings icon located in the top right corner of the OverDryve™ Pro II screen.
4. Tap OverDryve ^TM Pro II Setup > Audio > Connect via radio.

Connect to Your Truck Stereo (Continued)

Using the OverDryve™ Pro II Speakers

Your tablet has its own speaker, and there's another powerful speaker in the Smart Mount. You can use the OverDryve™ Pro II speakers instead of connecting to your truck stereo. If you want to connect to the truck stereo later, tap the Settings icon in the top right corner of the screen, then OverDryve™ Pro II Setup > Audio.

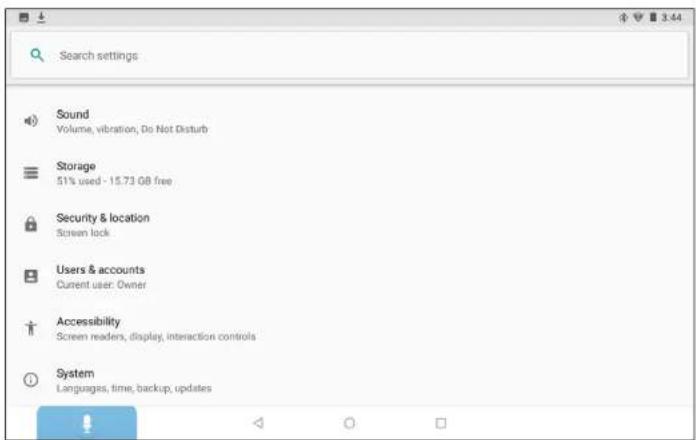

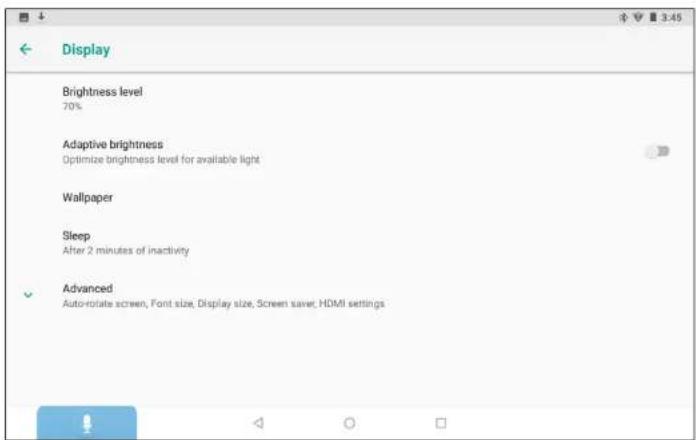

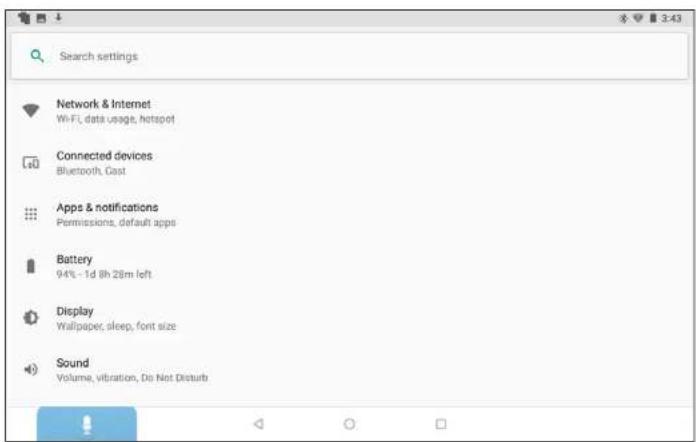

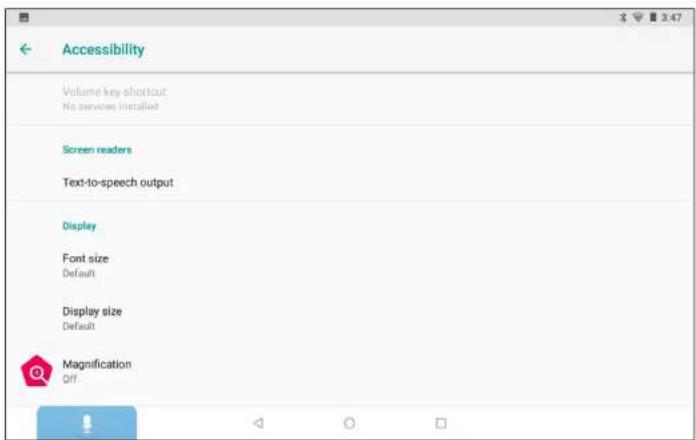

Device Settings

Swipe down from the top of the screen to view the Quick Settings panel and adjust the following frequently used features:

• Battery Power
• Settings Icon – Access a full menu of all settings.
• Brightness – Changes the screen brightness.
  • Wi-Fi – Shows available networks.
• Bluetooth
  • Airplane Mode – Turns off Wi-Fi and Bluetooth.
• Auto Rotate – Controls whether the screen rotates when you rotate the tablet.
• Location – Turn on/off location services (GPS).
• Cast screen – Project your screen onto a compatible device.

2. Getting Started

From the Quick Settings panel, tap the Settings icon to access a full menu of settings for your device.

• Network & Internet – View and connect to available Wi-Fi networks.
- Connected devices – View Bluetooth settings, cast and printing services
- Apps & notifications – View apps. Swipe left to view: downloaded, running, all.
- Battery – View time spent on battery and battery power used by different apps.
- Display – Set brightness, wallpaper, appearance, etc.

• Sound – Set volumes for different features and enable/disable sounds.
• Storage – View how much storage is available on your OverDryve™ Pro II.
• Security & location – Set screen security lock and location accuracy.
• Users & accounts – Add accounts and sync user data.
• Accessibility – Manage font size, display size settings.
• System – View software version and reset device to factory settings.

Connected devices

• Bluetooth – Manage bluetooth connection for paired devices.
• Cast – Cast screen content.
• Printing – Manage connected printers.

Display

• Brightness level – Set brightness level.
• Adaptive brightness – Optimize brightness for available light on or off.
• Wallpaper – Choose wallpaper for device.
• Sleep – Set sleep timer for device inactivity.
• Advanced – Manage screen rotation, font size, display size, screen saver, HDMI settings.

2. Getting Started

System

• Languages & input – Set language and keyboard layout.
• Gestures – Set gesture key shortcuts.
• Date & time – Set date, time, time zone, and date/time format.
• Backup – Backup data to account.
• Reset options – Factory reset device.
• About tablet – Status of battery, network and serial number. Model number, software and hardware version.

Accessibility

Screen readers

Display

• Font size – Set font size.
• Display size – Set display size.
• Magnification – Magnification on/off. To zoom, tap anywhere on the screen. Drag 2 or more fingers to scroll. Pinch 2 or more fingers to adjust zoom.

Security & location

Device security

- Screen lock – Choose screen lock security type. None, swipe, pattern, pin, password.

Privacy

• Location – Location mode accuracy.
  • Show passwords – Display characters as you type passwords.

Network & Internet / Tethering

• USB tethering – Share device's internet connection via USB.
• Bluetooth tethering – Share device's internet connection via bluetooth.

3. Messaging

Pair OverDryve™ Pro II with your iPhone or Android phone via Bluetooth to send and receive texts hands-free. The OverDryve™ Pro II Voice Assistant integrates with your phone's voice assistant. OverDryve™ Pro II automatically syncs your text messages so you can see new messages and browse through old ones without reaching for your phone.

Note: If you have an iPhone, make sure your phone is not open to the messaging screen. When the messaging screen is open, the iPhone automatically marks the message as "read". The iPhone won't transmit "read" messages over Bluetooth, so OverDryve™ Pro II will not be able to access them.

To send and receive texts hands-free, tap the Voice Assistant which will ask who you would like to text. Speak the name of any of your contacts. The Voice Assistant will prompt you for your message and then ask you if you would like to send it. The Voice Assistant can also read back text messages that you receive.

Set your favorite contacts by clicking the star icon next to their names. Easily access them in the favorites tab.

If you want to send a text without using the Voice Assistant:

1. Tap Messaging
2. Enter the phone number or select a name from your Contacts.
3. Tap the yellow messaging icon.
4. Tap Write a message in the lower left corner of the screen.
5. Write the message and tap the blue arrow to send it.

3. Messaging

To enable text message notifications:

1. From Messaging, tap the Settings icon in the top left corner of the screen.
2. Tap Settings.
3. If Enable Messaging Notifications is checked, notifications are already enabled. If not, tap to turn on the feature. The status will show "Enabled".

To control what text message information displays on OverDryve™ Pro II:

1. From Messaging, tap the Settings icon in the top left corner of the screen.

2. Tap Settings.

3. If Show Message Content is checked, tap to uncheck. The status will change to "Hide Content".

4. Phone

Pair OverDryve™ Pro II with your iPhone or Android phone via Bluetooth to make calls hands-free. OverDryve™ Pro II automatically downloads your contacts and call history when you get in the truck.

Set your favorite contacts by clicking the star icon next to their names. Easily access them in the favorites tab.

To set the ringtone or notification ringtone:

1. From Phone, tap the Settings icon in the top left corner of the screen.
2. Tap Settings.
3. Tap Ringtone or Notification Ringtone and choose your selection.

Home Screen

1 Where to?

Tap to enter a destination.

2 Battery

Displays battery power status and charging indicator.

3 Map View Mode

Tap to switch the map view: 3D map, North up, or Heading up.

4 Wi-Fi Connected Services

Tap to enable fuel prices, weather and traffic on the map.

5 Zoom

Tap + or - to zoom in or out on the map.

6 Return to current location

Tap to view your current location on the map.

7 VirtualDashboard

Tap to view a variety of information concerning your current trip.

8 Street/Intersection/Location

Tap to toggle between the current street name, the upcoming intersection, or your current location.

9 Local Time/Elevation

Tap to toggle between Local time and Elevation.

10 Settings

Tap to access settings, such as: General, Truck Info, Route, Map, and Warnings settings.

11 Full Screen

Tap to change the view to full screen.

Settings

1. Tap Up ▲ or Down ▼ to view options.
2. Tap the option to be set.
3. Enter the new information.
4. Tap Back ◀ to save changes.

Preferences Page

General

Language....22
Unit....22 Clock....22

Yard time zone....22

Vehicle type 22

Load prompt 22

Mileage log....22

Custom POIs....22

Touch sound 22

System settings....22

GPS repair....22

System update....22

Tutorial....22

Contact & about....22

Truck Info

Hazmat type 23

Weight - empty......23

Weight - loaded....23

Height....23

Width 23

Trailers....23

Number of axles 23

Preferences Page Prefere Page

Route

Traffic....23
Recalculation 23

Preferred route 23

ETA adjustment 23

Turn announcements 23

Junction views ......23

Route avoids 23

Permanent avoids....23

Map

Day/night mode....24

Route color 24

Map view mode 24

Map auto zoom....24

Lane guidance 24

POI icons....24

Truck POI icons 24

Address book icons....24

Truck icon 24

Bus icon....24

Car/Light truck icon 24

Warnings

Warning type....25

Auto dismiss 25

Curve....25

Hill 25

Engine brake 25

Narrow road 25

Construction area 25

Speed limit....25

Speed limit change 25

Weigh station 25

State/Province border 25

Timezone change 25

Toll booth....25

Maintenance....25

General Options

Language	English
	Español
	Français
	For the screen and spoken instructions.
Units U.S. Standard	Metric
	Automatic
Clock 12-hour format
24-hour format
	Note: Some tools and settings may not be available in car mode.
Yard Time Zone Hawaii-Aleutian Time
Alaska Time
Pacific Time
	Arizona
Mountain Time
Central Time
Eastern Time
Indiana (East)
Atlantic (Canada) Time
Newfoundland Time
Vehicle Type	Truck
Bus
Car/Light truck
	Controls how routes are calculated.

General Options

Load Prompt Always loaded	Enabled
	Specify whether mileage should be calculated with the truck empty, always loaded, or whether to display a prompt for each route. When set to Enabled, each time you tap Start a New Route, a window displays asking if the truck is loaded or empty.
Mileage Log Car only Truck & Car	Truck & Bus Disabled
Custom POIs	Tap to display the list of custom Points of Interest
Touch Sound	On/Off slider
System Settings	Tap to display Android System settings
GPS Repair out-of-date files in the GPS.	Tap to update missing, broken, and/or connection is required.
System Update	Tap to perform system update
Tutorial	View on-device tutorial
Contact & About and copyrights.	Tap to show version information

Truck Info Options

Hazmat Type	None
Explosives
Gases
Flammable Liquids
Flammable Solids
Oxidizers
Poison
Radioactive
Corrosives
PIH
Other

Weight (Empty) Click the pencil icon to enter a numeric value.

Weight (Loaded) value.	Click the pencil icon to enter a numeric
	See Load Prompt in General
preferences.

Height Click the pencil icon, and use the dials to select your vehicle's height.

Width

Click the pencil icon, and use the dials to select your vehicle's width.

Trailers	Straight
48'
53'
Double
Triple

Number of Axles axles.

Use the dial to select the number of

Route	Options
Traffic	On/Off slider (requires Wi-Fi connection)
Recalculation	AutoManual
Preferred Route	Fastest routeShortest route
ETA Adjustment	Increase ETA moreIncrease ETA someETA okDecrease ETA someDecrease ETA moreSet adjustments to your ETA due to weather or traffic conditions. You can add (increase) time to make the trip take longer or subtract (decrease) time to make the trip take less time.
Turn Announcements	Set three distances at which you want to be warned about an upcoming turn. The first announcement will be the farthest from the turn and the third the closest to it.
Junction Views	Set the distance before the maneuver at which the highway junction view screen appears.
Route Avoids	Select/de-select from the list of options: Tollways, Freeways, Ferries, Tunnels, Small Roads, U-Turns, Cross-country borders, Dirt roads
Permanent Avoids	Tap to manage your list of areas and roads to permanently avoid.

Day/Night Mode

Automatic

Day

Night

Route Color Tap the color to select.

Map View Mode Heading up

North up

3D view

Map Auto Zoom

On/Off

Auto scale

Street scale

City scale

State scale

Set to street/city/state scale to specify the

maximum scale of the zoom.

Lane Guidance On/Off slider

When on, the map guides you to the

correct lane in preparation of upcoming

turns.

POI Icons On/Off slider

Select icons to display on map

Select restaurants, banks, and other

consumer POIs to display on the map.

Tap any category to fill in the square

and display those icons.

Map

OptionsMap

Options

Truck POI Icons On/Off slider

Select icons to display on map

Select travel centers, service, weigh

stations and truck POIs to display on the

map. Tap any category to fill in the

square and display those icons.

Address Book Icons

On/Off slider

Address book entries appear as pushpin

icons unless they are assigned to a

group.

Truck Icon

Use the arrows to select different icons to

display when using the truck setting.

Use the provided colors to select the truck

icon color.

Bus Icon

Use the arrows to select different icons to

display when using the bus setting.

Use the provided colors to select the bus

icon color

Car/Light truck Icon

Use the arrows to select different icons

to display when using the car setting.

Use the provided colors to select the

car icon color

Warnings Options

Warning Type None

Audio & Visual

Visual only

Audio only

Auto Dismiss Warnings Never

After 2 seconds

After 10 seconds

After 30 seconds

Height and weight violations will not be

auto dismissed.

Curve Warnings On/Off slider

Click the pencil to manually edit, or use

the slider to set distance.

Hill Warnings On/Off slider

Click the pencil to manually edit, or use

the slider to set distance.

Engine Brake Warnings

On/Off slider

Click the pencil to manually edit, or use

the slider to set distance.

Narrow Road Warnings On/Off slider

Click the pencil to manually edit, or use

the slider to set distance.

Construction Area On/Off slider

Click the pencil to manually edit, or use

the slider to set distance.

Warnings Options

Speed limit On/Off slider

Set the amount over the posted limit at

which the warning appears.

Set a user-defined maximum speed to be warned whenever the truck exceeds

that speed, regardless of posted

speed limits.

Speed Limit Change On/Off slider

Click the pencil to manually edit, or use

the slider to set distance.

Weigh Station

On/Off slider

Click the pencil to manually edit, or use

the slider to set distance.

State/Province Border

On/Off slider

Click the pencil to manually edit, or use

the slider to set distance.

Timezone Change

On/Off slider

Toll Booth Alert

On/Off slider

Click the pencil to manually edit, or use the slider to set distance.

Maintenance

On/Off slider

Destination Search

To access this window from the Home Screen, tap Where to?

1 Single-line Search

Begin typing to search for a destination.

2 GuidedSearch

Tap to access the guided search options.

3 Points of Interest

Tap to search for a point of interest (POI), such as a travel center, restaurant, etc.

4 History

Tap to route to a recently entered location.

5 Bookmarks

Tap to view a list of saved locations.

6 Distance

Displays the distance to each destination in the list.

7 Back

Tap to return to the navigation screen.

Single-line Search

To access the single-line search window from the Home Screen, tap Where to?

From this screen, you can begin typing an address, point of interest, or any other destination type. The single-line search will return matching results below.

1 Address/Text Search

Search for addresses, streets, cities and points of interest.

• Address searches should include either a city or postal code.
• Avoid using punctuations.
• Avoid using street prefixes and suffixes.

2 MatchingResults

Destinations that match your search terms display here.

The address, city, and state display to the left.

The distance from your current location displays on the right.

Tap a destination to begin navigation.

3 See on Map

Tap to view the listed destinations on a map in a split-screen view.

4 Selected Destination

Tap a destination from the list to select it.

The address, coordinates, and Motor Carriers' Road Atlas reference page are displayed.

5 Navigate

Tap to begin navigation to the selected destination.

6 Back

Tap to return to the previous screen.

7 Back to Map

Tap to return to the navigation screen.

Guided Search

1 New Location

Tap to route to a destination by entering the address, city center, intersection, or by entering latitude and longitude coordinates.

2 My Trips

Tap to review your saved trips.

3 History

Tap to review your recent destinations.

4 Address Book

Tap to select a destination from your Address Book.

5 POIs

Tap to begin a point of interest search.

6 Home

Tap to route to your stored Home location.

7 Work

Tap to route to your stored Work location.

OverDryve™ Pro II User Manual

Using Guided Search

The Guided Search Keyboard in the Rand Navigation 2.0 app helps you quickly locate your destination.

1 Auto-Complete Keyboard

As you key in characters, the keyboard only displays the next possible letter or number. Letters and numbers that cannot be entered in sequence are disabled. Results are displayed as you key in characters.

2 DestinationEntry

The top bar displays the current search.

3 Guided Search: City/Postal Code

Displays the available city/postal code selections based on the information you have typed in. Tap a result to advance.

4 Guided Search: Street

Displays the available street selections based on the city you selected, and the information you have typed in. If the next letter in the street name cannot be selected on the keyboard, tap Expand Search to search a larger area. Tap a result to advance.

5 Guided Search: House Number

Displays the available house numbers based on the city and street selected, and the information you have typed in. Tap a result to advance.

New Location

1 Address

Navigate to an address by entering the city (or postal code), street, and house number.

2 CityCenter

Navigate to a city center.

3 Intersection

Navigate to the intersection of two roads within a specified city.

4 Coordinates

Navigate to a coordinate location.

Note: Rather than a city/street search, using the Coordinates Guided Search prompts you to enter a numeric latitude and longitude value.

5 Back

Tap to return to the previous screen.

6 Navigate

Once you select your destination through the guided search, click the Navigate button to begin navigation.

7 Back to Map

Tap to return to the navigation screen.

My Trips

1 Multi-Stop Trips

Tap to view a list of saved multi-stop trips or to create a new one.

2 Trails

Use Trails to record a "bread-crumb" path where your truck has traveled.

Multi-Stop Trips

Displays a list of recent destinations.

1 Tap to review and edit a saved trip.
2 Tap + New Trip to start a new multi-stop trip.
3 Trip details:
Displays the stops along your trip.
Tap the X to remove a stop.
Tap + Add a Location to add a new stop.

4 Tap to view Route avoids, Route details, and Overview. Also tap to Save to My trips.

5 Tap to Reverse or Reorder your stops (manually or automatically).

6 Displays the travel time, traffic delays (if any), and toll costs for the first leg of your trip.

7 Tap to compare and select alternate routes.

8 Tap to start the trip.

OverDryve™ Pro II User Manual

Trails

Use Trails to record a "bread-crumb" path where your truck has traveled. The Trails feature is beneficial when traveling in areas where there is no road network.

1 Tap to open an existing trail.
2 Tap to record a new trail.
3 Tap to edit or delete a trail.
4 Tap to stop recording.
5 View details about the trail.
6 Tap to begin navigation. Routing to an existing trail will take you to the start of the trail. You can then follow the rest of the trail to your destination.
7 Tap to edit or delete the trail.
8 Tap to display the trail on the navigation map.

History

Displays a list of recent destinations.

1 Destination

Tap an entry in the list to navigate to the destination.

2 Distance

Displays the distance to each destination from your current location.

3 Options

Tap to access additional options. Edit: Allows you to select and delete an entry in the history list. Clear History: Deletes all entries.

Address Book

Displays your saved bookmarks, contacts, and group.

1 Bookmarks

Navigate to a saved address.

2 Contacts

Navigate to the stored address from a saved contact.

Note: Contacts are stored in the Contacts app. You can add contacts manually or import them.

3 Groups

Options for organizing your bookmarks and contacts into groups.

4 Destination

Tap a bookmark to navigate to the destination.

5 Alphabetic Organization

Tap a letter group to view bookmarks alphabetically. This is useful if you have a lot of bookmarks, and they are difficult to find.

6 Options

Tap to sort, add, and delete bookmarks.

Address Book: Contacts

In order to use contacts for navigation, you first need to set them up in the Rand Navigation 2.0 app. You can add contacts manually or import them.

1 Create a New Contact

Tap to manually create a new contact.

2 Search

Tap to search for an existing contact.

3 View

Tap a contact's name to view and edit information about that contact.

4 Edit Contact

Enter information about the contact.

Tap Save to save and return to the previous screen.

Address Book: Groups

Use Groups to organize your contacts and destinations into categories for easier searching.

1 Available Groups

Displays the groups you have created.

2 NewGroup

Tap to create a new group.

3 Group Destination

Displays the destinations stored in the selected group. Tap a destination to begin navigation.

4 Group Options

Tap in the corner to edit or delete destinations in a group.

5 Add Location

Tap to add a new location to the group. You can add a new address, or select from your history, bookmarks, or POIs.

POIs

Displays Points of Interest (POIs) near your current location, near a specific location, along your intended travel route, or near your destination.

1 My Truck

Tap to display POIs near your current location.

2 Acity

Tap to display POIs near a specific city.

3 My route

Tap to display POIs along your route.

4 My destination

Tap to display POIs near your destination.

5 POI Categories

Tap to select the POI category.

Note: Some categories may have multiple sub-categories to select from.

6 Custom POI

Tap to display custom points of interest from an import.

7 Quick Stops

Displays a list of commonly searched POI categories.

Filter POIs

Truck-related points of interest such as Travel Centers and Truck Services can include several amenities. To select only the locations with the amenities that you are interested in, filter your search results.

1 Nearby Places

Lists destinations near your location that match the category selected.

2 Map

Displays destinations near your location.

3 Filter

Search for points of interest by selecting available services.

4 Search

Search for points of interest by typing the name.

5 Tap a checkbox for a subcategory to include it in your search.
6 Tap to clear the filters.
7 Tap to go back and view the filtered POI list.

Please note that filter selections will remain active until you clear the filter.

POIs

When you select a POI category, a list of suggestions provided by Yelp (if applicable) and a list of nearby places display.

Note: A Wi-Fi connection is required in order to display Yelp information.

1 Yelp Suggestions

Displays top-rated suggestions from Yelp.

Tap a destination to view additional information and begin navigation.

2 Nearby, Along route or My destination

Displays matching POIs near the location specified, along with the distance to each destination.

Tap a destination to view additional information and begin navigation.

3 Map

Displays POIs near your truck, a city, your route, or your destination.

4 More information

Displays additional information about the POI, including Yelp review information, address and phone number.

Tap the Reviews link to view reviews on yelp.com.

5 POI Destination

Displays the selected POI on the map, along with the locations of other nearby places.

6 Navigate

Tap to begin navigation to the selected POI.

Home/Work

You can set bookmarks for a Home and a Work location. This is useful so you can quickly navigate to these destinations.

Tap Add Work or Add Home to set these locations.

1 Select Location

Tap New Location, History, or POIs to select a Home or Work destination from among these options.

2 Choose on Map

Tap to set your Home or Work location by selecting a point on the map.

3 Use Current Location

Tap to set your Home or Work location to your current location.

4 Create/Remove Bookmark

Use this button to create or remove a Bookmark.

5 Home/Work Information

Displays information about your Home or Work location.

6 Navigate

Tap to navigate to Home or Work.

History & Bookmarks

History

Displays your destinations that you have previously navigated to.

Bookmarks

Displays your saved locations.

For both History and Bookmarks:

Tap on the title of the tab to display the list of destinations.

Tap the destination to begin navigation.

Route Map Window

1 NextManeuver

Instructions for your next maneuver.

2 RoadName

Next maneuver street name or highway sign.

3 Exits

Check upcoming exits for food, gas, hotels and other places.

4 Route Options

Tap to display additional options, including adding a stop, detours, and ending navigation.

5 MapViewMode

Tap to switch the map view: 3D map, North up, or Heading up.

6 Wi-Fi Connected Services

Tap to enable fuel prices, weather and traffic on the map. Note: These options require a Wi-Fi connection.

7 ZoomIn/ZoomOut

8 Volume Control

9 DistanceRemaining

Displays a progress bar indicating the distance remaining to your destination.

10 Expanded Map Display

Tap to remove additional options from the map screen.

11 Settings

Tap to open the Settings screens.

12 ETA/Time/Distance

Tap to change the view between the following Trip or Leg options: ETA, Yard ETA, Remaining Time, Yard Time, and Elevation.

13LocationView

Tap to toggle between displaying the current location by city, street name, or by the next cross street.

14 VirtualDashboard

Tap to view information about your current location, route, trips, and more.

15 Current Speed

Displays your current speed and turns red for speed warnings.

16 SpeedLimit

Posted speed limit for your vehicle setting. Tap to open a screen to submit a speed limit correction.

17 Map

Displays the map, your current route, and your vehicle's current location.

Exits

Slide out to show points of interest at upcoming exits.

The list displays the distance to the next exit, exit name and number, and a count of available amenities.

1. Tap on an exit to display a list of POIs at the exit.
2. Tap the icon to display locations by category.
3. Tap on any item in the list to view additional information or to route to the POI.

Route Options

1 Route Overview Displays the directions, highways and summary of your trip.
2 Search/AddStop Tap to add an additional destination(s) to your route.
3 Detour/Avoid Tap to manage locations to avoid on the route, and automatically calculate detours around them.
4 Route Settings Tap to open the Route tab of the Settings screen.
5 Skip to Next Stop Tap to skip the next destination in your route, and continue.
6 Stop Navigation Tap to cancel the current route and return to the home screen.
7 Exit Tap to close Route Options and resume your trip.
8 SaveTrip Tap to save your current trip.

Directions Tab

Highways Tab

Summary Tab

Route Overview

1 Direction Tab

Displays the turn-by-turn directions for the current route.

2 HighwaysTab

Displays the highways along your route, with the number of miles to travel on each.

3 Summary Tab

Displays the total travel time and distance for your route, as well as summaries for each leg of the trip (for multi-stop trips).

Detour/Avoid

From Route Options, tap Detour/Avoid. There are four options available to set up detours and permanent avoids:

1. Next miles allows you to detour a certain number of miles. Use the slider to set the number of miles to detour/avoid.
2. A road allows you to avoid a specific road.
3. An area allows you to draw a polygon on the map. You will be routed around this area.
4. Along the route allows you to select a step in your navigation to avoid.

When selecting next miles, use the slider to set the number of miles that are next along your route to avoid. Tap Detour to being using the new route.

Detour/Avoid

When selecting A road, zoom in and out on the map to center the target over the road to avoid. The road is highlighted in red. Tap Permanent Avoid to always avoid it. Tap Detour to avoid it on this trip.

2 When selecting An area, tap on the map to set points for an area to avoid. Tap Permanent Avoid to always avoid it. Tap Detour to avoid it on this trip.

3 When selecting Along the route, select the step on the route you wish to avoid. Tap Detour to navigate around it.

Weather

When enabled, Weather displays current weather condition overlays on the map.

Notes:

• Requires a Wi-Fi connection.
• The refresh speed of the weather display is dependent on the connection speed. Weather information is updated every few minutes while Wi-Fi connection is active.
• Weather display depends on active weather patterns and map zoom level.

To view current weather information and the three-day forecast for your location, tap the gear icon on the map screen and tap the Weather tab.

1 Tap to enable weather.
2 Tap to view details and enter settings.
3 Select to view weather at your current location, or at your destination.
4 Displays the current weather conditions at the location selected.
5 Displays the 3-day forecast for the location selected.
6 Tap to view and change weather preferences such as layer opacity and weather type.

Traffic

To view traffic information, tap to enable the Traffic slider on the map screen. Traffic conditions will overlay on the map when traffic is enabled.

Note: Requires a Wi-Fi connection.

1 Tap to enable traffic.
2 Tap to view details and enter settings.
3 Select to view traffic flow, incidents, or both (All).
4 Displays the current traffic conditions/incidents along your route.
5 Displays the distance of the traffic conditions/incidents.

Traffic Icons

Accident

Danger

Traffic Event Closure

Carriageway

Police

Exit Blocked Entrance Blocked Delay Spillage Road Work

Road Weather

Rain Snow Rock Fall High Temperature

Low Temperature

Ice

Wind Thunderstorm Tornado Blizzard Avalanche

Weight Limit Visibility

Heavy Traffic

Moderate Traffic

Fog

Traffic Standstill

Fuel

To view fuel price information, tap to enable the Fuel slider on the map screen. Current fuel prices will overlay on the map at various stations when enabled.

Note: Requires a Wi-Fi connection.

1 Tap to enable fuel prices.
2 Tap to view details and enter settings.
3 Select to view fuel prices nearby, or along your route.
4 Displays the fuel stations based on the criteria you selected.
5 Displays the distance to each station.
6 Tap to sort fuel options.
7 Tap to view and change fuel preferences.

Virtual Dashboard

1 Current location.
2 Displays current times at the yard, current location and destination, as well as estimated time of arrival.
3 Sunrise and sunset times based on vehicle location (latitude/longitude) and day.
4 Current speed (above) and posted speed limit (below).
Note: Turns red when speed limit warning exceeded.
5 Elevation at current location.
6 Current leg progress.
7 Gather trip information for up to three trips. Includes odometer settings, hours, and speeds.
8 Displays the nearest cross street.
9 Current day and date at your location.
10 Add fuel purchase information.
11 Return to the Route Map Window.
12 Distance to next maneuver.

Fuel Logs

1. From the Virtual Dashboard, tap Fuel Log.
2. Tap a field to enter information. You can edit the following fields: Fuel quantity, Fuel price, Total cost, Taxable, Location, Station, Date, Last odometer, Current odometer. Distance, Current economy, and Average economy are calculated automatically based on your entries.
3. Tap Save to record the fuel purchase.

Junction View

When on a route, Junction Views display when you have an upcoming maneuver. Set distance in Settings > Route. Once past the maneuver, Junction View closes and the previous window displays.

1 Signs to follow for the next maneuver. Includes exit number and highway name/number if applicable.
2 Distance to the upcoming maneuver. Distance decreases as you approach the ramp.
3 Lane assist arrow.
4 Return to previous window.

Turn View

Displays for upcoming turns. Set distance in Settings > Route.

Truck Tools

To access, tap Truck Tools from the Main Menu.

1 Status, Mileage & Fuel

View driving information, mileage logs, and fuel purchase information.

2 Rand Motor Carriers' Road Info

View Rand McNally Truck Emergency contact information and truck regulations.

3 Quick Planner

Between any two cities or towns, quickly calculate the distance, driving time, and cost.

4 Calendar

5 Calculator

6 Unit Converter

Quickly convert distance, weight, temperature, and many more.

7 Notes

8 Tell Rand

Compose a message to send to Rand McNally.

9 Import Data & Export Data

Transfer address books, custom POIs, and saved trips from your old TND device.

10 BackUp

Backup and restore utility.

11 Rand Motor Carrier's Road Atlas

A digital version of Rand McNally's Motor Carrier's Road Atlas.

12 Get Apps

TripMaker is a trip planning app that allows you to easily browse the map and set up a multi-stop trip. Add via points and send your trip to the GPS app for routing. To access TripMaker, tap the app tray, swipe to the right to view the second app screen, then tap the TripMaker icon.

To create a trip:

1. Enter the starting and ending point for your trip.
2. Choose a name for it.
3. Tap Create Trip.

1 Access Menu

Manage your trip options, such as update route and fuel costs.

2 Itinerary

View your itinerary.

3 Directions

Once your trip is created, tap this icon for driving directions.

4 My Trips

Access trips that you have created.

5 Points of Interest

Search categories along your route, such as The Great Outdoors.

6 Search

Search for an address or place along your route.

7 Create a Trip

Enter addresses, cities, states, or zip codes to create a trip. Add stops as needed. TripMaker will automatically order stops to minimize driving distance, but you can re-order stops by pressing and dragging stops to your desired position along the route.

8 Manage Menu

Manage your account settings, map options, and find online help.

DriverConnect

Electronic Logs

Manage your logs anytime, anywhere

Gauges

Keep track of your vehicle metrics

HOS Timers, Messaging and more

SIGN UP

LOGIN

DriverConnect

The DriverConnect app provides a fully-compliant electronic logbook solution. DriverConnect lets you track and log Hours of Services, Driver-Vehicle Inspection Reports, Fuel purchases, and more. Reports can be generated for roadside inspections.

The DriverConnect app connects to a Rand McNally Electronic Logging Device (ELD) over a Bluetooth connection. The app automatically syncs driving data from the ELD with the Rand McNally DriverConnect portal via a Wi-Fi or cellular transmission.

Visit http://www.randmcnally.com/category/e-logs for up-to-date information on compatible ELDs.

Sign Up or Log In

To use DriverConnect, you must log in with an existing account, or create a new account. If you are part of a fleet, your Fleet Manager will provide login information for you.

You can use your login information to access the DriverConnect portal, where you can view reports and stored information.

Visit https://www.driverconnect.randmcnally.com to access the DriverConnect portal.

The Rand McNally Road Atlas is a digital version of Rand McNally's Road Atlas.

1 Legend

Tap Legend at the top right of the screen to view the roads and related symbols.

2 Maps

Tap Maps at the top right of the screen to select pages by state/area. You can also update maps here.

9. Cameras

Your OverDryve™ Pro II tablet includes a built in dash cam; the lens is in the back of the device.

Dash Cam

Record high quality video of your travels with the Dash Cam app.

1 Tap to start or stop recording.
2 Set your video preferences.
3 Tap to view Gallery.
4 Tap to record audio or mute.
5 Tap to take a still photo.

1. You can access your videos and photo captures from the Gallery. Videos and Photos will be sorted in the order of capture.
2. Media can be recorded to both internal and external storage from the settings.

9. Cameras

1. Video quality can be adjusted from settings with the option to choose between Standard (480p), HD (720p), Full HD (1080p).
2. When recorded to internal storage, videos will be captured in segments of 15 minute duration, until the device has 2 GB of free storage space. This is to ensure proper functioning of the GPS app and for future updates. For additional settings, use an external storage card and enable the "Save to external storage" setting.

Video Quality Duration Approximate Disk Space
Standard 15 minutes		450 MB
HD(720p)	15 minutes	900 MB
Full HD(1080p)	15 minutes	1.5 GB

1. When saving to external storage additional options are enabled to enable loop recording, control the number of video segments and length of the video segments captured.
2. SD card of up to 128GB are supported. The SD Card will need to be formatted for portable storage.

10. Entertainment

There are four options for listening to music, podcasts, audiobooks, etc.:

1. Stream music from your smartphone via Bluetooth. Access the audio controls in the Bluetooth Player.
2. Stream music right from OverDryve™ Pro II by downloading music apps.
3. Download mp3s or other types of audio files. Access the audio controls in the Media Player.
4. Listen to SiriusXM satellite radio.

You can activate the FM Transmitter to listen to audio through your speakers. For more ways to listen to audio, refer to "Connect to Your Truck Stereo" on page 9.

Note: To listen to music, the tablet must be in truck mode. To put the tablet in truck mode, place it on the Smart Mount and plug the mount into the vehicle adapter.

Bluetooth Player

The Bluetooth player lets you stream any audio (music, podcasts, audiobooks, etc.) from your phone to OverDryve™ Pro II. To get started, play some music from your phone. On OverDryve™ Pro II, tap Entertainment > Bluetooth Player. Swipe right or left anywhere on the Bluetooth player screen to change tracks. For optimal sound, turn the volume on your phone and OverDryve™ Pro II up all the way.

Note: For help with connecting to Bluetooth, see "Connect to Bluetooth" on page 8.

Phone Playback

You can control your phone's audio controls such as Next, Previous, Play, and Pause from your OverDryve™ Pro II. From the main menu, simply tap Entertainment > Bluetooth Player to access the controls.

FM Transmitter

The FM Transmitter makes it easy to listen to music from OverDryve™ Pro II. Just tap Entertainment > FM Transmitter > On. Tune your truck radio to an open FM station and you're set.

Finding the Best Station

In order to get the best possible reception from the FM Transmitter on your truck stereo, you need to find the best FM frequency to transmit to. The best frequency to use is one where no FM radio stations are currently broadcasting on or near. FM reception can vary by geography and can also vary depending on the location of your vehicle's FM Antenna.

To start, attach the FM Transmitter antenna to OverDryve™ Pro II's smart mount. Next, tune your truck's FM Radio to different stations until you hear only static on a station. Be sure to use the "Tune" option in your truck and not the "Seek" option, as Seek will skip over open stations. Once you have found an open station, open the FM Transmitter app on OverDryve™ Pro II, turn it on and tune it to the same frequency. You should hear the static stop and you will now hear any audio playing from OverDryve™ Pro II.

Next, change the direction of OverDryve™ Pro II's FM Transmitter Antenna until you get the clearest sound. If you still hear static or the audio from OverDryve™ Pro II isn't clear, tune your truck's FM radio to a different open station and repeat the process.

Note, the activation process usually takes 10 to 15 minutes, but may take up to an hour. Your OverDryve Pro will need to be powered on and receiving the SiriusXM signal to receive the activation message.

OverDryve™ Pro II User Manual

SiriusXM Radio

Your OverDryve™ Pro II tablet comes with a SiriusXM radio app pre-installed. To access SiriusXM,, tap Entertainment > SiriusXM. The SiriusXM antenna cable must be installed, and the tablet connected to the Smart Mount.

Antenna Cable Routing

When routing antenna cable, always be careful to include enough slack in your cable to accommodate open doors and driver space. Use things typically found around the home, like electrical tape, to secure cables in areas so that hinges do not pinch the cable with the door. Hide any excess cable in the cabin trim.

Activating Your Radio

After installing your OverDryve™ Pro II tablet with SiriusXM smart mount and the antenna, launch the SiriusXM application from the ENTERTAINMENT category. You should be able to hear the SiriusXM preview channel on Channel 1. If you cannot hear the preview channel, please check the installation instructions to make sure your SiriusXM smart mount tuner is properly installed.

To receive the SiriusXM signal you will need to install the provided antenna. SiriusXM satellites are located over the equator and the antenna must be mounted in a location that has a unobstructed view to the south. Please avoid placing the antenna under or directly next to metal or other dense materials as it may result in signal loss.

To activate your SiriusXM subscription, please power on your OverDryve™ Pro II and launch the SiriusXM app. You should hear audio on the Preview Channel (channel 1). If you do not hear audio, you need to adjust your location or move the antenna so that it has as a clear view of the sky.

You will need your Radio ID, which can be found by tuning to Channel 0, or by looking at the sticker on the smart mount. The Radio ID does not contain the letter I,O, S or F.

In the U.S., you can activate online or by calling SiriusXM Listener Care:

• Visit siriusxm.com/activatenow
  • Call SiriusXM Listener Care at 1-866-635-2349

For Canadian Subscriptions, please contact:

• Visit www.siriusxm.ca/activate
  • Call SiriusXM Customer Care at 1-888-539-7474

SiriusXM Functions

Direct Tune

Tap to display the Direct Tune interface.

Up (>) / Down (<)

Tab Up (>) / Down (<) to switch to the next available station.

Related

Displays similar genre channels based on the currently playing channel.

FFW, RRW, Pause/Play, LIVE

Fast forward (FFW, >>) and fast backward (RRW, <<) buttons play the songs as buffered (up to 30 minutes) within the selected station in its entirety. Pause button stops the music play without skipping any music stream. Play button resumes music play in a continued stream. LIVE button stops playing buffered content and syncs with Live broadcast.

Smart FAVORITES

Tune to, or set, a Smart FAVORITE.

TuneScan

Tap to get a short preview of songs that you have missed on each of your SmartFavorites music channels. Find a song you like and tap the TuneScan button again to continue listening to that song. The font changes blue when scanning takes place. If you want to stop, tap TuneScan again. The font color will change from blue to grey.

TuneStart

Tune to a channel and automatically start a song from the beginning. Tap Account Icon 🎨 > Tap Settings 🎨 > Tap Enable Tune Start

Tap Toggle on

Tune Mix

Tap to play a unique blend of songs from your SmartFavorites music channels from the current SiriusXM Preset Band.

SiriusXM Functions

Categories

Tap to group stations into corresponding genres.

Featured

Tap to display the SiriusXM recommended/promoted channels of the month.

History

Tap to display the channels in the order of most recently listened stations. History stores the last 8 stations you listened to.

Reset User Data

Resetting the SiriusXM User data to the factory default setting Tap Account Icon 🧑 > Tap Settings 🧑 Tap User Factory Reset > Tap Toggle on

Unsubscribe Channel Display

Enable unsubscribed channel view Tap Account Icon > Tap Settings > Tap Unsubscribe Channel

Tap Toggle on

Parental Control

Lock and unlock channels with mature content. Default password is 0000

Tap Account Icon 🎧 > Tap Settings ⚙️ > Tap Mature Channel Lock

Tap Toggle on 📄

Change Lock Code

If you need to change parental control code. Tap Account Icon 🎧 Tap Settings 🎧 Tap Change Channel Lock Code

Tap Toggle on

OverDryve™ Pro II User Manual

Artist/Song Alerts

Get alerted when your favorite artists, songs or teams are playing on any channel.

Tap artist name > Tap artist or song to add to your favorite > Tap Set Your selection will be added to the favorites.

In order to manage them

Tap Account Icon 📷 > Tap Artists/Songs > Tap the three ellipses on the song/Artist you want to manage.

Disable: Allows you to keep it in favorites but doesn't notify.

Delete: Removes it from favorites and notification.

OverDryve™ Pro II User Manual

SportsFlash Alerts

Will notify you when a big play happens during a game with one of your favorite sports teams. Choose to tune in and hear the play unfold like it was live. Continue listening to the game, or you can return to your previous channel.

Tap Account icon 🙏 > Tap Sports> Tap Sports team to add to your favorite> Tap Sports Flash> Tap Done.

Your selection will be added to the favorites.

In order to manage them

Tap Account Icon > Tap Sports > Tap the three ellipses on the Sports team you want to manage.

Disable: Allows you to keep it in favorites but doesn't notify.

Delete: Removes it from favorites and notification.

OverDryve™ Pro II User Manual

Game/Team Alerts

Will notify you when a big play happens during a game with one of your fGet alerted when a game involving your favorite team is actively playing in a live broadcast game, or get a list of channels broadcasting live games involving at least one of your favorite teams.

Tap Account icon ⚙ > Tap Sports> Tap Sports team to add to your favorite> Tap Game Alerts > Tap Done.

Your selection will be added to the favorites.

In order to manage them

Tap Account Icon Ⓒ > Tap Teams > Tap the three ellipses on the Sports team you want to manage.

Disable: Allows you to keep it in favorites but doesn't notify.

Delete: Removes it from favorites and notification.

Direct Tune

Scroll to the left or right, or tap the buttons, to scroll between available stations. You can also type the station number to navigate directly to that station.

Tap a station icon to listen.

Tap the X to close Direct Tune.

Smart FAVORITES

You can set up to 15 presets, or Smart FAVORITES, in three scrollable panels.

Tap and hold a Smart FAVORITES icon to set the station.

Tap and hold again to:

Replace: Set a new Smart FAVORITES channel over the existing one.

Clean: Delete the Smart FAVORITE

Cancel: Return to the SiriusXM interface.

Once a Smart FAVORITE is set, tap the channel icon to play that channel.

Rand McNally has designed OverDryve™ Pro II for speed and reliability. However, from time to time, all Android devices run into problems. If your unit becomes unresponsive for any reason, it's always best to restart the unit by turning it off and on again.

Restarting the Device

1. Restart the unit by holding down the power button for 3 seconds, or until you see the Power Off screen.
2. Press Power Off.
3. Once the unit has shut down, press and hold the power button for 2 to 4 seconds to turn it back on.

If the unit is unresponsive and you don't see the power down button appear on the screen, hold down the power button for 10 to 15 seconds and the device will turn off completely. Once the unit has shut down, press and hold the power button for 2 to 4 seconds to turn it back on.

Resetting the Device

To reset the OverDryve™ Pro II to its factory state:

1. Power off the tablet. If needed, press and hold the POWER BUTTON for 10 seconds to power off the device.
2. PRESS and HOLD the HOME BUTTON and POWER BUTTON simultaneously until the device display turns on. The tablet will then boot into recovery mode.
3. Press the VOLUME DOWN BUTTON and highlight the "Wipe data/ factory reset" option and press the POWER BUTTON to select.
4. A confirmation to "Wipe all user data?" is displayed. Use the VOLUME DOWN BUTTON to highlight "Yes" and press the POWER BUTTON to select.
5. The device will perform the factory reset and will return to the recovery mode screen.
6. With the "Reboot system now" option highlighted, press the POWER BUTTON to reboot the device.
7. Wait for the tablet to complete the reboot. The tablet will now be reset to the factory state.

For additional help and FAQs, visit randmcnally.com/support.

For more information

• Rand McNally Website

randmcnally.com/overdryvepro2

- Support

randmcnally.com/support

- Accessories

store.randmcnally.com

- Facebook

facebook.com/randmcnally

Trademarks

Rand McNally and the globe logo are registered trademarks, and OverDryve is a trademark of RM Technologies, Inc., d/b/a Rand McNally.

SiriusXM and all related marks and logos are trademarks of SiriusXM Radio, Inc. All rights reserved.

The Trucker's Friend and National Truck Stop Directory are registered trademarks of the TR Information Publishers.

TruckDown is a registered trademark of Truckdown Info International, Inc.

Wi-Fi is a registered trademark of the Wi-Fi Alliance.

Weather data provided by Vaisala.

Fuel prices provided by Gasbuddy.

Traffic information provided by INRIX, Inc.

© 2020 Rand McNally. © 2020 HERE. All rights reserved.

Rand McNally follows a continuous improvement process and reserves the right to provide enhancements that may not be reflected in the pictures and specifications in this manual.

The information contained herein may be changed at any time without prior notification. Neither this manual nor any parts thereof may be reproduced for any purpose whatsoever without the express written consent of Rand McNally, nor may it be transmitted in any form, either electronically or mechanically, including photocopying and recording. All technical specifications, drawings, etc. are subject to copyright law.

Warnings, End-User License Agreement, and Warranty

CAUTION: RAND MCNALLY MAKES NO WARRANTY AS TO THE ACCURACY OR COMPLETENESS OF THE INFORMATION IN THE PRODUCT, THE SOFTWARE OR THE DOCUMENTATION, AND DISCLAIMS ANY AND ALL EXPRESS, IMPLIED OR STATUTORY WARRANTIES, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, AND ANY WARRANTY AS TO QUALITY, PERFORMANCE, TITLE OR NON-INFRINGEMENT. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS AND/OR DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS MAY NOT APPLY TO SOME CONSUMERS. IN NO EVENT WILL RAND MCNALLY OR ITS LICENSORS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

IT IS THE USER'S RESPONSIBILITY TO USE THIS PRODUCT PRJIDENTLY AND IN ACCORDANCE WITH THE DOCUMENTATION. THIS PRODUCT IS INTENDED TO BE USED ONLY AS A TRAVEL A/D AND MUST NOT BE USED FOR ANY PURPOSE REQUIRING PRECISE MEASUREMENT OF DIRECTION, DISTANCE, LOCATION OR TOPOGRAPHY.

The User agrees to allow information provided by the User to Rand McNally to be used for internal business evaluation purposes, including, but not limited to, evaluating the effectiveness of the Product and the services provided and methods to simplify or improve User experiences. Such information will not be provided to third parties in any way that discloses the identity of the User.

Rand McNally may make use of third party software in the Product. Notwithstanding the terms and conditions of this license, use of some third party materials included in the Product may be subject to such third party's terms and conditions. The third party copyright notices are provided at the end of this License.

The User agrees to indemnify, defend and hold Rand McNally and its licensors (including their respective licensors, suppliers, assignees, subsidiaries, affiliated companies, and the respective of officers, directors, employees, shareholders, agents and representatives of each of them) free and harmless from and against any liability, loss, injury (including injuries resulting in deaths), demand, action, cost, expense or claim of any kind or character, including but not limited to attorney's fees, arising out of or in connection with any use or possession by the User of this Product.

These terms and conditions constitute the entire agreement between Rand McNally (and its licensors and suppliers) and the User pertaining to the subject matter hereof, and supersedes in their entirety any and all written or oral agreements previously existing between us with respect to such subject matter. The terms and conditions (including the license) may be updated from time to time with or without notice.

The above terms and conditions shall be governed by the laws of Illinois, without giving effect to (i) its conflict of laws provisions, or (ii) the United Nations Convention for Contracts for the International Sale of Goods, which is explicitly excluded. The User agrees to submit to the jurisdiction of Illinois courts for any and all disputes, claims and actions arising from or in connection with the User's license warranty and use of the Product hereunder.

User shall not export the Product in violation of any U.S. or foreign laws. Rand McNally's licensors shall be third party beneficiaries of Rand McNally's rights under this license, but are not parties hereto and have no obligations hereunder.

By using this Product you agree to be bound both by the foregoing and to any additional terms of use found at www.randmcally.com.

Actual toll costs may vary from estimates depending upon a number of factors including inaccurate or imprecise source data and variable toll costs, which are dependent upon vehicle characteristics (class, axle number, weight, etc.) that vary across toll roads.

Restricted Rights Legend. For governmental agencies: Use, reproduction or disclosure is subject to restrictions set forth in subparagraph (c) (1) (iii) of the Right in Technical Data and Computer Software clause at DIFARS 52.227-7013, as amended.

Rand McNally, the globe logo, and TripMaker are registered trademarks and OverDryve is a trademark of RM Technologies, Inc., d/b/a Rand McNally.

Portions © 2020 HERE. All rights reserved. This data includes information taken with permission from Canadian authorities, including © Her Majesty the Queen in Right of Canada, © Queen's Printer for Ontario.

© 2020 Rand McNally. All rights reserved. U.S. Patent Nos. 7,580,791 and 8,214,141.
