Product Type	Hi-Fi System
Brand	Pyle
Model	PPHP266B
Dimensions (H x W x D)	12 x 8 x 6 inches
Weight	5 lbs
Power Output	200W peak
Power Supply	AC 120V, 60Hz
Bluetooth Connectivity	Yes
USB Port	Yes, for audio playback
FM Radio	Built-in
Audio Inputs	3.5mm aux, RCA
Speaker Configuration	2-way (woofer and tweeter)
Frequency Response	20Hz - 20kHz
Impedance	4 ohms
Remote Control	Included
Maintenance	Wipe with dry cloth; avoid liquids
Safety Precautions	Do not expose to rain or moisture
Spare Parts Availability	Contact Pyle customer support
Repair Service	Authorized service centers

Frequently Asked Questions - PPHP266B Pyle

How do I turn on the Pyle PPHP266B?

Press and hold the power button on the front panel or remote control until the indicator lights up.

How do I connect my phone via Bluetooth?

Press the Bluetooth button on the unit. Enable Bluetooth on your phone, search for 'PPHP266B', and select it. Pairing is complete when the LED stops flashing.

What should I do if there is no sound?

Check that the volume is turned up, the source is selected correctly, and all cables are securely connected. Also ensure the mute function is off.

Can I play music from a USB drive?

Yes, insert a USB drive with MP3 files into the USB port. The system will automatically detect and play the files. Use the remote or front panel controls to navigate.

How do I reset the system to factory settings?

Press and hold the Mode button for 5 seconds until the display shows 'RESET'. The system will reboot with default settings.

What is the maximum power output?

The system has a peak power output of 200 watts, providing clear and loud sound for medium-sized rooms.

Does it support FM radio?

Yes, press the Mode button to select FM radio. Extend the wire antenna for better reception and use the tuning knob to search for stations.

How do I clean the unit?

Unplug the system and wipe the exterior with a soft, dry cloth. Do not use any solvents or abrasive cleaners. Avoid getting moisture into the vents.

Can I connect it to a TV?

Yes, connect the TV's headphone or audio output to the AUX input of the PPHP266B using a 3.5mm to RCA cable (not included).

What should I do if the remote control doesn't work?

Check if the batteries are installed correctly and have charge. Ensure there are no obstacles between the remote and the sensor. Point the remote directly at the front panel.

USER MANUAL PPHP266B Pyle

Need service or repair?

Want to leave a comment?

PyleUSA.com/ContactUs

PYLE

PyleUSA.com

Black industrial electronic device with two large speaker units and blue ambient lighting (no visible text or symbols)

PPHP266B

Black electronic device with two circular speaker modules and a central indicator light (no visible text or symbols)

PPHP288B
6.5" Subwoofers, 500 Watt MAX 8.0" Subwoofers, 600 Watt MAX

PPHP266B - PPHP288B

Wireless BT Speaker & Microphone System

Portable Stereo Karaoke Speaker with Wired Mic,

Built-in LED Party Lights, MP3/USB/

Micro SD Readers, FM Radio

USER MANUAL

WARNING

1. DO NOT place objects on top of the device, as objects may scratch the device.

2. DO NOT expose the device to dirty or dusty environments.

3. DO NOT insert any foreign objects into the device.

4. DO NOT expose the device to strong magnetic or electrical field.

5. DO NOT use the device in the rain

6. Please check with your Local Authority or retailer for proper disposal of electronic products.

7. DO NOT disassemble the device. Only a certified service technician should perform repair.

8. The device has apertures to disperse heat. DO NOT block the device ventilation, the device may become hot and malfunction as a result.

Illegal operation may cause personal injury, which could be fatal and may cause damage to property.

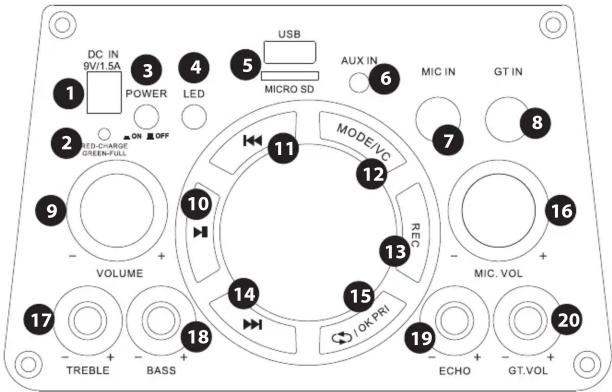

CONTROL BOARD FUNCTIONS

1. DC 9V/1.5A input
2. Charge LED indicator
3. Power button
4. LED button
5. USB and MICRO SD jack could support Mp3
6. 3.5MM audio input jack
7. 6.5MM microphone input jack
8. 6.5MM guitar input jack
9. Music volume knob
10. Play/Pause on USB/MICRO SD mode, scan channel on FM mode
11. Last music on USB/MICRO SD mode, last channel on FM mode
12. Short press for choosing different input signal, press and hold for voice cancelling function on USB/MICRO SD/BT MODE
13. Record function on USB/MICRO SD mode
14. Next music on USB/MICRO SD mode, next channel on FM mode
15. Short press for repeat song function, long press for microphone priority ON/OFF
16. Microphone volume control knob
17. Music treble control knob
18. Music bass control knob
19. Microphone echo control knob
20. Guitar volume control knob

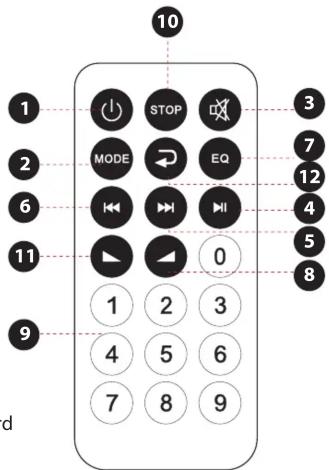

REMOTE CONTROL FUNCTIONS

1. Standby button
2. Choose input AUX/FM/BT/USB signal
3. Mute button
4. Play/Stop button on MP3 mode, scan function on FM mode.
5. Next song on USB/Micro SD card, next channel on FM mode.
6. Previous song on USB/Micro SD card, last channel on FM mode
7. EQ effect on MP3 mode
8. Increase speaker volume
9. Choose song number directly on MP3 mode
10. Stop button
11. Decrease music volume
12. Repeat song on USB/Micro SD memory card

TROUBLESHOOTING

Fault	Possible Cause	Solution
No sound	1. No input sound source.2. Volume is too low.	1. Use a better music signal.2. Adjust volume.
Distortion of sound	1. Volume too high.2. Speaker may be damaged	1. Turn down the volume.2. If speaker is damaged, repair or replace it.
Karaoke does not work	1. Microphone plug is not fully inserted.2. Microphone switch is not on.3. Microphone volume knob is at the lowest position.	1. Plug microphone properly into the socket.2. Turn on microphone switch.3. Adjust microphone volume properly.
MP3 does not play	1. The audio format in the U disc is incorrect.2. Improper operation has caused a process disorder.3. USB disc is disconnected.	1. Convert audio format into Mp3 format.2. Reboot the machine.3. Insert USB disc properly.

PPHP266B - PPHP288B

Wireless BT Speaker & Microphone System

Portable Stereo Karaoke Speaker with Wired Mic, Built-in LED Party Lights, MP3/USB/Micro SD Readers, FM Radio

MODEL	PPHP266B PPHP288B
Power Output 500 Watt MAX	MAX 600 Watt MAX
Sound System	6.5" -in. SubwooferSpeakers (x2)	8.0" -in. SubwooferSpeakers (x2)1" Tweeter
Total Speaker Size(L x W x H)	9.5" x 9.1" x 18.5"-inches	11.4" x 10.4" x 23.2"-inches

Features:

• High-Powered PA Speaker System
- Portable Stereo Boombox Speaker Style
• Wireless BT Music Streaming Ability
- Includes Wired Microphone for Home Karaoke Fun
- Multi-Color Flashing LED Party Lights
• Built-in Rechargeable Battery
• Dual Subwoofer Speaker Tower Design
• Full Range Stereo Sound Reproduction
- Ported Subwoofer Enclosure for Extended Bass
• FM Radio with Digital LCD Display
- Top Panel Audio Control Center
- Unique Audio Recording Mode
- Connect & Stream Audio from External Devices
• MP3 Digital Audio File Playback
- Aux (3.5mm) Input Jack

• USB Flash Memory Reader
- Micro SD Memory Card Reader
• (2) 1/4" -inch (6.5mm) Microphone/ Guitar Instrument Inputs
- Master Volume, Mic Volume, Treble, Bass Adjustable
- Battery Level Indicator Light
- Convenient Integrated Carry Handle
• Rugged & Durable Molded Cabinet Design
• Used for Public Gatherings, Crowd Control, Home Karaoke
- For Indoor / Outdoor Use

Wireless BT Streaming:

• Built-in BT for Wireless Music Streaming
• Simple & Hassle-Free Pairing
- Works with All of Today's Latest Devices
- Smartphones, Tablets, Laptops, Computers, etc.
• Wireless BT Version: 5.0
• Wireless BT Network Name: 'PYLEUSA'
- Wireless Range: Up to 32' ft.

Audio Recording Mode:

• It's Easy: One Button Record Activation
• Record Audio as Streamed through the Speaker System
• Ability to Record Vocals via Microphone
• Recording Files save via USB Flash & Micro SD Ports
• Can Also Record FM & Wireless BT Streaming Audio
  • Audio File Type Created: MP3

What's in the Box:

• PA Speaker System
• Wired Microphone
• Remote Control
• Power Adapter

Technical Specs:

• Speaker Style: Molded PA Speaker Cabinet
• Wired Mic Cable Length: 9.8' ft.
• Impedance: 3 Ohm
  • Frequency Response: 55-20kHz
  • S/N Ratio: 60dB +/-3dB
• SPL: 94dB (1W/M)
  • T.H.D.: <1%
• USB Interface Type: 2.0
  • Digital Audio File Support: MP3
  • Maximum USB/Micro SD Flash Support: Up to 32GB
  • Mic Nominal Current Drain: <100mAh
  • LED Light Power Control Switch: ON / OFF
• Construction Material: Engineered Polypropylene (PP)
• Battery Life: Up to 2 Hours (Charge Time Approx. 4Hours)
• Battery Operated Remote: (1) x CR-2025 Button Cell, Included
  • Power Cable Length: 3.6' f.t
  • Power Supply: 120/240V (9V Power Adapter)

- PA Speaker Rechargeable Battery: 7.4V Li-ion, 1800mAh - 13.3Wh, 120g
