Product Type	Megaphone
Brand	Pyle
Model	PMP561LTB
Power Output	50 Watts RMS
Range	Up to 1200 yards
Power Source	10 D-cell batteries (not included) or AC adapter
Battery Life	Approximately 30 hours of continuous use
Siren	Built-in siren function
Microphone	Durable wired microphone with push-to-talk button
Volume Control	Adjustable volume control
Construction	High-impact ABS plastic with rubberized grip
Color	Blue and black
Dimensions (LxWxH)	13.5 x 9.5 x 11 inches
Weight	4.2 lbs (without batteries)
Included Accessories	Shoulder strap, detachable microphone
Cleaning	Wipe with damp cloth; avoid solvents
Safety Compliance	CE, RoHS
Warranty	1-year limited warranty

Frequently Asked Questions - PMP561LTB Pyle

What type of batteries does the Pyle PMP561LTB megaphone use?

The megaphone requires 10 D-cell batteries (not included). Alternatively, you can use the optional AC adapter (sold separately).

How far does the PMP561LTB reach?

Under ideal conditions, the megaphone can project your voice up to 1200 yards (about 0.68 miles). Actual range may vary depending on environmental factors.

Does the megaphone have a siren function?

Yes, the PMP561LTB features a built-in siren function that can be activated for emergency or attention-getting situations.

Can I use the megaphone with an AC power source?

Yes, an AC adapter (9V, 500mA, center positive) can be used to power the unit continuously without batteries.

Is the microphone detachable?

The included wired microphone can be detached from the unit for easy storage or replacement. It has a standard 1/4-inch plug.

How do I clean the megaphone?

Clean the exterior with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners. Avoid getting moisture into the speaker grille or openings.

What is the weight of the PMP561LTB?

The megaphone weighs approximately 4.2 lbs without batteries. With batteries installed, it weighs about 6 lbs.

Can the megaphone be used in rain?

The PMP561LTB is not fully waterproof. It can withstand light mist but should not be exposed to heavy rain or submersion. Keep it dry for optimal performance.

Does it come with a shoulder strap?

Yes, a durable shoulder strap is included for easy carrying during use.

What is the warranty period for this megaphone?

Pyle offers a limited warranty of 1 year from the date of purchase covering manufacturing defects.

USER MANUAL PMP561LTB Pyle

Black PYLE USA megaphone with attached cable, no visible text or symbols on the device body

Abstract black-and-white graphic with five star-like shapes (no text or symbols)

Collection of abstract geometric shapes including stars, squares, asterisks, and triangles (no text or symbols)

Built-in Rechargeable Battery, LED Lights, Siren Alarm Mode & Adjustable Volume Control

PMP561LTB

Megaphone Speaker with LED Lights

Built-in Rechargeable Battery, LED Lights, Siren Alarm Mode & Adjustable Volume Control

This user manual contains important information for safe operation and optimal megaphone performance. Please carefully read and follow safety notes and instructions. Save this manual for future reference. Make sure that it is available to all persons using this device.

*Important Note*: Before operating the megaphone, ensure you hit the correct switch to the proper position when CHARGING/OPERATING Mode.

SAFETY

This megaphone is intended to be used only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or device damage. Please use the megaphone as described and under supervision if used by children or minors.

• Ensure that plastic bags, packaging, etc.
• Never let children unattended use electrical devices.

OPERATING INSTRUCTIONS

• Insert (8) x 'C' Batteries
• Use the sliding switch to choose PA Modes

Speak:

While in 'Speak Mode', speak through the microphone mouthpiece while holding the 'Press-to-Talk' button on the detachable handheld differential mic. The user also has the ability to use the 'PA Talk Trigger Switch' on the megaphone's handheld pistol grip.

Siren:

Slide the switch over to 'Siren' and an automatic, continuous alarm siren plays. Switch to another mode to discontinue the alarm siren play.

• Adjust volume control located on the right hand side of the removable differential microphone.
• Press the trigger or use the External Microphone, speak directly to loud your voice
• Turn on the LED light switch by sliding the switch with light icon

Battery Charging

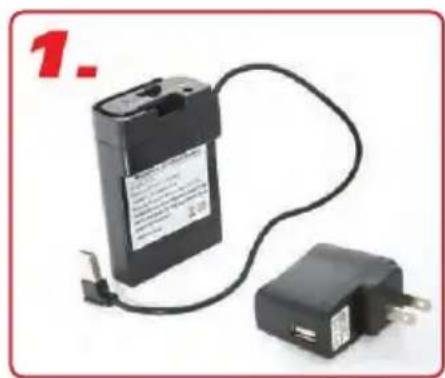

1. The megaphone features a removable rechargeable battery, that plugs-in directly into the USB wall power outlet for charging. Once connected to the wall power outlet, the battery will begin charging automatically, after you set the battery to "Charge Mode" (average time for full-charge: 8.5 hours). A Red light will be lit while charging and turns Green when fully charged.

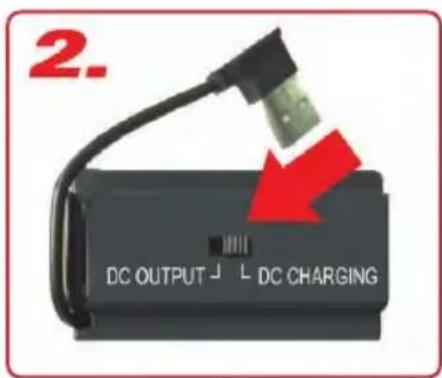

2. *Important Note*: Before charging the battery, ensure you hit the switch to "DC CHARGING" -- as located on the battery, to enable Charge Mode.

3. Once fully charged, insert the battery into the megaphone by opening the end cap in the rear of the megaphone. Be sure to slide the battery into the compartment properly, ensuring the power connection cable is exposed.

4. Once the battery is inserted, connect the battery power cable connector into the megaphone power input -- ensure you set the battery to "Power Output" Mode.

5. *Important Note*: Before operating the megaphone, ensure you hit the switch to "DC OUTPUT" -- as located on the battery, to enable Power Output Mode.

Two black electronic devices with attached cables, one connected to a plug and the other a small plug (no visible text or symbols)

PMP561LTB

Megaphone Speaker with LED Lights

Built-in Rechargeable Battery, LED Lights, Siren Alarm Mode & Adjustable Volume Control

Features:

• (2) Megaphone Modes: Talk + Siren Alarm
- Convenient Coiled-Cord Handheld Microphone
• Built-in Switch Activated LED Lights
- Adjustable Volume Control
- Rechargeable Battery for Wireless PA Speaker Portability
- Battery Charges via Included USB Wall Power Adapter
*or Optional Battery Powered: Requires (8) x 'C' Batteries, Not Included
- Simple Button Control Operation
• High-Powered Audio Reproduction
- Wide Bell Diameter for Extended Projection
- Ergonomic Pistol Grip & Lightweight Chassis
• Power Supply Jack: DC 12V Adapter Connector
• Used by U.S. Service Personnel & Armed Forces
• Perfect for Outdoor Events & Crowd Control

What's in the Box:

• Megaphone Speaker
• Rechargeable Battery
• USB Wall Adapter

Technical Specs:

• MAX Power Output: 50 Watt
• Audio Projection Range: Over 1,200+ Yards
• Sound Processor: Dynamic Piezo Driver
• LED Power Light Control: ON/OFF
• Sound Level: 105db (40cm)
- Rechargeable Battery: 11.1V Lithium-iOn, 1500mAh (16.6Wh, 166g)
- Megaphone Dimensions (Diameter x Length): 9.0" x 13.8"-inches
