| Type of product | Wi-Fi repeater / range extender |
| Brand | TP-Link |
| Model | RE315 |
| Wireless standards | IEEE 802.11ac/n/g/b/a |
| Frequency bands | 2.4 GHz and 5 GHz (dual-band) |
| Wireless speed | Up to 300 Mbps (2.4 GHz) + 867 Mbps (5 GHz) |
| Ethernet port | 1 Gigabit Ethernet port |
| Dimensions (H x W x D) | 75 x 67 x 85 mm (2.95 x 2.64 x 3.35 in) |
| Weight | Approx. 150 g (5.3 oz) |
| Power supply | Built-in AC 100-240V plug (directly in wall socket) |
| Power consumption | About 5 W |
| Buttons | WPS/Reset button |
| LED indicators | Power, Ethernet, Signal strength |
| Antenna type | Internal antennas |
| Operating modes | Range extender, access point |
| Wireless security | WPA2-PSK, WPA-PSK, WPA/WPA2 mixed |
| Management | Tether app (iOS/Android), web interface |
| LED control | On/off via button or app |
| Operating temperature | 0°C to 40°C (32°F to 104°F) |
| Storage temperature | -40°C to 70°C (-40°F to 158°F) |
| Humidity | 10% to 90% non-condensing |
| Maintenance and cleaning | Wipe with a soft, dry cloth. Do not use liquid or aerosol cleaners. |
| Safety precautions | Do not expose to water, heat sources, or disassemble. Use only in dry indoor locations. |
| Spare parts and repairability | No user-serviceable parts. Contact TP-Link support for issues. |
| General information | Plug-and-play installation with one-button WPS; compatible with standard routers. |
Frequently Asked Questions - RE315 TP-LINK
How do I set up the RE315 Wi-Fi repeater?

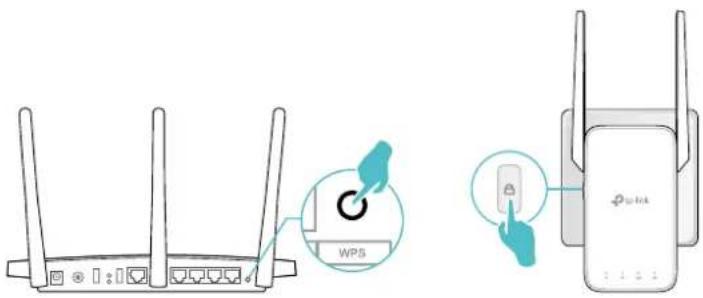

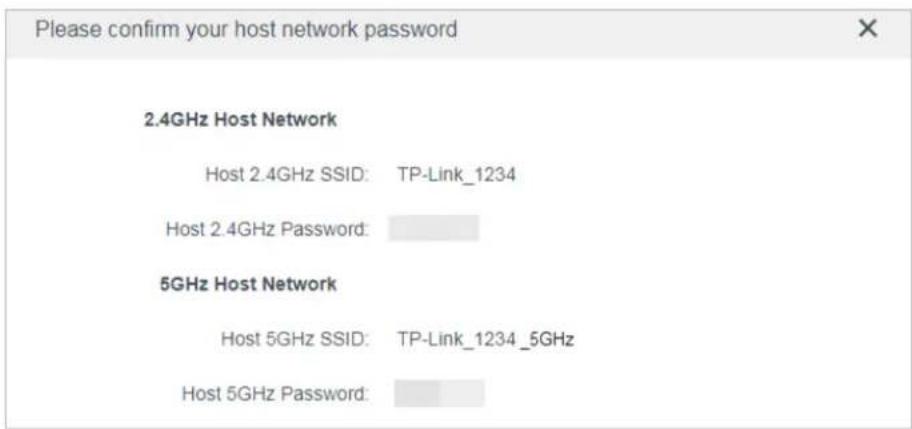

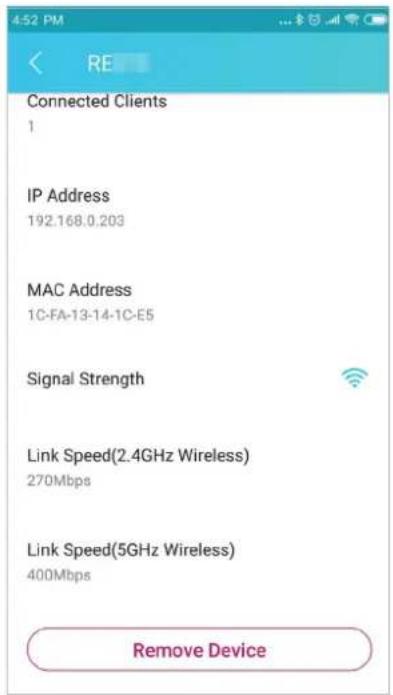

You can set up the RE315 using the WPS button or the Tether app. For WPS, press the WPS button on your router within 2 minutes of pressing the WPS button on the repeater. For app setup, download the TP-Link Tether app, follow the instructions to connect to the repeater's default network, and configure settings.
What does the LED signal indicator mean?
The LED signal indicator on the RE315 shows the connection quality between the repeater and the router. Solid green means good signal, solid yellow means fair signal, and solid red means poor signal. Blinking or off means no connection.
Can I use the Ethernet port to connect a wired device?

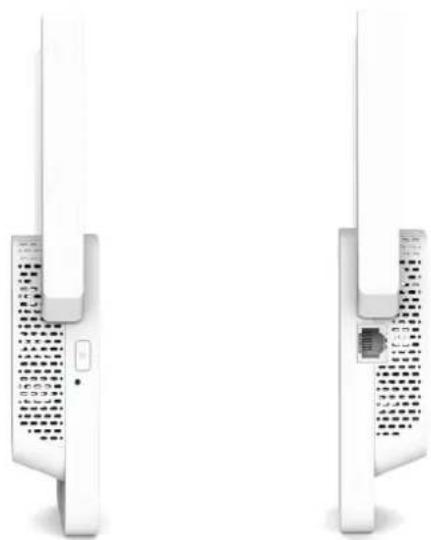

Yes, the RE315 has a Gigabit Ethernet port that can be used to connect a wired device like a computer or game console. In extender mode, it acts as a bridge to provide wired internet access.
How do I reset the RE315 to factory defaults?
To reset the RE315, press and hold the WPS/Reset button for about 5-10 seconds until the LEDs flash. Release the button, and the repeater will reboot with factory settings.
Does the RE315 support access point mode?
Yes, the RE315 can be switched to access point mode via the web interface or Tether app. This turns it into a standard Wi-Fi access point when connected to a router via Ethernet cable.
What is the maximum Wi-Fi speed of the RE315?
The RE315 is dual-band with speeds up to 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz, totaling up to 1167 Mbps. Actual speed depends on environment and devices.
Is the RE315 compatible with any router?
The RE315 is compatible with most standard routers. It works with any router that supports 2.4 GHz or 5 GHz Wi-Fi and WPS or standard connection methods.
How can I turn off the LED lights on the RE315?
You can turn off the LEDs by pressing the WPS/Reset button for about 1-2 seconds, or by using the Tether app to turn off the LED from the settings menu.
What security protocols does the RE315 support?
The RE315 supports WPA2-PSK, WPA-PSK, and mixed WPA/WPA2 modes. It automatically matches the password and encryption of your existing router.
Why is my RE315 not connecting after setup?

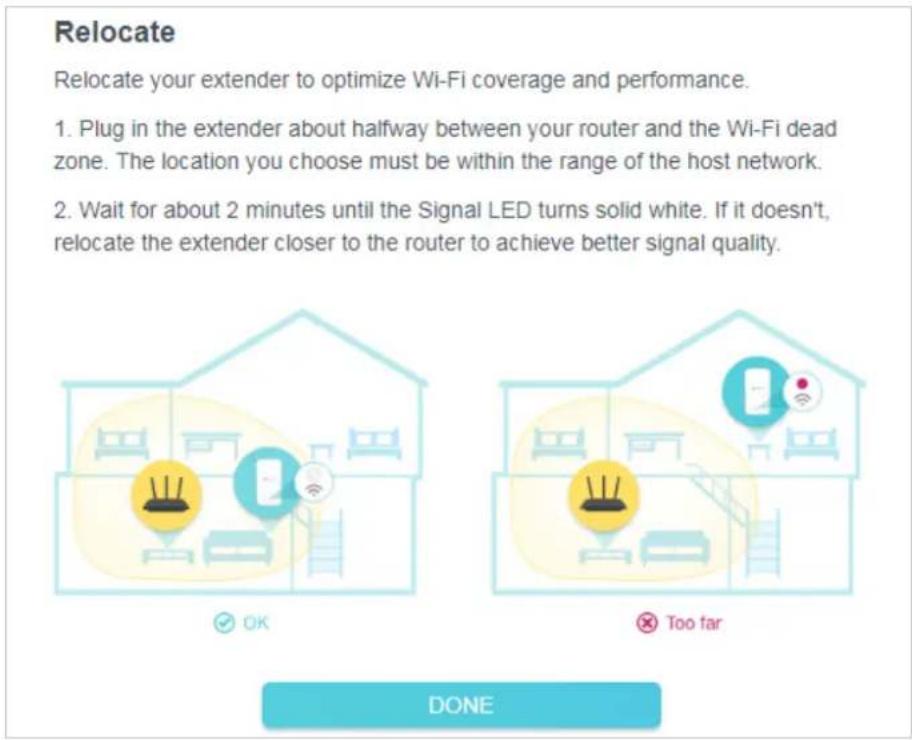

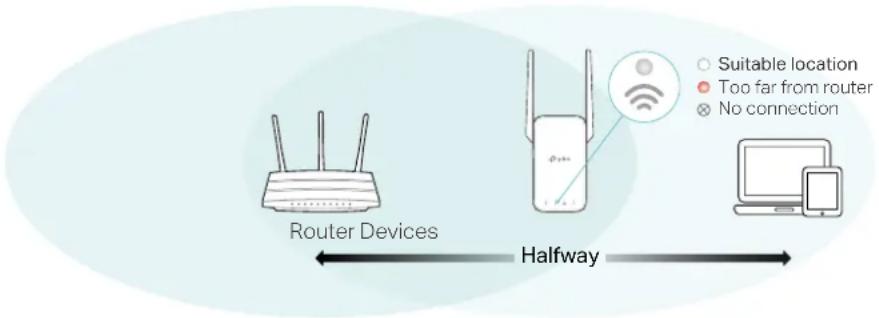

Check that the repeater is within range of the router (try moving it closer). Ensure the router's WPS is enabled if using WPS, or verify the password in app setup. Also, reboot both router and repeater, and check for any interference.
