Product Type	Coffee Machine
Brand	Ambiano
Model	GT-EM-01-UK
Dimensions (approx.)	25 x 20 x 30 cm (9.8 x 7.9 x 11.8 in)
Weight	2 kg (4.4 lbs)
Power Supply	230V ~ 50Hz, 1000W
Water Tank Capacity	1.5 L (approx. 12 cups)
Carafe Material	Glass with plastic handle
Filter Type	Permanent mesh filter or paper filter (size 4)
Brewing Function	Drip brewing with pause & serve
Keep Warm Function	Automatic keep warm plate
Auto Shut-Off	Yes, after 2 hours
Removable Parts	Filter basket, carafe, drip tray
Cleaning	Descaling recommended every 3 months; removable parts dishwasher safe
Safety Features	Overheat protection, auto shut-off, non-slip feet
Power Cord Length	0.8 m (2.6 ft)
Material	Plastic housing, glass carafe
Warranty	1 year limited warranty
Spare Parts Availability	Carafe, filter basket, drip tray available
Repairability Index	Estimated 8/10 (easy to repair)

Frequently Asked Questions - GT-EM-01-UK Ambiano

How do I set up and use my Ambiano GT-EM-01-UK coffee machine?

Fill the water tank with fresh cold water up to the max level, add ground coffee to the permanent filter or a paper filter (size 4), place the carafe on the warming plate, and press the power button. The machine will start brewing automatically.

How do I clean my coffee machine?

Allow the machine to cool, remove the filter basket and carafe, wash them with warm soapy water or place them in the dishwasher (top rack). Wipe the exterior with a damp cloth. Descale regularly to remove mineral buildup.

How often should I descale the machine?

Descale every 3 months or more frequently if you use hard water. Use a descaling solution or a mixture of white vinegar and water (1:2 ratio). Run a brew cycle without coffee, then several cycles with fresh water to rinse.

Why is my coffee weak or not hot enough?

Weak coffee may result from using too little coffee grounds or too coarse a grind. For hotter coffee, pre-warm the carafe with hot water and ensure the warming plate is clean. Also check that the water tank is filled and the machine is not in need of descaling.

What type of coffee filter should I use?

The machine works with both a permanent mesh filter (included) and standard paper filters (size 4). For milder coffee, use paper filters; for fuller flavor, use the permanent filter.

Does the machine have an auto shut-off feature?

Yes, the Ambiano GT-EM-01-UK automatically turns off after 2 hours of inactivity to save energy and ensure safety.

Can I brew smaller amounts of coffee?

Yes, you can brew as little as 2 cups. Use the markings on the water tank for reference and adjust the amount of coffee grounds accordingly.

The carafe is broken; where can I get a replacement?

Replacement carafes are available from Ambiano's spare parts service or through third-party retailers. Check the model GT-EM-01-UK to ensure compatibility.

Why is the machine making loud noises during brewing?

Loud noises may indicate air in the system or a need for descaling. Try running a descaling cycle first. If the noise persists, check that the water tank is properly seated and that no coffee grounds are blocking the filter.

How do I reset the machine after an error?

Unplug the machine, wait 30 seconds, and plug it back in. If the error persists, check for blockages or incomplete assembly of parts. Refer to the user manual for specific error codes.

USER MANUAL GT-EM-01-UK Ambiano

Contents

Overview ....4

Use....5

Parts List/device parts 6

General 7

Read and keep operating instructions ....7

Explanation of symbols 7

Safety 8

Intended use 8

Safety instructions....8

Initial use....12

Check espresso machine....12

Thorough cleaning prior to initial use....13

Use....13

Prepare espresso machine (initial use)....13

Heating up prior to use....14

After preparing espresso (empty brewing filter)......17

Prepare cappuccino / froth milk....17

After use....19

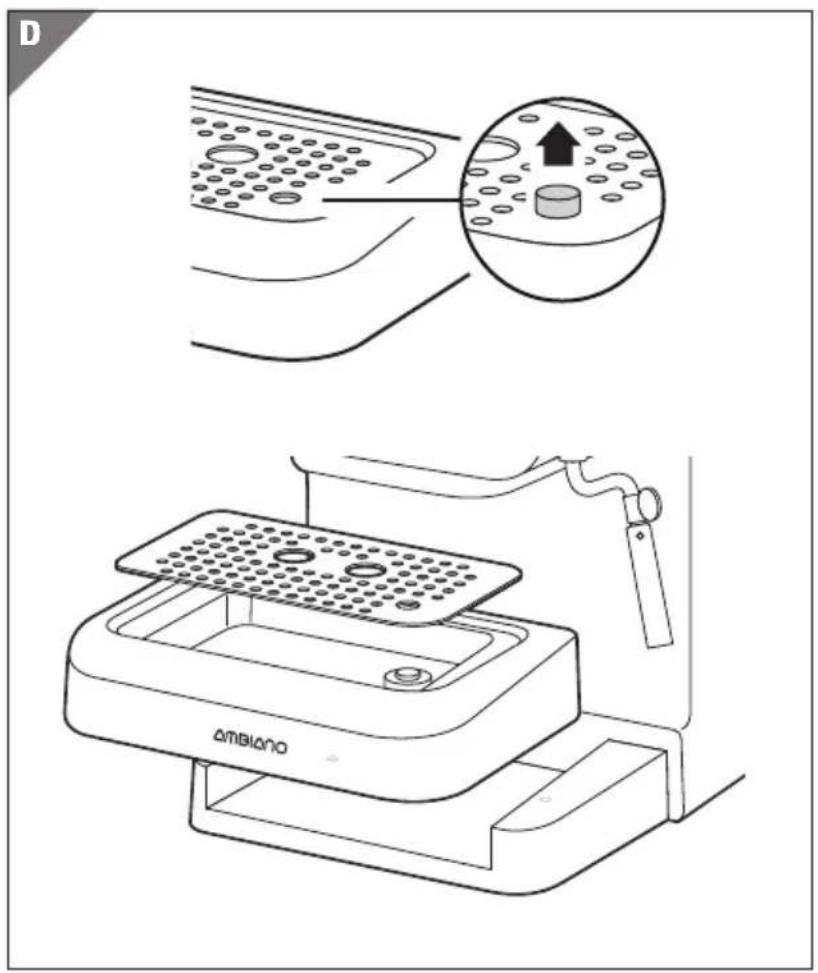

Empty drip tray....20

Switch off espresso machine 20

Tips for frothing milk 20

Cleaning....20

Clean brewing filter....21

Daily cleaning....21

Clean frother....21

Clean housing 22

Descale espresso machine ....22

Storage 22

Troubleshooting....22

Technical data 24

Conformity Declaration......24

Disposal....24

Disposal of packaging....24

Disposal of old appliance....24

A

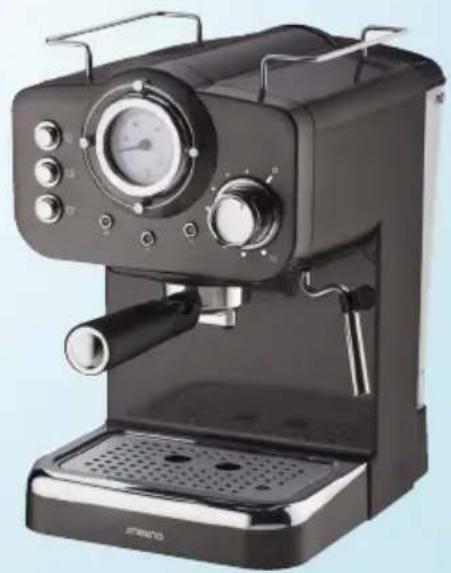

Parts List/device parts

1 Storage shelf for cups
2 Water tank
3 Handle
4 Milk frother
5 Coffee spout
6 Draining rack
7 Drip tray
8 Cleaning display
9 Measuring spoon with tamper
10 Temperature indicator
11 Temperature control knob
12 Steam pressure indicator lamp (yellow)
13 Operating lamp (red)
14 Espresso brewing temperature indicator lamp (green)
15 On/off button
16 Espresso button
17 Steam button
18 Filter holder
19 Small brewing filter
20 Large brewing filter
21 Filter blocker
22 Railing (not a handle!)

General

Read and keep operating instructions

The operating instructions belong to this espresso machine. They contain important information regarding initial use and handling. Before using the espresso machine, read through the operating instructions carefully, particularly the safety instructions.

Failure to comply with these instructions for use can lead to serious injuries or damage to the espresso machine. The operating instructions are based on the valid standards and rules in the European Union. Please also note the country-specific directives and laws abroad. Keep the operating instructions for further use. If you pass the espresso machine on to third parties, please also ensure that you pass on these operating instructions.

Explanation of symbols

The following symbols and signal words are use in these operating instructions, on the espresso machine or on the packaging.

WARNING!

NOTE!

This signal symbol/word indicate a hazard with a medium degree of risk, which could lead to death or serious injury if it is not avoided.

This signal symbol/word warns of possible material damage.

This symbol gives you useful information about assembly or operation.

Conformity declaration (see “Conformity Declaration” chapter): Products that are marked with this symbol fulfil all applicable Community regulations of the European Economic Area.

Suitable for contact with food.

Safety

Intended use

The espresso machine is exclusively designed for the preparation of household quantities of coffee/espresso and for frothing milk using steam. Only cold still water should be used to fill the water tank.

The machine is exclusively intended for private use and is not suitable for commercial or business use in kitchens for employees or shops, offices and other commercial areas, in agricultural premises, by customers in hotels, motels or other residential facilities or bed-and-breakfast establishments.

Only use the espresso machine as described in these operating instructions. Any other use is regarded as inappropriate and may lead to material damage or even to personal injury. The espresso machine is not a toy.

The manufacturer or retailer shall not assume any liability for losses caused by improper use.

Safety instructions

WARNING!

Electric shock hazard!

Faulty electrical installation or mains voltage that is too high may lead to electric shock.

• Only connect the espresso machine, if the mains voltage of the socket matches the specification on the rating plate.
• The On/Off button does not disconnect the espresso machine from the power supply. Only connect the espresso machine to an easily accessible socket, so that you can disconnect it from the power supply quickly in case of a malfunction.
• Do not operate the espresso machine, if it has visible damage or if the power cable/power plug is defective.
• If the power cable of the espresso machine is damaged, it must be replaced by the manufacturer or its customer service or a similarly qualified person.
• Do not open the housing, leave the repair to specialists in order to avoid endangering the user. For this, please contact

a specialist workshop. Liability and warranty claims are void where unauthorised repairs are carried out, or where the device is powered or operated incorrectly.

- Parts may only be used for repairs, which correspond to the original device data. Electrical and mechanical parts are in this espresso machine, which are essential for protection against hazardous risks.

- The espresso machine may not be operated with an external time switch or separate remote-control system.

- Switch the espresso machine off before filling the water tank and remove the power plug from the socket.

- Do not immerse the espresso machine or the power cable or the power plug in water or other liquids.

- Never touch the power plug with damp hands.

- Never pull the power plug out of the socket using the power cable, always hold the power plug.

- Never use the power cable as a carrying handle.

- Keep the espresso machine, the power plug and the power cable away from open flame and hot surfaces.

- Install the cable, such that it does not become a trip hazard.

- Do not kink the power cable and do not lay it over sharp edges.

- Only use the espresso machine in dry, interior spaces.

- Never store the espresso machine such that it may fall into a tub or sink.

- Position the espresso machine so that no liquids can overflow onto the device plug connection.

- Never reach into an electrical device, if it has fallen into water. In such a case, immediately disconnect the power plug.

- Ensure that children do not insert items into the espresso machine.

- If you are not using the espresso machine, if you are cleaning it or if a fault occurs, always switch the espresso machine off and remove the power plug from the socket.

WARNING!

Hazards for children and persons with impaired physical, sensory or mental capabilities (e.g. partially disabled, elderly persons with impairment to their physical and mental capabilities) or a lack of experience and knowledge (for example, older children).

• This espresso machine is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children must not play with the espresso machine. Cleaning and user maintenance may not be performed by children, unless they are aged eight or older and are being supervised.
• Keep children away from the espresso machine and the power cable.
• Do not leave the espresso machine unattended during operation.
• Do not let children play with the packaging film. Children may become caught in it while playing and suffocate.

WARNING!

Scalding hazard!

Hot water/hot steam escapes from the espresso machine during use. Parts of the espresso machine become very hot. You may scald yourself.

- Turn the steam quantity controller all the way to the right each time before you switch on the espresso machine. Otherwise, hot water/hot steam may unintentionally escape from the frother.

• Only hold the frother on the black plastic handle 3 to fold it out and in. During foaming and also afterwards, you should not touch the frother.
• Only use the frother very carefully and never direct it towards parts of the body.
• Do not touch the coffee spout during operation and do not reach underneath it.
• Only clean the espresso machine when it is switched off and cooled down.
• Do not release the filter holder while the machine is running: Hot water may spray out. The filter holder must be turned as far as it will go. The filter holder handle will then be at a 90° angle to the front surface.
• Allow the filter holder to cool off completely before changing the inserted brewing filter.
• Please note that hot steam may also escape from the espresso machine after it has been switched off.
• Do not overfill the filter holder with ground coffee, otherwise the filter holder cannot be mounted correctly. This may cause hot steam to escape from the side.

NOTE!

Risk of damage!

Improper handling of the espresso machine may lead to damage to the espresso machine

• Never fill hot or carbonated water into the water tank.
• Never operate the espresso machine without water, as the pump may become damaged.
• Only fill the brewing filter with ground coffee. Please note the MAX mark. Do not overfill!

• Protect the espresso machine from frost: Water residues may freeze at temperatures below 0 °C and damage the heater.

• Place the espresso machine on an easily accessible, dry, heat-resistant, sufficiently sturdy and easy-to-clean work surface. Do not position the espresso machine at the edge or on the corner of the work surface.

• Avoid a heat build-up, by not positioning the espresso machine directly at a wall or under hanging cupboards or similar. Furniture may become damaged from escaping heat/escaping water.
• Never place the espresso machine on or near hot surfaces (e.g. hob plates etc.).
• Do not let the power cable come into contact with hot objects.
• Never expose the espresso machine to high temperatures (radiator, etc.) or weather influences.
• Never immerse the espresso machine in water for cleaning and do not use a steam cleaner for cleaning. The espresso machine may otherwise be damaged.
• Do not use the railing on the espresso machine as a carrying handle. It is not designed for this.
• Do not use the espresso machine any longer, if the plastic components of the espresso machine have cracks or flaws or have deformed. Only replace damaged components with matching original spare parts.

Initial use

Check espresso machine

1. Remove the espresso machine from its packaging.
2. Check whether the delivery is complete (see Fig. A).
3. Check whether the espresso machine or individual parts are damaged. If this is the case, do not use the espresso machine. Contact the manufacturer via the service address stated on the warranty card.

Thorough cleaning prior to initial use

1. Remove the packaging material and all protective films.
2. Prior to initial use, clean all parts of the espresso machine, as described in the "Cleaning" section.
3. Allow the contents of approx. 2-3 cups of water to run through the machine (see "Prepare espresso machine").

The espresso machine is ready for use.

Use

Prepare espresso machine (initial use)

Prior to initial use and after a longer period of disuse of the espresso machine, allow the contents of approx. 2-3 cups of water to run through the machine. This will clean the water circuit and all parts will be heated up.

During initial use, it may occur that the pump makes slightly louder noises. That is normal. After approx. 20 seconds, the system has filled with water and the noise will become quieter.

1. Ensure that the espresso machine is switched off and remove the mains plug, if necessary.
2. Fold the locking bracket and the carrying handle of the water tank 2 upwards and remove the water tank upwards (refer to Fig. C). Fill fresh, cold and still water into the tank. Please note the maximum filing level MAX mark.
3. Reinsert the water tank and fold the carrying handle downwards. Ensure that the tank is seated correctly.
4. Insert the small 19 or large brewing filter 20 into the filter holder 18 (refer to Fig. A). Do not fill any espresso powder into the brewing filter for the first run-through.

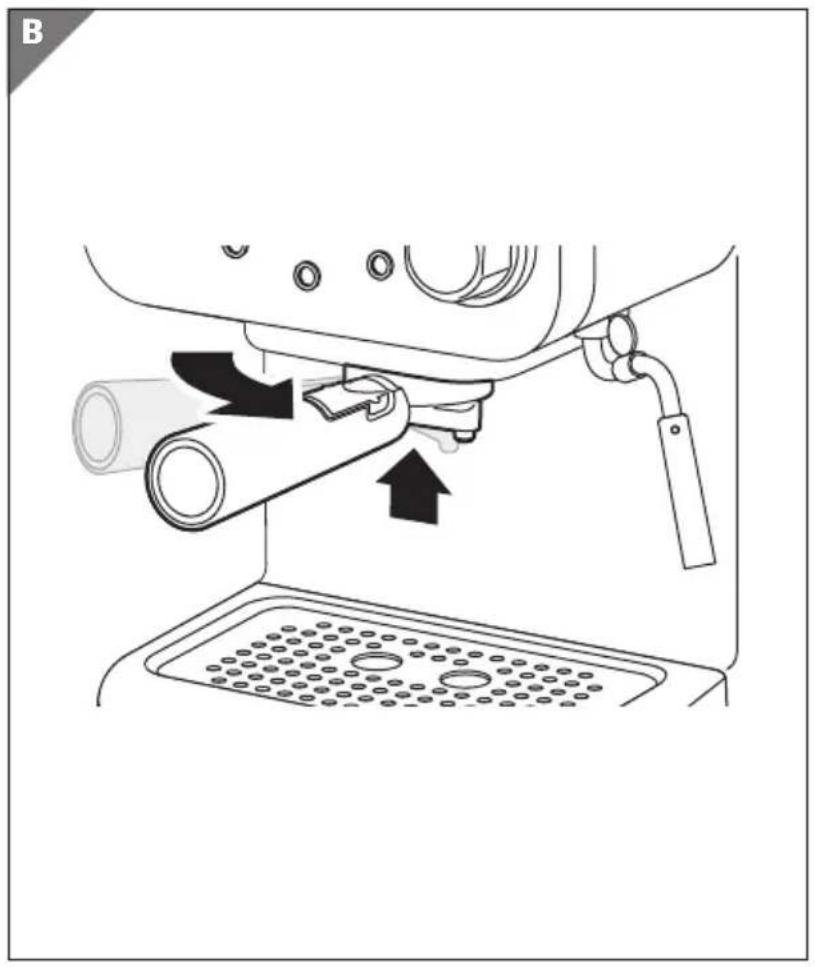

5. Insert the filter holder into the espresso machine from underneath. For this, the lever must be angled towards the left (refer to Fig. B).
6. Slide the lever to the right, as far as it will go. It must be seated securely in the bracket and point forwards at a 90° angle.
7. Place a large cup centred underneath the coffee spout 5 of the filter holder.
8. Turn the steam controller 11 all the way to the right to close the steam nozzle.
9. Insert the mains plug in a socket and press the On/Off button ⏻ 15. The operating lamp 13 lights up red.

The operating lamp only lights up, if the steam button 17 is on the Off position, i.e. not pressed.

1. Afterwards, press the Espresso button ☐ 16 immediately.

The pump/heating system will now fill with water.

As soon as the pump has sucked in sufficient water, cold water will run into the cup.

1. Stop the water discharge by pressing the espresso button 📄.

2. Wait until the indicator lamp for the espresso brewing temperature 14 lights up green.

You can track the heating-up of the water using the temperature indicator 10. As soon as the display is in the red range, espresso can be prepared. But it is crucial that the lamp goes on.

1. Press the espresso button ☐ again and let hot water run through for a total of approx. 60 seconds to flush the espresso machine.
2. If the cup is nearly full, stop the water discharge by pressing the espresso button again ☐
3. Then, continue the flushing for a total of approx. 60 seconds.

- When the green lamp goes out during this, the system heats up.

- When the green lamp lights up again, the correct temperature has been reached for espresso preparation.

Heating up prior to use

To prepare a good hot espresso, it is recommended that you heat up the espresso machine prior to each use.

Precondition:

• The water tank is filled sufficiently (approx. 1/4 full).

• The power plug is inserted.

• Insert the small 19 or large brewing filter 20 into the filter holder 18 (refer to Fig. A). Do not fill any espresso powder into the brewing filter yet.

• Insert the filter holder into the espresso machine from underneath. For this, the lever must be angled towards the left (refer to Fig. B).

• Slide the lever to the right, as far as it will go. It must be seated securely in the bracket and point forwards at a 90° angle.

• Place a large cup underneath the coffee spout 5 of the filter holder.

• Turn the steam controller 11 all the way to the right to close the steam nozzle.

• Press the On/Off button 15. The operating lamp 13 lights up red.

• Wait until the lamp for the espresso brewing temperature 14 lights up green.

• Press the espresso button and let hot water run into a large cup. Before the cup is full, press the espresso button again, to stop the process.

• Empty the pre-heated cup.

To warm up more cups, you can place these on top of the storage shelf 1. On there, they are pre-heated and kept warm by the operating heat of the machine.

The pre-heating is completed and you can start with the actual espresso or cappuccino preparation.

Prepare espresso

For a good espresso, in addition to the coffee variety and the degree of grinding the coffee, the contact pressure in the brewing filter is also crucial.

Also, always make sure that the espresso filter is clean and does not contain any powder residues.

WARNING!

Scalding hazard!

If you remove the filter holder while dispensing coffee, hot water droplets will spray and water vapour will escape from the espresso machine. You may scald yourself.

- After preparation, wait for around 10 seconds before removing the filter holder.

1. Fold the locking bracket and the carrying handle of the water tank 2 upwards and remove the water tank upwards (refer to Fig. C).

2. Fill fresh, cold and still water into the tank. Please note the maximum filing level MAX mark.

3. Reinsert the water tank and fold the locking bracket downwards.

Ensure that the water tank audibly locks in.

It is recommendable to pre-heat the espresso machine prior to use. See “Heating up prior to use” section.

1. Insert the small or large brewing filter into the filter holder:

• To prepare an espresso, insert the small brewing filter 19.
- To prepare two espressos or a double espresso, insert the large brewing filter 20.

The filter can only be inserted in one position. After that, turn it by 90° to the right or left.

Pay attention to the MAX mark in the brewing filter.

1. Fill the filter with espresso powder up to the MAX mark, using the measuring spoon 9.

2. Compress the espresso powder using the tamper on the measuring spoon.

3. Add more espresso powder, if necessary, so that the brewing filter is filled up to the MAX mark.

4. Compress the espresso powder with the tamper again.

The compressing of the espresso powder is an important process for espresso preparation.

• If the espresso power is compressed very tightly, the espresso will run through slowly and there will be more crema.
• If the espresso power is not compressed very tightly, the espresso will run through more quickly and there will be less crema.

Insert the filter holder into the espresso machine from underneath. For this, the lever must be angled towards the left (refer to Fig. B).

1. Slide the lever to the right, as far as it will go. It must be seated securely in the bracket and point forwards at a 90° angle.
2. Please one ore two pre-heated cup(s) under the coffee spout 5.
3. Wait until the lamp for the espresso brewing temperature 14 lights up green.

4. Press the espresso button 📋 16. The espresso runs into the cup.

5. Press the espresso button again, once the cup(s) is (are) filled to the desired quantity (approx. 20 ml).

6. The espresso is ready.

After preparing espresso (empty brewing filter)

WARNING!

Burn hazard!

The metal parts of the filter holder and the brewing filter used become hot during use.

- After the last use, wait for at least another 10 minutes before emptying the brewing filter.

After use, remove the espresso powder from the filter.

1. Remove the filter holder 18 from the machine by turning it to the left, as far as it will go.

1. Empty the espresso filter by turning the filter blocker 21 over with the blocked espresso filter, while pressing your thumb against the filter blocker.
2. Preferably knock out the espresso powder into organic waste.

Prepare cappuccino / froth milk

WARNING!

Scalding hazard!

Hot splashes may occur when frothing the milk.

• Always turn the steam controller and handle it with care.
• Ensure that the handle is correctly seated on the milk frother.

The steam controller 11 is fitted with a locking mechanism. It must be pulled slightly out of its bracket to unlock it. To lock it, press the controller back in in the direction of the housing.

A classic cappuccino is prepared with one espresso (approx. 20 ml) in one 150 ml cup, which is then filled up with frothed hot milk.

1. Put 100 ml of cold milk in a larger container, so that it is ready for frothing. Ideally, a frothing container made of stainless steel. Also note the “Tips for frothing milk” section.
2. Prepare one espresso in a larger cup (approx. 150 ml) (refer to "Prepare espresso" section). Then, set the espresso aside first.
3. Turn the steam controller 11 all the way to the right to close the steam nozzle.
4. Turn the milk frother 4 out to the side. Only hold the handle 3.
5. Press the steam button 17.
6. Wait until the indicator lamp for the steam pressure 12 lights up yellow.

You can track the rising steam pressure easily using the temperature indicator 10. But it is crucial that the indicator lamp goes on.

1. Unlock the steam controller by pulling it out slightly.

2. First of all, hold an empty container underneath the milk frother. Then, turn the steam controller slowly to the left (counter clockwise). Condensation and splashes will come out of the nozzle. This way, the nozzle and the water circuit inside the machine are cleaned.

3. Wait for approx. 15 seconds, then close the steam controller again, by turning it all the way to the right, until no more steam comes out of the nozzle. Place the container used aside.

4. Pick up the frothing container containing the cold milk and guide the nozzle of the milk frother lightly into the milk. Hold the frothing container at a slight angle.

5. Turn the steam controller slowly to the left.

6. Move the container up and down slightly, so that the frother is repeatedly immersed in the milk. Hold the tip of the nozzle just under the surface: deep enough, that the milk does not spray in all directions and high enough that a thick froth is created.

If the yellow temperature lamp goes out, the machine is heating up again. You can nevertheless continue using the frother, as long as steam is still flowing out of the nozzle. After this, close the steam controller and wait for a moment until the temperature lamp lights up again. After this, you can continue with frothing the milk.

1. Once you have created sufficient milk froth, place the container aside briefly and hold the tall, empty cup under the frother.
2. Open the steam controller again and allow steam to escape for several seconds, for fast cleaning.
3. Close the steam controller and lock it by pushing it in the direction of the housing. Press the steam button 17.
4. Swivel the milk frother 4 towards the back again. In doing so, only hold the milk frother on the handle 3.
5. Fill the milk froth into the cup of previously prepared espresso using a spoon for assistance. You can add sugar or sprinkle with cocoa powder, as desired.
6. Clean the espresso machine after a short cooling-off break, so that coffee grounds and milk residues do not dry on (refer to "Cleaning" section).
   Attention: Metal parts particularly remain hot for longer.

After use

After steam generation, let the espresso machine cool off for 5 minutes before preparing espresso again.

Therefore, it is recommended to prepare the espresso first and then the milk froth.

However, you can speed up the cooling off:

1. Press the steam button ("Off position").
2. Place your empty cup underneath the milk frother 4 and unlock it by pulling it out slightly.
3. Open the steam controller 11 slightly
4. Let steam and water flow into the cup until the indicator lamp goes out for the steam pressure 12.
5. Close the steam controller and lock it by pushing it in the direction of the housing. Press the steam button 17.
6. Swivel the milk frother towards the back again. When doing this, only hold the milk frother on the handle 3.

Once the lamp for the espresso brewing temperature 14 lights up green, you can start with the preparation of an espresso.

Empty drip tray

The drip tray 7 has a cleaning display 8 (refer to Fig. D). It is essential to remove and empty the drip tray prior to, or at the point this becomes visible.

Switch off espresso machine

- Press the On/Off button ⏻ 15.

The red operating lamp 14 goes out.

If no button is pressed, the machine switches off automatically after approx. 29 minutes.

Tips for frothing milk

• Basically, any milk can be frothed (also soya and rice milk). However, some varieties of milk e.g. whole dairy milk, will give better results than others.
• Skimmed milk does not scald as easily as whole milk, but the fat content must not be too low. Therefore, we recommend a milk with a fat content of 1.5 to 3.5%.
• Well-chilled milk can be frothed better than less-chilled milk. Recommended temperature: approx. 7 °C.
• Do not froth milk a second time (risk of scalding).
• Allow the frothed milk to stand for approx. 30 seconds before putting the froth on the espresso. During this time, larger bubbles will burst and milk, which is still liquid, sinks to the bottom. The froth becomes even finer this way.

Cleaning

WARNING!

Burn hazard!

The espresso machine becomes hot during operation. You may burn yourself. Metal parts particularly remain hot for longer.

- Prior to cleaning, wait until the espresso machine has cooled off.

NOTE!

Short-circuit hazard!

Water, which has penetrated the housing, may cause a short-circuit.

• Never immerse the espresso machine in water or other liquids.
• Ensure that no water or other liquids enter into the housing.

NOTE!

Risk of damage!

Improper handling of the espresso machine may result in damage.

- Do not use any aggressive detergents, sharp or metallic cleaning implements, such as knives, hard spatulas and similar. These may damage the surfaces.

1. Remove the power plug from the socket.
2. Allow the espresso machine to cool off.

Clean brewing filter

- Empty the used brewing filter 19 / 20 after each use and rinse it out thoroughly with water before refilling it.

Daily cleaning

1. Clean the brewing filters and the filter holder 18 thoroughly with rinsing water and then rinse all parts with clear water.
2. If the holes in the filter are blocked, clean it with a fine brush.
3. Empty the drip dray 7, rinse it out and let it dry off.

Clean frother

WARNING!

Scalding hazard!

The metal tube of the frother becomes hot during operation. You may scald yourself.

- Wait until the frother has cooled down before cleaning.

1. Pull off the thicker metal tube by turning slightly downwards (refer to Fig. E).
2. Clean the tube with water and then rinse it with clear water.
3. Dry off the tube.
4. Clean the handle 3 and the frother with a non-abrasive cloth.
5. Slide the tube back on completely.

Clean housing

1. Clean the water tank 2 with a cloth or sponge and water on a regular basis.

2. Clean the draining rack 6 and the drip tray 7 in water.

3. Clean the housing with a slightly damp, non-abrasive cloth.

Descale espresso machine

When using hard, calcium-rich water, lime scale deposits occur sooner than with water containing less calcium. This calcium deposits must be removed on a regular basis.

Use a commercially available descaler for coffee machines. Please note all of the instructions on the descaler.

Storage

1. Prior to longer storage, clean the espresso machine thoroughly.
2. Empty the water tank and the drip tray and let both dry.
3. Store the espresso machine in a dry, frost-free and dust-free place.

Troubleshooting

Problem Possible	cause Problem rectification
No function. No power. Insert the power plug into a live socket.
Indicator lamp14 is not lighting up	The steam button 17 is pressed.	Press the steam button to release it.
No steam, no coffee flow.	Too little water in the water tank, the pump cannot suck.	Check whether the water tank is filled and correctly attached.
No steam. The steam nozzle on the frother is blocked.		Use a wooden toothpick to remove possible calcium deposits from the holes on the frother.
Water is escaping from the side of the filter holder.	Too much ground coffee in the brewing filter, the filter holder cannot be tightened completely.	Remove the filter holder, clean the rim with a small sponge and check the coffee quantity.
	There are coffee grounds on the gasket of the filter holder rim.
	The brewing filter, the silicone perforated disk or the coffee spout are blocked.	Remove the sieve carrier carefully, because residual pressure may cause water to spray out. Clean all parts.
The espresso is not strong enough and not hot enough.	The ground coffee is ground too coarsely.	Use a finer grind of coffee.
	The ground coffee is not tamped enough.	Use more ground coffee and press the ground coffee down further into the brewing filter with the tamper.
The espresso flows to slowly or not at all.	The holes and rim of the filter holder are blocked.	Let the water flow out of the espresso machine without inserting the filter holder. If the water continues to flow unevenly, descale the espresso machine.
	The brewing filter is blocked.	Remove the filter holder carefully, because residual pressure may cause water to spray out. Clean the brewing filter.
	The ground coffee is ground too finely.	Use a coarser grind of coffee.
	Ground coffee tamped too hard.	Use less pressure to tamp the ground coffee into the brewing filter.
	The machine calcified. Descale	the machine.

Technical data

Model: GT-EM-01-UK

Input voltage: 220-240 V\~, 50 Hz

Output: 1100 W

Pump pressure: 15 bar

Capacity of water tank: 1.2 litres

Automatic switch-off: After approx. 29 minutes

Because our products are constantly being further developed and improved, design modifications and technical changes are possible.

These operating instructions can also be downloaded as a PDF file from our website www.gt-support.de

Conformity Declaration

The conformity of the product with the legally prescribed standards is guaranteed. You can find the full conformity declaration on the Internet at www.gt-support.de

Disposal

Disposal of packaging

Dispose of the packaging such that it is correctly sorted. Submit cardboard and card to waste paper and foils to the recycling collection.

Disposal of old appliance

Dispose of the old appliance in compliance with the regulations that apply to your country.

Old devices are not permitted to be disposed of with household waste!

If the espresso machine should no longer be usable, every consumer is legally obliged to submit old devices separately from household waste, e.g. to a collection centre of his/her municipality/district. This ensures that old devices are recycled properly and negative effects on the environment are avoided. That is why electrical devices are identified with the symbol shown above.

Great care has gone into the manufacture of this product and it should therefore provide you with years of good service when used properly.

In the event of product failure within its intended use over the course of the first 3 years after date of purchase, we will remedy the problem as quickly as possible once it has been brought to our attention. In the unlikely event of such an occurrence, or if you require any information about the product, please contact us via our helpline support services, details of which are to be found both in this manual and on the product itself.

GB IRE

PRODUCED IN CHINA FOR:

visit us at www.aldi.com

AFTER SALES SUPPORT

95683/95684

GB 0800 / 328 6020 IRE 00800 / 4467 5888

[e-mail]

MODEL: GT-EM-01-UK

11/2017

3

YEAR WARRANTY
