USER MANUAL 7010 Aruba

Aruba 7010 Series Controller

aruba®

NETWORKS

Copyright

© 2014 Aruba Networks, Inc. Aruba Networks trademarks include Airwave, Aruba Networks®, Aruba Wireless Networks®, the registered Aruba the Mobile Edge Company logo, Aruba Mobility Management System®, Mobile Edge Architecture®, People Move. Networks Must Follow®, RFProtect®, Green Island®. All rights reserved. All other trademarks are the property of their respective owners.

Open Source Code

Certain Aruba products include Open Source software code developed by third parties, including software code subject to the GNU General Public License (GPL), GNU Lesser General Public License (LGPL), or other Open Source Licenses. Includes software from Litech Systems Design. The IF-MAP client library copyright 2011 Infoblox, Inc. All rights reserved. This product includes software developed by Lars Fenneberg et al. The Open Source code used can be found at this site:

http://www.arubanetworks.com/open_source

Legal Notice

The use of Aruba Networks, Inc. switching platforms and software, by all individuals or corporations, to terminate other vendors' VPN client devices constitutes complete acceptance of liability by that individual or corporation for this action and indemnifies, in full, Aruba Networks, Inc. from any and all legal actions that might be taken against it with respect to infringement of copyright on behalf of those vendors.

Warranty

This hardware product is protected by an Aruba warranty. For details, see Aruba Networks standard warranty terms and conditions.

NETWORKS

www.arubanetworks.com

1344 Crossman Avenue

Sunnyvale, California 94089

Phone: [phone]

Fax: [phone]

Contents

Preface 5

Guide Overview 5

Related Documentation....5

Contacting Support 5

7010 Controller....7

Package Checklist....7

7010 Components 8

Access Ports (Ethernet Ports) 9

Uplink Ports....10

Power, Status, and Peered LEDs....11

LCD Panel 12

USB Interface....13

Management Port 13

Mini USB Console Connector 14

Console Port 14

Power Supply....15

Grounding Point 15

SFP Modules 15

Installation....17

Precautions....17

Selecting a Location 18

Rack Mounting- Standard 18

Required Tools and Equipment 18

Installation Steps....19

Table or Shelf Installation 20

Required Tools and Equipment 20

Installation Steps....20

Wall Mounting....20

Required Tools and Equipment 20

Installation Steps....20

Connecting and Disconnecting the AC Power Cord 22

Connecting the AC Power Cord....22

Installing an SFP 22

Removing an SFP 23

Connecting an LC Fiber Optic Cable 23

Specifications, Safety, and Compliance 25

7010 Specifications 25

Physical....25

Power Supply Specifications 25

Operating Specifications....25

Storage Specifications 25

Safety and Regulatory Compliance....25

FCC 25

Industry Canada....25

EU Regulatory Conformance 26

Battery Statements 26

Japan VCCI 26

Taiwan (BSMI) 27

Proper Disposal of Aruba Equipment 27

Waste of Electrical and Electronic Equipment....27

European Union RoHS....27

India RoHS 27

China RoHS 27

This document describes the hardware features of the Aruba 7010 Controller. It provides a detailed overview of the physical and performance characteristics of each controller model and explains how to install the controller and its accessories.

Guide Overview

• Chapter 1, "7010 Controller" on page 7 provides a detailed hardware overview of the 7010 controller and each of its components.
• Chapter 2, “Installation” on page 17 describes how to install the 7010 controller in a number of ways and how to install each of its components.
• Chapter 3, “Specifications, Safety, and Compliance” on page 25 lists the 7010 controller's technical specifications and safety and regulatory compliance information.

Related Documentation

The latest ArubaOS User Guide and ArubaOS CLI Reference Guide are required for the complete management of an Aruba controller. The latest documentation and the translation of this document into other languages can be found at www.arubanetworks.com/documentation.

Contacting Support

Main Site arubanetworks.com

Support Site support.arubanetworks.com

Airheads Social Forums and Knowledge Base community.arubanetworks.com

North American Telephone [phone] (Toll Free) 1-408-754-1200

International Telephones http://www.arubanetworks.com/support-services/support-program/contact-support

Software Licensing Site licensing.arubanetworks.com

End of Support information http://www.arubanetworks.com/support-services/end-of-life-products/end-of-life-policy/

Wireless Security Incident Response Team (WSIRT) http://www.arubanetworks.com/support-services/security-bulletins/

Support Email Addresses

Americas and APAC [e-mail]

EMEA [e-mail]

WSIRT Email

[e-mail]

Please email details of any

security problem found in an

Aruba product.

Chapter 1 7010 Controller

The Aruba 7010 Controller is a wireless LAN controller that connects, controls, and intelligently integrates wireless Access Points (APs) and Air Monitors (AMs) into a wired LAN system.

The 7010 series includes the following two models, and they do not differ physically or functionally from each other:

• 7010-US: For the United States of America • 7010-RW: For the rest of the world.

The 7010 controller has the following port configuration:

Table 2 7010 Controller Port Configuration

Model Access Port Uplink Port		Number of APs Supported	Number of Users Supported
7010-xx 16 x 10/100/1000BASE-T (12 x PoE/PoE+ and 4 x non-PoE)	2 x 1000BASE-X	32 2048

Package Checklist

Inform your supplier if there are any incorrect, missing, or damaged parts. If possible, retain the carton, including the original packing materials (see Table 3). Use these materials to repack and return the unit to the supplier if needed.

Table 3 Package Contents

Item Quantity
Aruba 7010-xx Controller 1
Mounting Brackets 2
M6 x 15 mm Phillips Pan Head Screws 4
M4 x 8 mm Phillips Flat Head Screws 8
M6 x 7 mm Grounding Screws 2
AC Power Cord Retaining Clip	1
Power Cable	1
USB Console Cable	1
Rubber Feet	4
Aruba 7010 Installation Guide (Printed) (This document)	1
Quick Start Guide (Printed)	1
End User License Agreement (Printed) 1
Aruba Document Pointer (Printed) 1

Optional accessories are available for use with the Aruba 7010 controller and are sold separately. Contact your Aruba sales representative for details and assistance.

7010 Components

This section introduces the component and its location in the Aruba 7010 controller.

Figure 1 shows the front panel of the Aruba 7010 controller and Figure 2 shows the back panel of the Aruba 7010 controller.

Figure 1 Front Panel of the Aruba 7010 Controller

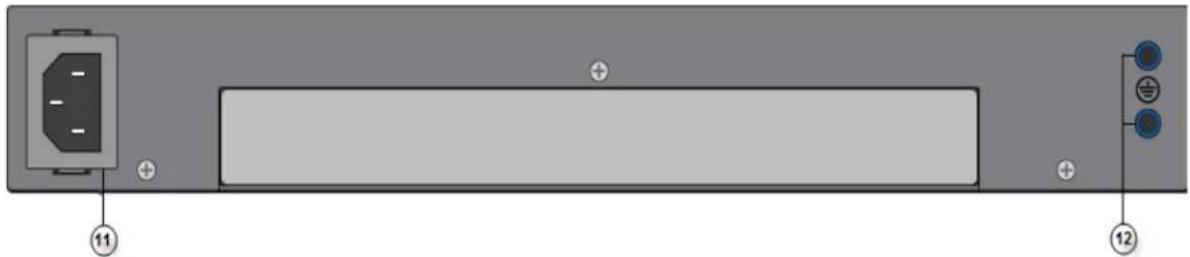

Figure 2 Back Panel of the Aruba 7010 Controller

The following table lists the components on the Aruba 7010 controller:

Table 4 Aruba 7010 Controller Components

Callout Component Description
1 Access Ports 16 x10/100/1000BASE-T Ethernet portsOrange numbering: Indicates that the port supports PoE/PoE+Gray numbering: Indicates that the port does not support PoE
2 Uplink Ports 2 x 1000BASE-X ports
3 Power, Status, and Peered LEDs Used for basic monitoring of the Aruba 7010 controller
4 LCD Used to configure LCD behavior and other basic operations

Table 4 Aruba 7010 Controller Components (Continued)

Callout Component Description
5 Menu Button Used to select the LCD screen menu
6 Enter Button Used to execute actions on the LCD Screen
7 USB Interface 2 x USB 2.0, USB storage device can be used to save and upload configurations
8	Management Port	Used to connect to a separate management network
9 Mini USB Console Port Provides console access for direct local access
10 Console Port RJ-45 serial console access port
11 AC in AC power connector
12 Grounding Points Used to attach the grounding screws

Access Ports (Ethernet Ports)

The 7010 controller is equipped with sixteen 10/100/1000BASE-T Gigabit Ethernet ports (0 to 15). Gigabit Ethernet uses all eight wires and each pair is bi-directional, which means, the same pair is used for both data transmission and data reception. Figure 3 illustrates the Gigabit Ethernet port pin-out for a RJ-45 connector. The pins paired on a 10/100/1000BASE-T Gigabit Ethernet port are: 1/2, 3/6, 4/5, and 7/8.

Figure 3 Gigabit Ethernet Port Pin-Out

1000Base-T Gigabit Ethernet Port	RJ-45 Female Pin-Out	Signal Name	Function
		BI_DA+	Bi-directional pair +A
		BI_DA-	Bi-directional pair -A
		BI_DB+	Bi-directional pair +B
		BI_DC+	Bi-directional pair +C
		BI_DC-	Bi-directional pair -C
		BI_DB-	Bi-directional pair -B
		BI_DD+	Bi-directional pair +D
		BI_DD-	Bi-directional pair -D

All Power over Ethernet (PoE) capable ports support IEEE 802.3af PoE, providing up to 15.4 W of DC power, and IEEE 802.3at Power over Ethernet Plus (PoE+), supplying up to 30.0 W of DC power to connected devices, but the power per port is subject to the total PoE power (150W) available in the chassis.

In the Aruba 7010 controller, the access ports 0 to 11 that support PoE/PoE+ are numbered in orange and the access ports 12 to 15 that do not support PoE are numbered in gray.

Ethernet Port LEDs

Each 10/100/1000BASE-T Ethernet port is equipped with two LEDs allowing you to monitor the status and activity on the port. These LEDs provide basic monitoring of the status and activity of each port.

• LINK/ACT: Placed on the left side of the port, and displays the link status and activity of the port.
• STATUS: Placed on the right side of the port, and displays the status of the port based on the information displayed by this LED changes based on LCD's mode.

The following table describes the LED behavior for each mode:

Table 5 10/100/1000BASE-T Ethernet Port LEDs

LED	Function	LCD Mode	Indicator	Status
LINK/ACT Link status N/A Green (Solid) Link has been established
STATUS Port status Administrative Green (Solid) Port enabled

Uplink Ports

The Aruba 7010 controller includes two 1000BASE-X uplink ports (16 and 17). See Figure 4. It is recommended to use Aruba supported SFP transceivers in these ports.

Figure 4 Ports, LEDs, and LCD Panel

Aruba tests and supports Aruba optics within their controller systems. Third party optics are not tested or supported; therefore, Aruba does not guarantee proper functionality of third party optics when used in an Aruba system.

Each uplink port has two LEDs. These LEDs are used to monitor the status and activity on each port.

Table 6 Uplink Port LEDs

Label	Function	LCD Mode	Indicator	Status
LINK/ACT Link status NA Green (solid) Link has been established
				Green (blinking) Port is transmitting or receiving data
				Off No link on port
STATUS Port status Administrative Green (solid) Port enabled
				Off Port disabled
				Duplex
				Green (solid) Full-duplex
				Off N/A
				PoE
				Speed
				Green (solid) 1 Gbps
				Off N/A

Power, Status, and Peered LEDs

The front panel also includes power, status, and peered LEDs that provide basic monitoring of the overall status of the Aruba 7010 controller. See Figure 4 on page 10.

Table 7 Power, Status, and Peered LEDs

LED	Function	Indicator	Status
Power System powers	Green (Solid)	Power On
	Off	Power Off
Status System status	Green (Solid)	Operational
	Green (Blinking)	Device is loading software
	Amber (Blinking)	Major alarm
	Amber (Solid)	Critical alarm
	Off	No power
Peered	Reserved for future use	N/A	N/A

LCD Panel

The Aruba 7010 controller is equipped with an LCD panel (see Figure 4 on page 10) that displays information about the controller's status and provides a menu that allows basic operations such as initial setup and reboot. The LCD panel displays two lines of text with a maximum of 16 characters on each line. When using the LCD panel, the active line is indicated by an arrow next to the first letter.

The LCD panel is operated using the two navigation buttons to the right of the screen.

• Menu: Allows you to navigate through the menus of the LCD panel.
• Enter: Confirms and executes the action currently displayed on the LCD panel.

LCD Mode Menu

The LCD mode menu includes four modes as shown in the following table.

Table 8 LCD Panel Mode

LCD Mode Function Displays Description
Boot Displays the boot up status. “Booting ArubaOS... Displays boot status.
LED Displays the mode of the STATUS LED.The LED mode menu allows you to choose what information is communicated by the STATUS LEDs on each port.See Table 5 on page 10 for descriptions of the LED behavior of each mode.	LED mode: ADM Administrative-Displays whether the port is administratively enabled or disabled.
	LED mode: DPX Duplex-Displays the duplex mode of the port.
	LED mode: POE PoE-Displays if port is taking PoE power or not
	LED mode: SPD Speed-Displays the speed of the port.
	Exit	Exits LED menu.
Status	Displays the ArubaOS version.	OS Version	Displays the ArubaOS version.
		Exit	Exits Status menu.
Maintenance	Allows you to execute some basic operations of the Aruba 7010 controller such as uploading an image or rebooting the system.	Upgrade Image [Partition 0 [Y|N] | Partiion 1 [Y|N]]	Allows you to upgrade the software image on the selected partition from a predefined location on an attached USB flash device.
		Upload config [Y | N]	Uploads the controller's current configuration to a predefined location on the attached USB flash device.
		Factory Default [Y|N]	Allows you to reset the device to factory default settings.
		Media Eject [Y| N]	Completes the reading or writing of the attached USB device.
		Reload system [Y|N]	Allows you to reboot the device.
		Halt system [Y|N]	Allows you to halt the device.
		Exit	Exits Maintenance menu.

Disabling the LCD Screen

By default, the LCD screen is enabled. However, if the 7010 controller is deployed in a location without physical security, the LCD screen can be disabled through the CLI. When disabled, pushing one of the navigation buttons will only illuminate the LCD screen and display the slot, role, device name, and any alarms.

Additionally, it is possible to disable only the maintenance menu. This allows you to change the LED behavior and view the device status but prevent upgrades and configuration changes.

To disable the LCD screen, enter the Enable mode and use the following CLI commands:

(host) #configure terminal
(host) (config) #lcd-menu
(host) (lcd-menu) #disable menu

To disable only the Maintenance menu or one of its sub-menus, enter the Enable mode and use the following CLI commands:

(host) #configure terminal
(host) (config) #lcd
(host) (lcd-menu) #disable menu maintenance ?
factory-default
halt-system
media-eject
reload-system
upgrade-image
upload-config
(host) (lcd-menu) #disable menu maintenance upgrade-image ?
partition0
partition1

USB Interface

The Aruba 7010 controller is equipped with a USB 2.0 interface. See Figure 4 on page 10. A USB storage device can be used to save and upload configurations to the controller. USB functions are controlled through the LCD panel on the front of the controller. For more information on the LCD panel and its functions, see “LCD Panel” on page 12.

Management Port

The Aruba 7010 controller is equipped with a 10/100/1000BASE-T Gigabit Management (RJ-45) port. See Figure 4 on page 10.

The management port provides 10/100/1000 Mbps Ethernet access to the Aruba 7010 controller CLI, SNMP, and Web interface for complete system management and troubleshooting. It can also be used to connect to a separate management network.

The management port has a LINK/ACT LED on its left side and a SPEED LED on its right side. During operation, these LEDs provide status information as shown in the following table:

Table 9 10/100/1000BASE-T (RJ-45) Management Port

LED Function Indicator Status
LINK/ACT Link Status Information Green (Solid) Link has been established
	Green (Blinking) Link activity
	Off No link on port

Table 9 10/100/1000BASE-T (RJ-45) Management Port (Continued)

LED	Function	Indicator	Status
SPEED Interface Speed Green (Solid) 1000Mbps
	Off 10/100Mbps

Mini USB Console Connector

The Aruba 7010 controller is equipped with one Mini USB (type B) connector that provides console access for direct local access. See Figure 4 on page 10. If both Mini USB and RJ-45 Console ports are connected, the Mini USB connection takes precedence over the RJ-45 Console connection.

Mini USB Driver

To use the Mini USB console port, you must install the Aruba Mini USB driver on the computer that will manage your controller. To download the driver, perform the following steps:

1. Go to https://support.arubanetworks.com
2. Click on the Tools & Resources tab.
3. Open the USB Console Driver folder.
4. Open the Mobility Controller and Mobility Access Switch folder.
5. Select the appropriate file for your application. The corresponding operating system is in the file name.

Console Port

Use the serial CONSOLE port to allow direct local management. See Figure 4 on page 10. This port is an RJ-45 female connector that accepts an RS-232 serial cable with a male connector.

Figure 5 Serial Console Port Pin-Out

The communication settings for the Console port are shown in the following table:

Table 10 Console Terminal Settings

Baud Rate	Data Bits	Parity	Stop Bits	Flow Control
9600 8 None 1	None

The CONSOLE port is compatible only with RS-232 devices. Non-RS-232 devices, such as APs, are not supported.

Serial Console Port Adaptor

A modular adaptor can be used to convert the female RJ-45 connector to a male DB9 connector. See Figure 6 for complete details.

Figure 6 RJ-45 (Female) to DB9 (Male) Modular Adapter Conversion

Power Supply

The Aruba 7010 controller is equipped with an integrated AC power supply of 225W. The integrated power supply supports 75W of system power and 150W of PoE power.

PoE

The 7010 controller supports PoE (802.3af) and PoE+ (802.3at) to provide power to connected devices. PoE/PoE+ is enabled by default to provide plug and play capability for PoE capable devices. The 7010 controller supports PoE management in Dynamic mode.

In dynamic mode, the per port power budgeted from the total power supplied from the PSUs is equal to the amount of power consumed by the port.

Grounding Point

To meet safety and electromagnetic interference (EMI) requirements and to ensure proper operation, the controller must be adequately grounded before power is connected. Connect a grounding cable to earth ground and then attach it to the chassis grounding point using two screws.

Comply with electrical grounding standards during all phases of installation and operation of the product. Do not allow the controller's chassis, network ports, power supply, or mounting brackets to contact any device, cable, object, or person attached to a different electrical ground. Also, never connect the device to external storm grounding sources.

SFP Modules

SFP Modules, also known as mini-GBICs, are hot-swappable Gigabit Ethernet transceivers that provide optical or copper connections to other devices.

Aruba tests and supports Aruba approved optics within their controller devices. Non-approved third party optics are not tested or supported; therefore, Aruba does not guarantee proper functionality of non-approved third party optics when used in an Aruba system. For a complete list of Aruba approved optics, contact your Aruba sales representative.

Table 11 Supported SFPs

SFP-SX	Aruba SFP, 1000BASE-SX, LC Connector; 850nm pluggable GbE optic; up to 300 meters over multi-mode fiber (Type OM2).
SFP-LX	Aruba SFP, 1000BASE-LX, LC Connector; 310nm pluggable GbE optic; up to 10,000 meters over single-mode fiber.
SFP-TX	Aruba SFP, 1000BASE-T SFP; copper GbE pluggable; RJ45 connector; up to 100 meters over Category-5, 5e, 6 and 6a unshielded twisted pair cable.

Chapter 2 Installation

Installation of the device should be performed by a trained installation professional.

This chapter describes how to install an Aruba 7010 controller using the many mounting options available. The 7010 controller ships with an accessory kit that includes the equipment needed to install the controller in standard, 19-inch telco rack or on a wall.

• “Precautions” on page 17 - "Selecting a Location" on page 18 • "Rack Mounting- Standard" on page18 • "Table or Shelf Installation" on page20 • "Wall Mounting" on page20 • "Installing an SFP" on page22

Please only use the included or Aruba specified cables, power cords, AC power supplies, and batteries. The power cord should not be used with other electric equipment than what is specified by Aruba.

• Ensure that the rack is correctly and securely installed to prevent it from falling or becoming unstable.
• Dangerous voltage above 240VAC is always present while the Aruba Power Supply Module is plugged into an electrical outlet. Remove all rings, jewelry, and other potentially conductive material before working with this device.
• Never insert foreign objects into the chassis, power supply, or any other component, even when the power supply is turned Off, unplugged, or removed.
• Ensure that the main power is fully disconnected from the controller by unplugging all power cords from their outlets. For safety, verify that the power outlets and plugs are easily reachable by the operator.
• Do not handle electrical cables which are not insulated. This also includes network cables.
• Keep water and other fluids away from the controller to minimize electrical hazards.
• Comply with electrical grounding standards during all phases of installation and operation of the product. Do not allow the controller's chassis, network ports, power supply, or mounting brackets to contact any device, cable, object, or person attached to a different electrical ground. Also, never connect the device to external storm grounding sources.
• Perform installation or removal of the chassis or any module in a static-free environment. Proper use of anti-static body straps and mats is strongly recommended.

Modules must be kept in anti-static packaging when not installed in the chassis. Do not ship or store this product near strong electromagnetic, electrostatic, magnetic, or radioactive fields. Do not disassemble the chassis.

Selecting a Location

The 7010 controller, like other network and computing devices, requires the following “electronic-friendly” environment:

Reliable power

Verify that your electrical outlet is compatible with the 7010 controller power supply.

Cool, non-condensing ventilation

For proper operation, the 7010 controller requires an environment with an ambient air temperature between 0°C and 40°C (32°F and 104°F). Humidity must be kept at non-condensing levels, between 5% and 95%.

Where a large number of electrical devices are working in the same area, additional air conditioning or air circulation equipment may be required.

Ample space

For proper air circulation, leave at least 10 cm (4 inches) clearance all around the chassis.

Leave additional space in front and rear side of the chassis to access power cords, network cables, and indicator LEDs.

Limited electromagnetic interference

For best operation, keep the 7010 controller and all cords and cables at least 0.7 meters (2 feet) from fluorescent lighting fixtures, and 2 meters (6 feet) from photocopiers, radio transmitters, electric generators, and other sources of strong electromagnetic interference.

Rack Mounting - Standard

This mounting option allows mounting the 7010 controller in a two-post 19-inch Telco rack.

Each 7010 controller should have its own mounting equipment. Do not place other networking equipment directly on top of a mounted 7010 controller. Failure to do so can damage the device.

Required Tools and Equipment

The following tools and equipment are required for installing a 7010 controller:

Mounting Bracket (x2) (included in the kit): Do not use for table or shelf installation

Screws for mounting bracket (x8): M4 x 8 mm Phillips Flat Head Screws (included in the kit)

Screws for system rack mount (x4): M6 x 15 mm Phillips Pan Head Screws (included in the kit)

Suitable Screwdrivers for all screw types provided in the box (not included in the kit)

Some racks require screws that differ from those included with the 7010 controller. Ensure that you have the correct screws before installing the 7010 controller.

Installation Steps

To install a 7010 controller into a two-post 19-inch Telco rack:

1. Place the mounting bracket over the mounting holes on the controller (see Figure 7).
2. Secure the bracket to the controller using the eight screws for the mount bracket (four per bracket) and a suitable screwdriver.

Figure 7 Rack Mount Brackets

1. Mount the controller within your organization's rack system using the four screws for system rack mount (two per bracket) and a suitable screwdriver (see Figure 8).

Figure 8 Rack Mount Installation

Leave a minimum of 10 cm (4 inches) of space on the left and right side of the controller for proper air flow and ventilation.

Leave additional space in the front and the back of the controller to access network cables, LED status indicators, and power cord.

Table or Shelf Installation

Required Tools and Equipment

• Rubber Feet (included in the kit)

Installation Steps

1. Attach the rubber feet to the bottom of the controller (see Figure 9).

Figure 9 Attaching Rubber Feet

1. Place the controller in the location you have chosen.

Wall Mounting

The mounting brackets can also be used for wall mounting the 7010 controller.

Required Tools and Equipment

The following tools and equipment are required for installing a 7010 controller on a wall:

• Mounting Brackets (x2) (included in the kit) - Screws for mounting bracket (x8): M4 x 8 mm Phillips Flat Head Screws (included in the kit) • Wall Anchors: Optional accessory (not included in the kit) • Wall Mounting Screws: The type of screw depends on the installation surface (not included in the kit) - Suitable Screwdrivers for all screw types (not included in the kit)

Installation Steps

To install a 7010 controller on a wall:

Ensure that the Ethernet ports are facing down when installing the 7010 controller on a wall.

1. Fasten the mounting brackets over the mounting holes on the sides of the 7010 controller using the eight screws for mounting bracket (four per bracket) and a suitable screwdriver (see Figure 10).

Figure 10 Attaching the Wall Mount Brackets

1. After you have chosen a mounting location, mark the locations on the wall where you intend to make mounting holes.
2. Create the holes and insert wall anchors if your installation requires them.
3. Align the mounting bracket holes with the holes you created in the wall (see Figure 11).
4. Use appropriate screws to secure the 7010 controller.

Figure 11 Wall Mounting

Connecting and Disconnecting the AC Power Cord

Once you have installed the 7010 controller, you are ready to power On the device. The 7010 controller is not equipped with an On/Off switch. The device will power On when the AC power cord is connected to the power supply and an AC power outlet.

Connecting the AC Power Cord

To connect the AC power cord to the 7010 controller:

1. Lift the power cord retaining clip so that it is not blocking the AC power connector.
2. Insert the coupler end of the AC power cord into the AC power connector on the power supply module.
3. Lower the power cord retaining clip over the AC power cord.

The 7010 controller should now be receiving power.

Disconnecting the AC Power Cord

To disconnect the AC power cord from the 7010 controller:

1. Lift the power cord retaining clip off the AC power cord.
2. Pull the AC power cord from the power supply module.
3. The 7010 controller is now turned Off.

Installing an SFP

Use standard ESD precautions when installing or removing an SFP.

To install an SFP module into the 7010:

1. Slide the SFP module, top side facing upward, into a 1000Base-X port until a connection is made and an audible click is heard (see Figure 12).

Figure 12 Installing an SFP

Removing an SFP

To remove an SFP module:

1. Open and release the latch on the SFP module.
2. Pull and remove the module from the port.

Connecting an LC Fiber Optic Cable

To connect an LC fiber optic cable into an SFP-SX or SFP-LX module:

1. Clean the fiber optic cable connector before inserting it into the SFP module.
2. Insert the fiber optic cable into the SFP module. Ensure that the latch on the cable faces the top of the SFP module (see Figure 13).
3. Slide the cable into place until a connection is made and an audible click is heard.

To disconnect an LC fiber optic cable from an SFP-SX or SFP-LX module:

1. Depress the transceiver handle to release the latch on the cable and simultaneously pull the cable out of the port.

Figure 13 Connecting an LC Fiber Optic Cable

7010 Specifications

Physical

• Device Dimensions (without mounting brackets) (HxWxD): 1.74" x 12.75" x 13.0" (4.42 cm x 31.75 cm x 33.0 cm) • Device Weight: 7.4 lbs (3.4 kg)

Power Supply Specifications

• 225W AC Power Supply ■ AC Input Voltage: 100 VAC to 240 VAC ■ AC Input Current: 3.5 A max. ■ AC Input Frequency: 50 to 60 Hz

Operating Specifications

• Operating Temperature Range: 0 °C to 40 °C (32 °F to 104 °F)
• Operating Humidity Range: 5% to 95% (RH), non-condensing

Storage Specifications

• Storage Temperature Range: 0 °C to 50 °C (32 °F to 122 °F) • Storage Humidity Range: 5% to 95% (RH), non-condensing

Safety and Regulatory Compliance

Aruba Networks, Inc. provides a multi-language document that contains country-specific restrictions and additional safety and regulatory information for all Aruba products. This document can be viewed or downloaded from the following location: www.arubanetworks.com/safety_addendum

Aruba controllers must be installed by a professional installer. The professional installer is responsible for ensuring that grounding is available and it meets applicable local and national electrical codes.

FCC

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Industry Canada

EU Regulatory Conformance

This product is CE marked according to the provisions of the EMC Directive (2004/108/EC) - CE. Aruba Networks Inc., hereby declares that 7010 controller device models are in compliance with the essential requirements and other relevant provisions of Directive (2004/108/EC). CE The Declaration of Conformity made under Directive 1999/5/EC is available for viewing at the following location in the EU community.

Use of controls or adjustments or performance of procedures other than those specified in this manual may result in hazardous radiation exposure.

This product complies with 21 CFR Chapter 1, Subchapter J, Part 1040.10, and IEC 60825-1: 1993, A1: 1997, A2: 2001, IEC 60825-2: 2000.

For continued compliance with the above laser safety standards, only approved Class 1 modules from our approved vendors should be installed in the product.

Although this controller has been tested to up to 1kV per CE immunity requirements, this product requires surge protection to be provided as part of the building installation to protect against unidirectional surges resulting from electrical switching and lightning strikes.

For protection against these surges in an outdoor installation, any exposed wiring must be shielded, and the shield for the wiring must be grounded at both ends.

Battery Statements

The battery supplied with this product may contain perchlorate material. Special handling may apply in California and other certain states. See www.dtsc.ca.gov/hazardouswaste/perchlorate for more information.

Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions.

Japan VCCI

This is a Class A product based on the standard of the Voluntary Control Council for Interference (VCCI). If this equipment is used in a domestic environment, radio interference may occur, in which case the user may be required to take corrective actions.

Taiwan (BSMI)

Warning to users:

This is a Class A information product. When used in a residential environment,

it may cause radio frequency interference. In such cases,

the user may be required to take appropriate measures.

Proper Disposal of Aruba Equipment

Waste of Electrical and Electronic Equipment

Aruba products at end of life are subject to separate collection and treatment in the EU Member States, Norway, and Switzerland and therefore are marked with the symbol shown at the left (crossed-out wheelie bin). The treatment applied at end of life of these products in these countries shall comply with the applicable national laws of countries implementing Directive 2002/96EC on Waste of Electrical and Electronic Equipment (WEEE).

European Union RoHS

Aruba products also comply with the EU Restriction of Hazardous Substances Directive 2002/95/EC (RoHS). EU RoHS restricts the use of specific hazardous materials in the manufacture of electrical and electronic equipment. Specifically,

restricted materials under the RoHS Directive are Lead (including Solder used in printed circuit assemblies), Cadmium, Mercury, Hexavalent Chromium, and Bromine. Some Aruba products are subject to the exemptions listed in RoHS Directive Annex 7 (Lead in solder used in printed circuit assemblies). Products and packaging will be marked with the "RoHS" label shown at the left indicating conformance to this Directive.

India RoHS

This product complies with RoHS requirements as prescribed by E-Waste (Management & Handling) Rules, governed by the Ministry of Environment & Forests, Government of India.

China RoHS

Aruba products also comply with China environmental declaration requirements and are labeled with the "EFUP 50" label shown at the left.

Hazardous Materials Declaration

Hazardous Materials Declaration

部件名称(Parts)	有毒有害物质或元素(Hazardous Substances)
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬Chromium VI Compounds( Cr6+ )	多溴联苯Polybrominated Biphenyls(PBB)	多溴二苯醚Polybrominated Diphenyl Ether(PBDE)
电路板PCA Board	X	O	O	O	O	O
机械组件Mechanical Subassembly	X	O	O	O	O	O
电源适配器Power Adaptor	X	O	O	O	O	O
O:表示该有毒有害物质在该部件所有均质材料中的含量均在SJ/T11363-2006标准规定的限量要以下。This component does not contain this hazardous substance above the maximum concentration values in homogeneous materials specified in the SJ/T11363-2006 Industry Standard.
X:表示该有毒有害物质至少在该部件的某一均质材料中的含量超出SJ/T11363-2006标准规定的限量要。This component does contain this hazardous substance above the maximum concentration values in homogeneous materials specified in the SJ/T11363-2006 Industry Standard.
对销台之日的所售产品,本表显示,供应链的电子信息产品可能包含这些物质。This table shows where these substances may be found in the supply chain of electronic information products, as of the date of sale of the enclosed product.
此标志为针对所涉及产品的环保使用期标志。某些零部件会一个不同的环保使用期(例如,电池单元模块)贴在其产品上。此环使用期限只适用于产品是在产品手册中所规定的条件下工作。The Environment-Friendly Use Period (EFUP) for all enclosed products and their parts are per the symbol shown here. The Environment-Friendly Use Period is valid only when the product is operated under the conditions defined in the product manual.
