Pro 160.2 - Pressure washer Gerni - Free user manual and instructions

Product Type	Electric High Pressure Washer
Brand	Gerni
Model	Pro 160.2
Maximum Pressure	160 bar (2320 psi)
Rated Pressure	130 bar (1885 psi)
Flow Rate	520 l/h (8.7 l/min)
Power Supply	230 V ~ 50 Hz
Power Consumption	2100 W
Water Temperature (Max)	40 °C (104 °F)
Weight	12 kg (26.5 lbs)
Dimensions (L x W x H)	400 x 330 x 880 mm
Hose Length	8 m
Noise Level (LWA)	96 dB(A)
Safety Features	Thermal overload protection, safety trigger, anti-tip design
Included Accessories	High pressure gun, foam nozzle, surface cleaner, rotary nozzle
Warranty	2 years
Maintenance	Clean filters regularly; store in frost-free area; use non-detergent oil for pump
Spare Parts Availability	Replacement nozzles, hoses, seals available via service centers

Frequently Asked Questions - Pro 160.2 Gerni

How do I connect the pressure washer to the water supply?

Ensure the water supply is turned on and the hose is connected to the inlet. Use a standard garden hose with an adapter if needed. The water flow must be at least 500 l/h.

Can I use detergent with the Gerni Pro 160.2?

Yes, attach the foam nozzle and fill the detergent tank with a suitable pressure washer detergent. Do not use bleach or acidic cleaners.

What is the maximum water temperature for operation?

The maximum water temperature is 40 °C (104 °F). Hotter water may damage the pump seals.

How do I store the pressure washer after use?

Disconnect water and power, press the trigger to release pressure, and store in a dry, frost-free location. Drain any remaining water from the hoses.

Why is the pressure washer not starting?

Check the power supply, ensure the thermal overload protection hasn't tripped, and verify the water supply is on and the trigger is pressed to release air.

How often should I replace the pump oil?

For the Pro 160.2, the pump is sealed and does not require oil changes. No maintenance is needed for the pump unit.

Can I use an extension cord?

Yes, use a heavy-duty extension cord (min 1.5 mm² cross-section) suitable for outdoor use, and keep it as short as possible to avoid voltage drop.

What safety precautions should I take?

Always wear protective eyewear, never point the nozzle at people or pets, and ensure the surface is not damaged by high pressure. Use the trigger lock when not spraying.

How do I clean the nozzle if it becomes blocked?

Turn off the washer, disconnect the trigger gun, and use a thin wire or the cleaning needle provided to clear the nozzle orifice. Reattach and test.

Where can I find spare parts or repairs?

Contact an authorized Gerni service center. Common parts like nozzles, hoses, and seals can also be ordered online through spare parts distributors.

USER MANUAL Pro 160.2 Gerni

Warning symbol: black exclamation mark inside a triangle (no text or numbers)

User Guide

Green Gerni 1602 water heater with black and white body, no visible text or symbols on the device itself.

The instruction consists of 4 parts. Part 1:3 Safety Instructions. Part 2:3 User Guide. Part 3:3 Troubleshooting, Technical Data and Disposal. Part Warranty Conditions.

Part 1:3 - Safety Instructions

Before first use of the machine, read the instructions carefully. Save instructions for later use.

Safety instructions marked with this symbol must be observed to prevent personal injury or serious damage to property.

WARNING

This machine has been designed for use with cleaning agents supplied or recommended by Gerni. The use of other cleaning agents or chemicals may adversely affect the safety of the machine.

High pressure jets can be dangerous if subject to misuse. The jet must not be directed at persons, live electrical equipment or the machine itself.

⚠ Do not use the machine within range of persons unless they wear protective clothes.

⚠ Do not direct the jet against yourself or others in order to clean footwear.

Risk of explosion – Do not spray flammable liquids. High pressure washers shall not be used by children or untrained personnel.

⚠️ High pressure hoses, fittings and couplings are important for the safety of the machine. Use only hoses, fittings and couplings recommended by Gerni.

⚠️ To ensure machine safety, use only original spare parts recommended by Gerni.

⚠️ Water that has flown through back-flow preventers is considered to be non-potable.

Don't use the machine if a supply cord or important parts of the machine are damaged, e.g. safety devices, high pressure hoses, trigger gun.

Inadequate extension cords can be dange rous. If an extension cord is used, it shall be suitable for outdoor use, and the connection has to be kept dry and off the ground. It is recommended that this is accomplished by a cord reel which keeps the socket at least 60 mm above the ground.

⚠ Switch off and unplug the machine when leaving it unattended, when finished using it or when converting it to another function, when doing repair and

maintenance.

During use of high pressure washers, aerosols may be formed. Inhalation of aerosols can be hazardous to health, for the protection against aerosols a respiratory mask of class FFP 2 or equivalent may be needed, depending on the cleaning environment.

Intended Use and Terms of Liability

• The PRO-series have been developed for domestic cleaning pur poses only and for use in an upright position. Any other use is considered as improper use.
• A high pressure washer operates with different levels of pressure and cleaning detergents for various cleaning tasks and results. Always follow instructions on detergents for use, emergency and disposal.
• Do not operate the machine at temperatures below 0°C. Never start a frozen machine, never use it indoor and never cover it during use. This is considered improper and wrongful use. Use of wrongful pressure, detergent and/or applications may cause damage to machine, surfaces, material and devices.

All of the above is considered improper and wrongful use. Gerni accepts no liability for any damage resulting from any improper or wrongful use.

Safety devices and their functioning

The machine automatically stops when releasing the trigger. The machine will start again when re-activating the trigger. The spray handle features a locking device. When activated, the spray handle cannot be operated.

The machine has an automatic self-resetting thermal protector. If the machine is overheated, the thermal protector will cut the power supply. In this case, wait for the machine to cool down. An integrated hydraulic safety valve protects the system from excessive pressure.

Precautions

The electric supply connection shall be made by a qualified electrician and comply with IEC 60364-1. It is recommended that the electric supply to this machine should include either a residual current device that will interrupt the supply if the leakage current to earth exceeds 30 mA for 30 ms or a device that will prove earth circuit.

- Use motor start/delayed fuses with characteristic D according to IEC 947-2 or corresponding standards outside IEC.

• If the supply cord is damaged, it must be replaced by an authorized Gerni distributor or similar qualified person in order to avoid a hazard.
• No actions needed for adjusting machines marked with dual voltage and frequency.
• Supervise children not to play with the machine.
• The operator and any one in the immediate vicinity of the site for cleaning should take action to protect oneself from being struck by debris dislodged during operation.
• Always wear safety boots, respiratory mask, ear protection, goggles and protective clothing during operation.
• The high pressure generated by the machine is a particular source of danger. Hold the spray lance firmly with both hands. The spray lance is affected by a kickback force and a sudden torque during operation.
• See PART 3:3 for the actual size of the kickback force.
• During transportation: Position the machine horizontally on the backside and secure with straps.
• High pressure washers shall not be used nor maintained by children or untrained people or people with reduced physical, sensory or mental capabilities or lack of experience and knowledge.

Part 2:3 - User Guide

Provides a general overview of the machine and operation elements along with illustrated sections on preparation, operation, water connection, storage, and user maintenance.

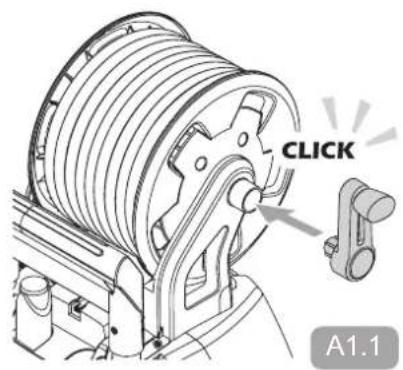

A Unpacking and preparing for use

Follow illustrations in A.

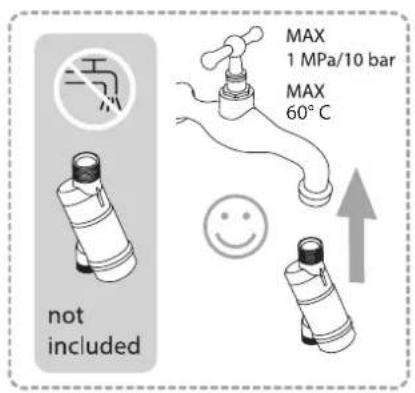

B Connection to potable water mains

High pressure washers are not suitable for con- tion to the potable water mains. Always check onal regulations before connecting the machine notable water mains and use a back-flow preventer quired.

• Use 12 " garden hose, 10-25 m.
• Follow illustrations in B.

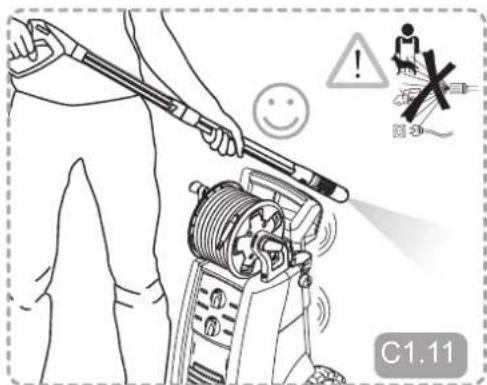

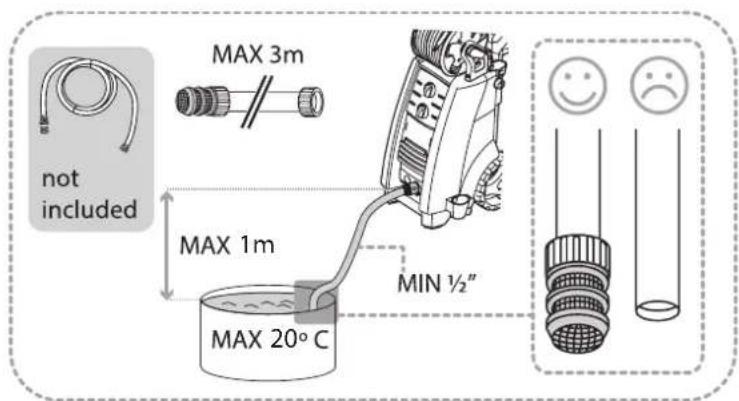

C Connection to other water sources

You can connect the machine to e.g. rain water vessels, rivers, lakes and cisterns etc. and operate it in suction mode. Follow illustrations in C.

D Pairing of spray handle and machine

Not relevant to PRO series.

E Leaving the machine unattended > 5 min.

⚠️ See listed warnings. Follow the illustrations in E.

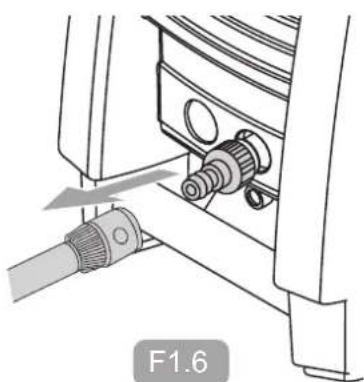

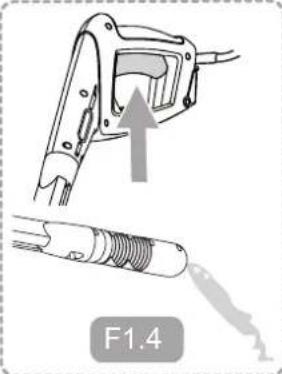

F After use and storage

After use always: Turn off the machine. Empty machine and accessories of water to avoid frost damage. Remove the plug from socket. Disconnect water inlet hose. Wind up electrical cable and high pressure hose to avoid damage of cable, high pressure hose and fittings. Storage of machine shall be frost free.

- Follow illustrations in F.

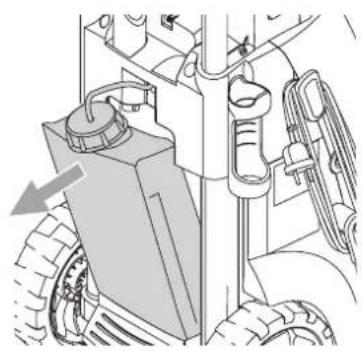

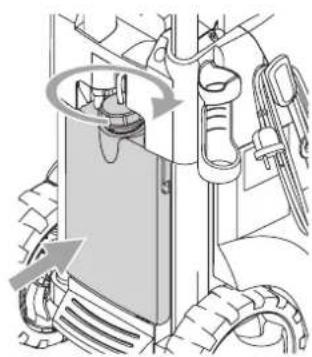

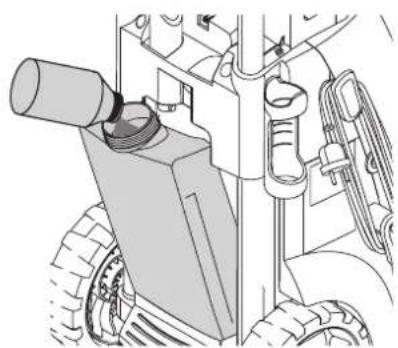

G Maintenance, inspection and repair

IMaintenance of the machine should always be done when starting up after long time of storage.

Before use, always inspect the machine and equipment for damages. In case of damages, act according to listed warnings.

• Do not attempt any maintenance not described in the instructions. If the machine refuses to start, stops, pulsates, pressure fluctuates, motor buzzes, fuse blows or no water comes out, check Part 3.3 Troubleshooting.
• User maintenance according to illustrations in G.

Part 2:3 User Guide

A

A1.2

Mechanical assembly diagram showing a motor and gear mechanism with no visible text or symbols

A1.3

Diagram of a mechanical device with a lever and handle, showing a circular component inserted into a housing (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical diagram of a mechanical device with labeled section A3.1, showing internal components and a close-up view (no text or symbols beyond label)

Line drawing of a pressure vessel with internal components and a double-headed arrow indicating upward motion (no text or symbols)

Diagram showing two hand-painted car parts with lock and cable, no text or symbols present

A

Technical illustration of a mechanical tool with 360° rotation indicator (no text or symbols on the tool itself)

Illustration of a handheld device with lock icons and an arrow indicating motion (no text or symbols)

A3.6
B

Illustration of a faucet with a handle and a pipe, accompanied by an upward arrow and label B1.1 (no text or symbols on the diagram itself)

Illustration of a faucet with a water tap and pipe, showing fluid flow (no text or symbols)

B1.2

Illustration of a faucet with a handle and valve, showing fluid flow direction (no text or symbols)

Line drawing of a mechanical component with a cable inserted, showing no text or symbols

B1.4

Line drawing of a handheld electronic device with a lock icon (no text or symbols)

B1.7

Technical illustration of a welding torch and its internal structure, showing no text or symbols

Line drawing of a mechanical component with a downward arrow indicating a force or adjustment (no text or symbols present)

B1.9

B1.10

Diagram of a hand holding a cable with an arrow indicating upward motion (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

B2.1
MPa bar

Pure electrical circuit lines without any symbols

MPa bar

Diagram of a cylindrical device emitting a focused beam, with no visible text or symbols

B2.2

Line drawing of a car with a sad face emoji nearby (no text or symbols)

Mechanical assembly diagram showing a tractor handle and wheel base with no visible text or symbols

B3.1

Technical line drawing of a mechanical assembly with gears and a lever (no text or symbols)

B3.2

Technical line drawing of a mechanical assembly with gears and levers (no text or symbols)

Mechanical assembly diagram showing a valve mechanism with rotating components and directional arrows (no text or labels)

B3.4

Pure mechanical component diagram with circular and curved arrows, no text or symbols present

B3.5

Illustration of a person using a power tool to clean or smoke, with three emoji indicators (happy, neutral, sad) shown above the device.

Technical diagram of a mechanical component with directional arrows indicating assembly or movement (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

C1.2

Diagram of a car fuel injector with directional arrows indicating flow or movement (no text or labels)

C1.3

C1.4

C1.5

Illustration of a hand holding a knife with a smiley face icon nearby (no text or symbols)

C1.6

C1.7

Line drawing of a hand holding a cable with an arrow indicating direction (no text or symbols)

C1.9

Line drawing of a hand holding a cable with an arrow indicating upward motion (no text or symbols)

C1.10

D

PRO series
E

Illustration of a handheld device with warning symbol and lock icon (no text or labels)

E1.1

E1.3

E1.4

F

Illustration of a faucet with a curved arrow indicating rotation, labeled F1.1 (no text or symbols on the diagram itself)

F1.3

Technical illustration of a welding torch and a threaded pipe assembly (no text or symbols)

Line drawing of a person using a tool on a mechanical device, with a smiley face icon (no text or symbols)

Technical diagram of a mechanical assembly with a connector and shaft (no text or symbols)

Line drawing of a car hood with a cable inserted, showing motion direction (no text or symbols)

F1.7

F

F1.8

F1.10

Illustration of a plug with a circular component and a downward arrow indicating compression (no text or symbols)

F1.11

Technical line drawing of mechanical components including a tool, bracket, and plug (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with no visible text or symbols

Mechanical assembly diagram showing a coiled component with rotating parts and housing (no text or symbols)

G

G1.1

G1.2

Technical illustration of a mechanical device with three views: cylindrical, angled, and threaded (no text or symbols)

Illustration of a hand holding a cigarette with a magnifying glass emitting vapor, labeled G1.3 (no text or symbols on the diagram itself)

Mechanical assembly diagram showing a tool interacting with a mechanical component (no text or symbols visible)

G

128500671

Inlet water suction hose

128470462

Rim Brush Head

128500976

Power Patio

128470461

Garden Brush Head

128470460

Multi Brush

(incl. car brush head)

128500380

Rotary Brush

12500464

Car brush head

28500388

Drain & Tube

Cleaner - 15 m

Part 3:3 - Troubleshooting, Technical Data and Disposal

Troubleshooting

To avoid unnecessary disappointments, you should check the following before contacting the Gerni service organization.

Symptom Cause Recommended action
Machine refuses to start	Machine not plugged inDefective socketFuse has blownDefective extension cable	Plug in machineTry another socket.Replace fuse. Switch off other machines.Try without the extension cable.
Fluctuating pressure Pump	sucking airValves dirty, worn out or stuckPump seals worn out	Check that hoses and connections are airtight.Contact tour local Gerni Service centre.Clean and replace or refer to local Gerni distributor.
Machine stops Fuse has blown	Incorrect mains voltageThermal sensor activated Nozzle partially blocked	Replace fuse. Switch off other machines.Check that the mains voltage corresponds to specification on the model tag.Leave the washer for 5 minutes to cool down.Clean the nozzle (see Part 2.3 User Guide, G)
Fuse blows Fuse too small	Change to an installation higher than the amp. consumption of the machine. You may try without the extension cable.
Machine pulsating	Air in inlet hose/pumpInadequate supply of mains waterNozzle partially blockedWater filter blockedHose kinked	Allow machine to run with open trigger until regular working pressure resumes.Check that the water supply corresponds to specifications required (see model tag)NB! Avoid using long, thin hoses (min. 1/2")Clean the nozzle (see Part 2.3 User Guide, G)Clean the filter (see Part 2.3 User Guide, G)Straighten out hose.
Machine often starts and stops by itself	Pump/spray handle is leaking	Contact your nearest Gerni Service Centre.
Machine starts, but no water comes out	Pump/hoses or accessory frozenNo water supplyWater filter blockedNozzle blocked	Wait for pump/hoses or accessory to thaw.Connect inlet water.Clean the filter (see Part 2.3 User Guide, G)Clean the nozzle (see Part 2.3 User Guide, G)

In case problems other than the above occur, please phone [phone] or check our website www.gerni.com.au for your nearest service agent.

Technical Data

		PRO 160.2
Electric specifications Unom 230-240 V
	fnom 50 Hz
	Pnom 2400 W
	Inom 10 A
Protection Class Class I/Class II Class II
Protection degree IP XX IP X5
Hydraulic specifications	p_nom	1740 PSI / 120 bar
	p_max	2320 PSI / 160 bar
	Q	7.7 l/min / 470 l/h
	Q_max	8.5 l/min / 520 l/h
Max. water inlet pressure	p_inlet max	1 Mpa / 10 bar
Max water inlet temperature	t_inlet max	60°C
Max water inlet temp. suction mode	t_inlet max	20°C
Kick-back force	F_kickback	27.4 N
Weight	M_machine	28.4 kg
Hand-arm vibration according to: Standard nozzle	a_ha	< 2.5 ± 1 m/s2
Sound pressure level LpA LpA	standard	72 ±3 dB(A)
Guaranteed sound power level LWA LwA	standard	86 dB(A)

We reserve the right to make alterations.

Recycling the high pressure washer

Make the old machine unusable immediately.

• Unplug the machine.
• Cut the electric cable.

Do not discard electrical appliances with household waste. As specified in WEEE Directive 2012/19/EC on old electrical and electronic appliances, used electrical goods must be collected separately and recycled ecologically. Contact your local authorities or your nearest dealer for further information.

Warranty Conditions

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. Gerni high pressure washers for domestic use are warranted for 2 years from the date of purchase by:

AUSTRALIA: Nilfisk Pty LTd, Unit 1/13 Bessemer Street, Blacktown NSW 2148, Phone: [phone], E-mail: [e-mail]

NEW ZEALAND: Accent Tools Ltd, 232 Bush Rd, Albany, Auckland 0632, Phone: [phone], E-mail: [e-mail]

Equipment defects covered by this warranty will be repaired or replaced by one of the service centres of the Gerni organisation. Find your local service agent here: http://www.gerni.com.au/. If your high pressure washer or accessories are handed in for repair, it must be followed by a description/specification of the fault, and the original purchase receipt, or a copy, must be enclosed. Packing and postage/carriage is not covered by the warranty. This warranty is provided in addition to the other rights and remedies of the purchaser under the laws in relation to the goods to which the warranty relates. Guarantee repairs are made on the following conditions:

• that defects are attributable to flaws or defects in materials or workmanship (wear and tear as well as misuse are not covered by the guarantee).
• that the directions of the instruction manual have been thoroughly observed.
• that repair has not been carried out or attempted by other than Gerni-trained service staff.
• that only original Gerni accessories have been applied.
• that the product has not been exposed to abuse such as knocks, bumps or frost.
• that only water without any impurities has been used.
• that the high pressure washer has not been used for rental nor used commercially in any other way.

Repairs not covered by the guarantee conditions will be invoiced. (i.e. malfunctions due to Causes mentioned in section Troubleshooting of Part 3:3.

Please phone [phone] (Australia) or 09 9682610 (NZ) for service or warranty assistance only after checking possible causes in Part 3:3.

AUSTRALIA:

Nilfisk Pty Ltd

Unit 1/13 Bessemer Street

Blacktown NSW 2148

Phone: [phone]

E-mail: [e-mail]

NEW ZEALAND:

Accent Tools Ltd

232 Bush Rd

Albany

Auckland 0632

Phone: [phone]

E-mail: [e-mail]
