Product Type	Surveillance Camera
Brand	Interlogix
Model	TruVision TVT-5303
Resolution	2 Megapixels (1920x1080)
Lens	3.6mm fixed lens
Night Vision	Up to 30m (IR LEDs)
Power Supply	PoE (Power over Ethernet) or 12V DC
Weight	Approx. 0.5 kg
Dimensions	185 x 70 x 70 mm
Weatherproof Rating	IP66
Video Compression	H.264
Field of View	Horizontal: ~80°
Mounting Type	Wall or ceiling mount
Audio	Built-in microphone
Storage	Local (microSD, sold separately)
Features	Motion detection, night vision, remote viewing
Cleaning	Wipe with dry cloth; avoid solvents
Safety	Install in dry location; disconnect power before cleaning
Spare Parts & Repairability	Contact authorized service center; no user-serviceable parts
Manual Language	English (PDF available)

Frequently Asked Questions - TruVision TVT-5303 Interlogix

How do I install the TruVision TVT-5303 camera?

Mount the camera using the included bracket. Connect the Ethernet cable for PoE or use a 12V DC adapter. Secure the camera to the wall or ceiling and adjust the angle.

Does the camera support wireless connectivity?

No, the TruVision TVT-5303 is a wired camera with Ethernet (PoE) connection. It does not have built-in Wi-Fi.

What is the maximum night vision range?

The IR LEDs provide night vision up to 30 meters in complete darkness.

Can I access the camera remotely?

Yes, you can view the feed remotely using the Interlogix TruVision app or software on your smartphone or PC, provided the camera is connected to a network.

Is the camera weather resistant?

Yes, it has an IP66 rating, making it suitable for outdoor use in rain and dust.

How do I reset the camera to factory settings?

Press and hold the reset button (located near the cable) for about 10 seconds until the indicator blinks. The camera will reboot with default settings.

What storage options are available?

The camera supports local storage via a microSD card (up to 128GB, not included) and can also record to an NVR or network storage.

What is the field of view?

With the 3.6mm lens, the horizontal field of view is approximately 80 degrees, suitable for monitoring corridors or entrances.

How do I clean the camera lens?

Use a soft, dry microfiber cloth to gently wipe the lens. Avoid using cleaning solvents or abrasive materials.

What kind of power supply is needed?

The camera supports Power over Ethernet (PoE) for both power and data, or a separate 12V DC power adapter (not included).

USER MANUAL TruVision TVT-5303 Interlogix

TruVision Series 3 IP Camera Installation Guide

Copyright

© 2016 United Technologies Corporation,

Interlogix is part of UTC Climate, Controls & Security, a unit of United Technologies Corporation. All rights reserved.

Trademarks and patents

Trade names used in this document may be trademarks or registered trademarks of the manufacturers or vendors of the respective products.

Manufacturer

Interogix

2955 Red Hill Avenue, Costa Mesa, CA 92626-5923, USA

Authorized EU manufacturing representative:

UTC Fire & Security B.V.

Kelvinstraat 7, 6003 DH Weert, The Netherlands

Certification

FCC compliance

Class A: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

FCC conditions

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference.
(2) This Device must accept any interference received, including interference that may cause undesired operation.

ACMA compliance

Notice! This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

Canada

This Class A digital apparatus complies with CAN ICES-003 (A)/NMB-3 (A).

European Union directives

This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European standards listed under the EMC Directive 2014/30/EU, the RoHS Directive 2011/65/EU.

2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points. For more information see: www.recyclethis.info

2013/56/EU and 2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentation for specific battery information. The battery is marked with this symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to a designated collection point. For more information see: www.recyclethis.info.

Contact information

For contact information, see www.interlogix.com or www.utcfssecurityproducts.eu.

Content

Introduction 1

Product overview 1

Installation 2

Installation environment 2

Package contents 3

Cable requirements 14

Camera description 14

Setting up the camera 20

Accessing the SD card 21

Mounting the IP fixed lens bullet camera 21

Mounting the IP VF lens bullet camera (without the supplied back box) 23

Mounting the IP VF lens dome camera 29

Mounting the IP fixed lens dome camera 33

Mounting the IP wedge dome camera 37

Mounting the IP turret camera 40

Using the camera with a recorder 45

Using the camera with TruVision Navigator 45

Specifications 46

TruVision IP fixed lens bullet cameras 46

TruVision IP VF lens bullet cameras 46

TruVision IP fixed lens dome 47

TruVision IP VF lens dome cameras 47

TruVision IP wedge cameras 48

TruVision IP turret cameras 49

Installation Guide 1

Pin definitions 50

2 Installation Guide

Introduction

Product overview

This is the installation guide for TruVision Series 3 IP camera models:

IP fixed lens bullet camera:

IP fixed lens dome camera:

• TVD-5301 (2MPX Plastic Dome, 2.8 mm lens)
• TVD-5302 (4MPX Plastic Dome, 2.8 mm lens)

IP VF lens dome camera:

This section provides information on how to install the cameras.

Installation environment

When installing your product, consider these factors:

• Electrical: Install electrical wiring carefully. It should be done by qualified service personnel. Always use a proper PoE switch or a 12 VDC UL listed Class 2 or CE certified power supply to power the camera. Do not overload the power cord or adapter.
• Ventilation: Ensure that the location planned for the installation of the camera is well ventilated.
  • Temperature: Do not operate the camera beyond the specified temperature, humidity or power source ratings.

2 Installation Guide

The operating temperature of the camera is between -30 to +60°C (-22 to 140°F). Humidity is below 90%.

- Moisture: Do not expose the camera to rain or moisture, or try to operate it in wet areas. Turn the power off immediately if the camera is wet and ask a qualified service person for servicing. Moisture can damage the camera and also create the danger of electric shock.

- Servicing: Do not attempt to service this camera yourself. Any attempt to dismantle this product will invalidate the warranty and may also result in serious injury. Refer all servicing to qualified service personnel.

- Cleaning: Do not touch the sensor modules with fingers. If cleaning is necessary, use a clean cloth with some ethanol and wipe the camera gently. If the camera will not be used for an extended period of time, put on the lens cap to protect the sensors from dirt.

Package contents

Check the package and contents for visible damage. If any components are damaged or missing, do not attempt to use the unit; contact the supplier immediately. If the unit is returned, it must be shipped back in its original packaging.

IP fixed lens bullet camera

Camera:

Installation manual:

CD with manuals and TruVision Device Manager:

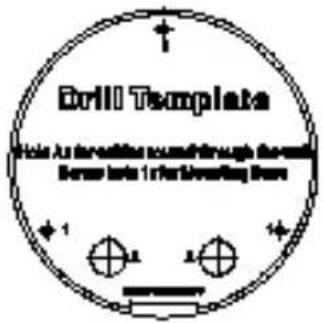

Drill template:

Screws:

Drywall anchor 7.5 × 24.5 mm (3 pcs)

Screw M4 × 25 mm (3 pcs)

Water joint: Provides water resistance to network cable connector.

12 VDC connector: Two terminal connector with positive and negative indicators.

4 Installation Guide

Equipment and Battery

Disposal sheets:

IP VF lens bullet camera

Camera:

Installation manual:

CD with manuals and TruVision Device Manager:

Drill template:

Water joint: Provides water resistance to network cable connector.

Video test cable:

Screws: M4.8 × 8 (4 pcs)

Screws:

Drywall anchor

7.5 × 24.5 mm (4 pcs)

Screw

M4 × 25 mm (4 pcs)

12 VDC connector:

Two terminal connector with positive and negative indicators.

Back box:

Torx wrench:

Equipment and Battery

Disposal sheets:

IP fixed lens dome camera

Camera:

Installation manual:

CD with manuals and TruVision Device Manager:

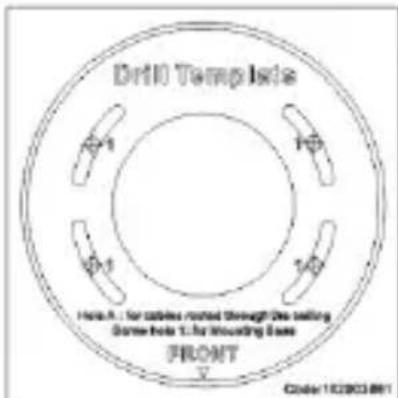

Template:

Screws:

Drywall anchor 7.5 × 24.5 mm (3 pcs)

Screw M4 × 25 mm (3 pcs)

Water joint: Provides water resistance to network cable connector.

Screws: 4 × 75 mm (3 pcs)

Equipment and Battery Disposal sheets:

12 VDC connector: Two terminal connector with positive and negative indicators.

Torx wrench:

IP VF lens dome camera

Camera:

Installation manual:

Drill template:

Water joint: Provides water resistance to network cable connector.

Equipment and Battery Disposal sheets:

CD with manuals and TruVision Device Manager:

Screws:

Drywall anchor 7.5 × 24.5 mm (4 pcs)

Screw M4 × 25 mm (4 pcs)

12 VDC connector: Two terminal connector with positive and negative indicators.

Hex wrench:

Screws: M4 × 9 (3 pcs)

Mounting adaptor plate:

IP wedge camera

Camera:

Installation manual:

CD with Configuration manual and TruVision Device Finder:

Equipment and Battery Disposal sheets:

Screws:

Drywall anchor 7.5 × 24.5 mm (3 pcs)

Screw M4 × 25 mm (3 pcs)

Water joint: Provides water resistance to network cable connector.

Camera drill template:

Screws: M4 × 8 (2 pcs)

Lens adjustment tool:

12 VDC connector: Two terminal connector with positive and negative indicators.

Adapter plate drill template:

Torx wrench:

Adapter plate:

IP turret camera

Camera:

Water joint: Provides water resistance to network cable connector.

Camera drill template:

12 VDC connector: 2-terminal connector with positive and negative indicators.

Adapter plate:

CD with Configuration manual and TruVision Device Finder:

Installation manual:

Screw PM4 × 8 (3pcs):

Screw KM4 × 8 (4 pcs, used to attach the adapter to the brackets)

Screws:

Drywall anchor 7.5 × 24.5 mm (3 pcs)

Screw M4 × 25 mm (3 pcs)

Equipment and Battery Disposal sheets:

Screw PM6-32 × 10 (4 pcs, used to attach the turret camera to a 2 Gang electrical box):

CAUTION: Use direct plug-in UL listed power supplies marked Class 2/CE certified or LPS (limited power source) of the required output rating as listed on the unit.

CAUTION: Risk of explosion if the battery is replaced by an incorrect type. Dispose of used batteries according to the instructions.

Cable requirements

For proper operation, adhere to the following cable and power requirements for the cameras. Category 5 cabling or better is recommended. All network cabling must be installed according to applicable codes and regulations.

Camera description

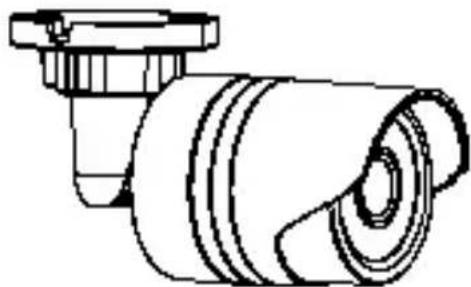

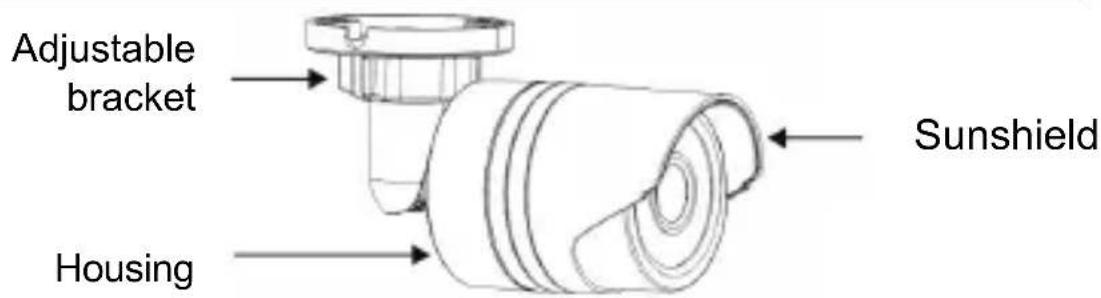

Figure 1: IP fixed lens bullet camera

Ethernet RJ45 PoE port

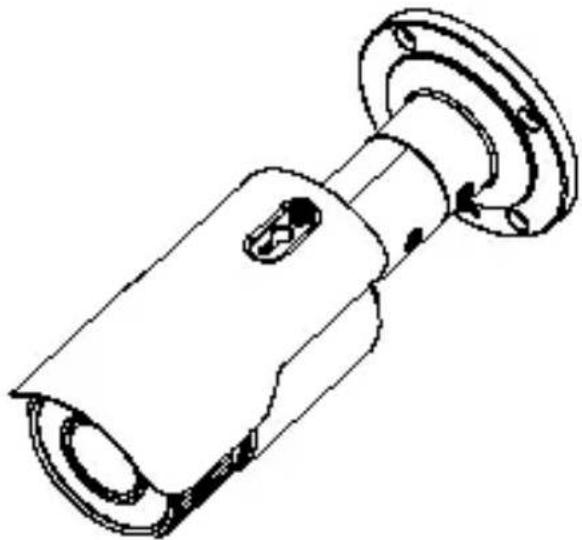

Figure 2: IP VF bullet camera

1. Sunshield
2. Front cover
3. Lens adjustment
4. IR LEDs
5. Lens
6. Waterproof film
7. Base

8. SD/SDHC/SDXC slot

9. Reset button

10. Audio I/O
11. Alarm I/O
12. 12 VDC power
13. Ethernet RJ45 PoE port
14. Aux power output (12 VDC, 50 mA)
15. Back box

Figure 3: IP wedge camera

1. Housing cover
2. Lens
3. SD/SDHC/SDXC slot
4. Ethernet RJ45 PoE port

5. 12 VDC power

6. Audio output and alarm I/O

7. Reset button
8. Microphone
9. Adapter plate

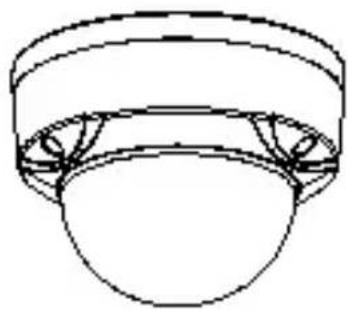

Figure 4: IP fixed lens dome camera

1. Base
2. IR LEDs
3. Lens
4. Dome liner
5. Housing cover
6. SD/SDHC/SDXC slot

7. Reset button

8. Analog video output (BNC)

9. Ethernet RJ45 PoE port
10. Alarm I/O
11. Audio I/O
12. Aux power output (12 VDC, 50 mA)
13. 12 VDC power

Figure 5: IP VF lens dome camera

1. Housing cover
2. Dome liner
3. Lens
4. Mounting plate adapter
5. Reset button

6. SD/SDHC/SDXC slot

7. Aux power output (12 VDC, 50 mA)

8. Ethernet RJ45 PoE port

9. 12 VDC power

10. Audio I/O

11. Alarm I/O

12. Analog video output (BNC)

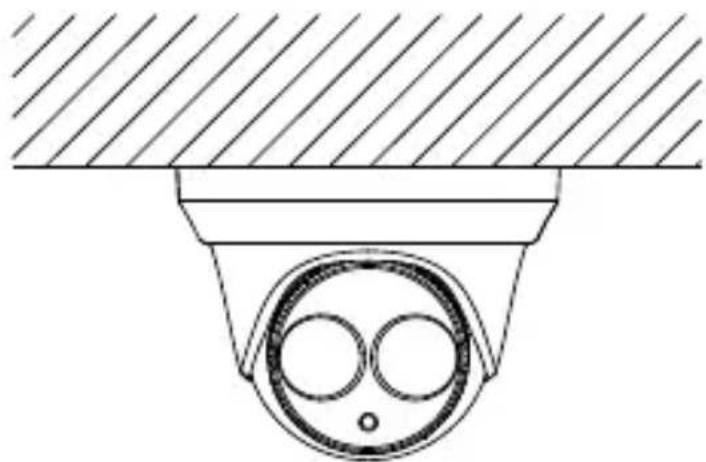

Figure 6: IP turret camera

1. Trim ring
2. Housing
3. Base

1. Lens assembly
2. 12 VDC power
3. Ethernet RJ45 PoE port

Setting up the camera

Note: If the light source where the camera is installed experiences rapid, wide variations in lighting, the camera may not operate as intended.

To quickly put the camera into operation:

1. Prepare the mounting surface.
   2 Mount the camera on the mounting surface using the appropriate hardware. See “Mounting the IP fixed lens bullet camera” on page 21.

2. Set up the camera's network and streaming parameters so that the camera can be controlled over the network. For further information, please refer to the "TruVision IP Series 3 IP Camera Configuration Manual".

3. Program the camera to suit its location. For further information, please refer to the "TruVision IP Series 3 IP Camera Configuration Manual".

Accessing the SD card

Insert a Micro SD card with up to 128GB capacity for local storage as a backup in case, for example, the network fails (see Figure 2 on page 16). The SD card is not supplied with the camera.

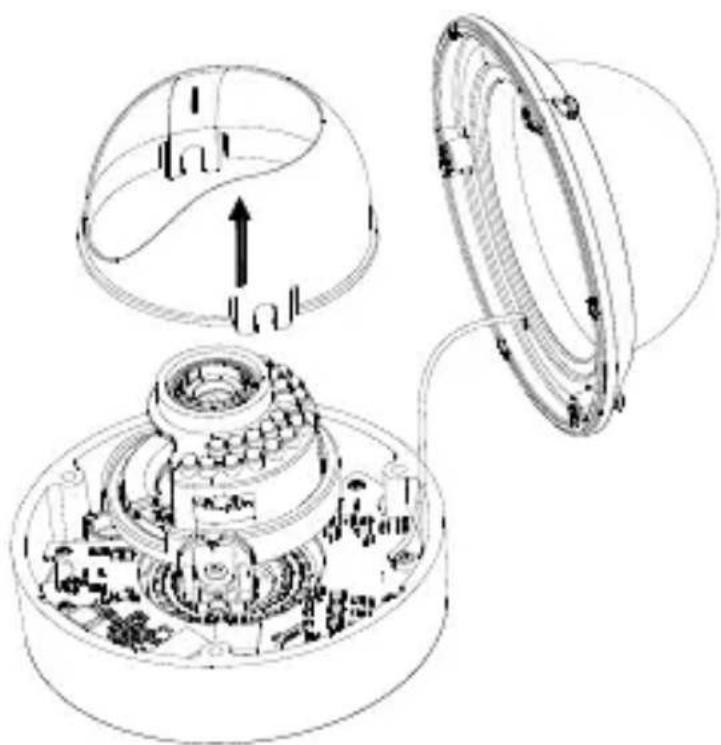

For the IP VF lens dome camera, point the lens vertically upwards to access the SD card slot.

For the IP VF bullet camera, remove the sunshield and open the front cover to access the SD card slot.

Video and log files stored on the Micro SD card can only be accessed via the web browser.

Note: There is no Micro SD card slot in the mini fixed lens bullet and turret cameras.

Mounting the IP fixed lens bullet camera

Mount the camera on a ceiling or wall.

To mount the IP fixed lens bullet camera:

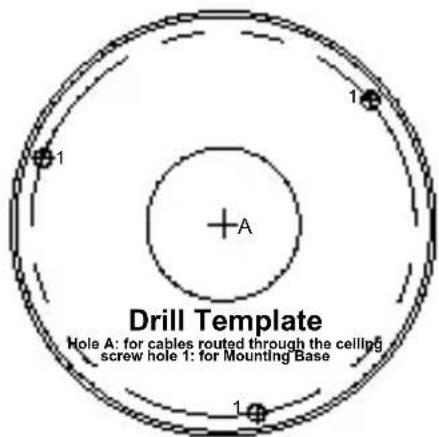

1. Use the supplied template to mark out the mounting area. Drill the screw holes in the mounting surface. If you need to route the cables from the camera base, cut out a cable access hole in the mounting surface.

1. Secure the mounting base to the ceiling or wall using the three mounting screws and drywall anchors.

1. Loosen the large nut at the base of the mounting bracket to adjust the camera's viewing angle.

Pan direction: 0 to 360° adjustable

Tilt direction: 0 to 90° adjustable

Rotate direction: 0 to 360° adjustable

1. Adjust the lens to the desired surveillance angle. Tighten the adjustable nuts to complete the installation.

22 Installation Guide

Mounting the IP VF lens bullet camera (without the supplied back box)

To mount the IP VF lens bullet camera to a surface:

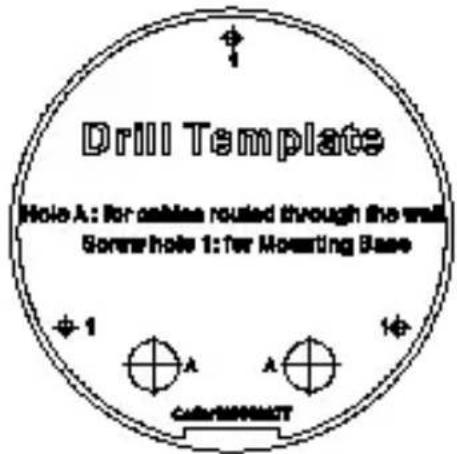

1. Attach the drill template (supplied) to the surface where the camera is to be mounted. Drill mounting holes in the surface using the holes labelled number “1” on the drill template.

1. If you would like to route the cable harness through the mounting surface, cut a cable access hole in the mounting surface, referencing the letter "A" on the drill template. Skip this step if you want to route the cables on the surface.

2. Secure the camera to the surface with the four mounting screws and drywall anchors.

To install the SD card:

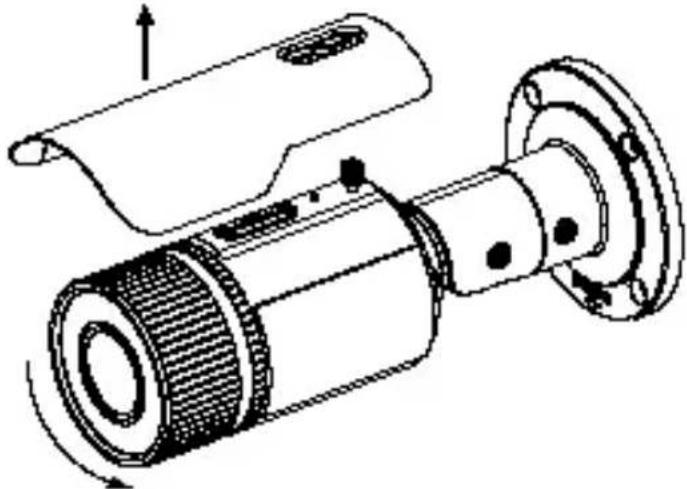

1. Rotate the screw that secures the sunshield counterclockwise to loosen it. Slide the sun shield so that the hole in the sunshield lines up with the screw head.

1. Remove the sun shield. Remove the lens cover by rotating it counterclockwise.

1. Insert the SD card in the SD card slot.

1. Reinstall the lens cover by rotating the assembly clockwise. Reinstall the sunshield.

1. Rotate the sunshield screw clockwise to tighten it.

1. To ensure that the camera maintains its IP66 rating, when rotating the lens cover clockwise align the red bar on the label of the lens cover with red bar on the label that is located on the camera housing.

To mount the IP VF lens bullet camera with a back box

1. Attach the drill template on the surface where the camera is to be mounted. Drill mounting holes in the surface using the holes labeled number "2" on the drill template.

2. If you would like to route the cable harness through the mounting surface, cut a cable access hole in the mounting surface, referencing the letter "A" on the drill template. Skip this step if you want to route the cables one of the two cable access ports in the back box.

3. Secure the back box to the wall using the mounting hardware provided.

4. Route the cables of the camera.

5. Hook the camera to the back box using the safety lanyard.

6. Secure the camera to the back box with the four M4 x 9 screws.

Mounting the IP VF lens dome camera

Note: For planning purposes, there are several cable routing options available:

1. Route the interconnect cables through the mounting surface, straight out the back of the dome.

-Or-

1. Route the interconnect cables through the side access hole of the dome camera housing. A G3/4 cable adapter is provided

-Or-

1. Use the mounting adapter plate to mount the dome on a 1 or 2 gang electrical box.

To mount the IP VF lens dome camera on a surface:

1. Loosen the three Torx screws at the edge of the dome housing using the supplied Torx wrench.

Torx screw

1. Remove the dome housing and then remove the black plastic inner liner.

1. Before mounting the dome camera, line up the drill template in the correct orientation. Depending on how you would like to route the interconnect cables, route them out of the side of the dome housing or through the mounting surface.

Drill the three screw holes on the ceiling in the mounting surface using with the supplied drill template. Use number “1” as reference.

1. If you would like to route the cable harness through the mounting surface, cut a cable access hole in the mounting surface, referencing the letter "A" on the drill template. Skip this step if you want to route the cables on the mounting surface.

2. Attach the camera to the mounting surface. Secure the camera with the supplied screws and anchors, as shown below.

1. Connect the appropriate cables.

To mount the IP VF lens dome camera on a 1 or 2 gang electrical box:

1. Follow steps 1 to 3 above (To mount the IP VF lens dome camera on a ceiling or wall).

2. Install the mounting plate adapter to a 1 or single gang electrical box, referencing number "2" on the adapter plate or to a 2 or double gang box referencing number "1" on the adapter plate.

1. Route the cables through the center of the adapter plate and connect the appropriate cables within the electrical box.

2. Install the dome to the adapter plate.

3. Connect the video output connector to the monitor. Connect the power connector to the power supply.

4. Adjust the image and focus.

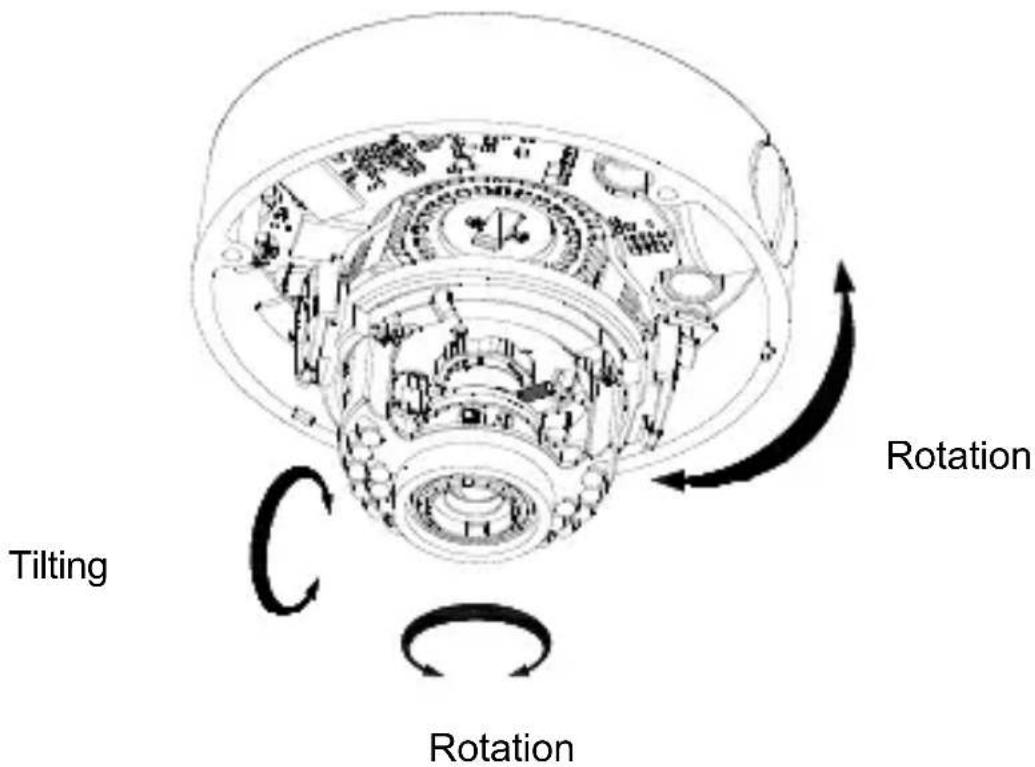

a) Three-axis adjustment.

View the camera image using the monitor. Rotate the lens assembly (see diagram) to adjust the panning position of the camera. Move the assembly up and down to adjust the tilt position of the camera. Rotate the inner lens assembly to obtain the desired surveillance angle.

b) Zoom and focus adjustment.

Loosen the zoom lever and move the lever between

T(Tele) and W(Wide) to obtain the appropriate angle of view.

c) Tighten the zoom lever.

Loosen the focus lever and move the lever between F(Far) and N(Near) to obtain the optimum focus. Tighten the focus lever.

Mounting the IP fixed lens dome camera

To mount the IP fixed lens dome camera on a surface:

1. Attach the drill template (supplied) to the surface where the camera is to be mounted. Drill mounting holes in the surface using the holes labeled number ‘1’ on the drill template.

If you would like to route the cable harness through the mounting surface, cut a cable access hole in the mounting surface, referencing the letter “A” on the drill

template. Skip this step if you want to route the cables on the surface.

1. Using the supplied Torx wrench, loosen the screws to remove the dome housing.

1. Install the dome on the mounting surface using the supplied hardware.

Note: If required, you can route cables through the side opening of the mounting base.

1. Loosen the tilt adjust screws (see image below) and adjust the tilt position of the lens assembly within a range of 75 degrees. Retighten the tilt adjust screws.

Rotate the dome liner to adjust the pan position within a range of 355 degrees. Rotate the lens assembly (0 to 355° ) to obtain the desired surveillance angle.

Tilt adjust screw

1. (Optional) If using a micro SD card (not included):

To remove the SD card, push the micro SD card forward. The micro SD card will spring out.

1. Reinstall the dome housing and tighten the Torx screws.

Mounting the IP wedge dome camera

To mount the IP wedge dome camera on a surface:

1. Attach the drill template (supplied) to the surface where the camera is to be mounted. Drill mounting holes in the surface using the holes labeled number “1” on the drill template.

If you would like to route the cable harness through the mounting surface, cut a cable access hole in the mounting surface, referencing the letter “A” on the drill template. Skip this step if you want to route the cables on the surface

1. Install the adapter plate to the mounting surface using the drill template (optional).

Note: If required, you can remove the tab (A) on the edge of the adapter plate to allow for cable access.

1. Loosen the Torx screws with a Torx wrench (supplied) to remove the dome housing.

1. Install the camera base to the adapter plate or directly to the mounting surface.

1. Loosen the locking screw, located near the lens assembly using the Torx wrench. Align the Lens Adjustment Tool with the two small holes located on the camera assembly. Rotate (pan) the camera assembly using the Lens Adjustment Tool until the lens is positioned in the correct location. The tool is also used to adjust the tilt angle.

Locking screw

Tilt Rotation

Lens adjustment tool

1. Reinstall the dome housing cover to the camera base.

Mounting the IP turret camera

To mount the IP turret camera on a surface:

1. Attach the drill template (supplied) to the surface where the camera is to be mounted. Drill mounting holes in the surface using the holes labeled number "1" on the drill template.

If you would like to route the cable harness through the mounting surface, cut a cable access hole in the mounting surface, referencing the letter “A” on the drill template. Skip this step if you want to route the cables on the surface.

If installing the turret camera to a wall mount or other accessory, an adapter plate is provided. Install the adapter plate to the accessory with three PM4X8 screws, referencing number “2”.

1. Rotate the trim ring counterclockwise to remove it from the camera.

1. There two options for routing the cables.

Route the cables directly out of the bottom of the camera or through the side access point shown below. Remove one of the tabs (using pliers) at the edge of the trim ring to provide cable access.

1. Connect the corresponding power and network cables.

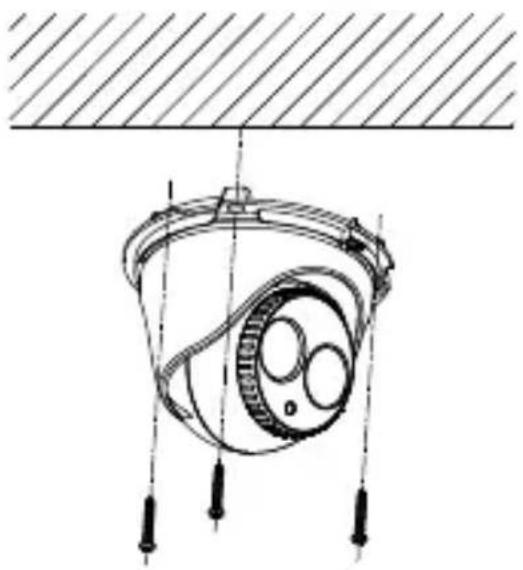

2. Install the camera to the mounting surface using the supplied hardware.

42 Installation Guide

1. Adjust the lens.

a) Loosen the locking screw using a Philips screw driver.

b) Rotate the lens assembly to adjust the pan angle. Rotate the lens assembly to adjust the tilt angle.

c) Tighten the locking screw to secure the lens at the desired surveillance angle.

1. Attach the trim ring to the camera and rotate it clockwise to secure it.

Using the camera with a recorder

Please refer to the recorder user manuals for instructions on connecting and operating the camera with these systems.

Using the camera with TruVision Navigator

A camera must be connected to an Interlogix NVR or hybrid DVR in order to be operated by TruVision Navigator. Please refer to the TruVision Navigator user manual for instructions on operating the camera with the TruVision Navigator.

Specifications

TruVision IP fixed lens bullet cameras

Electrical
Voltage input 12 VDC, PoE (IEEE 802.3af)
Power consumption Max. 5 W
Miscellaneous
Connectors DC jack flying lead, RJ45 flying lead
Operating temperature	-30 to +60°C (-22 to +140°F)
Dimensions	60 × 153 mm (2.3 × 6.0 in.)
Weight 373 g (0.82 lb.)
Environmental rating IP66

TruVision IP VF lens bullet cameras

Electrical

Voltage input 12 VDC, PoE (IEEE 802.3af)

Power consumption Max. 7.5 W

Miscellaneous

Connectors DC jack flying lead, RJ45 flying lead

Operating temperature -30 to +60°C (-22 to +140°F)

Dimensions 105 × 94.7 × 265.4 mm / 4.13 × 3.74 × 10.4 in. (without back box ) 105 × 94.7 × 301.4 mm / 4.13 × 3.74 × 11.86 in. (with back box)

Weight 800 g (1.76 lb.)

Environmental rating IP66

TruVision IP fixed lens dome

Electrical
Voltage input 12 VDC, PoE (IEEE 802.3af)
Power consumption Max. 5 W
Miscellaneous
Connectors DC jack flying lead, RJ45 flying lead
Operating temperature	-30 to +60°C (-22 to +140°F)
Dimensions (L × W × H)	111 × 82 mm (4.4 × 3.2 in.)
Weight 370 g (0.81 lb.)
Environmental rating IP66

TruVision IP VF lens dome cameras

Electrical

Voltage input 12 VDC, PoE (IEEE 802.3af)

Power consumption Max. 5.5 W

Miscellaneous

Connectors DC jack flying lead, RJ45 flying lead

Operating temperature -30 to +60°C (-22 to +140°F)

Dimensions (L × W × H) 140 × 100 mm (5.51 × 3.94 in.)

Weight 807 g (1.78 lb.)

Environmental rating IP66

TruVision IP wedge cameras

Electrical

Voltage input 12 VDC, PoE (IEEE 802.3af)

Power consumption Max. 5 W (Max. 7 W with IR on)

Miscellaneous

Connectors DC jack flying lead, RJ45 flying lead

Operating temperature -30 to +60°C (-22 to +140°F)

Dimensions (L × W × H) 98 × 89 × 329 mm(3.86 × 3.49 × 12.94 in.)

Weight 409 g (0.9 lb.)

Environmental rating IP66

TruVision IP turret cameras

Electrical

Voltage input 12 VDC, PoE (IEEE 802.3af)

Power consumption Max. 5.5 W (Max. 7.5 W with IR on)

Miscellaneous

Connectors DC jack flying lead, RJ45 flying lead

Operating temperature -30 to +60°C (-22 to +140°F)

Dimensions (L × W × H) 127 × 97.5 mm(5 × 3.84 in.)

Weight 548 g (1.21 lb.)

Environmental rating IP66

Pin definitions

There are eight wires on a standard UTP/STP cable and each wire is color-coded. The following shows the pin allocation and color of straight and crossover cable connection:

Figure 7: Straight-through cable

Figure 8: Cross-over cable

Please make sure your connected cables have the same pin assignment and color as above before deploying the cables in your network.
