MP7007 - Tablet MPMAN - Free user manual and instructions

Product Type	Tablet
Brand	MPMAN
Model	MP7007
Display Size	7 inches
Display Resolution	1024 x 600 pixels
Processor	Quad-core 1.3 GHz
RAM	1 GB
Internal Storage	16 GB
Expandable Storage	microSD up to 32 GB
Operating System	Android 8.1 (Go Edition)
Battery Capacity	3000 mAh
Charging Port	Micro USB
Wireless Connectivity	Wi-Fi 802.11 b/g/n, Bluetooth 4.0
Camera (Rear)	2 MP
Camera (Front)	0.3 MP
Audio	Built-in speaker and microphone
Sensors	G-sensor
Dimensions (W x H x D)	191 x 110 x 10.5 mm
Weight	295 g
Maintenance	Clean with a soft, dry cloth. Do not use liquids or abrasive cleaners.
Safety Precautions	Do not expose to water or extreme temperatures. Keep away from children under 3 years.
Spare Parts / Repairability	No official spare parts available. Contact seller for repairs.
Included Accessories	USB cable, Charger, User manual

Frequently Asked Questions - MP7007 MPMAN

How do I turn on the tablet?

Press and hold the power button located on the right edge for 3-5 seconds until the screen turns on.

How do I charge the tablet?

Connect the included micro USB cable to the charging port and plug the adapter into a wall outlet. The battery icon will show charging status.

How do I connect to Wi-Fi?

Go to Settings > Wi-Fi, toggle it on, select your network, enter the password, and tap Connect.

The touchscreen is not responding. What should I do?

First, reboot the device by pressing and holding the power button until it restarts. If the issue persists, try a factory reset from Settings > Backup & reset > Factory data reset (note: this erases all data).

How can I expand the storage?

Insert a microSD card into the slot (usually under a flap on the side). Go to Settings > Storage to format or use it as portable storage.

How do I take a screenshot?

Press and hold the Power and Volume Down buttons simultaneously for a few seconds until you hear a shutter sound.

The tablet is running slowly. How can I speed it up?

Close unused apps, clear cache from Settings > Storage, and consider uninstalling unnecessary apps. A factory reset can also help.

How do I perform a factory reset?

Go to Settings > Backup & reset > Factory data reset, then tap Reset tablet. Confirm by erasing everything. The device will restart.

Can I use a Bluetooth keyboard with this tablet?

Yes, go to Settings > Bluetooth, pair your keyboard by selecting it from the list of available devices.

Why is the battery draining fast?

Reduce screen brightness, turn off Wi-Fi and Bluetooth when not in use, and close background apps. A faulty battery may need replacement.

USER MANUAL MP7007 MPMAN

User Manual
EN

For Model No. MP7007

This manual contains important safety precautions and information of correct use. Please be sure to read this manual carefully before use so as to avoid any accidents

Do not place the product in hot, wet or dusty environment, especially in summer, do not leave the product inside a car with all windows closed.
Avoid dropping, impacting or shaking the product violently, otherwise it may cause damages or malfunctions.
Select a proper volume to avoid ear problem when using earphones.
Do not cross the road or drive vehicles, using headphones to avoid traffic accidents.
Be sure to use the provided chargers and accessories in the package.
Be sure to charge the product when the following situations take place,
- The battery icon shows lower or empty.
- System automatically shut down and it turns off soon after restart.
- Operation keys do not respond properly.
- The device shows 📋 on the top right corner.

specification

Hardware
Software

Google browser

Wi-Fi connection

e-Book function (all e-book formats supported by application)

1080p HD file playback

VoIP phone function with Wi-Fi connection

Possible to view/edit MS office files by application

Video: AVI, RM/ RMVB, FLV, MPG4 – 1, MPEG – 2 etc.

Audio: MP3, WMA, AAC, WAV etc.

Photo: JPEG, BMP, GIF, PNG, TIFF

7.0" High Definition TFT LCD Touch Screen (800x480 pixel)

Capacitive multi-touch (5 touch) point function

Wi-Fi (IEEE802.11 b/g/n) for internet connection

USB host for OTG function

G-sensor

Micro SD card slot recognizing up to 32GB

Built-in speaker & Built-in MIC

5V DC power adapter

Compatible with keyboard, mouse

Name

Important Notice
- If the device is freezing or stuck, press the reset button(a small hole) or long press power button for 10 seconds. - When the performance is slow after using some applications, it is recommended to close running application in setting menu.

Caution

- For charging, be sure to use the power adapter(DC5V) that is provided in the package, otherwise, the device may be damaged and does not work. - The device is equipped with high performance processor. It may heat in case of using long or while charging.

1. Power On/Off

Long press power button to turn on/off the device. It may take a minute to boot the device. Short press power button to turn on/off the screen.(Standby mode. Refer to 3. below)

After turning on the device, desktop displays with shortcut icons and arrow panel at the right side

Unlock the screen

Short press the power button to turn on/off the screen (standby mode on/off). After standby mode off, slide the lock icon in order to unlock the screen.

On the desktop, press menu button and select system settings.

Press System Settings

1.Wireless & networks

1. Sound

Wi-Fi – Press Wi-Fi to turn on/off

Wi-Fi settings - Press Wi-Fi settings, then the device will automatically search the available Wi-Fi signals. Select the network you want to connect with.

Set up each setting as you like.

1. Storage


Check device memory and microSD card status. Unmount SD card – Unmount the SD card for safe removal.

1. Display


Set up each setting as you like.

6. Apps

Manage downloaded or running applications.

Downloaded
All installed application are listing.

5. Battery

Check battery usage status.

Running services
Press Uninstall to uninstall the selected application. View and control currently running services.

Keep pressing an application to manage.

7. Account & sync

Create your account. After connecting Wi-Fi network, the e-mailing system synchronizes your account with the device. Emails are automatically downloaded into the device.

8. Location services

Google's location service - Let apps use data from sources such as WiFi and mobile networks to determine your approximate location

9. Security

Screen lock – Protect your device from unauthorized use by creating a personal screen unlock pattern. Make passwords visible – Show password as you type.

Unknown sources - If you want to allow installation of non-Market Applications,

Press Unknown sources and presses OK.

Install from SD card – Install encrypted certificates from SD card.

10. Language & input

Language – Choose your preferable language. Keyboard & input method – Change keyboard & keyboard settings. On Language & input settings, if you need other languages besides English on keyboard, press the relevant keyboard and enter the chosen Keyboard settings, select Keyboards, press the language you need.

11. Date & time

Set date & time and format

12. Developer options

Set options for application development

13. About tablet

See status, legal information, ETC

How to connect/disconnect the device with/from the computer

On main desktop, connect the device with the PC,

touch right side of the status bar on the bottom of desktop

Press "USB connected", select "Turn on USB storage". The device is recognized at Explorer of the computer. Now you can use it as an external storage.

After finishing your work, Press "Turn off USB storage" to unmount it.

How to install Applications(.apk file) into the device

Method 1.

1. Connect the device with internet. See above [1.Wireless & networks] in order to connect internet.
2. Run “ Opera” and search the applications you want to install.
3. Follow the instruction on the screen for installation.

Method 2.

1. With your computer, search application file(.apk) that you want to install into the device.
2. Download the file(.apk) into your computer.
3. Connect the device with your computer.

See above [How to connect/disconnect the device with/from the computer.] 4. Copy and paste .apk file into the device and disconnect it from your computer. 5. Run "File browser" and find .apk file that was copied into the device. 6. Press the file to install and follow the instruction on the screen.

Note

You may only download adult applications if you are at least 18 years of age, or at least the age of majority in the jurisdiction where you reside or from which you download adult applications. If you do not meet these requirements, then you do not have permission to download adult applications. In case of any problems including legal issues from the breach by end-user's own decision, the manufacturer shall not be responsible.

HDMI connection with TV

Turn on the device and TV

Connect the device with TV using HDMI cable.

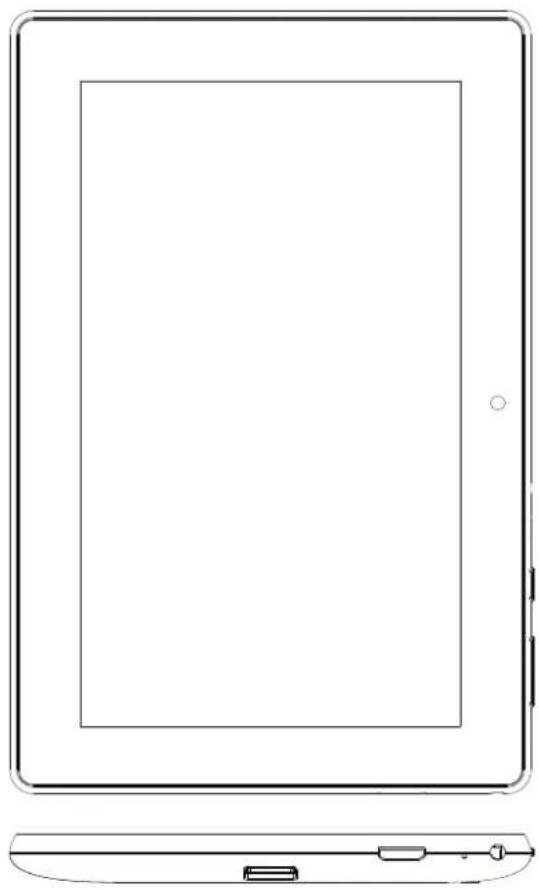

Line drawing of a tablet device with front panel and side panel (no text or symbols)

Diagram showing a computer monitor connected to two USB cable connectors (no text or symbols present)

How to make desktop icons

Press the upper right side icon of desktop, the pop-up displays.

Shortcuts

Long press your desired APK icon and put it on the desktop.

Wallpaper Long press the desktop, press Wallpapers and select one of categories of wallpaper. Select one you desire and press Set wallpaper.

Change Input Method

If your device was installed with other more input method, long press setting icon of keyboard, and the pop-up displays.

Select the installed keyboard, then the keyboard will appear with your desired language you installed.

Specification

OS
CPU
SDRAM
Display		7" TFT 800*480 Capacitive touch panel
Multi-touch screen		Yes: 5 point multi-touch
Built-in flash memory		2 / 4 / 8 / 16GB
IO PORTS	Audio port	3.5ø earphones
	USB port	1 x 5pin micro USB port (support USB host and OTG)
	DC port	5V, 2A
	Micro SD	Micro SD card
	OTG port	Same with USB port
	Button	Power, VOL-, VOL+, reset,
Speaker		1.5W, Frequency response: 20Hz – 20k Hz, N/S: >85%
G-sensor		Yes
Camera		0.3M pixel (front)
Wi-Fi		802.11b/g/n
Power		Adaptor 5V -2A
Battery		3.7V Li-Polymer
Dimension
Charging time	by charger	approx. 3~4hours

For more information please check our website

www.mpmaneurope.com
