MP1010 - Tablet MPMAN - Free user manual and instructions

Product Type	Tablet
Brand	MPMAN
Model	MP1010
Dimensions	9.6 x 6.7 x 0.4 in (244 x 170 x 10 mm)
Weight	1.1 lb (500 g)
Display Size	10.1 inches
Display Resolution	1280 x 800 pixels
Operating System	Android 10
Processor	Quad-core 1.3 GHz
RAM	1 GB
Internal Storage	16 GB
Battery Capacity	4000 mAh
Charging Port	Micro USB
Front Camera	0.3 MP
Rear Camera	2 MP
Wi-Fi	802.11 b/g/n
Bluetooth	4.0
Headphone Jack	3.5 mm
MicroSD Slot	Up to 32 GB
Sensors	G-sensor
Speaker	Mono speaker
Accessories Included	USB Cable, Charger, User Manual

Frequently Asked Questions - MP1010 MPMAN

How do I charge the tablet?

Connect the included USB cable to the tablet's micro USB port and plug the charger into a wall outlet. The battery icon will indicate charging. Use only the provided charger to avoid damage.

How to perform a factory reset?

Go to Settings > Backup & Reset > Factory Data Reset. Confirm by tapping 'Reset Tablet'. This will erase all data, so back up important files first.

How to connect to Wi-Fi?

Open Settings, select Wi-Fi, toggle it on, and choose your network from the list. Enter the password if required and tap 'Connect'.

How to take a screenshot?

Press and hold the Power button and Volume Down button simultaneously for 2 seconds. The screen will flash, and the screenshot is saved in the Gallery.

How to update the operating system?

Connect to Wi-Fi, go to Settings > About Tablet > System Updates. Tap 'Check for Updates' and follow on-screen instructions if an update is available.

Can I expand the storage?

Yes, insert a microSD card (up to 32 GB) into the slot located on the side of the tablet. It will be detected automatically for storing photos, videos, and apps.

How to clean the tablet?

Turn off the tablet and unplug it. Use a soft, lint-free cloth slightly dampened with water. Do not use abrasive cleaners or sprays directly on the screen.

What should I do if the tablet won't turn on?

Ensure the battery is charged by connecting the charger for at least 30 minutes. Then press and hold the Power button for 10 seconds. If still no response, try a factory reset via recovery mode (hold Power + Volume Up).

How to use Bluetooth?

Enable Bluetooth in Settings > Bluetooth. Pair with a device by selecting it from the list and confirming the passkey. Ensure the other device is discoverable.

Is there a warranty?

Yes, the tablet comes with a standard manufacturer warranty. For details, refer to the warranty card included in the box or contact MPMAN support.

USER MANUAL MP1010 MPMAN

User Manual
EN

For Model No.

This manual contains important safety precautions and information of correct use. Please be sure to read this manual carefully before use so as to avoid any accidents

Do not place the product in hot, wet or dusty environment, especially in summer, do not leave the product inside a car with all windows closed.
Avoid dropping, impacting or shaking the product violently, otherwise it may cause damages or malfunctions.
Select a proper volume to avoid ear problem when using earphones.
Do not cross the road or drive vehicles, using headphones to avoid traffic accidents.
Be sure to use the provided chargers and accessories in the package.
Be sure to charge the product when the following situations take place,
- The battery icon shows lower or empty.
- System automatically shut down and it turns off soon after restart.
- Operation keys do not respond properly.
- The device shows 📋 on the top right corner.

Specification

Hardware
Software

eAndriod 4.0 ICS

Google browser

Wi-Fi connection

e-Book function (all e-book formats supported by application)

1080p HD file playback

VoIP phone function with Wi-Fi connection

Possible to view/edit MS office files by application

Video: AVI, RM/ RMVB, FLV, MPG4 – 1, MPEG – 2 etc.

Audio: MP3, WMA, AAC, WAV etc

Photo: JPEG, BMP, GIF, PNG, TIFF

10.1” High Definition TFT LCD Touch Screen(1024x600 pi)

Capacitive multi-touch (5 touch) point function

CPU : ARM cortex A8 processor

RAM : DDR3 1GB (3D accelerator possible for 3D games)

Wi-Fi (IEEE802.11 b/g/n) for internet connection

HDMI port for TV-out (1080p output support)

USB host for OTG function

G-sensor

Micro SD card slot recognizing up to 32GB

Built-in speaker & Built-in MIC

5V DC power adapter

Compatible with keyboard, mouse

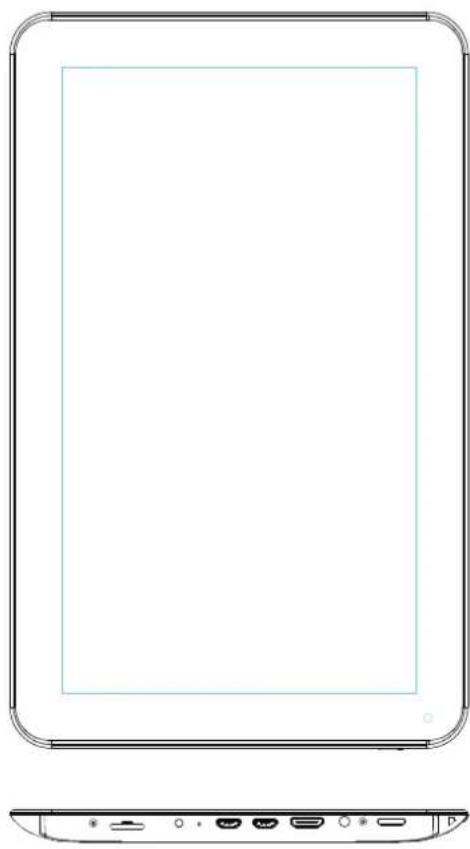

Name

• If the device is freezing or stuck, press the reset button (a small hole) located at left side of microSD card slot. Another way to turn off the device by force is to hold pressing power button for more than 7 seconds.
• When the performance is slow after using
  some applications, it is recommended to close running application in setting menu.
• Use "File Manager" at main menu to search files.

Important Notice

Charging

- Be sure to use the power adapter (DC5V, 2A) that is provided in the package, otherwise, the device may be damaged and does not work.

- See the battery icon ( ) on the status bar to check charging.

- It takes approx.. 5-6 hours to be fully charged from empty battery. Do not charge more than 10 hours to protect the device.

Note

The device is equipped with high performance processor. It may be warm in case of using long or while charging, but not the problem.

1. Power On/Off

Long press power button to turn on/off the device. It may take a minute to boot the device. Short press power button to turn on/off the screen.(Standby mode. Refer to 3. below)

After turning on the device, desktop displays with shortcut icons and arrow panel at the right side

Unlock the screen

Short press the power button to turn on/off the screen (standby mode on/off). After standby mode off, slide the lock icon in order to unlock the screen.

On the desktop, press menu button and select system settings.

Press system settings

1. Wireless & networks

1. Sound


Wi-Fi – Press Wi-Fi to turn on/off
Wi-Fi settings - Press Wi-Fi settings, then the device will automatically search the available Wi-Fi signals. Select the network you want to connect with.
Set up each setting as you like.

4. Storage

3. Display

Set up each setting as you like.

Check device memory and microSD card status. Unmount SD card – Unmount the SD card for safe removal.

Opmerking

To search the files, run "File Manger" at main menu. On the top screen, press to see files inside device.

Press 📄 to see files of microSD card. Press 🌐 to see files of external storage.

6. Apps

Manage downloaded or running applications.

Downloaded
All installed application are listing.

5. Battery

Check battery usage status.

Running services
Press Uninstall to uninstall the selected application. View and control currently running services.

7. Account & sync

Create your account. After connecting Wi-Fi network, the e-mailing system synchronizes your account with the device. Emails are automatically downloaded into the device.

8. Location services

Google's location service - Let apps use data from sources such as WiFi and mobile networks to determine your approximate location

9. Security

Screen lock – Protect your device from unauthorized use by creating a personal screen unlock pattern. Make passwords visible – Show password as you type.

Unknown sources - If you want to allow installation of non-Market Applications,

Press Unknown sources and presses OK.

Install from SD card – Install encrypted certificates from SD card.

10. Language & input

Language – Choose your preferable language. Keyboard & input method – Change keyboard & keyboard settings. On Language & input settings, if you need other languages besides English on keyboard, press the relevant keyboard and enter the chosen Keyboard settings, select Keyboards, press the language you need.

11. Date & time

Set date & time and format

12. Developer options

Set options for application development

13. About tablet

See status, legal information, ETC

How to connect/disconnect the device with/from the computer

On main desktop, connect the device with the PC,

touch right side of the status bar on the bottom of desktop

Press "USB connected", select "Turn on USB storage". The device is recognized at Explorer of the computer. Now you can use it as an external storage.

After finishing your work, Press "Turn off USB storage" to unmount it.

How to install Applications(.apk file) into the device

Method 1.

1. Connect the device with internet. See above [1.Wireless & networks] in order to connect internet.
2. Run “ Opera” and search the applications you want to install.
3. Follow the instruction on the screen for installation.

Method 2.

1. With your computer, search application file(.apk) that you want to install into the device.
2. Download the file(.apk) into your computer.
3. Connect the device with your computer.

See above [How to connect/disconnect the device with/from the computer.] 4. Copy and paste .apk file into the device and disconnect it from your computer. 5. Run "File manager" and find .apk file that was copied into the device. 6. Press the file to install and follow the instruction on the screen.

Note

You may only download adult applications if you are at least 18 years of age, or at least the age of majority in the jurisdiction where you reside or from which you download adult applications. If you do not meet these requirements, then you do not have permission to download adult applications. In case of any problems including legal issues from the breach by end-user's own decision, the manufacturer shall not be responsible.

HDMI connection with TV

Turn on the device and TV

Connect the device with TV using HDMI cable.

Note
The device does not display during TV connection.

How to make desktop icons

Press the upper right side icon of desktop, the pop-up displays.

Shortcuts

Long press your desired APK icon and put it on the desktop.

Wallpaper Long press the desktop, press Wallpapers and select one of categories of wallpaper. Select one you desire and press Set wallpaper.

Change Input Method

If your device was installed with other more input method, long press setting icon of keyboard, and the pop-up displays.

Select the installed keyboard, then the keyboard will appear with your desired language you installed.

Specification

OS		Android 4.0 ICS
CPU		ARM cortex A8 processor
SDRAM		DDR3 1GB (3D accelerator possible for 4D games)
Display		10.1" TFT 1024*600 Capacitive touch panel
Multi-touch screen		Yes: 5 point multi-touch
Built-in flash memory		2 / 4 / 8 / 16GB
IO PORTS	Audio port	3.5ø earphones
	USB port
	DC port	5V, 2A
	HDMI port	Yes
	Micro SD	Micro SD card
	OTG port
	Button
Speaker
G-sensor		Yes
Camera		0.3M pixel (front)
Wi-Fi		802.11b/g/n
Power		Adaptor 5V -2A
Battery		3.7V Li-Polymer
Dimension
Charging time	by charger	approx. 5~6hours

For more information please check our website

www.mpmaneurope.com
