Product Type	Commercial Hand Blender
Model	WSB40
Brand	Waring Commercial
Power Source	120V AC, 60Hz
Motor Power	800 Watts
Variable Speed	Yes, 7 speeds
Immersion Shaft Length	12 inches (30 cm)
Overall Length	22 inches (56 cm)
Weight	5.5 lbs (2.5 kg)
Shaft Material	Stainless steel
Blade Material	Hardened stainless steel
Housing Material	High-impact plastic
Functions	Blending, pureeing, emulsifying, liquifying
Safety Features	Interlock switch, thermal overload protection, non-slip hand grip
Cleaning	Removable shaft and blade are dishwasher safe; motor unit wipe clean
Warranty	2 years limited warranty
Certifications	NSF, cULus
Included Accessories	Blender shaft, mixing guard, user manual

Frequently Asked Questions - WSB40 Waring Commercial

Can I use the WSB40 hand blender for hot liquids?

Yes, the stainless steel shaft is heat-resistant and can be used in hot liquids up to 200°F (93°C). Avoid submerging the motor head.

How do I clean the hand blender?

The shaft and blade assembly are dishwasher safe. For the motor unit, wipe with a damp cloth. Never immerse the motor in water.

What is the maximum capacity of the blender?

It is designed for commercial use in containers up to 30 quarts. For optimal performance, do not exceed the rated capacity.

Is the hand blender suitable for crushing ice?

No, this model is not intended for crushing ice. It is designed for blending, pureeing, and emulsifying soft and semi-solid foods.

How do I change the speed?

Use the variable speed dial on the motor housing. Turn it to the desired speed setting (1-7) before or during operation.

Can I use the blender continuously for extended periods?

For commercial use, it is recommended to run the blender for a maximum of 1 minute at high speed, then allow a 2-minute cool-down period to prevent overheating.

What should I do if the blender stops working?

Check the power cord and circuit breaker. If the motor overheats, the thermal protection may activate. Allow it to cool for 15 minutes before restarting. If it persists, contact Waring customer service.

Is the shaft removable for storage?

Yes, the shaft detaches from the motor unit for easy storage. Press the release button and pull the shaft straight out.

Can I use the blender in a vacuum chamber?

No, the blender is not designed for vacuum use. Operating it in a vacuum may cause damage or safety hazards.

Where can I find replacement parts?

Replacement shafts, blades, and mixing guards are available through Waring Commercial distributors or online parts suppliers. Use only genuine Waring parts.

USER MANUAL WSB40 Waring Commercial

Line drawing of a Waring power tool with a black body and white base, no text or symbols present.

QUIK STIK PLUS® IMMERSION BLENDER

WSB40

IMPORTANT SAFEGUARDS

When using an electrical appliance, basic safety precautions should always be followed, including the following:

READ ALL INSTRUCTIONS.

1. To protect against risk of electrical shock, do not put motor base, cord or plug in water or other liquid. The Blade Guard and Shaft of this appliance have been designed for submersion into water or other liquids. Never submerge any other portion of this unit in any liquid.

2. This appliance should not be used by children. Care should be taken when used near children.

3. Unplug from outlet when not in use and before cleaning.

4. Keep hands, hair, clothing, and utensils away from blade and mixing container while operating the Waring® Quik Stik Plus® Immersion Blender to prevent the possibility of severe injury to persons and/or damage to the Immersion Blender. A spatula may be used but must be used only when the unit is not operating. Avoid contacting moving parts.

5. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner. Return the appliance to the nearest Waring authorized service facility for examination, repair, electrical or mechanical adjustment.

6. The use of accessory attachments not recommended or sold by Waring for this specific model may result in fire, electric shock or personal injury.

7. Do not use outdoors.

8. Do not let any cord hang over the edge of the table or counter. Do not let cord contact hot surfaces, including stovetop.

9. Do not place on or near a hot gas or electric burner, or in a heated oven.

10. Blade is SHARP. Handle carefully.

11. When mixing liquids, especially hot liquids, use a tall container or make only small quantities at a time to reduce spillage and possibility of injury.

SAVE THESE INSTRUCTIONS

GROUNDING INSTRUCTIONS

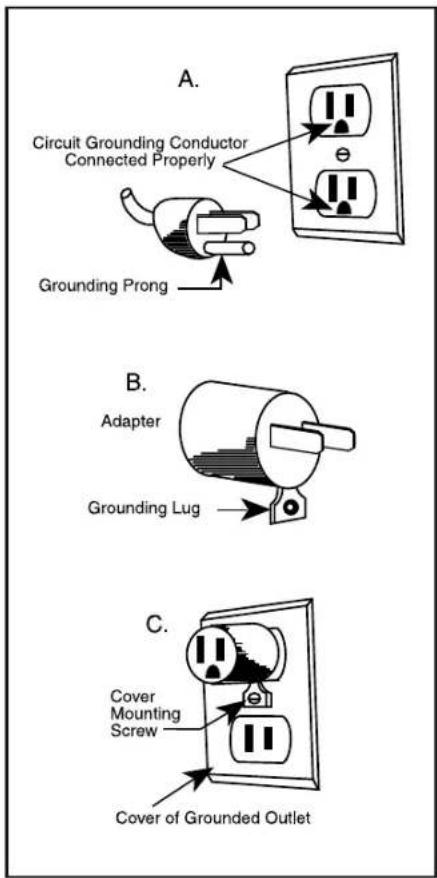

For your protection, the Waring® Quik Stik Plus® Immersion Blender is supplied with a molded 3-prong grounding-type plug, and should be used in combination with a properly connected grounding-type outlet, as shown below.

BEFORE YOU BEGIN

NOTE: Always unplug the Warlng ^® Quik Stik Plus ^® Immersion Blender before cleaning the metal blade.

Before using the Quik Stik Plus ^™ , Waring suggests that you wipe the unit with a clean, damp cloth to remove any dirt or dust. Place the metal blade end of the hand blender under running water to rinse it. Dry thoroughly with a soft absorbent cloth. Read all instructions completely for detailed operating procedures.

INTENDED USE

The Waring ^® Quik Stik Plus ^® Immersion Blender is intended for use in restaurants, large kitchens and small companies when mixing and liquefying. You can operate directly in the pot to mix everything from soups, stews, creams and salad dressings to pancake mixes, pastes, sauces, mayonnaise and much, much more. For nurseries or for special diets use the Quik Stik Plus ^® to prepare purées of vegetables, porridge, fruit creams, etc.

OPERATION:

1. Plug unit into outlet.
2. Plunge the Immersion Blender into the pot. DO NOT SUBMERGE MORE THAN 3/4 OF THE SHAFT LENGTH.
3. The Immersion Blender has 2 switches. The safety switch is located on the top of the handle and the power trigger switch is located on the inner handle. To start unit, press the safety switch and the power trigger switch simultaneously. The safety switch will need to be pressed only once to start the unit. You do not need to hold down the safety switch for the unit to continue running; the unit will remain on as long as the power trigger switch is depressed.
4. Select the desired speed, Hi or Low, by using the switch on the top handle.
5. Angle the Immersion Blender slightly and start to stir only when the blade is immersed. Keep the blade off the bottom of the pot so that ingredients will not be sucked up by the vortex action.
6. Remove the Immersion Blender from the pot only after blender has come to a complete stop.

NOTE: Always unplug Immersion Blender after each use. Keep the appliance out of reach of children.

• To prevent splattering, be careful never to remove the Immersion Blender from liquid while in operation.
• When a recipe calls for ice, use crushed ice (not whole cubes) for best results.

NOTE: If a piece of food becomes lodged in the Protective Guard surrounding the metal blade, follow the safety instructions noted below:

1. Release the power button and unplug the unit from the electrical outlet.
2. Once the power source has been disconnected, use a spatula to carefully remove the food lodged in the blade guard. Avoid injury. The blade is sharp.

DO NOT USE YOUR FINGERS TO REMOVE LODGED OBJECTS.

1. After the lodged food has been removed, plug the unit back into its power supply and continue processing.

CLEANING INSTRUCTIONS

THE QUIK STIK PLUS® IMMERSION BLENDER MUST BE CLEANED AND DRIED ACCORDING TO THE FOLLOWING INSTRUCTIONS AFTER EACH USE.

For Food Service Applications

• Wash, rinse, and sanitize the stainless steel portion of the Quik Stik Plus ^® prior to initial use, after each use, or whenever it will not be used again within a period of 1 hour.
• Clean and sanitize the plastic motor housing prior to initial use and after each use.
• Washing solutions based on non-sudsing detergents, and chlorine-based sanitizing solutions having a minimum chloride concentration of 100 PPM are recommended.

The following washing, rinsing, and sanitizing solutions, or their equivalents, may be used.

DILUTION

SOLUTION PRODUCT IN WATER TEMPERATURE

Washing Diversey Wyandotte 4 Tbls./Gallon Hot 115°F (46°C) Diversol BX/A

Or CX/A

Rinsing

Plain Water

Warm 95°F (35°C)

Sanitizing

*Clorox ¹⁰

1 Tbl./Gallon

Cold 50-70°F (10°-21°C)

Institutional Bleach

• In repetitive use applications, frequent cleaning will prolong life.

To wash and sanitize the Quik Stik Plus®:

1. Rinse the exterior and interior stainless steel portion of the Quik Stik Plus® under running water. Scrub and flush the exterior and interior stainless steel portion to dislodge and remove as much food residue as possible.
2. Wipe down the exterior of the plastic housing and the stainless steel portion of the Quik Stik Plus ^® with a soft cloth or sponge dampened with the washing solution.
3. Immerse approximately 3/4 of the length of the stainless steel portion in a container of the washing solution and run for two (2) minutes on I high.
4. Repeat steps two (2) and three (3) using clean rinse water in place of the washing solution.

*Clorox® is a registered trademark owned by the Clorox Company.

NOTE - IMPORTANT

IN ORDER TO MINIMIZE THE POSSIBILITY OF SCALDING, TEMPERATURE OF THE WASHING SOLUTION AND RINSE WATER MUST NOT EXCEED 115°F (46°C).

1. Wipe down the exterior of the plastic housing and the stainless steel portion of the Quik Stik Plus ^® with a soft cloth or sponge dampened with the sanitizing solution.

2. Immerse approximately 3/4 of the length of the stainless steel portion in a container of the sanitizing solution and run for two (2) minutes on I high.

3. DO NOT RINSE AFTER SANITIZING IS COMPLETE.

Allow to air dry before use.

NOTE

DO NOT IMMERSE PLASTIC MOTOR HOUSING IN WASHING SOLUTION, RINSE WATER, OR SANITIZING SOLUTION. PREVENT LIQUID FROM RUNNING INTO PLASTIC HOUSING BY WRINGING ALL EXCESS MOISTURE FROM CLOTHS OR SPONGES BEFORE USING THEM.

WARRANTY LIMITED ONE YEAR WARRANTY

Waring warrants every new WARING COMMERCIAL PRODUCT to be free from defects in material and workmanship for a period of 1 year from the date of purchase when used with foodstuffs, nonabrasive liquids (other than detergents) and nonabrasive semi-liquids, proving it has not been subjected to loads in excess of the indicated rating.

Under this warranty, Waring Commercial will repair or replace any part which, upon examination, appears to us to be defective in materials or workmanship, provided the unit is delivered prepaid to the Waring Service Center at 314 Ella T. Grasso Avenue, Torrington, CT 06790, or any Authorized Service Center.

This warranty does not: a) apply to any unit which has become worn, defective, damaged or broken due to use, repairs, or servicing by other than the Waring Service Center or an Authorized Service Center or due to abuse, misuse, overloading or tampering; b) cover consequential damages of any kind.

This warranty gives you specific legal rights, and you may have other rights which vary from state to state so that certain limitations or exclusions set forth above may not apply to you.

WARNING - This warranty is VOID if the appliance is used on Direct Current (D.C.)

SERVICE

Refer to the list of Authorized Service Centers enclosed with your Waring Commercial Product for the name of the nearest Service Center, or contact Waring in one of the following 3 ways:

WARING Service Center 314 Ella T. Grasso Ave. Torrington, CT 06790 USA

2) Phone Product Service:
(800) 4WARING or [phone]
3) Internet: http://www.waringproducts.com
E-mail: [e-mail]

Ship units for repair to the above address or to an Authorized Service Center. Do not ship to a Waring Sales Office.

©2009 Conair Corporation

Waring Commercial

314 Ella T. Grasso Ave.

Torrington, CT 06790

09WC13701

IB-5921
