Product Type	Car Stereo Receiver
Brand	Panasonic
Model	CQ-DFX201N
Dimensions (approx.)	178 x 50 x 160 mm (1-DIN)
Weight (approx.)	1.2 kg
Power Supply	12 V DC (negative ground)
Maximum Power Output	4 x 50 W (max)
RMS Power Output	4 x 22 W
Audio Formats Supported	CD, CD-R/RW, MP3, WMA
Radio Bands	FM, AM
Preset Stations	30 (FM) + 6 (AM)
Equalizer	3-Band EQ (Bass, Mid, Treble)
Display Type	LCD with White/Amber Backlight
Front Panel	Detachable (anti-theft)
AUX Input	Yes (3.5 mm front)
Additional Inputs/Outputs	Pre-out rear (RCA), antenna input
Bluetooth	No
CD Changer Control	Yes (Panasonic bus)
Remote Control	Included (wired remote)
Clock Function	Yes (24-hour display)
Cleaning Instructions	Wipe with dry soft cloth; use CD lens cleaner
Safety	Built-in fuse; detachable panel for theft prevention
Spare Parts Availability	Through Panasonic service centers or online retailers
General Information	1-DIN chassis; designed for most vehicles

Frequently Asked Questions - CQ-DFX201N PANASONIC

How do I remove the front panel for security?

Press the release button on the left side of the faceplate and pull the panel away from the unit. Store it in the provided case.

Can I play MP3 CDs on this unit?

Yes, the CQ-DFX201N supports MP3 and WMA files burned on CD-R/RW discs.

What is the maximum power output?

The maximum power output is 50 watts per channel (4 channels total), with RMS output of 22 watts per channel.

Does this stereo have Bluetooth?

No, the CQ-DFX201N does not include Bluetooth connectivity. It has a front AUX input for external devices.

How do I reset the unit?

Press the reset button located behind the detachable faceplate using a pointed object (like a pen tip).

What size is the stereo?

It is a standard 1-DIN size: about 178 mm wide, 50 mm high, and 160 mm deep.

Can I connect a CD changer?

Yes, the unit supports a Panasonic CD changer via the dedicated control bus. Use the included remote cable.

How do I clean the CD player lens?

Use a commercial CD lens cleaning disc. Do not use liquid cleaners or insert objects into the slot.

What should I do if the display is dim?

Check the dimmer setting in the audio menu. Also ensure the vehicle's illumination wire is connected correctly.

Is the front panel interchangeable?

No, each unit has a unique key code; only the original panel will operate the stereo. Replacement panels must be purchased from Panasonic.

USER MANUAL CQ-DFX201N PANASONIC

CD Player/Receiver with Changer Control

CQ-DFX201N Operating Instructions

COMPACT disc DIGITAL AUDIO

• Please read these instructions carefully before using this product and save this manual for future use.
• Please read this instruction manual carefully before using this product and keep it in a safe place for future reference.
• Please read these instructions carefully before using the product and keep this manual for future use.
• Please read these instructions carefully before using this product and keep this manual for future reference.
• Read this instruction manual carefully before using the product. Keep the manual for future reference.
• Please read these instructions carefully before using this product and keep this manual for future reference.
• Read these instructions carefully before using the product and keep this manual for future reference.

Label Indications and Their Locations

CAUTION!

INVISIBLE LASER RADIATION!

CLASS 1 LASER PRODUCT

• Caution Mark
• Warning symbol
• Warning symbol • Waarschuwingsteken
• Warning symbol
• Warning symbol
• Warning symbol

DANGER! Invisible laser radiation when open. Avoid direct exposure to beam.

• Deck Assembly (Upper Side) • Device view (top side)
• Deck assembly (upper side)
• Deck assembly (top side)
• Deck assembly (top)
• Deck assembly (upper side)
• Deck assembly (upper side)

Contents Page

Precautions (ISO Connector) 4 Precautions 6 Laser Products 6 Power and Sound Controls 7 Radio Basics 8

CD Player and CD Changer 14

Installation.... 16

Anti-Theft System.... 19

Electrical Connections.... 20

Speaker Connections.... 22

Fuse 22

Maintenance.... 22

Specifications 23

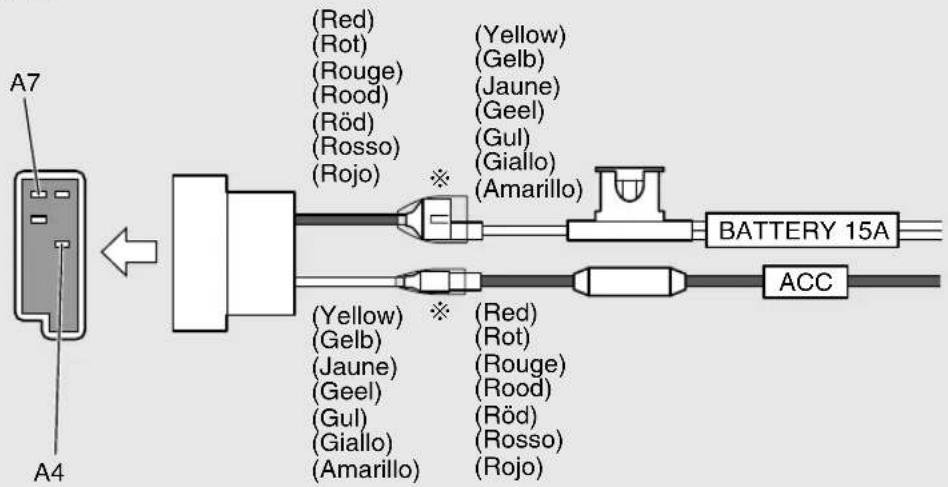

Precautions (ISO Connector)

• The pin arrangement of the power connector conforms to ISO standard.
• The pin arrangement of ISO connectors in some cars may differ from the ISO standard.
• Please check that the pin arrangement of the connector in your car conforms to ISO standard.
• For car types A and B, change the wiring of the red and yellow leads as shown at right.
• After connection, insulate the portions marked (※) with insulating tape. Note: For cars other than types A and B, please consult your local car shop.

Car Type A

● +12 V Battery (Permanent supply) - +12 V-Batterie - Batterie +12 V - +12 V accu - +12 V batteri - Batteria +12 V • +12 V Batería - IGN or ACC switched 12V supply • Zündschalter (ACC/IGN) - Sélecteur ACC/IGN - ACC/IGN schakelaar • tändningsomkopplare - Interruttore ACC/IGN - Llave ACC/IGN

Car Type B

• +12 V Battery (Permanent supply)
• +12 V-Batterie
• Batterie +12 V
• +12 V accu
• +12 V batteri
• Batteria +12 V • +12 V Batería

- No connection

- Kein Anschluß

- Non connecté

- Niet aangesloten

- ingen anslutning

- Non collegato

- No connection

Panasonic welcomes you to their constantly growing family of electronic products owners.

We endeavor to give you the advantages of precise electronic and mechanical engineering, manufactured with carefully selected components, and assembled by people who are proud of the reputation their work has built for our company. We know this product will bring you many hours of enjoyment, and after you discover the quality, value and reliability we have built into it, you too will be proud to be a member of our family.

Precautions

Volume Level

For your driving safety, keep the volume level low enough to be aware of road and traffic conditions.

Car Washing

To avoid electrical shorts which may cause fire, or other damage, do not expose this Product (including the speakers and CDs) to water or excessive moisture.

Car Ventilation

If your car is parked for several hours in direct sunlight, the temperature inside the car may become very high. It is advisable to drive the car and give the interior a chance to cool down before switching the unit on.

Power Supply

This Product is designed to be used in a car having a 12-Volt negative ground battery system.

Disc Mechanism

Do not insert coins or any small objects. Keep screwdrivers and other metallic objects away from the disc mechanism and disc.

Service

This Product is made of precision parts. Do not attempt to disassemble or adjust any parts. For repair, please consult your nearest authorized Panasonic Service Center.

Note: The preset memory is cleared to return to the original factory setting when the power connector or battery is disconnected.

Note: For remote control, buy the CA-RC61EX Remote Controller available as an optional accessory. Read the remote controller manual for instructions on how to operate the remote controller.

Laser Products

Caution: This product utilizes a laser.

Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

Laser products:

Wave Length 780 nm

Laser Power No hazardous radiation is emitted with safety protection.

Do not take apart this unit or attempt to make any changes yourself.

This unit is a very intricate device that uses a laser pickup to retrieve information from the surface of compact discs. The laser is carefully shielded so that its rays remain inside the cabinet.

Therefore, never try to disassemble the player or alter any of its parts since you may be exposed to laser rays and dangerous voltages.

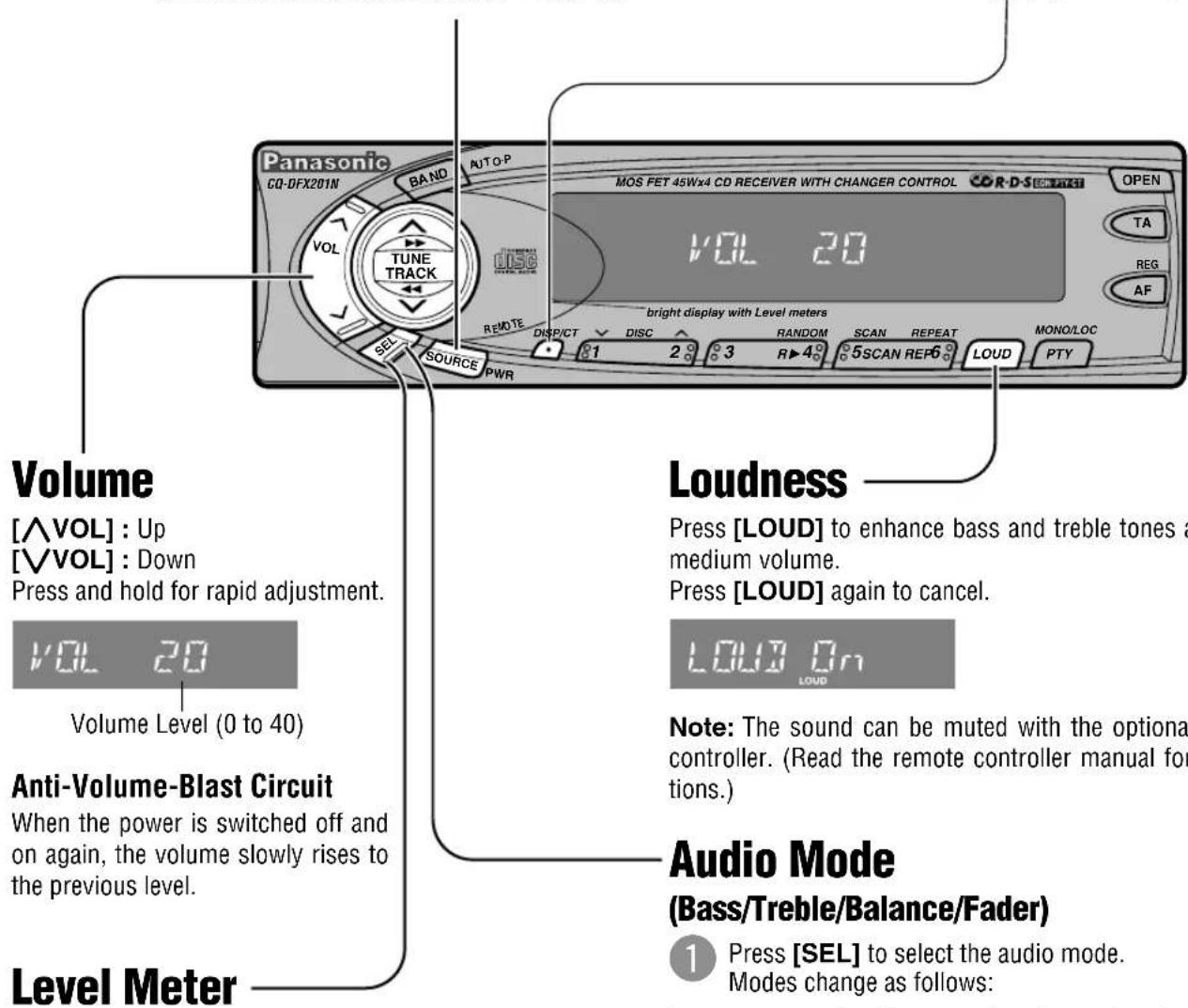

Power and Sound Controls

Power

Turn the key in the ignition until the accessory indicator lights.

Power on: Press [SOURCE] (PWR).

Power off: Press and hold [SOURCE] (PWR) again. The panel removal alarm sounds. (→Page 19)

Note: When the power is switched on for the first time, a demonstration message appears on the display.

To cancel this display, press [•] (DISP/CT).

1 Press and hold [SEL] to change to the display control mode. ("PATTERN" appears on the display.)

([VTUNE]: opposite direction)

Loudness

Press [LOUD] to enhance bass and treble tones at low or medium volume.

Press [LOUD] again to cancel.

Note: The sound can be muted with the optional remote controller. (Read the remote controller manual for instructions.)

Audio Mode

(Bass/Treble/Balance/Fader)

1 Press [SEL] to select the audio mode. Modes change as follows:

2 Press [∧VOL] or [∨VOL] to change each level.

Bass (-12 to +12)5 + 300

Treble (-12 to +12) + 3 dB

Balance BAL L 2 (Left / Right: 1 to 15)

Fader FAD F 3 (Front / Rear: 1 to 15)

Note: If no operation takes place for more than 5 seconds in the audio mode (2 seconds in Volume mode), the display returns to Regular Mode.

1 Mode Selection (SOURCE)

Press [SOURCE] to change to the radio mode.

2 Band

Press [BAND] to change the bands.

3 Manual Tuning

[∧TUNE] : Higher frequency

[VTUNE] : Lower frequency

Seek Tuning

Press and hold [ÂTUNE] or [VVTUNE] for more than 0.5 seconds, then release. Seeking will start.

4 Mono/Local Selection (MONO /LOC)

MONO : Monaural reception. Select MONO to reduce noise when receiving a stereo broadcast.

LOCAL: Tunes in strong stations only.

FM broadcasts

Press and hold [PTY] (MONO/LOC) to change the mode. Release when at the desired point.

AM broadcast

Press [PTY] (MONO/LOC) to switch LOCAL mode on and off.

Preset Station Setting

Up to 6 stations each can be saved in the FM1, FM2, FM3 and AM (LW/MW) preset station memories.

Caution: To ensure safety, never attempt to preset stations while you are driving.

3 Tuning in a Preset Station

Press the corresponding preset button [1] to [6] to tune in a preset station.

Note: You can change the memory presetting by repeating the above procedure.

RDS Basics

The following functions are available when receiving RDS stations.

PS Display

(Program Service name)

The name of the station is displayed instead of the frequency.

CT Service

(Clock Time)

When receiving an RDS station, the CT (Clock Time) service automatically adjusts the time. "NO CT" is displayed in areas where CT service is not available.

(See page 13 for Clock Set)

AF

(Alternative Frequency list)

When reception is poor, an RDS station broadcasting the same program is tuned in automatically.

AF Mode

Press [AF] to select one of the following AF modes:

AFI

Low level AF operating sensitivity.

High level AF operating sensitivity.

When the AF network of an RDS station is not required

Display Change

Press [•] (DISP/CT) to change the display as follows.

PS (Program Service Name) (Default)

Auto Preset Memory

Auto preset of RDS stations works only when the AF mode is on.

Best Station Research

Best Station Research is automatically activated to store the station with the best reception for each preset button.

PI (Program Identification) Seek

If Best Station Research does not work properly and reception is poor when tuning in a preset station, press the same preset button again. PI Seek will search an AF station with good reception.

REG (Region) Mode

Changes the selection range of AF, Best Station Research and PI Seek. Press and hold [AF] (REG) when AF mode is on.

REG ON

The frequency is changed only for programs within the region.

REG OFF

The frequency is changed also for programs outside the region.

Traffic Announcements

Some RDS FM stations periodically provide traffic information.

TP

(Traffic Program Identification)

Broadcasting of traffic information

TA

(Traffic Announcements Identification)

Radio announcements on traffic conditions

TA Mode

Press [TA] to switch TA mode on and off.

TA on

TA Volume Set

(Volume Level : 0 to 40)

Press [AVOL] or [VVOL] while receiving traffic announcements.

The TA volume differs from the regular volume (by up to 5 levels).

TA in CD/CD Changer Mode

When TA is on, CD or CD changer playback will be interrupted by FM traffic announcements.

Muting in TA Mode

To listen only to Traffic Announcements while muting, press and hold [TA] for more than 2 seconds.

To cancel the muting TA on mode (muting in TA mode → TA mode), take either of the following two actions.

• Press [TA] again.
• Press [AVOL] several times.

Note: To switch to TA off, press [TA] again and hold for more than 2 seconds.

TP Auto Search

When reception of a TP station is poor, TP Auto Search will automatically search for a TP station with better reception.

Seek and Preset Station

TP Seek Tuning

Seek tunes only TP stations. (→Page 8)

Auto TP Station Preset

The 6 strongest TP stations are saved in memory. (→ Page 9)

Tuning in a TP Preset Station

(→ Page 9)

RDS (Radio Data System) (continued)

PTY Reception (Program Type)

RDS FM stations provide a program type identification signal.

Example: news, rock, classical music, etc.

PTY Mode

Press [PTY] to switch PTY display mode on or off.

When there is no corresponding program type, "NO PTY" is displayed.

PTY Selection

1 Press [∧TUNE] to change the program type as follows. ([∨TUNE]: opposite direction)

SPEECH	→	MUSIC	→	NEWS	→	AFFAIRS	→
INFO	→	SPORT	→	EDUCATE	→	DRAMA	→
CULTURES	→	SCIENCE	→	VARIED	→	POP M	→
ROCK M	→	M.O.R.M	→	LIGHT M	→	CLASSICS	→
OTHER M	→	WEATHER	→	FINANCE	→	CHILDREN	→
SOCIAL A	→	RELIGION	→	PHONE IN	→	TRAVEL	→
LEISURE	→	JAZZ	→	COUNTRY	→	NATIONAL	→
OLDIES	→	FOLK M	→	DOCUMENT	→

2 Select the desired program and press [BAND]. Seek will start to tune in to a station broadcasting the selected program type.

PTY display in Swedish

Press [•] (DISP/CT) to switch the PTY display language as follows.

PTY Search

1 Select a program type by pressing the preset button.

The preset program type appears on the display for 5 seconds.

(Example) Press preset button [1].

2 Press the same preset button again (or press [BAND]) to tune in the desired program type station.

(Example) Press preset button [1] again.

PTY Preset Change

1 Select a program type by using PTY Selection or pressing PTY Preset buttons.

2 Press and hold one of the buttons [1] to [6]. (Example) Press and hold preset button [2].

PTY Type Preset

Program types are stored in the memory under preset buttons [1] to [6] shown in the table below.

To tune in the desired program type, press any of preset buttons [1] to [6].

	News NEWS	1
	Speech2	SPEECH 2	AFFAIRS / INFOEDUCATE / DRAMACULTURES / SCIENCEVARIED / WEATHERFINANCE / CHILDRENSOCIAL A / RELIGIONPHONE IN / TRAVELLEISURE / DOCUMENT
	Sport SPORT3
	Pop. Music	POP M 4	POP.M4
	Classic Music	CLASSICS5	CLASSICS5
6	Other Music	MUSIC 6	ROCK M / M.O.R.MLIGHT M / OTHER MJAZZ / COUNTRYNATIONAL / OLDIESFOLK M

EON (Enhanced Other Networks)

When EON data is received, the EON indicator lights and the TA and AF functions are expanded as follows.

TA: Traffic information from the current and other network stations can be received.

AF: The frequency list of preset RDS stations is updated by EON data.

EON enables the radio to make fuller use of RDS information. It constantly updates the AF list of preset stations, including that currently tuned in to. For example, if you preset a station far from home, you will later be able to receive the same station at an alternative frequency, or any other station serving the same program. EON also keeps track of locally available TP stations for quick reception.

Emergency Announcement Reception

When an emergency announcement is broadcast, the unit is automatically switched to receiving that broadcast. If this happens in a mode other than the radio mode (the CD mode, the CD changer mode) or in Muting in the TA mode, "ALARM" blinks on the display.

When RDS CT service is not available, set the clock as follows.

AM Band

① Press [BAND] to change to AM band.

② Press [•] (DISP/CT).

Hours

③ Press and hold [•] (DISP/CT).

④ Press [∧TUNE] or [∨TUNE].

Minutes

⑤ Press [•] (DISP/CT).

⑥ Press [∧TUNE] or [∨TUNE].

⑦ Press [•] (DISP/CT).

Note: Hold [∧TUNE] or [∨TUNE] to change numbers rapidly.

CD Player and CD Changer

Disc Insert and Playback

1. Open the front panel. 2. Insert a disc. 3. Close the front panel manually. Playback will start automatically.

Stop and Disc Eject.

1. Open the front panel. 2. Press [▲] to stop CD playback and eject the disc. 3. Close the front panel manually.

Label side

Caution: Only 12cm CDs are compatible with this unit.

• Do not touch the underside of the disc.
• Do not scratch the disc.
• Do not bend the disc.
• When not in use, store the CD in its case.

Label side

Do not use irregularly shaped CDs.

Do not leave discs in the following places:

• Direct sunlight ● Dirty, dusty, and damp areas
• Near car heaters
• Seats and dashboards

Disc Cleaning

Use a dry, soft cloth to wipe from the center outward.

Caution on New Discs

A new disc may have rough edges on its inner and outer perimeter. These may cause malfunction.

Remove the rough edges using a pencil, etc.

Rough edge

Listening to a CD Mode Selection —

Press [SOURCE] to change to the CD or CD changer mode.

Source

Track Selection

[▶▶TRACK] : Advance to the next track. [◀◀TRACK] : Back to beginning of the current track. Back to previous track. (Press twice)

Track Search

Press and hold

[▶▶TRACK] : Fast forward

[◀◀ TRACK] : Fast backward Release to resume regular CD or CD changer play.

Various Ways of Listening

Random Play	Track
Scan Play	Track
	Disc(Only for CD Changer)
Repeat Play	Track

Error Display Messages for CD/CD Changer

• Press [4] (R ▶). All tracks (on all discs in the magazine*) are played in random order.
• Press again to cancel.
• Press [5] (SCAN). The first 10 seconds of each track on the disc are played in sequence.
• Press again to cancel.
• Press and hold [5] (SCAN) for more than 2 seconds. The first track of all discs in the magazine is played for 10 seconds each.
• Press again to cancel.
• Press [6] (REP). The current track is repeated.
• Press again to cancel.

(* : CD changer)

CD is dirty or inverted. The disc will be ejected automatically.

CD is scratched. The disc will be ejected automatically.

CD stops operating for some reason. Please eject the CD. If the error message E3 is still displayed, please turn off the car engine (ACC off) and remove the fuse from the battery lead (yellow) for 1 minute or more. Then reinstall the fuse.

There is no disc in the magazine. (Only for CD changer)

Preparation

• Before installation, check the radio operation with antenna and speakers.
• Disconnect the cable from the negative (−) battery terminal (see caution below).
• The unit should be installed in a horizontal position with the front end up at a convenient angle, but not more than 30 degrees.

Caution: Do not disconnect the battery terminals of a car with trip or navigational computer since all user settings stored in memory will be lost. Instead, take extra care when installing the unit to prevent shorts.

Dashboard Installation - Installation Opening

The unit can be installed in any dashboard having an opening as shown at right.

The dashboard should be

4.5 mm - 6 mm thick in order to be able to support the unit.

Installation Precautions

This product should be installed by a professional installer, if possible.

In case of difficulty, please consult your nearest authorized Panasonic Service Center.

1. This system is to be used only in a 12-volt, DC battery system (car) with negative ground.
2. Follow the electrical connections carefully (→Page 20). Failure to do so may result in damage to the unit.
3. Connect the power lead (red) after all other connections are made.
4. Be sure to connect the battery lead (yellow) to the positive terminal (+) of the battery or fuse block (BAT) terminal.
5. Insulate all exposed wires to prevent short circuiting.
6. Secure all loose wires after installing the unit.
7. Please carefully read the operating and installation instructions of the respective equipment before connecting it to this unit.

- We strongly recommend that you wear gloves for installation work to protect yourself from injuries.

First complete the electrical connections, and then check them for correctness. (→Page 20)

- When bending the mounting tab of the mounting collar with a screwdriver, be careful not to injure your hands and fingers.

Secure the rear of the unit.

After fixing Mounting Bolt ② and Power Connector ③, fix the rear of the unit to the car body by either method (a) or (b) shown at right.

Insert Trim Plate ⑤.

After installation reconnect the negative (−) battery terminal.

Supplied Hardware

No.	Item	Diagram	Q'ty
1	Mounting Collar		1
2	Mounting Bolt (5 mmø)		1
3	Power Connector		1
4	Removable Face Plate Case		1
5	Trim Plate		1
6	ISO Antenna Adapter		1

Make sure that the lock lever (※) is flush with the mounting collar (not projecting outward).

Lock Lever

(a) Using the Rear Support Strap (Option)

(b) Using the Rubber Cushion (Option)

Installation (continued)

To Remove the Unit

(b) Push the face plate to either the right or left, then pull it out toward you.

2 Remove the trim plate ⑤ with a screwdriver.

3 Pull out the unit while pushing down the lock lever with a screwdriver.

4 Remove the unit pulling with both hands.

Cautions:

• Do not touch the contacts on the face plate or on the main unit, since this may result in poor electrical contacts.
• If dirt or other foreign substances get on the contacts, wipe them off with clean and dry cloth.
• Do not apply a strong downward force onto the face plate and do not put anything on it while it is open, or it might be damaged.

Anti-Theft System

This unit is equipped with a removable face plate. Removing this face plate makes the radio totally inoperable.

Place Removable Face Plate into Case

① Switch off the power of the unit. ② Remove the removable face plate. (→ Page 18) ③ Gently press the bottom of the case and open the cover. Place the face plate into the case and take it with you when you leave the car.

Cautions:

• This face plate is not water-proof. Do not expose it to water or excessive moisture.
• Do not remove the face plate while driving your car.
• Do not place the face plate on the dashboard or nearby areas where the temperature rises to high levels.

Install Removable Face Plate

① Fit the face plate with its right or left hole on one of the pins provided on the main unit. ② Fit the other hole on the other pin applying slight pressure. ③ Move the face plate up and down a few times to make sure it is secure. Then close the front panel and press down the right side of the face plate until it clicks into place.

Panel Removal Alarm

This alarm sounds to warn you not to forget to remove the panel before leaving your car.

① Press and hold [SEL] to change to display control mode. ("PATTERN" is displayed.) (→ Page 7) ② Press [SEL]. “LED On” or “LED OFF” is displayed. ③ Press [ÂTUNE] or [VVTUNE] to turn the Panel Removal Alarm on or off. (LED ON or OFF)

Electrical Connections

Cable Wiring Diagram

Example: Connection with CD changer CX-DP88N (Option)

Cautions:

- Check the connectors provided on your car (see note on page 4 and 5) before connecting the system.

- This unit is designed for use in a car having a 12-volt negative ground battery system.

- To prevent damage to the unit, be sure to follow the connection diagram below.

- Strip about 5 mm of the lead ends for connection (only non-ISO connector cords).

- Do not insert the power connector into the unit until the wiring is completed.

- Be sure to insulate any exposed wires to prevent short circuiting with the car chassis. Bundle all cables, and prevent cable terminals from touching any metal parts.

- This unit can be connected to an optional CD changer (CX-DP9061/DP9060EN, CX-DP88N, CX-DP801/DP803EN or CX-DP601EN) and optional extension cord.

- For details consult your nearest authorized Panasonic Dealer.

- For connection to a CD changer, refer to the operating instructions of the CD changer (CX-DP9061/DP9060EN, CX-DP88N, CX-DP801/803EN or CX-DP601EN).

C1 : (Orange)

Telephone Mute Lead (*)

Connect to the car telephone mute lead.

Note: The telephone mute lead is only for connection to the radio mute lead. Output other than telephone will not be muted.

Navi Mute Lead (**)

To the Navi Mute lead of the Panasonic car navigation system.

* Telephone Mute: The sound from the speakers cannot be heard while the telephone conversation is in progress. ** Navi Mute: The sound from the speakers cannot be heard while the navigation guide is on.

A8 : Ground Lead (Black)

To a clean, bare metallic part of the car chassis

A7 : Power Lead (ACC or IGN) (Red)

To ACC power, +12V DC

A4 : Battery Lead (Yellow)

To the car battery, continuous +12 V DC

A5 : (Dark blue)

Motor Antenna Relay Control Lead

(To Motor Antenna) (Max. 500mA)

This lead is not intended for use with a switch actuated power antenna.

Amp-Relay Control Power Lead

This lead is for connection to a Panasonic power amplifier.

Speaker Connections

Caution: Please follow the instructions given below. Failure to do so will cause damage to the unit and speakers.

• Use ungrounded speaker only.
• The maximum speaker output should be 45 W or more. (If used with the optional power amplifier, the speaker output should be higher than the maximum amplifier output.) ● The speaker impedance should be 4 - 8 Ω.
• This unit uses the BTCL circuit, so each speaker should be connected separately using parallel vinyl insulated cords.
• The speaker cords and the power amplifier unit should be kept away (about 30 cm apart) from the antenna and antenna extension cord.

- Never connect the speaker cord to the body of the car.

- Do not use a 3-wire type speaker system having a common earth lead.

- Do not connect more than one speaker to one set of speaker leads.

Fuse

Use fuses of the same specified rating (15 A). Using different substitutes or fuses with higher ratings, or connecting the unit directly without a fuse, could cause fire or damage to the unit.

If the fuse replacement fails, contact your nearest authorized Panasonic Service Center.

Maintenance

Your product is designed and manufactured to ensure the minimum of maintenance. Use a soft cloth for routine exterior cleaning. Never use benzine, thinner, or other solvents.

General		FM Stereo Radio
Power Supply	: DC 12 V (11 V - 16 V), Test Voltage 14.4 V, Negative Ground	Frequency Range : 87.5 - 108 MHzUsable Sensitivity : 6 dB/μV(S/N 30 dB)Stereo Separation : 35 dB (at 1 kHz)
Tone Controls	: Bass; ±12 dB at 100 HzTreble;±12 dB at 10 kHz
Current Consumption	: Less than 2.5 A (CD mode, 0.5 W 4-Speaker)	MW Radio
Maximum Power Output	: 45 W x 4 (at 4 Ω)	Frequency Range : 531 - 1,602 kHzUsable Sensitivity : 28 dB/μV (S/N 20 dB)
Power Output	: 22 W x 4(DIN45 324, at 4 Ω)	LW Radio
Speaker Impedance	: 4 - 8 Ω	Frequency Range : 153 - 279 kHzUsable Sensitivity : 32 dB/μV (S/N 20 dB)
Pre-Amp Output Voltage	: 2 V (CD mode)
Pre-Amp Output Impedance	: 600 Ω
Dimensions (Main Unit)	: 178(W) x 50(H) x 150(D) mm	CD Player
Weight (Main Unit)	: 1.6 kg	Sampling Frequency : 8 times oversamplingDA Converter : MASH•1 bit/4 DAC SystemError Correction System : Panasonic Super Decoding AlgorithmPick-Up Type : Astigma 3-beamLight Source : Semiconductor laserWavelength : 780 nmFrequency Response : 20 Hz - 20 kHz (±1 dB)Signal to Noise Ratio : 96 dBTotal Harmonic Distortion : 0.01 % (1 kHz)Wow and Flutter : Below measurable limitsChannel Separation : 75 dB

Note: Specifications and design are subject to modification without notice due to improvements.

Matsushita Electric Industrial Co., Ltd.

Central P.O. Box 288, Osaka 542-8588, Japan
